Data Modeling of Multi-Axle Special Vehicles and Lateral Dynamics Applications

doi:10.12382/bgxb.2022.0811

Abstract

Abstract:

The dynamic model of multi-axle special vehicles has strong nonlinearity. The modeling method based on physical laws requires precise model parameters and complex mathematical equations to reflect the characteristics of vehicle dynamics. In the absence of accurate prior physical parameter information of the vehicle and dynamic function relationship, to improve the fidelity of vehicle dynamics modeling, a data modeling method based on neural networks is proposed for the lateral dynamic behavior of a five-axle special vehicle. At the same time, it is used as an input to predict the state of the next moment, and the recursive update of data modeling is realized; for the closed-loop network model, a training strategy is designed for the closed-loop structure, and intermediate variables are introduced into the network model, so that the network still maintains the closed-loop structure during the training phase; the network module adopts a combination of Gate Recurrent Unit (GRU) and Full Neural Networks (FNN); the data set is generated by the TruckSim simulation model that has been verified by real vehicles. The results show that it is difficult for physical modeling to accurately predict vehicle state information without accurate prior vehicle information, and the data model has better fidelity. The closed-loop training method can make the network with a closed-loop structure have better fidelity. The maximum absolute errors of the prediction of lateral velocity and yaw velocity are only 0.079km/h and 0.342°/s; compared with the results of open-loop training, the maximum errors are reduced by 58.40% and 49.48%.

Key words: multi-axle special vehicle, lateral dynamics, data modeling, neural network

CLC Number:

TJ301

CHEN Jianwei, YU Chuanqiang, LIU Zhihao, TANG Shengjin, ZHANG Zhihao, SHU Hongbin. Data Modeling of Multi-Axle Special Vehicles and Lateral Dynamics Applications[J]. Acta Armamentarii, 2023, 44(1): 165-175.

Figures/Tables 28

Fig.1 Single track model

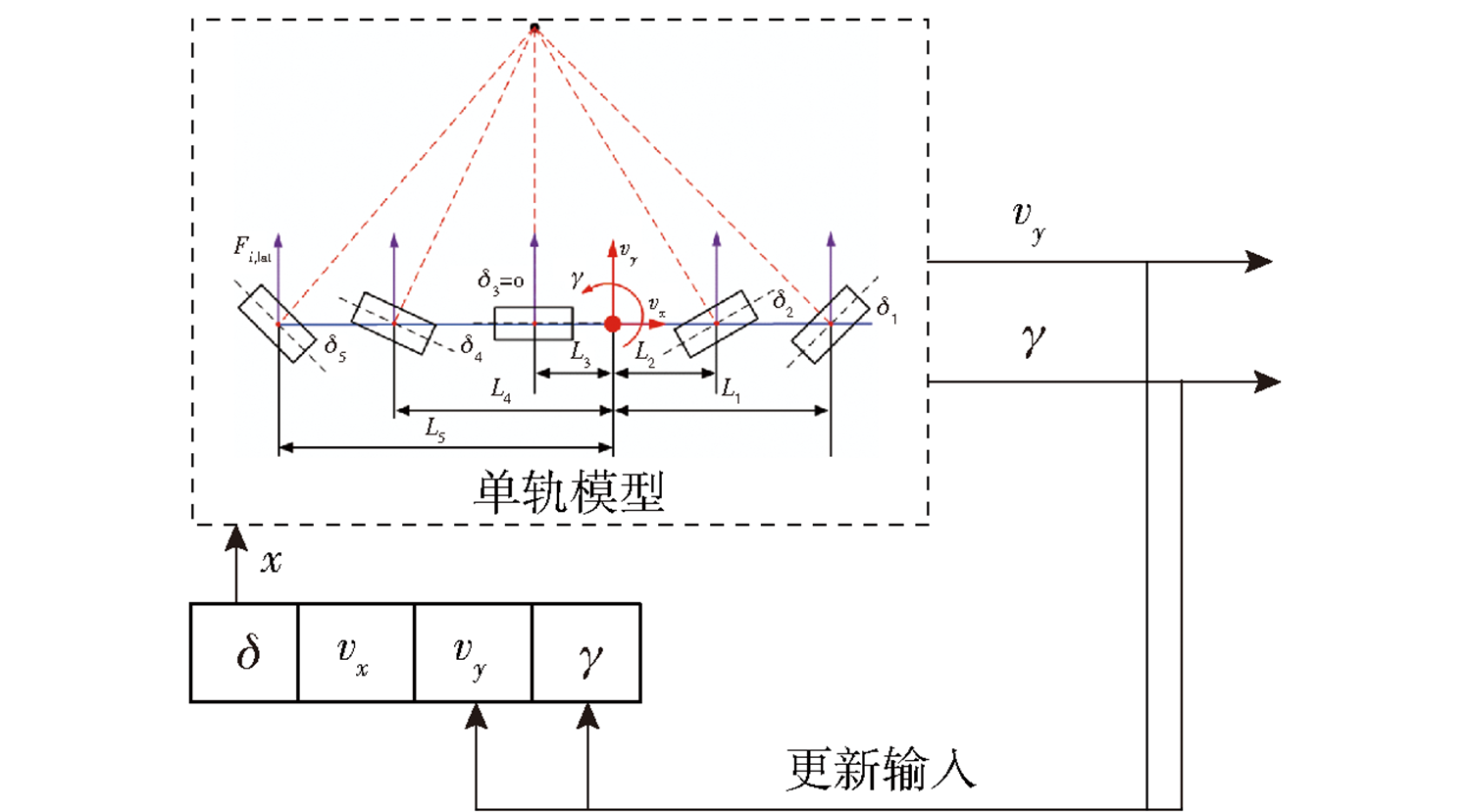

Fig.2 Update process of the physical model

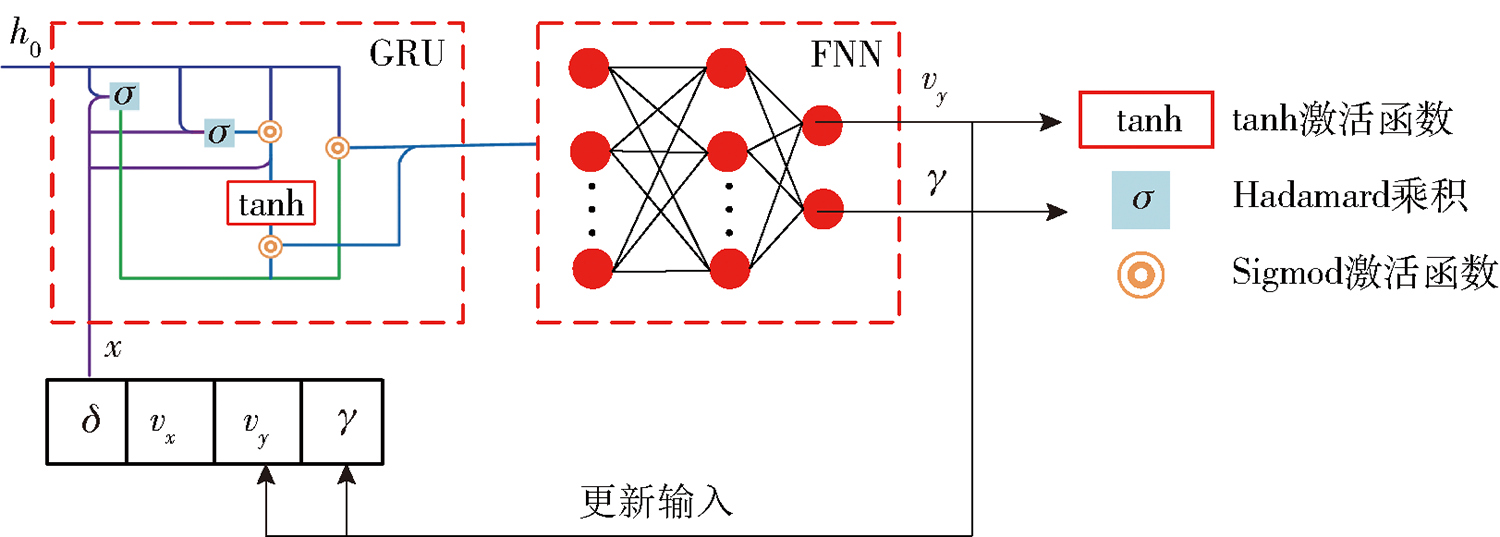

Fig.3 Closed-loop network model

Table 1 GRU module parameters

超参数	数值
GRU层数	1
输出层维度	150
输入序列长度	1

Table 2 FNN module parameters

超参数	数值
FNN层数	2
第1层维度	150×150
第1层激活函数	Tanh激活函数
第2层维度	150×2
第2层激活函数	无

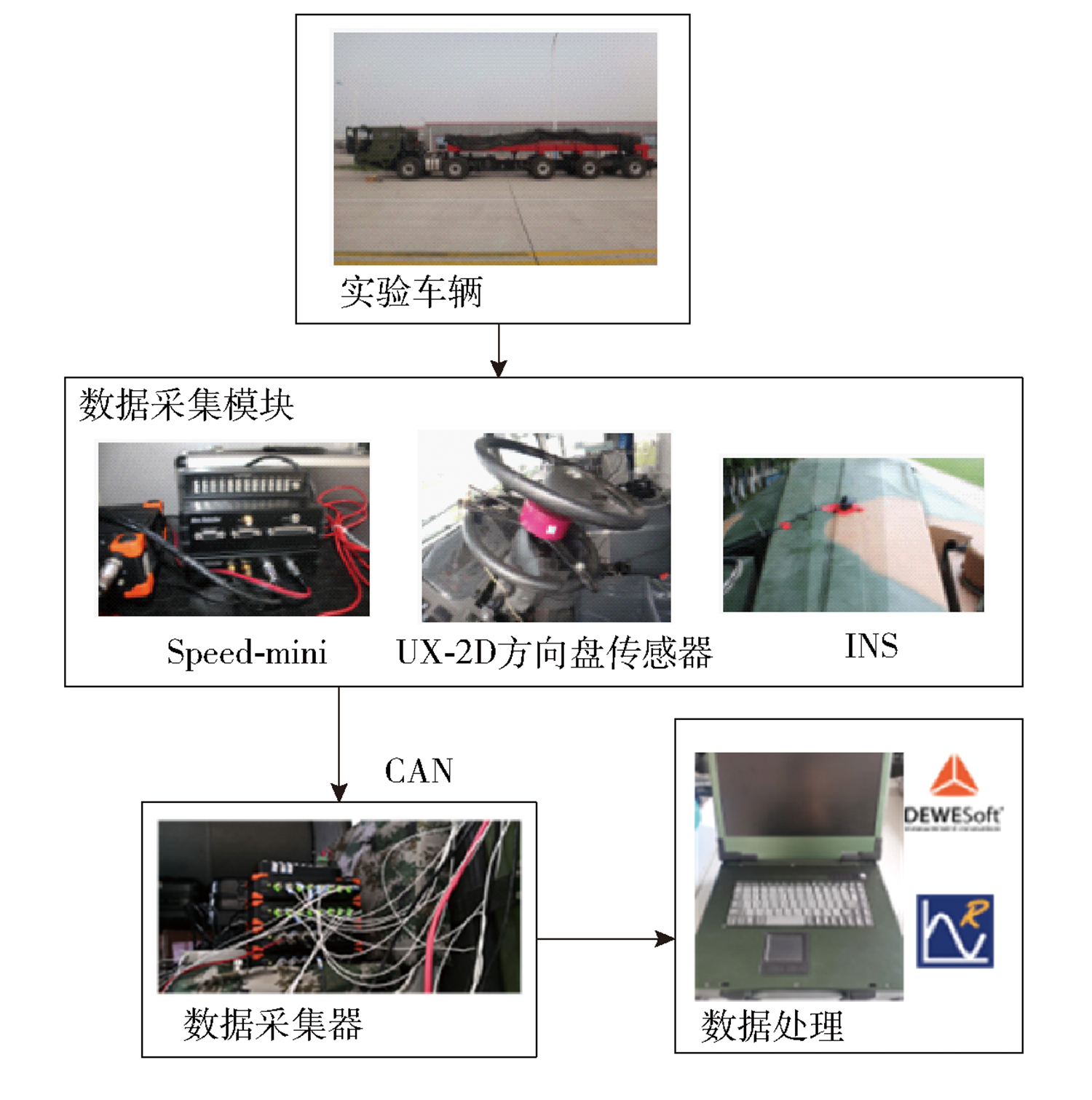

Fig.4 Experimental platform

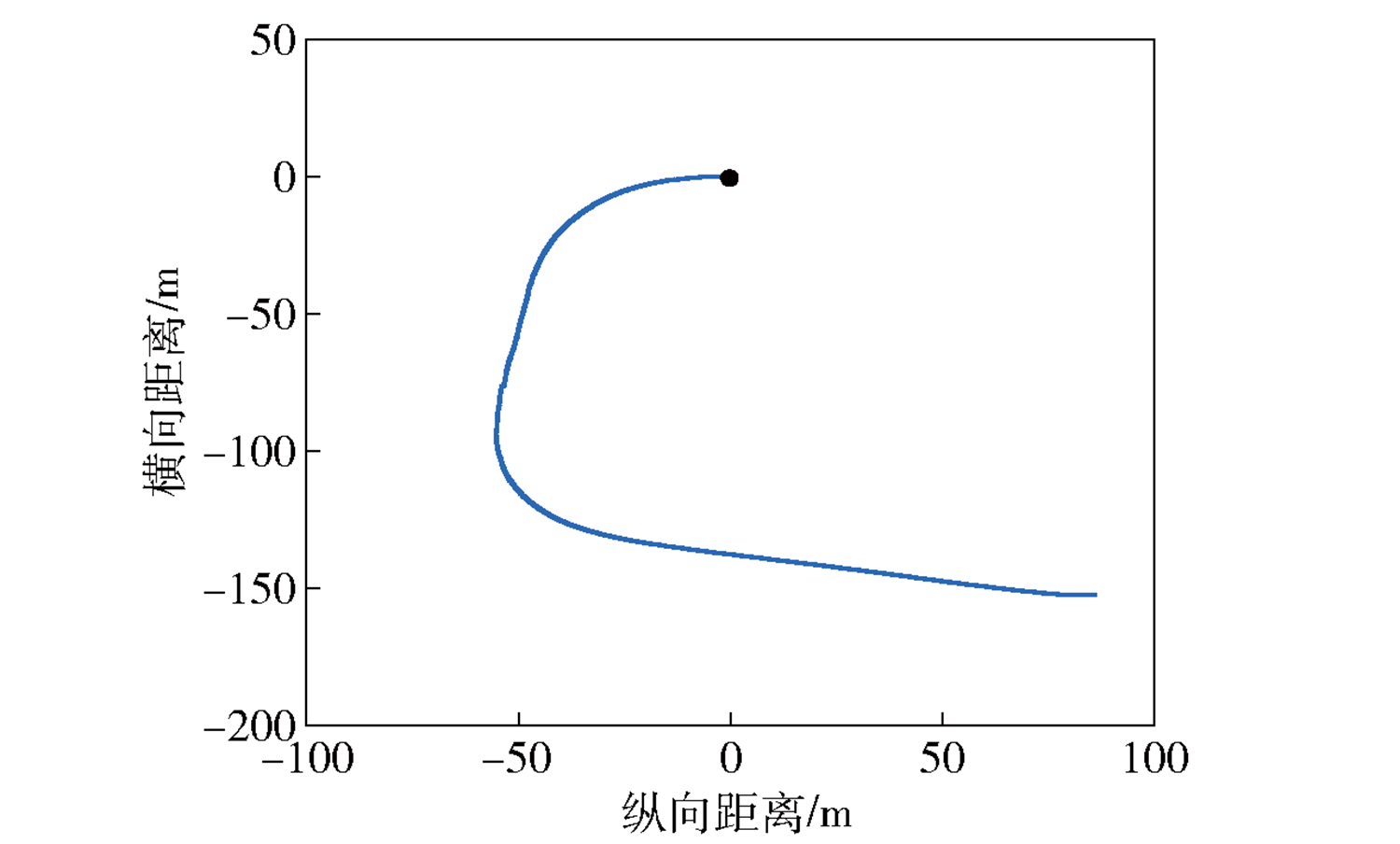

Fig.5 Experimental path

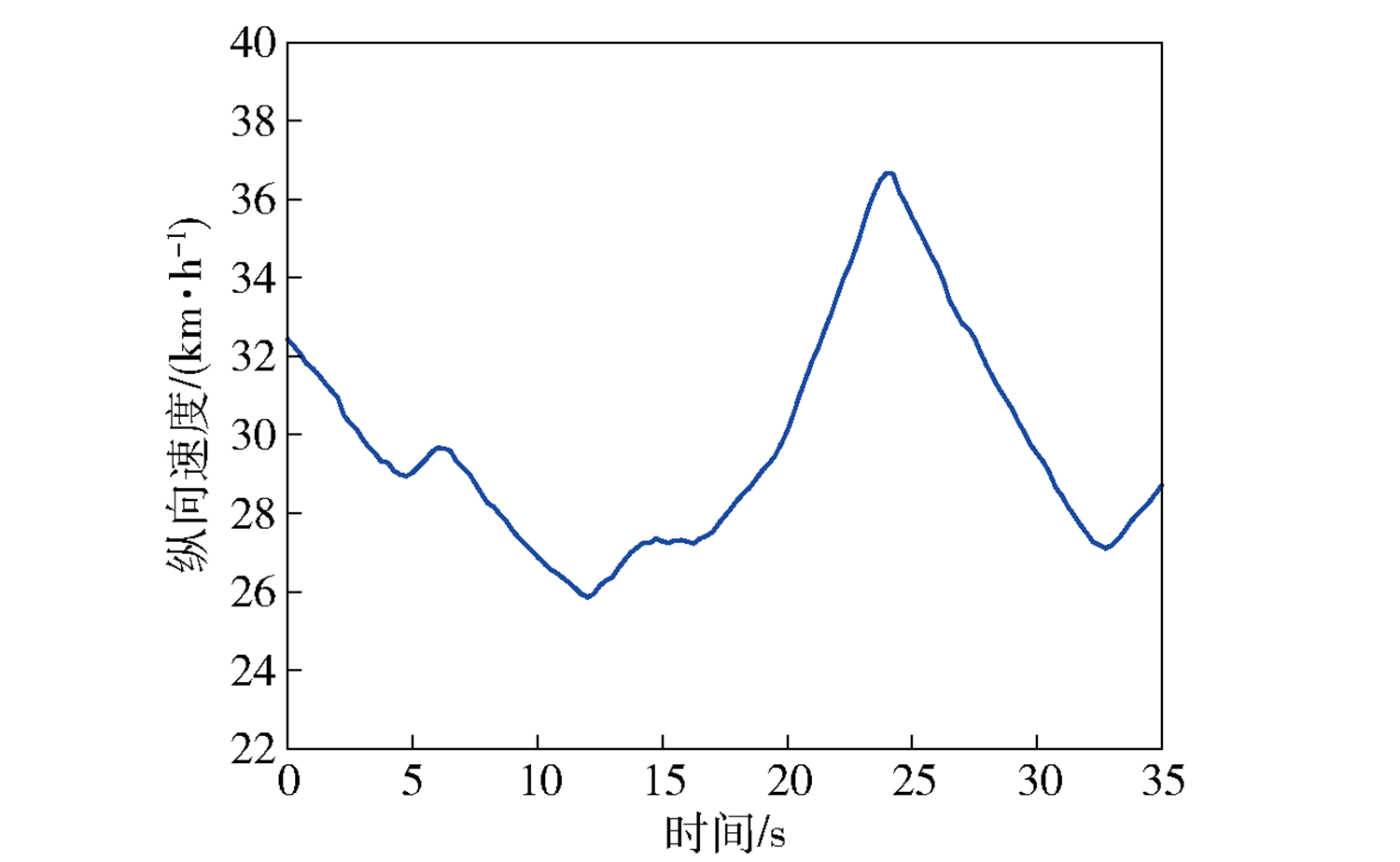

Fig.6 Experimental longitudinal velocity

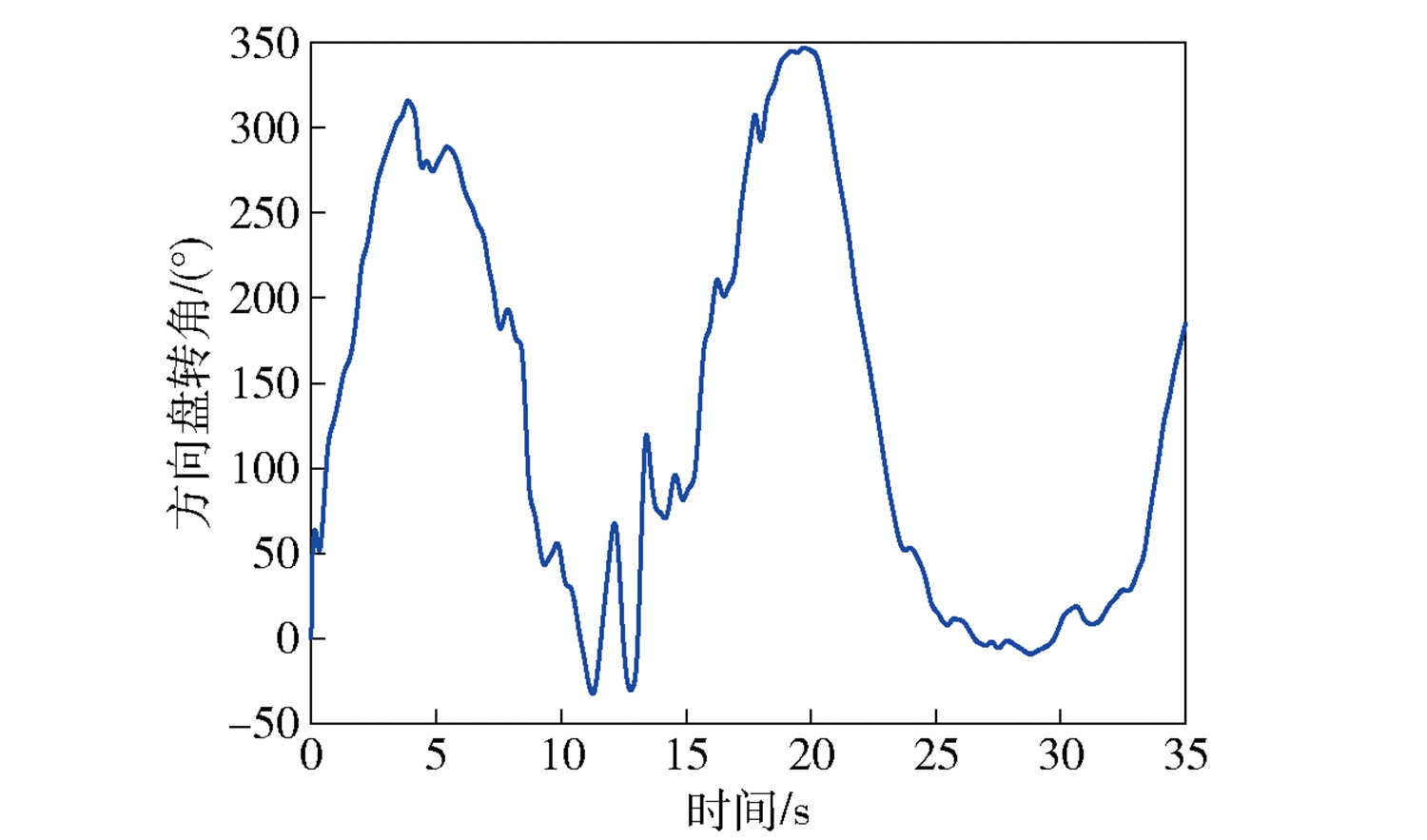

Fig.7 The experimental steering wheel angle

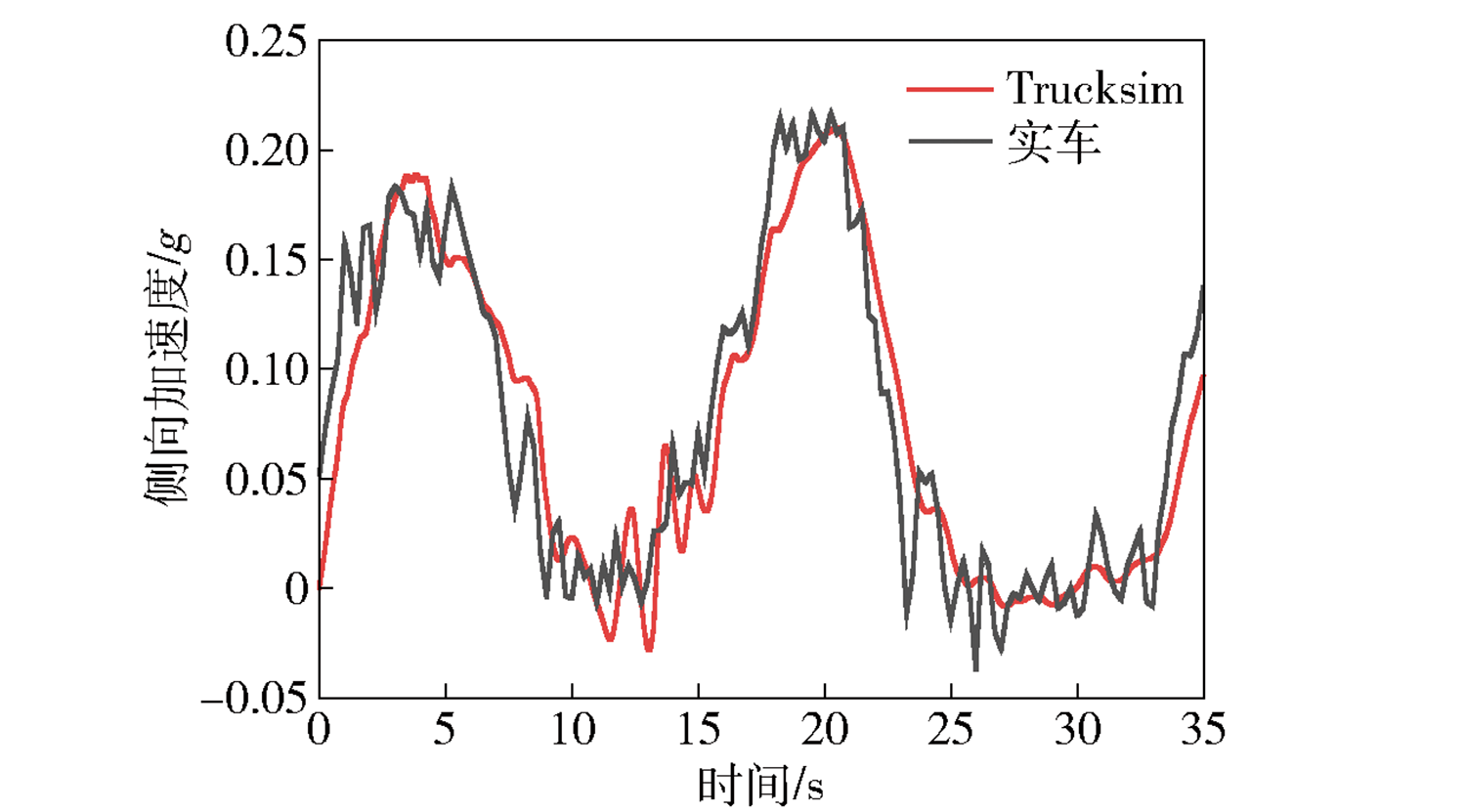

Fig.8 Lateral acceleration verification

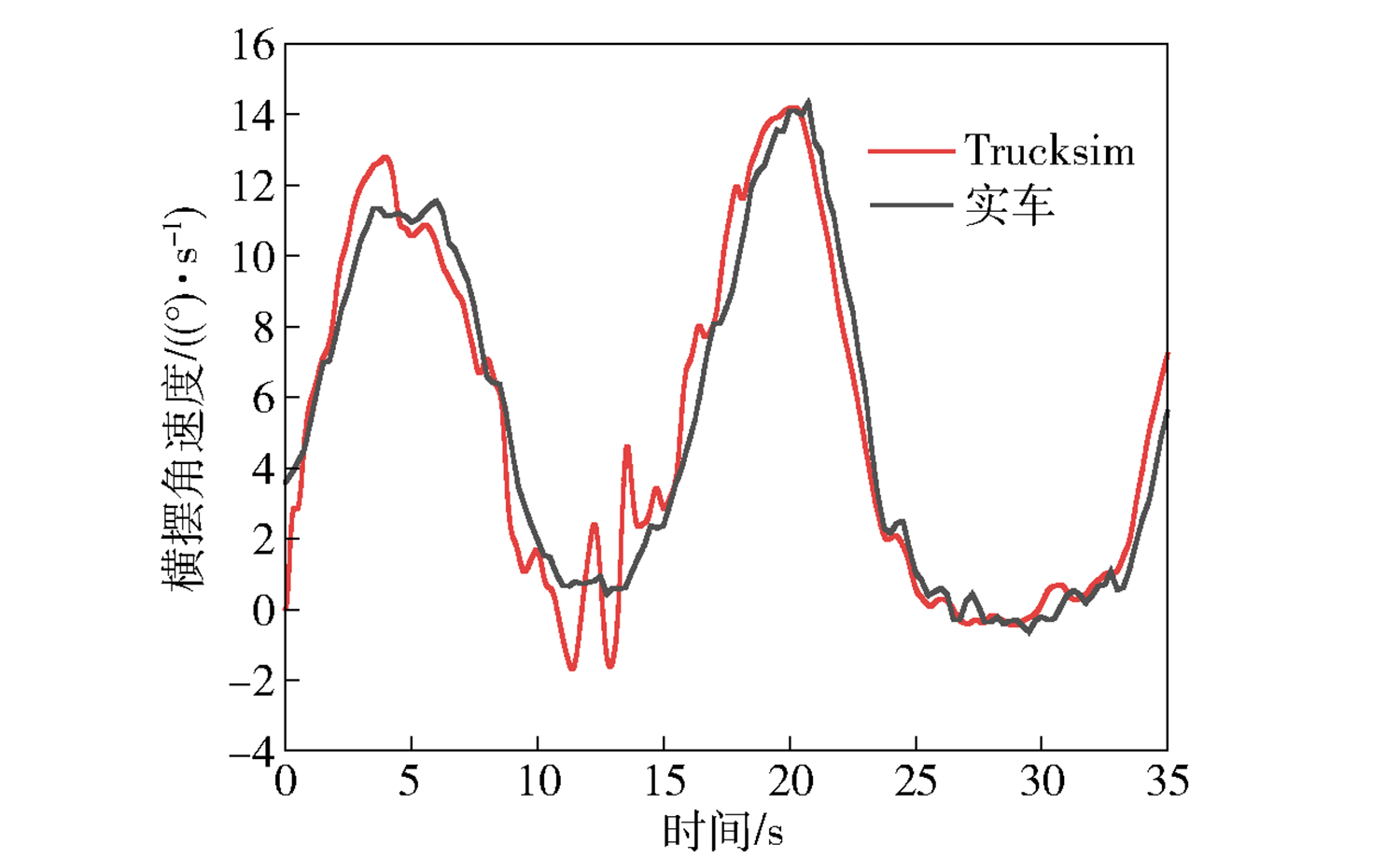

Fig.9 Yaw rate verification

Table 3 Trucksim model error

工况	均方根误差	最大误差
侧向加速度/g	0.0023	0.0735
横摆角速度/(°·s^-1)	0.0359	3.6006

Table 4 Trucksim simulated vehicle parameters

参数	数值
簧载质量m_s/kg	50200
转向系传动比τ	24.6
绕z轴转动惯量I_z/(kg·m²)	734251
绕侧倾轴转动惯量I_x/(kg·m²)	230700
质心高度h_c/m	1.4
轮胎半径r_w/m	0.55
悬架等效侧倾刚度K_s/(N·m/rad)	2000000
悬架等效阻尼系数C_s/(N·m·s/rad)	120000

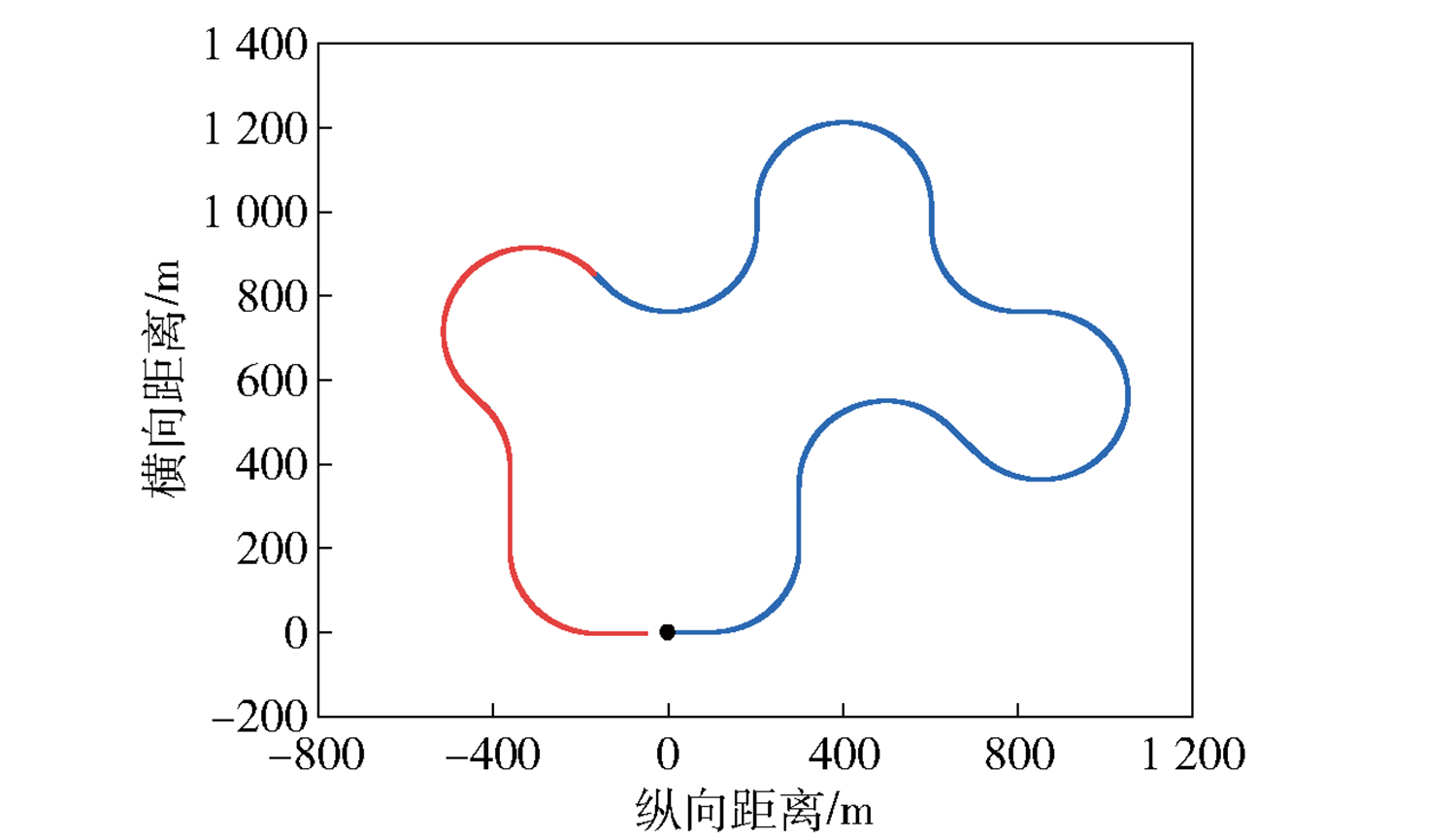

Fig.10 Driving path in dataset

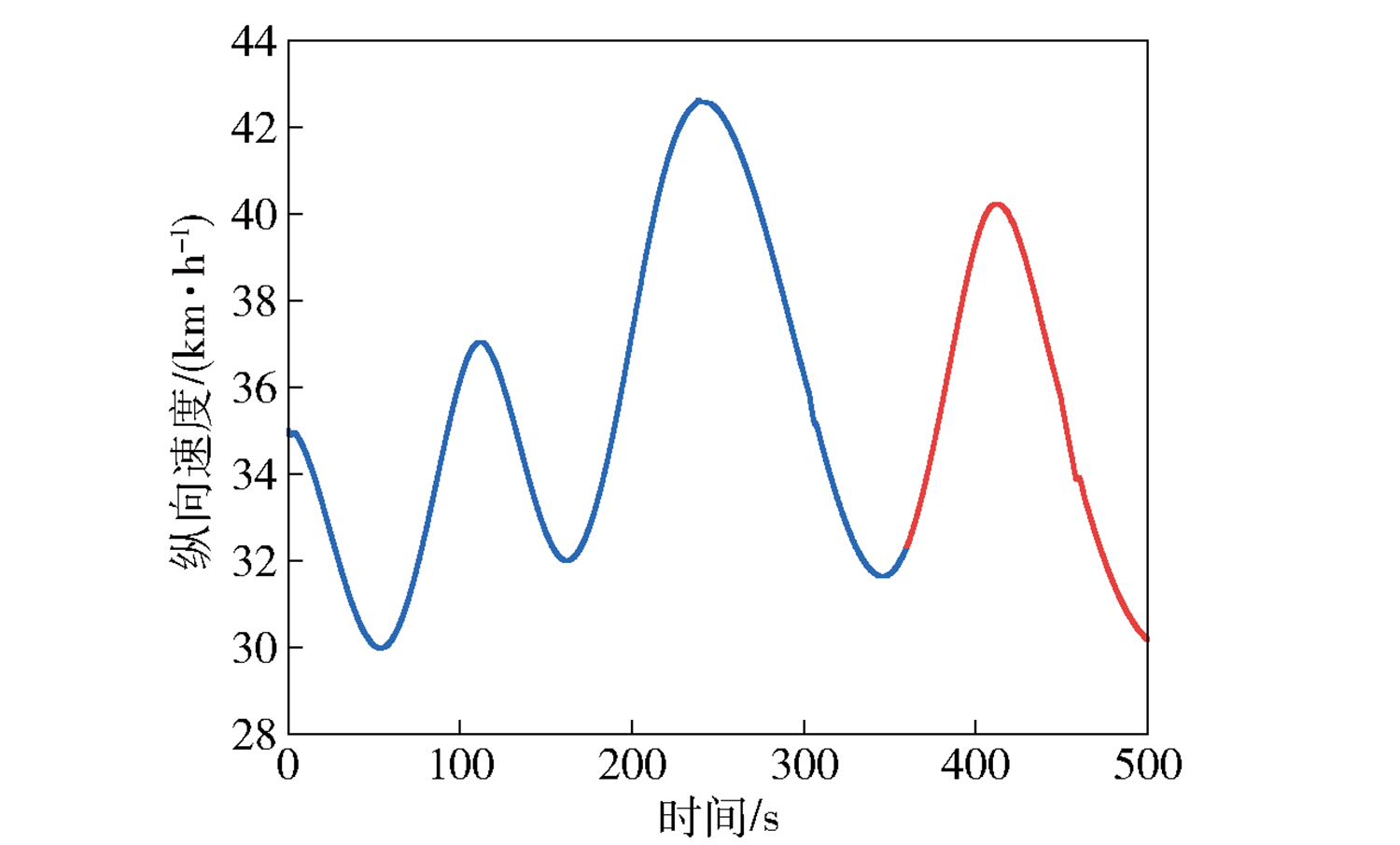

Fig.11 Longitudinal velocity in Dataset

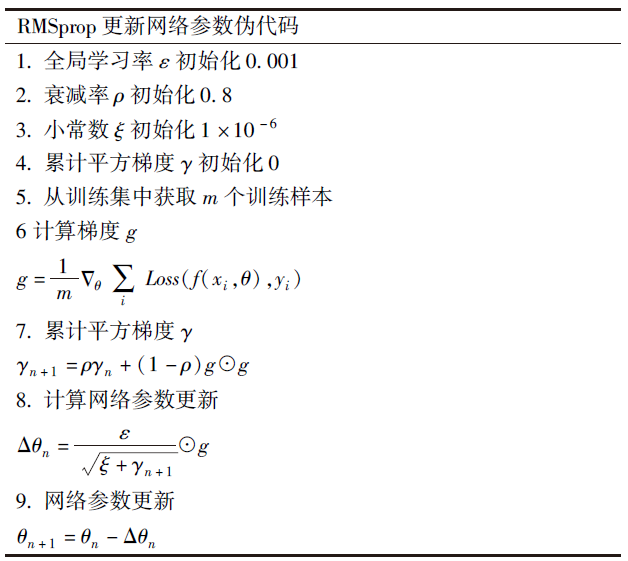

Fig.12 RMSprop optimizer update strategy

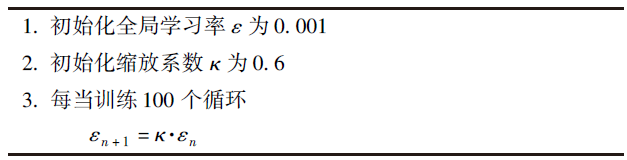

Fig.13 Dynamic update strategy of global learning rate

Fig.14 Training in closed structure

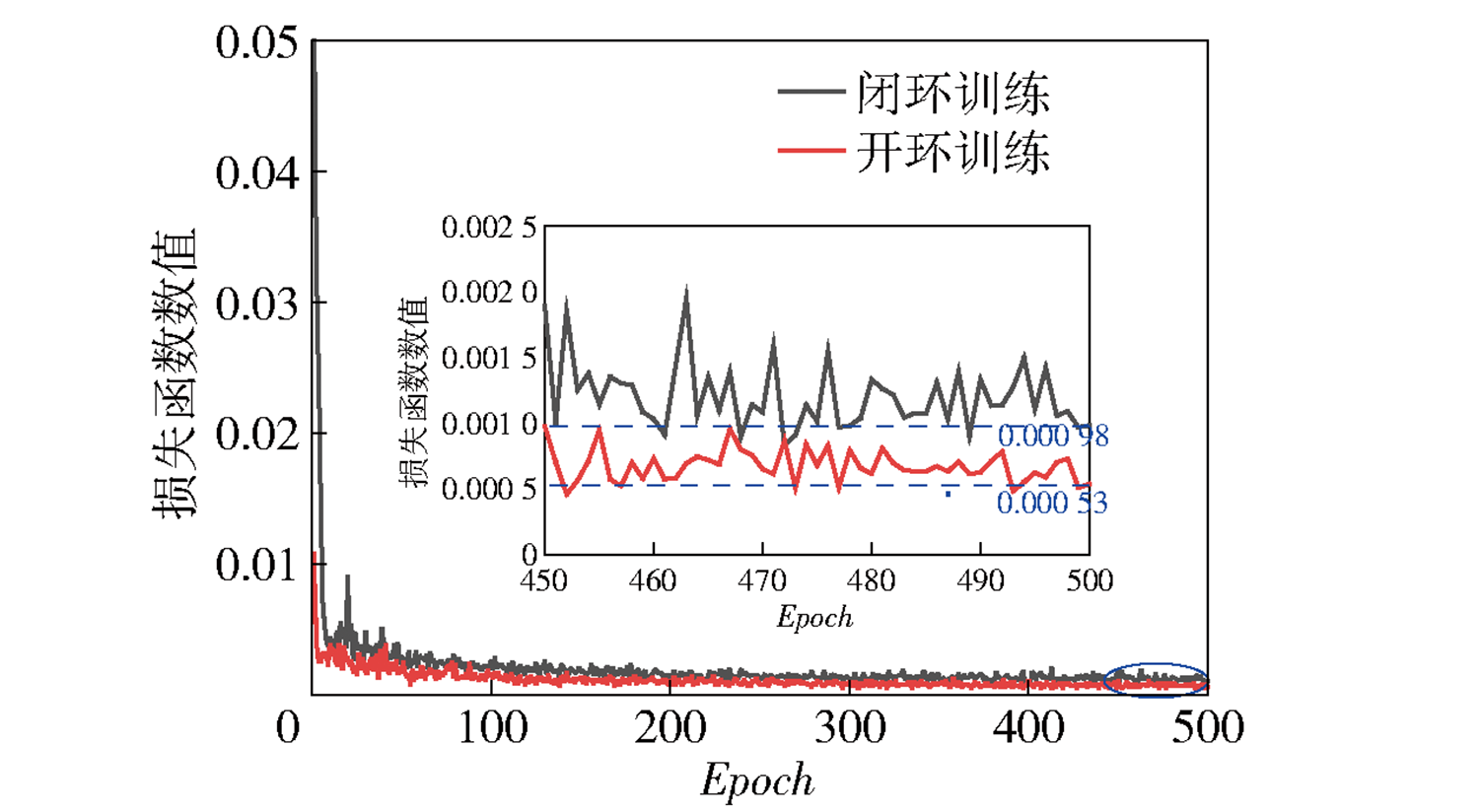

Fig.15 Comparison of loss function changes

Fig.16 Comparison of lateral velocity prediction results

Fig.17 Absolute value error of lateral velocity

Table 5 Statistical analysis of lateral velocity

模型	标准差	最大值/ (km·h^-1)	平均值/ (km·h^-1)
线性化横向模型	0.035	0.233	0.061
开环训练模型	0.012	0.103	0.017
闭环训练模型	0.007	0.079	0.006

Fig.18 Relative error analysis of lateral velocity

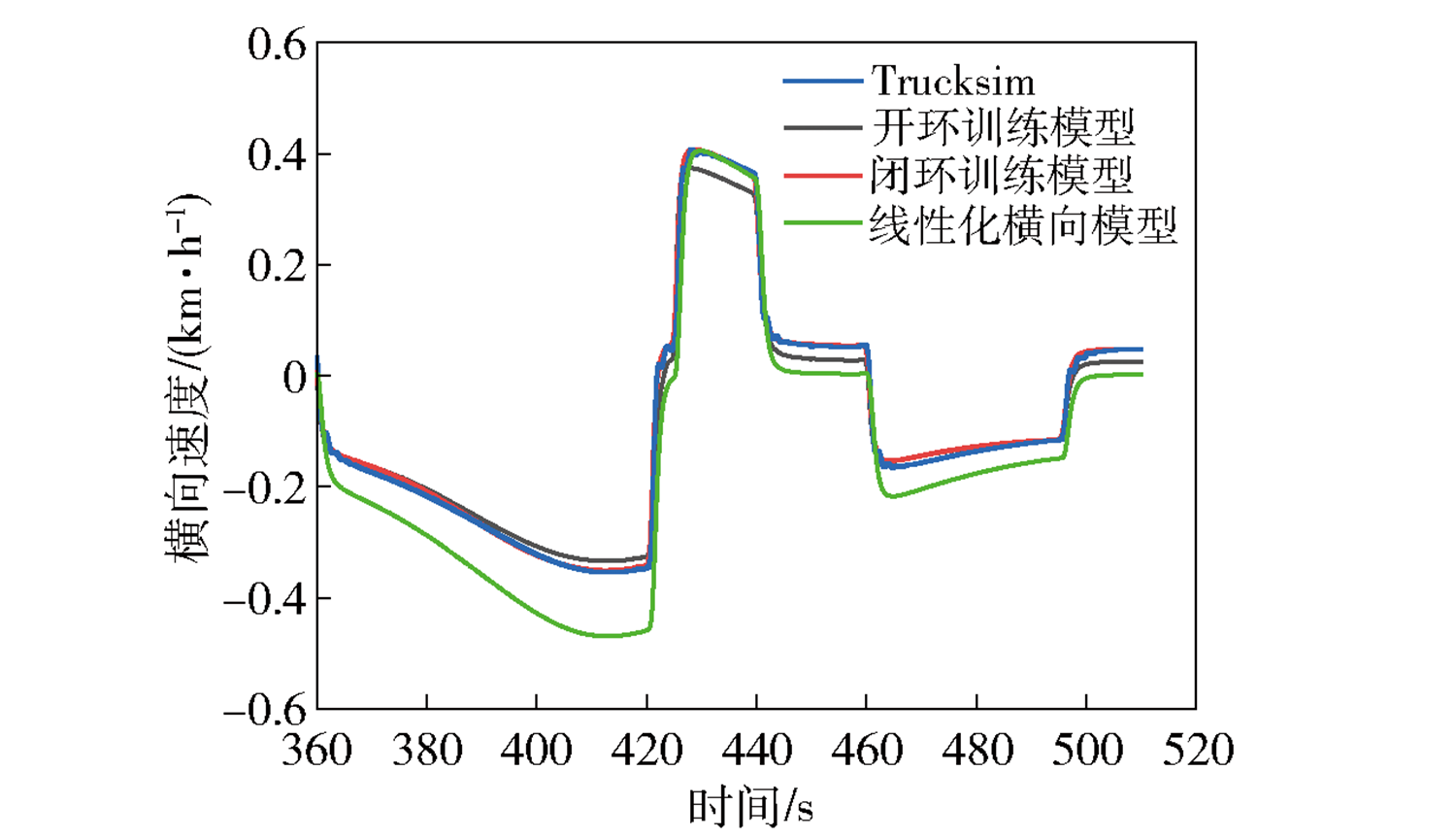

Fig.19 Comparison of lateral velocity prediction results

Fig.20 Absolute value error of lateral velocity

Table 6 Statistical analysis of yaw rate error

模型	标准差	最大值/ ((°)·s^-1)	平均值/ ((°)·s^-1)
线性化横向模型	0.283	0.885	0.514
开环训练	0.073	0.677	0.144
闭环训练	0.041	0.342	0.056

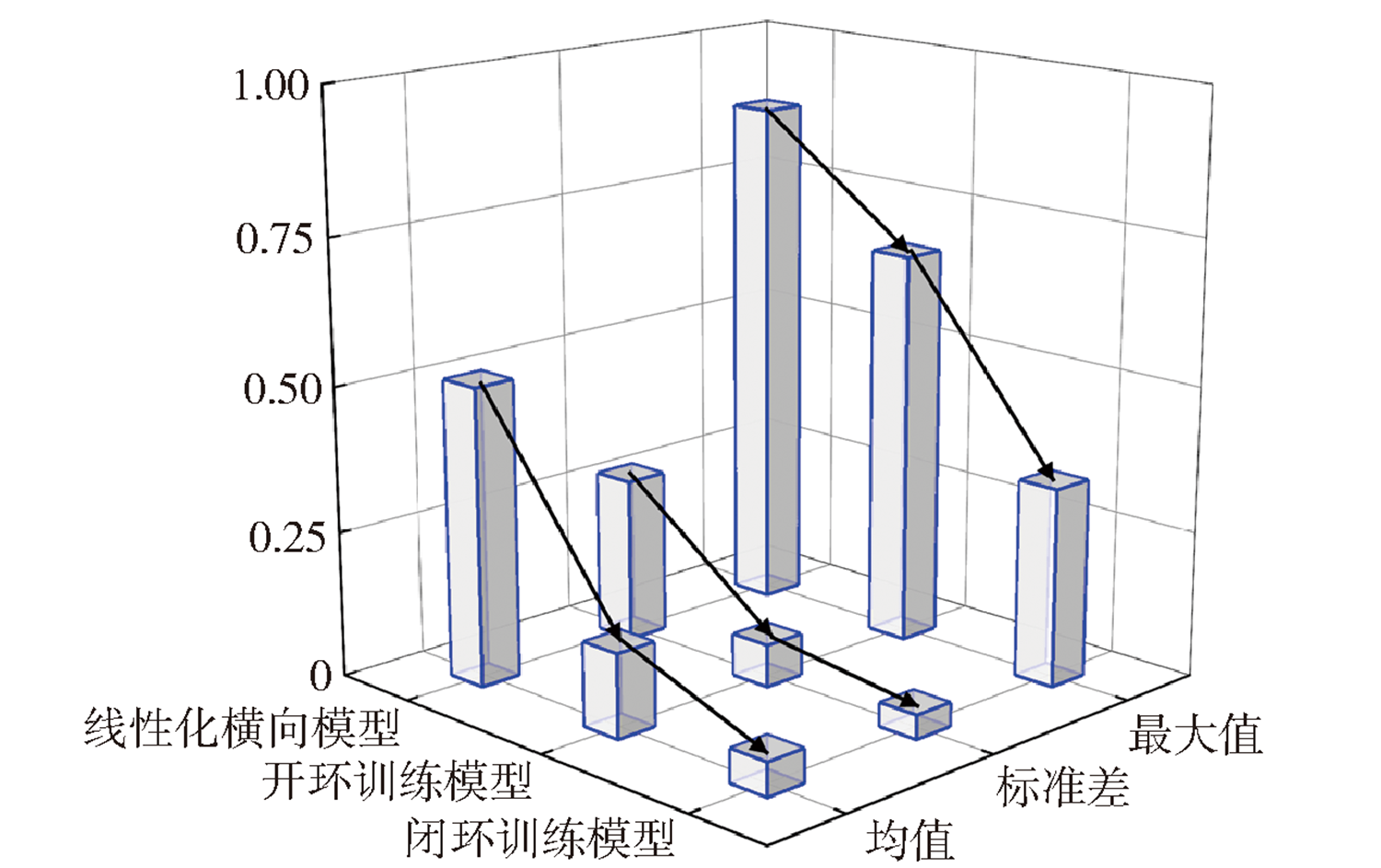

Fig.21 Relative error analysis of yaw rate

Table A-1 Linearized lateral dynamics model parameters

参数	数值
整车质量m/kg	50200
1轴至质心距离L₁/m	5.7
2轴至质心距离L₂/m	3.2
3轴至质心距离L₃/m	1.1
4轴至质心距离L₄/m	3.4
5轴至质心距离L₅/m	5.9
绕z轴转动惯量I_z/(kg·m²)	734251
传动比η	28
各轴轮胎侧偏刚度C/(N·rad^-1)	300000
时间间隔T/s	0.01
