A Method for Specific Communication Emitter Identification Based on Multi-Domain Feature Fusion

doi:10.12382/bgxb.2021.0880

Abstract

Abstract:

To solve the problem of low identification rate caused by specific communication emitter identification using a single feature, a method for individual identification of the communication emitter based on multi-domain feature fusion is proposed. Firstly, multiple transform domain features of the signals transmitted by the communication emitter are extracted, and these features are combined into multi-domain features.Secondly, the multi-channel convolution neural network is constructed, and the multi-channel convolution operation is carried out to extract the multi-domain features at a deep level. Finally, specificcommunication emitter classification is completed using the neural network classifier.Compared with the identification method based on a single feature, this method makes full use of the multi-domain features of the signals sent by the communication emitter and combines the powerful microscopic feature mining capability of the neural network to realize the effective individual identification of the communication emitter. Through the identification of 20 CC2530 devices under the conditions of low signal-to-noise ratio(SNR) and Rayleigh channel, the results show that the proposed method can significantly improve the identification accuracy and timeliness under a low SNR, and that the identification effect can still reach 91.01% under the condition of 0dB.

Key words: communication emitter identification, feature fusion, multi-channel convolution neural network

WANG Jian, ZHANG Bangning, ZHANG Jie, WEI Guofeng, GUO Daoxing. A Method for Specific Communication Emitter Identification Based on Multi-Domain Feature Fusion[J]. Acta Armamentarii, 2023, 44(4): 949-959.

Figures/Tables 14

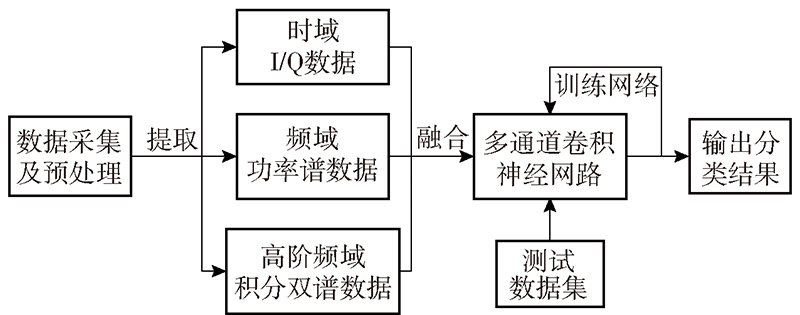

Fig.1 Specific communication emitter identification model based on multi-domain features

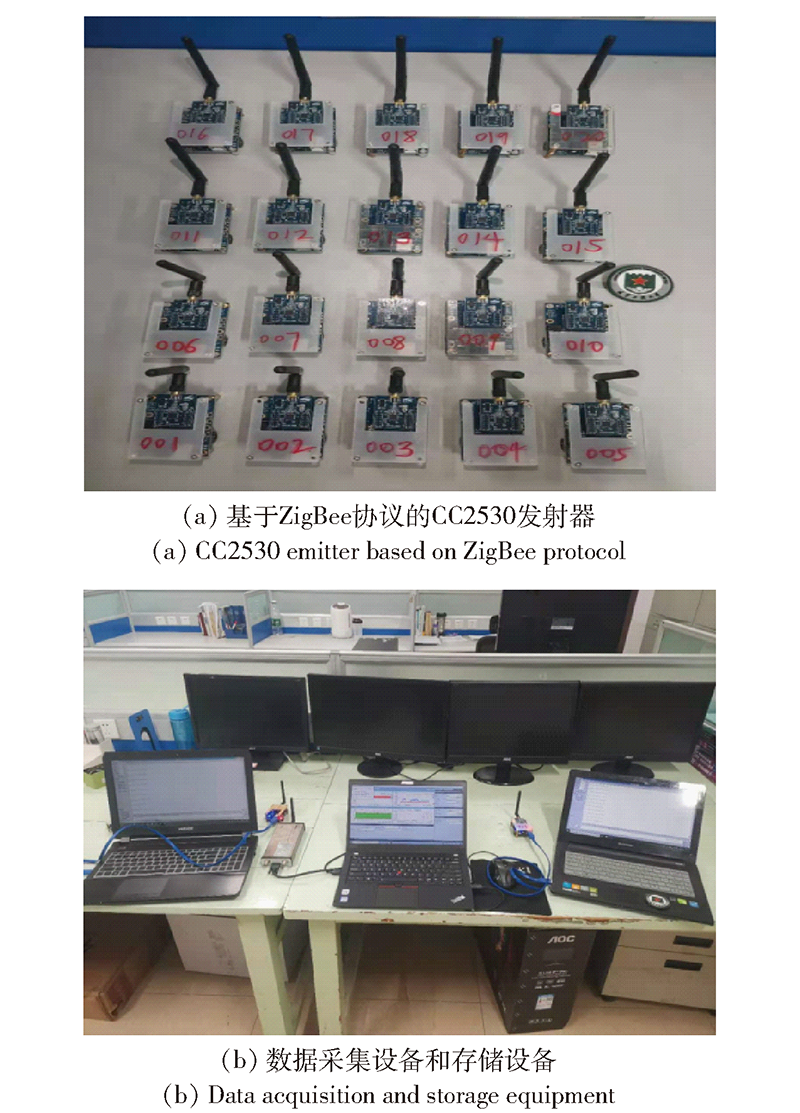

Fig.2 Emitter and data acquisition system

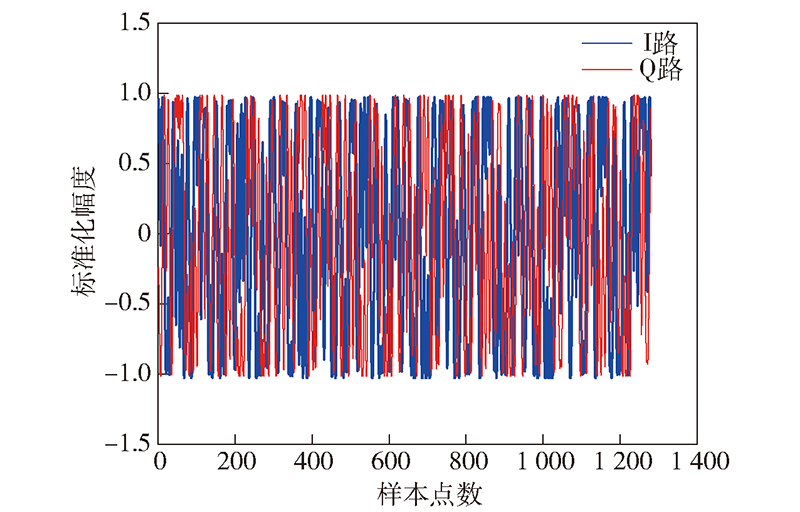

Fig.3 Standardized preamble I/Q data

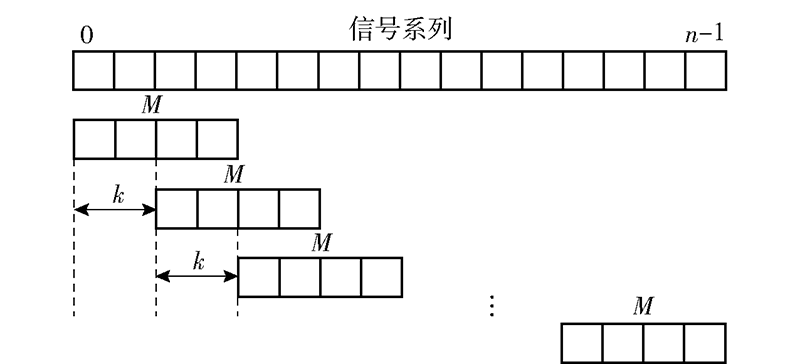

Fig.4 Segmentation method of the Welch algorithm

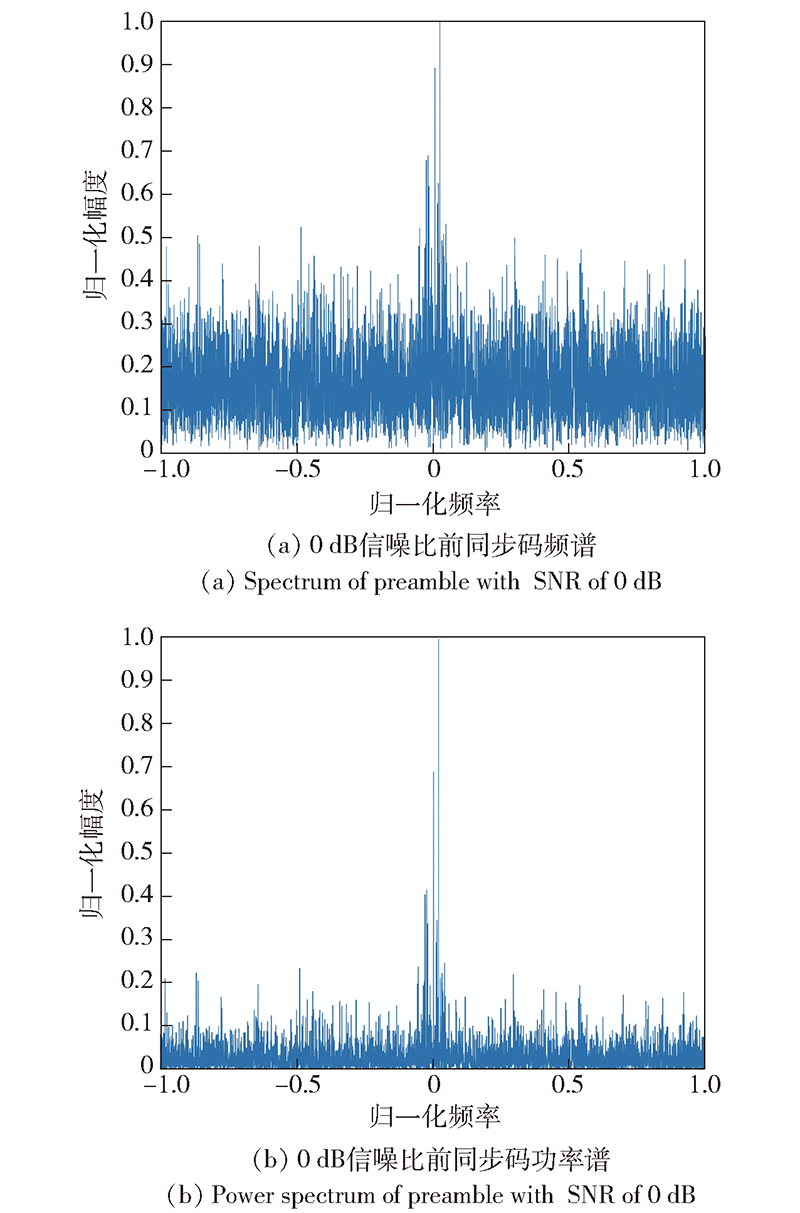

Fig.5 Power spectrum and spectrum of preamble with SNR of 0dB

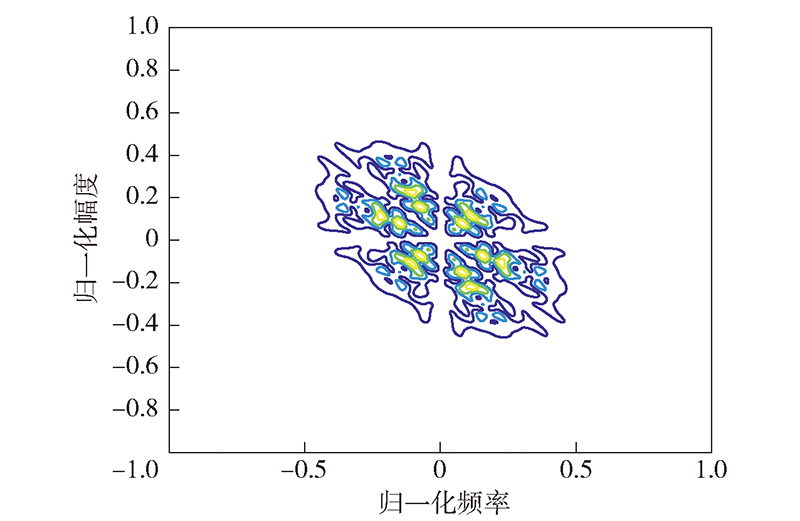

Fig.6 Bispectrum contour map of preamble

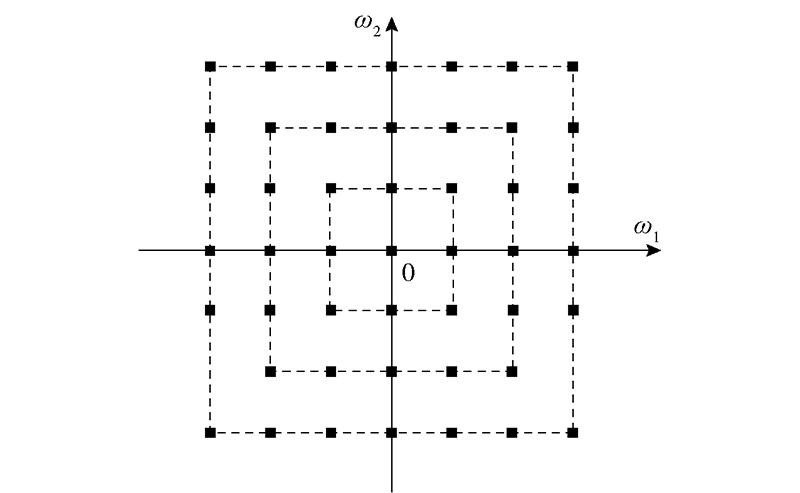

Fig.7 Rectangle integration path

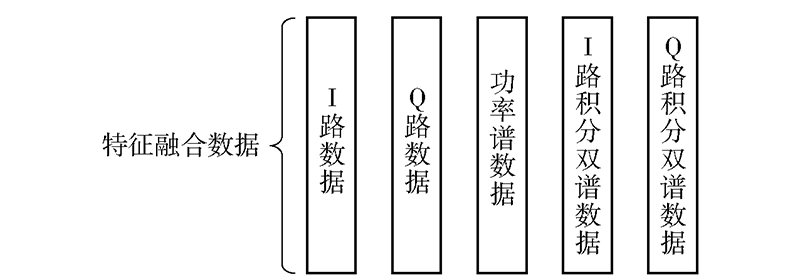

Fig.8 Schematic diagram of feature fusion data

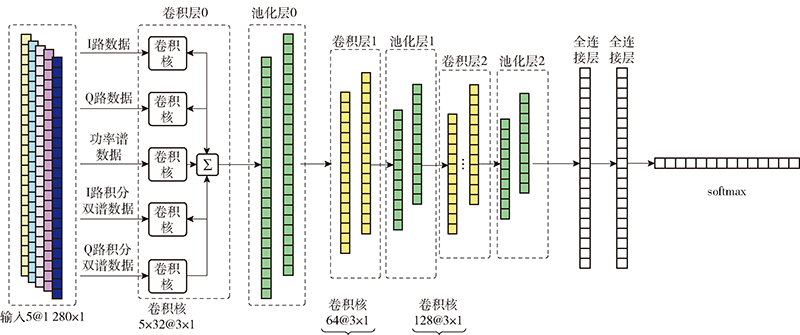

Fig.9 Model of multi-channel one-dimensional CNN structure

Fig.10 I/Q data in Rayleigh Channel

Table 1 Identification results of different training epochs on 0dB signal%

实验方法	epoch
实验方法	4	8	12	16	20
多域特征融合	87.08	89.10	89.92	90.45	91.01
基于I/Q数据	66.74	75.01	80.78	84.01	85.17
基于功率谱数据	71.76	79.70	84.15	86.63	87.55
基于积分双谱数据	61.50	68.89	72.02	74.11	76.50

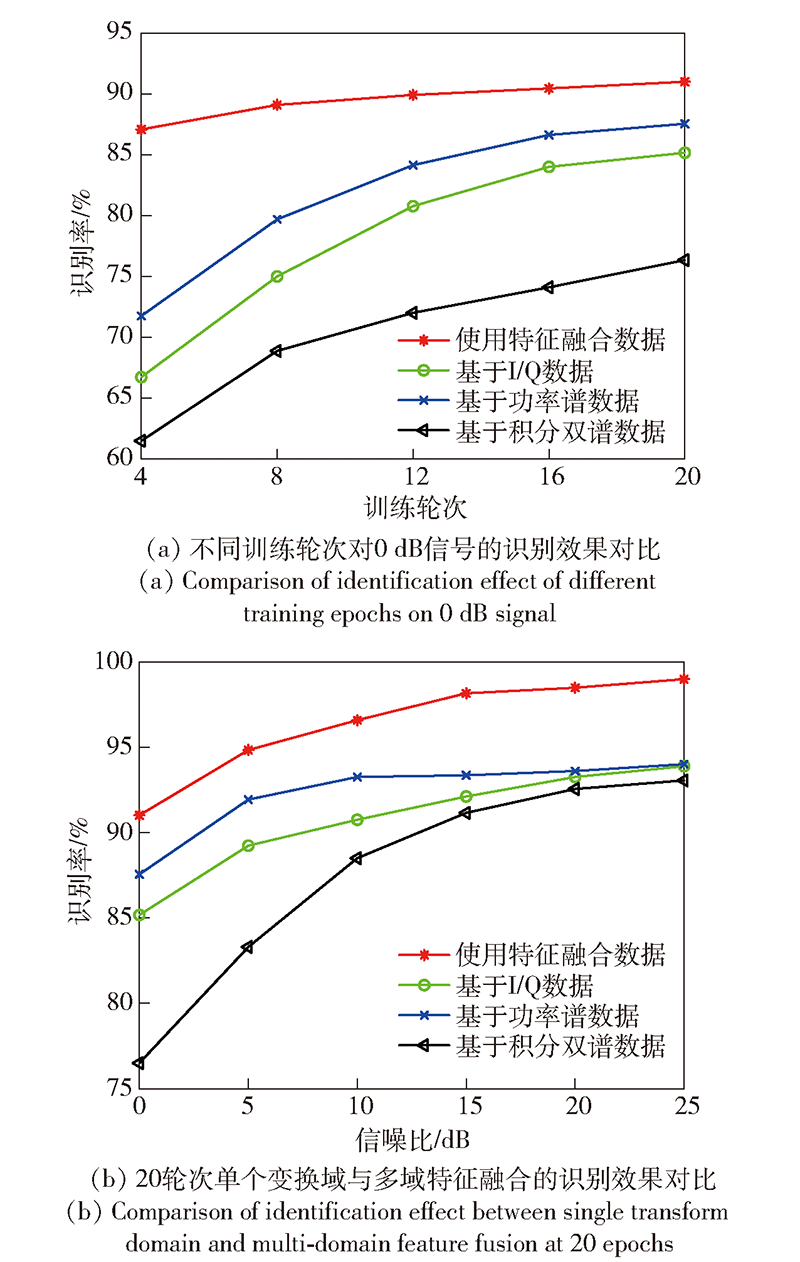

Fig.11 Comparison of identification effect between single transform domain and multi-domain feature fusion

Table 2 Identification results of single transform domain and multi-domain feature fusion at 20 epochs%

实验方法	信噪比/dB
实验方法	0	5	10	15	20	25
多域特征融合	91.01	94.83	96.58	98.15	98.48	98.98
基于I/Q数据	85.17	89.23	90.75	92.11	93.25	93.88
基于功率谱数据	87.55	91.93	93.25	93.35	93.60	94.00
基于积分双谱数据	76.50	83.30	88.50	91.15	92.55	93.05

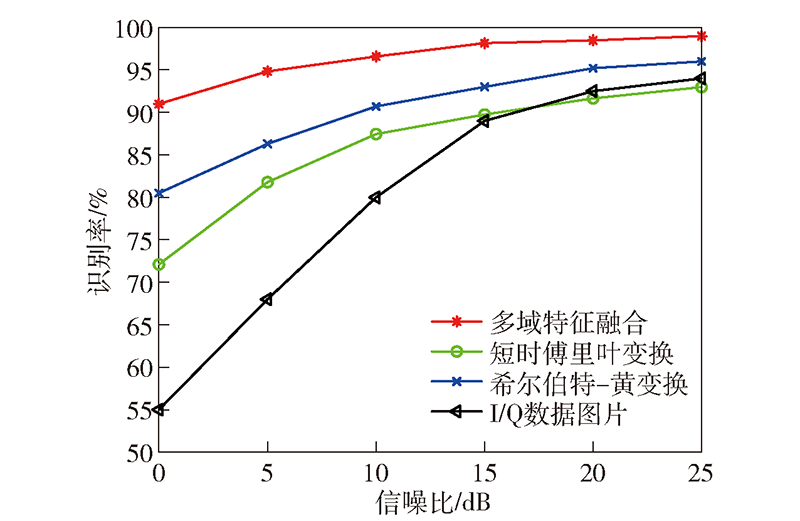

Fig.12 Comparison of identification effects of different algorithms
