Multifunctional Design and Experimental Characterization of MXene-decorated Composite Fabrics

doi:10.12382/bgxb.2024.0855

Abstract

Abstract:

In modern complex and dynamic battlefield environments,personnel and equipment are exposed to the threats such as extreme cold,electromagnetic radiation,and bullet impacts.Therefore,there is an urgent need to develop the lightweight and portable multifunctional protective materials.While the existing research explores multifunctional textiles,the physical integration of single-function materials exacerbates mass and cost issues.MS-Twaron multifunctional protective material is made by using MXene materials as the functional layer and aramid fibers (Twaron) as the base material with silicone gel as a surface waterproof layer.The contact angle test,electromagnetic interference (EMI) shielding test,flame retardant test,ballistic test,and photo-thermal experiment are made on MS-Twaron.The results indicate that:1)Compared to the hydrophilic material Twaron (water contact angle of 29.7°),MS-Twaron exhibits the excellent hydrophobic properties (water contact angle of 112.3°); 2)Compared to Twaron which exhibits no EMI properties,MS-Twaron with MXene mass fraction of 8.61% shows an improved EMI properties in X-band,ranging from 13.490dB to 14.969dB; 3)Compared to Twaron,MS-Twaron exhibits a 5.0s increase in afterglow time,a 3.5s reduction in glowing time,and a 5.3mm decrease in average char length.MS-Twaron has impact resistant properties of which the ballistic indentation depth is 6.12mm smaller than that of Twaron.The surface temperature of MS-Twaron can achieve up to 50.22℃ under natural light (light intensity of 100.3×10³ LUX),39.58℃ under incandescent light (100W,30cm),and 97.18℃ under infrared light (375W,40cm).With its integration of lightweight,photothermal and EMI properties,MS-Twaron offers design insights for the next-generation multifunctional protective equipment.

Key words: MXene, photothermal property, behind armor blunt trauma, electromagnetic shielding

CLC Number:

R143
TB332

CHEN Jing, YU Xinming, LIU Yuhang, ZHOU Hongyuan, HUANG Guangyan, ZHANG Hong. Multifunctional Design and Experimental Characterization of MXene-decorated Composite Fabrics[J]. Acta Armamentarii, 2025, 46(8): 240855-.

Figures/Tables 19

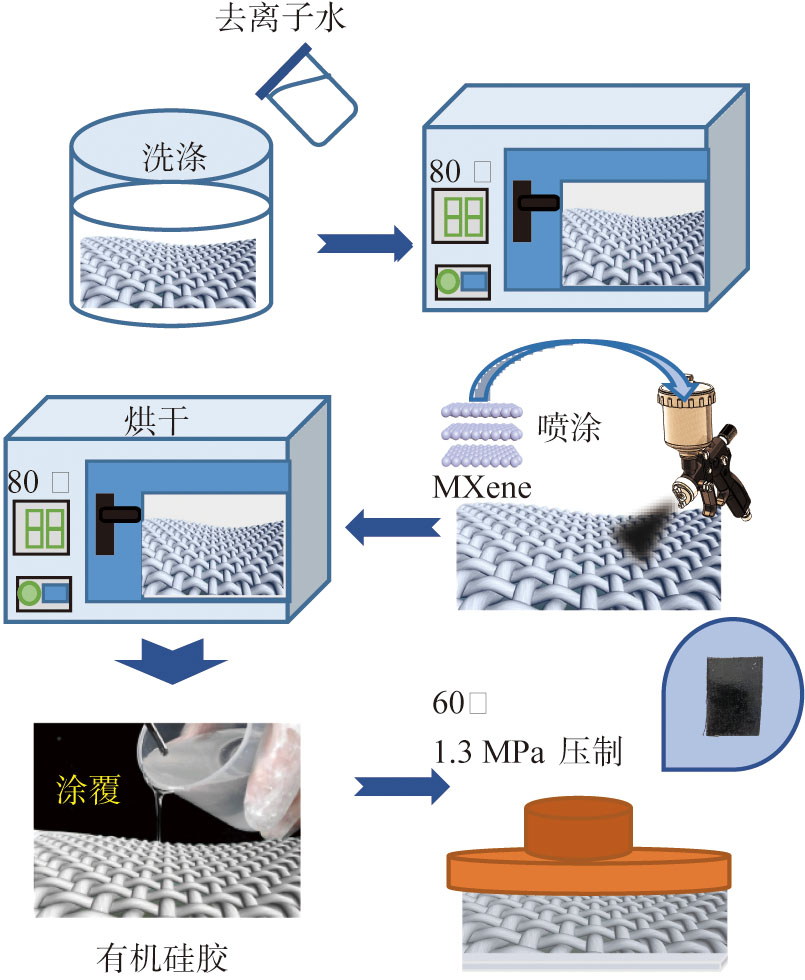

Fig.1 Schematic diagram of MS-Twaron preparation process

Table 1 The fabric preparation parameter table used in test

用途	尺寸/ cm²	硅胶质量/g	MXene 水溶液体积/ml	面密度/(g·m^-2)		MXene/ %
用途	尺寸/ cm²	硅胶质量/g	MXene 水溶液体积/ml	改性前	改性后	MXene/ %
光发热实验	15	0	2.0	200	210.97	2.92
光发热实验	15	0.2700	2.0	200	372.26	2.71
电磁屏蔽测试	2.34	0.0421	0.5	200	371.94	2.67
电磁屏蔽测试	2.34	0.0421	1.0	200	411.77	8.61
弹道钝伤实验	400	7.2000	45.0	200	376.64	2.65
阻燃测试	267	5.3400	30.0	200	373.72	2.74
接触角测试	15	0.2700	2.0	200	362.37	2.56

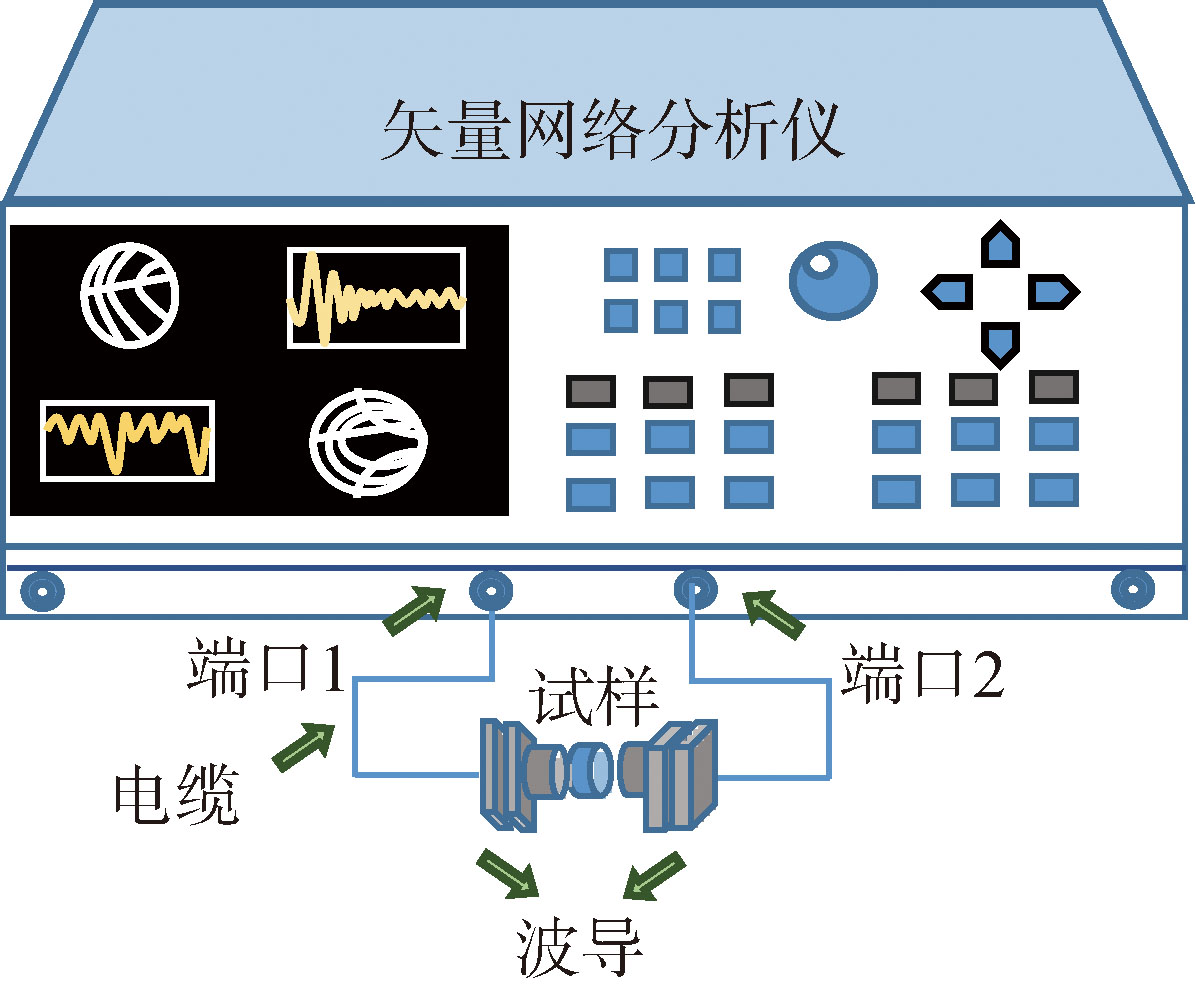

Fig.2 Schematic diagram of electromagnetic shielding test

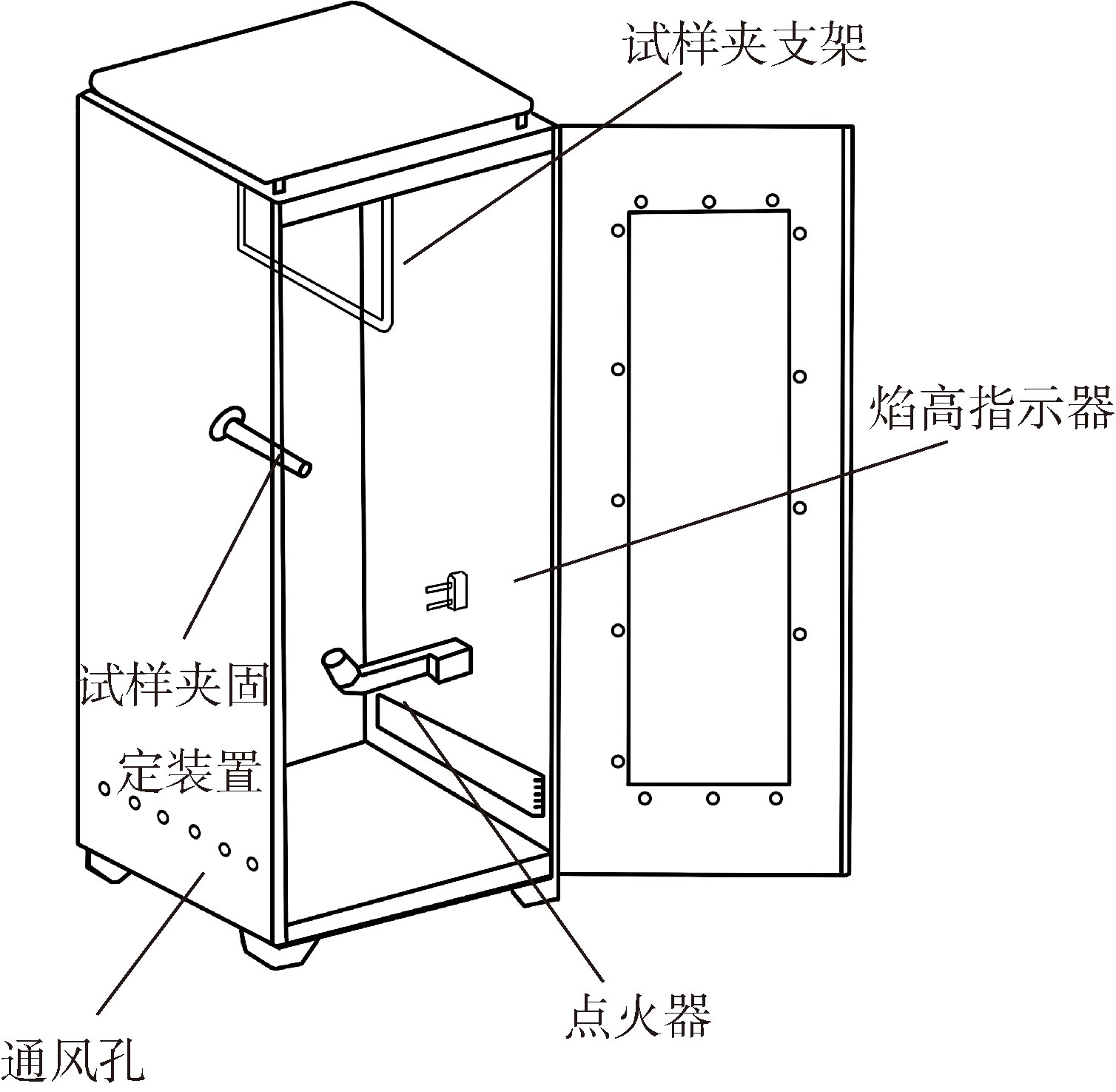

Fig.3 Vertical combustion tester

Fig.4 Schematic diagram of flame retardant test results measurement

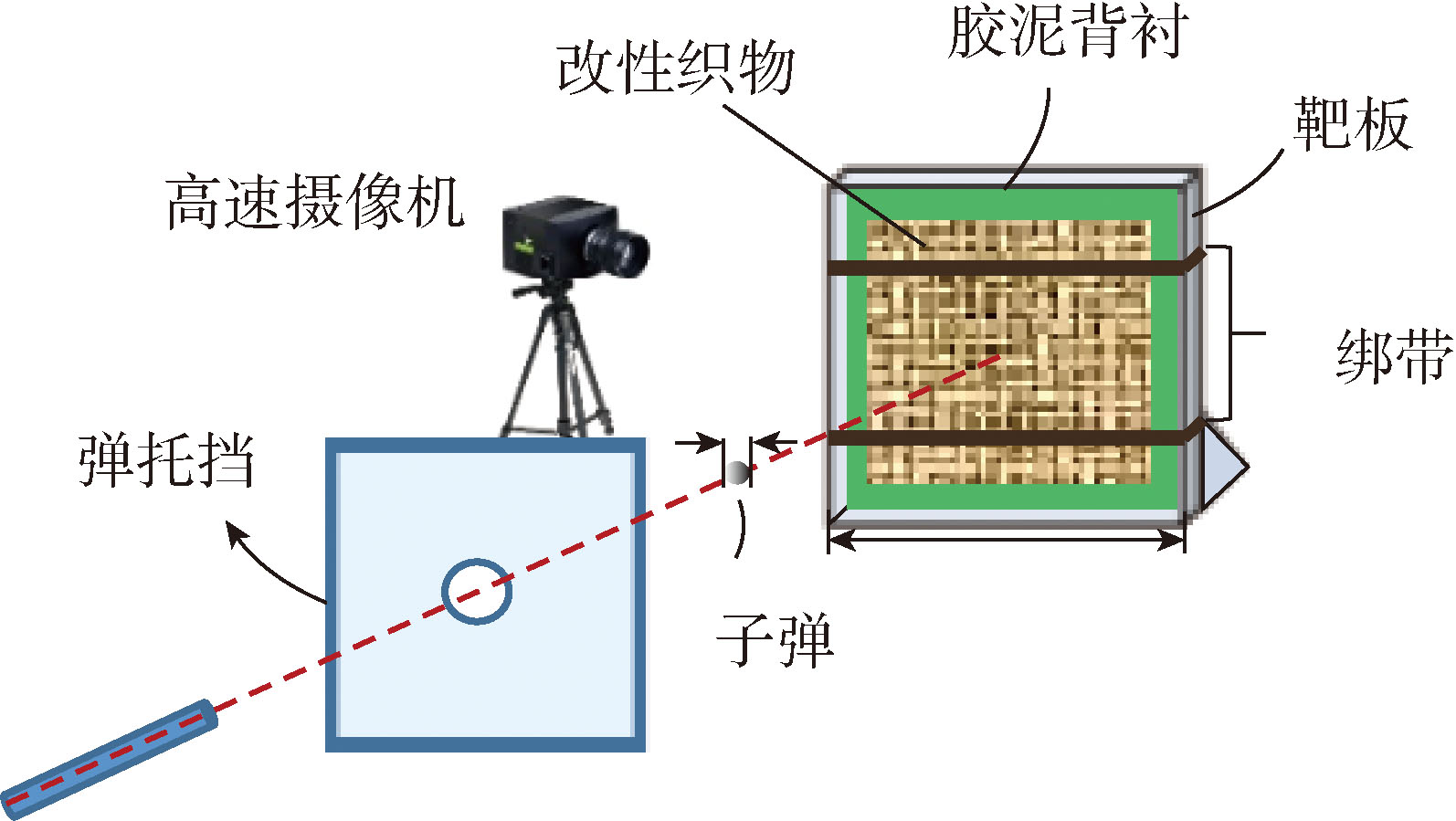

Fig.5 Schematic diagram of ballistic impact

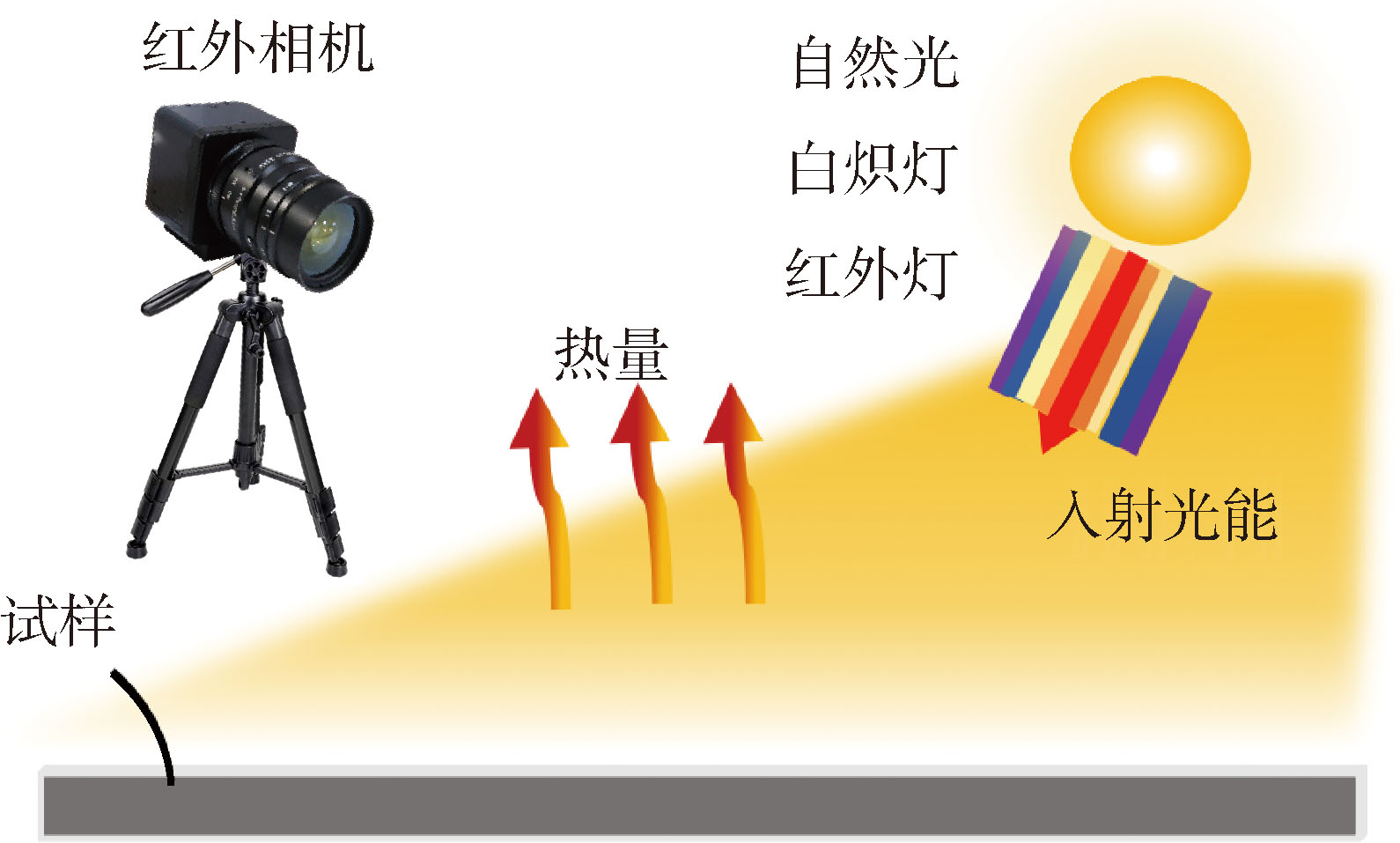

Fig.6 Photo-thermal experiment layout

Fig.7 Comparison of contact angles of Twaron and MS-Twaron

Fig.8 Test results of electromagnetic shielding

Table 2 Flame retardant test results of Twaron

参数	实验1	实验2	实验3	平均值
余焰时间/s	0.7	0.8	0.7	0.7
阴燃时间/s	4.0	3.8	3.6	3.8
燃烧损毁长度/mm	39	29	30	33
是否烧穿	否	否	否
是否引燃棉垫	否	否	否

Table 3 Flame retardant test results of MS-Twaron

参数	实验1	实验2	实验3	平均值
余焰时间/s	3.0	3.8	10.3	5.7
阴燃时间/s	0.3	0.3	0.4	0.3
燃烧损毁长度/mm	26	32	25	27.7
是否烧穿	否	否	否
是否引燃棉垫	否	否	否

Table 4 Blunt trauma protection experimental results of Twaron and MS-Twaron

Twaron		MS-Twaron
速度/(m·s^-1)	凹陷/mm	速度/(m·s^-1)	凹陷/mm
112.37	15.54	115.16	9.35
126.65	16.63	119.28	10.18
128.22	18.31	128.35	12.20
140.90	22.50	141.57	16.79

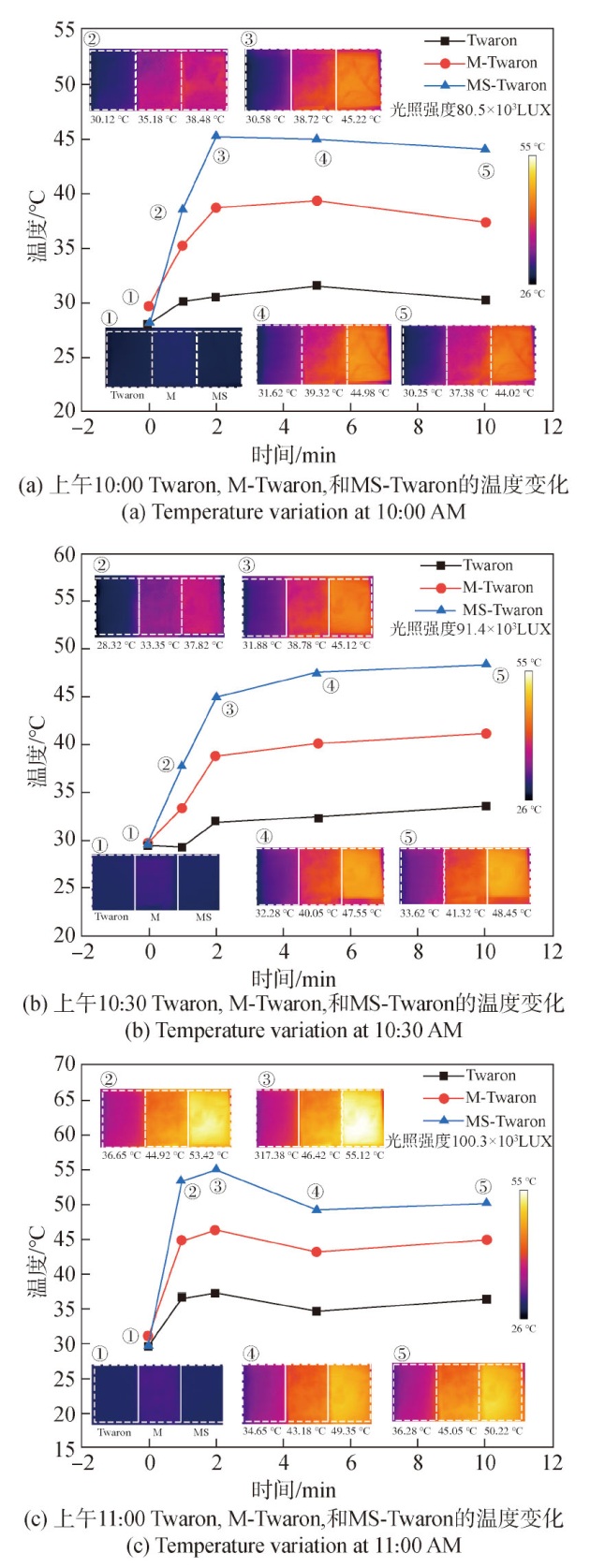

Fig.9 Temperature variations of Twaron,M-Twaron,and MS-Twaron at three different test times

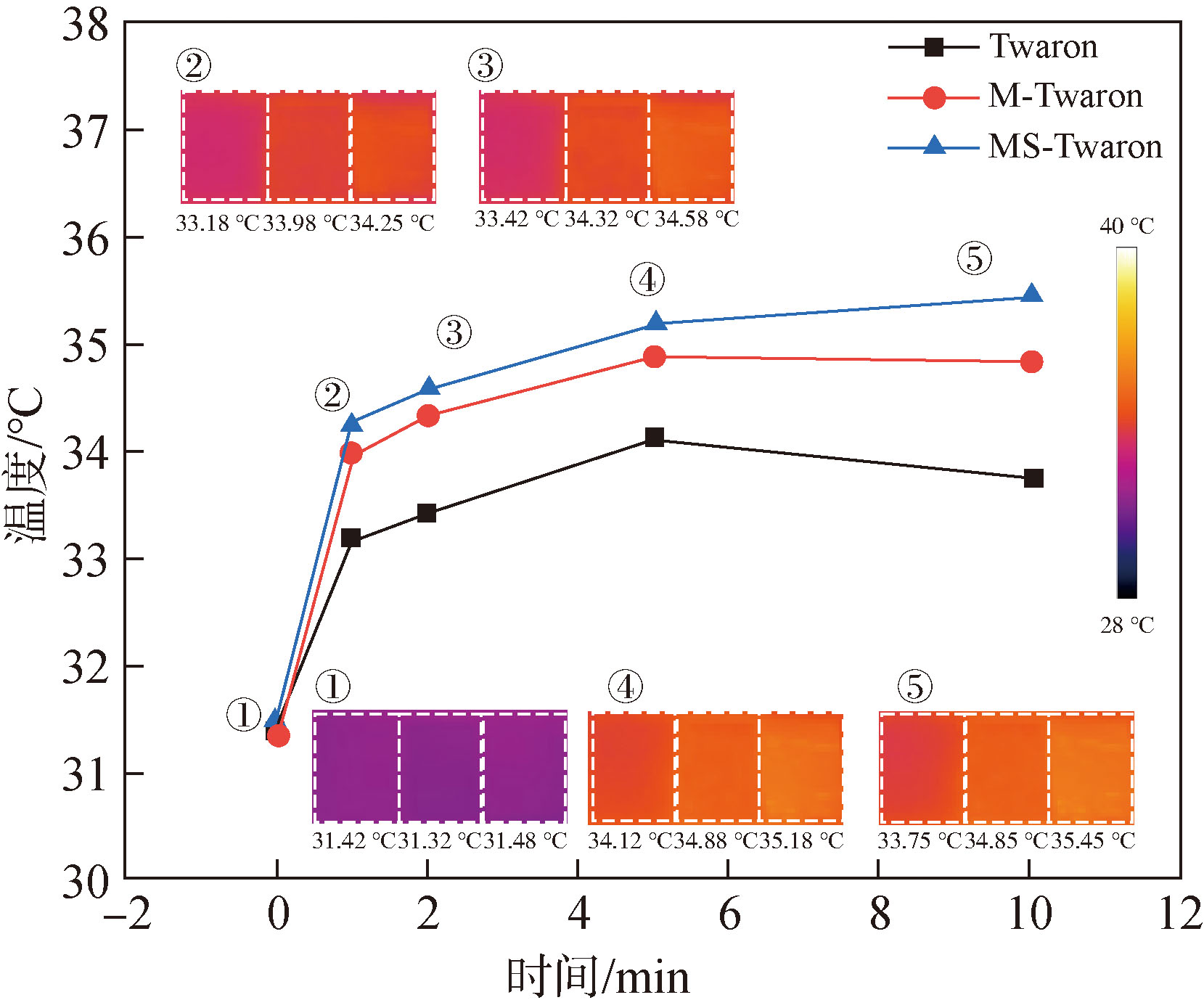

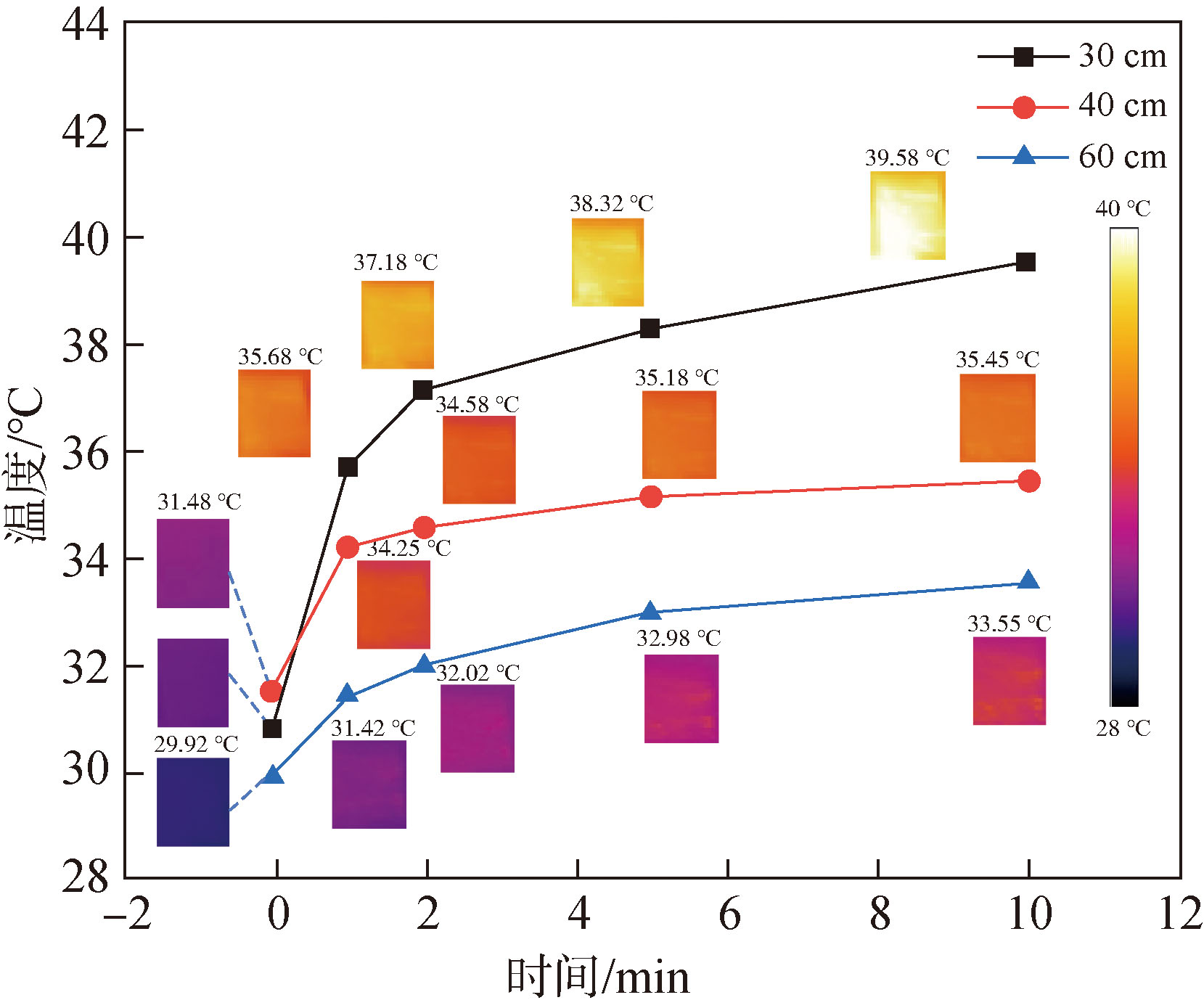

Fig.10 Temperature variations of three samples under the irradiation of incandescent lamp (40cm,100W)

Fig.11 Temperature variation of MS-Twaron irradiated by incandescent lamp (100W) at different distances

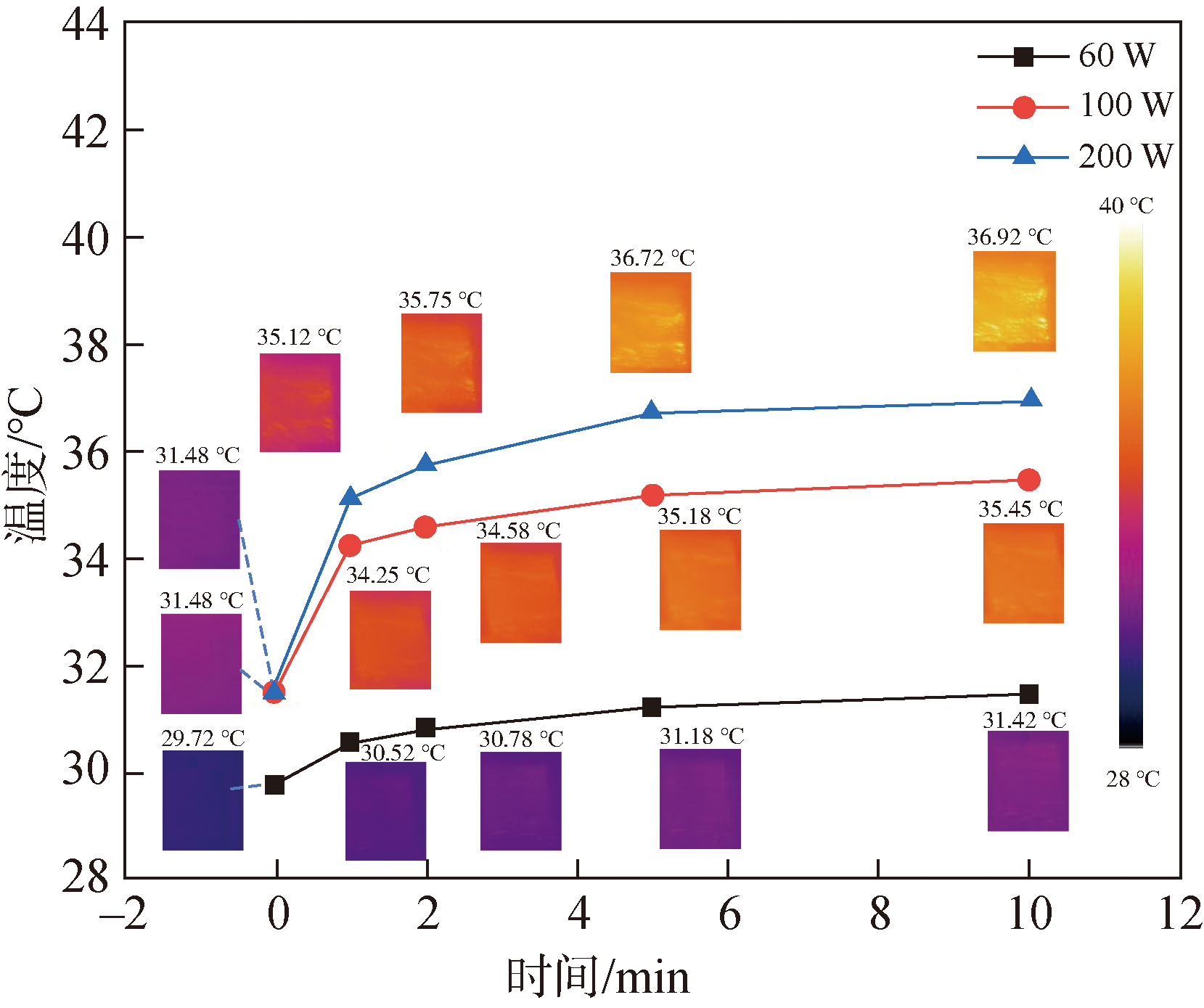

Fig.12 Temperature variation of MS-Twaron irradiated by incandescent lamp (40cm) with different powers

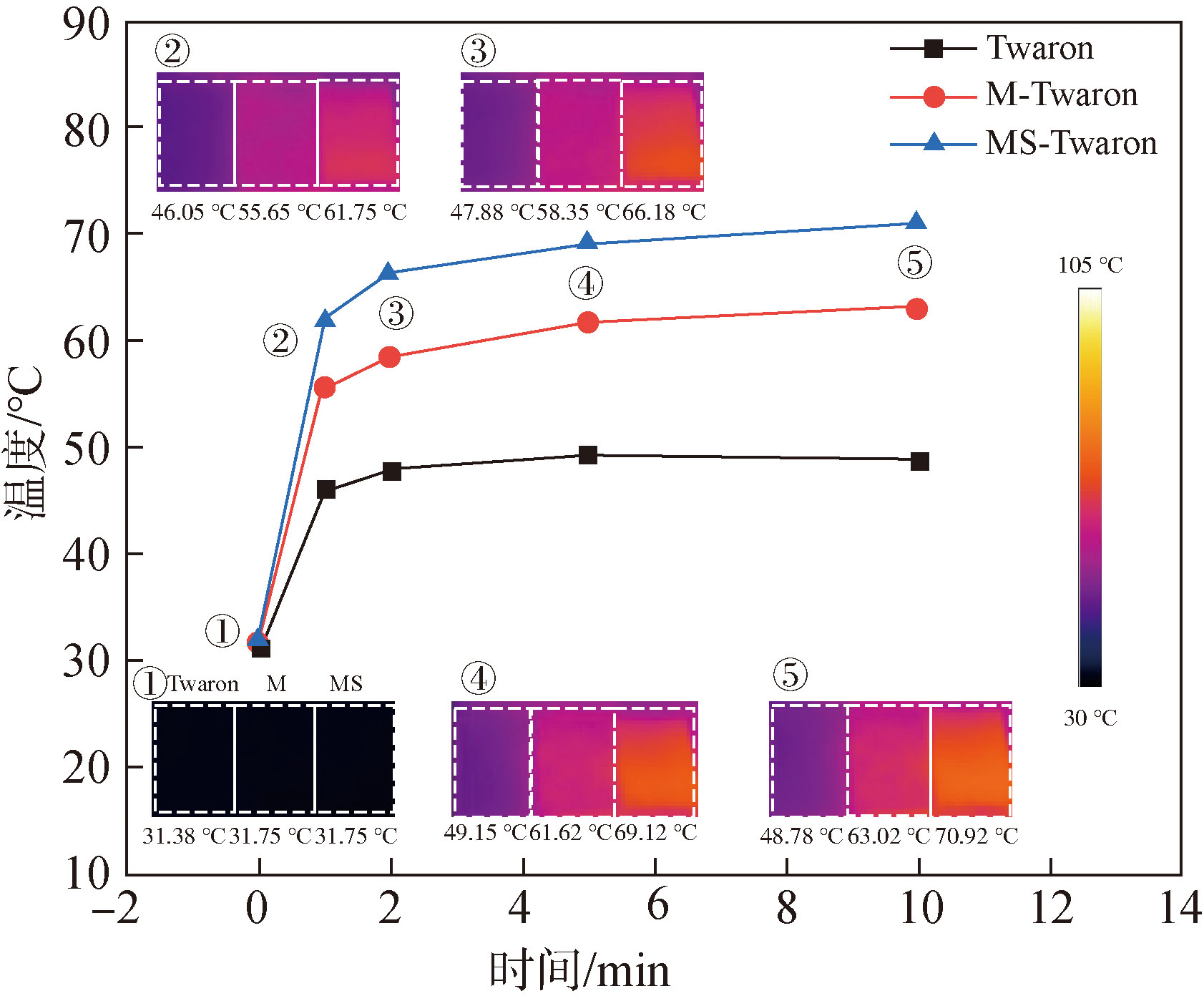

Fig.13 Temperature variations of three samples under the irradiation of infrared lamp (40cm,250W)

Fig.14 Temperature variations of MS-Twaron under the irradiation of infrared lamp at different distance(250W)

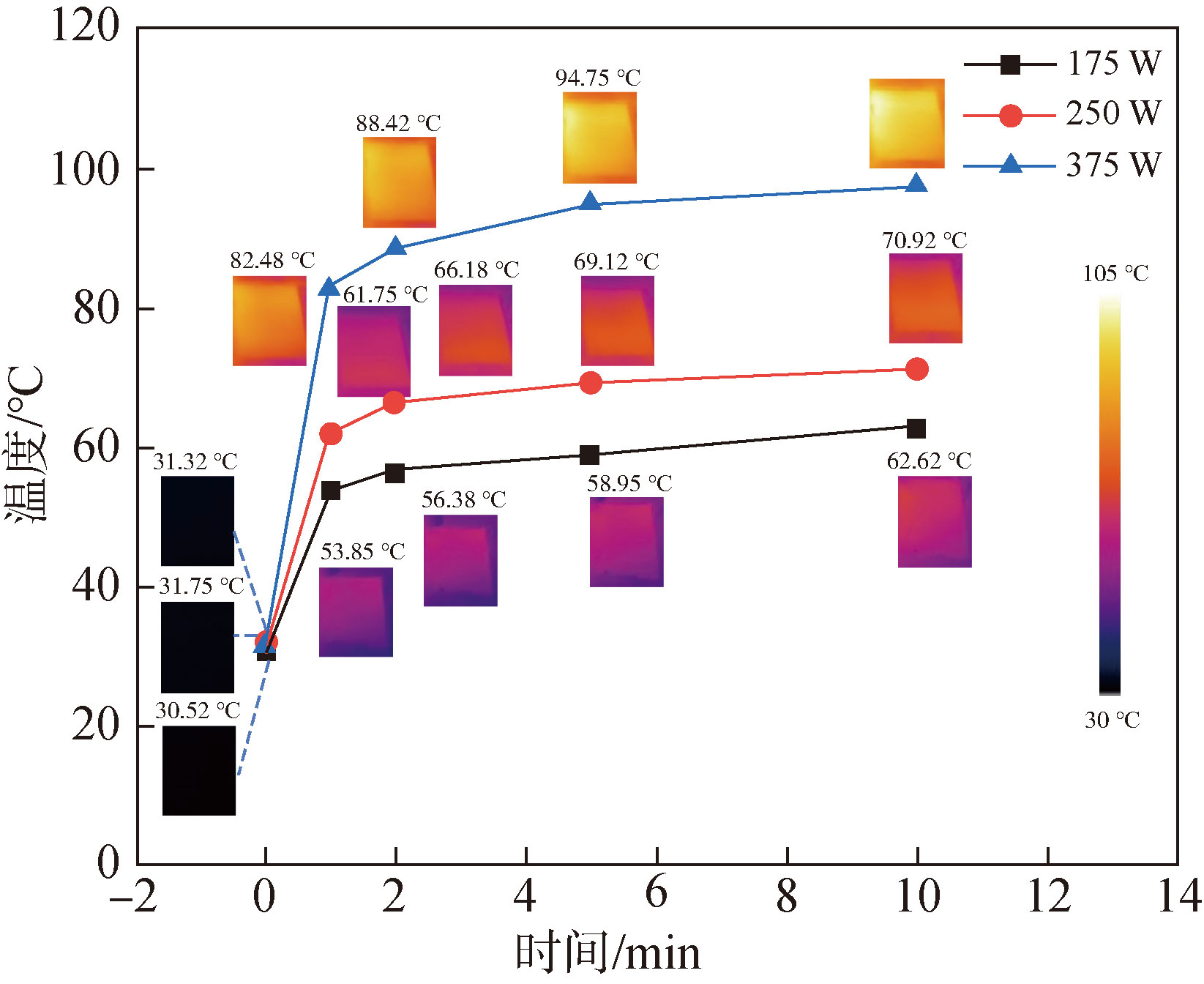

Fig.15 Temperature variations of MS-Twaron under different power irradiation of infrared lamp(40cm)
