Cavity Forming Characteristics of Ballistic Soap Penetrated by Sub-millimeter Particles and Injury Threshold

doi:10.12382/bgxb.2023.1017

Abstract

Abstract:

Ballistic soap is widely used in the field of wound ballistics, as an equivalent target of biological target, to observe the damage characteristics of wound channels for assessing the potential damage of ammunition. However, there is still a lack of damage standards for sub-millimeter particle damage elements of low collateral damage munitions to the biological targets. The dimensional analysis method is used to determine the forming characteristics of penetrating cavity, and the actual wound trajectory of soap target is obtained through the particle driving test. The evolution law of penetrating cavity of sub-millimeter particles is analyzed by numerical simulation, and the critical damage conditions of sub-millimeter particles on the soap target equivalent target are established. The conical cavity produced by sub-millimeter particles penetrating the soap target is represented by inlet diameter and cavity depth. The results show that the cavities caused by sub-millimeter particles with different densitues, sizes and velocities are significantly different, and the cavity characteristics are related to specific kinetic energy. The volume of the cavity produced by penetrating the soap target increases with the increase in the the density, size and velocity of particle material. The larger the particle size is, the deeper the penetration into the soap target is, and the inlet diameter expand to 2.0-2.5 times of the particle size. According to the fragment killing criteria, the injury thresholds of sub-millimeter particles with different particle sizes to the soap target are determined. The energy density of particle penetration should exceed 0.83J/cm² to cause damage to the soap target. The numerically simulated, test and theoretically analyzed results agree well with each other, and the the influence law of penetration effect is consistent. The results can provide theoretical reference for the structural design of low collateral damage warhead and the effect evaluation.

Key words: soap target, low collateral damage, sub-millimeter particle, cavity evolution, injury threshold

CLC Number:

TJ410.1

WANG Shaohong, FAN Ruijun, WANG Jinying, LI Haijie, PI Aiguo. Cavity Forming Characteristics of Ballistic Soap Penetrated by Sub-millimeter Particles and Injury Threshold[J]. Acta Armamentarii, 2024, 45(11): 3868-3878.

Figures/Tables 23

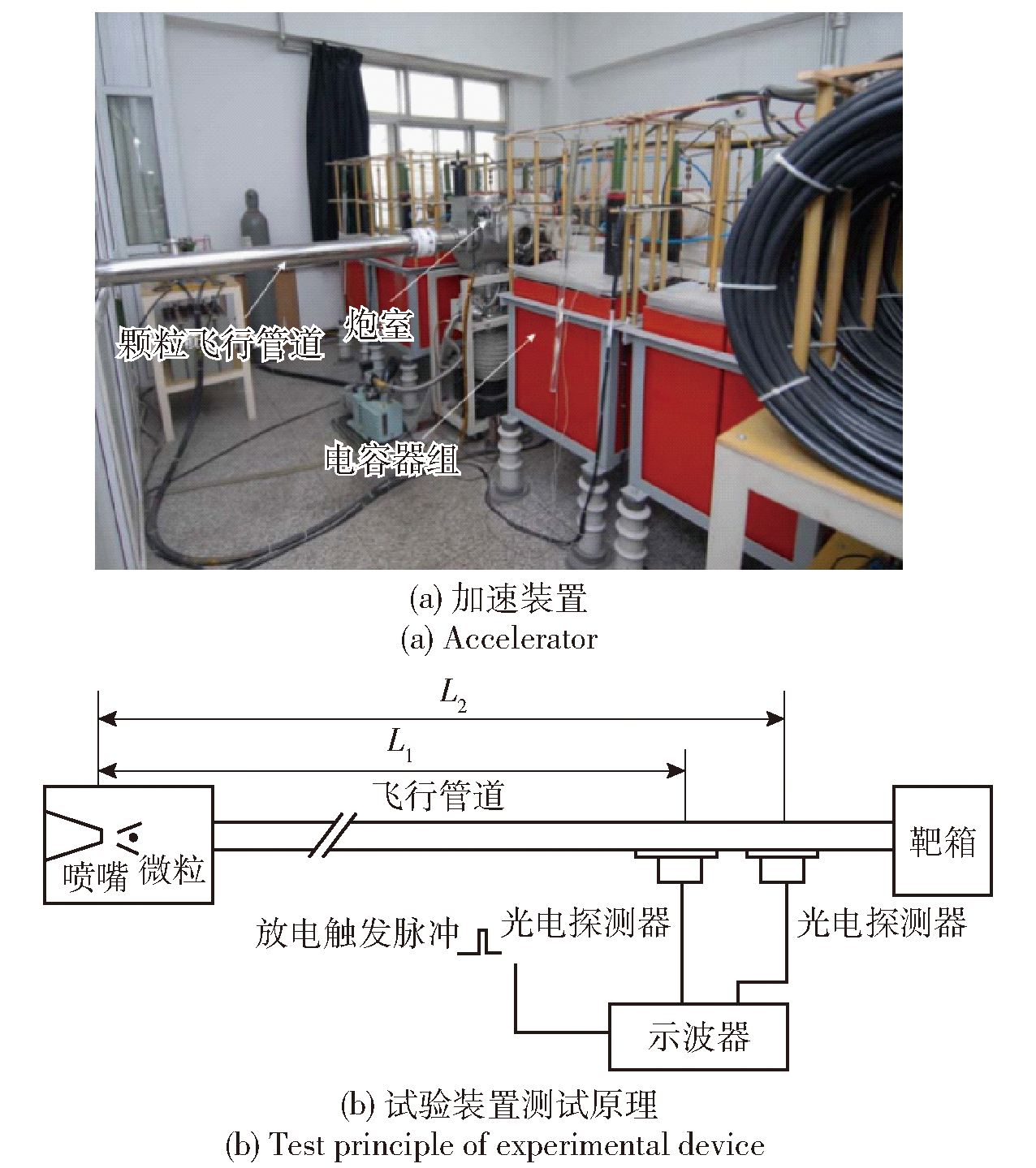

Fig.1 Plasma driving device and principle[25]

Fig.2 Heavy metal particles embedded charge structure

Fig.3 Experimental site layout

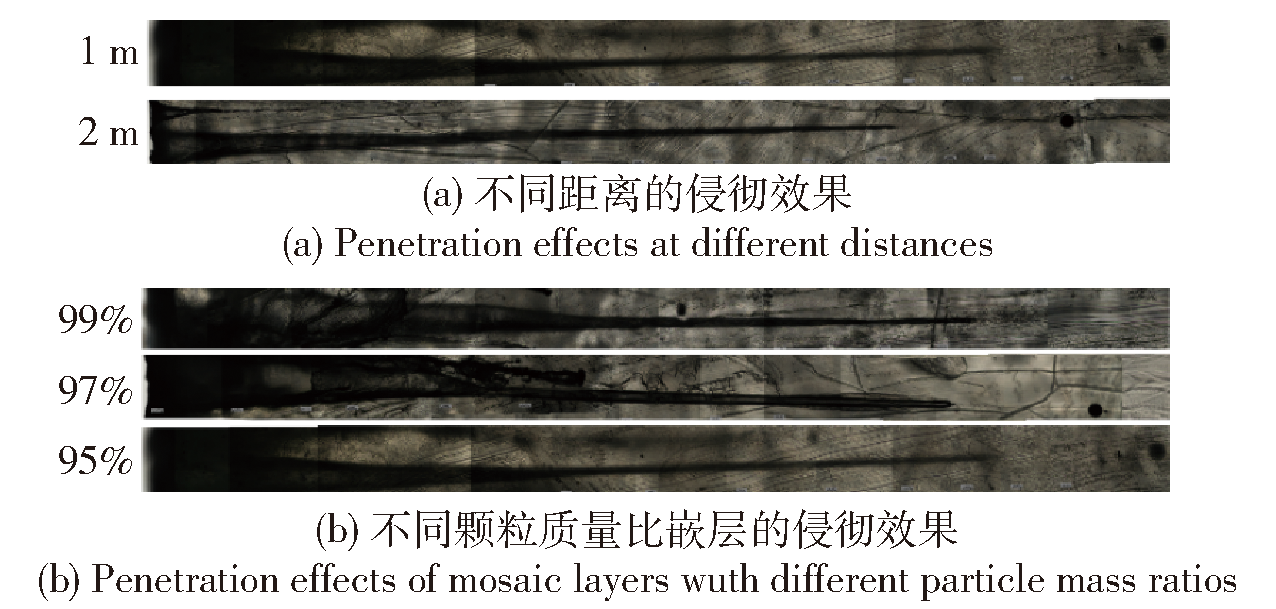

Fig.4 Cavity morphology of soap target penetrated by sub-millimeter particles

Fig.5 The position of the penetration end point of particles relative to the expansion of soap cavity

Fig.6 Microscopic observation of penetrating cavity under different conditions

Table 1 Test results at different impact speeds

试验序号	飞行时长/ ms	侵彻深度/ mm	开坑直径/ mm	是否贯穿
01	16.3	12	0.600
02	22.0	3	0.520
03	13.0	22	0.811
04	11.5	24	0.865	否
05	15.5	10	0.687
06	14.0	20	0.763
07	20.0	3.5	0.520

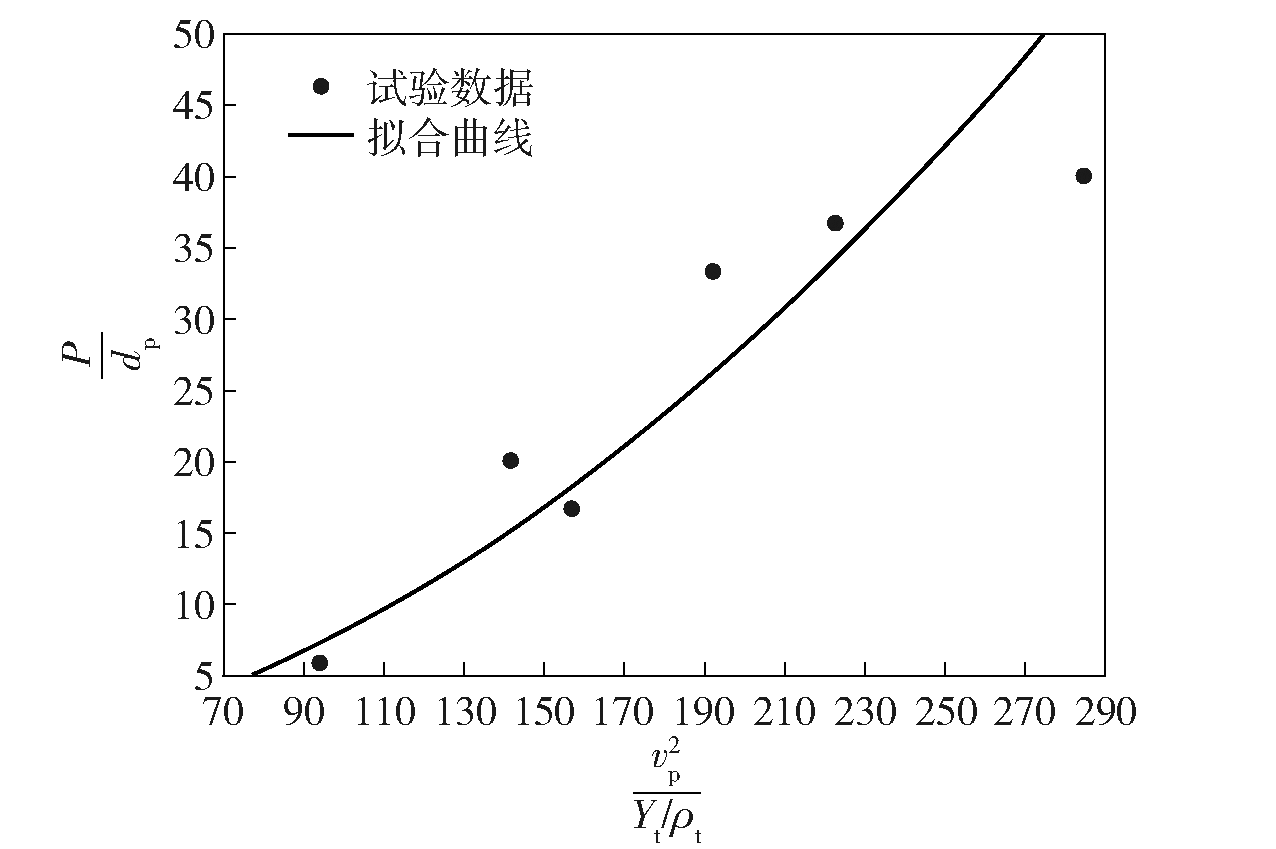

Fig.7 Dimensionless relationship between penetration depth and particle velocity

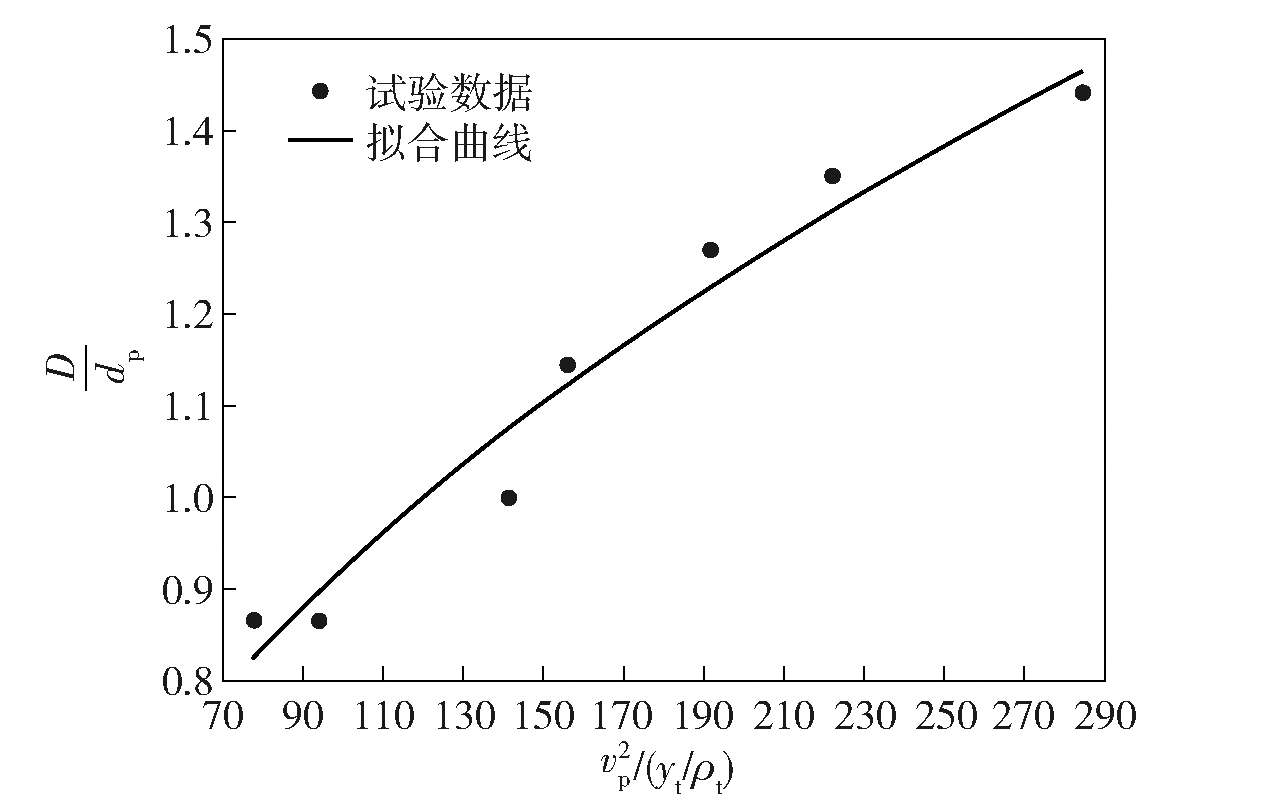

Fig.8 Dimensionless relationship between inlet diameter and particle velocity

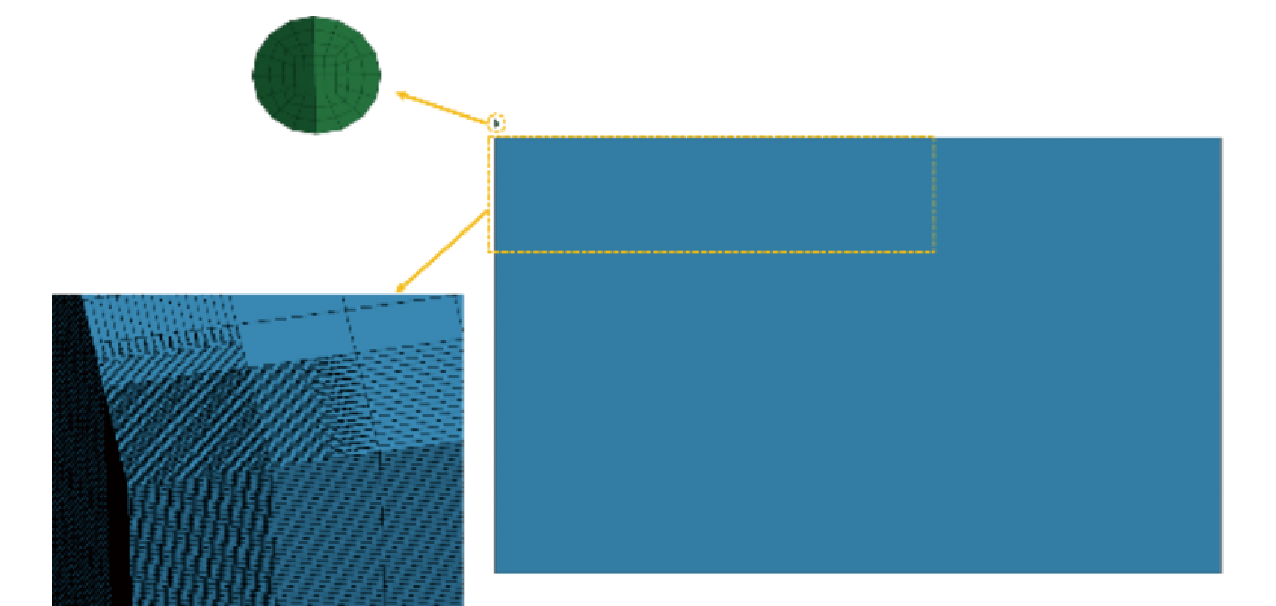

Fig.9 Finite element model

Table 2 Material parameters of tungsten alloy particles

ρ/(g·cm^-3)	E/GPa	v	σ/GPa
17	117	0.35	1.506

Table 3 Material parameters of ballistic soap[26]

ρ/ (g·cm^-3)	E/ GPa	σ/ MPa	E_H/ Pa	C₁/ Pa	C₂/ Pa	C₃/ Pa	C₄/ Pa
1.2	1	1	1×10³	0.0	0.0	2.93×10¹⁰	0.0

Fig.10 Equivalent stress cloud map at different moments and velocity decay curve of particles at different moments

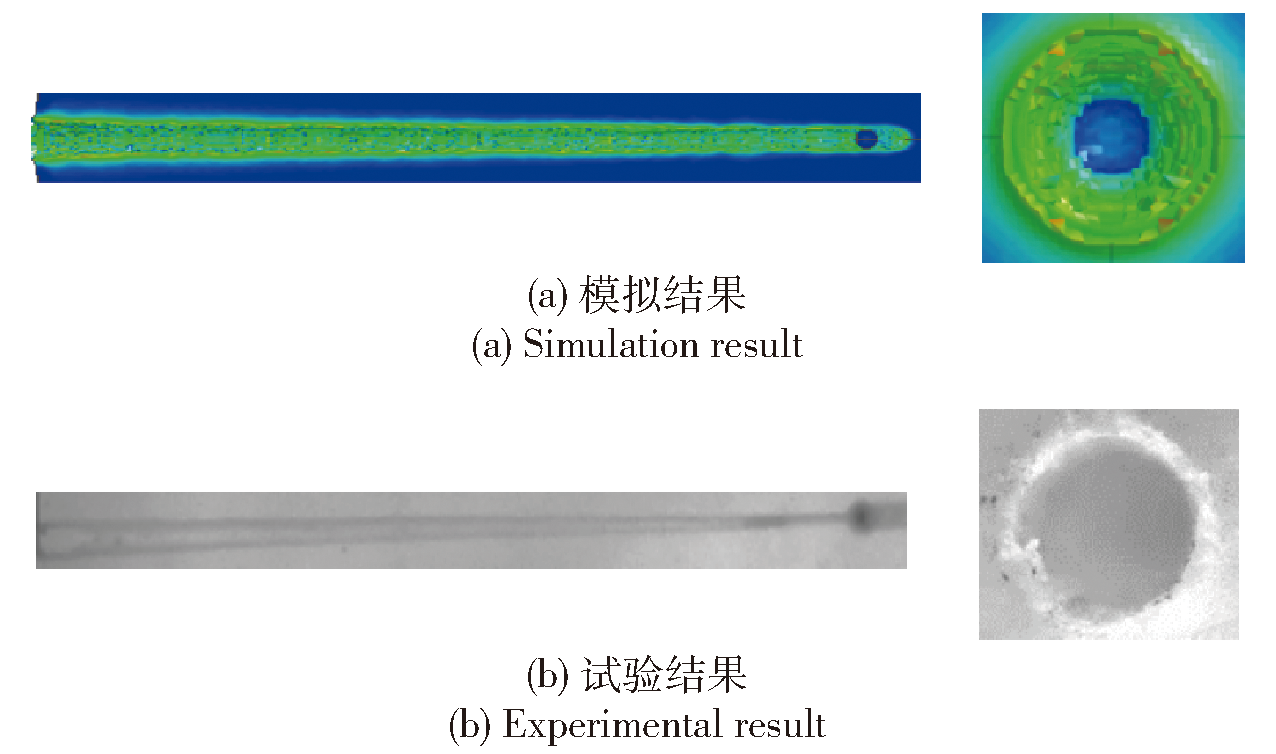

Fig.11 Comparison of simulated and experimental results(left:cavity depth,right:cavity inlet diameter)

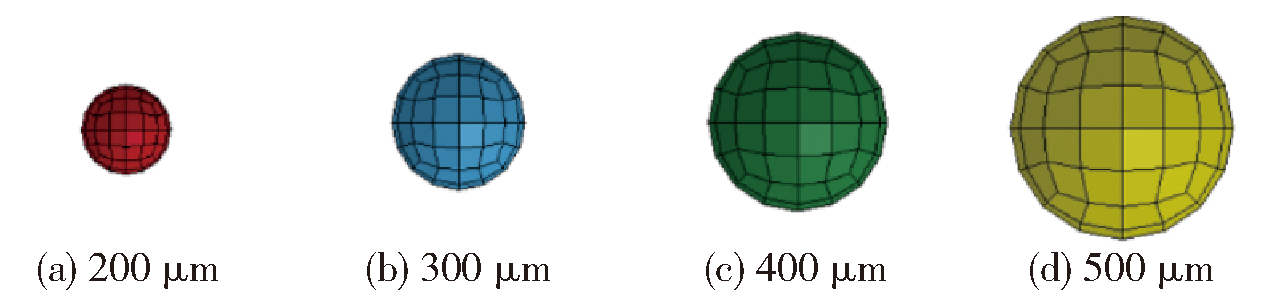

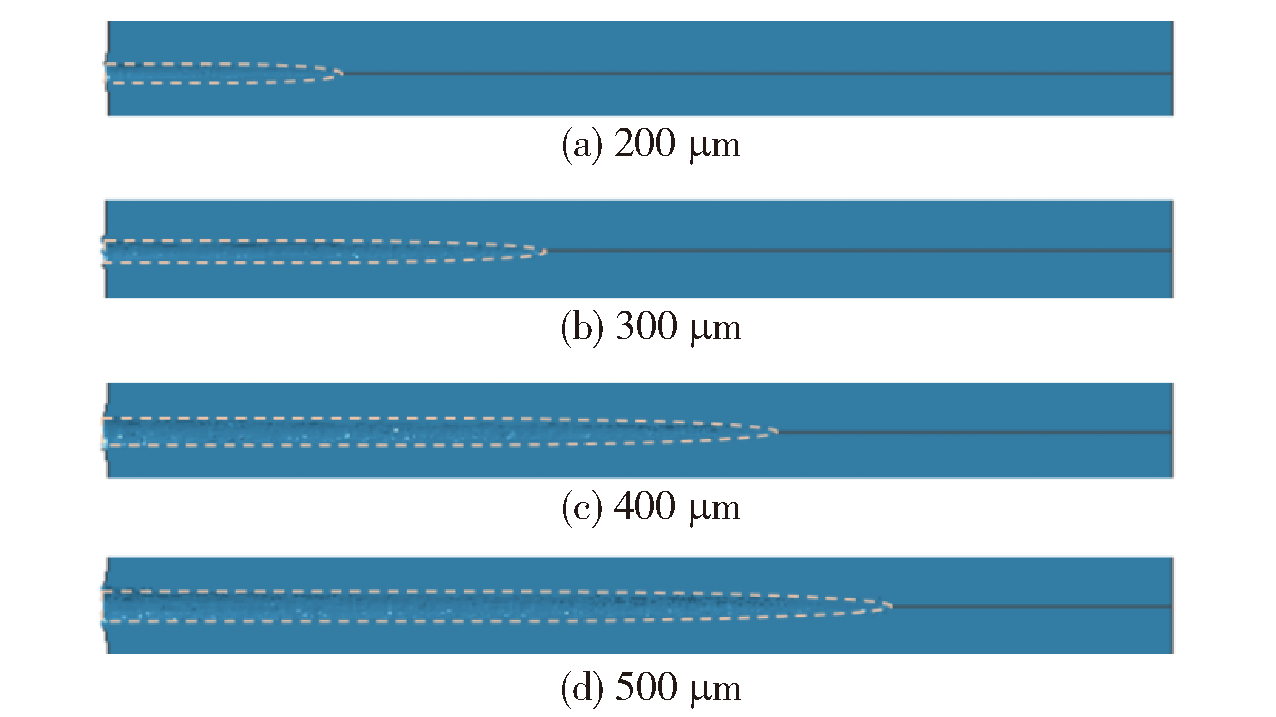

Fig.12 Finite element models of particles with different sizes

Fig.13 Simulated results of penetration depth of particles with different particle sizes

Table 4 Cavity characteristics generated by particles with different sizes

入口直径与深度	粒径/μm
入口直径与深度	200	300	400	500
入口直径/mm	0.522	0.673	0.867	1.061
深度/mm	6.441	12.171	18.734	21.962

Table 5 Cavity characteristics produced by particle penetration of different materials

入口直径与深度	铝	陶瓷	钢	镍	钨合金
入口直径/mm	0.981	1.001	1.072	1.065	1.061
深度/mm	4.031	5.434	9.599	11.261	21.962

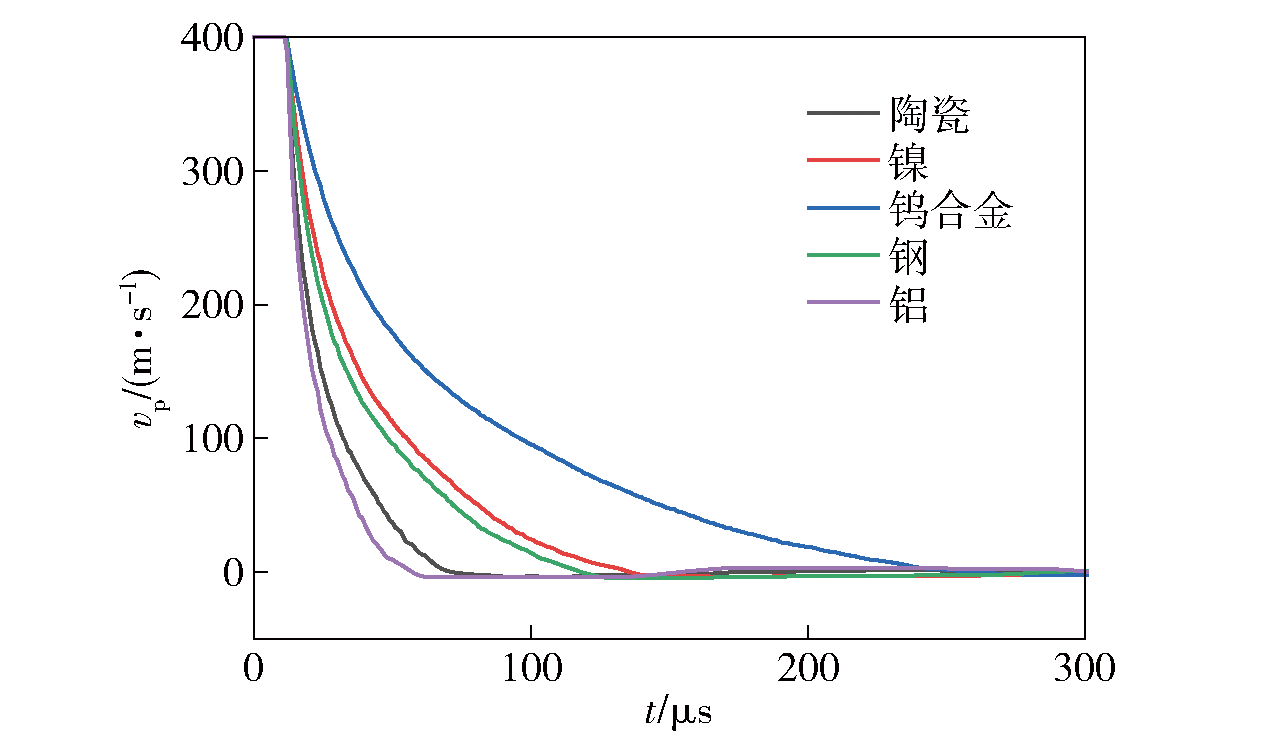

Fig.14 Velocity decay curves in the particle penetration processes of different materials

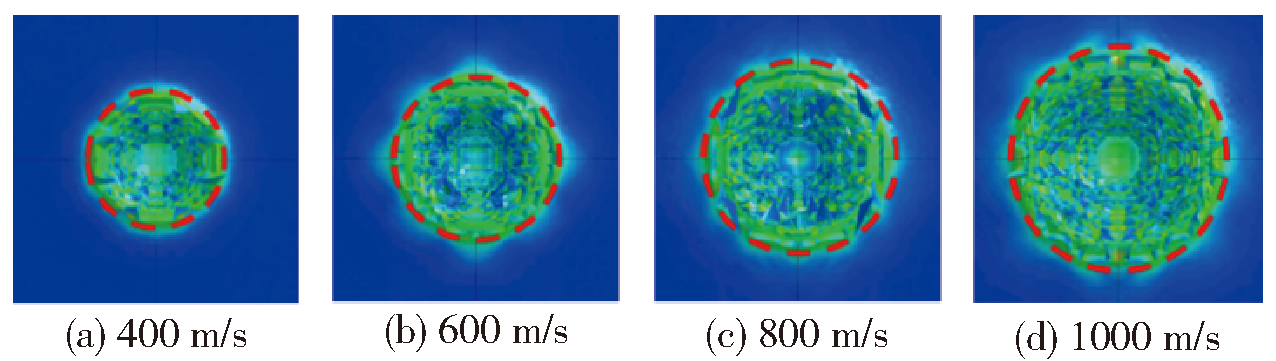

Fig.15 Simulated results of inlet diameter of cavity penetrated by particles at different initial velocities

Table 6 Cavity characteristics generated by particles penetrating the soap target at different initial velocities

入口直径与深度	颗粒初速度/(m·s^-1)
入口直径与深度	400	600	800	1000
入口直径/mm	1.061	1.451	1.593	1.810
深度/mm	21.962	26.453	28.266	29.391

Table 7 Critical velocity of particle penetration m/s

侵彻深度/mm	粒径/μm
侵彻深度/mm	100	300	500	700	900
1	305	225	195	178	166
5	477	352	305	278	260
10	578	426	370	337	314

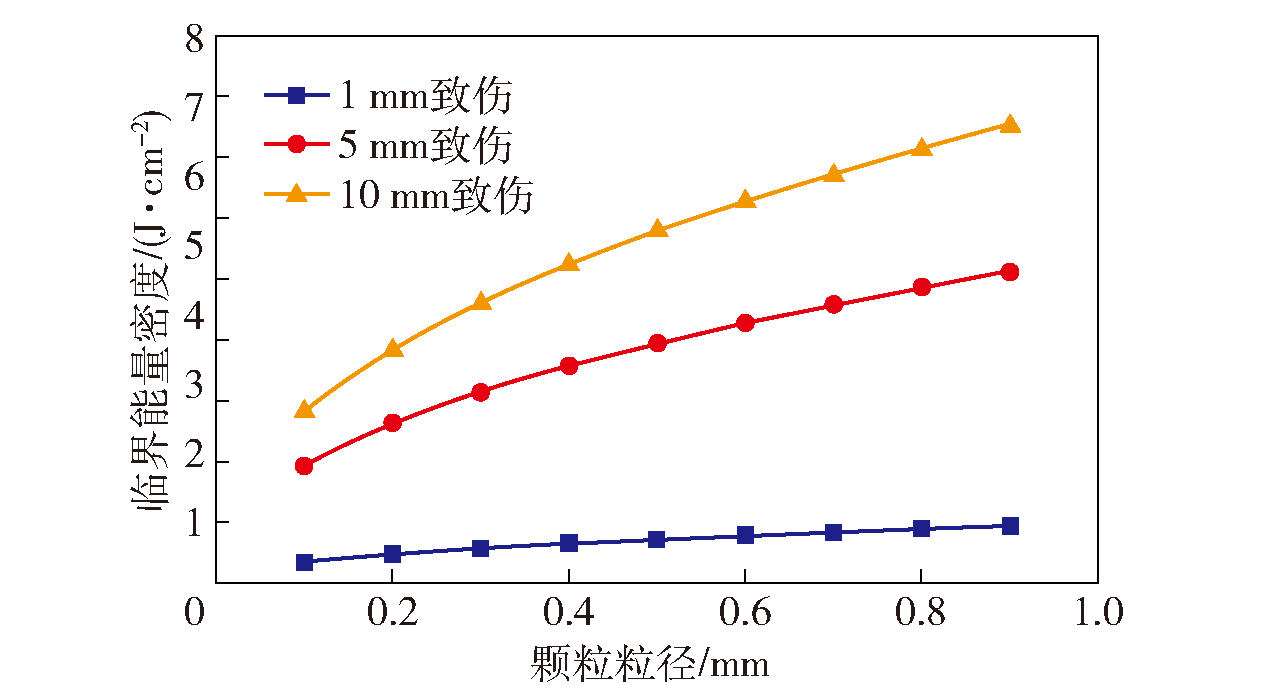

Fig.16 Critical energy-density of particles during penetration
