Relative Positioning Technology for Two Points Based on Cluster Cooperative Orientation

doi:10.12382/bgxb.2023.0829

Abstract

Abstract:

Precise inter-node position acquisition is the basis for coordination in unmanned vehicle clusters, but the global navigation satellite system (GNSS) struggles to provide the stable and accurate position information in complex and dynamic application environments. It is difficult to deploy the auxiliary anchor points, and most traditional relative positioning methods have limitations on the number of nodes. A new relative localization method for cluster nodes under GNSS-denied conditions is proposed to address the above three problems. Taking two nodes equipped with inertial measurement units (IMUs) and ultra-wideband sensors as an example, a relative positioning model is established, and an extended Kalman filter algorithm is used to fuse IMU and inter-node distance information for the optimal estimation of relative position. Simulation experiments show that the proposed method is used to achieve a relative positioning accuracy of about 1.3m within 200m range between unmanned aerial vehicles, improving nearly 4 times over existing multi-node relative positioning algorithms. The high-precision relative positioning between two nodes can be achieved without relying on GNSS or auxiliary anchor points, providing an effective and feasible solution for collaborative positioning of unmanned vehicle clusters in complex application environment.

Key words: relative positioning, ranging, inertial measurement unit, extended Kalman filter, GNSS-denied

CLC Number:

V249.32⁺8

DENG Tingxiang, REN Peng, CHENG Jia, WANG Jianbing, LIANG Zhenjie, XIANG Zheng. Relative Positioning Technology for Two Points Based on Cluster Cooperative Orientation[J]. Acta Armamentarii, 2023, 44(S2): 22-34.

Figures/Tables 17

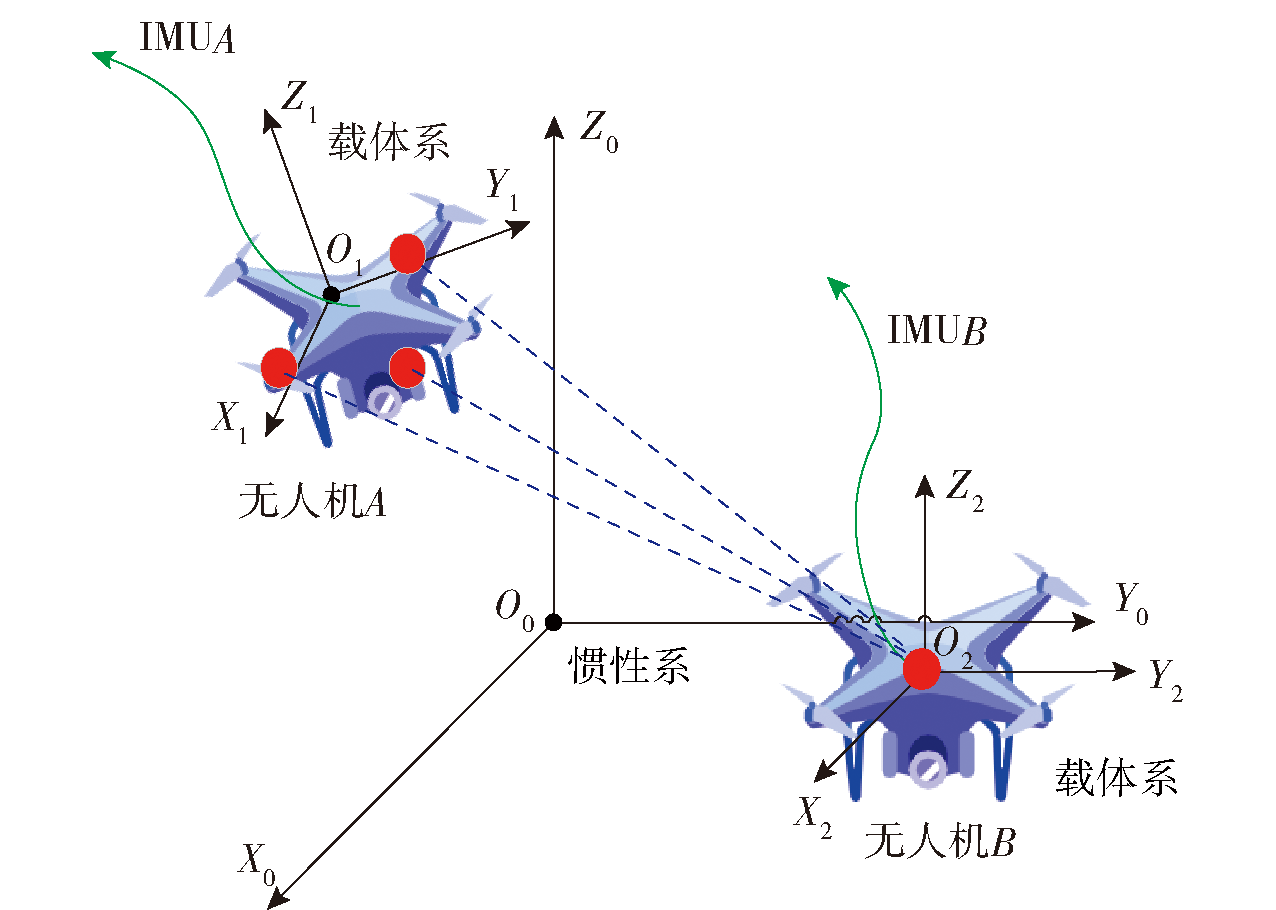

Fig.1 UAV relative positioning system

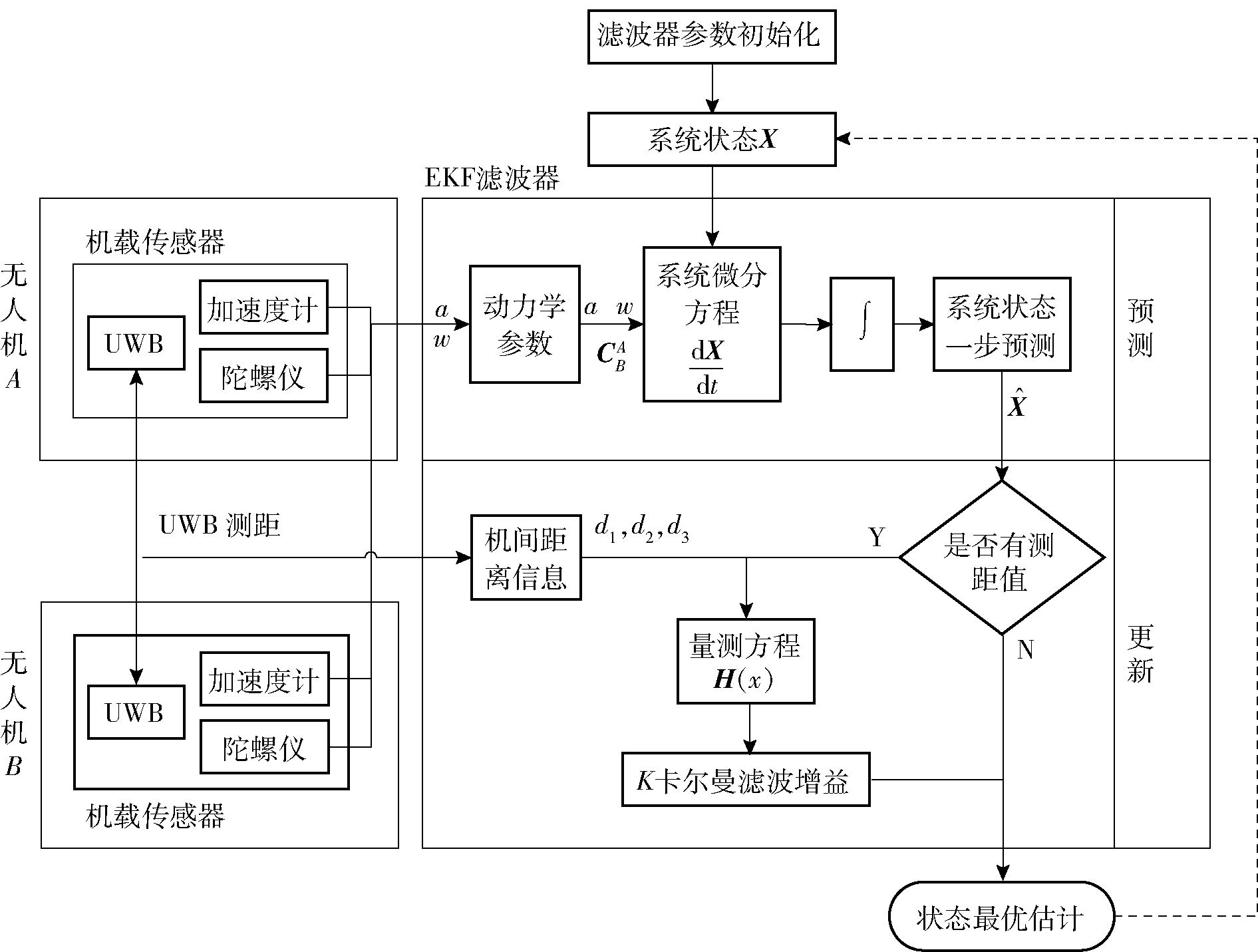

Fig.2 Working process of the whole system

Table 1 Simulation experiment parameters

参数	数值
IMU采样率/s	0.005
陀螺仪常值漂/(deg·h^-1)	0.1
加速度计常值漂移/ug	100
测距误差/m	0.5
初始位置误差/m	(2,2,2)
初始速度误差/(m·s^-1)	(0.1,0.1,0.1)
UWB位置(x,y,z)/m	UWB₁(0.4,0,0) UWB₂(-0.3,0,0) UWB₃(0,0.3,0.4)
状态噪声矩阵	diag(10^-5×I_3×1;10^-2×I_3×1; 10^-8×I_6×1)

Table 2 Motion parameter setting

运动参数	数值
飞行时长/s	600
初始相对位置/m	18
初始速度/(m·s^-1)	0

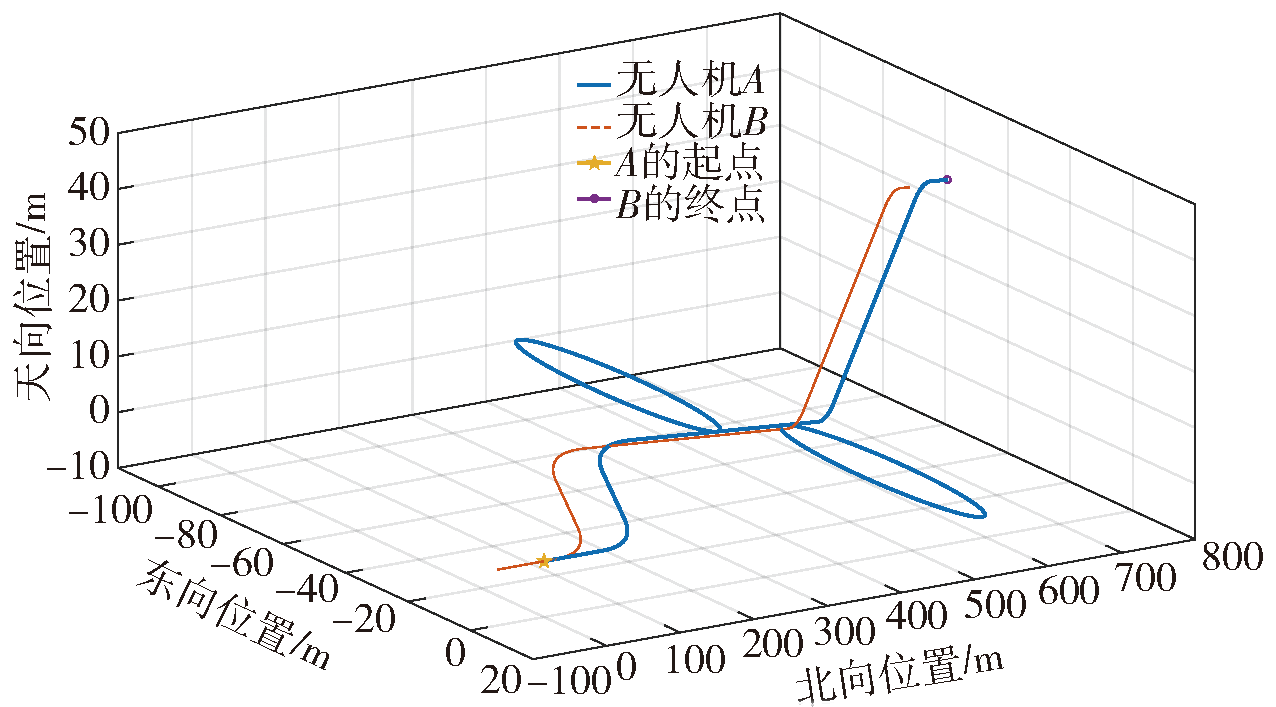

Fig.3 Relative motion trajectory of UAV

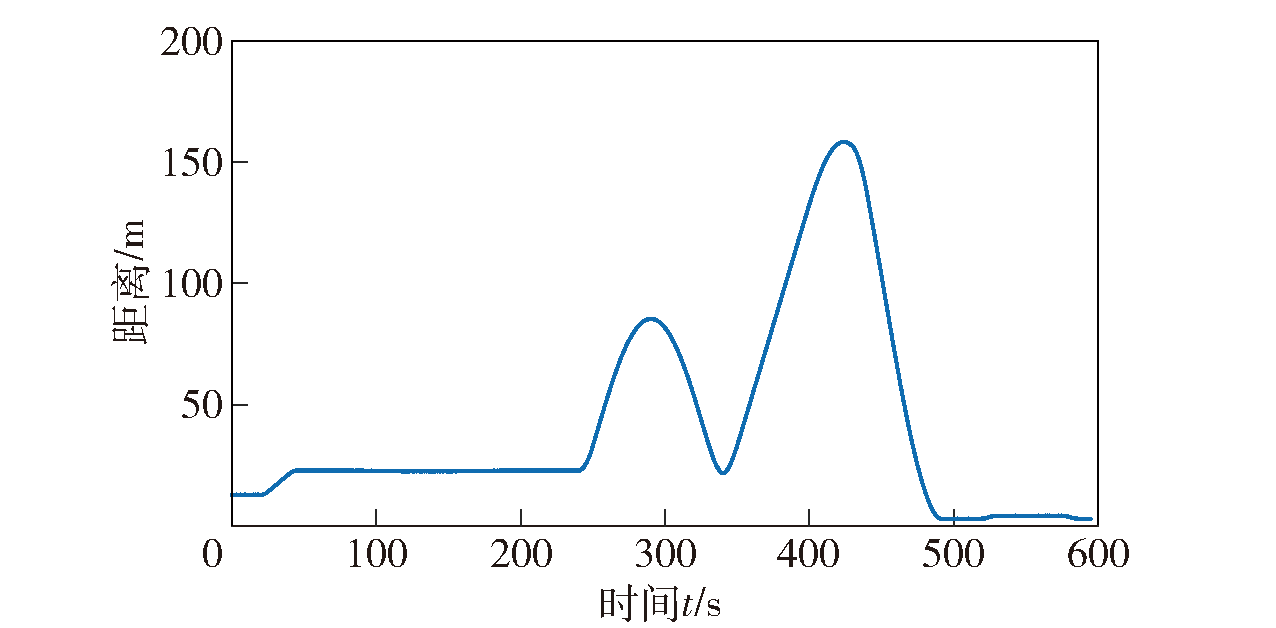

Fig.4 Distance between UAVs

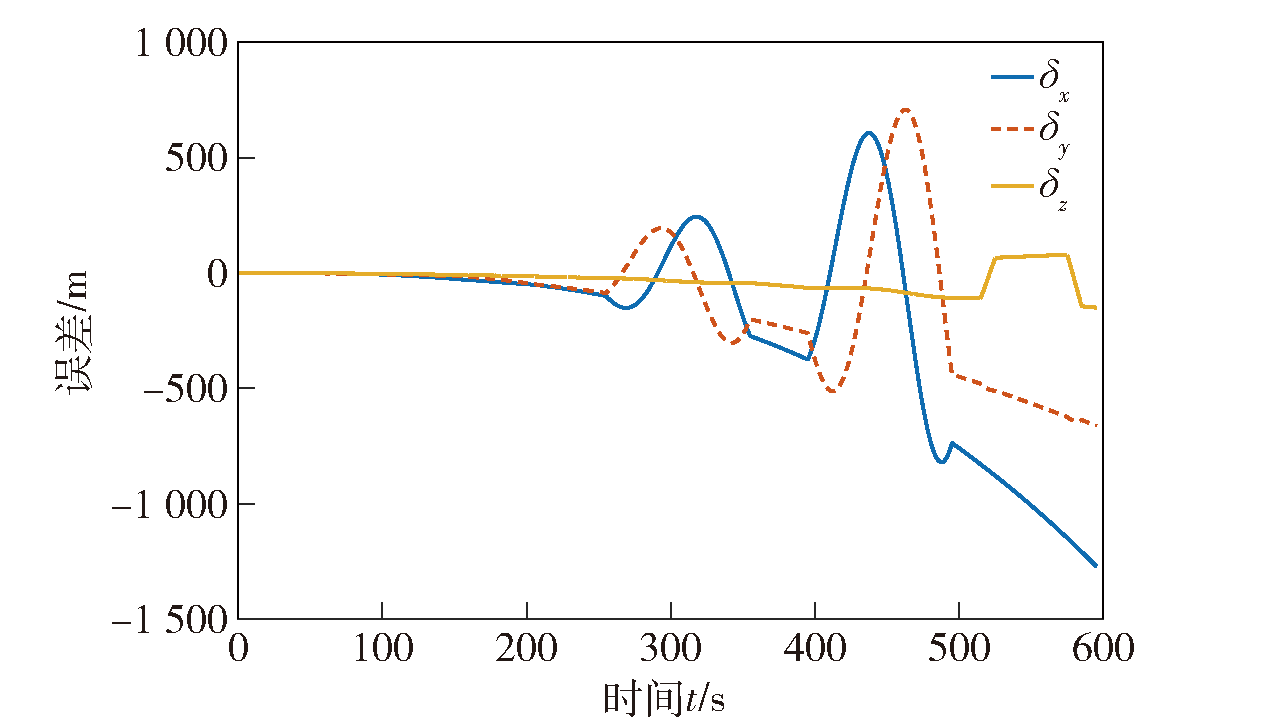

Fig.5 Relative position error of inertial navigation

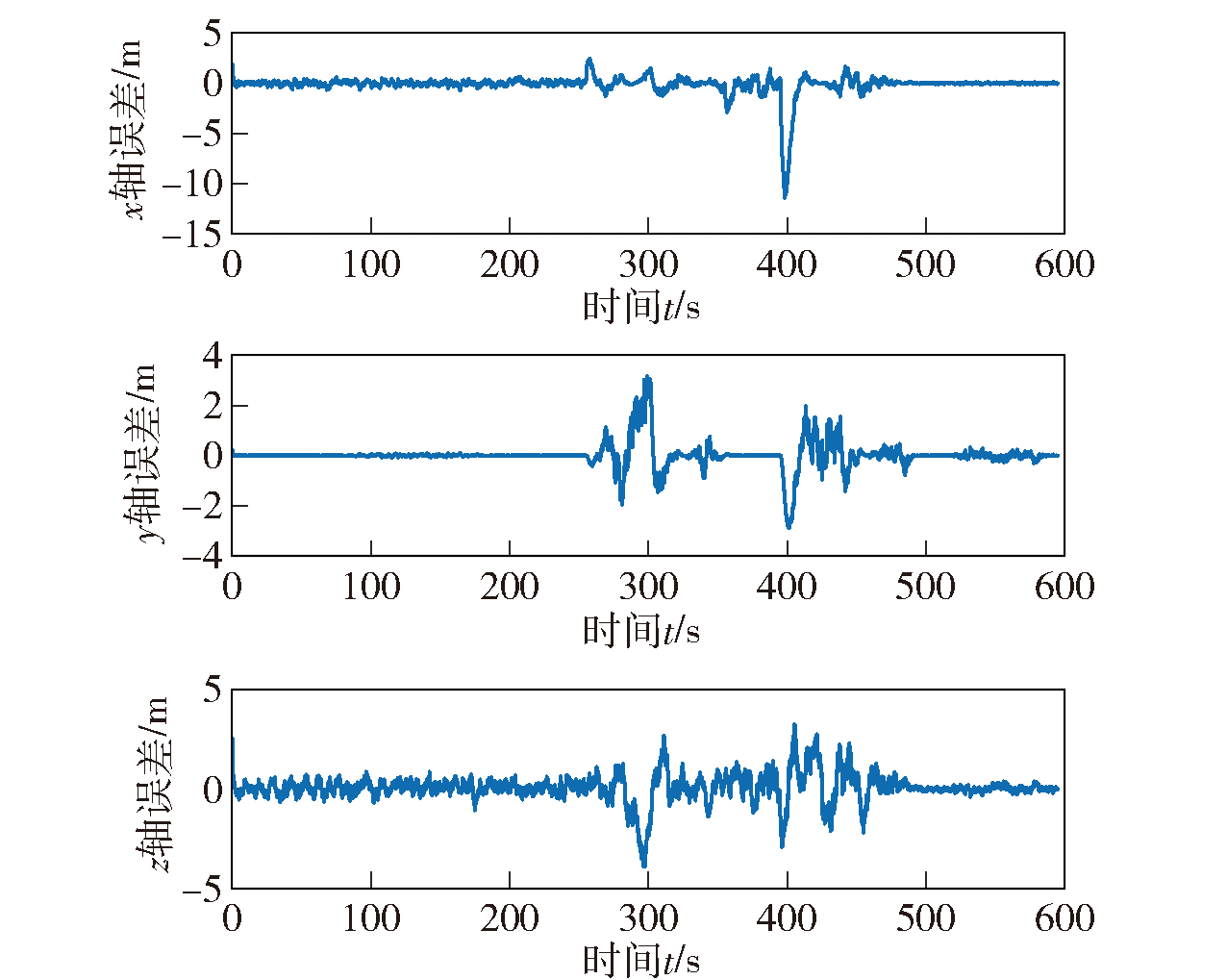

Fig.6 Simulation of relative positioning algorithm

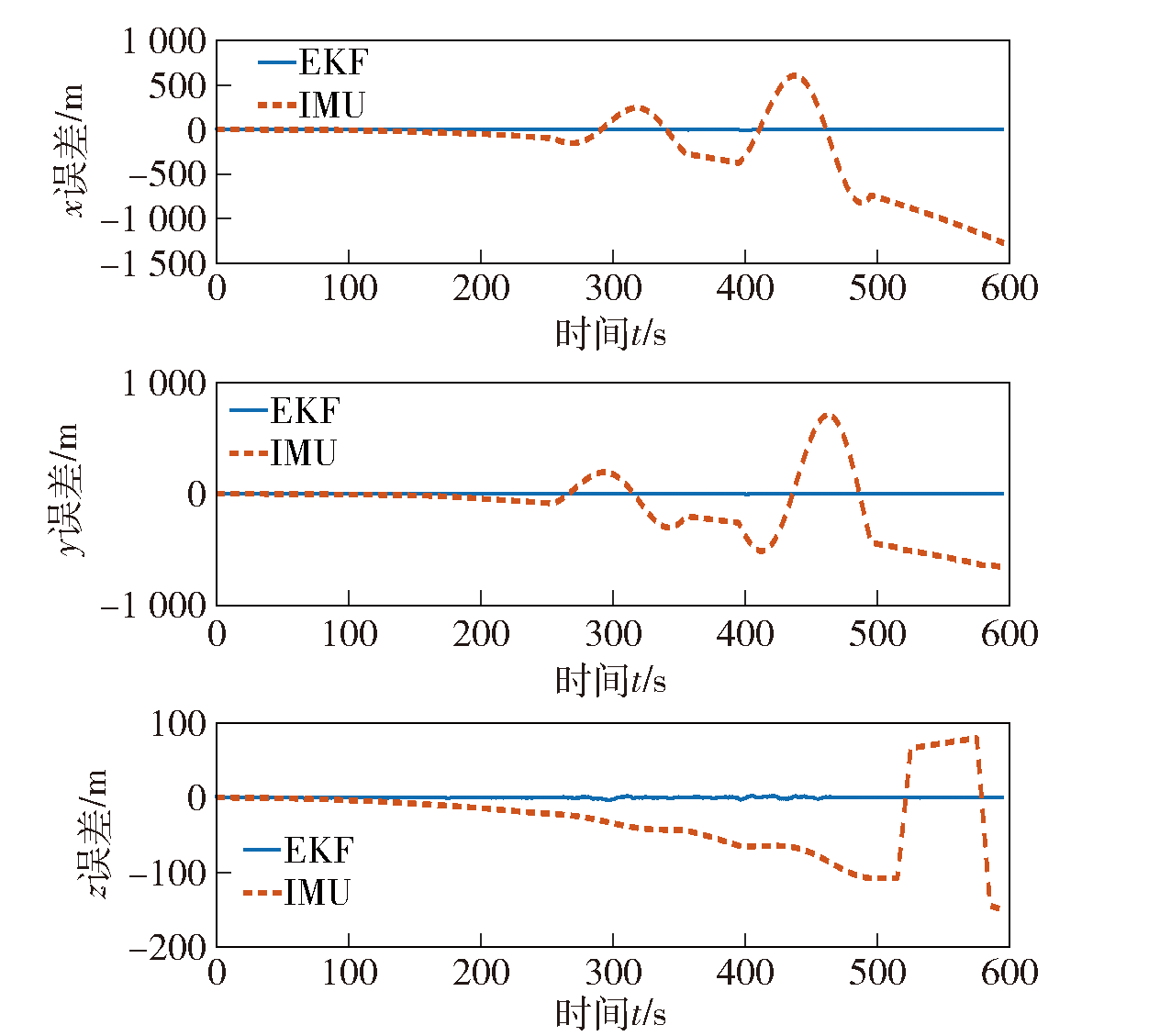

Fig.7 Comparison of relative positioning algorithm and inertial navigation

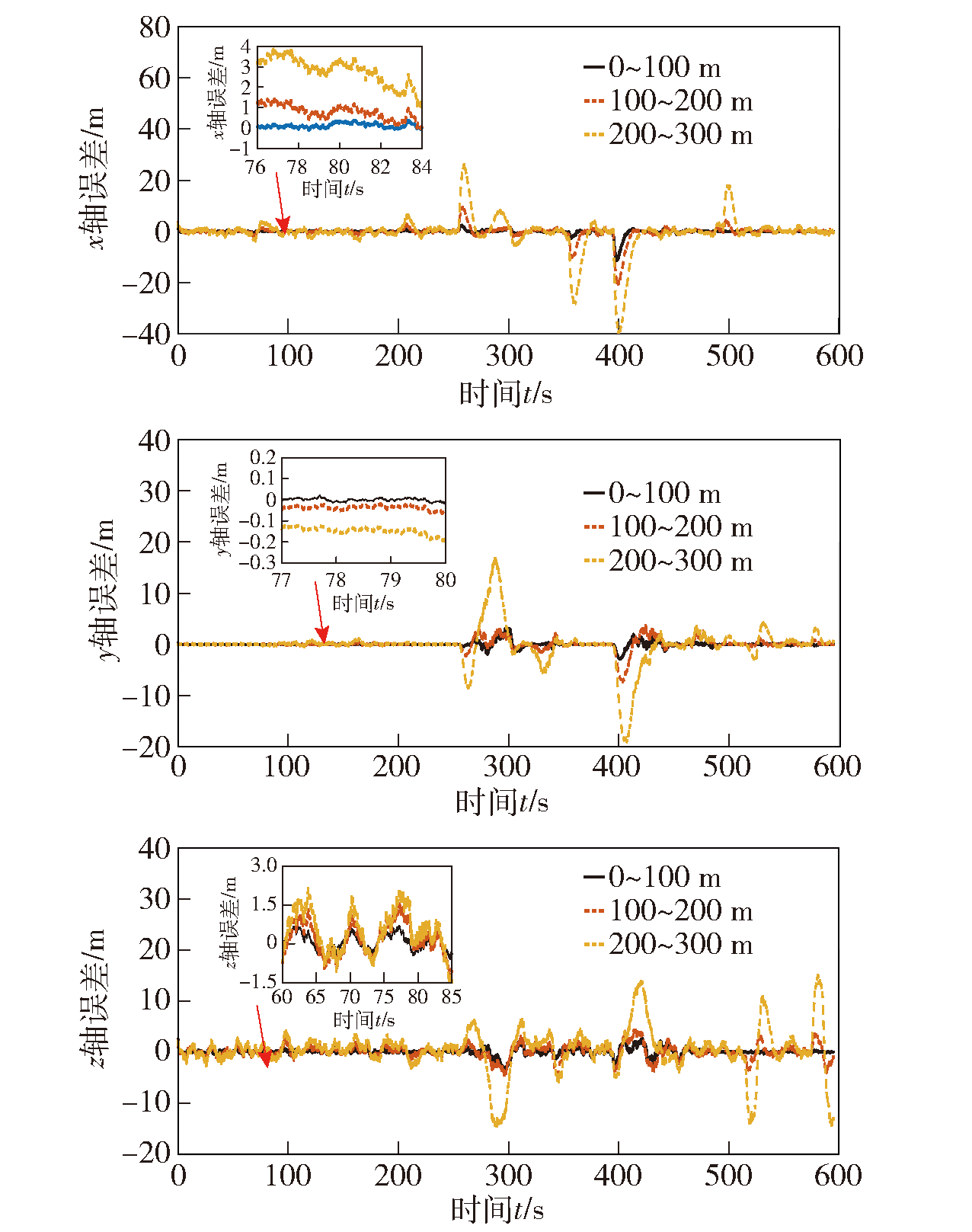

Fig.8 The effect of distance on relative positioning performance

Table 3 UWB sensor settings

UWB传感器编号	位置(x,y,z)/m
UWB1	(0.4,0,0)
UWB2	(-0.3,0,0)
UWB3	(0,0.3,0.4)
UWB4	(0,-0.5,0)
UWB5	(0,0,-0.5)

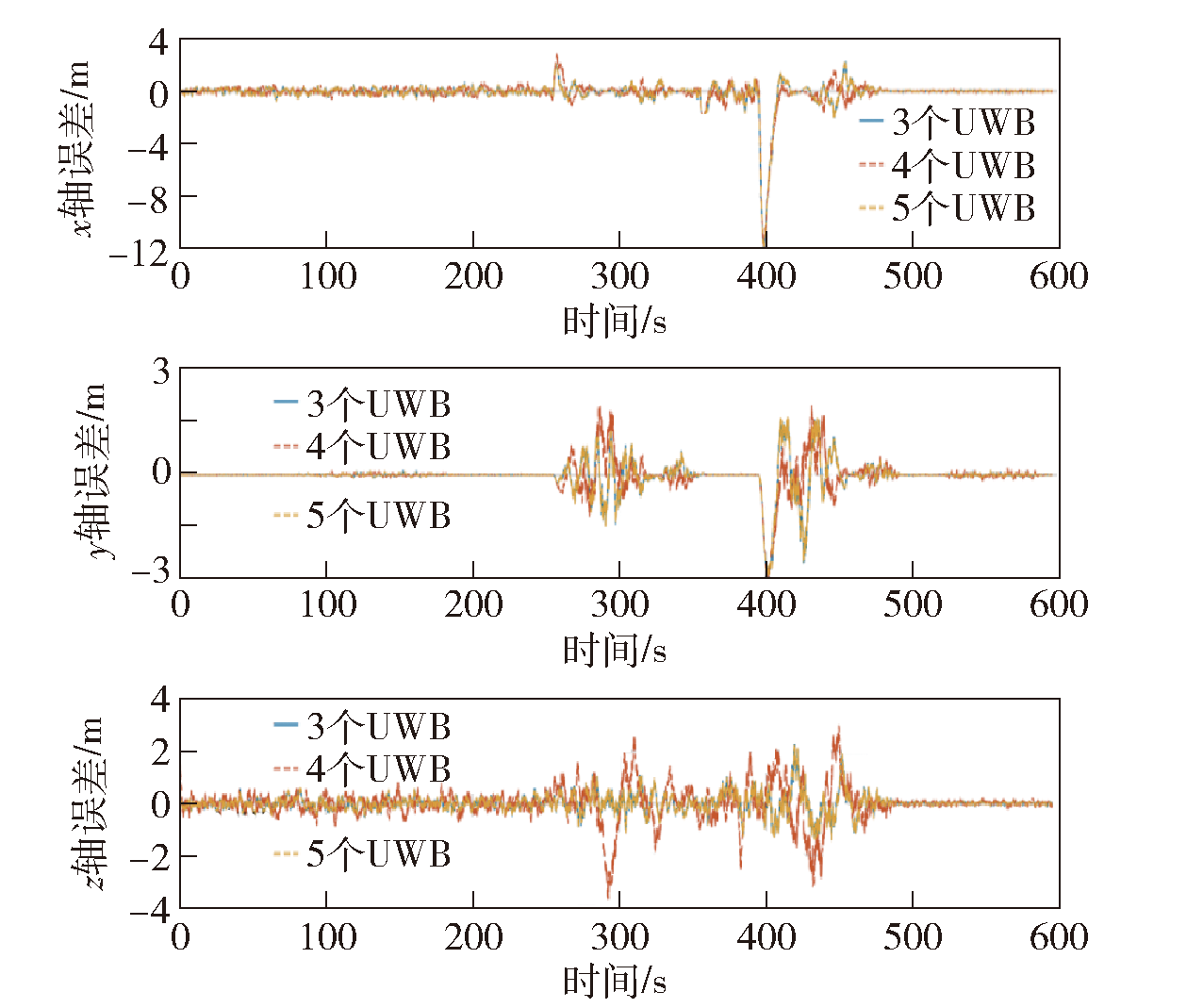

Fig.9 Relative positioning results of different number of UWB sensors

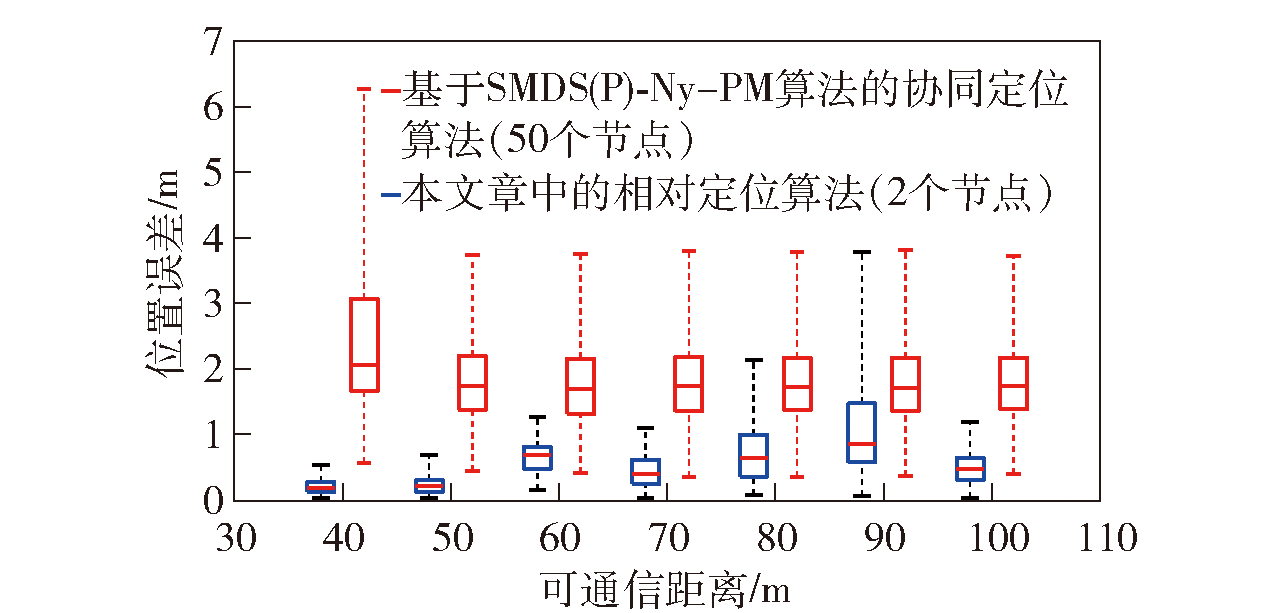

Fig.10 Comparison of positioning errors of two algorithms

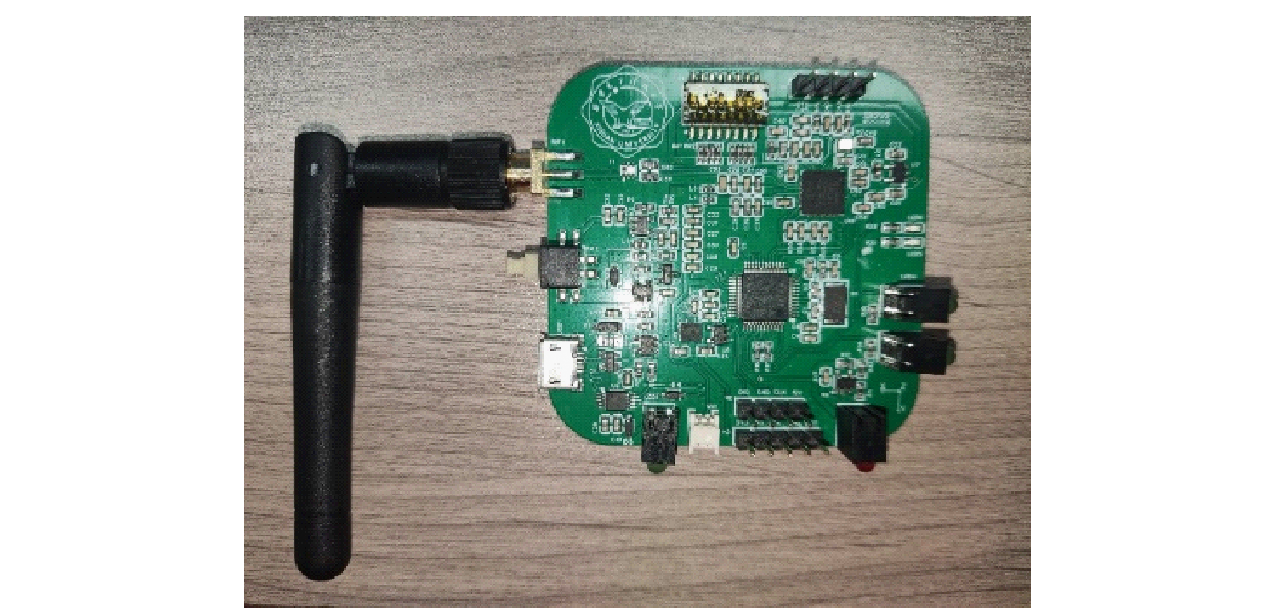

Fig.11 Sample prototype

Fig.12 Deployment of system prototypes

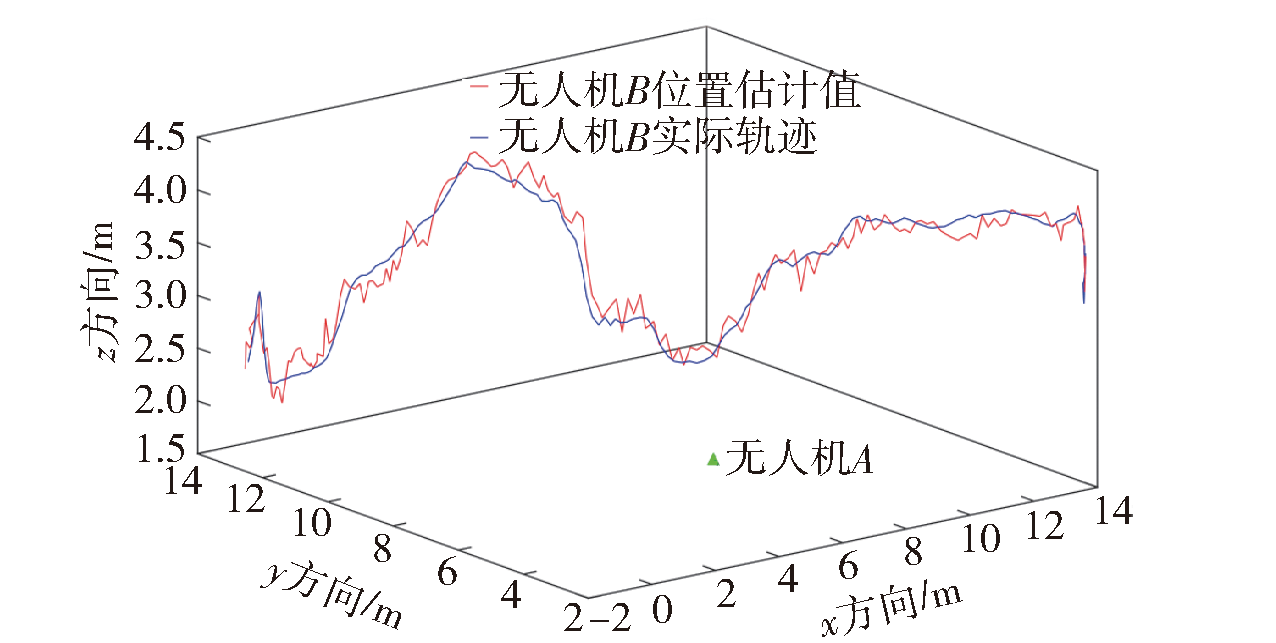

Fig.13 UAV position value obtained from the test

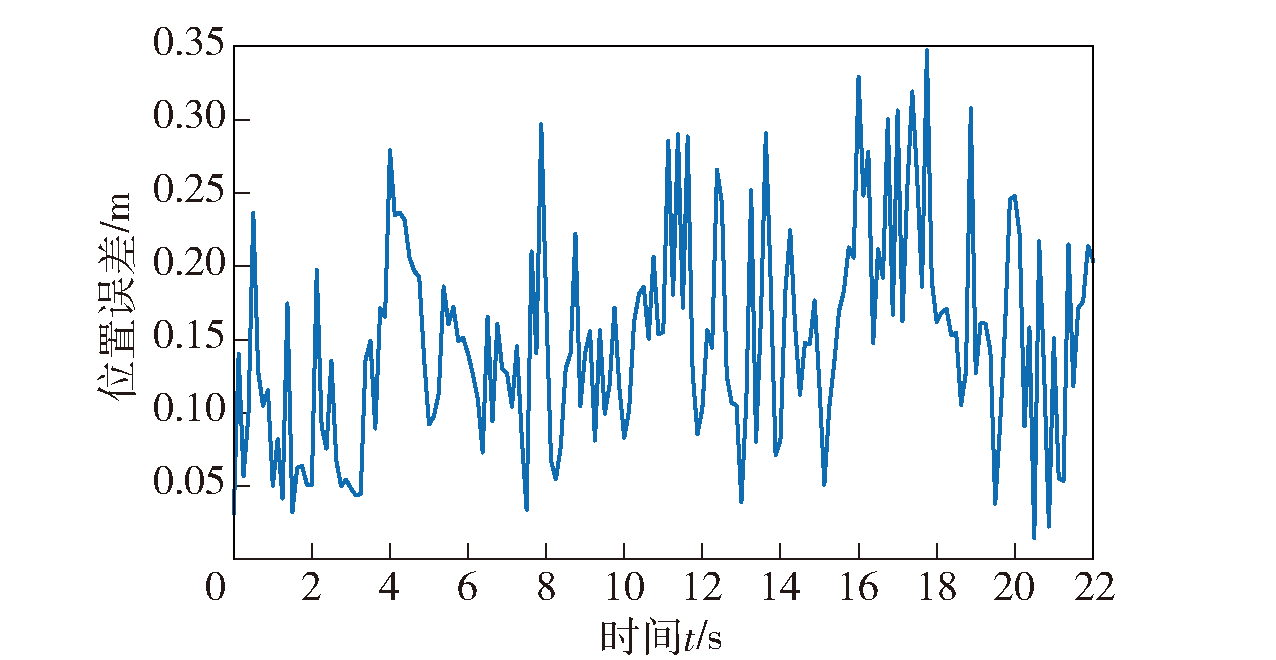

Fig.14 Position error of UAV
