Numerical Investigation of Anti-ballistic Property of ZnO-modified Aramid Fabrics

doi:10.12382/bgxb.2022.1297

Abstract

Abstract:

Aramid fabrics are widely used in the field of body armors due to their low density, high modulus and high strength. In order to improve the ballistic resistance of aramid fabrics, the aramid fabrics are modified by planting and growing the nano-ZnO particles. The electron microscope observation, quasi-static tensile test, yarn pull-out test, ballistic impact test and numerical simulation were made for ZnO-modified fabrics, and their mechanical and ballistic properties were studied. The results show that the planting of ZnO particles increases the structural interlock and surface roughness of yarns. Compared with the neat fabrics, the inter-yarn friction coefficient of ZnO-modified fabrics is increased by 282%, their ballistic limit velocity is increased by 54.5%, and their energy absorption and specific energy absorption performance are significantly better than those of neat fabrics. The ballistic impact process of the modified fabric is simulated by the meso-yarn model. The simulated results are in good agreement with the ballistic test results. This further explains that the improvement of inter-yarn friction coefficient and tensile strength is an effective means to enhance the ballistic impact resistance of fabrics, and provides a theoretical basis for the application of ZnO-modified fabrics in the field of flexible bulletproof.

Key words: aramid fabric, zinc oxide modification, ballistic limit, numerical simulation

CLC Number:

TQ325.1

XU Yaojie, LIU Han, ZHANG Hong, HUANG Guangyan. Numerical Investigation of Anti-ballistic Property of ZnO-modified Aramid Fabrics[J]. Acta Armamentarii, 2023, 44(10): 2897-2905.

Figures/Tables 18

Table 1 Parametric characteristics of fabrics

织物	面密度/ (g·m^-2)	较纯织物面密度增加百分比/%
纯织物	240.00	0
氧化锌改性织物	247.44	3.1

Fig.1 SEM images of neat and ZnO-modified fabrics

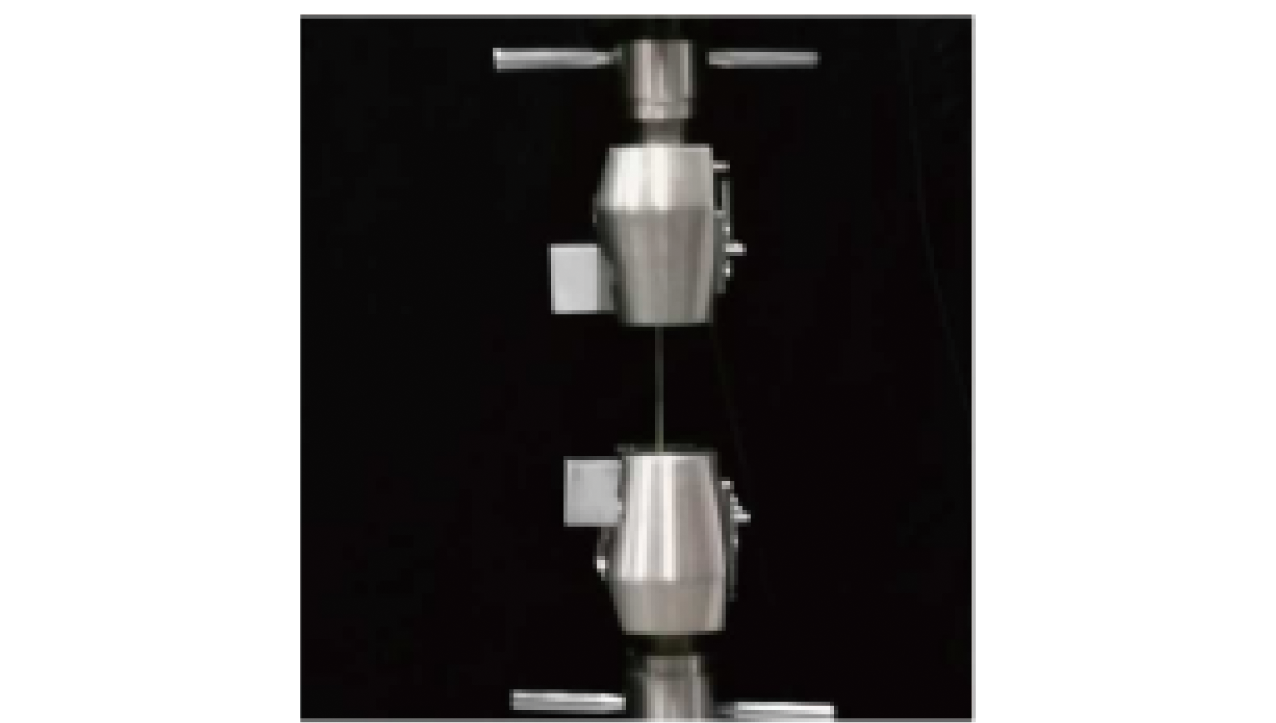

Fig.2 Layout of quasi-static tensile test

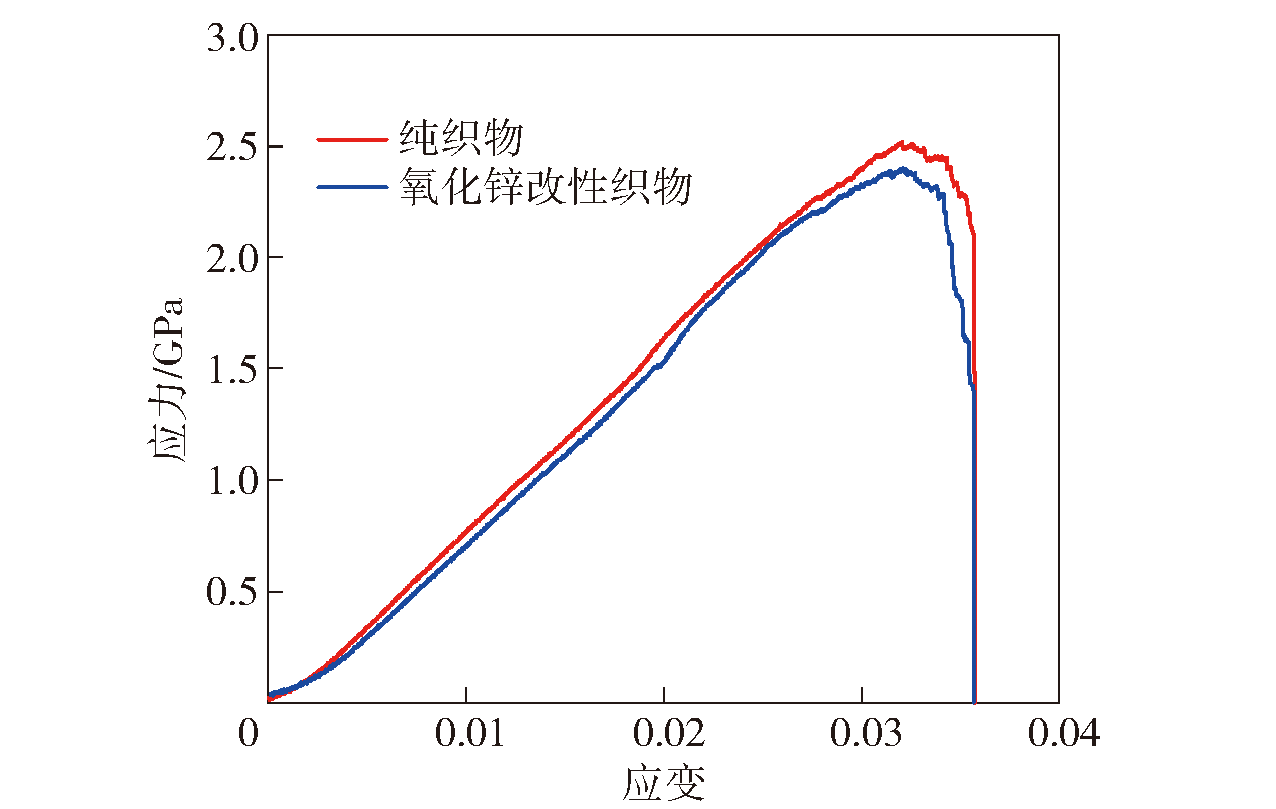

Fig.3 Quasi-static tensile results of neat and ZnO- modified fabrics

Fig.4 Layout of yarn pull-out test

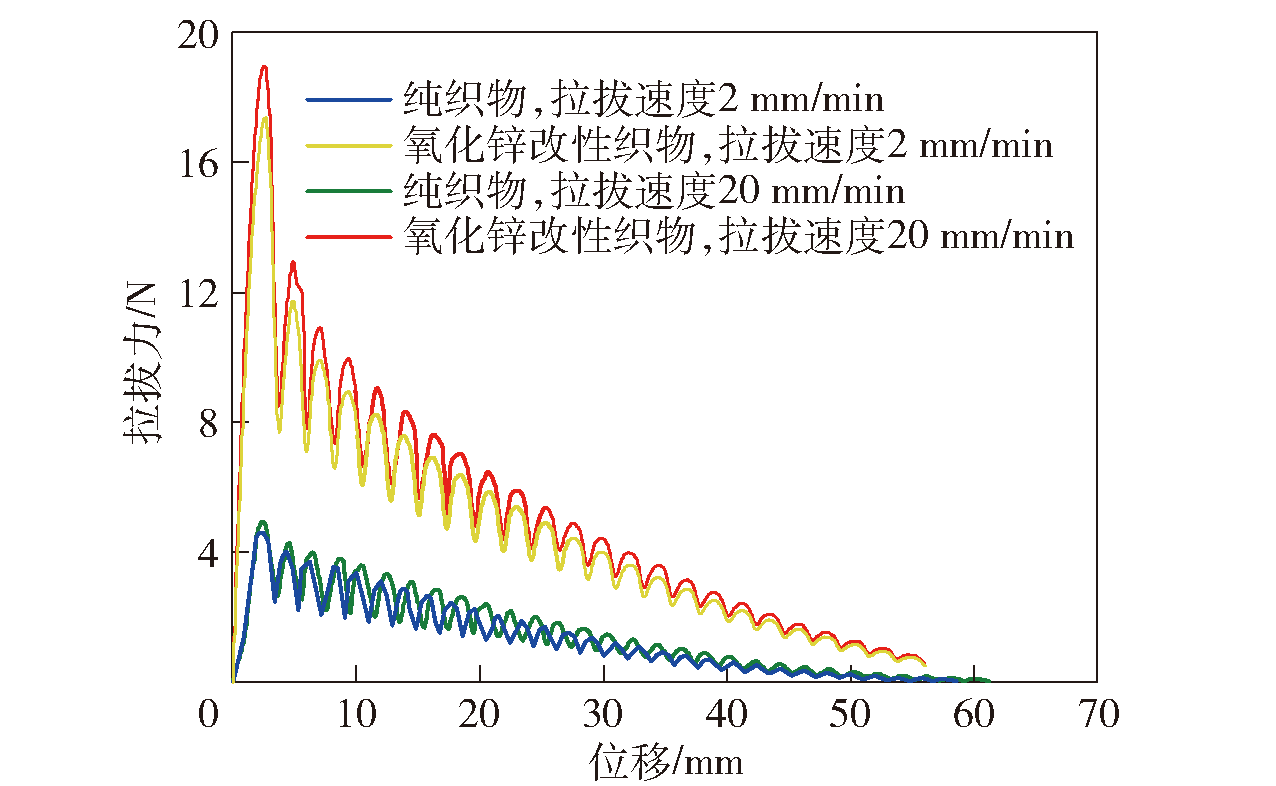

Fig.5 Results of yarn pull-out test

Fig.6 Fabric ballistic performance testing system

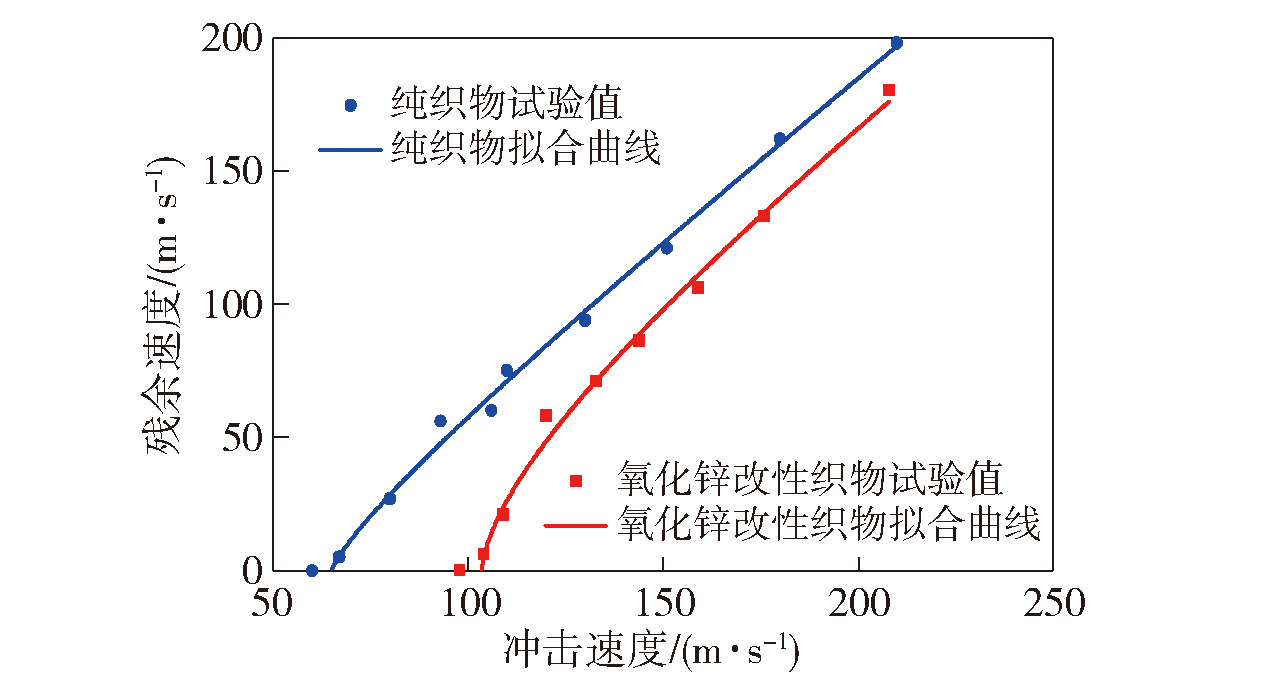

Fig.7 Ballistic limit fit curves

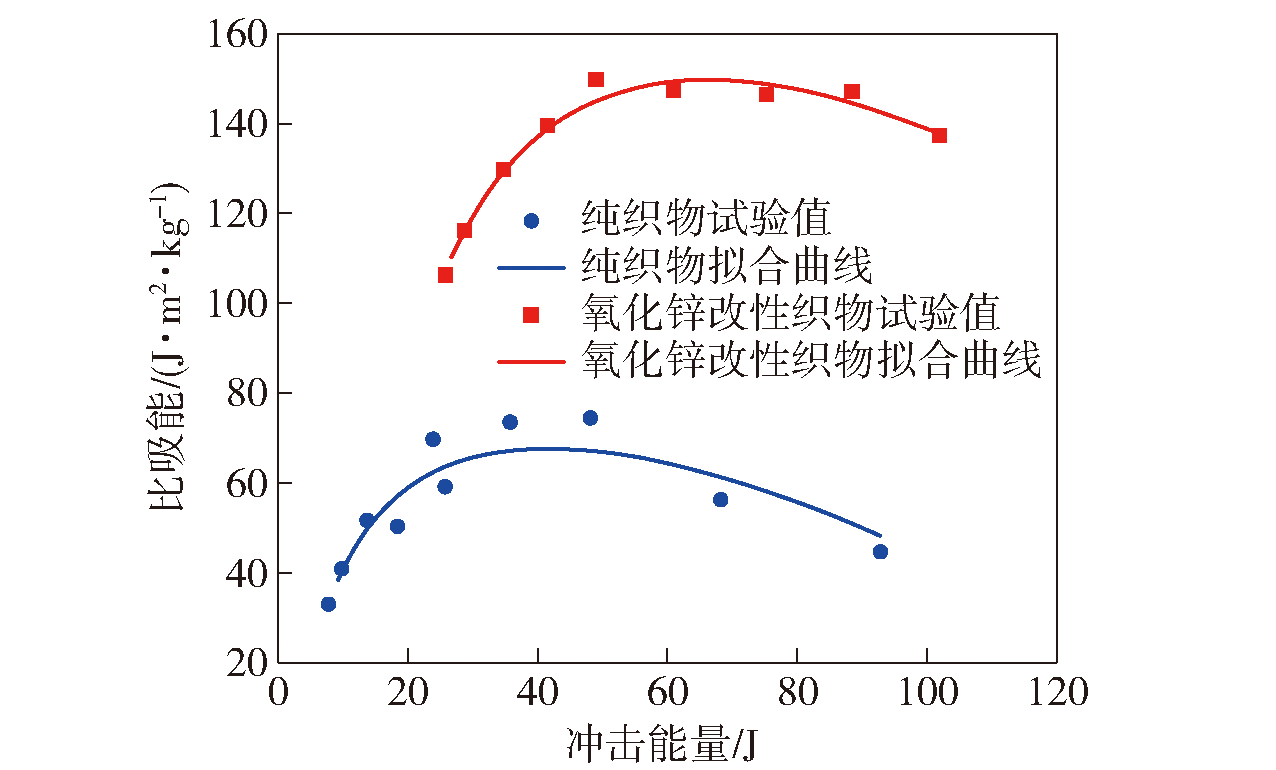

Fig.8 SEA of single-layer fabrics

Fig.9 Macroscopic failure features of fabrics

Fig.10 Microscopic failure features of fabrics

Table 2 Mechanical property of projectile[24]

弹丸材料	密度ρ/(g·cm^-3)	弹性模量E/GPa	泊松比ν
钢	7.85	210	0.3

Table 3 Mechanical properties of Twaron yarn

参数	数值
密度ρ/(g·cm^-3)	1.44
1方向拉伸强度σ₁/GPa	2.4
1方向弹性模量E₁/GPa	75
2方向弹性模量E₂/GPa	0.75
3方向弹性模量E₃/GPa	0.75
1-2方向泊松比ν₁₂	0.3
1-3方向泊松比ν₁₃	0.3
2-3方向泊松比ν₂₃	0.4
1-2方向剪切模量G₁₂/GPa	2.4
1-3方向剪切模量G₁₃/GPa	2.4
2-3方向剪切模量G₂₃/GPa	1.2

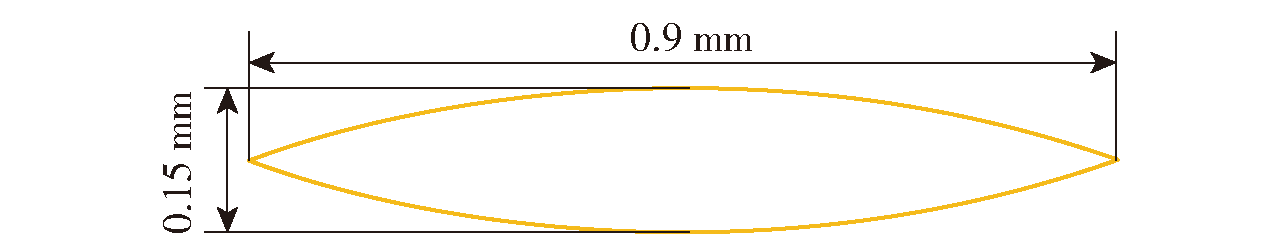

Fig.11 Cross-sectional shape of yarn

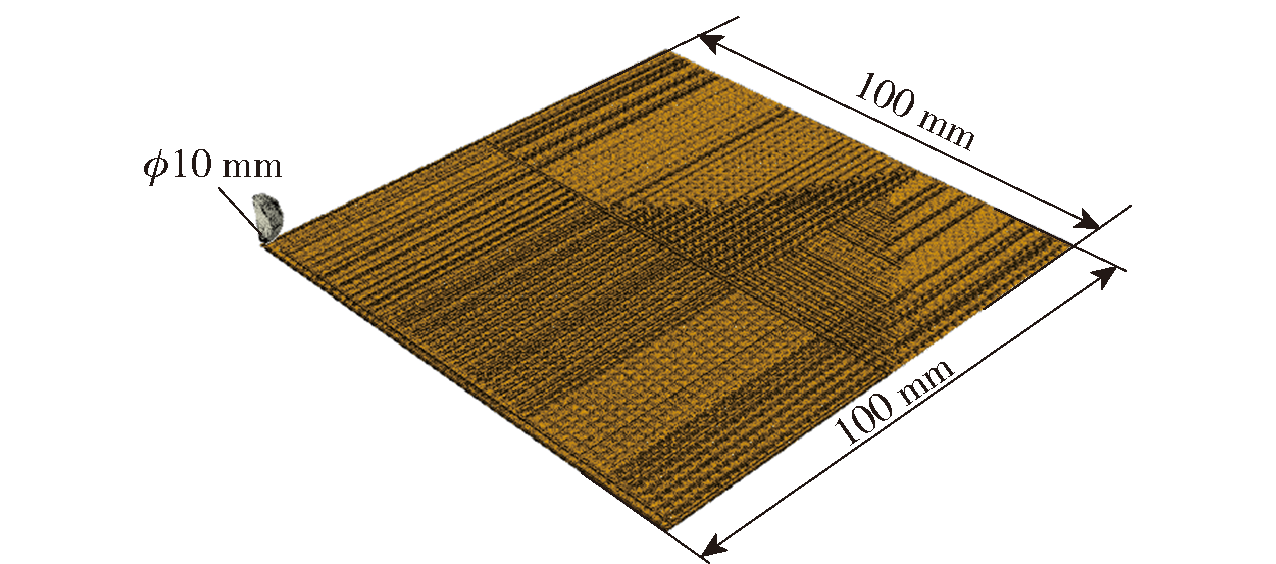

Fig.12 1/4 model of numerical simulation system

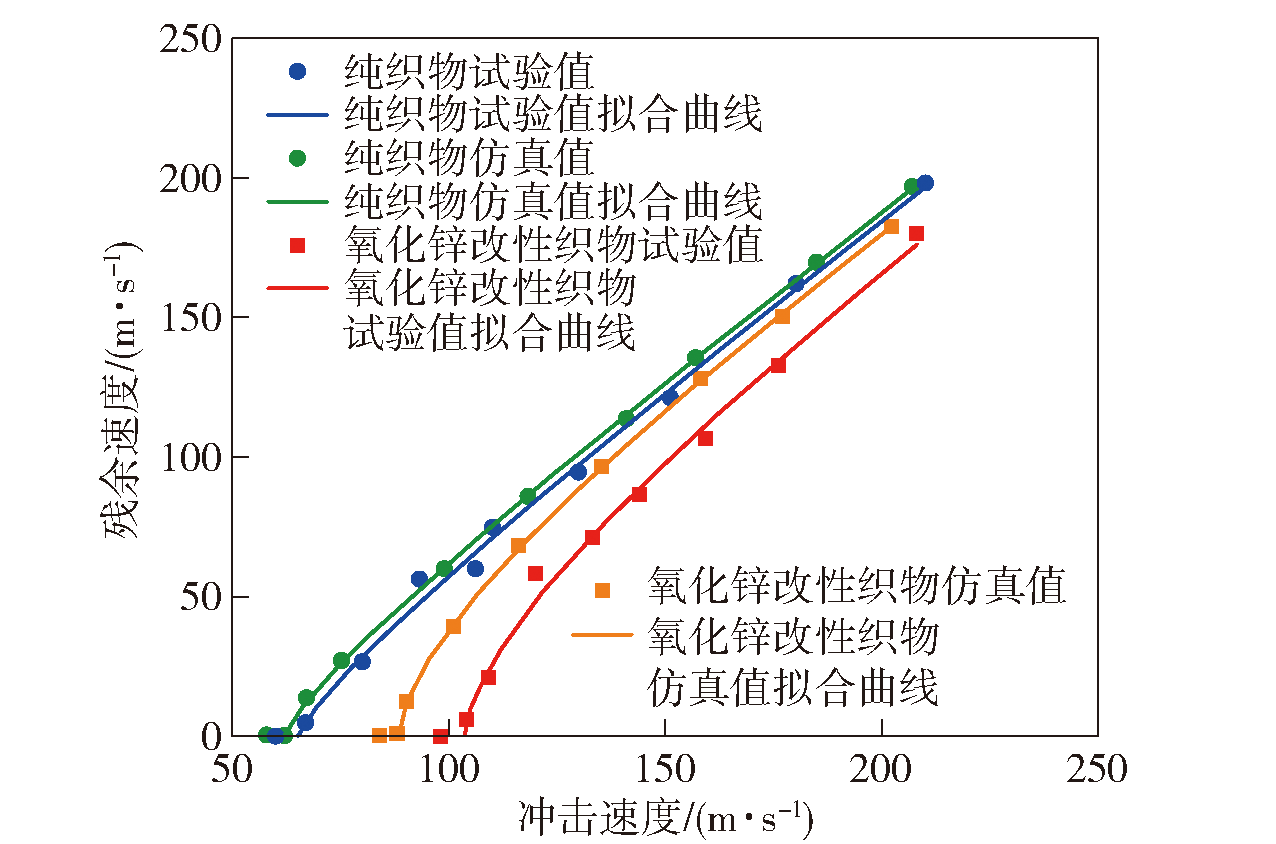

Fig.13 Comparison of simulated and ballistic impact test results

Fig.14 Failure process of single-layer ZnO-modified fabric under 140m/s ballistic impact

Fig.15 Comparison between simulated and test macro results of ZnO-modified fabric under 140m/s ballistic impact

References 33

[1]	GURGEN S, KUSHAN M C, LI W H. Shear thickening fluids in protective applications: a review[J]. Progress in Polymer Science, 2017, 75: 48-72. doi: 10.1016/j.progpolymsci.2017.07.003 URL
[2]	胡年明, 陈长海, 朱锡, 等. 陶瓷与芳纶层合板叠层结构抗侵彻性能试验研究[J]. 兵工学报, 2018, 39(5): 976-982. doi: 10.3969/j.issn.1000-1093.2018.05.018
	HU N M, CHEN C H, ZHU X, et al. Experimental research on anti-penetration performance of stacked structure of ceramic/Kevlar composite laminates[J]. Acta Armamentarii, 2018, 39(5): 976-982. (in Chinese)
[3]	SOCKALINGAM S, CHOWSHURY S C, GILLESPIE J W, et al. Recent advances in modeling and experiments of Kevlar ballistic fibrils, fibers, yarns and flexible woven textile fabrics—a review[J]. Textile Research Journal, 2017, 87(8): 984-1010. doi: 10.1177/0040517516646039 URL
[4]	CAO S S, CHEN Q, WANG Y P, et al. High strain-rate dynamic mechanical properties of Kevlar fabrics impregnated with shear thickening fluid[J]. Composites Part A, 2017, 100: 161-169. doi: 10.1016/j.compositesa.2017.04.015 URL
[5]	HASANZADEH M, MOTTAGHITALAB V, BABAEI H, et al. The influence of carbon nanotubes on quasi-static puncture resistance and yarn pull-out behavior of shear-thickening fluids (STFs) impregnated woven fabrics[J]. Composites Part A, 2016, 88: 263-271. doi: 10.1016/j.compositesa.2016.06.006 URL
[6]	HWANG H S, MALAKOOTI M H, PATTERSON B A, et al. Increased interyarn friction through ZnO nanowire arrays grown on aramid fabric[J]. Composites Science & Technology, 2015, 107: 75-81.
[7]	NASSER J, STEINKE K, GROO L A, et al. Improved interyarn friction, impact response, and stab resistance of surface fibrilized aramid fabric[J]. Advanced Materials Interfaces, 2019, 6: 1900881. doi: 10.1002/admi.v6.19 URL
[8]	ARORA S, MAJUMDAR A, BUTOLA B S. Deciphering the structure-induced impact response of ZnO nanorod grafted UHMWPE woven fabrics[J]. Thin-Walled Structures, 156: 106991. doi: 10.1016/j.tws.2020.106991 URL
[9]	HWANG H S, MALAKOOTI M H, SODANA H A, et al. Tailored interyarn friction in aramid fabrics through morphology control of surface grown ZnO nanowires[J]. Composites Part A: Applied Science & Manufacturing, 2015, 76: 326-333.
[10]	DIXIT P, GHOSH A, MAJUMDAR A. Hybrid approach for augmenting the impact resistance of p-aramid fabrics: grafting of ZnO nanorods and impregnation of shear thickening fluid[J]. Journal of Materials Science, 2019, 54(20): 13106-13117. doi: 10.1007/s10853-019-03830-z
[11]	PARK Y, KIM Y H, BALUCH A H, et al. Numerical simulation and empirical comparison of the high velocity impact of STF impregnated Kevlar fabric using friction effects[J]. Composite structures, 2015, 125: 520-529. doi: 10.1016/j.compstruct.2015.02.041 URL
[12]	LIU L L, CAI M, LUO G, et al. Macroscopic numerical simulation method of multi-phases STF impregnated Kevlar fabrics. Part 1: Quasi-static and dynamic mechanical test[J]. Composite structures, 2021, 266 : 113780. doi: 10.1016/j.compstruct.2021.113780 URL
[13]	ZHANG X T, YAN R S, ZHANG Q Y, et al. The numerical simulation of the mechanical failure behavior of shear thickening fluid/fiber composites: a review[J]. Polymers Advanced Technologies, 2022, 33(1): 20-33. doi: 10.1002/pat.v33.1 URL
[14]	KHODADADI A, LIAGHAT G H, SABET A R, et al. Experimental and numerical analysis of penetration into Kevlar fabric impregnated with shear thickening fluid[J]. Journal of Thermoplastic Composite Materials, 2018, 31(3): 392-407. doi: 10.1177/0892705717704485 URL
[15]	CAO S S, PANG H M, ZHAO C Y, et al. The CNT/PSt-EA/Kevlar composite with excellent ballistic performance[J]. Composites Part B: Engineering, 2020, 185: 107793. doi: 10.1016/j.compositesb.2020.107793 URL
[16]	LIU L L, YANG Z Z, LIU X, et al. Yarn dynamic tensile behavior and meso-scale numerical simulation method for STF-Kevlar fabrics[J]. Thin-Walled Structures, 2020, 159(1): 107319. doi: 10.1016/j.tws.2020.107319 URL
[17]	STEINKE K, SODANO H A. Improved inter-yarn friction and ballistic impact performance of zinc oxide nanowire coated ultra-high molecular weight polyethylene (UHMWPE)[J]. Polymer, 231: 124125. doi: 10.1016/j.polymer.2021.124125 URL
[18]	MALAKOOTI M H, HWANG H S, GOULBOURNE N C, et al. Role of ZnO nanowire arrays on the impact response of aramid fabrics[J]. Composites Part B: Engineering, 2017, 127: 222-231. doi: 10.1016/j.compositesb.2017.05.084 URL
[19]	CHU Y, RAHMAN M R, MIN S, et al. Experimental and numerical study of inter-yarn friction affecting mechanism on ballistic performance of twaron fabric[J]. Mechanics of Materials, 2020, 148: 103421. doi: 10.1016/j.mechmat.2020.103421 URL
[20]	ABHIJIT M, BHUPENDRA S B, NIKITA A, et al. Improving the mechanical properties of p-aramid fabrics and composites by developing ZnO nanostructures[J]. Polymer Composites, 2018, 39(9): 3300-3306. doi: 10.1002/pc.v39.9 URL
[21]	RUSSELL B P, KARTHIKEYAN K, DESHPANDE V S, et al. The high strain rate response of ultra high molecular-weight polyethylene: from fibre to laminate[J]. International Journal of Impact Engineering, 2013, 60: 1-9. doi: 10.1016/j.ijimpeng.2013.03.010 URL
[22]	解亚宸, 黄广炎, 张宏, 等. UHMWPE纤维二维织物抗弹道冲击性能[J]. 兵工学报, 2022, 43(9): 2152-2163.
	XIE Y C, HUANG G Y, ZHANG H, et al. Ballistic performance of two-dimensional UHMWPE fabric[J]. Acta Armamentarii, 2022, 43(9): 2152-2163. (in Chinese) doi: 10.12382/bgxb.2021.0648
[23]	SERETIS G V, THEODORAKOPOULOS I D, MANOLAKOS D E, et al. Effect of strain rate on the tensile performance of woven para-aramid fabrics[J]. International Journal of Clothing Science and Technology, 2018, 30(2): 195-209. doi: 10.1108/IJCST-12-2016-0134 URL
[24]	XU Y J, ZHANG H, HUANG G Y. Ballistic performance of B₄C/STF/Twaron composite fabric[J]. Composite Structures, 2021, 279: 114754. doi: 10.1016/j.compstruct.2021.114754 URL
[25]	TAN V, TAY T E, TEO W K. Strengthening fabric armour with silica colloidal suspensions[J]. International Journal of Solids and Structures, 2004, 42(5): 1561-1576. doi: 10.1016/j.ijsolstr.2004.08.013 URL
[26]	RECHT R F, IPSON T W. Ballistic perforation dynamics[J]. Journal of Applied Mechanics, 1963, 30(3): 384-390. doi: 10.1115/1.3636566 URL
[27]	CHEN X G, ZHU F Y, WELLS G. An analytical model for ballistic impact on textile based body armour[J]. Composites Part B: Engineering, 2013, 45(1): 1508-1514. doi: 10.1016/j.compositesb.2012.08.005 URL
[28]	WISNIEWSKI A, GMITRZUK M. Validation of numerical model of the Twaron CT709 ballistic fabric[C]// Proceedings of the 9th International Armament Conference on Scientific Aspects of Armament and Safety Technology. Pultusk, Poland: The Institute of Armament Technology from the Military University of Technology, 2012: 19-30.
[29]	KNOFF W F. Relationship between the tensile and shear strength of aramid fibres[J]. Journal of Materials Science Letters, 1987, 6: 1392-94. doi: 10.1007/BF01689299 URL
[30]	许明明. 碳纤维增强金属层合板抗高速冲击特性研究[D]. 北京: 北京理工大学, 2016.
	XU M M. High velocity impact resistance of carbon fiber-reinforced metal laminates[D]. Beijing: Beijing Institute of Technology, 2016. (in Chinese)
[31]	RAO M P, DUAN Y, KEEFE M, et al. Modeling the effects of yarn material properties and friction on the ballistic impact of a plain-weave fabric[J]. Composite Structures, 2009, 89(4): 556-566. doi: 10.1016/j.compstruct.2008.11.012 URL
[32]	CHEESEMAN B A, BOGETTI T A. Ballistic impact into fabric and compliant composite laminates[J]. Composite Structures, 2003, 61: 161-173. doi: 10.1016/S0263-8223(03)00029-1 URL
[33]	ROVLANCE D. Stress wave-propagation in fibers: effects of crossovers[J]. Fiber Science Technology, 1980, 13(5): 385-395. doi: 10.1016/0015-0568(80)90011-1 URL
