Availability Analysis for Equipment with Normal Life Distribution

doi:10.12382/bgxb.2022.0606

Abstract

Abstract:

Analytical calculation method for the analysis of equipment availability has the advantage of direct deduction process and accurate prediction of results, but it has been rarely reported due to the complexity of modeling process. Current availability analysis is mostly based on stochastic process or simulation methods. Considering preventive maintenance and condition-based maintenance, an analytical calculation method is proposed to calculate the operational availability and instantaneous availability of equipment, of which life is assumed to follow normal distribution. A simulation method is also constructed to determine the operational availability and instantaneous availability by simulating the working and maintenance process of the equipment. The analytical and simulation methods agree well with each other by comparing the availabilities of equipment with several set of different life distribution parameters. The proposed analytical method could provide support for the evaluation and optimization of preventive maintenance and condition-based maintenance schemes for equipment with normal life distribution.

Key words: equipment, operational availability, instantaneous availability, preventive maintenance, condition-based maintenance

CLC Number:

TJ07

CHEN Xu, ZHANG Shufeng, LI Yue, CHEN Xun, WANG Yashun. Availability Analysis for Equipment with Normal Life Distribution[J]. Acta Armamentarii, 2024, 45(3): 986-996.

Figures/Tables 15

Fig.1 Lifetime prediction model

Fig.2 Simulation process of preventative maintenance strategy

Fig.3 Analytical results of probability of maintenance before failure

Fig.4 Analytical results of operational availability

Fig.5 Operational availabilities of equipment after preventive maintenance and condition-based maintenance

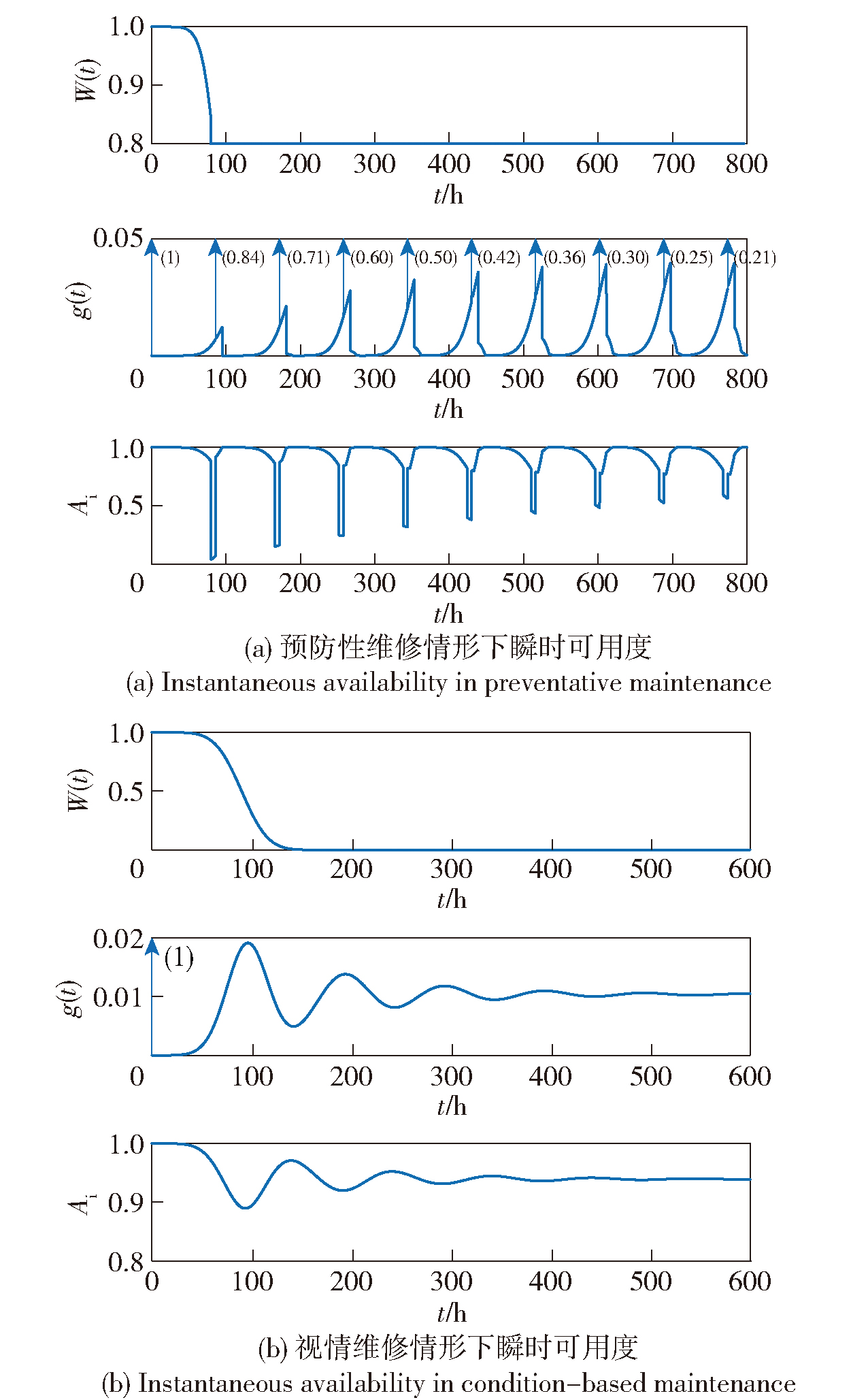

Fig.6 Analytical results of instantaneous availability

Table 1 Simulated results of repeated experiment

组别及均值	i	j	R'_p	TBR	A'_p
1	1166	984	0.8439	91519	0.9152
2	1168	976	0.8356	91399	0.9140
3	1167	973	0.8338	91332	0.9133
4	1164	990	0.8505	91512	0.9151
5	1164	979	0.8411	91359	0.9136
6	1164	982	0.8436	91418	0.9142
7	1167	990	0.8483	91411	0.9141
8	1167	968	0.8295	91213	0.9121
9	1168	990	0.8476	91396	0.914
10	1165	984	0.8446	91387	0.9139
均值	1166	982	0.8418	91395	0.9139

Fig.7 Comparison between repeated simulated results and analytical results

Table 2 Simulated values with different working hours

指标仿真值	T_W/h
指标仿真值	10³	10⁴	10⁵	10⁶	10⁷	10⁸
R'_p	0.8334	0.8402	0.8423	0.8421	0.8412	0.8412
A'_p	0.9154	0.9139	0.9135	0.9135	0.9134	0.9134

Fig.8 Comparison between simulated results with different working hours and analytical results

Fig.9 Comparison between simulated results and analytical results of probability of maintenance before failure

Fig.10 Comparison between simulated results and analytical results of operational availability

Fig.11 Comparison between simulation fitted value and analytical results

Table 3 Maximum difference between the simulation fitted value and the theoretical solution

δ/h	ΔR_p/%	ΔA_p/%	ΔR_c/%	ΔA_c/%
5	1.767	0.149	1.588	0.165
15	0.502	0.098	0.591	0.078
25	0.891	0.033	0.831	0.113

Fig.12 Comparison between simulated results and analytical results of instantaneous availability
