Design of Trailing Edge of a Rigid-flexible Chord-Wise Variable Camber Wing

doi:10.12382/bgxb.2022.0301

Abstract

Abstract:

In order to realize the continuously chord-wise camber change of a wing under driving control, with material deformation ability considered,, an airfoil with hybrid (rigid-flexible) variable trailing edge is proposed. Through the geometric analysis of the mean camber line of the trailing edge, the parametric model of variable camber configuration is established. Taking lift-drag ratio as the optimization objective, the optimal bending angle of the rigid section and the optimal curve of the flexible section are calculated. The lift coefficient, lift-drag ratio and other aerodynamic characteristics of the rigid-flexible airfoil and traditional rigid airfoil are compared at different angles of attack by CFD calculation. When the lift required by the unit span during cruise is taken as the optimization objective, the bending angles and deformation modes of two different trailing edge airfoils are solved respectively in low-speed cruise condition and landing condition. The pressure distribution, velocity distribution and separation position of the two bending forms are compared. A wing model with rigid-flexible variable trailing edge based on the optimized configuration is fabricated and the deformation capability testing is conducted. The results show that: the rigid-flexible trailing edge airfoil has higher lift coefficient, lift-drag ratio and better aerodynamic characteristics in same deflection angle; in the same flight condition, the rigid-flexible trailing edge airfoil has a smaller deflection angle and a more backward separation point, so it has a higher aerodynamic efficiency. The rationality of the flexible wing rib structure and skin design has been verified through deformation capability testing.

Key words: chord-wise variable camber wing, mean camber line of airfoil, rigid-flexible, lift-drag ratio, variable trailing edge wing model

CLC Number:

V224⁺.5

XIN Tao, LI Bin. Design of Trailing Edge of a Rigid-flexible Chord-Wise Variable Camber Wing[J]. Acta Armamentarii, 2023, 44(8): 2465-2476.

Figures/Tables 23

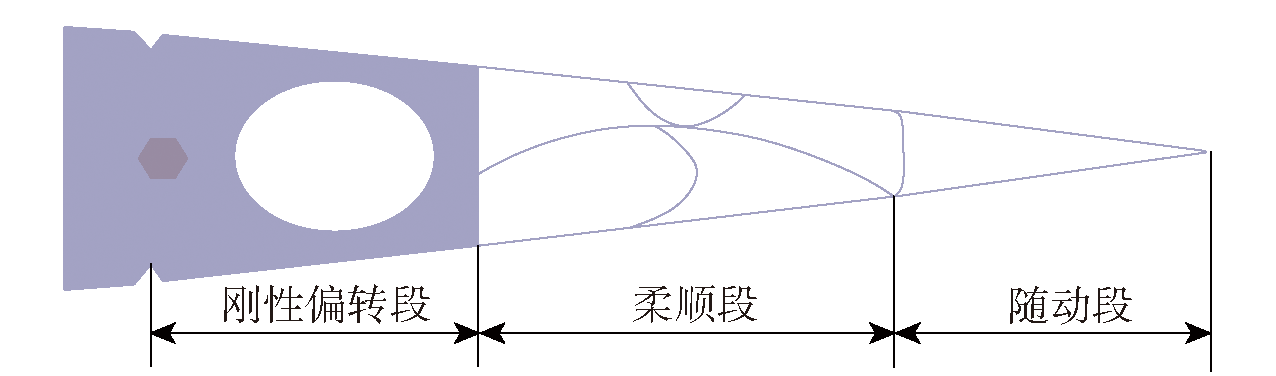

Fig.1 Structure layout of wing rib trailing edge

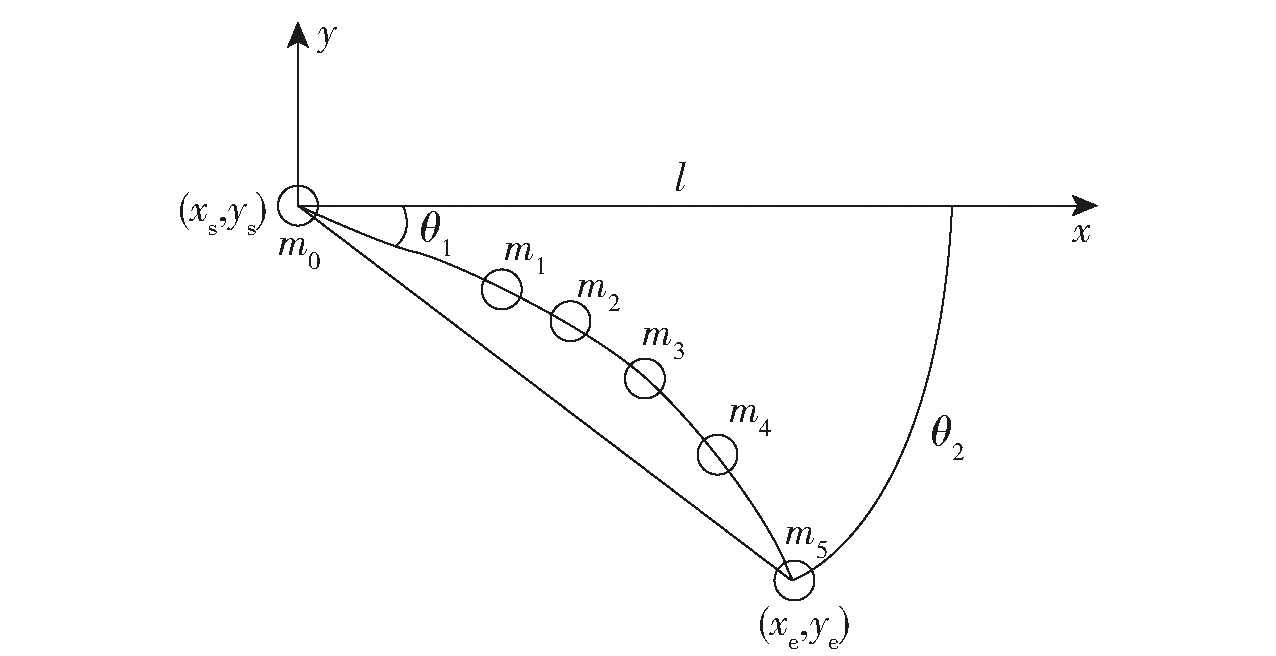

Fig.2 Mean camber line of trailing edge of airfoil

Table 1 Airfoil state and operating parameters

攻角/ (°)	马赫数	空气密度/ (kg·m³)	空气动力黏度/ (Pa·s)	雷诺数
8	0.2	1.205	1.78938×10^-5	4.58×10⁶

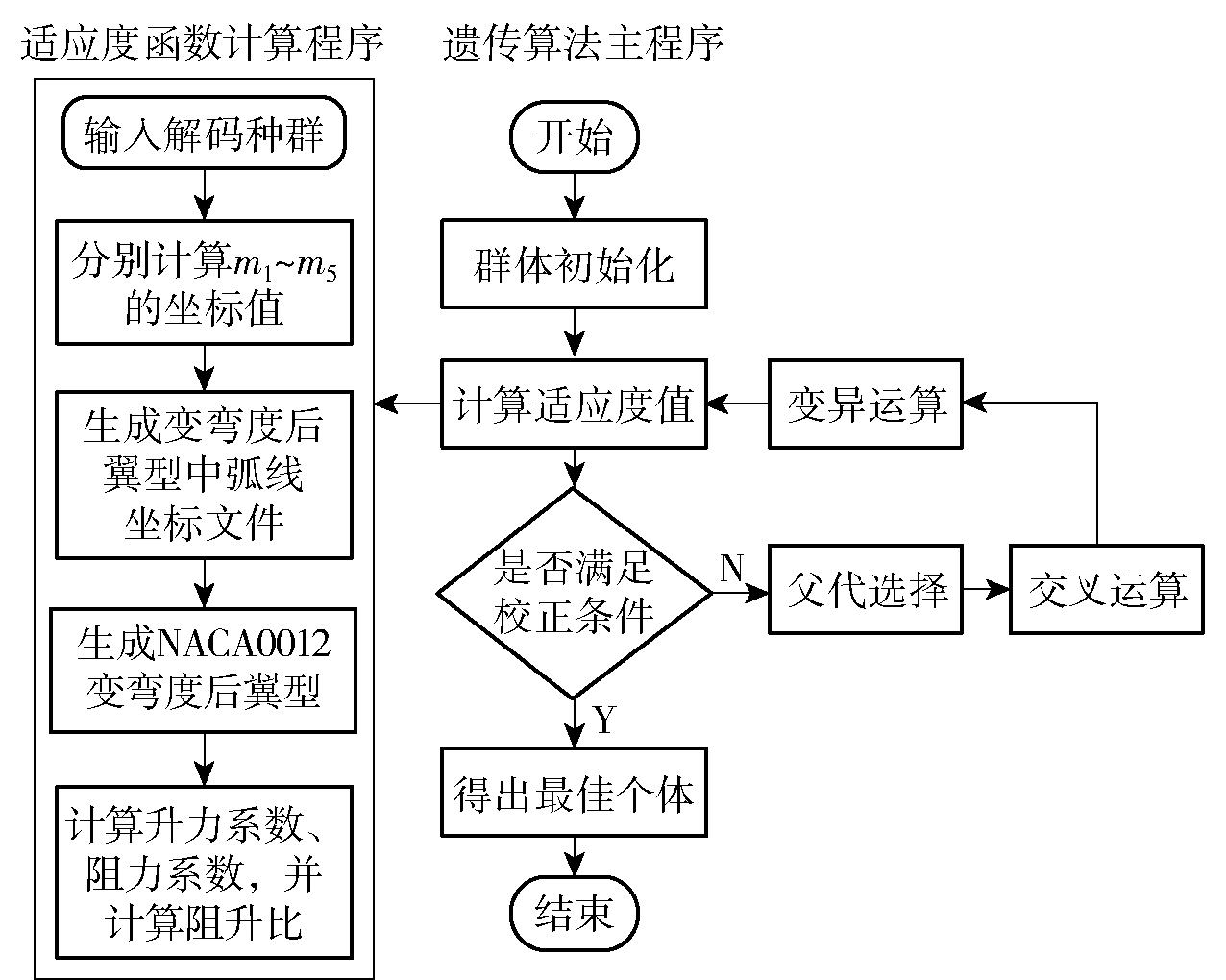

Fig.3 Optimization process of optimal airfoil

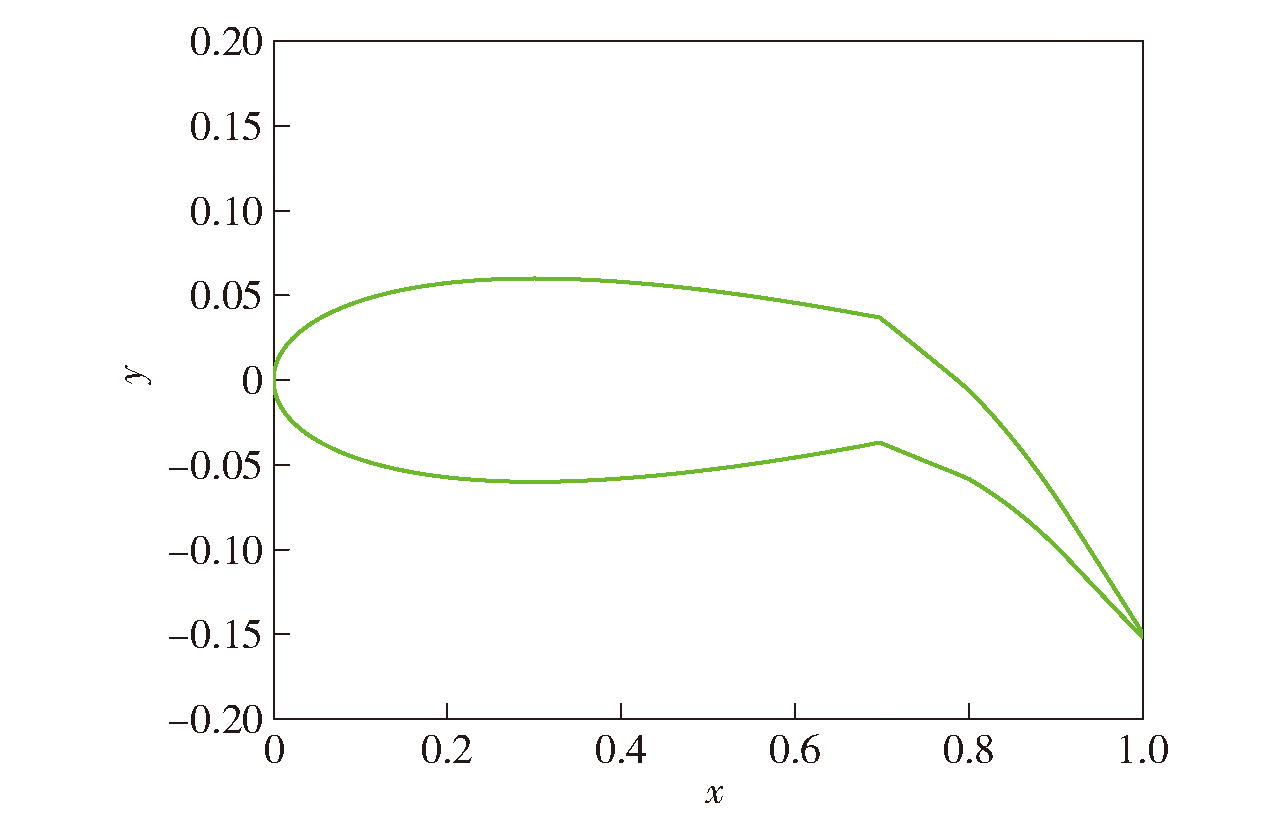

Fig.4 Optimal configuration of flexible rib

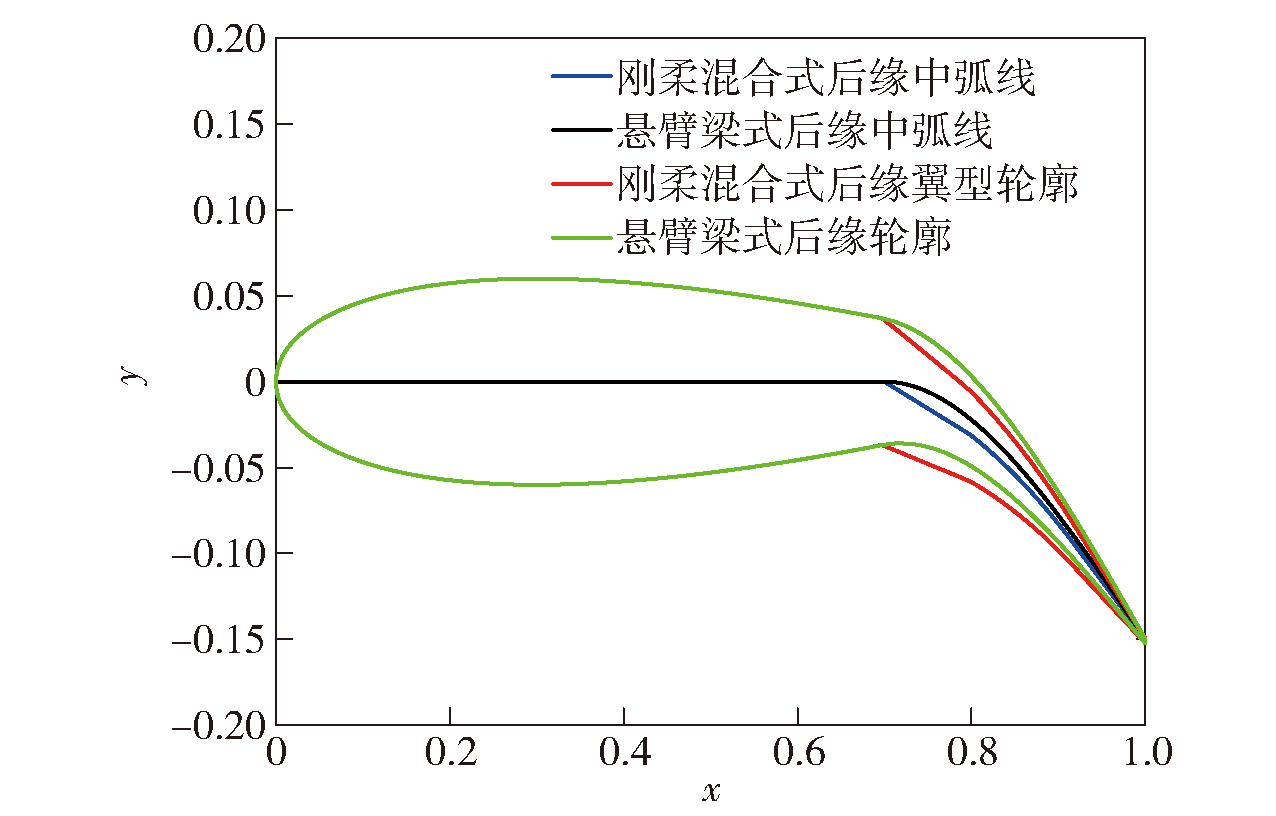

Fig.5 Comparison of hybrid rib and cantilever rib

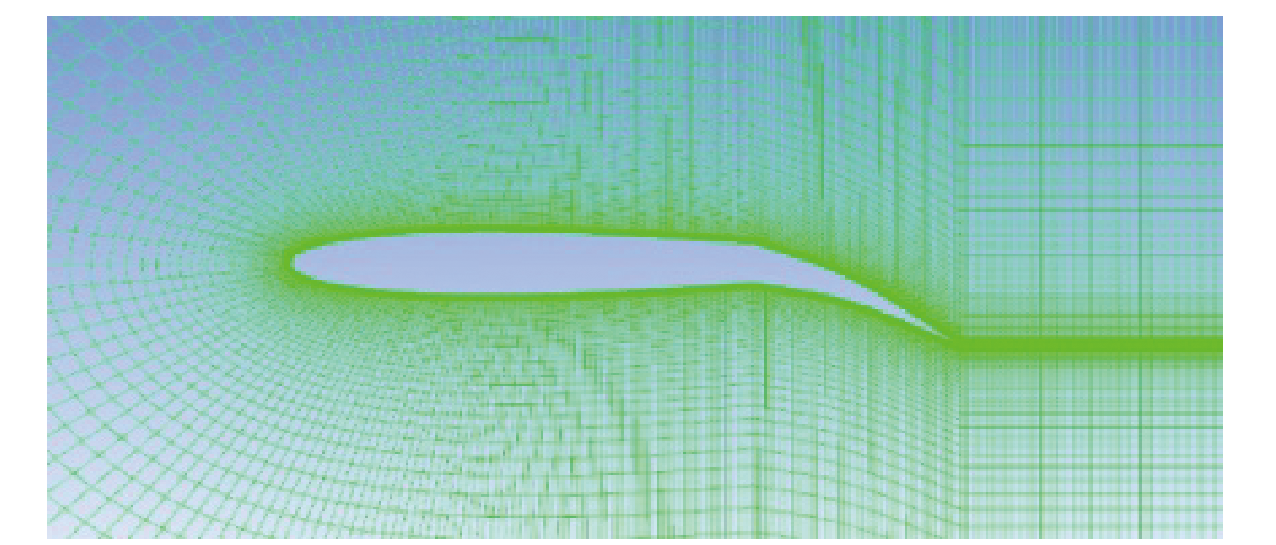

Fig.6 Computational grid

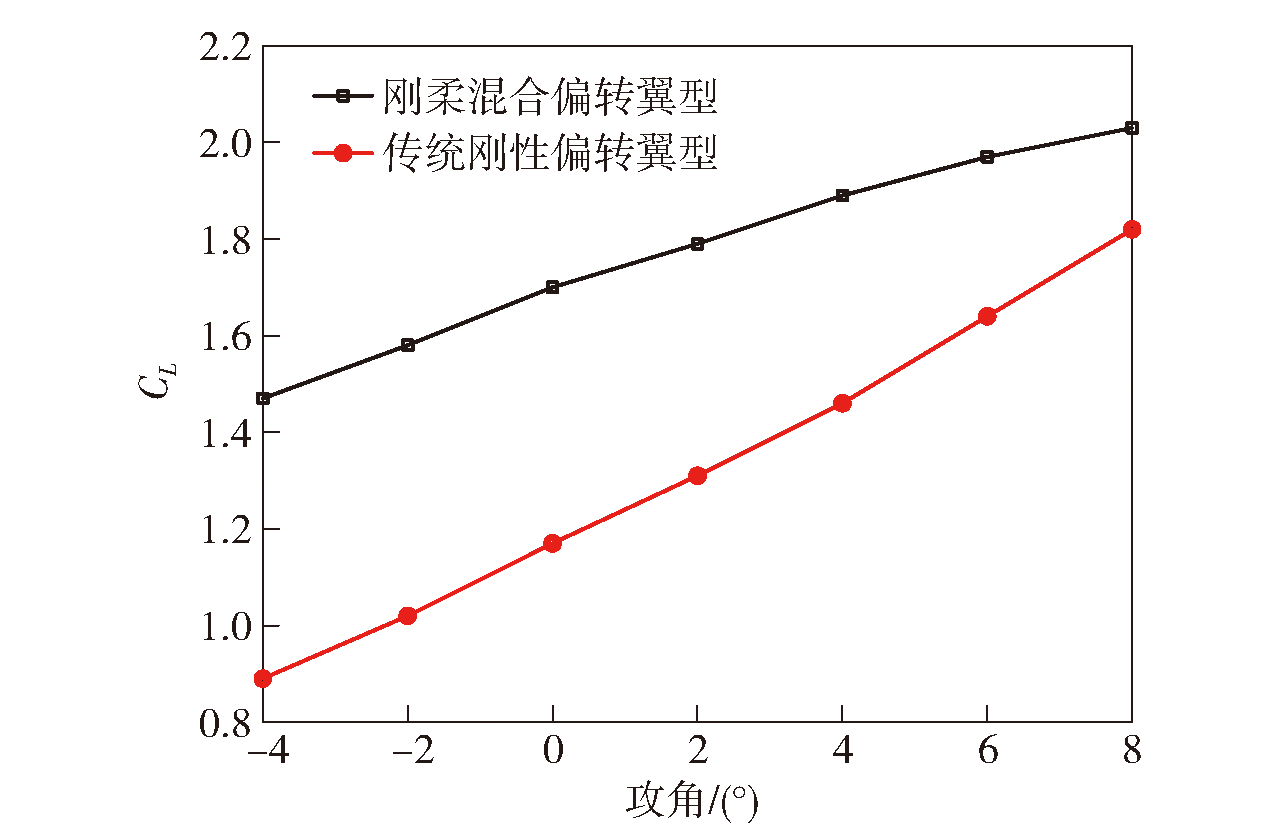

Fig.7 Comparison of lift coefficient

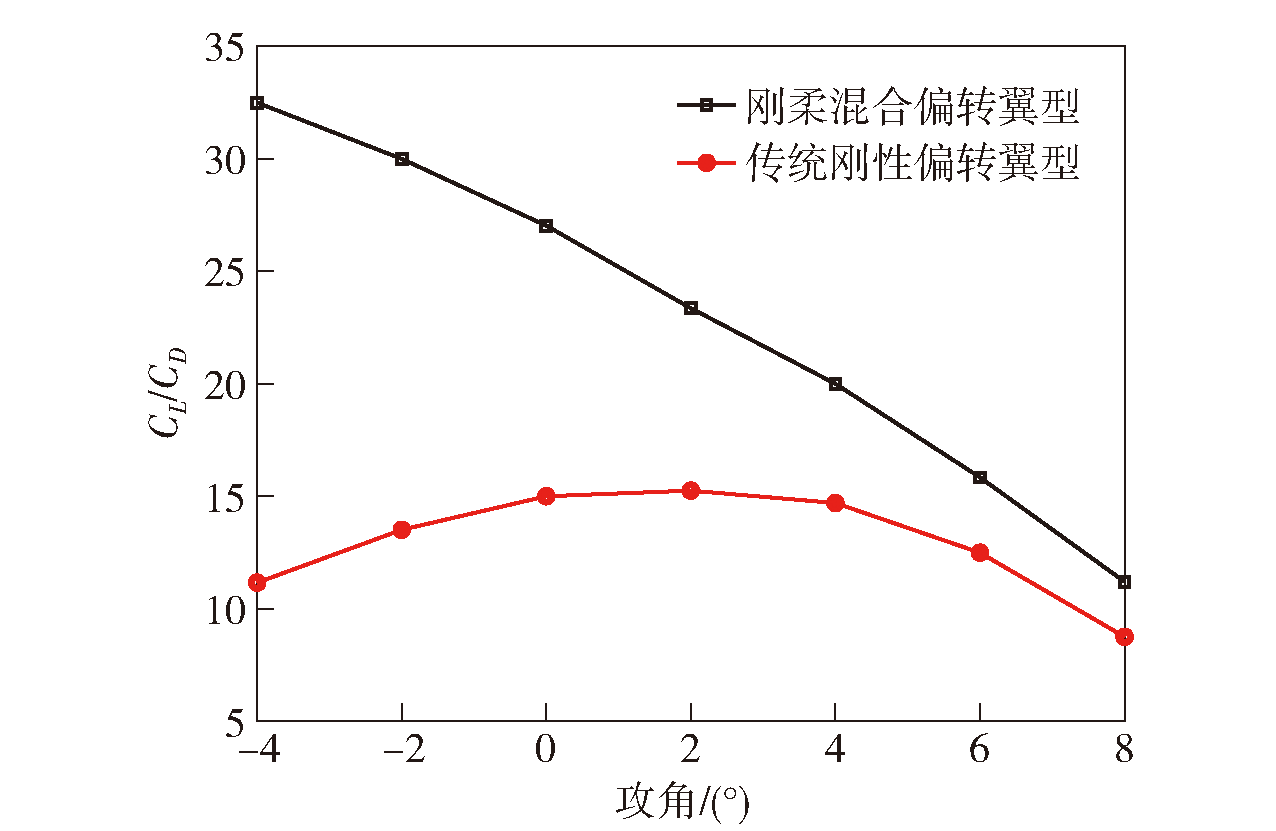

Fig.8 Comparison of CL/CD coefficients

Table 2 Configuration of rigid-flexible trailing edge of airfoil

飞行工况	攻角/ (°)	马赫数	高度/ m	刚性偏角/(°)	柔性偏角/(°)
低速巡航	4	0.35	100	0	8.7
降落工况	8	0.2	0	3.78	15

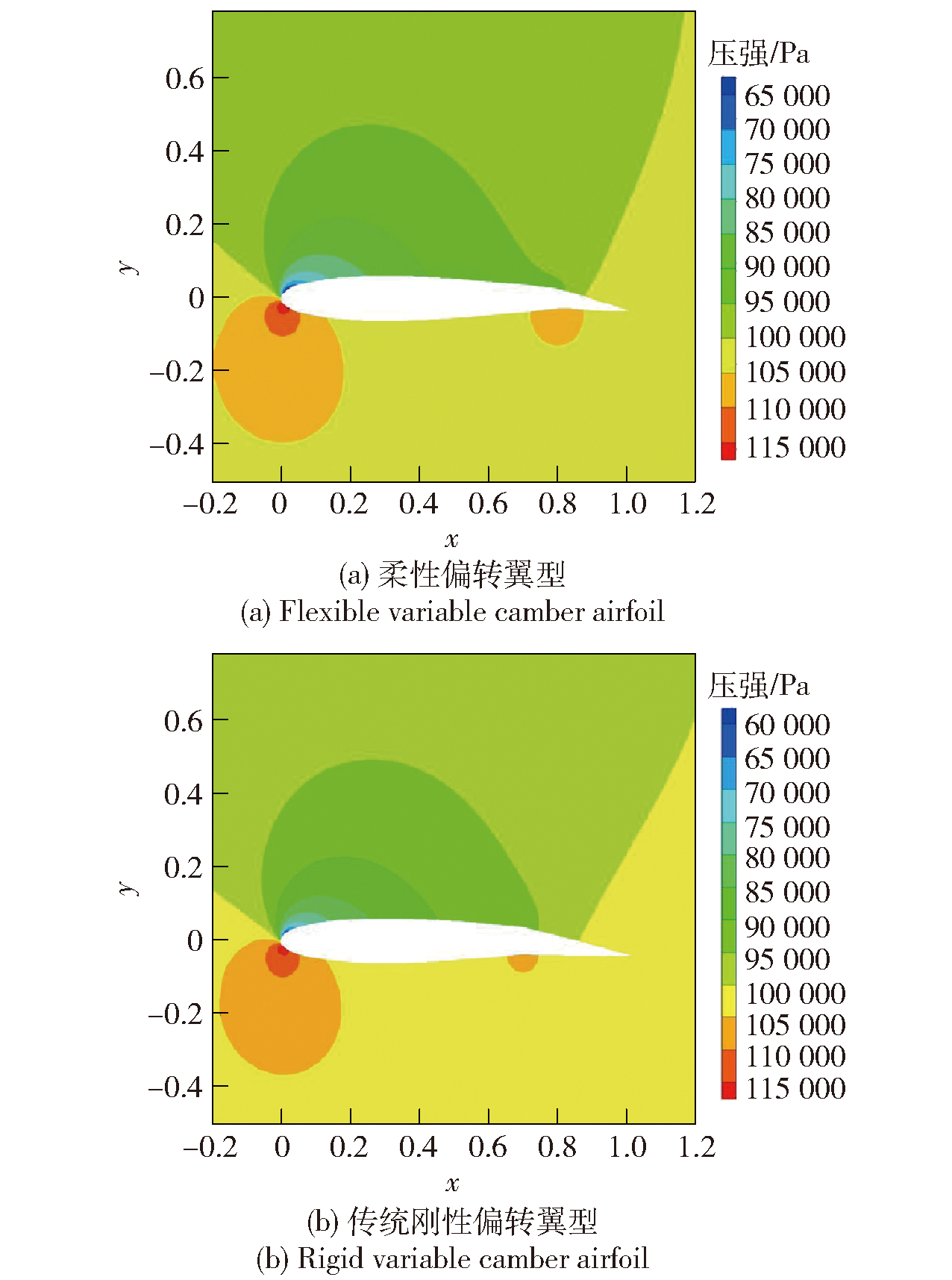

Fig.9 Comparison of pressure nephograms of low-speed cruise

Fig.10 Comparison of velocity nephogram and streamline of low-speed cruise

Fig.11 Comparison of pressure nephogram of landing

Fig.12 Comparison of velocity nephogram and streamline of landing

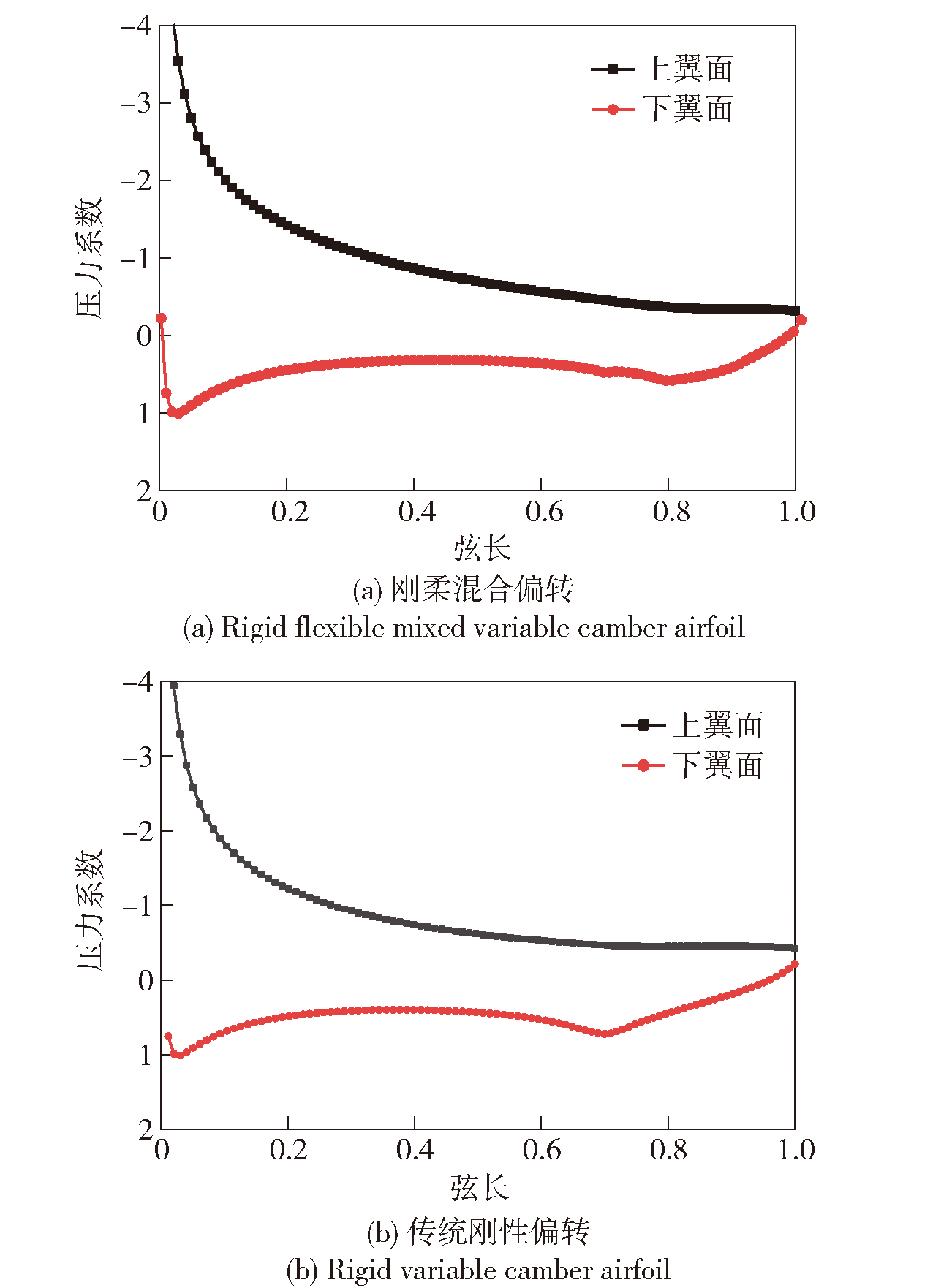

Fig.13 Comparison of pressure coefficients of upper and lower surfaces of airfoil

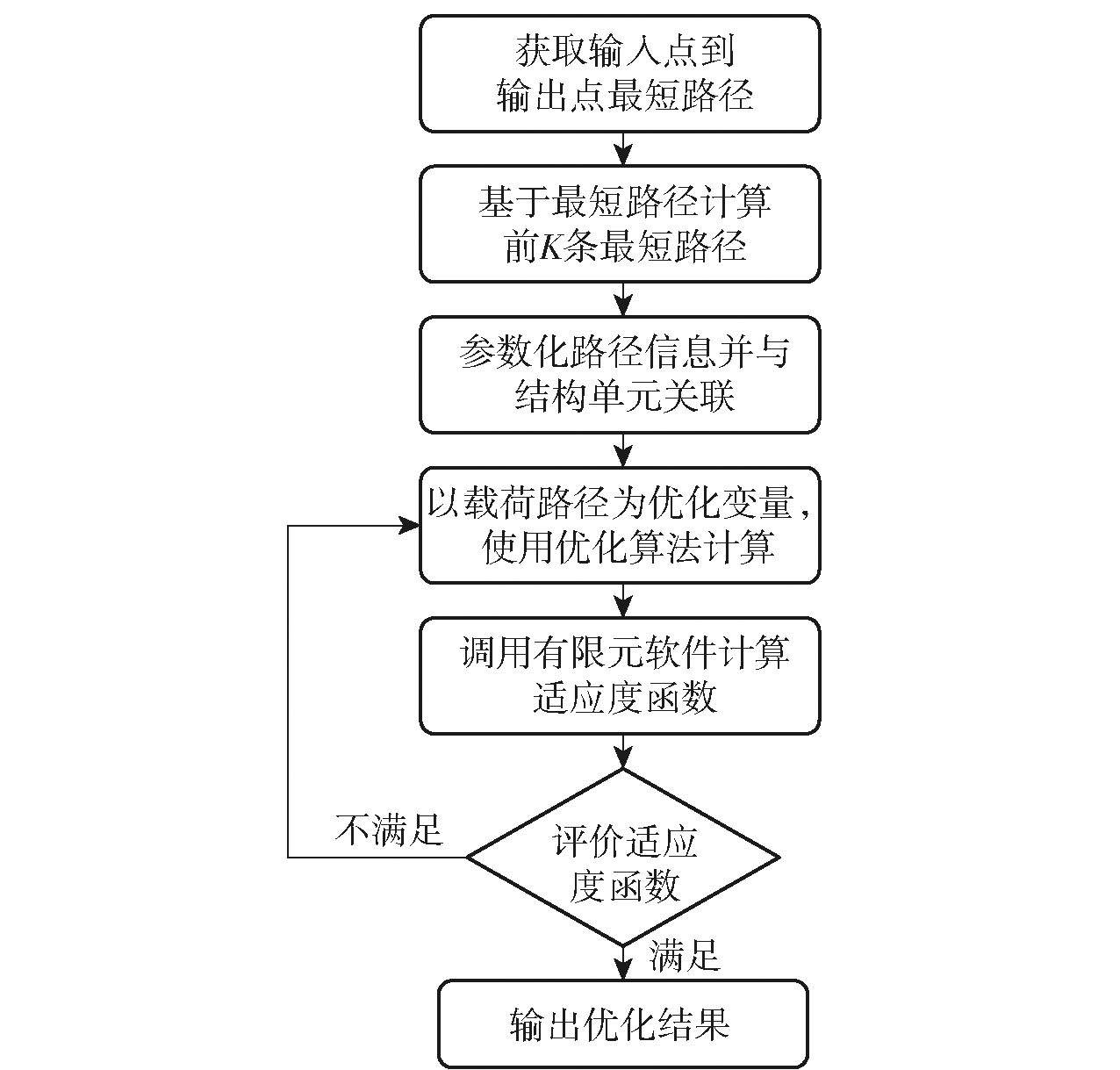

Fig.14 Topology optimization process based on load path method

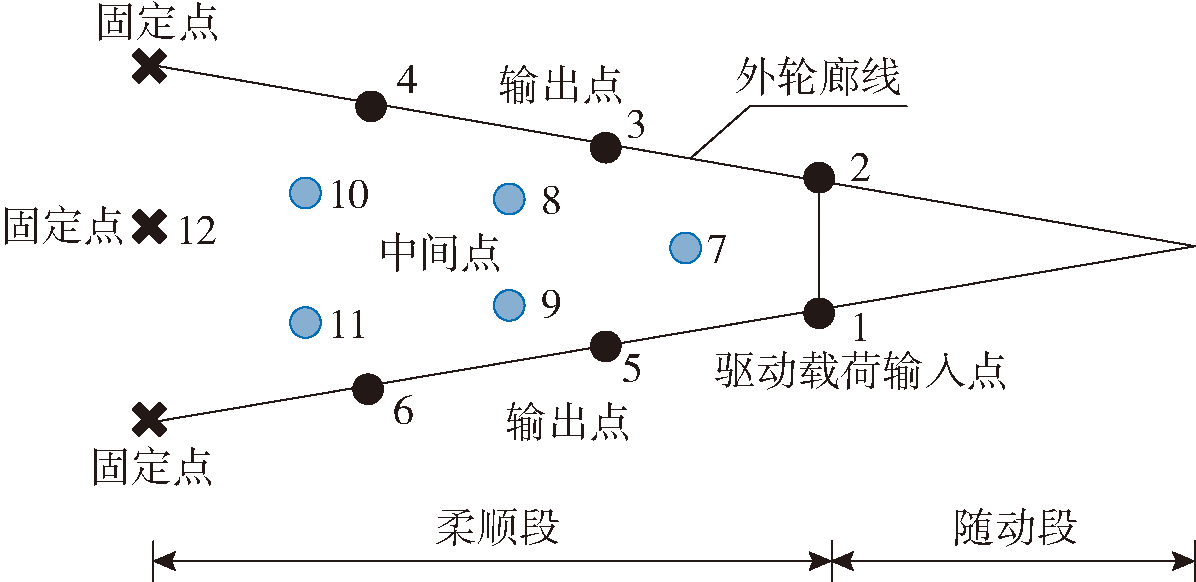

Fig.15 Schematic diagram of topology optimization design area of flexible section

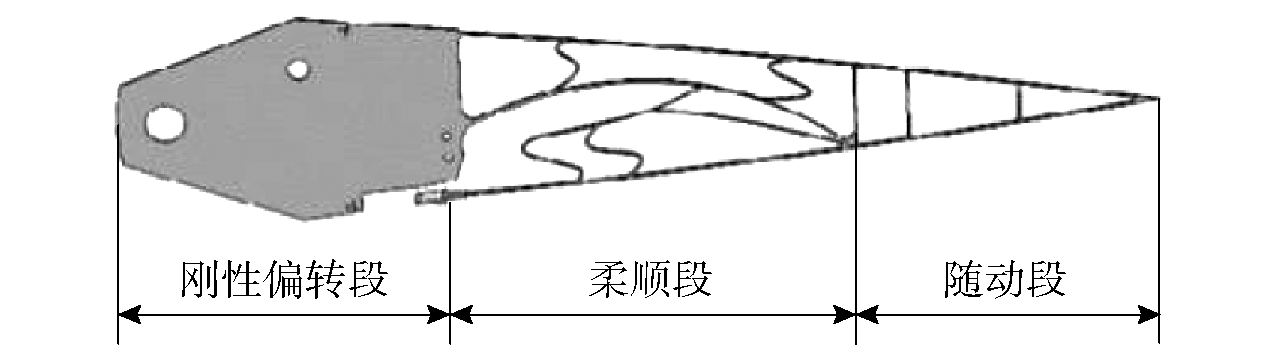

Fig.16 Rigid-flexible trailing edge structure

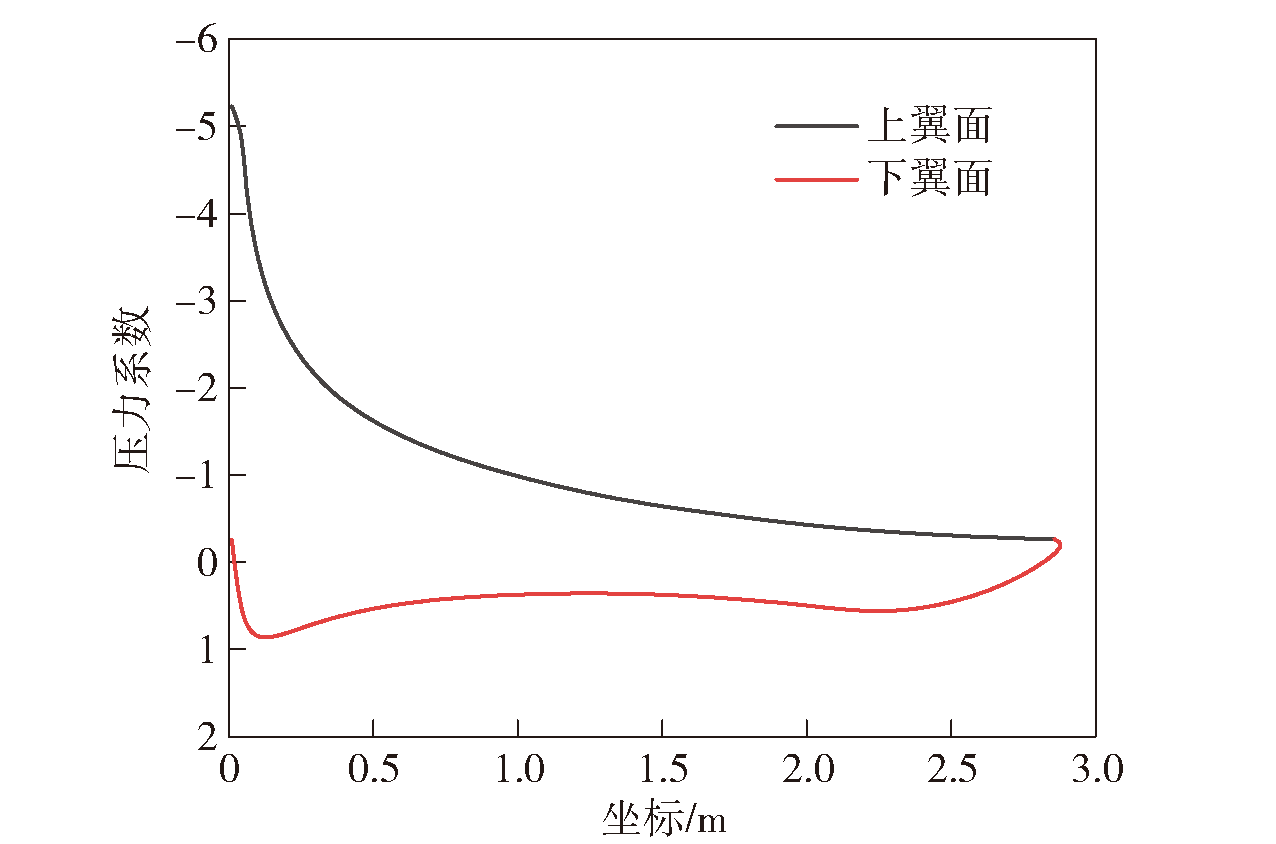

Fig.17 Pressure coefficient of rigid-flexible variable camber airfoil

Fig.18 Skin in pull mode in rigid section

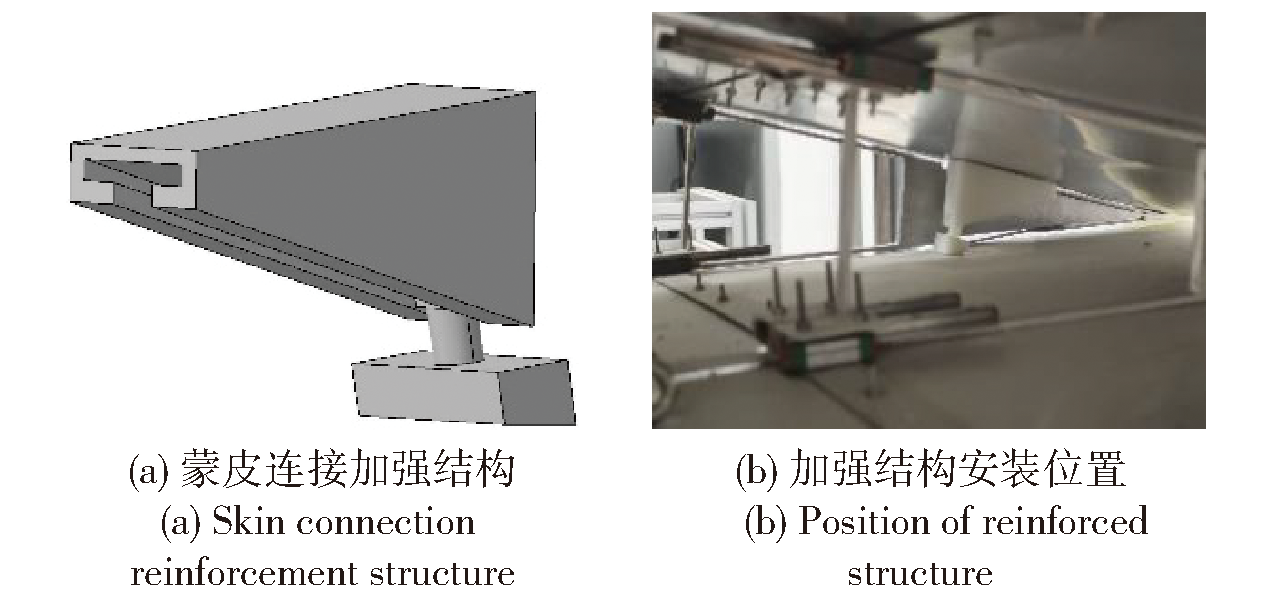

Fig.19 Connecting structure of upper and lower wing surfaces at the end of wing rib

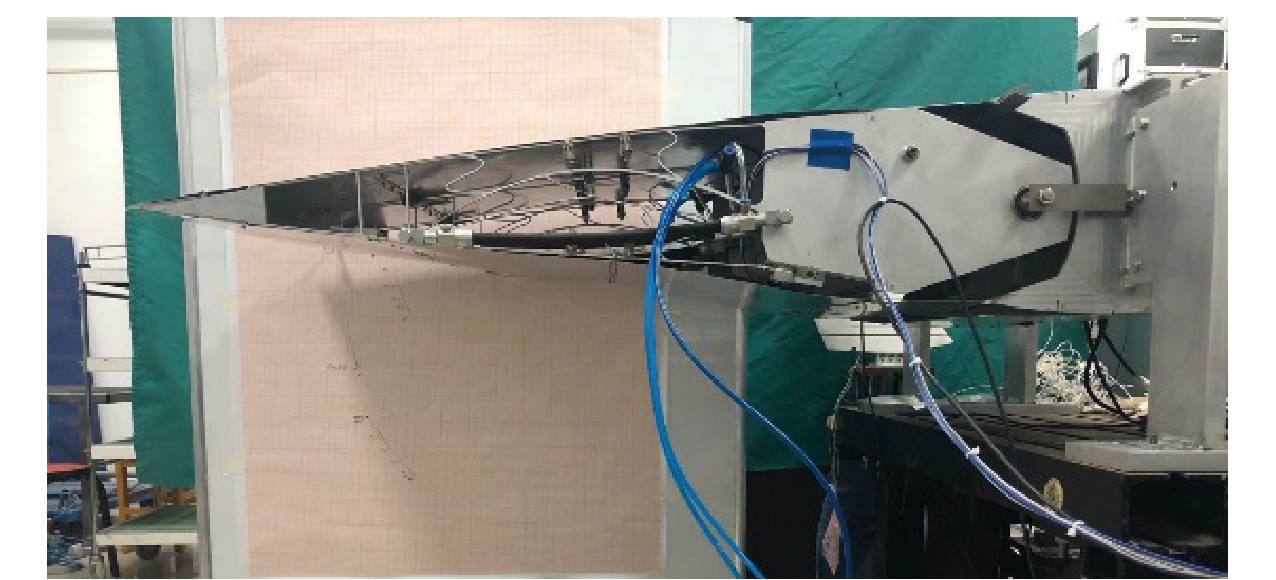

Fig.20 Rigid-flexible variable trailing edge model

Fig.21 Deformation shape of trailing edge under different driving conditions

References 36

[1]	刘卫东. 变形机翼关键技术的研究[D]. 南京: 南京航空航天大学, 2014.
	LIU W D. Research on key technology of morphing wing[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2014. (in Chinese)
[2]	王彬文, 杨宇, 钱战森, 等. 机翼变弯度技术研究进展[J]. 航空学报, 2022, 43(1):144-163.
	WANG B W, YANG Y, QIAN Z S, et al. Technical development of variable camber wing: review[J]. Acta Aeronautica et Astronautica Sinica, 2022, 43(1): 144-163. (in Chinese)
[3]	DECAMP R W, HARDY R. Mission adaptive wing research programme[J]. Aircraft Engineering and Aerospace Technology, 1981, 53(1): 10-11.
[4]	UMES J, NGUYEN N. A mission adaptive variable camber flap control system to optimize high lift and cruise lift to drag ratios of future N+3 transport aircraft[C]// Proceedings of AIAA Aerospace Sciences Meeting Including the New Horizons Forum and Aerospace Exposition. Grapevine, TX, US: AIAA, 2013.
[5]	LU K J, KOTA S. Parameterization strategy for optimization of shape morphing compliant mechanisms using load path representation[C]// Proceedings of ASME 2003 International Design Engineering Technical Conferences and Computers and Information in Engineering Conference. Chicago, IL, US: ASME, 2003:693-702.
[6]	MILLER E J, CRUZ J, KOTA S, et al. Evaluation of the hinge moment and normal force aerodynamic loads from a seamless adaptive compliant trailing edge flap in flight[C]// Proceedings of the 54th AIAA Aerospace Sciences Meeting. San Diego, CA, US:AIAA, 2016:2016-0038.
[7]	KOTA S, FLICK P, COLLIER F S. Flight testing of flex Floil TM adaptive compliant trailing edge[C]// Proceedings of the 54th AIAA Aerospace Sciences Meeting. San Diego, CA, US: AIAA, 2016:2016-0036.
[8]	CRAMER N B, CELLUCCI D W, FORMOSO O B, et al. Elastic shape morphing of ultralight structures by programmable assembly[J]. Smart Materials and Structures, 2019, 28(5):055006. doi: 10.1088/1361-665X/ab0ea2 URL
[9]	SINAPIUS M, MONNER H P, KINTSCHER M, et al. DLR’s morphing wing activities within the European network[J]. Procedia Iutam, 2014, 10: 416-426. doi: 10.1016/j.piutam.2014.01.036 URL
[10]	WOODS B K S, FRISWELL M I. Preliminary investigation of a fishbone active camber concept[C]// Proceedings of ASME 2012 conference on Smart Materials, Adaptive Structures and Intelligent Systems. Stone Mountain, GA, US: ASME, 2012:555-563.
[11]	FISHER C. Inspired by fish[EB/OL]. [2022-04-01]. https://aerospaceamerica.aiaa.org/department/inspired-by-fish/
[12]	DIMINO I, MOENS F, PECORA R, et al. Morphing wing technologies within the airgreen 2 project[C]// Proceedings of AIAA Scitech 2022 Forum. Reston, VA, US: AIAA, 2022: 0718.
[13]	SNOW S A, HUNSAKER D F. Design and performance of a 3D-printed morphing aircraft[C]// Proceedings of AIAA SciTech 2021 forum. Reston, VA, US: AIAA, 2021: 1060.
[14]	SOFLA A Y N, ELZEY D M, WADLEY H N G. Two-way antagonistic shape actuation based on the one-way shape memory effect[J]. Journal of Intelligent Material Systems and Structures, 2008, 19(9): 1017-1027. doi: 10.1177/1045389X07083026 URL
[15]	YANG S M, HAN J H, LEE I. Characteristics of smart composite wing with SMA actuators and optical fiber sensors[J]. International Journal of Applied Electromagnetics and Mechanics, 2006, 23(3/4): 177-186. doi: 10.3233/JAE-2006-736 URL
[16]	VOS R, BARRETT R, DE B R, et al. Post-buckled precompressed elements: a new class of control actuators for morphing wing UAVs[J]. Smart Materials and Structures, 2007, 16(3): 946-957.
[17]	MKHOYAN T, THAKRAR N R, de REUKER B R, et al. Design of a smart morphing wing using integrated and distributed trailing edge camber morphing[C]// Proceedings of ASME 2020 Conference on Smart Materials, Adaptive Structures and Intelligent Systems. Online:ASME, 2020: V001T04A023.
[18]	JENETT B, CALISCH S, CELLUCCI D, et al. Digital morphing wing:active wing shaping concept using composite lattice-based cellular structures[J]. Soft robotics, 2017, 4(1): 33-48. doi: 10.1089/soro.2016.0032 URL
[19]	ZHANG J Y, ALEXANDER D S, CHEN W, et al. Aeroelastic model and analysis of an active camber morphing wing[J]. Aerospace Science and Technology, 2021, 111:16534.
[20]	杨超, 陈桂彬, 邹丛青. 主动气动弹性机翼技术分析[J]. 北京航空航天大学学报, 1999, 25(2):171-175.
	YANG C, CHEN G B, ZOU C Q. Analysis of active aeroelastic wing technology[J]. Journal of Beijing University of Aeronautics and Astronautics, 1999, 25(2):171-175. (in Chinese)
[21]	刘卫东, 丁倩, 朱华, 等. 基于超声电机的变弯度翼的驱动与集成[J]. 振动、测试与诊断, 2013, 33(5):856-861.
	LIU W D, DING Q, ZHU H, et al. Drive and integration techniques of variable camber wing based on ultrasonic motors[J]. Journal of Vibration, Measurement&Diagnosis, 2013, 33(5):856-861. (in Chinese)
[22]	张音旋, 邱涛, 王健志. 一种柔性蒙皮设计技术及其在后缘变弯度机翼结构中的应用[J]. 航空科学技术, 2012(5):26-28.
	ZHANG Y X, QIU T, WANG J Z. A flexible skin design technology and the application on variable camber trailing edge[J]. 2012(5):26-28. (in Chinese)
[23]	杨智春, 解江. 柔性后缘自适应机翼的概念设计[J]. 航空学报, 2009, 30(6): 1028-1034.
	YANG Z C, XIE J. Concept design of adaptive wing with flexible trailing edge[J]. Acta Aeronautica et Astronautica Sinica, 2009, 30(6): 1028-1034. (in Chinese)
[24]	CHEN Y J, YIN W L, LIU Y J, et al. Structural design and analysis of morphing skin embedded with pneumatic muscle fibers[J]. Smart Materials and Structures, 2011, 20(8): 085033. doi: 10.1088/0964-1726/20/8/085033 URL
[25]	冷劲松, 孙健, 刘彦菊. 智能材料和结构在变体飞行器的应用现状与前景展望[J]. 航空学报, 2014, 35(1): 29-45. doi: 10.7527/S1000-6893.2013.0265
	LENG J S, SUN J, LIU Y J. Application status and future prospect of smart materials and structures in morphing aircraft[J]. Acta Aeronautica et Astronautica Sinica, 2014, 35(1): 29-45. (in Chinese) doi: 10.7527/S1000-6893.2013.0265
[26]	陈秀, 葛文杰, 张永红, 等. 基于遗传算法的柔性机构形状变化综合优化研究[J]. 航空学报, 2007, 28(5): 1230-1235.
	CHEN X, GE W J, ZHANG Y H, et al. Investigation on synthesis optimization for shape morphing compliant mechanisms using GA[J]. Acta Aeronautica et Astronautica Sinica, 2007, 28(5): 1230-1235. (in Chinese)
[27]	徐钧恒, 杨晓钧, 李兵. 基于交叉簧片式铰链的变弯度机翼机构设计[J]. 浙江大学学报(工学版), 2022, 56(3):444-451, 509.
	XU J H, YANG X J, LI B. Design of wing mechanism with variable camber based on cross-spring flexural pivots[J]. Journal of Zhejiang University (Engineering Science), 2022, 56(3): 444-451, 509. (in Chinese)
[28]	王宇, 黄东东, 郭士钧, 等. 变体机翼后缘多学科设计与优化[J]. 南京航空航天大学学报, 2021, 53(3):415-424.
	WANG Y, HUANG D D, GUO S J, et al. Multidisciplinary design and optimization of trailing edge of morphing wing[J]. Journal of Nanjing University of Aeronautics & Astronautics, 2021, 53(3): 415-424. (in Chinese)
[29]	尉濡恺, 戴玉婷, 杨超, 等. 基于变弯度后缘的机翼阵风响应减缓数值研究[J]. 北京航空航天大学学报, 2023, 49(7):1864-1874.
	WEI R K, DAI Y T, YANG C, et al. Numerical study of wing gust response alleviation based on camber morphing trailing edge[J]. Journal of Beijing University of Aeronautics and Astronautics, 2023, 49(7):1864-1874. (in Chinese)
[30]	陈钱, 白鹏, 尹维龙, 等. 可连续光滑偏转后缘的变弯度翼型气动特性分析[J]. 空气动力学学报, 2010, 28(1): 46-53.
	CHEN Q, BAI P, YIN W L, et al. Analysis on the aerodynamic characteristics of variable camber airfoil with continuous smooth morphing trailing edge[J]. Acta Aerodynamica Sinica, 2010, 28(1): 46-53. (in Chinese)
[31]	MONNER H P. Realization of an optimized wing camber by using formvariable flap structures[J]. Aerospace Science & Technology, 2001, 5(7):445-455.
[32]	聂瑞, 裘进浩, 季宏丽, 等. 主动柔性后缘气动特性优化[J]. 工程热物理学报, 2019, 40(1): 69-76.
	NIE R, QIU J H, JI H L, et al. Aerodynamic characteristics optimization of active compliant trailing edge[J]. Journal of Engineering Thermophysics, 2019, 40(1): 69-76. (in Chinese)
[33]	GU X J, YANG K K, WU M Q, et al. Integrated optimization design of smart morphing wing for accurate shape control[J]. Chinese Journal of Aeronautics, 2021, 34(1):135-147.
[34]	GIL L, ANDREU A. Shape and cross-section optimisation of a truss structure[J]. Computers & Structures, 2001, 79(7): 681-689. doi: 10.1016/S0045-7949(00)00182-6 URL
[35]	李宝仁, 刘军, 杨钢. 气动人工肌肉系统建模与仿真[J]. 机械工程学报, 2003, 39(7): 23-28.
	LI B R, LIU J, YANG G. Modeling and simulation of pneumatic muscle system[J]. Chinese Journal of Mechanical Engineering, 2003, 39(7): 23-28. (in Chinese)
[36]	王斌锐, 靳明涛, 沈国阳, 等. 气动肌肉肘关节的滑模内环导纳控制设计[J]. 兵工学报, 2018, 39(6): 1233-1238. doi: 10.3969/j.issn.1000-1093.2018.06.025
	WANG B R, JIN M T, SHEN G Y, et al. Design of admittance control with sliding mode for elbow joint actuated by pneumatic muscle[J]. Acta Armamentarii, 2018, 39(6): 1233-1238. (in Chinese)
