基于全局补偿注意力机制的战场图像去雾方法

doi:10.12382/bgxb.2022.0786

摘要/Abstract

摘要：

在现代化战争中,广泛利用图像等载体获取信息,但雾天环境下得到的图像不仅影响场景呈现,而且会掩盖重要特征。为提高雾天图像在现代化战争的利用价值,提出一种基于全局补偿注意力机制的战场图像去雾方法。构建全局补偿模块保证输出图像的完整性,并加入通道下采样恢复清晰图像;使用密集残差模块学习退化图像和清晰图像的非线性映射,同时加入注意力机制提高网络的灵活处理能力;通过提升输入图像的通道数量确保网络充分学习特征信息。实验结果表明,与经典和新颖图像去雾方法比较,所提方法在主观和客观评价上均取得出色成绩,说明该方法将注意力机制和全局补偿模块充分结合,有效缓解了战场图像退化问题,同时注重特征增强,使信息得以完整呈现,具有更优越的性能。

关键词: 战场图像去雾, 全局补偿, 注意力机制, 密集残差模块

Abstract:

In modern war, images and other carriers are widely used to obtain information. However, the images obtained in foggy environment not only affect scene rendering, but also mask important features. In order to improve the use value of fog-degraded images in modern warfare, a battlefield image dehazing method based on the global compensation attention mechanism is proposed. A global compensation module is constructed to ensure the integrity of output image, and channel down sampling is added to restore the clear image. The dense residual module is used to learn the nonlinear mapping between degraded image and clear image. In addition, an attention mechanism is added to improve the flexible processing capability of the network. The network can fully learn the feature information by increasing the number of channels of the input image. The experimental results show that the proposed method achieves excellent results in both subjective and objective evaluation compared with classical or novel image dehazing methods. The proposed method fully combines the attention mechanism with the global compensation module to effectively alleviate the problem of battlefield image degradation. At the same time, it pays attention to feature enhancement to enable the complete presentation of information and ultimately achieve better performance.

Key words: battlefield image dehazing, global compensation, attention mechanism, dense residual module

中图分类号:

TP391.4

林森, 王金刚, 高宏伟. 基于全局补偿注意力机制的战场图像去雾方法[J]. 兵工学报, 2024, 45(4): 1344-1353.

LIN Sen, WANG Jingang, GAO Hongwei. Battlefield Image Dehazing Based on Global Compensation Attention Mechanism[J]. Acta Armamentarii, 2024, 45(4): 1344-1353.

图/表 15

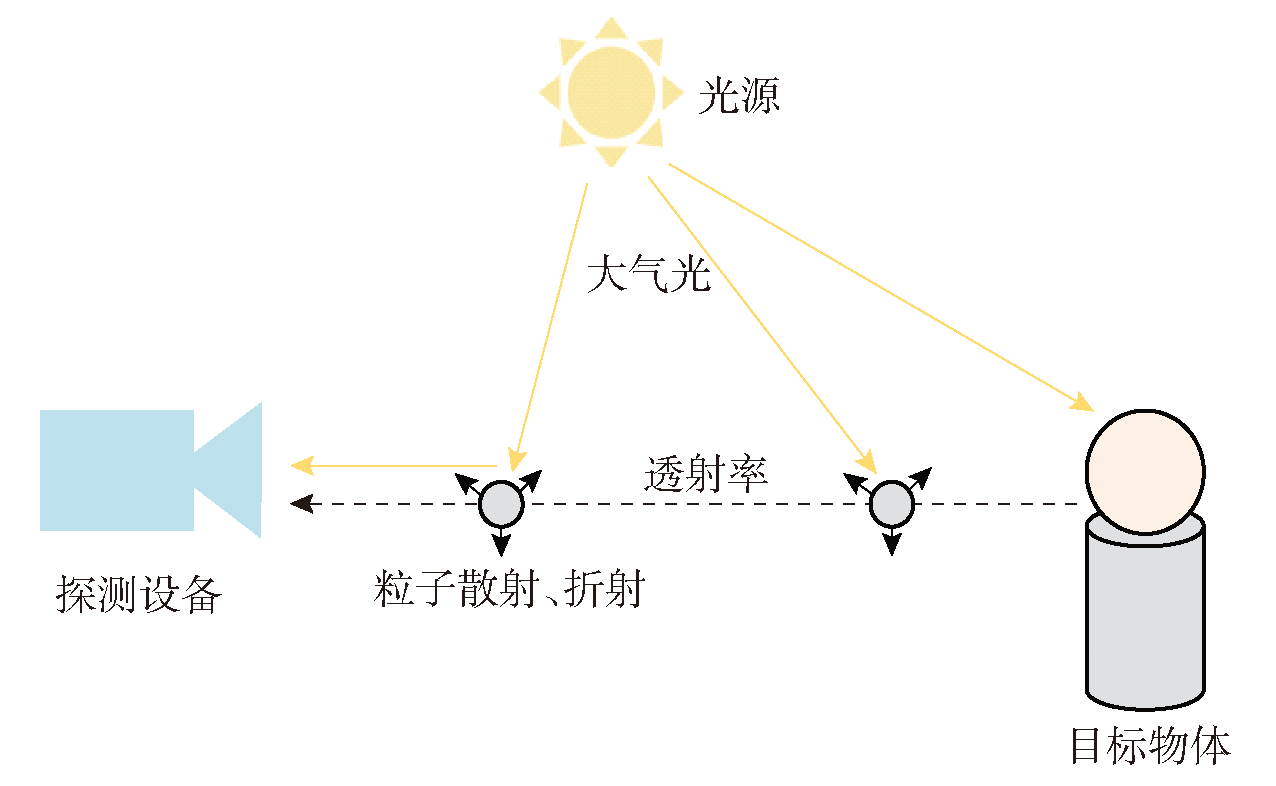

图1 雾天环境的成像过程

Fig.1 Imaging process of foggy environments

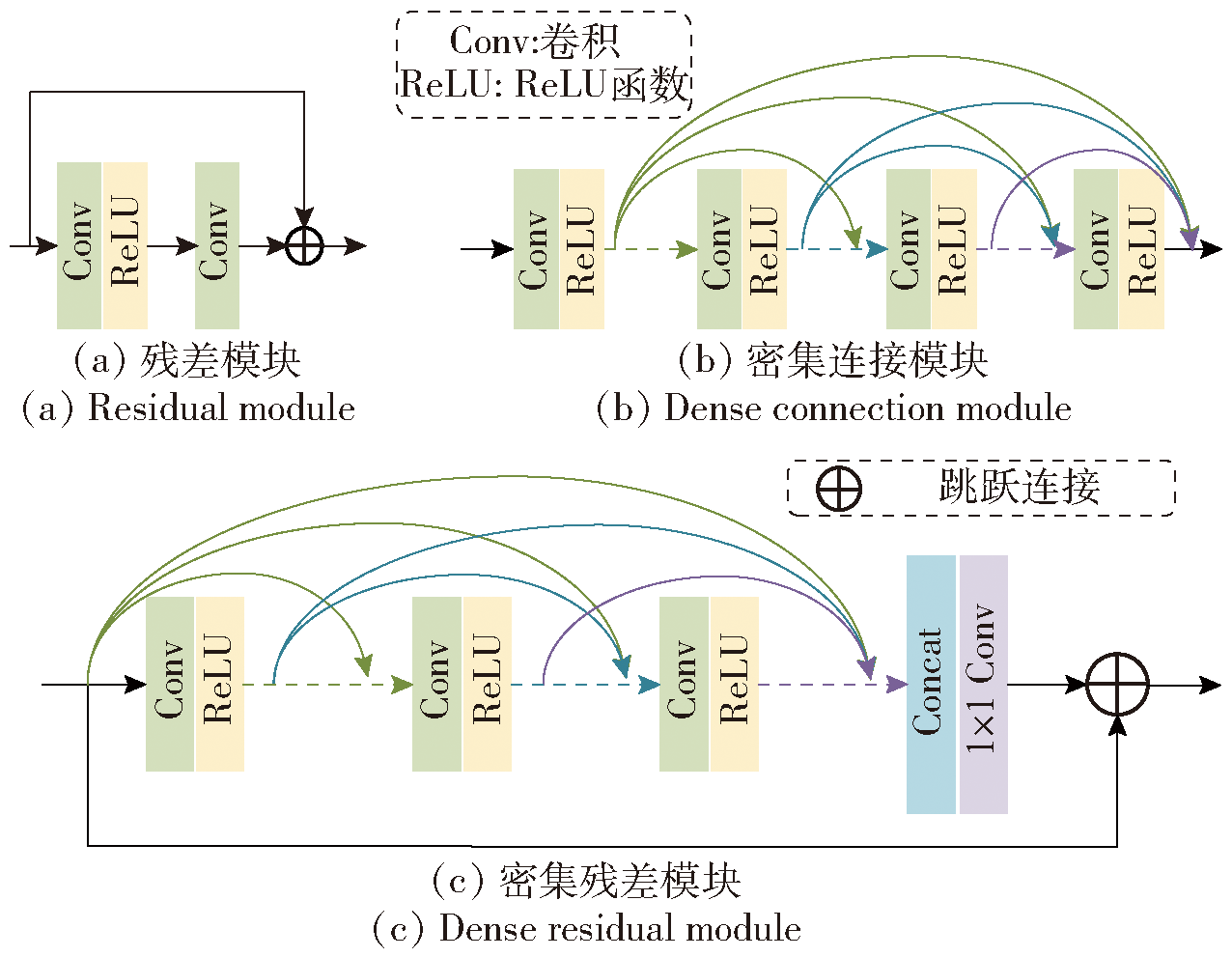

图2 密集残差模块设计过程

Fig.2 Design process of dense residual module

图3 网络总体结构

Fig.3 Overall network structure

图4 模块内部结构

Fig.4 Internal structure of the module

表1 模块内参数

Table 1 Internal parameters of the module

卷积层	结构	输入通道数	输出通道数	输出大小
Conv1_1	3×3	64	64	246×246
Conv1_2	3×3	128	128	246×246
Conv1_3	3×3	256	256	246×246
Conv1_4	3×3	512	64	246×246
Conv2	1×1	64	64	1×1
Conv3_1	3×3	64	1	246×246
Conv3_2	3×3	1	1	246×246
Conv3_3	3×3	1	64	246×246

图5 注意力模块效果

Fig.5 Effect of the attention module

图6 全局补偿模块效果

Fig.6 Effect of the overall compensation module

表2 CIEDE2000色卡实验结果

Table 2 Experimental results of CIEDE2000 color card

方法	CIEDE2000↓
DCP方法	18.11
CEEF方法	21.59
DehazeNet方法	21.41
RefineDNet方法	17.69
本文方法	17.12

表3 真实战场退化图像结果

Table 3 Results of real battlefield degradation images

表4 城市退化图像结果

Table 4 Results of urban degradation images

表5 不同方法在不同数据集上的测试结果

Table 5 Test results of different methods on different datasets

方法	SSIM↑			PSNR↑			MSE↓			SNR↑
方法	outdoor	indoor	synthetic	outdoor	indoor	synthetic	outdoor	indoor	synthetic	outdoor	indoor	synthetic
DCP方法	0.61	0.54	0.77	11.65	12.95	16.65	1708.67	3350.46	1668.58	9.81	5.97	9.98
CEEF方法	0.62	0.52	0.76	14.41	12.80	16.72	1661.07	3475.57	1556.13	9.33	6.90	9.96
DehazeNet方法	0.88	0.53	0.88	22.93	12.86	23.95	416.86	3455.18	300.03	17.53	5.86	18.81
RefineDNet方法	0.92	0.58	0.86	20.93	12.76	20.67	686.45	3507.52	640.92	14.42	6.86	15.53
本文方法	0.90	0.59	0.88	25.15	15.45	25.77	265.84	2974.61	209.19	19.75	7.56	20.90

表6 不同方法的运行时间

Table 6 Running time of different methodss

图像大小	DCP 方法	CEEF 方法	DehazeNet 方法	RefineDNet 方法	本文方法
256×256	2.849	0.115	0.273	0.098	0.055
512×512	11.821	0.542	1.267	0.320	0.174

图7 目标检测实验

Fig.7 Experiment of object detection

图8 Canny算子实验

Fig.8 Experiment of Canny operator

图9 特征匹配实验结果

Fig.9 Experimental resultsof feature matching
