基于量纲约束与符号回归的半无限金属靶板侵彻效率预测模型

doi:10.12382/bgxb.2025.0425

摘要/Abstract

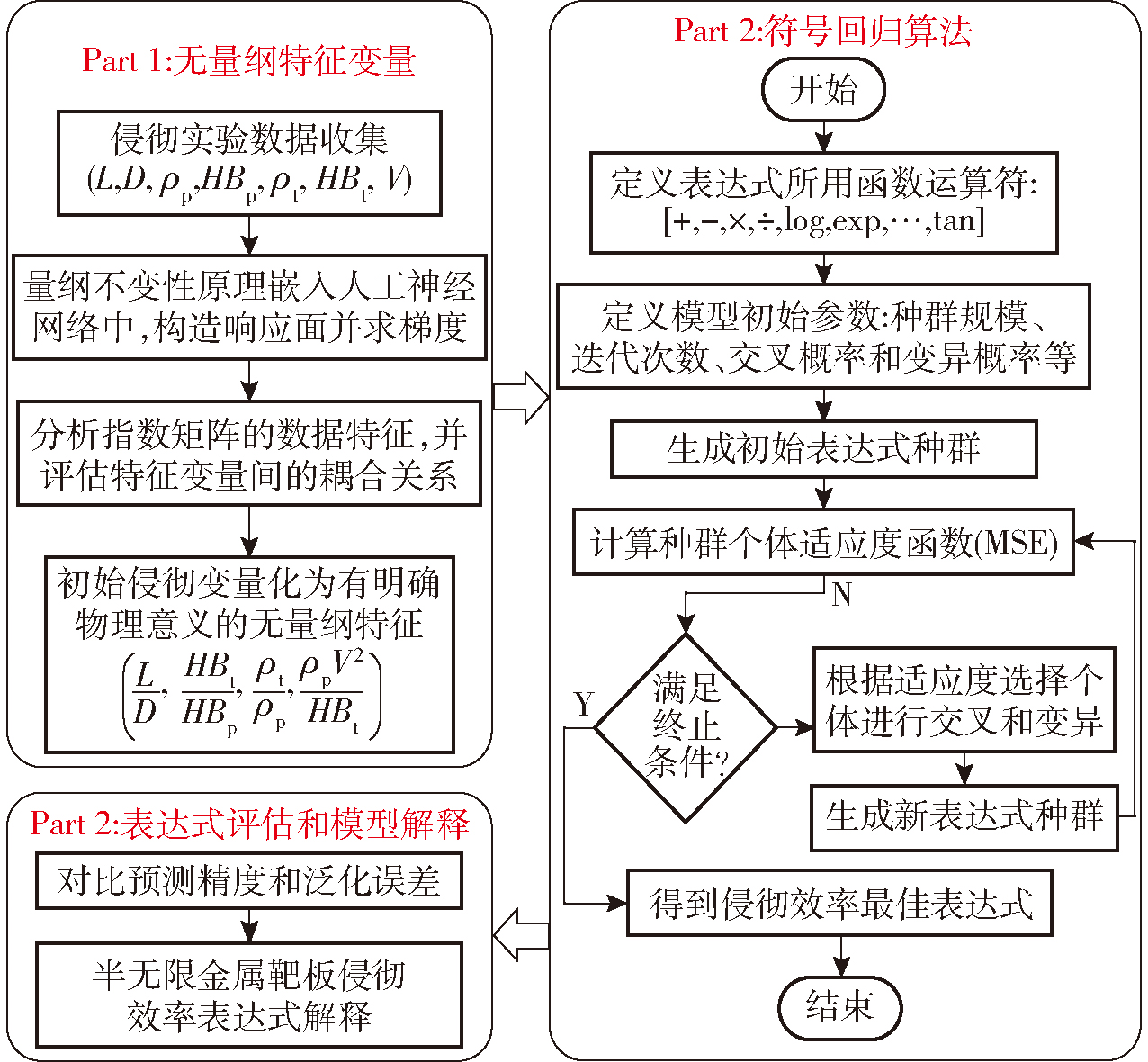

摘要： 针对传统侵彻效率预测模型依赖经验公式、适应性差且物理解释力不足的问题,采用一种融合量纲约束与符号回归算法的建模方法,构建了杆弹侵彻半无限金属靶板的侵彻效率预测模型。首先,基于物理先验知识将金属靶板侵彻过程中涉及的7个原始物理变量转化为4个具有明确物理意义的无量纲控制参数;随后,利用收集的819组实验数据,采用引入惩罚机制的遗传编程符号回归算法建立无量纲变量与侵彻效率之间的解析表达式。结果表明:在不同的侵彻工况下,所构建模型在拟合精度、泛化能力与表达结构简洁性方面均表现优异,平均决定系数R²均超过0.8,且能准确捕捉各无量纲参数对侵彻效率的非线性影响。该方法兼具预测精度与跨工况适应性,还可生成结构明确、物理含义清晰的解析表达式,有助于进一步理解各物理参量在侵彻响应过程中的作用机制。

关键词: 半无限金属靶, 侵彻效率, 无量纲量, 机器学习, 符号回归

Abstract:

To address the limitations of traditional penetration efficiency prediction models, such as their reliance on empirical formulas, limited adaptability, and weak physical interpretability, this study proposes a modeling approach that integrates dimensional analysis with symbolic regression. A predictive model is developed for the penetration efficiency of rod projectiles impacting semi-infinite metal targets. Based on physical prior knowledge, seven original physical variables are transformed into four dimensionless control parameters with clear physical significance. Using 819 sets of experimental data, an analytical expression between the dimensionless parameters and penetration efficiency is constructed through a symbolic regression algorithm based on genetic programming, with a penalty mechanism introduced to ensure the participation of all control variables. The Results show that the proposed model performs well across various penetration conditions, with average coefficients of determination (R²) exceeding 0.8. The model accurately captures the nonlinear influence of each parameter on penetration efficiency. Compared to traditional empirical models, the proposed method offers improved predictive accuracy and adaptability, while producing physically meaningful and structurally clear expressions that provide insight into the role of key variables in the penetration process.

Key words: semi-infinite metal target, penetration efficiency, dimensionless parameters, machine learning, symbolic regression

陈青青, 张杰, 王志勇, 赵婷婷, 张煜航, 王志华. 基于量纲约束与符号回归的半无限金属靶板侵彻效率预测模型[J]. 兵工学报, 2025, 46(10): 250425-.

CHEN Qingqing, ZHANG Jie, WANG Zhiyong, ZHAO Tingting, ZHANG Yuhang, WANG Zhihua. A Predictive Model for Penetration Efficiency of Semi-Infinite Metallic Targets Based on Dimensional Constraints and Symbolic Regression[J]. Acta Armamentarii, 2025, 46(10): 250425-.

图/表 9

参考文献 35

[1]	唐奎, 王金相, 刘亮涛, 等. 长杆弹二次侵彻机理及影响因素研究[J]. 兵工学报, 2023, 44(12): 3707-3718.
	TANG K, WANG J X, LIU L T, et al. Study on the mechanism of secondary penetration of long-rod projectile and its influencing factors[J]. Acta Armamentarii, 2023, 44(12): 3707-3718. (in Chinese)
[2]	马天宝, 岳恒超, 任会兰, 等. 陶瓷/金属复合靶抗侵彻性能的数值模拟方法研究[J]. 工程力学, 2015, 32(4): 228-233.
	MA T B, YUE H C, REN H L, et al. Numerical analysis of the anti-penetration properties of ceramic/metal targets[J]. Engineering Mechanics, 2015, 32(4): 228-233. (in Chinese)
[3]	杜忠华, 赵国志. 子弹垂直侵彻陶瓷/铝合金靶板的理论分析模型[J]. 兵工学报, 2001(4): 477-480.
	DU Z H, ZHAO G Z. An analytical model for a bullet penetrating normally on a target of ceramic/aluminium alloy[J]. Acta Armamentarii, 2001(4): 477-480. (in Chinese)
[4]	ZHAI Y X, WU H, FANG Q. Impact resistance of armor steel/ceramic/UHPC layered composite targets against 30CrMnSiNi2A steel projectiles[J]. International Journal of Impact Engineering, 2021, 154(000): 103888
[5]	RONG Y, REN H, XU X. An improved damage-plasticity material model for concrete subjected to dynamic loading[J]. Case Studies in Construction Materials, 2023, 19: e02568.
[6]	靳绍虎, 刘科伟, 黄进, 等. 基于Lagrange及SPH算法的花岗岩侵彻数值模拟. 高压物理学报 2021, 35(5): 145-157.
	JIN S H, LIUK W, HUANG J, et al. Numerical simulation of granite penetration based on Lagrange and SPH algorithm[J]. Chinese Journal of High Pressure Physics, 2021, 35(5): 145-157. (in Chinese)
[7]	ACCARY A, BENNIOU H, MALECOT Y, et al. Saturation ratio influence on perforation and penetration of concrete subjected to missile impact: a DEM approach[J]. Computational Particle Mechanics, 2024, 11(2): 805-814.
[8]	李萌, 武海军, 董恒, 等. 基于机器学习的混凝土侵彻深度预测模型[J]. 兵工学报, 2023, 44(12): 3771-3782.
	LI M, WU H J, DONG H, et al. Machine learning-based models for predicting the penetration depth of concrete[J]. Acta Armamentarii, 2023, 44(12): 3771-3782. (in Chinese)
[9]	KAZARINOV N, KHVOROV A. Predicting impact strength of perforated targets using artificial neural networks trained on FEM-generated datasets[J]. Defence Technology, 2024, 32: 32-44.
[10]	CHEN Q Q, ZHANG X Y, WANG Z Y, et al. Data-driven prediction of dimensionless quantities for semi-infinite target penetration by integrating machine-learning and feature selection methods[J]. Defence Technology, 2024, 40: 105-124.
[11]	SONG X S, WANG W W, DENG Y J, et al. Data-driven modeling for residual velocity of projectile penetrating reinforced concrete slabs[J]. Engineering Structures, 2024, 306: 117761.
[12]	RYAN S, SUSHMA N M, KUMAR A A, et al. Machine learning for predicting the outcome of terminal ballistics events[J]. Defence Technology 2023, 31: 14-26.
[13]	ZHU Z H, KONG X S, ZHOU H, et al. A hybrid data-driven machine learning framework for predicting the impact resistance of composite armor[J]. International Journal of Impact Engineering, 2025, 195: 105125.
[14]	张秀丽, 张杰, 亓晓鹏, 等. 基于无偏特征选择的混凝土侵彻深度预测模型[J/OL]. 兵工学报. DOI: 10.12382/bgxb.2025.0019.
	ZHANG X L, ZHANG J, QI X P, et al. Prediction model of concrete penetration depth based on unbiased feature selection[J]. Acta Armamentarii. DOI: 10.12382/bgxb.2025.0019. (in Chinese)
[15]	OH H, AMICI R, BOMARITO G, et al. Inherently interpretable machine learning solutions to differential equations[J]. Engineering with Computers, 2024, 40(4): 2349-2361.
[16]	蒋明镜, 张卢丰, 韩亮, 等. 基于符号回归算法的结构性砂土损伤规律研究[J]. 岩土力学, 2024, 45(12): 3768-3778.
	JIANG M J, ZHANG L F, HAN L, et al. Damage law of structured sand using symbolic regression algorithm[J]. Rock and Soil Mechanics, 2024, 45(12): 3768-3778. (in Chinese)
[17]	齐爱东, 刘荣忠, 胡功笠, 等. 刚性弹丸对混凝土靶的垂直侵彻研究[J]. 弹道学报, 2003, 15(4): 42-45.
	QI A D, LIU R Z, HU G L, et al. Normal penetration of a rigid projectile into concrete target[J]. Journal of Ballistics, 2003, 15(4): 42-45. (in Chinese)
[18]	田嘉欣, 李浩源. 基于遗传编程的符号回归在化学和材料研究中的应用与展望[J]. 材料导报, 2024, 38(S1): 268-274.
	TIAN J X, LI H Y. Application and prospects of symbolic regression based on genetic programming in chemistry and materials[J]. Materials Reports, 2024, 38(S1): 268-274. (in Chinese)
[19]	CHEN Q, ZHANG J, ZHANG L, et al. Compressive strength prediction of high-performance concrete: Integrating multi-ingredient influences and mix proportion insights[J]. Construction and Building Materials, 2024, 451:138791.
[20]	王树山. 终点效应学[M]. 北京: 科学出版社, 2019.
	WANG S S. Terminal effects[M]. Beijing: Science Press, 2019. (in Chinese)
[21]	张先锋, 李向东, 沈培辉, 等. 终点效应学[M]. 北京: 北京理工大学出版社, 2017.
	ZHANG X F, LI X D, SHEN P H, et al. Terminal effects[M]. Beijing: Beijing Institute of Technology Press, 2017. (in Chinese)
[22]	ANDERSON C E, PARTOM Y, BLESS S J, et al. On the L/D effect for long-rod penetrators[J]. International Journal of Impact Engineering, 1996, 18(3): 247-264.
[23]	ANDERSON C E, WALKER J D, BLESS S J, et al. On the velocity dependence of the L/D effect for long-rod penetrators[J]. International Journal of Impact Engineering, 1995, 17(1-3): 13-24.
[24]	ROSENBERG Z, DEKEL E. The relation between the penetration capability of long rods and their length to diameter ratio[J]. International Journal of Impact Engineering, 1994, 15(2): 125-129.
[25]	JIAO W J, CHEN X W. Analysis of the velocity relationship and deceleration of long-rod penetration[J]. Acta Mechanica Sinica, 2019, 35(4): 852-865.
[26]	YANG H W, JIN X C, ZHANG J, et al. Analysis on mass loss of different sized projectiles penetrating into concrete targets[J]. International Journal of Mechanical Sciences, 2017, 131: 683-692.
[27]	陈小伟. 穿甲/侵彻力学的理论建模与分析(上册)基础科学[M]. 北京: 科学出版社, 2019.
	CHEN X W. Modelling on the perforation and penetration Ⅰ[M]. Beijing: Science Press, 2019. (in Chinese)
[28]	高光发. 量纲分析理论与应用[M]. 北京: 科学出版社, 2021.
	GAO G F. Dimensional ananlysis theories and applications[M]. Beijing: Science Press, 2021. (in Chinese)
[29]	CHEN X W, LI Q M. Deep penetration of a non-deformable projectile with different geometrical characteristics[J]. International Journal of Impact Engineering, 2002, 27(6): 619-637.
[30]	LI Q M, JONES N. On dimensionless numbers for dynamic plastic response of structural members[J]. Archive of Applied Mechanics, 2000, 70(4): 245-254.
[31]	KONG X, LI Q M, FANG Q. Critical impact yaw for long-rod penetrators[J]. Journal of Applied Mechanics, 2016, 83(12): 121008.
[32]	KOVAČIČ M, ŠARLER B. Application of the genetic programming for increasing the soft annealing productivity in steel industry[J]. Materials and Manufacturing Processes, 2009, 24(3): 369-374.
[33]	CHENG Z L, ZHOU W H, Garg A. Genetic programming model for estimating soil suction in shallow soil layers in the vicinity of a tree[J]. Engineering Geology, 2020, 268: 105506.
[34]	ZHANG P, YIN Z Y, JIN Y F. Machine learning-based modelling of soil properties for geotechnical design: review, tool development and comparison[J]. Archives of Computational Methods in Engineering, 2022, 29(2): 1229-1245.
[35]	SCHMIDT M, LIPSON H. Distilling free-form natural laws from experimental data[J]. Science, 2009, 324(5923): 81-85.

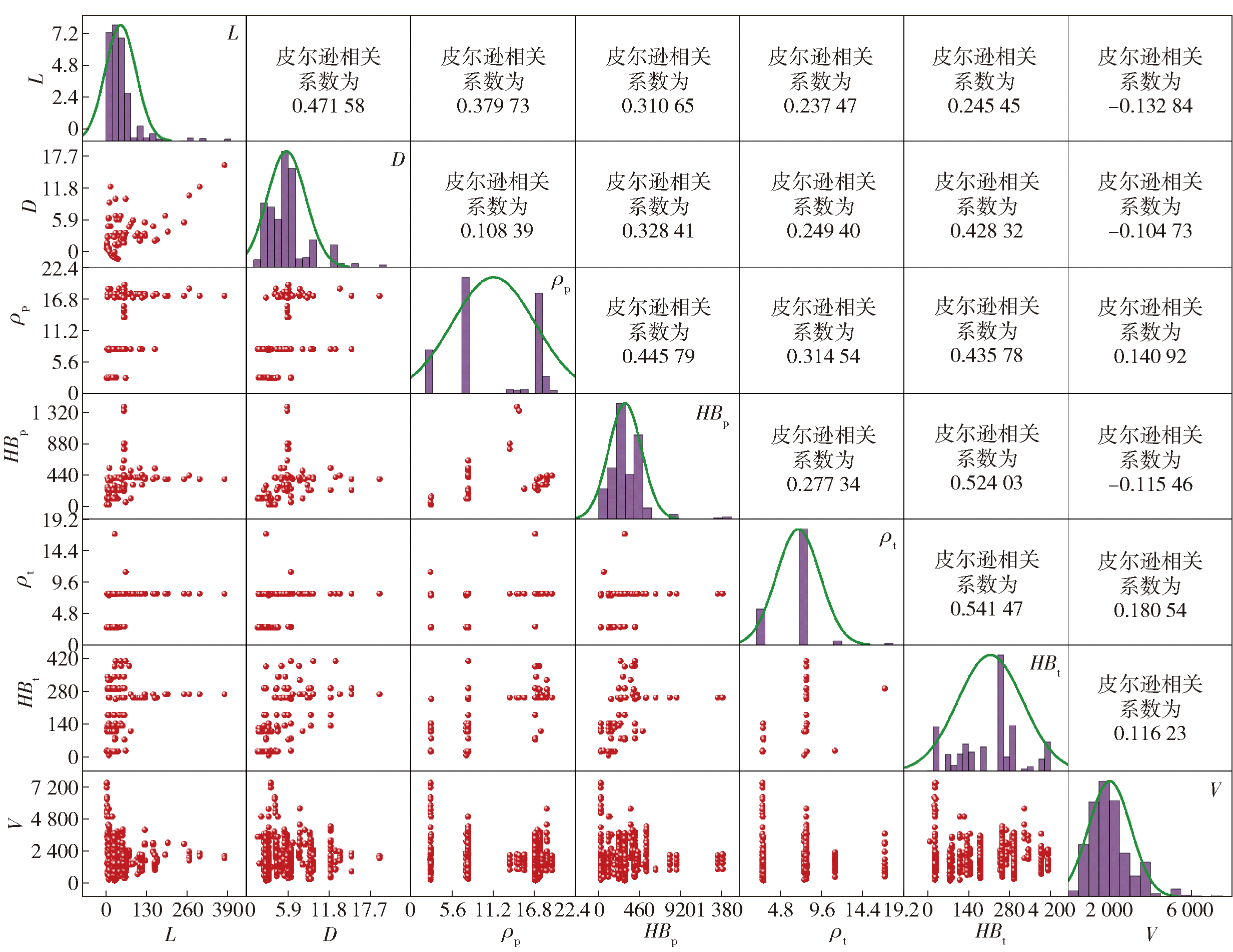

种类	侵彻方式	统计分析	杆弹长径比L/D	弹靶密度比 ρ_t/ρ_p	弹靶刚度比 HB_t/HB_p	Johnson破坏数 ρ_pV²/HB_t	侵彻效率 P/L
		最大值	9.99	2.90	5.8	1051.7	3.22
		最小值	1	0.35	0.14	2.38	0.01
	低速侵彻V<2000m/s	均值	3.50	1.01	1.13	115.3	0.61
		中位数	3	1	1	58.81	0.50
短杆弹L/D<10		标准差	1.82	0.62	1.13	154	0.51
		最大值	9.99	2.90	5.8	9859.6	7
		最小值	1	0.35	0.07	64.77	0.29
	高速侵彻V≥2000m/s	均值	3.59	0.85	0.96	930.26	1.69
		中位数	3	1	0.91	351.7	1.49
		标准差	2.39	0.53	0.86	1525.54	0.99
		最大值	32.04	4.15	1.32	349.40	2.18
		最小值	10	0.17	0.18	8.34	0.01
	低速侵彻V<1300m/s	均值	11.58	0.78	0.74	71.67	0.39
		中位数	10	0.46	0.63	60.7	0.31
长杆弹L/D≥10		标准差	4.69	0.84	0.32	62.23	0.40
		最大值	32.04	4.15	1.32	3836.7	3.61
		最小值	10	0.17	0.18	41.10	0.16
	高速侵彻V≥1300m/s	均值	12.56	0.74	0.71	355.88	1.12
		中位数	10	0.46	0.63	248.03	1.05
		标准差	5.32	0.80	0.29	444.01	0.56

种类	侵彻方式	统计分析	杆弹长径比L/D	弹靶密度比 ρ_t/ρ_p	弹靶刚度比 HB_t/HB_p	Johnson破坏数 ρ_pV²/HB_t	侵彻效率 P/L
		最大值	9.99	2.90	5.8	1051.7	3.22
		最小值	1	0.35	0.14	2.38	0.01
	低速侵彻V<2000m/s	均值	3.50	1.01	1.13	115.3	0.61
		中位数	3	1	1	58.81	0.50
短杆弹L/D<10		标准差	1.82	0.62	1.13	154	0.51
		最大值	9.99	2.90	5.8	9859.6	7
		最小值	1	0.35	0.07	64.77	0.29
	高速侵彻V≥2000m/s	均值	3.59	0.85	0.96	930.26	1.69
		中位数	3	1	0.91	351.7	1.49
		标准差	2.39	0.53	0.86	1525.54	0.99
		最大值	32.04	4.15	1.32	349.40	2.18
		最小值	10	0.17	0.18	8.34	0.01
	低速侵彻V<1300m/s	均值	11.58	0.78	0.74	71.67	0.39
		中位数	10	0.46	0.63	60.7	0.31
长杆弹L/D≥10		标准差	4.69	0.84	0.32	62.23	0.40
		最大值	32.04	4.15	1.32	3836.7	3.61
		最小值	10	0.17	0.18	41.10	0.16
	高速侵彻V≥1300m/s	均值	12.56	0.74	0.71	355.88	1.12
		中位数	10	0.46	0.63	248.03	1.05
		标准差	5.32	0.80	0.29	444.01	0.56

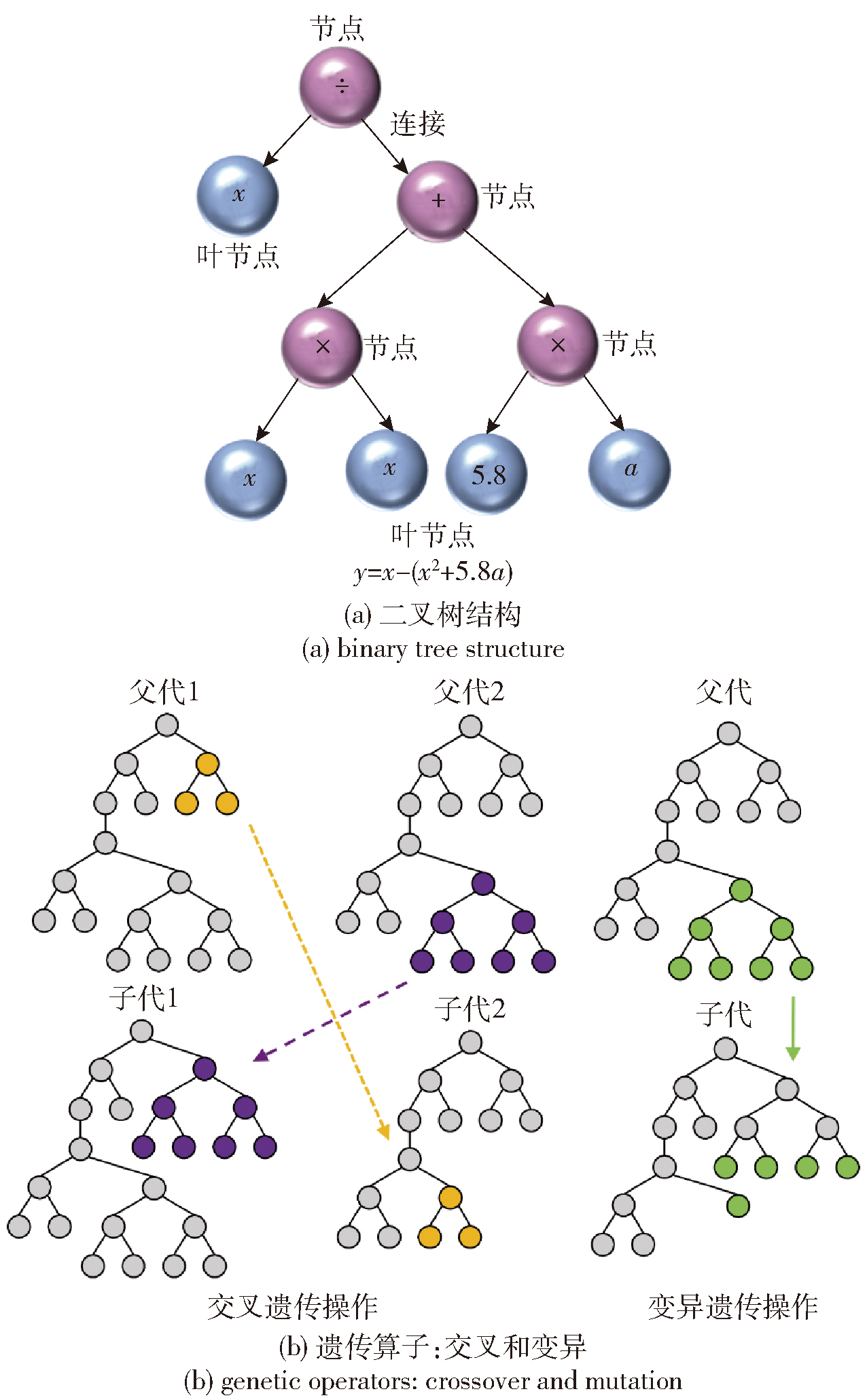

超参数名称与说明	不同侵彻工况下的超参数取值
超参数名称与说明	短杆弹低速	短杆弹高速	长杆弹低速	长杆弹高速
种群规模	960	820	920	930
迭代次数	472	350	430	456
惩罚项系数	0.006	0.004	0.01	0.07

超参数名称与说明	不同侵彻工况下的超参数取值
超参数名称与说明	短杆弹低速	短杆弹高速	长杆弹低速	长杆弹高速
种群规模	960	820	920	930
迭代次数	472	350	430	456
惩罚项系数	0.006	0.004	0.01	0.07

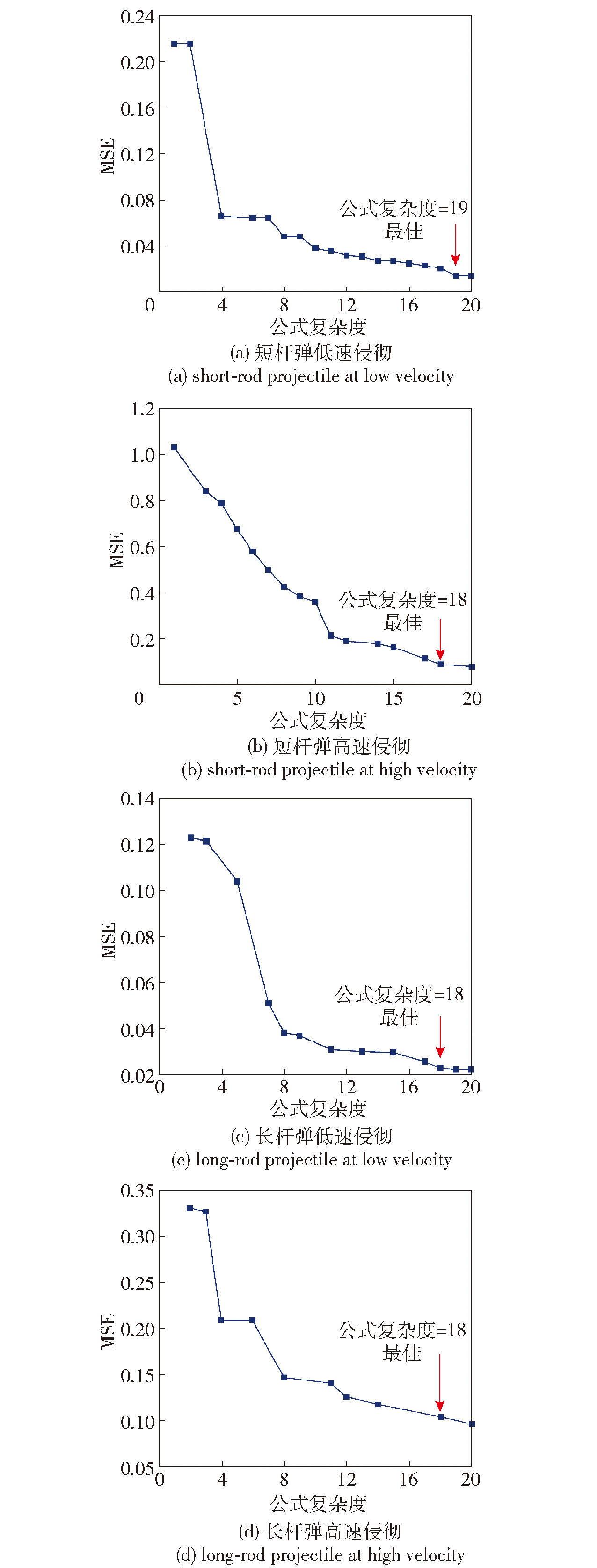

操作符	复杂度系数	操作符	复杂度系数
常数	1	除	2
输入变量	1	指数函数	4
加	1	幂函数	5
减	1	平方根	4
乘	1	绝对值	4
