耦合尾喷管堵盖运动的水下固体火箭发动机点火启动过程特性

doi:10.12382/bgxb.2022.0136

摘要/Abstract

摘要：

为研究水下固体火箭发动机点火启动过程的流场特征与工作特性,对尾喷管堵盖分离约束下的点火燃气泡演化过程进行数值模拟。采用流体体积多相流模型与动网格技术,建立耦合喷管堵盖运动的水下燃气射流仿真模型。对点火初期燃气泡形貌瞬态演化和流场参数的振荡特性进行分析,揭示变深度下发动机点火的初始推力脉动特征及形成机制。研究结果表明:点火开盖初期压差驱动堵盖强烈地冲击液相,尾壁空间产生高压区形成初始推力峰;点火深度越深,燃气泡沿轴向的增长速度越慢、长度越短,颈部出现收缩时刻越提前,流场参数和发动机推力的脉动特性越强;深水下燃气泡颈部收缩后,发动机喷口激波系出现往复振荡,导致尾壁空间产生压力振荡形成多个脉动推力峰,激波系的不稳定运动是推力出现脉动的主导因素。

关键词: 固体火箭发动机, 水下点火, 激波运动, 压力振荡, 推力脉动

Abstract:

To investigate the flow field and working characteristics of the underwater solid rocket motor at the initial stage of ignition, the gas bubble evolution process under the constraint of nozzle closure separation is numerically simulated. Based on the VOF multiphase model and dynamic mesh technique, a numerical model of underwater gas jet with the effect of nozzle closure is established. The transient evolution of gas bubble morphology and the oscillation characteristics of flow field parameters are analyzed. The characteristics and formation mechanism of initial thrust pulsation after ignition at variable depths are revealed. The results show that: at the initial stage of nozzle opening, the pressure difference drives the closure to strongly impact the liquid phase, causing a high pressure zone in the tail wall space and the formation of an initial thrust peak; as the ignition depth increases, the axial growth rate is slower and the length becomes shorter, the gas bubble has neck contraction in advance, and the pulsation characteristics of the flow field parameters and thrust of the motor become stronger; at the initial stage of ignition in deep water, the shock wave near nozzle exit has reciprocating oscillations, and the pressure oscillation in the tail wall space forms multiple fluctuating thrust peaks. It is demonstrated that the unstable motion of shock waves is the leading factor of thrust pulsation.

Key words: solid rocket motor, underwater ignition, shock wave motion, pressure oscillation, thrust pulsation

王德友, 李世鹏, 金戈, 王茹瑶, 官典, 王宁飞. 耦合尾喷管堵盖运动的水下固体火箭发动机点火启动过程特性[J]. 兵工学报, 2023, 44(6): 1665-1676.

WANG Deyou, LI Shipeng, JIN Ge, WANG Ruyao, GUAN Dian, WANG Ningfei. Characteristics of Ignition Start-up Process of Underwater Solid Rocket Motor with the Effect of Nozzle Closure[J]. Acta Armamentarii, 2023, 44(6): 1665-1676.

图/表 20

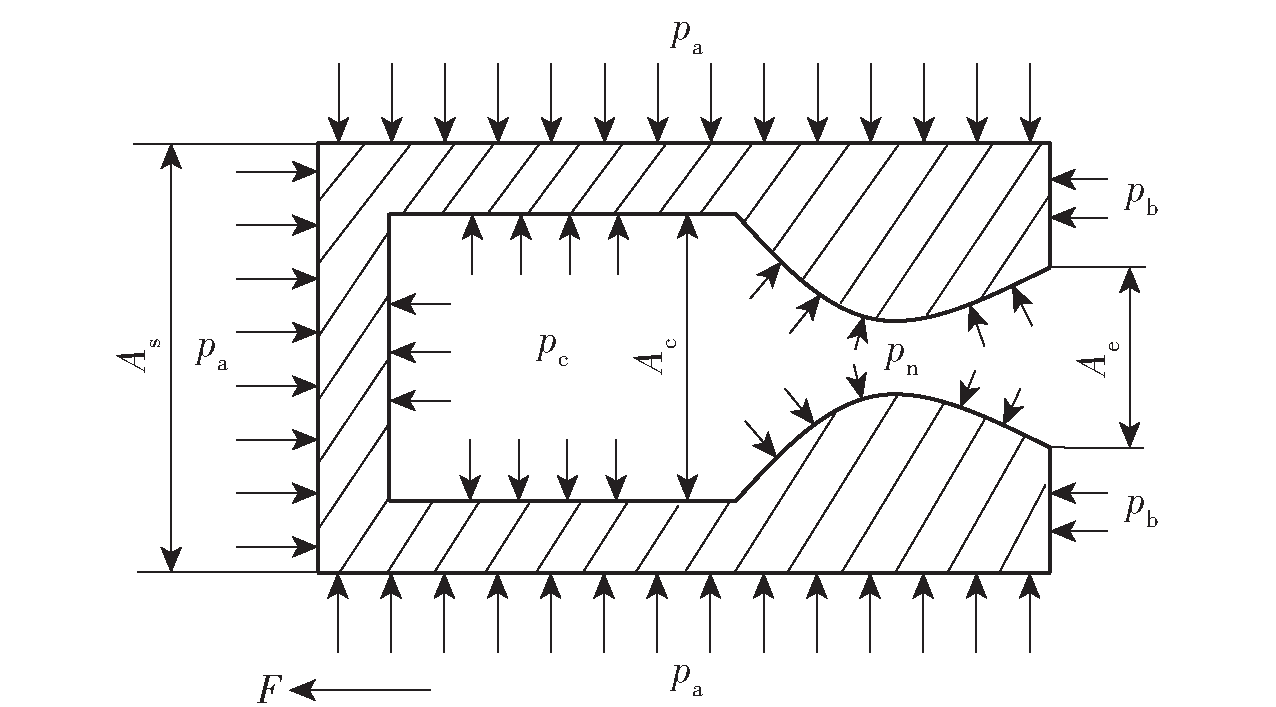

图1 水下固体火箭发动机推力计算示意

Fig.1 Calculation of thrust of underwater solid rocket motor

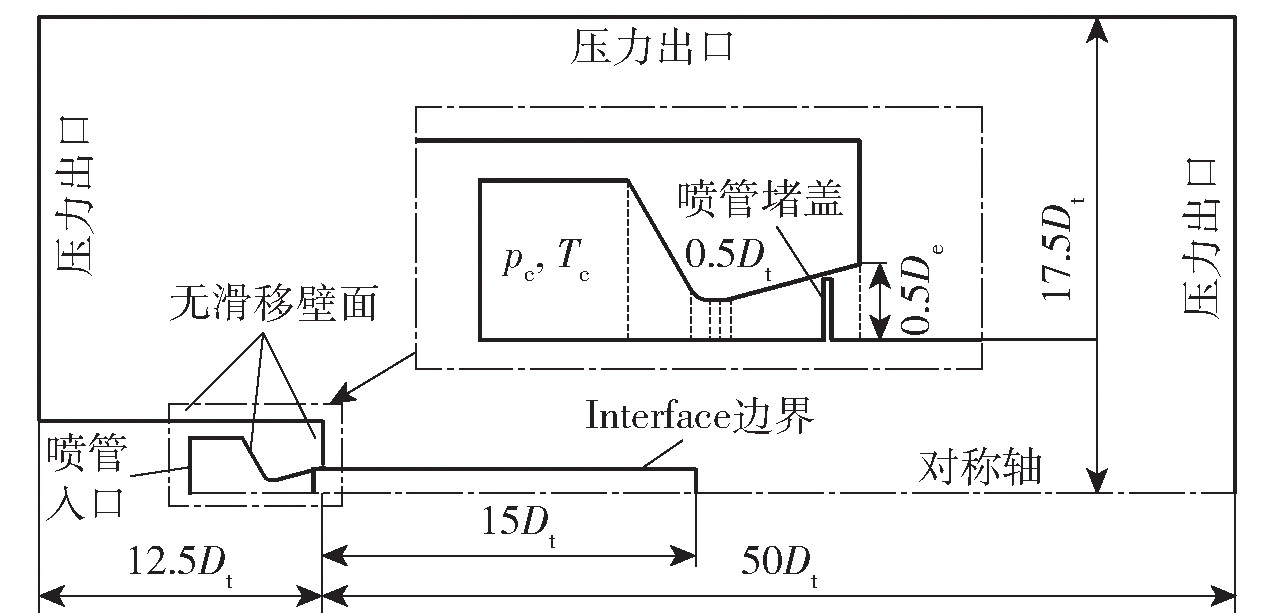

图2 计算域及边界条件

Fig.2 Computational domain and boundary conditions

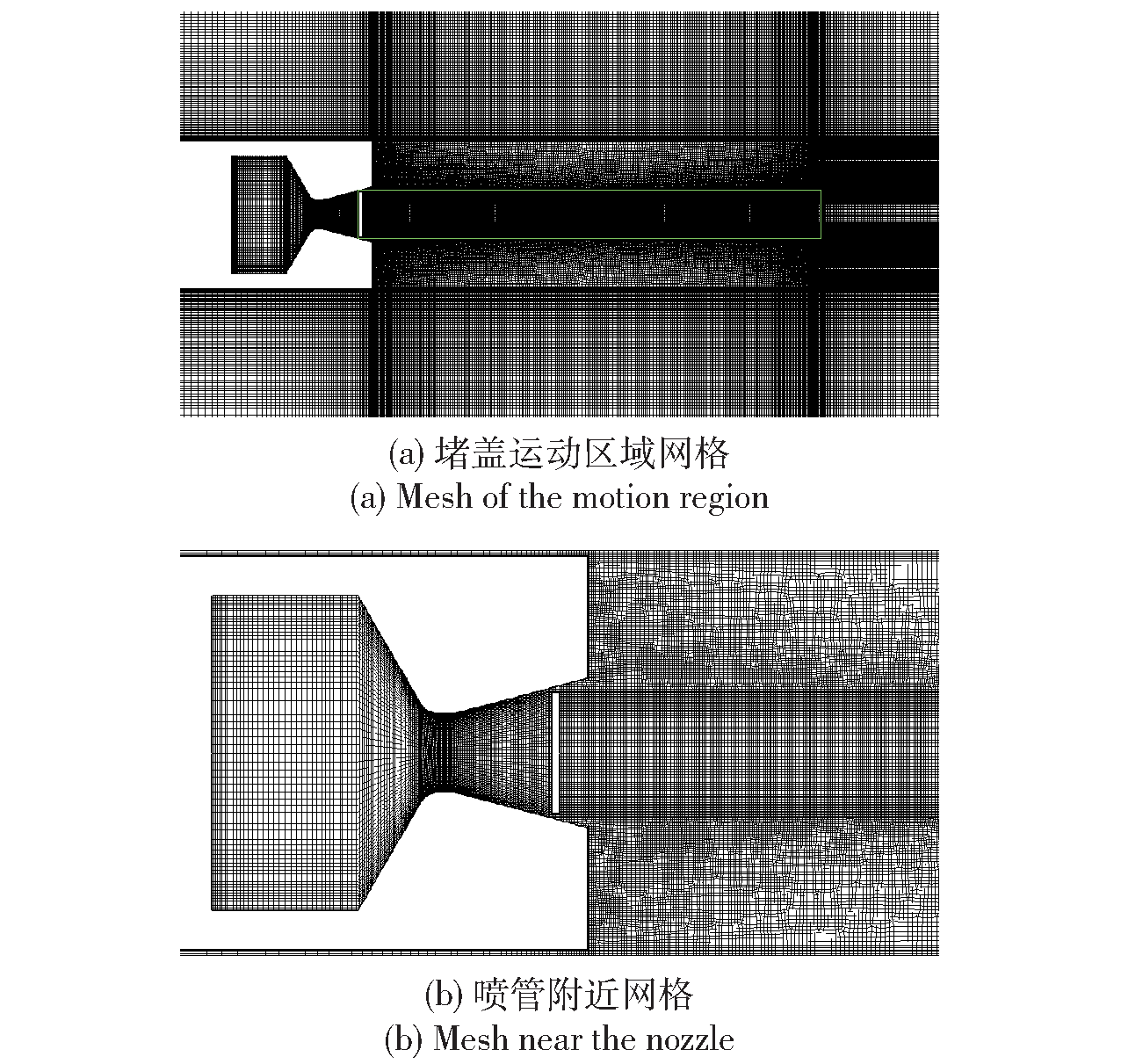

图3 网格划分

Fig.3 Meshing

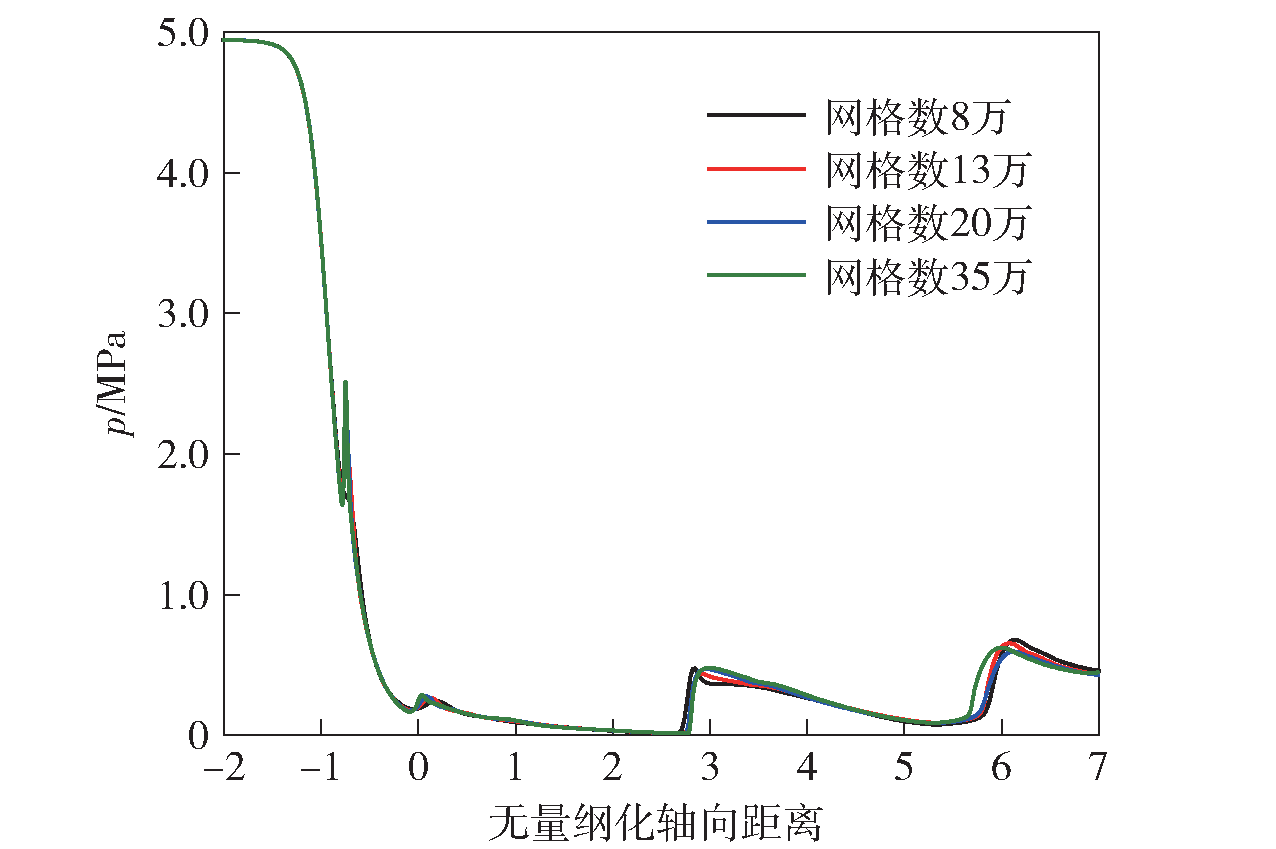

图4 网格无关性分析

Fig.4 Mesh independence analysis

表1 仿真工况

Table 1 Simulation conditions

工况	点火深度/m	环境压力/MPa	破盖压力/MPa
1	10	0.2	3.2
2	50	0.6	3.6
3	90	1.0	4.0

图5 高压水箱实验系统[21]

Fig.5 High pressure tank experimental system[21]

表2 数值仿真与射流实验对比

Table 2 Comparison of numerical and experimental results

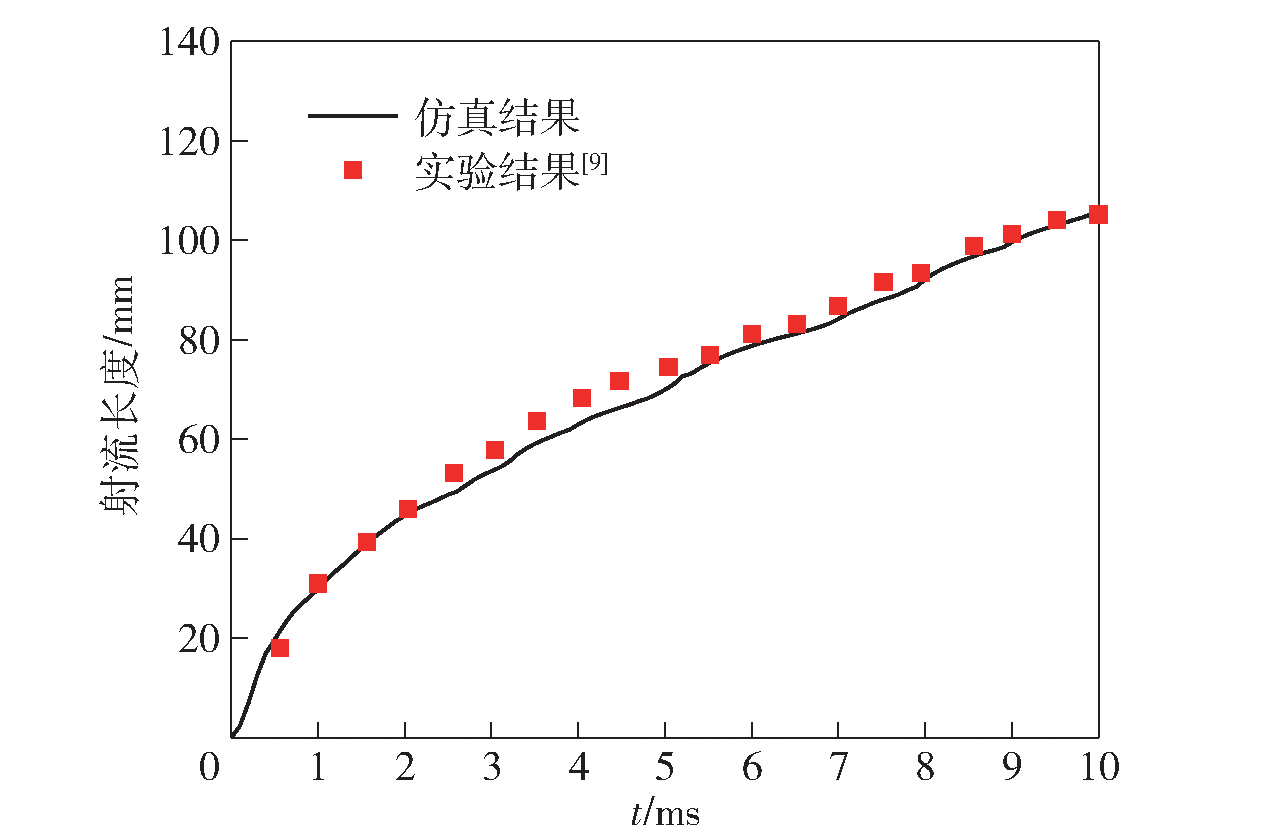

图6 射流长度变化规律对比

Fig.6 Comparison of variation law of jet length

表3 不同点火深度的燃气泡演化(上)和马赫数分布(下)

Table 3 Evolution process of gas bubble (above) and contour of Mach number (below) at different ignition depths

图7 不同点火深度的堵盖速度和位移变化

Fig.7 Velocity and displacement curves of nozzle closure at different ignition depths

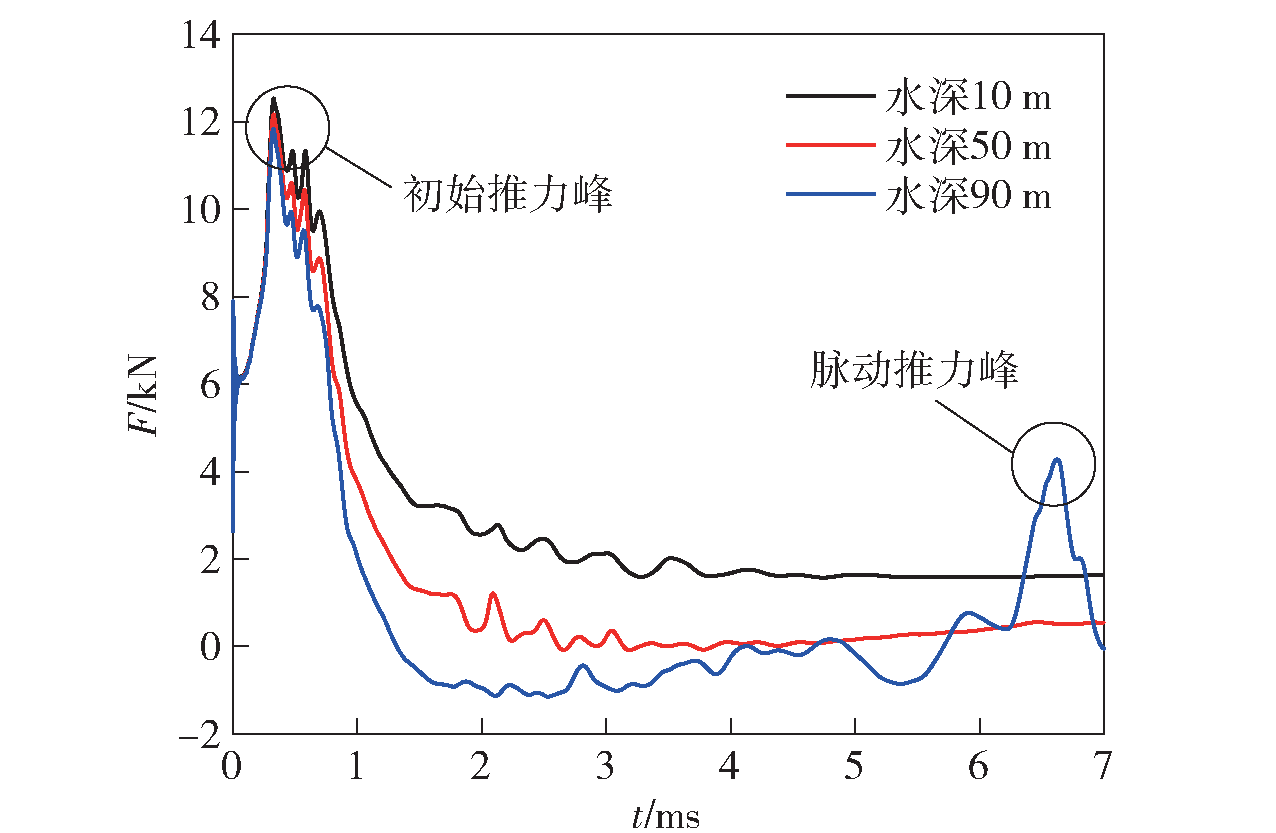

图8 不同点火深度的发动机推力曲线

Fig.8 Thrust curves of SRM at different ignition depths

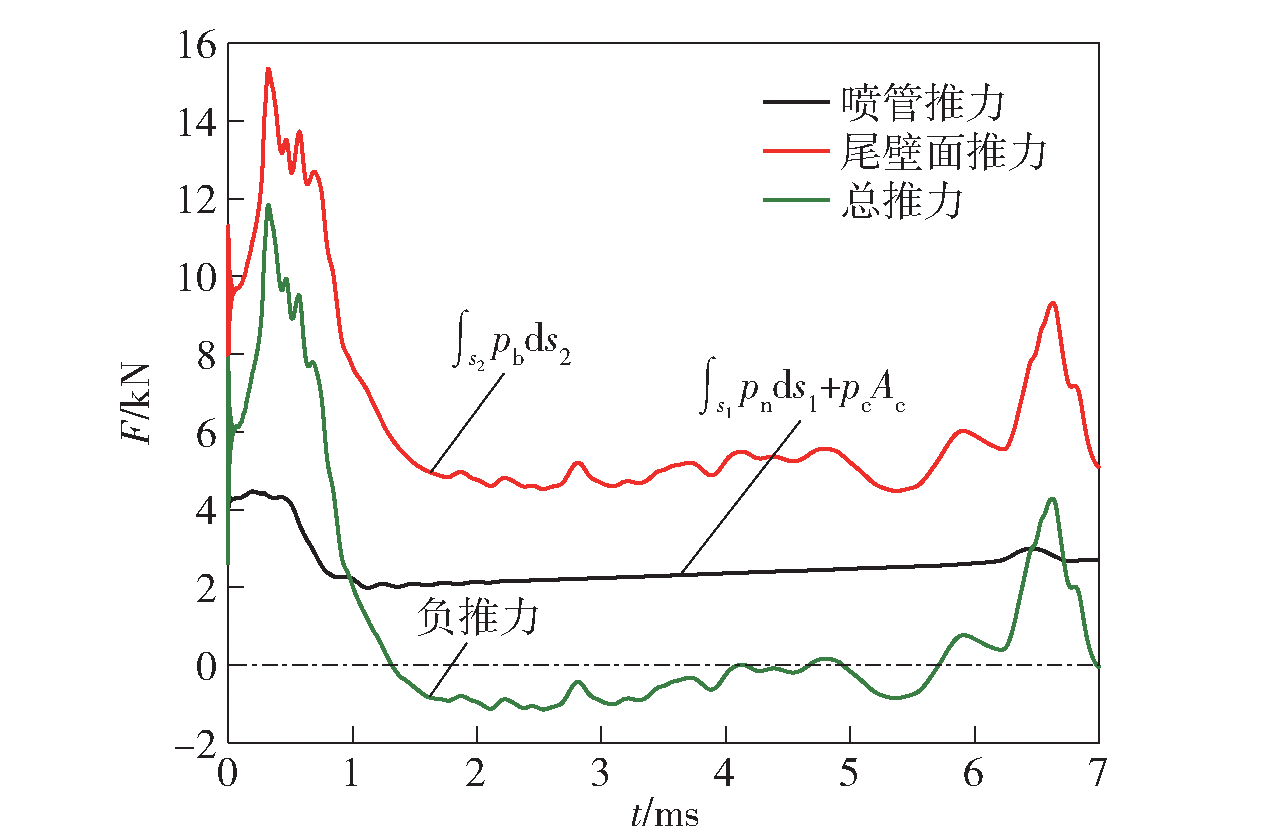

图9 深度90m工况发动机推力分量变化

Fig.9 Thrust component curves of SRM at 90m depth

表4 深度90m工况推力峰值时刻流场参数

Table 4 Flow field parameters of peak thrust at 90m depth

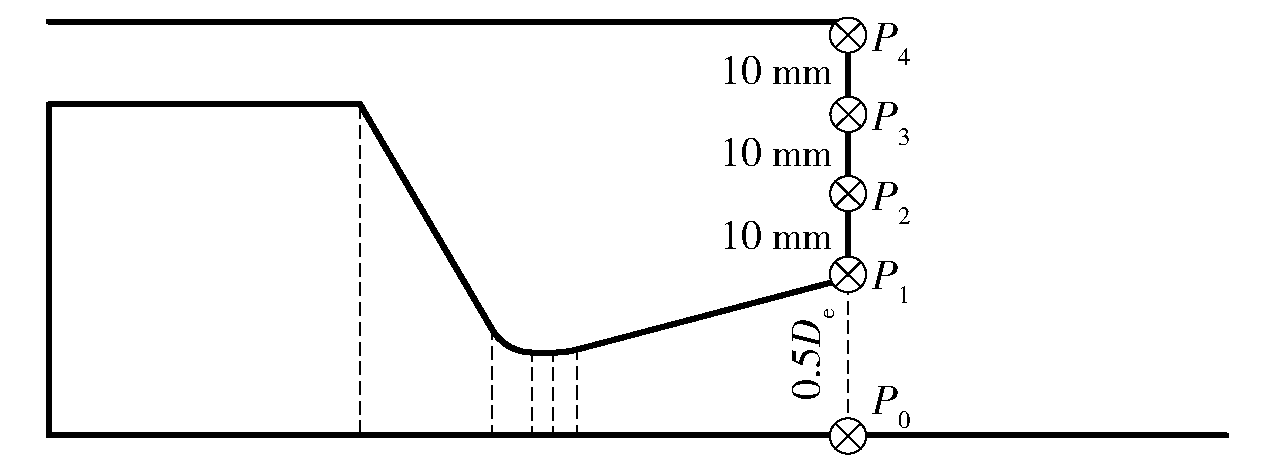

图10 压力监测点位置

Fig.10 Locations of pressure monitoring points

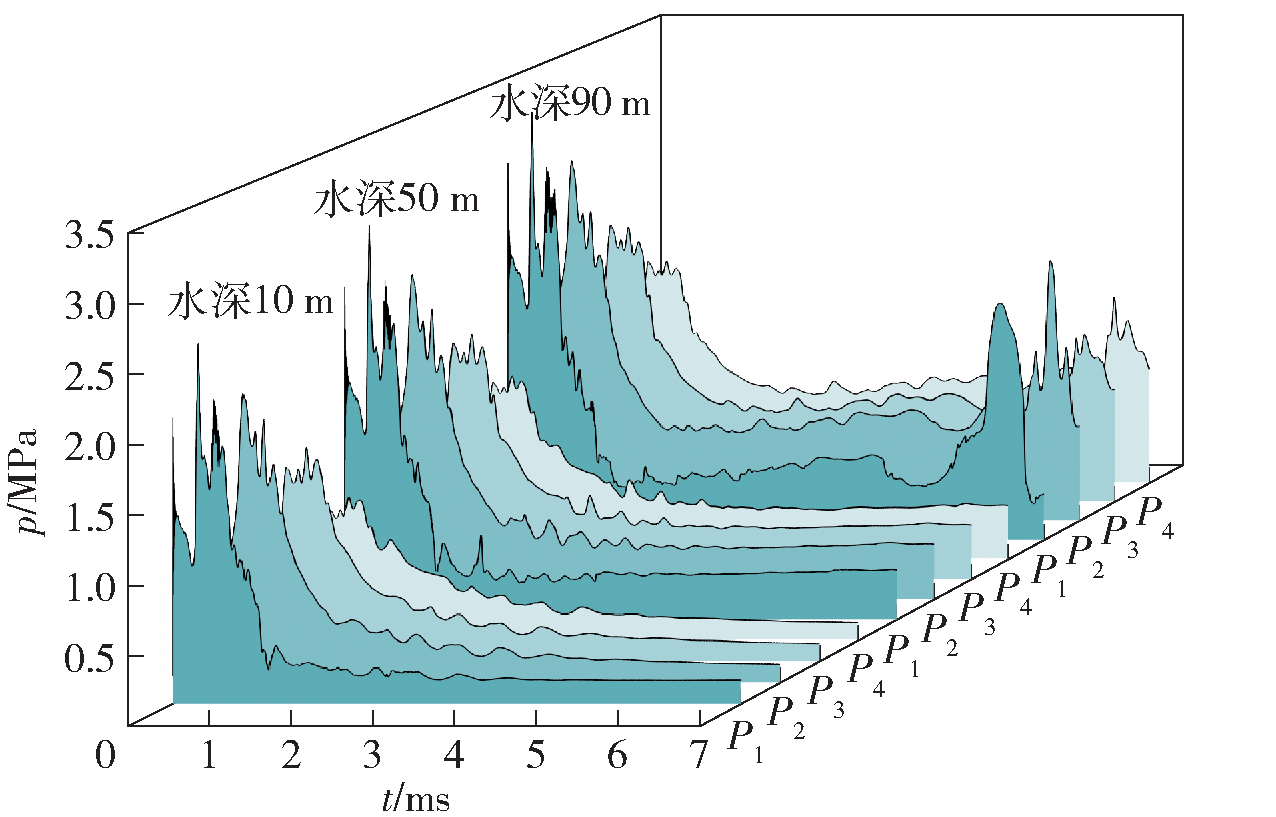

图11 点火初期尾壁面压力监测信号

Fig.11 Pressure signals of tail wall at the initial stage of ignition

图12 深度90m工况P0点压力监测信号

Fig.12 Pressure signals of P0 at 90m depth

图13 深度90m工况尾流压力(左)与马赫数(右)分布

Fig.13 Pressure (left) and Mach number (right) distribution at 90m depth

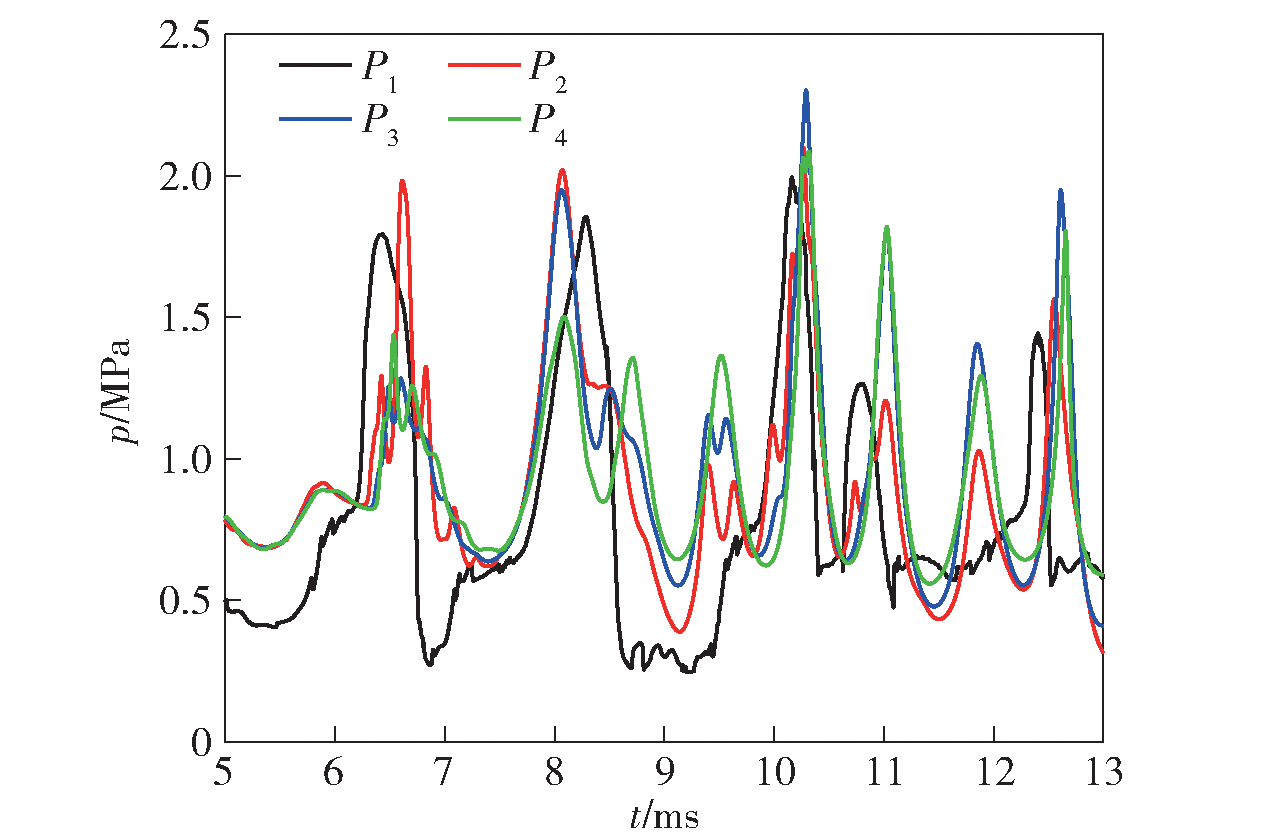

图14 深度90m工况尾壁面压力监测信号

Fig.14 Pressure signals of tail wall at 90m depth

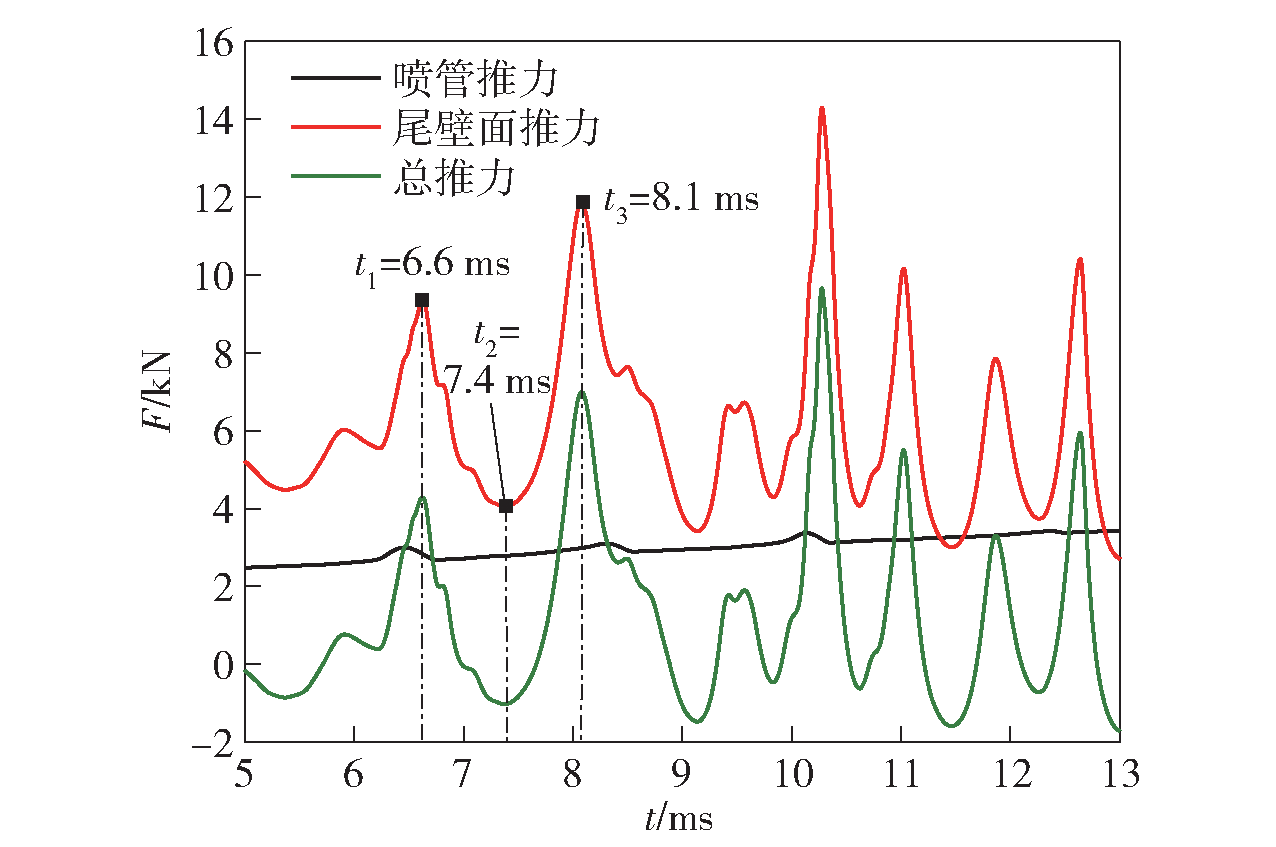

图15 深度90m工况推力脉动特性

Fig.15 Thrust pulsation characteristics at 90m depth

图16 典型时刻轴线流动参数(左)与流场压力分布(右)

Fig.16 Axial flow parameters (left) and pressure distribution (right) of flow field at typical times
