A Post-failure Traffic Reconfiguration and Scheduling Optimization Method for Time-sensitive Networking

doi:10.12382/bgxb.2024.0141

Abstract

Abstract:

In the existing studies on time-triggered (TT) traffic reconfiguration in time-sensitive networking (TSN), the redundancy status of the traffic is often overlooked, making it difficult to balance both TT traffic latency performance and the efficiency of reconfiguration scheme solutions in practical deployments. To address this issue, an optimization method for traffic reconfiguration and scheduling after failures is proposed. This method improves the solution efficiency of the reconfiguration scheme by introducing a fast reconfiguration algorithm and its corresponding enhancements at the expense of the latency performance of non-redundant traffic while ensuring solution success. Additionally, the proposed method flexibly adjusts the scheduling strategy of unaffected TT traffic, and incorporates a tabu search-based optimization algorithm with an associated objective function to enhance the overall TT traffic latency performance after reconfiguration. Experimental results demonstrate that the proposed method improves the solution efficiency by more than 75.03% compared to the commonly used incremental reconfiguration methods, and slightly improves TT traffic latency performance after multiple rounds of reconfiguration, showing a significant potential for practical application.

Key words: time-sensitive networking, time-triggered traffic, traffic planning, reconfiguration, optimization method

CLC Number:

TP393.1

LI Ji, GUO Yonghong, NIU Haitao, GUO Xin, HOU Zeng. A Post-failure Traffic Reconfiguration and Scheduling Optimization Method for Time-sensitive Networking[J]. Acta Armamentarii, 2024, 45(11): 3970-3982.

Figures/Tables 11

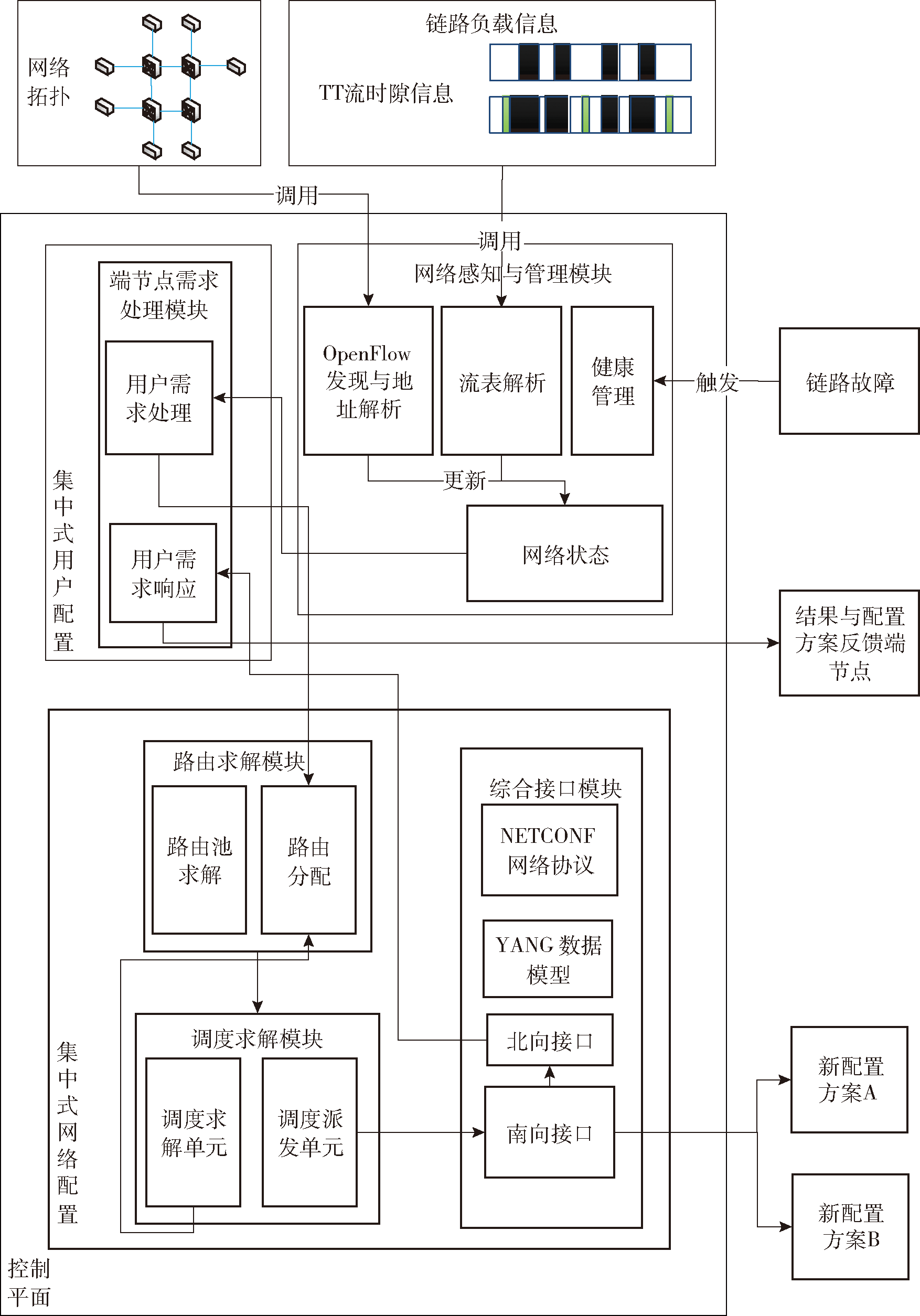

Fig.1 Control plane model structure design diagram

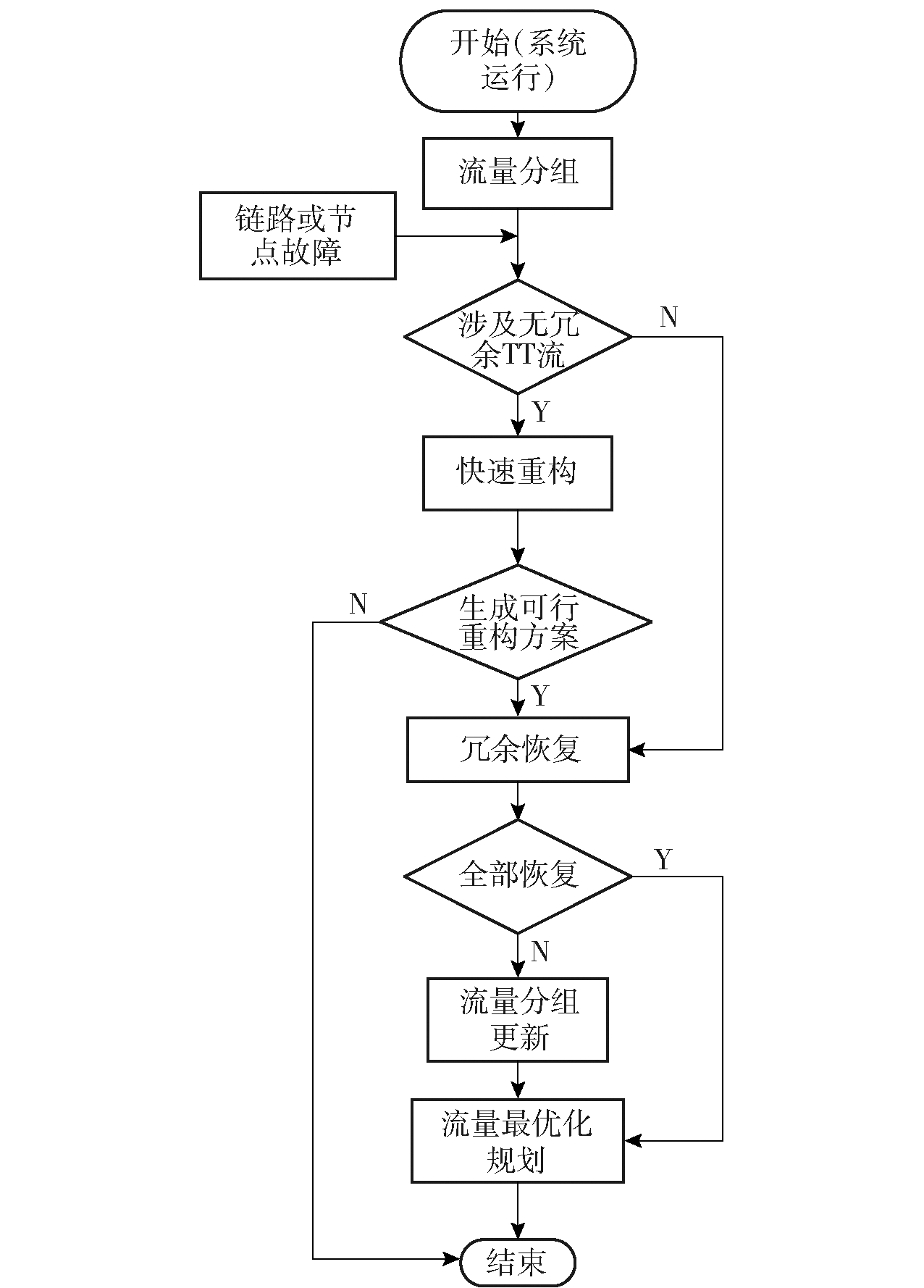

Fig.2 Flowchart of the implementation of joint optimization method for flow planning and reconfiguration

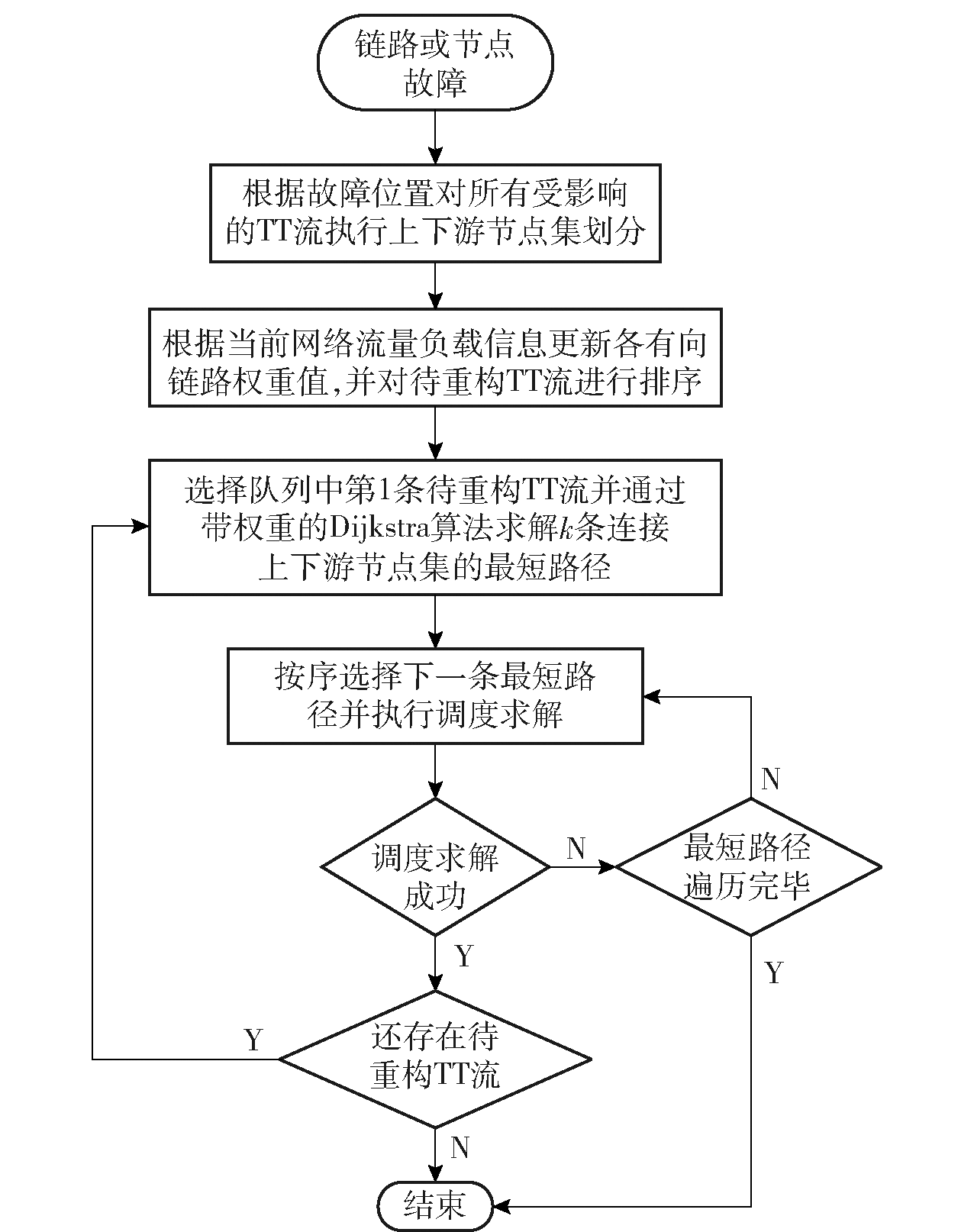

Fig.3 Flowchart of fast reconfiguration phase realization

Fig.4 Example of the localized route search algorithm

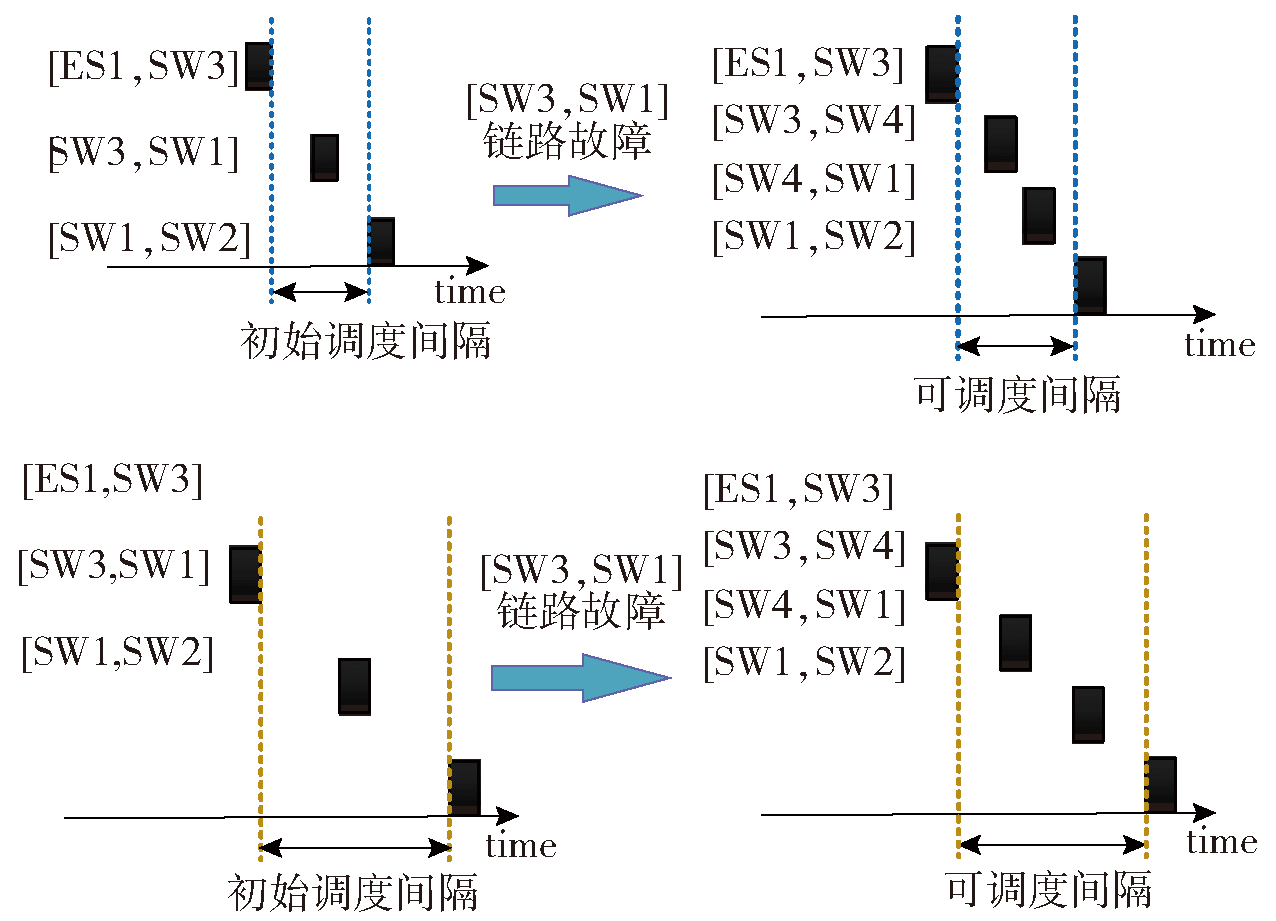

Fig.5 Example of the schedulable interval

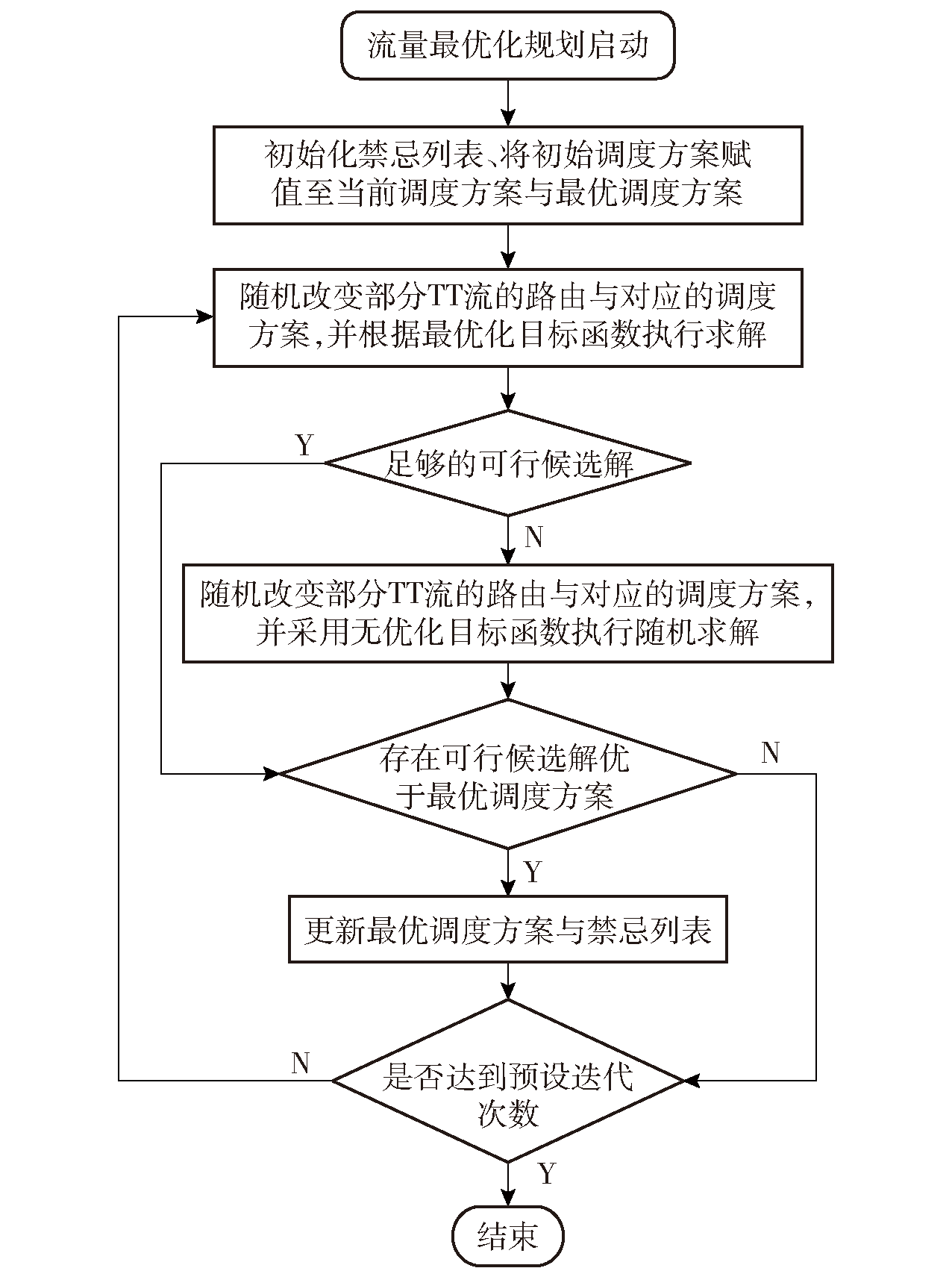

Fig.6 Flowchart of optimization planning phase

Fig.7 Tabu search-based optimization

Fig.8 Topology diagram of a vehicle integrated electronic system containing four domain controllers

Table 1 Traffic parameters

流量	周期/ ms	传输时隙/μs	初始冗余等级	单流量副本带宽/%
关键控制	10	100	2	≈1
雷达	20	100	2	≈3
激光雷达	20	1200	2	≈18
影像	50	400	2	≈18
远程信息处理	50	1000	2	≈2
其他控制	50	500	2	≈1

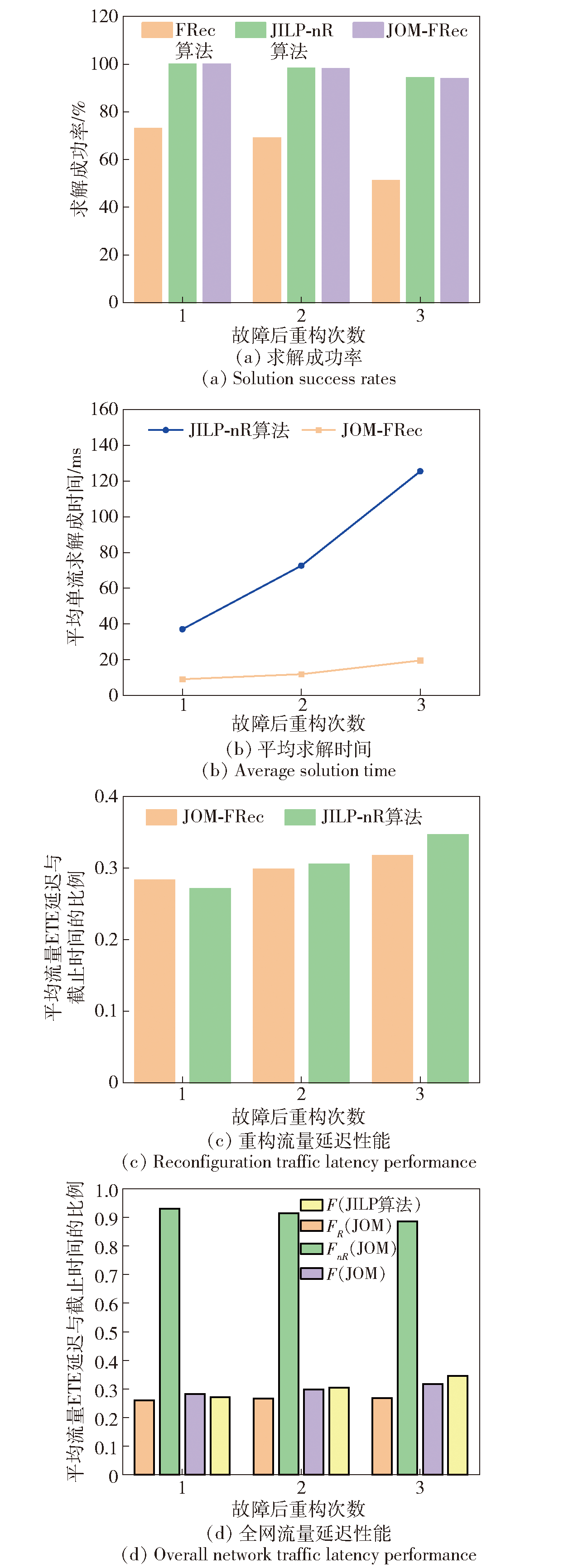

Fig.9 Simulation analysis of typical vehicle integrated electronic system networks

Fig.10 Simulation analysis of typical spacecraft integrated electronic system networks

References 24
