An Impact Angle and Field of View Constraints Guidance Law Based on Deep Reinforcement Learning

doi:10.12382/bgxb.2024.0435

Abstract

Abstract:

To meet the increasingly complex operational demands and improve the guidance performance of micro-guided munitions at close range,a impact angle constraint guidance law based on deep reinforcement learning (DRL) is proposed by considering the field-of-view (FOV) limitations.The estimation formula for the impact angle error of missile relative to a moving target is derived,the impact angle error and view angle are used as state variables,and a piecewise reward function is constructed.The guidance problem is modeled as a time-discrete Markov decision process (MDP).The required guidance commands are obtained through biased proportional navigation,and a bias term is output by the DRL policy network.The network is trained using the proximal policy optimization (PPO) algorithm,resulting in an optimal guidance strategy that ensures the constraints on both view and impact angles without information about missile-target distance.Numerical and Monte Carlo simulations under different initial conditions and the comparative analyses of capture regions of missiles at various speeds are conducted.The results show that the proposed guidance law maintains excellent guidance performance under various initial conditions,provides a larger capture region in close-range engagements compared to existing guidance laws,and demonstrates a smaller impact angle error distribution under interference,thus validating its effectiveness and superiority.

Key words: guidance law, impact angle constraint, deep reinforcement learning, limited field of view angle, micro-guided munition

CLC Number:

TJ765.3

XIAN Sujie, WANG Kang, ZENG Xin, SONG Jie, WU Zhilin. An Impact Angle and Field of View Constraints Guidance Law Based on Deep Reinforcement Learning[J]. Acta Armamentarii, 2025, 46(4): 240435-.

Figures/Tables 17

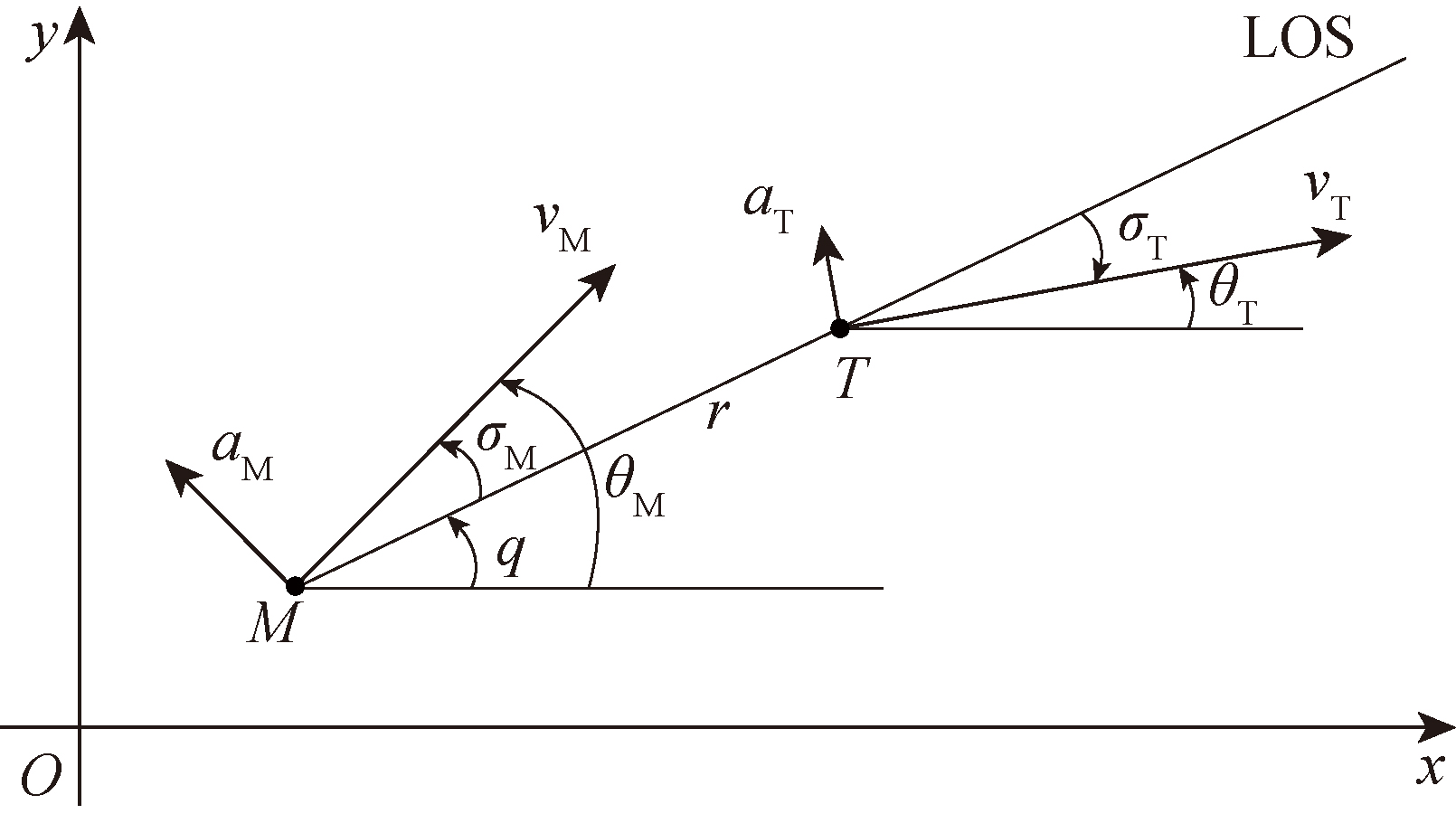

Fig.1 Engagement geometry

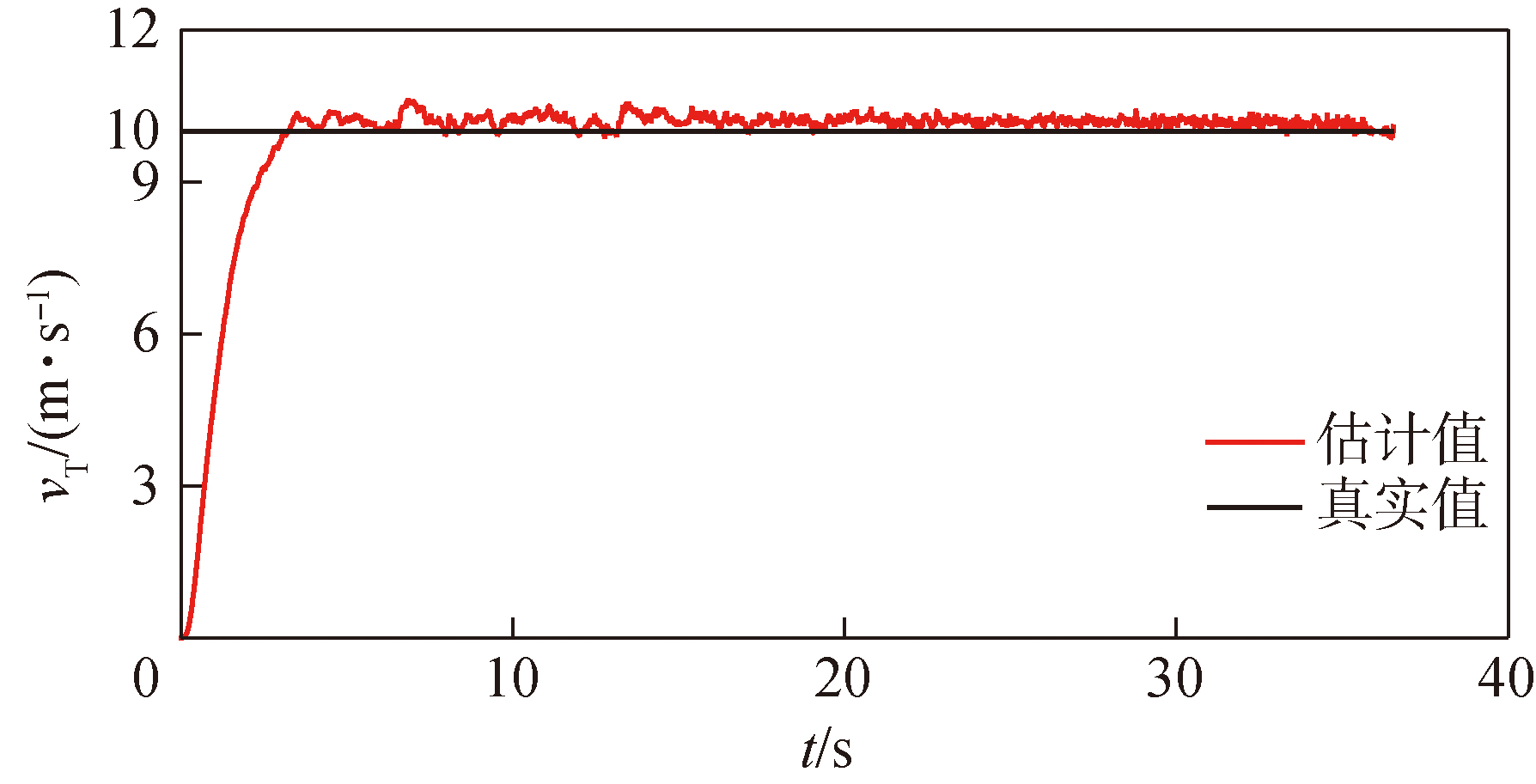

Fig.2 The estimated result of vT

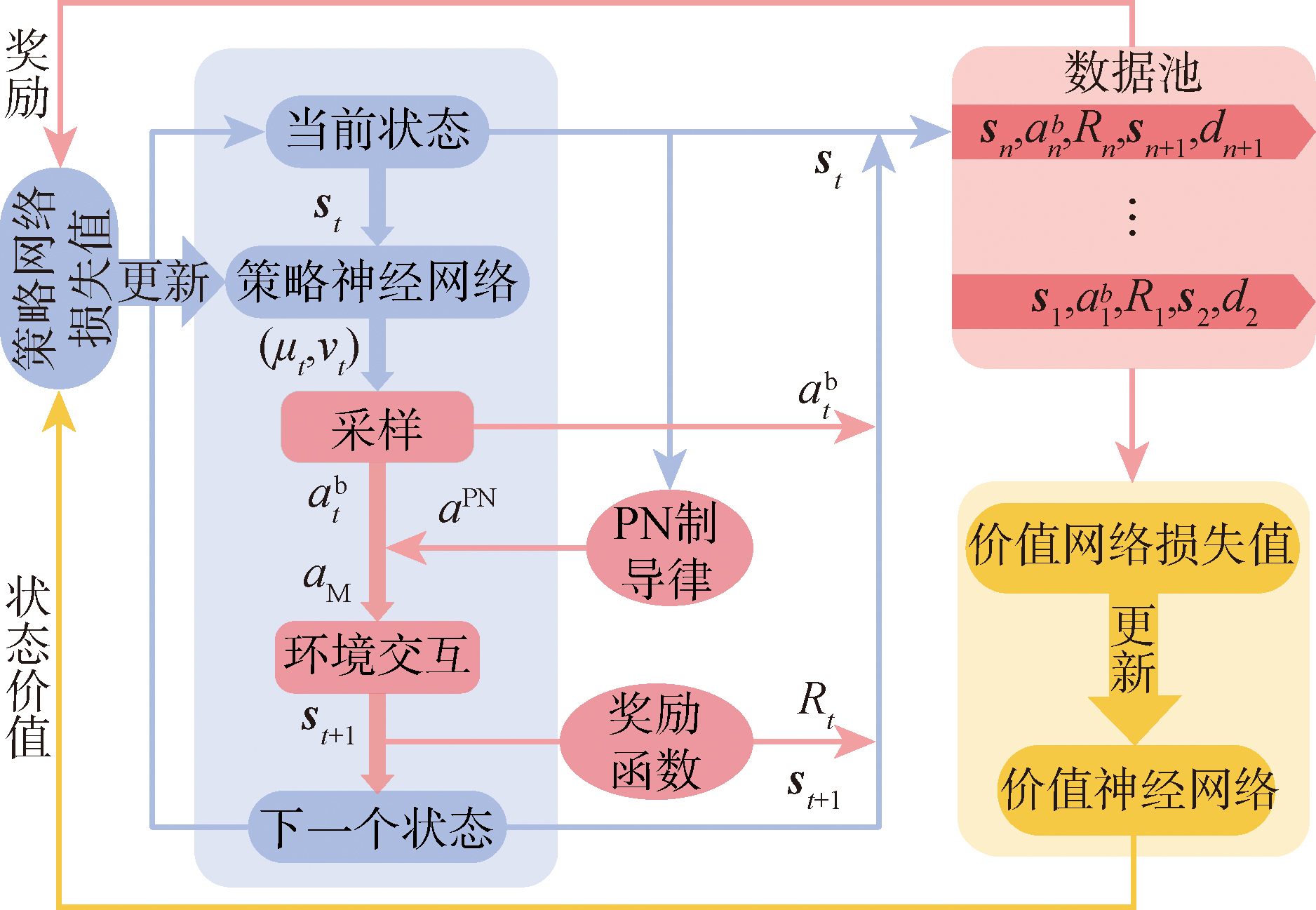

Fig.3 Structural diagram of guidance law training algorithm

Fig.4 PPO-based guidance law training algorithm for impact angle control with FOV angle constraints

Table 1 Neural network architecture

神经网络	结构	激活函数
Actor	(2,64)	ReLU
	(64,128)	ReLU
	(128,64)	ReLU
	(64,1),(64,1)	Tanh,Sigmoid
Critic	(2,64)	ReLU
	(64,256)	ReLU
	(256,64)	ReLU
	(64,32)	ReLU
	(32,16)	ReLU
	(16,1)	Linner

Table 2 Parameter settings

参数	取值
N	3
v_M/(m·s^-1)	100
v_T/(m·s^-1)	10
a^bn/(m· $s - 2$ )	30
$e n θ$	0.5e_θ₀
$σ n M$ /(°)	10
q₀/(°)	0
σ_M0/(°)	15
θ_M0/(°)	15
n	32
α_ϑ	0.00001
α_φ	0.0001
k₁	0.25
γ	0.95
λ_GAE	0.95
ε	0.2
K	10
dt/s	0.01
Δt/s	0.02
训练回合总数	2000

Table 2 Parameter settings

参数	取值
N	3
v_M/(m·s^-1)	100
v_T/(m·s^-1)	10
a^bn/(m· $s - 2$ )	30
$e n θ$	0.5e_θ₀
$σ n M$ /(°)	10
q₀/(°)	0
σ_M0/(°)	15
θ_M0/(°)	15
n	32
α_ϑ	0.00001
α_φ	0.0001
k₁	0.25
γ	0.95
λ_GAE	0.95
ε	0.2
K	10
dt/s	0.01
Δt/s	0.02
训练回合总数	2000

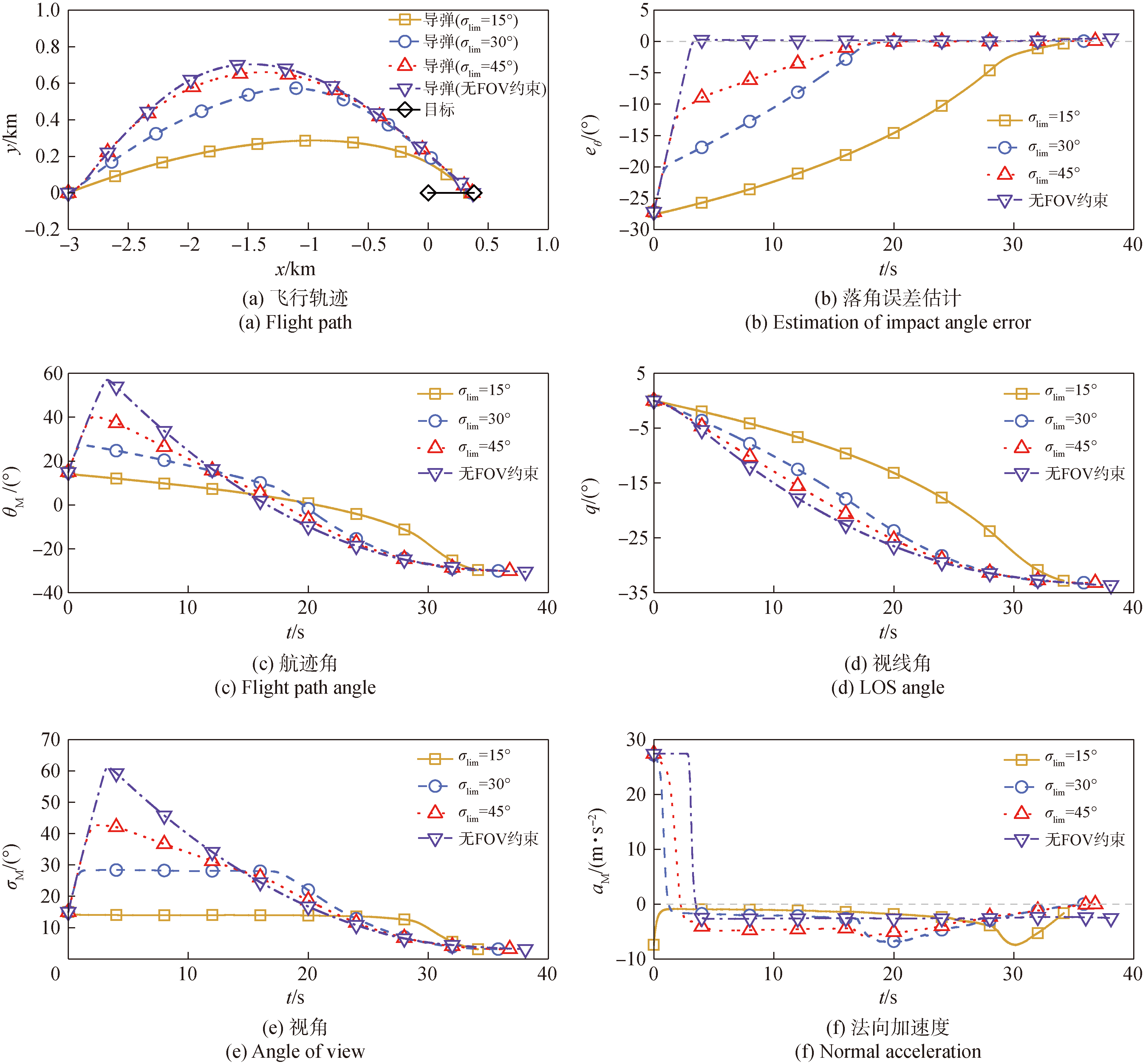

Fig.5 Numerically simulated results for variousσlim

Table 3 Simulated results under differentσlimconditions

σ_lim/(°)	σ_sat/(°)	终端θ_M/(°)	最大σ_M/°	$∫ 0 t f a M$ dt
15	14.0	-29.98	15.00	78.52
30	28.5	-29.84	28.18	120.34
45	43.5	-30.00	41.86	163.13
无限制		-30.45	61.01	174.77

Table 3 Simulated results under differentσlimconditions

σ_lim/(°)	σ_sat/(°)	终端θ_M/(°)	最大σ_M/°	$∫ 0 t f a M$ dt
15	14.0	-29.98	15.00	78.52
30	28.5	-29.84	28.18	120.34
45	43.5	-30.00	41.86	163.13
无限制		-30.45	61.01	174.77

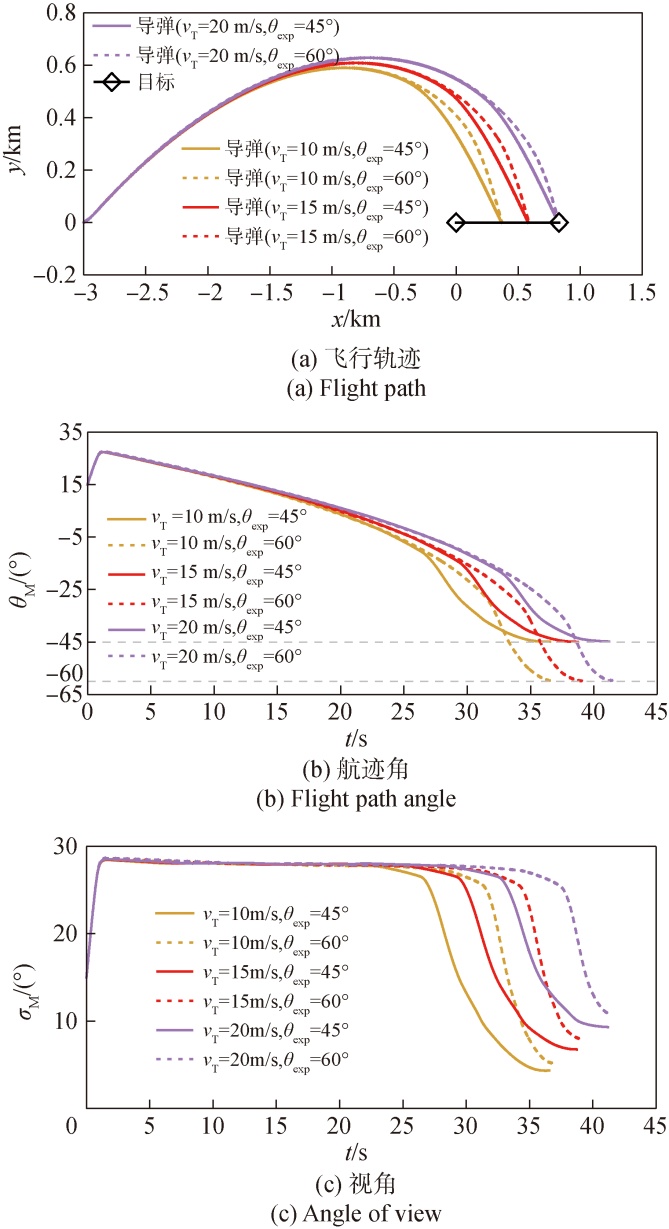

Fig.6 Numerically simulated results for various θexp

Table 4 Simulation results under different θexp

θ_exp/(°)	终端θ_M/(°)	最大σ_M/(°)	$∫ 0 t f a M$ dt
-30	-29.84	28.18	120.34
-45	-44.87	28.42	147.76
-60	-59.91	28.60	174.48
-75	-74.53	28.69	200.26

Table 4 Simulation results under different θexp

θ_exp/(°)	终端θ_M/(°)	最大σ_M/(°)	$∫ 0 t f a M$ dt
-30	-29.84	28.18	120.34
-45	-44.87	28.42	147.76
-60	-59.91	28.60	174.48
-75	-74.53	28.69	200.26

Fig.7 Numerically simulated results for variousvT

Fig.8 The capture regions of RLIACG,IACCG and D-RLIACG

Table 5 Capture rates of RLIACG,D-RLIACG and IACCG for variousvM %

v_M/(m·s^-1)	RLIACG	IACCG	D-RLIACG
100	88.89	68.15	65.56
150	71.85	38.15	57.78
200	47.04	21.11	39.63

Fig.9 Comparison of Monte Carlo simulations of RLIACG and IACCG

Table 6 Error distributions of RLIACG,IACCG and D-RLIACG

统计量	脱靶量/m			落角误差/(°)
统计量	RLIACG	IACCG	D-RLIACG	RLIACG	IACCG	D-RLIACG
均值	0.24	0.26	1.15	0.22	0.91	0.47
标准差	0.19	0.19	0.26	0.14	0.76	0.44
最大值	0.75	0.90	1.90	0.77	5.91	4.30

Table 7 Related parameters of dynamic models and controllers

参数	数值
M_α/s^-2	-423.6
M_φ/s^-1	-0.07
M_δ/s^-2	331
Z_α/(m·s^-2·rad^-1)	-705
Z_δ/(m·s^-2·rad^-1)	-165
K_A/(rad·s·m^-1)	4.5×10^-4
K_DC	21.05
K_R/s	0.34
ω_i/(rad·s^-1)	16.36
C_x0	0.18
$C x α 2$ /(rad^-2)	7.65
S_m/m²	0.013
τ_δ/s	0.04

Table 7 Related parameters of dynamic models and controllers

参数	数值
M_α/s^-2	-423.6
M_φ/s^-1	-0.07
M_δ/s^-2	331
Z_α/(m·s^-2·rad^-1)	-705
Z_δ/(m·s^-2·rad^-1)	-165
K_A/(rad·s·m^-1)	4.5×10^-4
K_DC	21.05
K_R/s	0.34
ω_i/(rad·s^-1)	16.36
C_x0	0.18
$C x α 2$ /(rad^-2)	7.65
S_m/m²	0.013
τ_δ/s	0.04

Fig.10 Dynamic simulated results
