Event-combined Visual-inertial Odometry Using Point and Line Features

doi:10.12382/bgxb.2023.1221

Abstract

Abstract:

Visual-inertial odometry is a key technology for robots to achieve autonomous localization. As an asynchronous vision sensor, the event cameras have complementary to the traditional cameras. For the scene of low light condition, high dynamic range and high-speed motion, the output of event camera and the traditional image are fused.A real-time visual inertial odometry using point and line features is proposed combined with the inertial measurement unit (IMU). An algorithm for generating an event image from event stream is proposed, a point-line feature detection method combined with events is designed, anda back-end sliding window optimization algorithm is designed based on the idea of visual-inertial tight-coupling. The dataset test and UAV flight test are conducted. The test results on the dataset show that, compared with the visual-inertial odometry using point and line features only on the traditional image, the proposed odometry can reduce the positioning error by more than 22% on average in the scene of high-speed motion, and it can reducethe positioning error by more than 59% on average in the scene of low light condition and high dynamic range.

Key words: event camera, point and line features, visual-inertial odometry, visualsimultaneous localization and mapping, pose estimation

CLC Number:

TP249

LIU Yumin, CAI Zhihao, SUN Jialing, ZHAO Jiang, WANG Yingxun. Event-combined Visual-inertial Odometry Using Point and Line Features[J]. Acta Armamentarii, 2024, 45(11): 3926-3937.

Figures/Tables 18

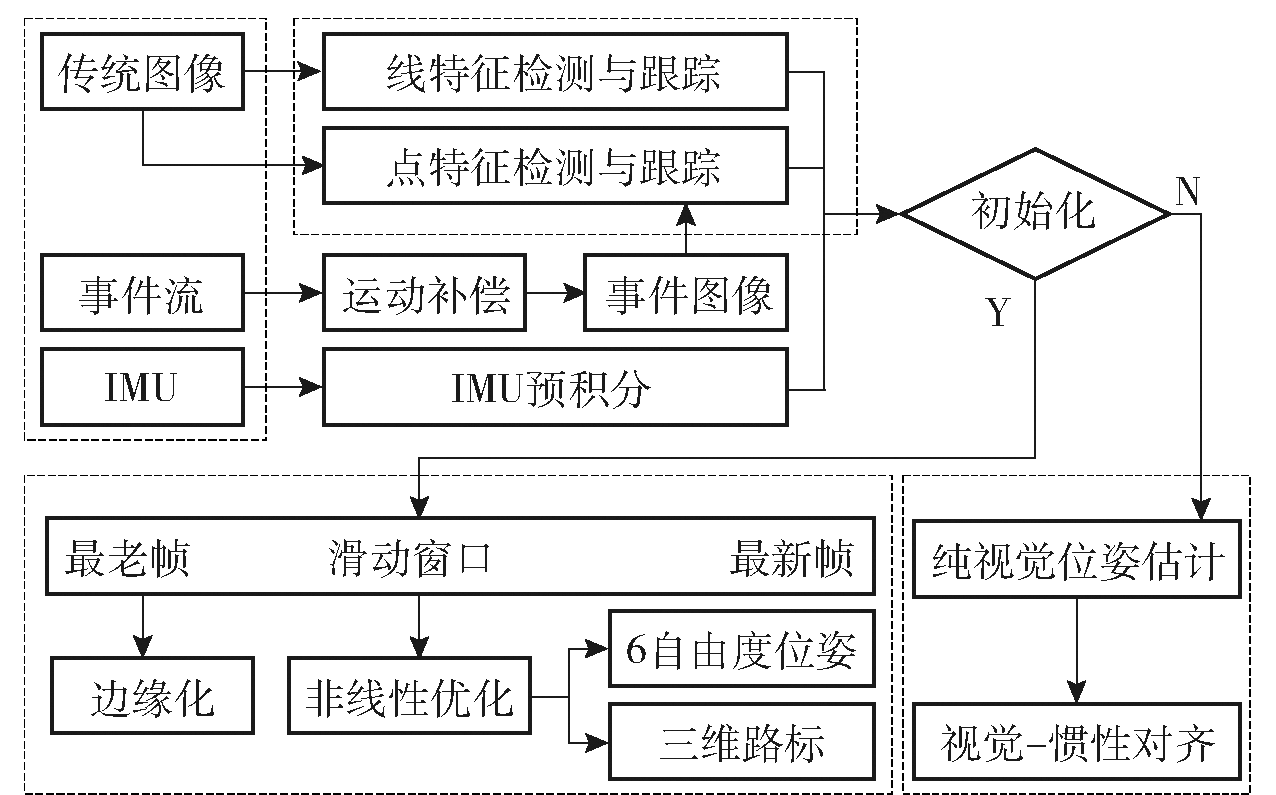

Fig.1 Overall framework of the proposed algorithm

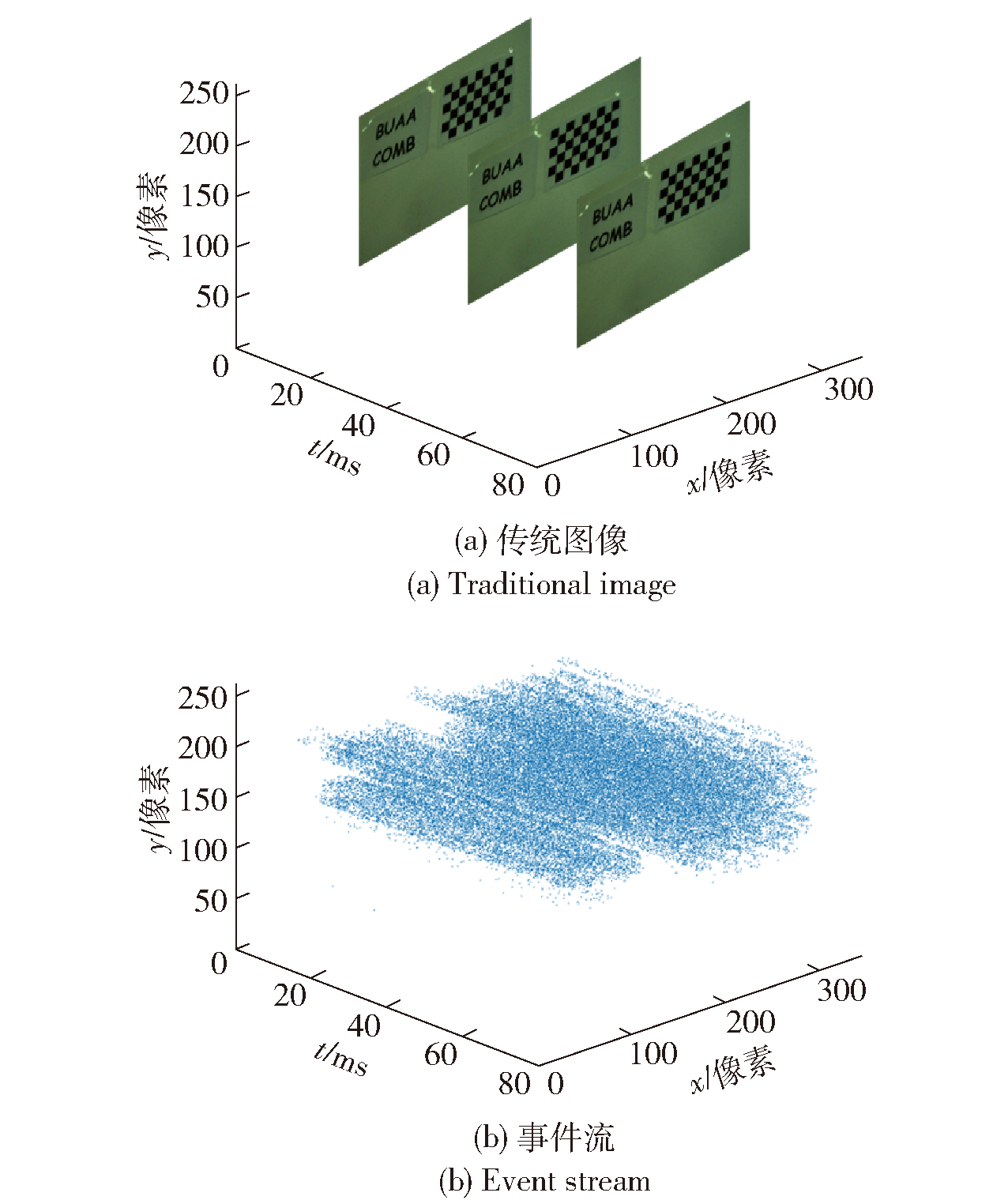

Fig.2 Output of event camera

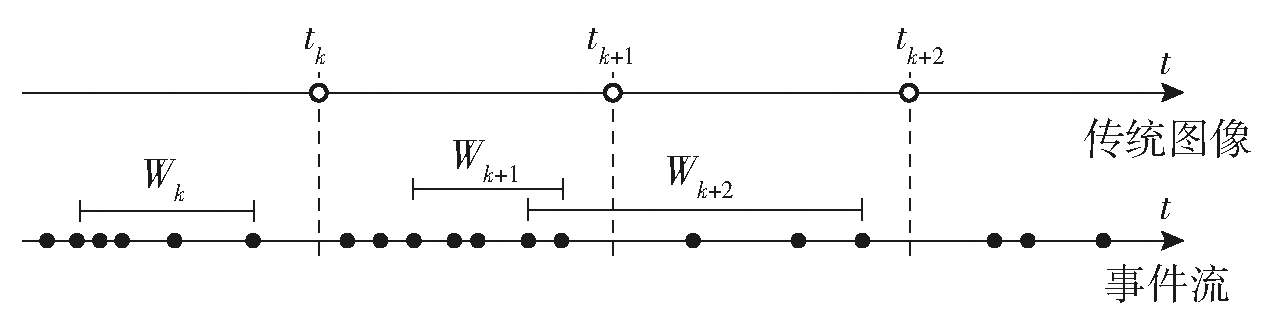

Fig.3 Generating the images by aggregating events (white circle: traditional image, black circle: event)

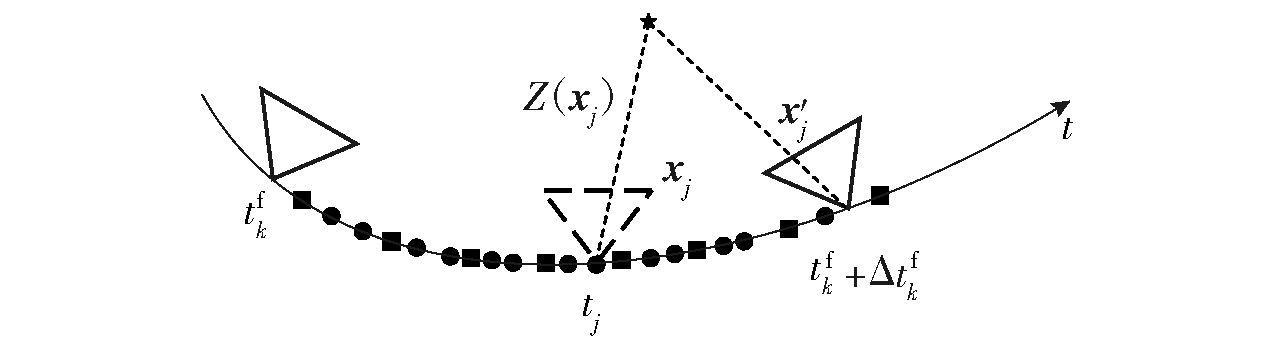

Fig.4 The process of motion compensation (black circle: event, black square: IMU data)

Fig.5 Motion compensation in different scenes

Fig.6 Examples of feature detection

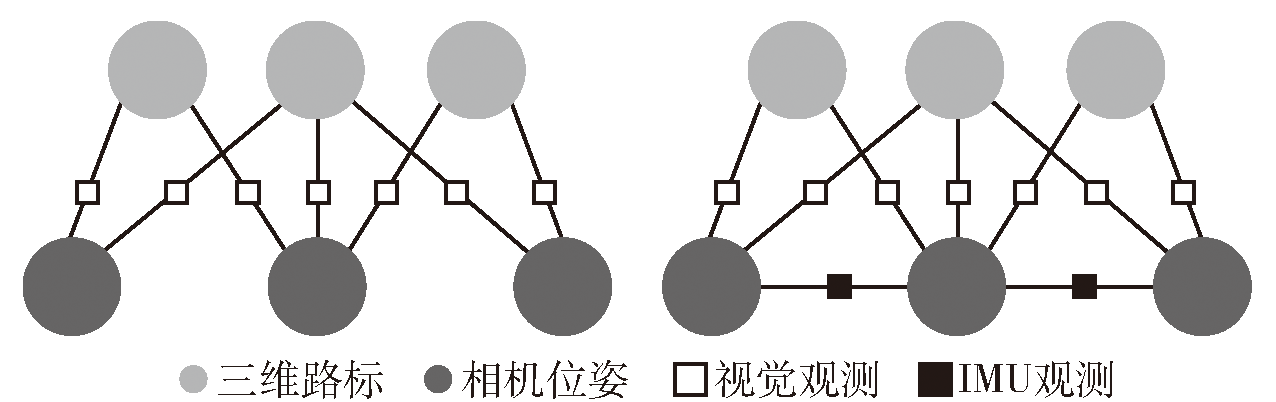

Fig.7 Factor graphs (left: visual measurements only, right: tightly-coupled visual-inertial measurements)

Table 1 Parameters

参数	数值
累积事件个数	20000
传统图像中的点特征检测个数	50
事件图像中的点特征检测个数	50
点特征之间最小距离阈值	10
图像金字塔层数	2
线特征阈值限制	0.125

Table 2 Localization RMSEs of different odometries on UZH-RPG DAVIS 240C datasets m

序列名称	VINS-Mono算法	PL-VINS算法	Ultimate_SLAM算法	EVIO算法	本文算法
boxes_6dof	0.163	0.055	0.230	0.210	0.048
boxes_translation	0.162	0.085	0.187	0.176	0.059
poster_6dof	0.290	0.034	0.161	0.171	0.027
poster_translation	0.133	0.041	0.055	0.059	0.031
hdr_boxes	0.249	0.065	0.234	0.204	0.041
hdr_poster	0.342	0.099	0.373	0.172	0.025

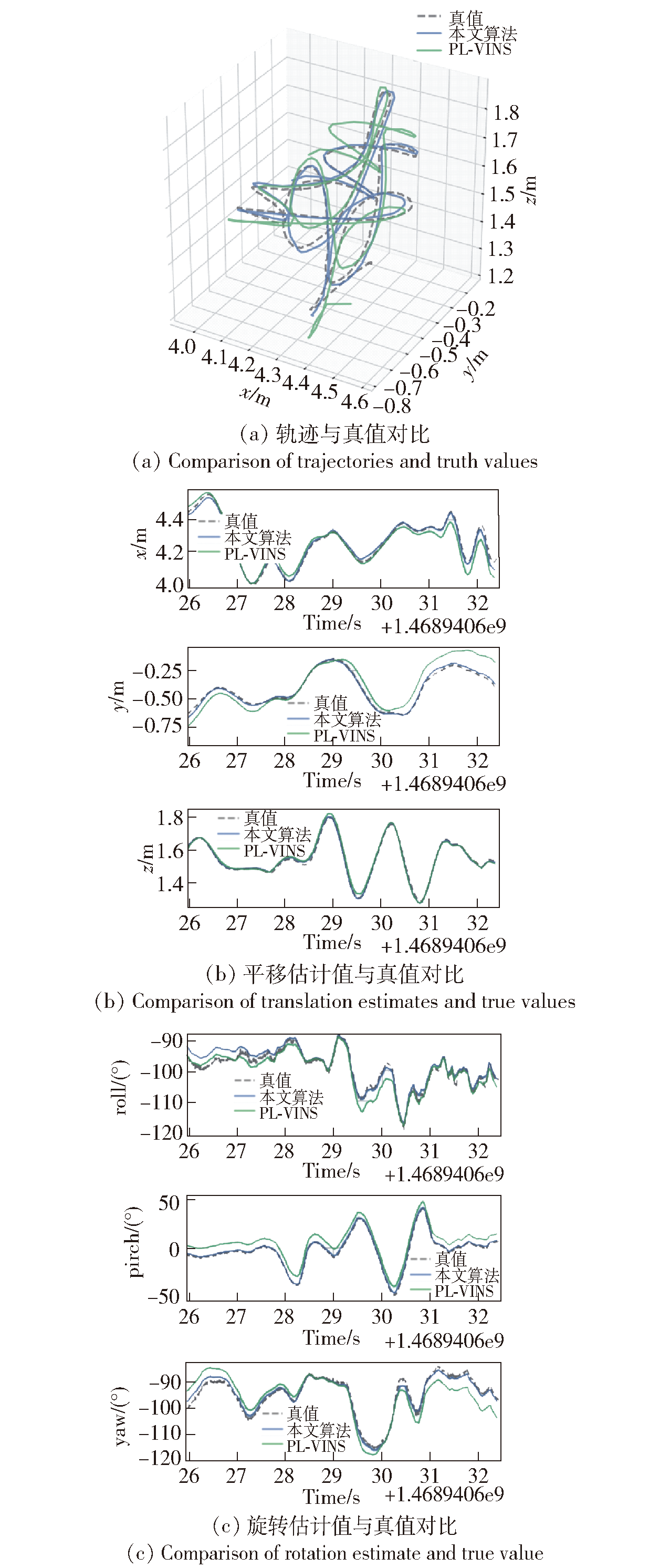

Fig.8 Resultsonposter_6dof (compared with PL-VINS algorithm)

Fig.9 Resultson hdr_poster (compared with PL-VINS algorithm)

Table 3 Execution time cost

模块	耗时/ms
事件流预处理	12.067
点特征检测与跟踪	3.980
线特征检测与跟踪	10.238
后端非线性优化	12.152

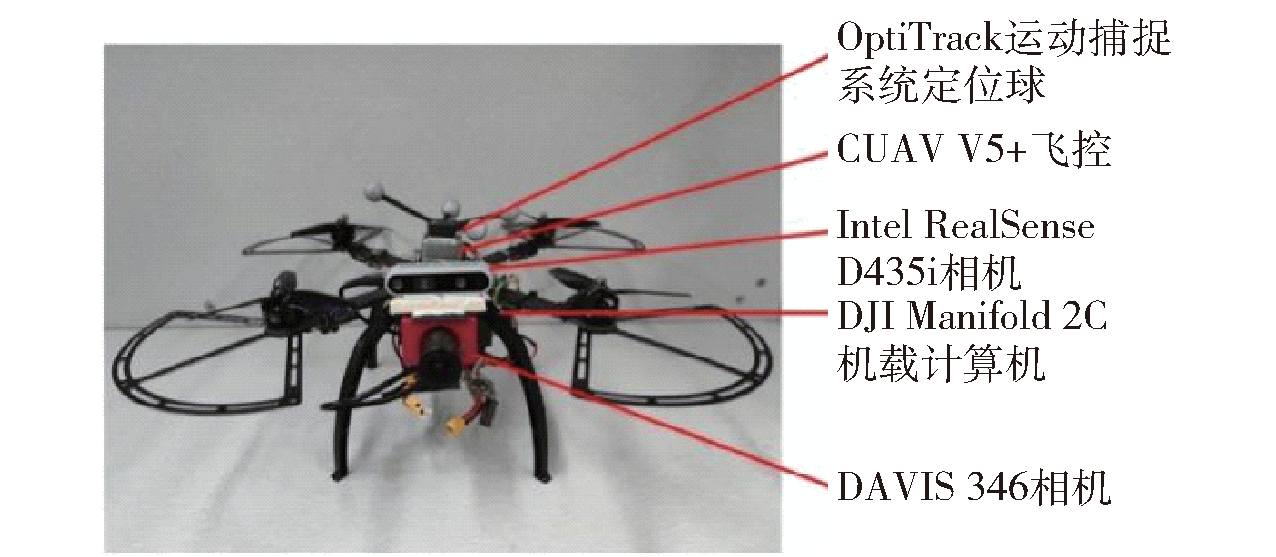

Fig.10 Quadrotor flight platform

Fig.11 Quadrotor flight environment

Table 4 Estimated errors of the proposed algorithm and PL_VINS algorithm in different flight trajectories

轨迹形状	光照条件/ Lux	轨迹长度/ m	误差/m
轨迹形状	光照条件/ Lux	轨迹长度/ m	本文算法	PL-VINS
方形	145	26.715	0.088	0.081
八字	5~145	27.286	0.231	0.252
圆形	5~145	25.447	0.604	0.752

Fig.12 Square trajectory

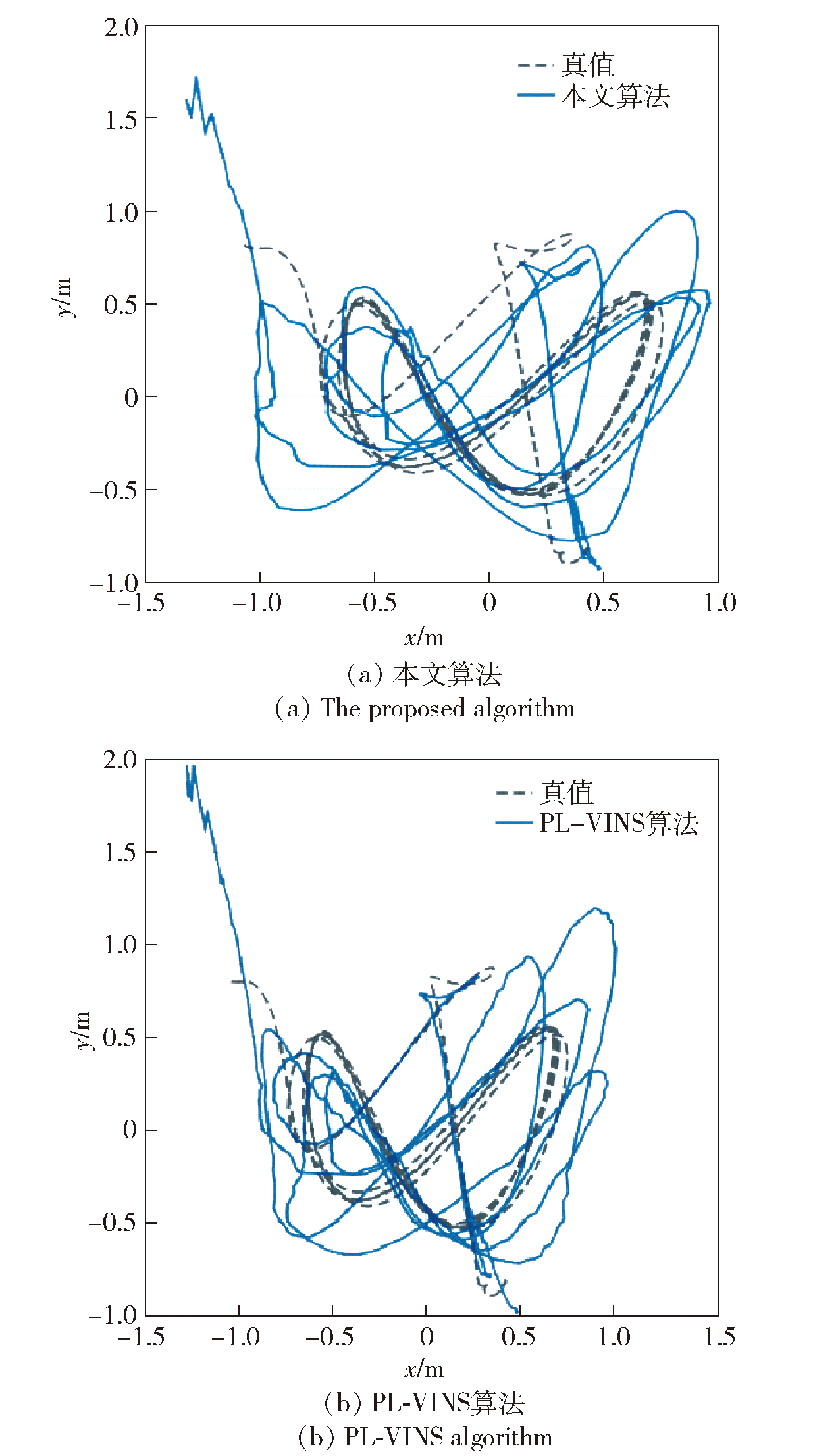

Fig.13 8-shaped trajectory

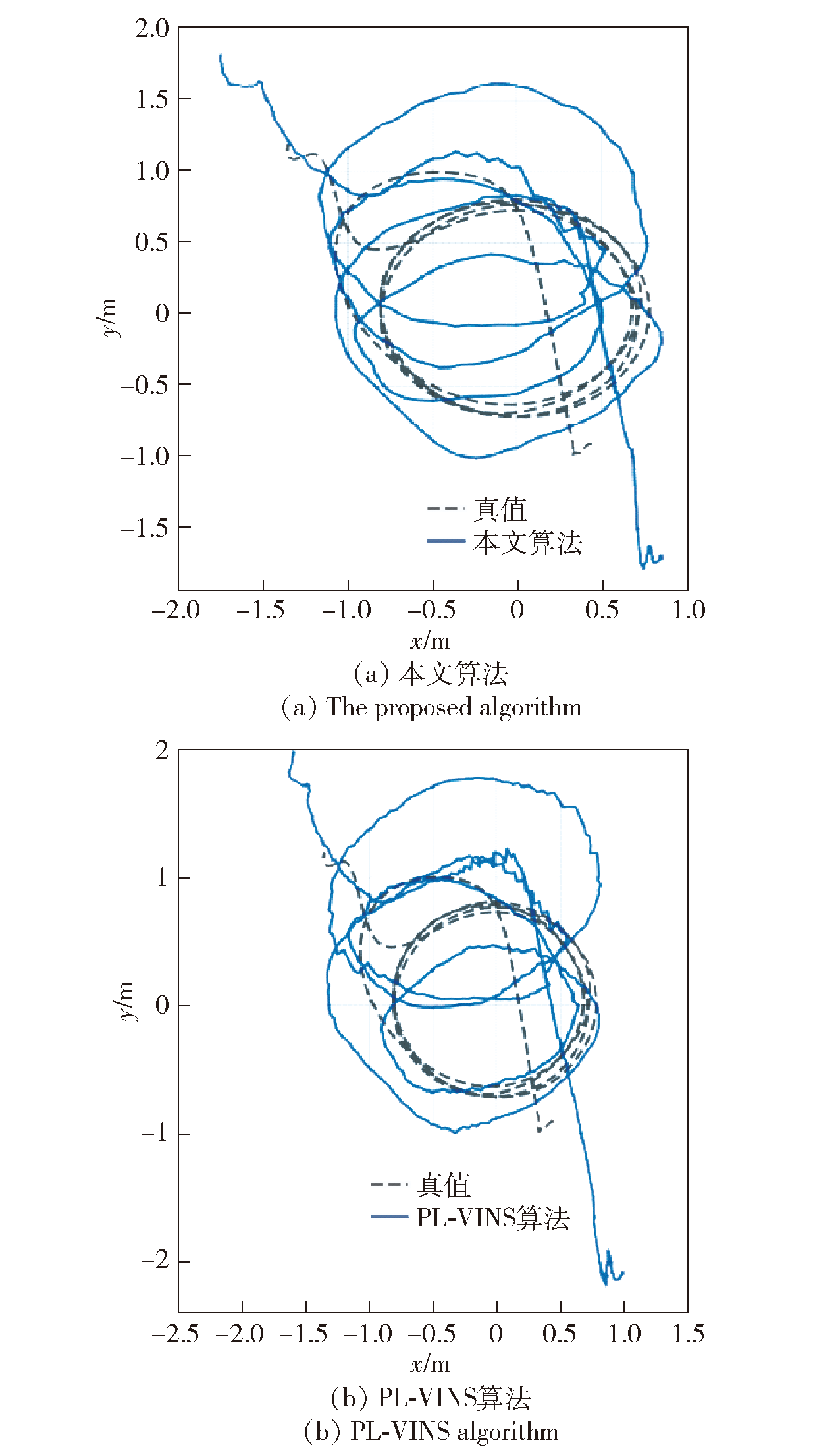

Fig.14 Circle trajectory
