Characteristics of Fluid-structure Interaction of High-speed Projectile at Different Angles of Attack during Water Entry

doi:10.12382/bgxb.2024.0007

Abstract

Abstract:

The magnitude of structural response (deformation) of a projectile during high-speed water entry plays a crucial role in determining the projectile’s safe entry into the water. At present, the numerical computational methods based on rigid-body models fail to fully elucidate the intricate coupled interactions among multiphase flow, hydrodynamics and projectile structural responses during the water entry process under the influence of the initial disturbances. To address this challenge, a fluid-structure interaction numerical computational method for high-speed water entry is developed based on the principles of fluid mechanics and structural dynamics. This method is specifically tailored to investigate the influence of the angle of attack on the high-speed water entry process of a specific projectile, focusing on analyzing the interaction among supercavity evolution, impact loads, projectile motion and structural deformations under varying angles of attack. The research findings revealed the following key insights: As the angle of attack increases, a pronounced impact occurs between the lower surface of projectile and the supercavity wall, resulting in the curvature of supercavity wall; For the specific projectile considered in the study, a secondary peak load occurs as the projectile tail strikes the liquid surface at an angle of attack of more than 3°, inducing the bending moments from wetting and the plastic deformation of projectile, ultimately leading to significant bending of the tail, with maximum wetting-induced surface pressure exceeding 10MPa; The stress of the projectile remains below the yield strength of its material although the projectile undergoes the bending moments as a result of the concurrent loading on both the projectile head and tail at an angle of attack of 2°, thereby precluding plastic deformation. Consequently, for the specific projectile, an angle of attack of 2° or less is recommended for safe water entry.

Key words: fluid-structure interaction, high-speed oblique water entry, angle of attack, supercavity, structural deformation, impact load

CLC Number:

LIU Xiangyan, YU Nan, HUANG Zhengui, CHEN Zhihua, MA Changsheng, QIU Rongxian. Characteristics of Fluid-structure Interaction of High-speed Projectile at Different Angles of Attack during Water Entry[J]. Acta Armamentarii, 2024, 45(10): 3415-3429.

Figures/Tables 29

Fig.1 Flowchart of fluid-structure interaction calculation

Fig.2 Comparison of oscillation and deformation of flexible plate

Fig.3 Comparison of experimental supercavities in Ref.[33] and numerically calculated supercavities

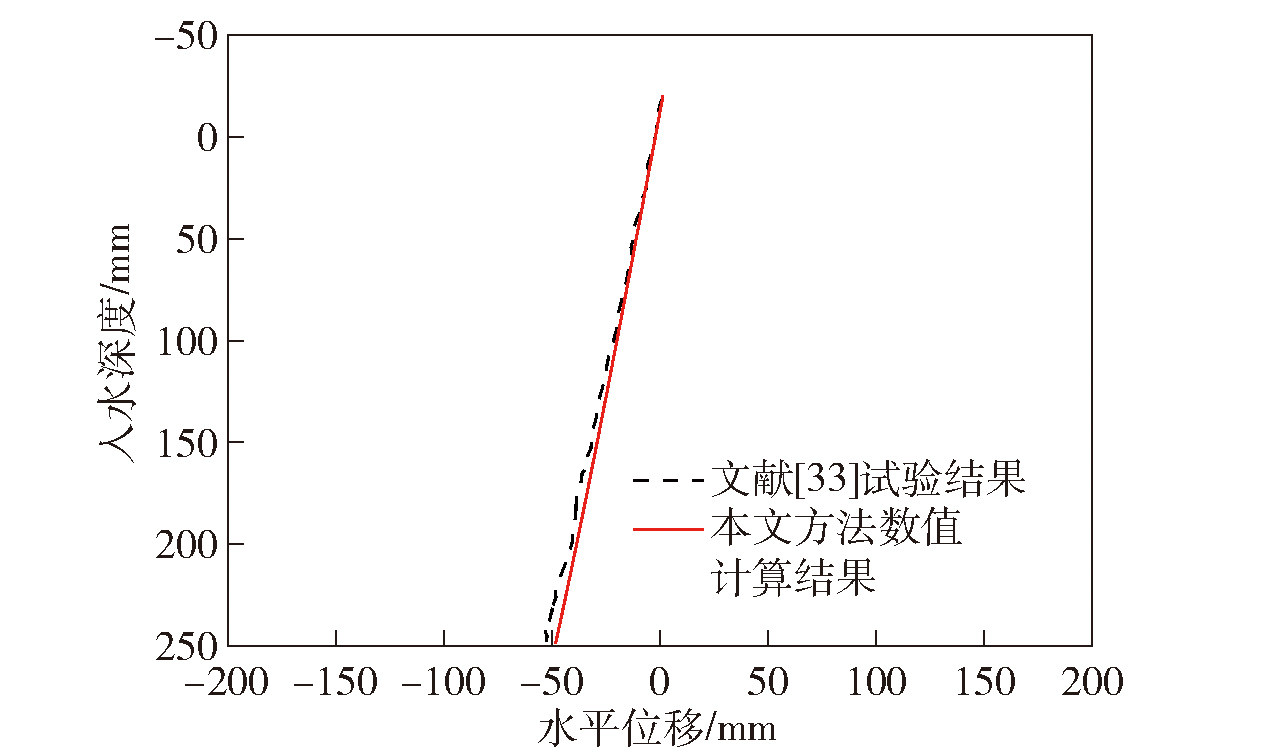

Fig.4 Comparison of experimental water entry trajectory in Ref.[33] and numerically calculated water entry trajectory

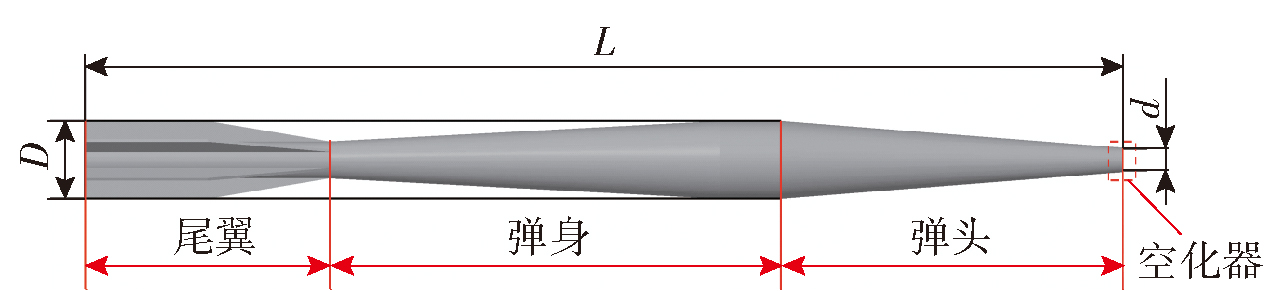

Fig.5 Size of projectile model

Table 1 Material properties of 45 steel[27]

密度/(kg·m^-3)	杨氏模量/GPa	泊松比
7850	210	0.29

Table 2 Johnson-Cook parameters of 45 steel[27]

A/MPa	B/MPa	C	n	m	T_m/K	T_t/K
595	580	0.023	0.133	2.03	1765.15	298.15

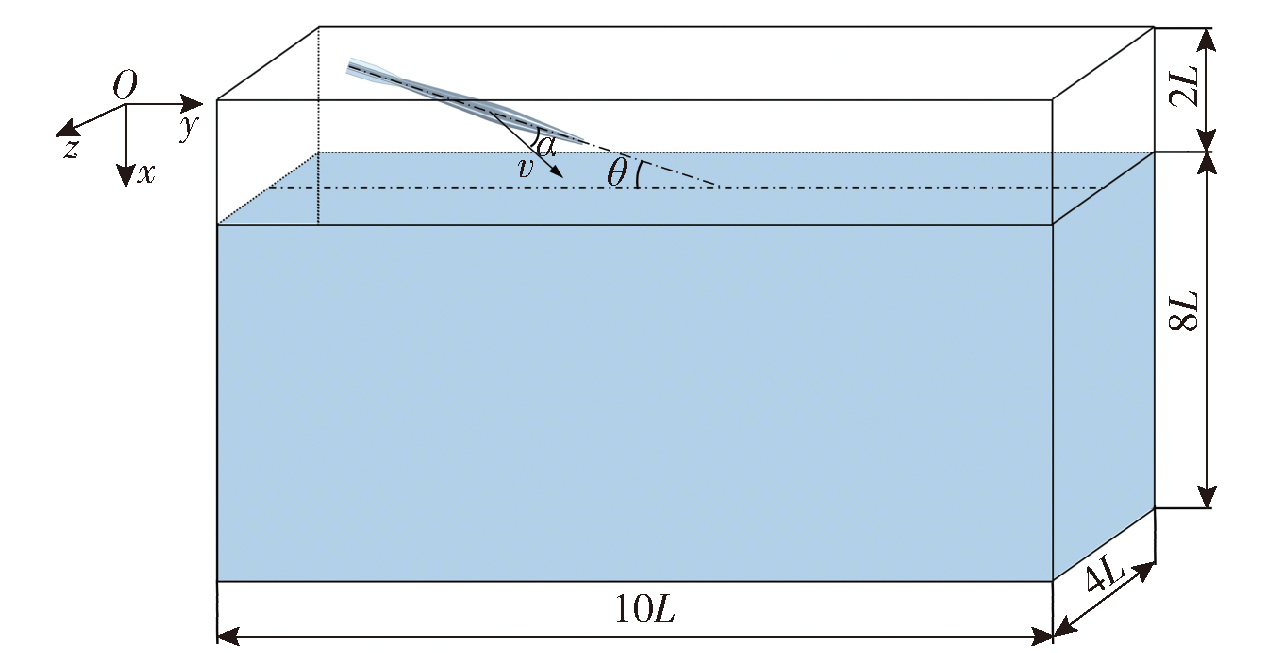

Fig.6 Computational domain

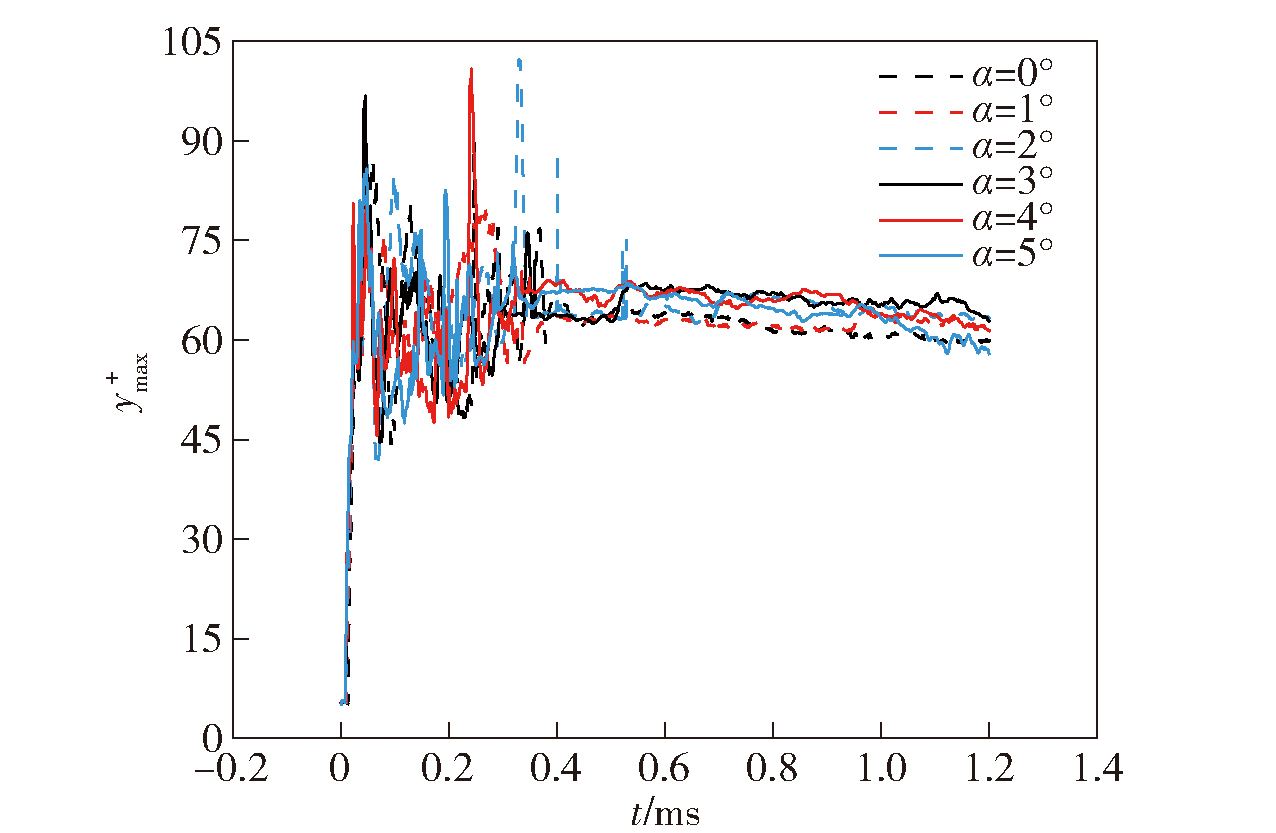

Fig.7 Max value of y m a x + on the surface of projectile

Fig.8 The value of y+ on the surface of projectile for t=0.3ms

Fig.9 Mesh division of fluid solver

Fig.10 Projectile mesh division

Table 3 Mesh irrelevance comparison table

网格	流场网格数/10⁴	弹体网格数/10⁴
1	499.01	4.41
2	698.57	8.28
3	900.04	11.35

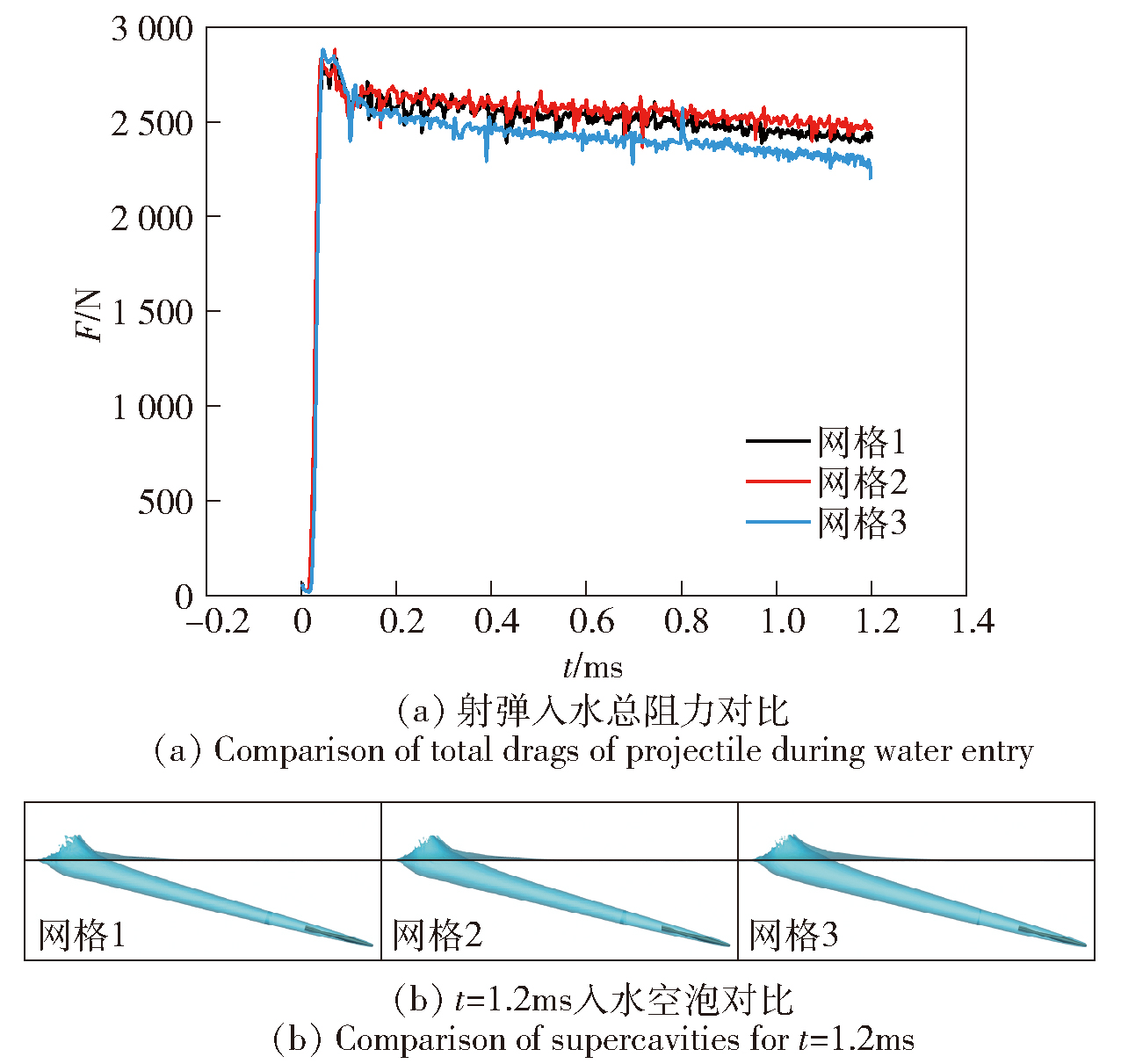

Fig.11 Comparison of calculated results from different meshes

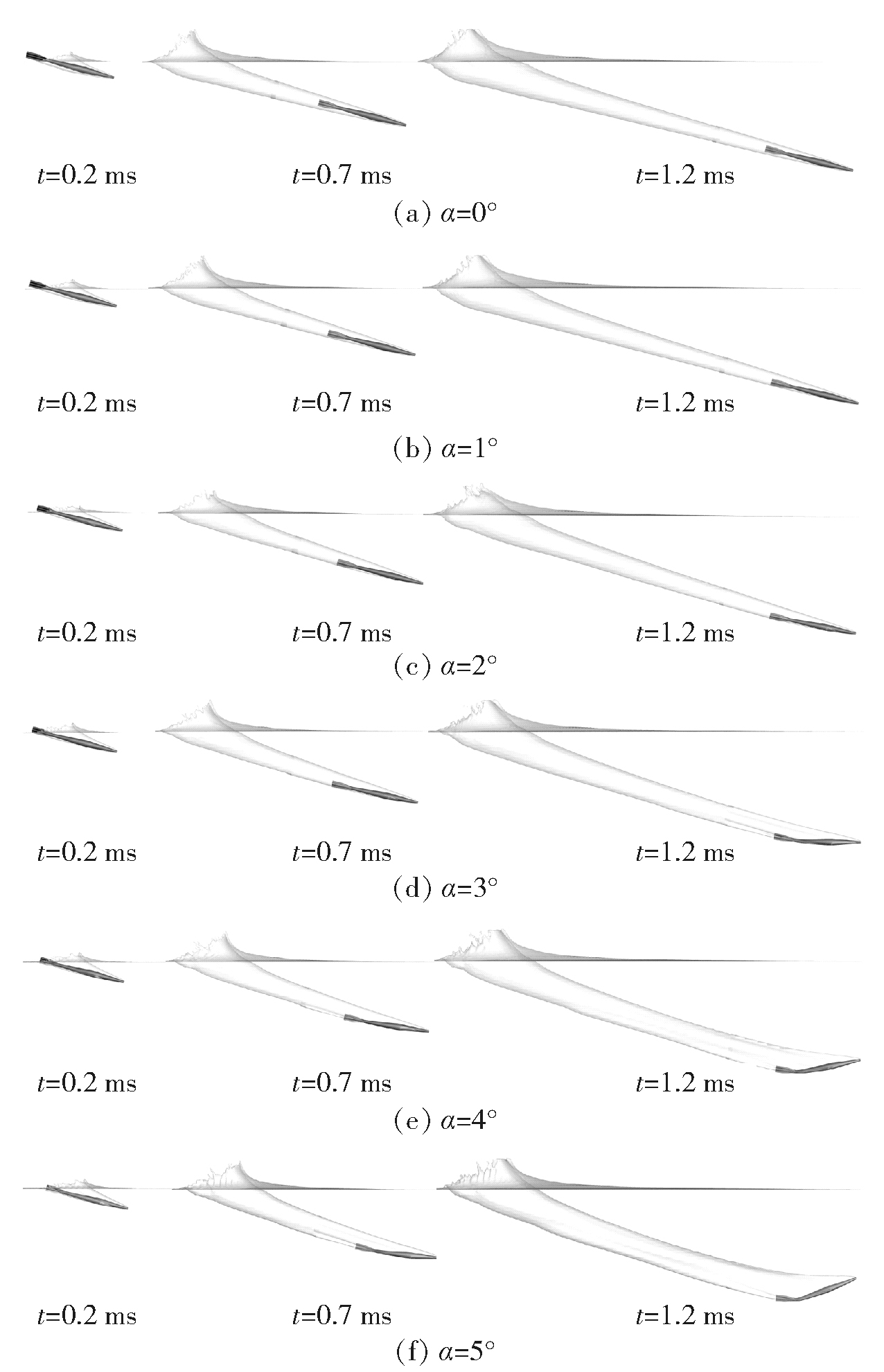

Fig.12 Morphological evolution of supercavity

Fig.13 Wetting of the lower surface of projectile

Fig.14 Pressure of the lower surface of projectile

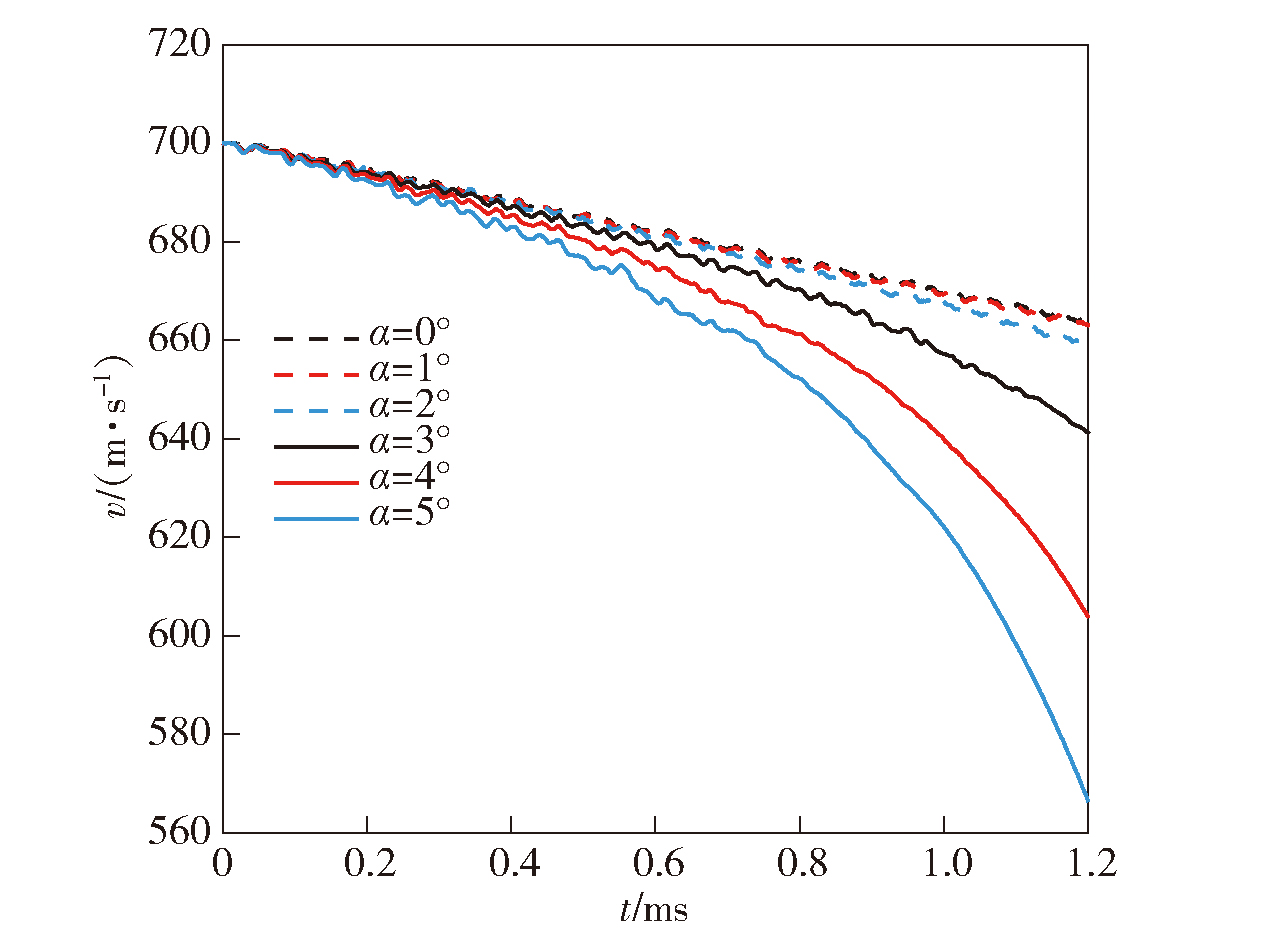

Fig.15 Velocity change of central point of caviter

Fig.16 Change of projectile attitude

Fig.17 Change of total load during water entry

Fig.18 Wetting and pressure distribution on the lower surface of projectile before and after water entry

Fig.19 Wetting and pressure distribution before and after the second peak of load for α=3°, 4°, 5°

Fig.20 Stress distribution on the surface and longitudinal section of projectile at 1.2ms for α=0°, 1°, 2°

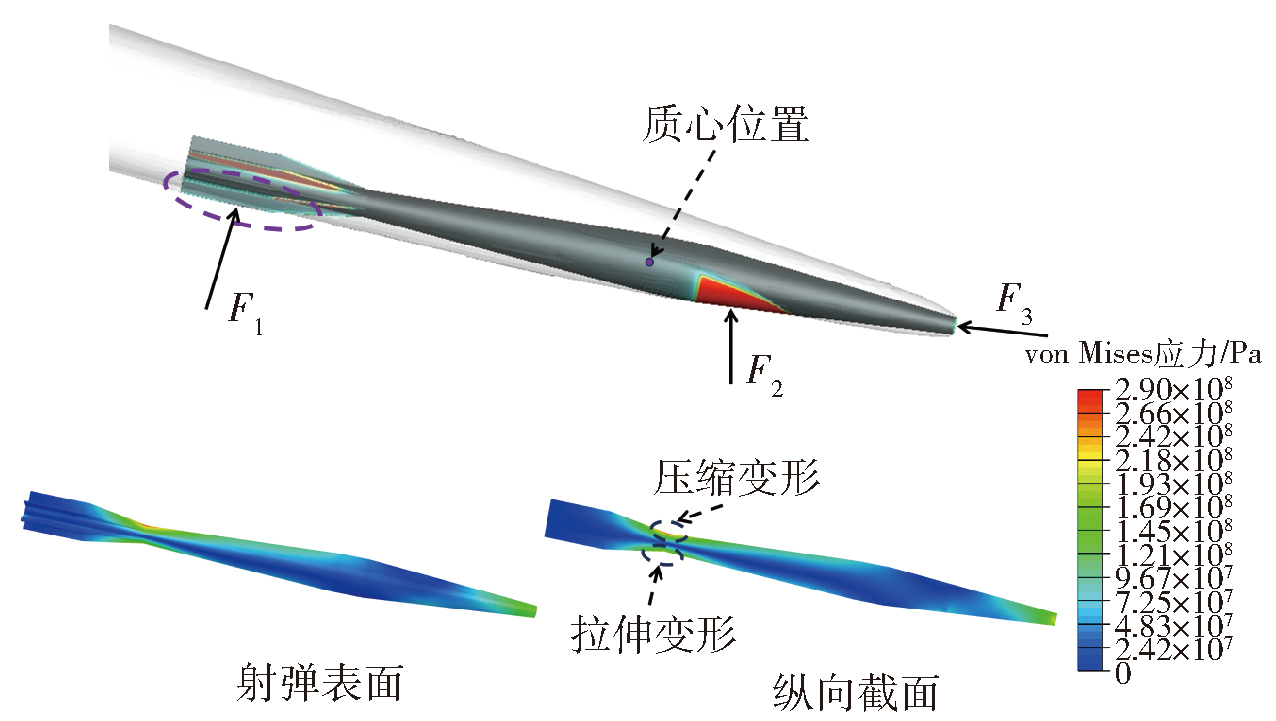

Fig.21 Schematic diagram of force on the projectile and the stress distribution of projectile at 1.2ms for α=2°

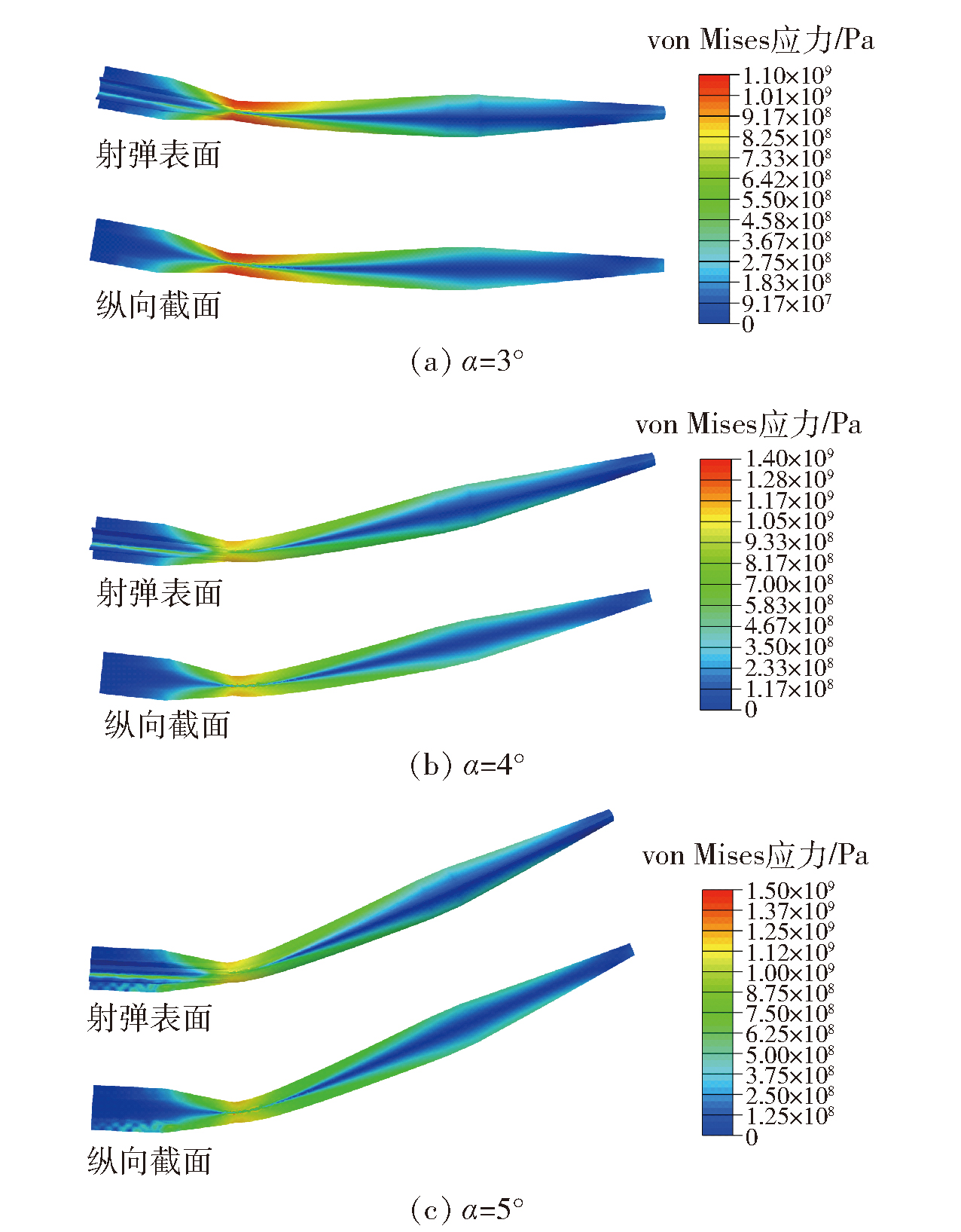

Fig.22 Stress distribution on the surface and longitudinal section of projectile at 1.2ms for α=3°, 4°, 5°

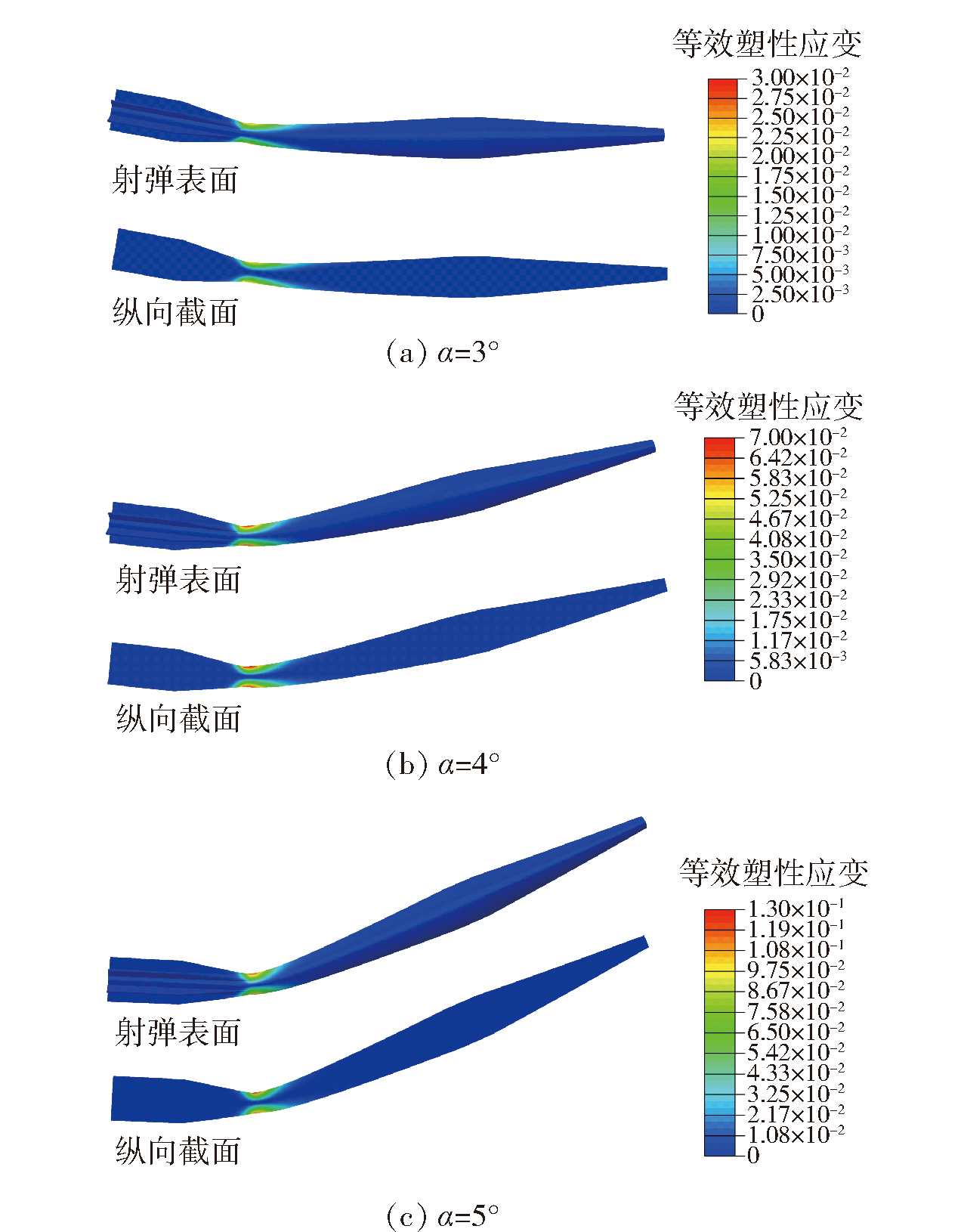

Fig.23 Equivalent plastic strain of the surface and longitudinal section of the projectile at 1.2ms under α=3°, 4°, 5°

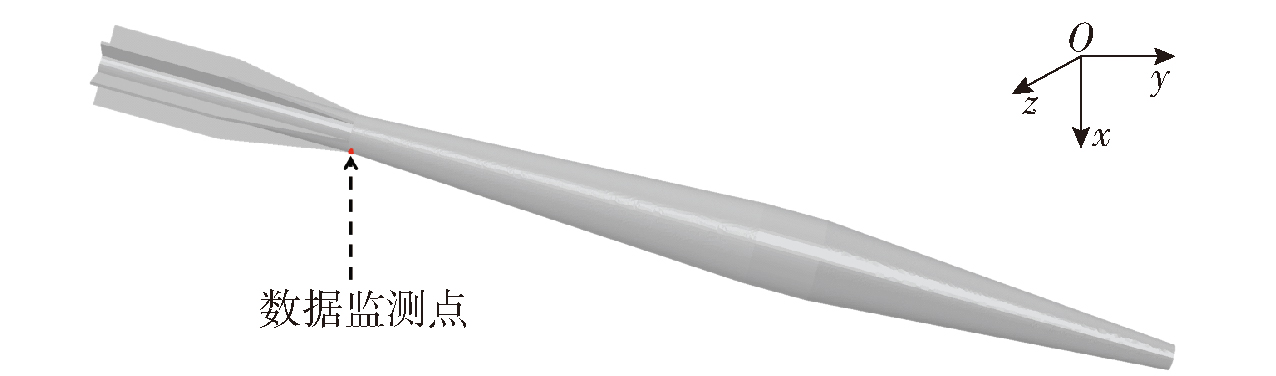

Fig.24 Location of data monitoring point of projectile

Fig.25 Correspondence between the total load and the equivalent plastic strain at the monitoring point for α=3°, 4°,5°

Table 4 Comparison of the onset time of each stage of plastic strain at the monitoring point and the time of the characteristic point of projectile movement for α=4°, 5° ms

典型阶段	α/(°)
典型阶段	4	5
增长段1起始时刻	0.80	0.70
转速激增时刻(ω_r=311.05rad/s)	0.80	0.72
渐缓段起始时刻(增长段1结束时刻)	0.96	0.84
射弹转平时刻	1.06	0.96
增长段2起始时刻(渐缓段结束时刻)	1.14	1.00
