Path Planning Method for Unmanned Surface Vessel in On-call Submarine Search Based on Improved DQN Algorithm

doi:10.12382/bgxb.2023.0909

Abstract

Abstract:

Aiming at the situation that the unmanned surface vessel (USV) manoeuvrs in the course and speed of on-call anti-submarine, a path planning method for USV based on the improved deep Q-learning (DQN) algorithm is proposed. The proposed method uses the on-call submarine search model and introduces an improved deep reinforcement learning algorithm to obtain an optimal path by jointly adjusting the action space, action selection strategy and reward of the USV. The algorithm adopts a time-varying dynamic greedy strategy. The strategy can adaptively adjust the USV action selection according to the environment and the learning effect of the neural network, which improves the global search ability and avoids falling into the local optimal solution. The piecewise nonlinear reward and punishment function is set according to the obstacle environment and the current position of the USV so as to improve the convergence speed of the algorithm while avoiding the obstacles. Bezier algorithm is added to smooth the path. The simulated results show that the planning effect of the proposed method is better than DQN algorithm, A^* algorithm and APF algorithm in the same environment, and it has better stability, convergence and safety.

Key words: unmanned surface vessel, path planning, Deep Q-learning algorithm, on-call search

CLC Number:

TP24
U674.7

NIU Yilong, YANG Yi, ZHANG Kai, MU Ying, WANG Qi, WANG Yingmin. Path Planning Method for Unmanned Surface Vessel in On-call Submarine Search Based on Improved DQN Algorithm[J]. Acta Armamentarii, 2024, 45(9): 3204-3215.

Figures/Tables 21

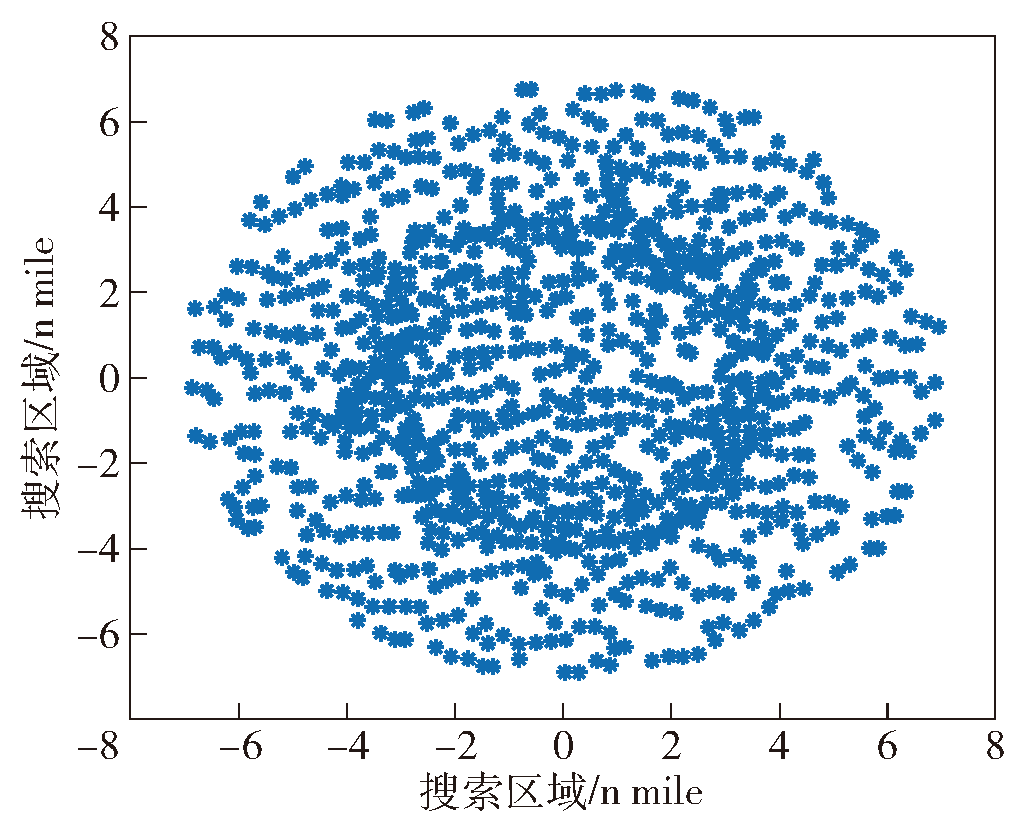

Fig.1 Target submarine position distribution with unknown speed

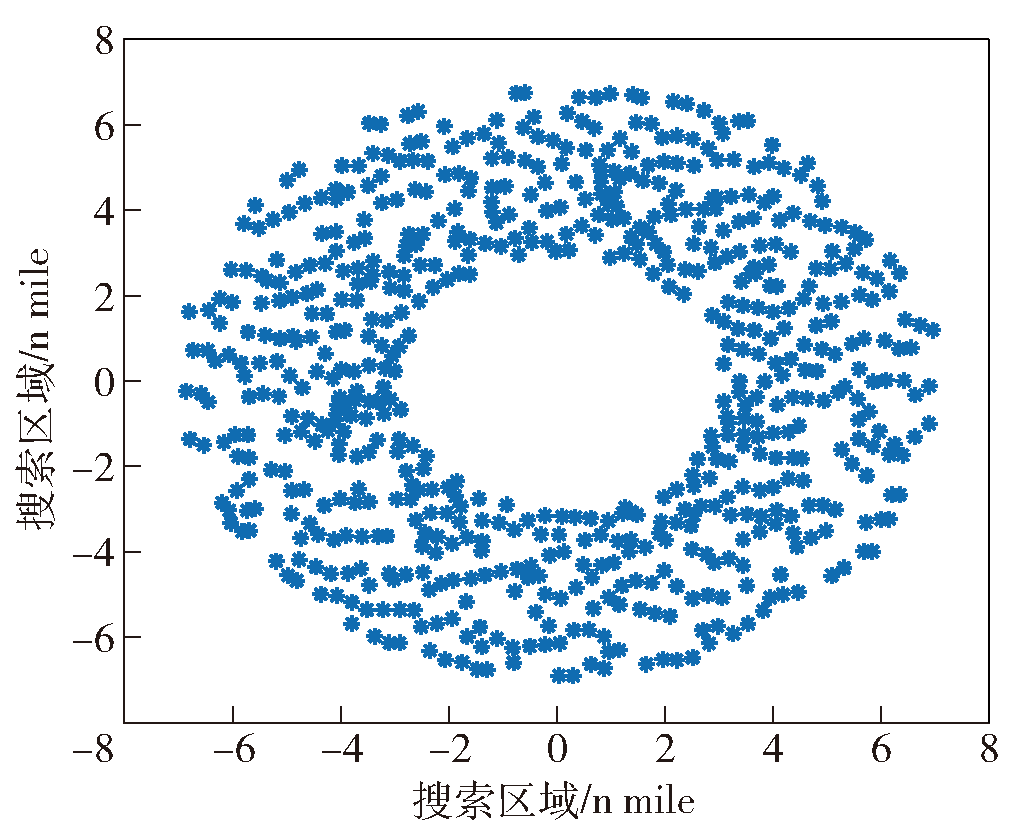

Fig.2 Target submarine position distribution with known speed

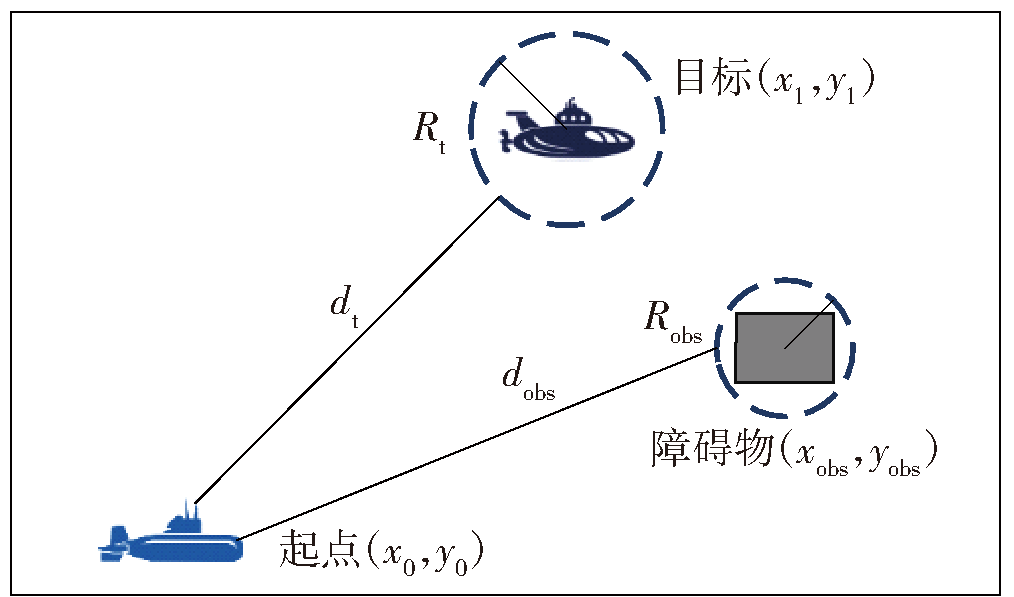

Fig.3 USV state space model

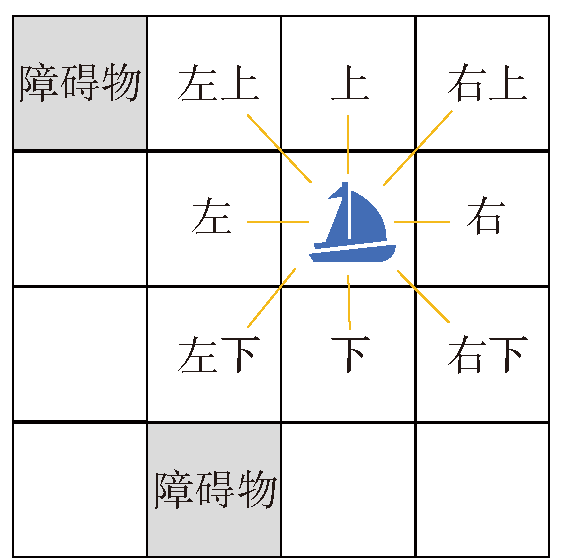

Fig.4 Action space optimization

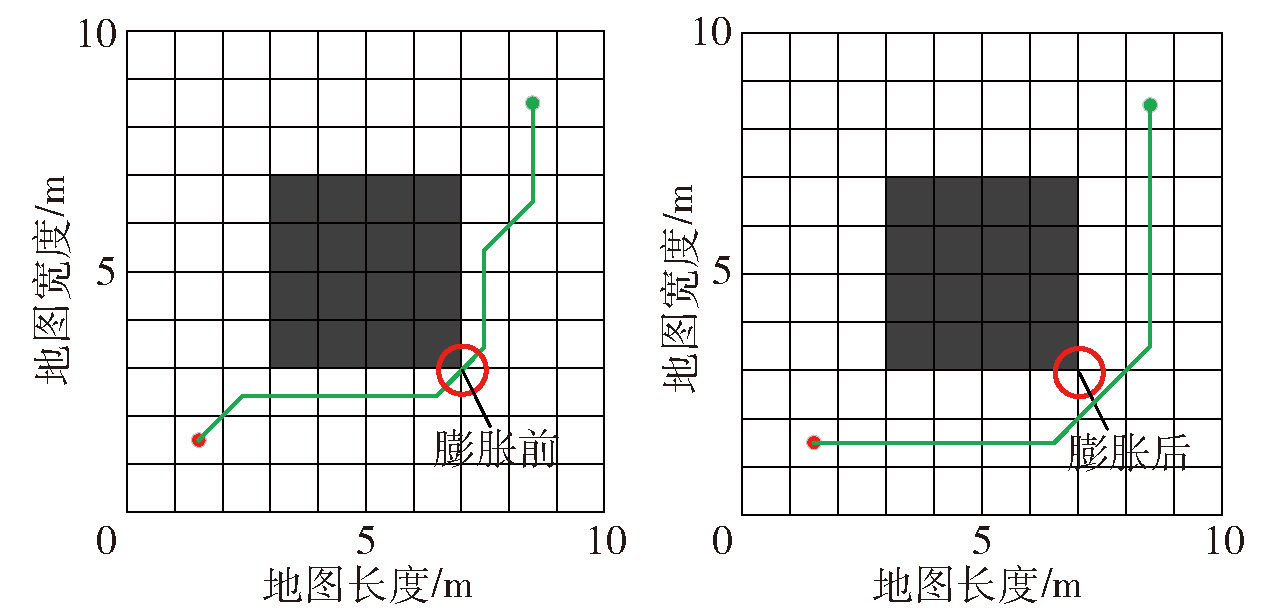

Fig.5 Schematic diagram of path before(lift) and after(right) expansion

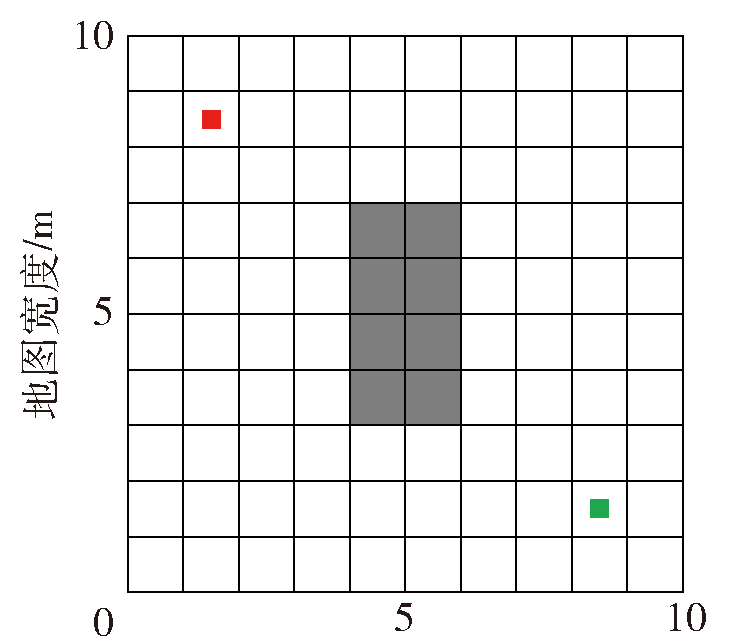

Fig.6 Simulation environment

Table 1 Model training parameters

参数	数值	参数	数值
动作空间大小	8	隐藏层个数	2
学习率α	0.01	神经元个数	64
衰减率γ	0.90	经验池大小	10 000
探索率ε	[0.01,0.99]	取样数目	32

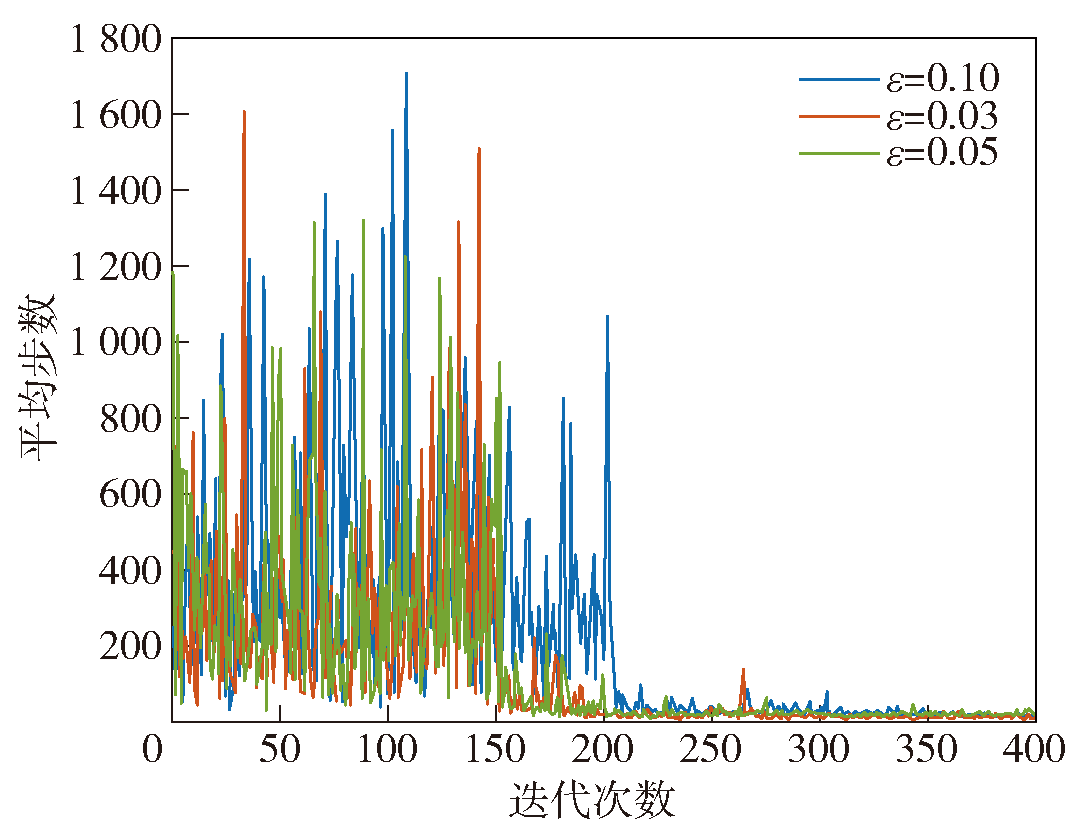

Fig.7 Convergence curves with different values of ε

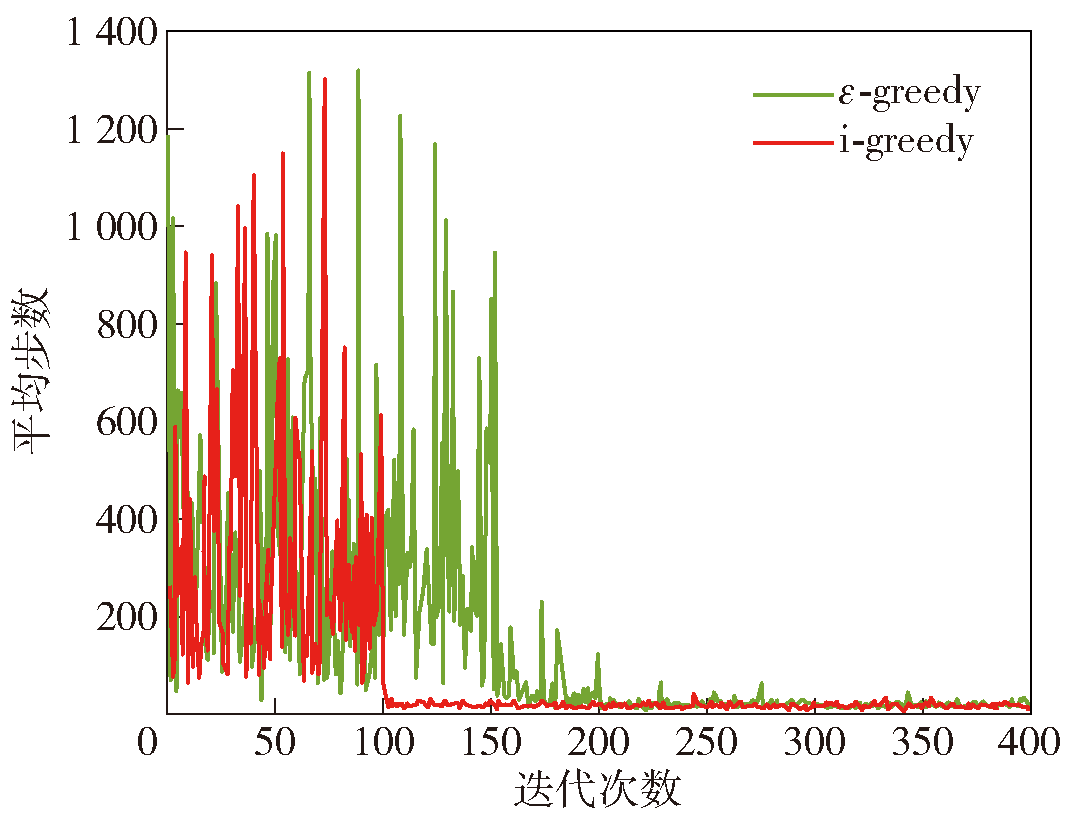

Fig.8 Comparison of convergences before and after strategy improvement

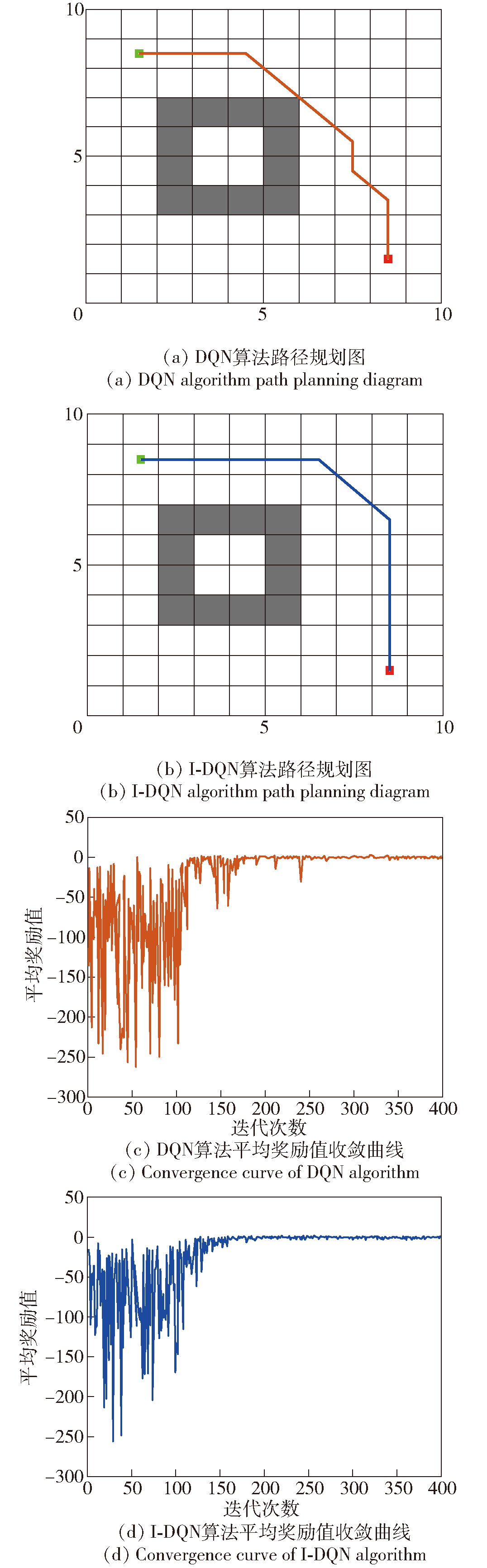

Fig.9 Comparison of path planning and average reward value in 10m×10m map

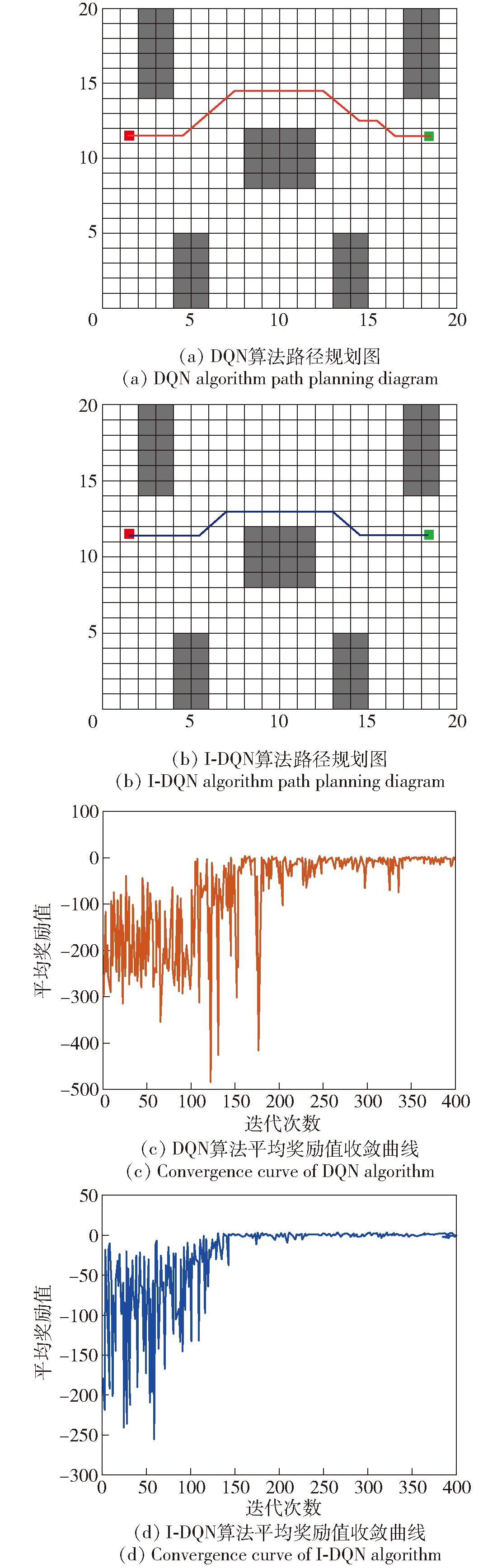

Fig.10 Comparison of path planning and average reward value in 20m×20m map

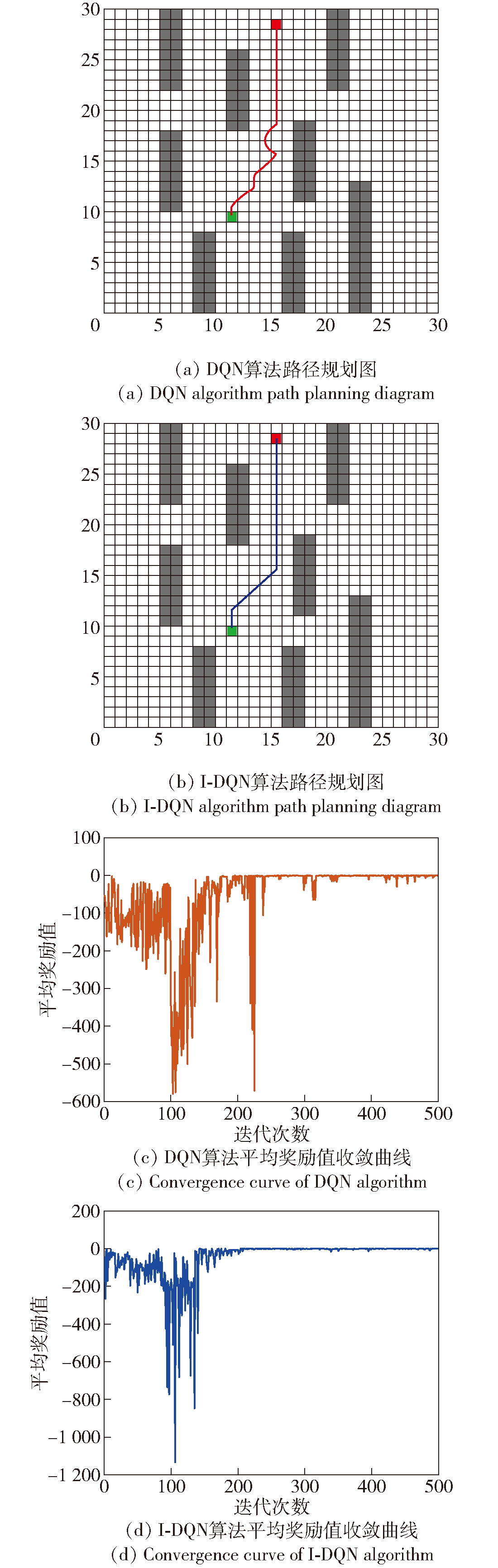

Fig.11 Comparison of path planning and average reward value in 30m×30m map

Table 2 Simulated results under different environments

算法	环境尺寸/m	平均路径长度/m	迭代稳定代数	拐点数	是否碰撞
	10×10	11.66	136	4	是
DQN	20×20	19.48	156	6	否
	30×30	21.48	188	7	否
	10×10	12.83	141	2	否
I-DQN	20×20	18.24	150	4	否
	30×30	20.66	169	2	否

Table 3 Performance improvement of I-DQN compared with DQN algorithm

环境尺寸/m	平均路径长度/%	收敛速度/%	拐点减少数/个
10×10	-10	-3.68	2
20×20	6	3.85	2
30×30	3.82	10.11	5

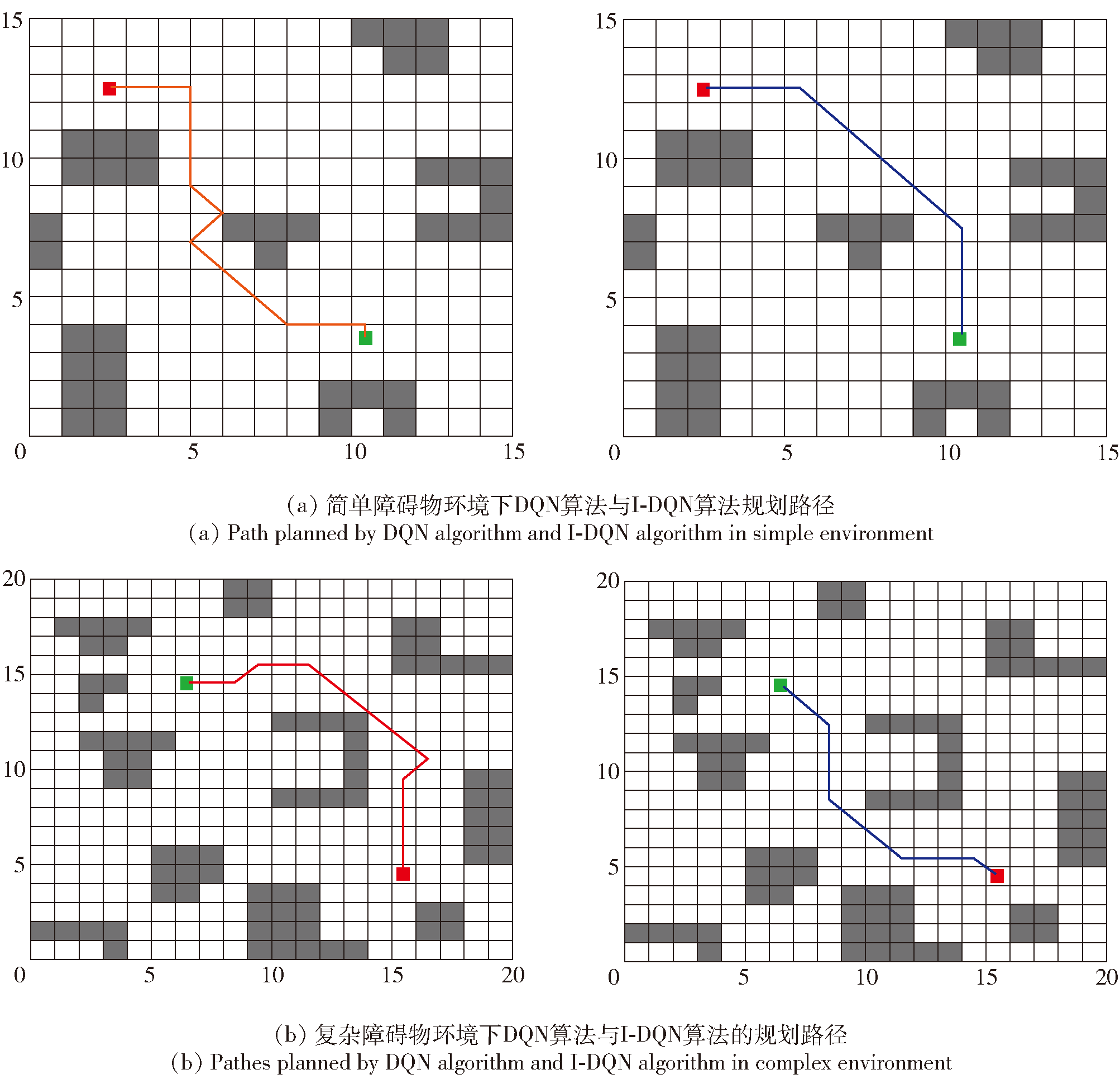

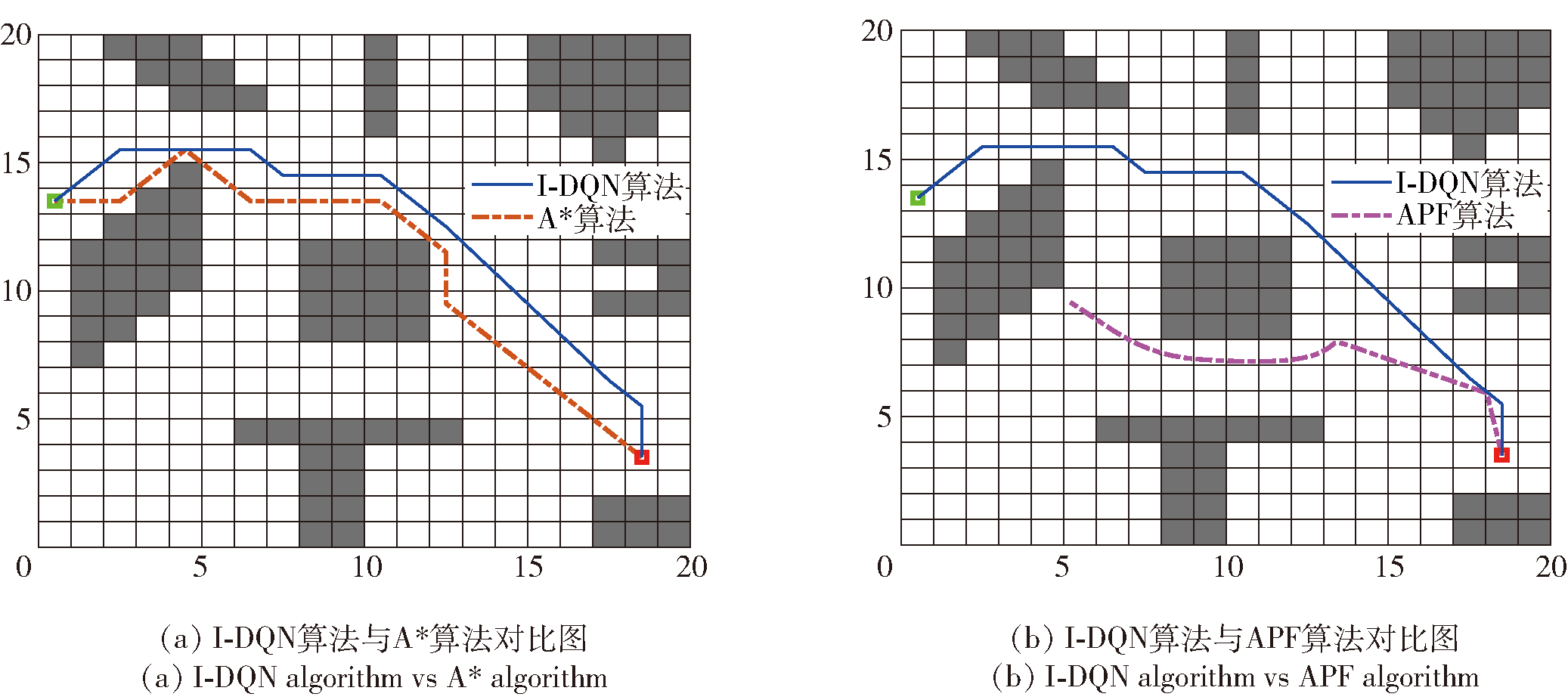

Fig.12 Path planning with different algorithm in different obstacles environments

Table 4 Statistical comparison of simulated data under simple and complex obstacle environments

环境	算法	平均路径长度/m	避开障碍物数/个	拐点数/个	平均路径长度缩短程度/%	拐点数减少数/ 个
简单	DQN	10.54	2	6	10.5	4
	I-DQN	9.54	3	2
复杂	DQN	10.95	3	5	14.9	1
	I-DQN	9.53	4	4

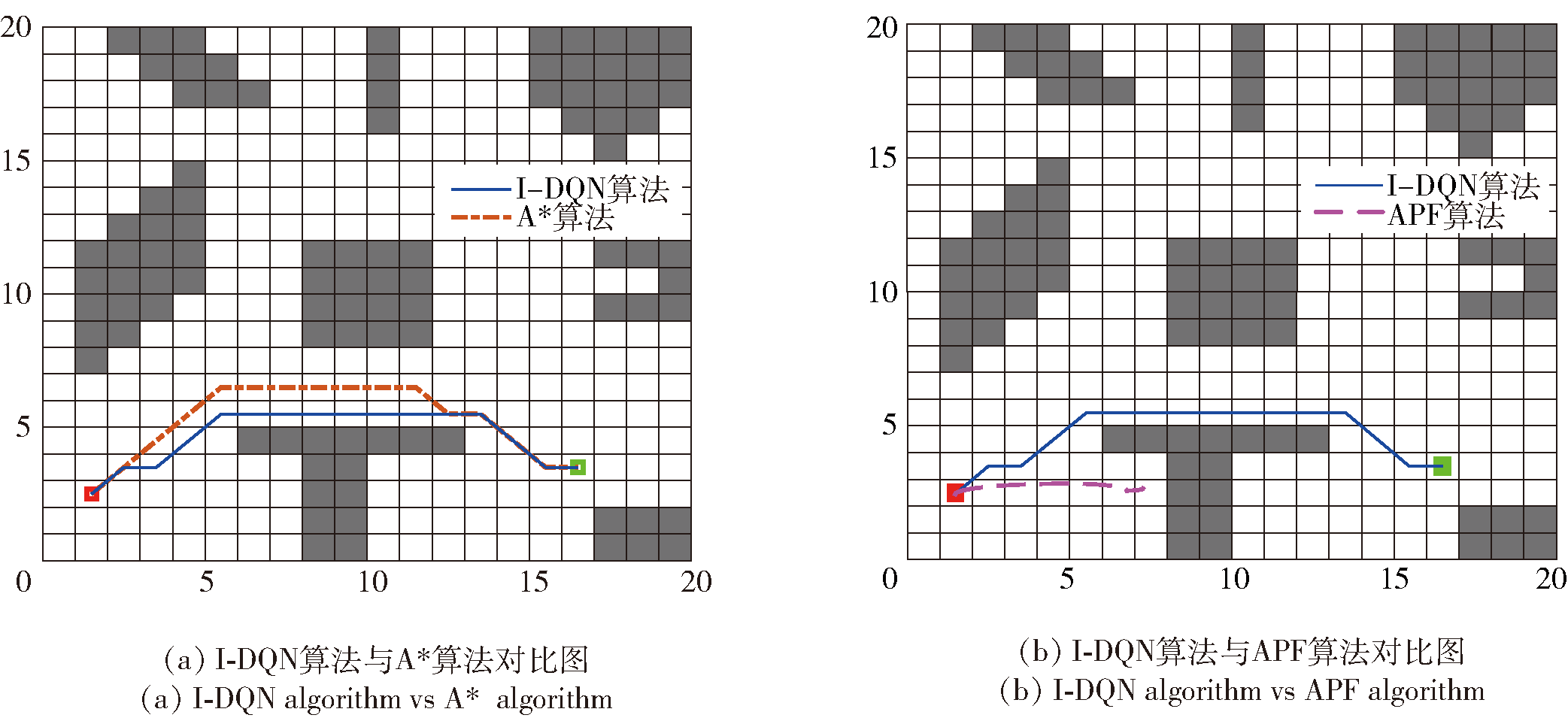

Fig.13 Algorithm comparison of starting point and ending point on both sides of T-shaped obstacle

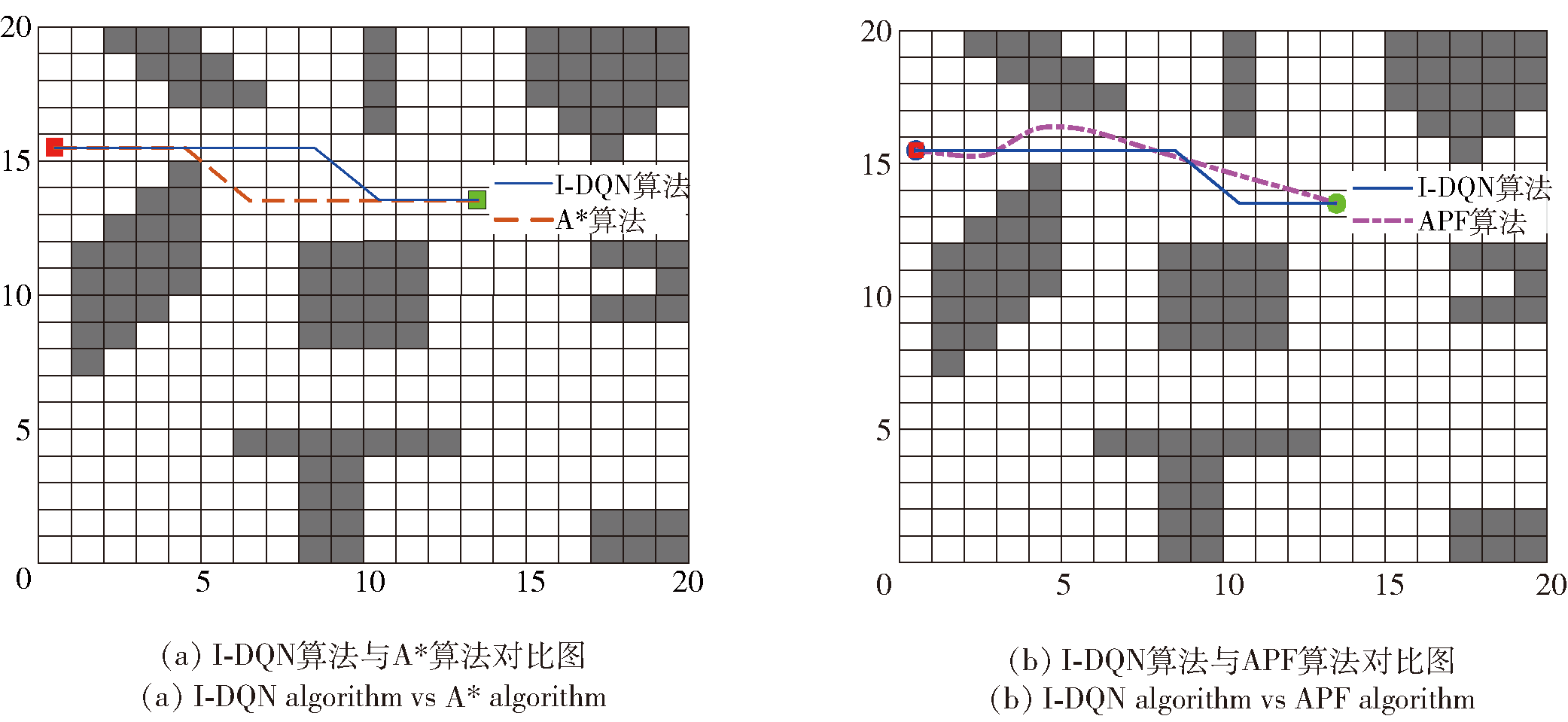

Fig.14 Algorithm comparison of the path passing through the narrow feasible region

Fig.15 Algorithm comparison of starting point and ending point distributed near obstacles

Table 5 Comparison of indicators under different test conditions

算法	起点和终点位置	是否完成任务	路径长度/m	是否碰撞	拐点数
	T型障碍物两侧	是	17.90	否	5
A^*	狭窄可行域	是	13.83	是	2
	障碍物附近	是	24.97	是	6
	T型障碍物两侧	否
APF	狭窄可行域	是	16.17	否
	障碍物附近	否
	T型障碍物两侧	是	17.07	否	5
I-DQN	狭窄可行域	是	13.83	否	2
	障碍物附近	是	25.97	否	5

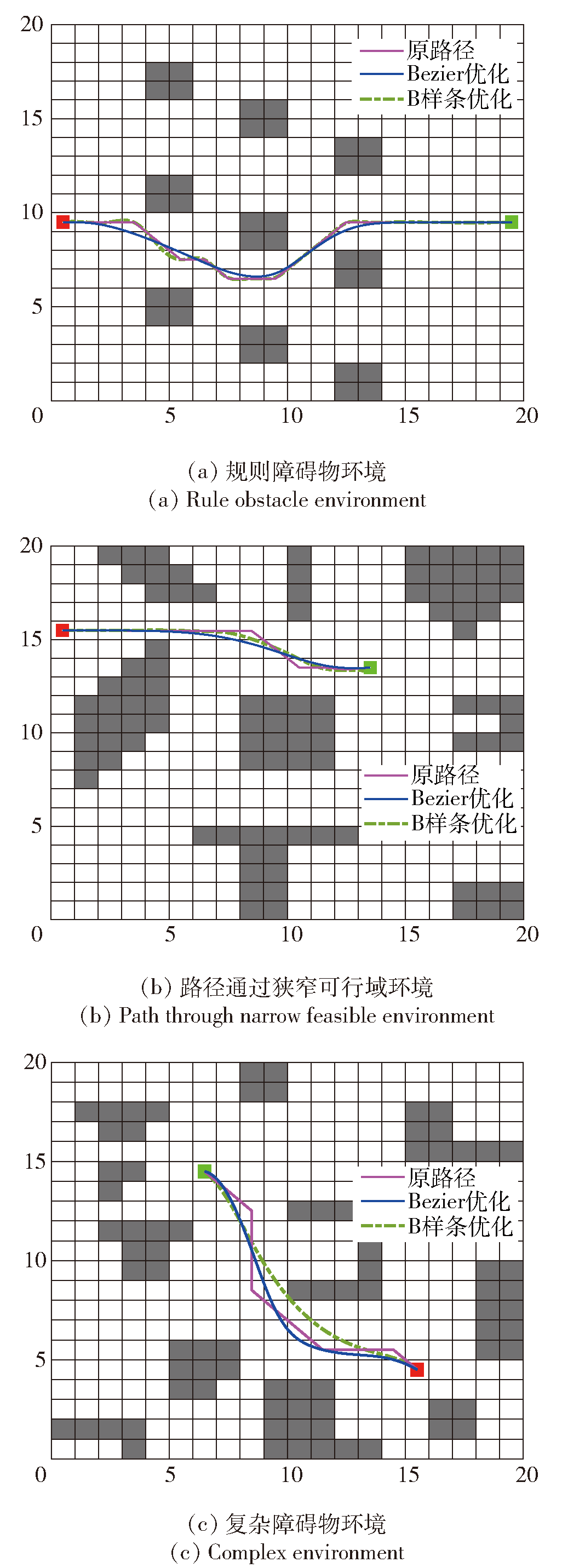

Fig.16 Comparison of path optimization methods
