Influence of Weight Parameters on Oscillation Characteristics of Supercavitating Vehicle

doi:10.12382/bgxb.2023.0489

Abstract

Abstract:

The influence of weight parameters on the oscillation characteristics of supercavitation vehicle is studied. A simulation model of the coupling of supercavitation flow field and rigid body motion is established by combining VOF multiphase flow model, realizable k-ε turbulence model, Schnerr-Sauer cavitation model and the rigid body motion equations. The proposed model is validated by comparing the simulated results with the published test results. The influences of mass and centroid position on the oscillation characteristics of supercavitation vehicle are quantitatively summarized by simulating and studying its free motion characteristics. The research findings reveal that the simulated results of the proposed simulation model are consistent with the experimental data, showing a 1/4 cycle phase difference between pitch and yaw angles. The oscillation period is approximately 0.0795 seconds with a deviation not exceeding 3.38%, indicating the reliability of the proposed simulation model. The free motion of supercavitating vehicle exhibits “cone-like” dynamic oscillation characteristics; With the decrease of the mass of the vehicle, the oscillation amplitude of attitude angle is basically unchanged, and the oscillation period of the trajectory gradually decreases. The oscillation period is decreased by 13.26% when the mass of the vehicle is decreased by 33.33%. The oscillation amplitude of attitude angle is gradually increased and the oscillation period of trajectory is decreased by decreasing the distance of mass center away from the cavitator. The oscillation period is decreased by 14.29% when the mass center distance is decreased by 25%.

Key words: supercavitating vehicle, weight parameter, oscillation period, supercavitation flow field

CLC Number:

TJ630.1

GUO Kaixin, HUANG Chuang, YAN Feng, GU Jianxiao, LI Daijin. Influence of Weight Parameters on Oscillation Characteristics of Supercavitating Vehicle[J]. Acta Armamentarii, 2024, 45(8): 2667-2677.

Figures/Tables 19

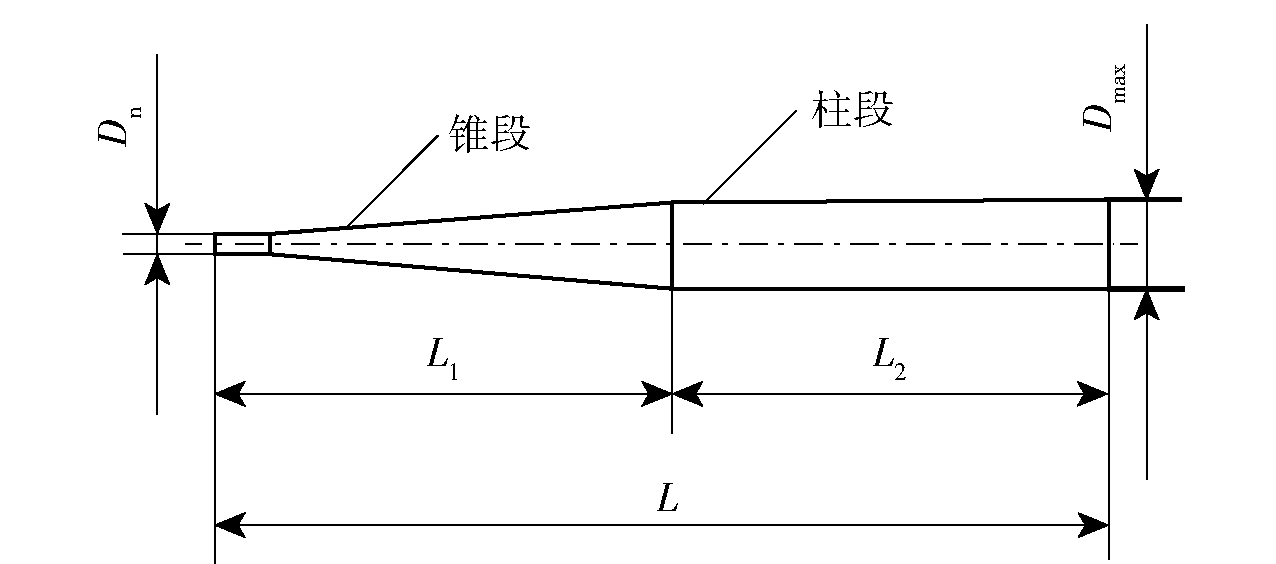

Fig.1 Profile of vehicle

Table 1 Parameters of vehicle models

模型编号	质心位置	质量/kg
1	42D_n	88
2	42D_n	99
3	42D_n	110
4	42D_n	121
5	42D_n	132
6	36D_n	110
7	39D_n	110
8	45D_n	110
9	48D_n	110

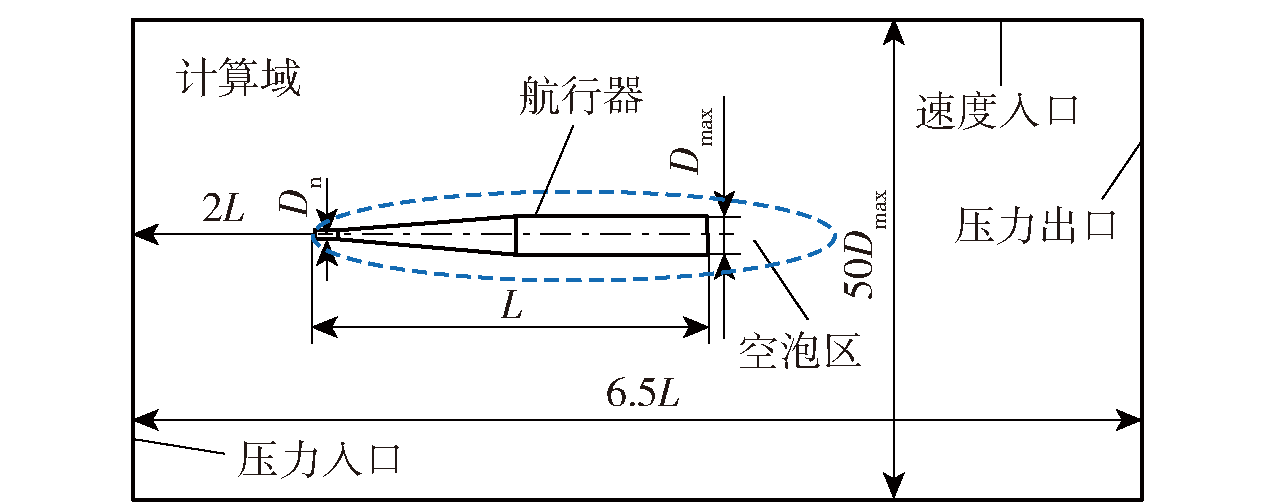

Fig.2 Computational domain and boundary conditions

Fig.3 Mesh model of vehicle

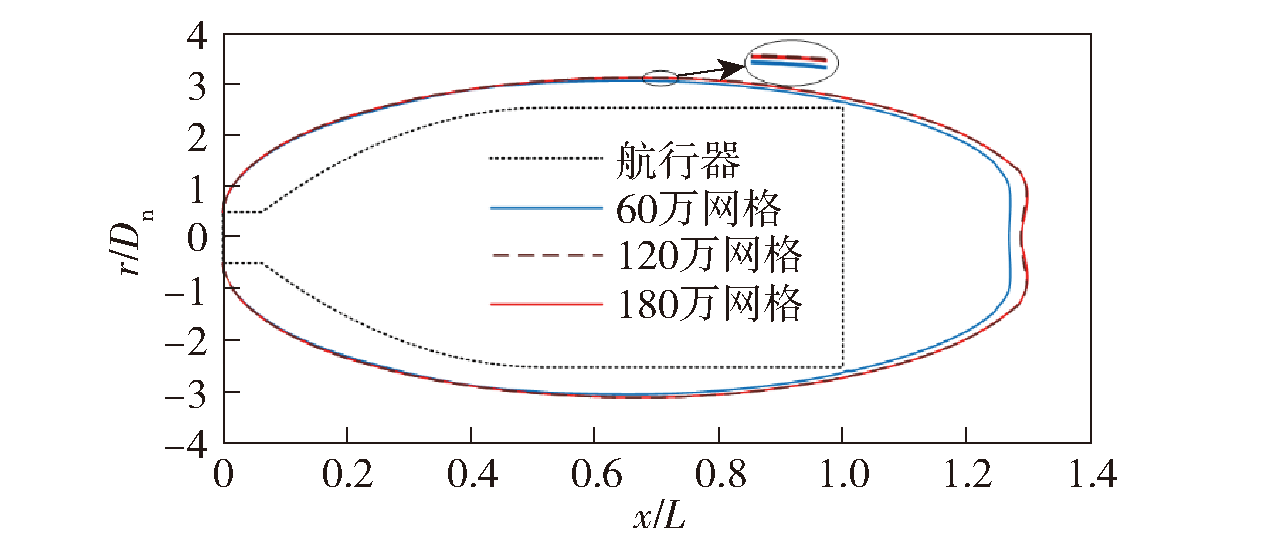

Fig.4 Comparison of cavitation profiles obtained by different grids

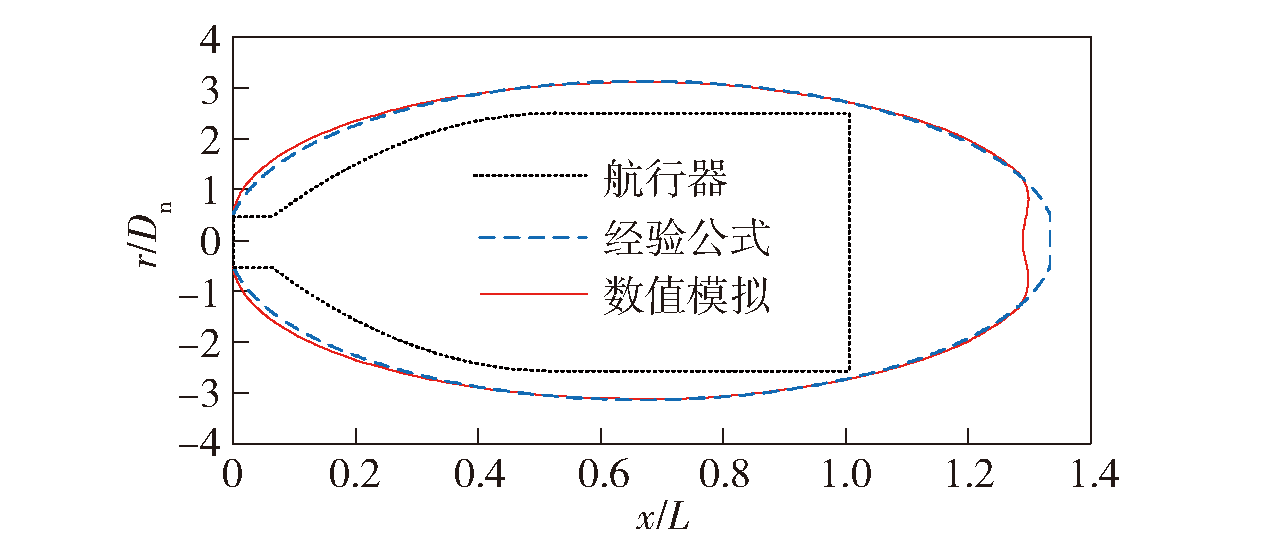

Fig.5 Comparison of cavity profiles obtained by numerical method and empirical formula

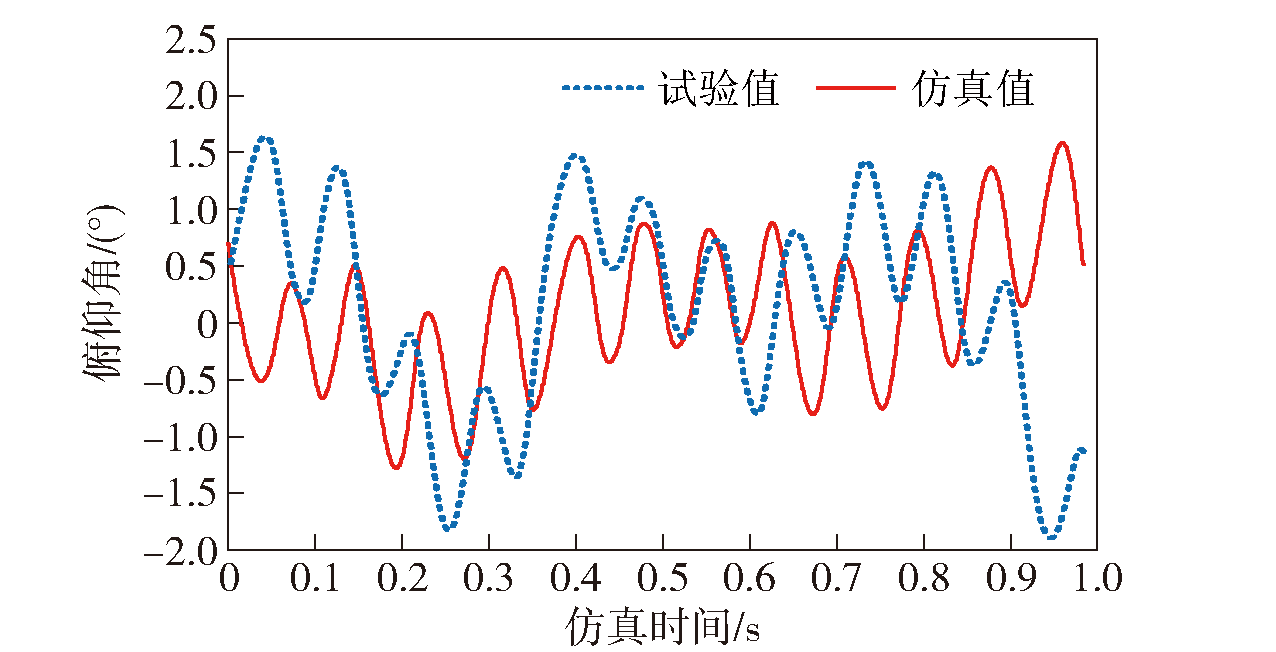

Fig.6 Comparison of test value and simulation value of pitch angle

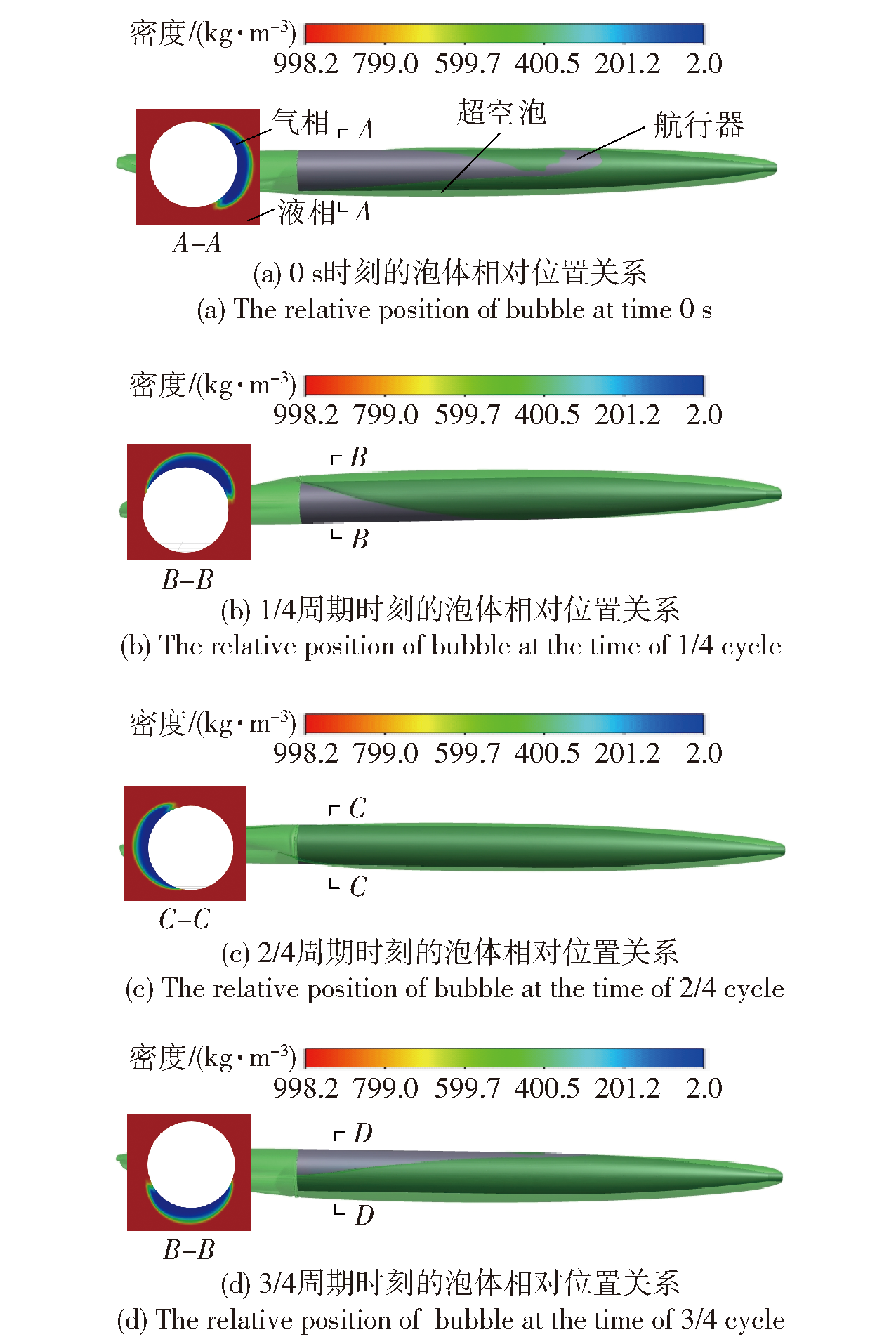

Fig.7 Change of cavity shape of vehicle during a motion period

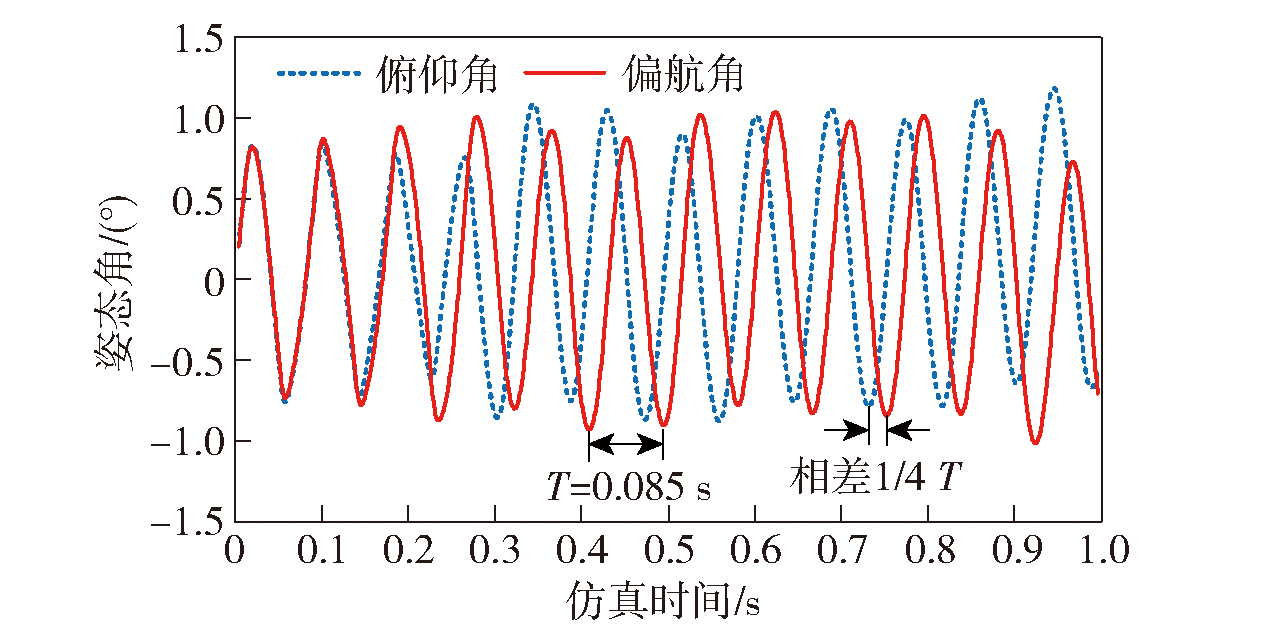

Fig.8 Dynamic process of attitude angles of supercavitating vehicle

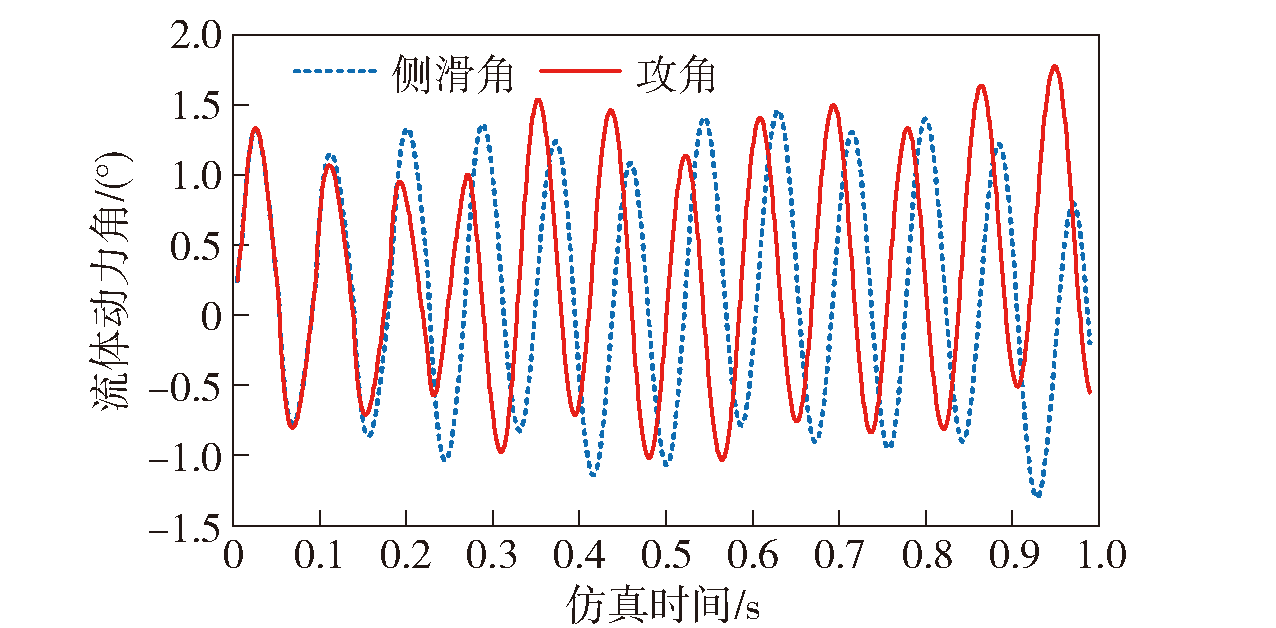

Fig.9 Dynamic process of hydrodynamic angles of supercavitating vehicle

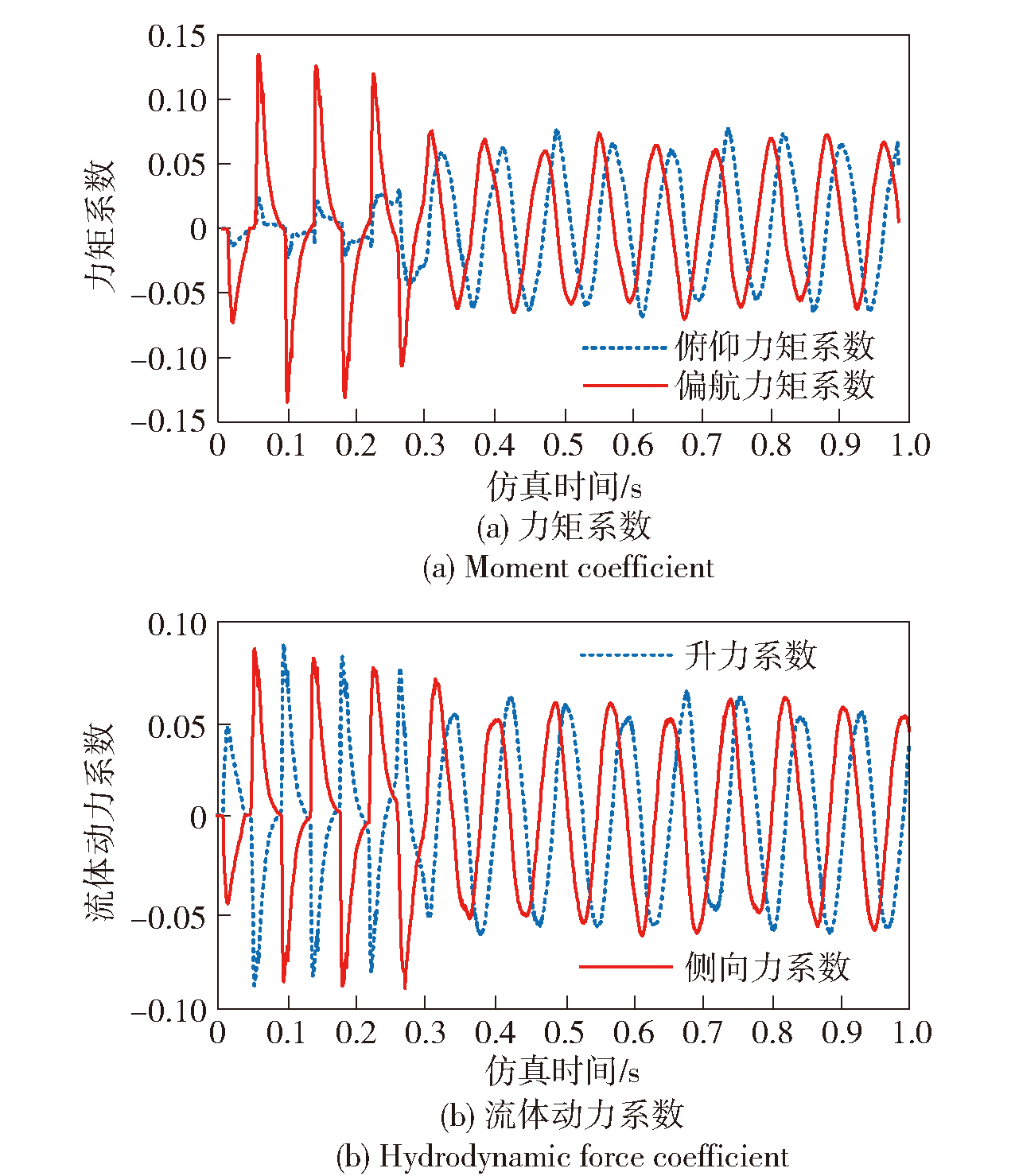

Fig.10 Dynamic processes of hydrodynamic force and moment coefficients of vehicle

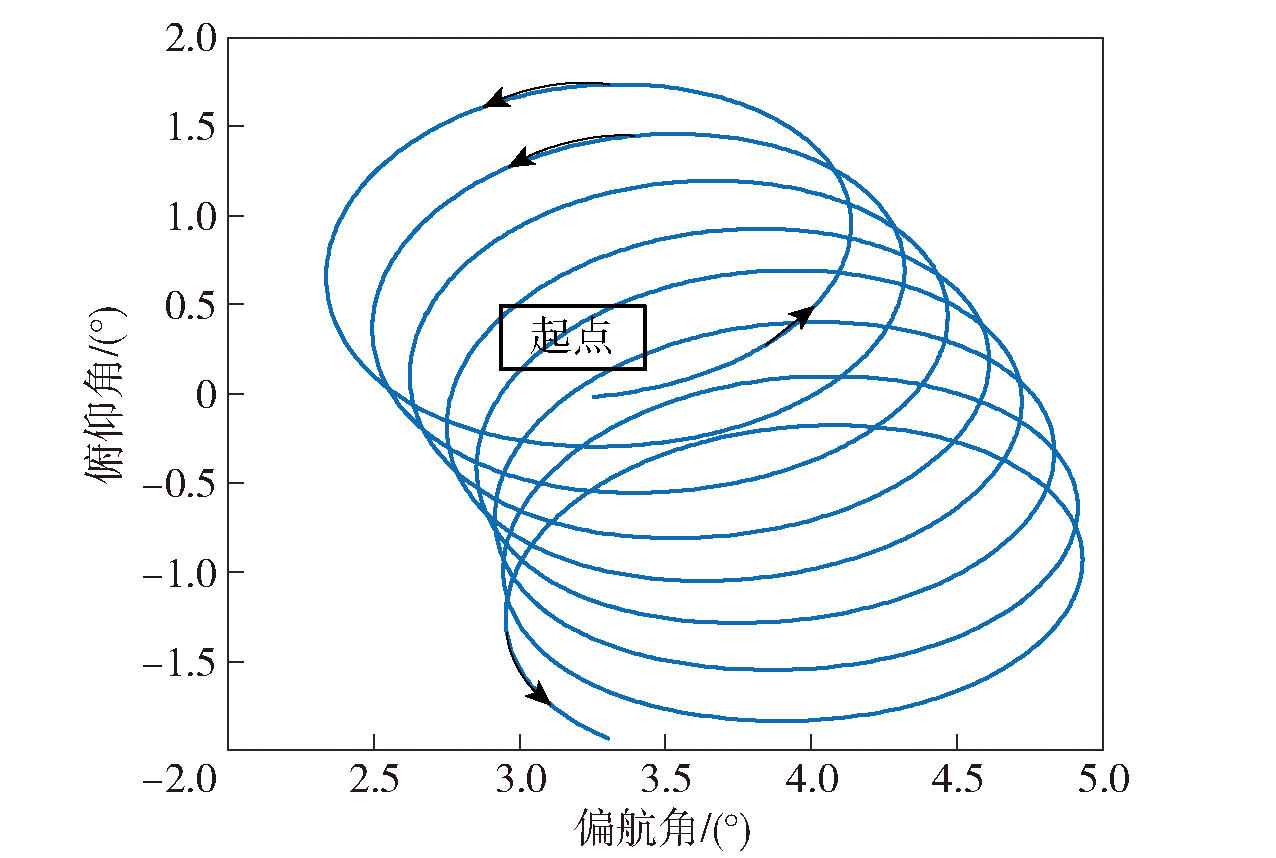

Fig.11 Spatial oscillation curve of vehicle in steady motion

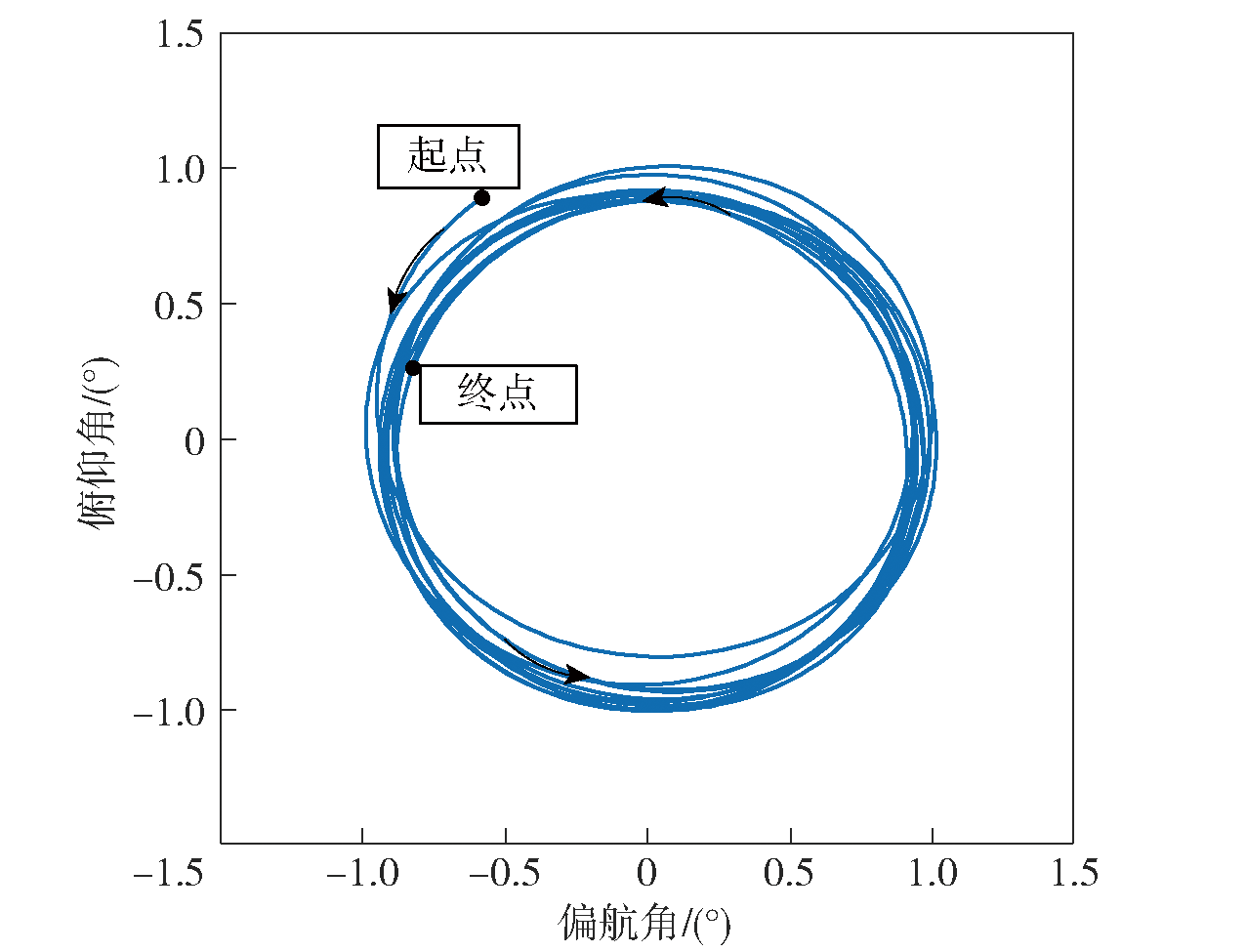

Fig.12 Spatial oscillation curve of the DC component filtered

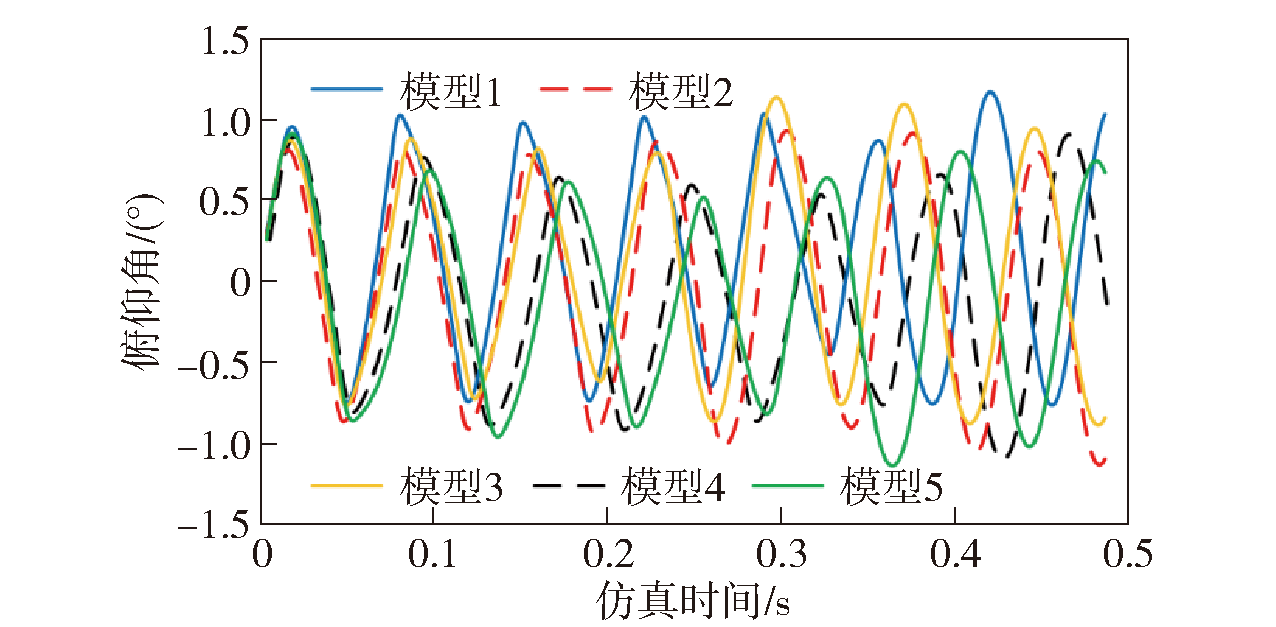

Fig.13 Changing curves of pitch angle of supercavitating vehicle with different masses

Table 2 Oscillation periods of supercavitating vehicles with different masses

模型编号	振荡周期/s	姿态角振幅/(°)
1	0.0785	0.98
2	0.0810	1.09
3	0.0850	1.01
4	0.0865	0.97
5	0.0905	0.95

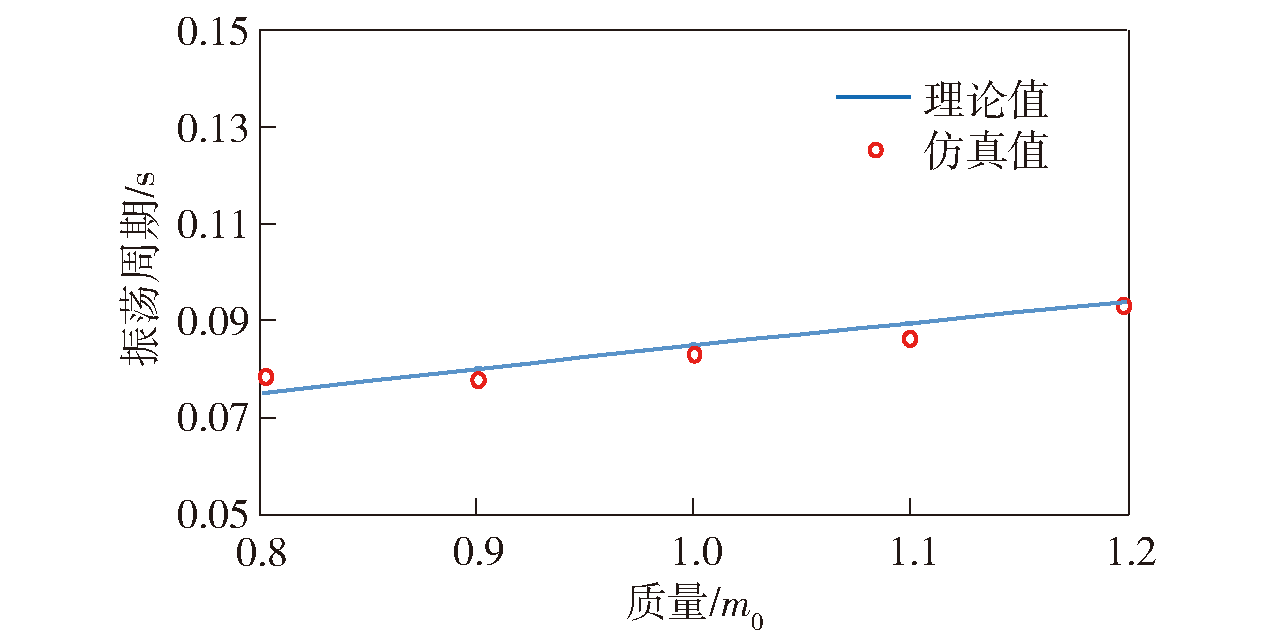

Fig.14 Comparison of theoretical and simulated values of oscillation period changing with mass

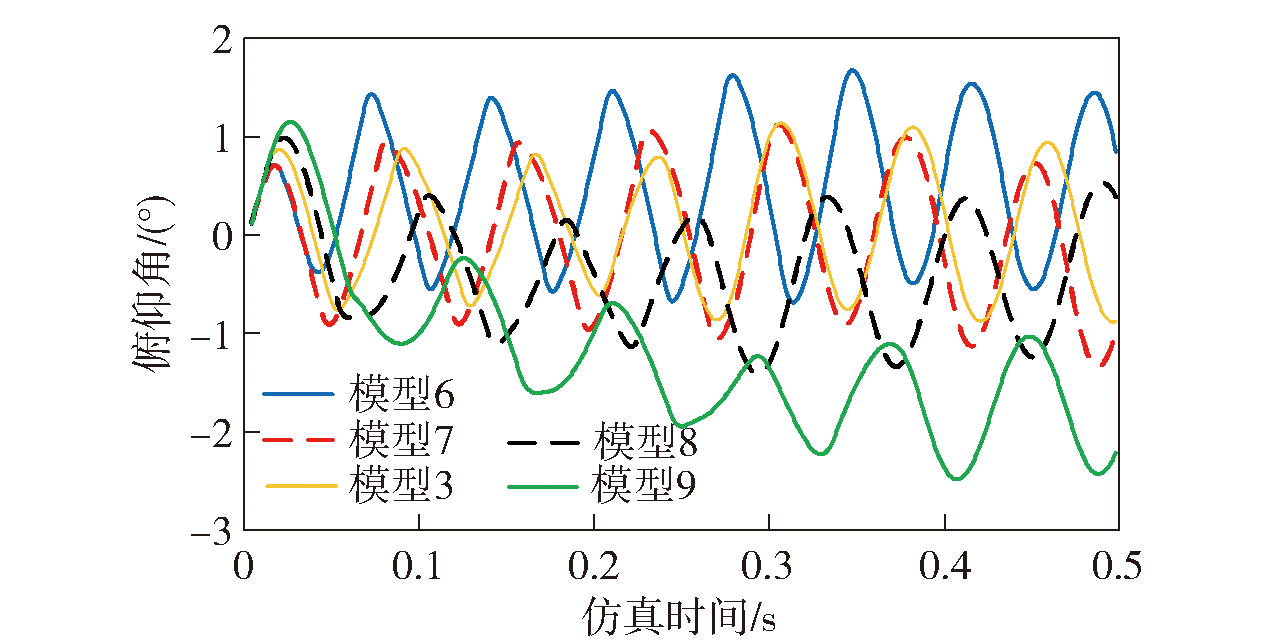

Fig.15 Changing curves of pitch angle of supercavitating vehicle with different mass centers

Table 3 Oscillation period of supercavitating vehicle with different mass centers

模型编号	振荡周期/s	姿态角振幅/(°)
6	0.0780	1.28
7	0.0810	1.14
3	0.0850	1.01
8	0.0875	0.82
9	0.0910	0.53

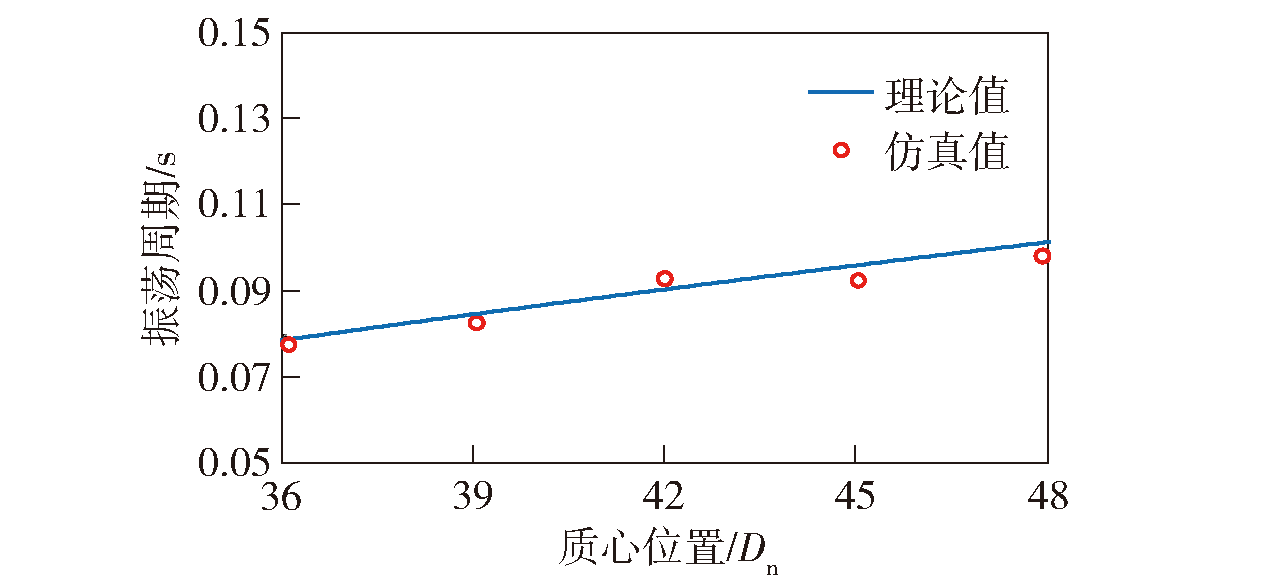

Fig.16 Comparison of theoretical and simulated values of oscillation period changing with mass centers
