Path Planning of Unmanned Tracked Vehicle Based on Terrain Traversability Estimation

doi:10.12382/bgxb.2023.0262

Abstract

Abstract:

In response to the insufficient consideration of terrain features in the existing path planning methods, a path planning method based on the estimation of terrain traversability for unmanned tracked vehicles is proposed. In the proposed method, a ConvLSTM-based deep neural network is used to extract the spatial and temporal correlation features of LiDAR point clouds from continuous trajectories, fuse the vehicle motion state features, and estimate the terrain traversability. Based on the terrain traversability, the node expansion mode and cost function of A^* algorithm are improved, and the discrete waypoints that meet the collision-free constraints and the low traversability cost are output. A gradient-free iterative smoothing algorithm is used to reduce the cost of path relaxation and traversability. Then a cubic B-spline curve is used to generate a smooth reference path which is used to establish the Frenet coordinate system. A safety corridor based on the traversability is constructed in the Frenet coordinate system. On the premise of meeting the collision-free constraints and the low traversability cost, a smooth path meeting the vehicle kinematics constraints is generated in the corridor. The experimental results indicate that the proposed method can fully consider the terrain features and improve the stability of path planning results and the traversability of path.

Key words: unmanned tracked vehicle, traversability estimation, path planning, improved A^* algorithm, quadratic programming

CLC Number:

TP242.6

TAO Junfeng, LIU Hai’ou, GUAN Haijie, CHEN Huiyan, ZANG Zheng. Path Planning of Unmanned Tracked Vehicle Based on Terrain Traversability Estimation[J]. Acta Armamentarii, 2023, 44(11): 3320-3332.

Figures/Tables 23

Fig.1 Framework of path planning of unmanned tracked vehicle based on terrain traversability estimation

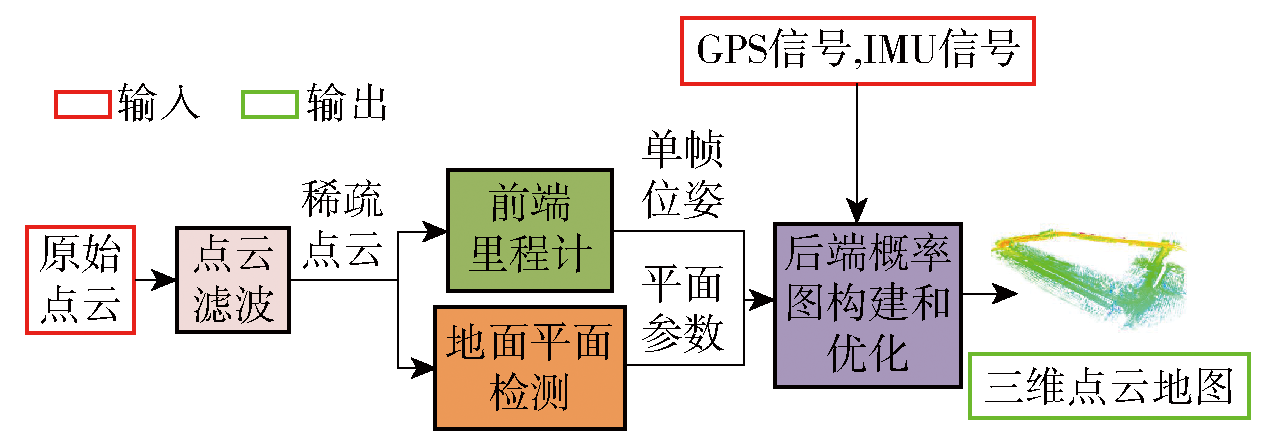

Fig.2 Framework of hdl-graph-slam

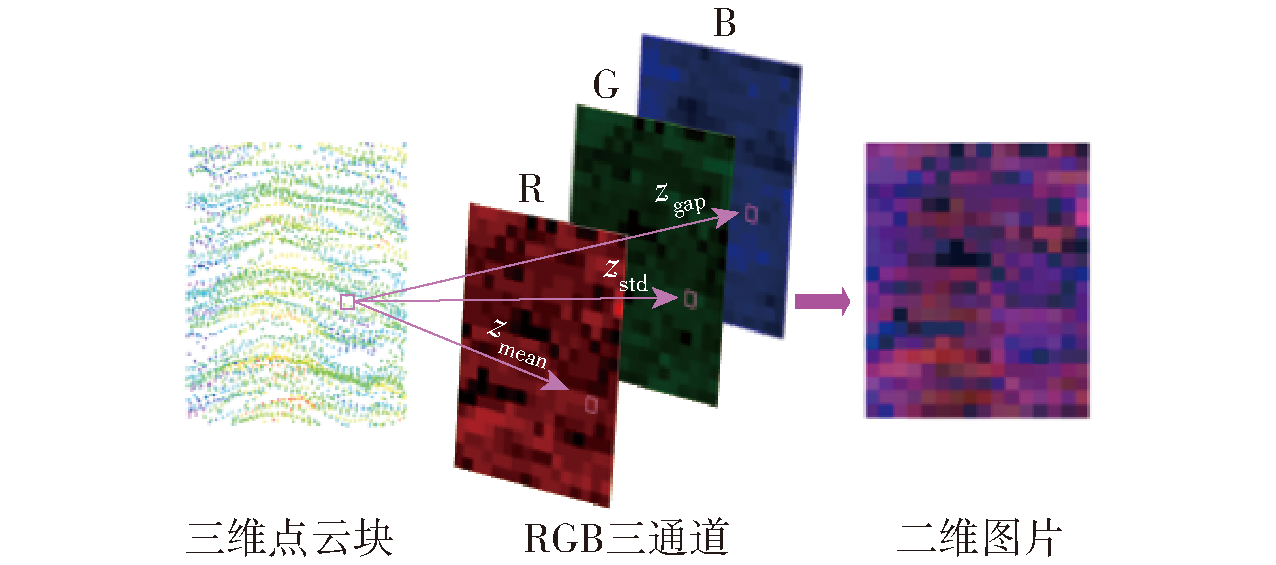

Fig.3 Transformation from 3D point cloud to 2D image

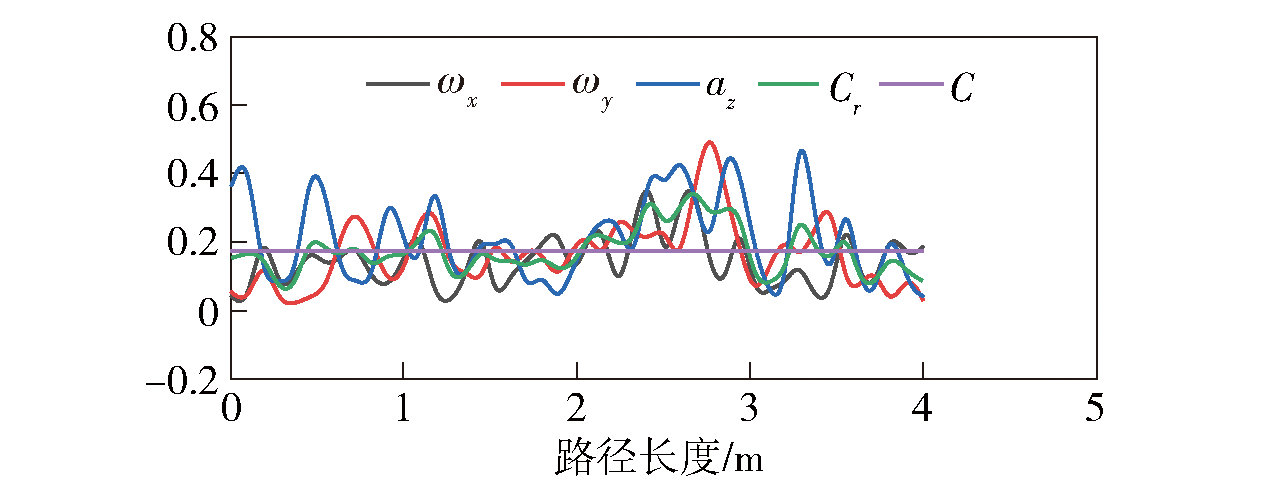

Fig.4 Diagram of IMU signal processing

Fig.5 Traversability estimation network

Fig.6 Improved A* search

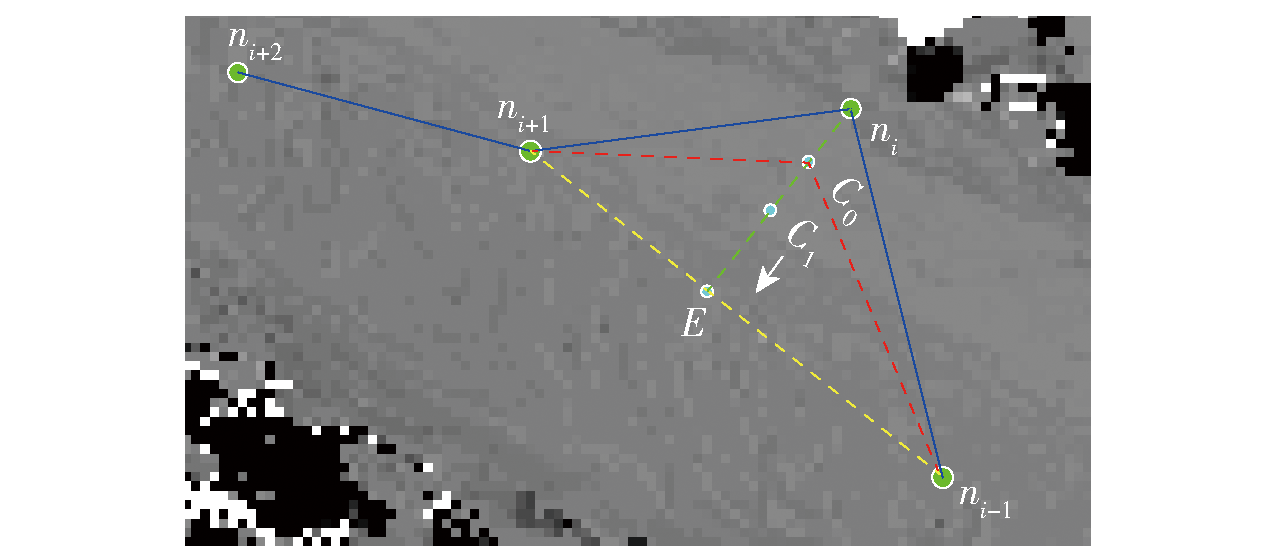

Fig.7 Schematic diagram of gradient-free iteration

Fig.8 Construction of traversable corridor

Fig.9 Pseudocode of traversable corridor

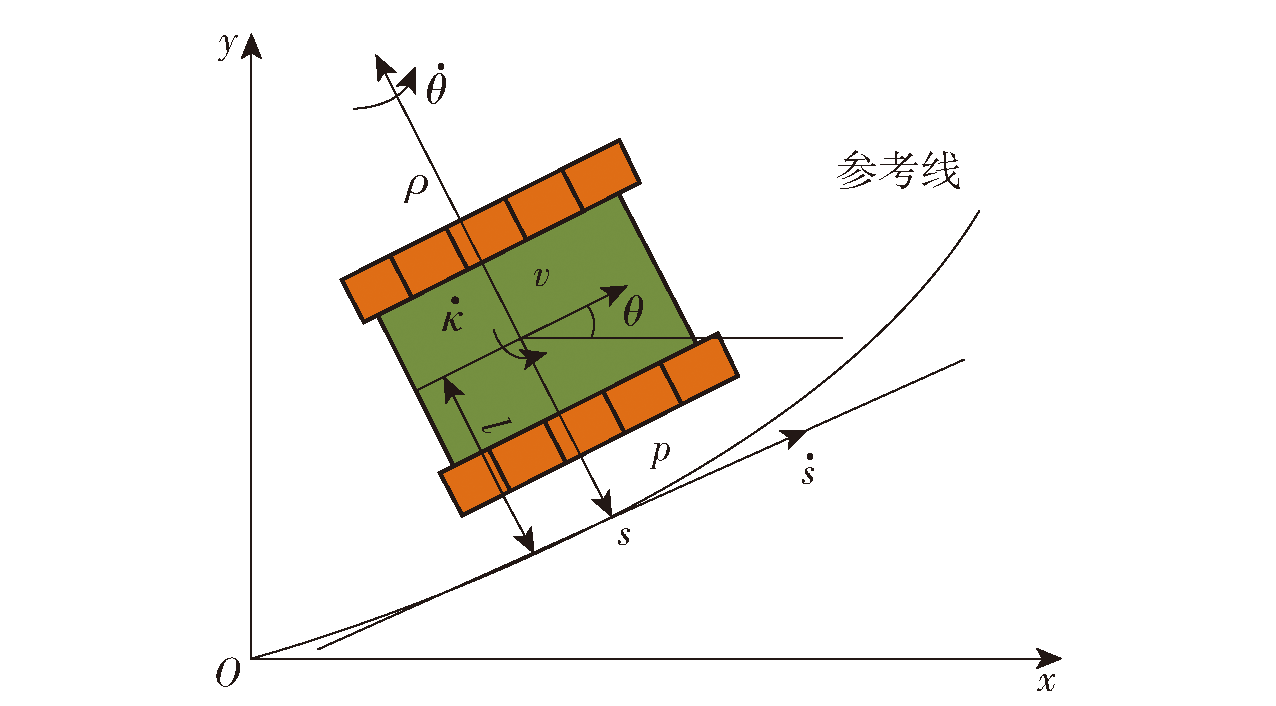

Fig.10 Vehicle kinematic model in Frenet coordinate system

Fig.11 Experimental vehicle and site

Table 1 Experimental parameters

参数	数值
车辆行驶速度v/(km·h^-1)	5
节点扩展半径上界R_max/m	3
节点扩展半径下界R_min/m	1.2
无梯度迭代平滑thresh/m	0.0001
自适应采样s_min/m	0.3
自适应采样s_max/m	5
自适应采样κ_m/m^-1	0.02
自适应采样κ_M/m^-1	0.2
A^*距离代价权重ω_m	10
A^*可通行度代价权重ω_i	0.1
无梯度平滑路径长度代价权重ω_s	10
无梯度平滑可通行度代价权重ω_t	0.1
横向采样步长step/m	0.2
可通行走廊最大宽度b_w/m	4
参考线偏差代价权重ω_d	0.01
平滑性代价曲率项权重ω_κ	20
平滑性代价曲率变化率项权重ω_μ	100
终点状态横向位置允许偏差Δl/m	0.2
终点状态航向角允许偏差Δθ/(°)	5
曲率上界κ_max	0.2
曲率变化率上界κ'_max	0.05
可通行度检测pr	0.5

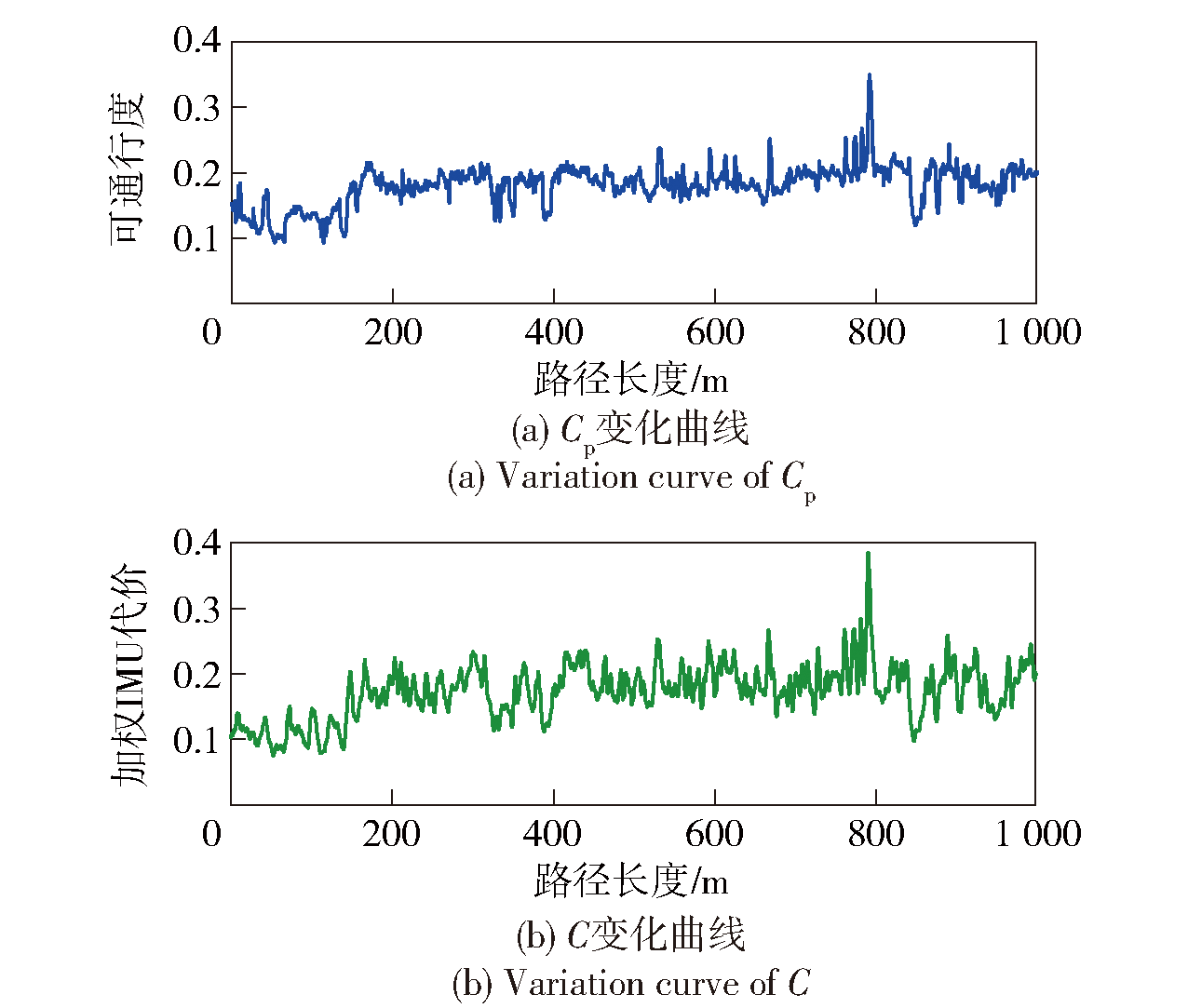

Fig.12 Changes in Cp/C with s

Fig.13 Traversability cost map based on Cp

Table 2 Statistical parameters of Cp and C

MSE	MAE	RMSE	R
0.0005	0.0197	0.0236	0.8450

Fig.14 Traversability cost map based on grid height difference

Fig.15 Real time shots of experimental sites

Fig.16 Self comparison of C1 with reference paths

Fig.17 Self omparison of C1 with traversable orridor and optimized results

Fig.18 Comparison of C2 with planning results

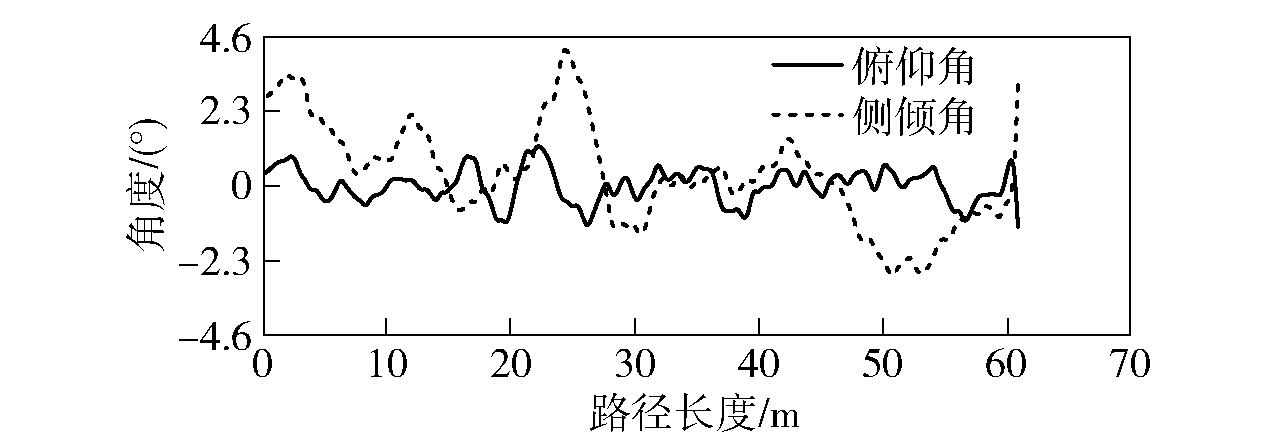

Fig.19 Change curves of pitch and roll angles (in this article)

Fig.20 Change curves of pitch and roll angles (Ref.[6] method)

Table 3 Comparison of planned route indicators of C2

规划方法	时间/ ms	平均俯仰角/ ((°)·m^-1)	平均侧倾角/ ((°)·m^-1))	平均曲率/ m^-1
本文方法	65	0.4942	1.0089	0.0332
文献[6]方法	105	2.4772	3.3869	0.0283
