Multi-beam Scanning of Liquid Crystal Optical Phased Array Based on Greedy Algorithm

doi:10.12382/bgxb.2022.1163

Abstract

Abstract:

This paper presents a multi-beam scanning method for liquid crystal optical phased arrays (LC-OPAs) based on greedy genetic algorithm to solve issues of long scanning periods and low capture efficiency associated with single-beam scanning. Multiple LC-OPAs are utilized to generate independent beams with equal scanning areas. To efficiently scan and track multiple dynamic targets, a greedy genetic algorithm-based multi-beam scanning scheme is proposed. The scheme assigns targets to each beam based on target size, position, and velocity information, optimizing the scanning order to maximize target capture probability. A liquid crystal optical phased array multi-beam scanning platform is built, and the proposed scanning method is simulated and experimentally verified under various target numbers, target movement speeds, and spot radii. The results demonstrate that the proposed method can not only effectively reduces the scanning cycle but also improves the capture efficiency of dynamic targets.

Key words: liquid crystal optical phased array, multi-beam scanning, greedy genetic algorithm, dynamic target, capture efficiency

CLC Number:

TN249

YE Wenyu, WANG Chunyang, YU Jinyang, TUO Mingkan, WANG Zishuo. Multi-beam Scanning of Liquid Crystal Optical Phased Array Based on Greedy Algorithm[J]. Acta Armamentarii, 2023, 44(9): 2650-2660.

Figures/Tables 18

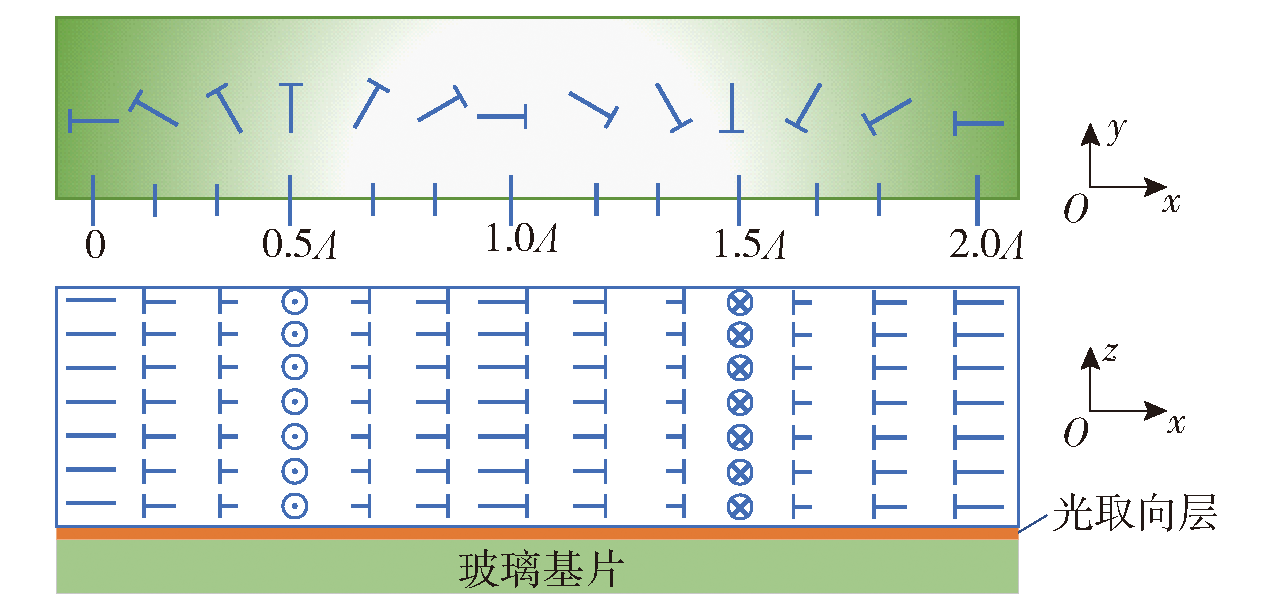

Fig.1 Front view of liquid crystal polarization grating

Fig.2 Diagram of beam deflection

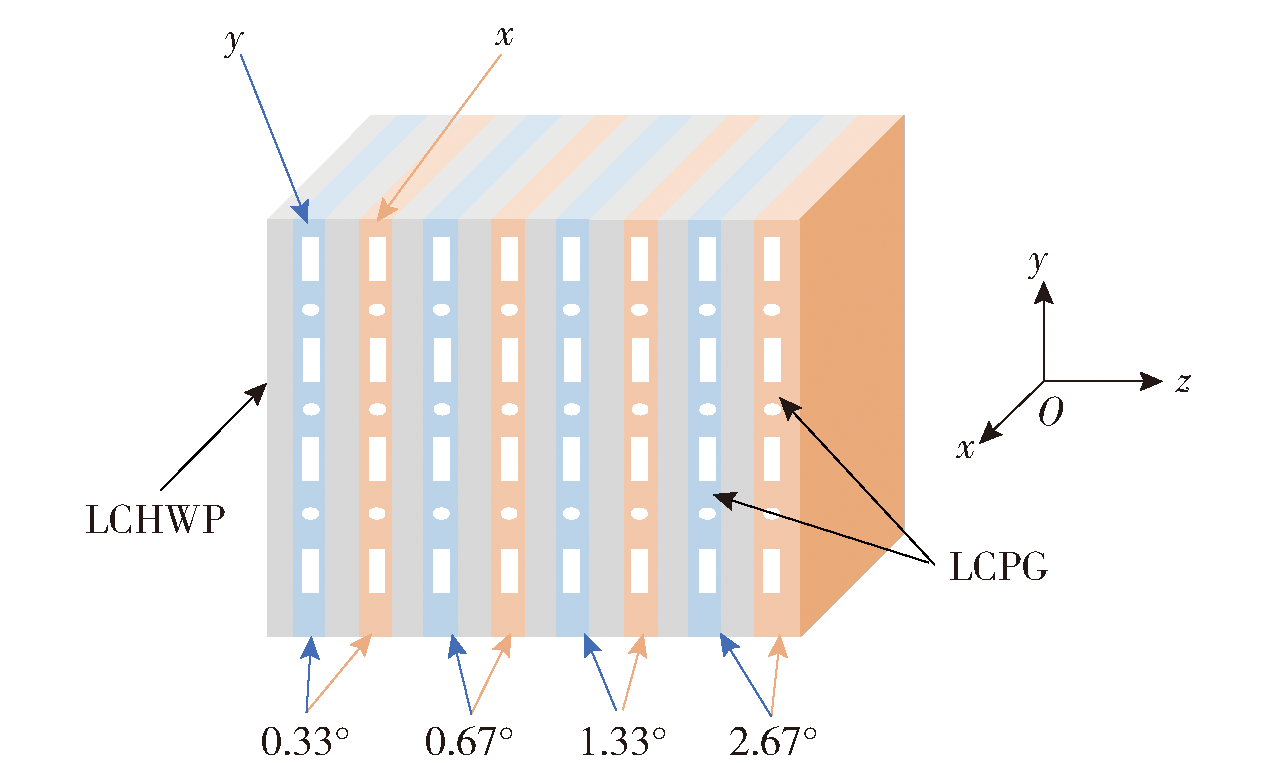

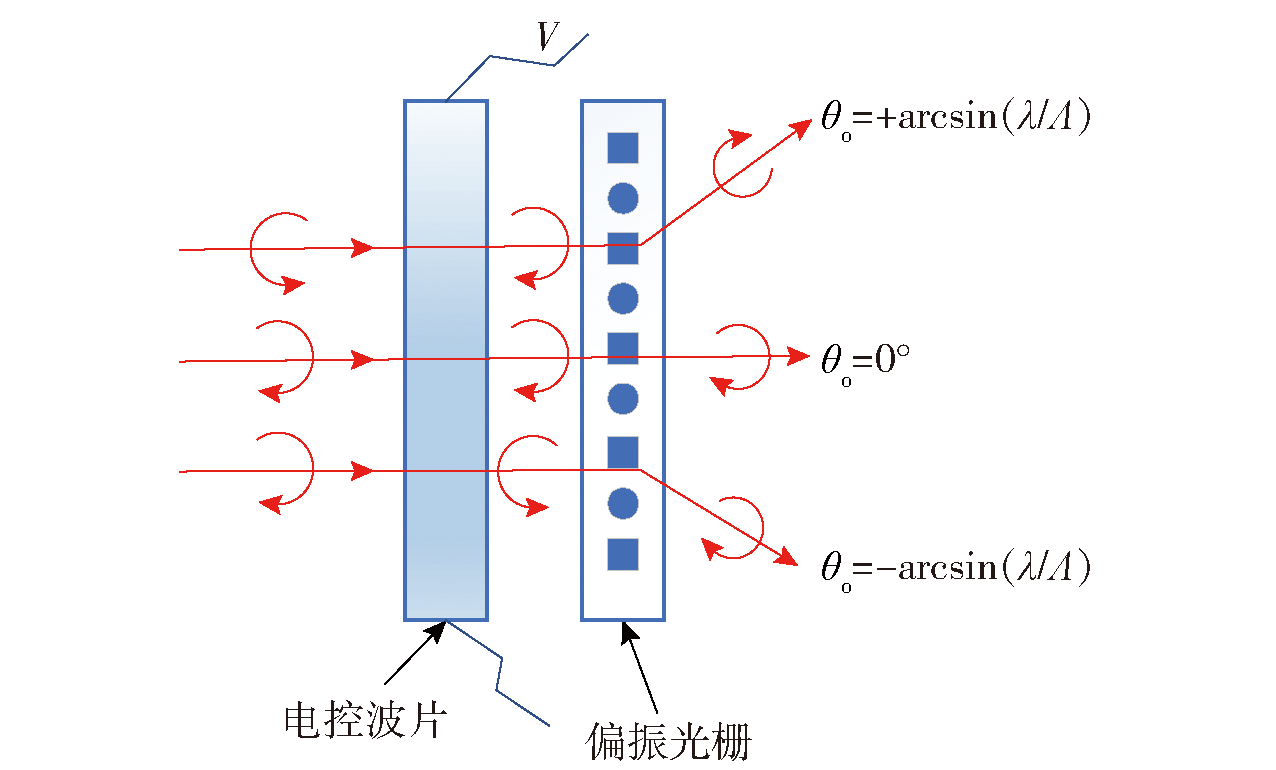

Fig.3 Combined structure of LCHWP and LCPG

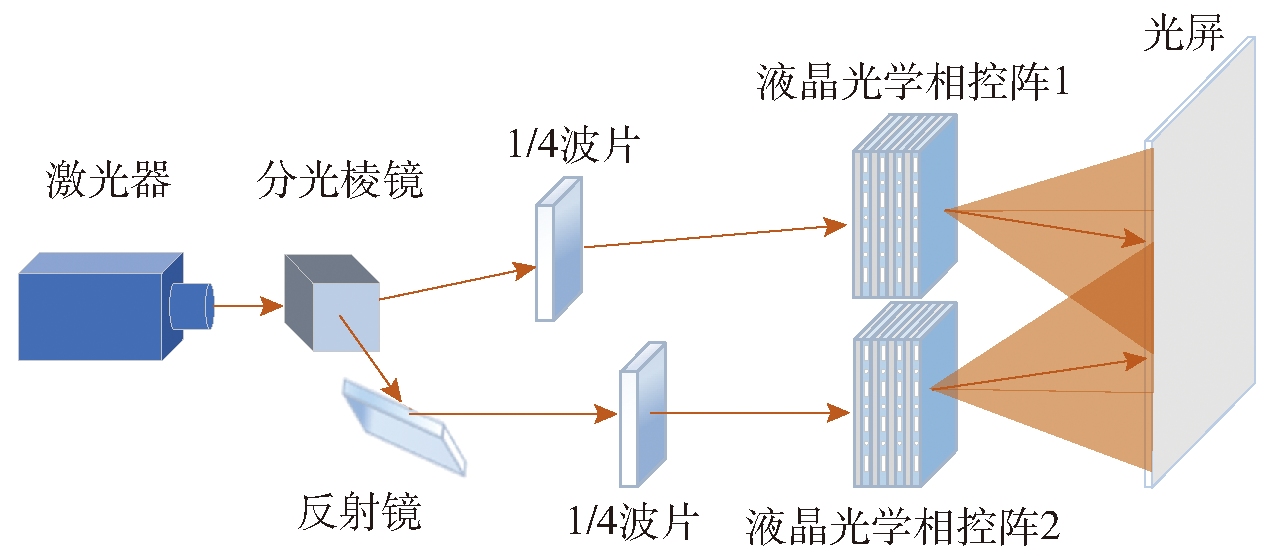

Fig.4 Multi-beam generation system

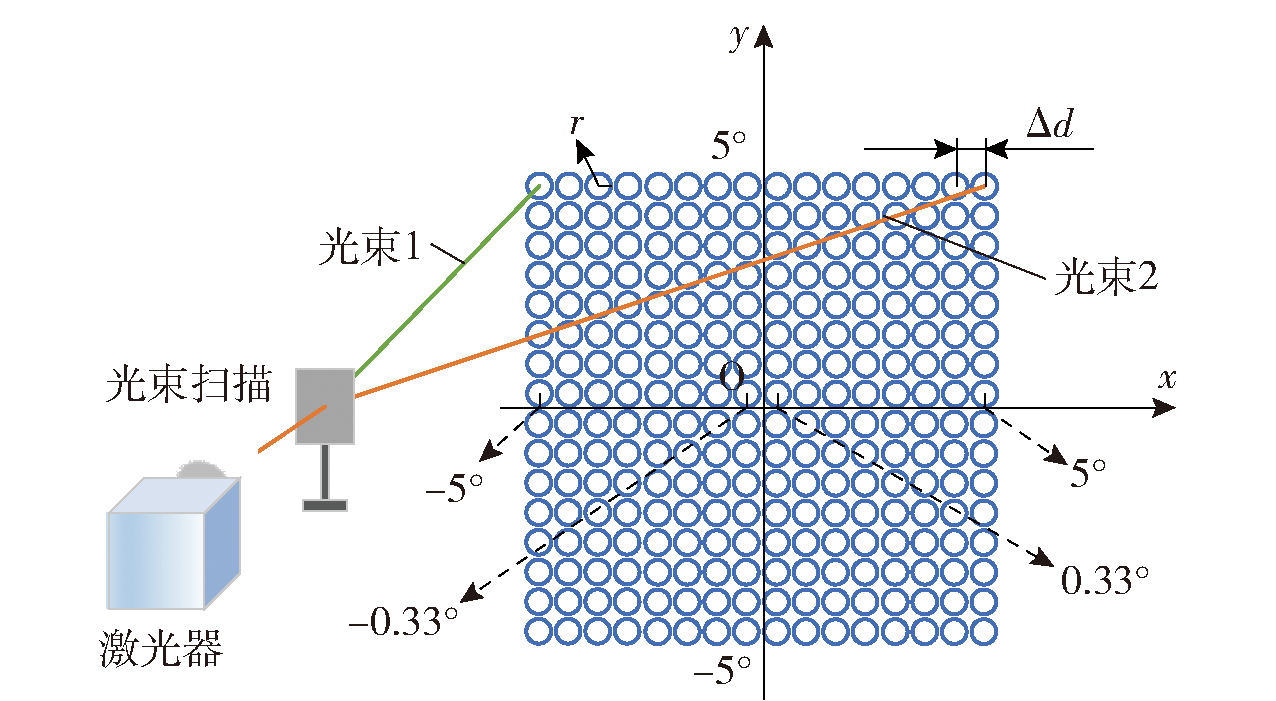

Fig.5 16×16 scan light spots

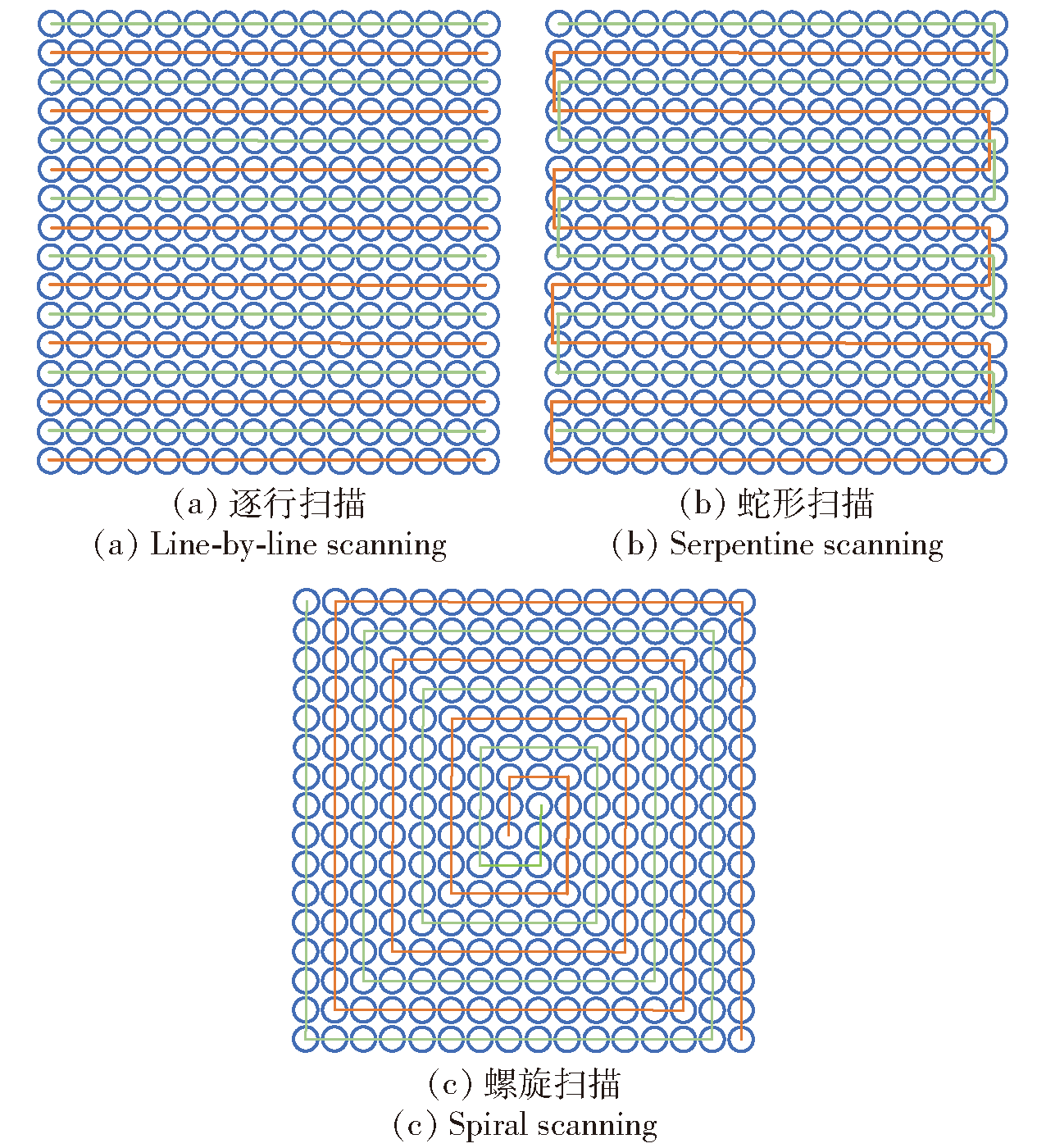

Fig.6 Dual-beam scanning path of a traditional scanning method

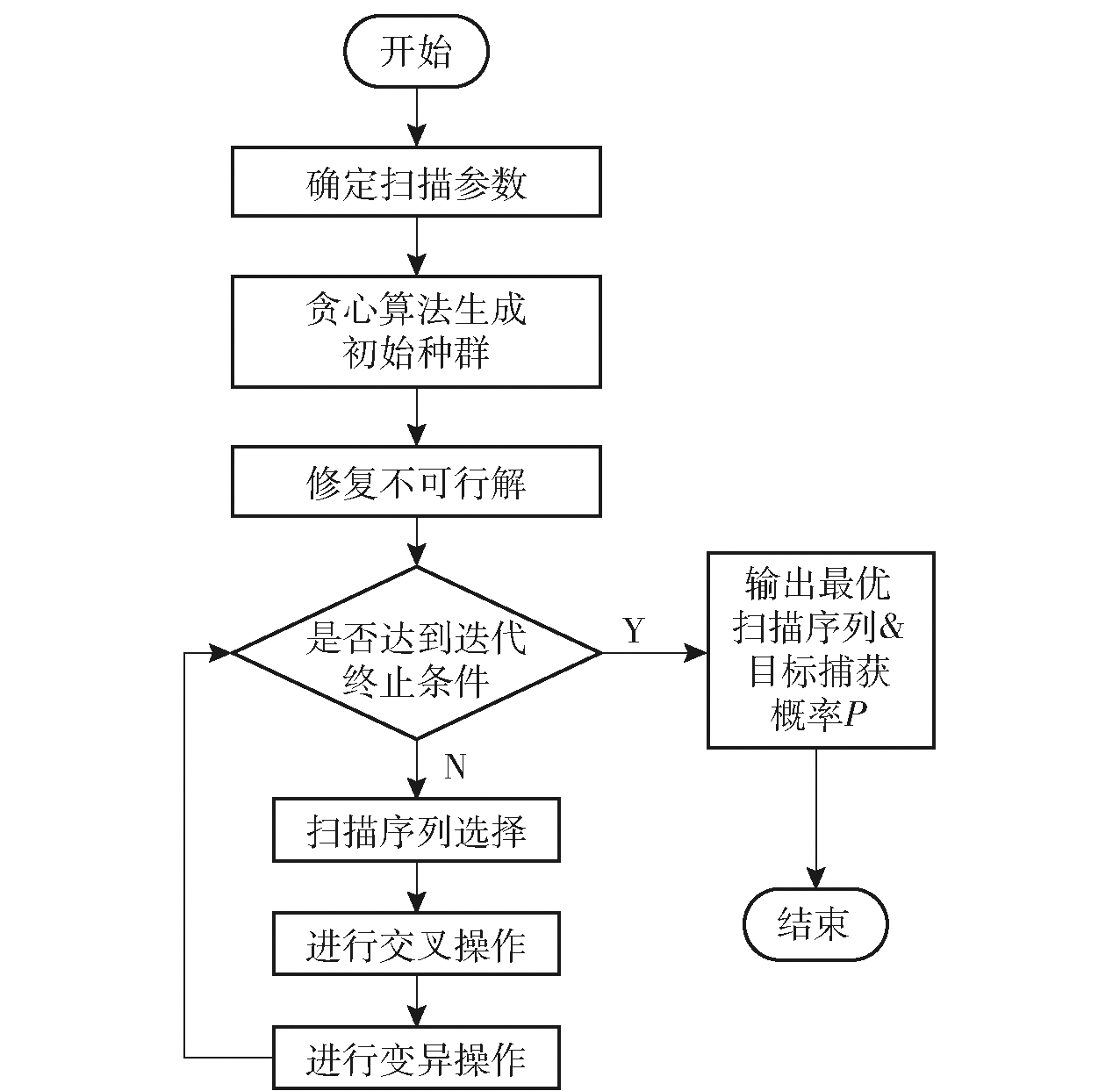

Fig.7 Multi-beam scanning process based on the greedy genetic algorithm

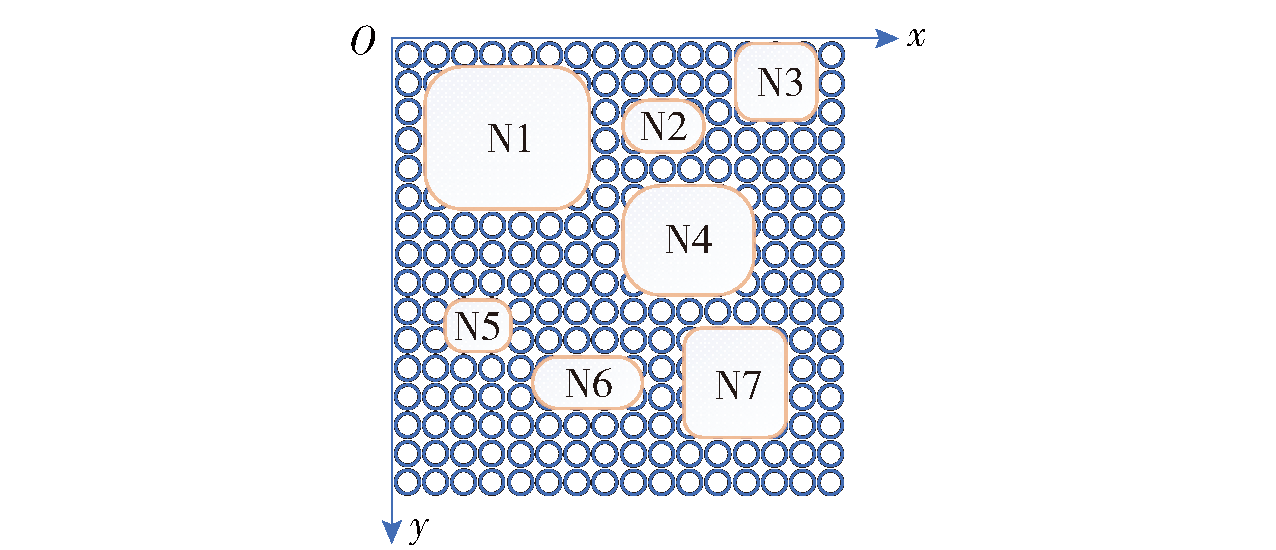

Fig.8 Simulation scenario settings

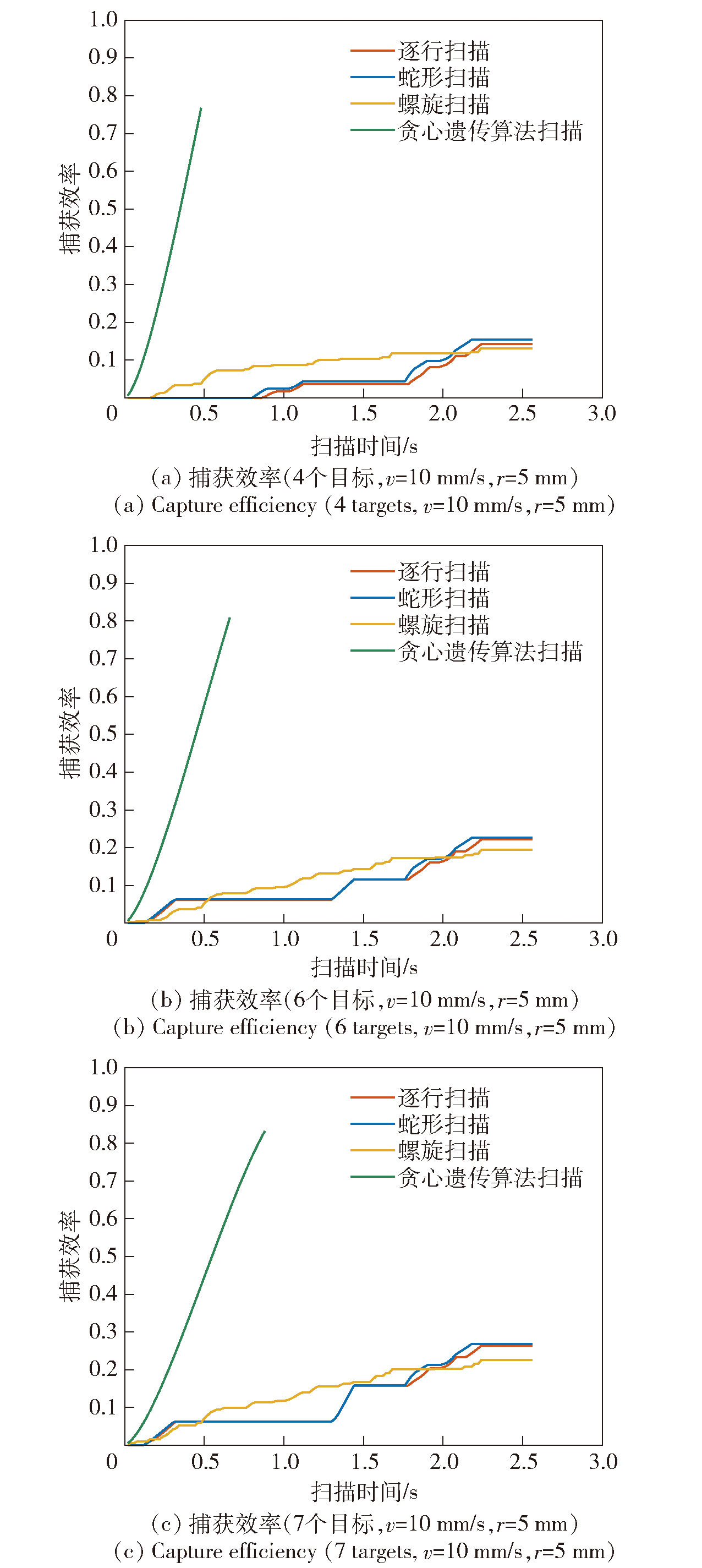

Fig.9 Scanning capture efficiency of different scanning targets

Table 1 Material optimal capture efficiency and iteration number during 20 iterations of the greedy genetic algorithm (Genetic algebra=100)

捕获效率和对应的遗传代数	序号
捕获效率和对应的遗传代数	1	2	3	4	5	6	7	8	9	10	11
遗传30代时捕获效率	0.8315	0.8344	0.8313	0.8337	0.8344	0.8344	0.8326	0.8344	0.8311	0.8315	0.8344
最大捕获效率	0.8344	0.8344	0.8344	0.8337	0.8344	0.8344	0.8344	0.8344	0.8344	0.8341	0.8344
最大捕获效率的遗传代数	84	8	94	27	5	19	63	6	80	92	9
捕获效率和对应的遗传代数	序号
捕获效率和对应的遗传代数	12	13	14	15	16	17	18	19	20	平均值
遗传30代时捕获效率	0.8319	0.8344	0.8344	0.8344	0.8331	0.8344	0.8337	0.8341	0.8344	0.8334
最大捕获效率	0.8344	0.8344	0.8344	0.8344	0.8344	0.8344	0.8337	0.8344	0.8344	0.8343
最大捕获效率的遗传代数	49	11	16	12	60	14	29	63	24

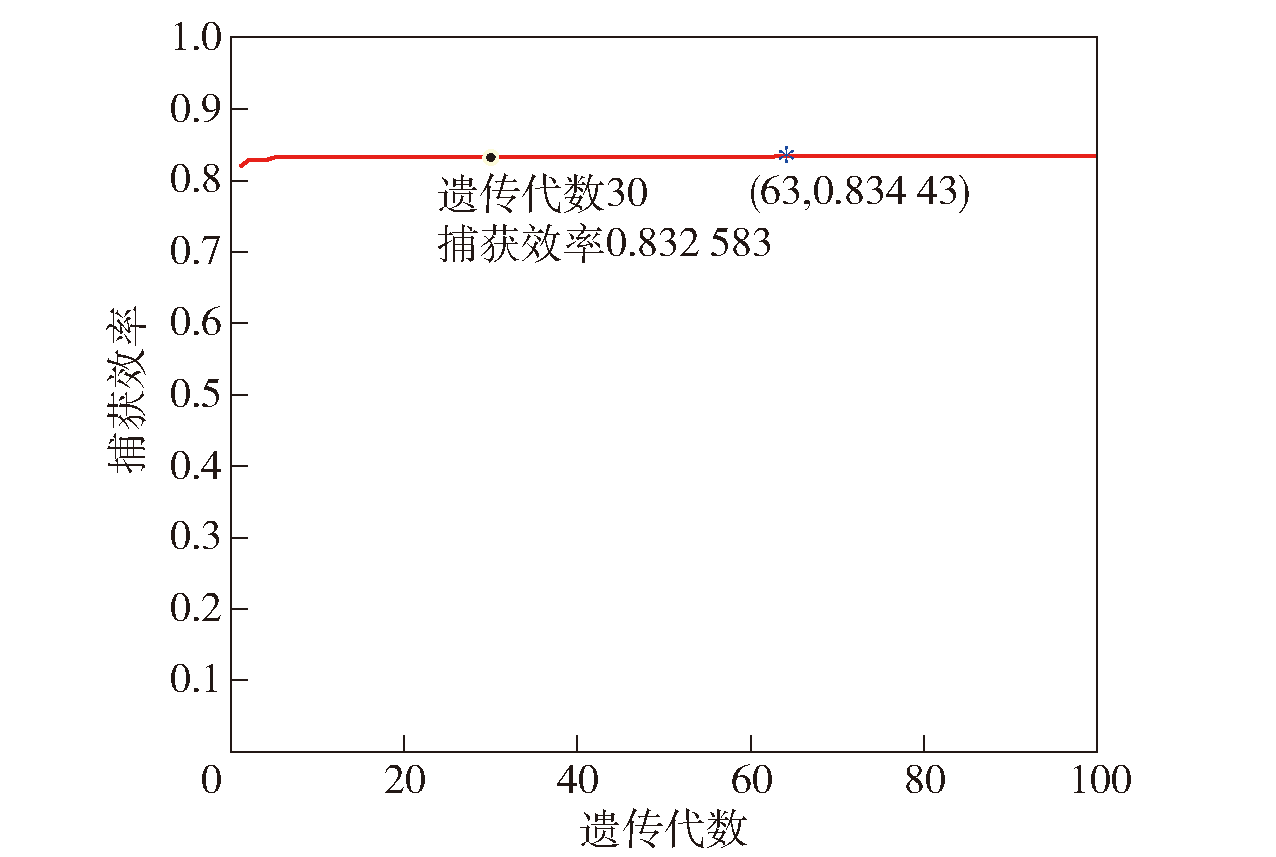

Fig.10 Iteration curve of greedy genetic algorithm

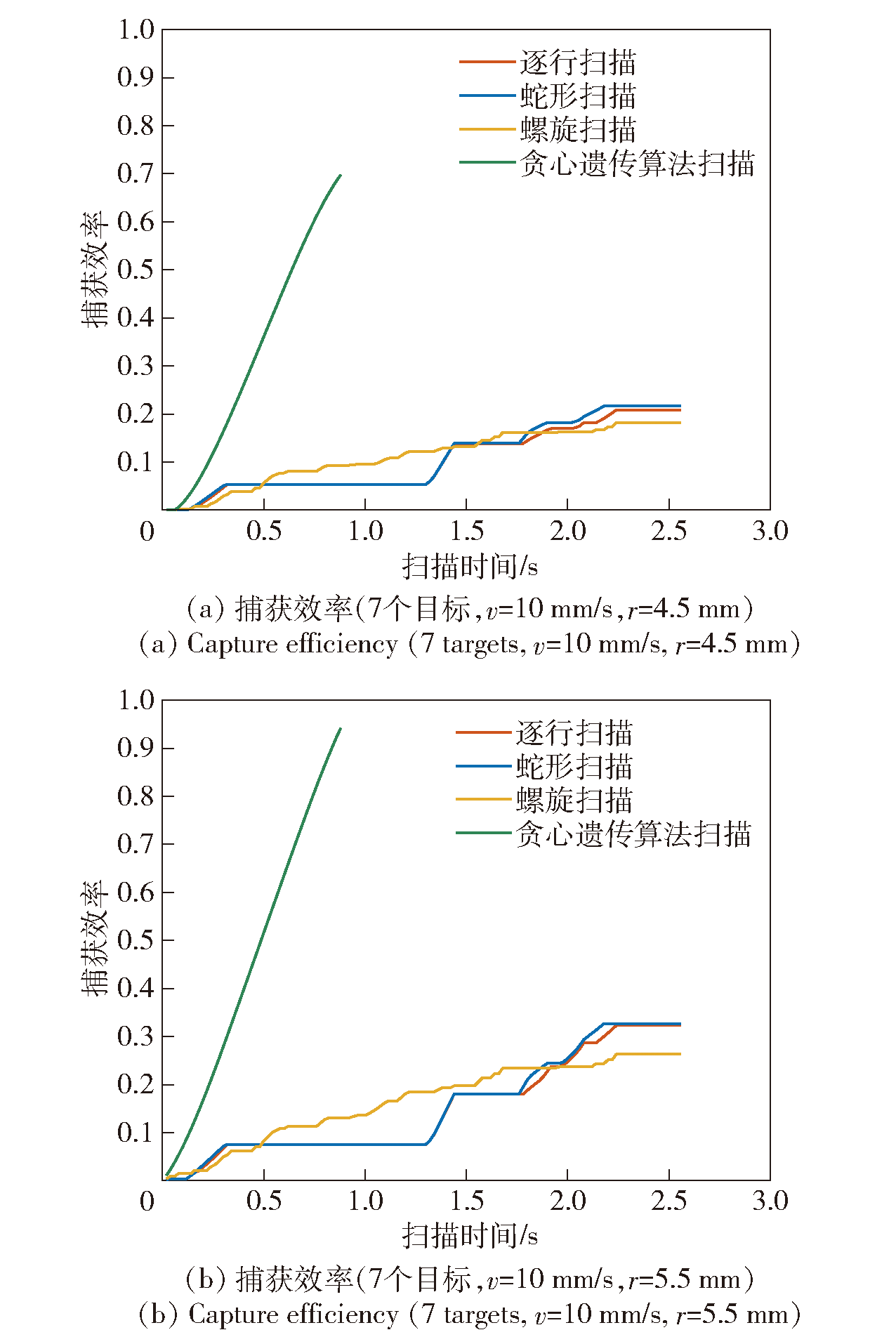

Fig.11 Scanning capture efficiency at different spot radii

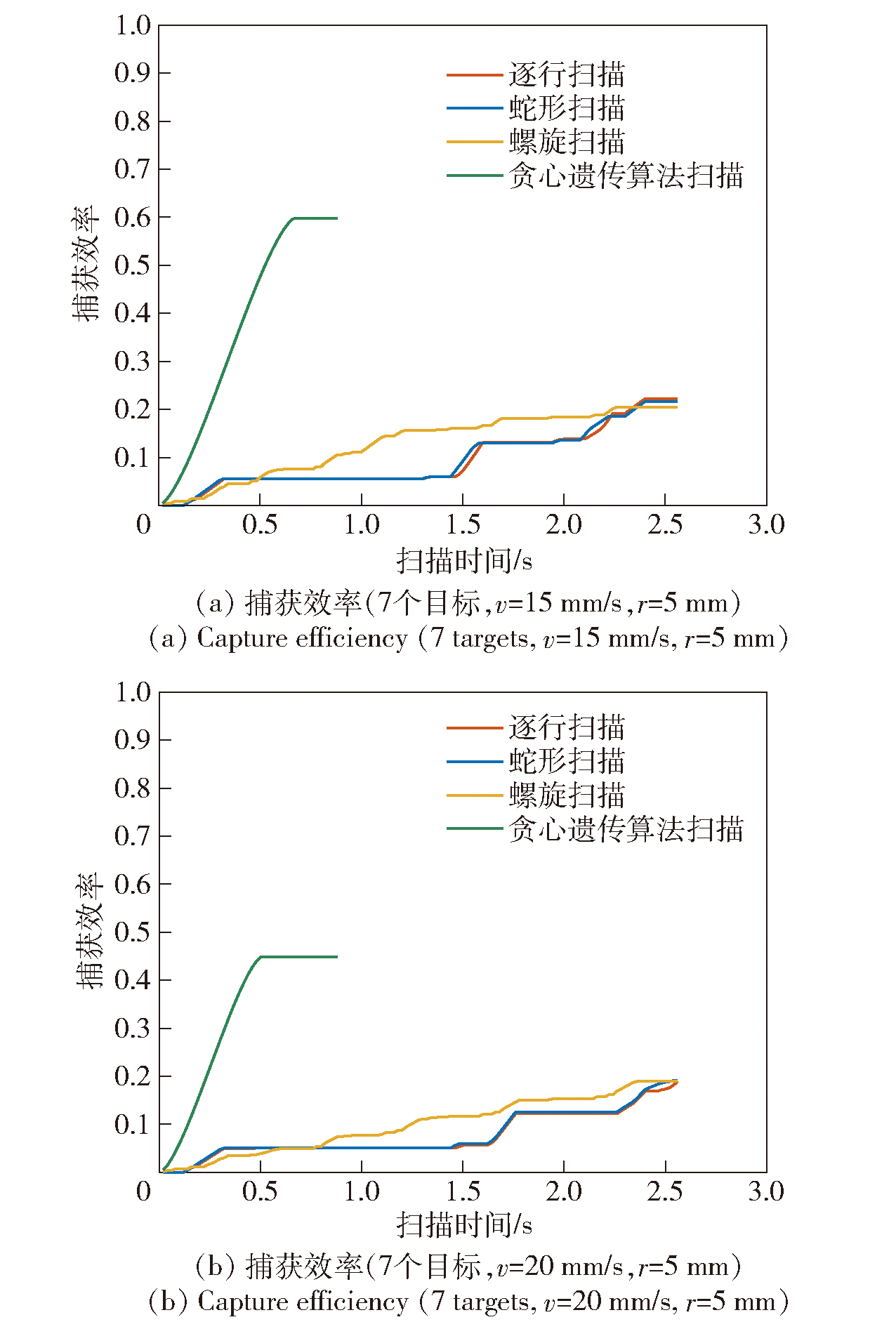

Fig.12 Scanning capture efficiency at different target speeds

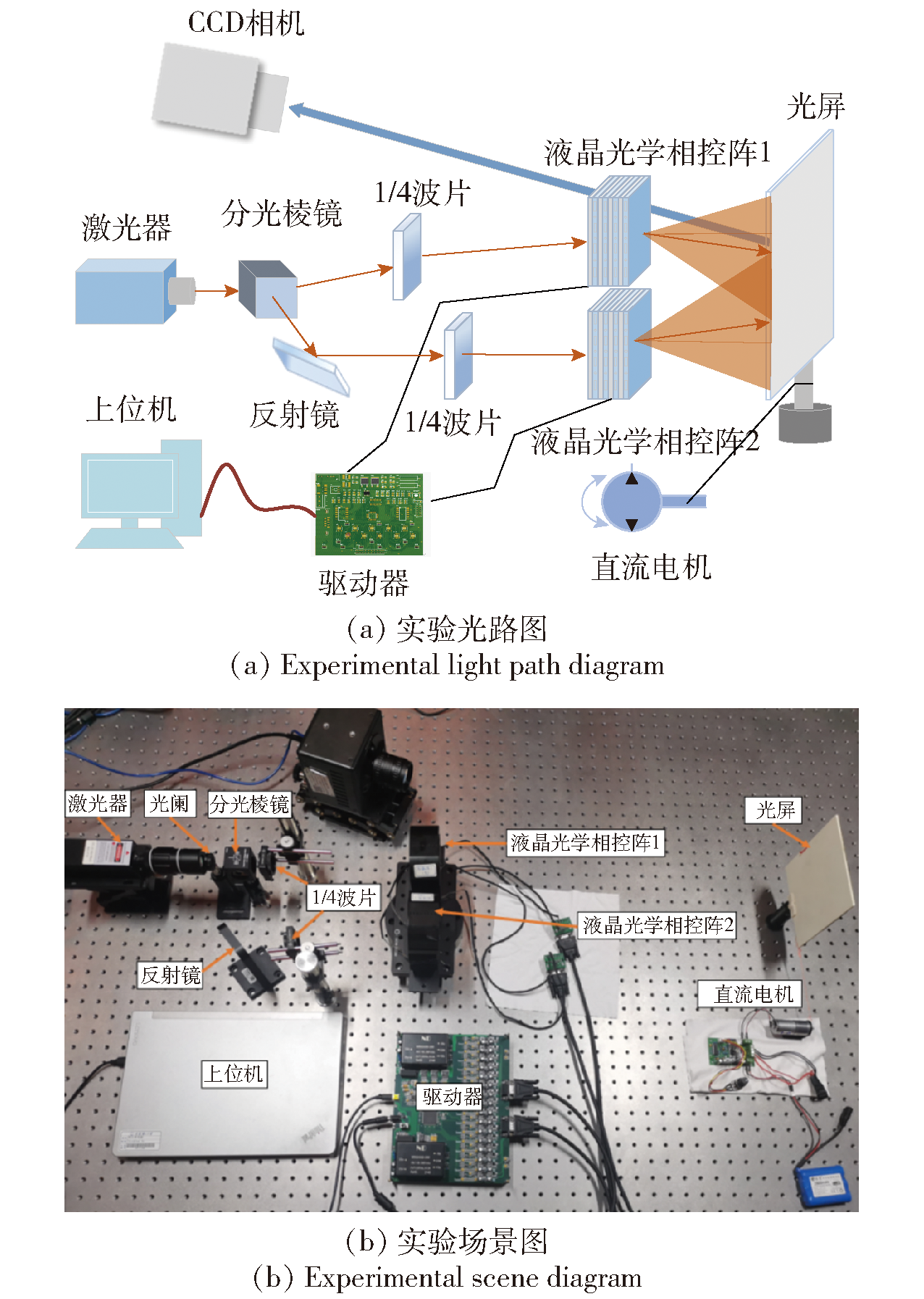

Fig.13 Multi-beam scanning system experiment

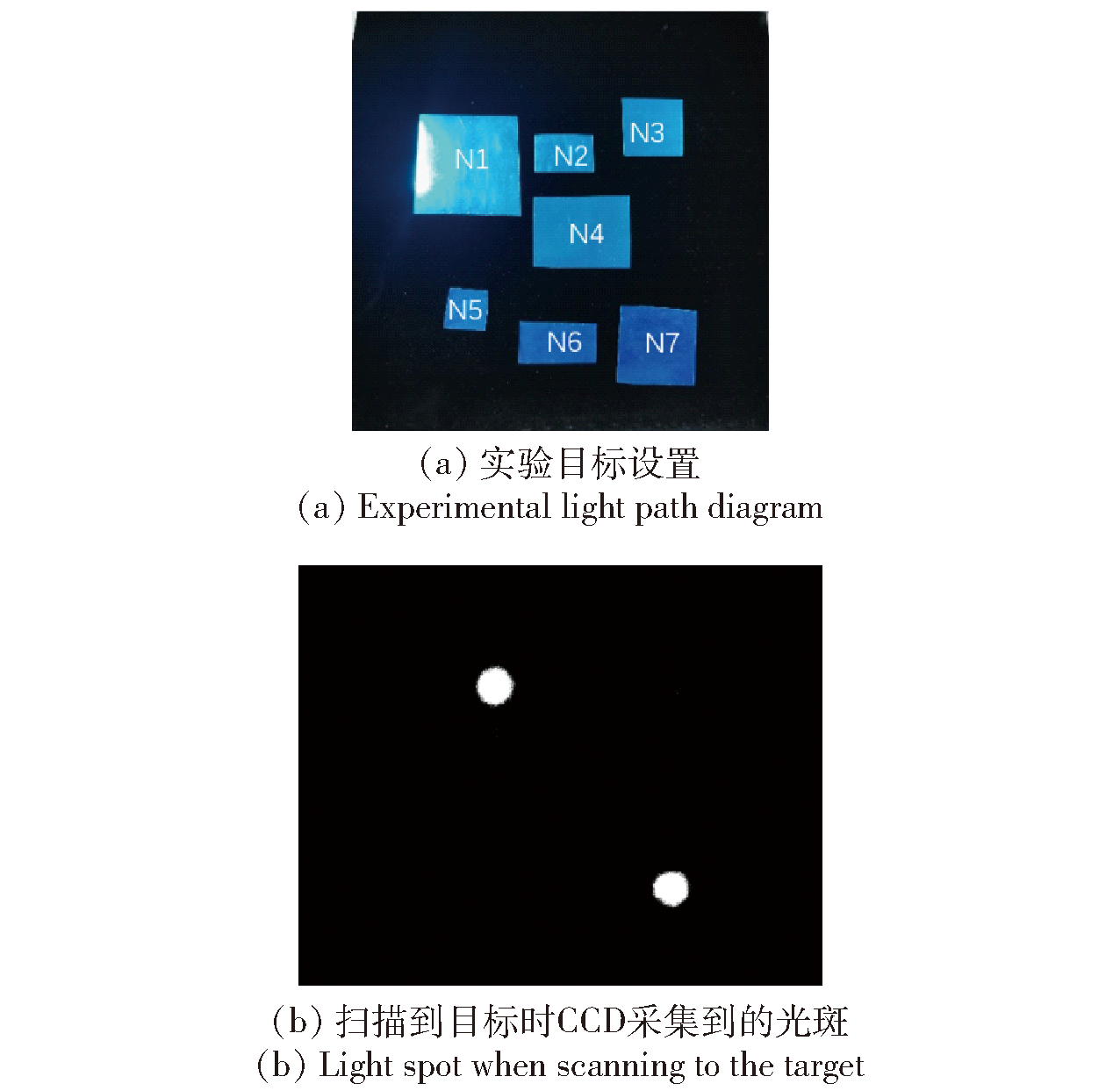

Fig.14 Scanned targets and spot display

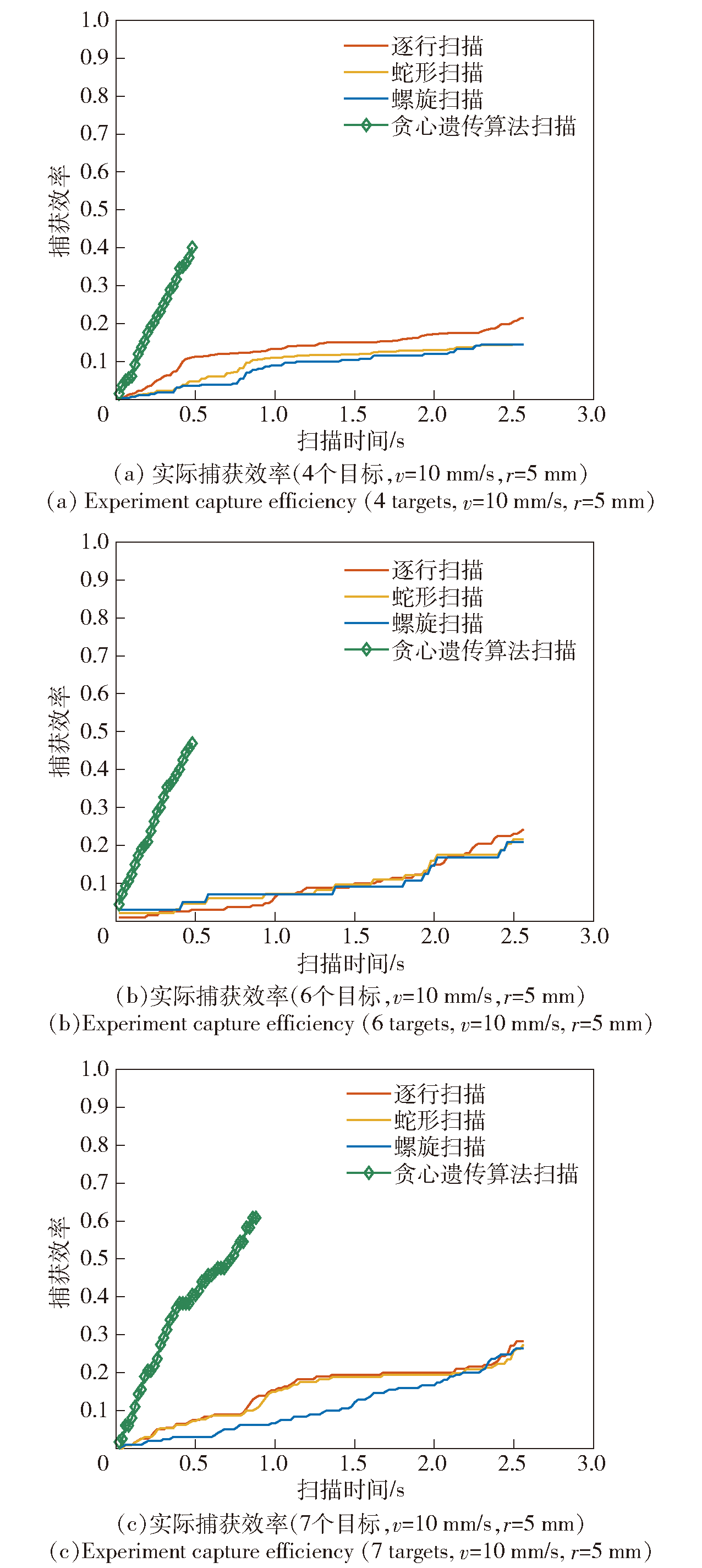

Fig.15 Experiment capture efficiency of different targets

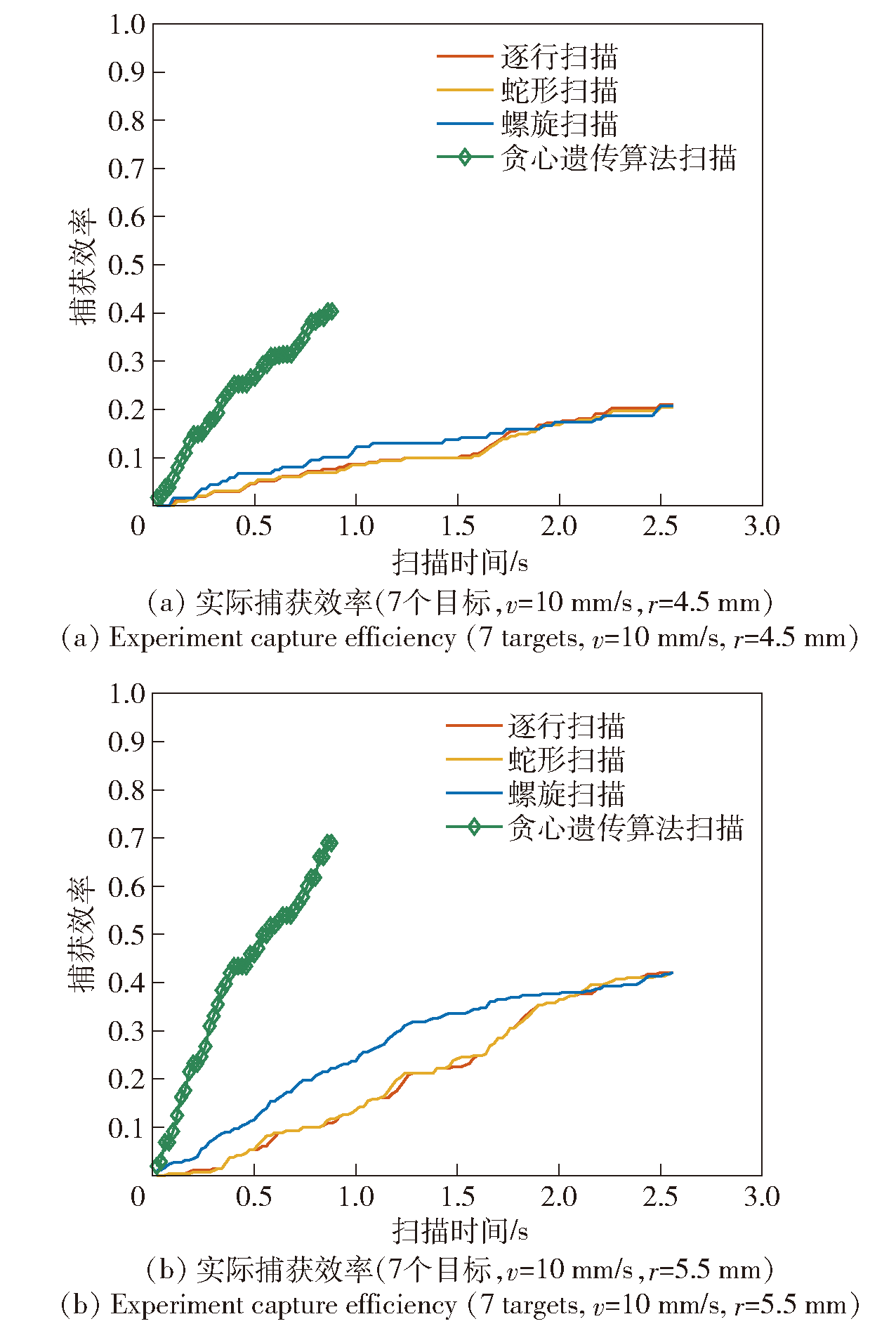

Fig.16 Experiment capture efficiency at different spot radii

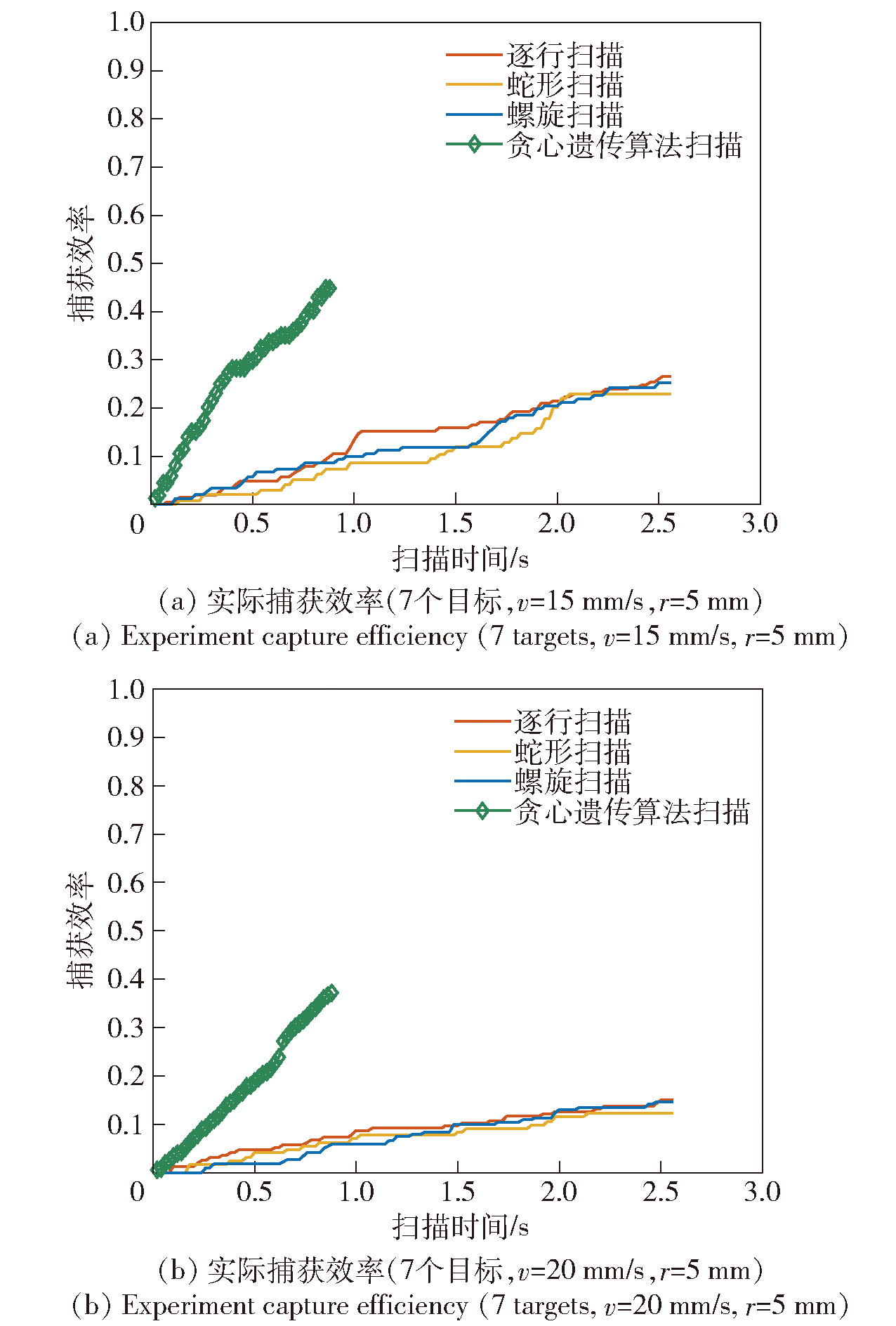

Fig.17 Experiment capture efficiency at different target speeds

References 25

[1]	RAJ T, HANIM H F, BASERI H A, et al. A survey on LiDAR scanning mechanisms[J]. Electronics, 2020, 9(5): 741. doi: 10.3390/electronics9050741 URL
[2]	HE J W, DONG T, XU Y. Review of photonic integrated optical phased arrays for space optical communication[J]. IEEE Access, 2020, 8: 188284-188298. doi: 10.1109/Access.6287639 URL
[3]	WU Y H, SHAO S, LI Y X, et al. Multi-beam optical phase array for long-range LiDAR and free-space data communication[J]. Optics & Laser Technology, 2022, 151: 108027.
[4]	NAKAMURA K, NARUMI K, KIKUCHI K, et al. Liquid crystal-tunable optical phased array for LiDAR applications[C]//Proceedings of Smart Photonic and Optoelectronic Integrated Circuits XXIII. Washington, D.C., US: SPIE, 2021, 11690: 94-99.
[5]	HOY C, STOCKLEY J, SHANE J, et al. Non-mechanical beam steering with polarization gratings: a review[J]. Crystals, 2021, 11(4): 361. doi: 10.3390/cryst11040361 URL
[6]	LI Z, ZANG Z H, HAN Y Q, et al. Solid-state FMCW LiDAR with two-dimensional spectral scanning using a virtually imaged phased array[J]. Optics Express, 2021, 29(11): 16547-16562. doi: 10.1364/OE.418003 pmid: 34154215
[7]	马阎星, 吴坚, 粟荣涛, 等. 光学相控阵技术发展概述[J]. 红外与激光工程, 2020, 49(10): 20201042-1-20201042-14.
	MA Y X, WU J, SU R T, et al. Review of optical phased array techniques[J]. Infrared and Laser Engineering, 2020, 49(10): 20201042-1-20201042-14. (in Chinese)
[8]	郑青泉. 液晶偏振光栅斜入射下光束偏转技术研究[D]. 西安: 西安工业大学, 2022. ZHENG Q Q. Study on beam deflection technology under oblique incidence of liquid crystal polarization grating [D]. Xi'an:Xi'an University of Technology, 2022. (in Chinese)
[9]	王琦, 高旭峰, 张大伟, 等. 液晶光学相控阵技术的研究进展[J]. 激光与光电子学进展, 2021, 58(17):94-105.
	WANG Q, GAO X F, ZHANG D W, et al. Research progress of liquid crystal optical phased array technology[J]. Advances in Laser and Optoelectronics, 2021, 58(17):94-105. (in Chinese)
[10]	扈航, 刘磊, 李聪, 等. 深空合作目标高概率捕获复合扫描策略研究[J]. 中国空间科学技术, 2022, 42(3):58-66.
	HU H, LIU L, LI C, et al. Research on composite scanning strategy for high-probability acquisition of deep space cooperative targets[J]. Chinese Space Science and Technology, 2022, 42(3): 58-66. (in Chinese)
[11]	WANG X R, HUANG Z Q, TAN Q G, et al. Stochastic scanning method to shorten acquisition time using liquid crystal optical phased array[J]. Optical Engineering, 2016, 55(2):026109. doi: 10.1117/1.OE.55.2.026109 URL
[12]	袁光福, 马晓燠, 刘爽, 等. 激光雷达扫描方式[J]. 强激光与粒子束, 2020, 32(4):65-70.
	YUAN G F, MA X Y, LIU S, et al. Lidar scanning method[J]. Strong Laser and Particle Beam, 2020, 32(4):65-70. (in Chinese)
[13]	汪相如, 谭庆贵, 黄子强, 等. 液晶光学相控阵的双波束成形和2维扫描技术[J]. 激光技术, 2013, 37(5):631-635.
	WANG X R, TAN Q G, HUANG Z Q, et al. Dual beam formation and 2-D scan technique of liquid crystal optical phased array[J]. Laser Technology, 2013, 37(5): 631-635. (in Chinese) doi: 10.1016/j.optlastec.2004.10.001 URL
[14]	GOLMOHAMMAGY S, GHAFARY B. Stokes parameters of phase-locked partially coherent flat-topped array laser beams propagating through turbulent atmosphere[J]. Laser Physics, 2016, 26(6): 066201. doi: 10.1088/1054-660X/26/6/066201 URL
[15]	王承邈. 基于液晶光学相控阵的高精度光束指向控制技术[D]. 长春: 中国科学院大学(中国科学院长春光学精密机械与物理研究所), 2021.
	WANG C M. High precision beam pointing control technology based on liquid crystal optical phased array[D]. Changchun: University of Chinese Academy of Sciences(Changchun Institute of Optics, Precision Mechanics and Physics, Chinese Academy of Sciences), 2021. (in Chinese)
[16]	赵志伟. 大偏转角液晶偏振光栅的研究[D]. 长春: 中国科学院大学(中国科学院长春光学精密机械与物理研究所), 2020.
	ZHAO Z W. Research on large deflection angle liquid crystal polarization grids[D]. Changchun: University of Chinese Academy of Sciences (Changchun Institute of Optics and Precision Mechanics and Physics, Chinese Academy of Sciences), 2021. (in Chinese)
[17]	GARCIA B M, GEDAY M A, OTON J M, et al. Two-dimensional digital beam steering based on liquid crystal phase gratings[J]. Applied Sciences, 2021, 11(8): 3632. doi: 10.3390/app11083632 URL
[18]	王丽娜, 李明秋, 王春阳, 等. 级联液晶偏振光栅的衍射特性分析[J]. 激光与光电子学进展, 2020, 57(3):88-92.
	WANG L N, LI M Q, WANG C Y, et al. Diffraction characteristics of cascaded liquid crystal polarizing gratings[J]. Laser & Optoelectronics Progress, 2020, 57(3): 88-92. (in Chinese)
[19]	刘壮, 王启东, 王超, 等. 正交级联液晶偏振光栅角度偏转模型[J]. 光子学报, 2021, 50(11): 1105003-1-1105003-10.
	LIU Z, WANG Q D, WANG C, et al. Deflection angular model of orthogonal cascade liquid crystal polarization gratings[J]. Acta Photonica Sinica, 2021, 50(11):1105003-1-1105003-10. (in Chinese)
[20]	WANG Z S, WAMG C Y, LIANG S L, et al. Diffraction characteristics of a non-mechanical beam steering system with liquid crystal polarization gratings[J]. Optics Express, 2022, 30(5): 7319-7331. doi: 10.1364/OE.452397 pmid: 35299496
[21]	丁海婷, 周琳, 刁伟峰. 基于背包问题的多相控阵雷达多目标跟踪时间资源管理算法[J]. 兵工学报, 2021, 42(5): 997-1003.
	DING H T, ZHOU L, DIAO W F. Multi-phased array radar multi-objective tracking time resource management algorithm based on backpack problem[J]. Acta Armamentarii, 2021, 42(5): 997-1003. (in Chinese)
[22]	张浩为, 谢军伟, 张昭建, 等. 基于混合自适应遗传算法的相控阵雷达任务调度[J]. 兵工学报, 2017, 38(9):1761-1770. doi: 10.3969/j.issn.1000-1093.2017.09.013
	ZHANG H W, XIE J W, ZHANG Z J, et al. Task scheduling of phased array radar based on hybrid adaptive genetic algorithm[J]. Acta Armamentarii, 2017, 38(9):1761-1770. (in Chinese)
[23]	宋海生, 傅仁毅, 徐瑞松, 等. 求解多背包问题的混合遗传算法[J]. 计算机工程与应用, 2009, 45(20): 45-48.
	SONG H S, FU R Y, XU R S, et al. Hybrid genetic algorithm for multi knapsack problem[J]. Computer Engineering and Application, 2009, 45(20):45-48. (in Chinese)
[24]	贾冰, 吕琼莹, 曹国华. 脉冲激光分布式扫描参数的优化分析[J]. 中国激光, 2017, 44(12):198-205.
	JIA B, LÜ Q Y, CAO G H. Optimization analysis of pulse laser distributed scanning parameters[J]. China Laser, 2017, 44(12):198-205. (in Chinese)
[25]	杨善超, 田康生, 李宏权, 等. 综合优先级下反导预警相控阵雷达任务调度算法[J]. 兵工学报, 2020, 41(2):315-323. doi: 10.3969/j.issn.1000-1093.2020.02.013
	YANG S C, TIAN K S, LI H Q, et al. Comprehensive priority-based task scheduling algorithm for anti-missile early warning phased array radar[J]. Acta Armamentarii, 2020, 41(2): 315-323. (in Chinese) doi: 10.3969/j.issn.1000-1093.2020.02.013
