Simulation of Falling-floating Process of Vehicle with Ellipsoidal Airbags

doi:10.12382/bgxb.2022.0503

Abstract

Abstract:

A recovery scheme of vehicle with ellipsoidal airbags is proposed for the problem of model falling into the water at low speed in the underwater launch model test. The numerical simulation is based on Abaqus coupled Eulerian-Lagrangian method, and the effectiveness of the numerical method is verified by comparing the numerical and experimental results of the AUV head section entering into the water. The motion process of the vehicle with airbags entering the water at low speed, the change of airbag pressure and the force of the connecting belt under the conditions of different attitude angles and different initial airbag pressures are analyzed. The results show that the attitude angle of vehicle is the most important factor affecting the falling-floating process, followed by the initial airbag pressure. For the maximum depth of falling into the water, the peak value of airbag pressure and the peak value of pulling force, the condition that tends to fall vertically is more dangerous, the maximum depth of falling into the water is 1.33 times the length of vehicle, the maximum airbag pressure is 3.7 times the baseline airbag pressure, and the maximum pulling force of connecting belt is 2.2 times the gravity of vehicle. These conclusions can provide a reference for the design of recovery scheme and structural parameters for the vehicles falling into the water.

Key words: vehicle, airbag, water-entry impact, coupled Eulerian-Lagrangian method

CLC Number:

TJ63⁺1.7

BAO Jian, MA Guihui, SUN Longquan, CHEN Weichu, LI Ming. Simulation of Falling-floating Process of Vehicle with Ellipsoidal Airbags[J]. Acta Armamentarii, 2024, 45(1): 206-218.

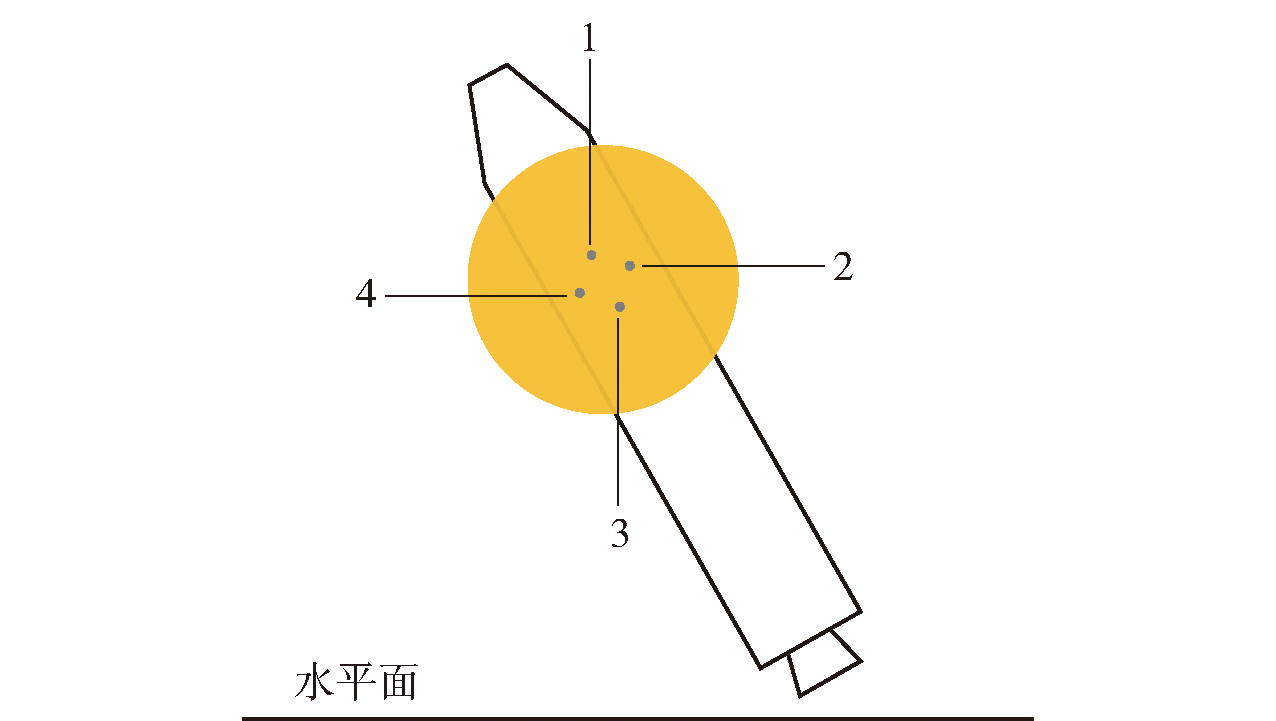

Figures/Tables 25

Table 1 Parameters of water

线性U_S-U_P方程参数			物理性质参数
c₀/(m·s^-1)	s	Γ₀	密度/(kg·m^-3)	动力黏度/(Pa·s)
1480	0	0	1000	0.001

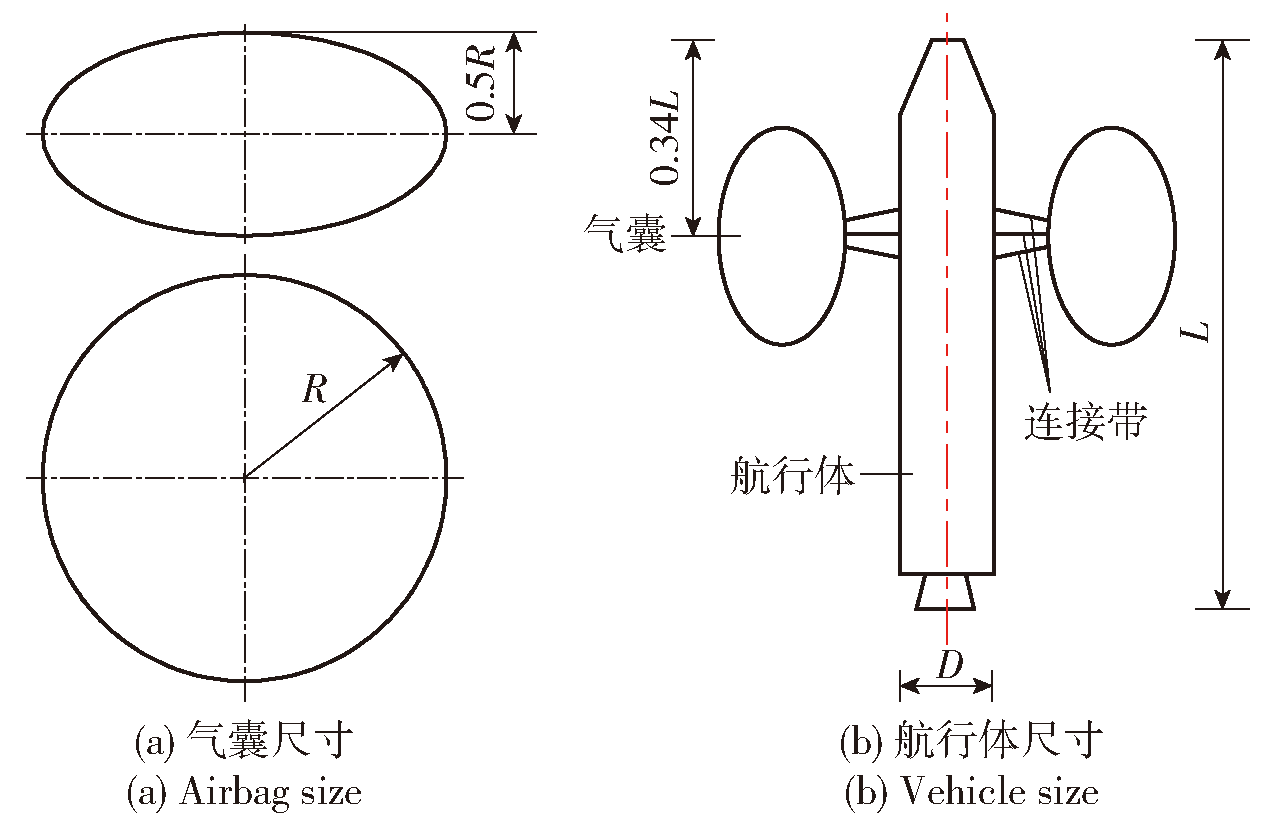

Fig.1 Assembly diagram of physical model

Table 2 Parameters of air

MW	$a ~$	$b ~$	$c ~$	$d ~$	$e ~$
0.0289	28.11	1.967×10^-3	4.802×10^-6	-1.966×10^-9	0

Table 2 Parameters of air

MW	$a ~$	$b ~$	$c ~$	$d ~$	$e ~$
0.0289	28.11	1.967×10^-3	4.802×10^-6	-1.966×10^-9	0

Table 3 Main material parameters of each component

部件名称	密度/(kg·m^-3)	弹性模量/GPa	泊松比
航行体	1270	210	0.3
囊布	840	16	0.2
连接带	840	16	0.2

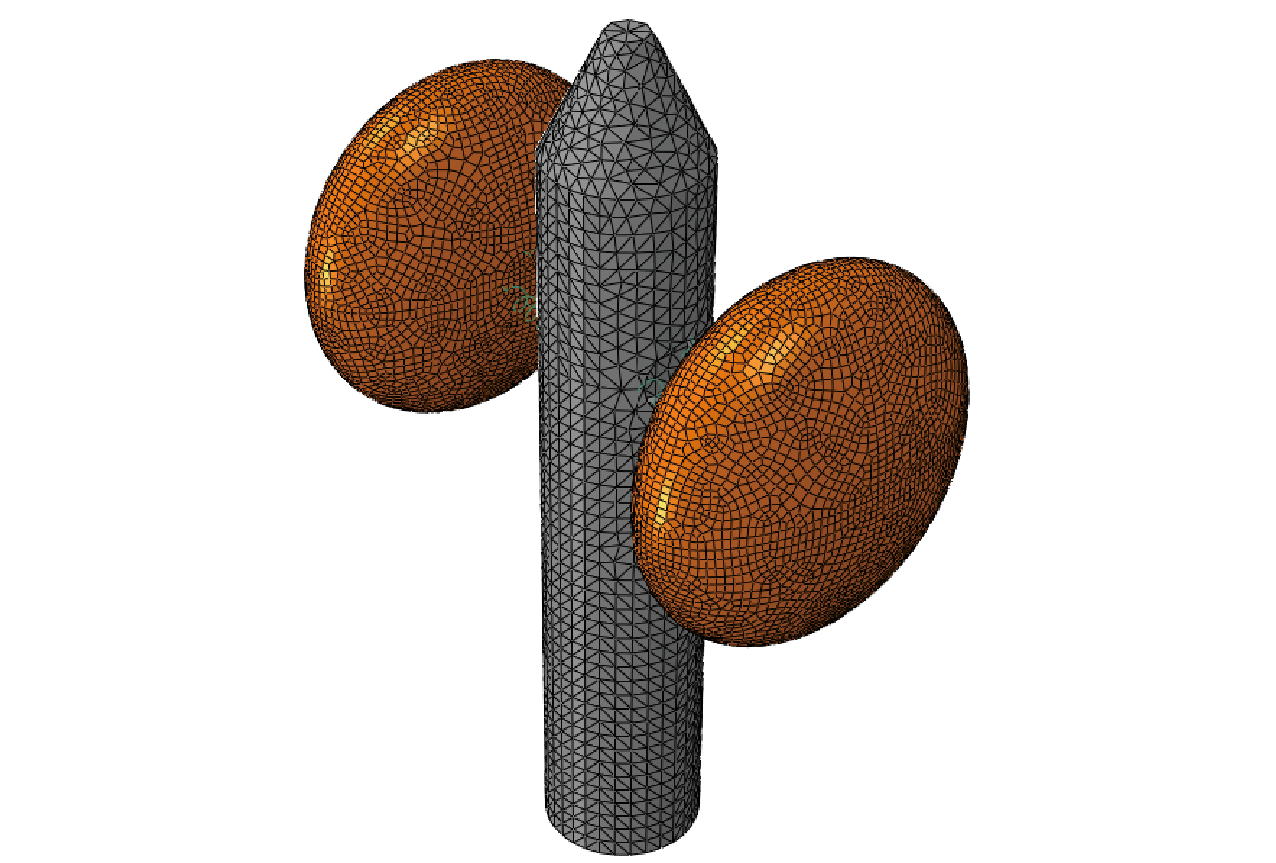

Fig.2 Mesh division of vehicle with airbags

Fig.3 Mesh division of Euler domain

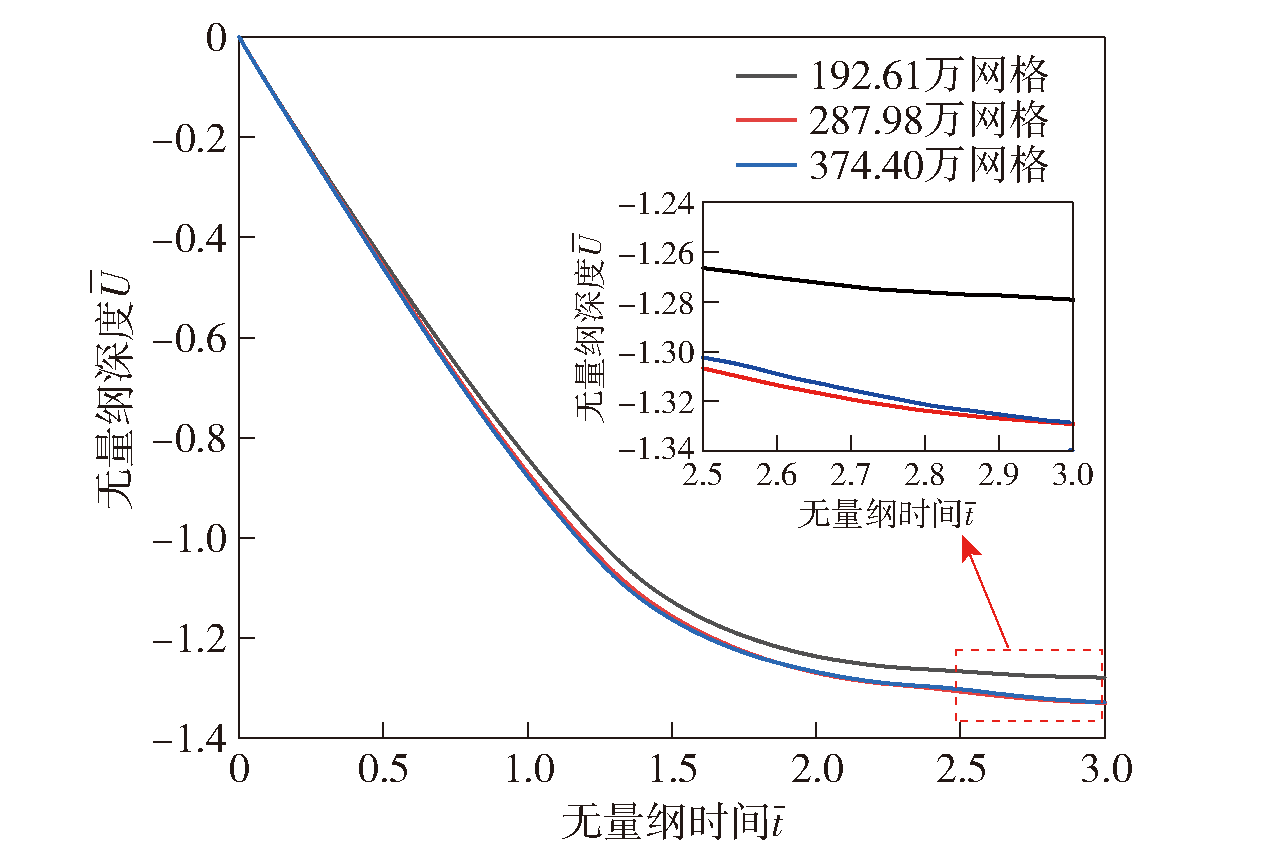

Fig.4 Grid independence verification

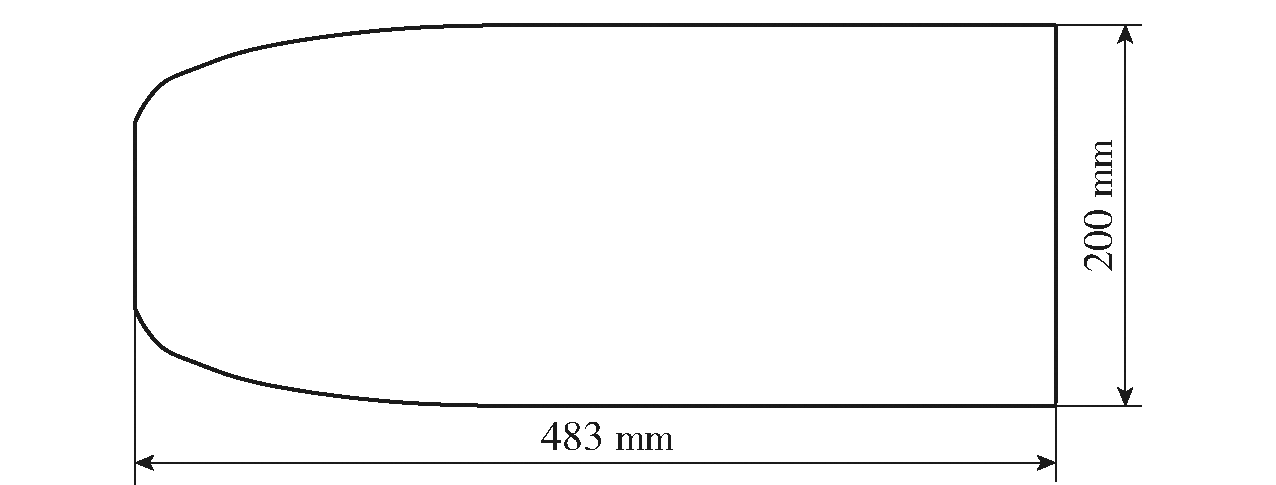

Fig.5 Model of AUV head section

Fig.6 Numerical model of AUV head section entering water

Fig.7 Comparison of water-entry processes (The upper part shows the experimental results, and the lower part shows the simulation results)

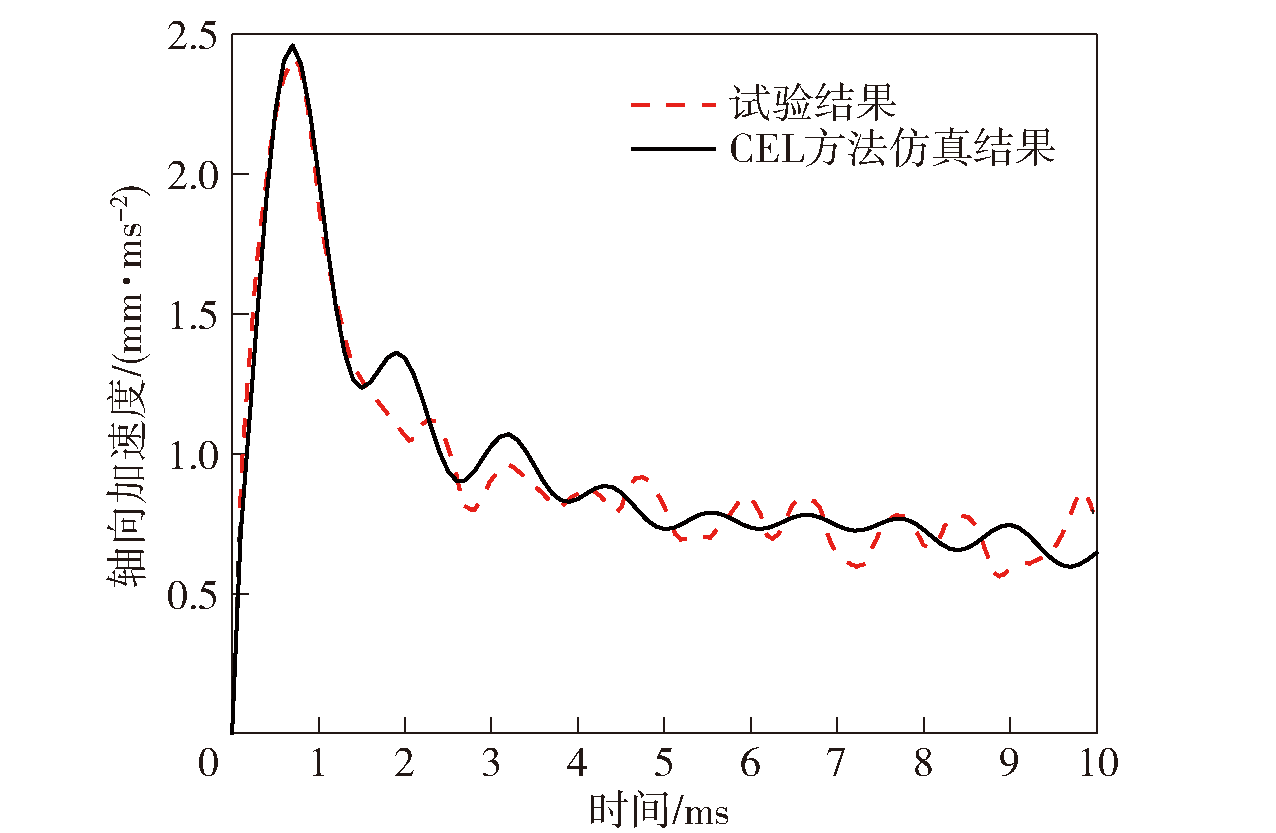

Fig.8 Comparison of axial accelerations

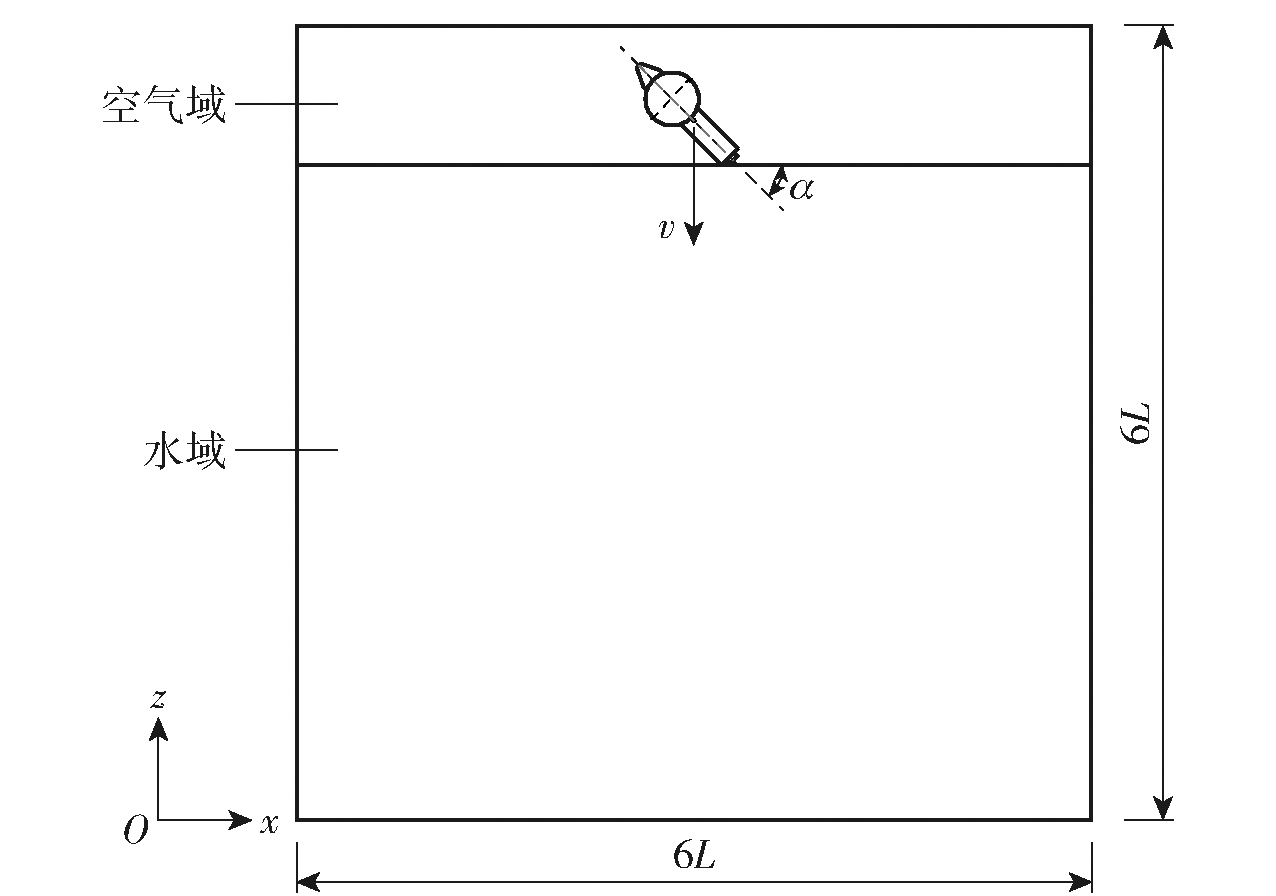

Fig.9 Schematic diagram of motion parameters of vehicle at the initial time

Fig.10 Schematic diagram of the numbering of connecting belts

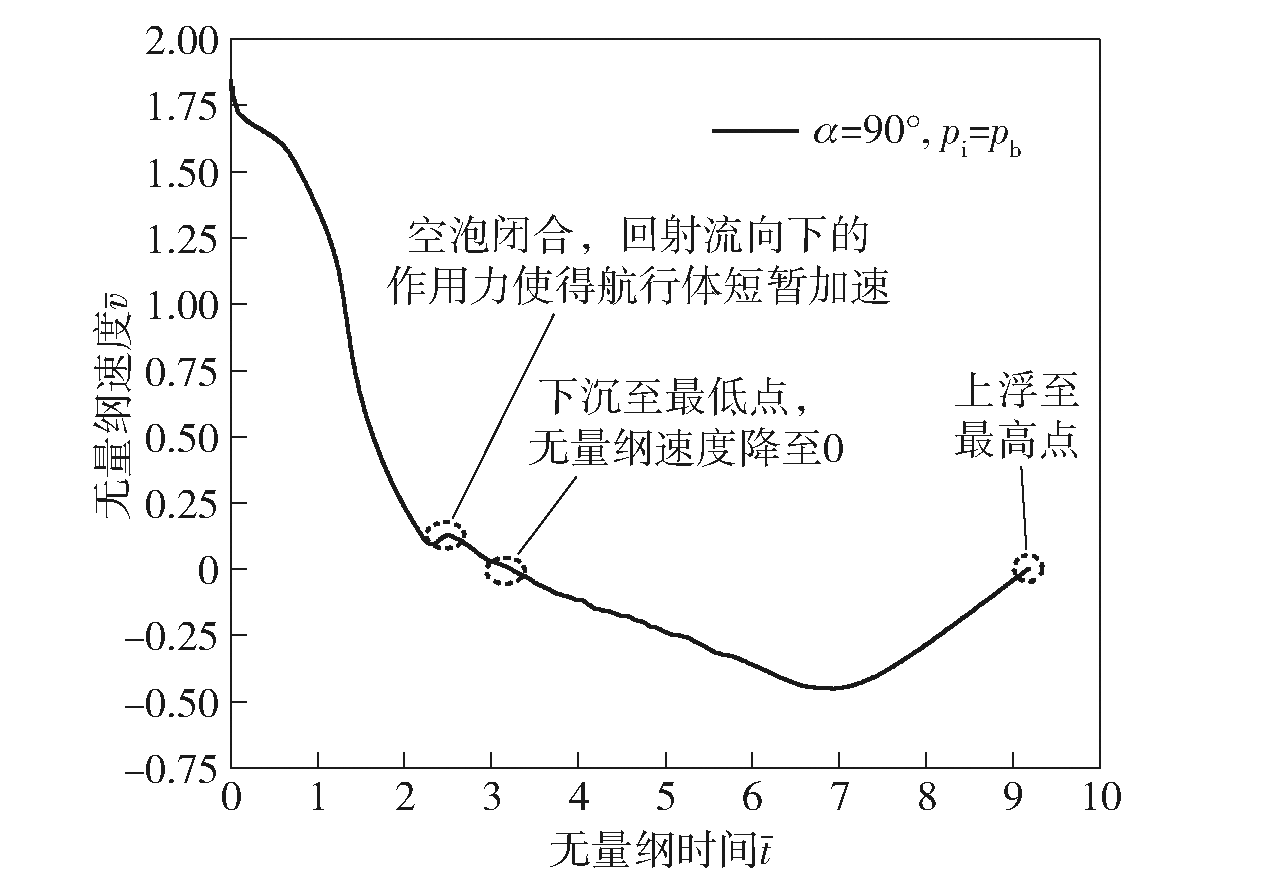

Fig.11 Dimensionless velocity of vehicle with airbags vertically falling into the water

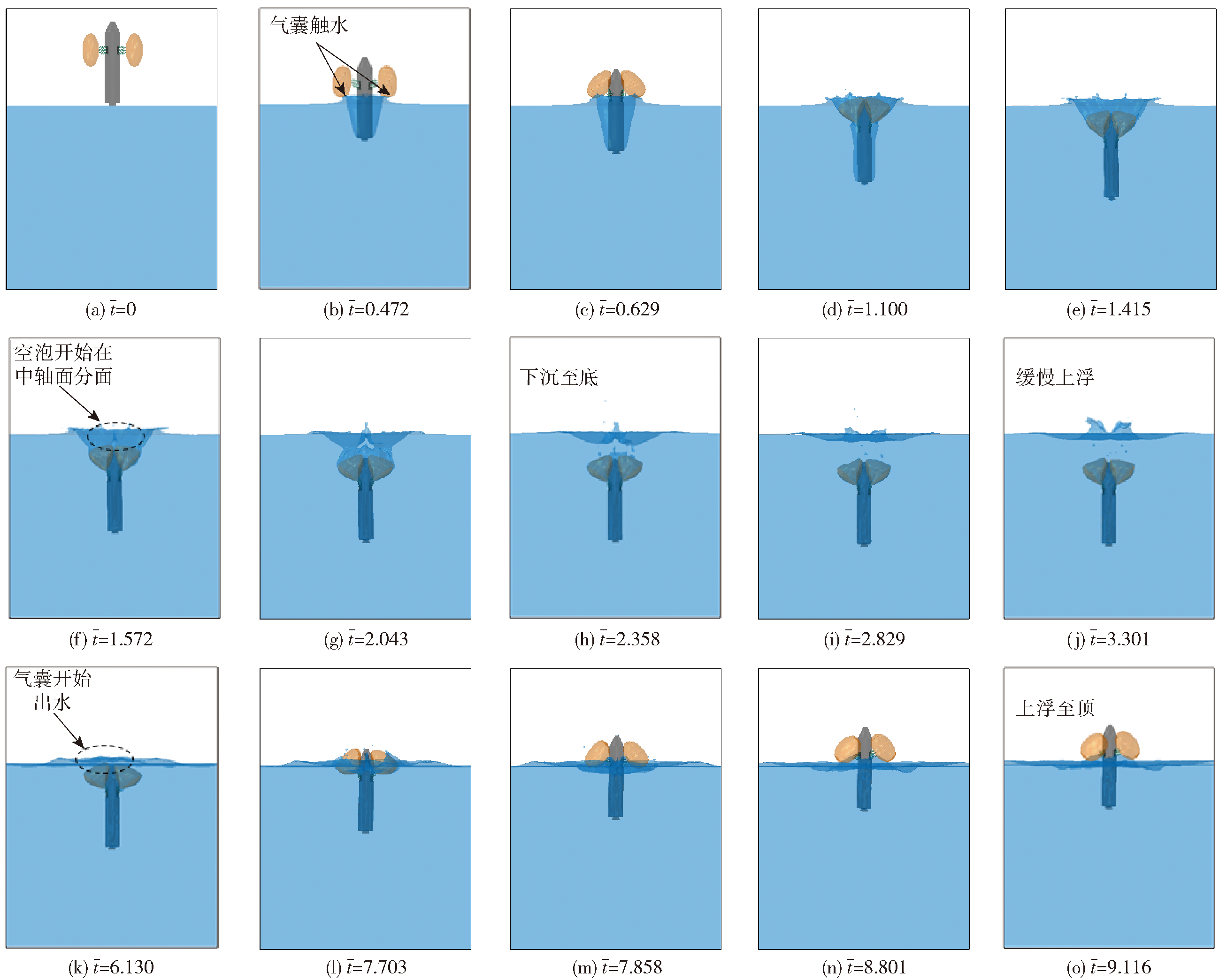

Fig.12 Vertically falling and floating processes of vehicle with airbags

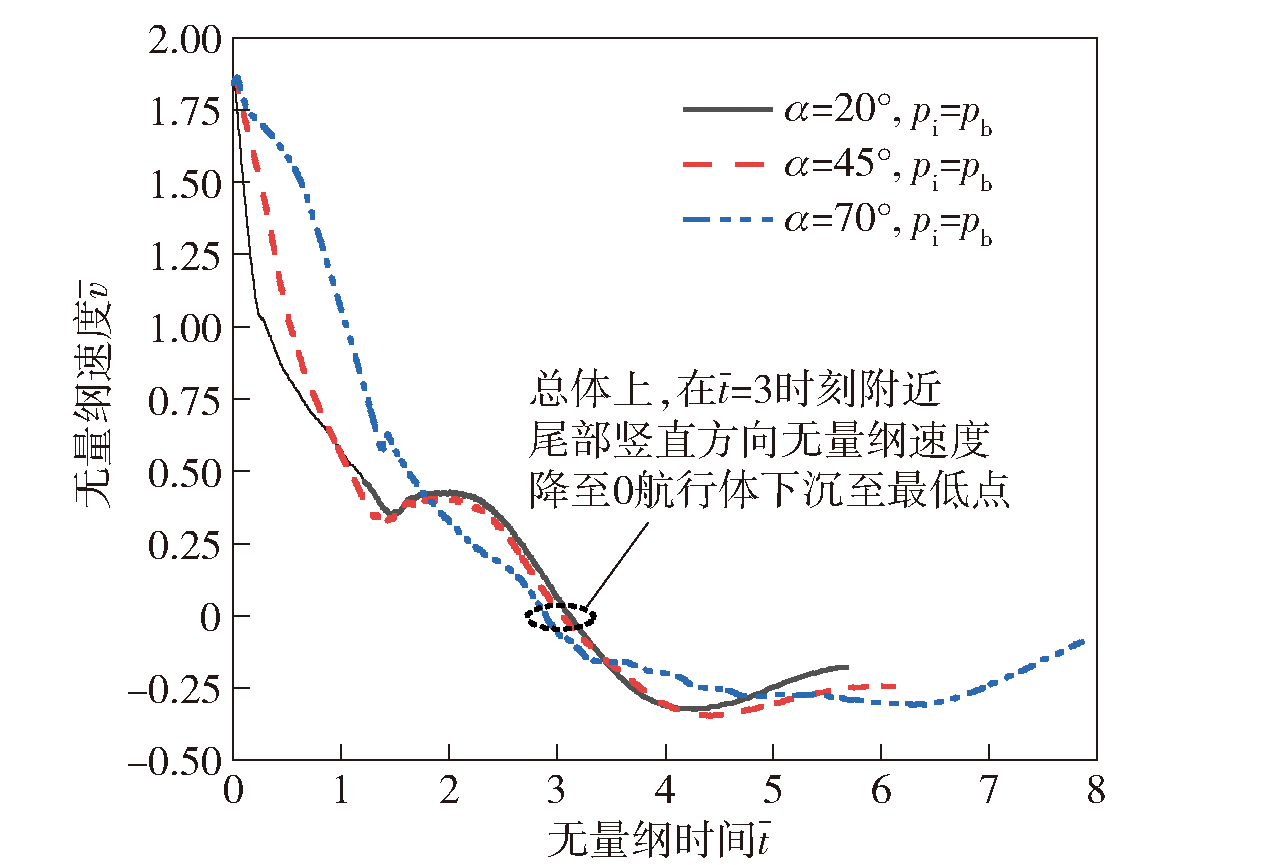

Fig.13 Dimensionless vertical velocity of vehicle with airbags obliquely falling into the water

Table 4 Obliquely falling and floating processes of vehicle with airbags

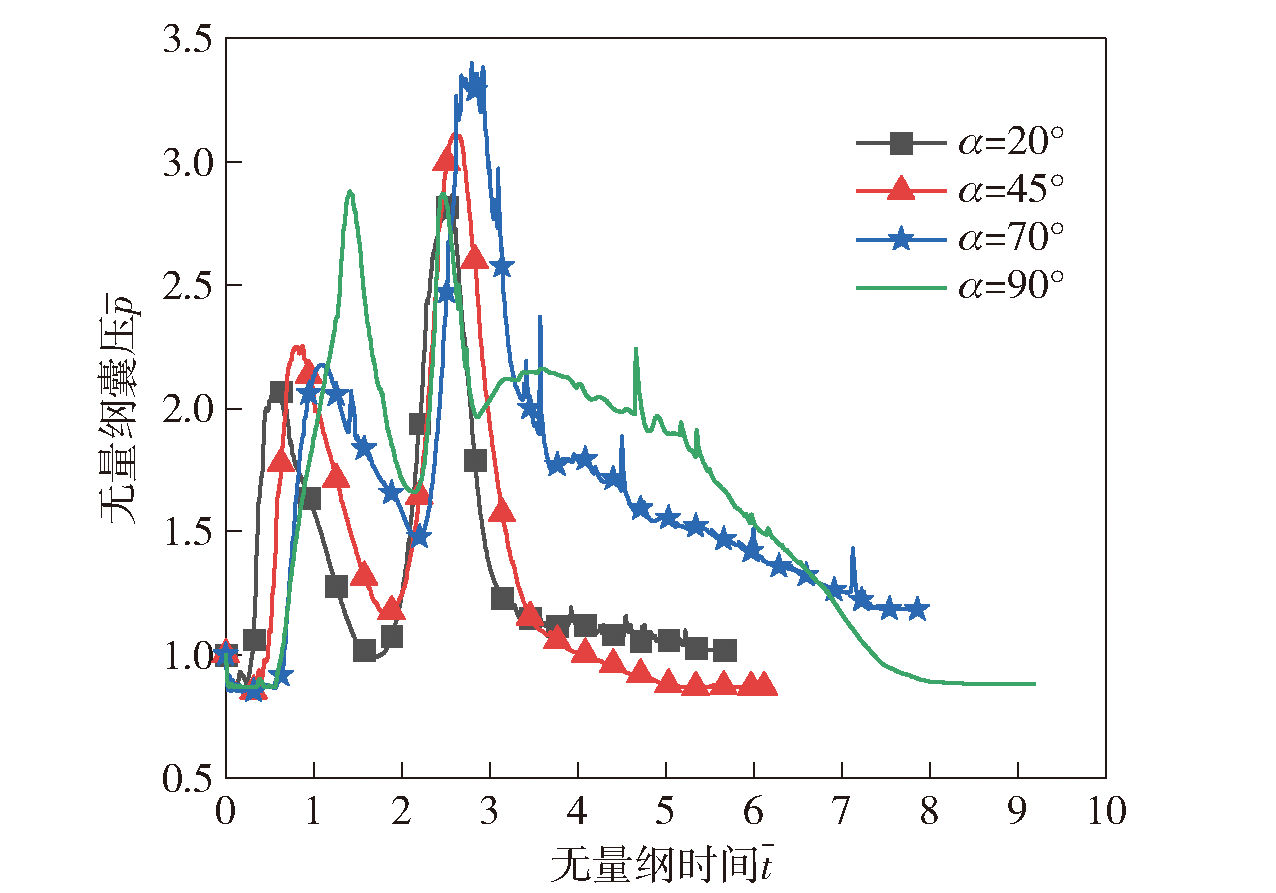

Fig.14 Dimensionless airbag pressures at different attitude angles of vehicle with airbags when falling into the water

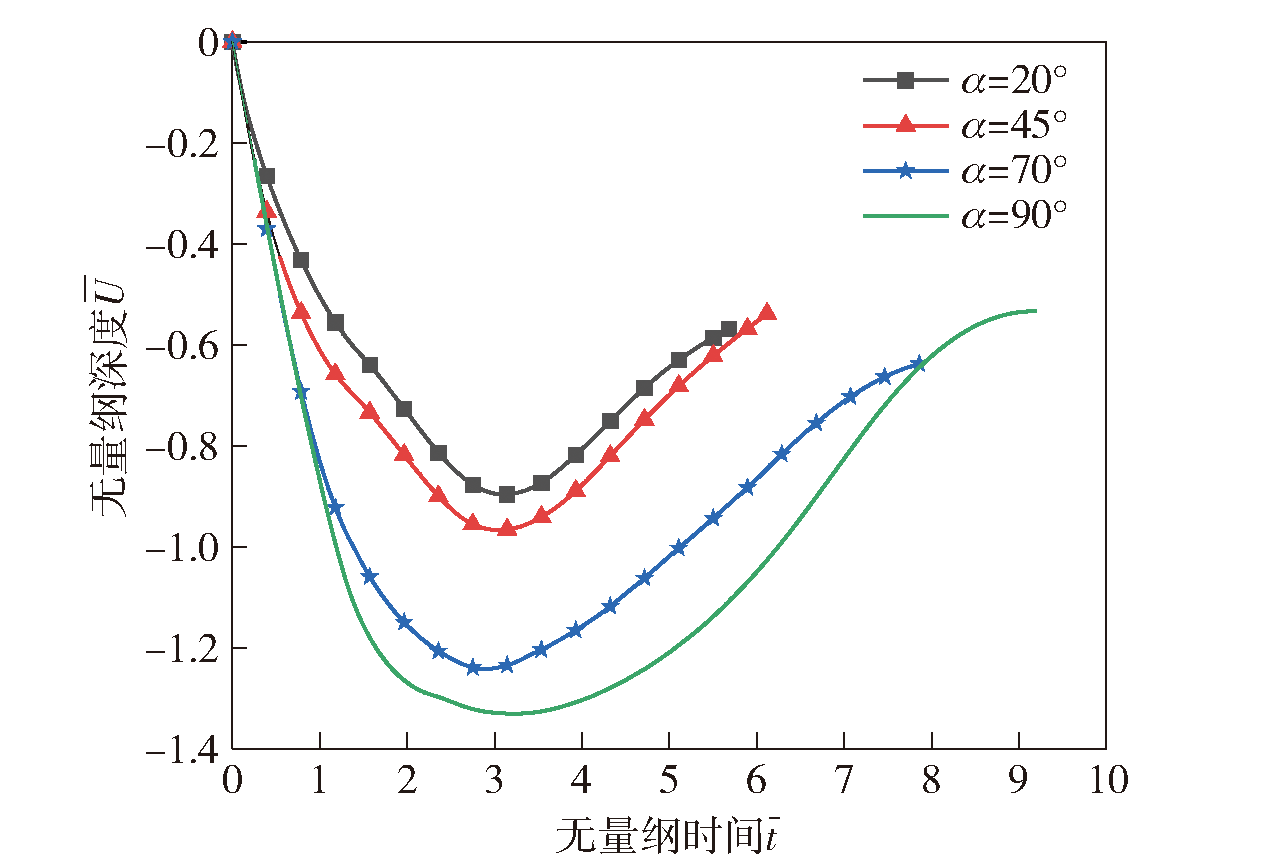

Fig.15 Dimensionless falling depths of vehicle with airbags at different attitude angles

Table 5 Maximum dimensionless falling depths of vehicle with airbags at different attitude angles

α/(°)	最大无量纲深度 $U ¯ m a x$	对应无量纲时刻 $t ¯$
20	-0.90	3.096
45	-0.97	3.026
70	-1.24	2.881
90	-1.33	3.083

Table 5 Maximum dimensionless falling depths of vehicle with airbags at different attitude angles

α/(°)	最大无量纲深度 $U ¯ m a x$	对应无量纲时刻 $t ¯$
20	-0.90	3.096
45	-0.97	3.026
70	-1.24	2.881
90	-1.33	3.083

Fig.16 Dimensionless tension forces of one-side connecting belts at different attitude angles

Table 6 Maximum dimensionless tensile forces of one-side connecting belt at different attitude angles

姿态角α/(°)	最大无量纲拉力 $F ¯ m a x$	起主要作用的连接带编号
20	0.98	3和4
45	0.79	3和4
70	0.94	3和4
90	2.01	3

Table 6 Maximum dimensionless tensile forces of one-side connecting belt at different attitude angles

姿态角α/(°)	最大无量纲拉力 $F ¯ m a x$	起主要作用的连接带编号
20	0.98	3和4
45	0.79	3和4
70	0.94	3和4
90	2.01	3

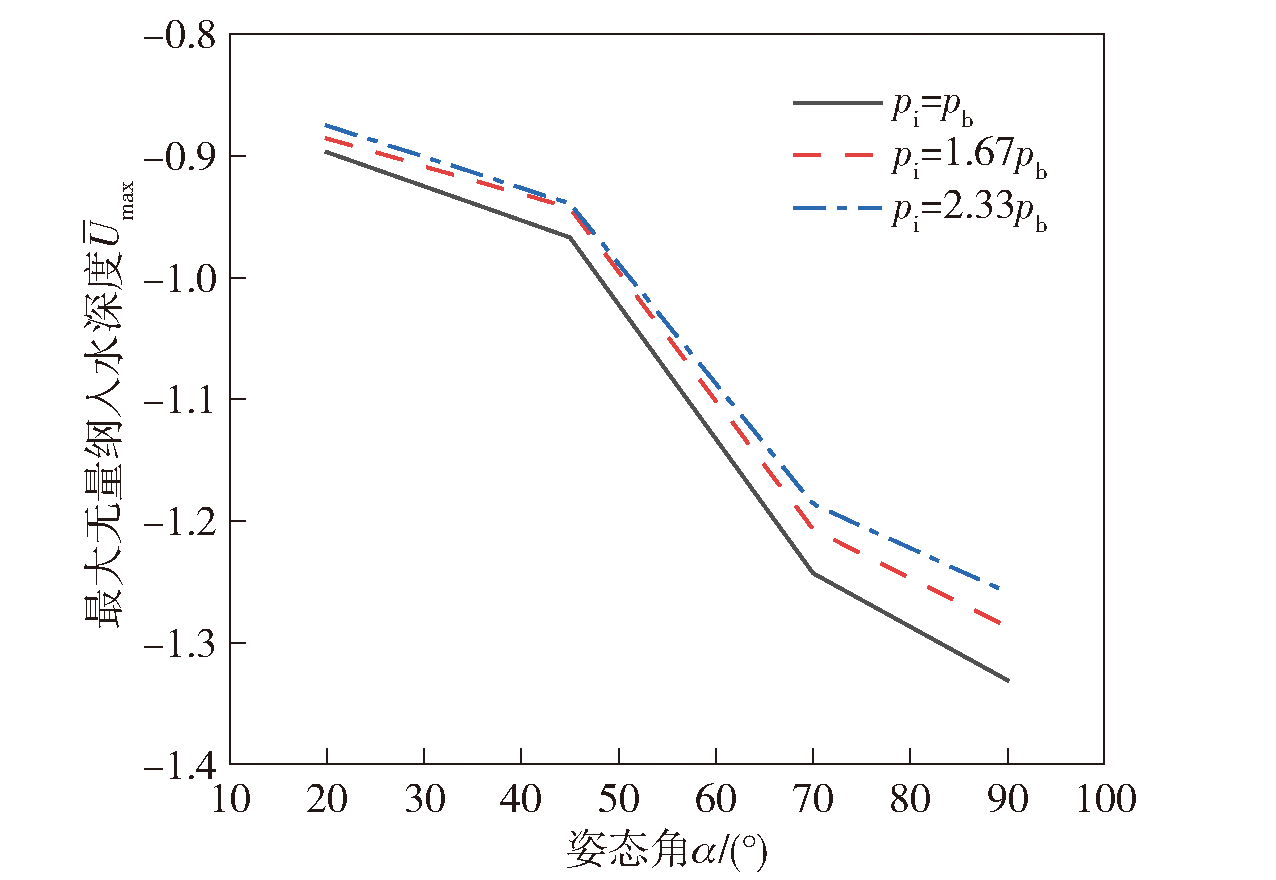

Fig.17 Maximum dimensionless falling depths at different initial airbag pressures

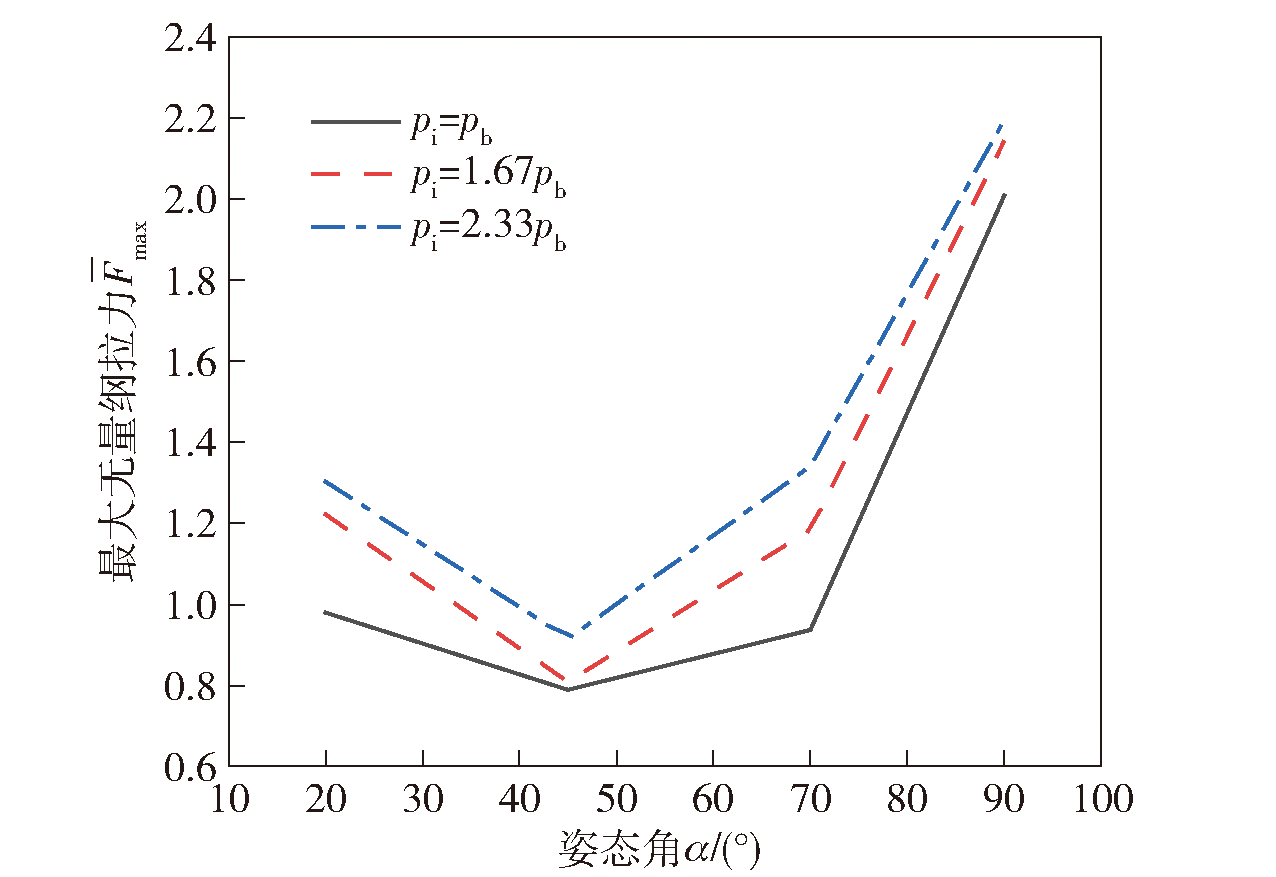

Fig.18 Maximum dimensionless tensile forces of one-side connecting belts at different initial airbag pressures

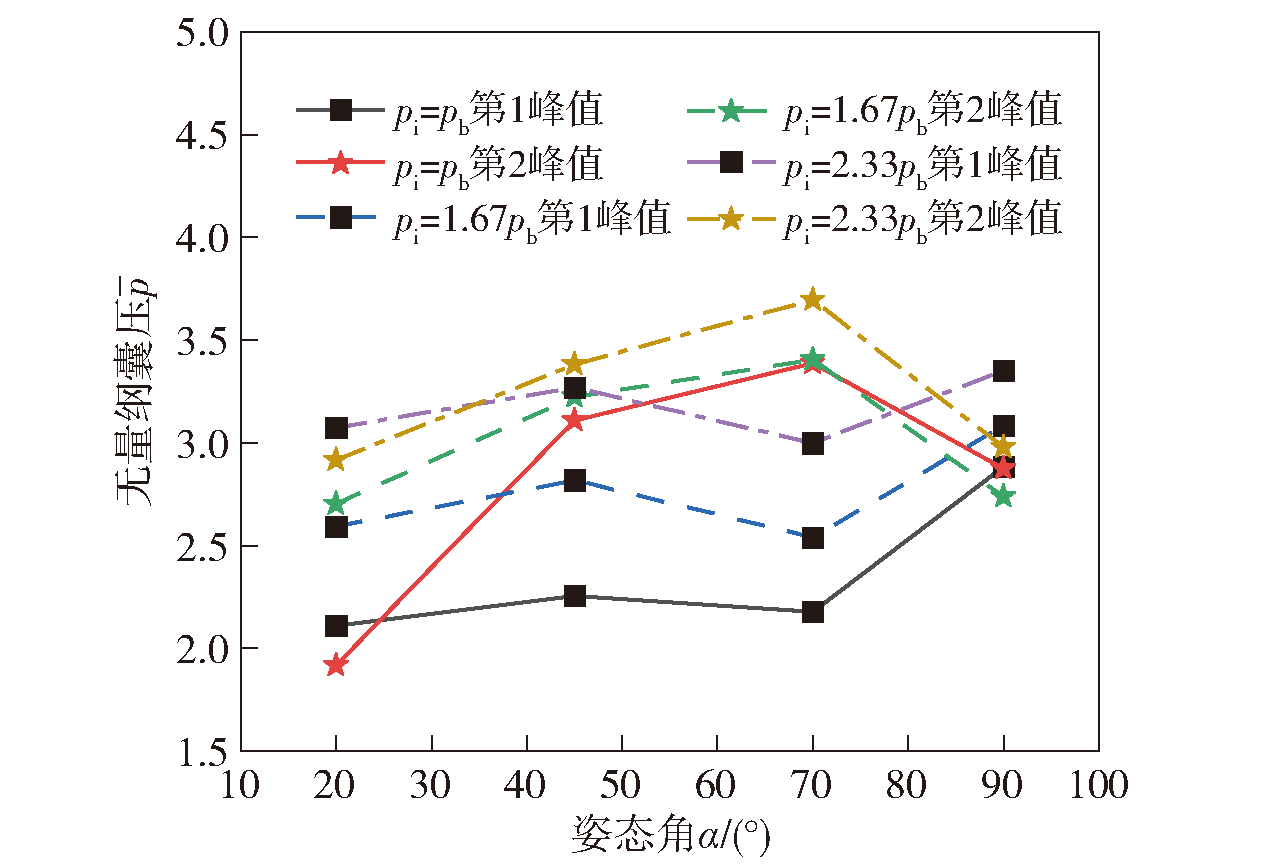

Fig.19 Peak dimensionless pressures at different initial airbag pressures
