Opportunistic Maintenance Strategy for Complex Two-dimensional Warranty Equipment Considering Failure Correlation

doi:10.12382/bgxb.2022.0101

Abstract

Abstract:

To address the problem that isolated maintenance to individual components during the warranty period reduces equipment availability and increases equipment warranty costs, the optimal opportunistic maintenance strategy for multi-component systems is explored by combining the characteristics of complex equipment and the current situation of two-dimensional warranty, with the availability of equipment during the warranty period as the main quantitative analysis index. Based on the failure correlation analysis of the multi-component system, the opportunistic maintenance strategy is applied in combination with the preventive maintenance plan of each single component, and the two-dimensional warranty availability model of the multi-component system is established by introducing the reliability threshold at the time of opportunistic maintenance and optimizing the combined preventive maintenance work of each single component. In the case analysis, the genetic algorithm is used to find the optimal opportunistic maintenance strategy for a new armored assault vehicle power system. The results of the comparative analysis show that the opportunistic maintenance strategy increases the power system availability by 10% and reduces the warranty cost by 9.3%, which fully verifies the effectiveness of the strategy and improves the military and economic benefits of equipment maintenance and support. This strategy can provide a scientific basis and quantitative analysis method for the development of the opportunistic maintenance strategy for multi-component systems using two-dimensional warranty service.

Key words: equipment support, complex equipment, failure dependence, two-dimensional warranty, preventive maintenance, opportunistic maintenance

DONG Enzhi, CHENG Zhonghua, WANG Rongcai, ZHANG Xiaona, ZHANG Yuexing, WU Weiyi, YUE Shuai. Opportunistic Maintenance Strategy for Complex Two-dimensional Warranty Equipment Considering Failure Correlation[J]. Acta Armamentarii, 2023, 44(6): 1688-1703.

Figures/Tables 22

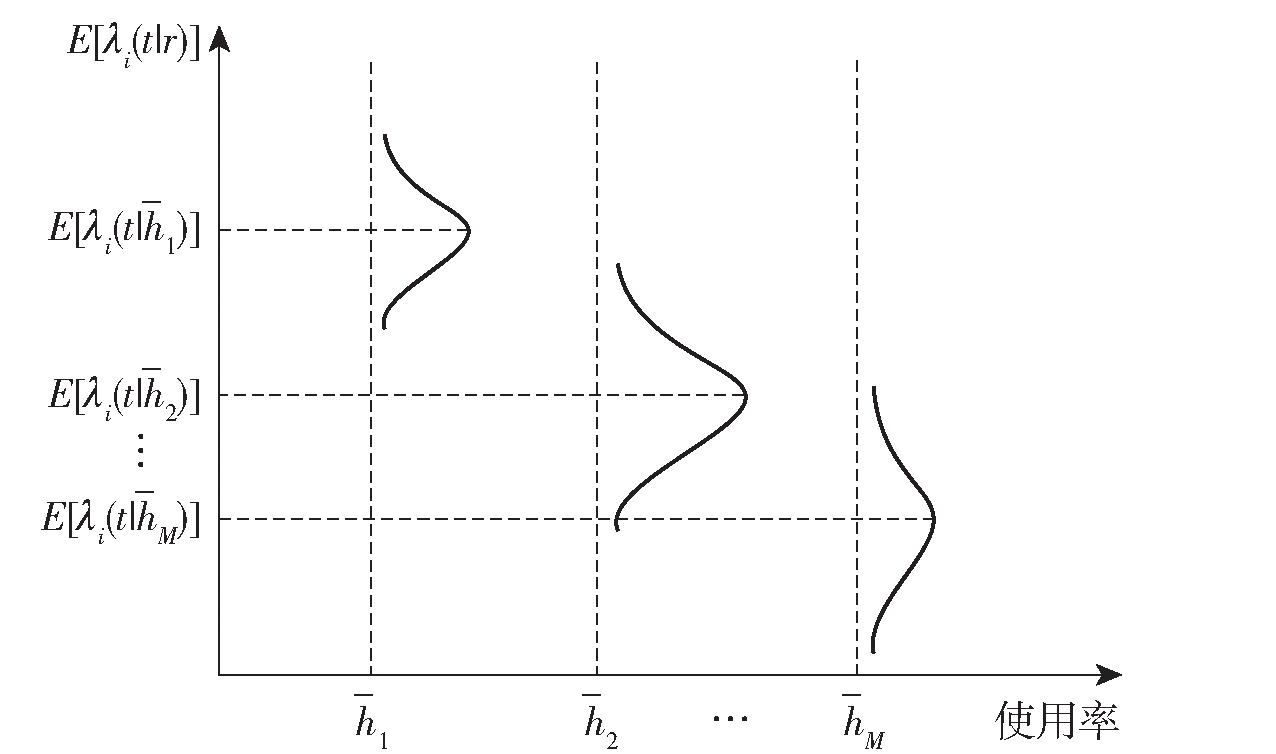

Fig.1 Failure rate function fitting under different utilization rates

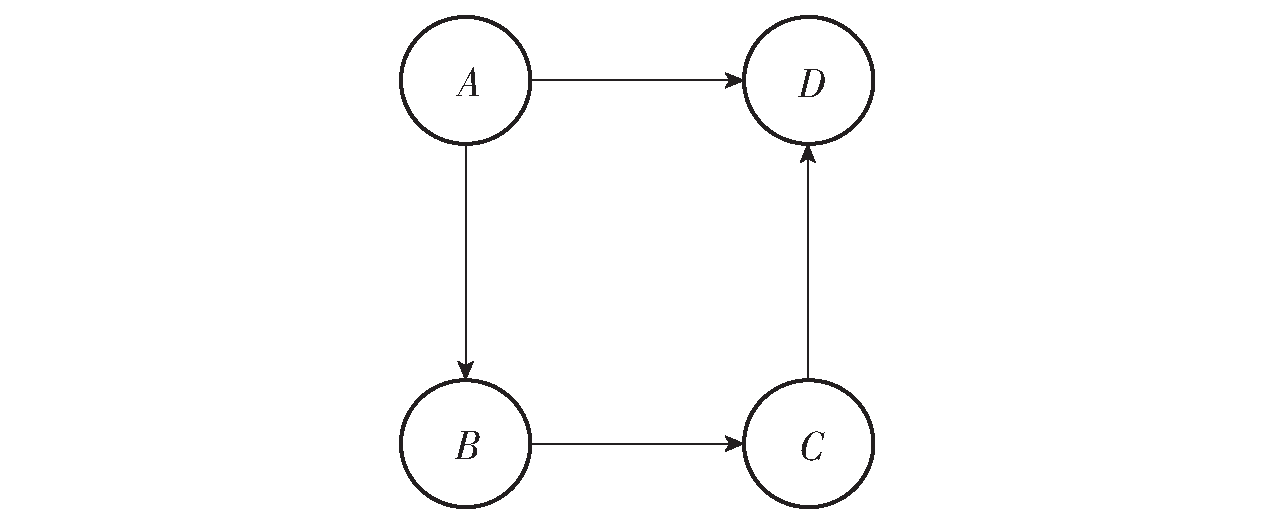

Fig.2 Failure chain model

Table 1 Component number

部件	编号
A	1
B	2
C	3
D	4

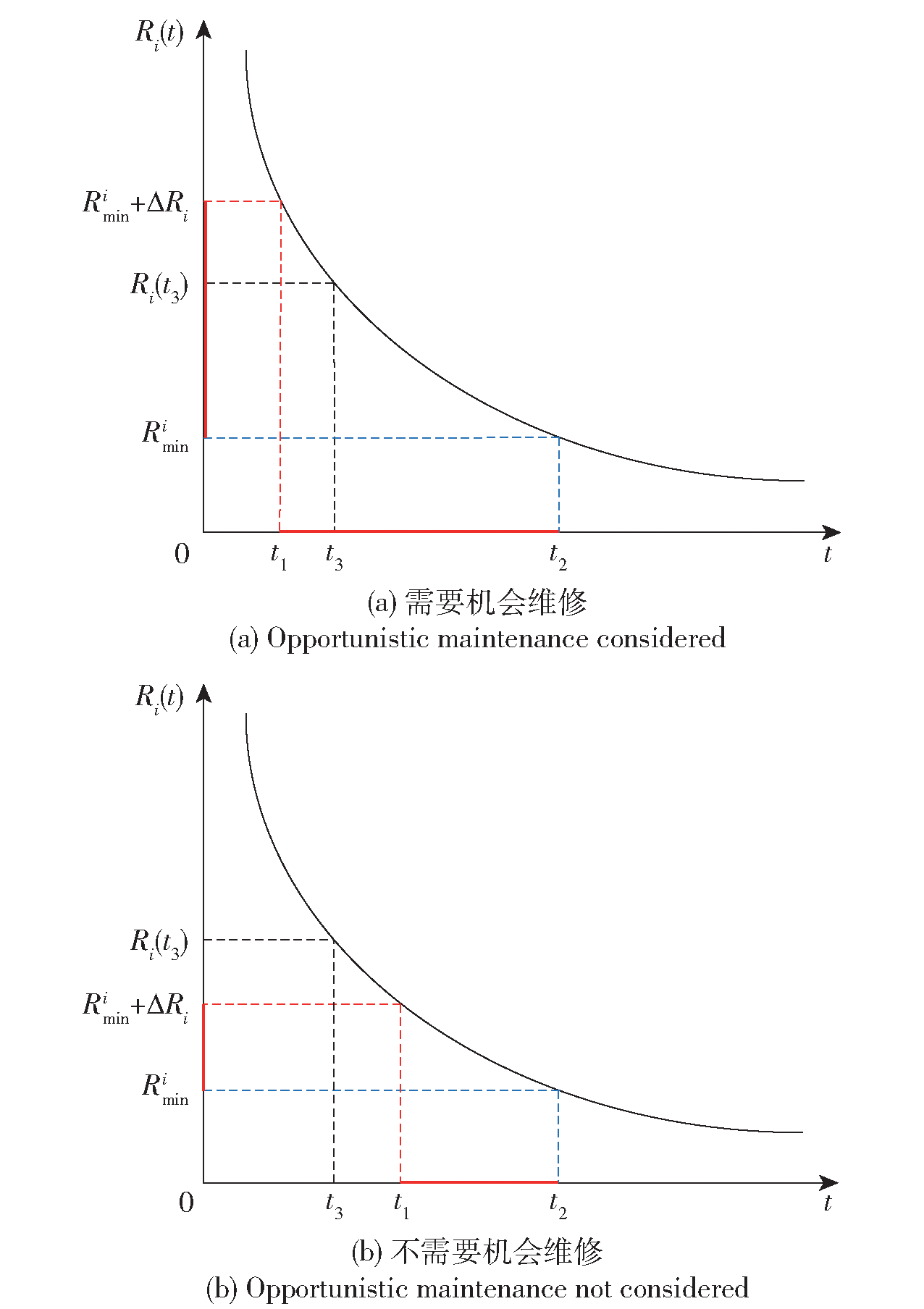

Fig.3 Schematic diagram of component reliability

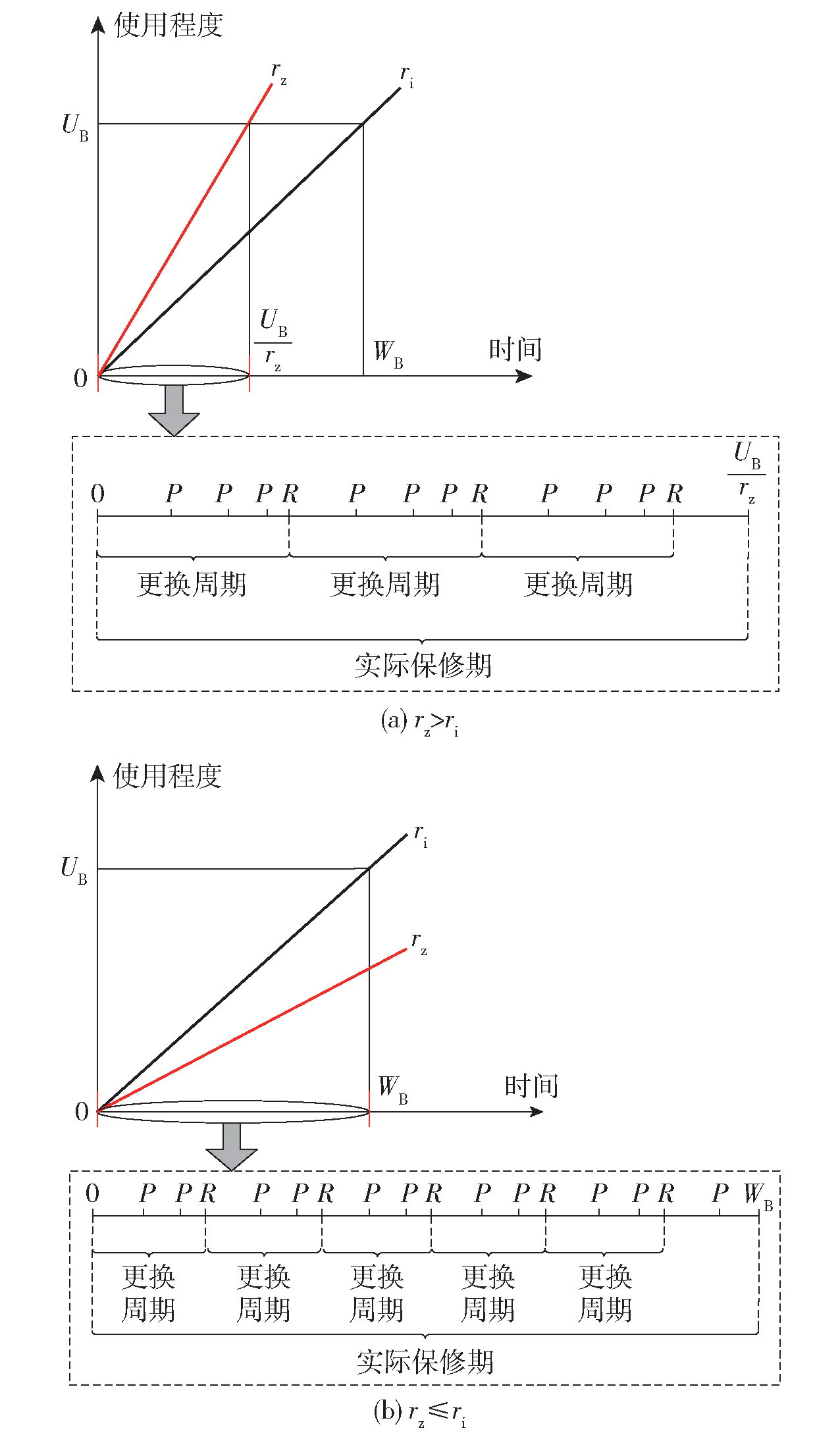

Fig.4 Schematic diagram of warranty period under different utilization rates

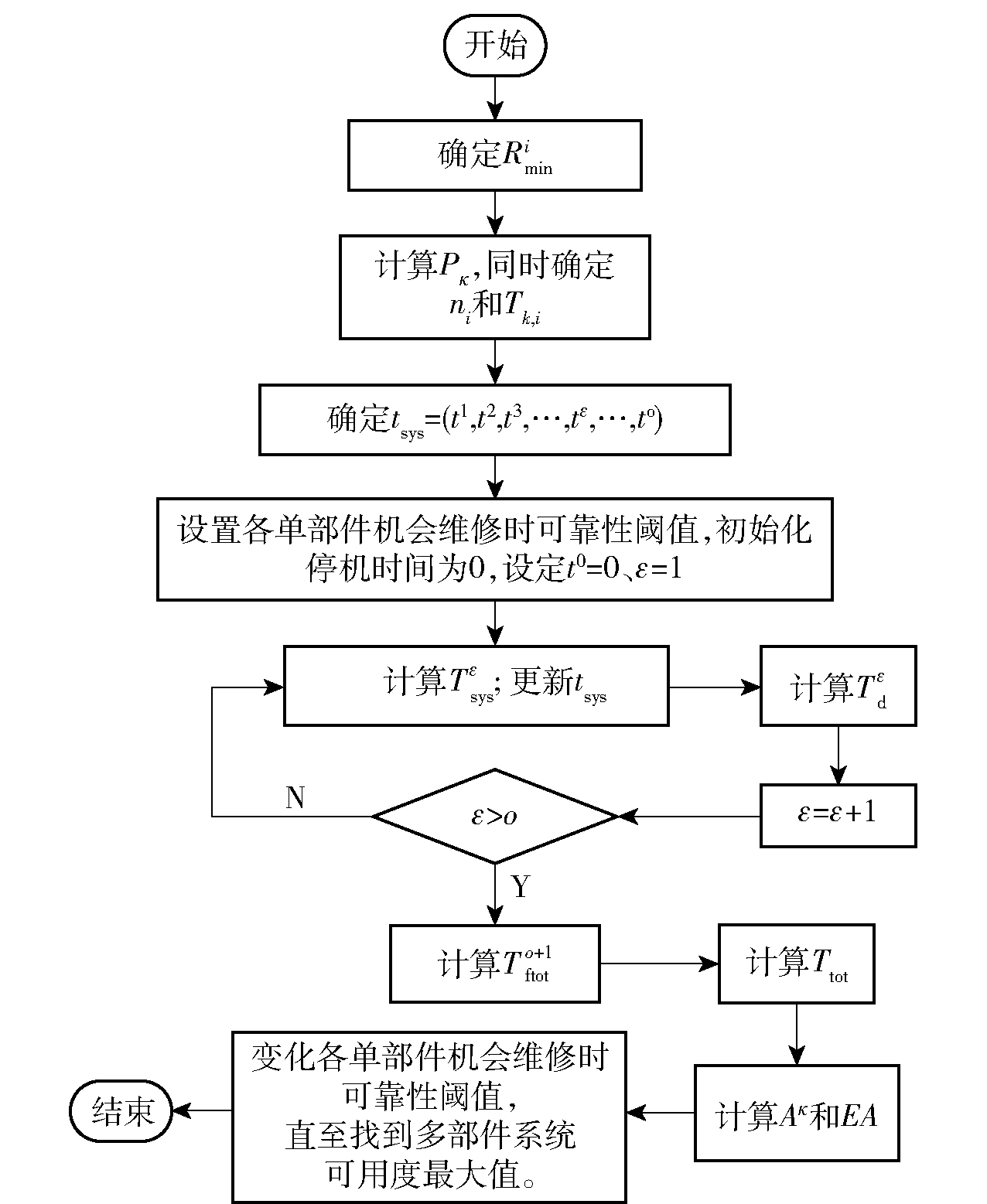

Fig.5 Algorithm flow chart

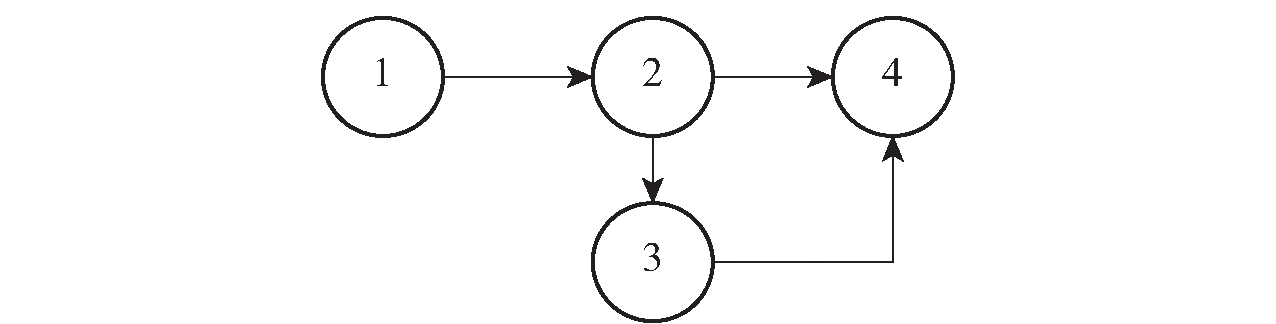

Fig.6 Failure chain model of the power system

Table 2 Parameter setting

部件	θ₀_i	θ₁_i	θ₂_i	θ₃_i	S_c_i/元	S_p_i/元	S_r_i/元	T_c_i/d	T_p_i/d	T_r_i/d	$R m i n i$
1	0.10	0.06	0.03	0.10	1620	510	140000	1.0	2.0	2.0	0.6
2	0.12	0.05	0.05	0.12	1040	210	113200	2.0	3.0	1.0	0.5
3	0.08	0.06	0.04	0.08	2510	150	148600	0.5	1.0	1.0	0.5
4	0.07	0.04	0.03	0.07	1450	300	52410	2.0	2.5	1.5	0.6

Table 2 Parameter setting

部件	θ₀_i	θ₁_i	θ₂_i	θ₃_i	S_c_i/元	S_p_i/元	S_r_i/元	T_c_i/d	T_p_i/d	T_r_i/d	$R m i n i$
1	0.10	0.06	0.03	0.10	1620	510	140000	1.0	2.0	2.0	0.6
2	0.12	0.05	0.05	0.12	1040	210	113200	2.0	3.0	1.0	0.5
3	0.08	0.06	0.04	0.08	2510	150	148600	0.5	1.0	1.0	0.5
4	0.07	0.04	0.03	0.07	1450	300	52410	2.0	2.5	1.5	0.6

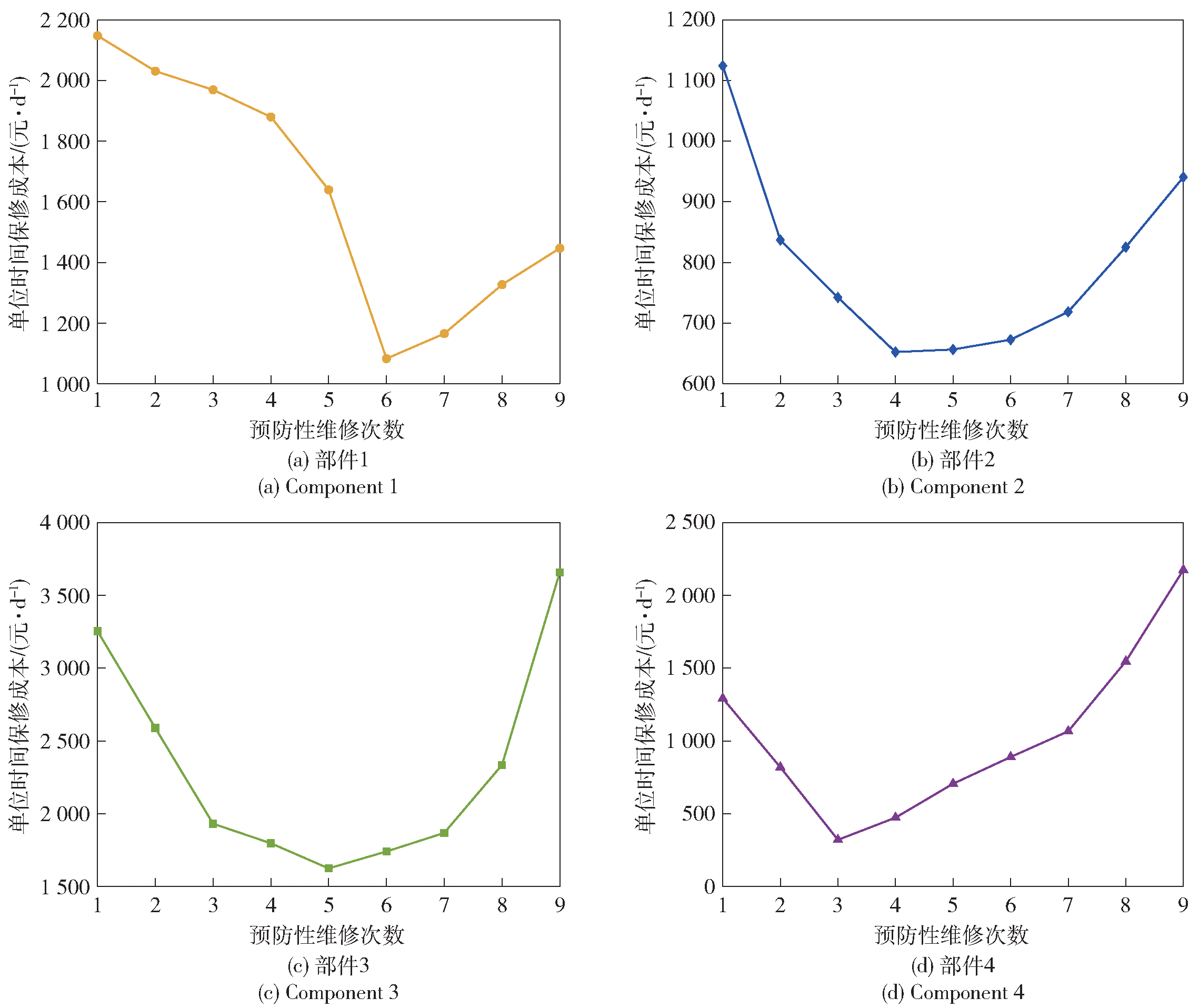

Fig.7 Schematic diagram of changes in unit time warranty cost of each component

Table 3 Preventive maintenance interval of each component (Time)

部件	T_k_,_i/d	$C a i$ / (元·d^-1)	最优预防性维修次数
1	85,76,72,61,54,41,30	1082.7	6
2	43,32,20,15,12	652.4	4
3	32,30,27,25,16,12	1624.7	5
4	120,109,76,52	320.6	3

Table 3 Preventive maintenance interval of each component (Time)

部件	T_k_,_i/d	$C a i$ / (元·d^-1)	最优预防性维修次数
1	85,76,72,61,54,41,30	1082.7	6
2	43,32,20,15,12	652.4	4
3	32,30,27,25,16,12	1624.7	5
4	120,109,76,52	320.6	3

Table 4 Preventive maintenance interval of each component (Usage)

部件	行驶里程/km	$C a i$ / (元·d^-1)	最优预防性维修次数
1	2329,2082,1973,1671, 1479,1123,822	1082.7	6
2	1178,877,548,411,329	652.4	4
3	877,822,740,685,438,329	1624.7	5
4	3288,2986,2082,1425	320.6	3

Table 4 Preventive maintenance interval of each component (Usage)

部件	行驶里程/km	$C a i$ / (元·d^-1)	最优预防性维修次数
1	2329,2082,1973,1671, 1479,1123,822	1082.7	6
2	1178,877,548,411,329	652.4	4
3	877,822,740,685,438,329	1624.7	5
4	3288,2986,2082,1425	320.6	3

Table 5 Preventive maintenance time of each component

部件	预防性维修时刻/d
1	85,161,233,294,348,389,419,504,580,652,713,730
2	43,75,95,110,122,165,197,217,232,244,287,319,339,354,366,409,441,461,476,488,531,563,583,598,610, 653,685,705,720,730
3	32,62,89,114,130,142,174,204,231,256,272,284,316,346,373,398,414,426,458,488,515,540,556,568,600,630,657,682,698,710,730
4	120,229,305,357,477,586,662,714,730

Table 6 Mileage during preventive maintenance of each component

部件	预防性维修时里程/km
1	2329,4411,6384,8055,9534,10658,11479,13808,15890,17863,19534,20000
2	1178,2055,2603,3014,3342,4521,5397,5945,6356,6685,7863,8740,9288,9699,10027,11205,12082,12630,13041,13370,14548, 15425,15973,16384,16712,17890,18767,19315,19726,20000
3	877,1699,2438,3123,3562,3890,4767,5589,6329,7014,7452,7781,8658,9479,10219,10904,11342,11671,12548,13370,14110,14795,15233,15562,16438,17260,18000,18685,19123,19452,20000
4	3288,6274,8356,9781,13068,16055,18137,19562,20000

Table 7 Parameter setting of genetic algorithm

参数	数值
种群大小	50
精英数量	3
交叉概率	0.8
变异概率	0.01
进化代数	270

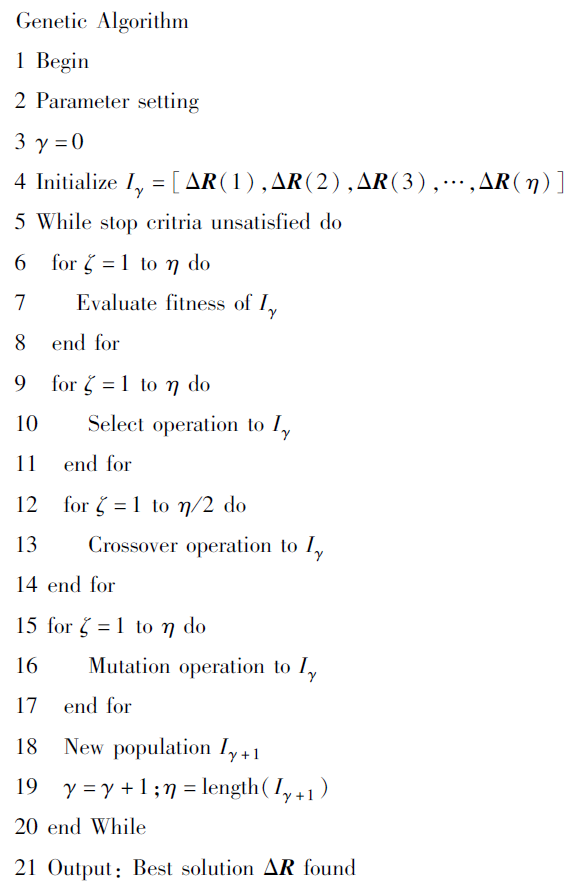

Fig.8 Programming steps of genetic algorithm

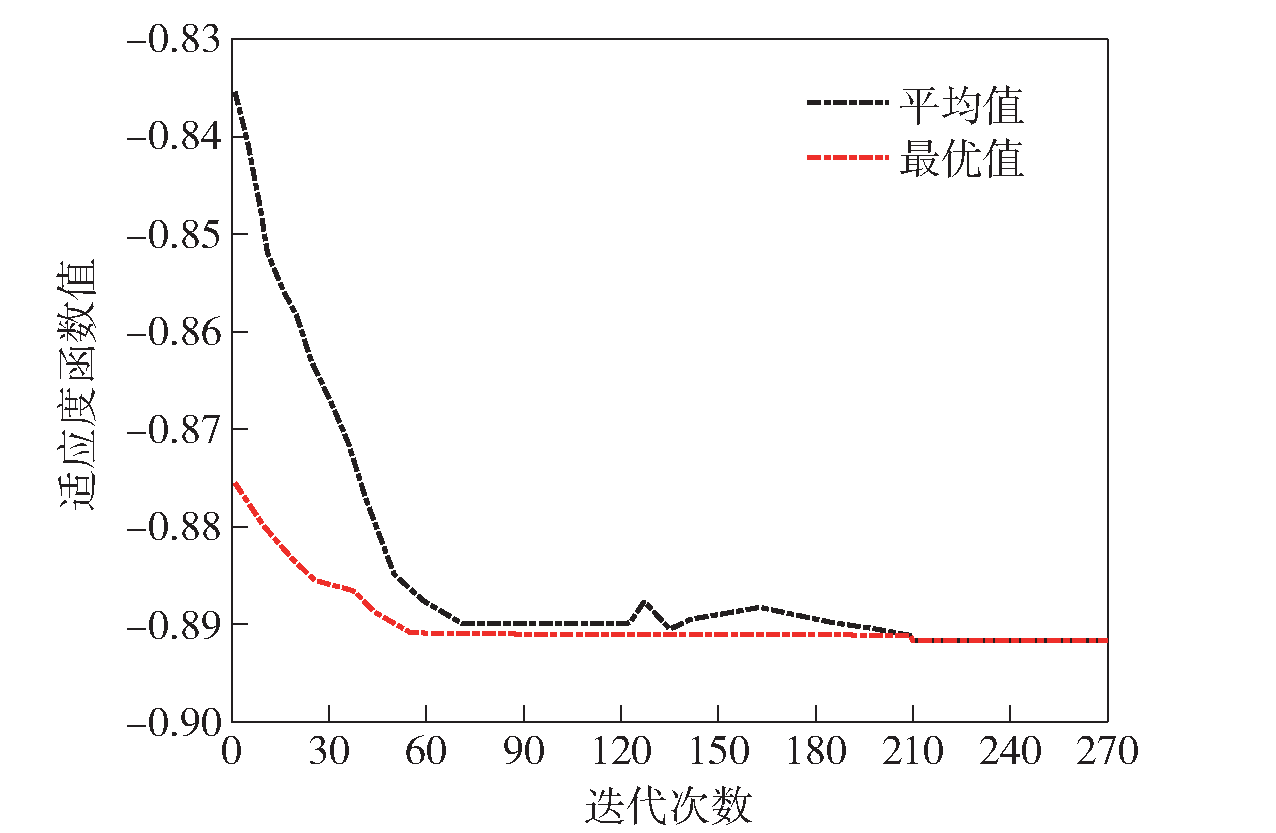

Fig.9 Schematic diagram of genetic algorithm iteration

Table 8 Opportunistic maintenance scheme of the power system

时刻/d	部件				时刻/d	部件
时刻/d	1	2	3	4	时刻/d	1	2	3	4
32	N	IM	PM	N	366	N	RM	IM	N
62	N	N	PM	N	389	PM	N	RM	N
75	IM	PM	N	N	409	IR	PM	IM	N
89	N	IM	PM	N	426	N	IM	RM	N
110	N	PM	IM	IM	458	N	IM	PM	IM
122	N	RM	PM	N	476	IM	PM	IM	N
142	IM	IM	RM	N	488	N	RM	N	N
174	N	N	PM	N	515	N	IM	PM	N
197	N	PM	PM	N	540	N	N	PM	N
217	IM	PM	IM	IM	556	IM	IM	PM	IM
232	N	PM	N	N	568	N	IM	RM	N
244	N	RM	PM	N	598	N	OM	IM	N
272	N	N	PM	N	610	N	RM	IM	N
284	IM	RM	IM	IM	652	PM	IM	IM	IM
316	N	IM	PM	N	682	N	IM	PM	N
339	IM	PM	IM	IR	698	IM	IM	PM	IR
354	N	PM	N	N	710	N	IM	RM	N

Fig.10 Comparison between the situations with and without opportunistic maintenance

Fig.11 Comparison between the situations with and without failure correlation

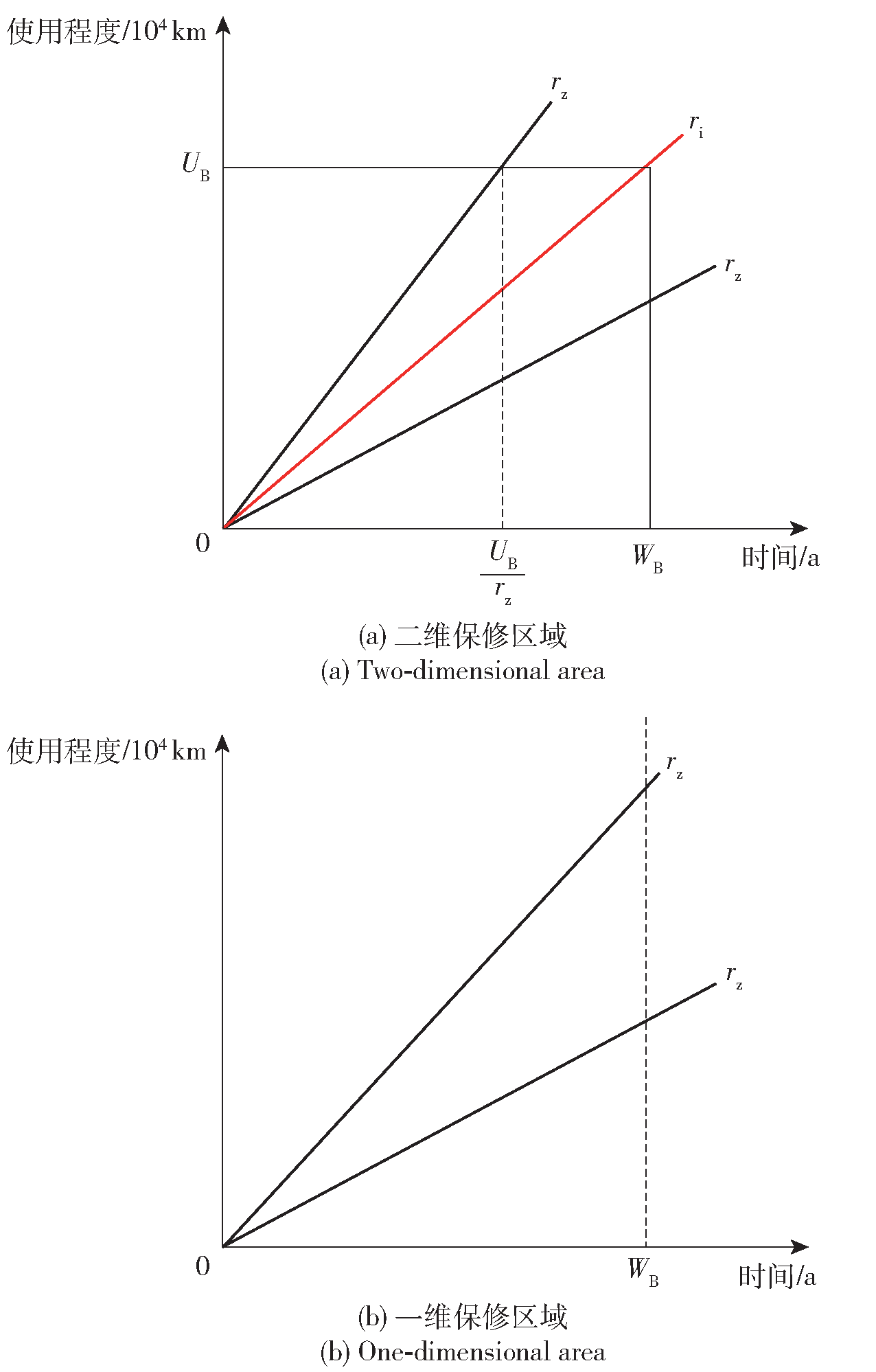

Fig.12 Warranty area under different warranty methods

Table 9 Comparison of warranty cost and availability under different warranty methods

使用率/ (10⁴km·a^-1)	保修成本/元		可用度
使用率/ (10⁴km·a^-1)	一维保修	二维保修	一维保修	二维保修
0.1	1956876	1956876	0.9125	0.9125
0.3	2365485	2365485	0.9023	0.9023
0.5	2423456	2423456	0.8945	0.8945
1.0	2435621	2435621	0.8923	0.8923
1.2	2569874	2436125	0.8812	0.8824
1.5	2657894	2468795	0.8713	0.8813
2.0	2785641	2316543	0.8645	0.8915
3.0	2845678	2245698	0.8566	0.8962
4.0	3125642	2147845	0.8478	0.9043
5.0	3541203	2056987	0.8346	0.9122
6.0	3642315	1987945	0.7523	0.9145
7.0	4123541	1985623	0.6487	0.9254
8.0	4136540	1972256	0.6178	0.9316

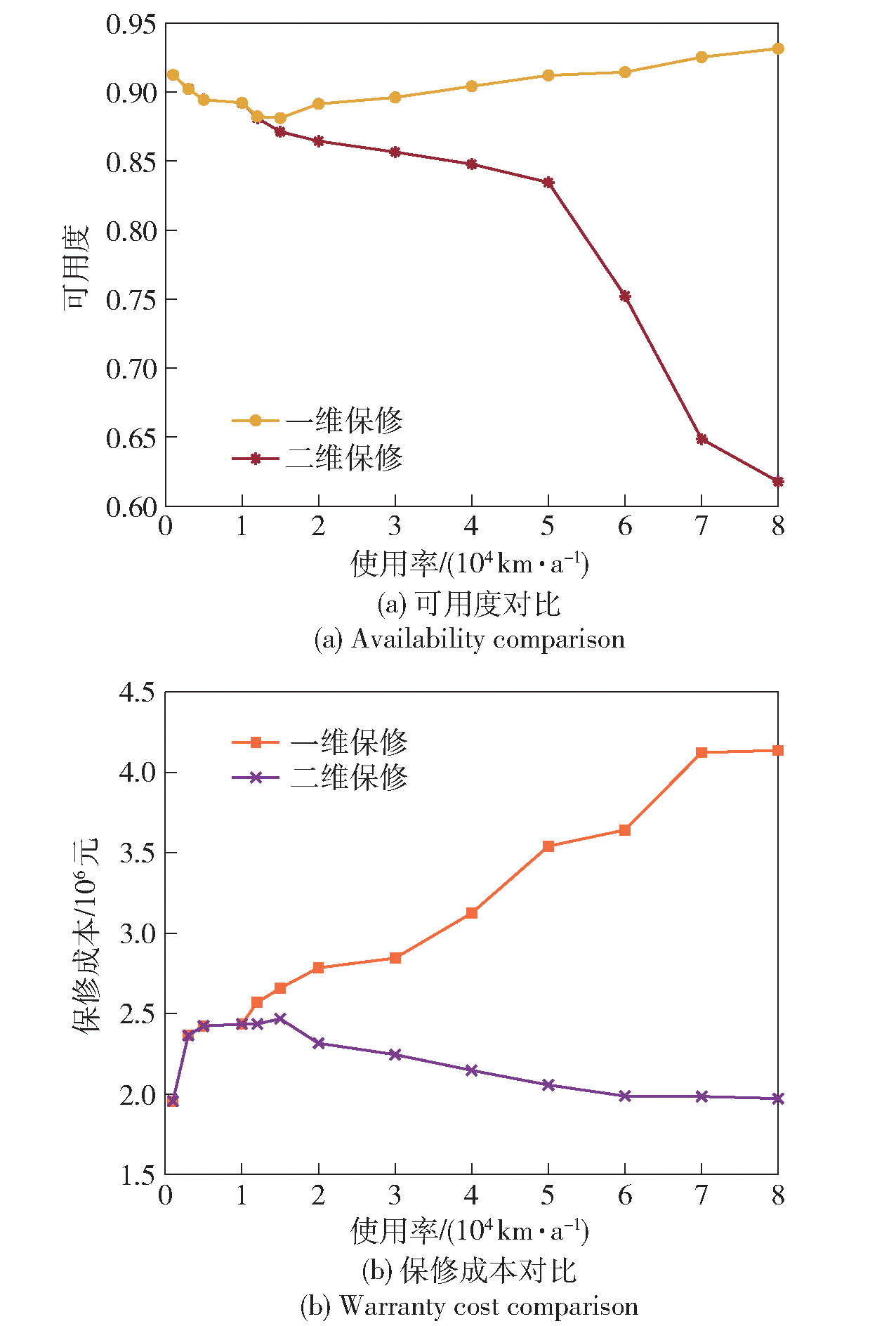

Fig.13 Comparison of availability and warranty cost under different warranty methods
