Formation Recognition and Target Selection of Anti-ship Missile Based on Hough Transform and Optimized K-means Clustering

doi:10.12382/bgxb.2021.0660

Abstract

Abstract:

For the formation recognition technology of anti-ship missiles, there are problems of focusing on formation recognition rather than target selection, insufficient consideration of the changes from terminal guidance stage to target indication stage, and relatively weak real-time performance and so on. The formation recognition target selection technology has replaced the single feature recognition target selection technology and become the mainstream of target selection for long-range anti-ship missile weapon systems based on Hough transform and optimized K-means clustering algorithm. A process of formation recognition and target selection for anti-ship missiles is proposed, and models on targets' generation, selection and changes, such as formation rotating, scaling, transforming and dilution jamming, of V-shaped, parallel and ring formations are built up. The simulation results show that: the cost function for optimal clustering number is more effective than the existing methods; the problem for the lack of transforming mechanism for the sample points on both sides of the normal detection interval is solved using the formation line detection on the moving detection interval; the clustering iteration, optimal iteration of clustering number, and fused cluster iteration by combining multi-sample update clustering with single-sample update clustering have higher efficiency and stronger engineering applicability, which is of great significance for anti-ship combat simulation.

Key words: anti-ship missile, Hough transform, optimized K-means clustering, formation recognition, target selection

CLC Number:

TP301.6

HUANG Jun, WU Pengfei, LI Xiaobao, LIU Yue. Formation Recognition and Target Selection of Anti-ship Missile Based on Hough Transform and Optimized K-means Clustering[J]. Acta Armamentarii, 2023, 44(2): 472-483.

Figures/Tables 14

Fig.1 V-shaped and parallel warship formations

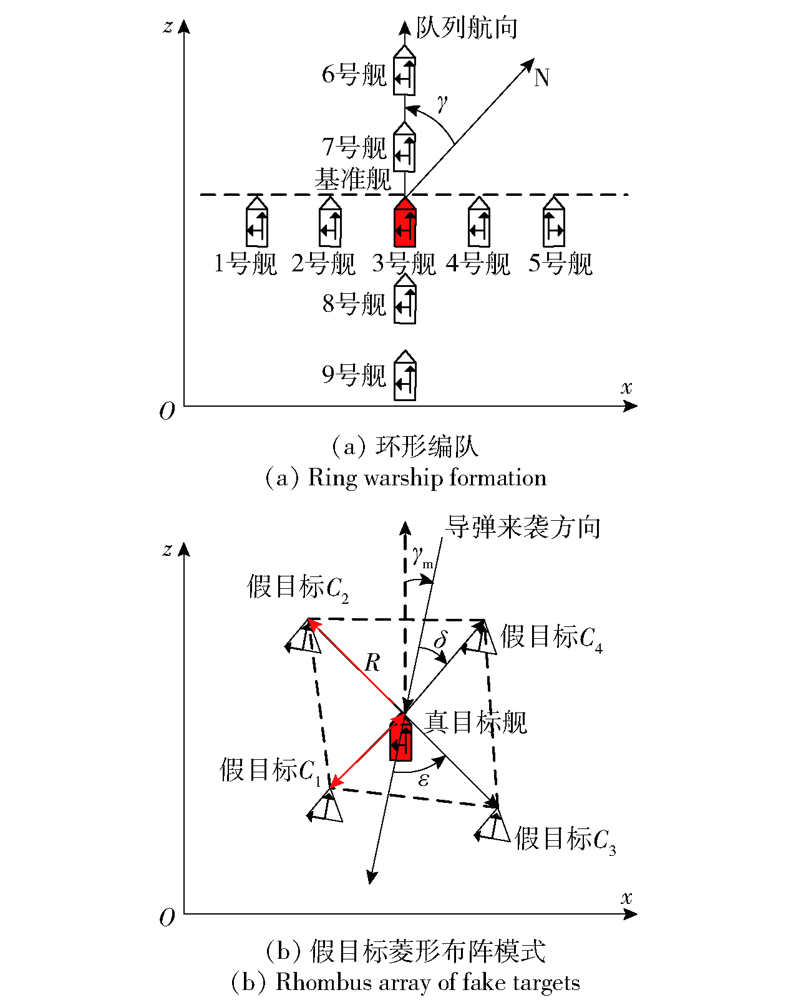

Fig.2 Ring warship formation and rhombus array of fake targets

Fig.3 V-shaped formation recognition and target pre-selection in target indication stage

Fig.4 Comparison of optimal methods for clustering number

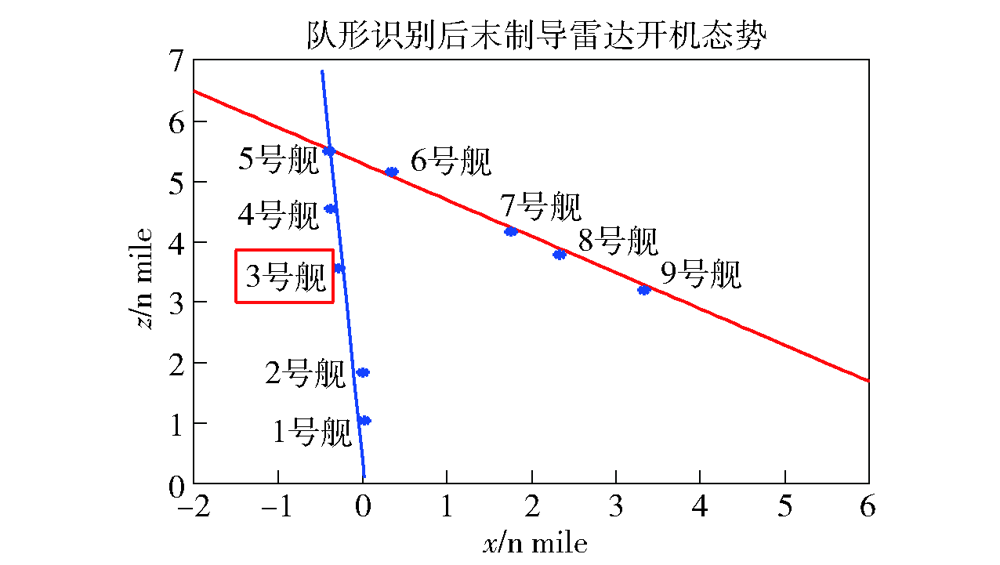

Fig.5 V-shaped formation recognition and target confirmation in terminal guidance stage

Fig.6 Ring formation line detection on the moving detection interval in target indication stage

Fig.7 Ring formation recognition and target pre-selection on the moving detection interval in target indication stage

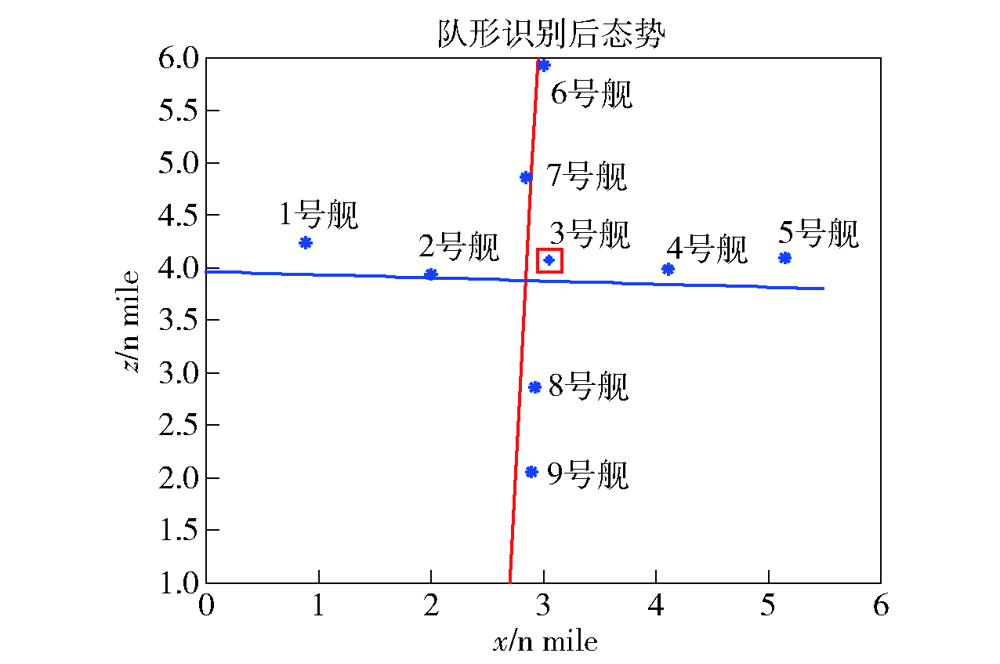

Fig.8 Ring formation recognition and target confirmation in terminal guidance stage

Fig.9 Ring formation line detection on normal detection interval in target indication stage

Fig.10 Ring formation recognition and target pre-selection on normal detection interval in target indication stage

Table 1 Effects of location error of V-shaped formation on recognition rate

情况序号	x轴均方差	z轴均方差	识别正确率/%
1	0.1	0.1	99.9
2	0.1	0.2	99.2
3	0.1	0.3	97.3
4	0.1	0.4	96.1
5	0.2	0.1	91.3
6	0.2	0.2	88.9
7	0.2	0.3	87.6
8	0.3	0.1	84.5
9	0.3	0.2	81.5
10	0.3	0.3	81.0
11	0.4	0.1	80.2
12	0.4	0.2	79.9
13	0.4	0.3	78.1
14	0.4	0.4	77.5

Table 2 Effects of location error ofparallel formation on recognition rate

情况序号	x轴均方差	z轴均方差	识别正确率/%
1	0.1	0.1	80.4
2	0.1	0.2	76.8
3	0.1	0.3	87.0
4	0.1	0.4	90.8
5	0.2	0.1	77.1
6	0.2	0.2	78.4
7	0.2	0.3	87.5
8	0.3	0.1	79.1
9	0.3	0.2	77.1
10	0.3	0.3	83.1
11	0.4	0.1	76.7
12	0.4	0.2	75.1
13	0.4	0.3	76.0
14	0.4	0.4	71.2

Table 3 Effects of location error ofring formation on recognition rate

情况序号	x轴均方差	z轴均方差	识别正确率/%
1	0.1	0.1	96.0
2	0.1	0.2	81.2
3	0.1	0.3	74.6
4	0.2	0.1	77.4
5	0.2	0.2	70.6
6	0.3	0.1	61.8

Table 4 Effects of formation transforming and location error on recognition rate

情况序号	X轴均方差	Z轴均方差	识别正确率/%
1	0.1	0.1	98.7
2	0.1	0.2	92.0
3	0.1	0.3	80.8
4	0.2	0.1	90.4
5	0.2	0.2	83.9
6	0.2	0.3	68.0
7	0.3	0.1	82.5
8	0.3	0.2	78.4
9	0.3	0.3	67.2
