Thinking About Prejudgment and Resolution of Cooperative Combat Fire Conflict of Foreign Directed Energy Weapons and Short-and Medium-range Air-defense Weapons

doi:10.12382/bgxb.2024.0892

Abstract

Abstract:

The future air-defense operation situation is becoming more and more serious.The United States and Russia use the directed energy weapons and the short-and medium-range air-defense weapons to cooperate in combat,which makes the air operation of a single platform face an unprecedented risk of fire conflict.Focusing on the prediction and resolution of fire conflict in the cooperative combat of the directed energy weapons and the short-and medium-range air-defense weapons,the ballistic models of short-and medium-range air-defense weapons and directed energy weapons are constructed and the fire conflict criteria are analyzed by taking CHAMP HPMW,RAMvshort-range air-defense missile,Standard 2 medium-range air-defense missile and Phalanx close-in weapon system as examples,the ballistic models of medium-range and short-range air dense gun as example.The fire conflict resolution principles are designed,and the fire conflict resolution is verified based on the whole process of ballistic modeling and simulation in order to provide innovative ideas for the prediction and resolution of fire conflict among directed energy weapons and kinetic energy weapons.

Key words: directed energy weapon, medium-range air-defense weapons, fire conflict, coordinated air-defense, ballistic model, fire resolution

LI Ye, TENG Zhe, WANG Liang, SUN Haiwen, GU Xiaodong, LU Fengbo. Thinking About Prejudgment and Resolution of Cooperative Combat Fire Conflict of Foreign Directed Energy Weapons and Short-and Medium-range Air-defense Weapons[J]. Acta Armamentarii, 2024, 45(S2): 81-89.

Figures/Tables 11

References 22

[1]	李烨, 郑纯, 滕哲, 等. 基于模糊小波神经网络的高功率微波武器与中近程防空武器协同作战效能评估[J]. 兵工学报, 2022, 43(增刊2):87-96.
	LI Y, ZHENG C, TENG Z, et al. Cooperative combat effectiveness assessment of high-power microwave weapons and medium-and short-range air defense weapons based on fuzzy wavelet neural networks[J]. Acta Armamentarii, 2002, 43(S2):87-96. (in Chinese)
[2]	李烨, 郑纯, 马长胜, 等. 基于拦截效率最大化的高功率微波武器系统与中近程防空武器协同作战目标分配模型[J]. 兵工学报, 2023, 44(11):3489-3497. doi: 10.12382/bgxb.2022.0845
	LI Y, ZHENG C, MA C S, et al. Target assignment model for high-power microwave weapon system and medium and short-range air defense weapons in cooperative combat based on maximizing interception efficiency[J]. Acta Armamentarii, 2019, 44(11):3489-3497. (in Chinese)
[3]	苗涛. 多弹协同防御任务规划技术研究[D]. 南京: 南京航空航天大学, 2018:66-75.
	MIAO T. Research on the assignment and cooperative defense of multi-missile[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2018:66-75. (in Chinese)
[4]	贾健. 多平台防空协同任务分配问题研究[D]. 北京: 北京理工大学, 2016:31-34.
	JIA J. Research on task assignment of multi-platform air defense coordination[D]. Beijing: Beijing Institute of Technology, 2016:31-34. (in Chinese)
[5]	徐豫新, 王潇, 赵鹏铎, 等. 多装备协同作战体系中优先打击设备的决策方法[J]. 北京理工大学学报, 2016, 36(12):1222-1227.
	XU Y X, WANG X, ZHAO P D, et al. Decision method for the first damage device in multi-equipment cooperating battle system[J]. Transactions of Beijing Institute of Technology, 2016, 36(12):1222-1227. (in Chinese)
[6]	朱进. 海上编队防空作战目标分配数学模型研究[J]. 计算机与数学工程, 2013, 41(11):1744-1746.
	ZHU J. Air defense target as signment mathematical models for surface warship formation[J]. Computer & Digital Engineering, 2013, 41(11):1744-1746. (in Chinese)
[7]	滕克难. 基于多Agent舰空导弹协同反导作战体系结构研究[J]. 火力与指挥控制, 2008, 33(3):118-119,124.
	TENG K N. Research on cooperative anti—missile defense system architecture for ship-to-air missile systems based on multi—agent[J]. Fire Control and Command Control, 2008, 33(3):118-119,124. (in Chinese)
[8]	张迎新, 徐元子, 郭栋, 等. 基于进化多目标优化的对地打击武器目标分配[J]. 电光与控制, 2020, 28(9):34-38.
	ZHANG Y X, XU Y Z, GUO D, et al. WTA of ground target attacking based on evolutionary multi-objective optimization[J]. Electronics-Optics & Control, 2020, 28(9):34-38. (in Chinese)
[9]	李景熹, 李积源, 陈静. 基于马尔柯夫过程的武器系统目标分配问题决策分析[J]. 海军工程大学学报, 2003, 10(5):101-104.
	LI J X, LI J Y, CHEN J. Decision analysis of weapon target assignment problems based on Markovian process[J]. Journal of Naval University of Engineering, 2003, 10(5):101-104. (in Chinese)
[10]	李进军, 丛蓉, 熊吉光. 舰艇编队防空动态目标武器分配优化模型[J]. 火力与指挥控制, 2005, 30(增刊):70-73.
	LI J J, CONG R, XIONG J G. A dynamic WTA model of anti-air combat of war ship formation[J]. Fire Control and Command Control, 2005, 30(S):70-73. (in Chinese)
[11]	于连飞, 刘进, 张维明. 武器-目标分配问题算法研究综述[J]. 数学的实践与认识, 2016, 46(2):26-32.
	YU L F, LIU J, ZHANG W M. A review of algorithms for weapon-target assignment problem[J]. Journal of Mathematics in Practice and Theory, 2016, 46(2):26-32. (in Chinese)
[12]	YOUNG B W. Future integrated fire control[C]// Proceedings of the 10th International Command and Control Research and Technology Symposium:The Future of C2.McLean,VA,US:the U.S.Department of Defense Command and ControlResearch Program, 2005.
[13]	HOLLY A, HANDLEY A H, LEVIS A H. Modeling for future command and control architectures[R]. Fairfax,VA,US:George Mason University, 1995.
[14]	BOUTEYRE J Y. New architecture concepts for naval combat systems[J]. Military Technology, 2002, 26(12):80-82.
[15]	石静, 黄勇. 舰艇编队指控系统提升协同作战能力改进研制立项综合论证[M]. 北京: 海军装备研究院, 2012.
	SHI J, HUANG Y. Comprehensive demonstration on the development and approval of ship formation charge System to improve cooperative combat capability[M]. Beijing: Naval Equipment Research Institute, 2012. (in Chinese)
[16]	国防科学技术大学信息系统与管理学院. 体系结构研究[M]. 北京: 军事科学出版社, 2011.
	College of Information Systems and Management,National University of Defense Technology. Architecture research[M]. Beijing: Military Science Press, 2011. (in Chinese)
[17]	徐文龙. 夺取远海综合控制权作战问题研究[D]. 南京: 海军指挥学院, 2014.
	XU W L. Research on the operational problems of seizing the integrated control of the Far Sea[D]. Nanjing: Naval Command College, 2014. (in Chinese)
[18]	LIM S C. Network centric warfare:a command and control perspective[D]. Monterey,CA,US: Naval Postgraduate School, 2004.
[19]	任经敏. 打击敌大型水面舰艇编队战役问题研究[D]. 南京: 海军指挥学院, 2016.
	REN J M. Research on combat problems of enemy large surface ship formation[D]. Nanjing: Naval Command College, 2016. (in Chinese)
[20]	高宝. 基于体系运行的海上作战指挥效能评估研究[D]. 南京: 海军指挥学院, 2013.
	GAO B. Research on evaluation of maritime combat command effectiveness based on system operation[D]. Nanjing: Naval Command College, 2013. (in Chinese)
[21]	陈国生, 马良, 张明. 舰艇编队协同防空作战效能评估[J]. 舰船科学技术, 2011, 33(2):105-110.
	CHEN G S, MA L, ZHANG M. Effect evaluation of coordinated-air defense of warships[J]. Ship Science and Technology, 2011, 33(2):105-110. (in Chinese)
[22]	鱼静. 基于信息系统指挥控制能力需求分析[J]. 指挥控制与仿真, 2015, 37(2):18-22,6.
	YU J. Capability requirement elements analysis and application of command and control based on information systems[J]. Command,Control and Simulation, 2015, 37(2):18-22,6. (in Chinese)

武器及拦截效果	目标1	目标2	目标3	目标4	目标5	目标6	目标7	目标8	目标9
武器A	0	0	2	2	0	2	0	0	0
武器B	1	0	0	0	2	1	2	1	2
武器C	0	0	0	0	0	0	0	0	0
武器D	1	2	0	0	0	0	0	0	0
拦截效果	拦截	未拦截	拦截	拦截	拦截	未拦截	未拦截	拦截	拦截

武器及拦截效果	目标1	目标2	目标3	目标4	目标5	目标6	目标7	目标8	目标9
武器A	0	0	2	2	0	2	0	0	0
武器B	1	0	0	0	2	1	2	1	2
武器C	0	0	0	0	0	0	0	0	0
武器D	1	2	0	0	0	0	0	0	0
拦截效果	拦截	未拦截	拦截	拦截	拦截	未拦截	未拦截	拦截	拦截

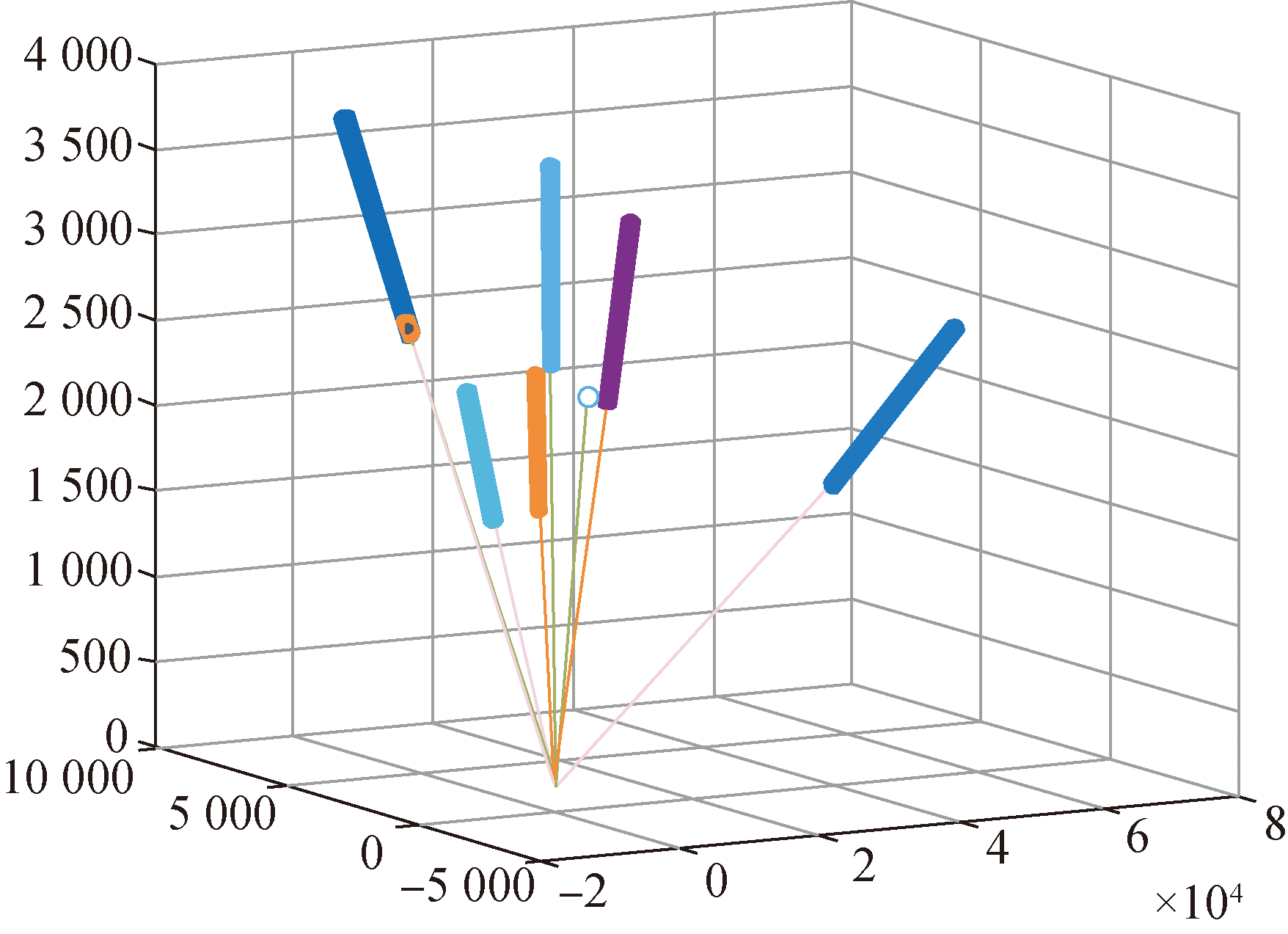

位置	目标1	目标2	目标3	目标4	目标5	目标6	目标7	目标8	目标9
x/m	-661	1809	2794	2680	9427	4867	-1145	11826	-34140
y/m	1888	-853	164	3881	6559	-1937	7087	10816	47143
z/m	3250	3197	2239	3705	3830	2848	2093	2970	2710

位置	目标1	目标2	目标3	目标4	目标5	目标6	目标7	目标8	目标9
x/m	-661	1809	2794	2680	9427	4867	-1145	11826	-34140
y/m	1888	-853	164	3881	6559	-1937	7087	10816	47143
z/m	3250	3197	2239	3705	3830	2848	2093	2970	2710

冲突情况	武器编号
冲突情况	A1	A2	A3	A4	A5	A6	B1	B2	B3	B4	B5	B6	B7	B8	B9	D1	D2	D3
是否发生冲突	否	否	否	否	否	是	否	否	否	是	是	否	否	否	是	否	否	否
冲突次数	0	0	0	0	0	1	0	0	0	1	1	0	0	0	1	0	0	0
冲突武器编号						B4				A6	B9				B5
