Numerical Simulation of Underwater Explosions Near a Naval Vessel Based on a Compressible Multi-fluid Model

doi:10.12382/bgxb.2024.0956

Abstract

Abstract:

Studying underwater explosions near warships is crucial for hull structure design,explosion impact damage prediction,and personnel safety.To this end,an improved six-equation compressible multiphase flow model based on the diffuse interface method is proposed to resolve thermodynamic state prediction deviation under shock waves and support anti-shock mechanism research and numerical method optimization.The model is improved via a hybrid energy correction equation and a more accurate gas equation of state.A numerical algorithm on an unstructured grid system is constructed,adopting the second-order MUSCL-Hancock scheme (with least-squares reconstruction and Barth-Jespersen limiter) and two-phase HLLC Riemann solver to solve homogeneous hyperbolic equations,and Newton-Raphson iteration for instantaneous pressure relaxation equation.Results show that after total energy equation correction,the model’s simulation of shock wave velocity and interface is highly consistent with the Euler equation’s exact solution,resolving near-interface numerical oscillation.Compared with experimental data,the improved model has a 1.13% relative error and 0.33% higher accuracy; more accurate SG-EOS parameters are obtained by fitting the shock Hugoniot curve.It also clearly shows underwater explosion phenomena:shock wave propagation,bubble expansion-contraction,and bubble collapse water jet.However,it has deficiencies in bubble interface clarity and jet precision,mainly limited by numerical scheme dissipation under extreme gradients.In conclusion,the improved model effectively enhances the accuracy of simulating underwater explosions near naval vessels,supports in-depth warship anti-shock mechanism research,and lays a solid foundation for future numerical method optimization.

Key words: naval vessel, underwater explosions, six-equation model, compressible multiphase flow, Riemann solver

CLC Number:

U661.1

YU Wanli, YANG Ao, TANG Zhaolie, CHENG Han, ZHANG Zhiyang, LIU Weixing. Numerical Simulation of Underwater Explosions Near a Naval Vessel Based on a Compressible Multi-fluid Model[J]. Acta Armamentarii, 2025, 46(9): 240956-.

Figures/Tables 18

Table 1 Different SG-EOS parameters for liquid water

案例	方法	γ	p_∞/MPa
1	Liou等^[23]方法	2.80	600.00
2	Saurel等^[15]方法	4.40	850.00
3	本文方法	5.45	40.45

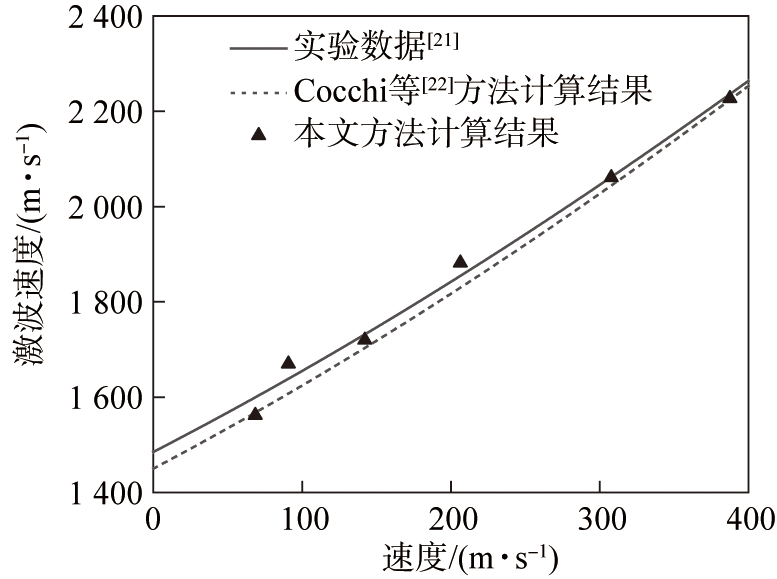

Fig.1 Comparison of computed shock Hugoniot curves for shock-particle velocity of liquid water

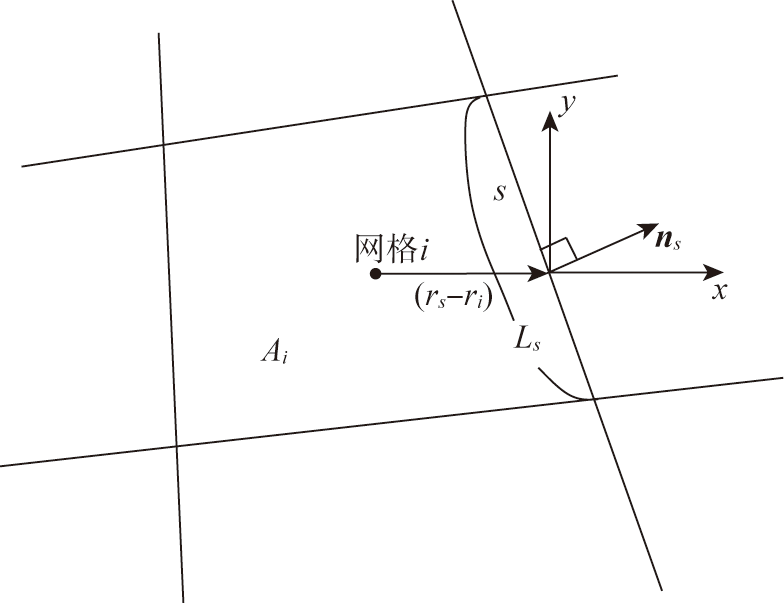

Fig.2 Computational unit and boundary of quadrilateral unstructured grid

Table 2 Initial conditions on the left and right sides of 1D water-air shock tube problem

位置	α₁	ρ₁/ (kg·m^-3)	ρ₂/ (kg·m^-3)	u/ (m·s^-1)	p₁/ MPa	p₂/ MPa
左边	10^-6	1	1000	0	10³	10³
右边	1-10^-6	1	1000	0	0.1	0.1

Fig.3 Distribution diagram of mixture density,normal velocity,and water volume fraction of a 1D water-air shock tube problem at t=0.24ms

Table 3 Initial conditions on the left and right sides of advection of an interface in a uniform pressure and velocity flow problem

位置	α₁	ρ₁/ (kg·m^-3)	ρ₂/ (kg·m^-3)	u/ (m·s^-1)	p₁/ MPa	p₂/ MPa
左边	10^-8	10	10³	100	10⁵	10⁵
右边	1-10^-8	10	10³	100	10⁵	10⁵

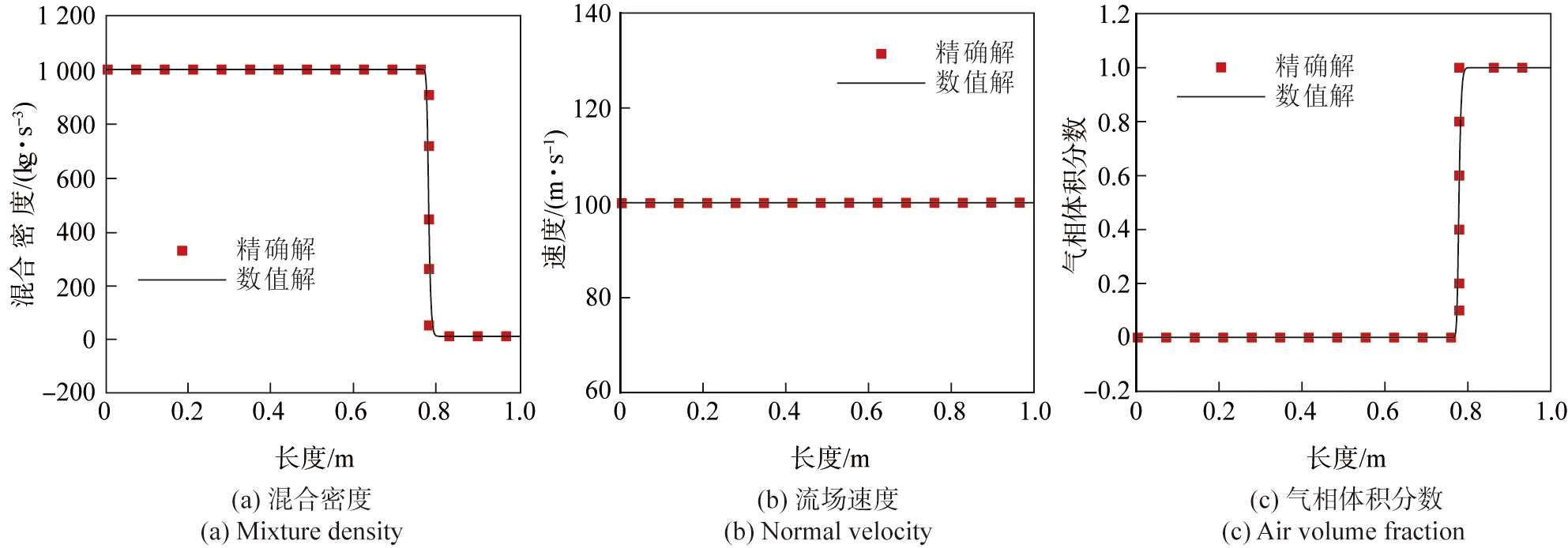

Fig.4 Distribution diagram of mixture density,normal velocity,and air volume fraction of an interface in a uniform pressure and velocity flow problem at t=2.79ms

Table 4 Initial conditions of the water,air,and explosive gas bubble for underwater explosions

介质	α₁	ρ₁/ (kg·m^-3)	ρ₂/ (kg·m^-3)	p_m/ MPa
液态水	10^-6	1000	10³	0.1
空气	1-10^-6	1.225	10³	0.1
爆炸气泡	1-10^-6	1250	10³	10³

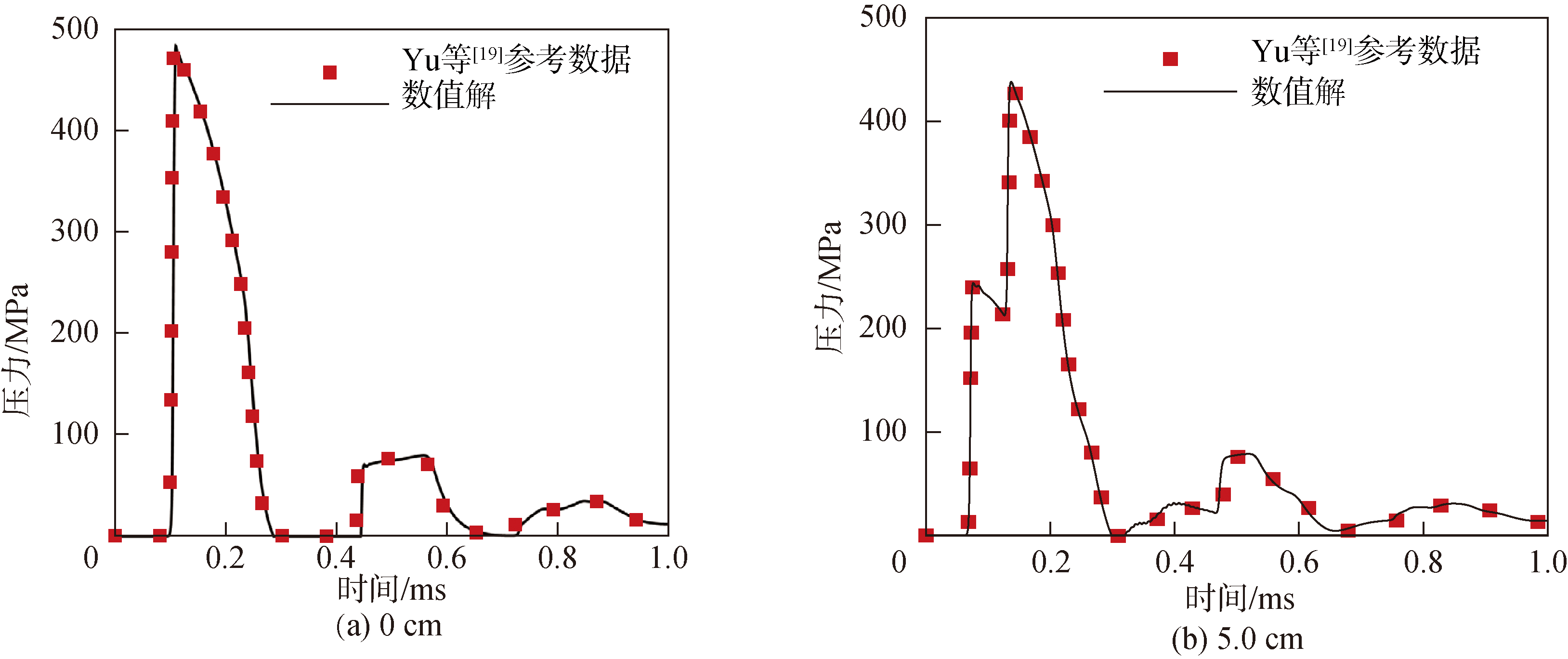

Fig.5 Shockwave pressure histories of two gauge targets with standoff distances of 0 and 5.0cm along the explosive center adjacent to the rigid surface

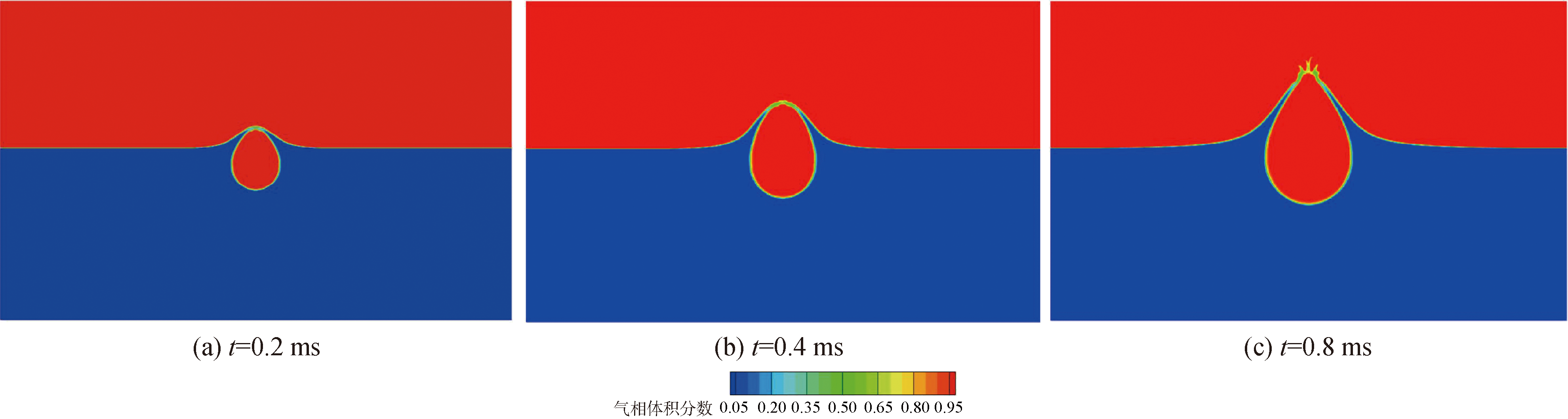

Fig.6 Distribution diagram of gas phase volume fraction in the flow field at different times for underwater explosion near the water surface

Fig.7 Distribution diagram of pressure in the flow field at different times for underwater explosion near the water surface

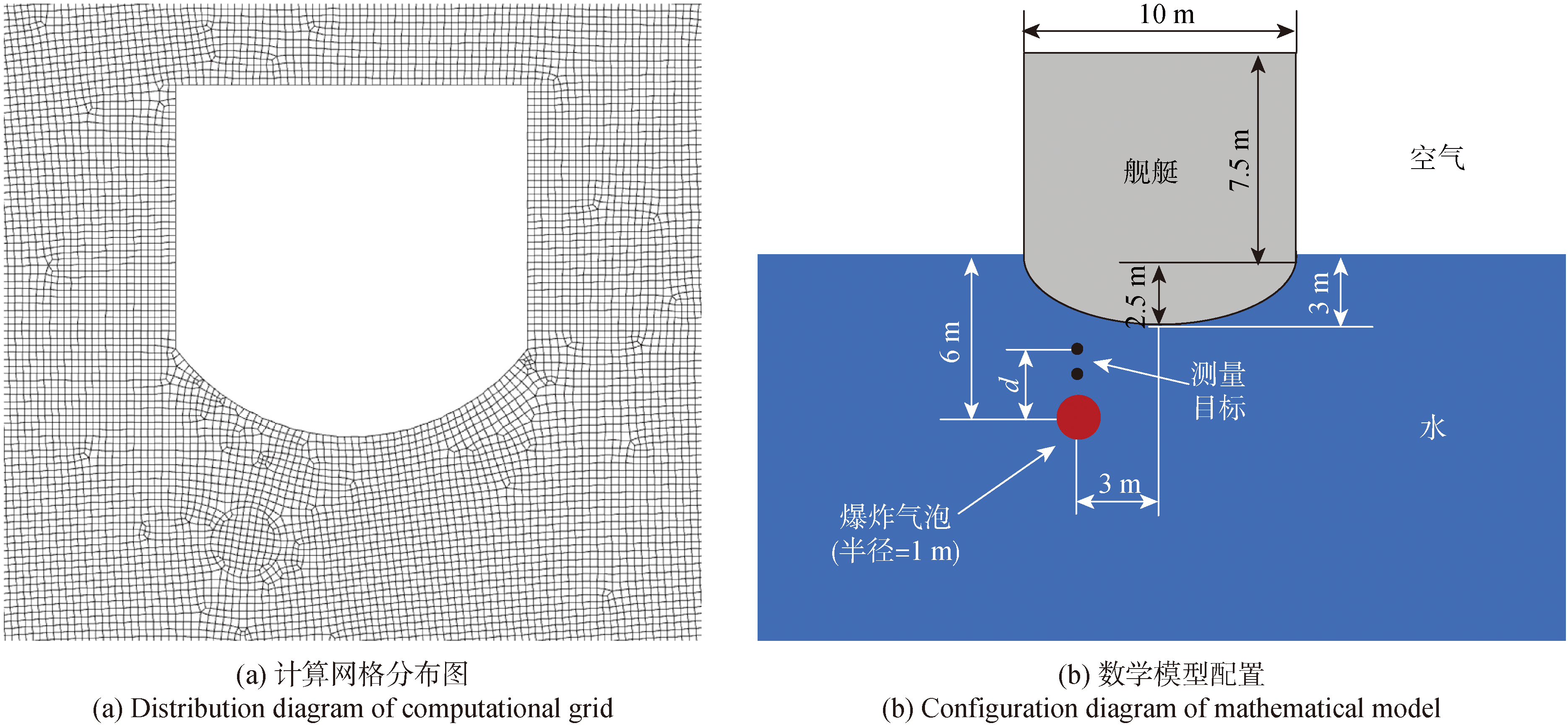

Fig.8 Distribution diagram of computational grid and configuration diagram of mathematical model around the ship

Fig.9 Distribution diagram of pressure of underwater explosion in a free field at 0.5ms and 1.0ms

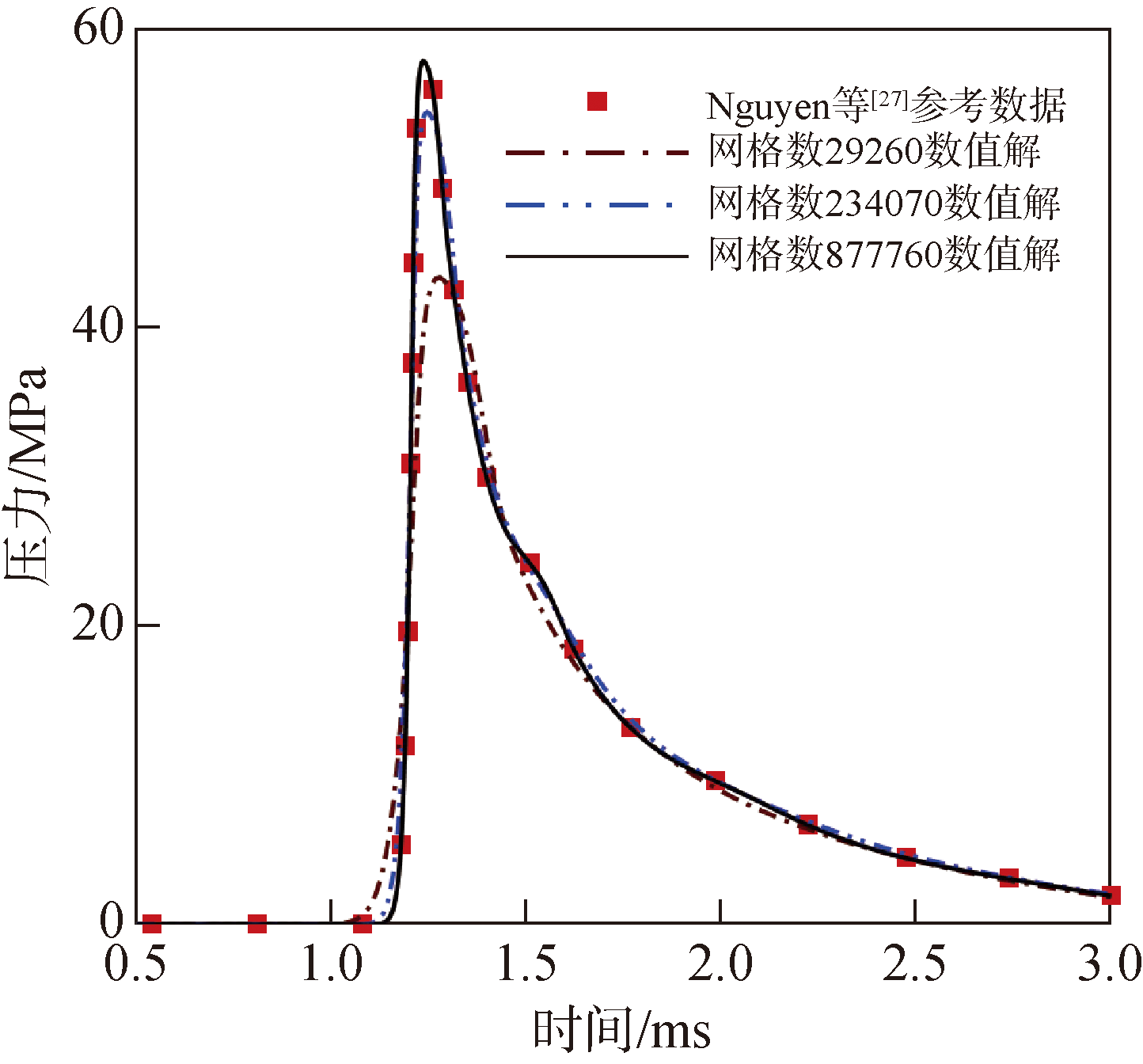

Fig.10 Grid resolution test

Fig.11 Pressure distribution diagram of flow field near the ship at different times in the first stage of underwater explosion

Fig.12 The velocity vector plot of the weak transmitted shock wave propagating into air at t=10ms

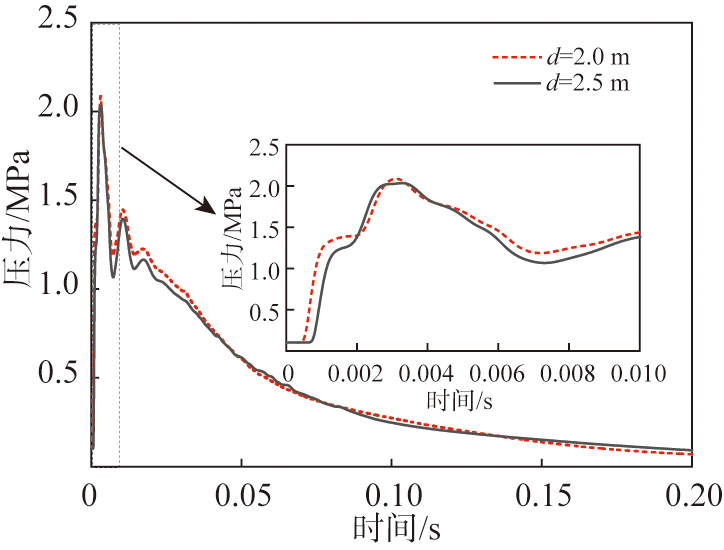

Fig.13 Time-history curve of shock wave pressure at two measurement targets located 2.0m and 2.5m in a straight line from the center of the explosion

Fig.14 Gas phase volume fraction distribution diagram of flow field near the ship at different times in the second stage of underwater explosion
