Current Status and Issues of the Safety Protection System for the Production Systems Engineering of Burning Explosives

doi:10.12382/bgxb.2024.0931

Abstract

Abstract:

The air shock waves, fragments, thermal radiation, explosion effects and propagation patterns of explosive system, as well as the allowable levels that personnel, equipment and other burning explosives in the explosive system can withstand are analyzed, and the typical engineering protective measures for explosive manufacturing are discussed. These measures include sealed anti-explosion structures, personnel shelters, protective barriers, and safety distances. Based on engineering practice experience, with the aim of saving land resources and further balancing the effectiveness and economic rationality of engineering protection, it is proposed that the following issues need to be continuously studied and improved: the quantitative evaluation method for combustion and explosion effects in different scenarios, the quantitative evaluation method for the degree of destruction caused by accidents, and the risk-acceptable criteria and quantitative evaluation and optimization method for the effectiveness of engineering protection measures.

Key words: burning explosive, safety protection system, explosive system detonation effect, allowable endurance of explosive body, engineering protective measures

MA Zhiwei, LI Yuan, GUO Mingzhe, SUN Mou. Current Status and Issues of the Safety Protection System for the Production Systems Engineering of Burning Explosives[J]. Acta Armamentarii, 2024, 45(S2): 293-304.

Figures/Tables 13

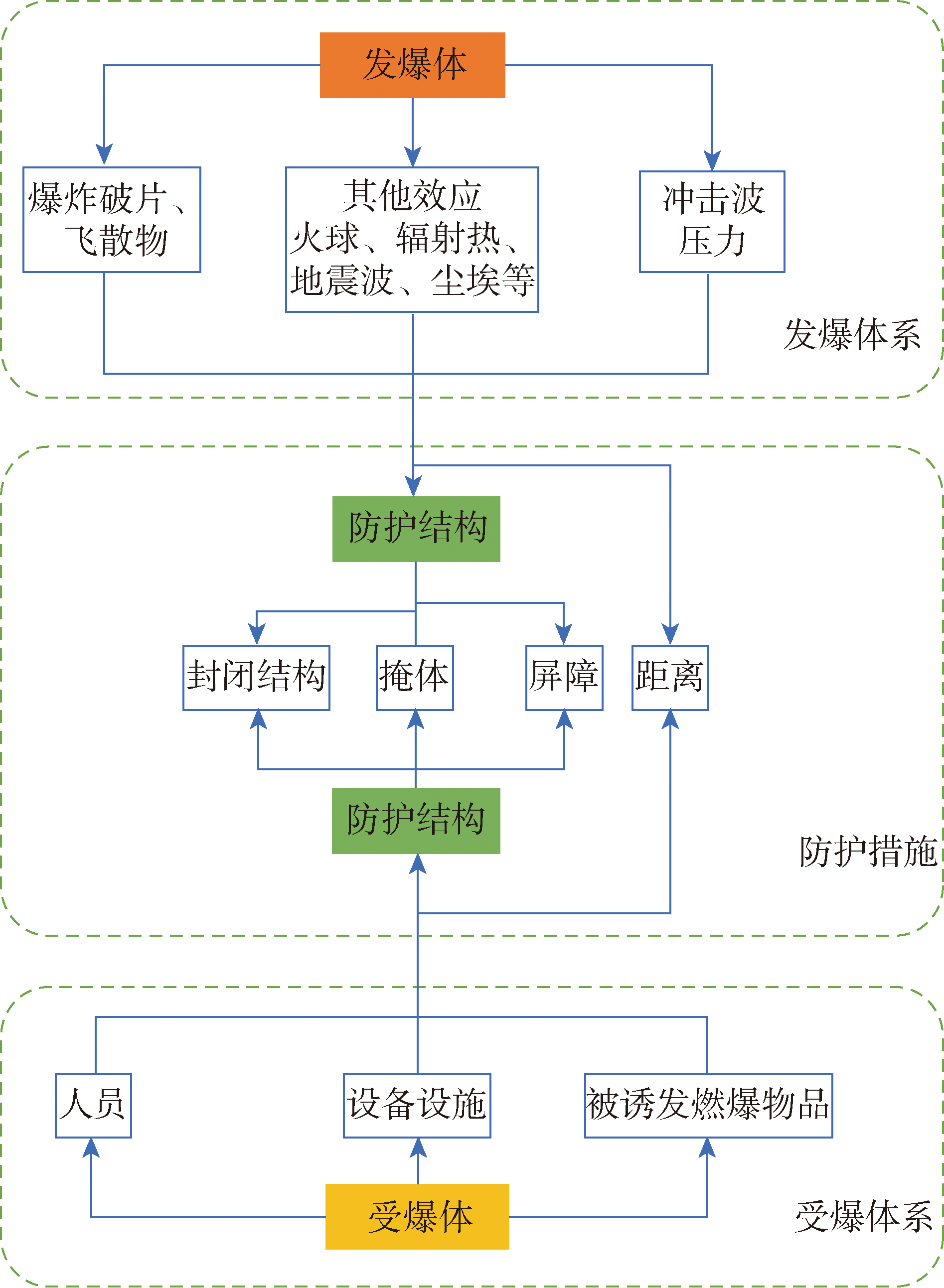

Fig.1 Composition ofengineering safety protection system of combustible and explosive materials

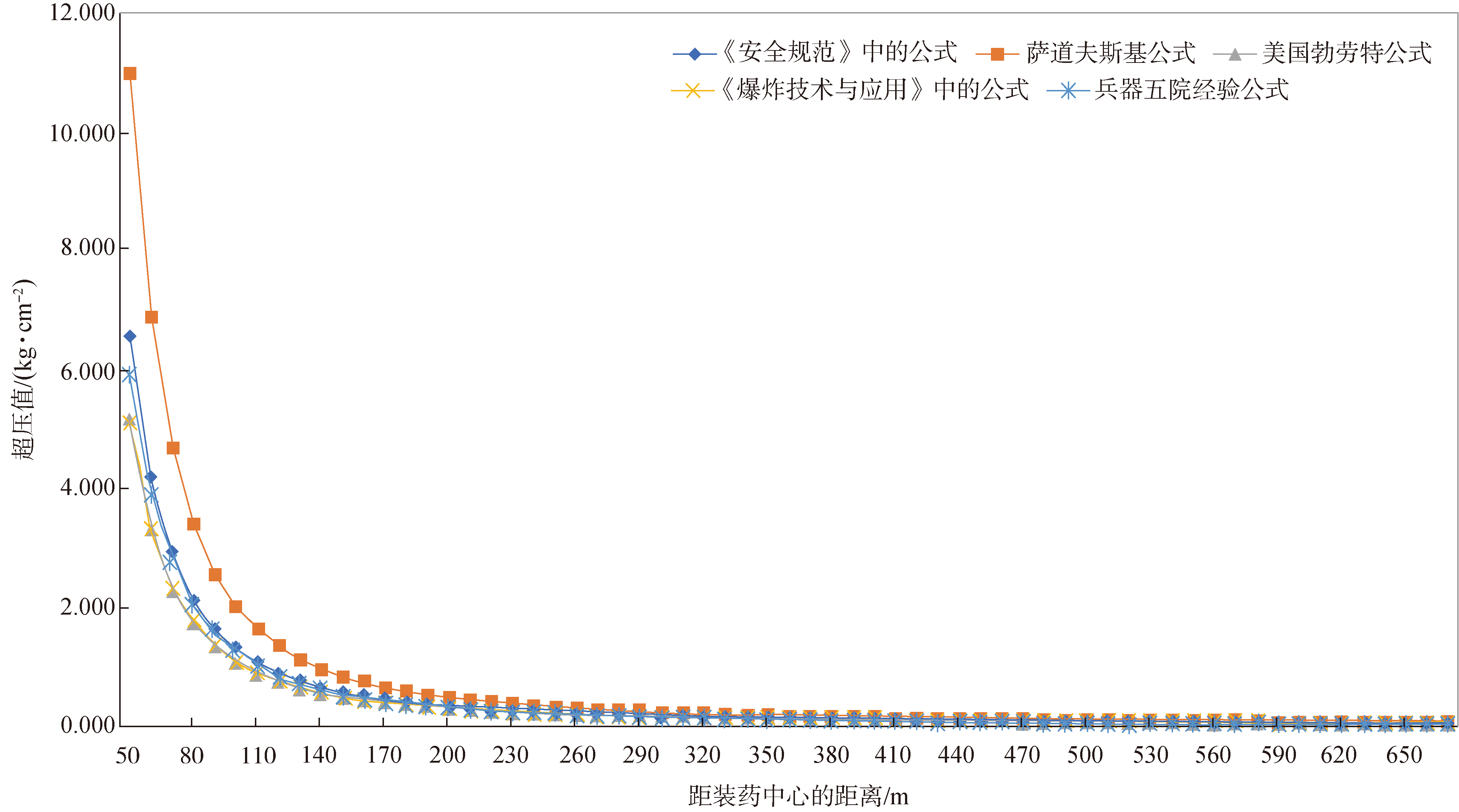

Fig.2 Decays of air shock wave overpressure with distance in different formulas calculations (taking 40000kg TNT equivalent as an example)

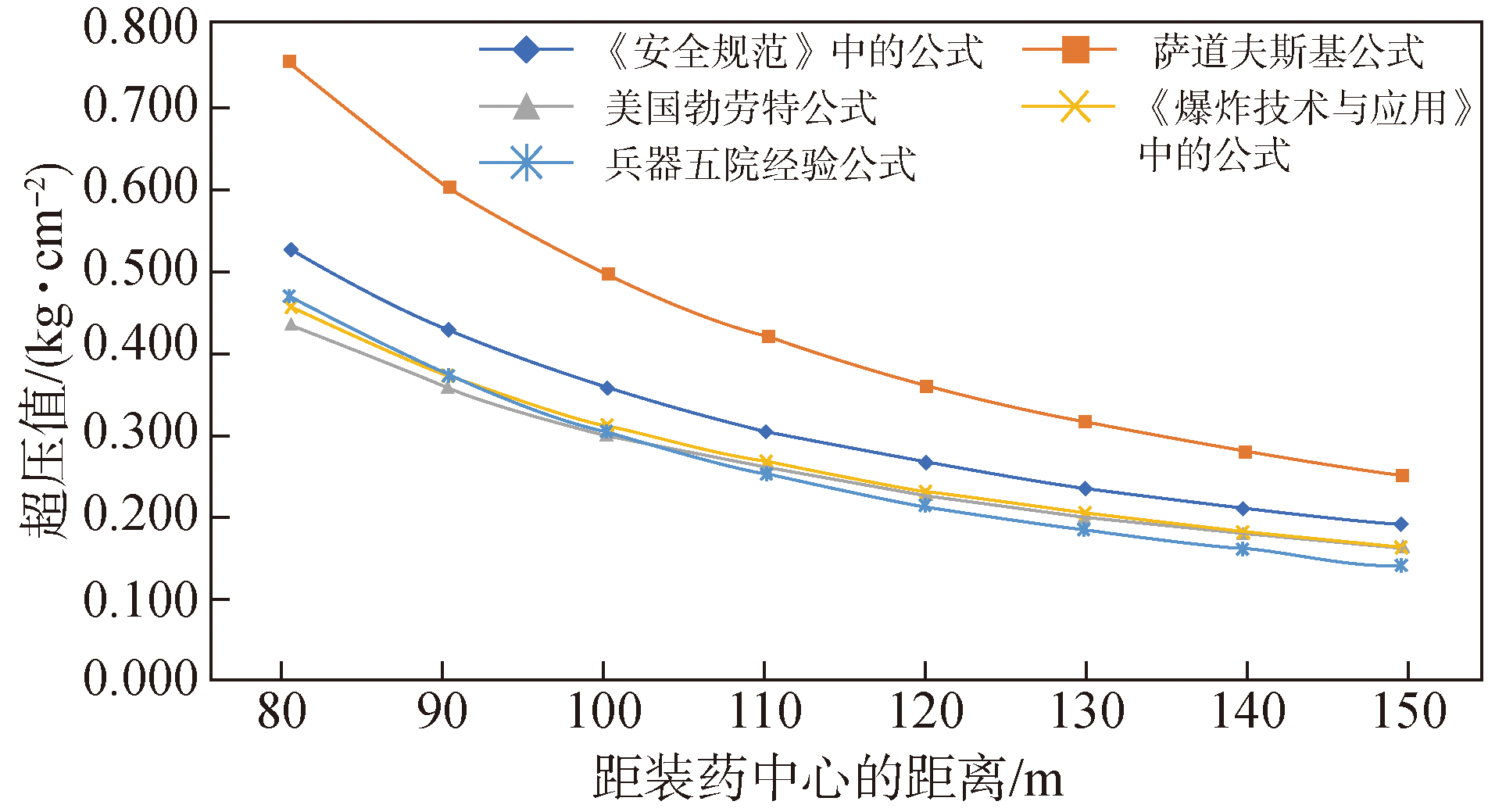

Fig.3 Decays of air shock wave overpressure with distance in different formulas calculations(taking 5 000kg TNT equivalent as an example)

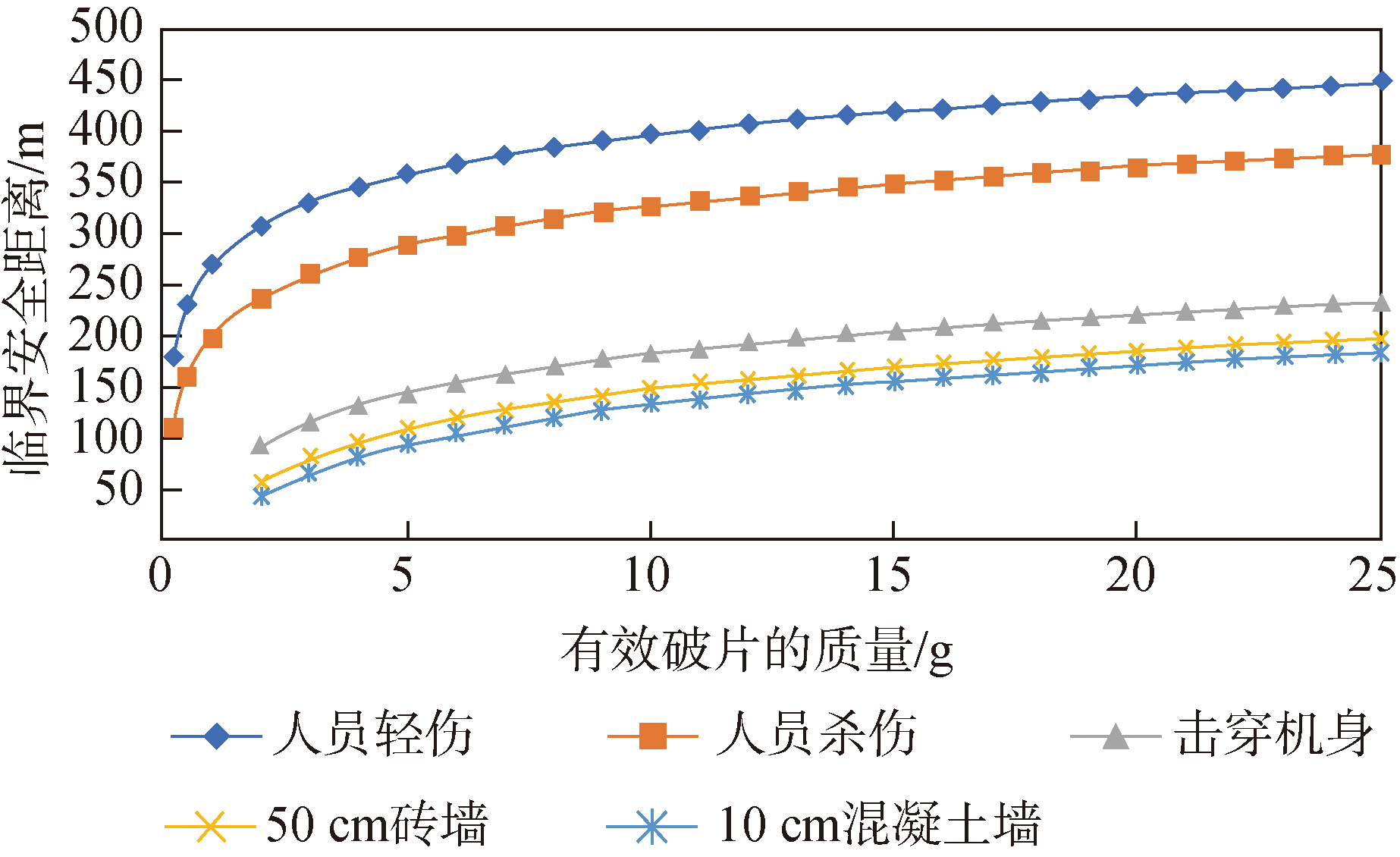

Fig.4 Critical distance of fragment destruction ability

Table 1 Casualty effect caused by shock waveoverpressure

伤亡效应	空气冲击波超压Δp/(kg·cm^-2)
1%耳膜破裂	0.24
50%耳膜破裂	1.12
肺破裂界限	0.7(持续时间50ms), 1.4~2.1(持续时间3ms)
1%的死亡	1.89(持续时间50ms), 4.2~2.14.9(持续时间3ms)

Table 2 Characteristics of person damage caused by shock wave overpressure

人员损伤程度	特征描述	空气冲击波超压 Δp/(kg·cm^-2)
轻微	轻微的挫伤	0.2~0.3
中等	听觉器官的损伤、中等挫伤、骨折等	0.3~0.5
严重	内脏严重挫伤,可引起死亡	0.5~1.0
极严重	可能大部分死亡	>1.0

Table 3 Injury to personnel caused by thermal radiation intensity

热辐射强度/ (kW· $m - 2$ )	对人员的伤害
37.5	1%死亡(10 s) 100%死亡(1min)
25.0	重大烧伤(10s) 100%死亡(1min)
12.5	1度烧伤(10s) 1%死亡(1min)
6.3	在8s内裸露皮肤有痛感; 无热辐射屏蔽设施时,操作人员穿上防护服可停留1min
4.7	暴露16s,裸露皮肤有痛感; 无热辐射屏蔽设施时,操作人员穿上防护服可停留几分钟
1.58	长时间暴露无不适感

Table 3 Injury to personnel caused by thermal radiation intensity

热辐射强度/ (kW· $m - 2$ )	对人员的伤害
37.5	1%死亡(10 s) 100%死亡(1min)
25.0	重大烧伤(10s) 100%死亡(1min)
12.5	1度烧伤(10s) 1%死亡(1min)
6.3	在8s内裸露皮肤有痛感; 无热辐射屏蔽设施时,操作人员穿上防护服可停留1min
4.7	暴露16s,裸露皮肤有痛感; 无热辐射屏蔽设施时,操作人员穿上防护服可停留几分钟
1.58	长时间暴露无不适感

Table 4 The damage levels of buildings under different overpressures

破坏等级及其名称	超压Δp/(kg·cm^-2)
破坏等级及其名称	<0.02	0.02~0.09	0.09~0.25	0.25~0.40	0.40~0.55	0.55~0.76	>0.76
破坏等级	1	2	3	4	5	6	7
破坏等级名称	基本无破坏	次轻度破坏	轻度破坏	中等破坏	次严重破坏	严重破坏	完全破坏

Table5 The damage effects of different overpressures on buildings

建筑物	超压Δp/(kg·cm^-2)
建筑物	<0.02	0.02~0.09	0.09~0.25	0.25~0.40	0.40~0.55	0.55~0.76	>0.76
玻璃	偶然破坏	少部分到大部分呈大块条状或小块破坏	大部分呈小块破坏到粉碎	粉碎
木门窗	无损坏	窗扇少量破坏	窗扇大量破坏,窗框、门扇破坏	窗扇掉落、内倒、窗框、门扇大量破坏	门窗扇摧毁,窗框掉落
砖外墙	无损坏	无损坏	出现较小裂缝,宽度小于5mm,稍有倾斜	出现较大裂缝,缝宽5~50mm,明显倾斜,砖垛出现较小裂缝	出现大于50mm裂缝,严重倾斜,砖垛出现较大裂缝	部分倒塌	大部分到全部倒塌
木屋盖	无损坏	无损坏	木屋面板变形,偶见折裂	木屋面板、木屋檩条折裂;木屋架支座松动	木檩条折断,木屋架杆件偶然折裂,支座错位	部分倒塌	全部倒塌
瓦屋面	无损坏	无损坏	大量移动	大量移动到全部掀掉
混凝土屋盖	无损坏	无损坏	无损坏	出现小于1mm的小裂缝	出现1~2mm宽的裂缝,修复后可继续使用	出现大于2mm的裂缝	承重砖墙大部分到全部倒塌,钢筋混凝土承重柱严重破坏
顶棚	无损坏	抹灰少量掉落	抹灰大量掉落	木龙骨部分破坏、下垂缝	塌落
内墙	无损坏	板条墙抹灰小量掉落	板条墙抹灰大量掉落	砖内墙出现小裂缝	砖内墙出现大裂缝	砖内墙出现严重裂缝到部分倒塌	砖内墙大部倒塌
混凝土柱	无损坏	无损坏	无损坏	无损坏	无损坏	有倾斜	有较大倾斜

Fig.5 Plan and elevation of blast tower and drop test tower

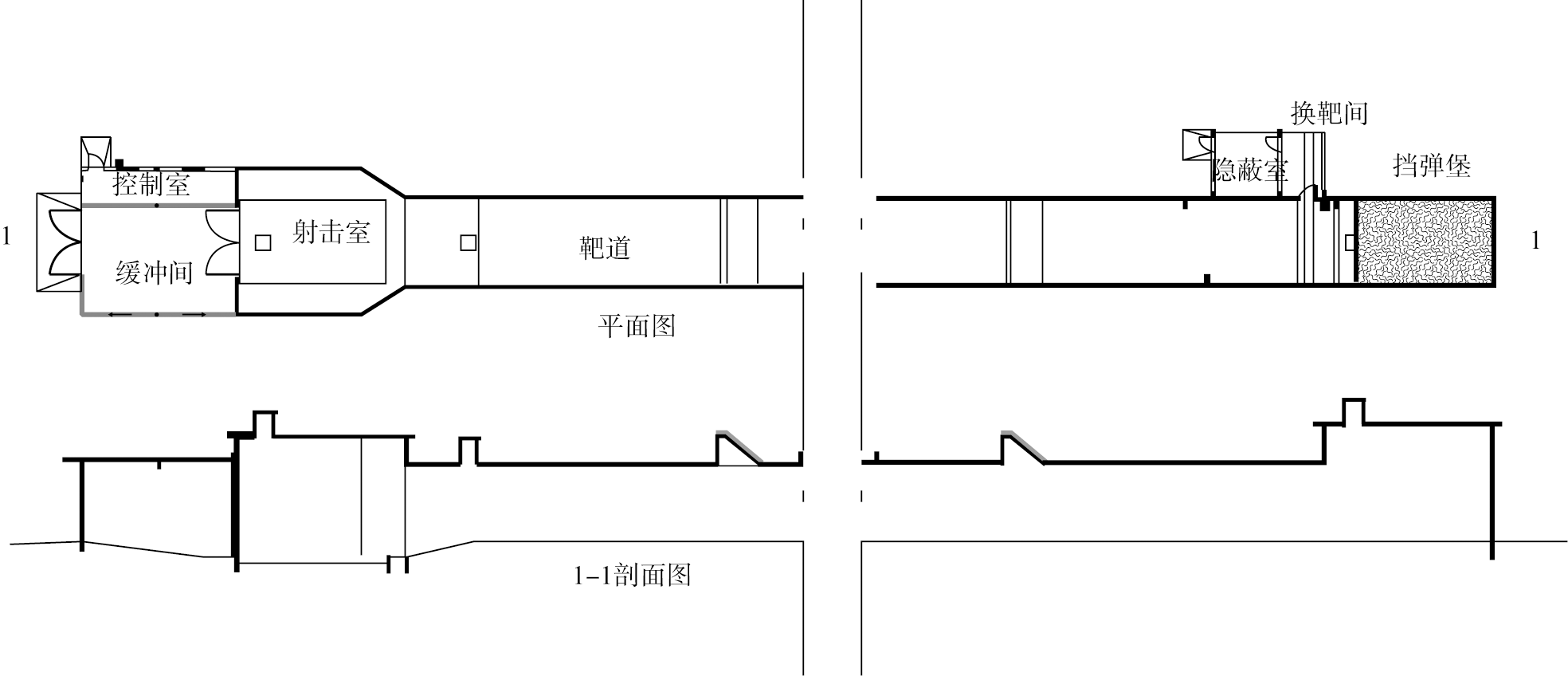

Fig.6 Plan and section of enclosed shooting range

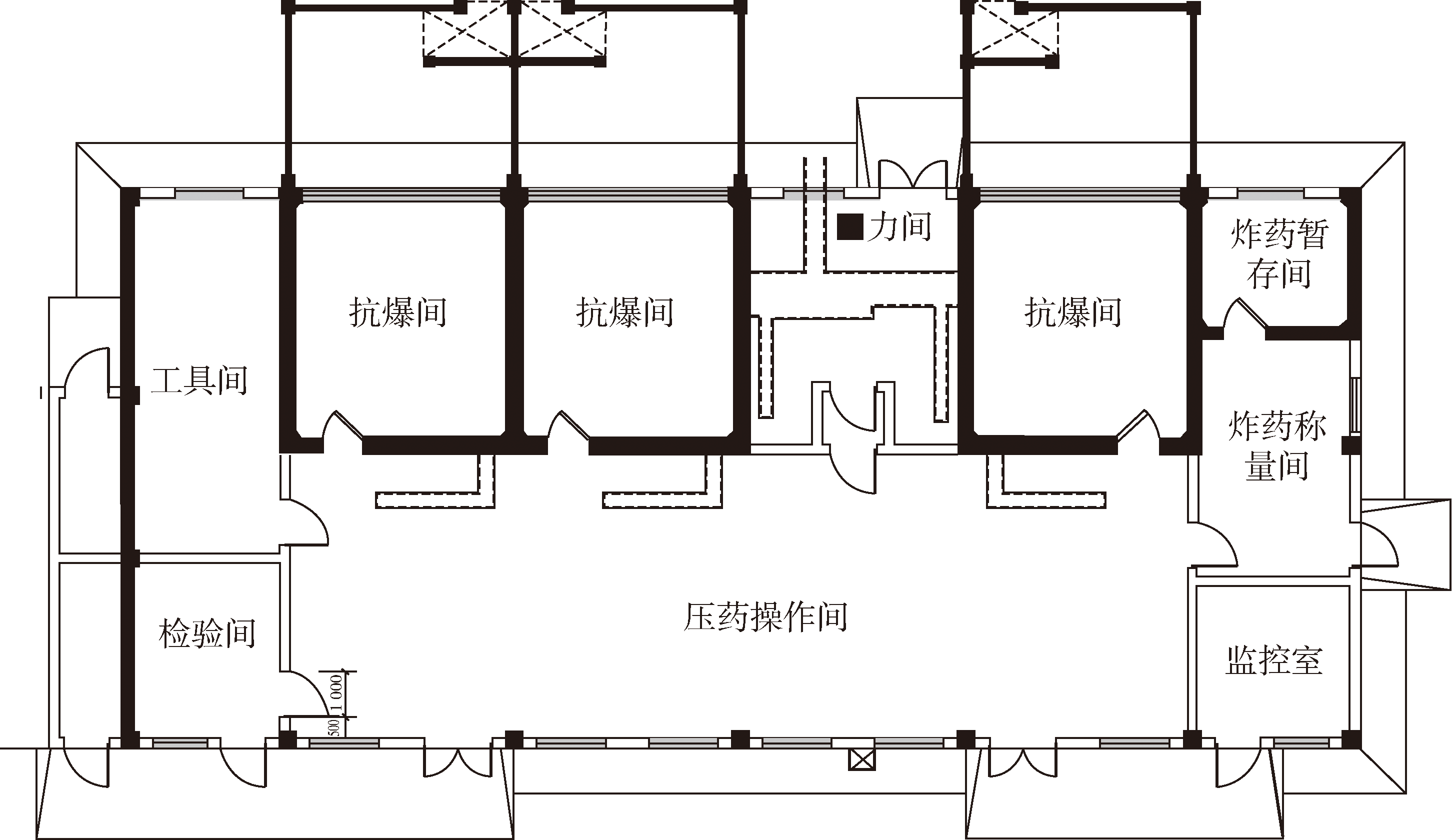

Fig.7 Plan of blast resistant chamber

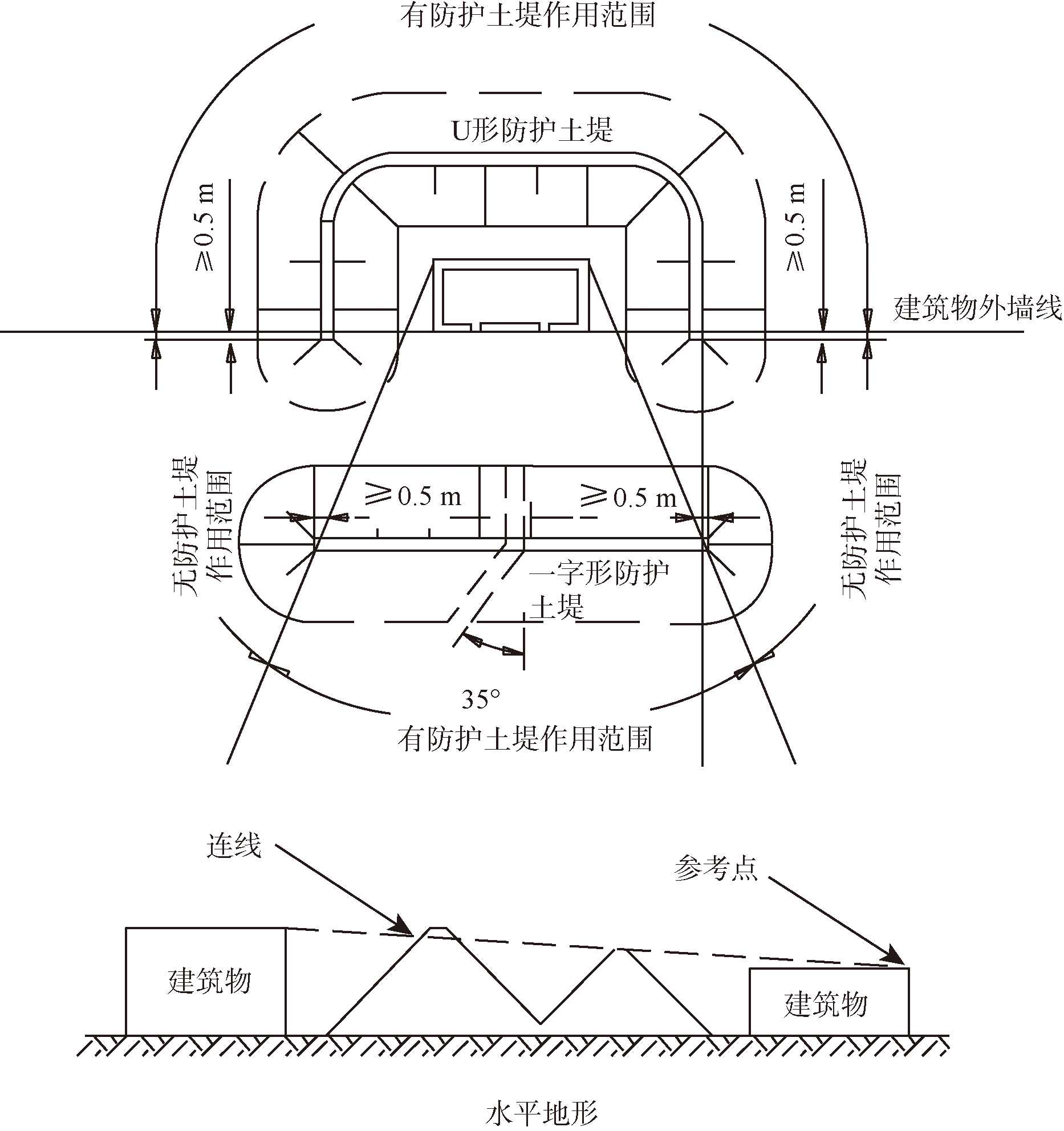

Fig.8 Schematic diagram of barricades
