Static Power Field Reconstruction Method for Natural Fragmentation Warhead

doi:10.12382/bgxb.2024.0838

Abstract

Abstract:

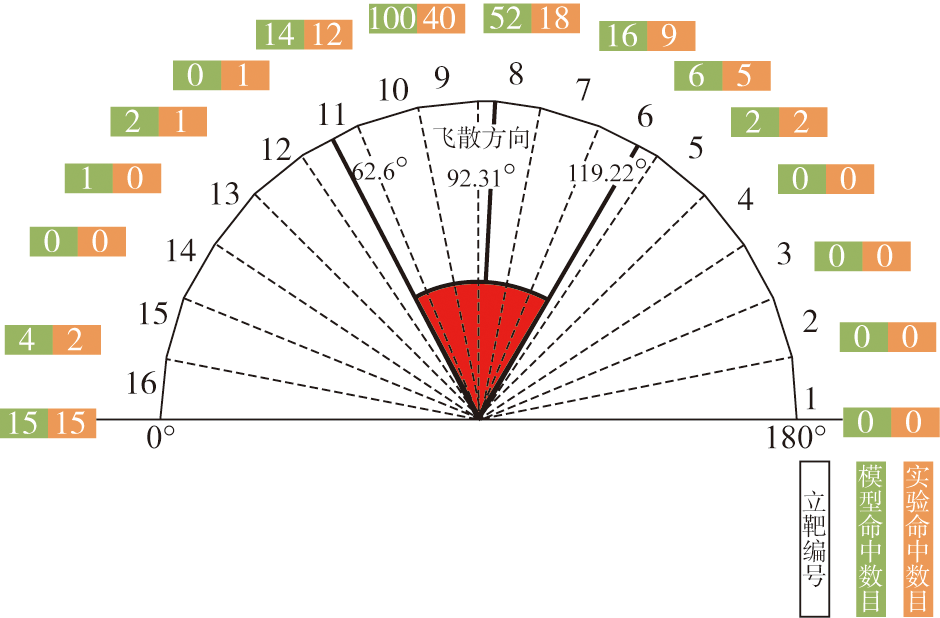

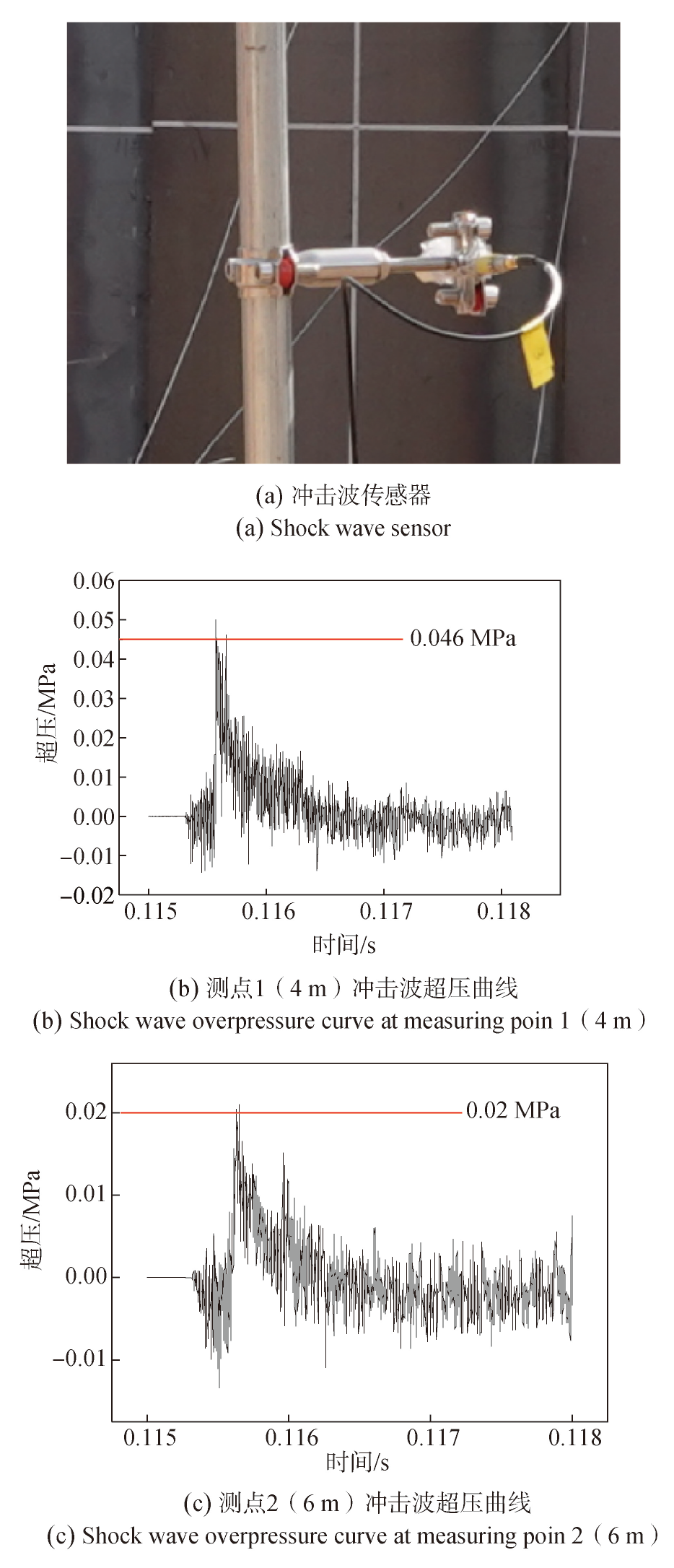

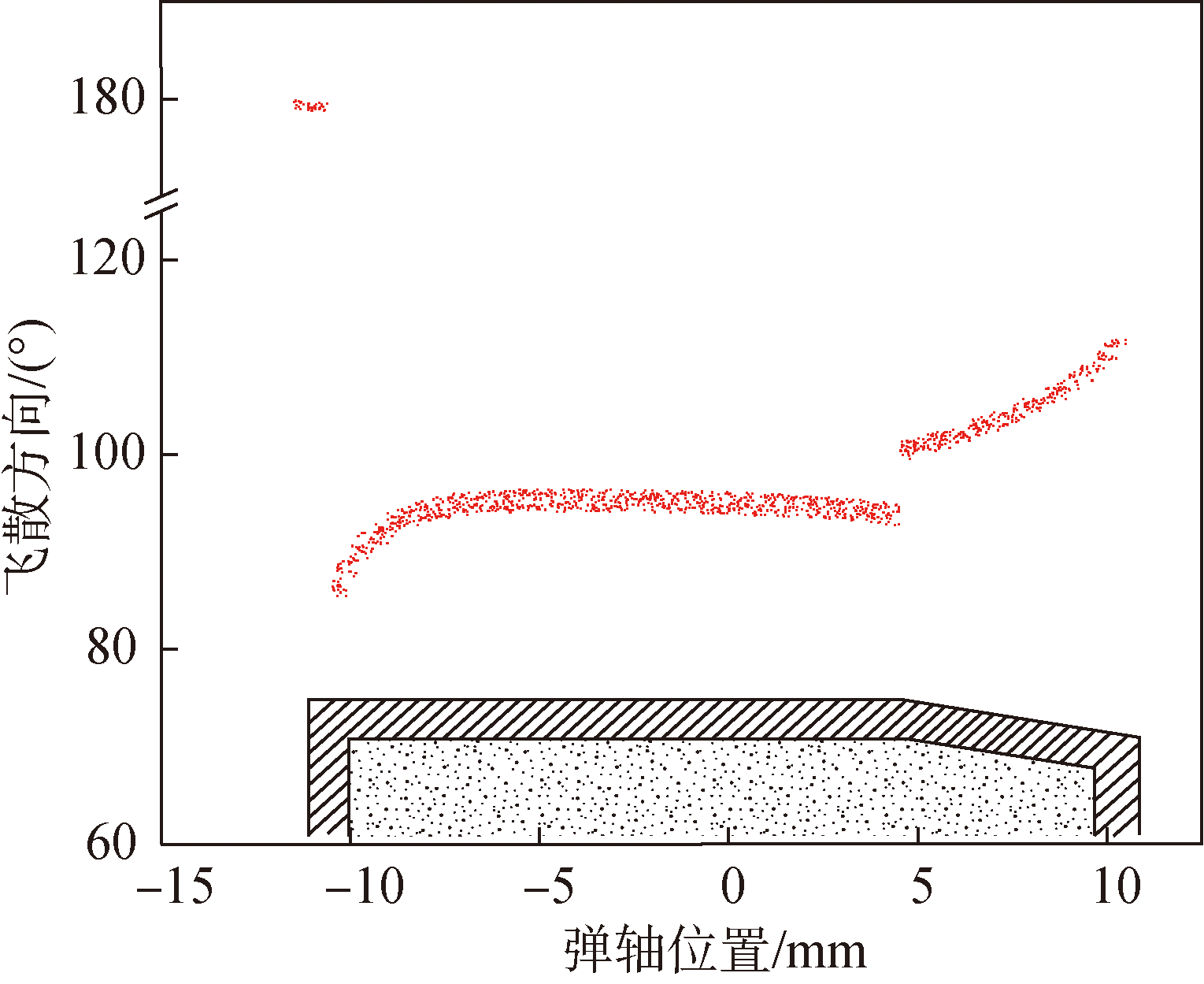

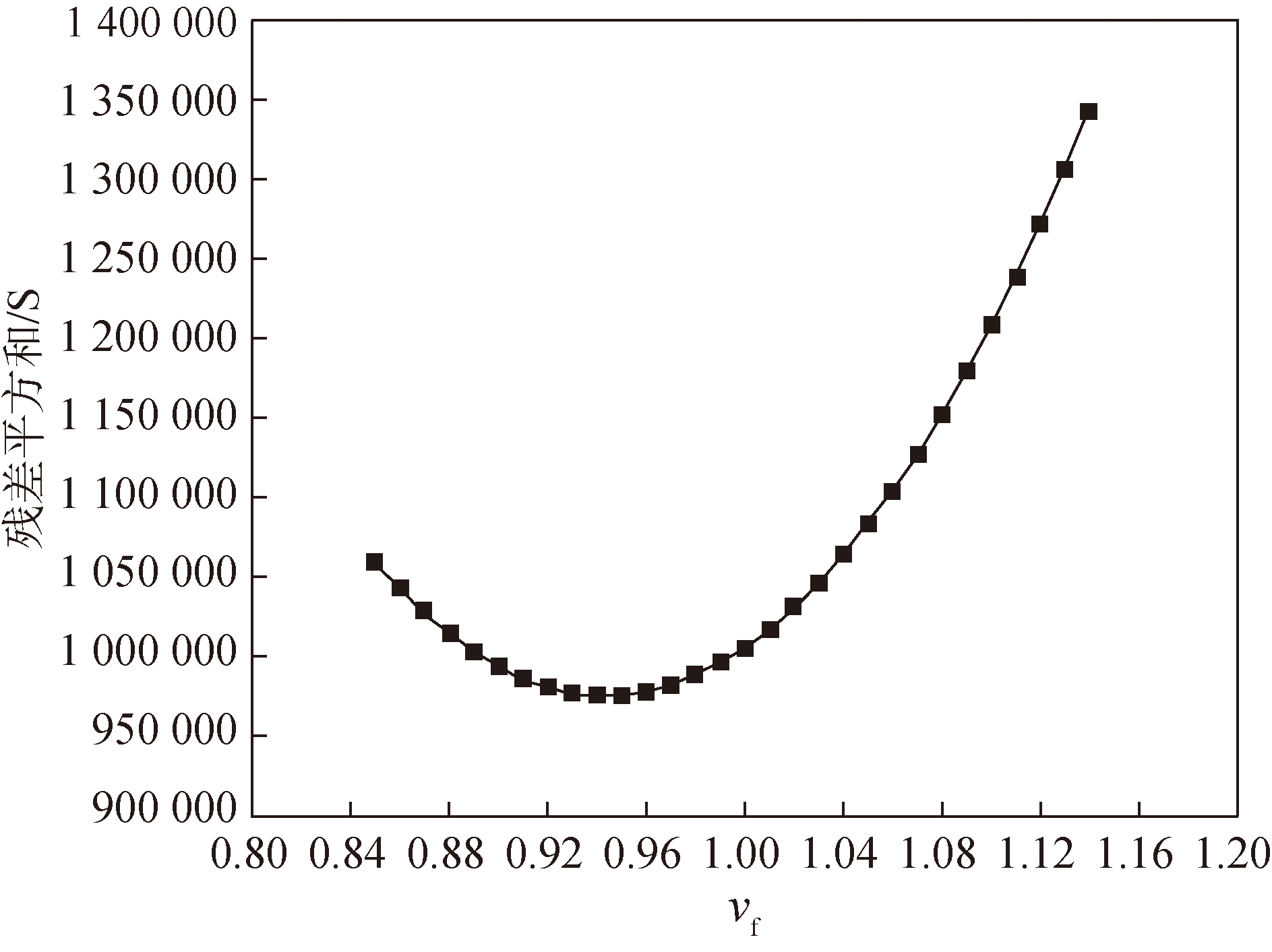

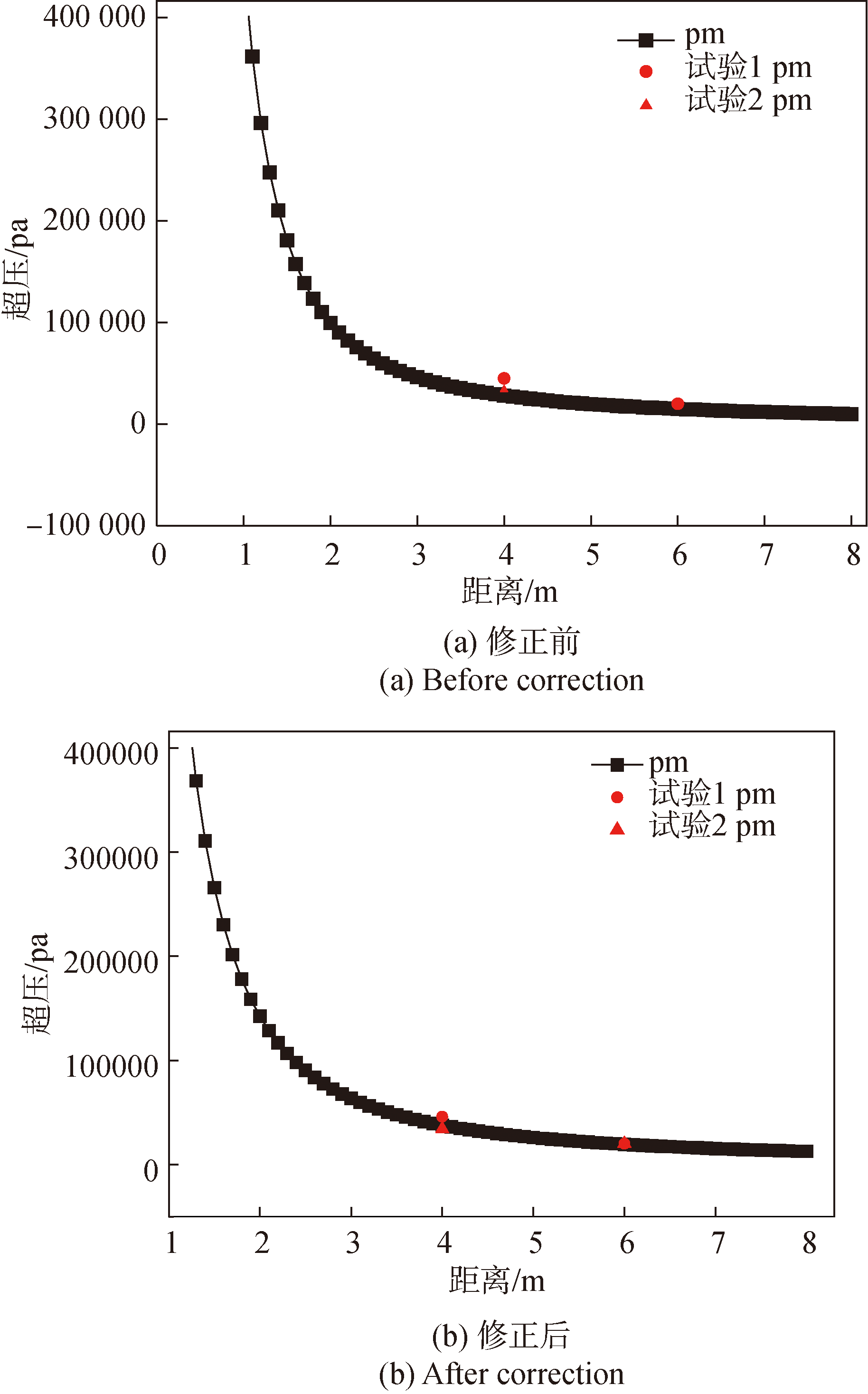

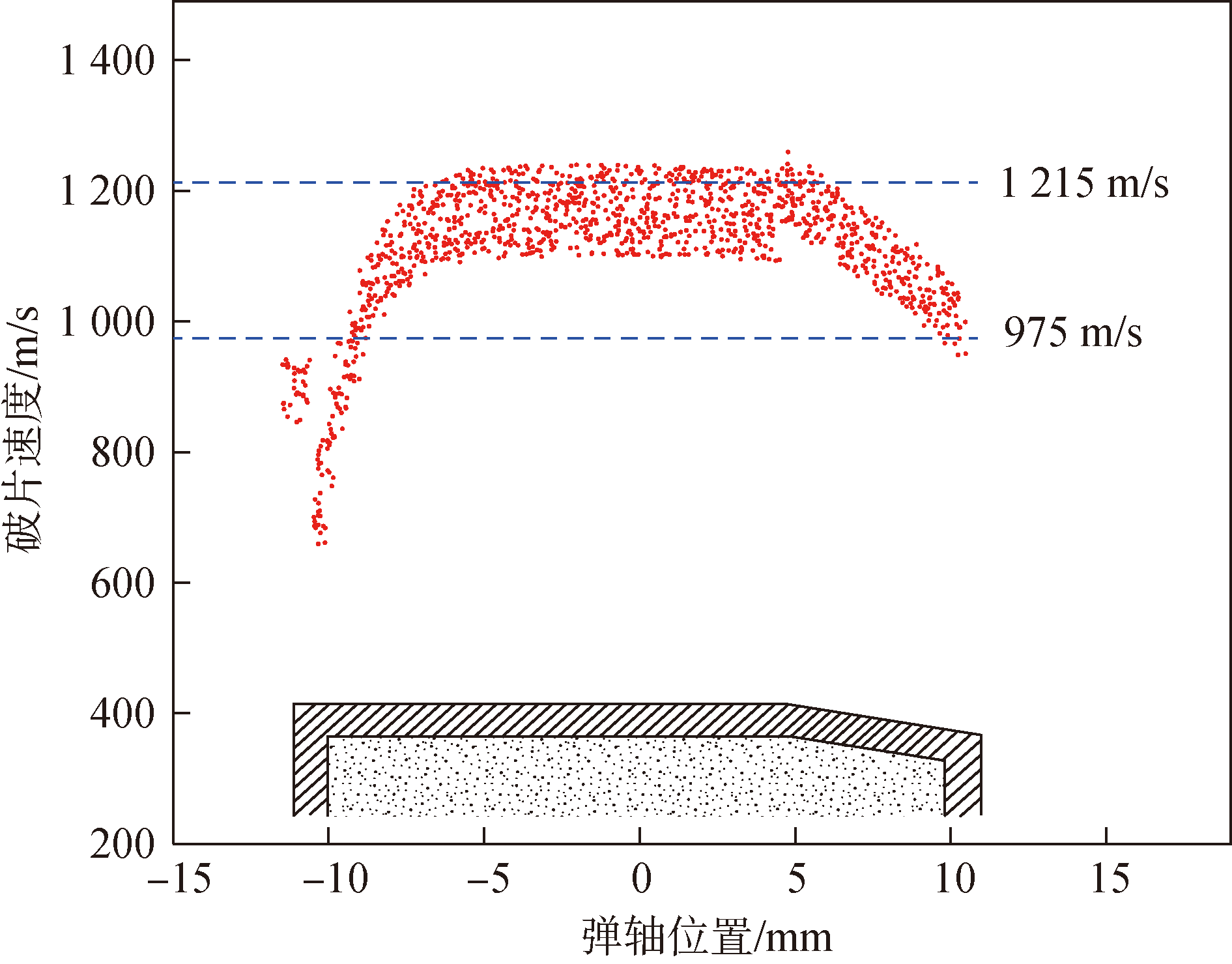

The warhead power is the load input for the calculation of damage effect. The accurate construction of a static power field model for warhead becomes an important task to evaluate the accuracy of damage assessment task. Based on the unique characteristics of natural fragmentation warhead, a method for reconstructing the static power field model for warhead is proposed by numerical simulation, theoretical analysis and experimental verification. That is, an initial model of fragmentation power field is constructed based on the calculated results of the numerical simulation model, an initial model of the shock wave power field is constructed based on the classical analytical theory, and the key characteristic quantities of the power field are corrected item by item based on the sample data of the experiment. Through the case calculation, it is shown that the power field model of natural fragmentation warhead established by using the proposed reconstruction method can accurately describe the actual warhead power characteristics, and can be effectively applied in the related fields of warhead performance evaluation and weapon equipment effectiveness evaluation.

Key words: natural fragmentation, power field reconstruction, static explosive experiment, experimental correction

FENG Changlin, SHI Rui, ZHANG Bing, WANG Xiaodong, LIAO Shasha. Static Power Field Reconstruction Method for Natural Fragmentation Warhead[J]. Acta Armamentarii, 2024, 45(S2): 283-292.

Figures/Tables 22

References 20

[1]	GRADY D E, KIPP M E. Geometric statisticsand dynamic fragmentation[J]. Journal of Applied Physics, 1985, 58(3):1210-1222.
[2]	ELEK P, JARAMAZ S. Fragment size distributionin dynamic fragmentation:Geometric probability approach[J]. FME Transactions, 2008, 36(2):59-65.
[3]	王林, 高秀娟, 李晓辉, 等. 杀爆榴弹自然破片终点参数试验方法研究[J]. 弹箭与制导学报, 2021, 41(4):125-128.
	WANG L, GAO X J, LI X H, et al. The terminal effect parameters test method research on the high explosive shell natural fragments[J]. Journal of Projectiles,Rockets,Missiles and Guidance, 2021, 41(4):125-128. (in Chinese)
[4]	MOXNES J F, PRYTZ A K, FRØYLAND Ø, et al. Experimental and numerical study of the fragmentation of expanding warhead casings by using different numerical codes and solution techniques[J]. Defence Technology, 2014, 10(2):161-176. doi: 10.1016/j.dt.2014.05.009
[5]	JANZON B. 26th international symposium on ballistics,Miami,Fl,USA,12-16 September 2011[J]. Journal of Applied Mechanics, 2011, 78(5):1515-1518.
[6]	申景田, 苏健军, 姬建荣, 等. 破片飞散角动静爆关联的试验研究[J]. 弹箭与制导学报, 2019, 39(2):48-51.
	SHEN J T, SU J J, JI J R, et al. Relationship beteewn the dynamic and static explosion fragment scattering angle of a certain ammunition[J]. Journal of Projectiles,Rockets,Missiles and Guidance, 2019, 39(2):48-51. (in Chinese)
[7]	GUO Z W, HUANG G Y, LIU C M, et al. Velocity axial distribution of fragments from non-cylindrical symmetry explosive-filled casing[J]. International Journal of Impact Engineering, 2018, 118:1-10.
[8]	孙浩, 张见升, 李超, 等. 大质量高动态侵彻战斗部爆炸破片分布数值仿真与试验研究[J]. 兵器装备工程学报, 2023, 44(9):216-221.
	SUN H, ZHANG J S, LI C, et al. Numerical simulation and experiment research of large mass and high dynamic penetrating warhead explosive fragment distribution[J]. Journal of Ordnance Equipment Engineering, 2023, 44(9):216-221. (in Chinese)
[9]	于江, 石党勇, 夏长富, 等. 基于LS-DYNA的自然破片战斗部数值模拟方法研究[J]. 火工品, 2009, 2(1):25-29.
	YU J, SHI D Y, XIA C F, et al. Investigation on numerical method of natural fragment warhead based on LS-DYNA[J]. Initiators & Pyrotechnics, 2009, 2(1):25-29. (in Chinese)
[10]	韩夫亮. 预制破片战斗部爆炸威力场数值模拟分析[D]. 长春: 吉林大学, 2008.
	HAN F L. The simulation analysis of prefabricate fragment warhead explosion power field[D]. Changchun: Jilin University, 2008. (in Chinese)
[11]	宋文渊. 杀爆弹战斗部自然破片有限元建模分析[J]. 弹箭与制导学报, 2008, 28(3):121-130.
	SONG W Y. Modeling analysis of nature fragments of pill warhead[J]. Journal of Projectiles,Rockets,Missiles and Guidance, 2008, 28(3):121-130. (in Chinese)
[12]	高月光, 冯顺山, 刘云辉, 等. 不同端盖厚度的圆柱形装药壳体破片初速分布[J]. 兵工学报, 2022, 43(7):1527-1536.
	GAO Y G, FENG S S, LIU Y H, et al. Initial velocity distribution of fragments from cylindrical charge shells with different thick end caps[J]. Acta Armamentarii, 2022, 43(7):1527-1536. (in Chinese) doi: 10.12382/bgxb.2021.0443
[13]	陈尧禹, 蒋海燕, 丁刚, 等. 弹体平转动速度对破片场初速分布影响研究[J]. 兵器装备工程学报, 2022, 43(3):99 -106.
	CHEN Y Y, JIANG H Y, DING G, et al. Research on the influence of the projectile’s rotation and translation velocity on the initial fragment velocity distribution in the fragment field[J]. Journal of Ordnance Equipment Engineering, 2022, 43(03):99-106. (in Chinese)
[14]	Defence Material administration a tri-service vulnerability/lethality model[DB/OL]http://www.fmv.se/WmTemplates/Pageaspx?id=1025.
[15]	宋峰, 蒋建伟. 杀爆战斗部快速设计系统研究[D]. 北京: 北京理工大学, 2006.
	SONG F, JIANG J W. Research on the rapid design system of blast and fragmentation warhead[D]. Beijing: Beijing Institute of Technology, 2006.
[16]	朱建军, 李伟兵, 王晓鸣, 等. 回火温度对50SiMnVB钢壳体形成破片性能的影响[J]. 兵工学报, 2015, 36(11):2080-2086. doi: 10.3969/j.issn.1000-1093.2015.11.009
	ZHU J J, LI W B, WANG X M. Effect of tempering temperature on the fragmentation performance of 50SiMnVB steel shells[J]. Acta Armamentarii, 2015, 36(11):2080-2086. (in Chinese)
[17]	李俊承, 余春祥, 牛公杰, 等. 内爆载荷作用下多舱室结构的破坏仿真分析[J]. 舰船科学技术, 2015, 37(8):7-11.
	LI J C, YU C X, NIU G J, et al. Simulation analysis of damage of multi compartment structures under implosion loads[J]. Ship Science and Technology, 2015, 37(8):7-11. (in Chinese)
[18]	孔祥韶, 吴卫国, 杜志鹏, 等. 圆柱形战斗部爆炸破片特性研究[J]. 工程力学, 2014, 31(1):243-249.
	KONG X S, WU W G, DU Z P, et al. Study on the characteristics of explosive fragments of cylindrical warheads[J]. Engineering Mechanics, 2014, 31(1):243-249. (in Chinese)
[19]	亨利奇. 爆炸动力学及其应用[M].熊建国,译, 北京: 科学出版社, 1987.
	HENRICH J. Explosion dynamics and its applications[M]. XIONG J G,translated, Beijing: Science Press, 1987. (in Chinese)
[20]	MOTT N F. Fragmentation of shell caces[J]. Proceedings of the Royal Society A, 1947, 189(109):300-308.

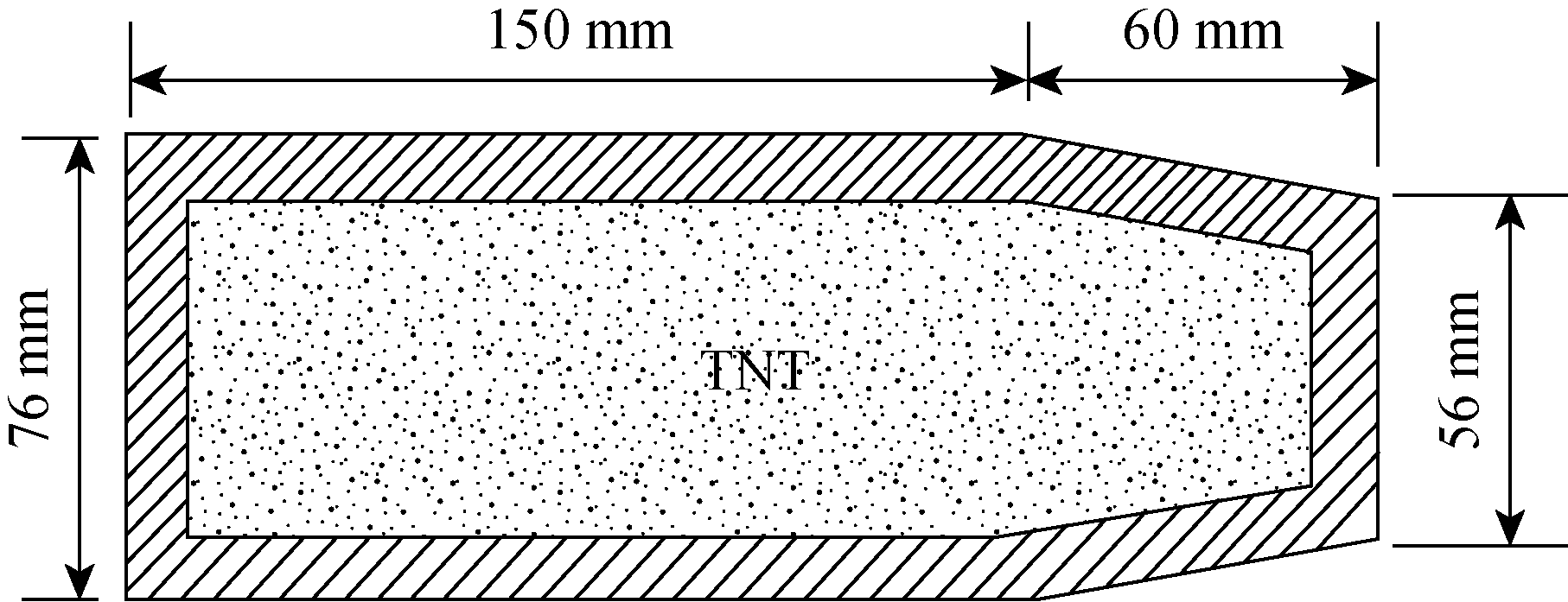

参数	数值	参数	数值
ρ/(kg·m^-3)	7670	n	0.028
A/MPa	1047	C	0.018
B/MPa	262	m	0.63

参数	数值	参数	数值
ρ/(kg·m^-3)	7670	n	0.028
A/MPa	1047	C	0.018
B/MPa	262	m	0.63

参数	数值	参数	数值
ρ/(kg·m^-3)	1630	R₁	4.15
A/MPa	374	R₂	0.95
B/MPa	3230	ω	0.3
Ε/(J·g^-1)	4800

参数	数值	参数	数值
ρ/(kg·m^-3)	1630	R₁	4.15
A/MPa	374	R₂	0.95
B/MPa	3230	ω	0.3
Ε/(J·g^-1)	4800

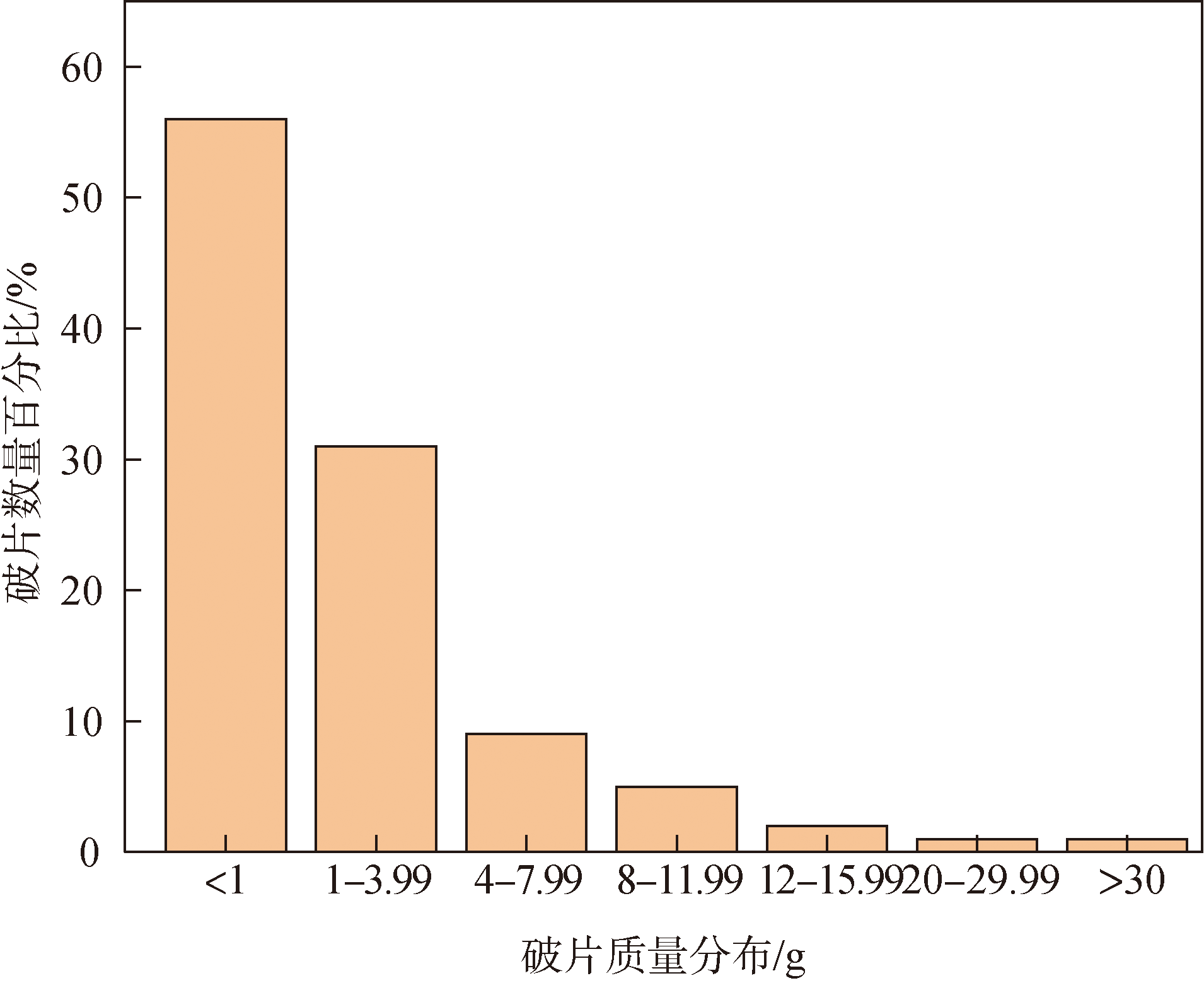

试验日期	战斗部编号	战斗部全重	破片质量分组
			<q1		q1 - q2		q2 - q3		q3 - q4		q4 - q5		q5 - q6		q6 - q7		……		qn-1 - qn		>qn
						数目	百分比	数目	百分比	数目	百分比	数目	百分比	数目	百分比	数目	百分比	数目	百分比	数目	百分比	数目	百分比	数目	百分比
