Study on Inherent Vibration Characteristics and Resonance Speed of High-speed Electromechanical Transmission System for Vehicle

doi:10.12382/bgxb.2023.1149

Abstract

Abstract:

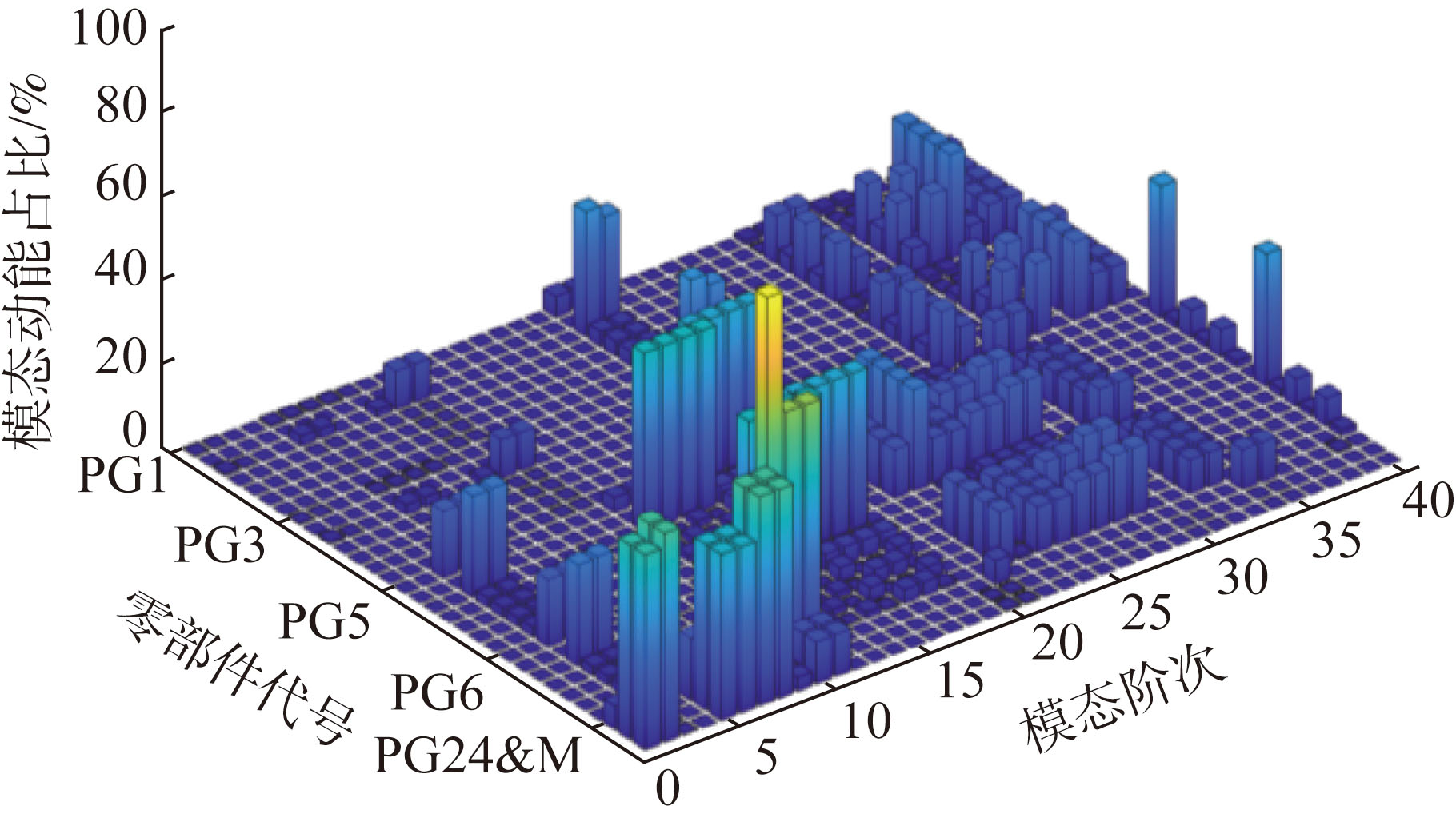

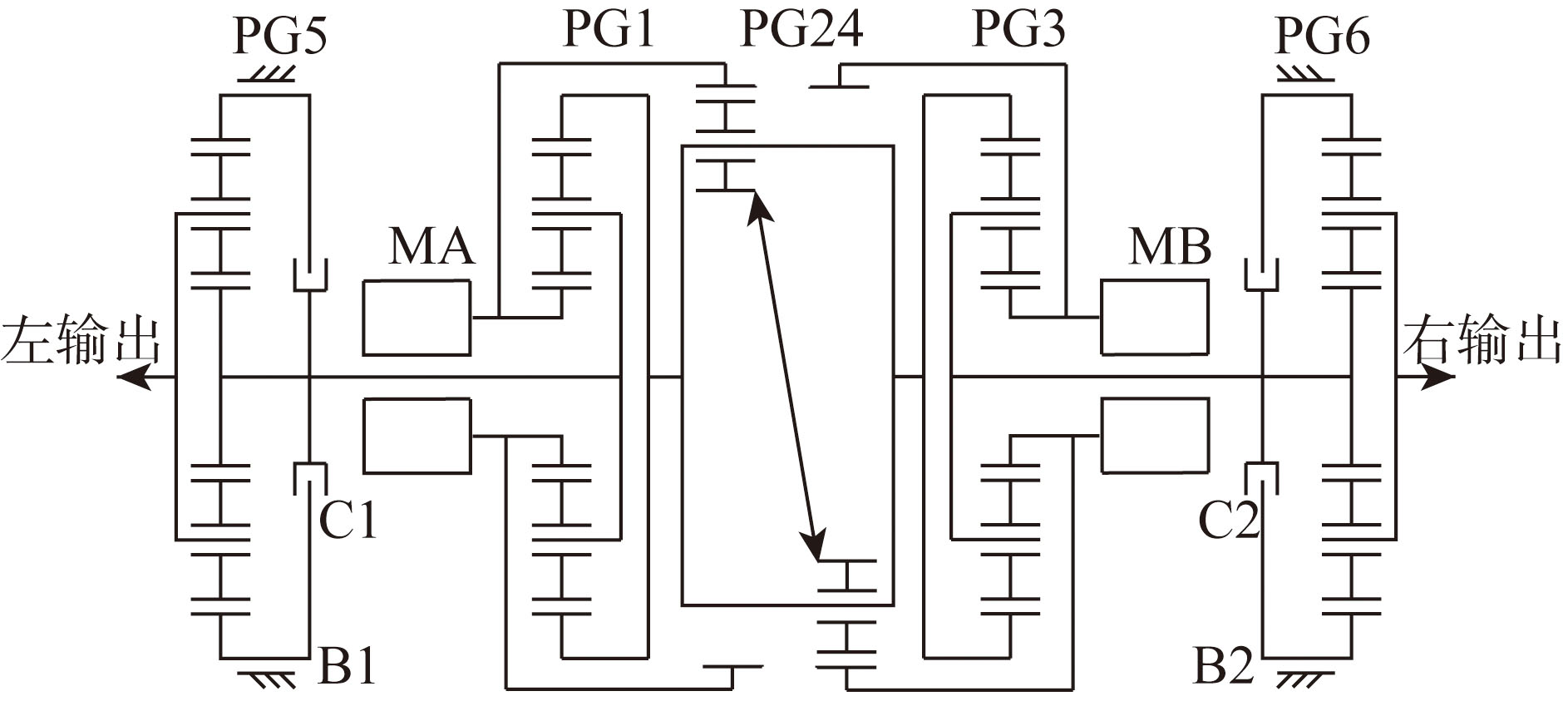

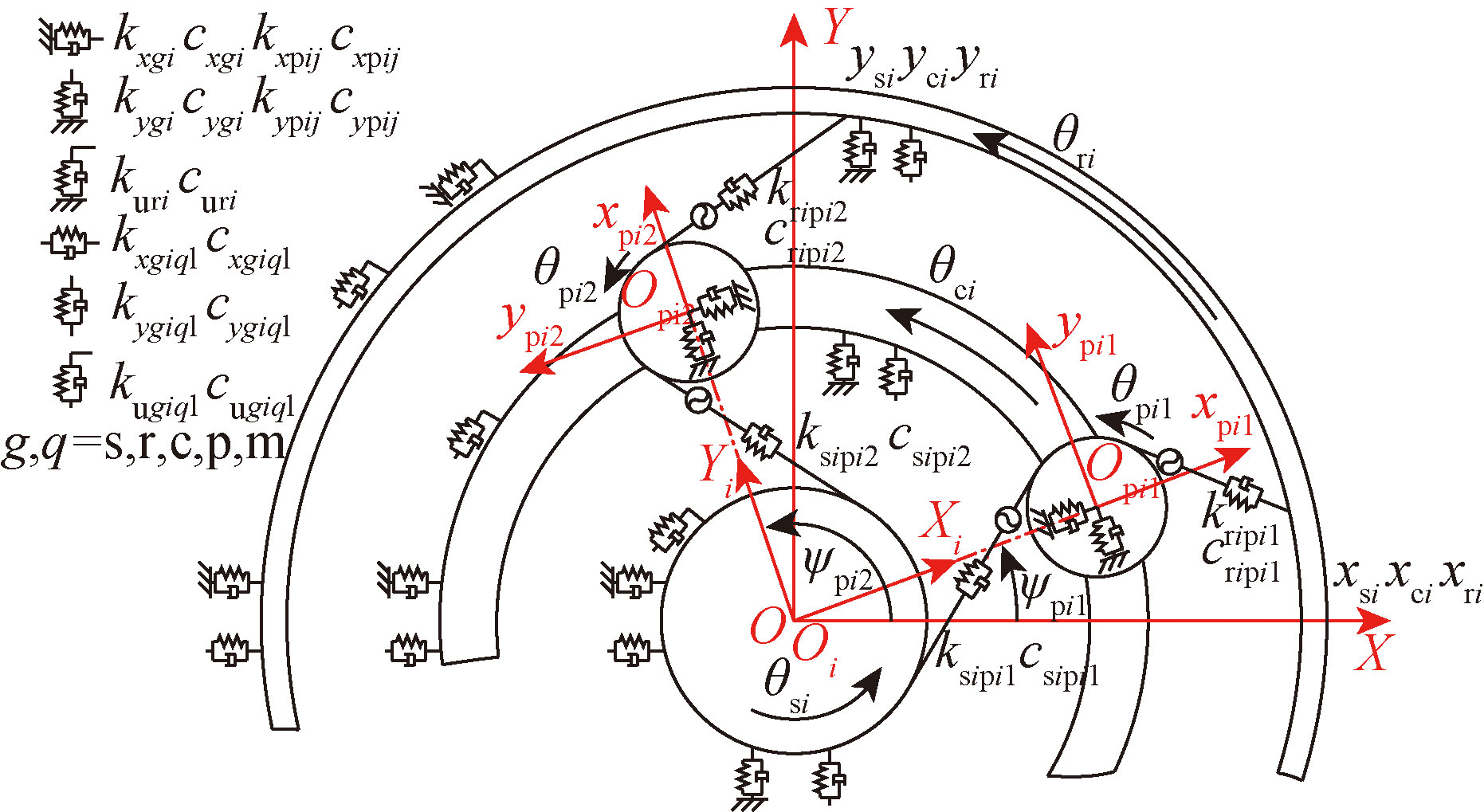

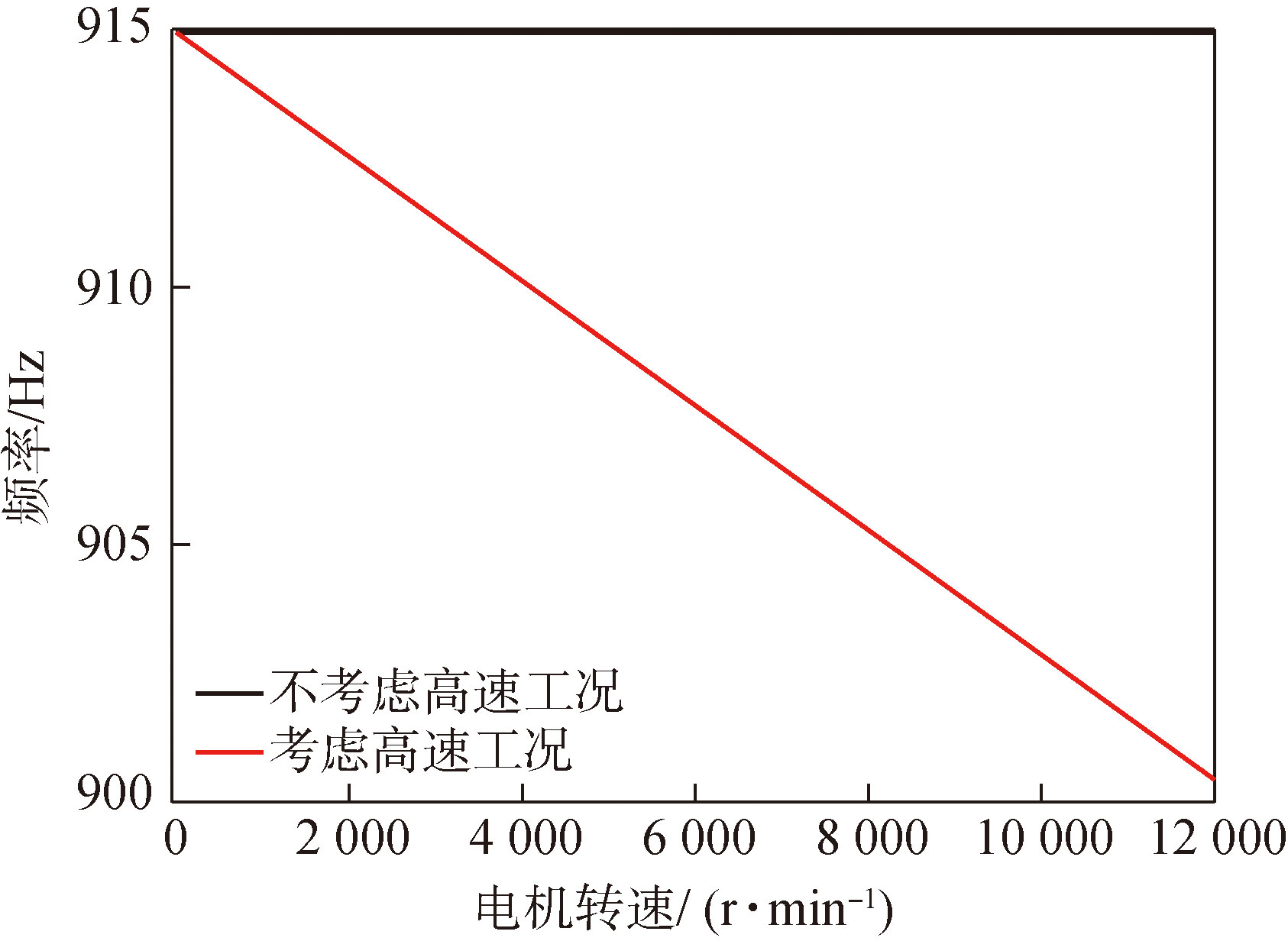

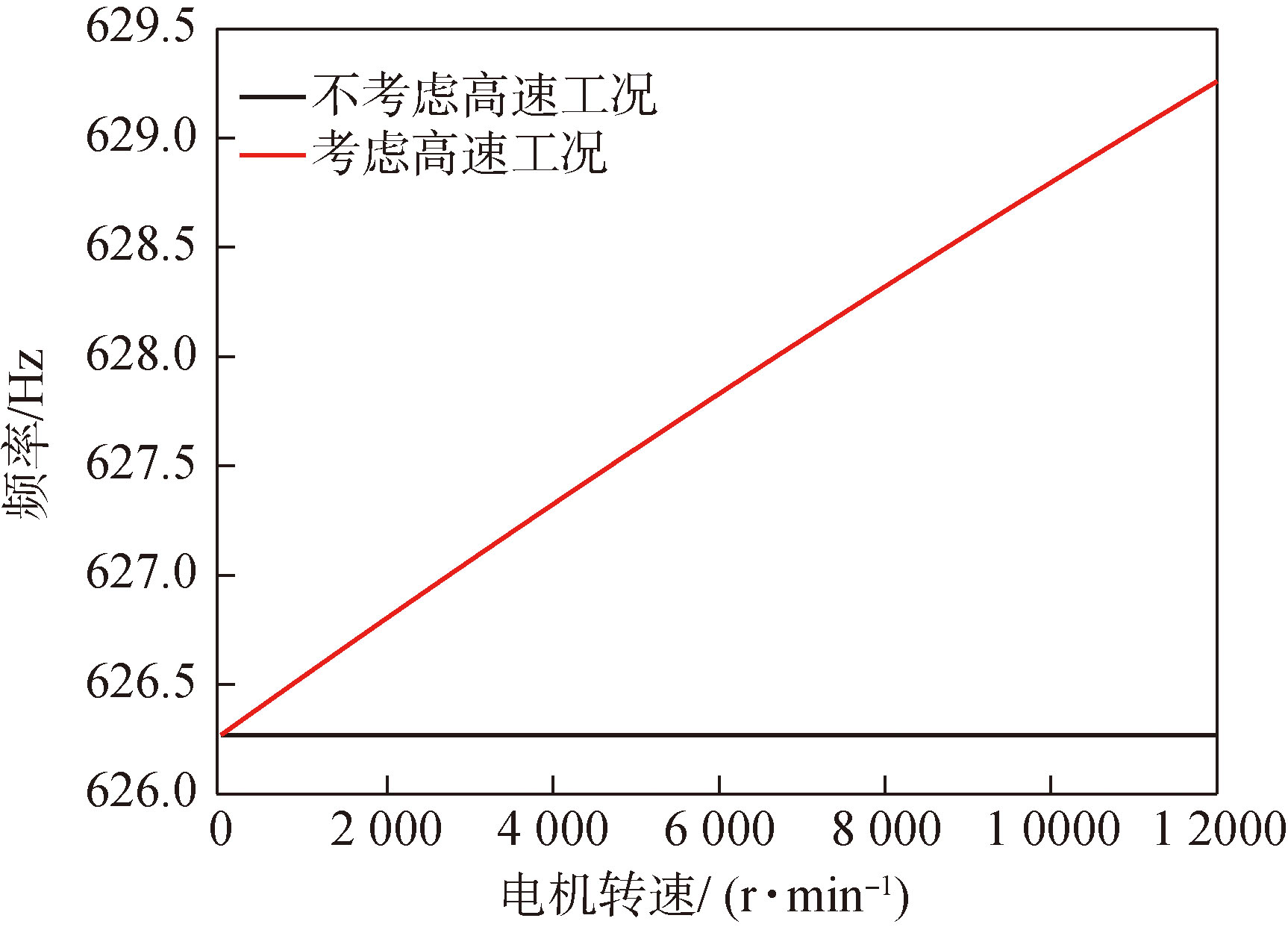

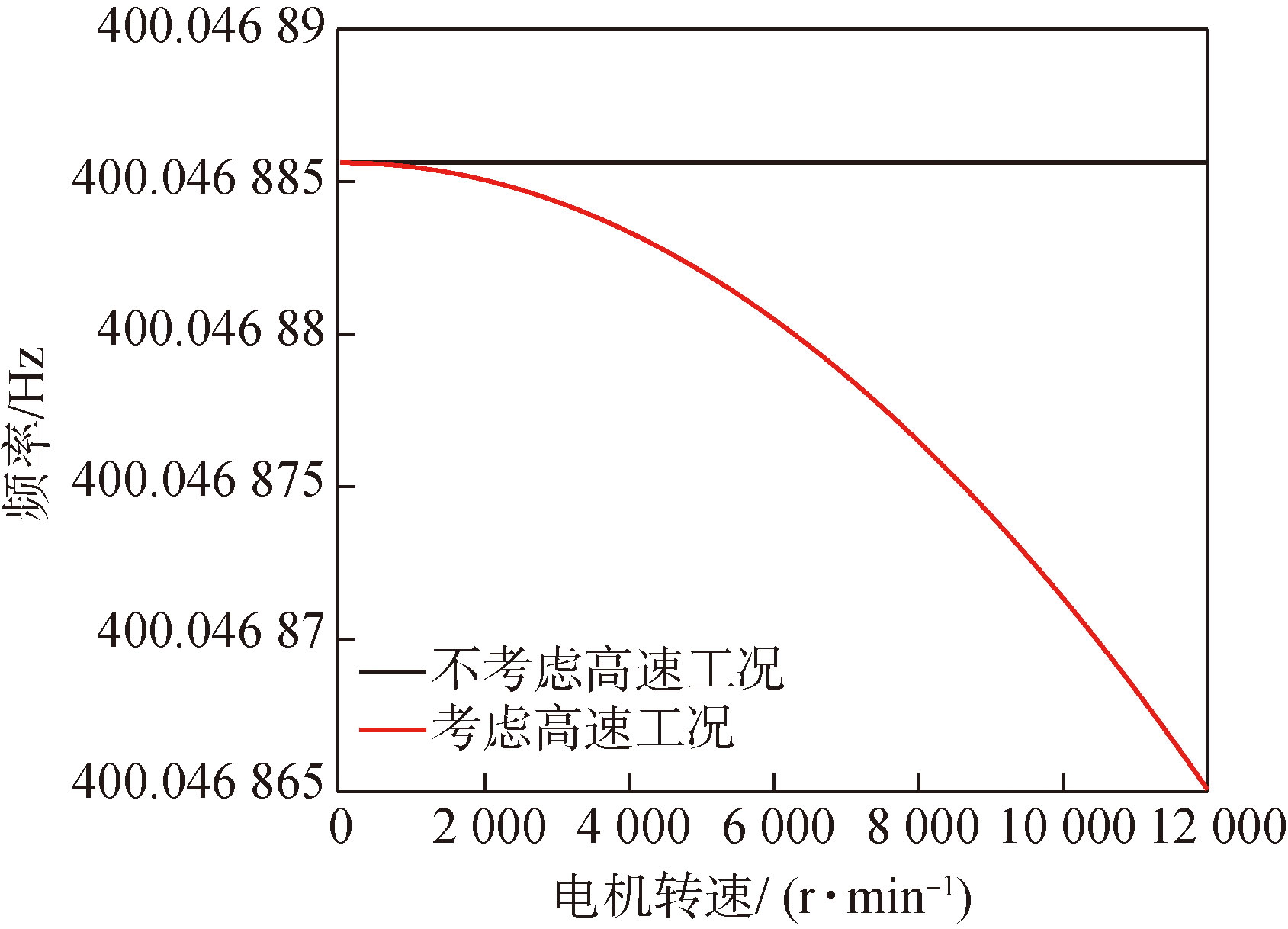

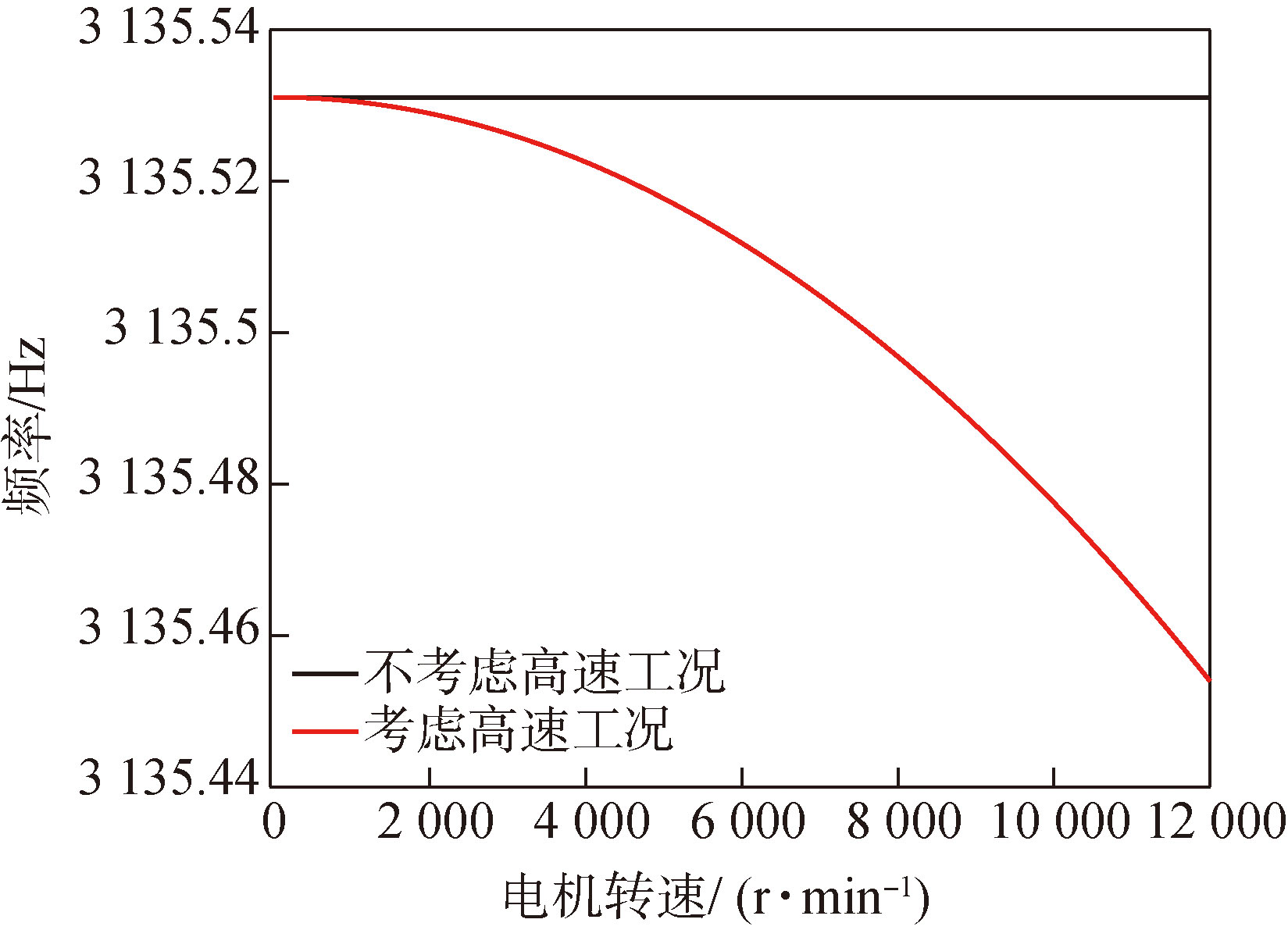

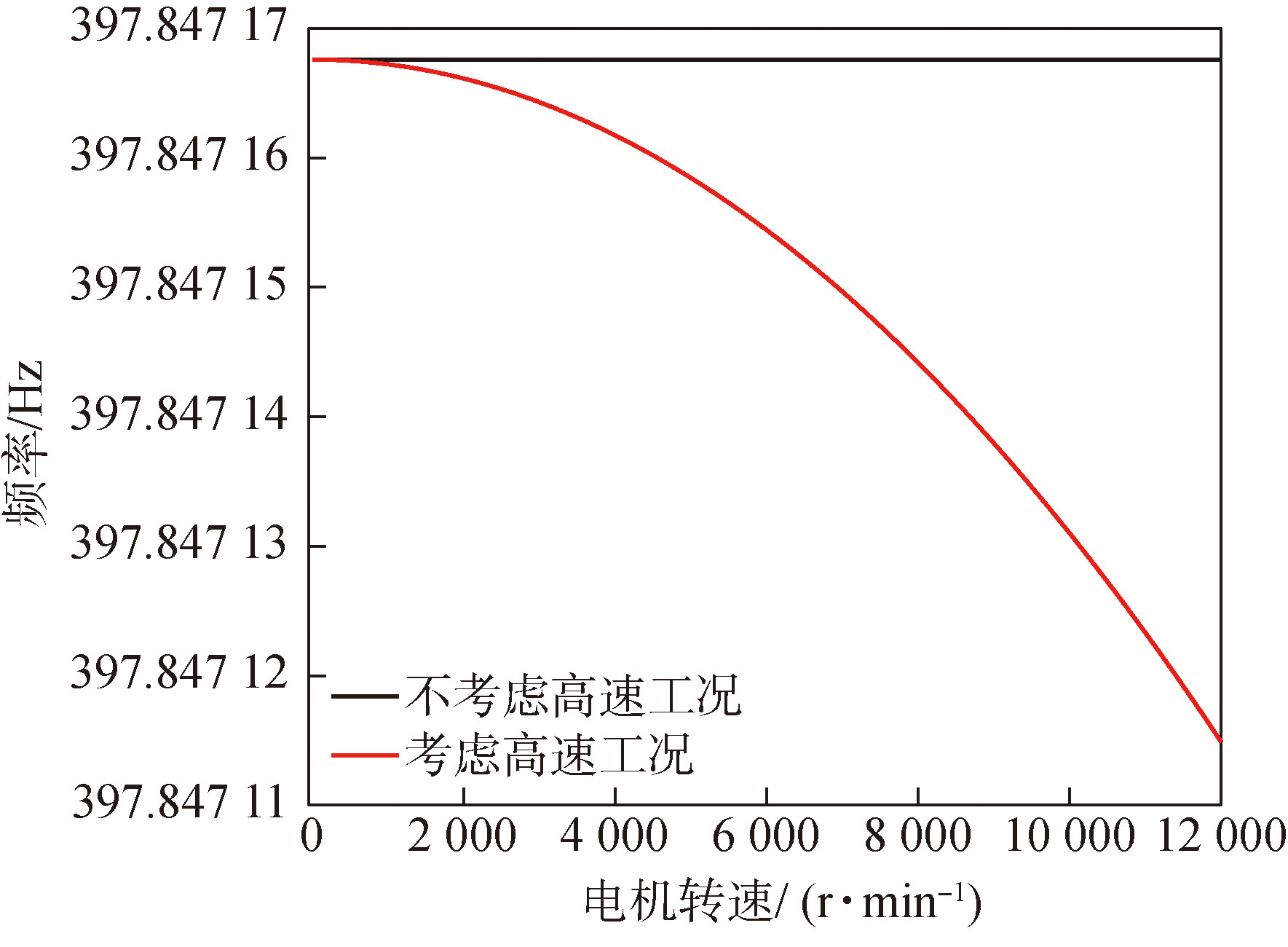

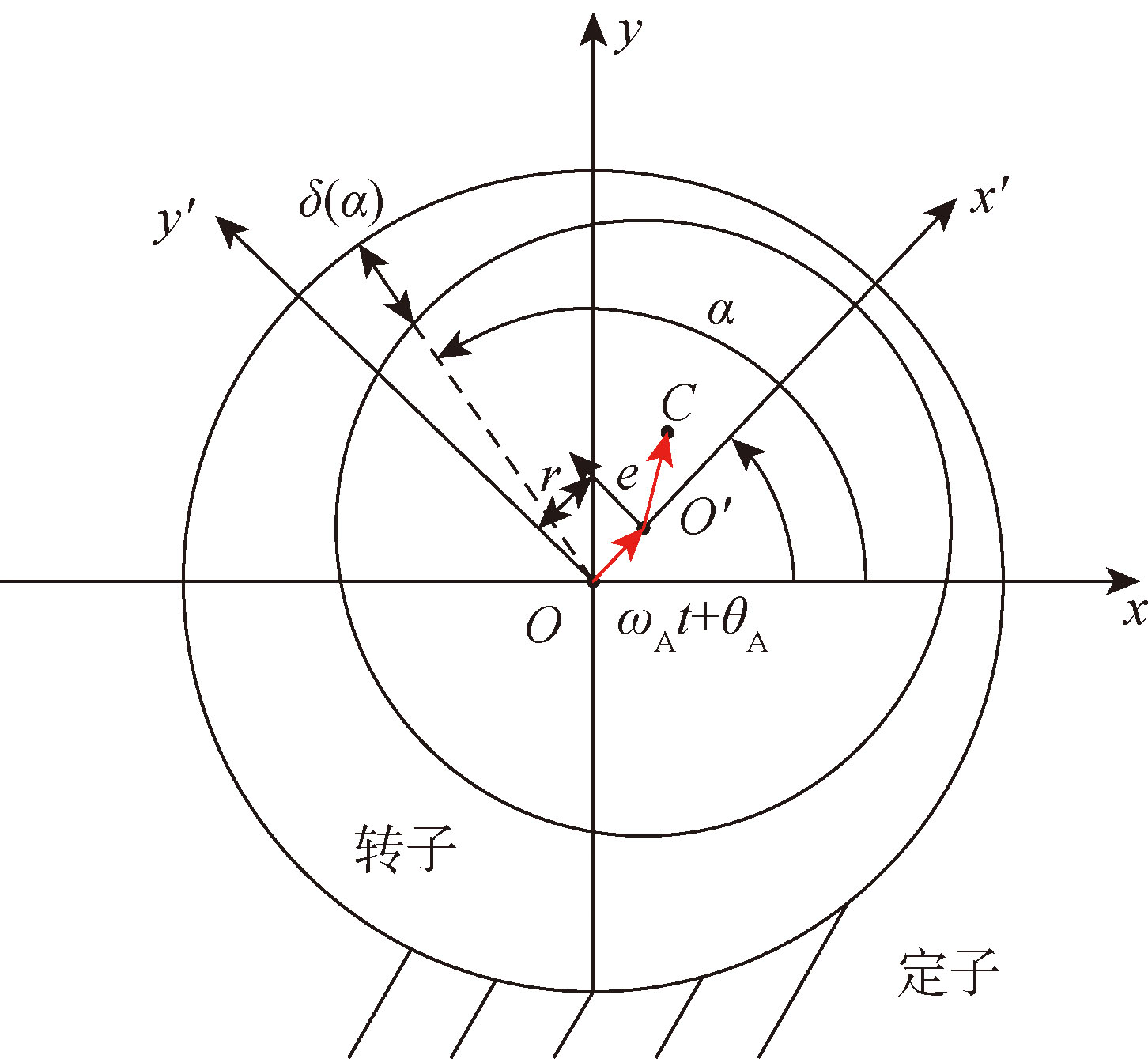

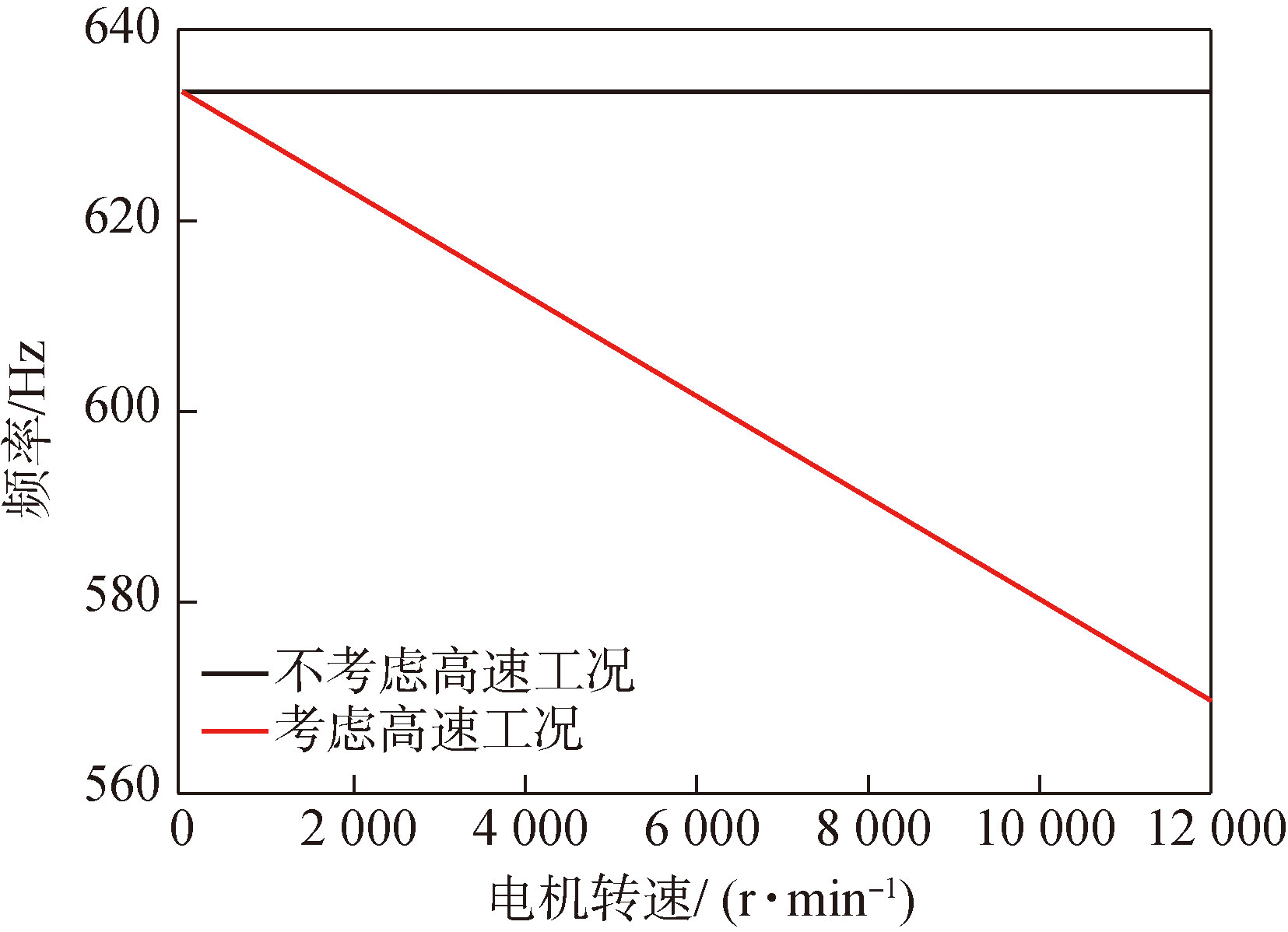

The high-speed electromechanical transmission(EMT) system for vehicle is characterized by a highly compact structure and high-speed components,leading to significant electromechanical coupling effects and susceptibility to resonance.This paper analyzes the electromechanical coupling inherent vibration characteristics of a series EMT system.An inherent vibration model of the system is derived,its natural frequencies and mode shapes are studied,and six typical vibration modes of the system are summarized based on the characteristics of each mode shape.The influences of high-speed operating conditions and electromechanical coupling effects on the system’s natural frequencies and mode shapes are investigated.The resonance speeds of the system within a wide operating speed range are studied using Campbell diagrams and modal energy method.The results indicate that the electromechanical coupling effects alter the low-frequency vibration characteristics of the system,and the high-speed operating conditions can significantly change the certain natural frequencies of the system.Both factors should be fully considered in dynamics modeling.The research of resonance speed provides a reference for the dynamic regulation and optimization of system.

Key words: high-speed electromechanical transmission system, electromechanical coupling effect, inherent vibration characteristics, high-speed operating condition, resonance speed

XIE Yunkun, LIU Hui, GAO Pu, WU Yunhao, LI Xinyi, ZHOU Ruyi. Study on Inherent Vibration Characteristics and Resonance Speed of High-speed Electromechanical Transmission System for Vehicle[J]. Acta Armamentarii, 2025, 46(1): 231149-.

Figures/Tables 19

References 29

[1]	王珍, 项昌乐, 刘辉, 等. 基于集中-分布参数模型的车辆机电传动系统动力学响应及影响规律[J]. 兵工学报, 2021, 42(10):2145-2158. doi: 10.3969/j.issn.1000-1093.2021.10.010
	WANG Z, XIANG C L, LIU H, et al. Dynamics response and influence factors of electromechanical transmission system based on lumped-distributed parameter model[J]. Acta Armamentarii, 2021, 42(10):2145-2158. (in Chinese)
[2]	张伟, 刘辉, 韩立金, 等. 混合动力履带车辆机电联合制动控制[J]. 兵工学报, 2022, 43(5):969-981. doi: 10.12382/bgxb.2021.0256
	ZHANG W, LIU H, HAN L J, et al. Intelligent control strategy of electromechanical braking for hybrid tracked vehicle[J]. Acta Armamentarii, 2022, 43(5):969-981. (in Chinese) doi: 10.12382/bgxb.2021.0256
[3]	LIU F, LIU H, CHEN X. Investigation of analytical solution of super harmonic resonance of rotor system in permanent magnet synchronous motors considering mixed eccentricity[J]. Communications in Nonlinear Science and Numerical Simulation, 2023,119:107125.
[4]	CHEN X, HU J B, CHEN K, et al. Modeling of electromagnetic torque considering saturation and magnetic field harmonics in permanent magnet synchronous motor for HEV[J]. Simulation Modelling Practice and Theory, 2016,66:212-225.
[5]	XIE C Y, HUA L, LAN J, et al. Improved analytical models for mesh stiffness and load sharing ratio of spur gears considering structure coupling effect[J]. Mechanical Systems and Signal Processing, 2018,111:331-347.
[6]	LIU J, YUAN L. Vibration analysis of a flexible gearbox system considering a local fault in the outer ring of the supported ball bearing[J]. Journal of Vibration and Control, 2021, 27(9/10):1063-1076.
[7]	LIN J, PARKER R G. Analytical characterization of the unique properties of planetary gear free vibration[J]. Journal of Vibration and Acoustics, 1999, 121(3):316-321.
[8]	LIN J, PARKER R G. Sensitivity of planetary gear natural frequencies and vibration modes to model parameters[J]. Journal of Sound and Vibration, 1999, 228(1):109-128.
[9]	COOLEY C G, PARKER R G. Eigenvalue sensitivity and veering in gyroscopic systems with application to high-speed planetary gears[J]. European Journal of Mechanics A/Solids, 2018,67:123-136.
[10]	LIU H, ZHAN Z B. Modal properties of a two-stage planetary gear system with a Timoshenko beam as the intermediate shaft model[J]. Proceedings of the Institution of Mechanical Engineers, Part D:Journal of Automobile Engineering, 2022, 236(2/3):353-365.
[11]	TAN W Z, ZHENG Z B, WU X S, et al. Analysis of inherent characteristics of two-speed planetary gear transmission system[J]. Mathematical Problems in Engineering,2023(2023).DOI:10.1155/2023/5533390
[12]	MBAREK A, HAMMAMI A, DELRINCON A F, et al. Effect of load and meshing stiffness variation on modal properties of planetary gear[J]. Applied Acoustics, 2019,147:32-43.
[13]	莫帅, 胡效松, 杨振宁, 等. 机器人关节传动系统固有特性分析[J]. 机械传动, 2022, 46(10):77-85. doi: 10.16578/j.issn.1004.2539.2022.10.012
	MO S, HU X S, YANG Z N, et al. Analysis of inherent characteristics of robot joint transmission system[J]. Journal of Mechanical Transmission, 2022, 46(10):77-85. (in Chinese) doi: 10.16578/j.issn.1004.2539.2022.10.012
[14]	刘利, 舒锐志, 黄金, 等. 多电机并联驱动-传动系统动力学建模及其固有振动特性分析[J]. 机械传动, 2020, 44(10):29-37. doi: 10.16578/j.issn.1004.2539.2020.10.005
	LIU L, SHU R Z, HUANG J, et al. Dynamics modeling and inherent vibration characteristic analysis of multi-motor parallel drive-transmission system[J]. Journal of Mechanical Transmission, 2020, 44(10):29-37. (in Chinese) doi: 10.16578/j.issn.1004.2539.2020.10.005
[15]	ZHANG Q, HE R, ZHANG Y D, et al. Analysis of the relationship between the meshing stiffness and the inherent characteristics of planetary gear transmission mechanism[J]. Journal of Beijing Institute of Technology, 2019, 28(4):811-818.
[16]	YI Y Y, QIN D T, LIU C Z. Investigation of electromechanical coupling vibration characteristics of an electric drive multistage gear system[J]. Mechanism and Machine Theory, 2018, 121(9):446-459.
[17]	易园园, 秦大同, 刘长钊. 冲击载荷下电机-多级齿轮系统动态特性研究[J]. 振动与冲击, 2019, 38(19):253-260.
	YI Y Y, QIN D T, LIU C Z. Dynamic characteristics of a motor-driven multistage gear system under impact load[J]. Journal of Vibration and Shock, 2019, 38(19):253-260. (in Chinese)
[18]	JIANG S, LI W, WANG Y Q, et al. Study on electromechanical coupling torsional resonance characteristics of gear system driven by PMSM:a case on shearer semi-direct drive cutting transmission system[J]. Nonlinear Dynamics, 2021,104:1205-1225.
[19]	CHEN R B, QIN D T, YI Y Y, et al. Dynamic characteristics of electromechanical coupling of wind turbine drive system under multi-source excitation[J]. Wind Energy, 2022, 25(3):391-418.
[20]	谭建军, 朱才朝, 宋朝省, 等. 风电机组传动链刚柔耦合动态特性分析[J]. 太阳能学报, 2020, 41(7):341-351.
	TAN J J, ZHU C Z, SONG C S, et al. Dynamic characteristics analysis of wind turbine drivetrain with rigid-flexible coupling[J]. Acta Energiae Solaris Sinica, 2020, 41(7):341-351. (in Chinese)
[21]	朱炳先, 周广明, 盖江涛, 等. 双电机耦合驱动系统低速档扭转振动特性分析[J]. 中北大学学报(自然科学版), 2018, 39(6):687-694.
	ZHU B X, ZHOU G M, GAI J T, et al. Analysis on torsional vibration characteristics of low speed gear in double motor coupling drive system[J]. Journal of North University of China(Natural Science Edition), 2018, 39(6):687-694. (in Chinese)
[22]	CHEN X, WEI H B, DENG T, et al. Investigation of electromechanical coupling torsional vibration and stability in a high-speed permanent magnet synchronous motor driven system[J]. Applied Mathematical Modelling, 2018,64:235-248.
[23]	王红岩, 王钦龙, 芮强, 等. 高速履带车辆转向过程分析与试验验证[J]. 机械工程学报, 2014, 50(16):162-172.
	WANG H Y, WANG Q L, RUI Q, et al. Analyzing and testing verification the performance about high-speed tracked vehicles in steering process[J]. Journal of Mechanical Engineering, 2014, 50(16):162-172. (in Chinese)
[24]	曾根, 马长军, 庞大千, 等. 机电复合传动高线速转子-行星齿轮系统耦合振动特性[J]. 兵工学报, 2023, 44(1):156-164. doi: 10.12382/bgxb.2022.0861
	ZENG G, MA C J, PANG D Q, et al. Coupling vibrationcharacteristics of high linear speed rotor-planetary gear electro-mechanical transmission system[J]. Acta Armamentarii, 2023, 44(1):156-164. (in Chinese) doi: 10.12382/bgxb.2022.0861
[25]	邱家俊. 机电耦联动力系统的非线性振动[M]. 北京: 科学出版社,1996.
	QIU J J. Nonlinear vibration of electromechanical coupling power system[M]. Beijing: Science Press,1996. (in Chinese)
[26]	唐任远. 现代永磁电机理论与设计[M]. 北京: 机械工业出版社, 2015.
	TANG R Y. Modern permanent magnet machines,theory and design[M]. Beijing: China Machine Press, 2015. (in Chinese)
[27]	ZHAN Z B, LIU H, FEENY B F, et al. Prognostics of gear manufacturing errors for planetary gear systems based on power flow theory[J]. Journal of Vibration and Acoustics, 2022, 144(4):041010.
[28]	邓四二, 贾群义, 薛进学. 滚动轴承设计原理[M]. 北京: 中国标准出版社, 2014.
	DENG S E, JIA Q Y, XUE J X. Rolling bearing design principle[M]. Beijing: Standards Press of China, 2014. (in Chinese)
[29]	LONG Y, DU J H, YANG K, et al. Modelling of a direct-driven electromechanical actuation system based on the Lagrange-Maxwell equation[J]. IET Electric Power Applications, 2021, 15(11):1438-1451.

阶数	频率/Hz	模式	阶数	频率/Hz	模式
1	0	A	12	914	E
2	187	B	13	914	E
3	398	B	14	914	E
4	400	D	15	914	E
5	654	C	16	2220	E
6	654	C	17	2220	E
7	701	C	18	2220	E
8	701	C	19	2220	E
9	772	B	20	2905	B
10	821	C	21	2979	B
11	821	C	22	3134	F

阶数	频率/Hz	模式	阶数	频率/Hz	模式
1	0	A	12	914	E
2	187	B	13	914	E
3	398	B	14	914	E
4	400	D	15	914	E
5	654	C	16	2220	E
6	654	C	17	2220	E
7	701	C	18	2220	E
8	701	C	19	2220	E
9	772	B	20	2905	B
10	821	C	21	2979	B
11	821	C	22	3134	F

固有频率阶数	固有频率/Hz
固有频率阶数	考虑机电磁耦合	不考虑机电磁耦合
1	25	0
2	189	187
3	398	398
4	400	400
5	626	654
6	626	654
7	667	701
8	667	701
9	772	772
10	821	821

固有频率阶数	固有频率/Hz
固有频率阶数	考虑机电磁耦合	不考虑机电磁耦合
1	25	0
2	189	187
3	398	398
4	400	400
5	626	654
6	626	654
7	667	701
8	667	701
9	772	772
10	821	821

共振转速/(r·min^-1)	固有频率/Hz	激励频率成分
750	ω₁	2f_s1、2f_s3
950	ω₉,ω₁₀,ω₁₁	2f_m-PG1、2f_m-PG3
1500	ω₁	f_s1、f_s3
1900	ω₉,ω₁₀,ω₁₁	f_m-PG1、f_m-PG3
2300	ω₃,ω₄	2f_m-PG5、2f_m-PG6
3450	ω₂₀	2f_m-PG1、2f_m-PG3
4550	ω₃,ω₄,ω₉,ω₁₀,ω₁₁	f_m-PG5、f_m-PG6 2f_m-PG5、2f_m-PG6
5250	ω₁₂,ω₁₃,ω₁₄,ω₁₅	2f_m-PG5、2f_m-PG6
5650	ω₂	2f_s1、2f_s3
6900	ω₂₀	f_m-PG1、f_m-PG3
9150	ω₉,ω₁₀,ω₁₁	f_m-PG5、f_m-PG6
10450	ω₁₂,ω₁₃,ω₁₄,ω₁₅	f_m-PG5、f_m-PG6
11350	ω₂	f_s1、f_s3
