Dynamic Tensile Deformation and Failure Mechanism of β-HMX Single Crystal With Defect Distribution

doi:10.12382/bgxb.2023.0737

Abstract

Abstract:

The deformation, damage and failure process of β-HMX single crystal with different defect characteristics (porosity, void number and void distribution morphology ) under dynamic tension are simulated by molecular dynamics method based on Smith force field. The influence of internal defects in β-HMX single crystal on its mechanical behavior is studied through simulation. The results show that, when the porosity increases from 1% to 2%, the tensile strength of β-HMX single crystal is decreased by 5.3%-11.2% compared with the perfect single crystal, and the Young’s modulus is decreased by 3.6%-13.4%. When the porosity is constant, the tensile strength of the crystal decreases with the increase in the nuer of void. When the distance between the voids is small, the interaction between the voids is presented during the tensile process, resulting in the decrease of the tensile strength.The distribution of voids has a significant effect on the tensile strength of β-HMX single crystal. The failure mechanism of β-HMX single crystal under different strain rates is obviously different. Small cracks are formed around the voids at the tensile strain rate of 5×10⁹s^-1, and the cracks gradually expand, which leads to the fracture of β-HMX single crystal. The material has obvious fracture. Multiple cracks were formed inside the β-HMX single crystal under the tensile strain rate of 1×10¹¹s^-1, resulting in the failure of the material. The dynamic tensile deformation and failure mechanism of β-HMX single crystal with defect distribution are obtained, which provides a theoretical basis for optimizing the preparation process of β-HMX and its mixed explosives and improving their mechanical properties.

Key words: β-HMX single crystal, Smith force filed, dynamic stretch, defect characteristics, void evolution, failure mechanism

CLC Number:

O389

HUANG Longjie, LIU Rui, GAO Feiyan, CHEN Pengwan. Dynamic Tensile Deformation and Failure Mechanism of β-HMX Single Crystal With Defect Distribution[J]. Acta Armamentarii, 2023, 44(12): 3872-3883.

Figures/Tables 16

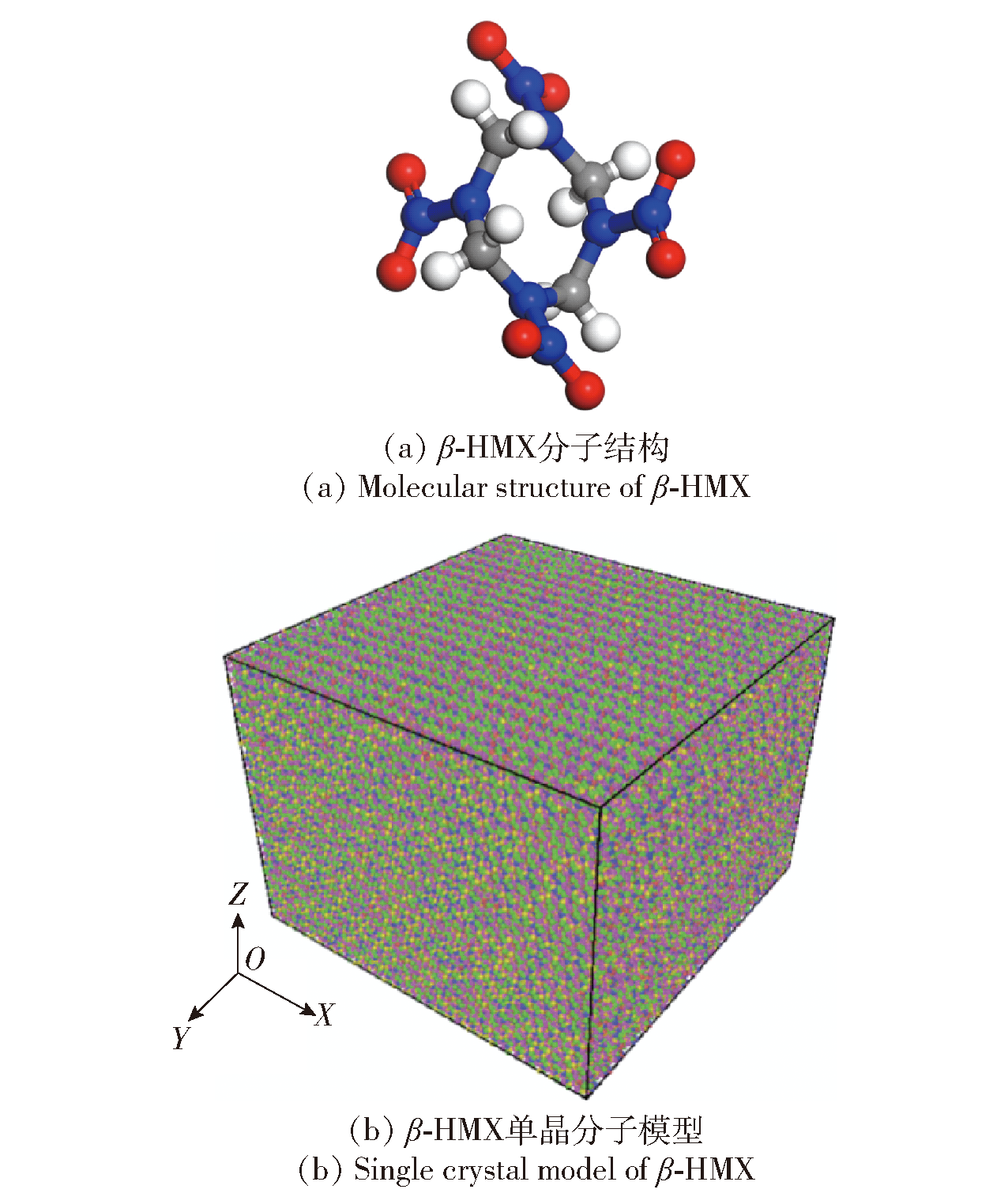

Fig.1 Molecular structure and single crystal model of β-HMX

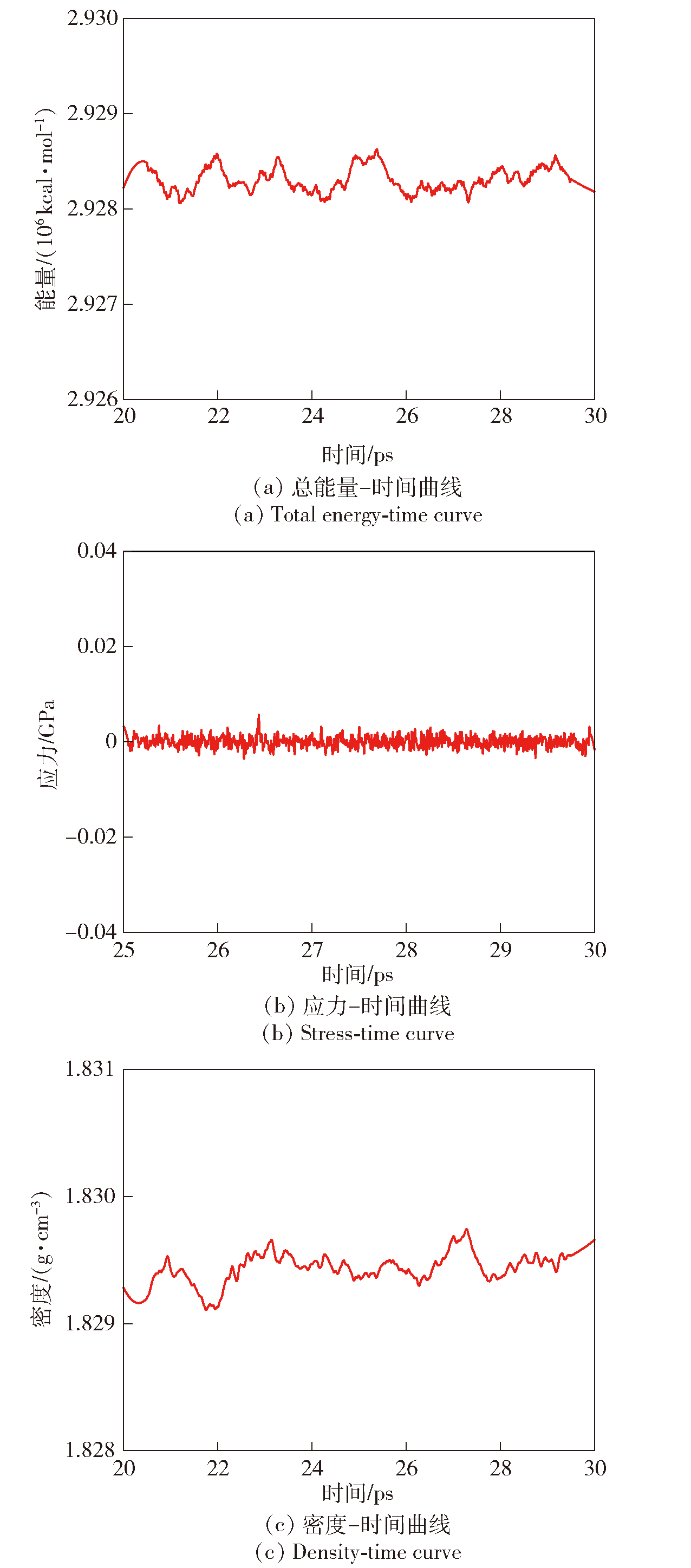

Fig.2 Changing curves of total energy, stress and density with time during relaxation

Table 1 Comparison of experimental and simulated mechanical parameters of β-HMX single crystal

材料	力学参数	实验值	模拟值
β-HMX	杨氏模量/GPa	9.8	14.5
	密度/(g·cm^-3)	1.868	1.830

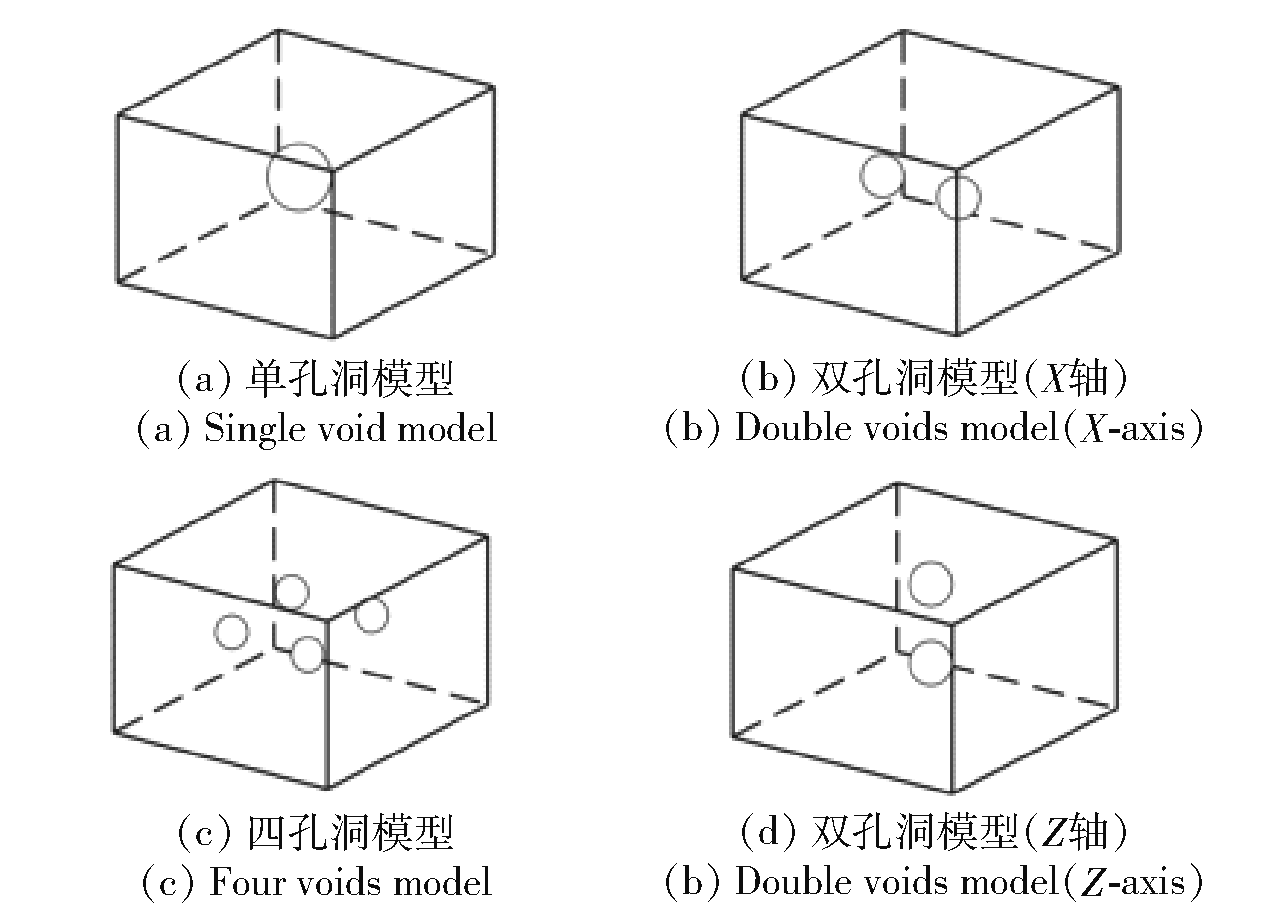

Fig.3 Single crystal model of β-HMX with defects

Table 2 The number of voids corresponding to the radius and porosity

孔洞数量n	r/Å	孔隙率/%
1	20.000	0.6
1	25.000	1.1
1	30.000	2.0
2	15.874	0.6
4	12.600	0.6

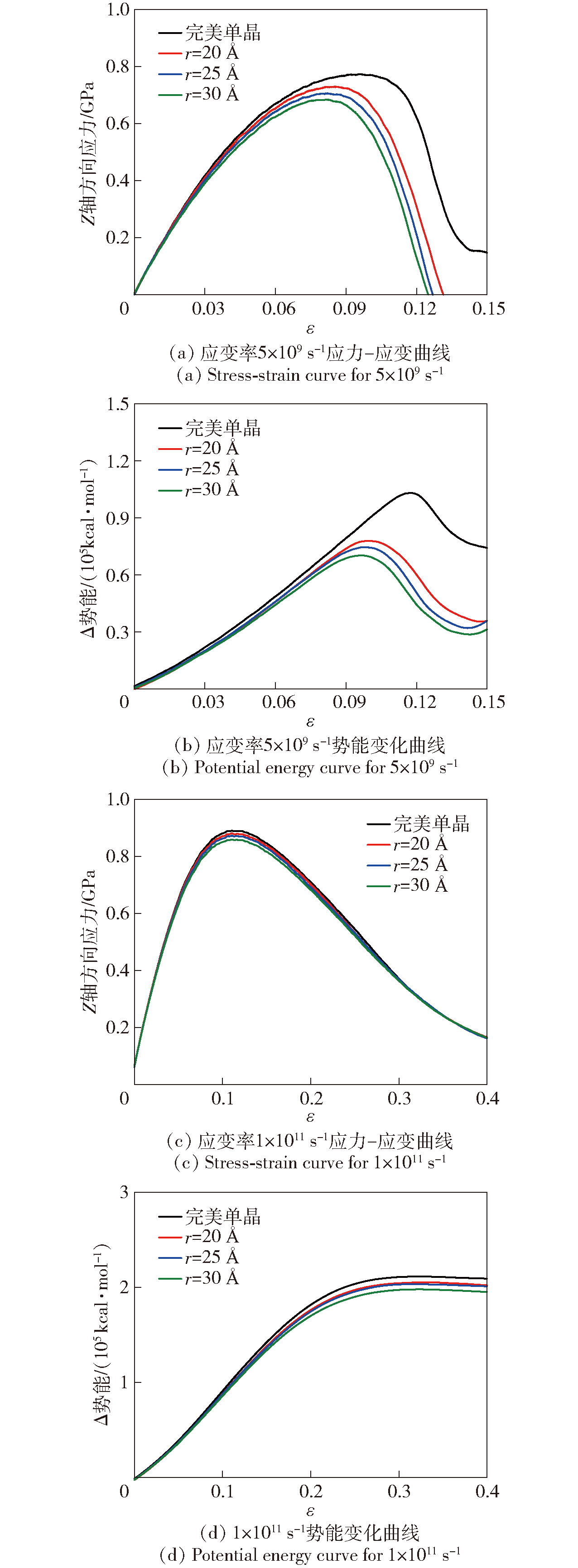

Fig.4 Stress-strain and potential energy curves of β-HMX single crystals with different porosities

Table 3 Mechanical parameters of β-HMX single crystal with single void

应变率/s^-1	孔洞半径/ Å	孔隙率/%	抗拉强度/ GPa	杨氏模量/ GPa	开裂能垒/ (10⁵kcal/mol)
	0	0	0.770	14.500	1.034
5×10⁹	20	0.6	0.729	13.975	0.783
	25	1.1	0.706	13.656	0.747
	30	2.0	0.684	12.555	0.703
	0	0	0.888	14.756	2.123
1×10¹¹	20	0.6	0.881	14.455	2.054
	25	1.1	0.873	14.324	2.037
	30	2.0	0.861	14.166	1.968

Fig.5 Atomic strain cloud diagrams of β-HMX single crystal under different tensile strain rates

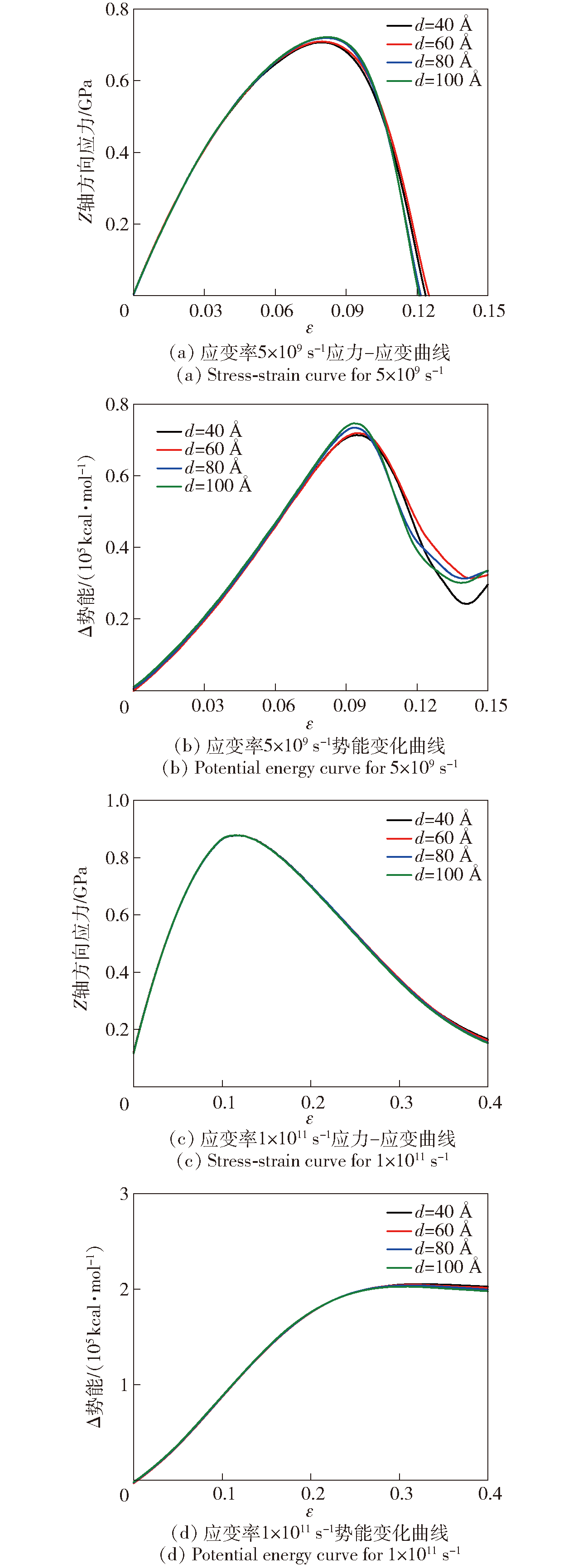

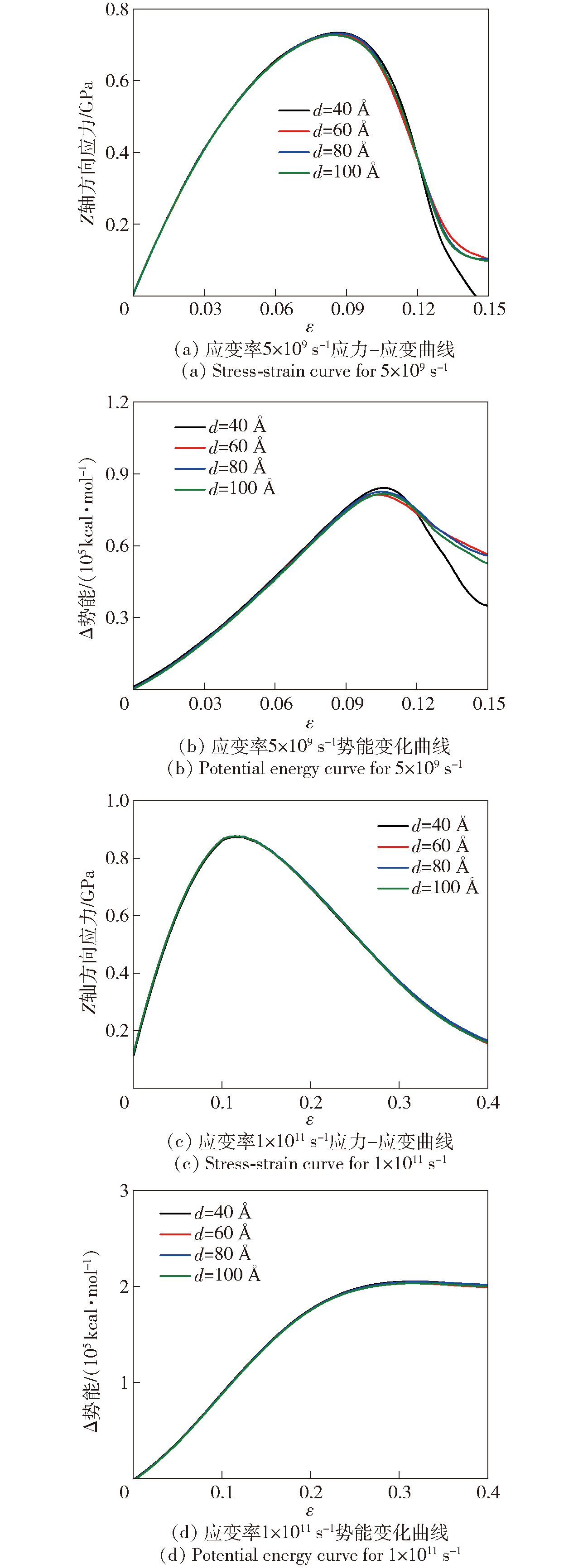

Fig.6 Stress-strain and potential energy curves of β-HMX single crystal with double voids

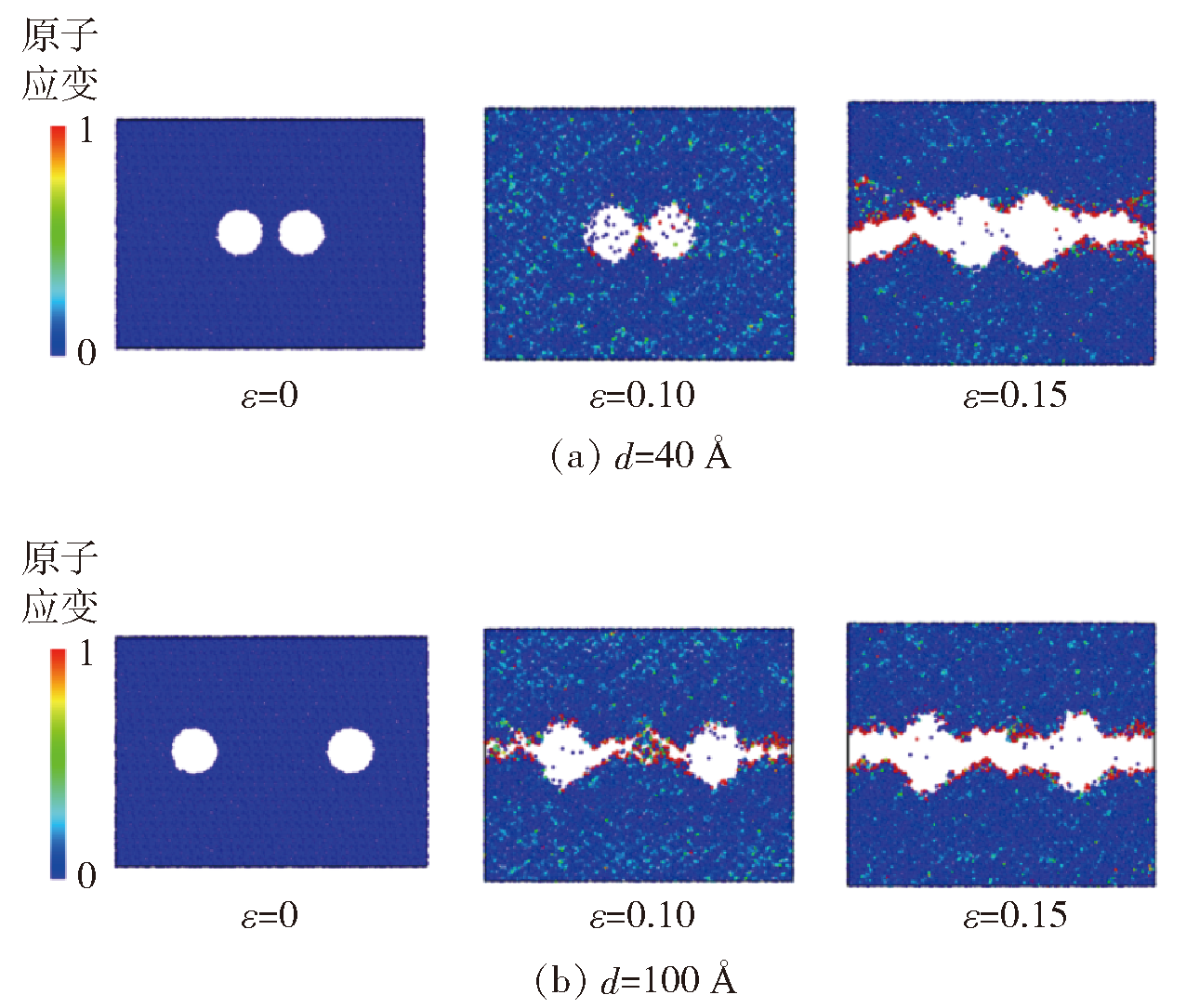

Fig.7 Atomic strain cloud diagrams of β-HMX single crystal with double voids

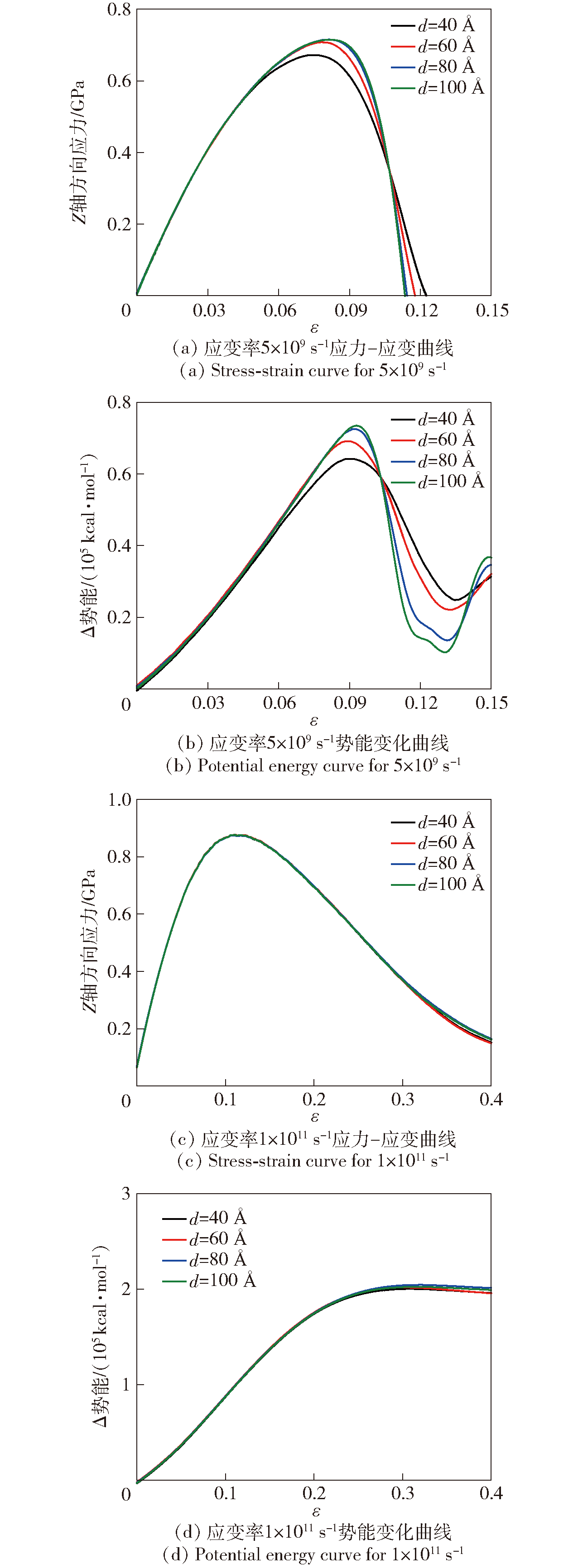

Fig.8 Stress-strain and potential energy curves of β-HMX single crystal with four voids

Fig.9 Atomic strain cloud diagrams of β-HMX single crystal with four voids

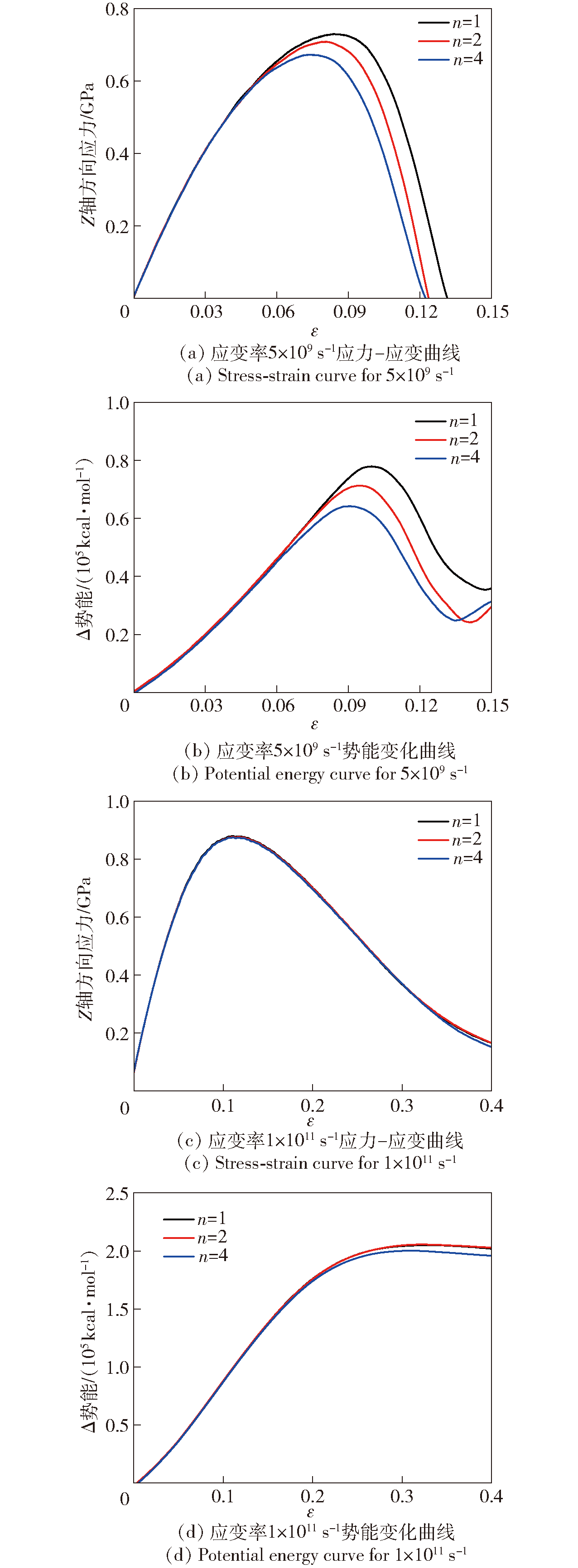

Fig.10 Stress-strain and potential energy curves of β-HMX single crystals with different number of voids

Fig.11 Stress-strain and potential energy curves of β-HMX single crystal with double voids

Fig.12 Atomic strain cloud diagrams of β-HMX single crystal with double voids

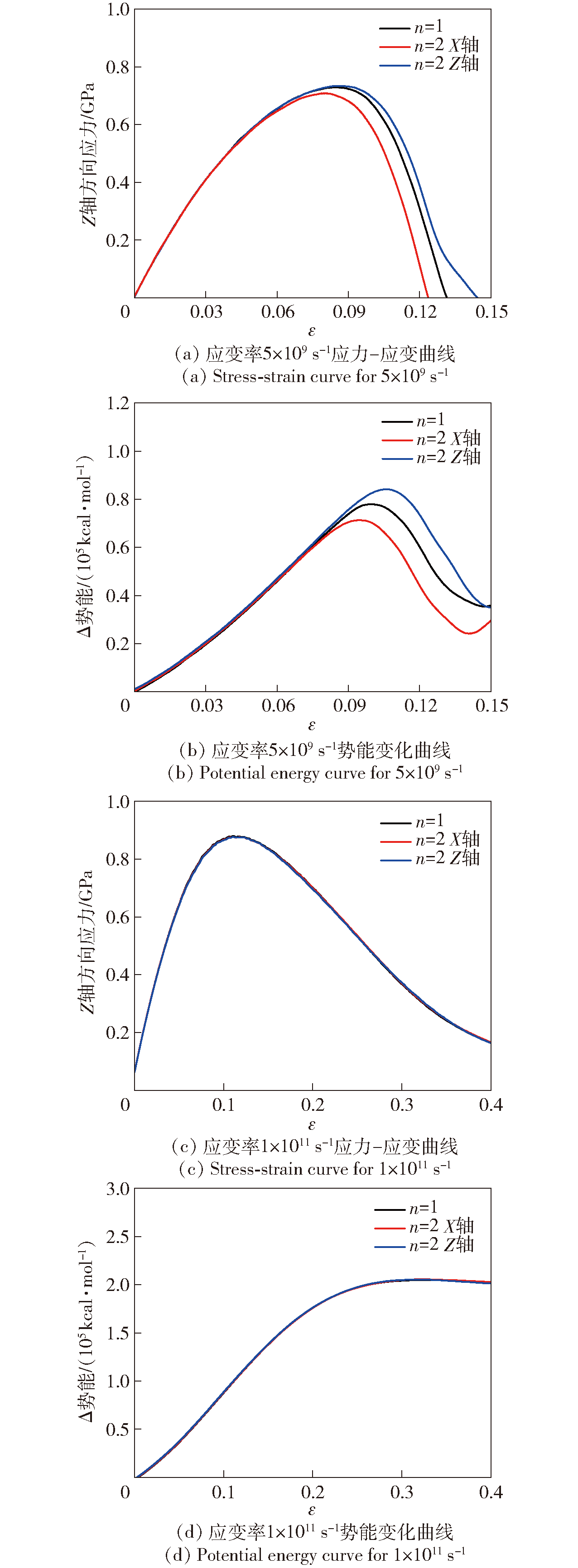

Fig.13 Stress-strain and potential energy curves of β-HMX single crystals with different distribution morphology
