Study on the Cook-off Characteristics of B/KNO3 Ignition Charge

doi:10.12382/bgxb.2023.0657

Abstract

Abstract:

The cook-off test devices for multi-point temperature measuring are established to study the thermal safety of B/KNO₃ ignition charge. The multi-point temperature measuring and cook-off tests of B/KNO₃ ignition charge under the conditions of different heating rates and charge densities are made to obtain the accurate ignition time of ignition charge and the temperature curves of different monitoring points during the cook-off tests. A numerical calculation model of B/KNO₃ ignition charge for the cook-off test is established. The self-thermal decomposition reaction and phase transition heat absorption of ignition charge are considered in the calculation model. Then, the model is used to simulate the cook-off process of B/KNO₃ ignition charge under the conditions of different heating rates and charge densities. The thermal and kinetic parameters of B/KNO₃ ignition charge are calibrated by comparing with the experimental results. The results show that the pre-exponential factor of B/KNO₃ ignition charge is 7.763×10¹³s^-1, and its activation energy is 2.0787×10⁵J/mol; with the decrease in the heating rate, the ignition delay time increases gradually, the ignition area moves to the center gradually, and the ignition ambient temperature decreases gradually. When the change in charge density is not significant, the ignition characteristics of ignition charge do not differ much.

Key words: B/KNO₃ ignition charge, cook-off test, thermal safety, ignition characteristics

CLC Number:

TQ565

WU Junying, SHANG Yiping, ZHENG Fude, DU Haojie, YAO Yule, LI Junjian, CHEN Lang. Study on the Cook-off Characteristics of B/KNO₃ Ignition Charge[J]. Acta Armamentarii, 2024, 45(8): 2828-2836.

Figures/Tables 13

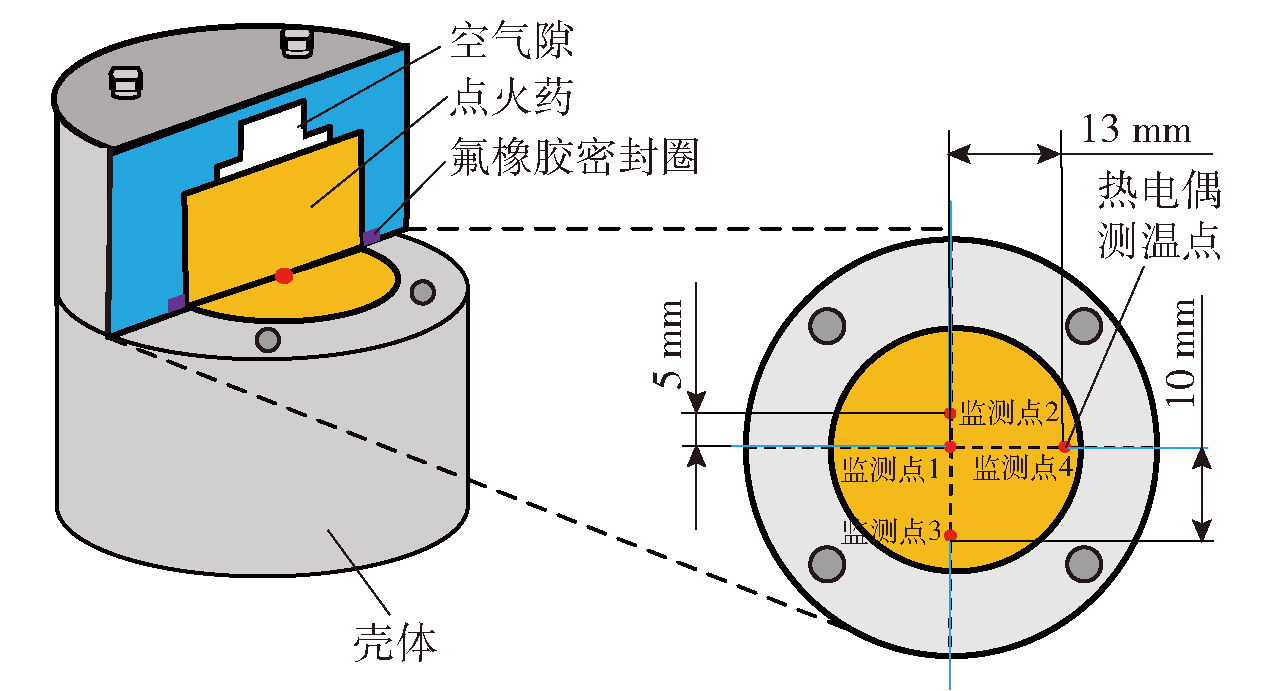

Fig.1 Structural diagram of multi-point temperature measuring setup

Fig.2 Photographs of cook-off experimental device

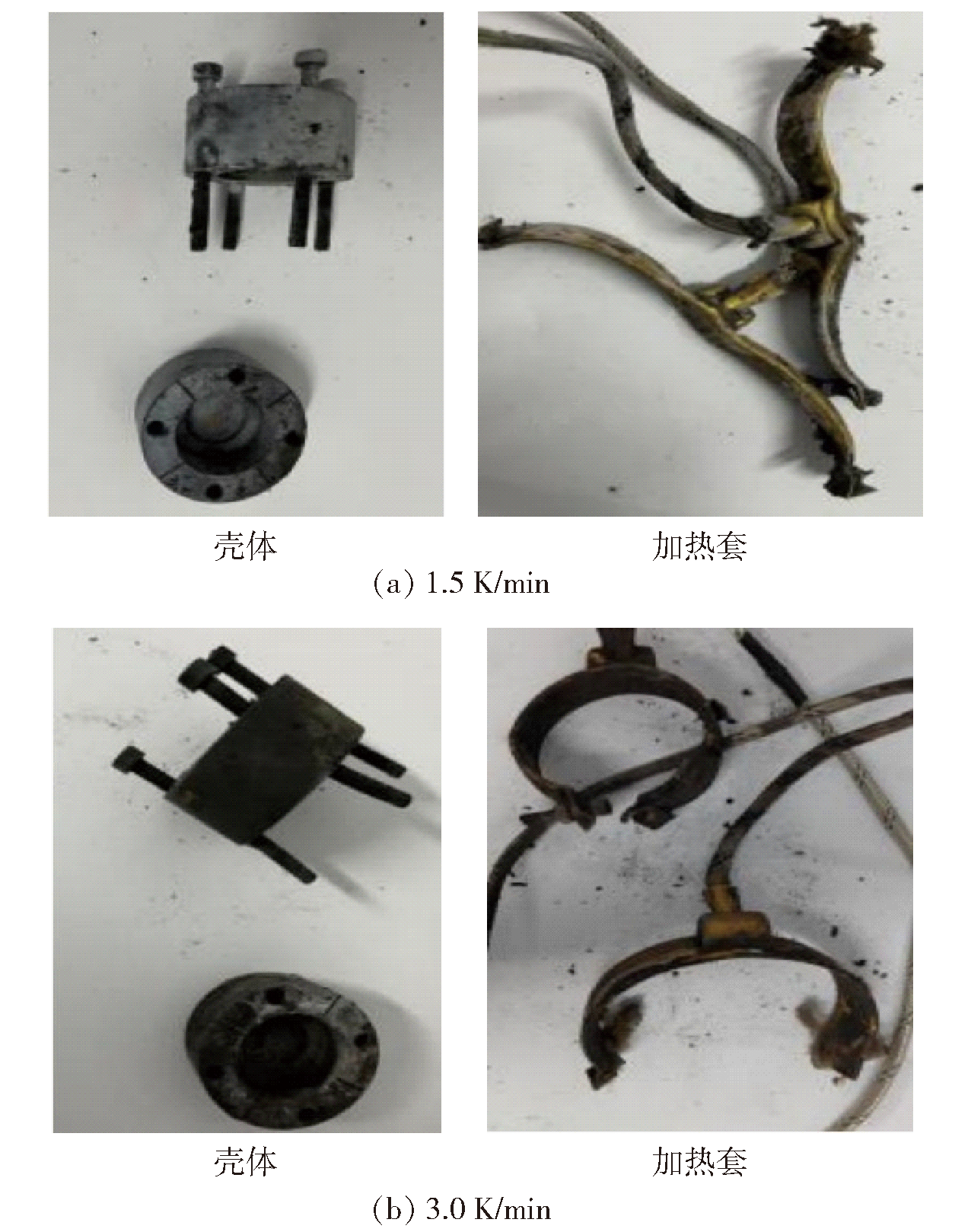

Fig.3 Photographs of shell and heating coat after ignition

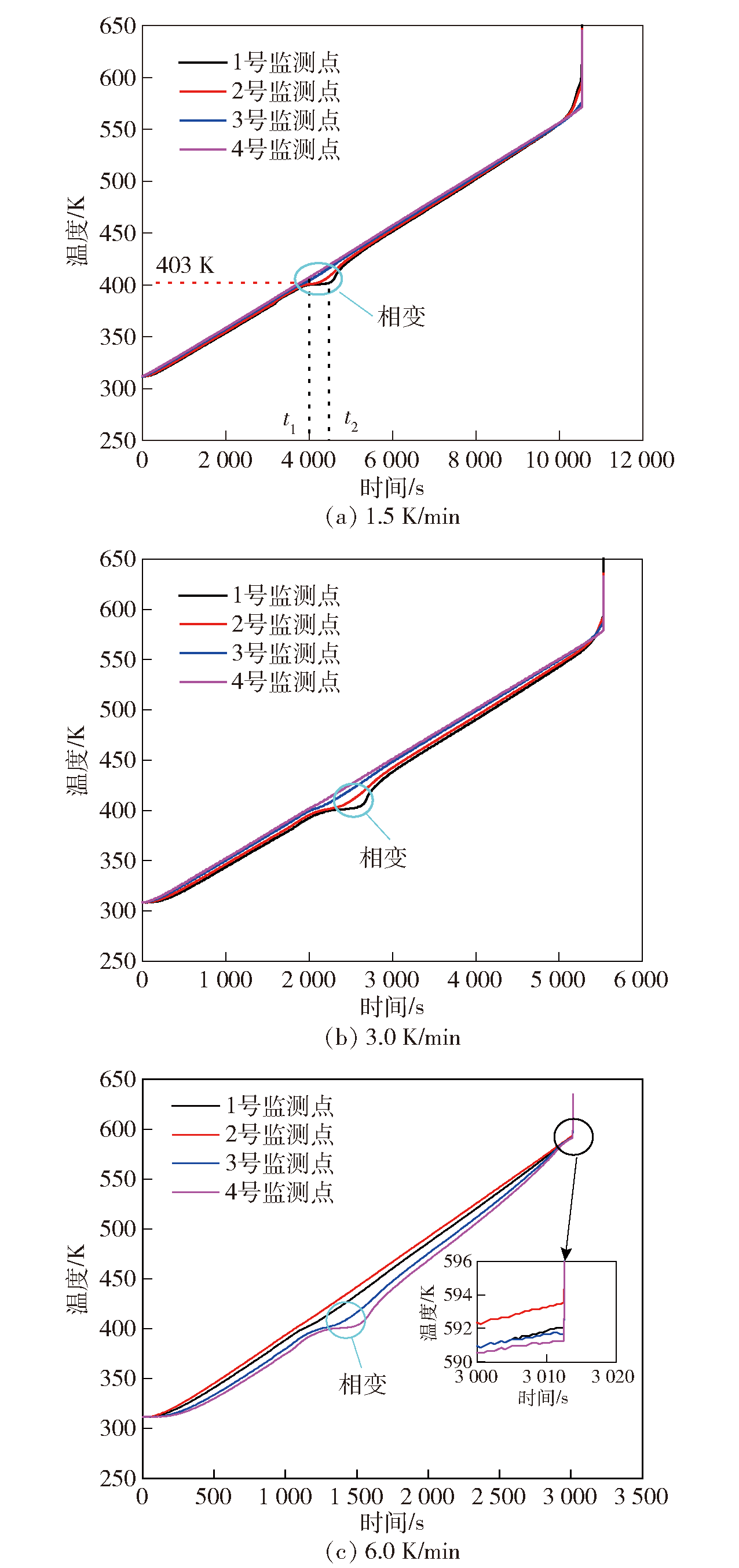

Fig.4 Temperature-time curves of different monitoring points of B/KNO3 ignition charge at different heating rates

Table 1 The ignition characteristics of B/KNO3 ignition charge at different heating rates

升温速率/(K·min^-1)	点火时间/s	点火环境温度/K
1.5	10547.4	575.09
3.0	5370.9	580.10
6.0	3013.0	612.85

Fig.5 Temperature-time curves of different monitoring points of B/KNO3 ignition charge at different charge densities

Table 2 Thermal parameters of materials

材料	密度/ (kg·m^-3)	热容/ (J·kg^-1·K^-1)	热导率/ (W·m^-1·K^-1)
	1574.10	1140	0.37
装药	1300.00	1140	0.31
	1100.00	1140	0.24
空气	1.225	1006.43	0.0242
钢壳	8030	502.48	16.27

Fig.6 Grid diagram of multi-point temperature measurement

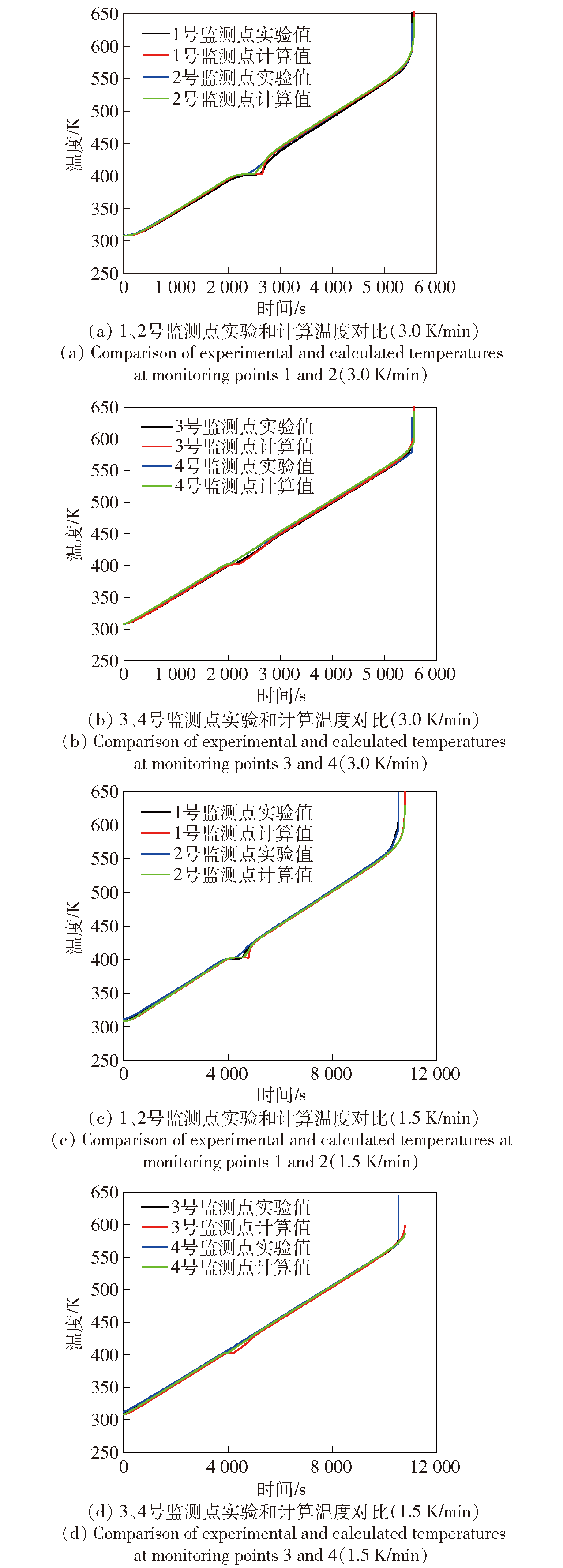

Fig.7 Experimental and calculated temperature-time curves of each monitoring point at different heating rates

Fig.8 Distribution of temperature on the section of calculation model at different times at 3.0K/min

Fig.9 Distribution of temperature on the section of calculation model at ignition time at different heating rates

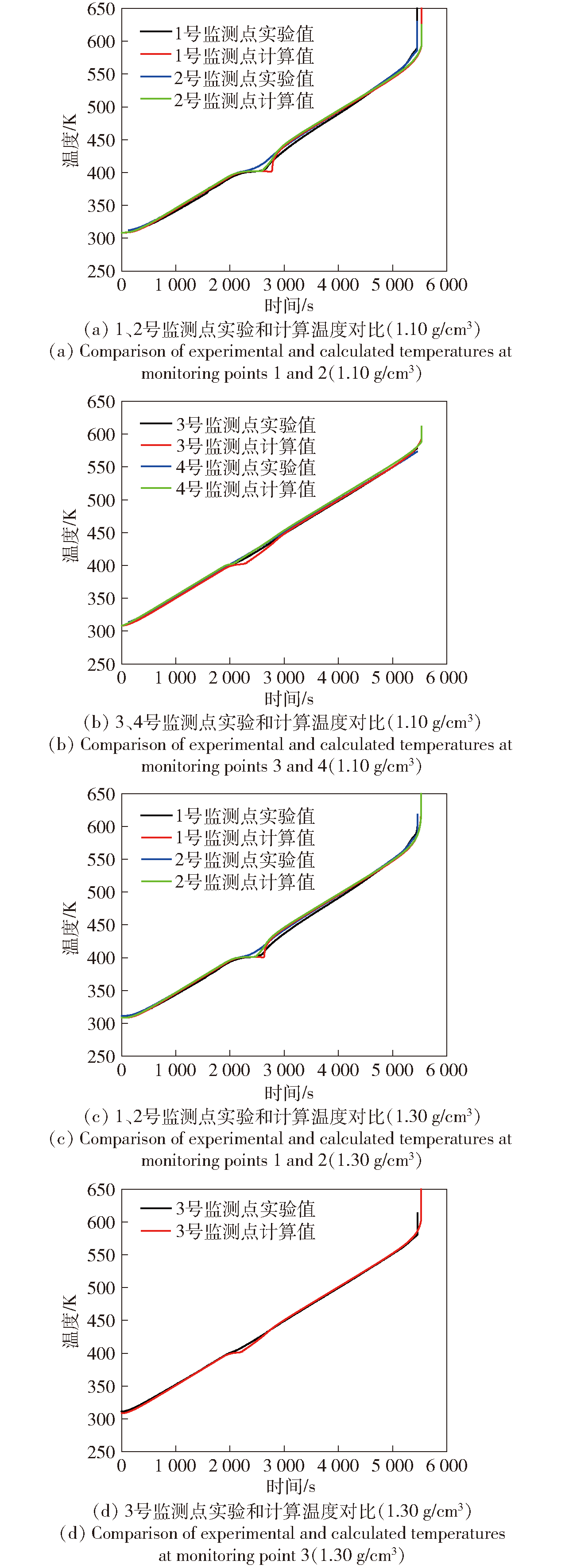

Fig.10 Experimental and calculated temperature-time curves of each monitoring point at different charge densities

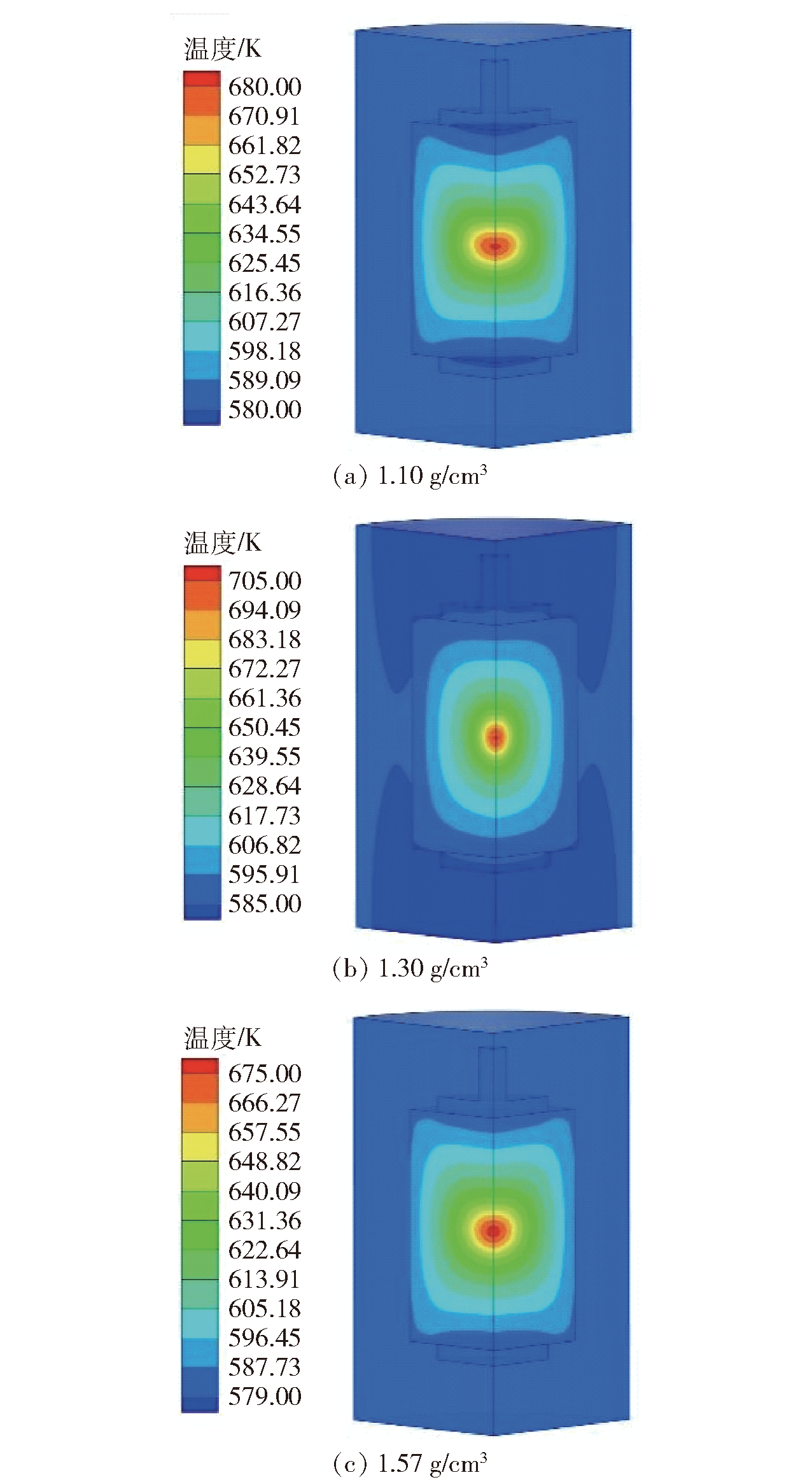

Fig.11 Distribution of temperature on the section of calculation model at ignition time at different charge densities
