Scheduling Strategy of Aviation Information Network Service Function Chain Requirements

doi:10.12382/bgxb.2023.0258

Abstract

Abstract:

The low resource utilization efficiency may be caused by service burst, dynamic change of topology structure and limited resources in aviation information network (AIN) scenario. A service function chain scheduling algorithm for network function virtualization is proposed for the efficient scheduling of service function chain requirement (SFCR). The algorithm is mapped according to the correlation between SFCR and the platform, thus improving the processing efficiency of server, effectively reducing the number of virtual network function (VNF) instantiations, and integrating the platform resources. In considering the impacts of delay and traffic, the network function instances are integrated and migrated to reduce the network energy consumption and improve the resource utilization. The simulated results show that the proposed approach has better optimization performance in terms of the number of running platfors, SFCR acceptance ratio, and the network resource consumption while guaranteeing the delay requirements, which is suitable for solving the SFCR scheduling problem in AIN scenarios.

Key words: aviation information network, network function virtualization, service function chain, service function chain requirement scheduling, network function instance

CLC Number:

TP393

CAO Dai, ZHAN Siyu, HAO Xinsheng, GUAN Kai, FU Haotong. Scheduling Strategy of Aviation Information Network Service Function Chain Requirements[J]. Acta Armamentarii, 2024, 45(7): 2306-2317.

Figures/Tables 15

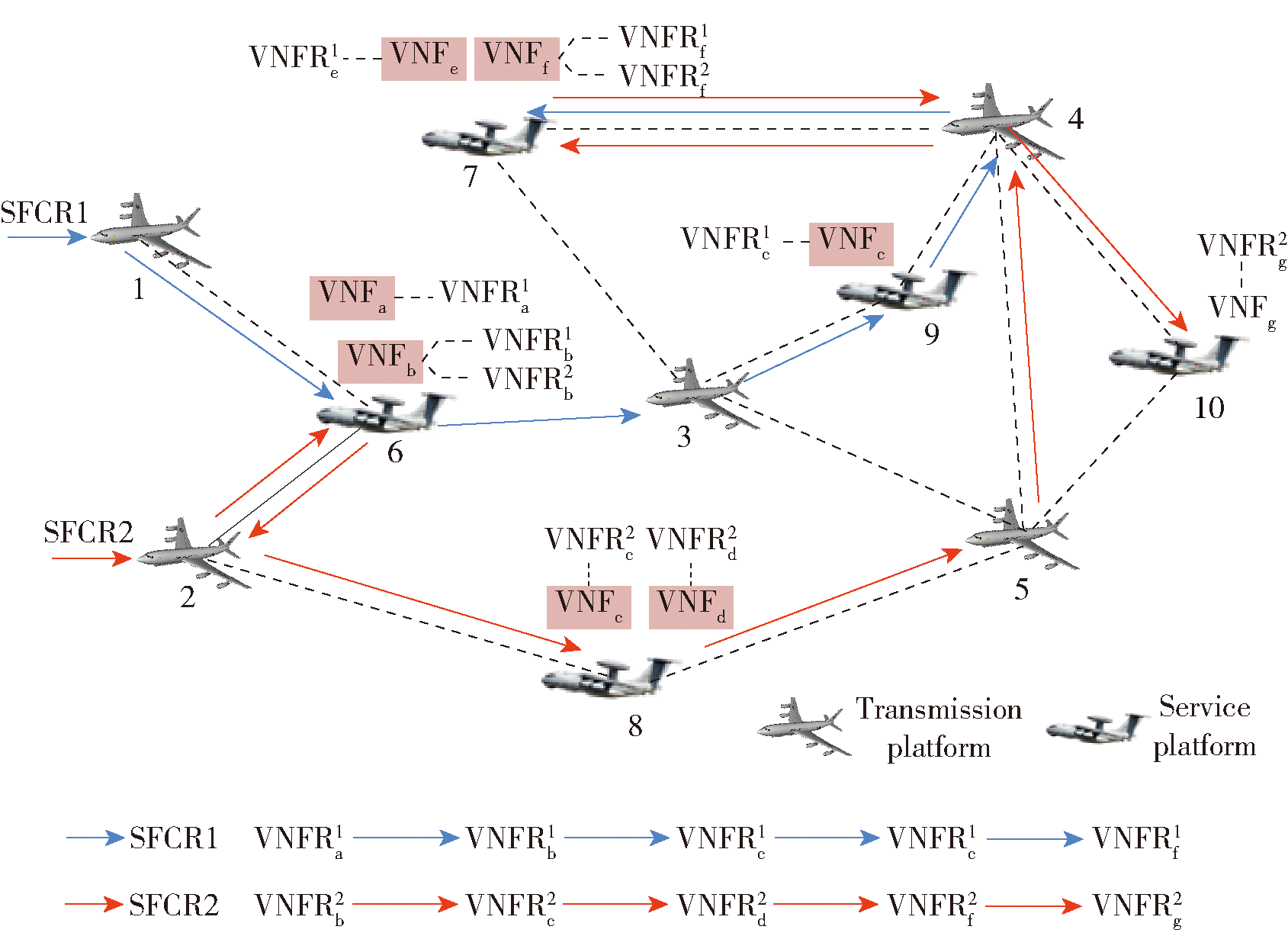

Fig.1 Schematic diagram of aviation information network SFCR routing

Fig.2 Correlation-based greedy mapping algorithm

Fig.3 Intra-fleet scheduling algorithm

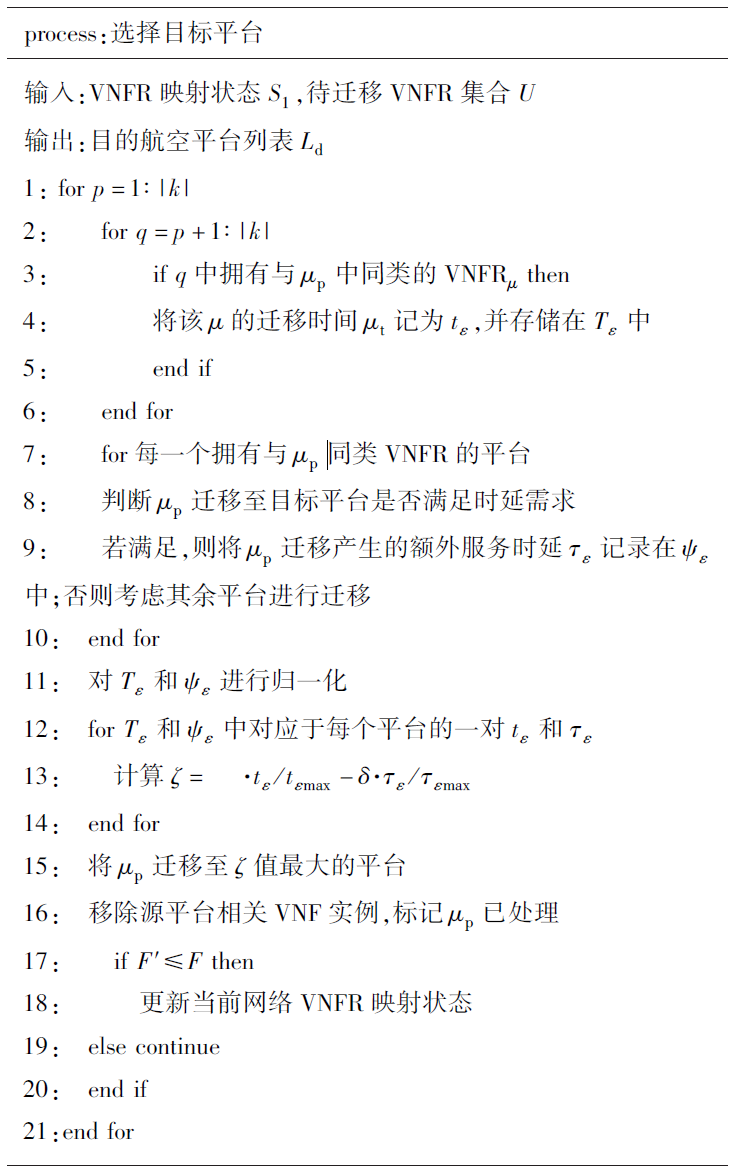

Fig.4 The process of target platform searching

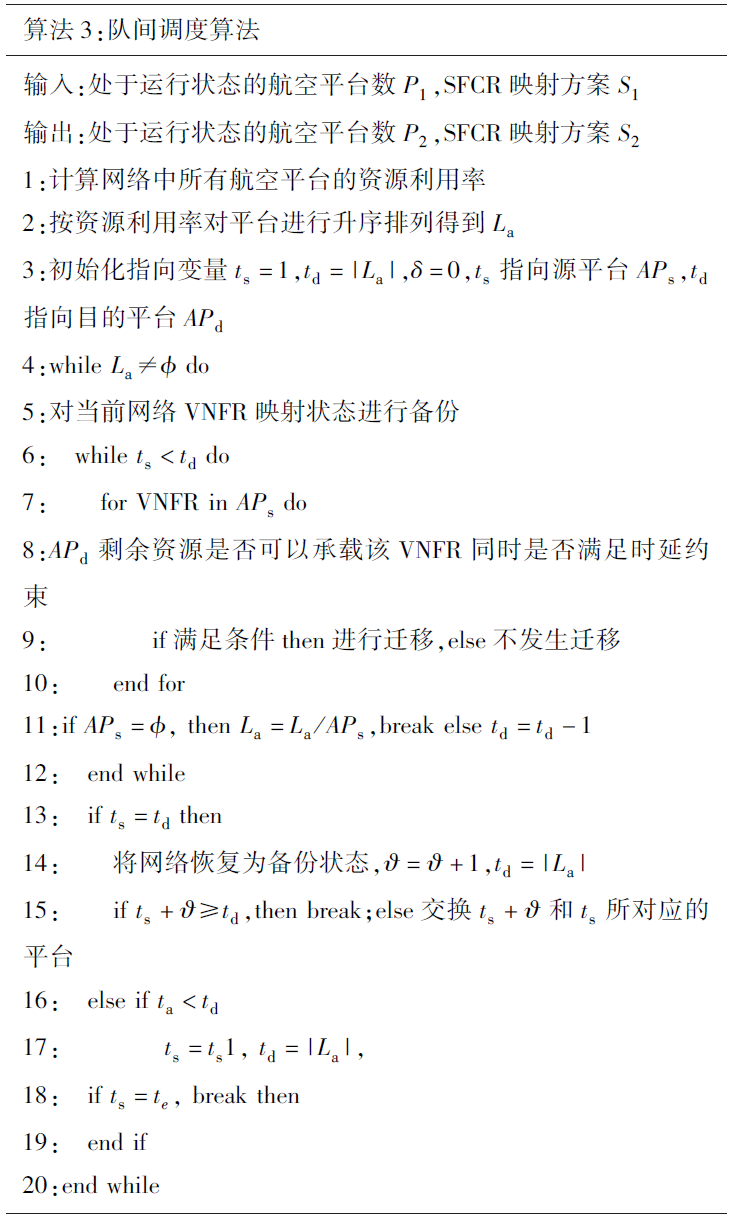

Fig.5 Inter-fleet scheduling algorithm

Table 1 Simulation parameter settings

参数	取值
VNFR类型Θ	10
VNFR流量请求/Mbps	[5,20]
SFCR长度	[3,6]
SFCR到达率	λ=0.7的泊松分布
SFCR生存周期	μ=10的指数分布
平台计算资源R^c/MIPS	500
平台存储资源R^m/Mbps	500
链路带宽/Mbps	400
优化函数权重因子	α=β=0.3,γ=0.4

Table 2 Algorithms and descriptions

算法	算法描述
JOLR算法^[31]	对路径时延和VNF复用率联合优化,选取值大的路径优先映射
BFHA^[32]	基于Best-fit思想,将流量请求较大的VNFR优先映射到满足映射条件且资源利用率较大的平台
CCMA^[33]	以各服务功能之间带宽资源需求最小化为优化目标进行服务功能链的构建及映射
HGM算法^[34]	提出了一种超图匹配算法,通过处理冲突图来寻找顶点不相交的超图的最大权值子集,合理地将多租户SFC置于多个约束下以最小化资源消耗

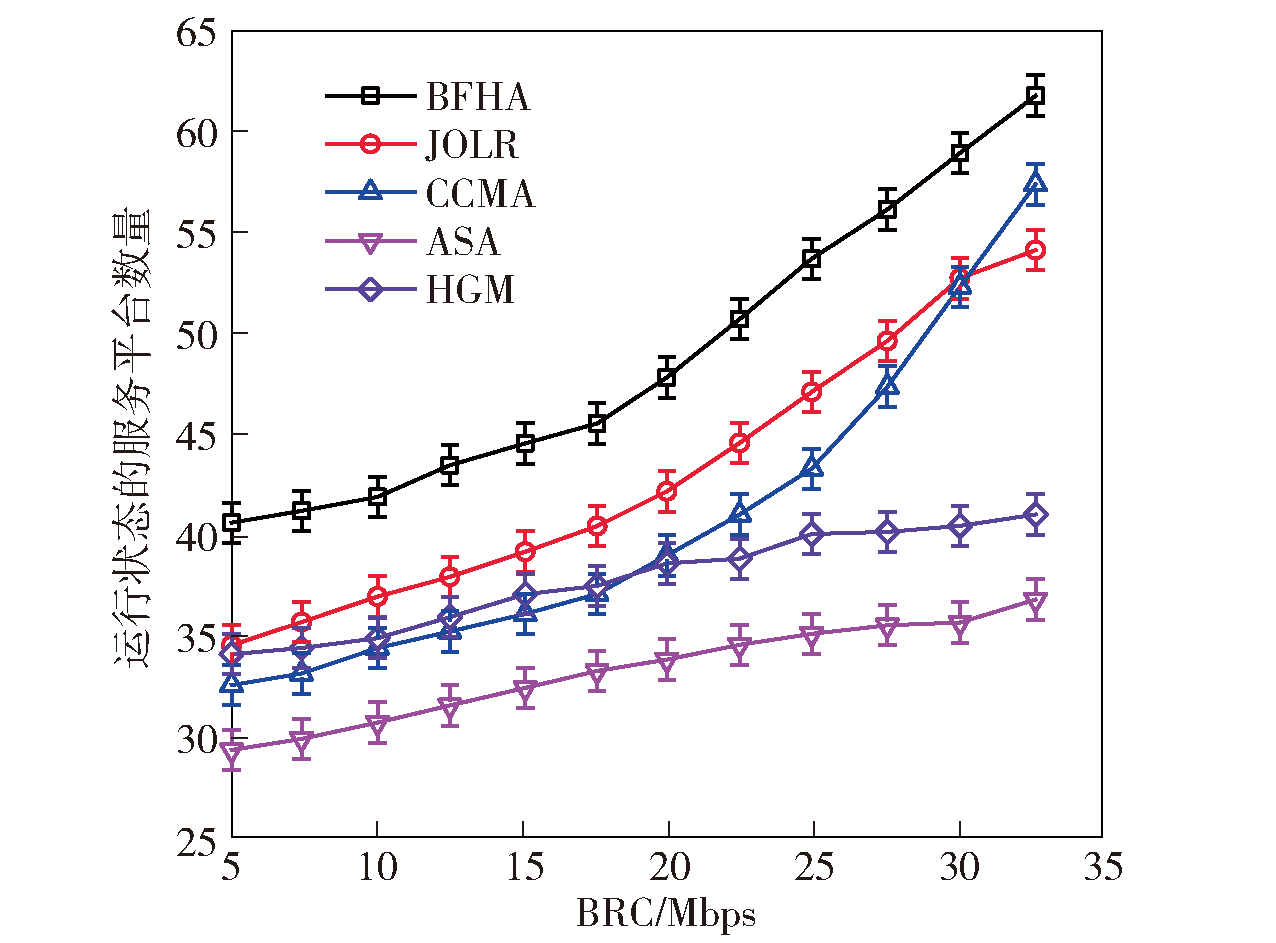

Fig.6 Number of running platforms under different BRCs

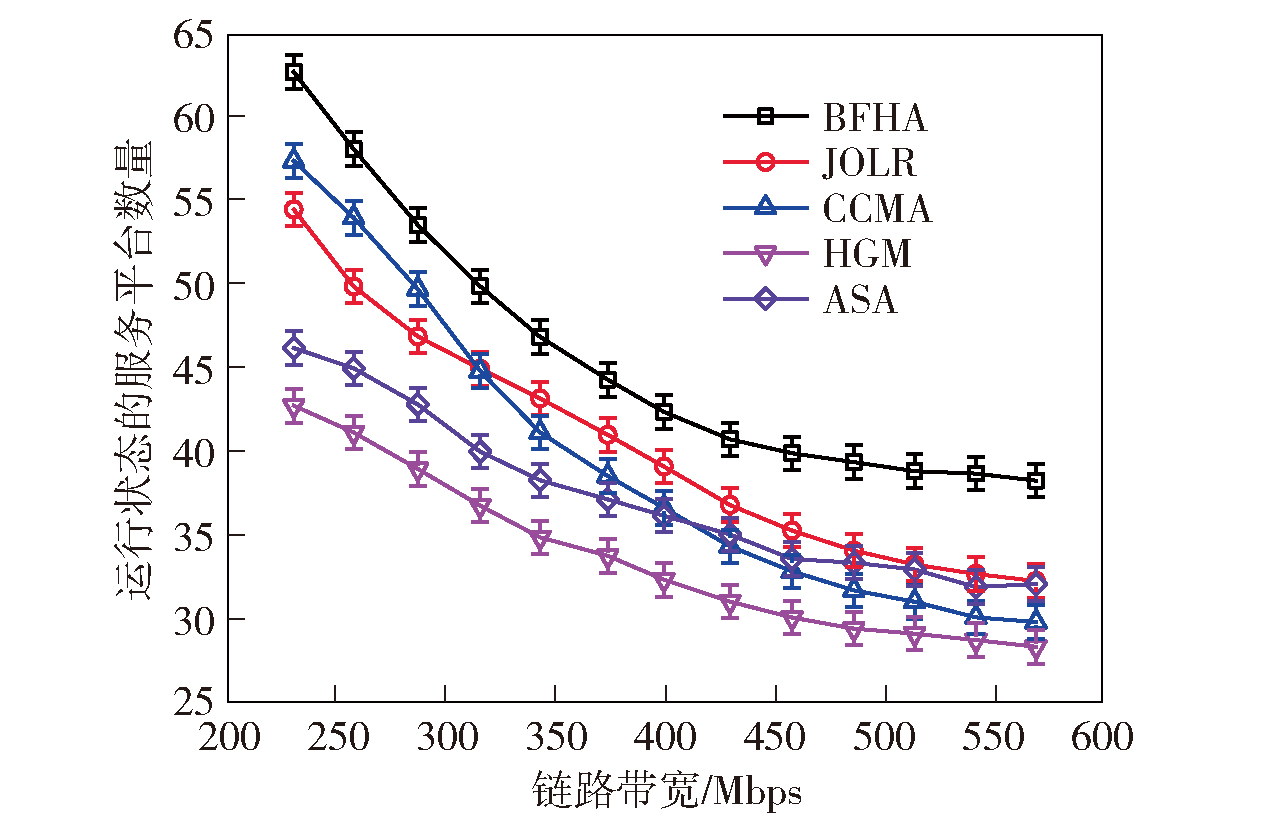

Fig.7 Number of running platforms under different link bandwidths

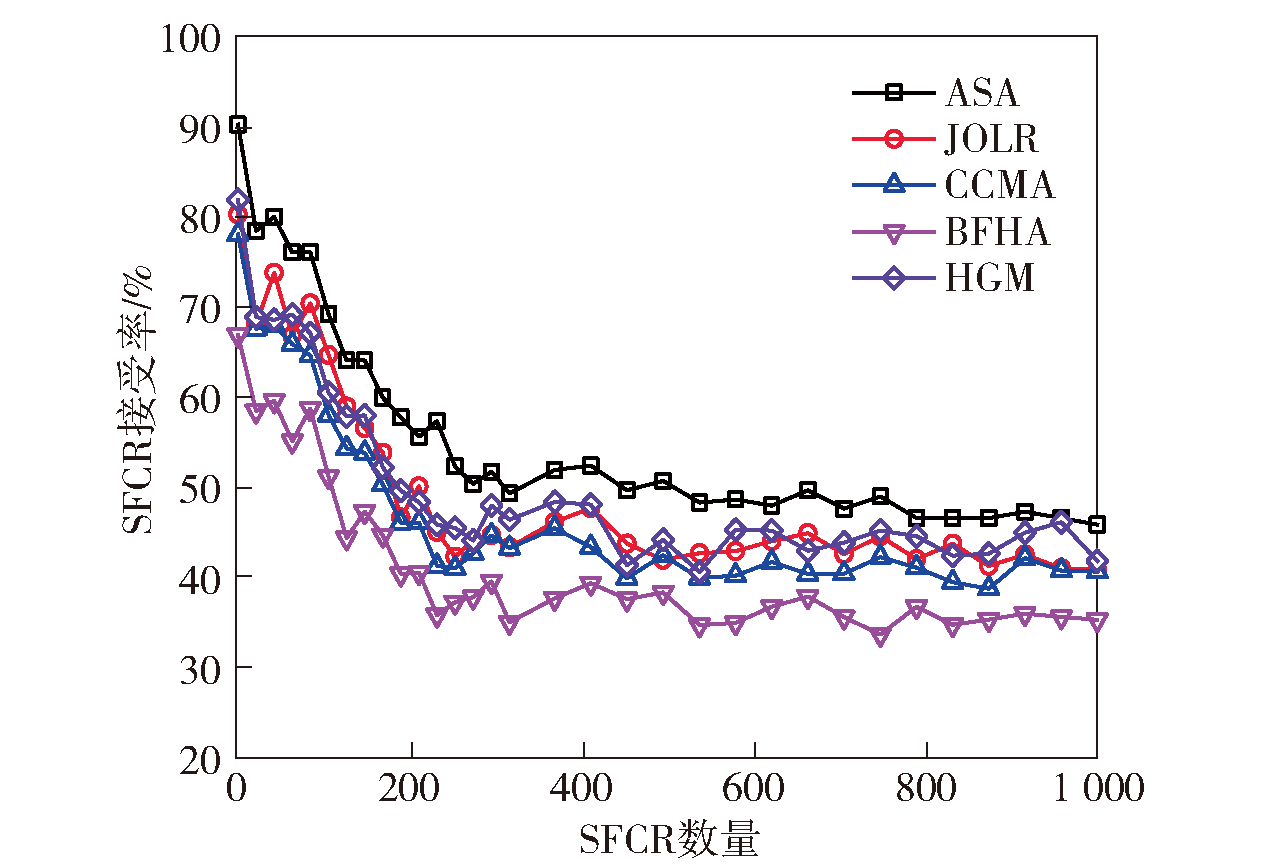

Fig.8 Number of running platforms under different SFCRs

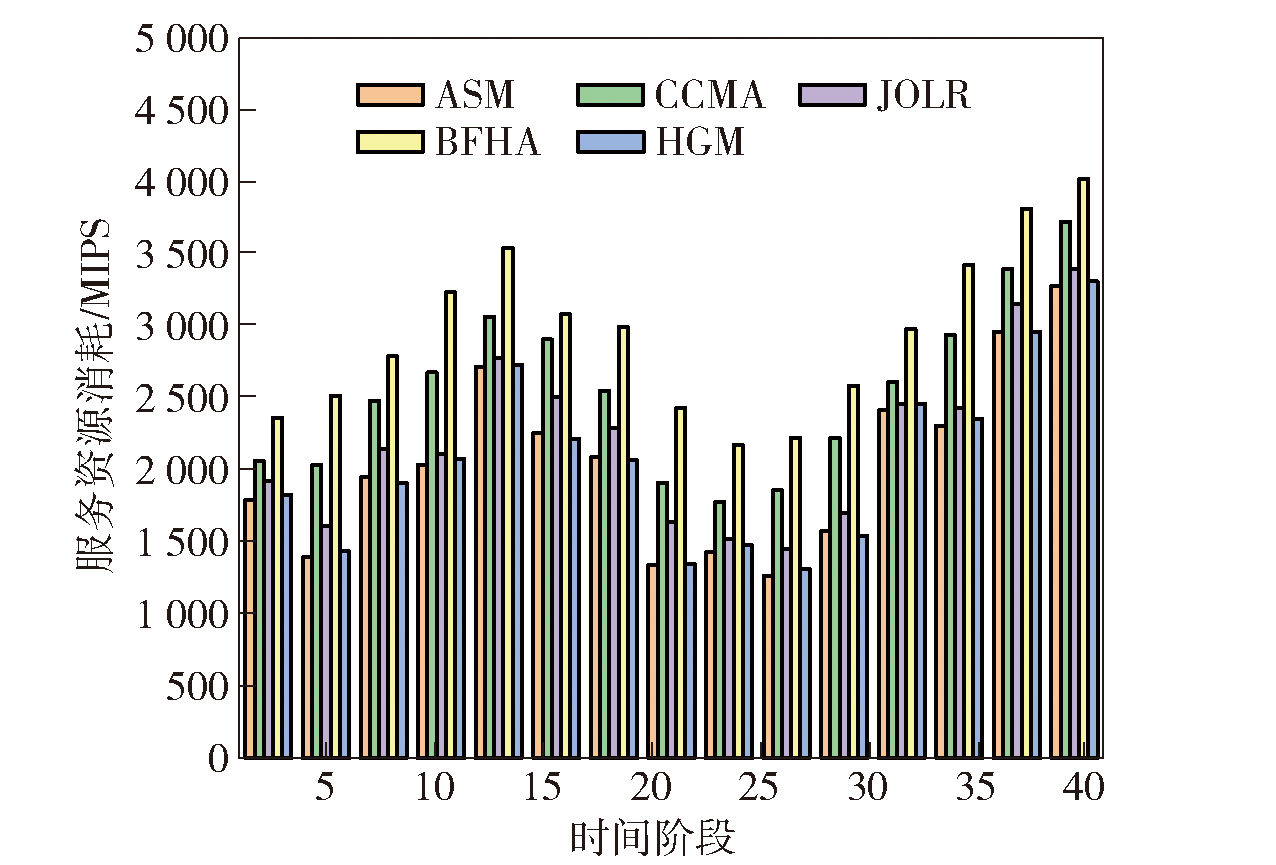

Fig.9 Service resource consumption at different time periods

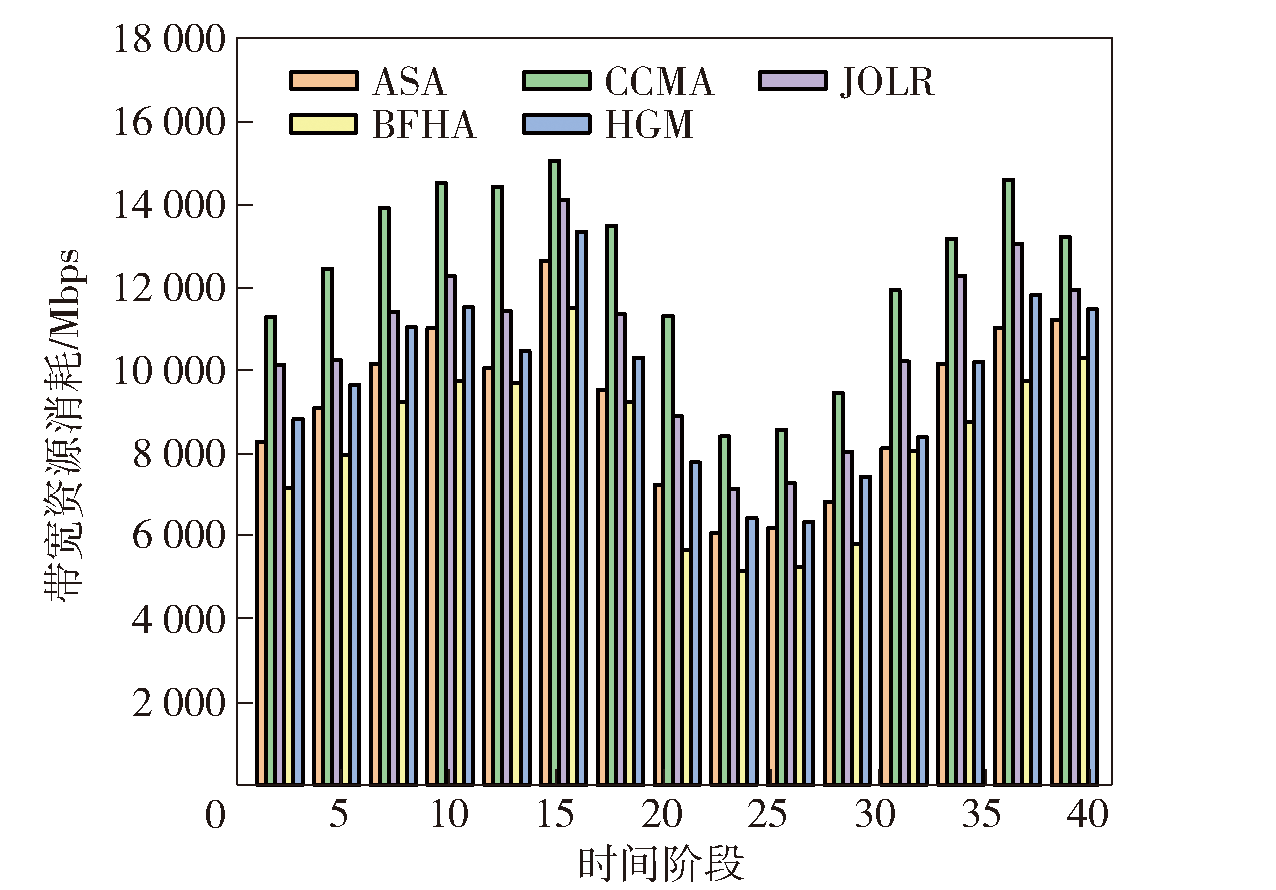

Fig.10 Bandwidth resource consumption at different time periods

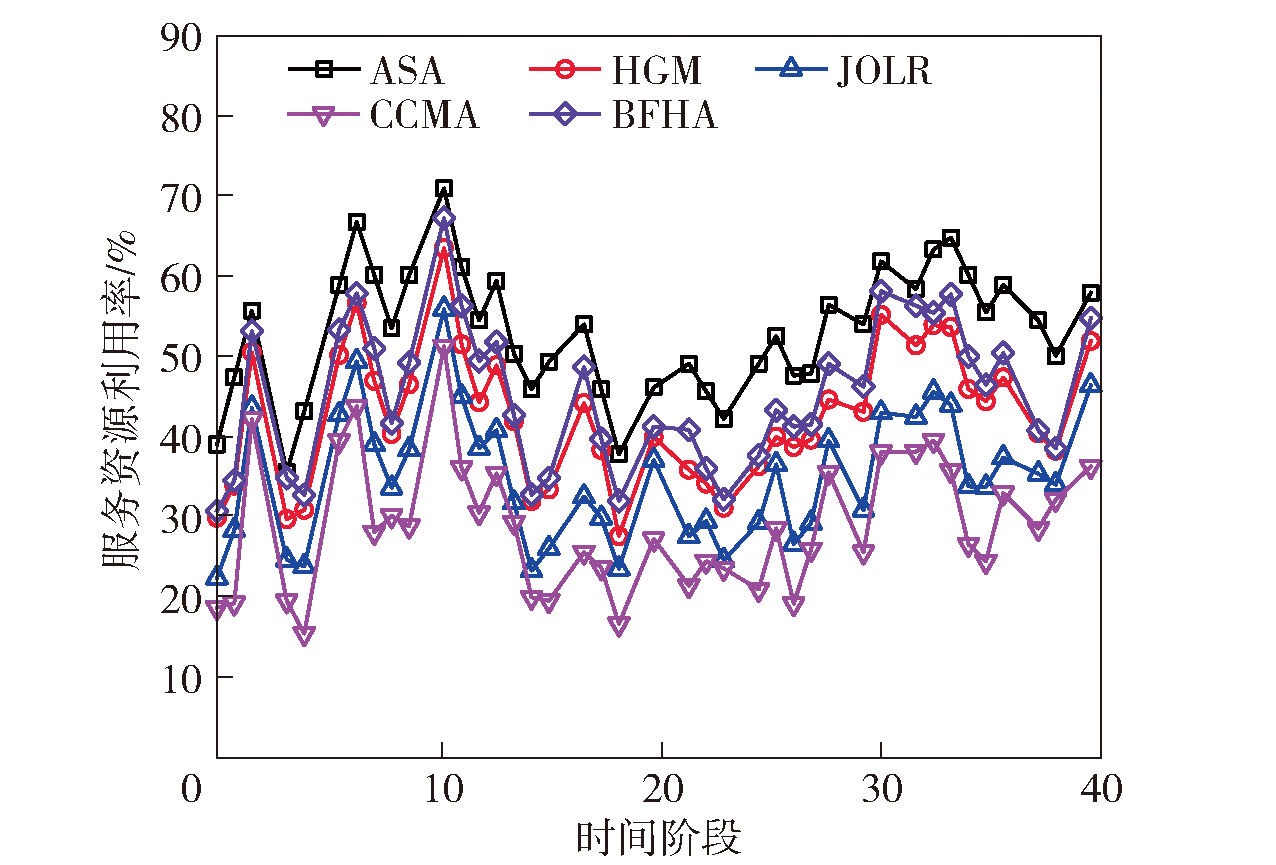

Fig.11 Service resource utilization at different time periods

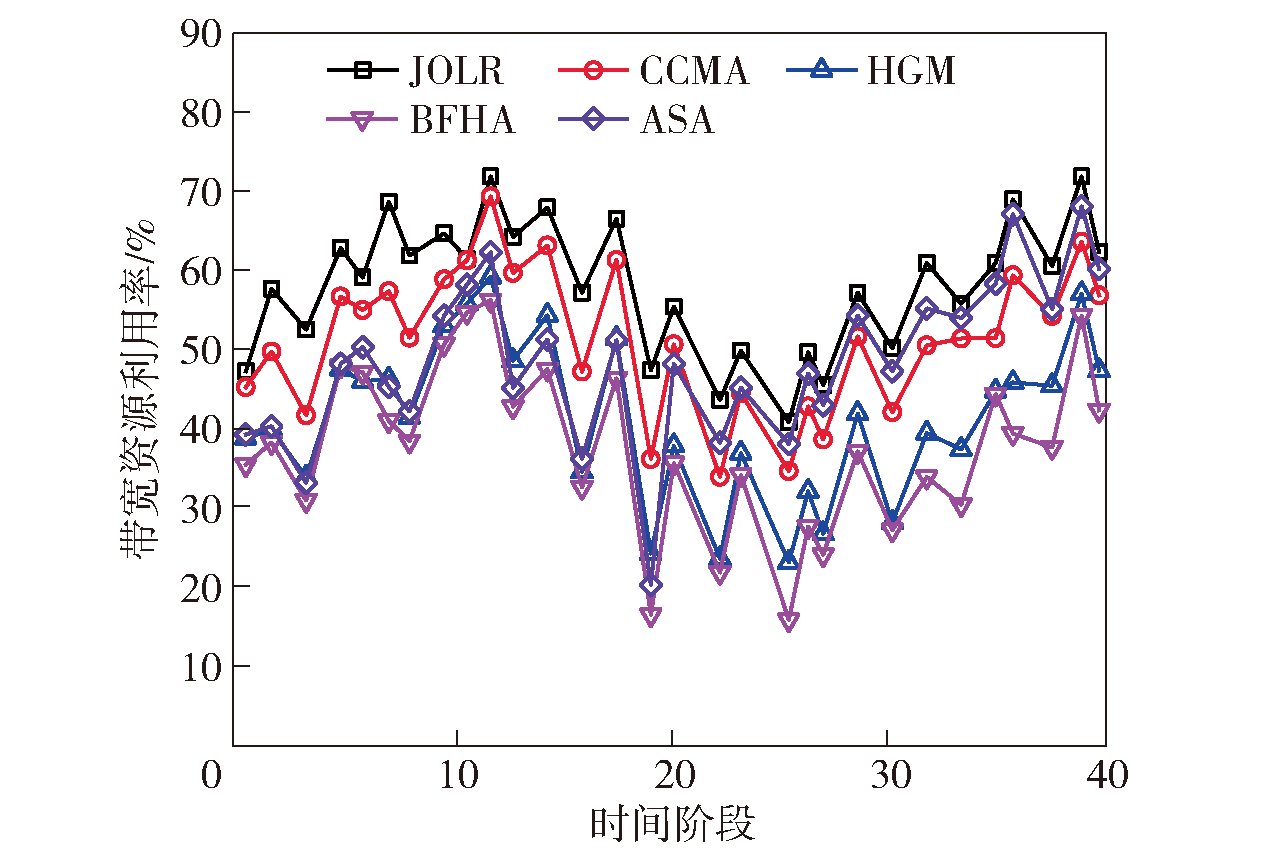

Fig.12 Bandwidth resource utilization at different time periods

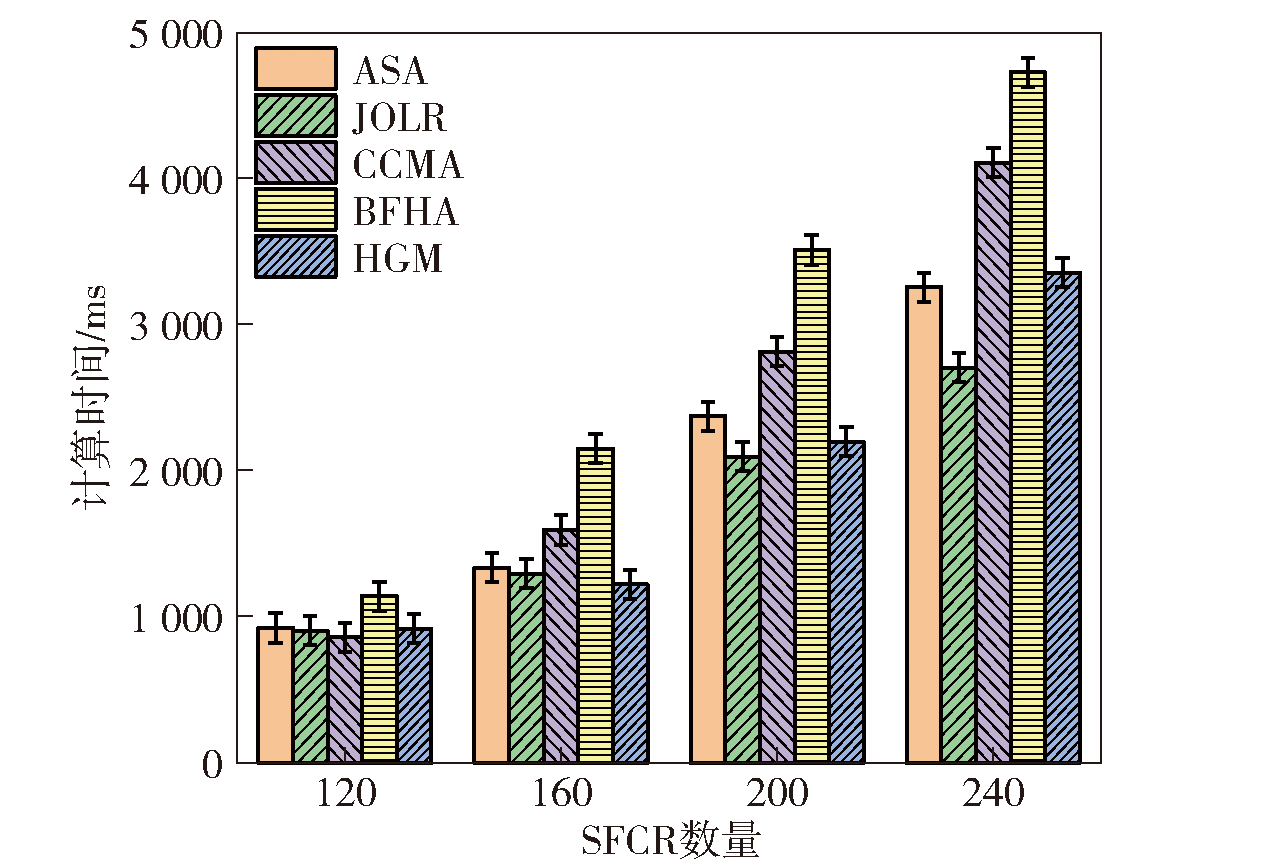

Fig.13 Computation times of the algorithms for different SFCRs
