Design and Implementation of Information Interactive Interface between QualNet and Virtual Machine for Link16

doi:10.12382/bgxb.2022.1217

Abstract

Abstract:

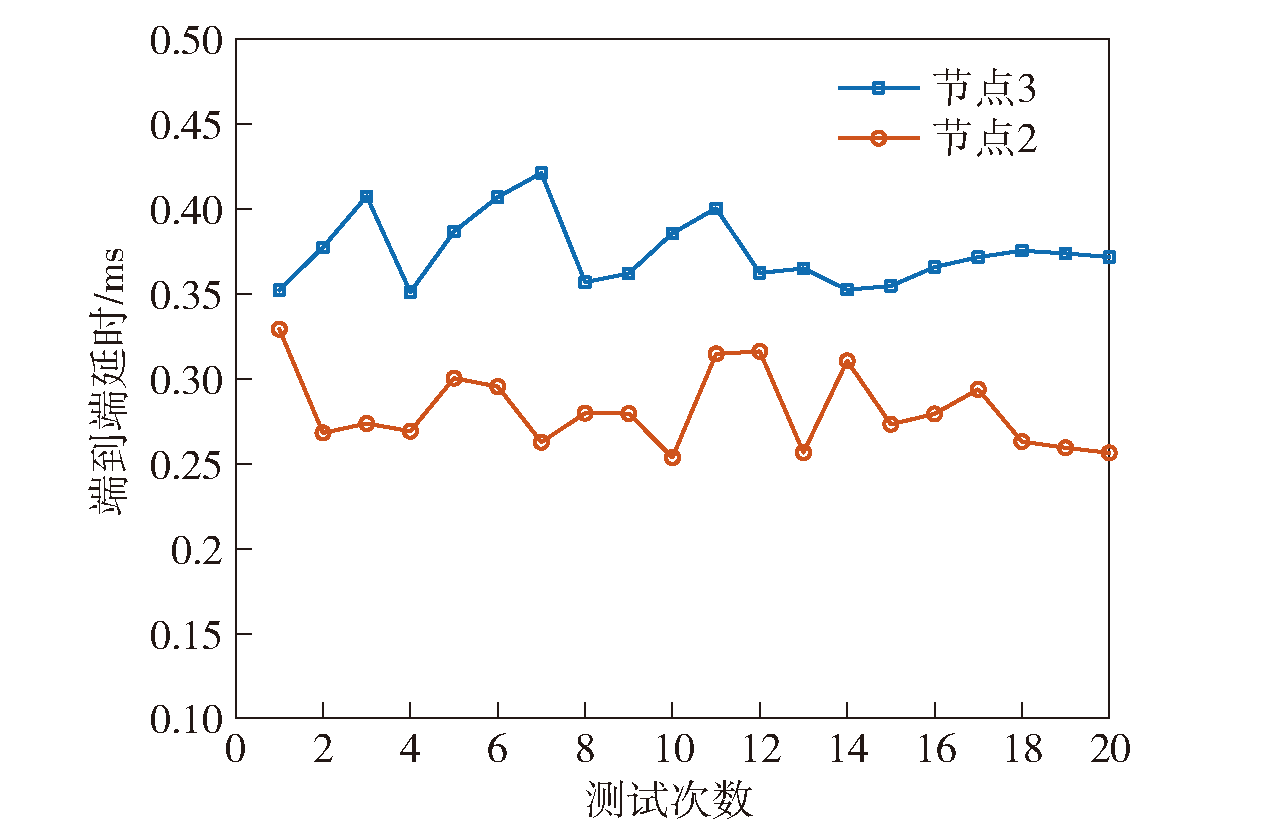

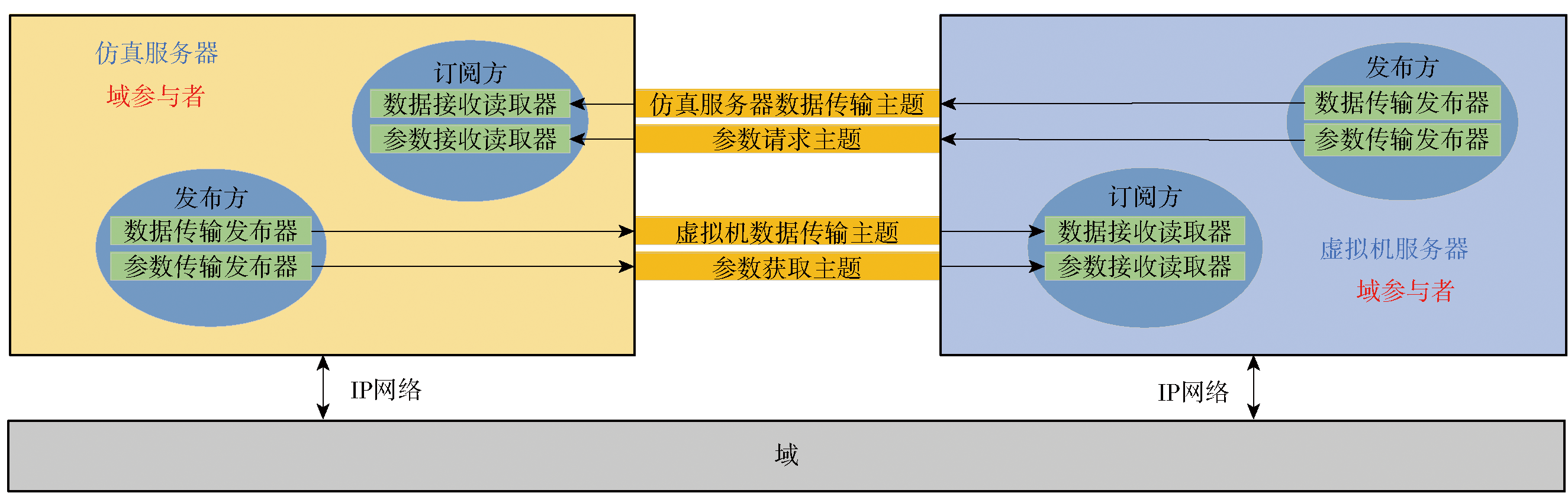

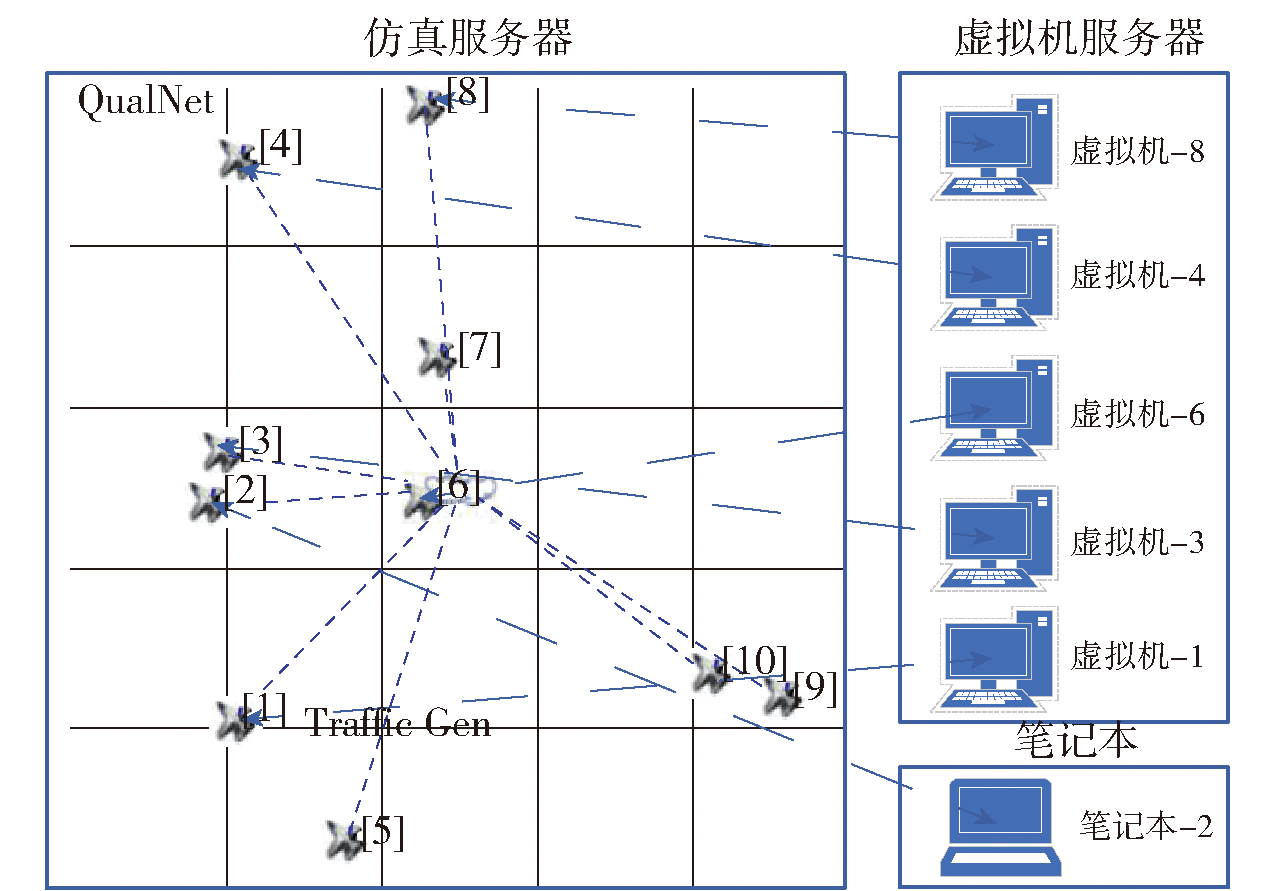

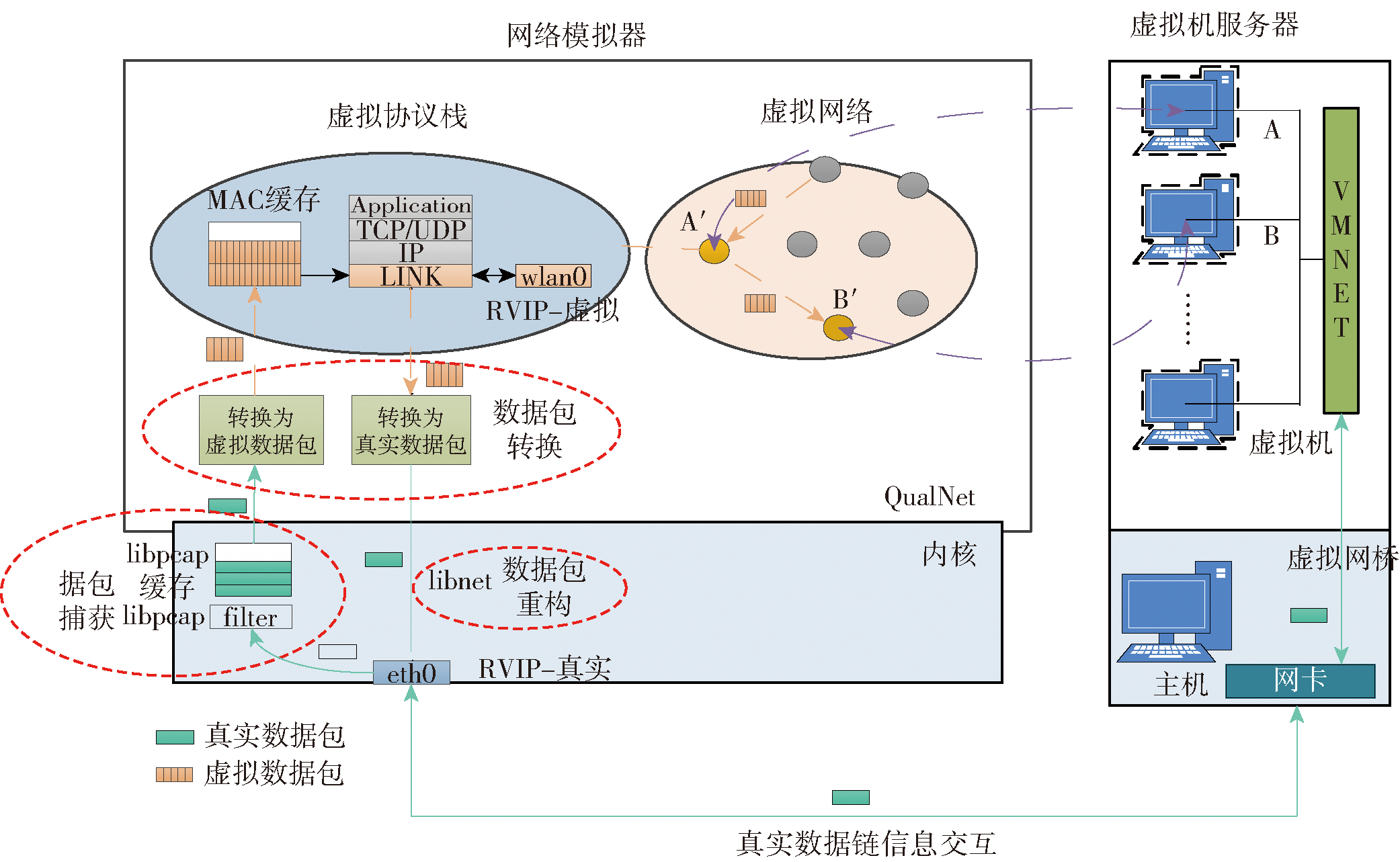

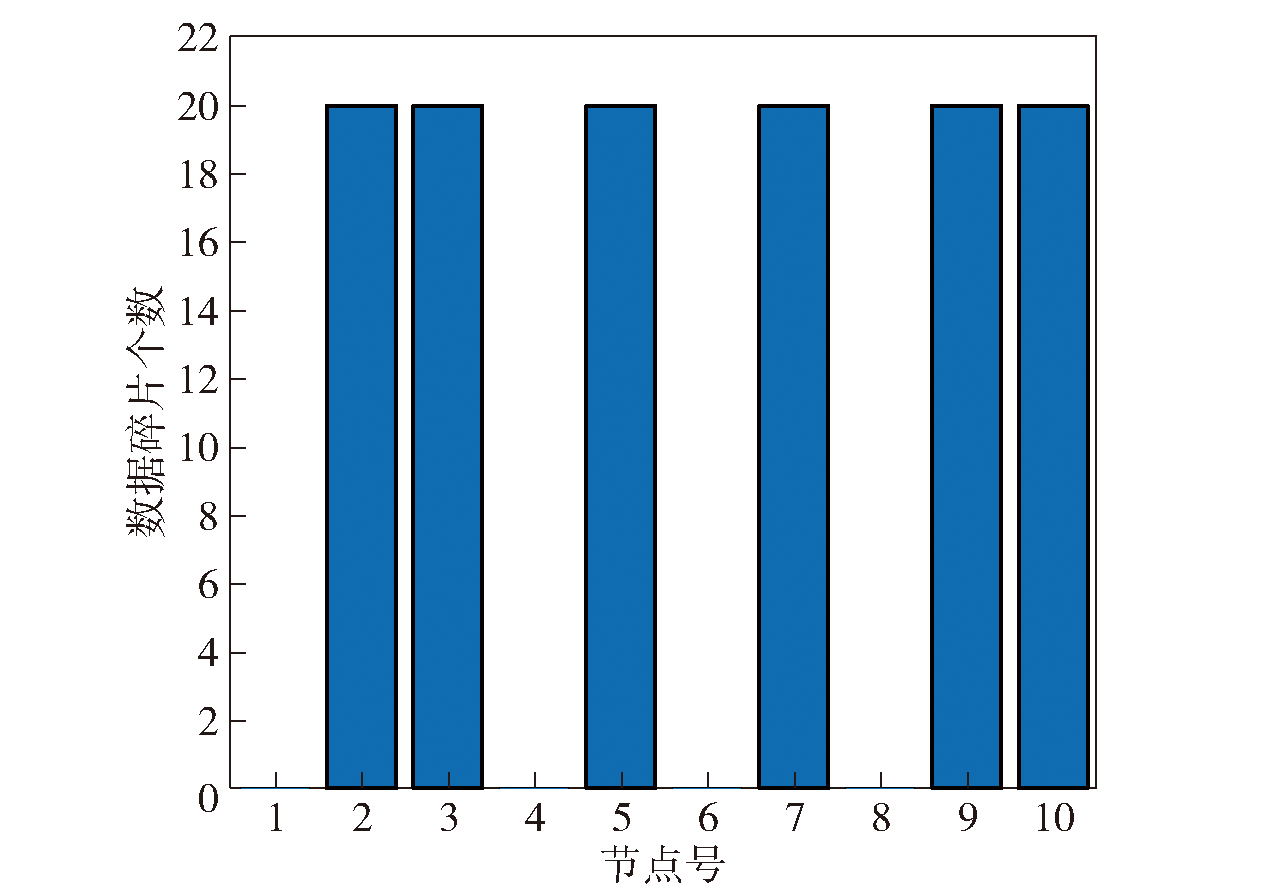

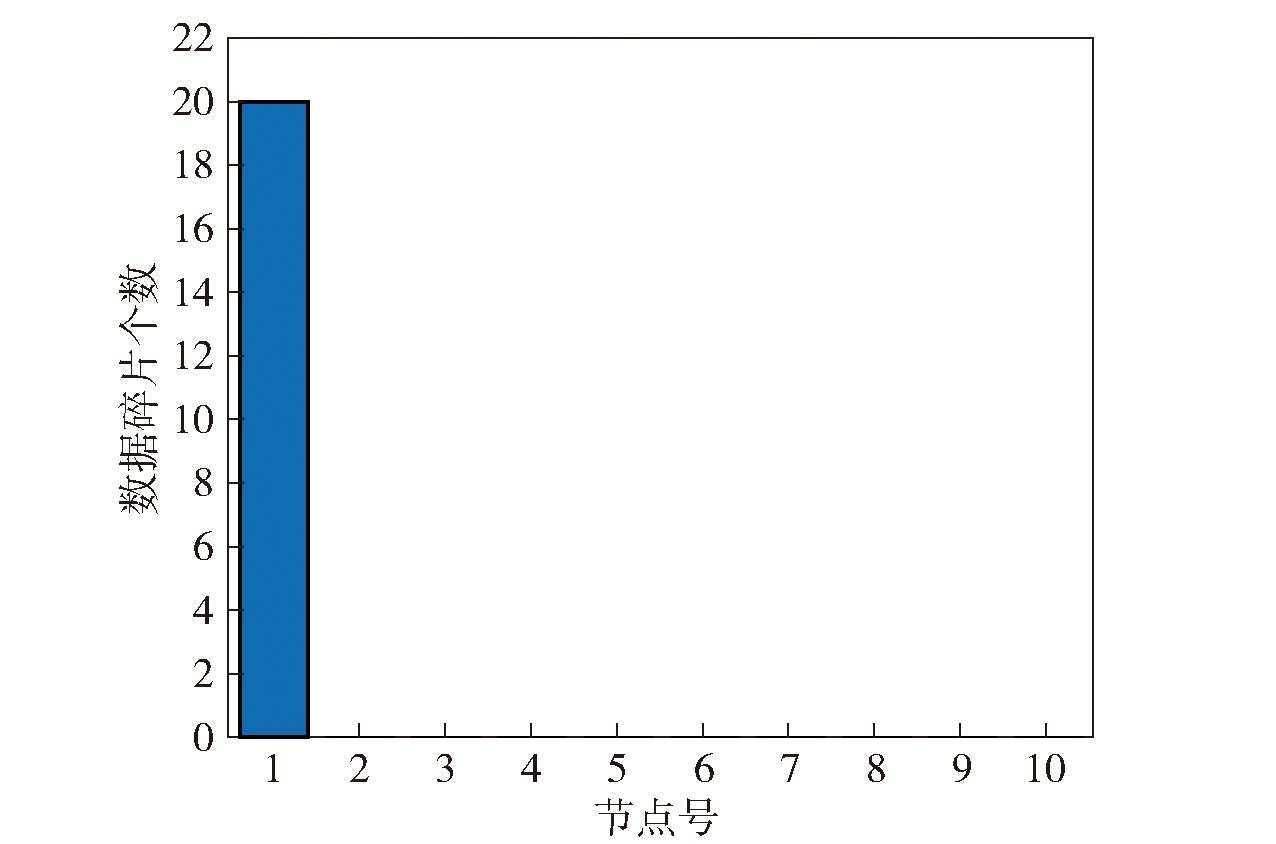

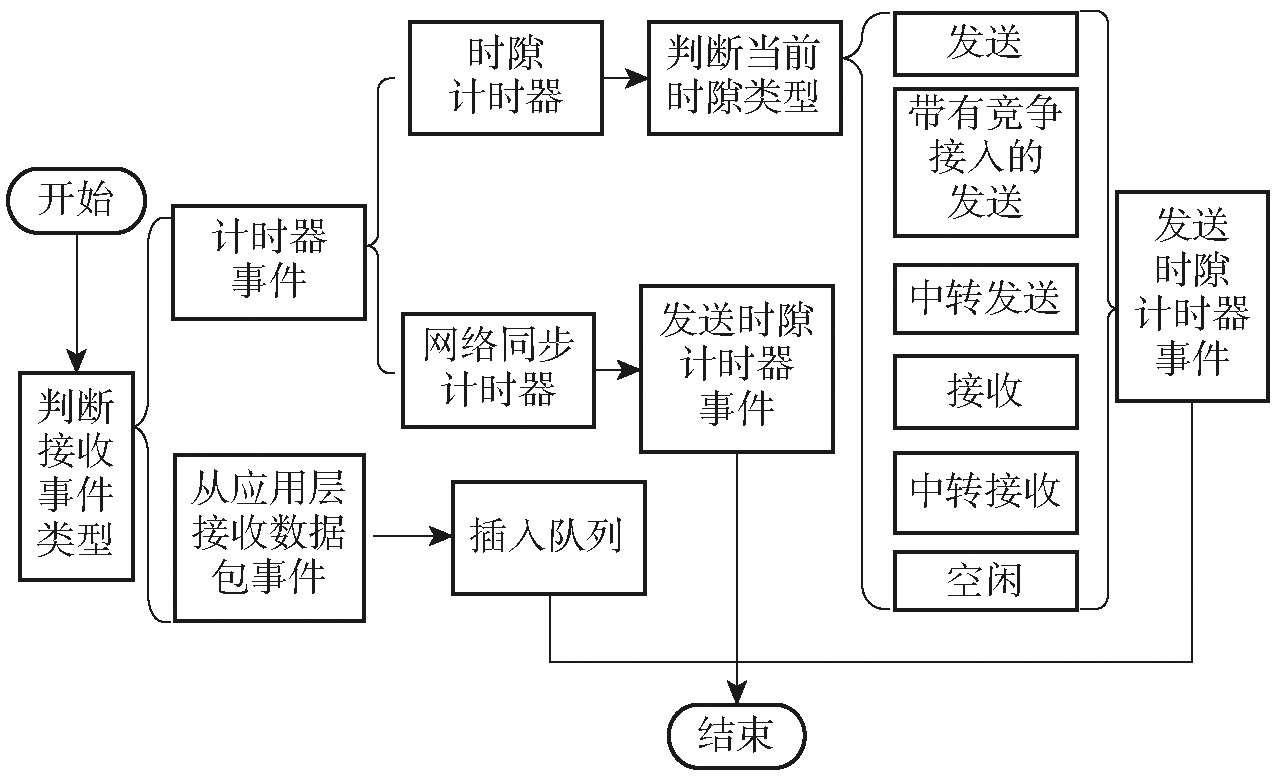

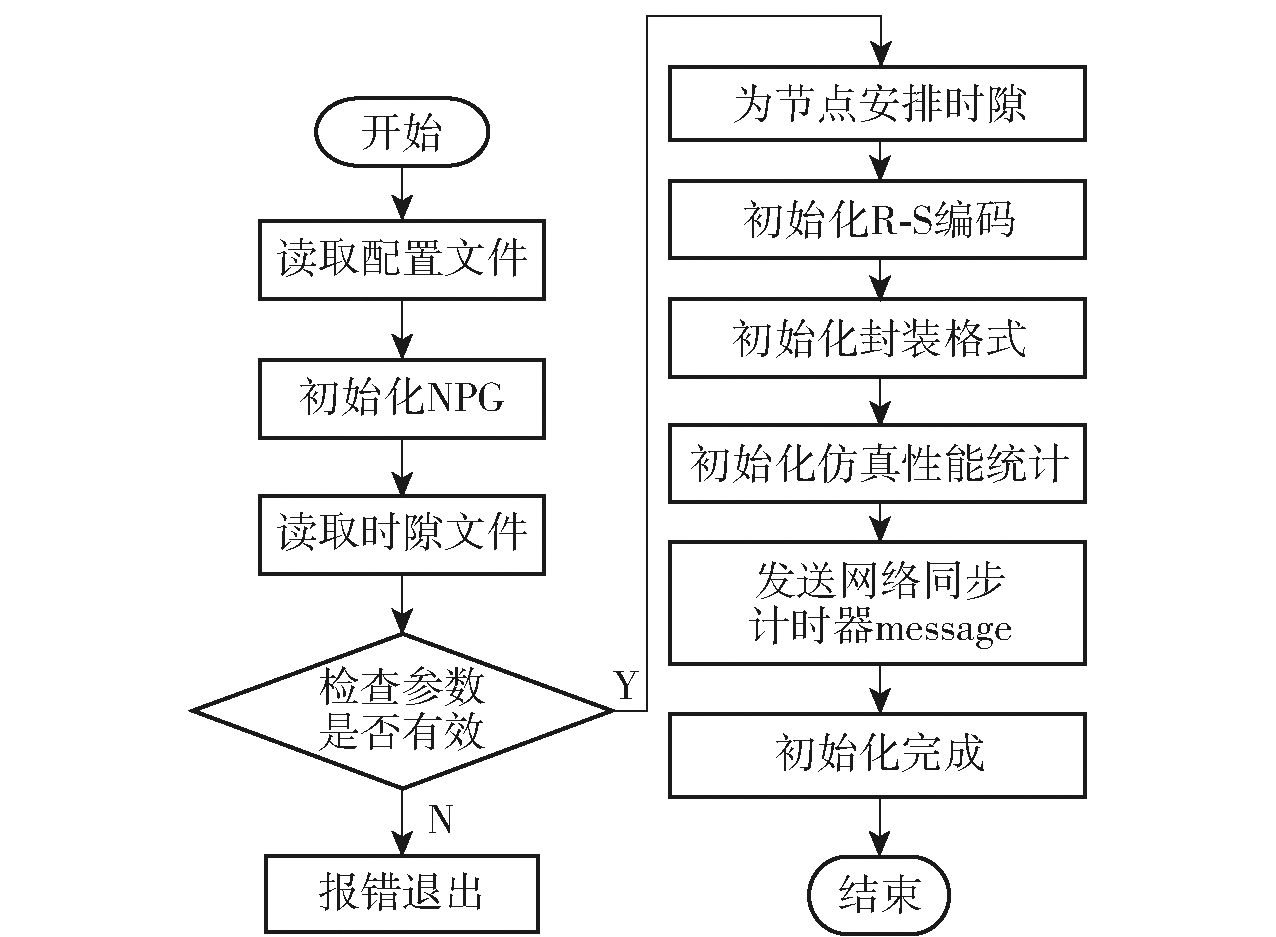

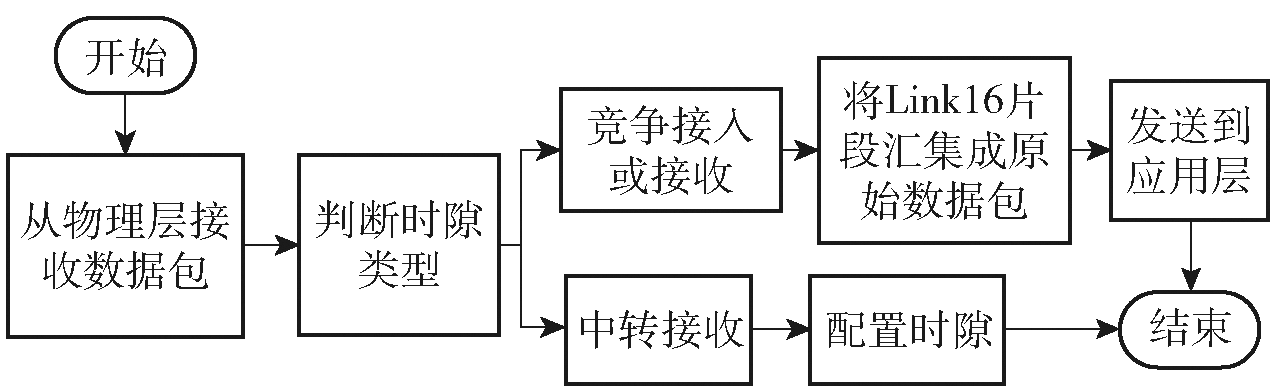

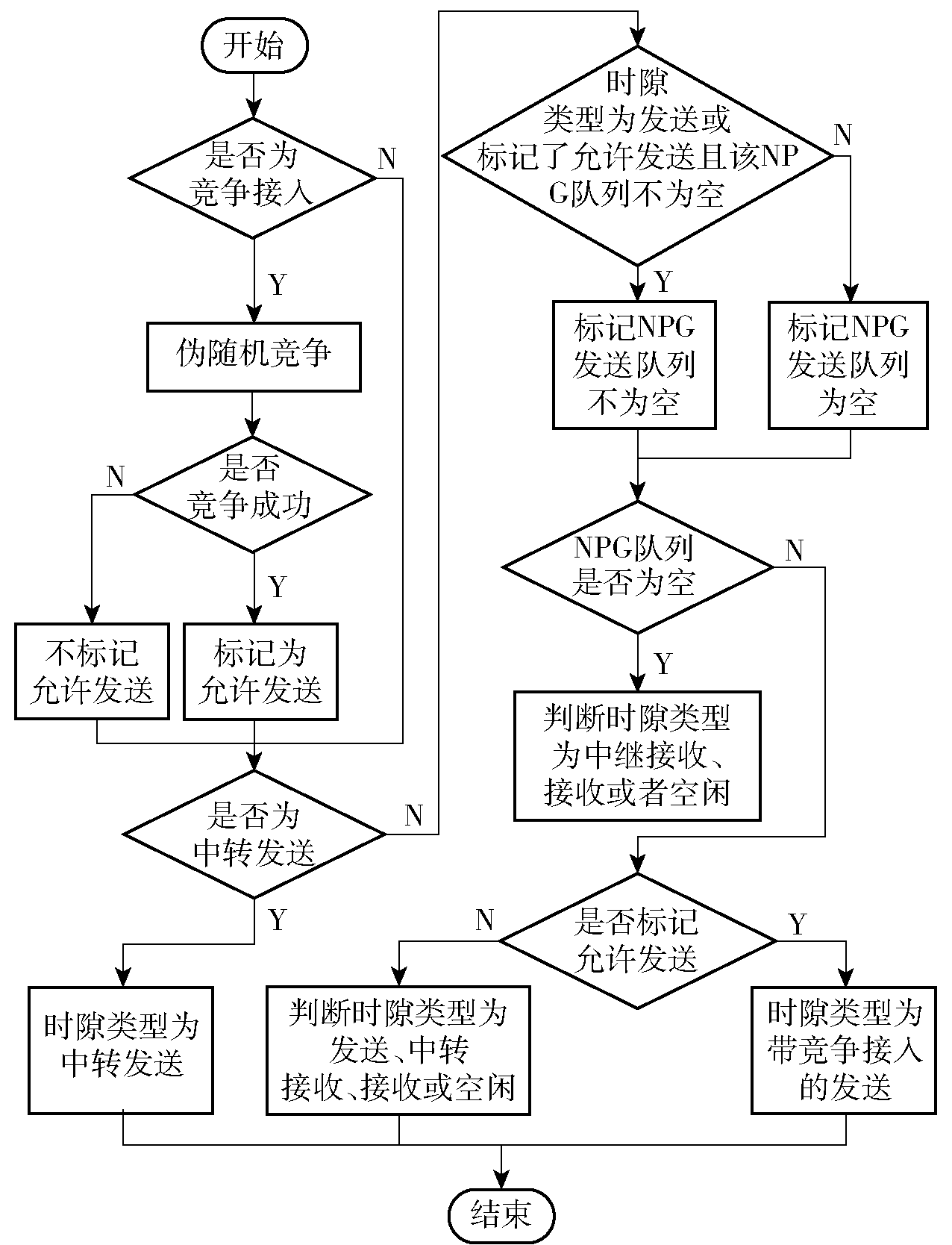

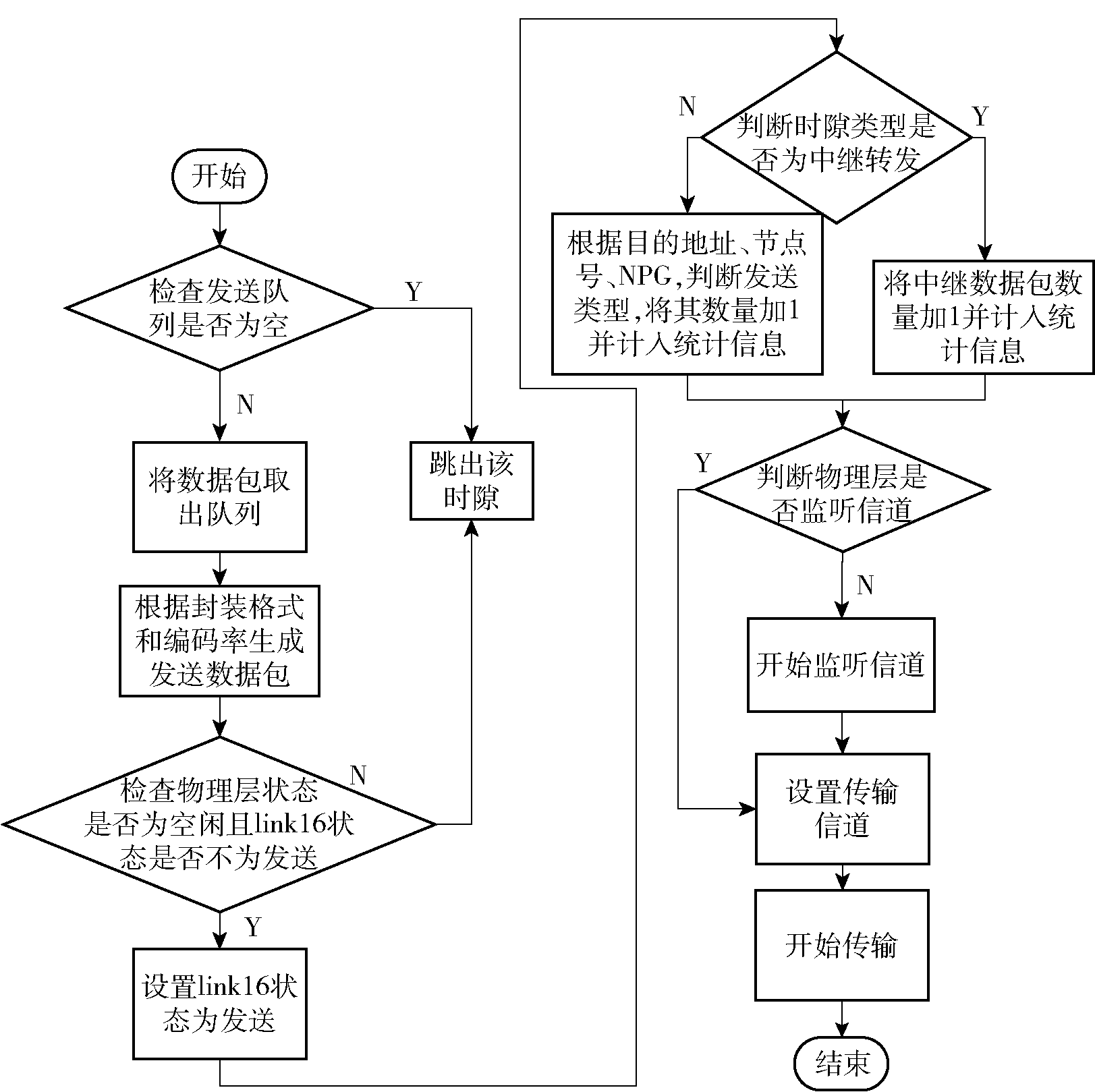

Link16 is a high-speed line-of-sight tactical data link adopted by the U.S. Department of Defense and is widely used in the U.S. Navy, joint forces, and NATO forces, for which testing and evaluation is of military importance. Integrating physical Link16 equipment into simulation testing through hardware-in-the-loop technology can effectively improve the realism and accuracy of test results. However, the cost issue still arises when physical equipment networking test is required in the testing scenario. Therefore, a Link16-specific model based on QualNet MAC layer and a matching virtual machine information interactive interface are proposed. This model can realistically simulate Link16 communication behavior, achieve the functions such as node competition access, time slot division, and NPG grouping. Based on data distributed services, the virtual machine and the QualNet simulation server are connected through this interface, thereby incorporating the Link16 equipment model running on the virtual machine into the QualNet testing scenario. Experimental results demonstrate that the proposed model has high realism and accuracy, and the interface introduces a delay of no more than 1ms, providing a new method for large-scale data link network testing.

Key words: interactive interface, Link16 data link, virtual machine, QualNet MAC layer, network simulation

CLC Number:

TP391.9

YANG Haowei, GONG Peng, ZHANG Jihao, WANG Weidong, TANG Feixi, ZHOU Zijiao, ZHANG Guangwei. Design and Implementation of Information Interactive Interface between QualNet and Virtual Machine for Link16[J]. Acta Armamentarii, 2024, 45(4): 1186-1195.

Figures/Tables 19

References 24

[1]	梅文华, 蔡善法. JTIDS/Link16数据链[M]. 北京: 国防工业出版社, 2007.
	MEI W H, CAI S F. JTIDS/Link16 data link[M]. Beijing: National Defense Industry Press, 2007. (in Chinese)
[2]	于金华. 国外战场数据链发展综述[J]. 无线电通信技术, 2001(5):62-63.
	YU J H. Overview of foreign battlefield data chain development[J]. Radio Communication Technology, 2001(5):62-63. (in Chinese)
[3]	沈滋超. 数据链组网系统与协议的研究[D]. 南京: 东南大学, 2012.
	SHEN Z C. Study of data chain networking systems and protocols[D]. Nanjing: Southeastern University, 2012. (in Chinese)
[4]	杨宏宇, 谢丽霞, 王兴隆. 网络仿真软件的应用与实践[J]. 计算机工程与应用, 2005(10):118-121.
	YANG H Y, XIE L X, WANG X L. Application and practice of network simulation software[J]. Computer Engineering and Applications, 2005(10): 118-121. (in Chinese)
[5]	AGI. QualNet tutorial[EB/OL]. [2022-10-03]. https://help.agi.com/stk/index.htm#training/qualnetTutorial.htm
[6]	杜静, 王琼, 秦富童, 等. 面向大规模网络的高性能仿真平台建设思维探讨[J]. 计算机科学, 2016, 43(增刊6):276-280.
	DU J, WANG Q, QIN F T, et al. Exploring the thinking of building a high-performance simulation platform for large-scale networks[J]. Computer Science, 2016, 43(S6):276-280. (in Chinese)
[7]	袁晓, 蔡志平, 刘书昊, 等. 大规模网络仿真软件及其仿真技术[J]. 计算机技术与发展, 2014, 24(7):9-12.
	YUAN X, CAI Z P, LIU S H, et al. Large-scale network simulation software and its simulation technology[J]. Computer Technology and Development, 2014, 24(7):9-12. (in Chinese)
[8]	张楠. 基于OPNET的机群数据链建模仿真技术研究[D]. 西安: 西安工业大学, 2021.
	ZHANG N. Research on modeling and simulation technology of helicopter fleet data link based on OPNET[D]. Xi'an: Xi'an Technological University, 2021. (in Chinese)
[9]	傅妍芳, 张楠, 魏佳宁, 等. 基于OPNET的机群数据链混合TDMA协议仿真[J]. 系统仿真学报, 2022, 34(9): 1933-1940. doi: 10.16182/j.issn1004731x.joss.21-0449
	FU Y F, ZHANG N, WEI J N, et al. OPNET based simulation of hybrid TDMA protocol for helicopters datalink[J]. Journal of System Simulation, 2022, 34(9): 1933-1940. (in Chinese) doi: 10.16182/j.issn1004731x.joss.21-0449
[10]	朱德富. 战术数据链MAC层机制研究[D]. 重庆: 重庆邮电大学, 2021.
	ZHU D F. Research on MAC layer mechanism of tactical data link[D]. Chongqing: Chongqing University of Posts and Telecommunications, 2021. (in Chinese)
[11]	雷翔, 傅妍芳, 李丹, 等. 基于DDS的机群数据链网络仿真技术研究[C]// 2020中国系统仿真与虚拟现实技术高层论坛论文集. 北京: 北京国信融合信息技术研究院, 2020: 47-51.
	LEI X, FU Y F, LI D, et al. Research on simulation technology of cluster data link network based on DDS[C]// Proceedings of 2020 China System Simulation and Virtual Reality Technology High Level Forum. Beijing: Beijing Guoxin Fusion Information Technology Research Institute, 2020:47-51. (in Chinese)
[12]	李超, 肖延年, 方标. 基于QualNet的Link16网络仿真研究[J]. 舰船电子工程, 2016, 36(3):86-88,101.
	LI C, XIAO Y N, FANG B. Study of Link16 network simulation based on QualNet[J]. Naval Electronics Engineering, 2016, 36(3):86-88,101. (in Chinese)
[13]	FRANGOS C. Control system analysis of a hardware-in-the-loop simulation[J]. IEEE Transactions on Aerospace and Electronic Systems, 1990, 26(4):666-669.
[14]	李丹, 傅妍芳, 雷翔, 等. 基于故障的数据链仿真方法研究[C]// 2020中国系统仿真与虚拟现实技术高层论坛论文集. 北京: 北京国信融合信息技术研究院, 2020: 42-46.
	LI DAN, FU Y F, LEI X, et al. Research on fault based data link simulation method[C]// Proceedings of 2020 China System Simulation and Virtual Reality Technology High Level Forum. Beijing: Beijing Guoxin Fusion Information Technology Research Institute, 2020:42-46. (in Chinese)
[15]	ZHAO J, ZHU X. Research on a hardware-in-the-loop simulation method for wireless network based on OPNET[C]// Proceedings of 2015 IEEE Advanced Information Technology Electronic and Automation Control Conference. Chongqing, China:IEEE, 2015: 821-825.
[16]	GONG P, LI M, KONG J, et al. An interactive approach for QualNet-based network model evaluation and testing at real time[C]// Proceedings of the 16th International Conference on Advanced Communication Technology. PyeongChang, Korea:IEEE, 2014: 978-982.
[17]	马俊凯, 李丽华. 基于EXata的数据链通信教学平台设计[J]. 实验室研究与探索, 2015, 34(10):124-128,164.
	MA J K, LI L H. Research and design on data link communication teaching platform based on EXata[J]. Research and Exploration in Laboratory, 2015, 34(10):124-128,164. (in Chinese)
[18]	李慧博, 吴海乔, 栗苹, 等. 基于VMware的Link11数据链半实物仿真技术[J]. 兵工学报, 2020, 41(增刊2): 224-233.
	LI H B, WU H Q, LI P, et al. VMware-based hardware-in-the-loop simulation approach for Link11 data link[J]. Acta Armamentarii, 2020, 41(S2): 224-233. (in Chinese)
[19]	陈昕, 王鹏, 吴平, 等. 云技术网络攻防实验平台的研究与实现[J]. 网络空间安全, 2017, 8(增刊5):91-96.
	CHEN X, WANG P, WU P, et al. Research and implementation of cloud technology network attack and defense experimental platform[J]. Cyberspace Security, 2017, 8(Z5):91-96. (in Chinese)
[20]	蒋华, 闫一凡, 鞠磊. 可信服务链安全架构研究[J]. 计算机应用研究, 2018, 35(4):1159-1164.
	JIANG H, YAN Y F, JU L. Research on trustworthy service chain security architecture[J]. Computer Application Research, 2018, 35(4):1159-1164. (in Chinese)
[21]	Scalable Network Technologies. QualNet 5.2 programmer's guide[M]. Los Angeles, CA,US: Scalable Network Technologies Inc., 2011.
[22]	Scalable Network Technologies. QualNet 5.2 API reference guide[M]. Los Angeles, CA,US: Scalable Network Technologies Inc., 2011.
[23]	赵征鹏, 保利勇, 袁国武, 等. 利用VMware的Windows和Linux虚拟机组网方法[J]. 电脑编程技巧与维护, 2009(6):79-81.
	ZHAO Z P, BAO L Y, YUAN G W, et al. Networking methods for Windows and Linux virtual machines using VMware[J]. Computer Programming Skills and Maintenance, 2009(6):79-81. (in Chinese)
[24]	Real-Time Innovations. RTI Connext DDS core libraries user's manual[M]. Sunnyvale, CA, US: Real-Time Innovations, Inc., 2020.

结构体名称	参数(部分)	说明
MacDataLink16	信道序号;MAC层指针;当前状态;NPG信息;时隙信息;数据缓存;计时器消息	用于节点存储Link16相关数据,是协议核心结构体
Link16NPGInfo	NPG地址;时隙类型;延时;封装格式;接入方式;NPG名称	记录NPG相关信息
Link16SlotInfo	时隙类型;NPG地址;封装格式;接入方式;持续时间	记录时隙相关信息

结构体名称	参数(部分)	说明
MacDataLink16	信道序号;MAC层指针;当前状态;NPG信息;时隙信息;数据缓存;计时器消息	用于节点存储Link16相关数据,是协议核心结构体
Link16NPGInfo	NPG地址;时隙类型;延时;封装格式;接入方式;NPG名称	记录NPG相关信息
Link16SlotInfo	时隙类型;NPG地址;封装格式;接入方式;持续时间	记录时隙相关信息

结构体名称	参数(部分)	说明
Link16Header	源地址;目的地址;网络类型;	模拟Link16消息头部信息
Link16Message	同步标志位;精确定时标志位;头部	模拟Link16消息信息
Link16PacketInfo	源地址;目标地址;目标NPG;发送接口;持续时间	存储Link16数据包信息,用于QualNet中信息交互

结构体名称	参数(部分)	说明
Link16Header	源地址;目的地址;网络类型;	模拟Link16消息头部信息
Link16Message	同步标志位;精确定时标志位;头部	模拟Link16消息信息
Link16PacketInfo	源地址;目标地址;目标NPG;发送接口;持续时间	存储Link16数据包信息,用于QualNet中信息交互

结构体名称	参数(部分)	说明

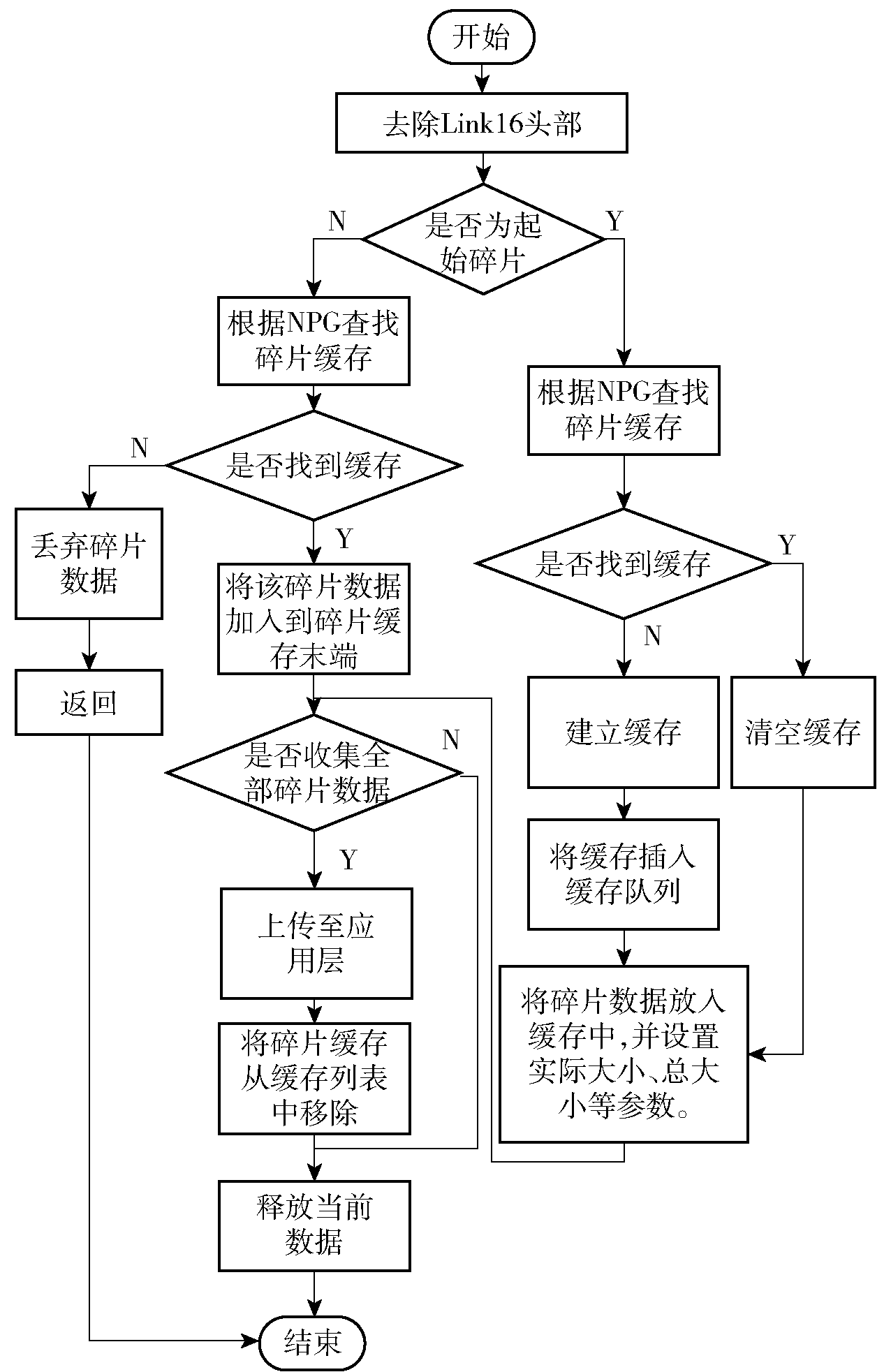

Link16FragQueue	源节点号;目的节点号;目标NPG;碎片数据;当前数据信息;总大小	记录碎片数据队列信息
Link16FragData	负载;实际大小;虚拟大小	碎片数据缓存
