Analysis of High-Speed Electric Tracked Vehicle’s Handling Characteristics

doi:10.12382/bgxb.2022.0764

Abstract

Abstract:

In order to lay the foundation for the evaluation and control of the high-speed electric tracked vehicle’s handling stability, the open-loop handling characteristics of the vehicle are analyzed, and the vehicle yaw motion response test is conducted. Then, on this basis, the vehicle’s handling characteristics based on the driver-vehicle-road closed-loop system are analyzed. The results show that: the higher the vehicle speed is, the smaller the yaw rate stability value is; the better the road condition is, the faster the yaw rate response is; when the dynamic response characteristics of the vehicle are considered, the driver’s preview time to ensure the stability of the closed-loop system needs to be increased, and the driver’s shortest reaction delay time is shortened. In addition, faster response speed of the drive motor requires greater minimum preview time to ensure the system stability.

Key words: electric tracked vehicle, high speed tracked vehicle, handling characteristics, yaw motion, driver-vehicle-road closed-loop system

CLC Number:

TJ811

YUAN Yi, GAI Jiangtao, ZHOU Guangming, GAO Xiucai, LI Xunming, MA Changjun. Analysis of High-Speed Electric Tracked Vehicle’s Handling Characteristics[J]. Acta Armamentarii, 2023, 44(1): 203-213.

Figures/Tables 28

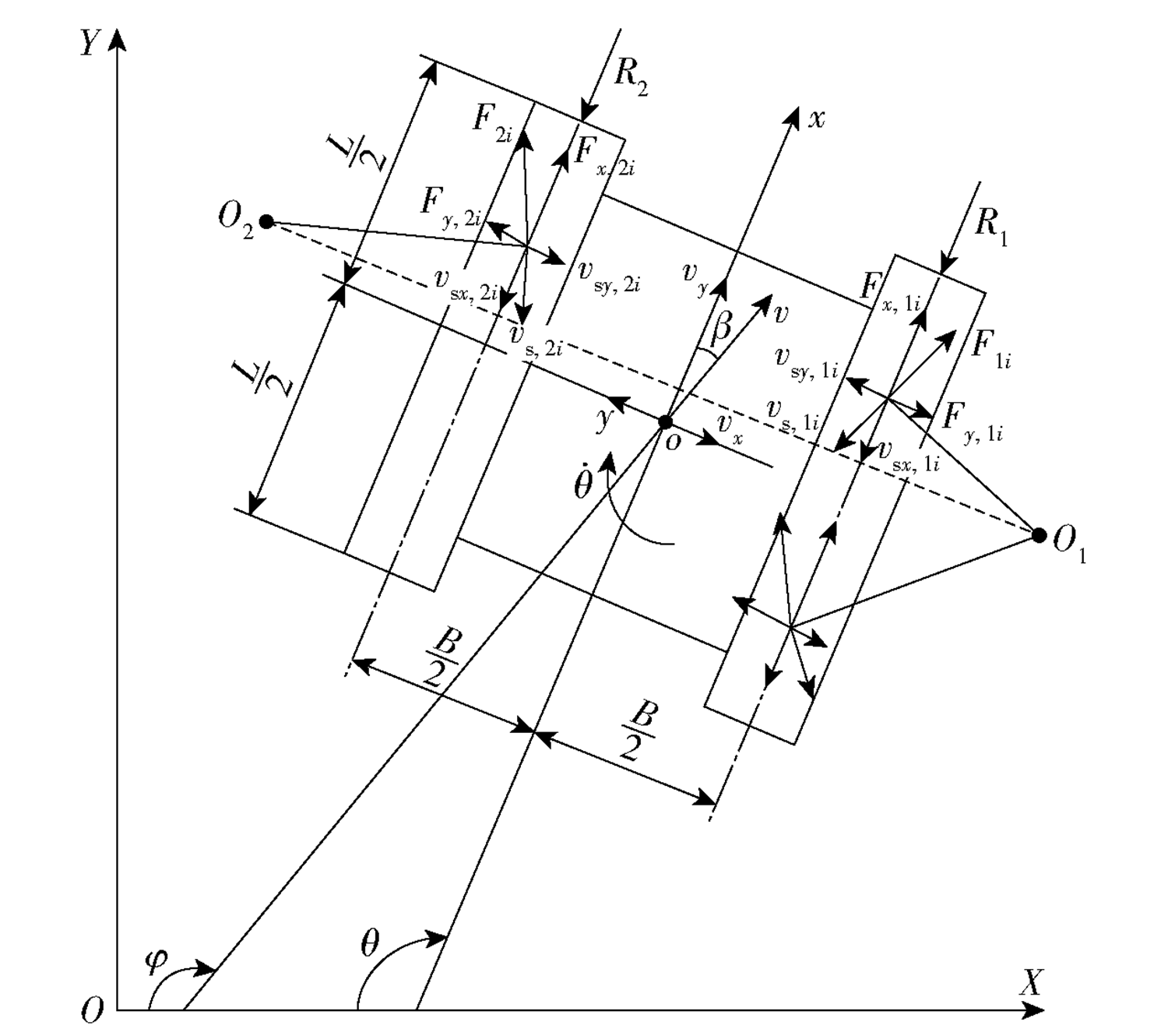

Fig.1 Diagram of plane motion for steering of tracked vehicle

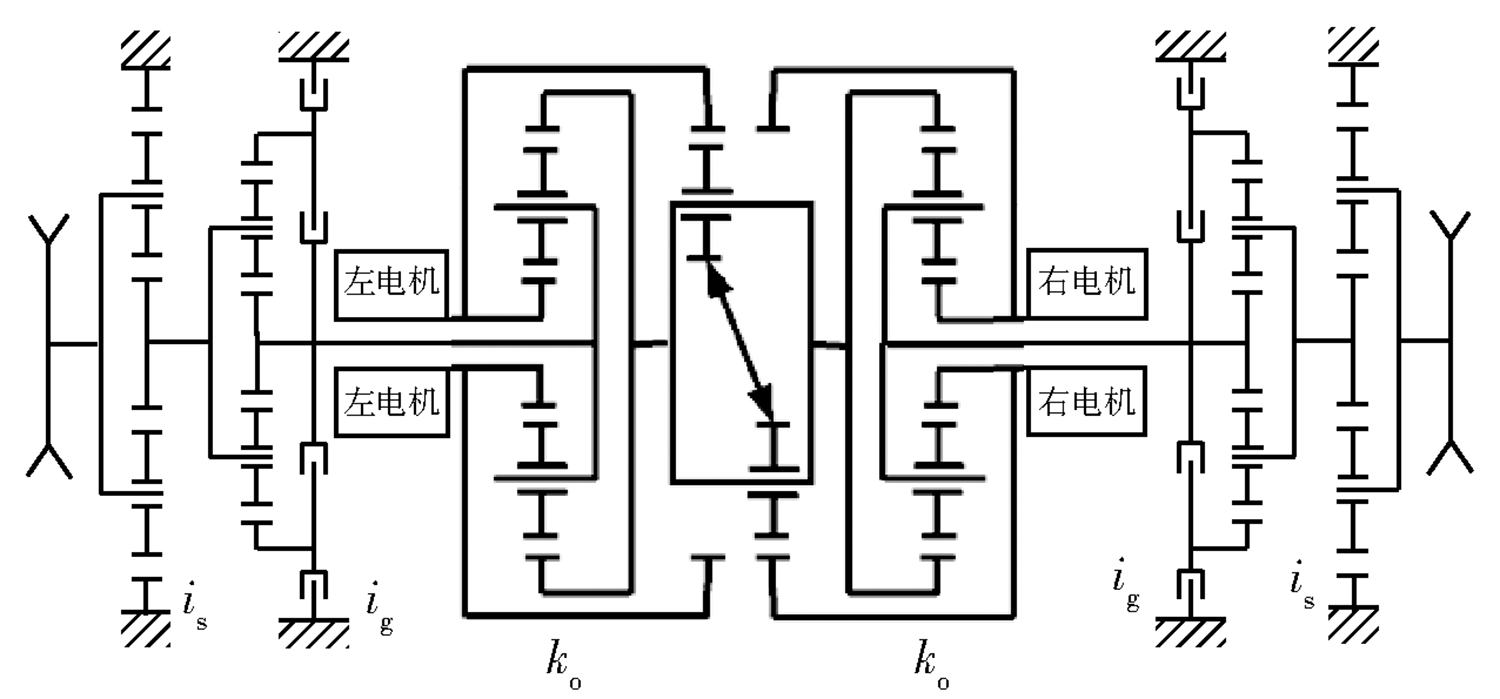

Fig.2 Structural diagram of the electric driver

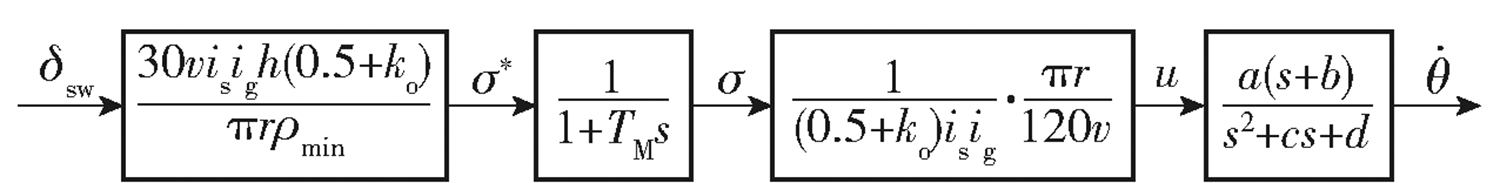

Fig.3 Block diagram of the electric tracked vehicle

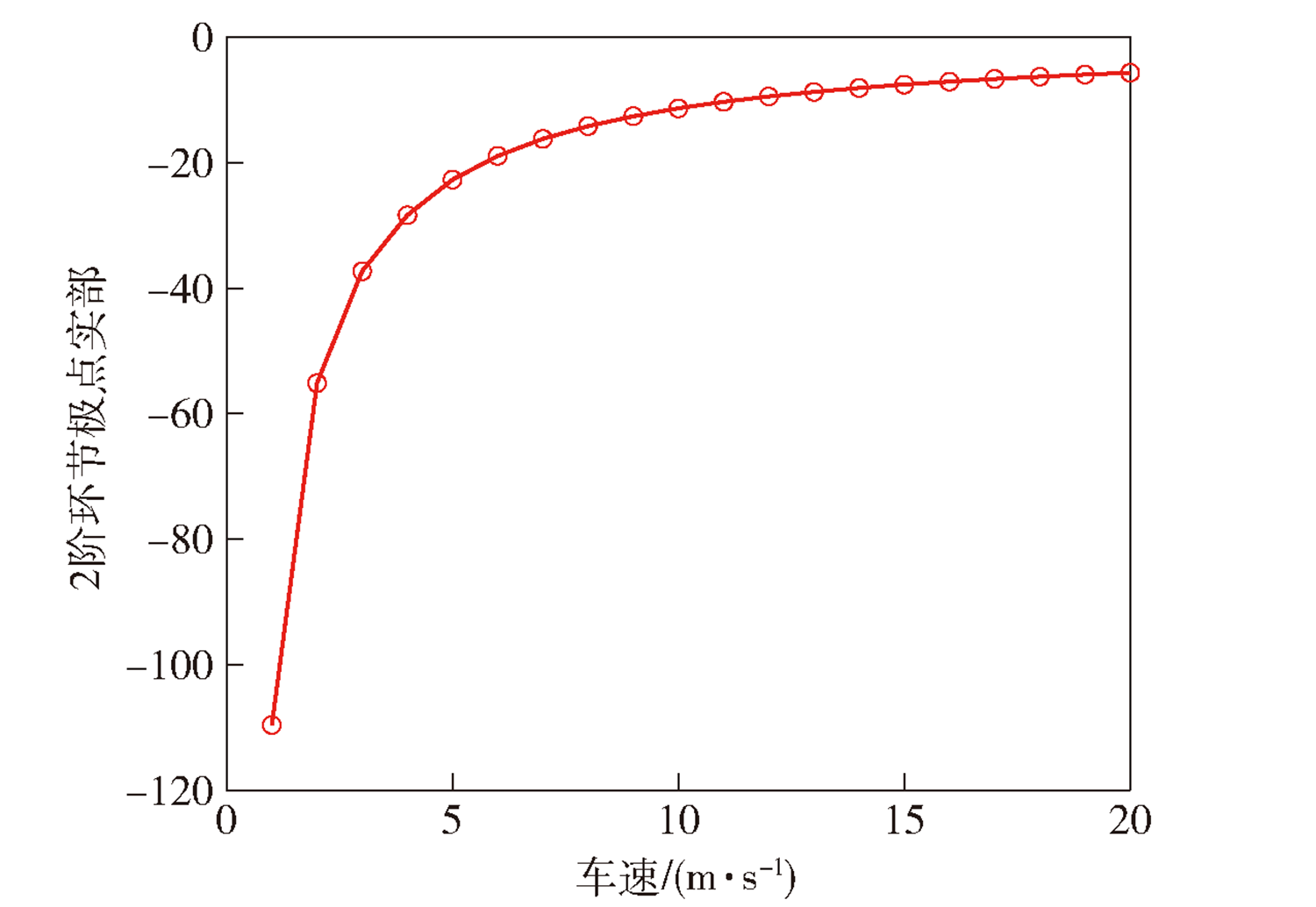

Fig.4 Relationship between the real part of the pole of the second-order link and the vehicle speed

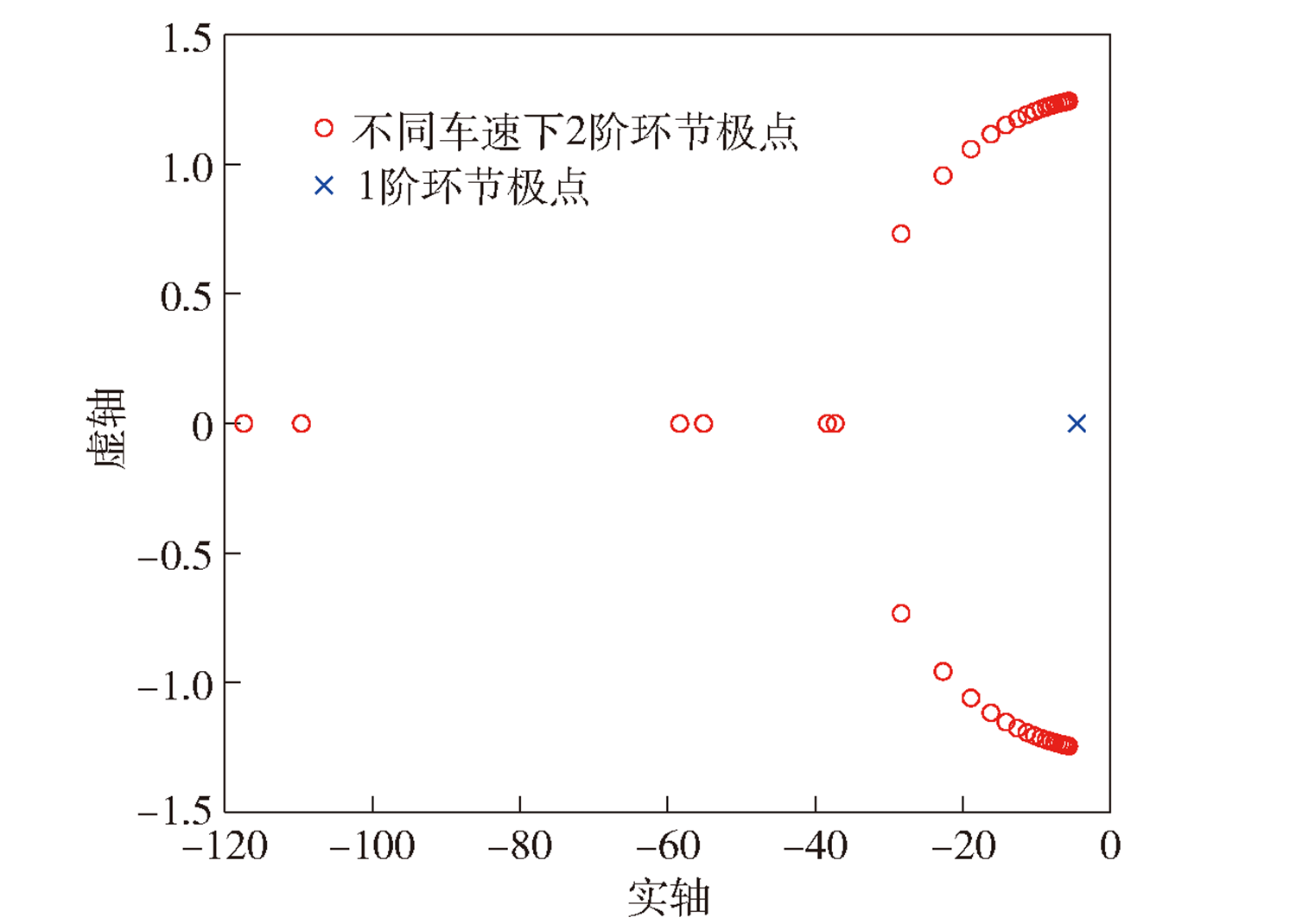

Fig.5 System poles

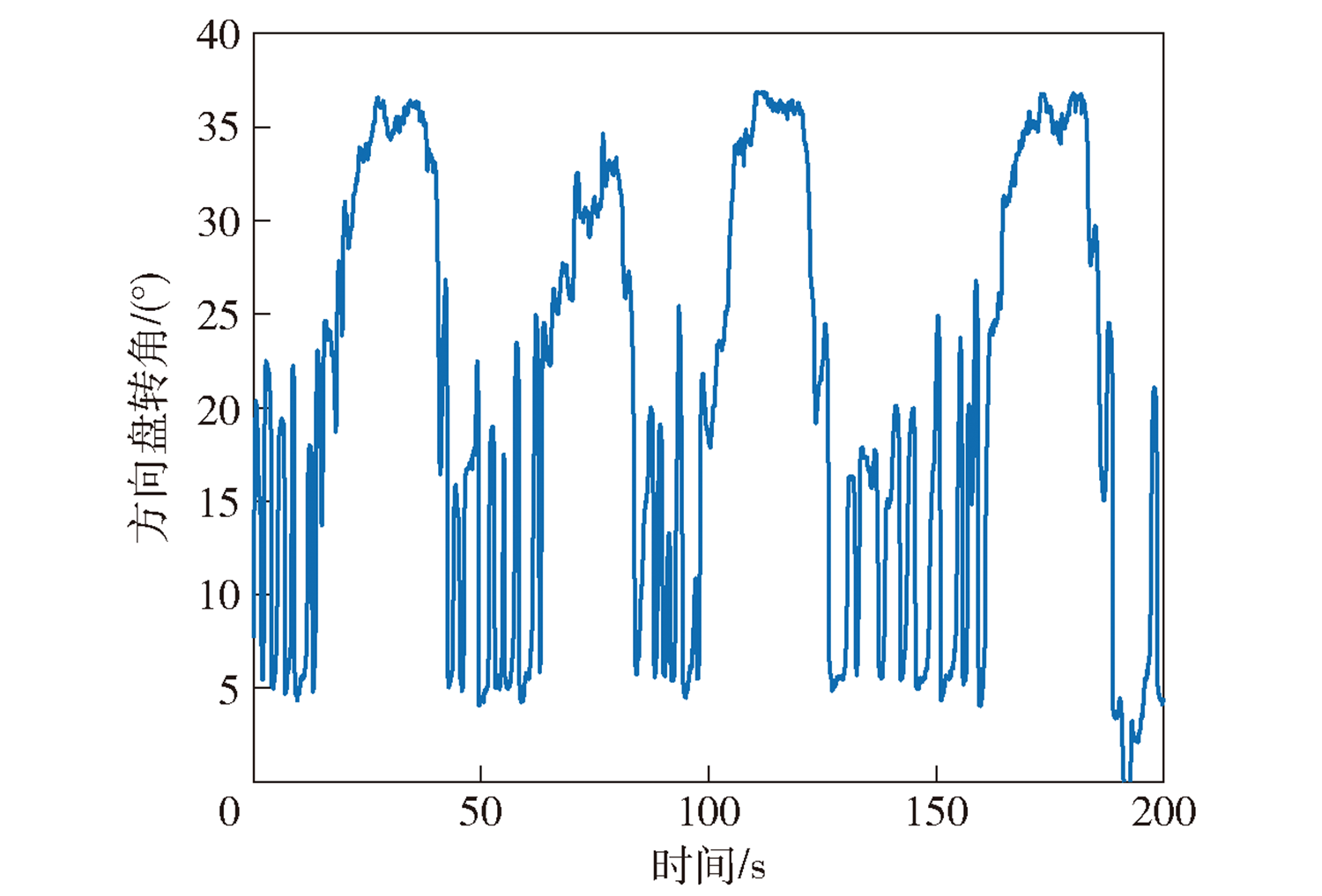

Fig.6 Steering wheel angle

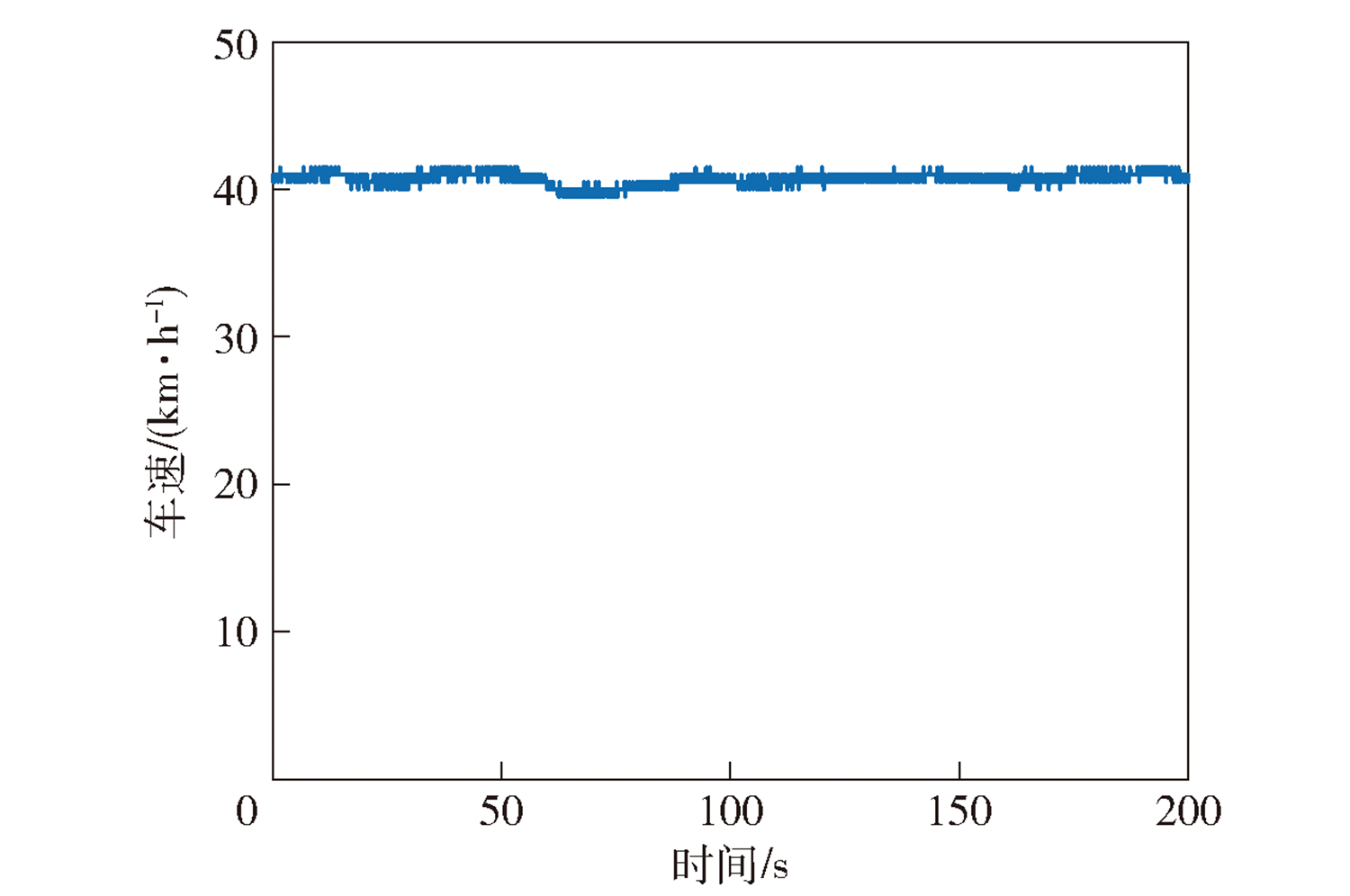

Fig.7 Vehicle speed

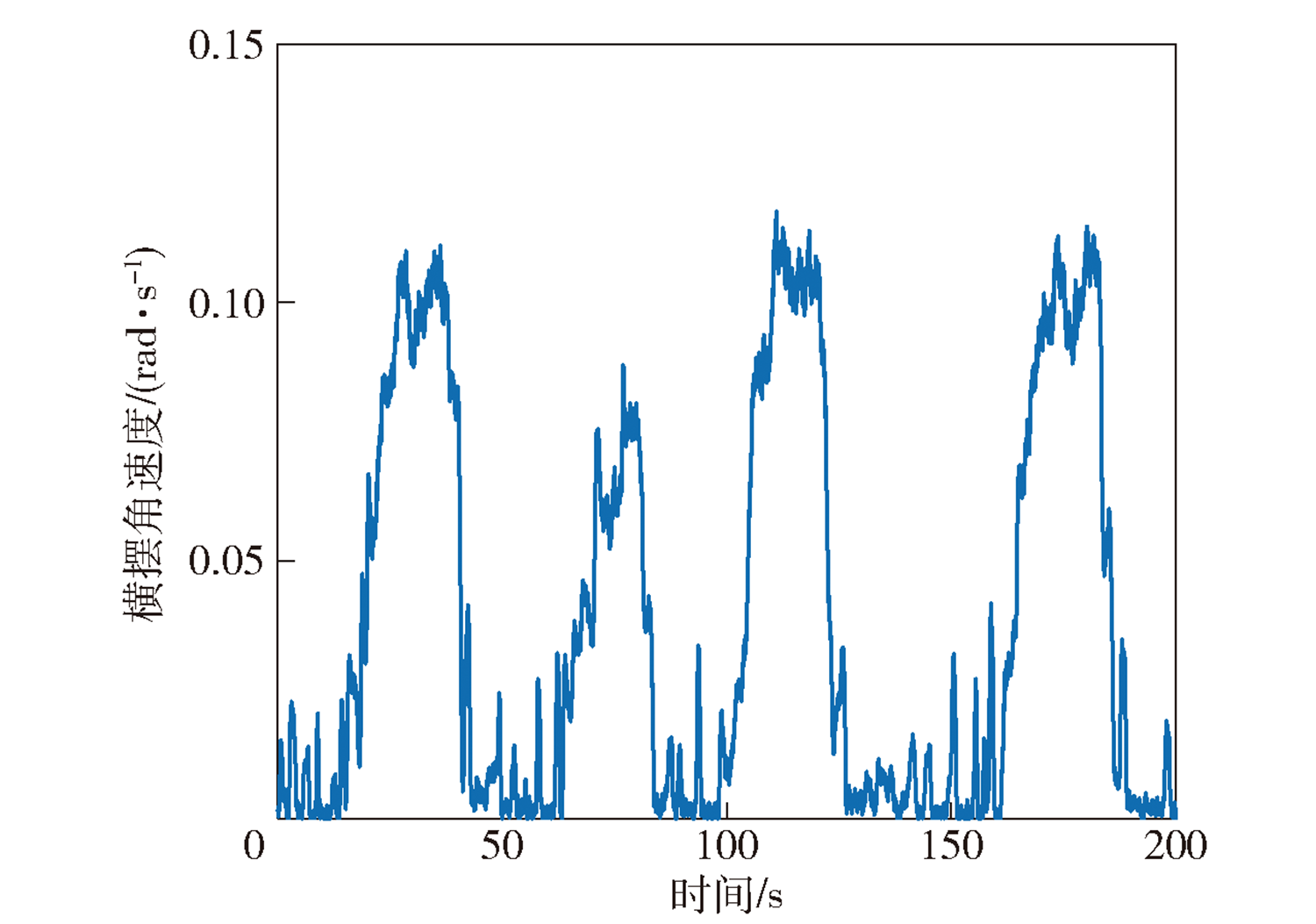

Fig.8 Yaw rate of the electric tracked vehicle

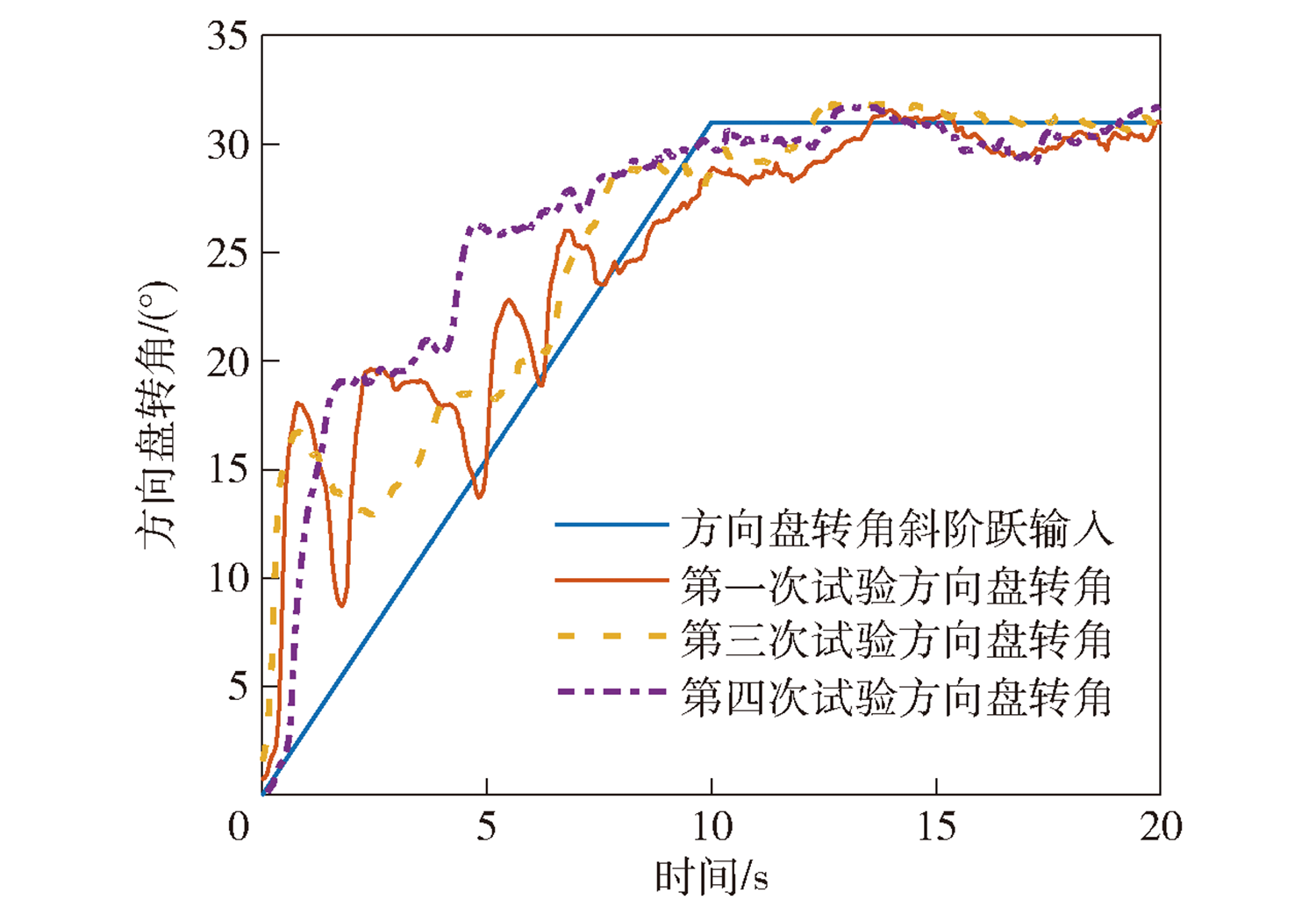

Fig.9 Comparison between ramp step input of steering wheel angle and test data of steering wheel angle

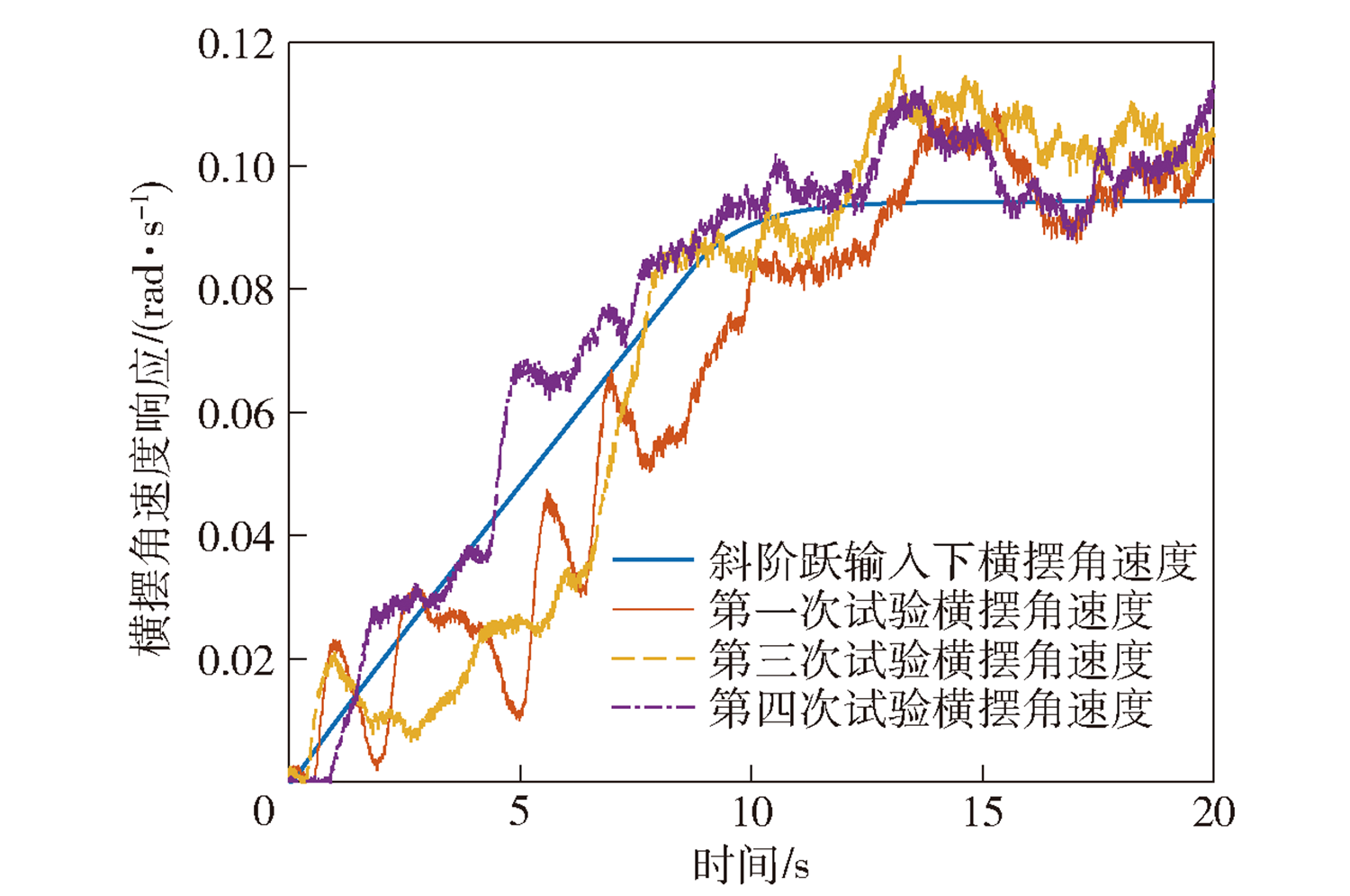

Fig.10 Comparison between yaw rate test data and the yaw rate ramp step response

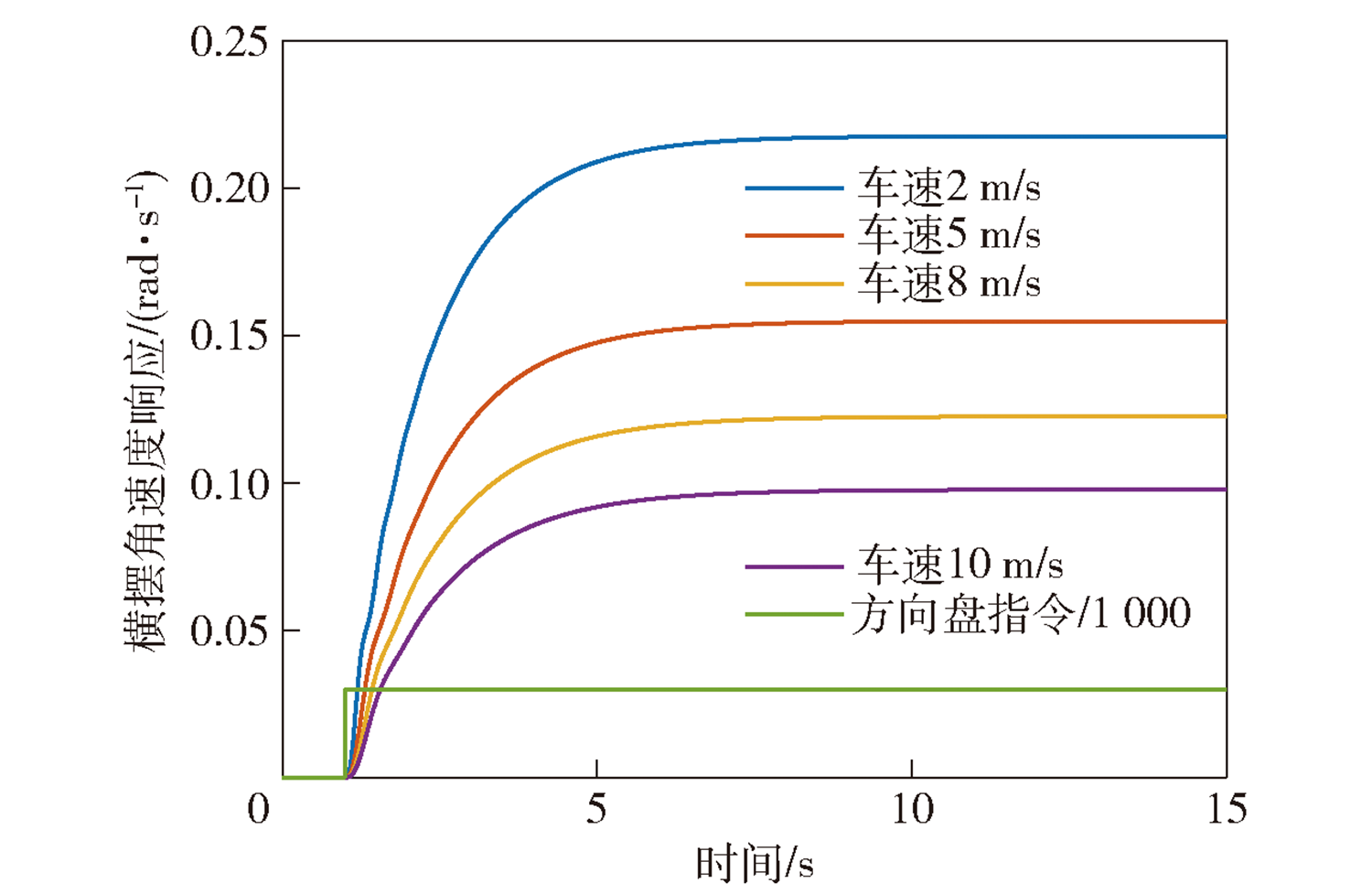

Fig.11 Step response of the electric vehicle yaw rate with different speeds

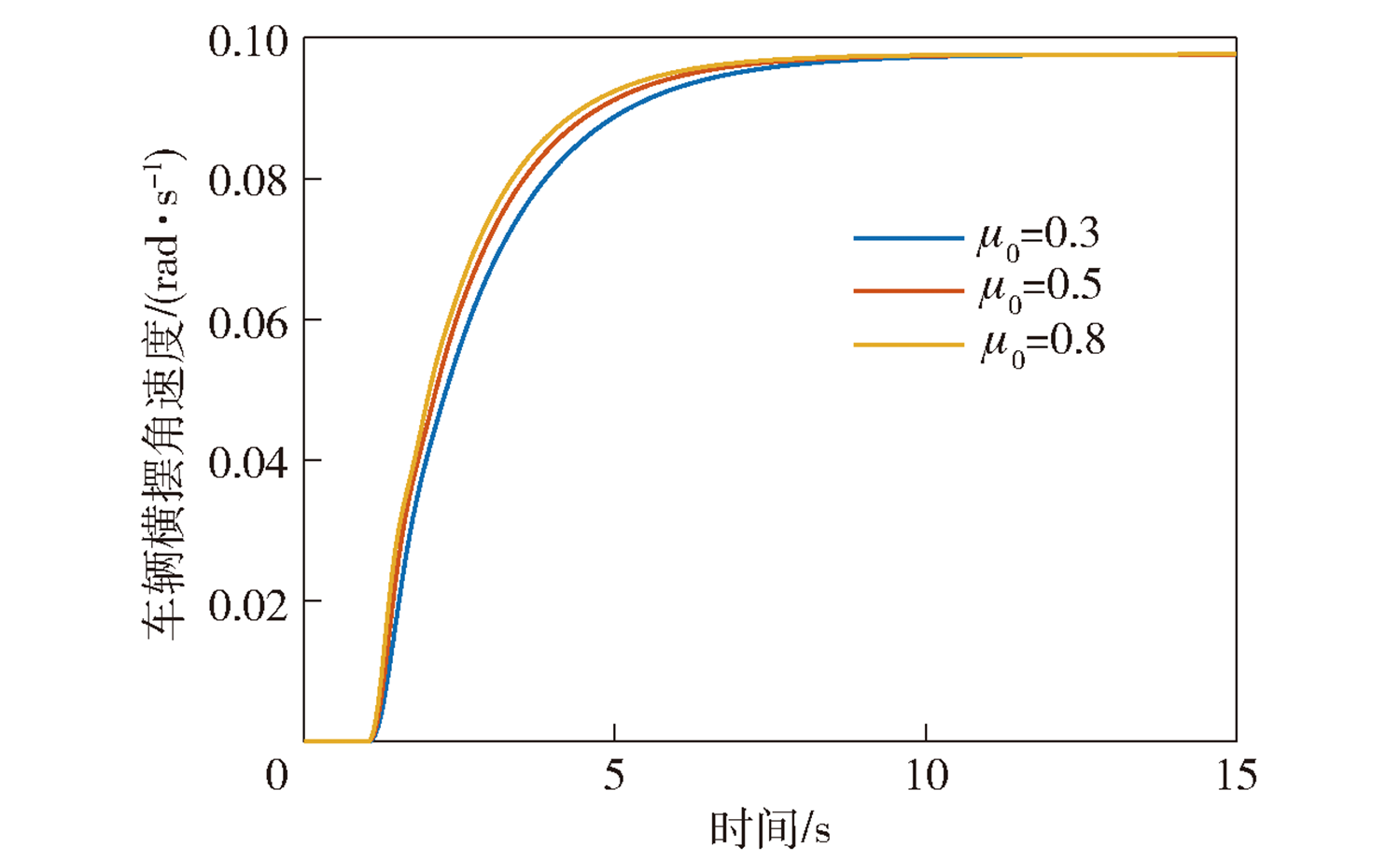

Fig.12 Step response of the vehicle yaw rate with different ground parameters

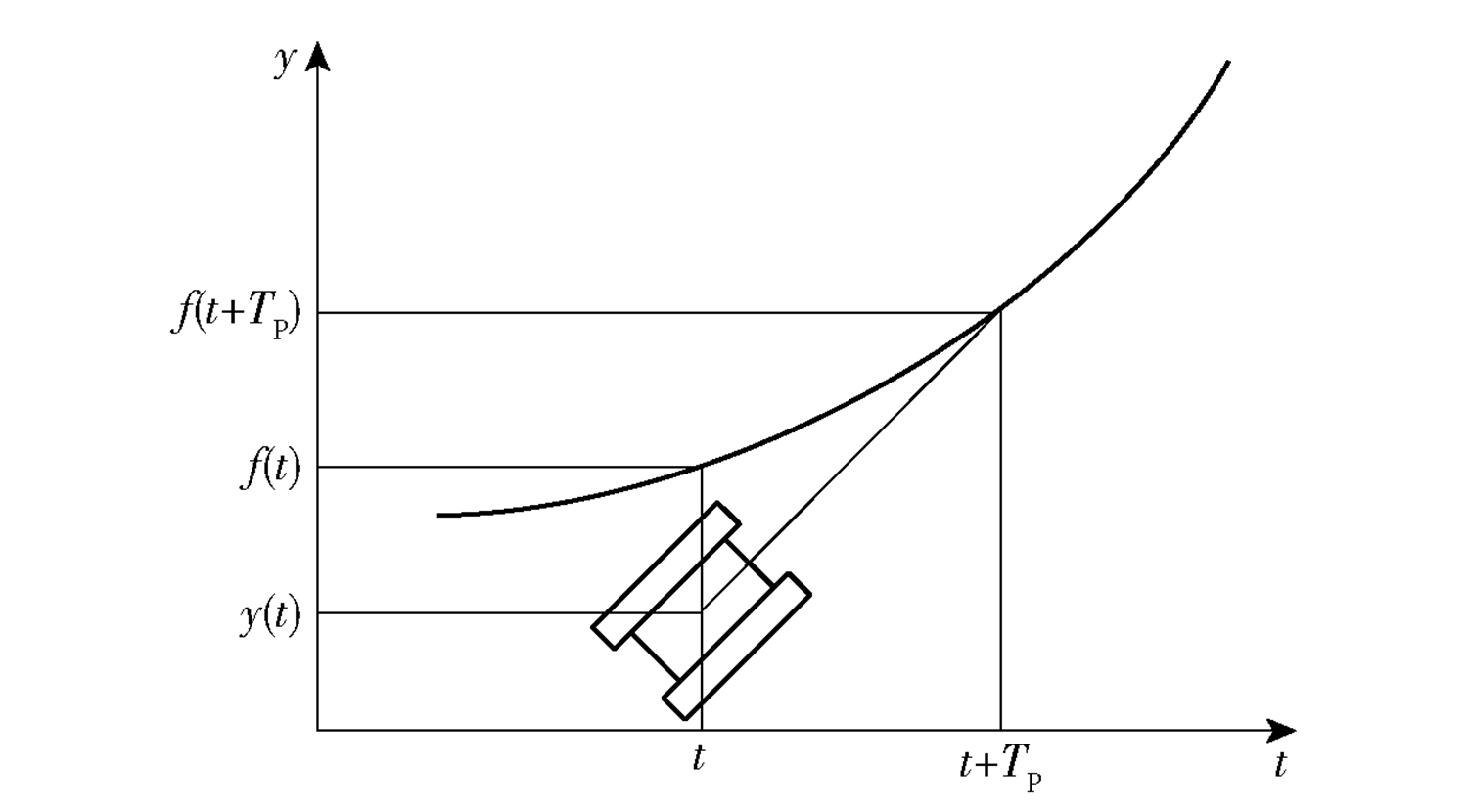

Fig.13 Vehicle track

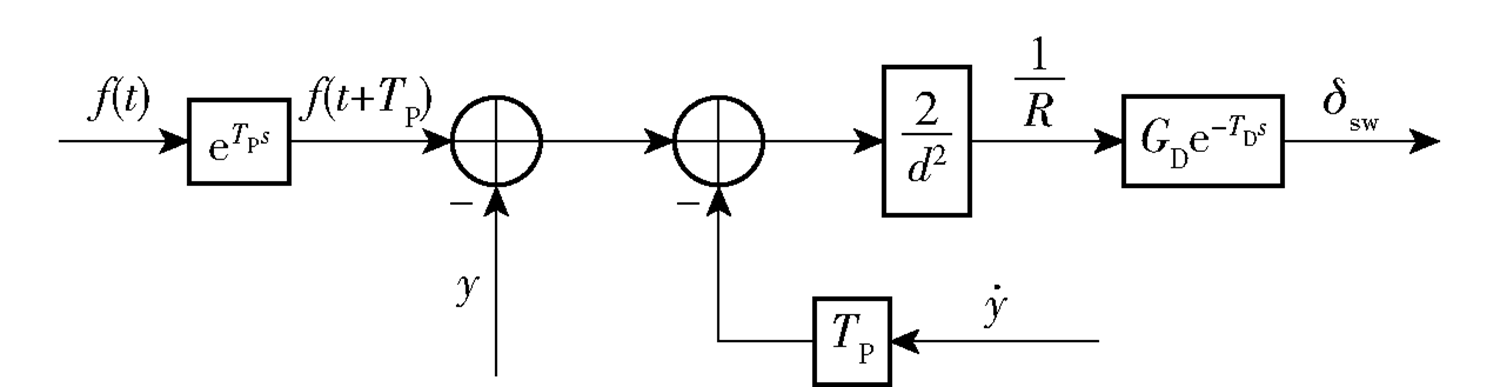

Fig.14 Block diagram of the driver control links

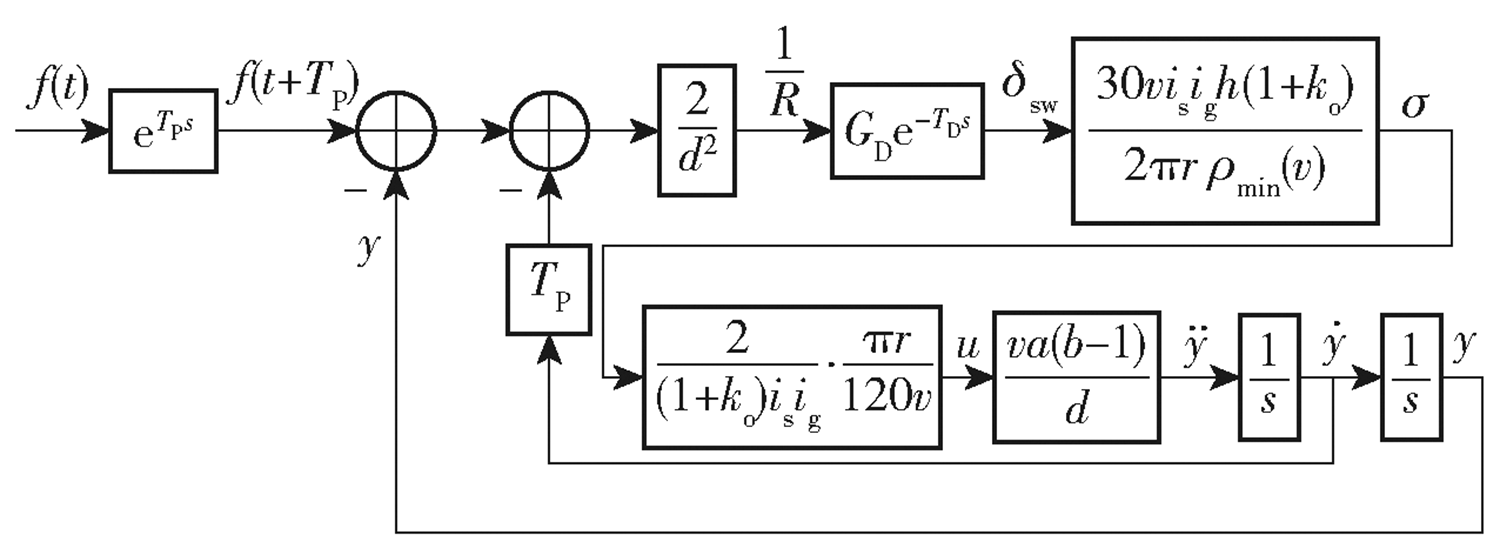

Fig.15 Block diagram of the quasi-steady closed-loop system

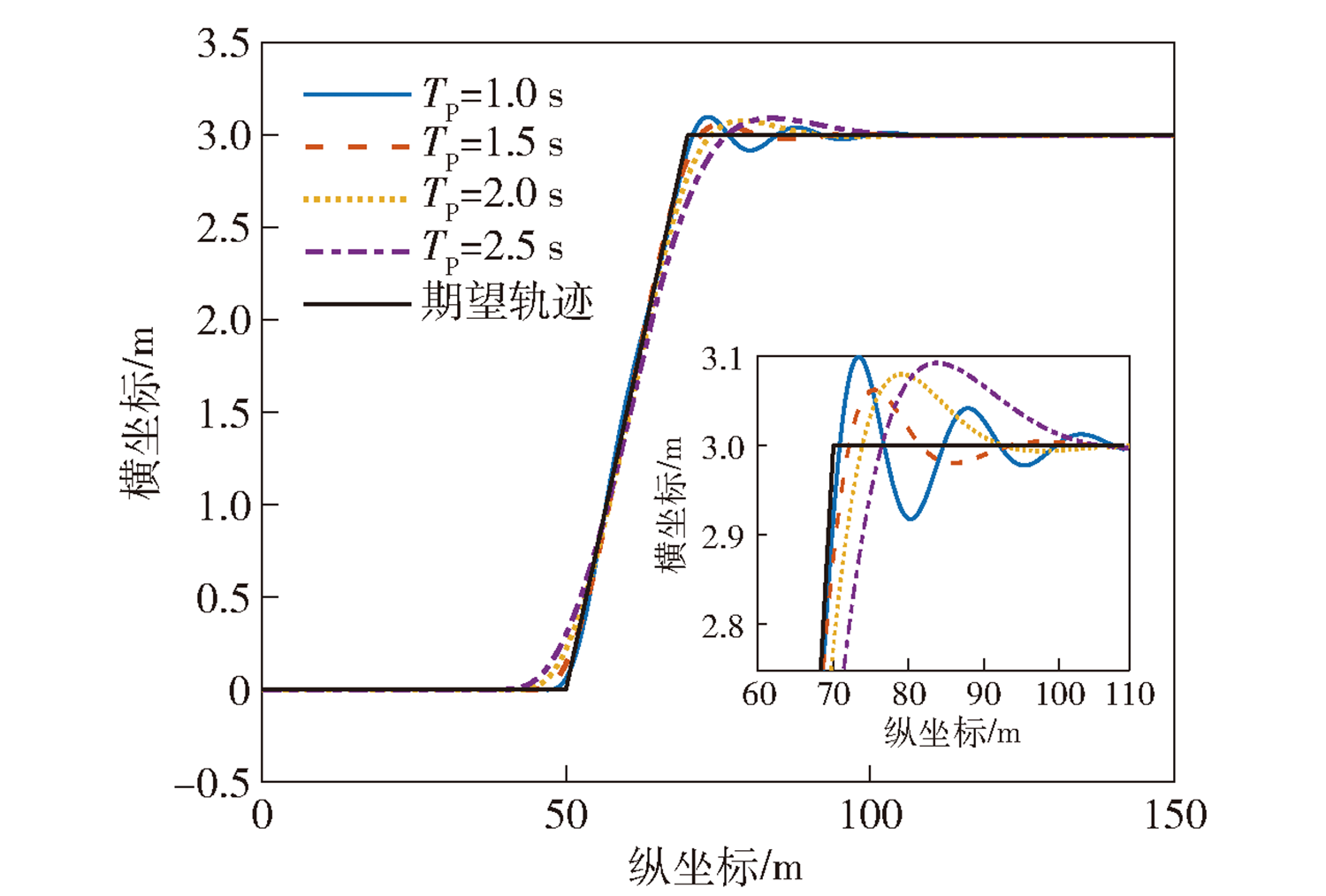

Fig.16 Response of the closed-loop system under single lane change condition with different preview times

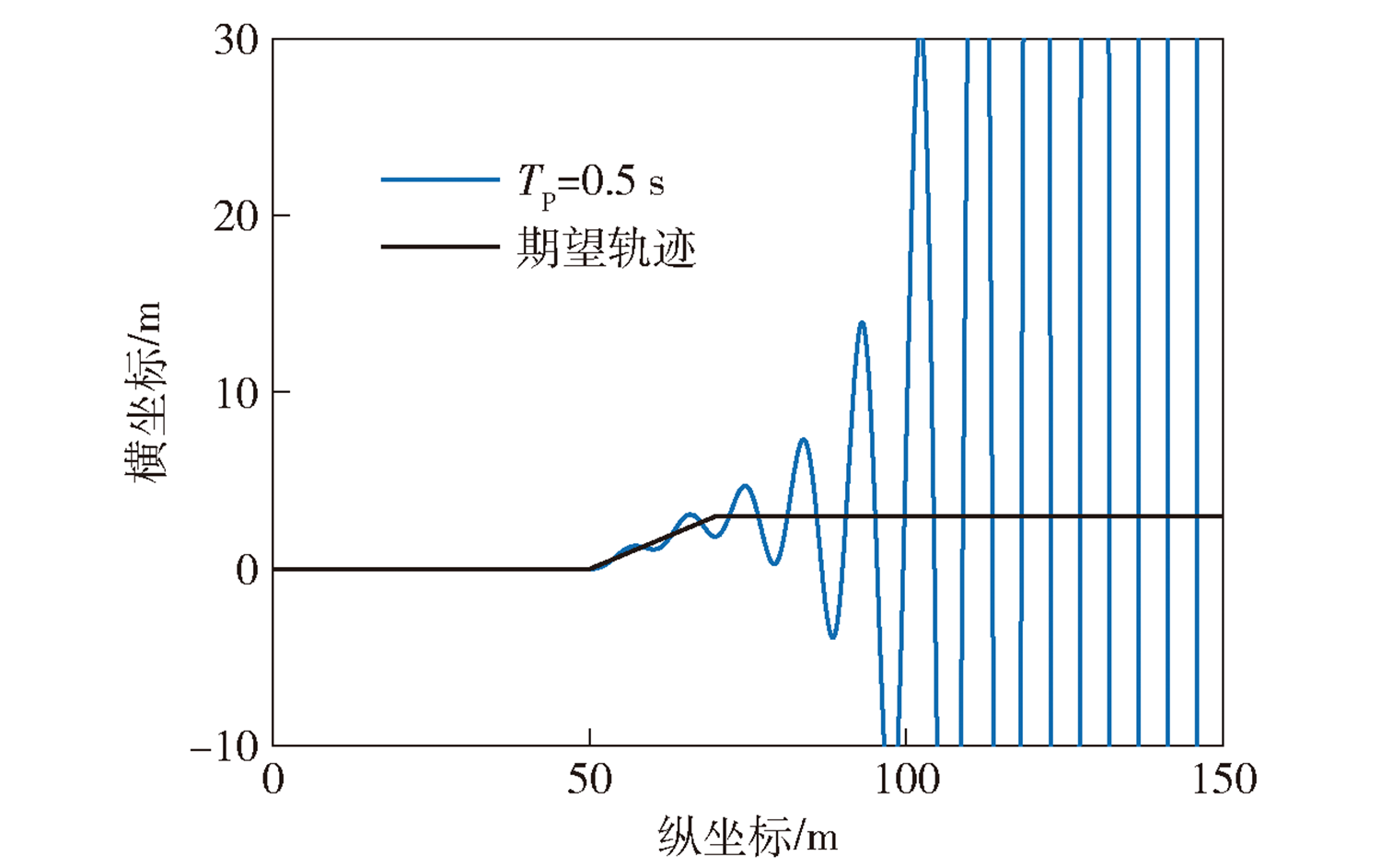

Fig.17 Response of the closed-loop system under single line lane change condition with TP=0.5s

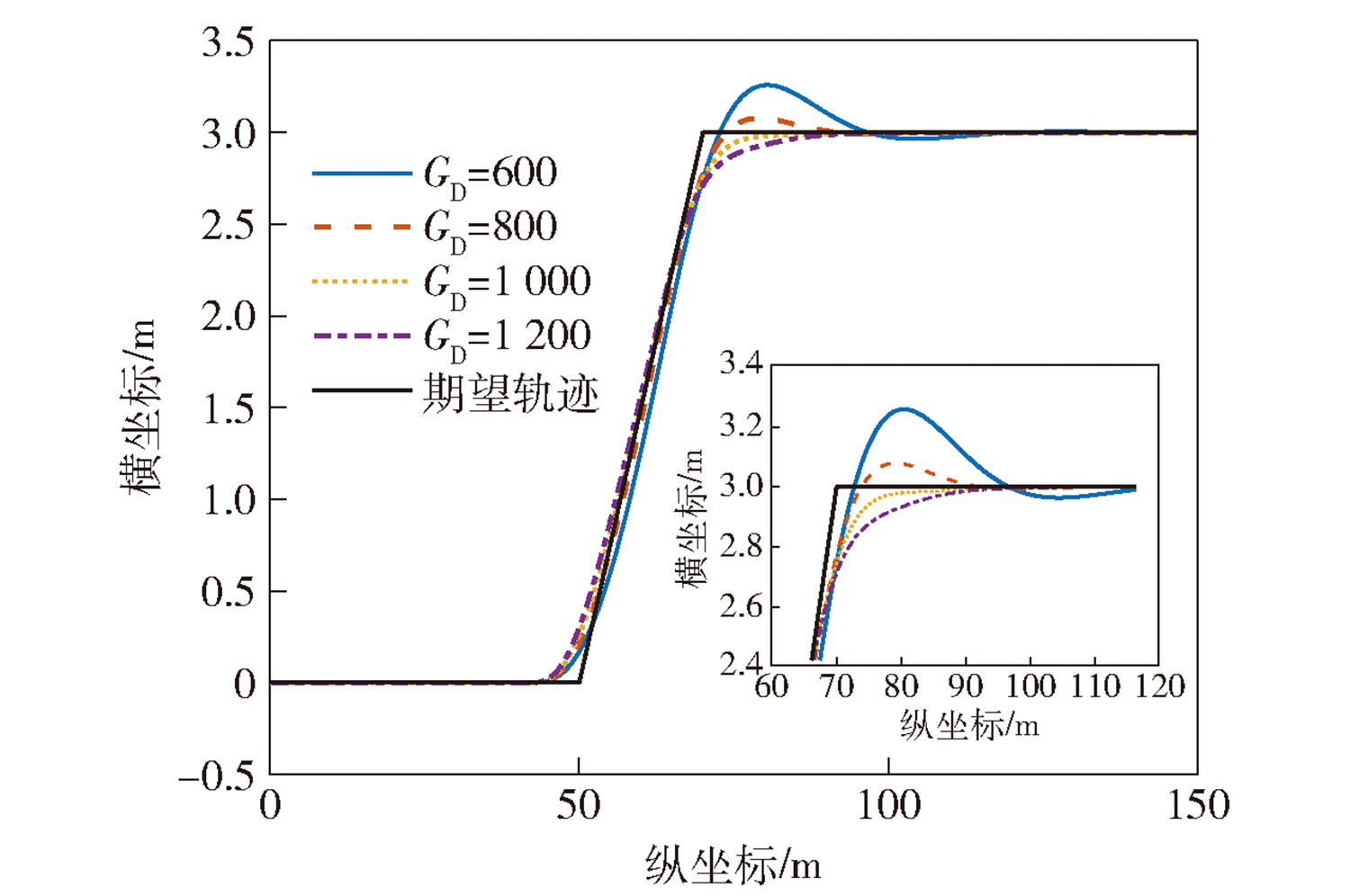

Fig.18 Response of the closed-loop system under single lane change condition with different driving gains

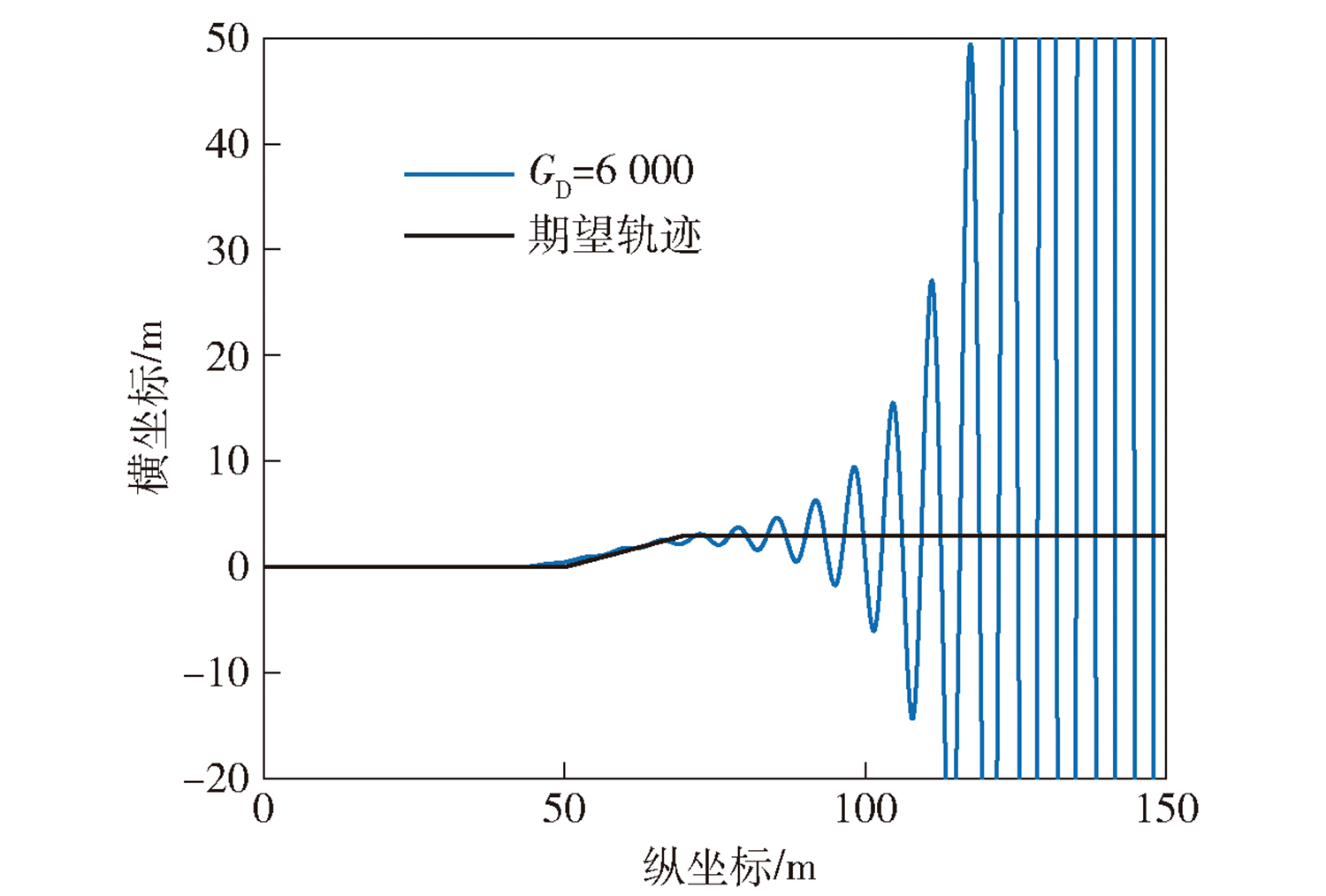

Fig.19 Response of the closed-loop system under single lane change condition with GD=6000

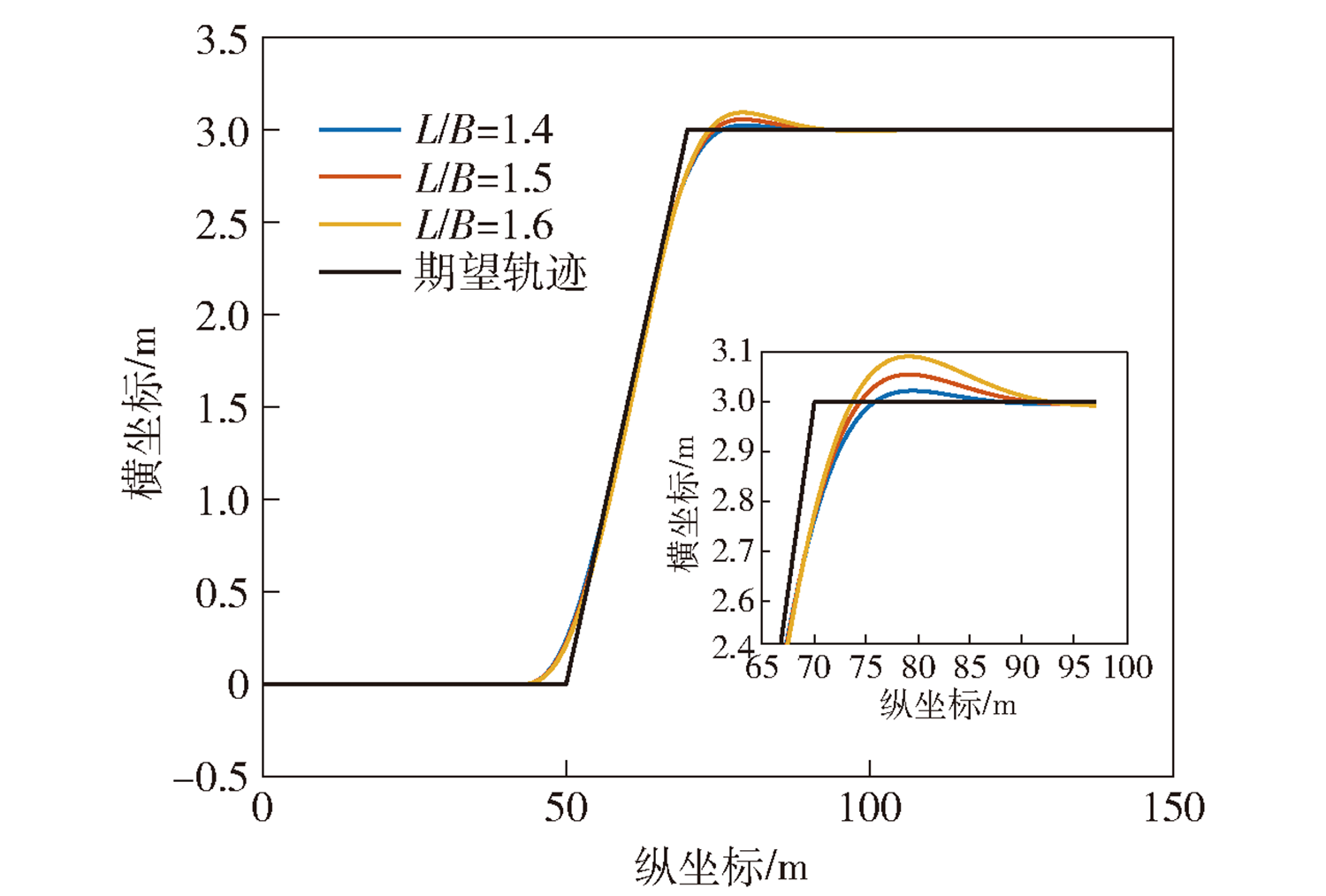

Fig.20 Response of the closed-loop system under single lane change condition with different vehicle parameters

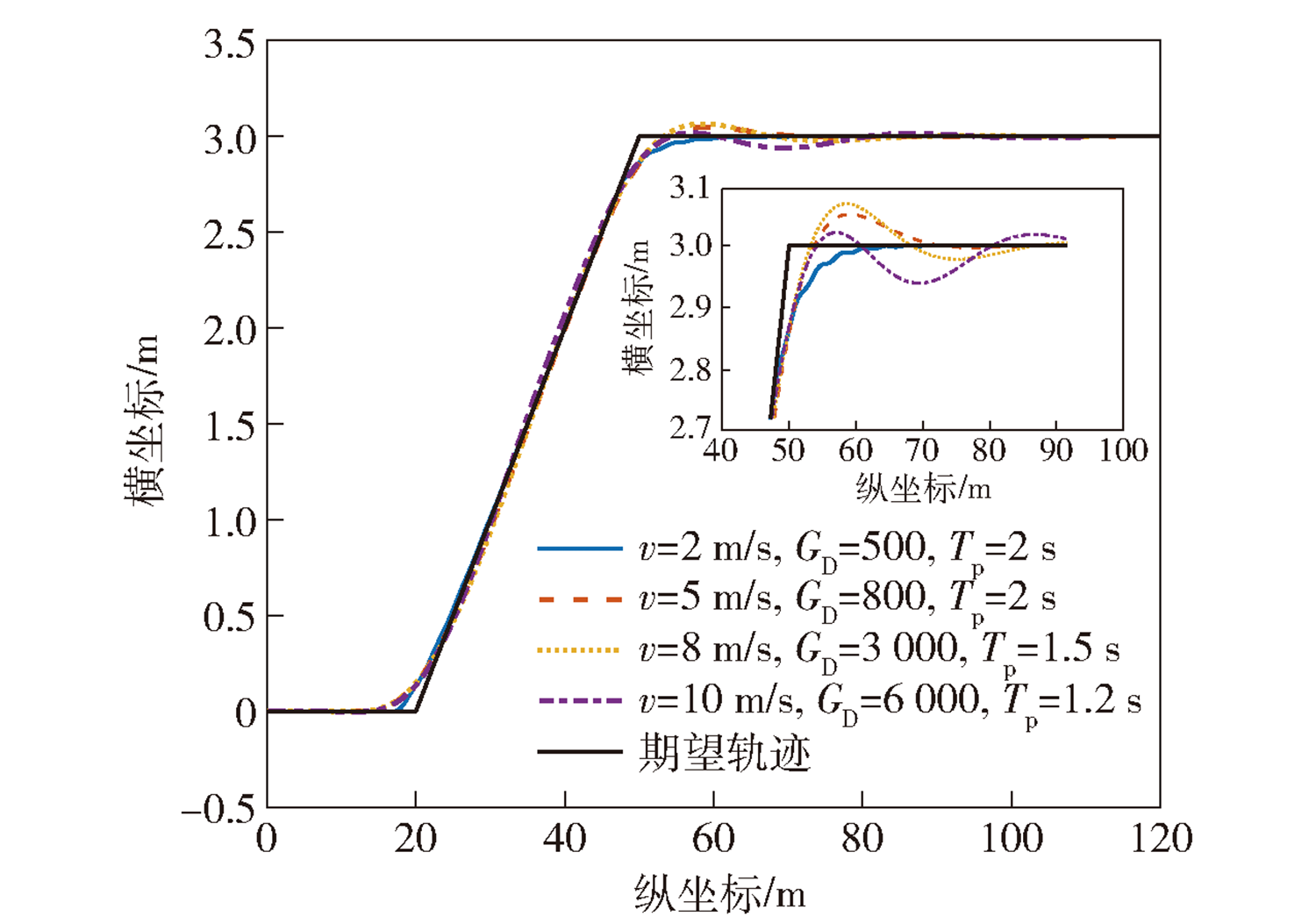

Fig.21 Response of the closed-loop system under single lane change condition with different vehicle speeds

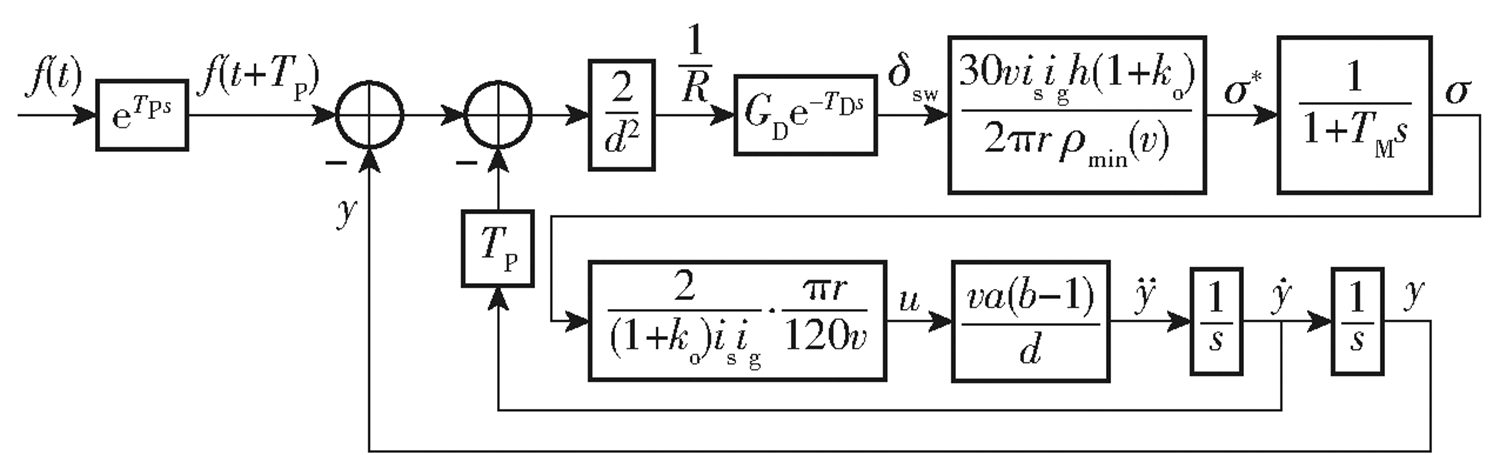

Fig.22 Block diagram of the driver-vehicle-road dynamic closed-loop system

Fig.23 Vehicle track under single lane change condition with different preview times

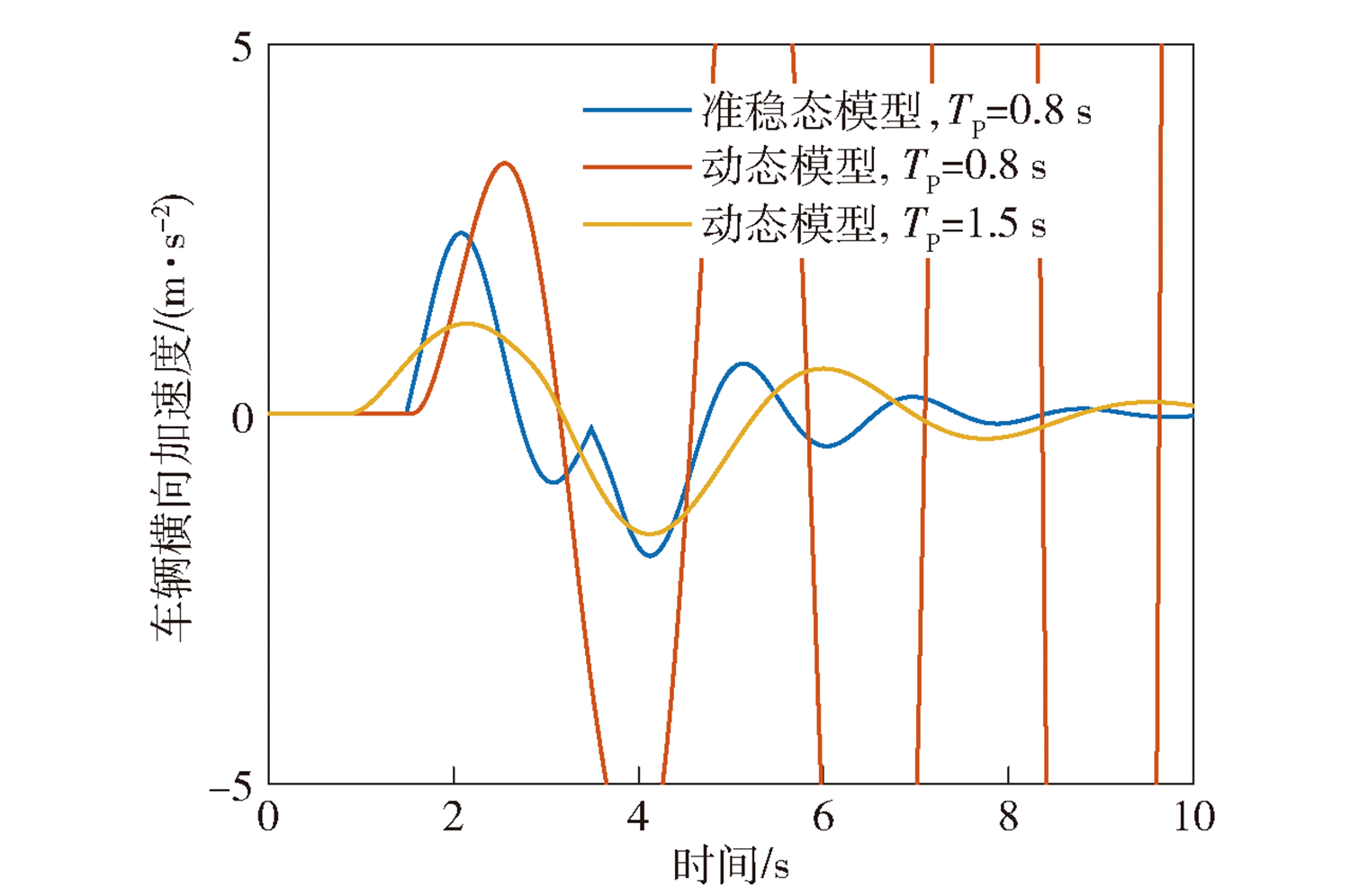

Fig.24 Vehicle lateral acceleration under single lane change condition with different preview times

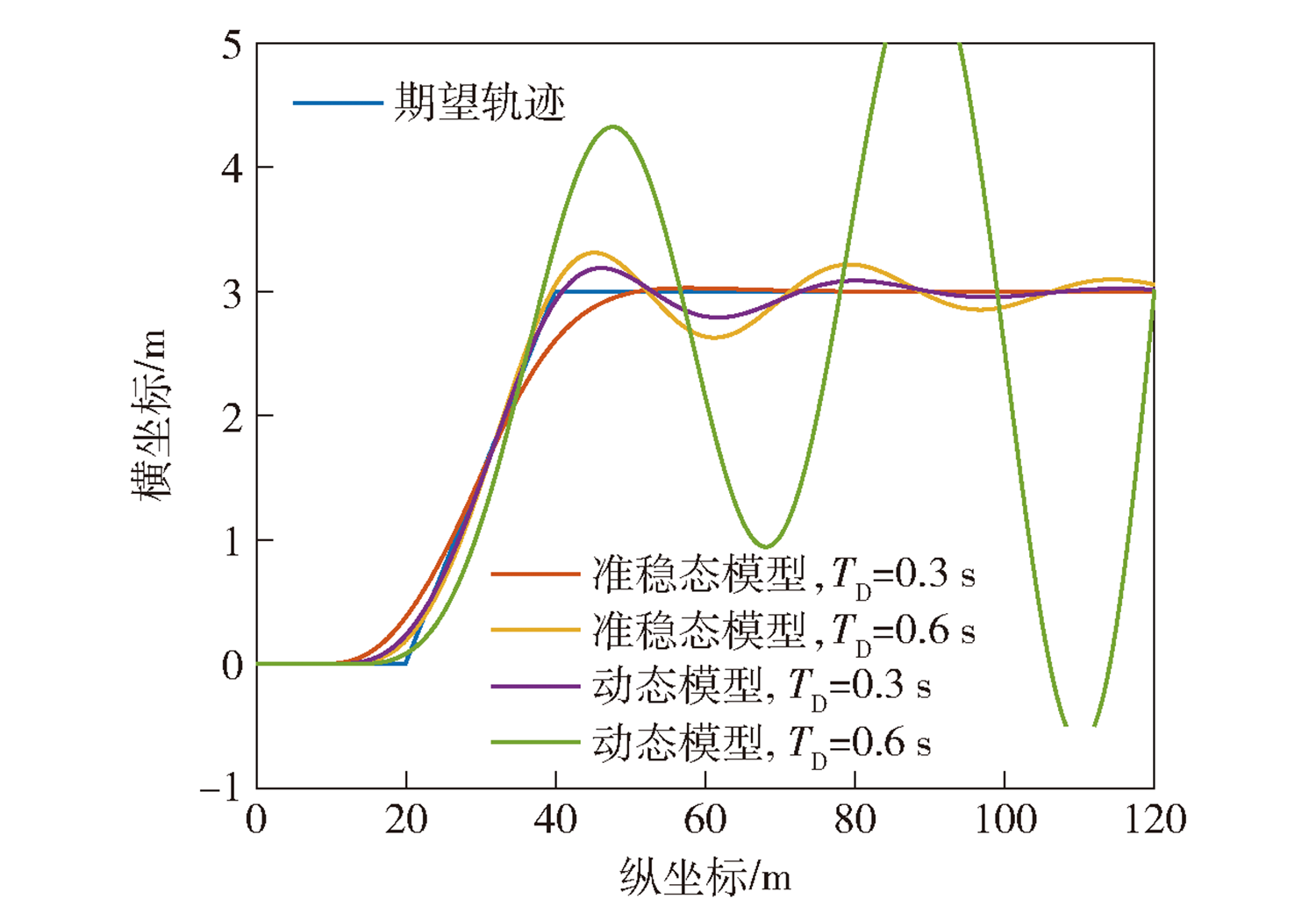

Fig.25 Vehicle track under single lane change condition with different driver reaction delay times

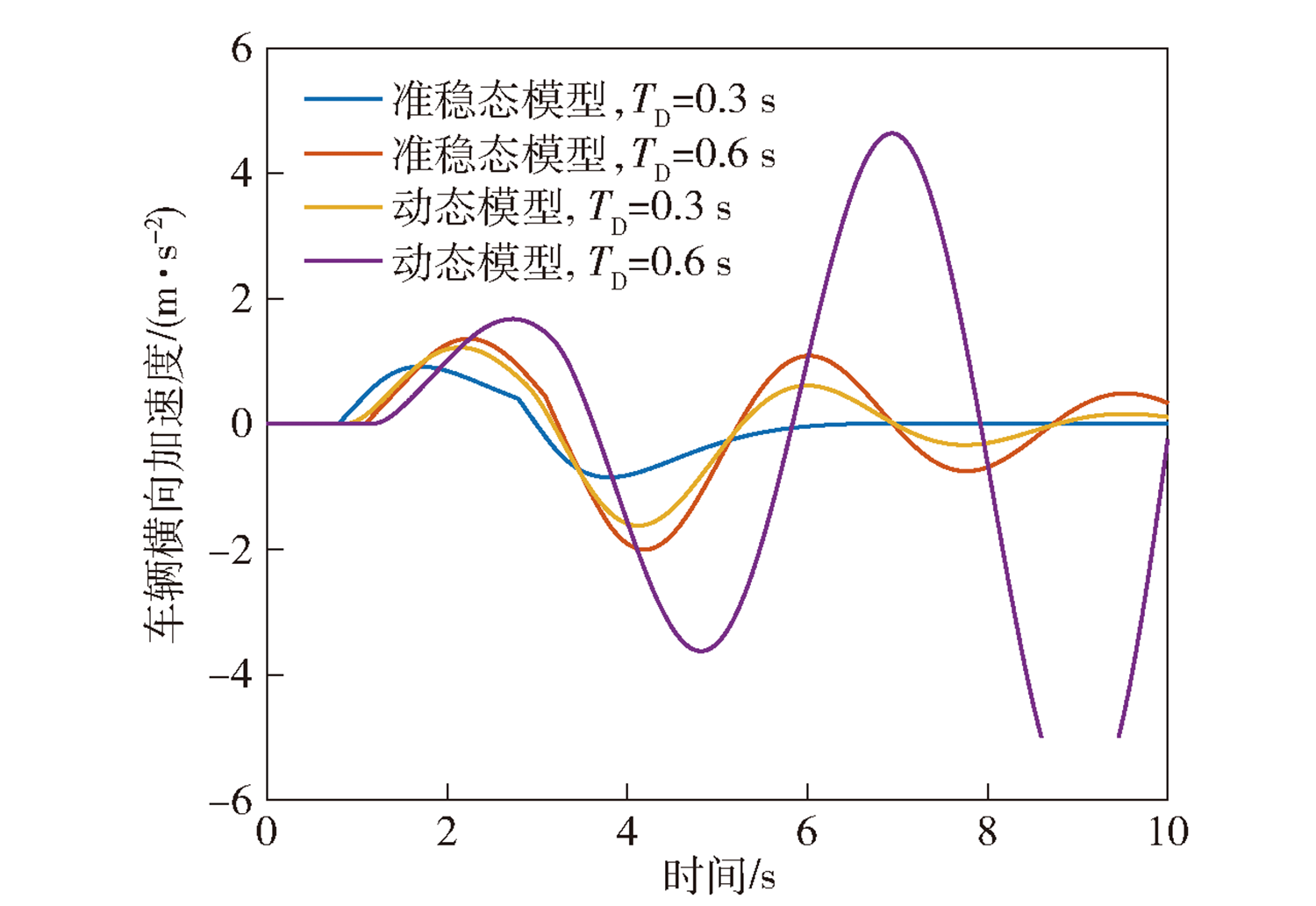

Fig.26 Vehicle lateral acceleration under single lane change condition with different driver reaction delay times

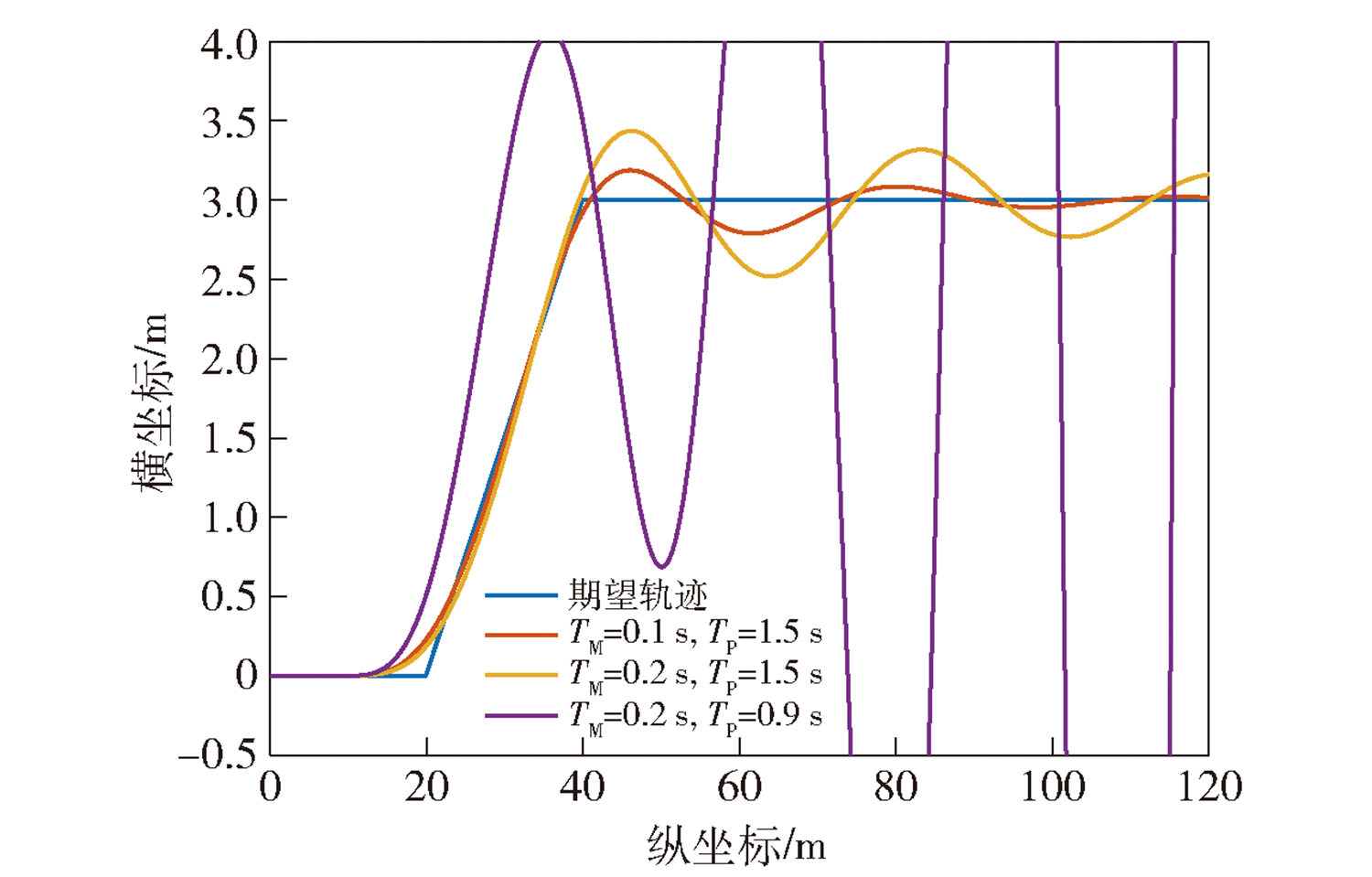

Fig.27 Vehicle track under single lane change condition with different motor response times

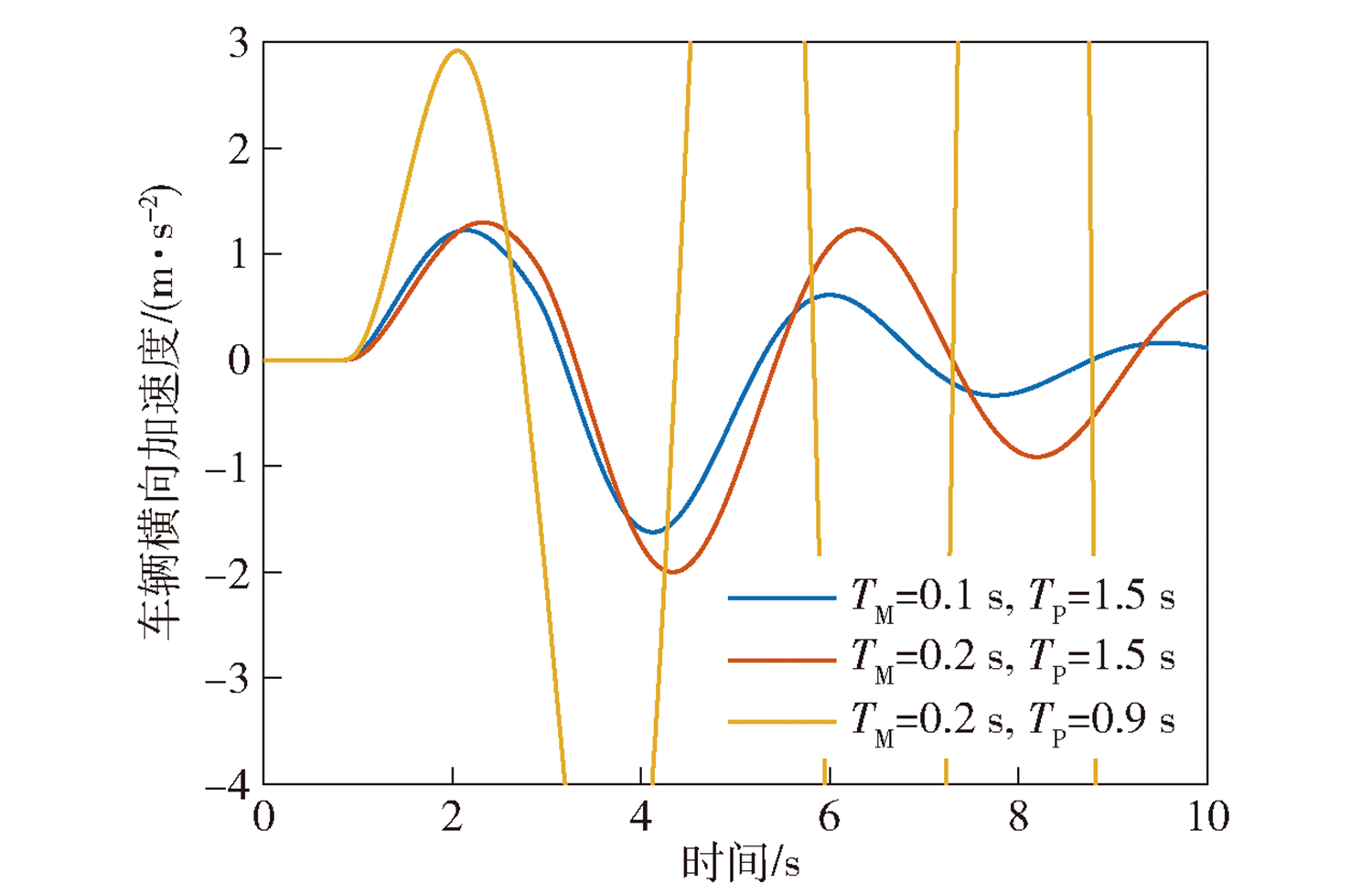

Fig.28 Vehicle lateral acceleration under single lane change condition with different motor response times

References 21

[1]	余志生. 汽车理论[M]. 北京: 机械工业出版社, 2006.
	YU Z S. Automobile theory[M]. Beijing: China Machine Press, 2006. (in Chinese)
[2]	倪佑民. 汽车方向稳定性基本原理[M]. 北京: 清华大学出版社,1978.
	NI Y M. Basic principles of vehicle directional stability[M]. Beijing: Tsinghua University Press, 1978. (in Chinese)
[3]	陆正煜, 伦景光, 倪佑民. 方向盘斜阶跃转角输入对汽车转向瞬态响应特性的影响[J]. 汽车工程, 1982,(1):35-41.
	LU Z Y, LUN J G, NI Y M. The effects of steering wheel angle ramp step input on vehicle’s transient response characteristics[J]. Automotive Engineering, 1982,(1):35-41. (in Chinese)
[4]	陆正煜, 伦景光, 倪佑民. 汽车转向特性模拟计算的初步研究[J]. 汽车工程, 1982(2):39-53.
	LU Z Y, LUN J G, NI Y M. A preliminary study of the simulation of the vehicle steering characteristics[J]. Automobile Technology, 1982(2):39-53. (in Chinese)
[5]	郭孔辉. 人-车-路闭环操纵系统主动安全性的综合评价与优化设计[J]. 汽车技术, 1993(4):4-12.
	GUO K H. Comprehensive evaluation and optimum design method of active safety in the driver-vehicle close-loop system[J]. Automobile Technology, 1993(4):4-12. (in Chinese)
[6]	郭孔辉. 驾驶员-汽车闭环操纵运动的最优预瞄曲率模型[J]. 汽车工程, 1984(3):1-15.
	GUO K H. Driver-vehicle close-loop simulation of handling by preselect optimal curvature method[J]. Automotive Engineering, 1984(3):1-15. (in Chinese)
[7]	李亮, 朱宏军, 陈杰, 等. 用于汽车稳定性控制的路面附着识别算法[J]. 机械工程学报, 2014, 50(2):132-138.
	LI L, ZHU H J, CHEN J, et al. Road friction identification algorithm for the vehicle stability control[J]. Journal of Mechanical Engineering, 2014, 50(2):132-138. (in Chinese)
[8]	王伟达, 张宇航, 黄国强, 等. 轮毂驱动电动车辆动力学稳定性滑模控制策略研究[J]. 动力学与控制学报, 2021, 19(3):5-14.
	WANG W D, ZHANG Y H, HUANG G Q, et al. Research on sliding mode control strategy for dynamic stability of in-wheel drive electric vehicle[J]. Journal of Dynamic ana Control, 2021, 19(3):5-14. (in Chinese)
[9]	LTC Francis G. Sisk, MSG William A. Throckmorton. Analysis of tracked vehicle run-over accidents[R]. US: U.S. Army Safety Center, 1984, 7:1.
[10]	闫清东, 张连第, 赵毓芹, 等. 坦克构造与设计[M]. 北京: 北京理工大学出版社, 2007.
	YAN Q D, ZHANG L D, ZHAO Y Q, et al. Tank construction and design[M]. Beijing: Beijing Institute of Technology Press, 2007. (in Chinese)
[11]	盖江涛, 黄守道, 周广明, 等. 双电机耦合驱动履带车辆自适应滑模转向控制[J]. 兵工学报, 2015, 36(3):405-411. doi: 10.3969/j.issn.1000-1093.2015.03.004
	GAI J T, HUANG S D, ZHOU G M, et al. Adaptive sliding mode steering control of double motor coupling drive transmission for tracked vehicle[J]. Acta Armamentarii, 2015, 36(3):405-411. (in Chinese)
[12]	邹渊, 孙逢春, 张承宁. 电传动履带车辆双侧驱动转速调节控制策略[J]. 北京理工大学学报, 2007, 27(4):303-307.
	ZOU Y, SUN F C, ZHANG C N. Dual-motor driving electric tracked vehicle speed-regulation control strategy[J]. Transactions of Beijing Institute of Technology, 2007, 27(4):303-307. (in Chinese)
[13]	曾庆含, 马晓军, 廖自力, 等. 双侧电驱动履带车辆等效条件积分滑模稳定转向控制[J]. 兵工学报, 2016, 37(8):1351-1358. doi: 10.3969/j.issn.1000-1093.2016.08.002
	ZENG Q H, MA X J, LIAO Z L, et al. Stable steer control of electric drive tracked vehicle based on equivalent sliding mode technique with conditional integrator[J]. Acta Armamentarii, 2016, 37(8):1351-1358. (in Chinese)
[14]	盖江涛, 刘春生, 马长军, 等. 考虑履带滑转滑移的电驱动车辆转向控制策略研究[J]. 兵工学报, 2021, 42(10):2092-2101. doi: 10.3969/j.issn.1000-1093.2021.10.005
	GAI J T, LIU C S, MA C J, et al. Research on steering control strategy of electric vehicle considering tracks’ skid and slip[J]. Acta Armamentarii, 2021, 42(10):2092-2101. (in Chinese)
[15]	王红岩, 王钦龙, 芮强, 等. 高速履带车辆转向过程分析与试验验证[J]. 机械工程学报, 2014, 50(16):162-172.
	WANG H Y, WANG Q L, RUI Q, et al. Analyzing and testing verification the performance about high-speed tracked vehicles in steering process[J]. Journal of Mechanical Engineering, 2014, 50(16):162-172. (in Chinese)
[16]	芮强, 王红岩, 王钦龙, 等. 履带车辆转向性能参数分析与试验研究[J]. 机械工程学报, 2015, 51(12):128-136.
	RUI Q, WANG H Y, WANG Q L, et al. Research on the acquisition of steering performance parameters of armored vehicle based on experiments[J]. Journal of Mechanical Engineering, 2015, 51(12):128-136. (in Chinese)
[17]	KITANO M, KUMA M. An analysis of horizontal plane motion of tracked vehicles[J]. Journal of Terramechanics, 1977, 14(4):211-225. doi: 10.1016/0022-4898(77)90035-0 URL
[18]	KITANO M, WATANABE K, NAGATOMO N. Stability and controllability of high speed tracked vehicles linear models and vehicle responses[C]∥Proceedings of the 10th International Conference of the International Society of Terrain-Vehicle Systems. Kobe, Japan, 1990.
[19]	董景新, 赵长德, 熊沈蜀, 等. 控制工程基础[M]. 北京: 清华大学出版社, 2003.
	DONG J X, ZHAO C D, XIONG S S, et al. Basis of control engineering[M]. Beijing: Tsinghua University Press, 2003. (in Chinese)
[20]	盖江涛, 李慎龙, 周广明, 等. 一种履带车辆机电复合传动装置: CN101985279A[P]. 2011-11-02.
	GAI J T, LI S L, ZHOU G M, et al. A type of electro-mechanical transmission for tracked vehicle: CN101985279A[P]. 2011-11-02. (in Chinese)
[21]	盖江涛, 黄守道, 周广明, 等. 双侧电机驱动的功率耦合机构传动方案设计方法[J]. 中国机械工程, 2014, 25(1):1739-1743.
	GAI J T, HUANG S D, ZHOU G M, et al. Design method of power coupling mechanism scheme for double side motors coupling drive transmission[J]. China Mechanical Engineering, 2014, 25(13): 1739-1743. (in Chinese)
