Pedestrian GNSS/PDR Integrated Navigation System with Graph Optimization

doi:10.12382/bgxb.2022.0557

Abstract

Abstract:

The integration of a navigation system based on the Global Navigation Satellite System (GNSS) and the Pedestrian Dead Reckoning (PDR) with inertial measurement data is a widely used and reliable navigation solution. To further improve the positioning accuracy of the GNSS/PDR integrated navigation system, we propose a GNSS/PDR integrated navigation method based on graph optimization. By constructing a factor graph to represent the probabilistic dependence between states and measurement information, all past states are iteratively estimated at each step as the unknowns, and the optimal estimation of the states is obtained by minimizing the global cost function. Compared with the KF algorithm, this new system can further reduce average positioning error and improve positioning accuracy. Results from two different real scene results show that, compared with KF, the average values of the horizontal positioning errors are reduced by more than 40%, verifying the algorithm’s effectiveness in improving the positioning accuracy.

Key words: pedestrian navigation, integrated navigation, global navigation satellite system, factor graph optimization

CLC Number:

TN96
TH89

ZHU Jianliang, WANG Liya, BO Yuming. Pedestrian GNSS/PDR Integrated Navigation System with Graph Optimization[J]. Acta Armamentarii, 2023, 44(10): 3137-3145.

Figures/Tables 15

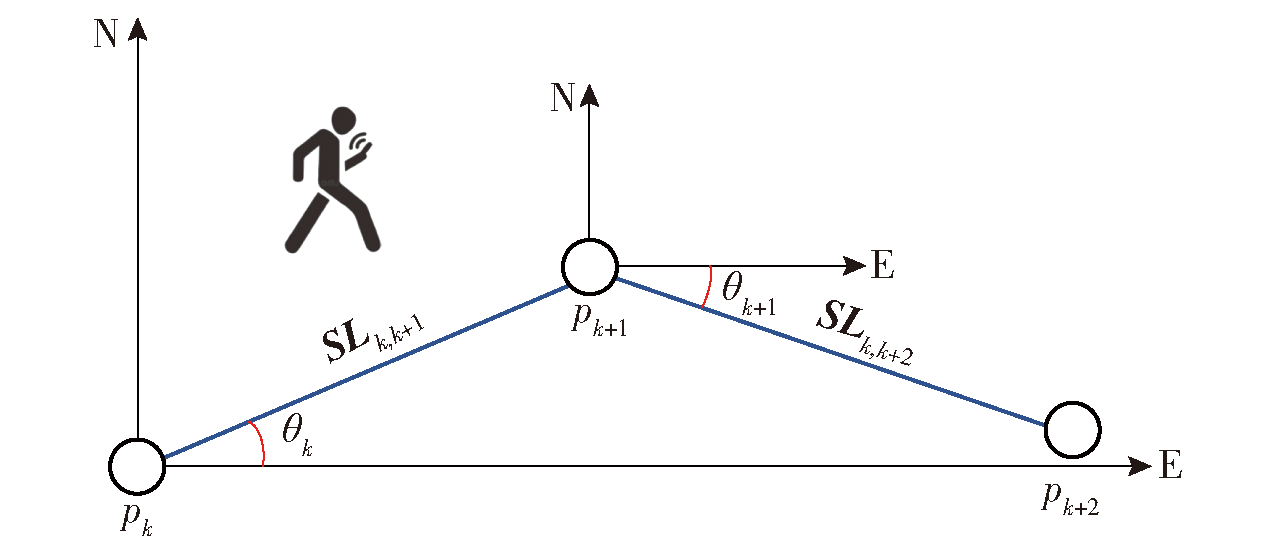

Fig.1 Principle diagram of position updating

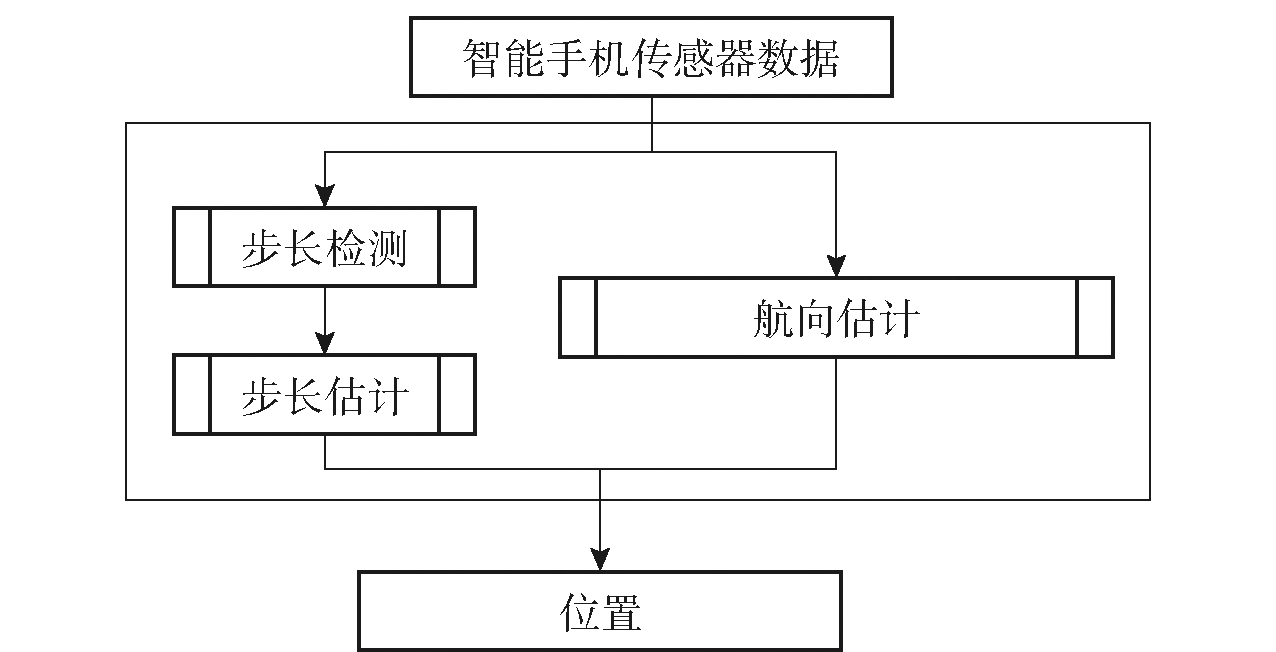

Fig.2 Principle diagram of pedestrian positioning based on smartphone function

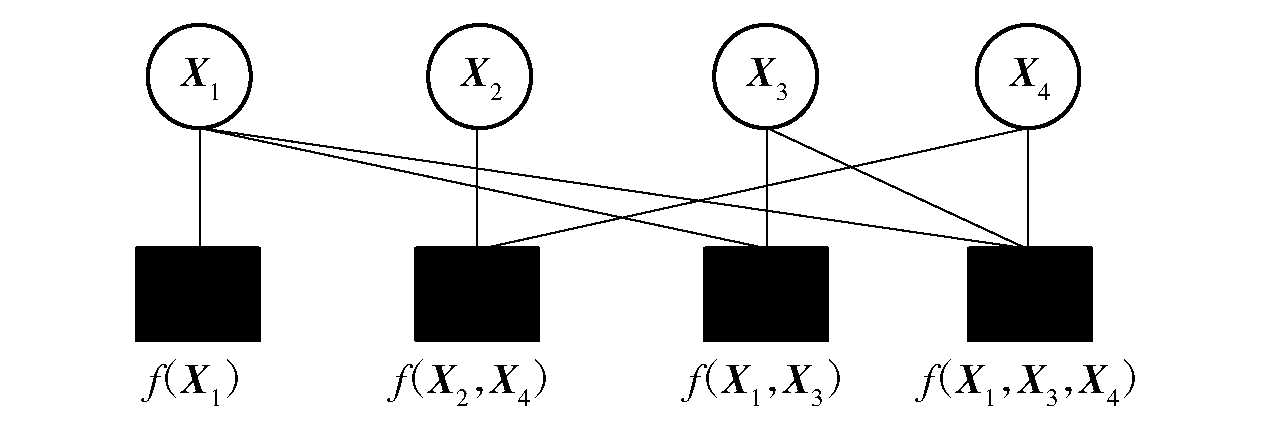

Fig.3 Factor graph of local function decomposition

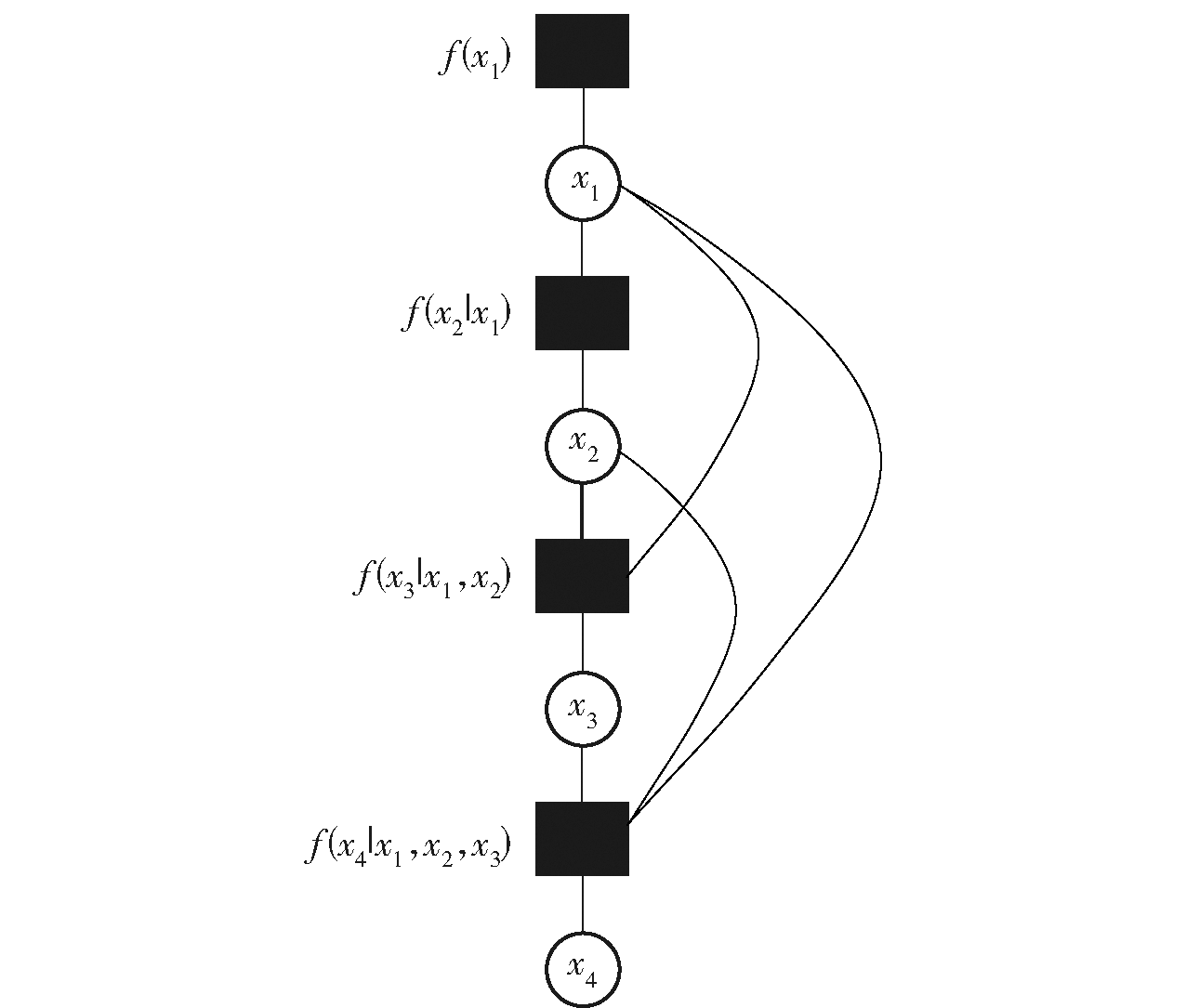

Fig.4 Factor graph of variable dependency relation

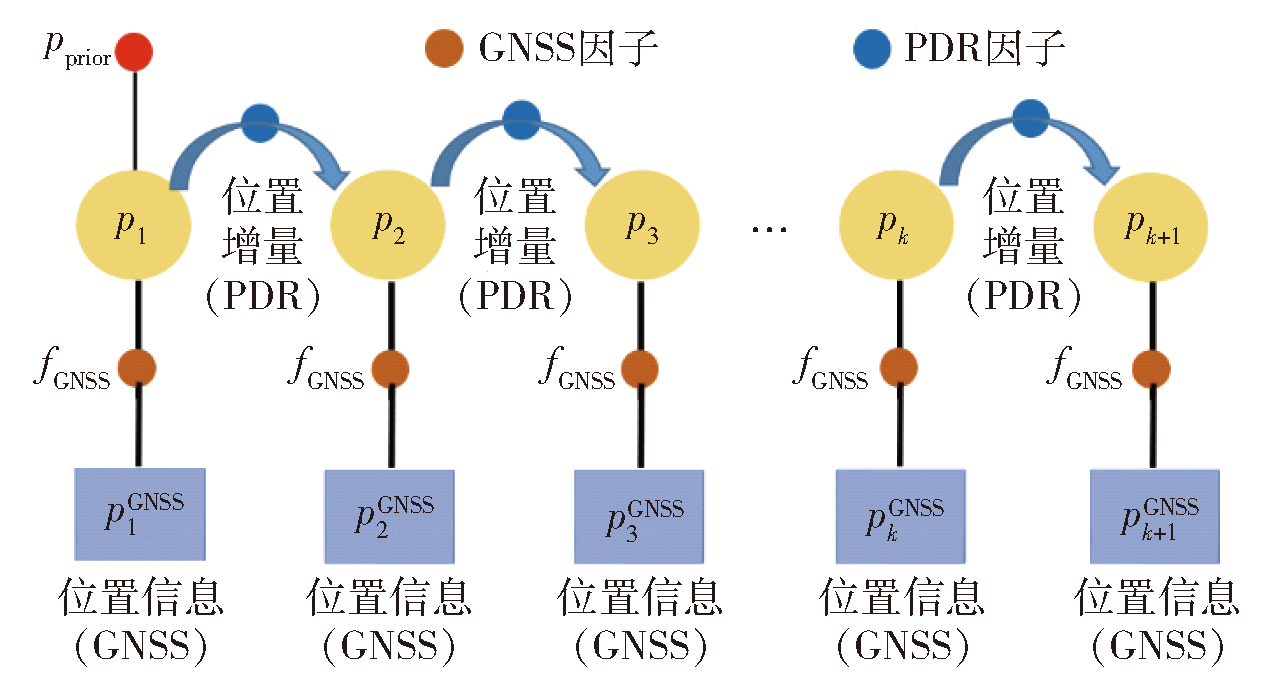

Fig.5 FGO-GNSS/PDR integrated navigation method

Fig.6 Flow chart of the solving process

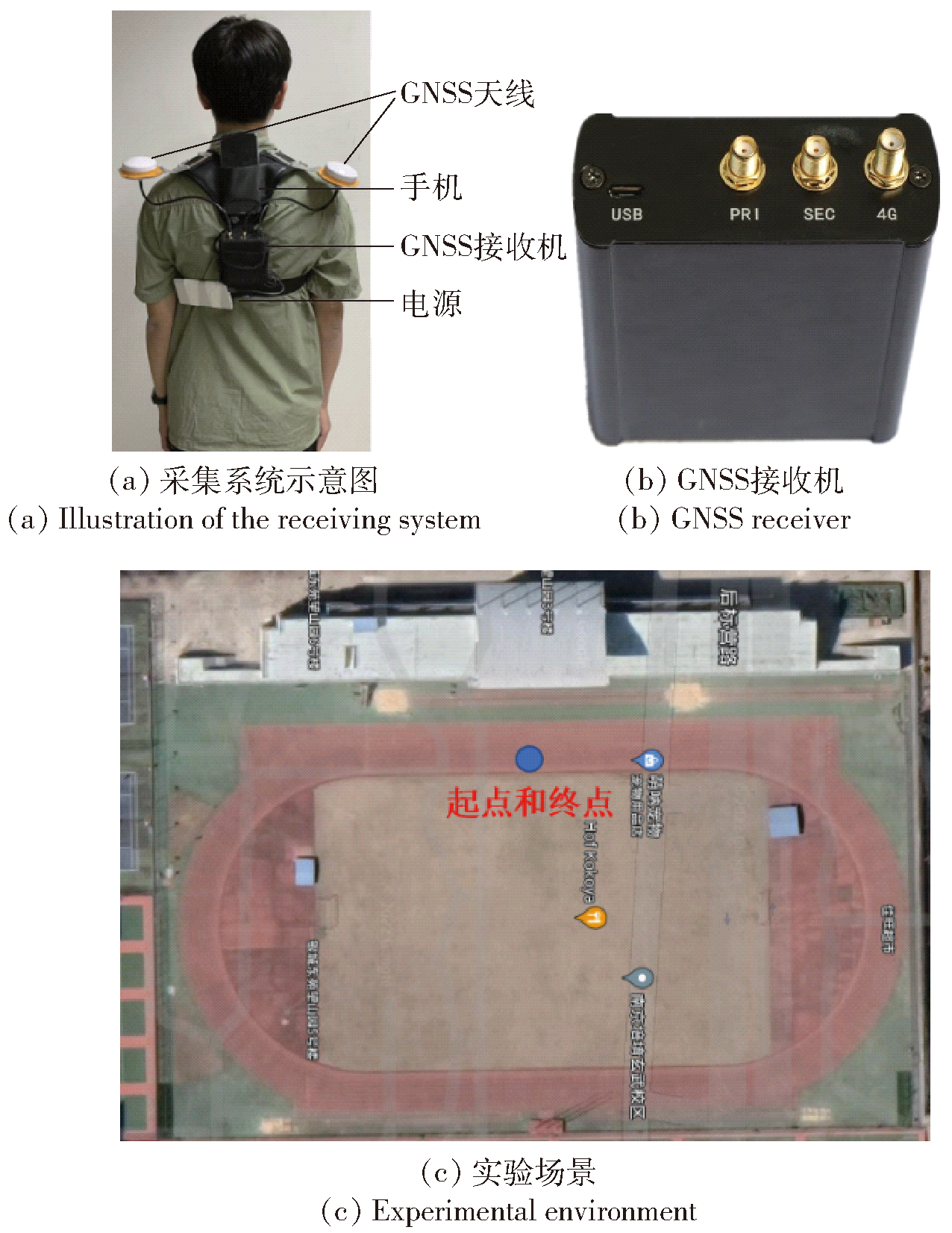

Fig.7 Dataset collecting equipment

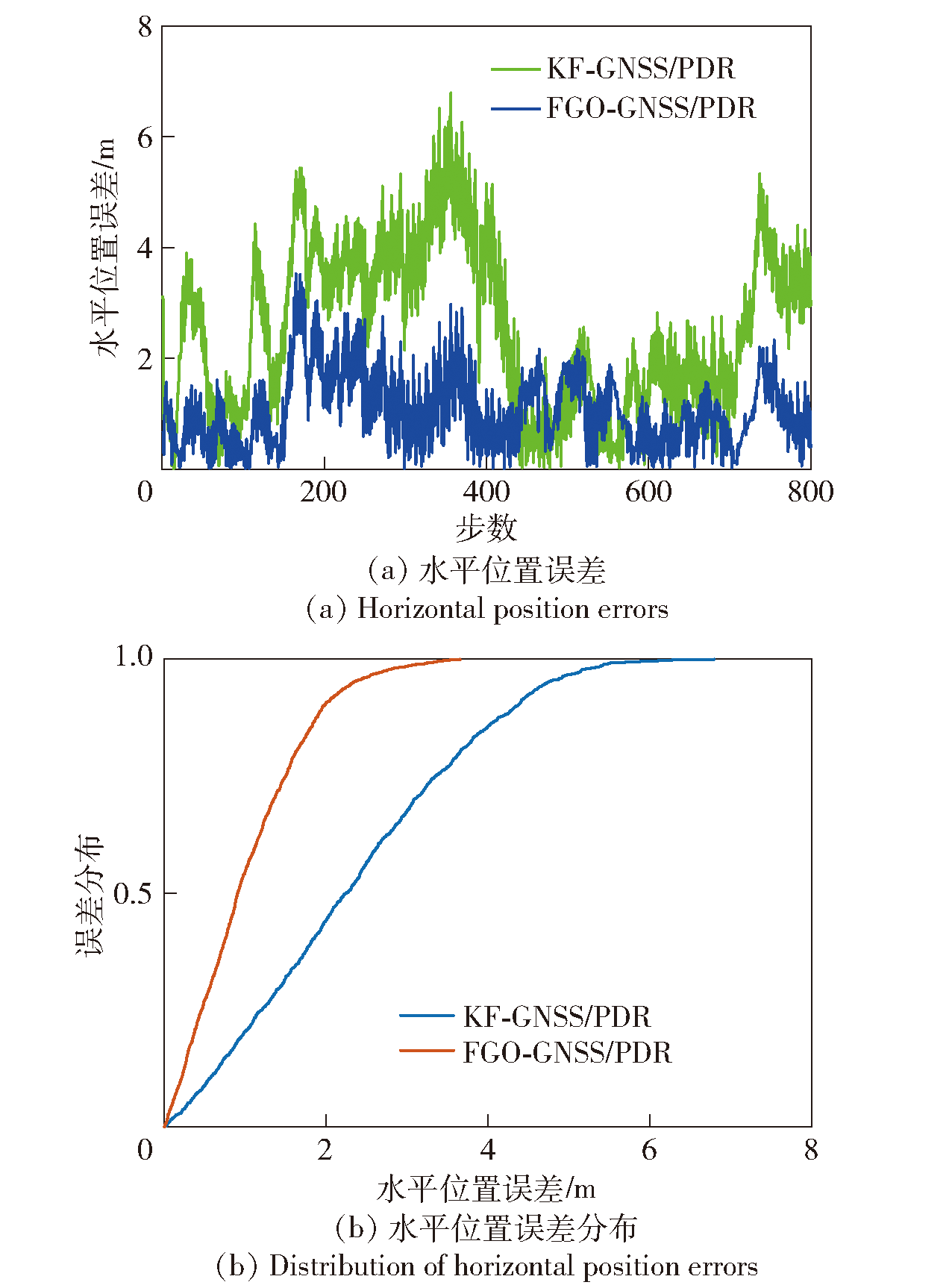

Fig.8 Hand-held experimental 1 horizontal position errors and distribution

Table 1 Hand-held experiment 1 statistical results of horizontal position errors

方法	误差均值/m	误差均方根/m
KF-GNSS/PDR	1.48	0.77
FGO-GNSS/PDR	0.83	0.50

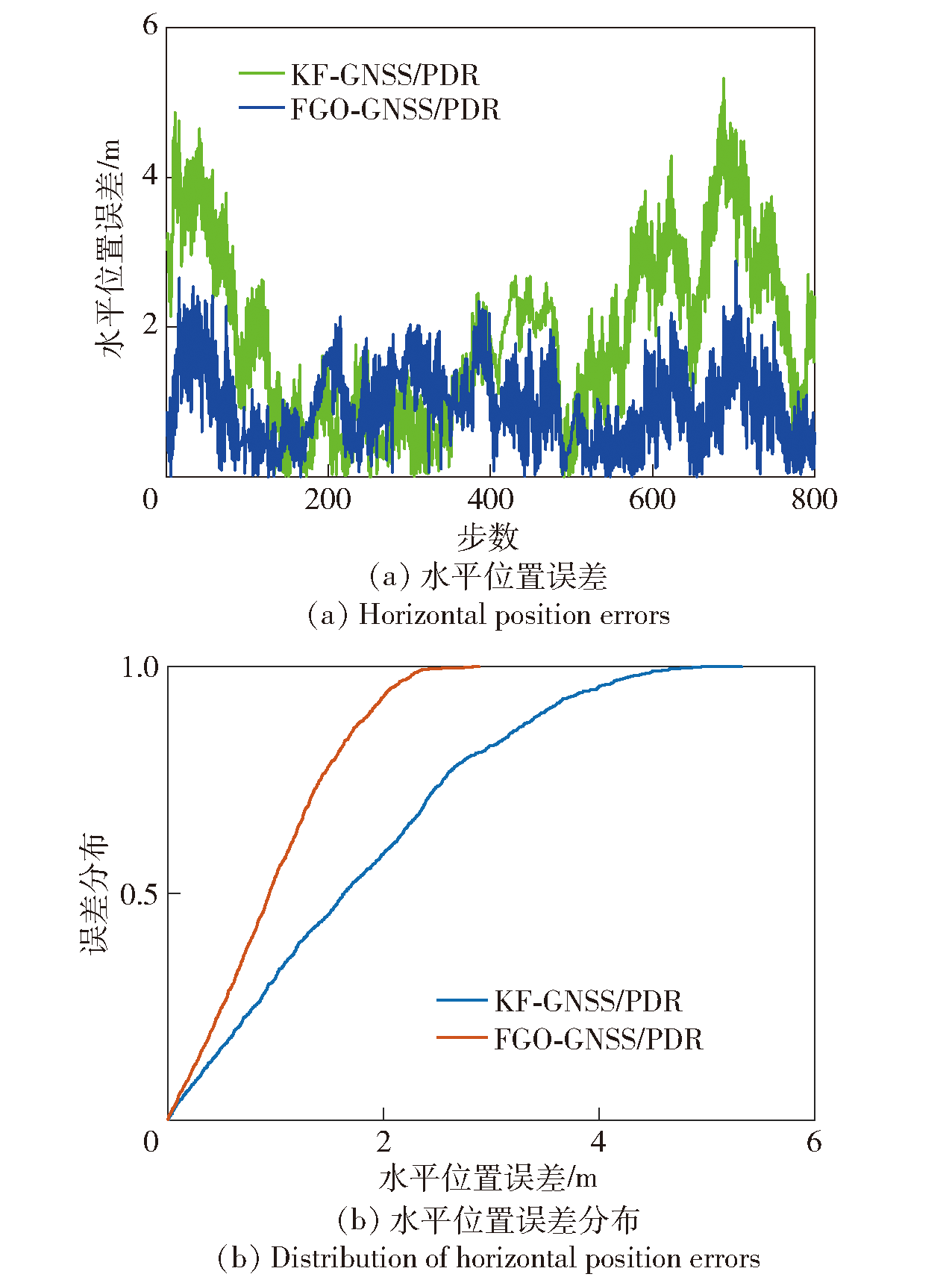

Fig.9 Hand-held experiment 2 horizontal position errors and distribution

Table 2 Hand-held experiment 2 statistical results of horizontal position errors

方法	误差均值/m	误差均方根/m
KF-GNSS/PDR	1.78	1.18
FGO-GNSS/PDR	1.00	0.61

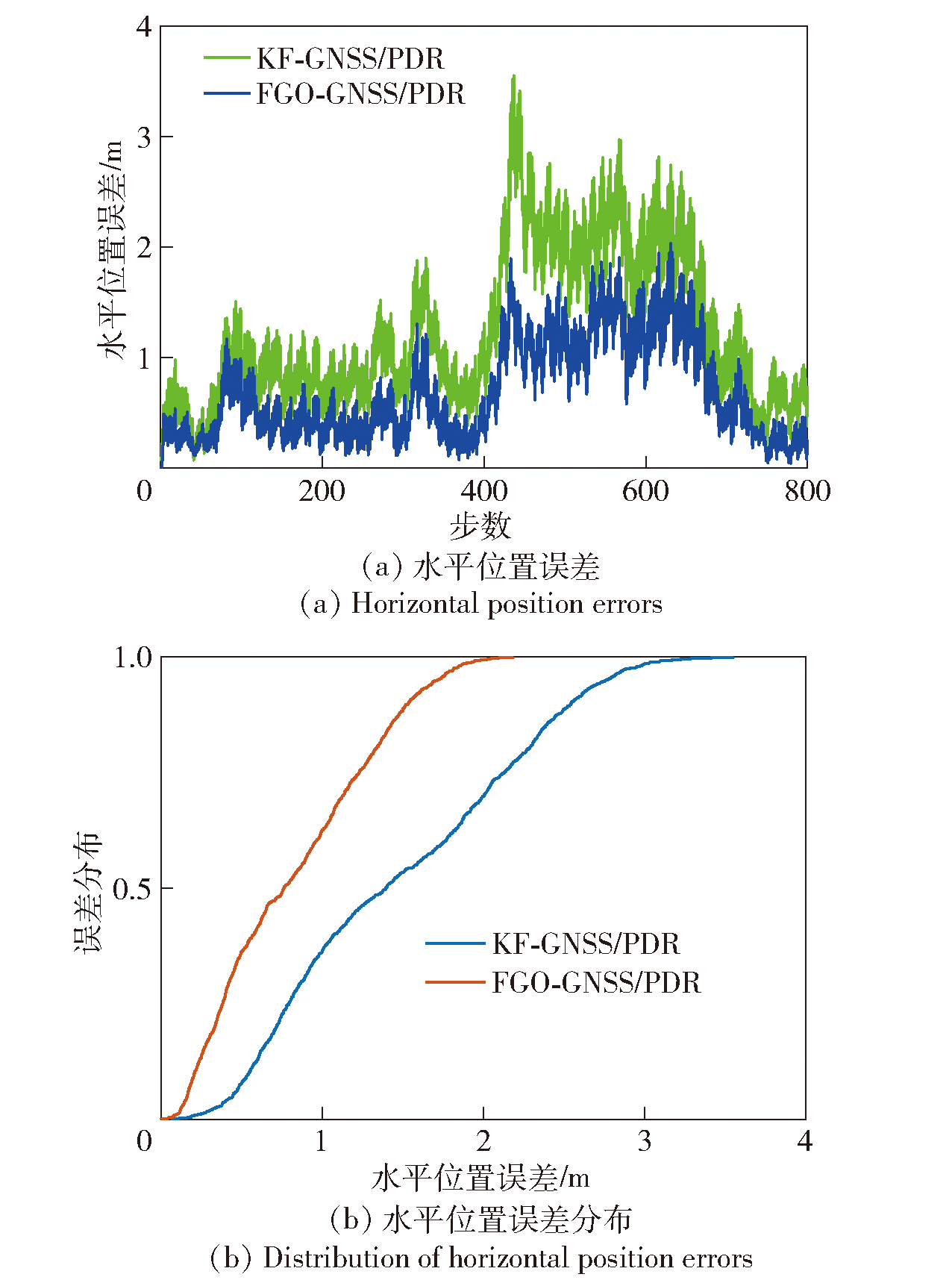

Fig.10 Knapsack experiment 1 horizontal position errors and distribution

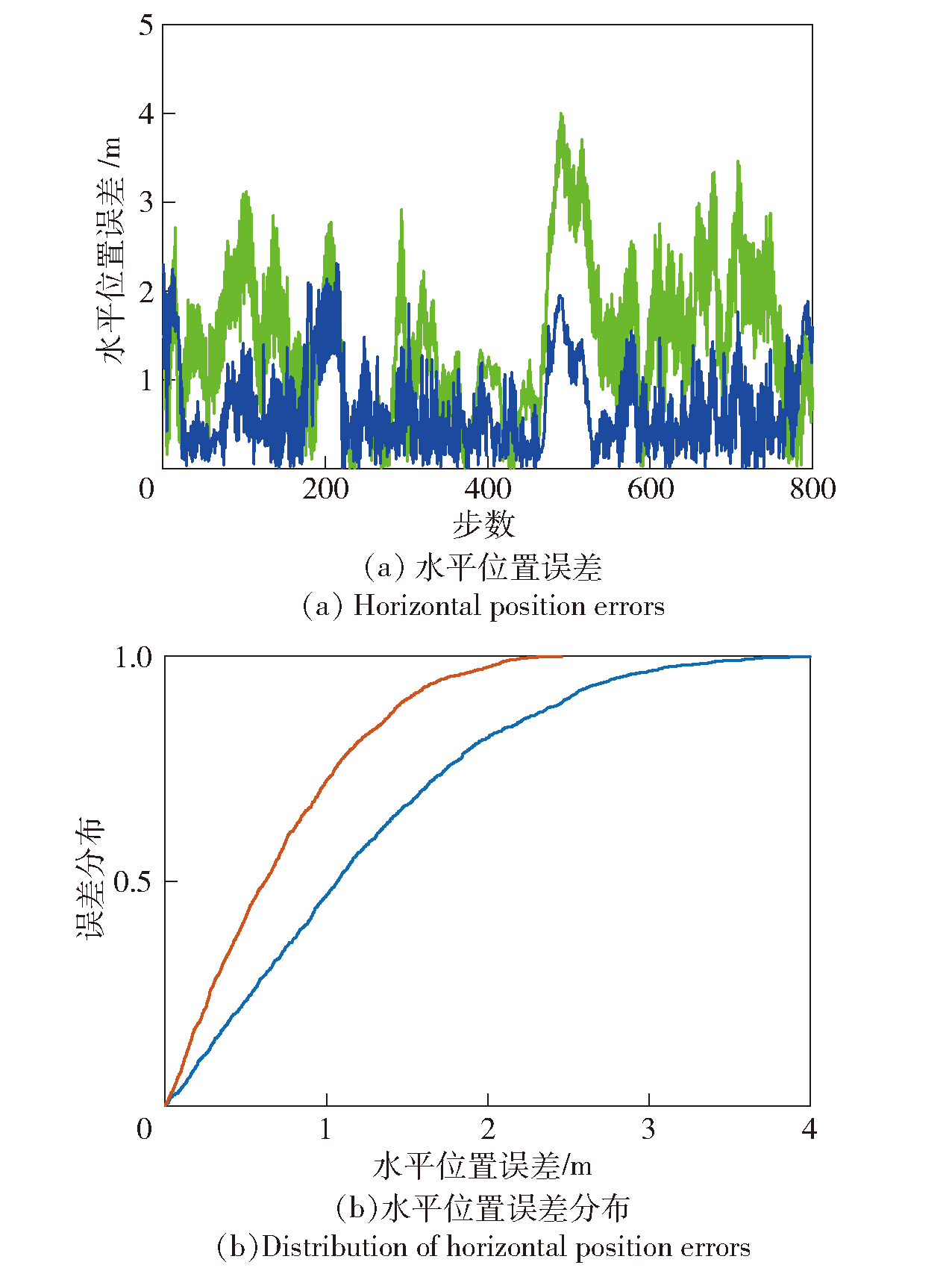

Fig.11 Knapsack experiment 2 horizontal position errors and distribution

Table 3 Knapsack experiment 1 statistical results of horizontal position errors

方法	误差均值/m	误差均方根/m
KF-GNSS/PDR	1.21	0.84
FGO-GNSS/PDR	0.72	0.53

Table 4 Knapsack experiment 2 statistical results of horizontal position errors

方法	误差均值/m	误差均方根/m
KF-GNSS/PDR	2.34	1.39
FGO-GNSS/PDR	1.03	0.71
