Underwater Polarization Image Restoration Method Using Optimal Multi-Parameters Reconstruction

doi:10.12382/bgxb.2022.0343

Abstract

Abstract:

Underwater imaging in high turbidity conditions often suffers from issues such as low resolution, reduced contrast, and overall poor image quality. Classical methods for underwater image polarization restoration require the selection of a background point without any target, making them inapplicable in certain scenarios. In order to solve this problem, the method of underwater polarization image restoration based on optimal multi-parameter reconstruction is proposed. Based on the classical underwater imaging physical model, the transmittance is divided into absorption and backscattering coefficients. By calculating the polarization degree of the underwater image using the Stokes vector, two target points are selected. The optimal reconstruction values of reflectivity, absorption coefficient and backscattering coefficient of two target points are obtained by optimizing the restored image. By using the optimized parameters to remove the backscattered light and recover the signal light lost due to absorption from the underwater image, the polarization restoration of the underwater image is realized. Two no-reference image quality assessment indexes are employed as quantitative indexes. Compared with other methods, experiments based on different turbidity and different targets show that this method can effectively restore the degraded underwater image, especially in the case of high turbidity. This method is expected to be applied to enhance optical imaging clarity of underwater vehicles and facilitate subsequent target detection.

Key words: underwater image restoration, polarization image, optimal reconstruction, multi-parameters

CHEN Xiongfeng, RUAN Chi. Underwater Polarization Image Restoration Method Using Optimal Multi-Parameters Reconstruction[J]. Acta Armamentarii, 2023, 44(7): 2122-2131.

Figures/Tables 11

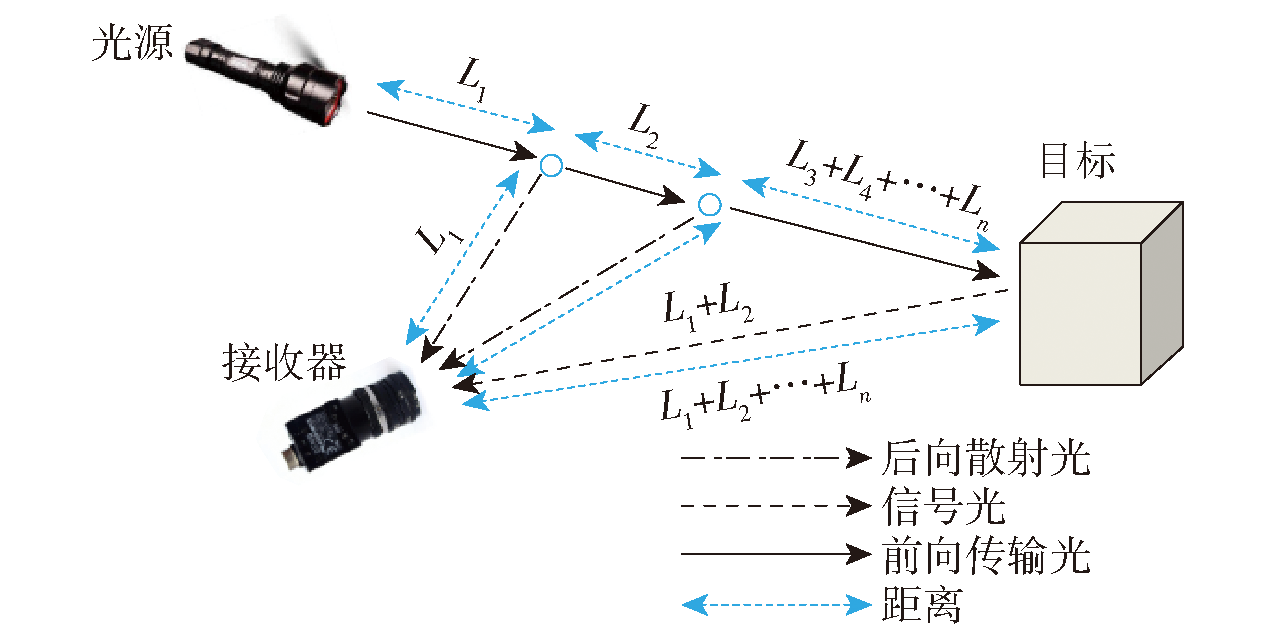

Fig.1 Improved physical model for underwater imaging

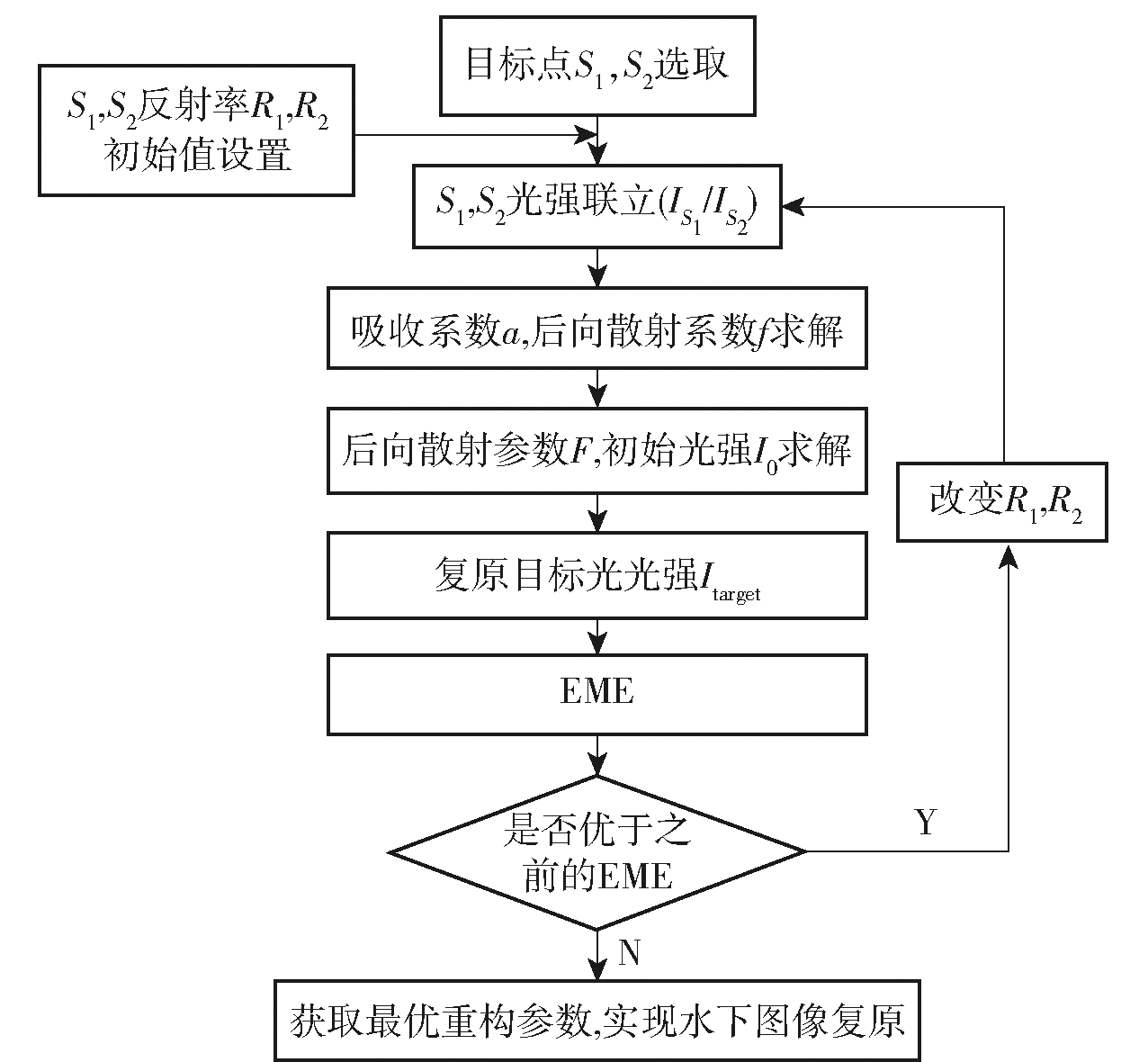

Fig.2 Flow chart of underwater polarization image restoration method based on optimal multi-parameter reconstruction

Fig.3 Light intensities under different turbidity conditions

Table 1 Results of three methods under different turbidity levels

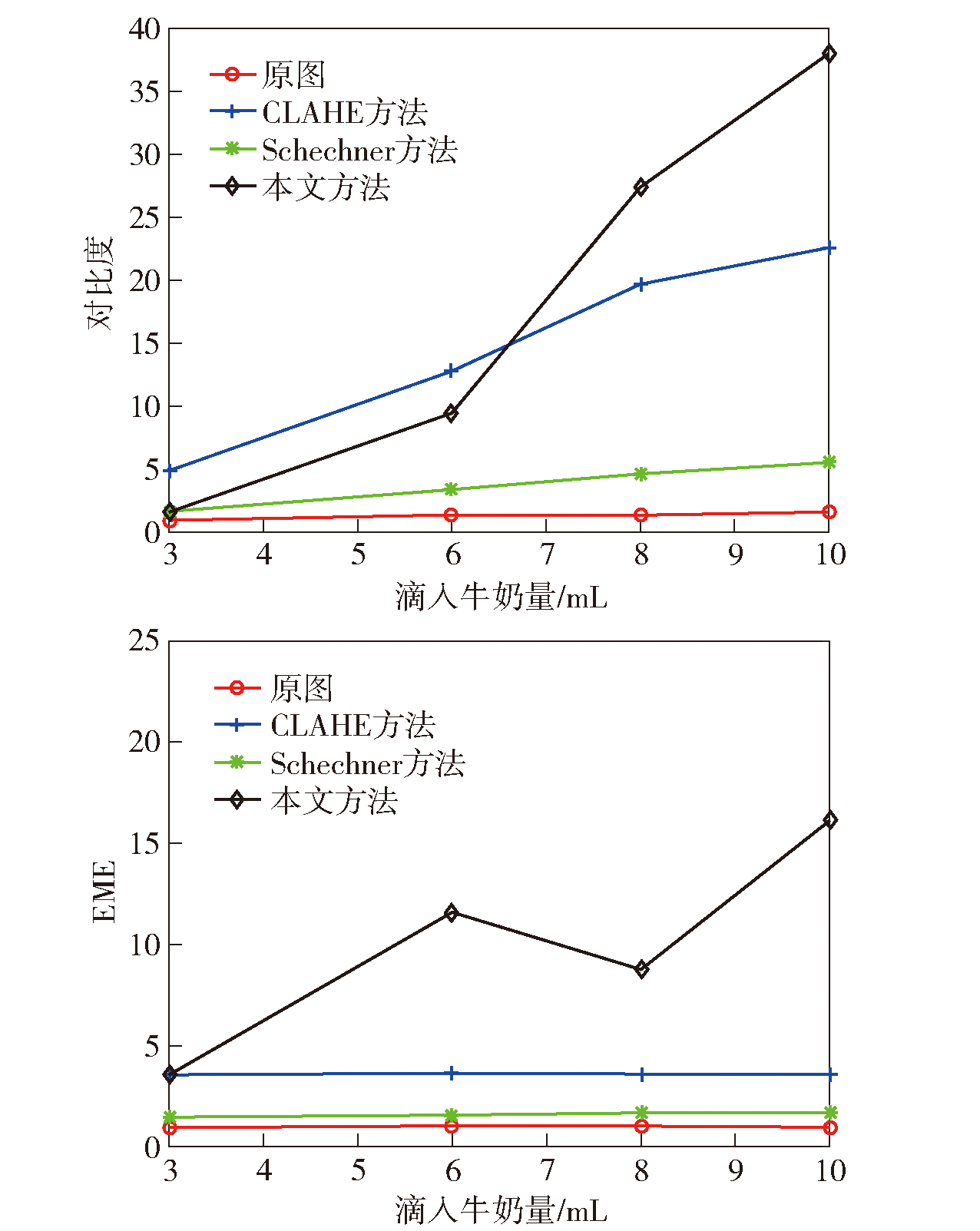

Fig.4 Results of contrast (top) and EME (bottom) under different turbidity levels

Table 2 Results under differentturbidity levels (reverse side of the resolution test plate)

Table 3 Results under different turbidity levels (key chain)

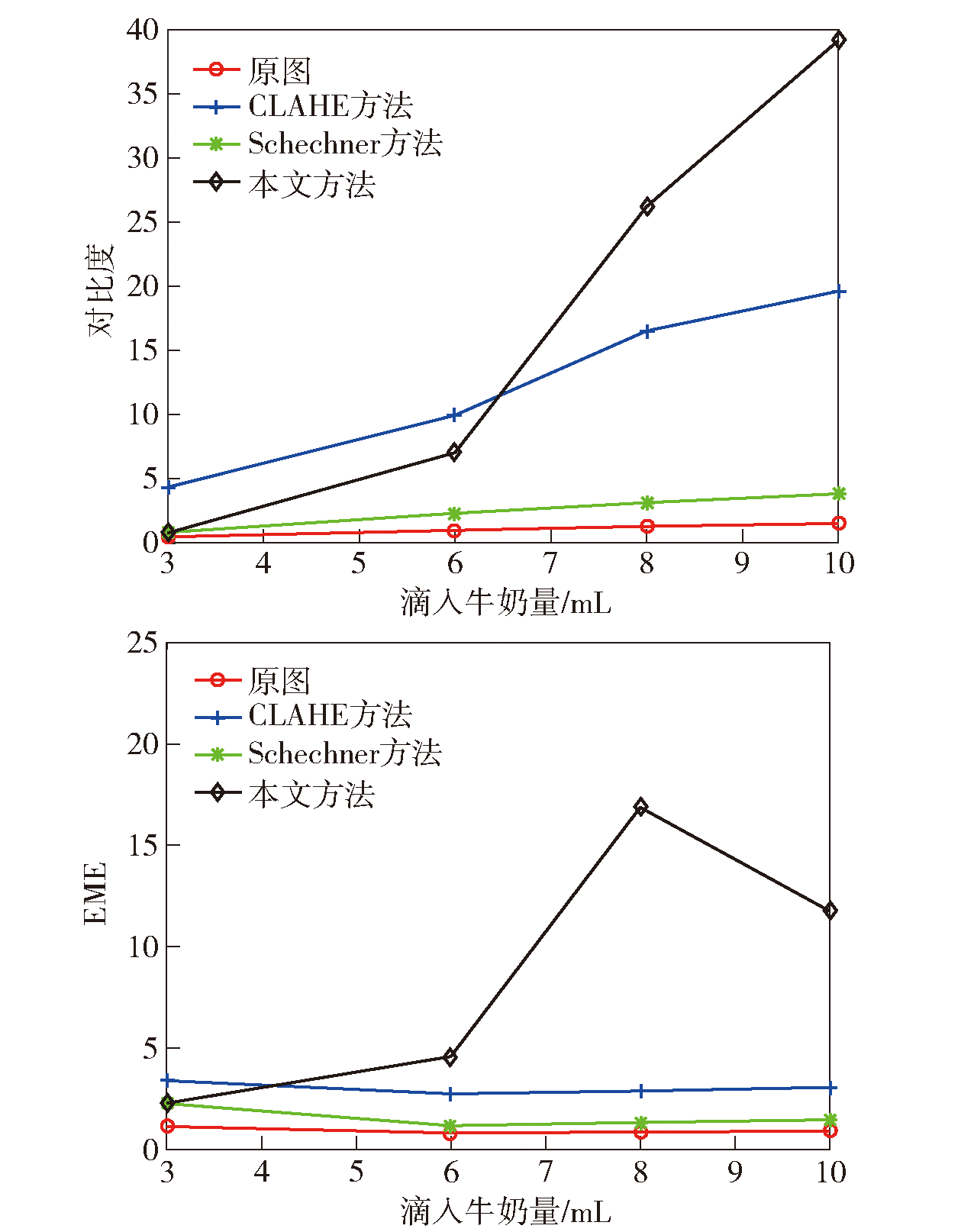

Fig.5 Results of contrast (top) and EME (bottom) under different turbidity levels (reverse side of the resolution test plate)

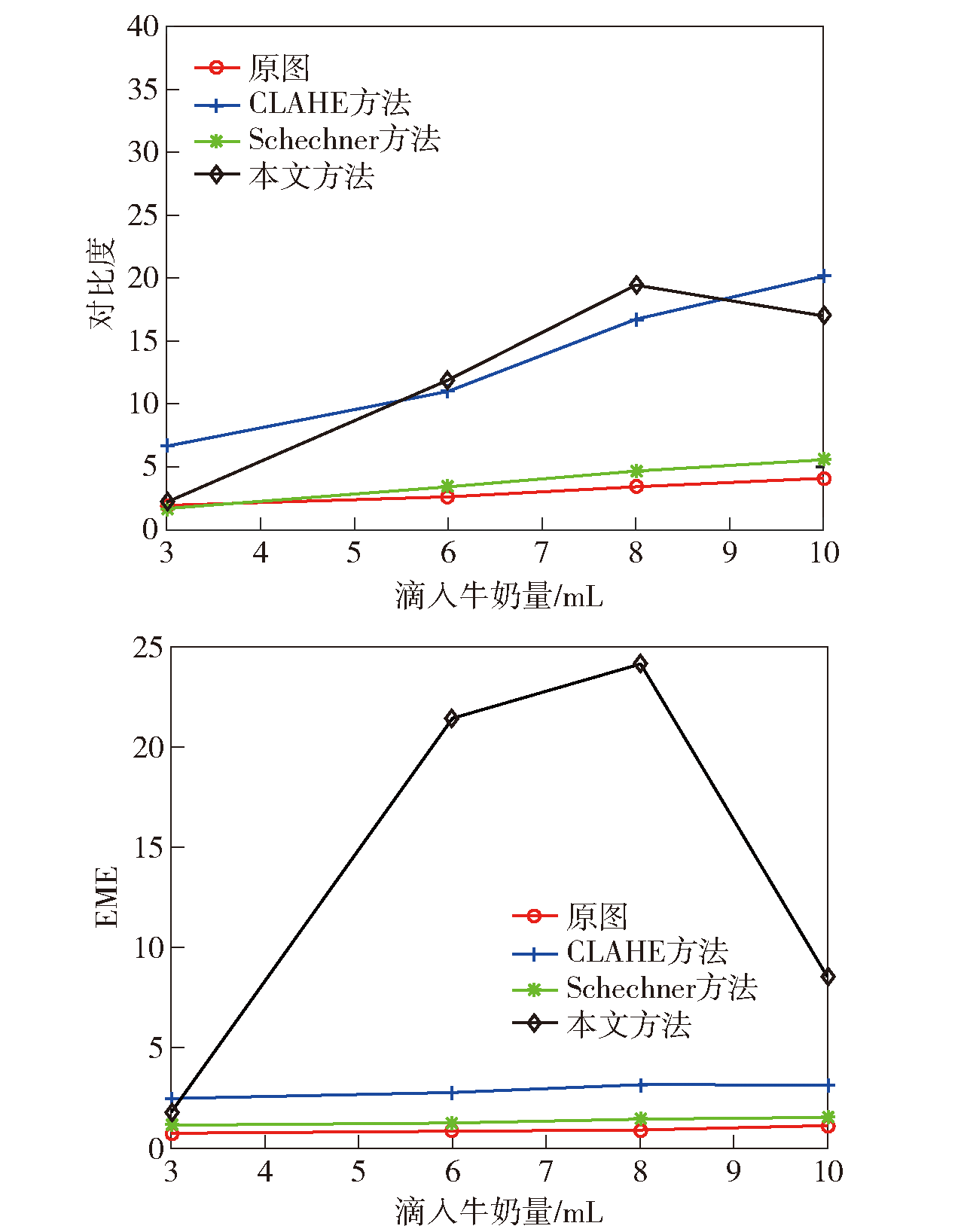

Fig.6 Results of contrast (top) and EME (bottom) under different turbidity levels (key chain)

Fig.7 Results under different distance errors(key chain at 8mL turbidity)

Table 4 Results of contrast degrees with different distance errors

距离/cm	原图	10	20	30	40
对比度	0.81	20.74	23.05	24.26	25.71
