Numerical Simulation of the Effect of Curved Surface Reflectors on the External Flow Field of Pulse Detonation Engine

doi:10.12382/bgxb.2022.0261

Abstract

Abstract:

To explore a technical way to effectively suppress the propagation of high-power detonation noise generated by a pulse detonation engine to the key parts of the engine head, the external flow field of pulse detonation engine equipped with three kinds of reflectors,which are ellipsoidal reflector,parabolic reflector and conical reflector,are numerically simulated by using the space-time conservation element and solution element method.The results show that the three types of reflectors have varying effects on the detonation noise due to their distinct reflection characteristics onthe rotating surface.The ellipsoidal reflector converges the reflected wave towards the axis of the reflector.The parabolic reflector approximately parallelizes the reflected waves downstream, whilethe conical reflector does not produce the reflected wave lagging behind the direct wave,which strengthens the direct wave and propagates downstream together.

Key words: pluse detonation engine, detonation noise, curved surface reflector, reflected wave

KANG Yang, LI Ning, HUANG Xiaolong, ZHANG Junshan, WENG Chunsheng. Numerical Simulation of the Effect of Curved Surface Reflectors on the External Flow Field of Pulse Detonation Engine[J]. Acta Armamentarii, 2023, 44(7): 1966-1977.

Figures/Tables 10

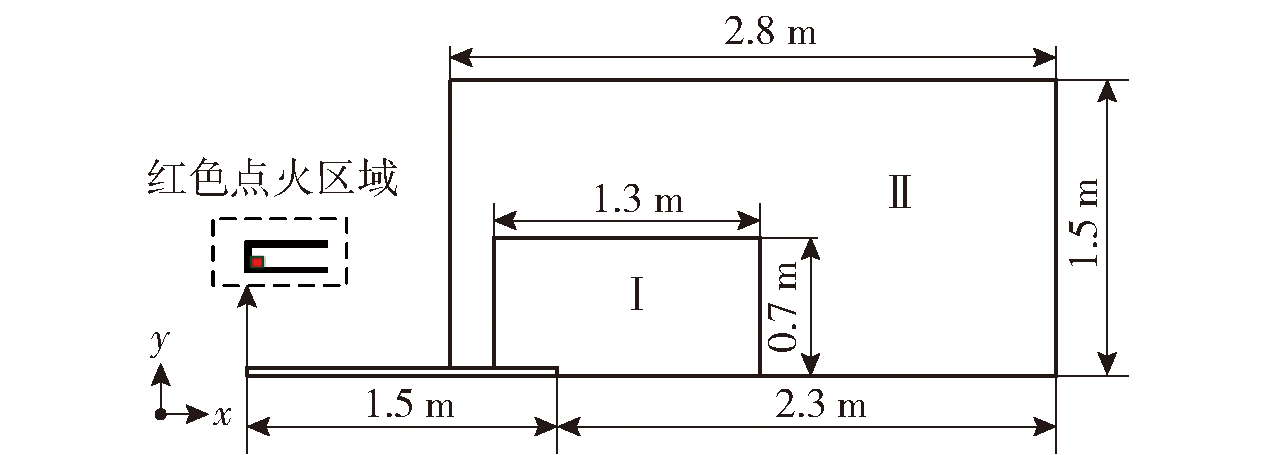

Fig.1 Two-phase PDE axisymmetric computational model

Table 1 Comparison of computational results and C-J theoretical values

参数	理论C-J值	计算值	相对误差/%
压力/MPa	1.89	2.01	6.35
波速/(m·s^-1)	1792.7	1630.3	9.06

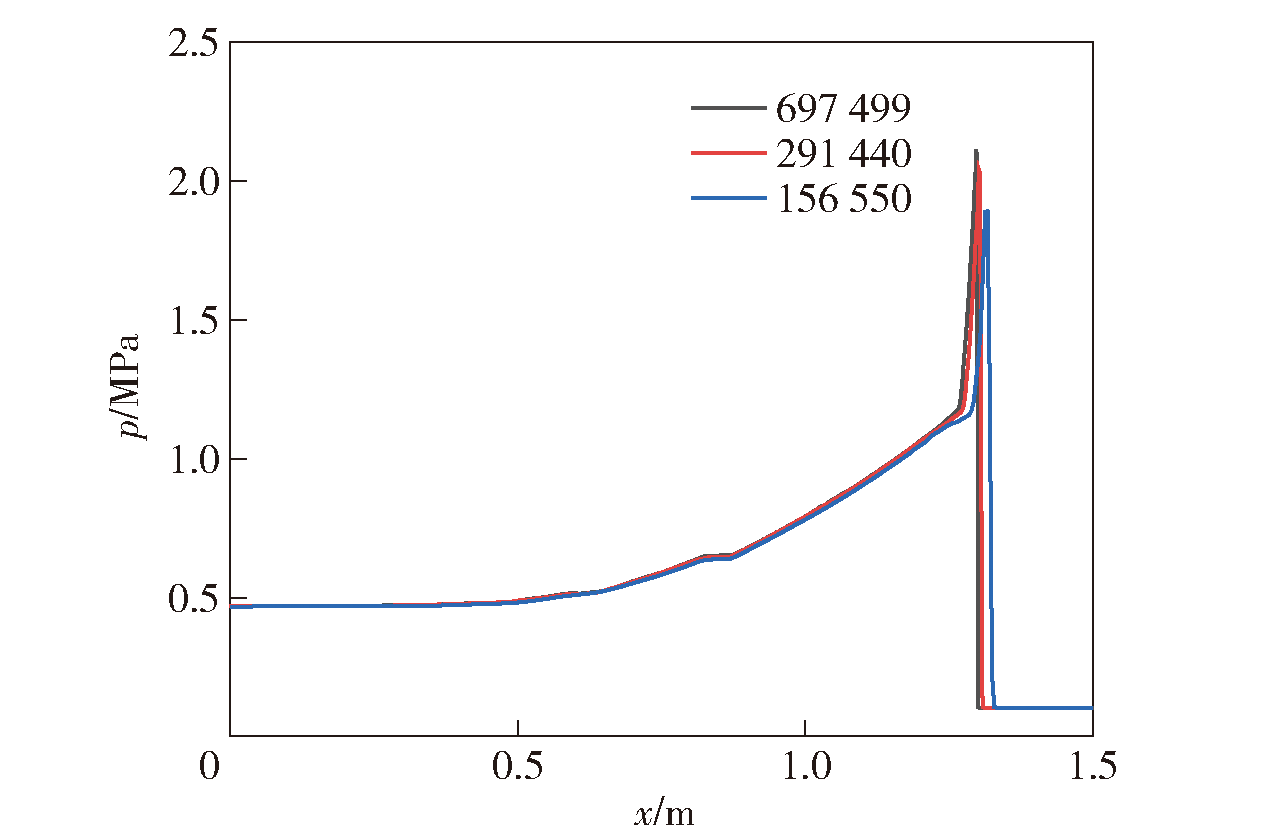

Fig.2 Grid independence validation

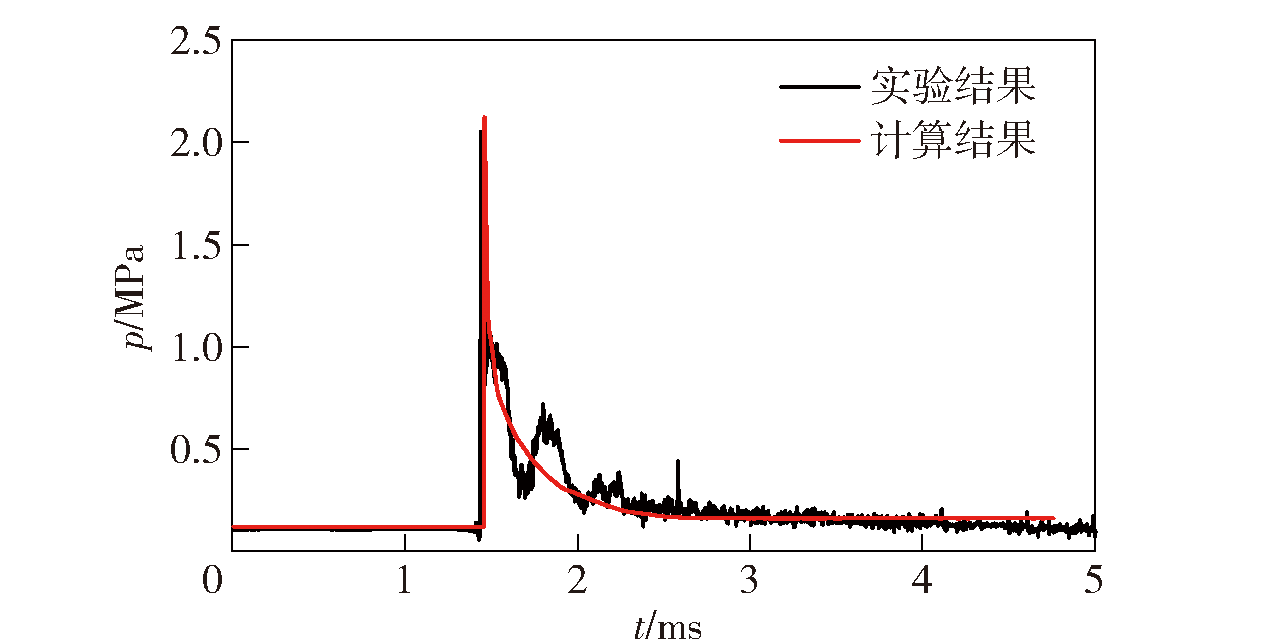

Fig.3 Comparison of computational and experimental results

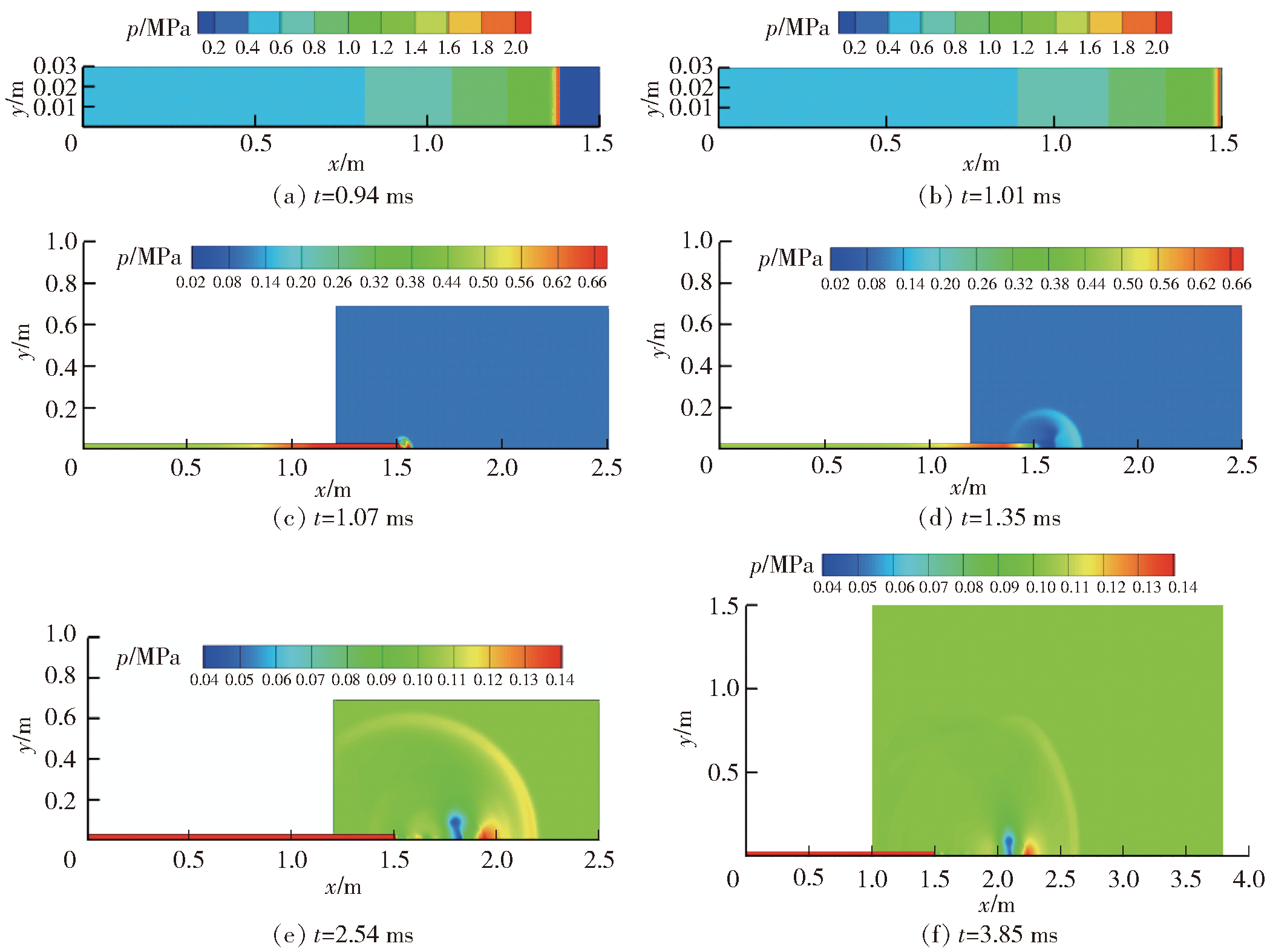

Fig.4 Pressure contours of PDE external flow field

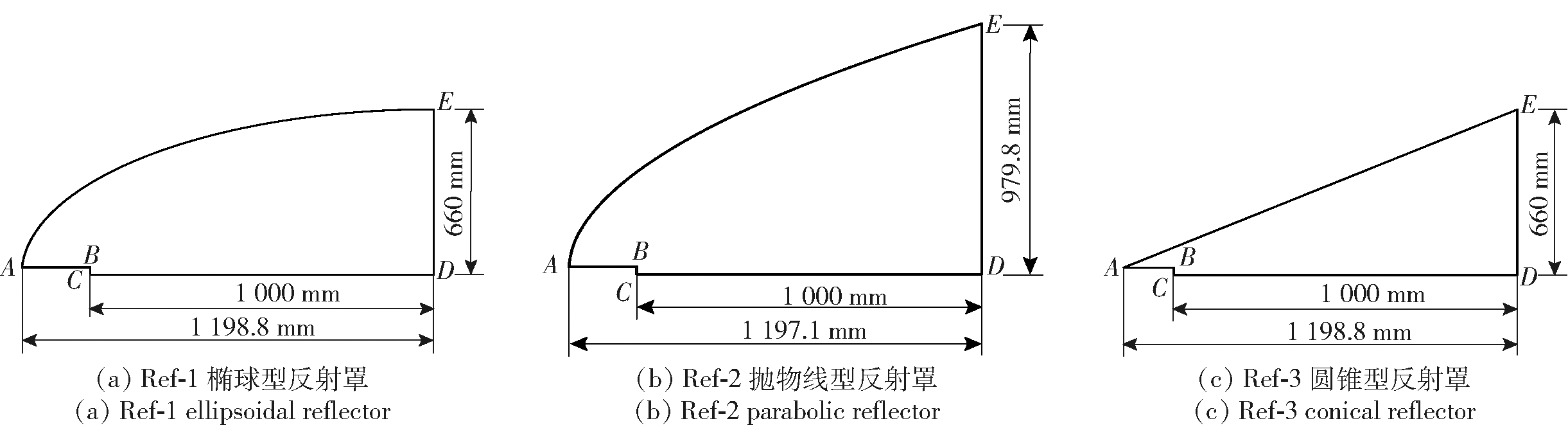

Fig.5 Computational models of three reflectors

Fig.6 Pressure contours of PDE with ellipsoidal reflector

Fig.7 Pressure contours of PDE with parabolic reflector

Fig.8 Pressure contours of PDE with conical reflector

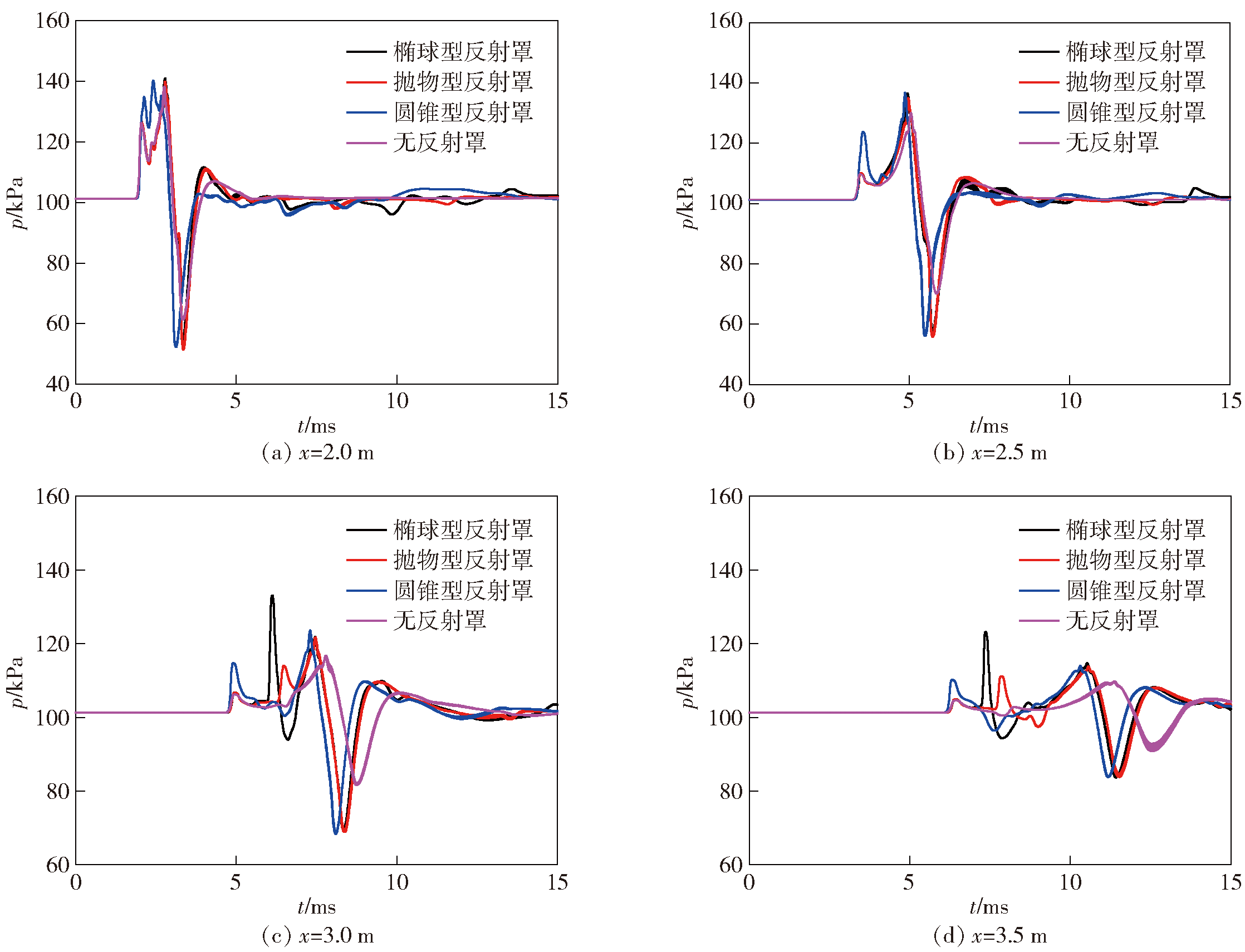

Fig.9 Pressure histories at different monitoring points
