Optimization Design of High-frequency Fluctuations of Permanent Magnet DC Torque Motor for Missiles

doi:10.12382/bgxb.2022.0065

Abstract

Abstract:

The permanent magnet DC torque motor is widely used in weapons and equipment field. In order to solve the high-frequency fluctuations of the induced voltage and current of the permanent magnet DC torque motor for missiles, based on the mechanism of high-frequency fluctuations, an optimization design method combining virtual-slot design and optimized brush assembly was proposed for the motor to meet the requirements of high-frequency fluctuation performance index. The virtual-slot can increase the number of reversing elements and decrease the number of turns of elements, thus reducing the reversing current. V-shaped grooves were added to the inner wall of the commutator and the rotor forming process was optimized to facilitate rotor production. The brush assembly optimization includes: brush frame structure optimization, spring leaf optimization, brush head material optimization and optimization of brush breaking-in technique to ensure the coplanarity, pressure consistency and wear reduction of the brush. The optimized motor was simulated and tested experimentally. The results showed that: the proposed optimization design method can effectively suppress the high-frequency fluctuations; the peak-to-peak value of the induced voltage fluctuation of the motor after optimization was reduced by 75.23%, and the peak-to-peak value of the current fluctuation was reduced by 76.77%, allowing the motor to meet the design requirements.

Key words: permanent magnet DC torque motor, high-frequency fluctuation, virtual-slot, brush, induced voltage

WANG Yongjia, GUO Jianning, ZHANG Taopeng, YANG Xiaoqing. Optimization Design of High-frequency Fluctuations of Permanent Magnet DC Torque Motor for Missiles[J]. Acta Armamentarii, 2023, 44(5): 1365-1373.

Figures/Tables 13

References 21

[1]	刘宗凯, 李占江. 基于电磁力滤波的潜载定向能随动系统振动控制[J]. 兵工学报, 2020, 41(11): 2292-2302. doi: 10.3969/j.issn.1000-1093.2020.11.017
	LIU Z K, LI Z J. Vibration control of submarine directional energy servo system based on electromagnetic force filtering[J]. Acta Armamentarii, 2020, 41(11): 2292-2302. (in Chinese)
[2]	PERINI R, RAPI G. Equivalent circuit for the performance analysis of universal motors[J]. IEEE Transactions on Energy Conversion, 2004, 19(1): 18-27. doi: 10.1109/TEC.2003.821831 URL
[3]	HU F, HE Q B, WANG J P, et al. Commutation sparking image monitoring for DC motor[J]. Journal of Manufacturing Science and Engineering, 2012, 134: 024501. doi: 10.1115/1.4005796 URL
[4]	HANAZAWA T, EGASHIRA T. Photographing the commutation spark from universal motor by external laser trigger method[J]. The Review of Laser Engineering, 2002, 121(9): 998-999.
[5]	KELAIAIA M S, KELAIAIA S, MESBAH T. Commutation modelling and sparks reduction based on coupled circuit method[J]. International Journal of Numerical Modelling Electronic Networks Devices & Fields, 2014, 27(4): 637-648.
[6]	高海波, 程涛, 周长征, 等. 直流电机换向火花的检测与调整[J]. 四川兵工学报, 2013, 34(9): 109-111.
	GAO H B, CHENG T, ZHOU C Z, et al. Basic studies for the detection and adjustment of DC motor commutation spark[J]. Journal of Sichuan Ordnance, 2013, 34(9): 109-111. (in Chinese)
[7]	NIWA Y, AKIYAMA Y. The relation of a brush life to the commutator width and brush width ratio of a universal motor[C]∥ Proceedings of 2009 International Conference on Power Electronics & Drive Systems. Taipei, China: IEEE, 2010: 1384-1389.
[8]	周元森. 弹上用永磁直流伺服电动机换向火花改善研究[J]. 机电信息, 2020, 614(8):42-43.
	ZHOU Y S. Research on improving commutation spark of permanent magnet DC servo motor on missile[J]. Mechanical and Electrical Information, 2020, 614(8):42-43. (in Chinese)
[9]	SHANTARENKO S, PONOMAREV E, VAGANOV A. Performance control of the commutator-and-brush assembly of the traction motor[J]. Transportation Research Procedia, 2021, 54: 854-861. doi: 10.1016/j.trpro.2021.02.139 URL
[10]	LASZLO K. Electrical machine with brush and commutator having a specific distribution of electrical conductivity for suppression of sparking: EP3127196A1[P]. 2017-02-08.
[11]	KHARLAMOV V V, MOSKALEV Y V, NAIDEN S N. Methodology for determining permissible operating modes of DC traction motor of quarry dump truck to ensure satisfactory commutation[J]. Omsk Scientific Bulletin, 2021, 176(2): 36-40.
[12]	陈万庆, 王军伟. 分瓣电刷在试验机组直流电机中的应用[J]. 电机与控制应用, 2017, 44(6): 97-100.
	CHEN W Q, WANG J W. Application of split brush in DC motor of test set[J]. Electric Machines & Control Application, 2017, 44(6): 97-100. (in Chinese)
[13]	杨贤军, 王勇, 徐永红, 等. 直流微电机电刷与换向器早期接触失效的常见原因[J]. 微特电机, 2019, 47(5): 68-71, 75.
	YANG X J, WANG Y, XU Y H, et al. Common causes of contact failure between brush and commutator of DC micromotors[J]. Small & Special Electrical Machines, 2019, 47(5): 68-71, 75. (in Chinese)
[14]	李剑, 屈仁英. 航空直流起发电机换向性能优化设计[J]. 现代机械, 2022(2): 6-9.
	LI J, QU R Y. Optimization design of reversing performance of aviation DC generator[J]. Modern Machinery, 2022(2): 6-9. (in Chinese)
[15]	MARCU M D, SLUSARIUC R I, POPESCU F G, et al. Universal DC motor protection system based on microcontroller embedded algorithm[C]∥Proceedings of 2018 International Symposium on Fundamentals of Electrical Engineering. Bucharest, Romania: IEEE, 2018: 1-4.
[16]	HUANG Q, LUO L, ZHU L W. Design and research of axial flux permanent magnet motor for electric vehicle[C]∥Proceedings of the 2019 IEEE 3rd International Electrical and Energy Conference. Beijing, China: IEEE, 2019: 1918-1923.
[17]	肖祖旺, 叶舟涛, 何海波. 直流电机换向极气隙调整方法[J]. 船电技术, 2019, 39(5): 4-6.
	XIAO Z W, YE Z T, HE H B. Air gap adjustment method for commutation pole of DC motor[J]. Marine Electric & Electronic Engineering, 2019, 39(5): 4-6. (in Chinese)
[18]	倪有源, 赵亮, 陈浩. 单相串励电动机换向火花与运行特性研究[J]. 微特电机, 2015, 43(11):5-8.
	NI Y Y, ZHAO L, CHEN H. Research of commutation spark and operation characteristics for a single-phase series motor[J]. Small & Special Electrical Machines, 2015, 43(11):5-8. (in Chinese)
[19]	上官璇峰, 刘永健, 杨婷玉, 等. 四极单相串激电机运行特性和换向性能分析[J]. 电子科技, 2021, 34(10): 1-7.
	SHANGGUAN X F, LIU Y J, YANG T Y, et al. Analysis of operation characteristics and commutating performance of four-poles single-phase universal motor[J]. Electronic Science and Technology, 2021, 34(10): 1-7. (in Chinese)
[20]	黄其, 罗玲, 张远. 改善串励电动机换向火花的设计方法[J]. 微特电机, 2014, 42(7): 50-53.
	HUANG Q, LUO L, ZHANG Y. Design methods of reducing universal motors’ commutation sparks[J]. Small & Special Electrical Machines, 2014, 42(7): 50-53. (in Chinese)
[21]	高嵬, 张俊洪, 吴旭升, 等. 直流双蛙绕组电机的换向齿槽能量模型及其试验验证研究[J]. 电机与控制学报, 2019, 23(9): 54-62.
	GAO W, ZHANG J H, WU X S, et al. Research and experimental test on commutation teeth-slot energy model of an electrical machine with double frog windings[J]. Electric Machines and Control, 2019, 23(9): 54-62. (in Chinese)

材料	电阻率/ (μΩ·m)	密度/ (g·mm^-3)	压降/ V	摩擦系数	磨损/ mm
J325	4~10	2.58~2.62	1.5~2.5	≤0.20	≤0.5(25h)
J350	1.5~5.0	3.0~3.5	1.0~1.5	≤0.25	≤0.7(50h)
J360	0.7~1.0	3.0~4.0	0.8~1.2	≤0.25	≤1.4(50h)

材料	电阻率/ (μΩ·m)	密度/ (g·mm^-3)	压降/ V	摩擦系数	磨损/ mm
J325	4~10	2.58~2.62	1.5~2.5	≤0.20	≤0.5(25h)
J350	1.5~5.0	3.0~3.5	1.0~1.5	≤0.25	≤0.7(50h)
J360	0.7~1.0	3.0~4.0	0.8~1.2	≤0.25	≤1.4(50h)

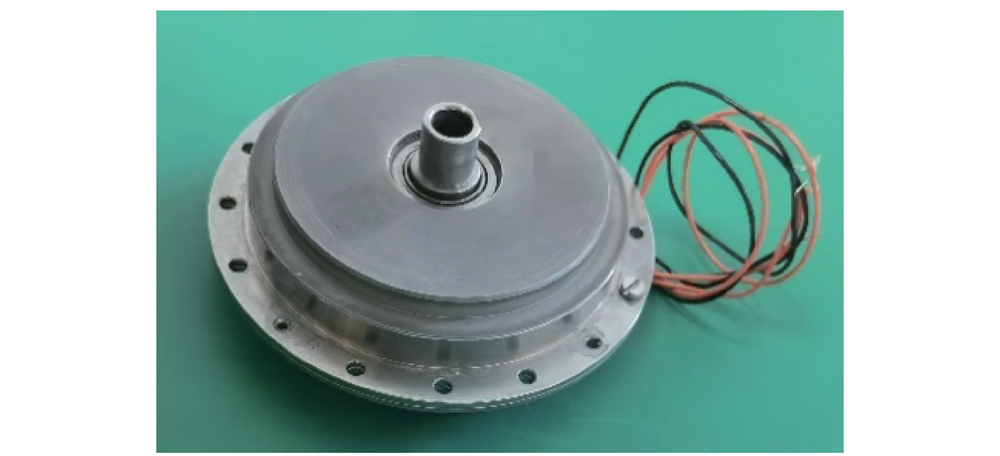

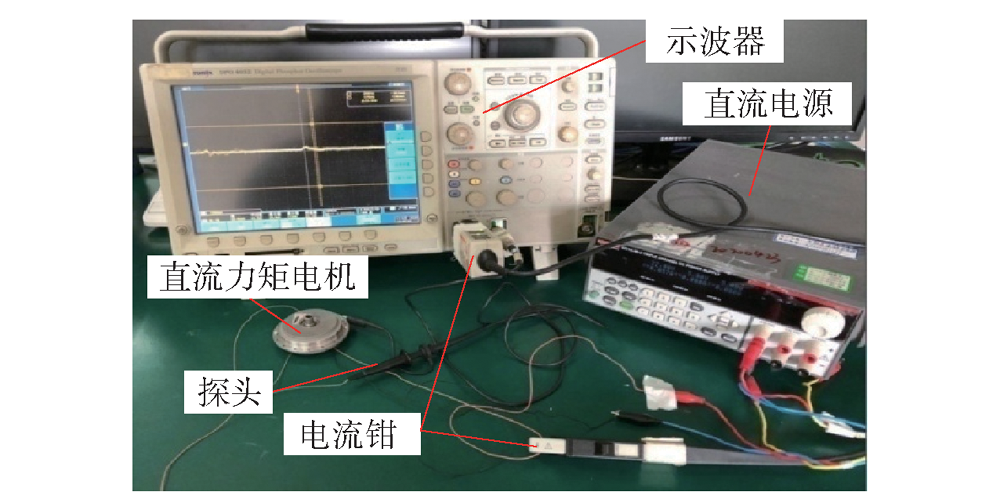

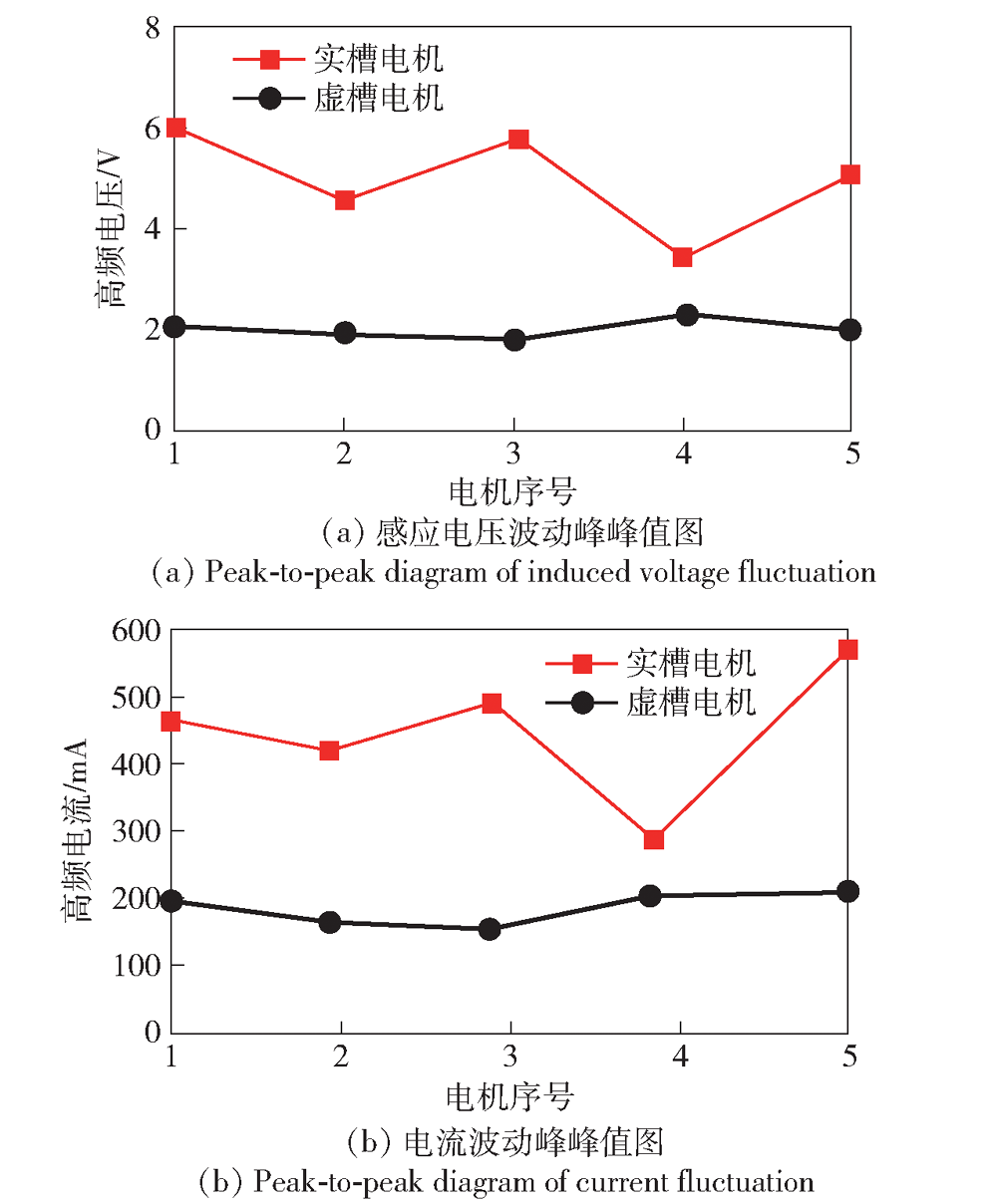

测试项目	电机	实验序号
测试项目	电机	1	2	3	4	5
高频电压/V	实槽电机	5.87	4.55	5.81	3.44	5.08
	虚槽电机	2.08	1.92	1.84	2.28	2.0
高频电流/mA	实槽电机	480	434	512	300	560
	虚槽电机	198	168	156	212	220

测试项目	电机	实验序号
测试项目	电机	1	2	3	4	5
高频电压/V	实槽电机	5.87	4.55	5.81	3.44	5.08
	虚槽电机	2.08	1.92	1.84	2.28	2.0
高频电流/mA	实槽电机	480	434	512	300	560
	虚槽电机	198	168	156	212	220

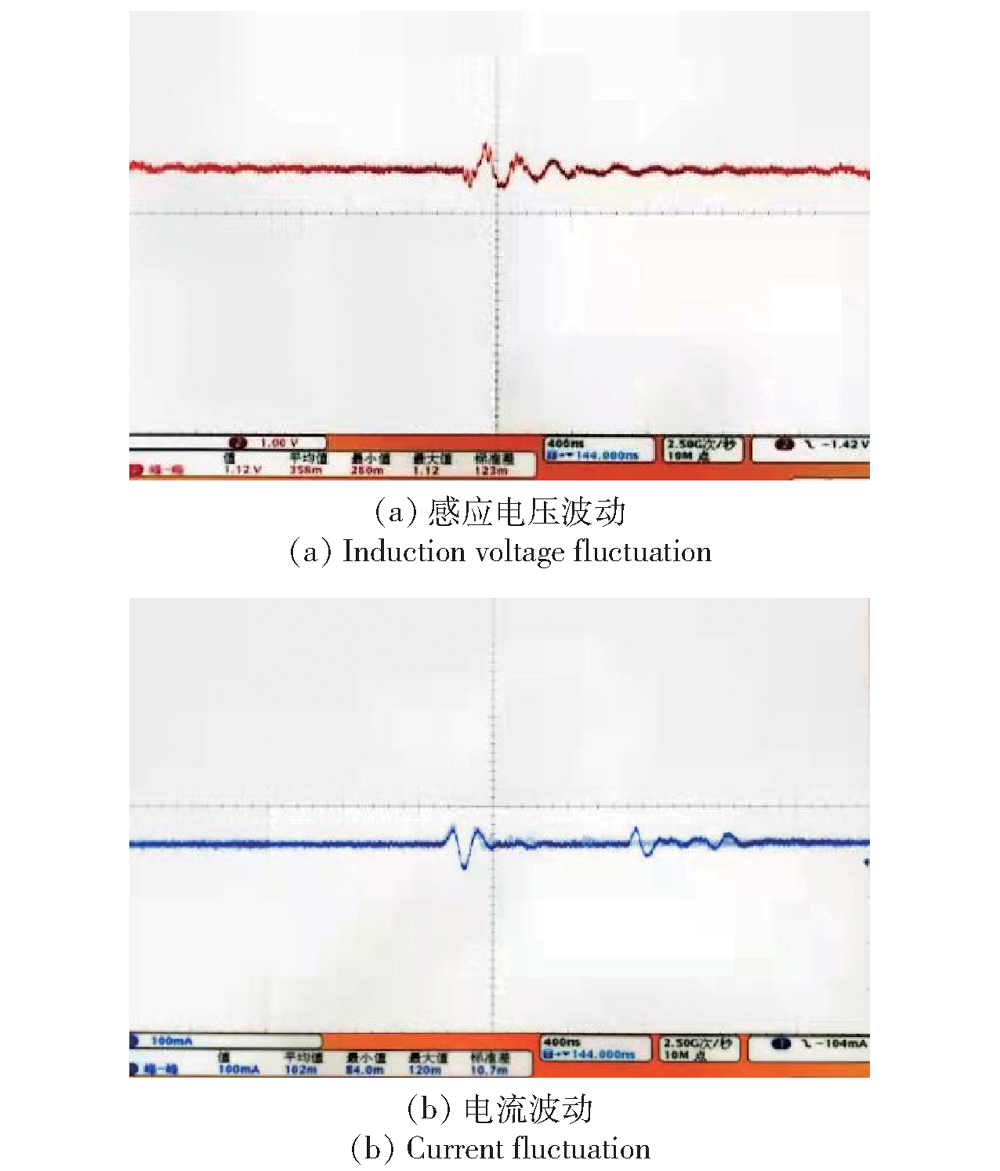

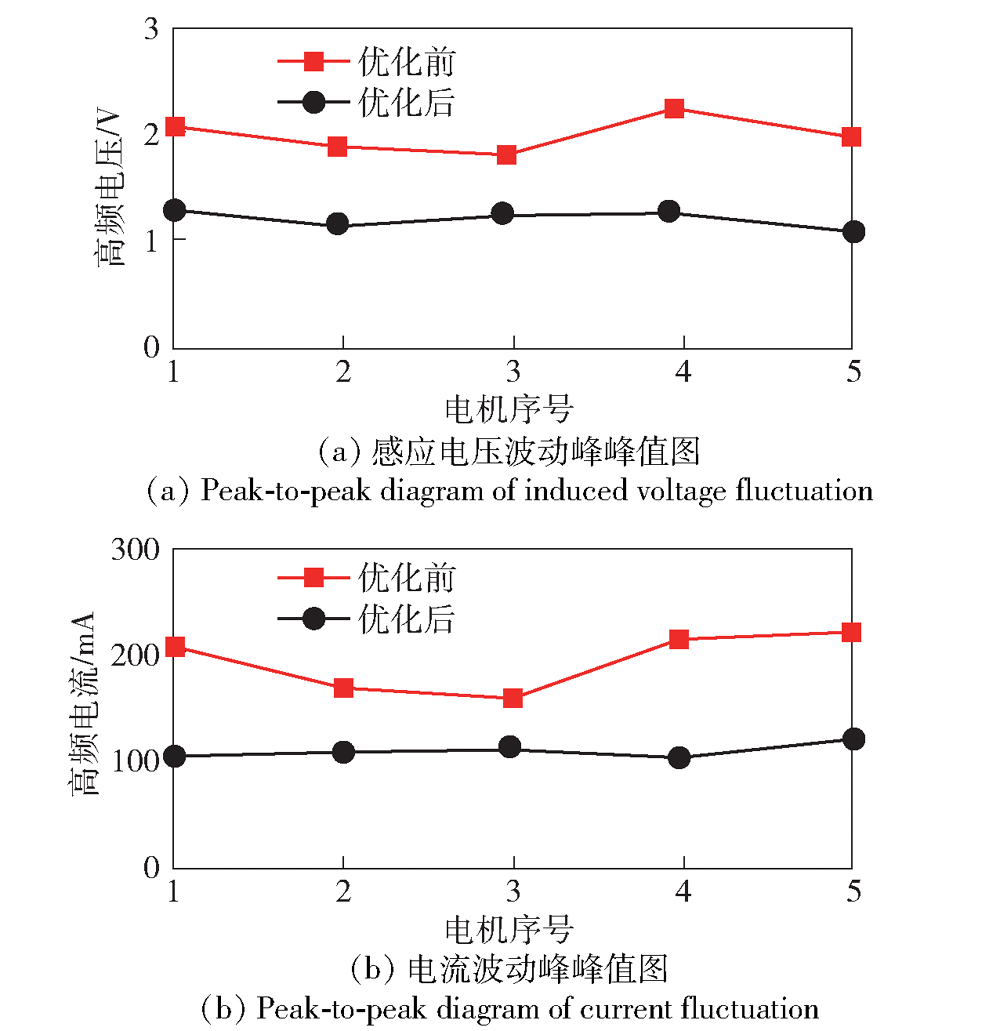

电机序号	高频电压/V		高频电流/mA
电机序号	优化前	优化后	优化前	优化后
1	2.08	1.30	198	100
2	1.92	1.17	168	101
3	1.84	1.26	156	108
4	2.28	1.28	212	102
5	2.00	1.12	220	120
