High-Speed Two-Dimensional Measurements of Flame Propagation Velocity and Temperature Distribution of TiH2 Dust Flame

doi:10.12382/bgxb.2021.0842

Abstract

Abstract:

In order to explore the application feasibility of hydrogen storage alloy TiH₂ in thermobaric bombs, an open and a semi-open Hartmann tube were used to simulate the explosion processes of a thermobaric bomb in the air and underground tunnels, respectively. By using the two-dimensional high-speed measurement platform on basis of the colorimetric thermometry and contour detection methods, flame characteristic parameters and influencing factors of TiH₂ dust cloud with different concentrations were studied. The experimental results showed that: in the open space, the flame temperature of TiH₂ dust was in the range of 2150-2400K, and the flame temperature decreased with the increase of dust concentration; the flame propagation velocity and acceleration were not affected by the dust concentration in the early stage, but increased with the increasing dust concentration in the later stage; in the confined space of a pipeline, the temperature of dust clouds with different concentrations of TiH₂ during stable combustion were around 2430K, and the higher the dust concentration, the shorter the flame propagation time to the top; the stable flame temperature of dust clouds in the pipeline was 50-210K higher than that in the open space, and the flame propagation velocity was 6-15 times than that in the open space. Compared with the traditional explosion testing methods, the colorimetric thermometry method can precisely measure the transient temperature distribution of a certain zone, and the contour detection method can accurately measure the propagation velocity and acceleration of flame front surface, which may provide a new technical means for the formulation design and damage effectiveness evaluation of thermobaric bombs.

Key words: thermobaric bomb, contour detection, flame speed, colorimetric thermometry

CHENG Yangfan, WANG Zhonghua, HU Fangfang, ZHANG Beibei, XIA Yu, SHEN Zhaowu. High-Speed Two-Dimensional Measurements of Flame Propagation Velocity and Temperature Distribution of TiH₂ Dust Flame[J]. Acta Armamentarii, 2023, 44(4): 1181-1192.

Figures/Tables 14

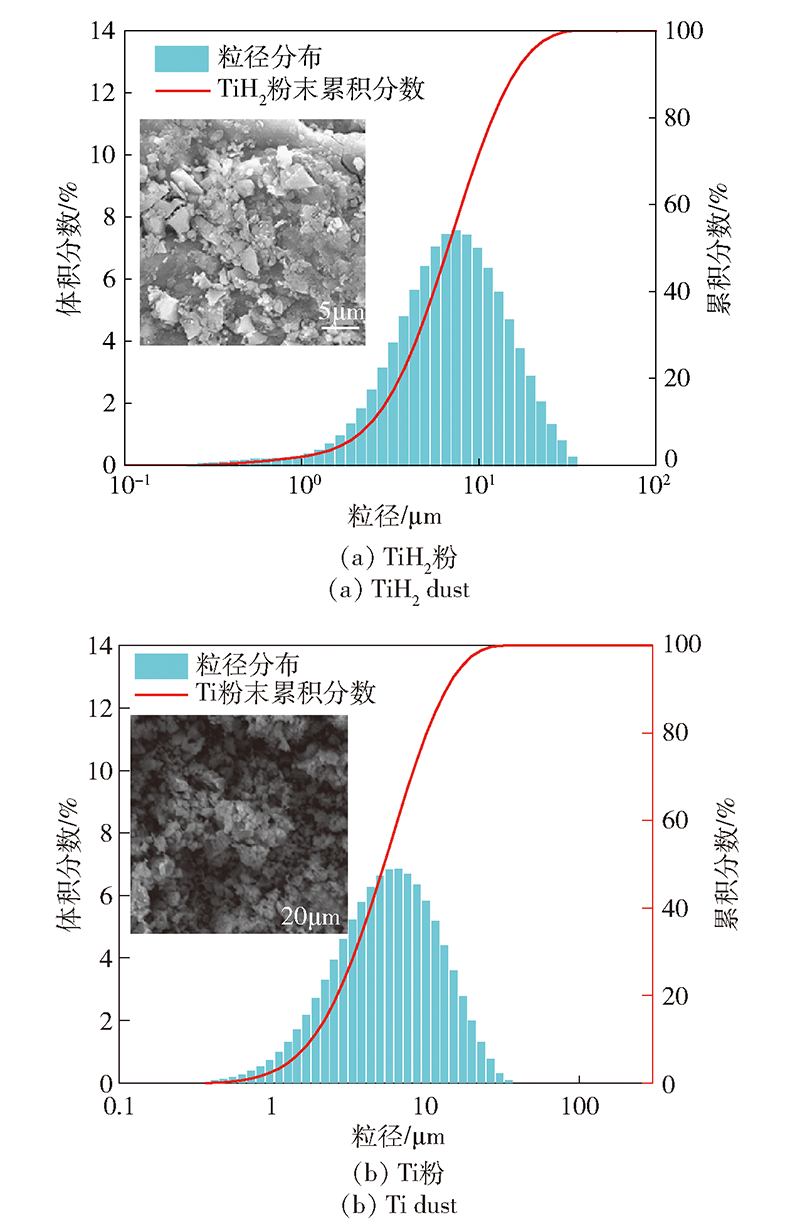

Fig.1 Particle size distribution and microstructural characteristics

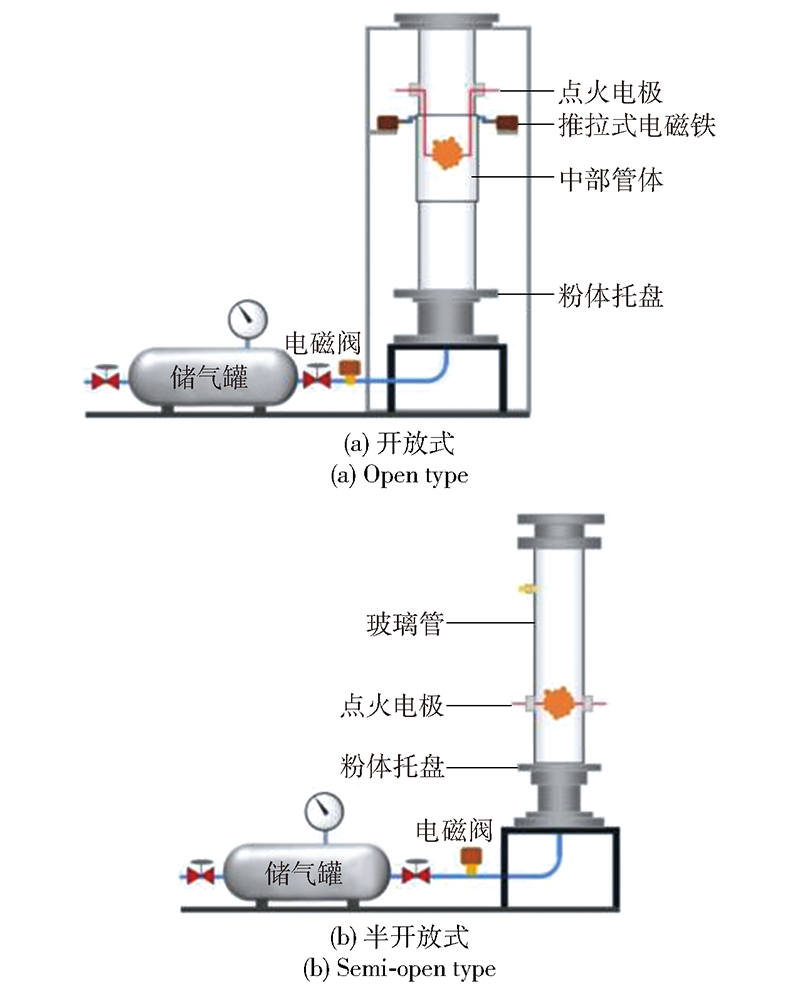

Fig.2 Hartmann tubes

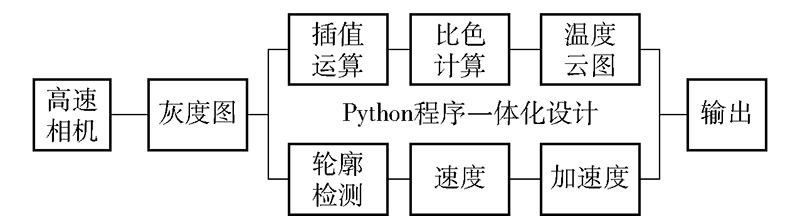

Fig.3 Realization process of high-speed two-dimensional measurement

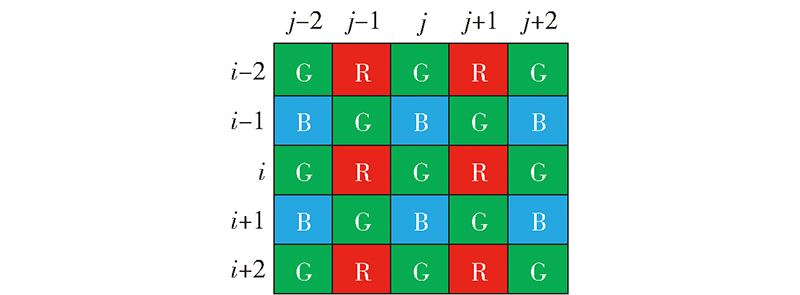

Fig.4 Bayer array of high-speed cameras

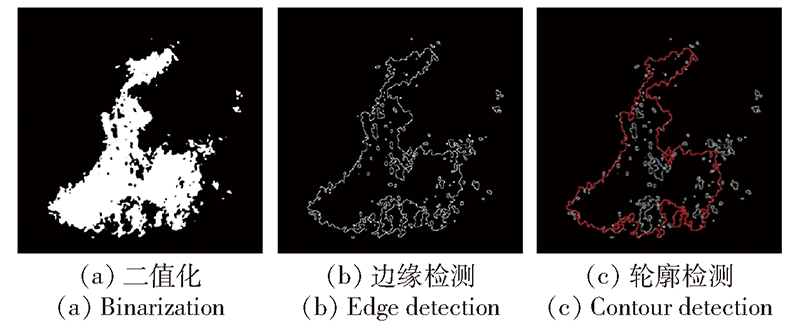

Fig.5 Flame image processing

Fig.6 Flame image processing

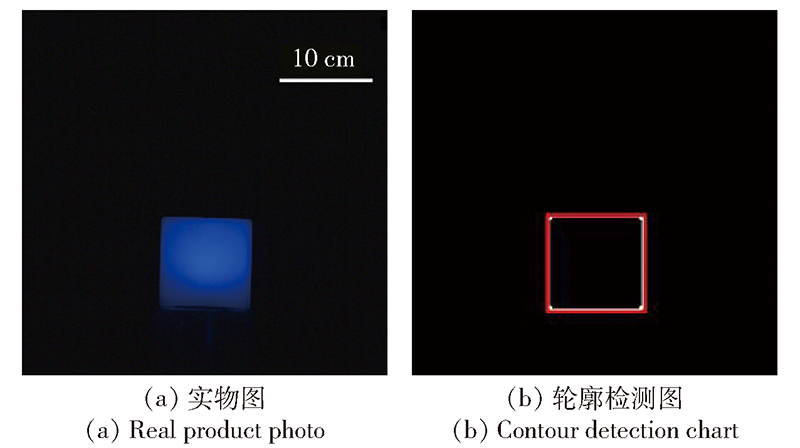

Fig.7 Length proportional calibration experiment

Fig.8 High-speed camera photos of TiH2 dust cloud flame propagated in an open space

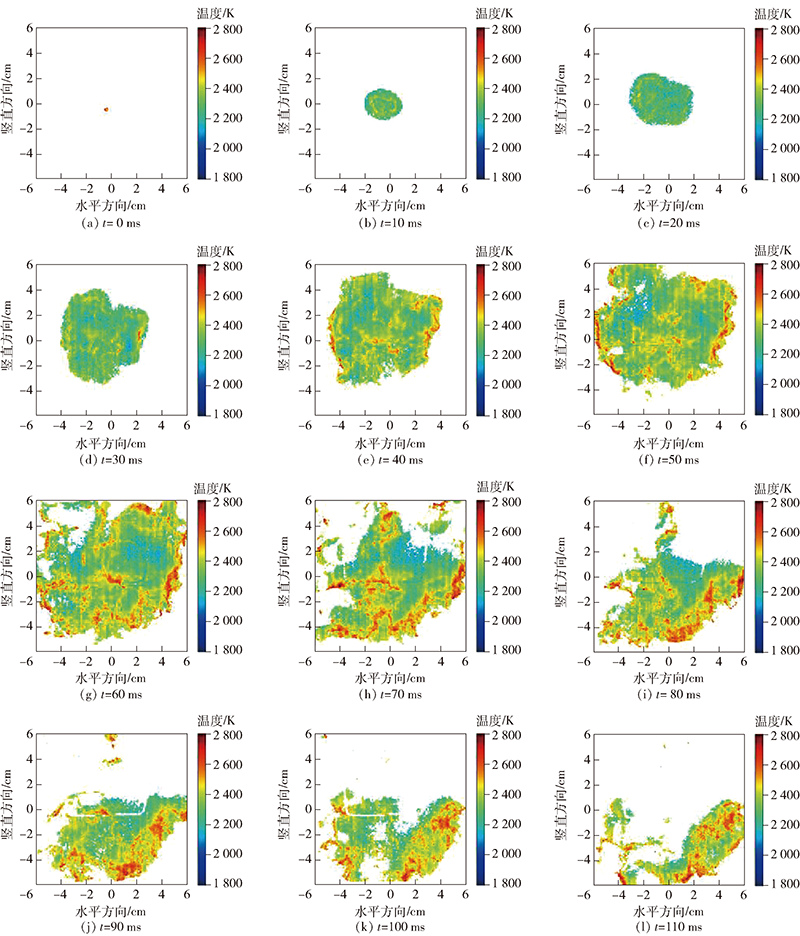

Fig.9 High-speed two-dimensional dynamic temperature distribution maps of TiH2 dust cloud (500g/m3) flame in an open space

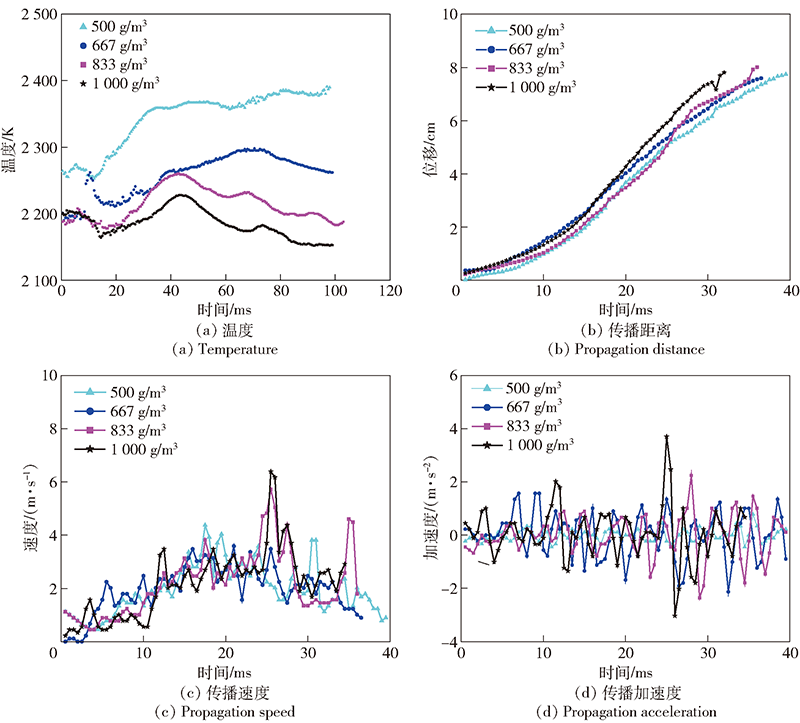

Fig.10 Flame parameters of TiH2 dust with different concentrations varying with time in an open space

Fig.11 Comparison of flame parameters of TiH2 dust and Ti dust at 833g/m3 concentration

Fig.12 High-speed camera photos of TiH2 dust cloud flame propagated in a tube

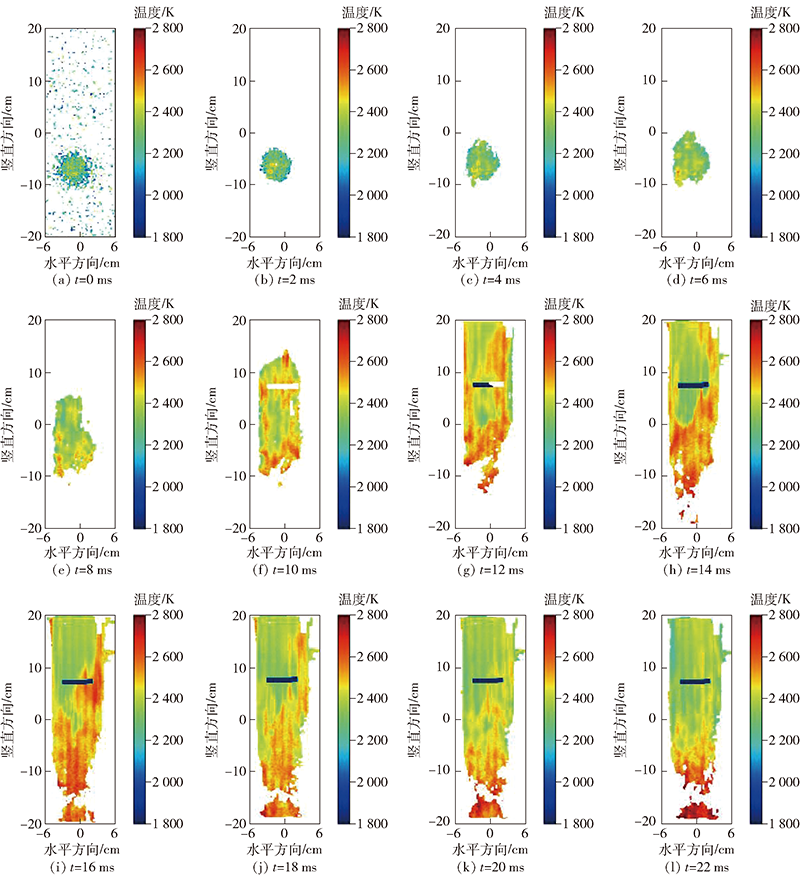

Fig.13 High-speed two-dimensional dynamic temperature distribution maps of TiH2 dust cloud flame propagated in a tube

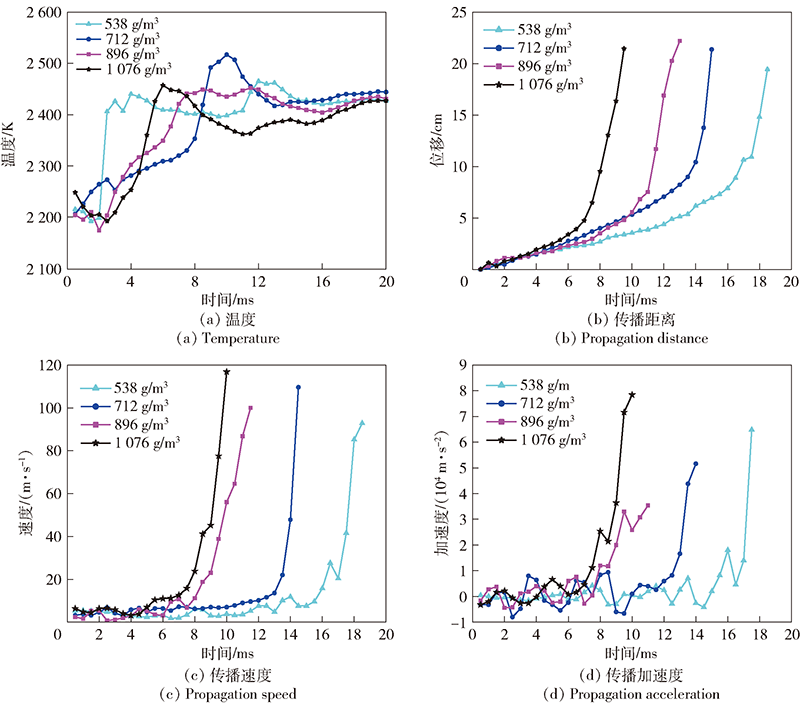

Fig.14 Flame parameters of TiH2 dust with different concentrations varying with time in a tube

References 20

[1]	昝文涛, 洪滔, 董贺飞. 铝粉尘云团爆轰温压效应的数值模拟[J]. 兵工学报, 2018, 39(1):101-110. doi: 10.3969/j.issn.1000-1093.2018.01.011
	ZAN W T, HONG T, DONG H F. Numerical simulation of detonation temperature and pressure effects of aluminum powder cloud[J]. Acta Armamentarii, 2018, 39(1):101-110. (in Chinese)
[2]	苗朝阳, 李秀地, 杨森, 等. 耿振刚温压弹爆炸效应与防护技术研究现状[J]. 兵器装备工程学报, 2016, 37(4) 155-159.
	MIAO C Y, LI X D, YANG S, et al. Research status of explosion effect and protection technology of thermobaric bomb[J]. Journal of Ordnance Equipment Engineering, 2016, 37(4):155-159. (in Chinese)
[3]	CAO W, SONG Q G, GAO D Y, et al. Detonation characteristics of an aluminized explosive added with boron and magnesium hydride[J]. Propellants, Explosives, Pyrotechnics, 2019, 44(11): 1393-1399. doi: 10.1002/prep.v44.11 URL
[4]	YAO M, DING W, RAO G N, et al. Effects of MgH₂/Mg(BH₄)₂ powders on the mechanical sensitivity of conventional explosive compounds[J]. Propellants, Explosives, Pyrotechnics, 2018, 43(3):274-279. doi: 10.1002/prep.v43.3 URL
[5]	DING X Y, SHU Y J, CHEN Z Q, et al. Coating of LiBH₄ and its effect on the decomposition of RDX and AP[J]. Central European Journal of Energetic Materials, 2017, 14(1): 134-151. doi: 10.22211/cejem/67678 URL
[6]	XUE B, MA H H, SHEN Z W. Effect of TiH₂ particle size and content on the underwater explosion performance of RDX-based explosives[J]. Propellants, Explosives, Pyrotechnics, 2017, 42(7):791-798. doi: 10.1002/prep.v42.7 URL
[7]	COMET M, SCHWARTZ C, SCHNELL F, et al. New detonating compositions from ammonium dinitramide[J]. Propellants, Explosives, Pyrotechnics, 2021, 46(5):742-750. doi: 10.1002/prep.v46.5 URL
[8]	CHENG Y F, MENG X R, FENG C T, et al. The effect of the hydrogen containing material TiH₂ on the detonation characteristics of emulsion explosives[J]. Propellants, Explosives, Pyrotechnics, 2017, 42(6): 585-591. doi: 10.1002/prep.v42.6 URL
[9]	WU X L, XU S, PANG A M, et al. Hazard evaluation of ignition sensitivity and explosion severity for three typical MH₂(M=Mg, Ti, Zr) of energetic materials[J]. Defence Technology, 2021, 7(4):1262-1268.
[10]	CHENG Y F, WU H B, LIU R, et al. Combustion behaviors and explosibility of suspended metal hydride TiH₂ dust[J]. International Journal of Hydrogen Energy, 2020, 45(21):12216-12224. doi: 10.1016/j.ijhydene.2020.02.137 URL
[11]	CHENG Y F, MENG X R, SONG S X, et al. Hybrid H₂/Ti dust explosion hazards during the production of metal hydride TiH₂ in a closed vessel[J]. International Journal of Hydrogen Energy, 2019, 44:11145-11152. doi: 10.1016/j.ijhydene.2019.02.189 URL
[12]	CHENG Y F, MENG X R, MA H H, et al. Flame propagation behaviors and influential factors of TiH₂ dust explosions at a constant pressure[J]. International Journal of Hydrogen Energy, 2018, 43:16355-16363. doi: 10.1016/j.ijhydene.2018.06.145 URL
[13]	田培培, 张猛, 王高, 等. 基于红外热像仪的温压弹爆炸温度场测试[J]. 红外技术, 2016, 38(3):260-265.
	TIAN P P, ZHANG M, WANG G, et al. Explosive temperature field test of the thermobaric bomb based on the infrared thermal imager[J]. Infrared Technology, 2016, 38(3):260-265. (in Chinese)
[14]	许仁翰, 周钇捷, 狄长安, 等. 基于高速成像的爆炸温度场测试方法[J]. 兵工学报, 2021, 42(3): 640-647. doi: 10.3969/j.issn.1000-1093.2021.03.021
	XU R H, ZHOU Y J, DI C A, et al. A temperature measuring method for explosive temperature field based on high-speed imaging technology[J]. Acta Armamentarii, 2021, 42(3):640-647. (in Chinese) doi: 10.3969/j.issn.1000-1093.2021.03.021
[15]	DENDMORE J M, HOMAN B E, BISS M M, et al. High-speed two-camera imaging pyrometer for mapping fireball temperatures[J]. Applied Optics, 2011, 50(33):6267-6271. doi: 10.1364/AO.50.006267 URL
[16]	CHENG Y F, YAO Y L, WANG Z H, et al. An improved two-colour pyrometer based method for measuring dynamic temperature mapping of hydrogen-air combustion[J]. International Journal of Hydrogen Energy, 2021, 46:34463-34468. doi: 10.1016/j.ijhydene.2021.07.224 URL
[17]	孔成栋, 于丹, 姚强, 等. 基于彩色火焰图像的铝、硼纳米颗粒燃烧特性[J]. 光学精密工程, 2015, 23(8):2288-2295.
	KONG C D, YU D, YAO Q, et al. Combustion characteristics of aluminum and boron nanoparticles based on flame color images[J]. Optics and Precision Engineering, 2015, 23(8):2288-2295. (in Chinese) doi: 10.3788/OPE. URL
[18]	ADAMS JR J E, HAMILTON JR J F. Adaptive color plane interpolation in single sensor color electronic camera: US05652621A[P]. 1997-07-29.
[19]	刘文近, 程扬帆, 陆松来, 等. PVAc弹性微球包覆的高能化学点火具的点火性能[J]. 含能材料, 2018, 26(6):530-536.
	LIU W J, CHENG Y F, LU S L, et al. Ignition performance of the high energy chemical igniter coated with a PVAc elastic microspher[J]. Chinese Journal of Energetic Materials, 2018, 26(6): 530-536. (in Chinese)
[20]	JULIEN P, VICKERY J, GOROSHIN S, et al. Freely-propagating flames in aluminum dust clouds[J]. Combustion and Flame, 2015, 162:4241-4253. doi: 10.1016/j.combustflame.2015.07.046 URL
