Load Characteristics of High Chamber Pressure and High Speed Launch of Underwater Vehicle

doi:10.12382/bgxb.2021.0802

Abstract

Abstract:

The multiphase flow field formed behind a vehicle under high-chamber pressure and high-speed launch in water is complex, and the load effect is not clear yet. The launch load characteristics of a small-caliber underwater vehicle during cold launch under high chamber pressure and high initial velocity were investigated. The flow field and dynamic characteristics during interior ballistics, interaction between overflow gas and water, and hydrodynamic ram effect stage during the launch of the vehicle were analyzed. A numerical model of the high-speed cold launch process of the underwater vehicle was established, while a numerical multicomponent gas-vapor-liquid simulation was performed using a multiphase flow model and a dynamic grid approach. The load characteristics of launcher and their causes in different phases were then analyzed. The results showed that: large impact loads were mainly from the internal ballistic process and the hydrodynamic ramhydrodynamic ram effect, while a relatively small load was from the low-pressure area caused by overflowing gas; more specifically, the hydrodynamic ram hydrodynamic rampeak pressure decreased significantly because the mixed gas spilled out in large quantities under high chamber pressure, which was different from the low chamber-pressure launch condition.

Key words: underwater vehicle, underwater launch, load characteristics, high chamber pressure

LIU Yue, ZHAO Zijie, DAI Qi, WANG Anhua, ZHANG Hui. Load Characteristics of High Chamber Pressure and High Speed Launch of Underwater Vehicle[J]. Acta Armamentarii, 2023, 44(4): 1126-1138.

Figures/Tables 24

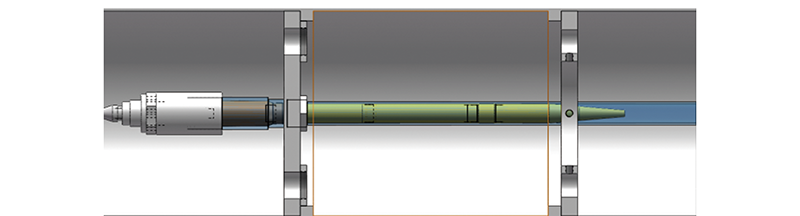

Fig.1 Underwater vehicle’s high-speed launch model

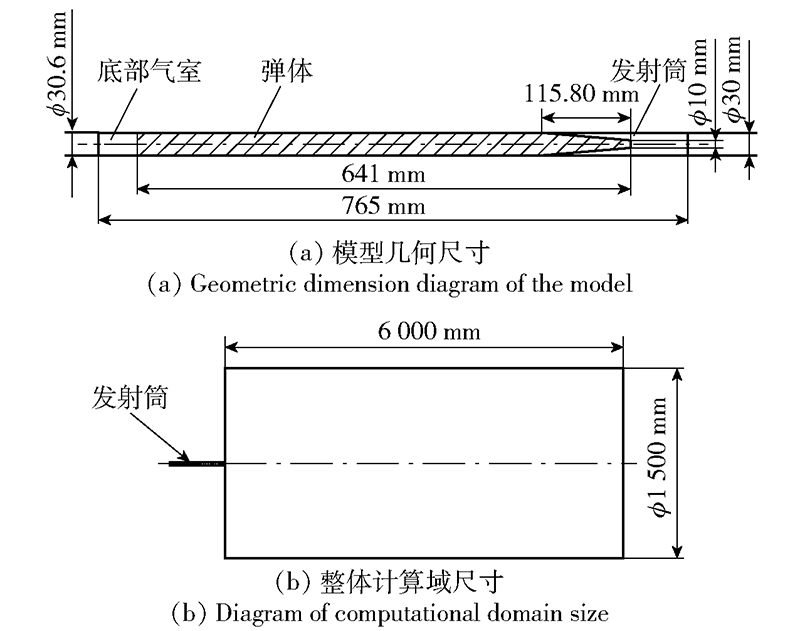

Fig.2 Calculation model

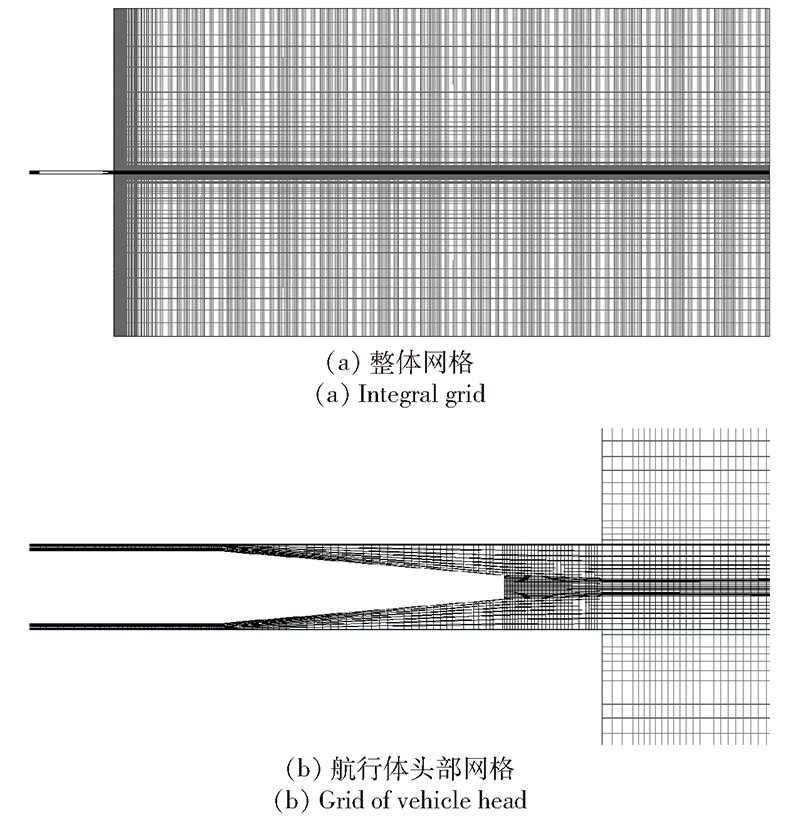

Fig.3 Grid division

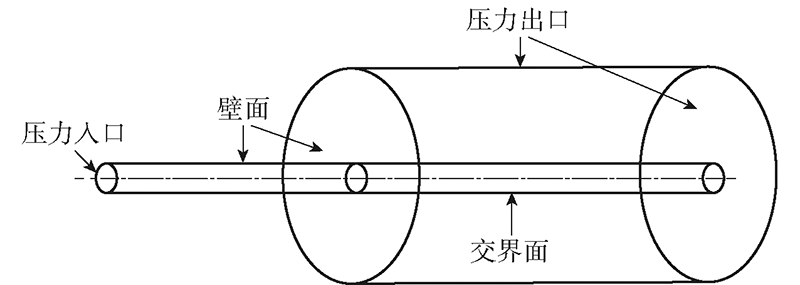

Fig.4 Boundary condition

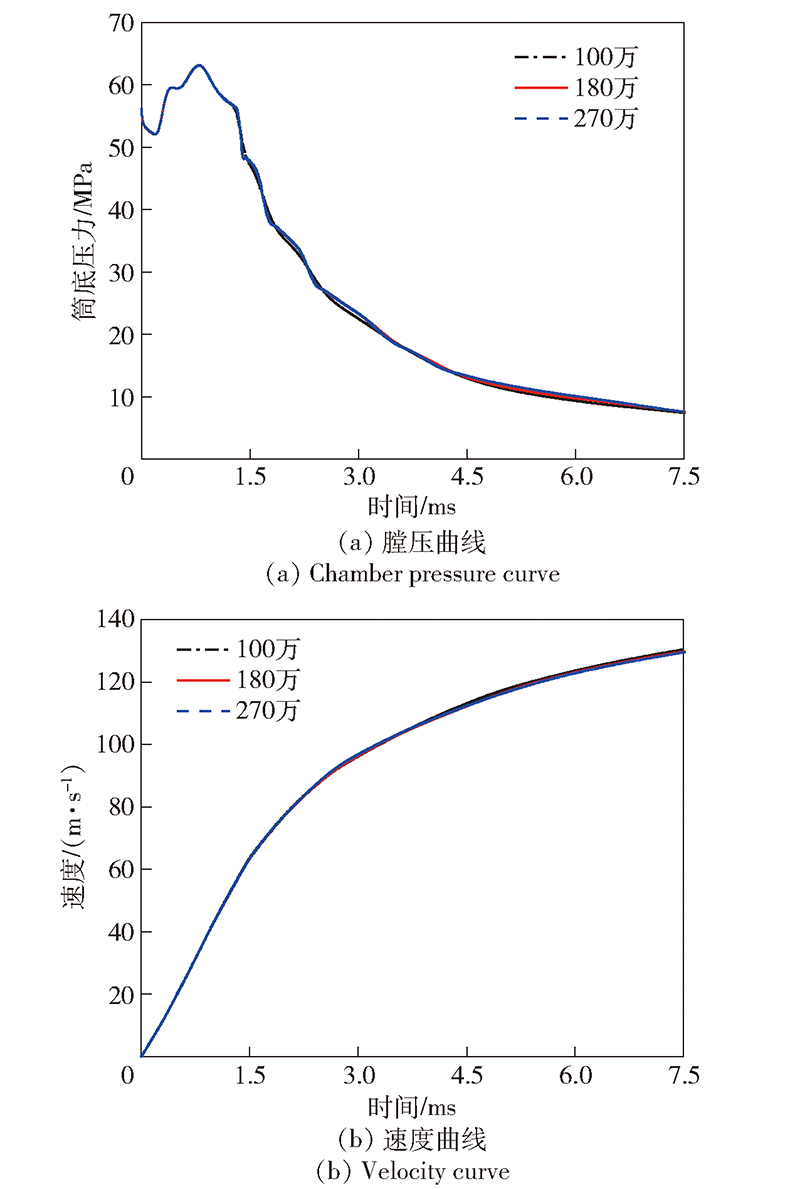

Fig.5 Interior ballistic parameter curves under different grid numbers

Fig.6 Schematic diagram of test plan

Fig.7 Test devices

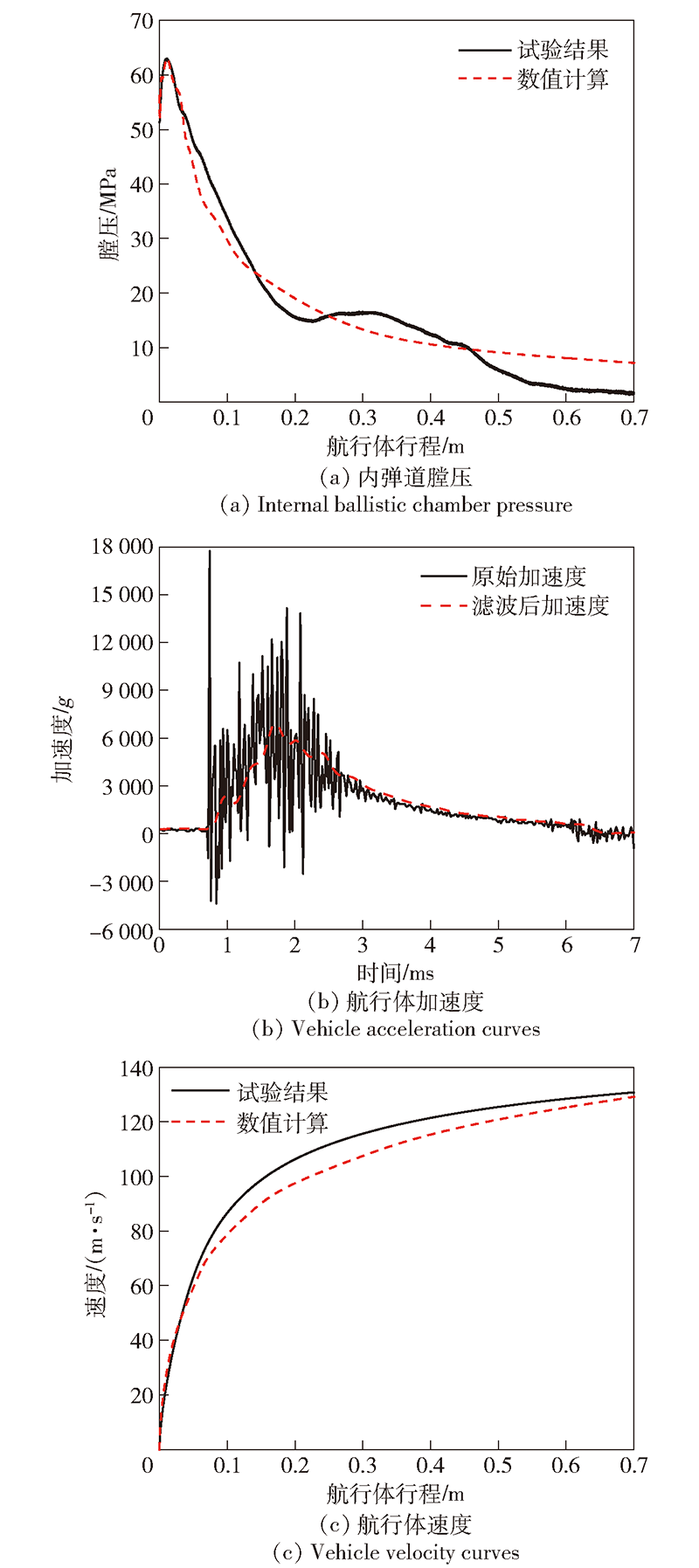

Fig.8 Interior ballistic process curves

Fig.9 Pressure nephogram of interior ballistic process

Fig.10 Gas volume fraction diagram of interior ballistic process

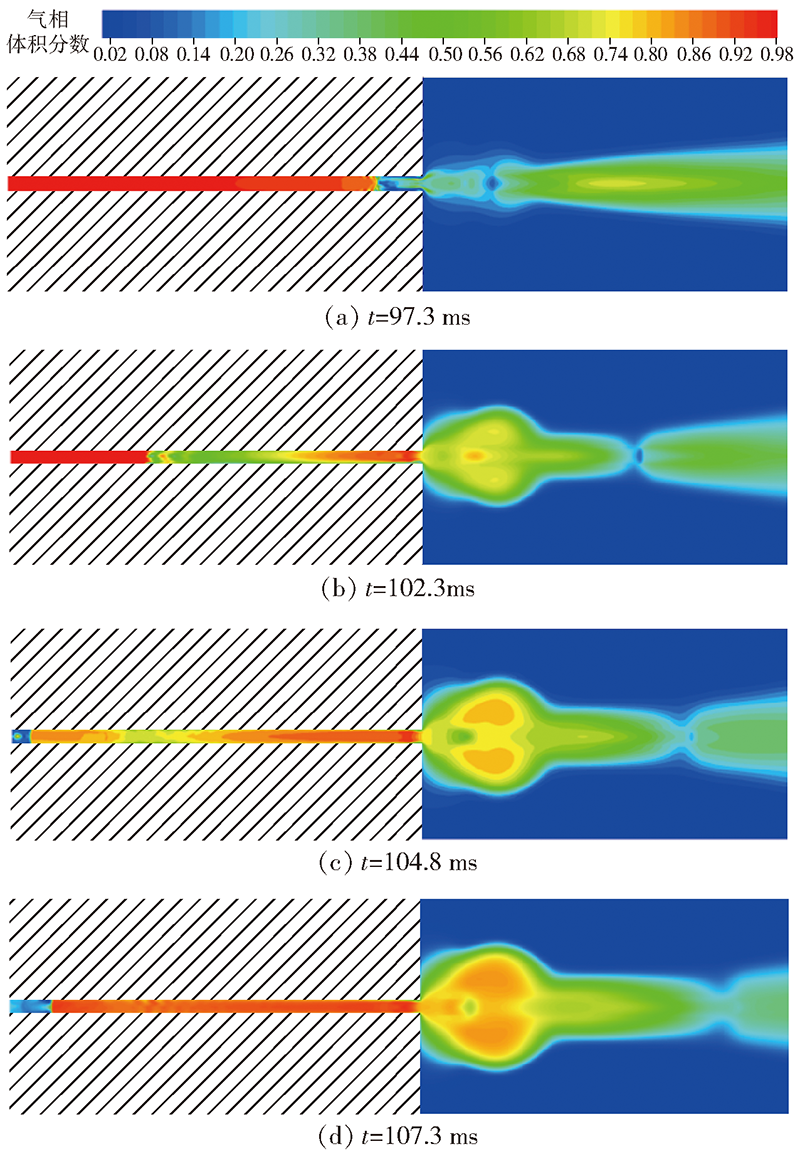

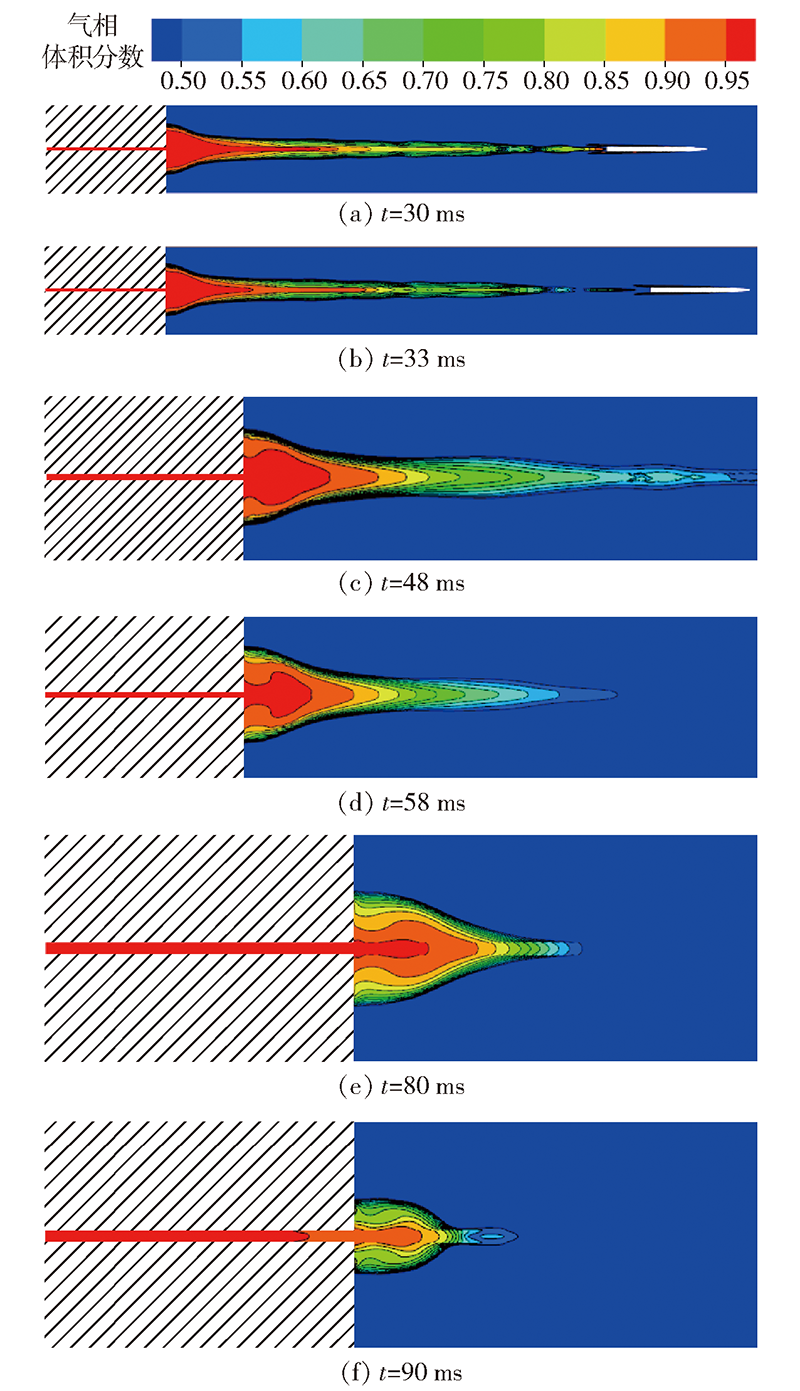

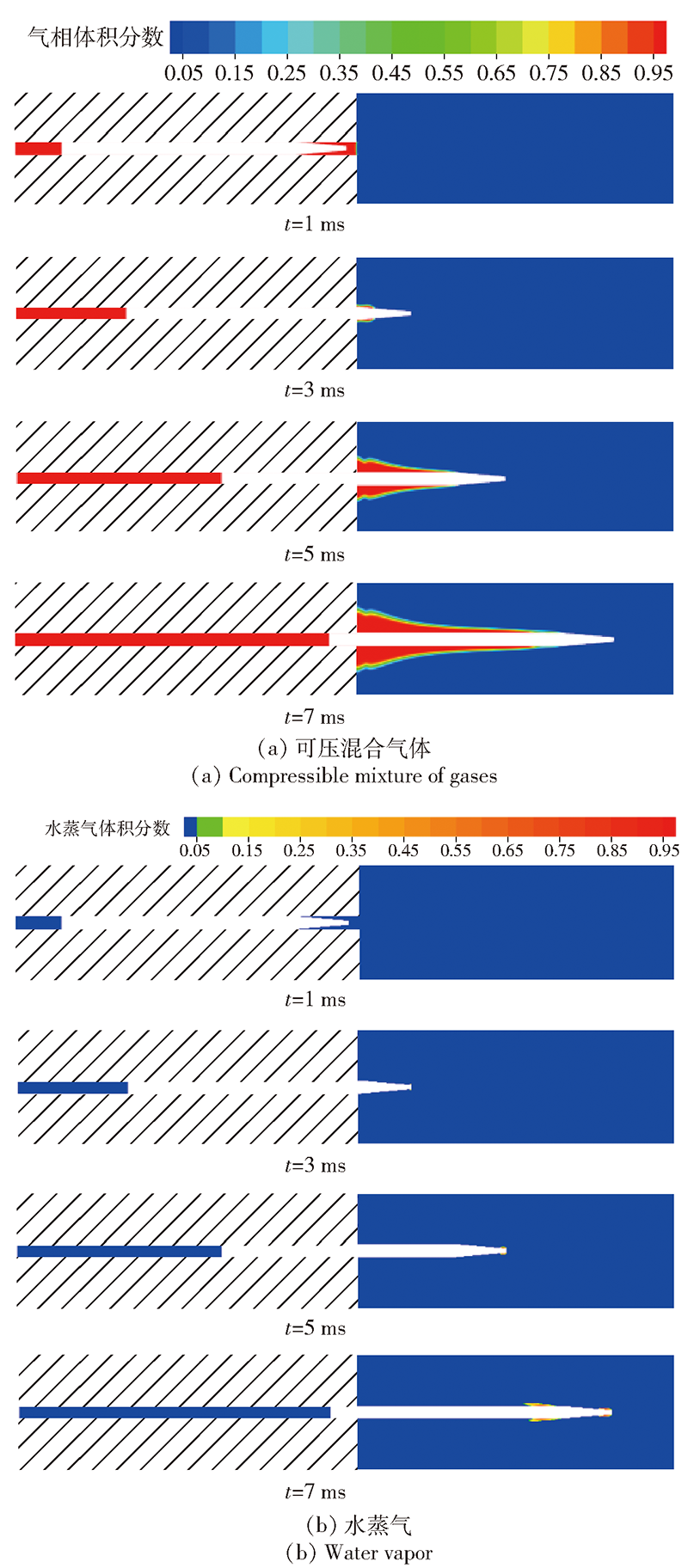

Fig.11 Gas volume fraction diagram of the flow field at the nozzle

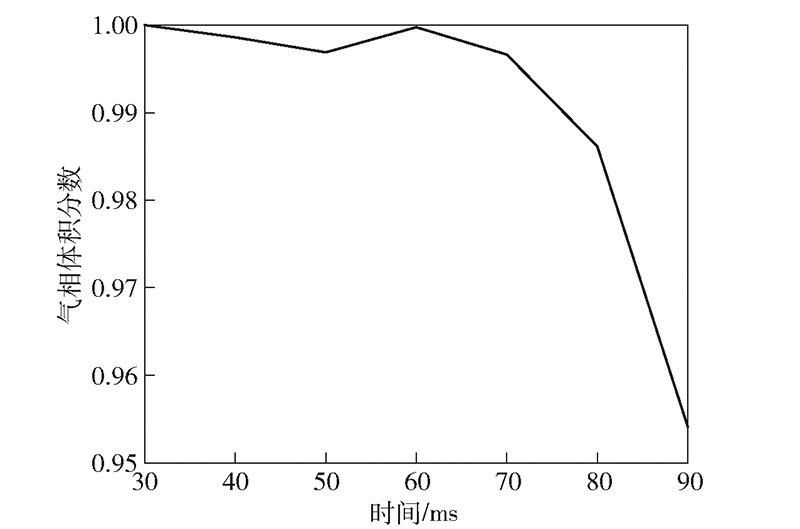

Fig.12 Variation of gas volume fraction at nozzle section

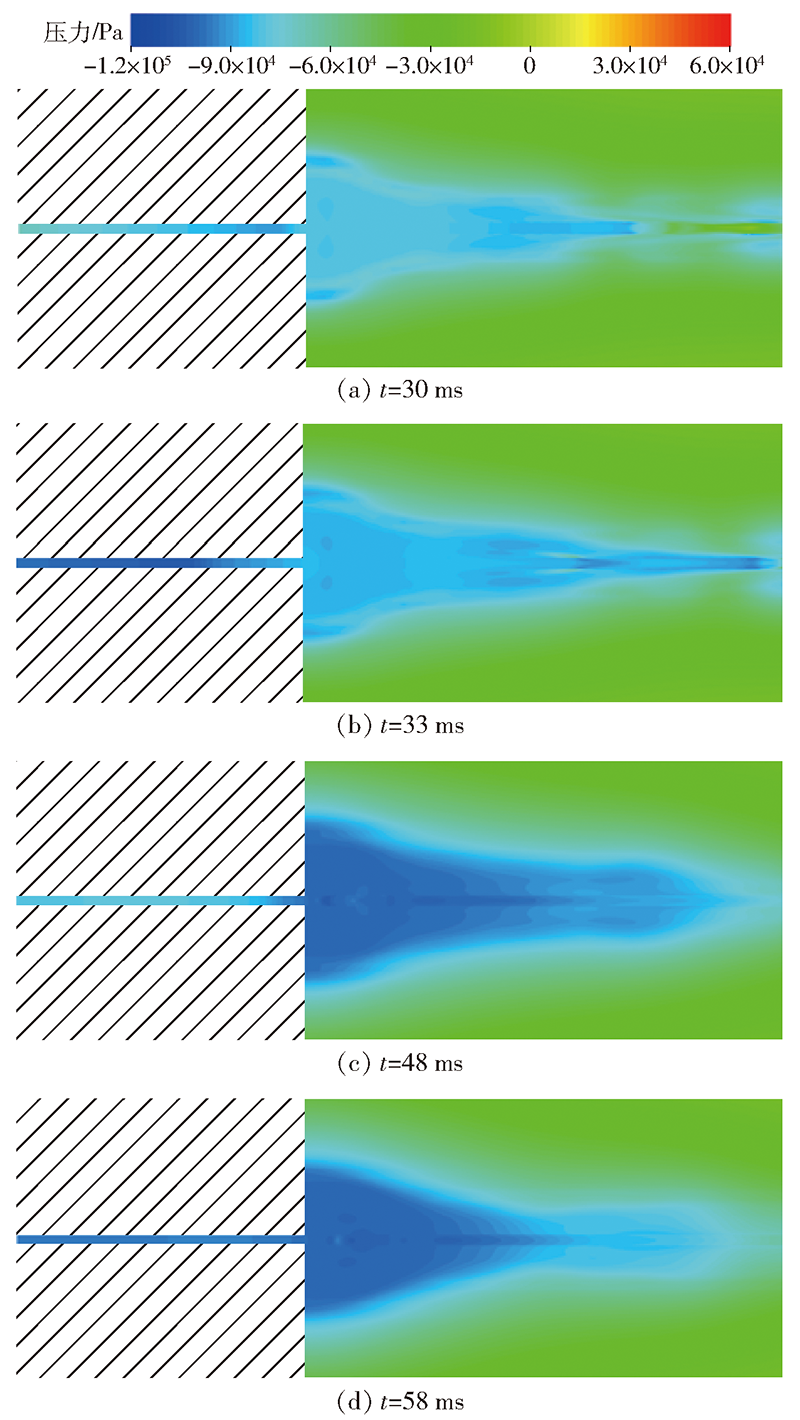

Fig.13 Pressure nephogram diagram of nozzle flow field

Fig.14 Change of nozzle pressure during gas overflow

Fig.15 Change of cylinder bottom pressure during hydrodynamic ram effect

Fig.16 Gas volume fraction under hydrodynamic ram effect

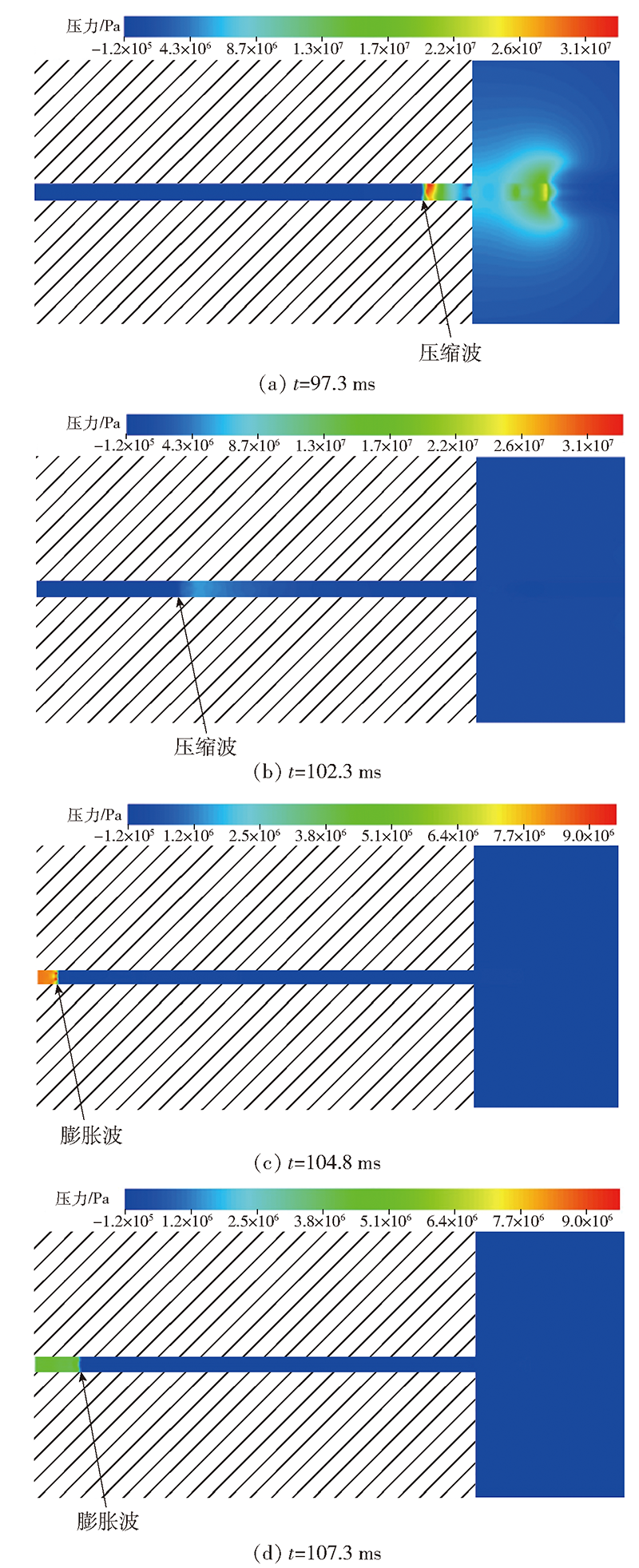

Fig.17 Pressure nephogram of hydrodynamic ram effect

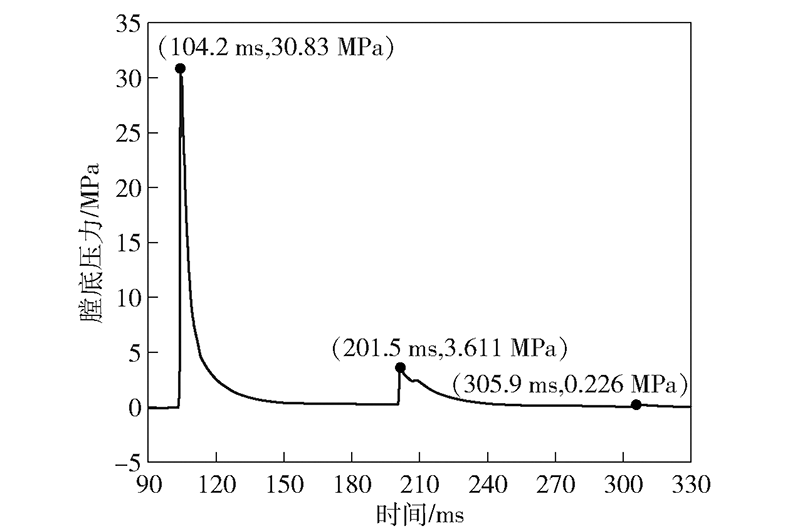

Fig.18 Cylinder bottom pressure

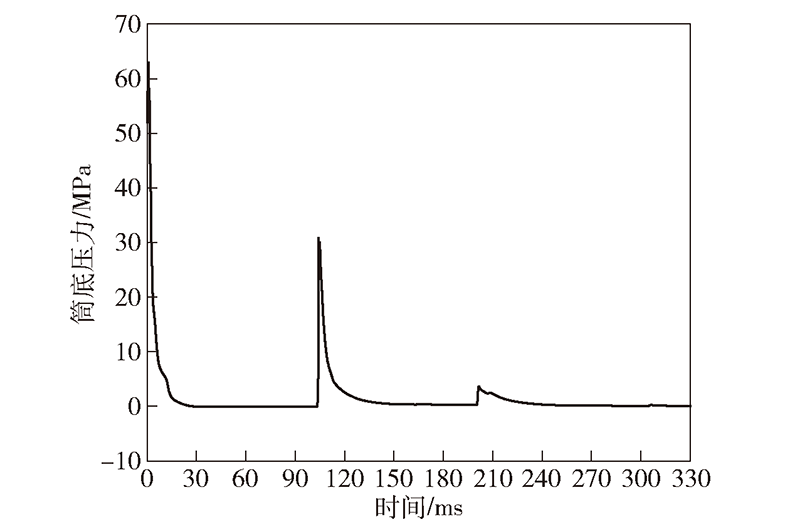

Fig.19 Cylinder bottom pressure curves under different launch conditions

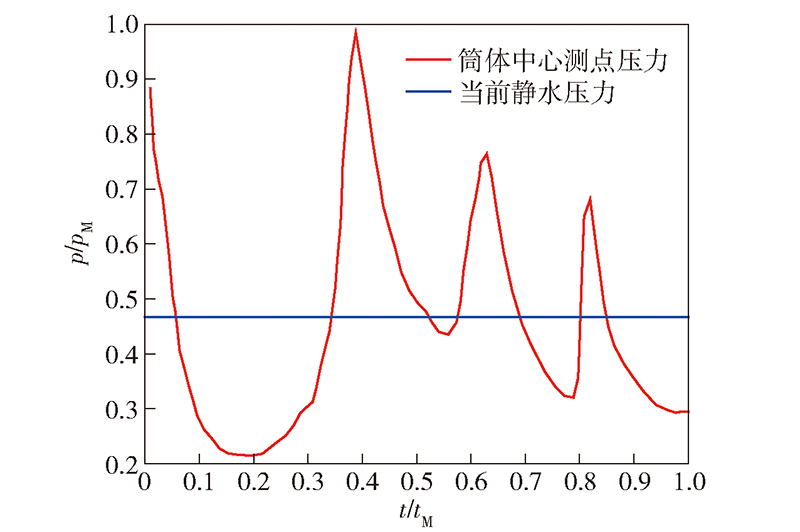

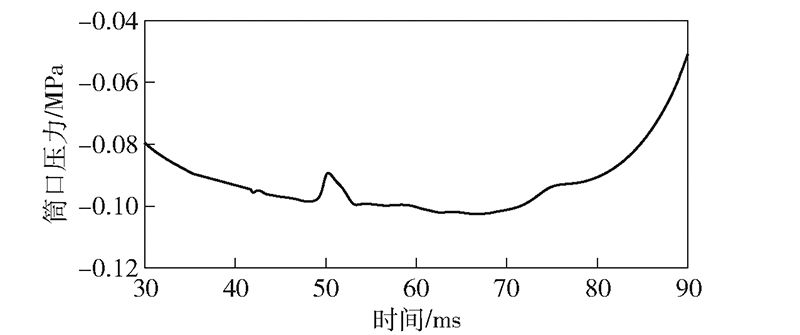

Fig.20 Testing point pressure-time curve under low-chamber pressure launch

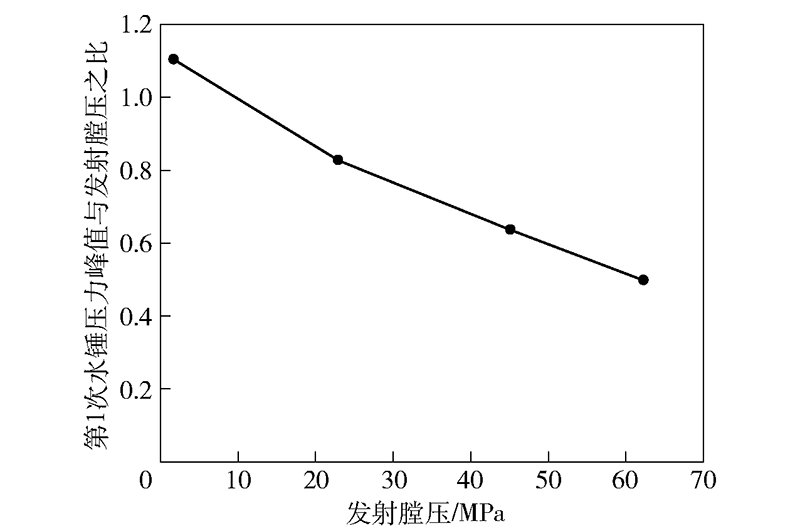

Fig.21 Ratio of the first hydrodynamic ram peak pressure to the chamber pressure

Table 1 Attenuation amplitude of hydrodynamic ram effect at different bore pressures%

工况	水锤效应序号
工况	1	2	3
典型低膛压	8.9	-25.5	-11.0
23MPa	-14.8	-80.0	-66.7
45MPa	-36.5	-82.3	-88.0
62MPa	-51.0	-88.3	-93.7

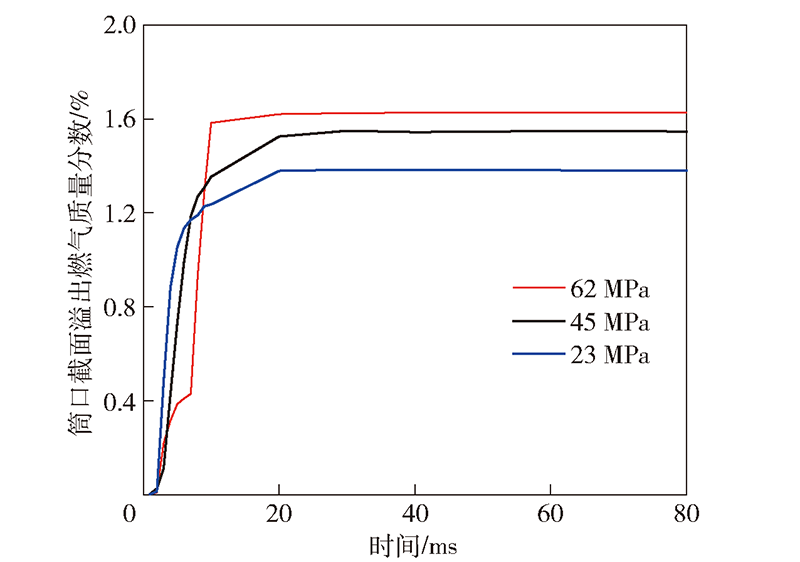

Fig.22 Mass fraction of overflowed gas in nozzle section

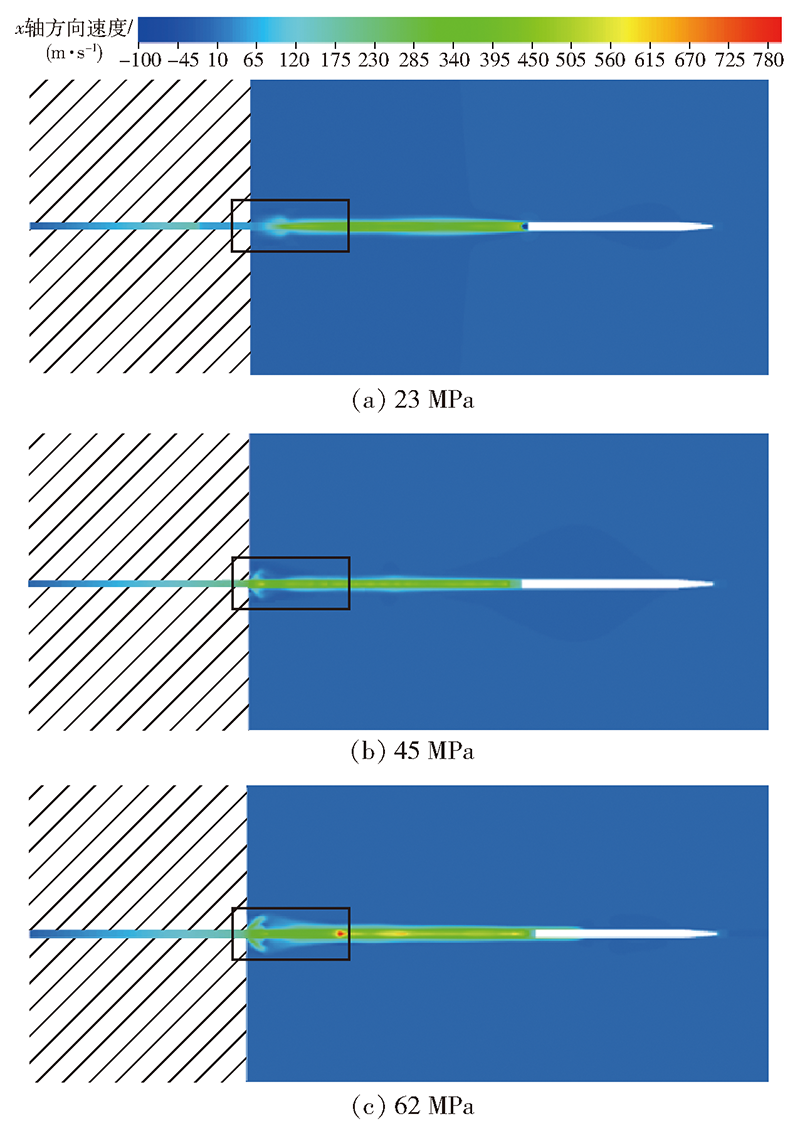

Fig.23 Gas velocity nephogram of nozzle
