轴对称结构声辐射预报的等效面声源与点声源联合算法

doi:10.12382/bgxb.2024.0317

摘要/Abstract

摘要：

轴对称结构作为工程中的常见结构,其声学仿真计算受到工程界广泛关注。对轴对称结构的声辐射问题,提出一种综合利用等效面声源与点声源的方法。针对传统等效点声源在对应结构内部Dirichlet特征频率处解非唯一和对于声学参数灵敏度较大问题,在结构内部布置面声源进行结构外声场的匹配运算,点声源则位于面声源内部以保证解的唯一性。根据结构的对称性,将表面声压与振速按旋转角度展成Fourier级数形式,利用级数之间正交性建立各项待定系数表达形式。基于波叠加原理,建立等效源强度与Fourier级数待定系数之间的关系方程,并把虚拟面积分方程转变为轴对称结构外侧边界积分和旋转角度积分的乘积形式;进一步利用形函数对结构外侧边界进行插值处理,以此获取轴对称结构表面声压与振速之间的传递函数。采用新方法与传统等效点声源法、面声源法与解析法等结果作对比,结果表明了新方法的精确性。

关键词: 等效声源, 轴对称结构, 波叠加, 特征频率, 声辐射

Abstract:

As a common structure in engineering, axisymmetric structures have attracted widespread attention in the engineering community for their acoustic simulation calculations. A method to comprehensively utilize the equivalent surface sound source and point sound source for predicting the acoustic radiation from axisymmetric structure is proposed. In response to the non-uniqueness of solutions for the traditional equivalent point sound sources at the corresponding Dirichlet characteristic frequency inside the structure and the high sensitivity to acoustic parameters, a surface sound source is arranged inside the structure for the matching operations of external sound field, while the point sound source is located inside the surface sound source to ensure the uniqueness of the solution. Based on the symmetry of the structure, the surface sound pressure and vibration velocity are expanded into Fourier series form according to the rotation angle, and the orthogonality between the series is utilized to establish the expression of various undetermined coefficients. An equation for the relationship between the equivalent source strength and the undetermined coefficients of Fourier series is established based on the principle of wave superposition, and the virtual area integral equation is transformed into a product form of the outer boundary integral and rotation angle integral of axisymmetric structure. The shape function is utilized to interpolate the outer boundary of the structure in order to obtain the transfer function between the surface sound pressure and vibration velocity of axisymmetric structure. The accuracy of the proposed method is demonstrated by comparing the results of the proposed method with those of traditional equivalent point sound source method, surface sound source method, and analytical method.

Key words: equivalent sound source, axial symmetry, wave superposition, characteristic frequency, acoustic radiation

中图分类号:

TB52
TB53

刘宝, 王小二, 张卫. 轴对称结构声辐射预报的等效面声源与点声源联合算法[J]. 兵工学报, 2025, 46(5): 240317-.

LIU Bao, WANG Xiao’er, ZHANG Wei. A Joint Algorithm of Equivalent Surface Sound Source and Point Sound Source for Predicting the Acoustic Radiation from Axisymmetric Structure[J]. Acta Armamentarii, 2025, 46(5): 240317-.

图/表 10

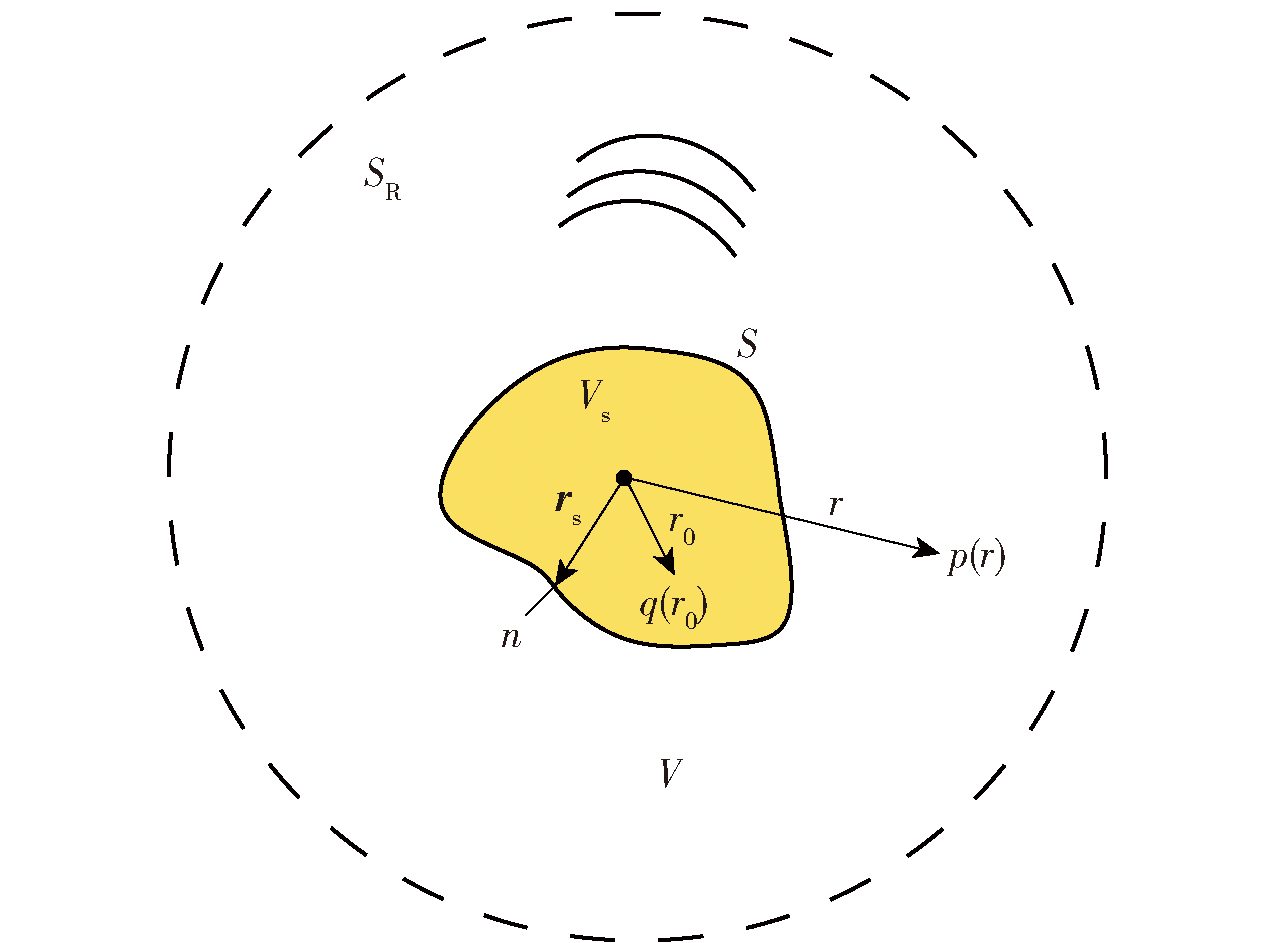

图1 等效源方法示意图

Fig.1 The sketch map of equivalent sound source method

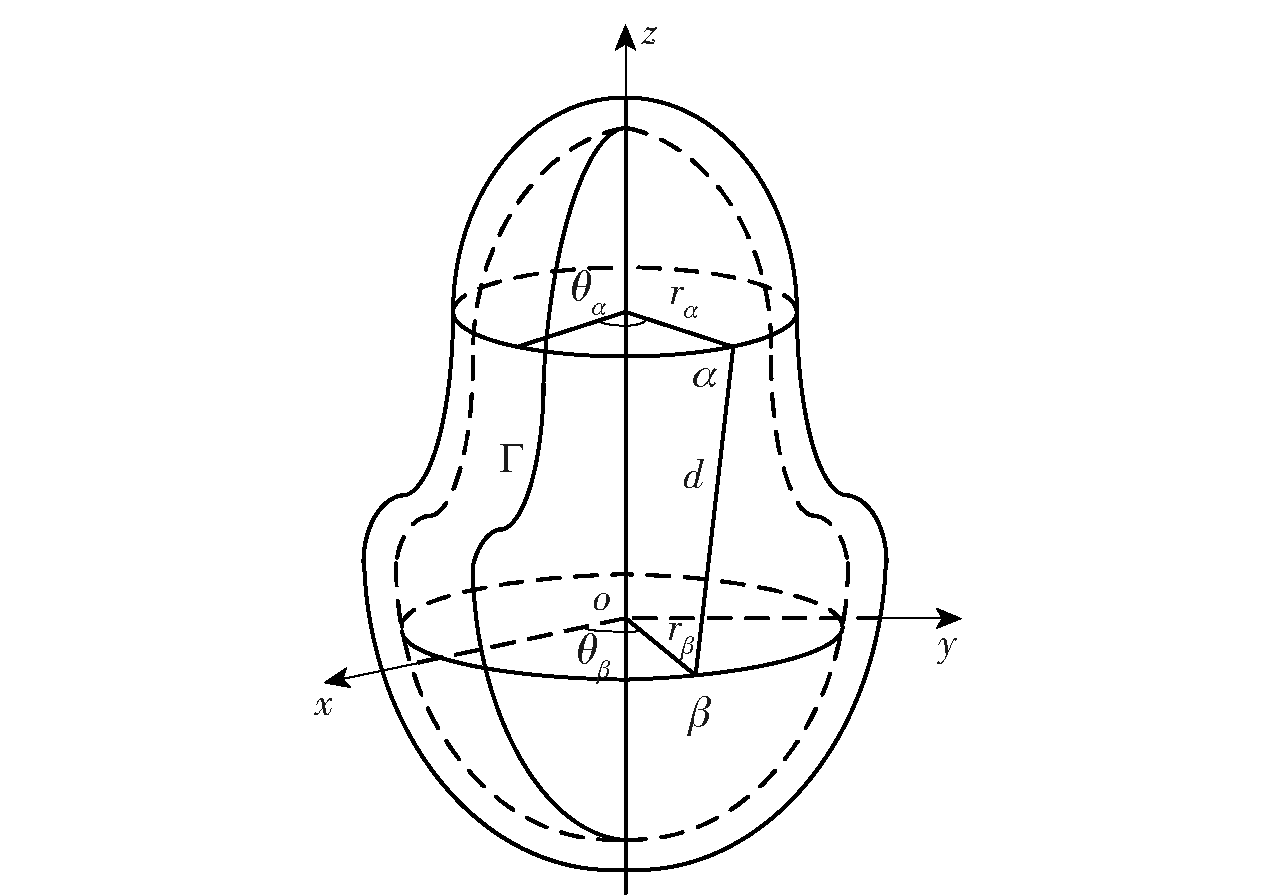

图2 轴对称结构坐标示意图

Fig.2 Schematic diagram of axisymmetric structural coordinates

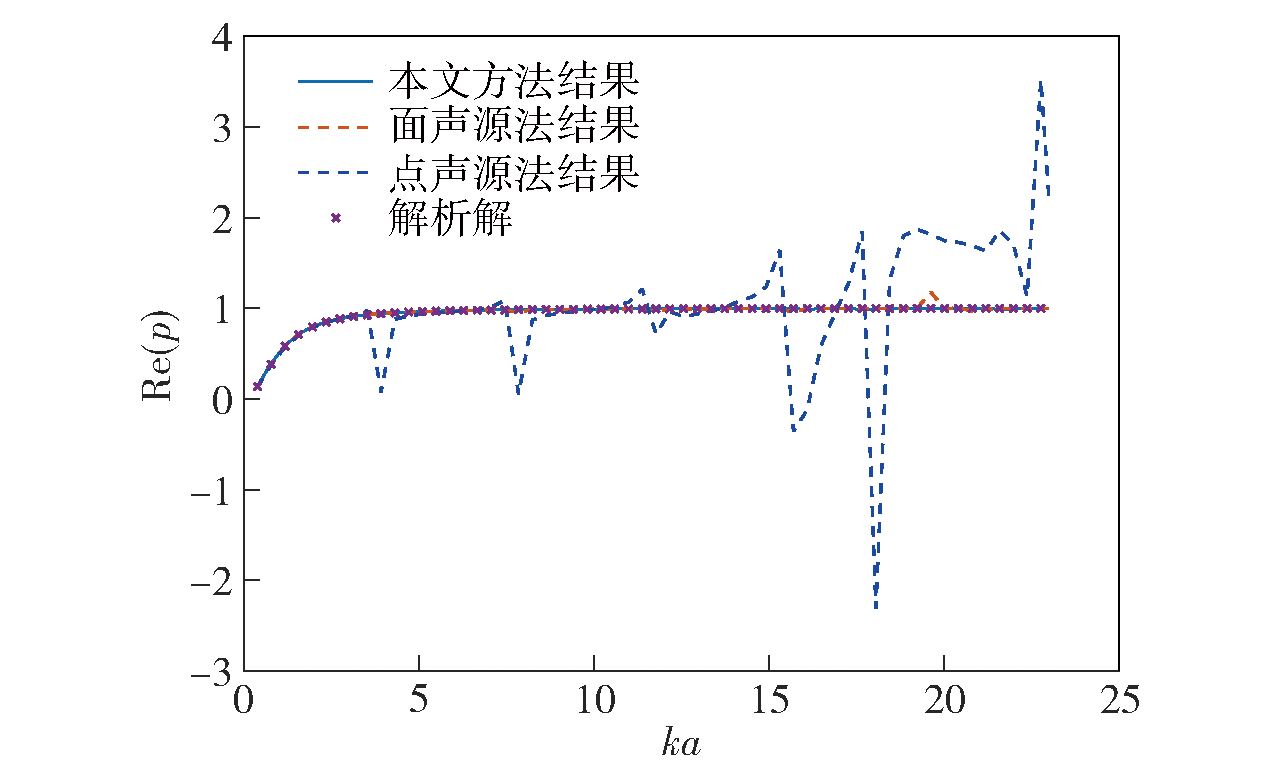

图3 θa=0°处声压实部比较图

Fig.3 Real part of acoustic pressure for θa=0°

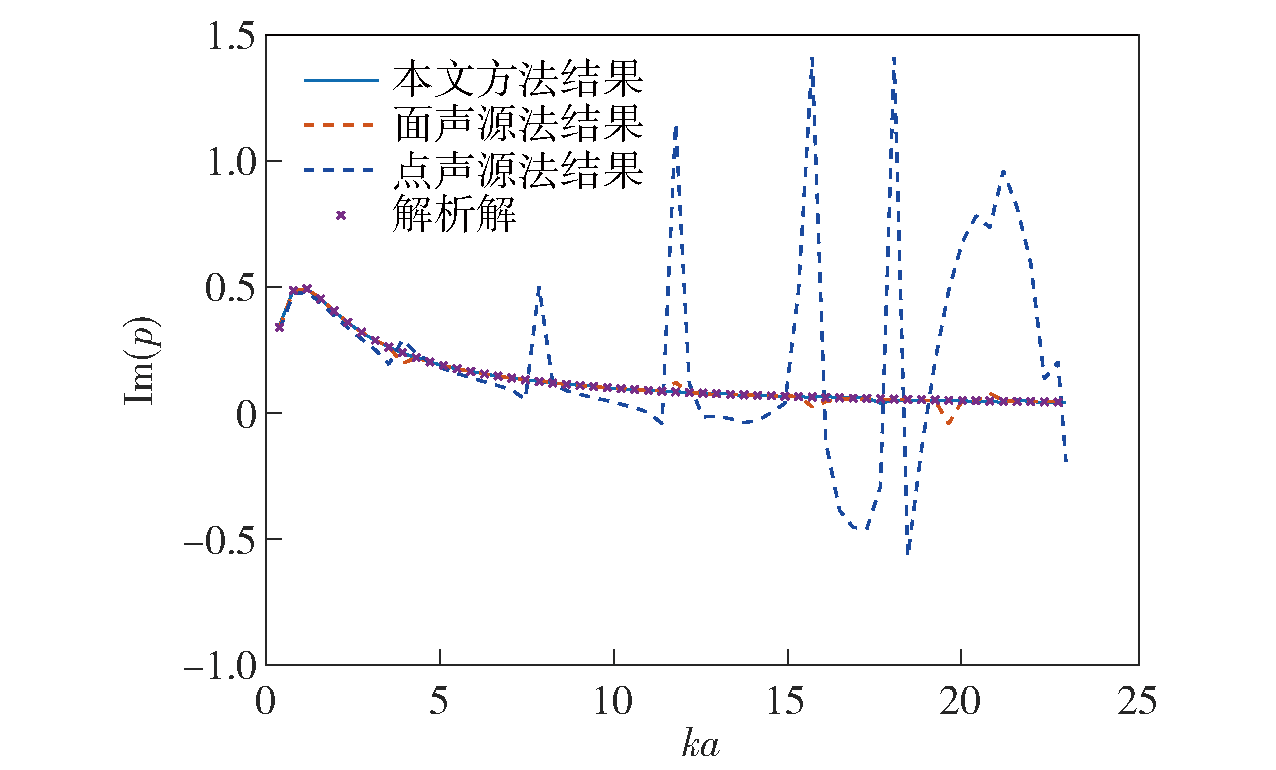

图4 θa=0°处声压虚部比较图

Fig.4 Imaginary part of acoustic pressure for θa=0°

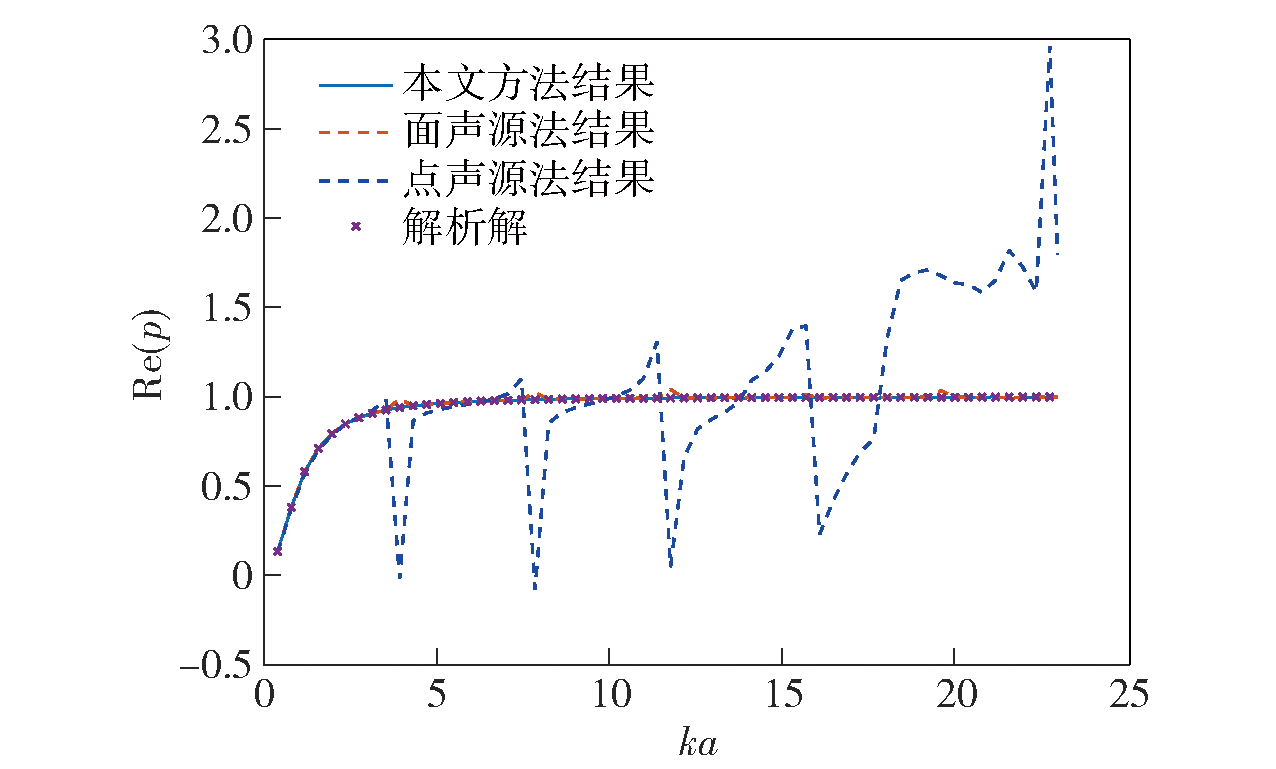

图5 θa=45°处声压实部比较图

Fig.5 Real part of acoustic pressure for θa=45°

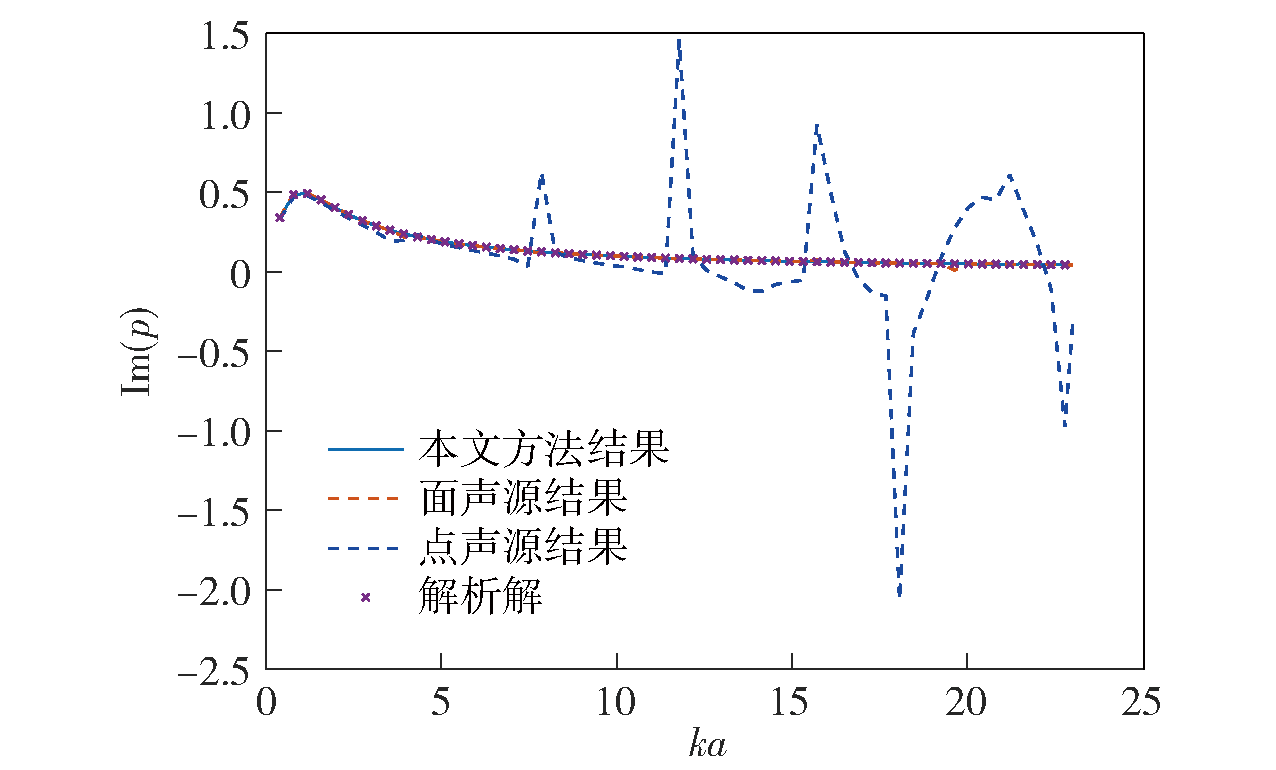

图6 θa=45°处声压虚部比较图

Fig.6 Imaginary part of acoustic pressure for θa=45°

图7 θa=0°处无量纲化声压实部比较图

Fig.7 Real part of dimensionless acoustic pressure for θa=0°

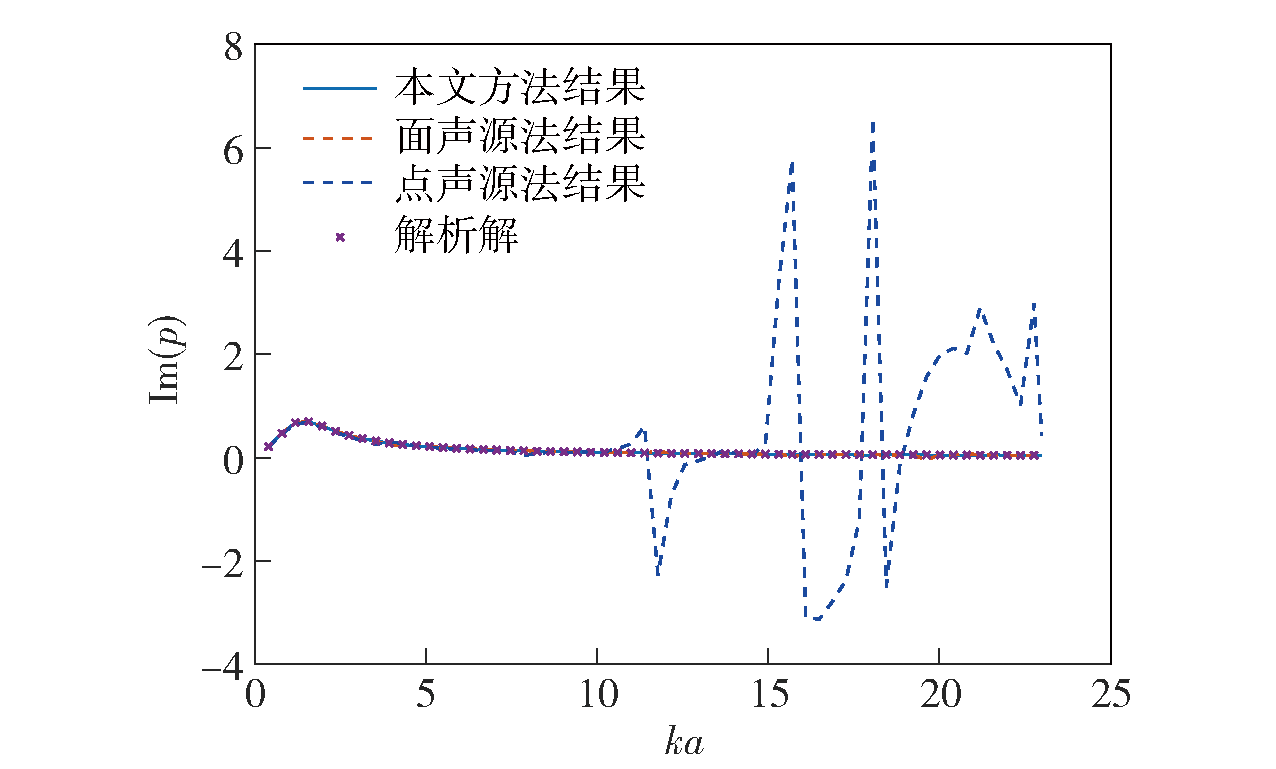

图8 θa=0°处无量纲化声压虚部比较图

Fig.8 Imaginary part of dimensionless acoustic pressure for θa=0°

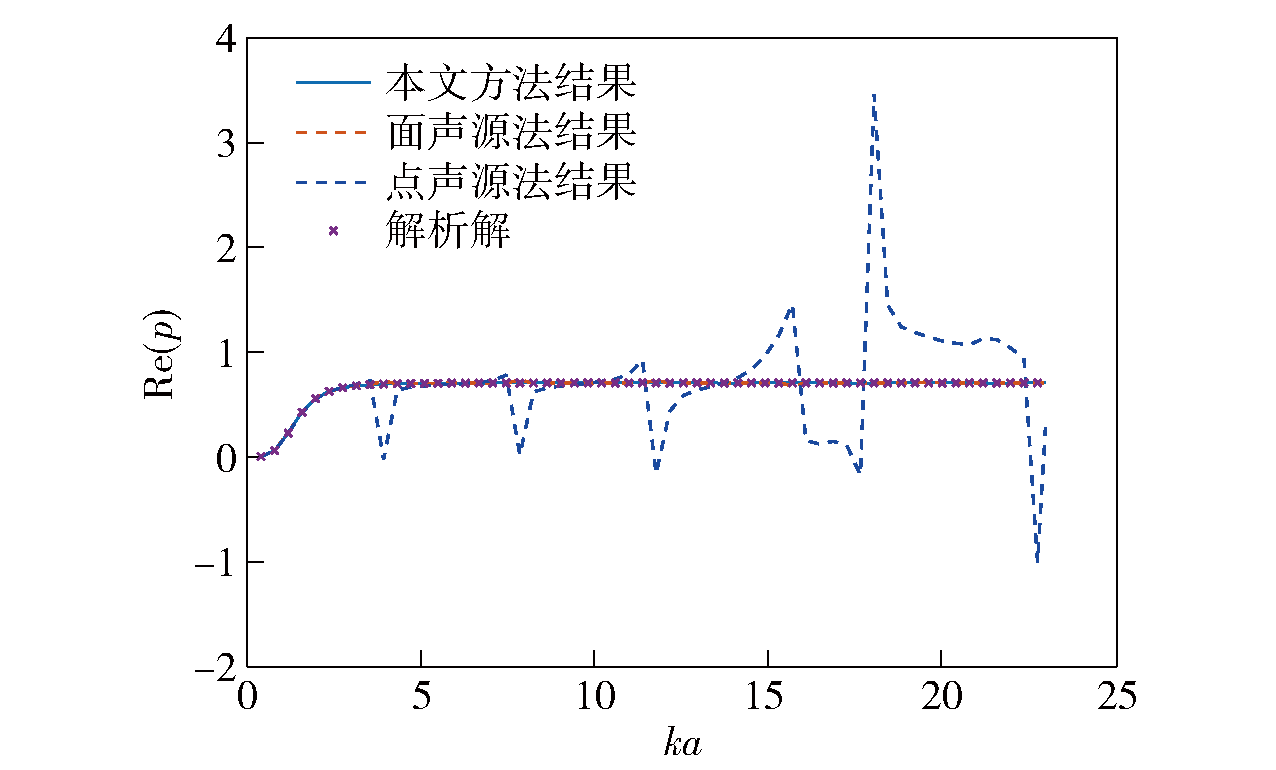

图9 θa=45°处无量纲化声压实部比较图

Fig.9 Real part of dimensionless acoustic pressure for θa=45°

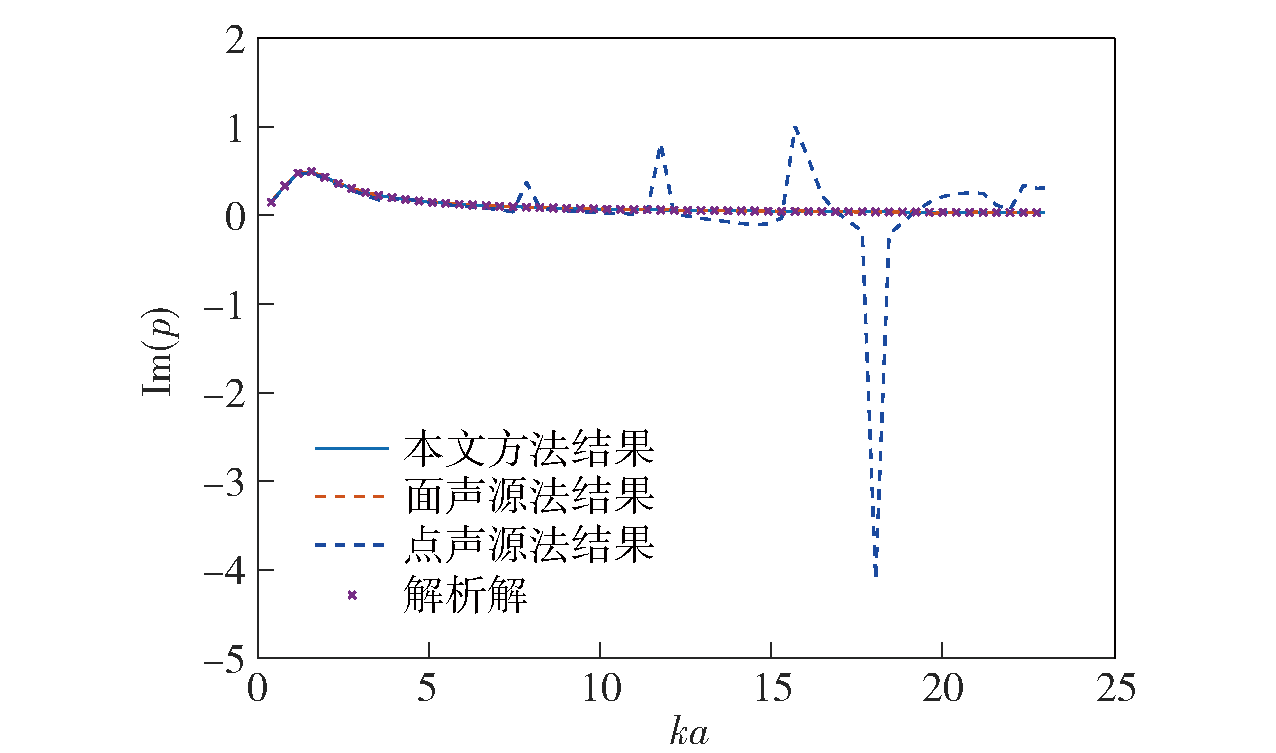

图10 θa=45°处无量纲化声压虚部比较图

Fig.10 Imaginary part of dimensionless acoustic pressure for θa=45°
