基于虚拟再入角的快速离轨制动制导方法

doi:10.12382/bgxb/2021.0710

摘要/Abstract

摘要：

为满足再入飞行器快速离轨制动的需求，提出一种基于虚拟再入角的快速离轨制动制导方法。在分析脉冲离轨制动的制导机理的基础上，采用有限推力方式逐渐接近终端状态，满足再入角度和再入速度的交班需求；采用凸优化方法计算满足多终端约束的时间最优轨迹，结合有限推力制导算法的仿真结果，分析轨迹特点，提出虚拟再入角概念，设计考虑多终端约束的快速离轨制动的在线制导算法。分别从运算效率和制导精度两个方面，同现有方法进行比较，并在发动机推力大小与方向存在偏差情况下进行蒙特卡洛仿真。仿真结果表明，相比于现有算法，所提出的算法在保障同等控制精度的前提下，实现了快速离轨阶段快速的目标，且可以满足在线计算的需求。

关键词: 再入飞行器, 快速离轨制动, 虚拟再入角, 凸优化

Abstract:

To meet the requirement of rapid deorbit of reentry vehicles, an online guidance algorithm for rapid deorbit based on virtual reentry angle is proposed. On the basis of analyzing the guidance mechanism of the pulse deorbit, the finite thrust method is used to gradually approach the terminal state so as to meet the shift requirements of the reentry angle and reentry speed. The convex optimization method is used to calculate the time-optimal trajectory that meets the multi-terminal constraints. Combined with the simulation results of the finite thrust guidance algorithm, the trajectory characteristics are analyzed, the concept of virtual reentry angle is proposed, and an online guidance algorithm for fast deorbit considering multi-terminal constraints is designed. The proposed method is compared with the existing methods from the aspects of computational efficiency and guidance accuracy, Monte-Carlo simulations are carried out under the condition of deviation of the thrust magnitude and direction of the engine. The simulation results show that compared to the existing algorithms, the proposed algorithm achieves the goal of rapidity in the deorbit stage and can meet the needs of online computing while ensuring the same control accuracy.

Key words: reentry vehicle, fast deorbit, virtual reentry angle, convex optimization

权申明, 王竹, 晁涛, 杨明. 基于虚拟再入角的快速离轨制动制导方法[J]. 兵工学报, 2023, 44(3): 865-875.

QUAN Shenming, WANG Zhu, CHAO Tao, YANG Ming. Fast Deorbit Guidance Method Based on Virtual Reentry Angle[J]. Acta Armamentarii, 2023, 44(3): 865-875.

图/表 10

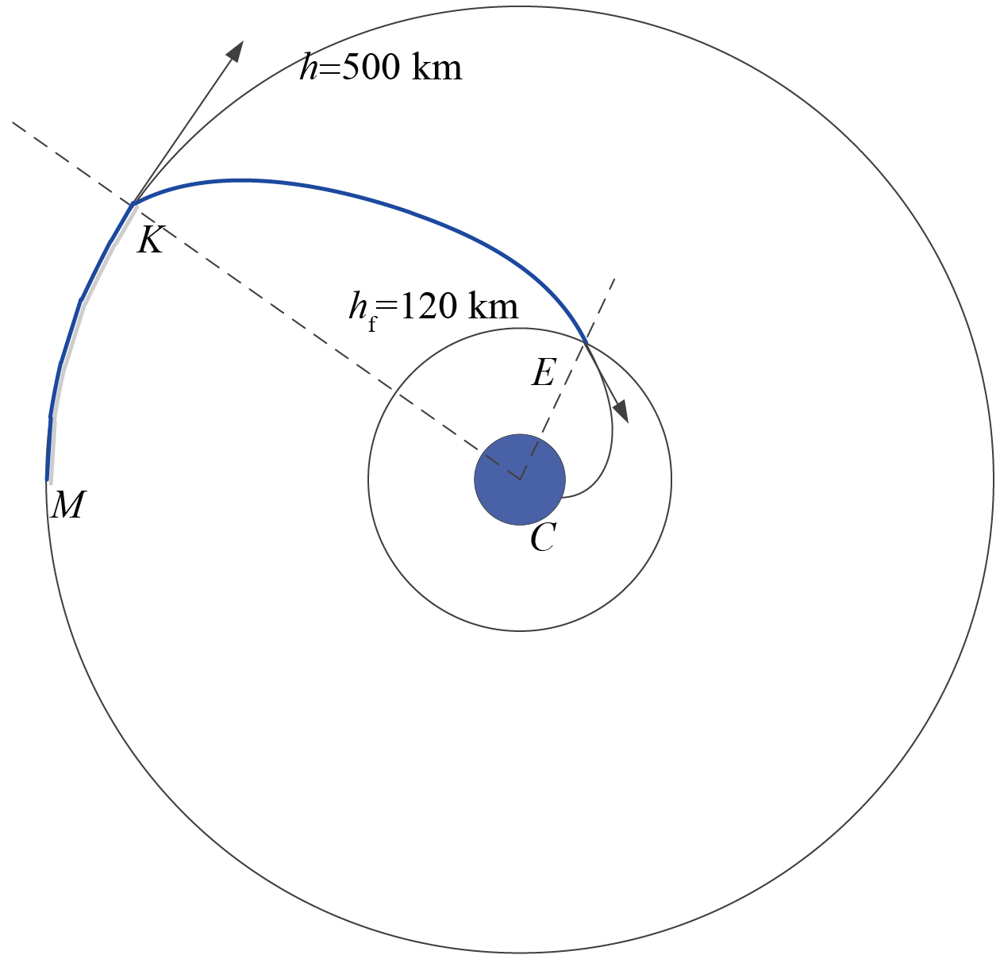

图 1 轨道转移示意图

Fig. 1 Schematic diagram of orbital transfer

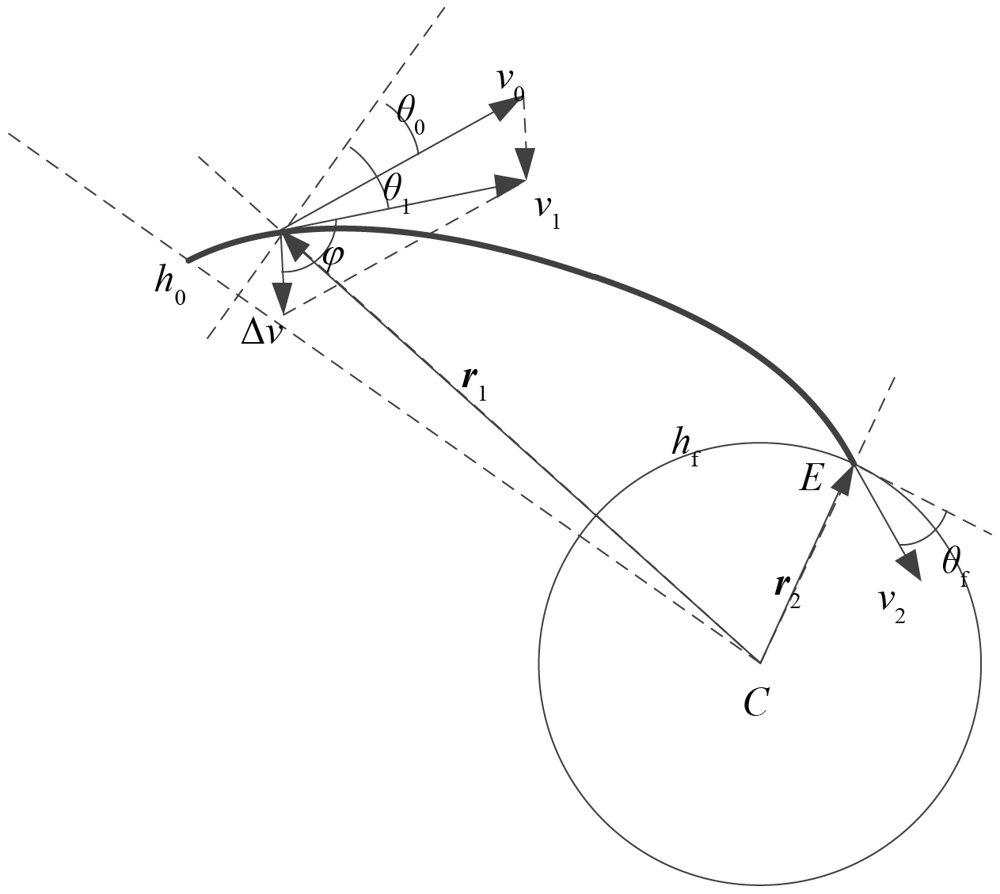

图 2 椭圆轨道离轨段航迹示意图

Fig. 2 Deorbit trajectory of an elliptical orbit

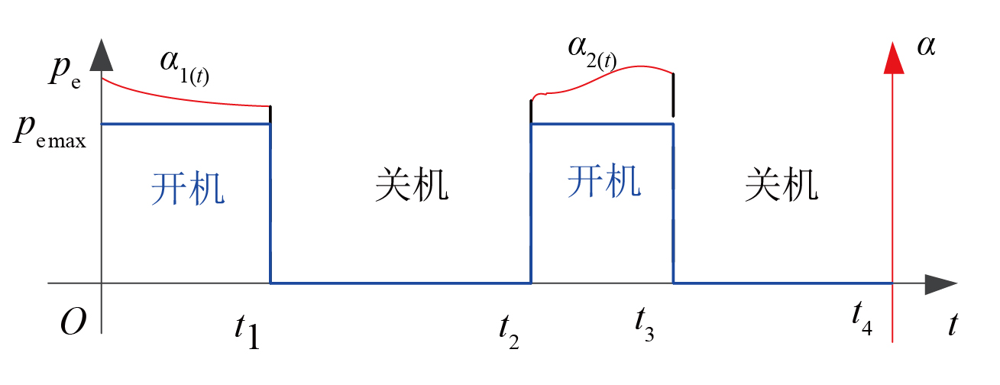

图 3 时间最优制动发动机工作状态示意图

Fig. 3 Schematic diagram of time-optimal deorbit

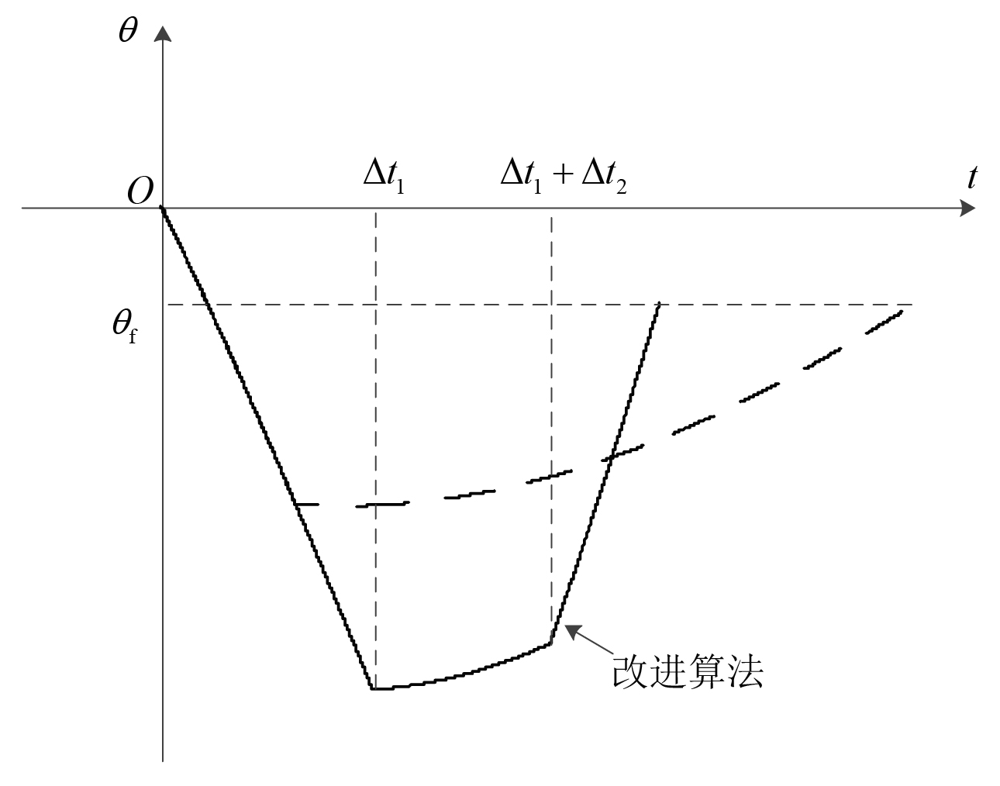

图 4 改进方法与传统方法弹道倾角变化曲线示意图

Fig. 4 Curve of the flight path angle with the improved method and the traditional method

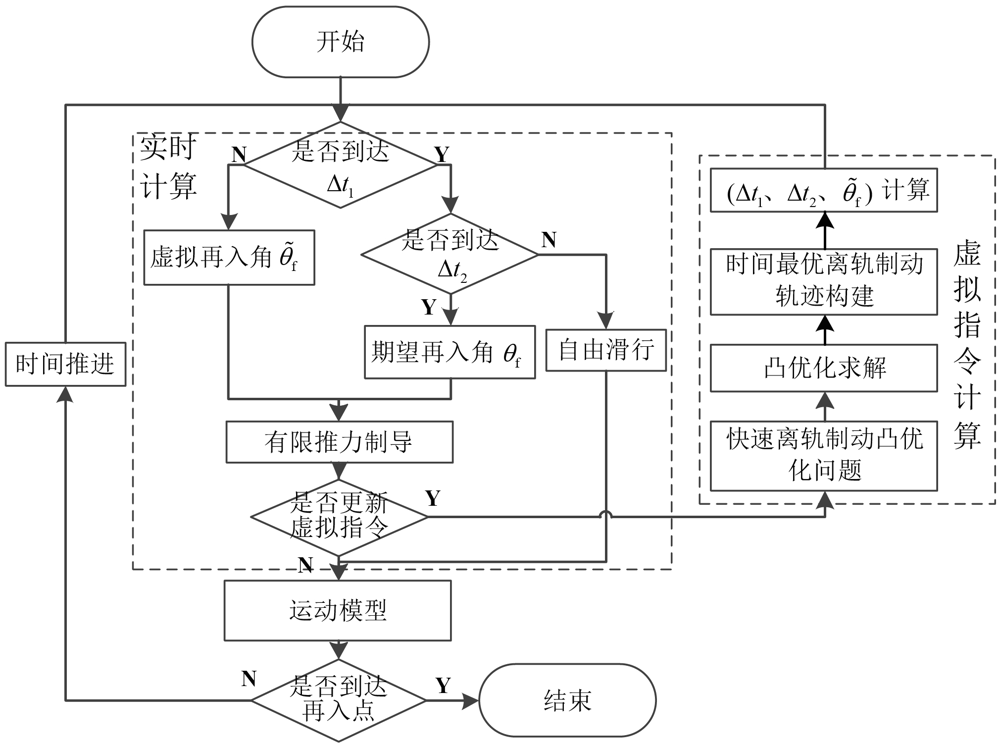

图5 快速离轨制动制导仿真流程图

Fig. 5 Flow chart of simulation of fast deorbit guidance

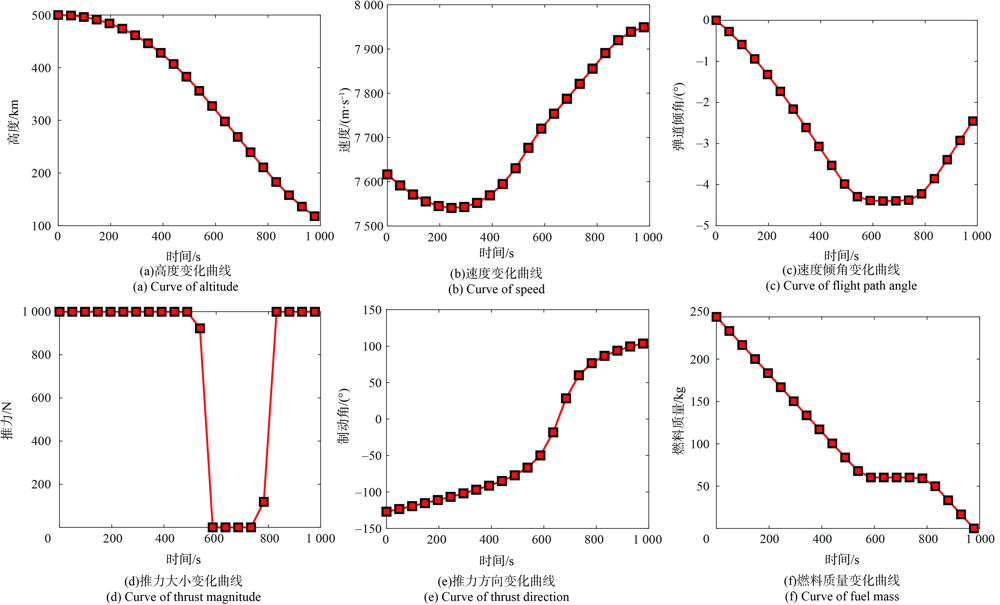

图6 多约束下时间最优离轨制动状态量变化曲线

Fig. 6 Curves of time-optimal deorbit with multiple constraints

图 7 传统离轨制动制导算法仿真结果

Fig. 7 Simulation results of the traditional deorbit guidance algorithm

图 8 快速离轨制动制导算法仿真结果

Fig. 8 Simulation results of the fast deorbit guidance algorithm

表1 参数摄动表

Table 1 Parameter perturbations

偏差项	变化范围	分布类型
推力大小比例/%	[-5,5]	均匀分布
推力方向/(°)	[-0.1,0.1]	均匀分布
燃料质量/kg	[-20,20]	均匀分布

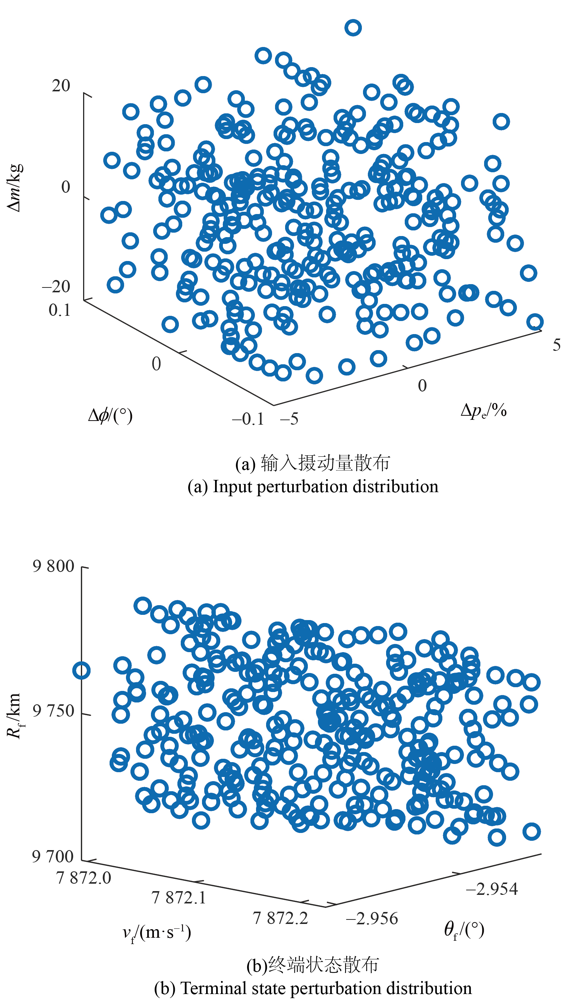

图 9 蒙特卡洛仿真参数散布图

Fig. 9 Distribution of Monte Carlo simulation parameters

参考文献 20

[1]	WEI C Z, ZHANG Z, LI Y, et al. Multi-process integrated planning and guidance for return of reusable aircraft under time constraint[J]. IEEE Access, 2020, 8: 179823-179836. doi: 10.1109/Access.6287639 URL
[2]	HE X L, ZUO X Y, LI Q L, et al. Surrogate-based entire trajectory optimization for full space mission from launch to reentry[J]. Acta Astronautica, 2021, 190: 83-97. doi: 10.1016/j.actaastro.2021.09.030 URL
[3]	左光, 陈鑫, 侯砚泽, 等. 升力体再入飞行器离轨制动方案及优化研究[J]. 航天返回与遥感, 2019, 40(1): 1-10.
	ZUO G, CHEN X, HOU Y Z, et al. Deorbit study of general scheme & optimized design of lifting reentry vehicle[J]. Spacecraft Recovery & Remote Sensing, 2019, 40(1): 1-10. (in Chinese)
[4]	邹毅, 张洪波, 汤国建. 基于能量与动量矩指标的两次“推-滑”离轨制导方法[J]. 国防科技大学学报, 2014, 36(1): 46-51.
	ZOU Y, ZHANG H B, TANG G J. A burn-coast-burn-coast deorbit guidance approach based on energy and angular momentum indices[J]. Journal of National University of Defense Technology, 2014, 36(1):46-51. (in Chinese)
[5]	邹毅, 张洪波, 汤国建, 等. RLV离轨制动耗尽关机制导方法研究[J]. 固体火箭技术, 2013, 36(5): 575-579.
	ZOU Y, ZHANG H B, TANG G J, et al. Research on depleted shutdown guidance approach of reusable launch vehicle deorbit[J]. Journal of Solid Rocket Technology, 2013, 36(5): 575-579. (in Chinese)
[6]	龚宇莲, 何英姿, 李毛毛, 等. 利用轨道瞬时根数预报的离轨制动控制方法[J]. 宇航学报, 2020, 41(12): 1533-1543.
	GONG Y L, HE Y Z, LI M M, et al. Autonomous deorbit algorithm based on osculating kepler element prediction[J]. Journal of Astronautics, 2020, 41(12): 1533-1543. (in Chinese)
[7]	胡正东, 郭才发, 曹渊, 等. 轨道轰炸飞行器过渡段轨道设计与制导[J]. 固体火箭技术, 2009, 32(5): 473-477, 491.
	HU Z D, GUO C F, CAO Y, et al. Transition trajectory planning and guidance for orbital bombing vehicle[J]. Journal of Solid Rocket Technology, 2009, 32(5):473-477, 491. (in Chinese)
[8]	史树峰, 师鹏, 赵育善. 基于星下点机动的再入飞行器离轨规划[J]. 北京航空航天大学学报, 2018, 44(10): 2141-2148.
	SHI S F, SHI P, ZHAO Y S. Deorbit planning of reentry vehicles using ground track manipulation[J]. Journal of Beijing University of Aeronautics and Astronautics, 2018, 44(10): 2141-2148. (in Chinese)
[9]	王献忠, 汤敏兰, 张丽敏, 等. 再入返回离轨时机及制动策略[J]. 航天控制, 2016, 34(4): 53-58.
	WANG X Z, TANG M L, ZHANG L M, et al. Deorbit times and breaking strategy for reentry vehicle[J]. Aerospace Control, 2016, 34(4): 53-58. (in Chinese)
[10]	李鑫, 欧阳高翔, 孙成明, 等. 基于凸优化的有限推力远程转移轨迹优化[J]. 航天控制, 2016(3): 19-25.
	LI X, OUYANG G X, SUN C M, et al. Optimal remote transfer with finite thrust based on convex optimization[J]. Aerospace Control, 2016(3): 19-25. (in Chinese)
[11]	BALDWIN M C, LU P. Optimal deorbit guidance[J]. Journal of Guidance, Control, and Dynamics, 2012, 35(1): 93-103. doi: 10.2514/1.53937 URL
[12]	RAO H P, ZHONG R, LI P J. Fuel-optimal deorbit scheme of space debris using tethered space-tug based on pseudospectral method[J]. Chinese Journal of Aeronautics, 2021, 34(9): 210-223.
[13]	滕锐, 韩宏伟, 乔栋. 火星探测最优离轨制导方法研究[J]. 深空探测学报, 2020, 7(2): 184-190.
	TENG R, HAN H W, QIAO D. Research on optimal deorbit guidance method for mars exploration[J]. Journal of Deep Space Exploration, 2020, 7(2): 184-190. (in Chinese) doi: 10.15982/j.issn.2095-7777.2020.20190315001
[14]	潘晓东. 基于Bezier曲线的连续推力机动轨道设计[D]. 哈尔滨: 哈尔滨工业大学, 2020.
	PAN X D. Continuous low-thrust trajectory design method based on bezier curve[D]. Harbin: Harbin Institute of Technology, 2020. (in Chinese)
[15]	张帅. 变推力航天器轨道转移问题序列凸优化求解[D]. 哈尔滨: 哈尔滨工业大学, 2019.
	ZHANG S. Optimal orbit transfer for continuous thrust spacecraft using sequential convex programming[D]. Harbin: Harbin Institute of Technology, 2019. (in Chinese)
[16]	郭雯婷, 卢山, 齐旺. 空间飞行器离轨的一种组合制导方法[J]. 上海航天, 2016, 33(2): 32-38.
	GUO W T, LU S, QI W. A composite guidance method of deorbit operation for space vehicles[J]. Aerospace Shanghai, 2016, 33(2): 32-38. (in Chinese)
[17]	冯必鸣, 聂万胜, 李柯. 动能弹垂直再入可行性研究[J]. 导弹与航天运载技术, 2014(1): 50-55.
	FENG B M, NIE W S, LI K. Feasibility research on perpendicular reentry of kinetic energy payload[J]. Missiles and Space Vehicles, 2014(1): 50-55. (in Chinese)
[18]	刘超越, 张成. 基于高斯伪谱法的二级助推战术火箭多阶段轨迹优化[J]. 兵工学报, 2019, 40(2): 292-302. doi: 10.3969/j.issn.1000-1093.2019.02.009
	LIU C Y, ZHANG C. Multi-stage trajectory optimization of tactical two-stage booster rocket based on Gauss pseudospectral method[J]. Acta Armamentarii, 2019, 40(2): 292-302. (in Chinese) doi: 10.3969/j.issn.1000-1093.2019.02.009
[19]	LIU X F, LU P. Solving nonconvex optimal control problems by convex optimization[J]. Journal of Guidance Control & Dynamics, 2014, 37(3):750-765.
[20]	DOMAHIDI A, CHU E, BOYD S. ECOS: an SOCP solver for embedded systems[C]// Proceedings of IEEE 2013 European Control Conference. Zürich, Switzerland:IEEE, 2013.
