基于特征模型的5阶关节伺服系统扰动补偿策略

doi:10.12382/bgxb.2022.0941

摘要/Abstract

摘要：

针对工业机器人关节伺服系统负载时变和模型不确定性问题,提出将线性扩张状态观测器和基于特征模型的全系数自适应控制相结合的控制策略。建立双惯量柔性关节动力学模型并得到关节伺服系统5阶扩张状态方程。基于该模型设计5阶线性扩张状态观测器,通过该观测器估计系统总扰动并进行扰动补偿,并证明观测器收敛性。基于特征建模的方法,通过实验数据和梯度下降法对特征参数进行辨识,并基于参数值设计全系数自适应控制律,将该控制律结合线性扩张状态观测器设计一种控制策略,对系统进行精确控制。实验结果表明,新的控制策略使系统在变负载扰动工况下的定位精度达到0.003°,正弦信号跟踪误差保持在0.92°以内,系统具有较强的鲁棒性和控制精度。

关键词: 关节伺服系统, 5阶线性扩张状态观测器, 特征建模, 全系数自适应控制, 扰动补偿

Abstract:

A control strategy combining the linear extended state observer and full coefficient adaptive control based on characteristic model is proposed for the time-varying load and model uncertainties of industrial robot joint servomechanism. A two-inertia flexible joint dynamics model is established, and the equation of the fifth-order extended state of joint servomechanism was obtained. A fifth-order linear extended state observer is designed based on the model, through which the total disturbance of the system is estimated and compensated, and the convergence of the observer is proved. Based on the method of characteristic modeling, the characteristic parameters are identified by experimental data and gradient descent method, and the full coefficient adaptive control law is designed based on the parameter values. A control strategy is designed to accurately control the system by combining the control law with the linear extended state observer. The experimental results show that the proposed control strategy is used to make the positioning accuracy of the system reach 0.003° under the condition of variable load disturbance and the sinusoidal signal tracking error keep within 0.92°. The system has strong robustness and control accuracy.

Key words: joint servomechanism, fifth-order linear extended state observer, characteristic modeling, full coefficient adaptive control, disturbance compensation

中图分类号:

TP242.2

张天艺, 郑颖, 裘信国, 季行健, 金晓航. 基于特征模型的5阶关节伺服系统扰动补偿策略[J]. 兵工学报, 2024, 45(1): 276-287.

ZHANG Tianyi, ZHENG Ying, QIU Xinguo, JI Xingjian, JIN Xiaohang. Disturbance Compensation Strategy for Fifth-order Joint Servomechanism Based on Characteristic Model[J]. Acta Armamentarii, 2024, 45(1): 276-287.

图/表 21

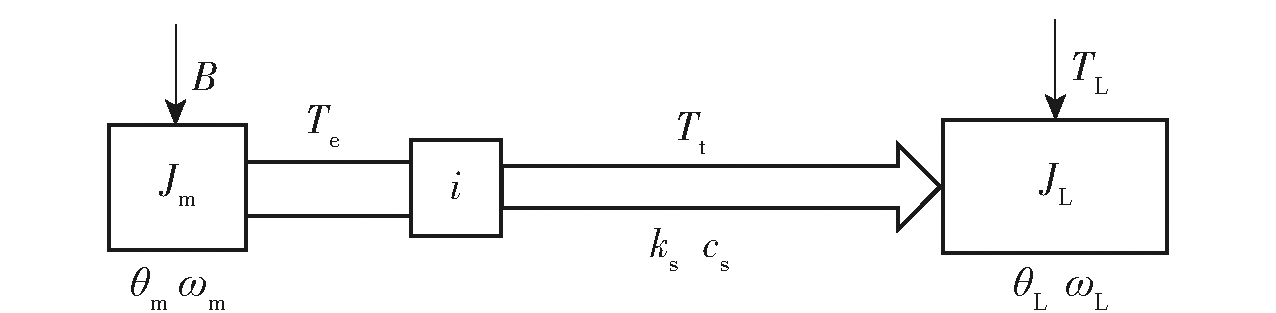

图1 关节伺服系统双惯量模型

Fig.1 Two-inertia model of joint servomechanism

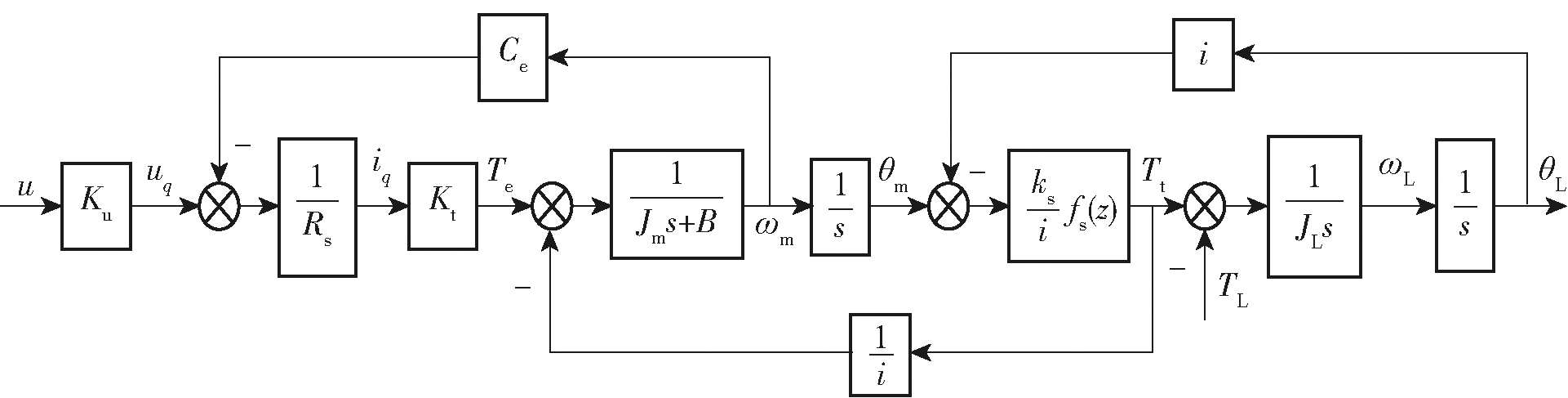

图2 关节伺服系统动力学模型

Fig.2 Dynamic model of joint servomechanism

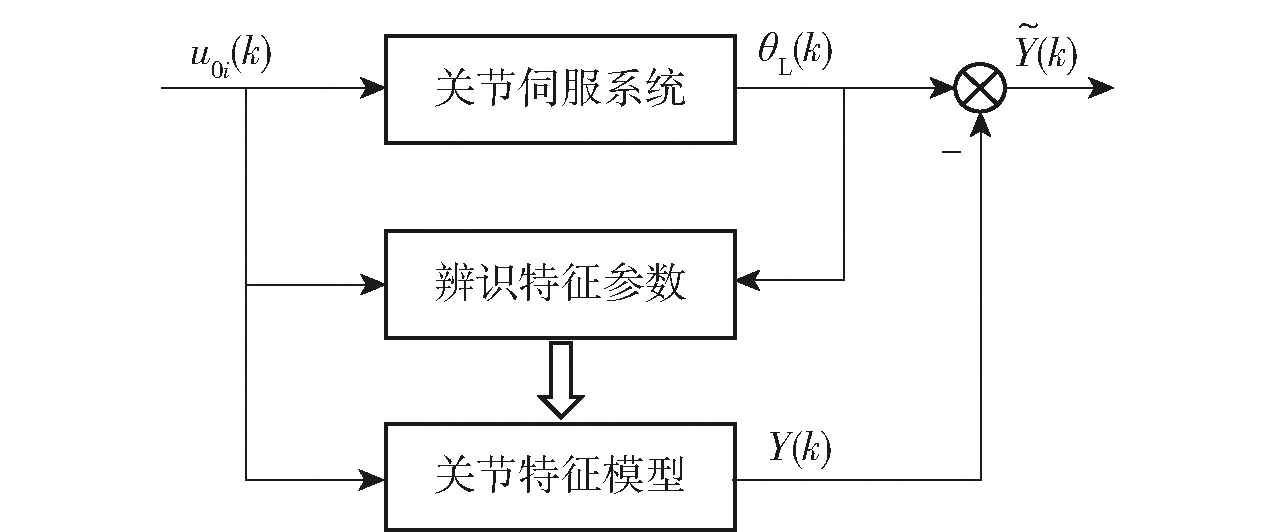

图3 特征模型误差验证

Fig.3 Error verification of characteristic model

表1 伺服系统参数

Table 1 Parameters of servomechanism

参数	数值
反电动势C_e/(V·rad·s^-1)	0.0764
转矩常数K_t/(N·m·A^-1)	0.112
转动惯量J_m/(kg·m²)	0.175×10^-4
定子电阻R_s/Ω	0.15
黏滞摩擦系数B/(N·m·(rad·s^-1)^-1)	0.3
减速比i	100:1
PWM功放系数K_u	8.32
额定负载惯量J_L/(kg·m²)	0.025
联轴器刚度系数k_s/(N·m·rad^-1)	3000
齿隙2θ/rad	0.00175

表2 特征参数辨识结果

Table 2 Identification results of characteristic parameters

信号	$\hat{f}_{1}$	$\hat{f}_{2}$	$\hat{g}_{0}$	$\tilde{Y} /\left(^{\circ}\right) $
	1.3461	-0.3465	3.0659×10^-5	0.026
2	1.3472	-0.3469	6.6071×10^-4	0.021
3	1.3475	-0.3481	5.8614×10^-4	0.035

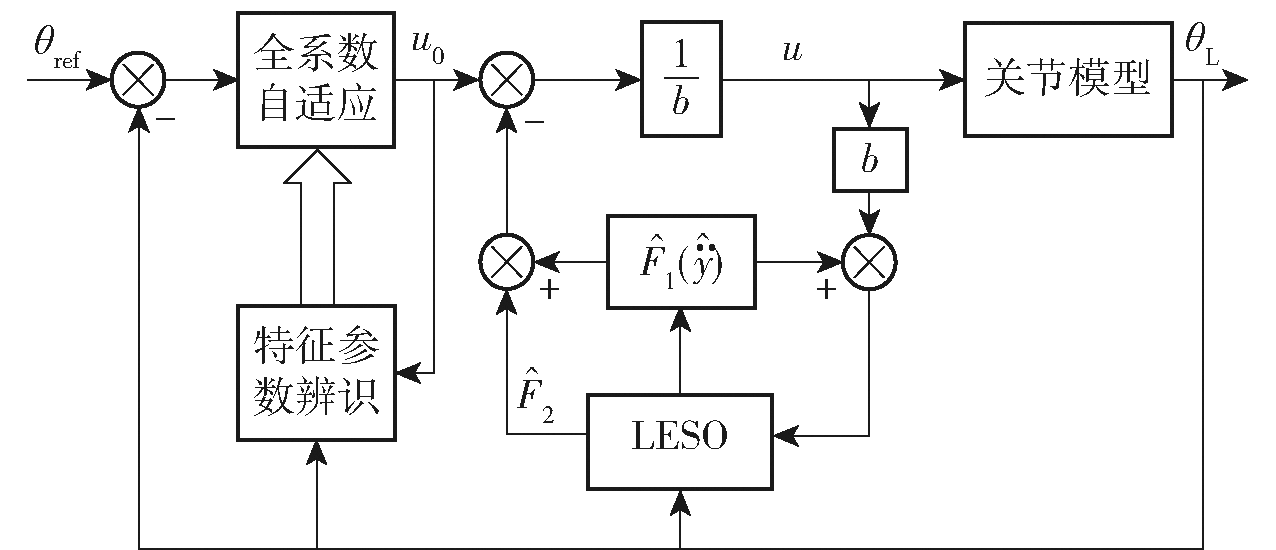

图4 关节伺服系统控制结构

Fig.4 Control structure of joint servomechanism

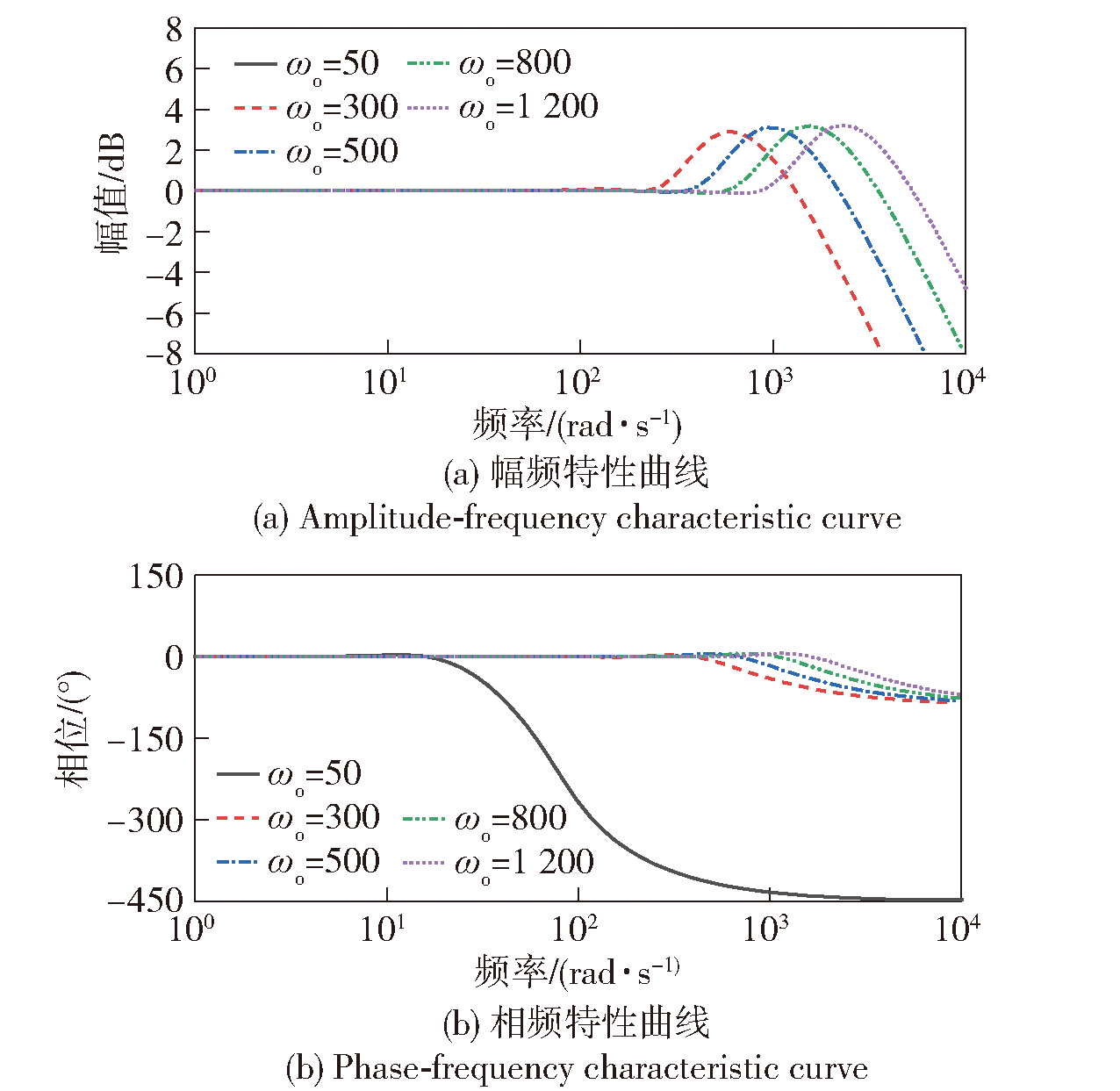

图5 位置反馈量的频域特性曲线

Fig.5 Frequency domain characteristic curve of position feedback quantity

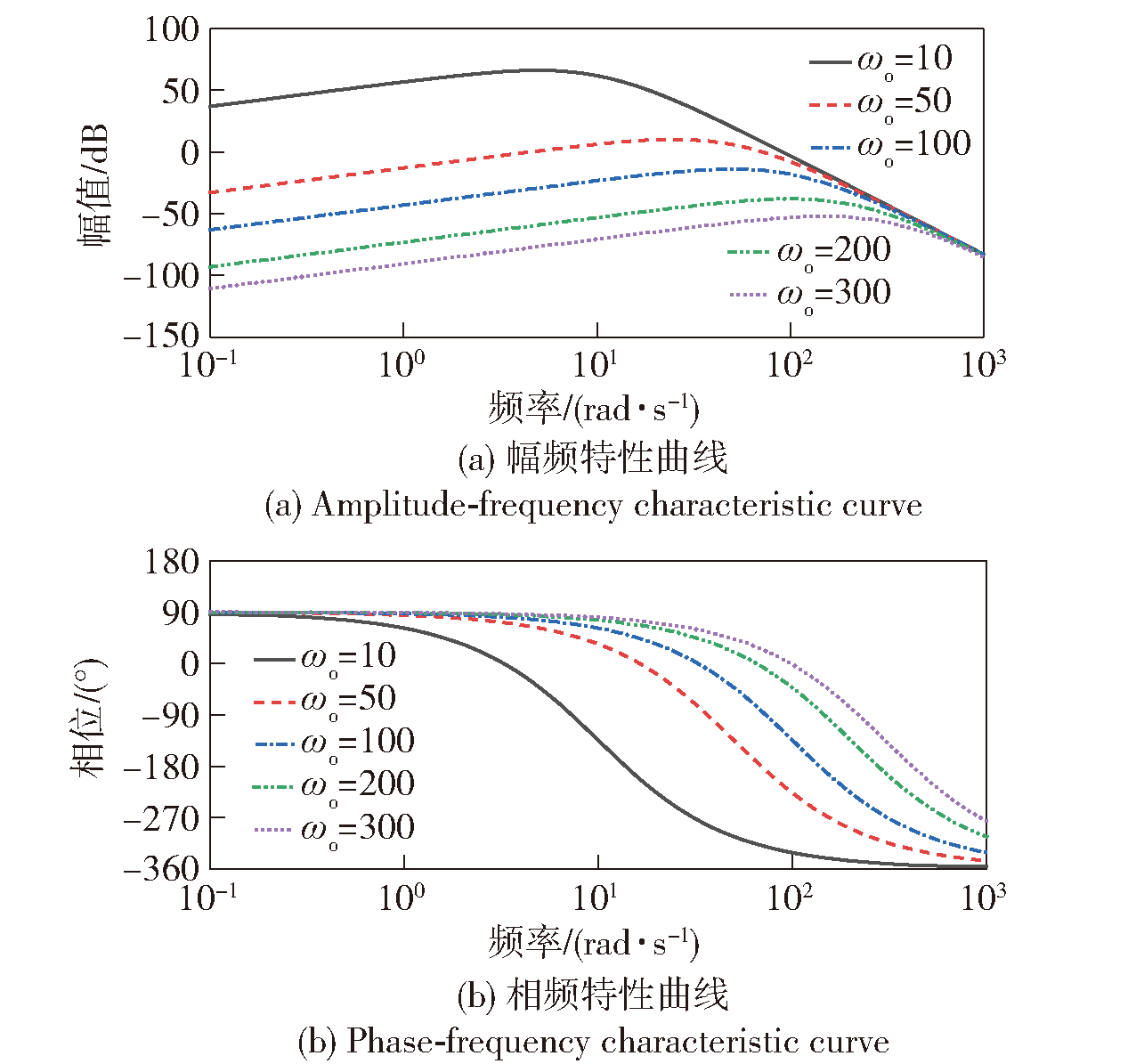

图6 控制器输出的频域特性曲线

Fig.6 Frequency domain characteristic curve of controller output

图7 实验平台

Fig.7 Experimental platform

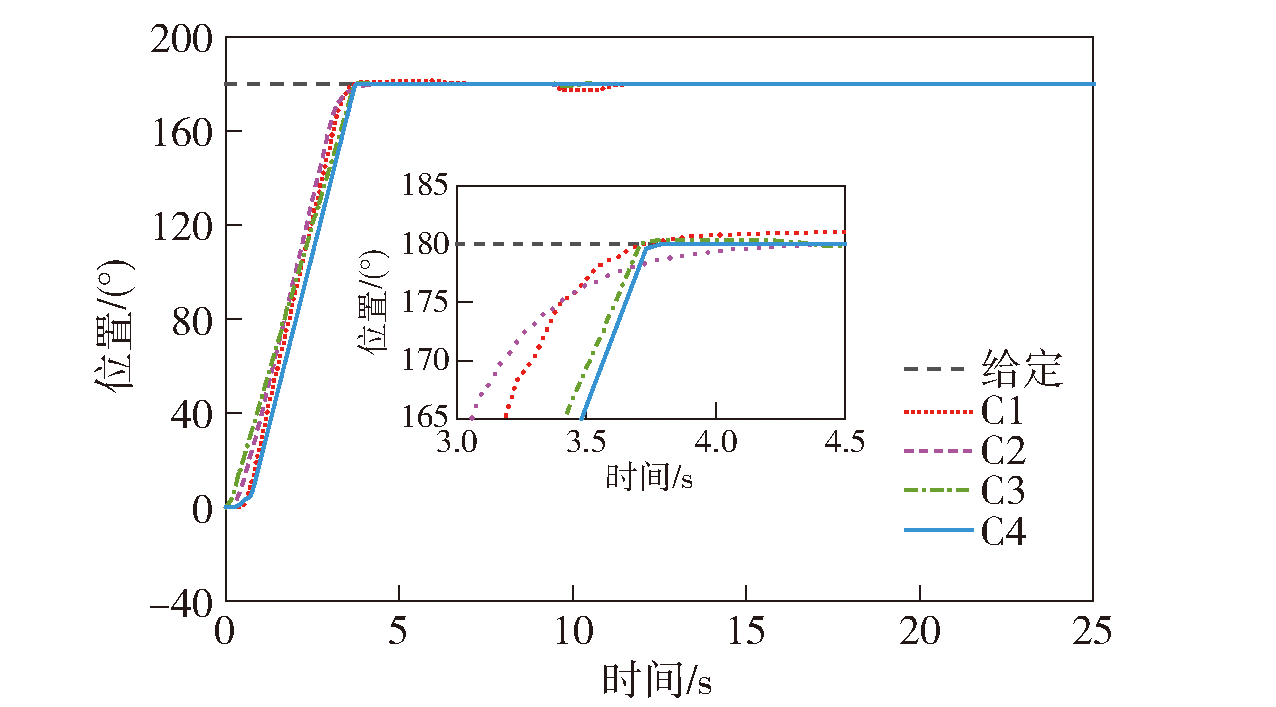

图8 阶跃响应曲线

Fig.8 Step response curve

图9 阶跃跟踪误差

Fig.9 Step tracking error

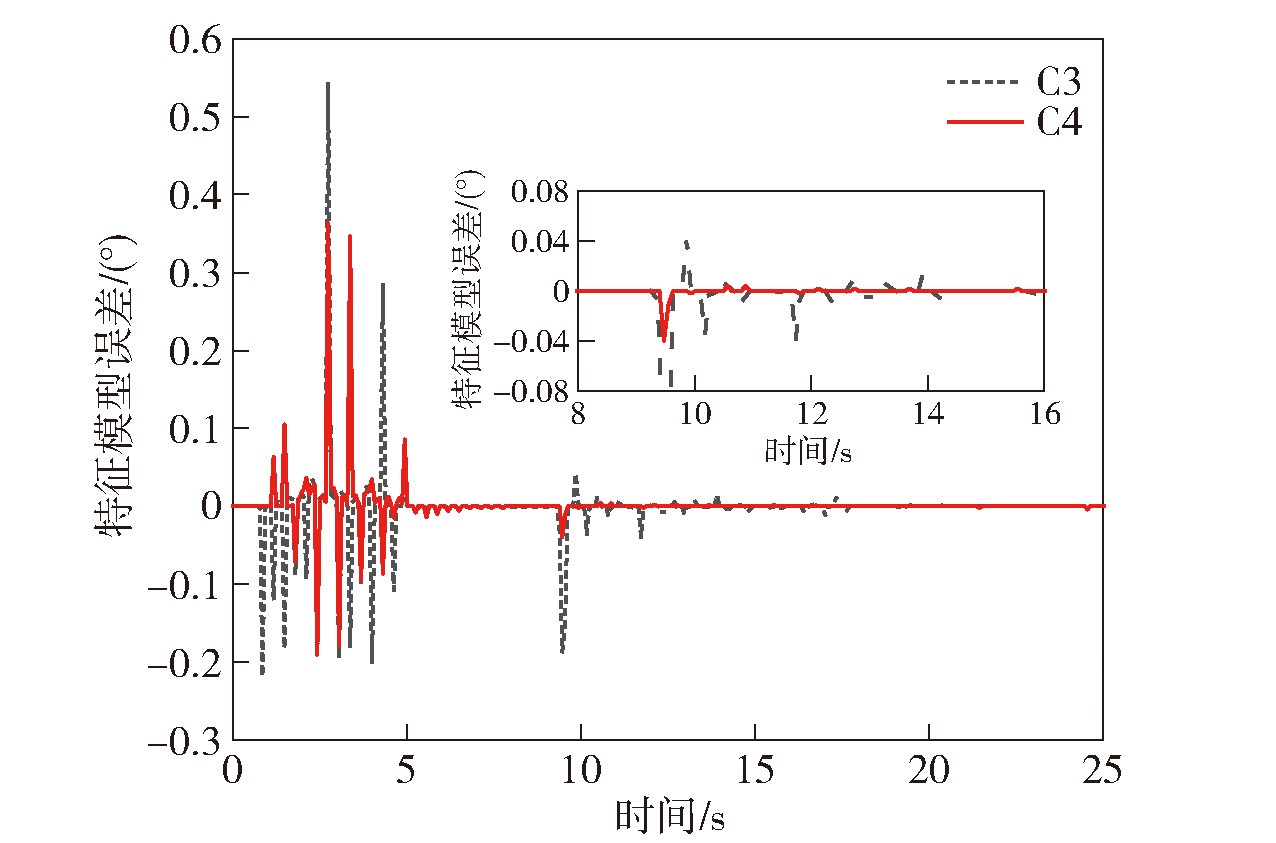

图10 特征模型误差

Fig.10 Characteristic model error

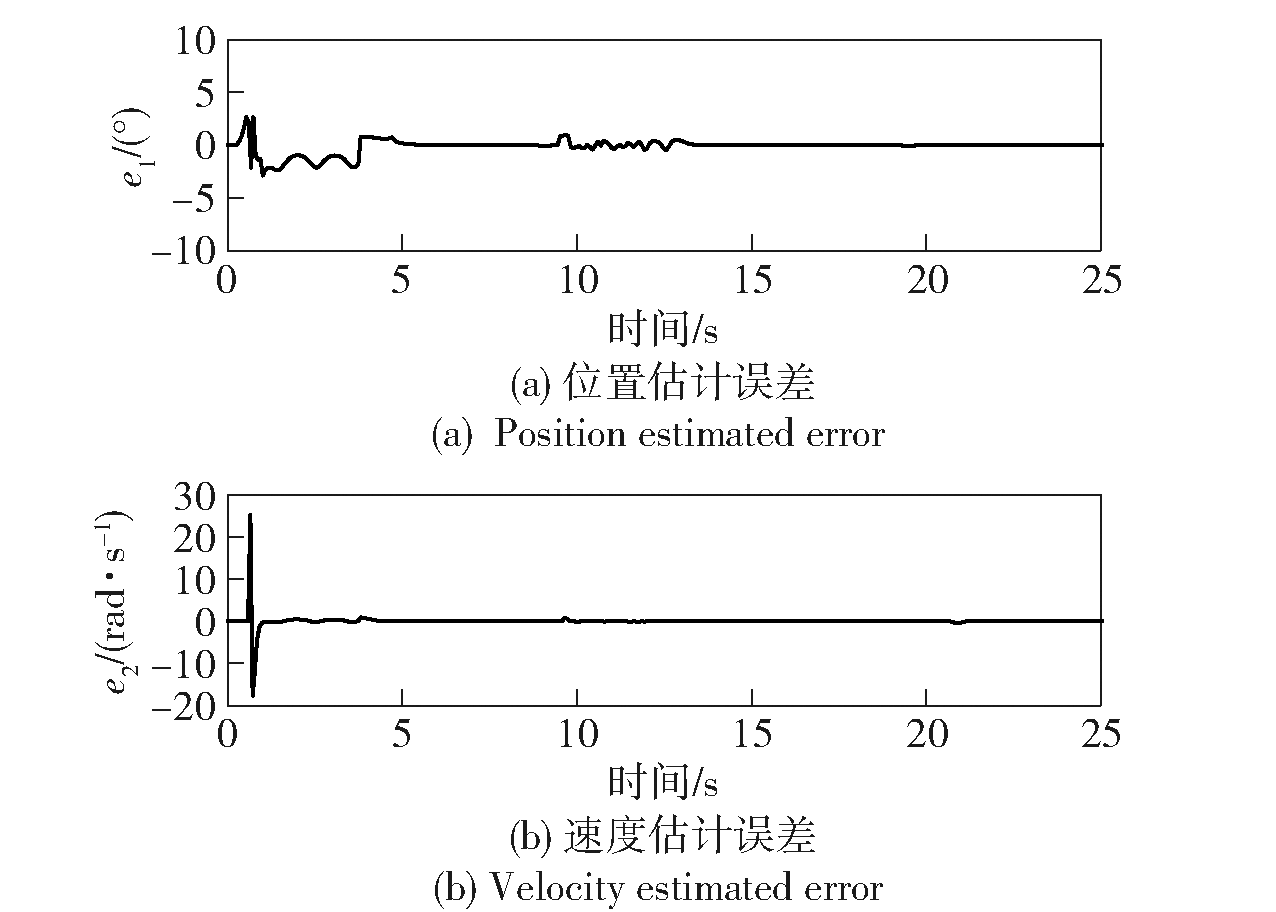

图11 C4位置和速度估计误差

Fig.11 Position and velocity estimated errors of C4

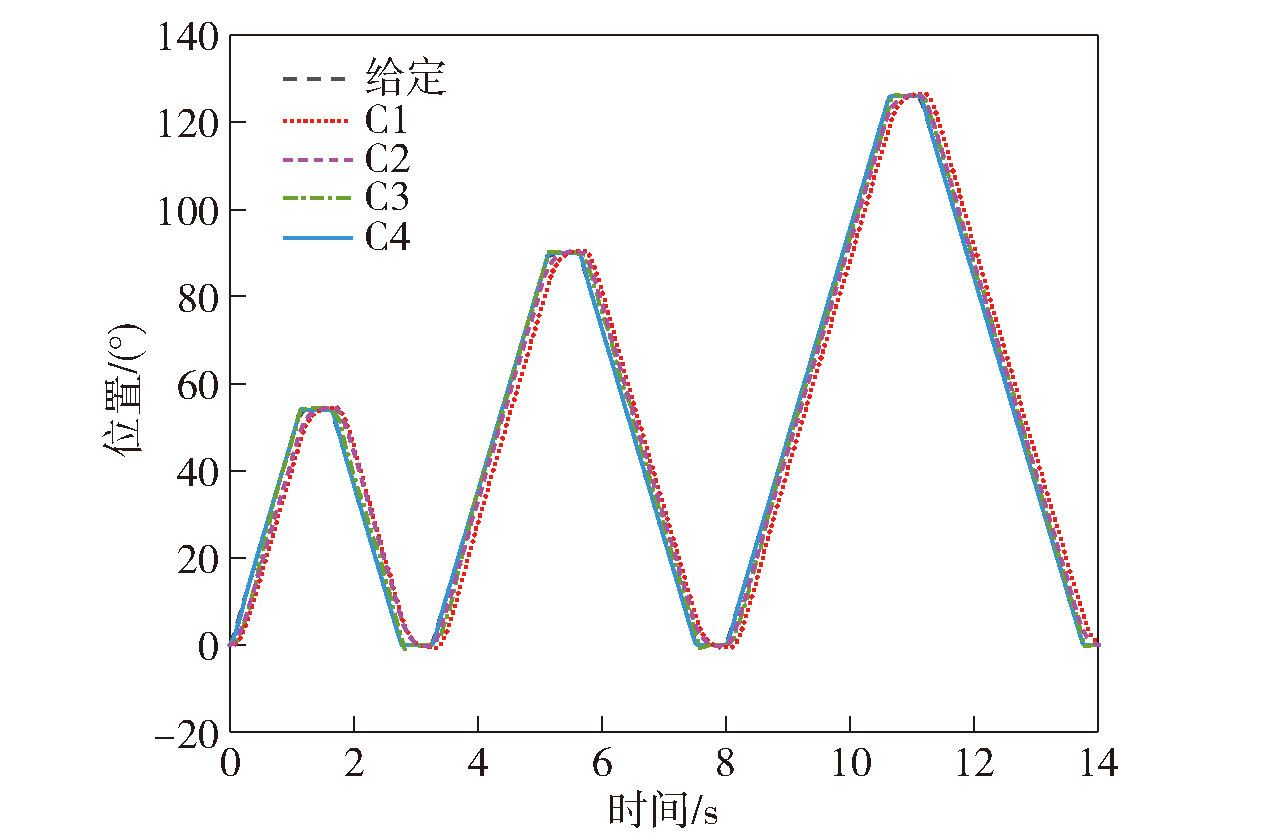

图12 连续阶跃响应曲线

Fig.12 Continuous step response curves

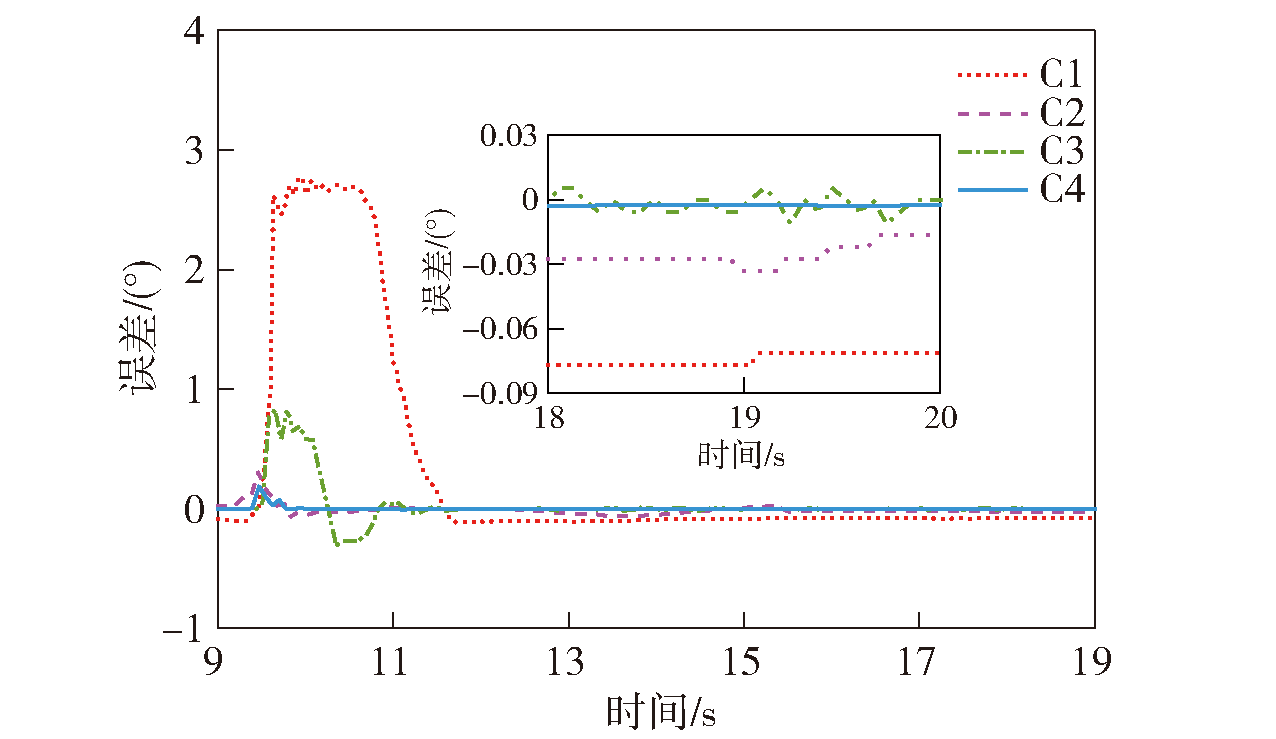

图13 连续阶跃跟踪误差

Fig.13 Continuous step tracking error

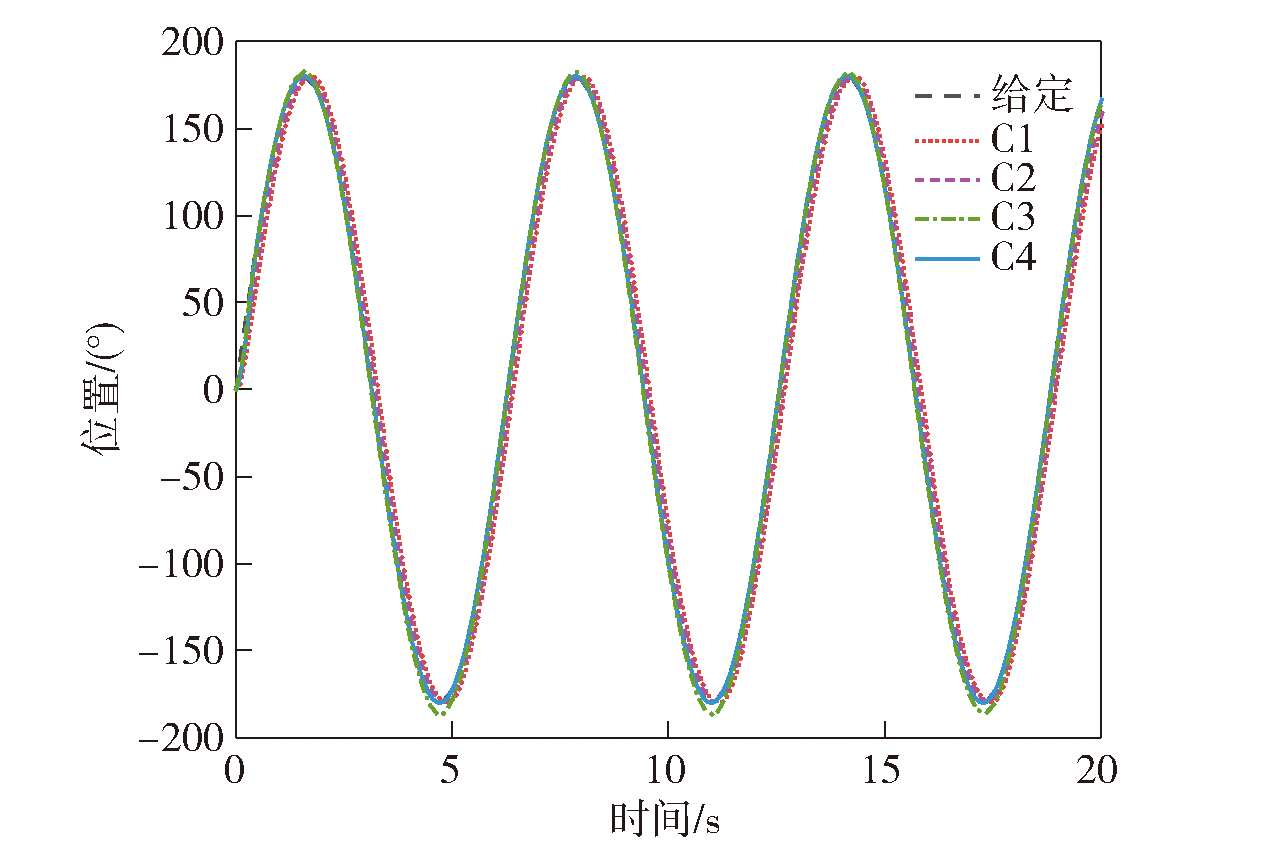

图14 正弦跟踪曲线

Fig.14 Sinusoidal tracking curve

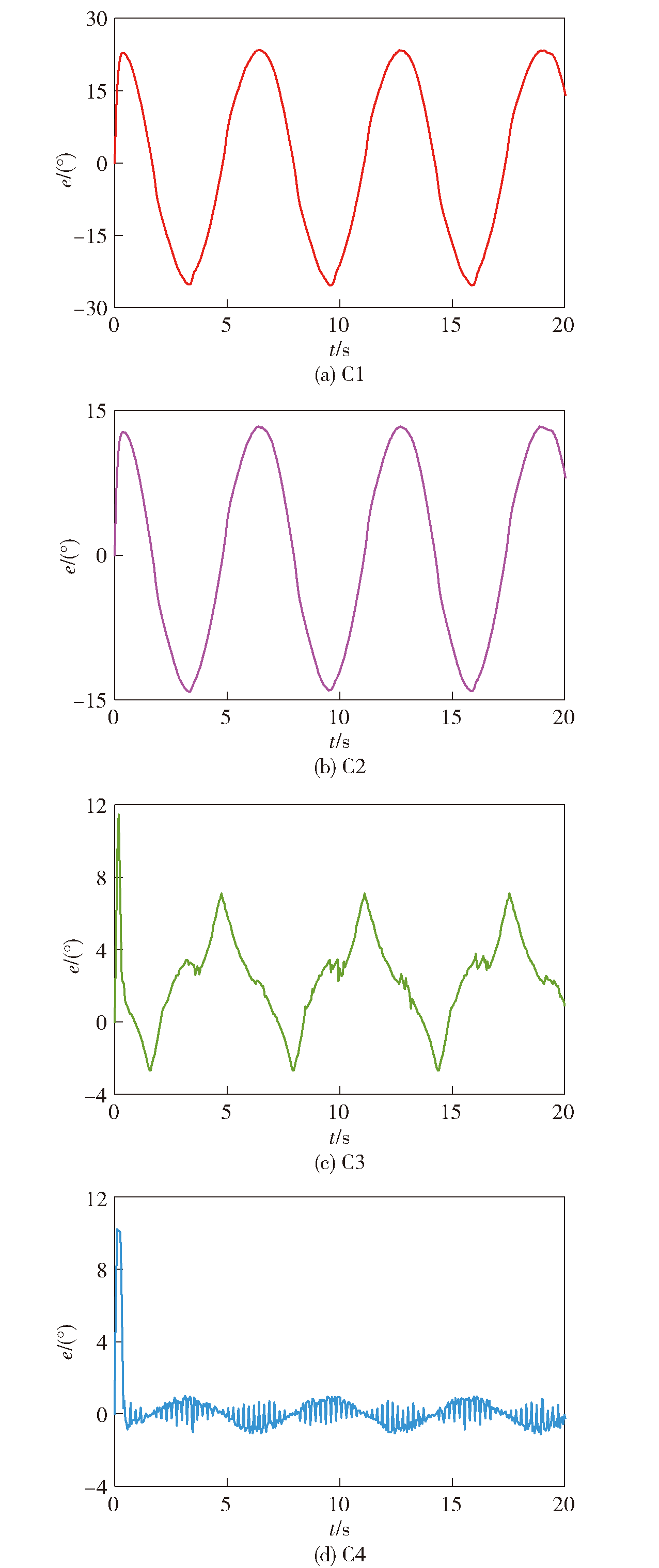

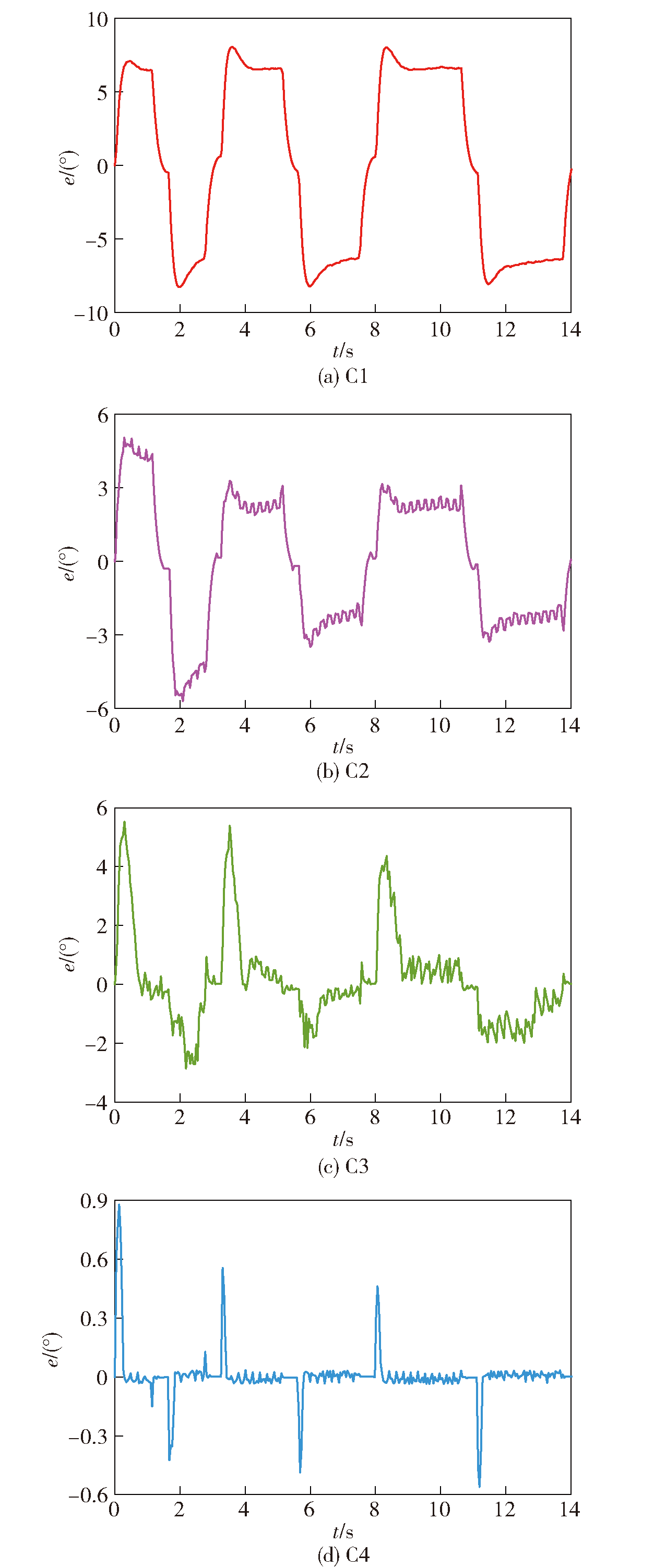

图15 正弦跟踪误差

Fig.15 Sinusoidal tracking error

表3 性能指标

Table 3 Performance indicators(°)

控制器	指标
控制器	M_e	μ	σ
C1	9.025	5.155	2.394
C2	8.736	0.821	0.842
C3	4.699	1.285	0.939
C4	1.952	0.594	0.295

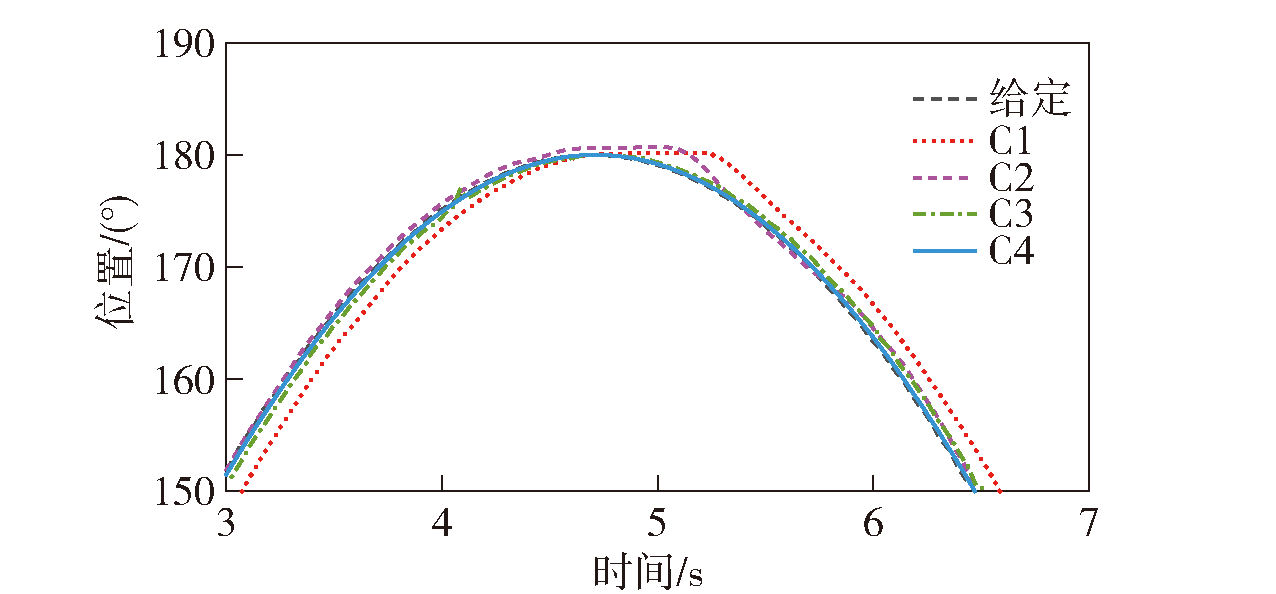

图16 正弦跟踪曲线

Fig.16 Sinusoidal tracking curve

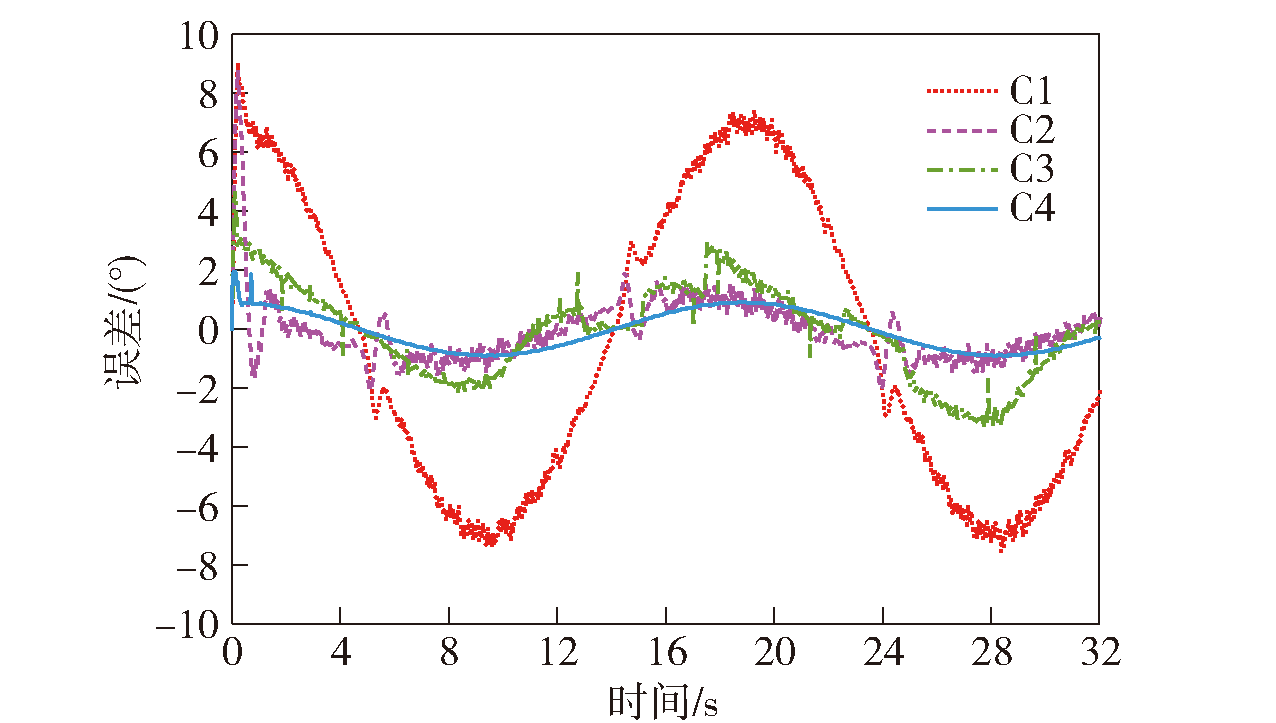

图17 正弦跟踪误差

Fig.17 Sinusoidal tracking error

表4 性能指标

Table 4 Performance indicators(°)

控制器	指标
控制器	M_e	μ	σ
C1	25.436	15.698	7.026
C2	14.176	8.926	3.977
C3	11.461	2.834	1.850
C4	10.221	0.629	1.193
