Research on Interior Ballistics Stability of Small-caliber Recoilless Gun with High Muzzle Velocity of Projectile

doi:10.12382/bgxb.2024.0245

Abstract

Abstract:

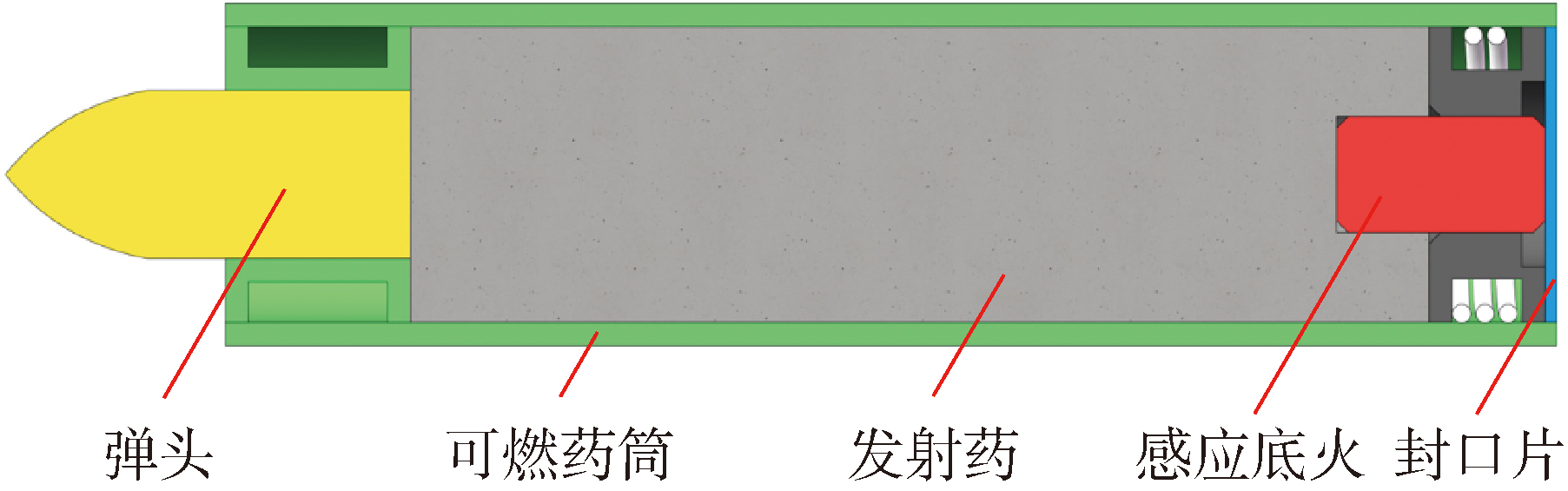

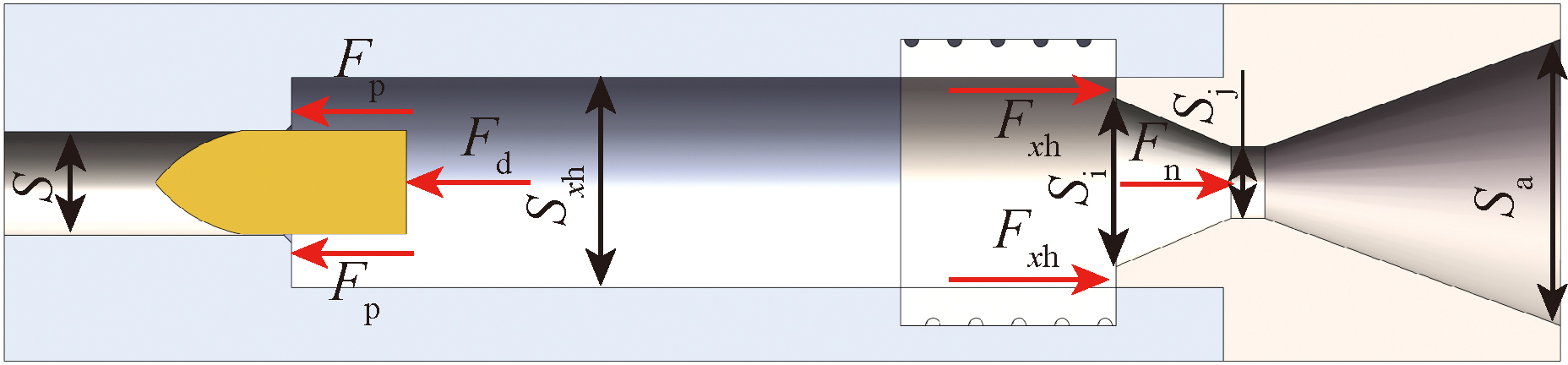

Recoilless launch can reduce recoil effectively,but it causes the reduction in low muzzle velocity.To resolve the conflict between muzzle velocity and recoil force,a reverse jet recoilless scheme based on combustible cartridge and electromagnetic induction ignition is proposed.Energy is transmitted to the ignition head through electromagnetic induction,which ignites the fast-burning propellant and combustible cartridge in the chamber to provide the launch energy.After reaching a certain level of pressure,the Laval nozzle is opened,and gas is sprayed backwards to balance the forward impulse of projectile.For high muzzle velocity recoilless launch,the loading density and chamber pressure are high,and the interior ballistics is prone to instability.To increase the stability of interior ballistics,a classic interior ballistic model during the shooting process is established,The performance of interior ballistics is analyzed and the stability of interior trajectory is studied through numerical simulation.The ballistic test research was conducted to verify the proposed scheme.The results show that the proposed scheme.can be used to reduce the recoil impulse to below 1.5N·s without reducing the muzzle velocity of projectile.The scheme can provide new ideas for the future development of light weapons.

Key words: recoilless gun, interior ballistics, electromagnetic induction ignition, combustible cartridge case

LIU Pengzhan, WANG Guoqiang, JING Chunwen, ZHAO Xiongfei, LIU Wanchuan, WANG Yong. Research on Interior Ballistics Stability of Small-caliber Recoilless Gun with High Muzzle Velocity of Projectile[J]. Acta Armamentarii, 2025, 46(4): 240245-.

Figures/Tables 18

References 18

[1]	LI Y F, SHI J P, JIANG W, et al. Autonomous maneuver decision-making for a UCAV in short-range aerial combat based on an MS-DDQN algorithm[J]. Defence Technology, 2022, 18(9):1697-1714.
[2]	TATAR A B, TANYLDZ A K, YAKUT O. Shooting control application from a quadruped robot with a weapon system via sliding mode control method[J]. Defence Science Journal, 2020, 70(4):404-411.
[3]	HE F, DAI J S, LIN S Y, et al. High-efficiency and low-hazard artillery recoil reduction technology based on barrel gas reflection[J]. Scientific Reports, 2024,14:7497.
[4]	CHENG C H, CHONG W, ZHANG X B. A prediction method for the performance of a low-recoil gun with front nozzle[J]. Defence Techology, 2019, 15(5):703-712.
[5]	LIU P Z, WANG G Q, YANG Z, et al. Recoil reduction and projectile velocity improvement design of recoilless gun with combustible cartridge[J]. Journal of Mechanical Science and Technology, 2023,37:6029-6036.
[6]	QIU M, GUO F, SONG J, et al. Recoil reduction design of gas-controlled side-jet gun based on bifurcated two-phase flow model[J]. Journal of Mechanical Science and Technology, 2023,37:1845-1857.
[7]	JELLINGHAUS K, SCHERER C, STAUFFER E, et al. Deadly injuries through recoilless anti-tank weapons while military shooting practice-two case studies from Germany and Switzerland[J]. International Journal of Legal Medicine, 2020, 134(6):2199-2204.
[8]	戴劲松, 何福, 苏晓鹏, 等. 速射火炮定向反射膨胀减后坐力机理研究[J]. 兵工学报, 2019, 40(12):2407-2415.
	DAI J S, HE F, SU X P, et al. Research on directional selection expansion mechanism of reducing recoil force of repid fire gun[J]. Acta Armamentarii, 2019, 40(12):2407-2415. (in Chinese)
[9]	肖俊波, 杨国来, 李洪强, 等. 身管武器时延式喷管减后坐动力学建模仿真[J]. 兵工学报, 2017, 38(10):1909-1917.
	XIAO J B, ZHANG X B, LI H Q, et al. Dynamics modeling and simulation of recoil reduction of automatic weapon by time by delay nozzle device,[J] Acta Armamentarii, 2017, 38(10):1909-1917 (in Chinese)
[10]	CAO R D, ZHANG X B. Design optimization for a launching system with novel structure[J]. Defence Technology, 2019, 15(5):680-689.
[11]	WANG H M, XIAO Z Q, HAN X P, et al. Firing process modeling of a soft recoil gun based on interval uncertainty parameter identification[J]. Journal of Vibration Engineering & Technologies, 2024, 12(6):7275-7289.
[12]	PARK J S. A study on recoil force reduction using a low-recoil direct gun[J]. Journal of the Korean Society of Manufacturing Process Engineers, 2016, 15(5):125-130.
[13]	徐流恩, 李永池, 高乐南. 大口径高速平衡炮发射安全性分析[J]. 中国科学技术大学学报, 2008, 38(11):1304-1309.
	XU L E, LI Y C, GAO L N. Shooting security analysis of counter-mass propelling gun with large caliber and high muzzle velocity[J]. Journal of University of Science and Technology of China, 2008, 38(11):1304-1309. (in Chinese)
[14]	LIU P Z, JIN W, SHI Z Y, et al. Research on the recoil reduction efficiency of a recoilless launch gun with high projectile velocity[J]. Journal of Physics:Conference Series, 2024,2891:122027.
[15]	庞春桥, 陶钢, 李召, 等. 轻型无后坐力炮的动不平衡冲量特性[J]. 兵工学报, 2020, 41(12),2424-2431.
	PANG C Q, TAO G, LI Z, et al. Dynamic unbalance impulse charecteristics of a light recoilless rifle[J]. Acta Armamentarii, 2020, 41(12):2424-2431. (in Chinese)
[16]	KATHE E, DILLON R. Sonic rarefaction wave low recoil gun[C]// Proceedings of the 39th Aerospace Sciences Meeting and Exhibit.Reno,NV, US: AIAA, 2002.
[19]	LI Z J, WANG H. Mechanism of evolution of shock wave of muzzle jet under initial interference and its simplified model[J]. Aerospace, 2024, 11(5):381
[20]	ZEIDAN D, BÄHR,P, FARBER P, et al. Numerical investigation of a mixture two-phase flow model in two-dimensional space[J]. Computers & Fluids, 2019,181:90-106.
[21]	SAURER R, BOIVIN P, LE MÉTAYER O.A general formulation for cavitating,boiling and evaporating flows[J]. Computers & Fluids, 2016,128:53-64.
[22]	JANG J S, OH S, ROH T S. Development of three-dimensional numerical model for combustion-flow in interior ballistics[J]. Journal of Mechanical Science & Technology, 2016,30:1631-1637.
[23]	ZHANG B, FU E F, SHI H Y, et al. Improvement in high temperature-resistant performance and waterproof property of combustible cartridge case with BEMS resin based composite coating[J]. Propellants,Explosives,Pyrotechnics, 2022, 47(3):e202100303.
[24]	ZHANG X B, CHENG C H. Influence of serial and parallel structures on the two-phase flow behaviors for dual combustion chambers with a propelled body[J]. Powder Technology, 2017,314:442-454.
[25]	HU C B, ZHANG X B. Influence of multiple structural parameters on interior ballistics based on orthogonal test methods[J]. Defence Technology, 2019, 15(5):690-697.
[26]	XUE X C, YU Y G, XIE J M, et al. The influence of nozzle diameters on the interaction characteristic of combustion-gas jets and liquid[J]. Defence Technology, 2017, 13(4):257-262.
[27]	邹伟伟, 郝晓琴, 张志勇, 等. 小口径可燃药筒及装药的燃烧性能研究[J]. 兵工学报, 2015, 36(8):1423-1429.
	ZOU W W, HAO X Q, ZHANG Z Y, et al. Research on combustion performance of small-bore molded combustible cartridge case and charge[J]. Acta Armamentarii, 2015, 36(8):1423-1429. (in Chinese)
[17]	WIRI S, RITTER A C, BAILIE J M, et al. Computational modeling of blast exposure associated with recoilless weapons combat training[J]. Shock Waves, 2017,27:849-862.
[18]	ONGARO F, ROBBEC, PAPY A, et al. Modelling of internal ballistics of gun systems:a review[J]. Defence Technology, 2024,41:35-58.

弹头质量/g	弹头初速/m/s	最大膛压/MPa	枪口动能/J
11.2	910	473	4638
10.0	960	454	4608
9.0	990	440	4411
8.0	1020	423	4161
7.0	1060	410	3933

弹头质量/g	弹头初速/m/s	最大膛压/MPa	枪口动能/J
11.2	910	473	4638
10.0	960	454	4608
9.0	990	440	4411
8.0	1020	423	4161
7.0	1060	410	3933

发射药质量/g	弹头初速/(m·s^-1)	最大膛压/MPa	枪口动能/J
5.5	1020	423	4161
5.0	965	357	3725
4.5	910	300	3312
4.4	890	395	3168

发射药质量/g	弹头初速/(m·s^-1)	最大膛压/MPa	枪口动能/J
5.5	1020	423	4161
5.0	965	357	3725
4.5	910	300	3312
4.4	890	395	3168

可燃药筒质量/g	弹头初速/m/s	最大膛压/MPa	枪口动能/J
8.5	910	300	3312
8.4	904	295	3269
8.3	896	291	3176
8.2	889	286	3162
8.1	882	282	3112
