A DDPG-based Trajectory Planning Method for Collision Avoidance of Morphing Spacecraft

doi:10.12382/bgxb.2023.1182

Abstract

Abstract:

To address the problem of the strong coupling between the guidance and morphing decision of morphing spacecraft, a morphing collision avoidance trajectory planning method of considering obstacle constraint based on deep deterministic policy gradient (DDPG) is proposed. A kinematic model of morphing aerospace craft is established according to morphing parameter. A longitudinal guidance law with a range error correction function and a lateral guidance law based on line-of-sight angle deviation are designed to realize the obstacle circumvention and ensure the terminal guidance accuracy. Then a Markov decision model is constructed to facilitate a continuous morphing. The angle of attack, Mach, and relative distance from the spacecraft to the obstacle are taken as the state space. The potential field penalty function considering collision and the smallest terminal guidance error reward function is considered in the design. The DDPG network is then trained to generate a map of decision instruction from the state space and obtain the optimal shape decision instruction. The simulated results show that, compared with configuration-fixed spacecraft, the guidance accuracy and lateral obstacle avoidance ability of morphing spacecraft are improved by optimizing the shape, and the requirement for the detection ability of air borne radar is reduced to save the detection cost.

Key words: morphing spacecraft, deep deterministic policy gradient, intelligent decision-making, trajectory planning, collision avoidance

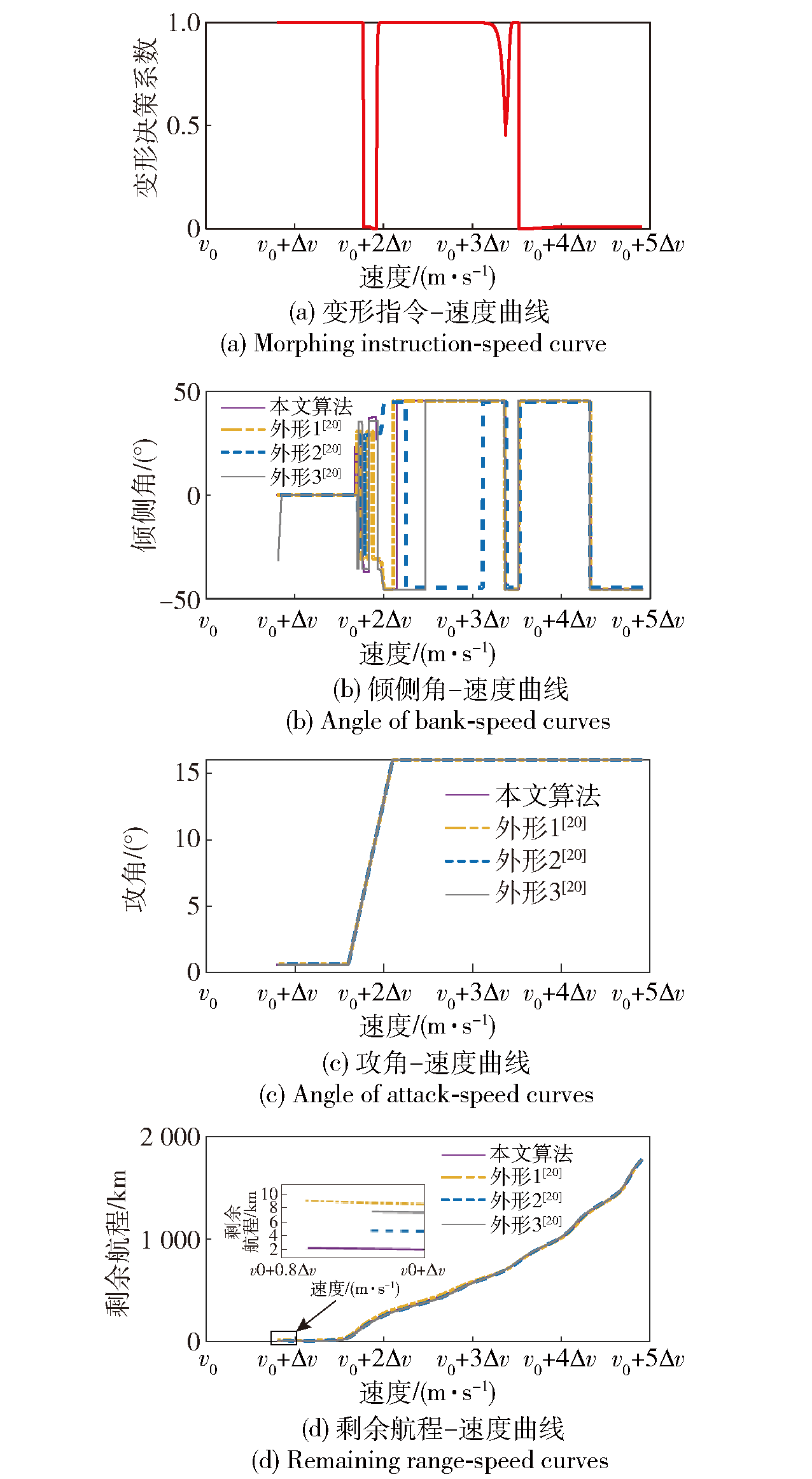

CLC Number:

V448.235

DING Tianyun, XIA Yi, MEI Zewei, SHAO Xingling, LIU Jun. A DDPG-based Trajectory Planning Method for Collision Avoidance of Morphing Spacecraft[J]. Acta Armamentarii, 2024, 45(11): 3903-3914.

Figures/Tables 20

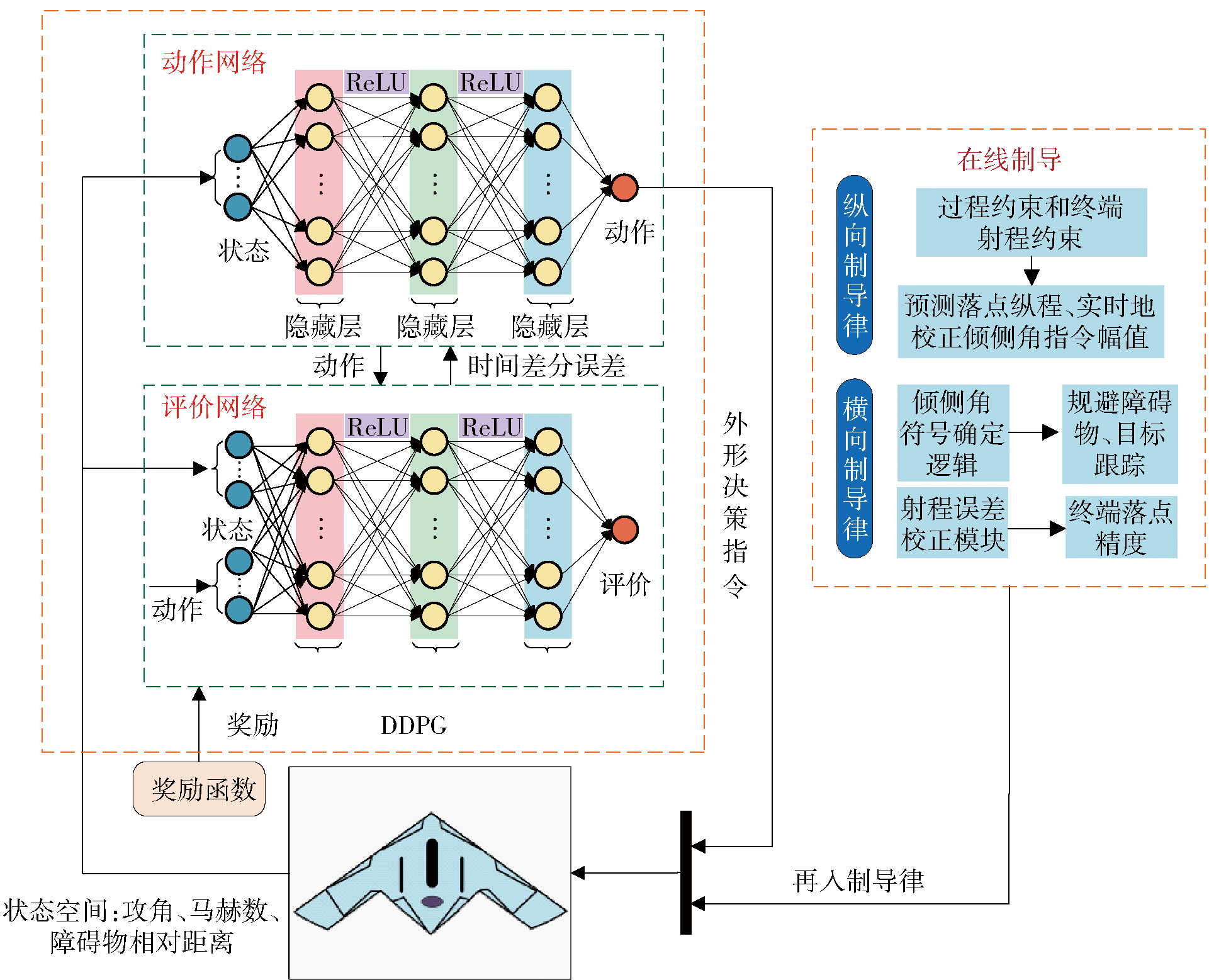

Fig.1 Structure block diagram of trajectory planning technology for morphing intelligent decision

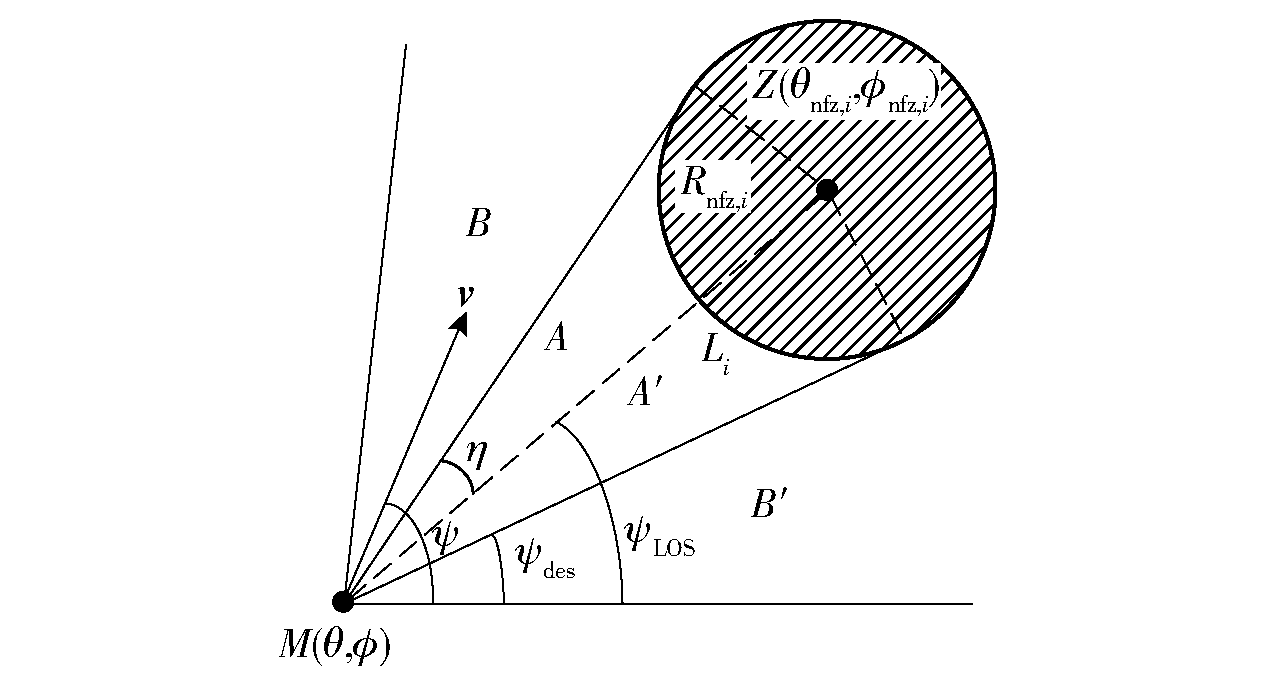

Fig.2 Schematic diagram of no-fly zone

Fig.3 Training process of DDPG algorithm

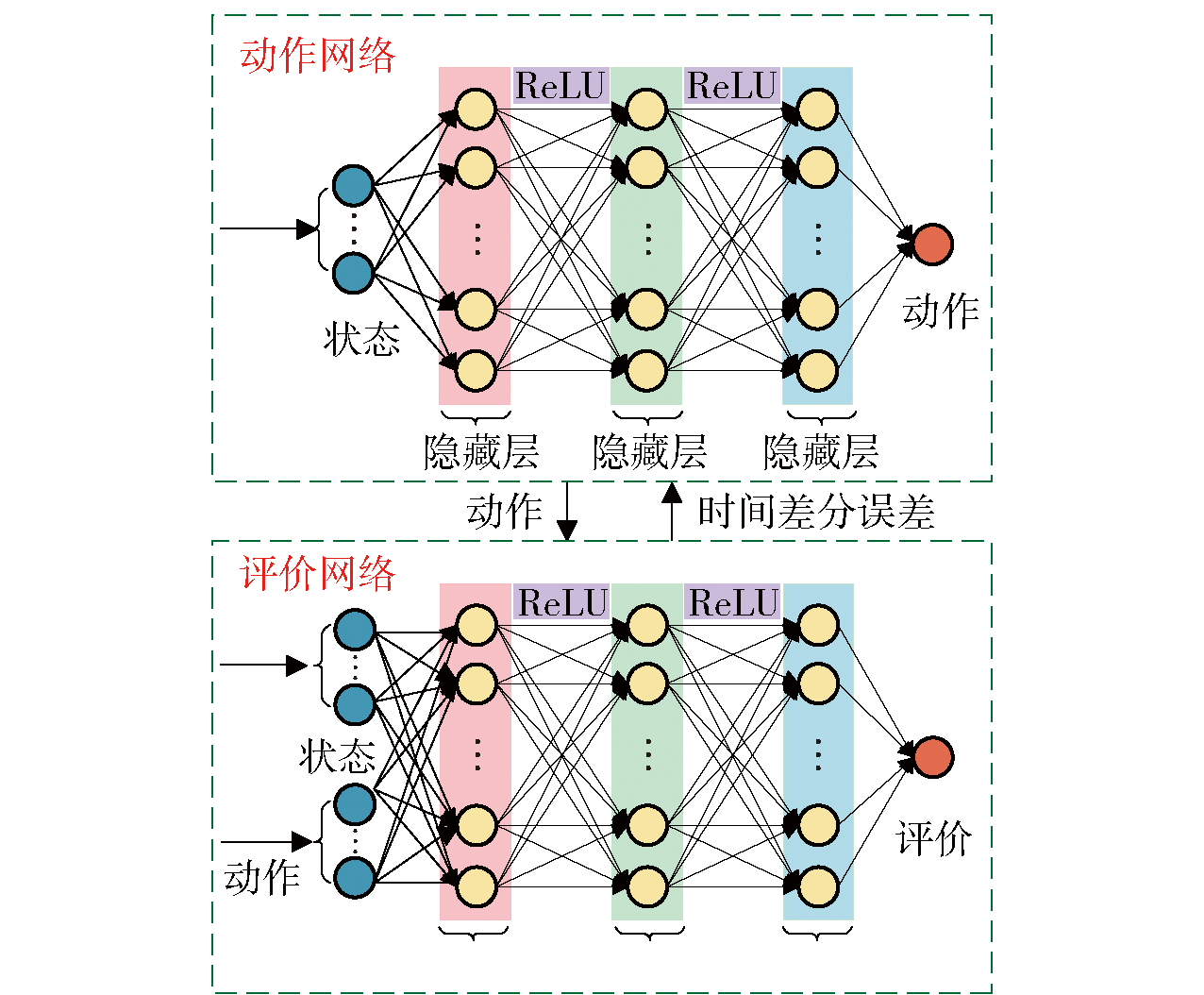

Fig.4 Structure diagram of neural network of DDPG

Table 1 Initialization parameters setting for simulation

训练参数	数值
Critic网络学习率	0.001
Actor网络学习率	0.0001
折扣因子	0.99
抽样样本大小	128
经验数据集大小	1000000
探索噪声方差	0.1
软更新率	0.01
航向角阈值ψ_des/(°)	5

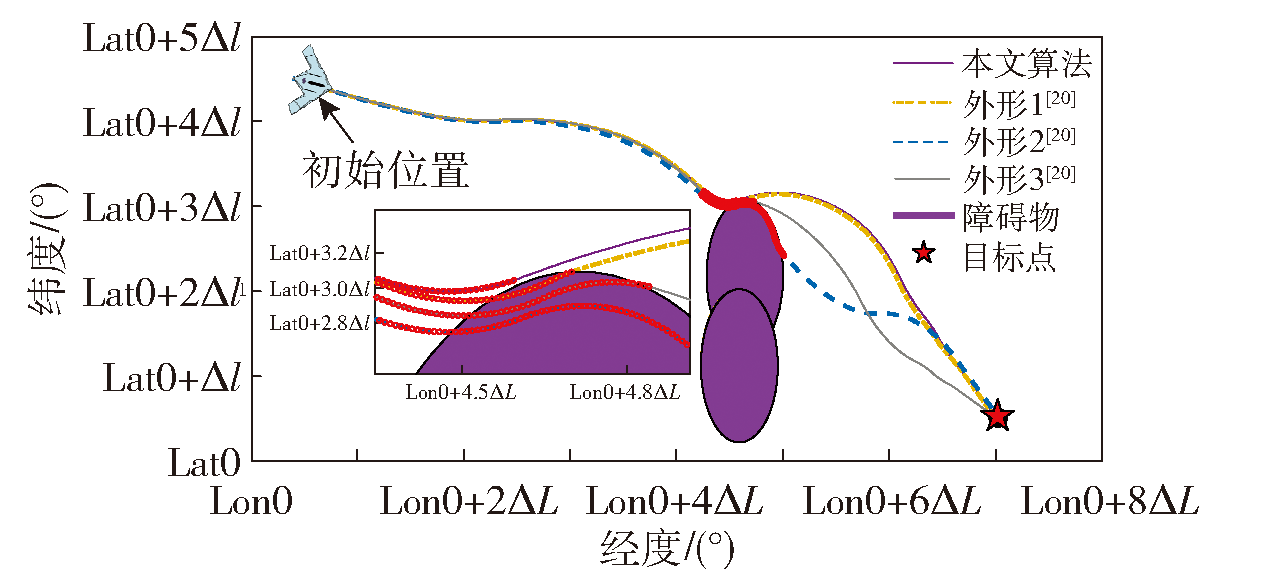

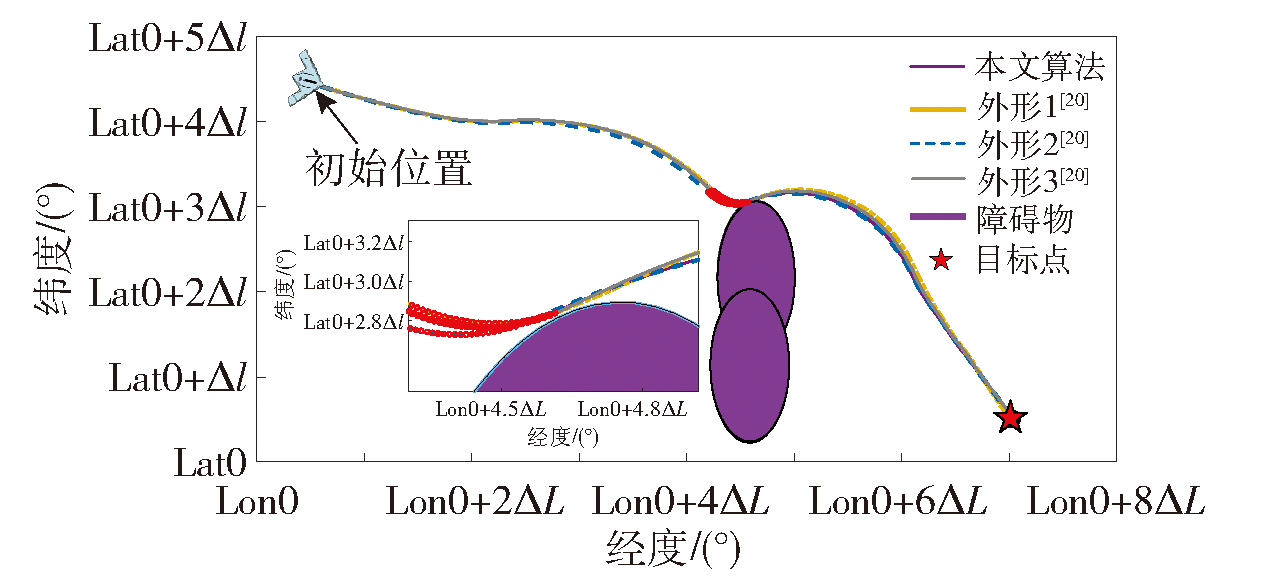

Fig.5 Comparison of flight paths

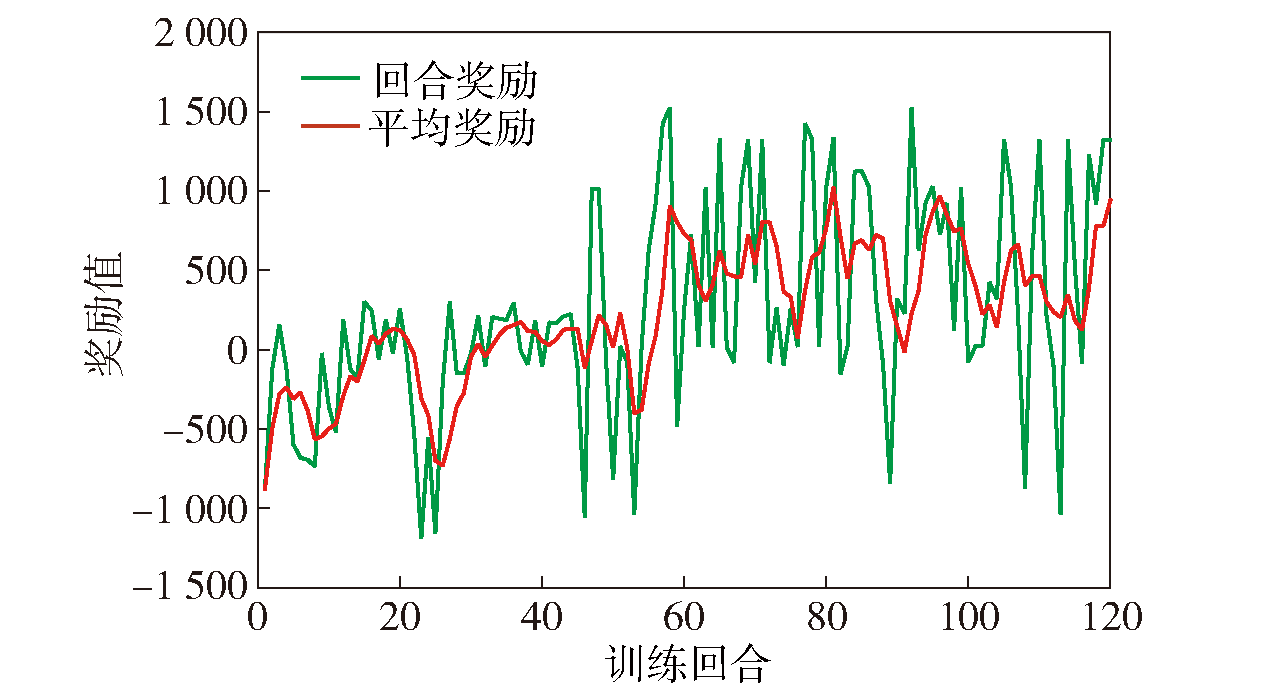

Fig.6 Reward curves for variable configuration training

Fig.7 Variation of related morphing parameters during flying

Fig.8 Profiles of different angles of attack

Table 2 Simulation results in Scenario 1

类别	经纬度偏差/(°)	剩余航程/km
变外形	(0.0115,-0.0158)	2.17
外形1	(0.0468,-0.0672)	9.101
外形2	(0.041,-0.0122)	4.754
外形3	(0.0581,-0.0345)	7.514

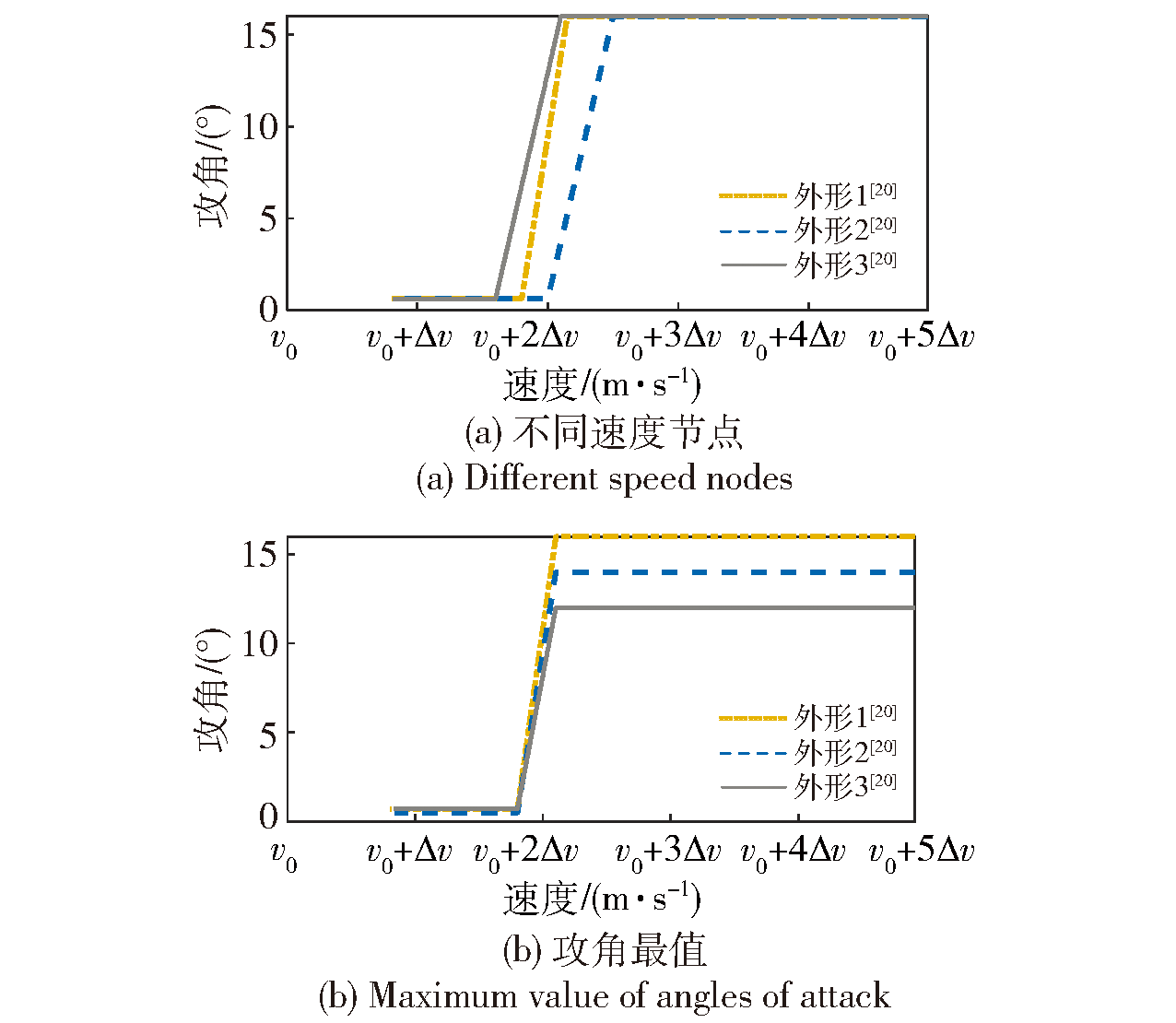

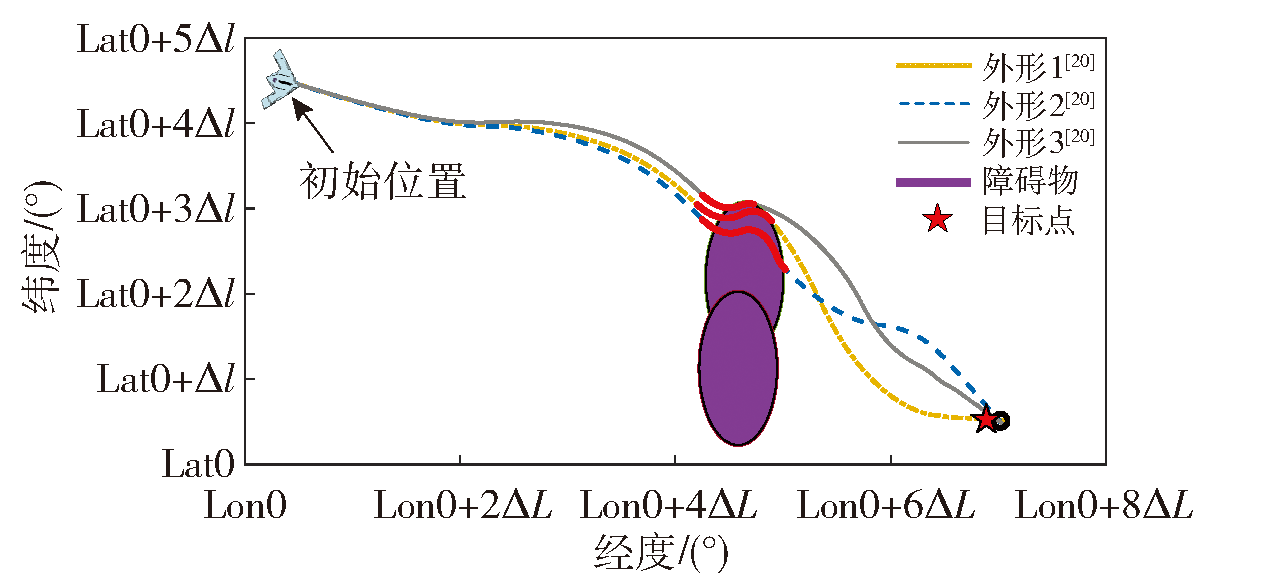

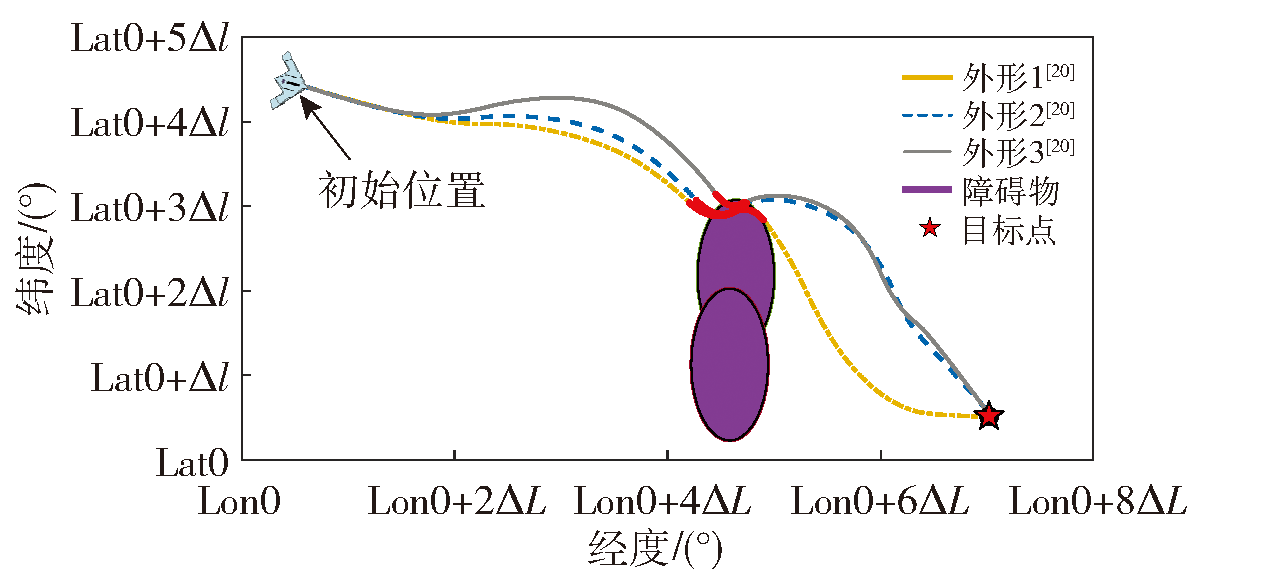

Fig.9 Single shape track diagram of different speed nodes

Fig.10 Variable shape track diagram of different speed nodes

Fig.11 Single shape track chart with maximum value of different angles of attack

Fig.12 Variable shape track chart with maximum value of different angles of attack

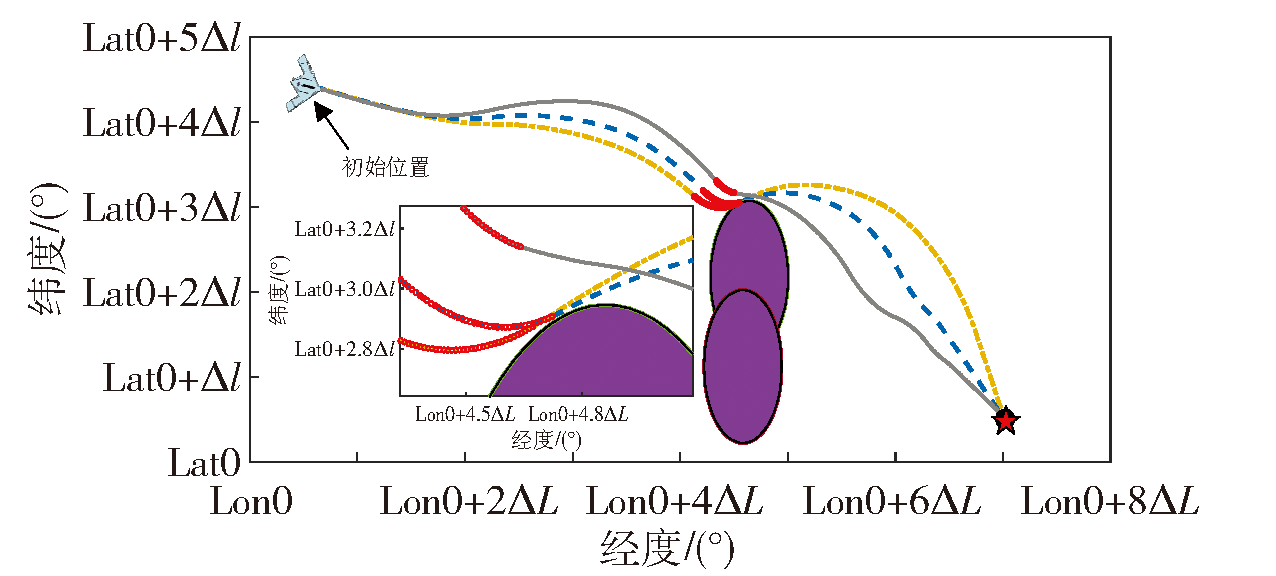

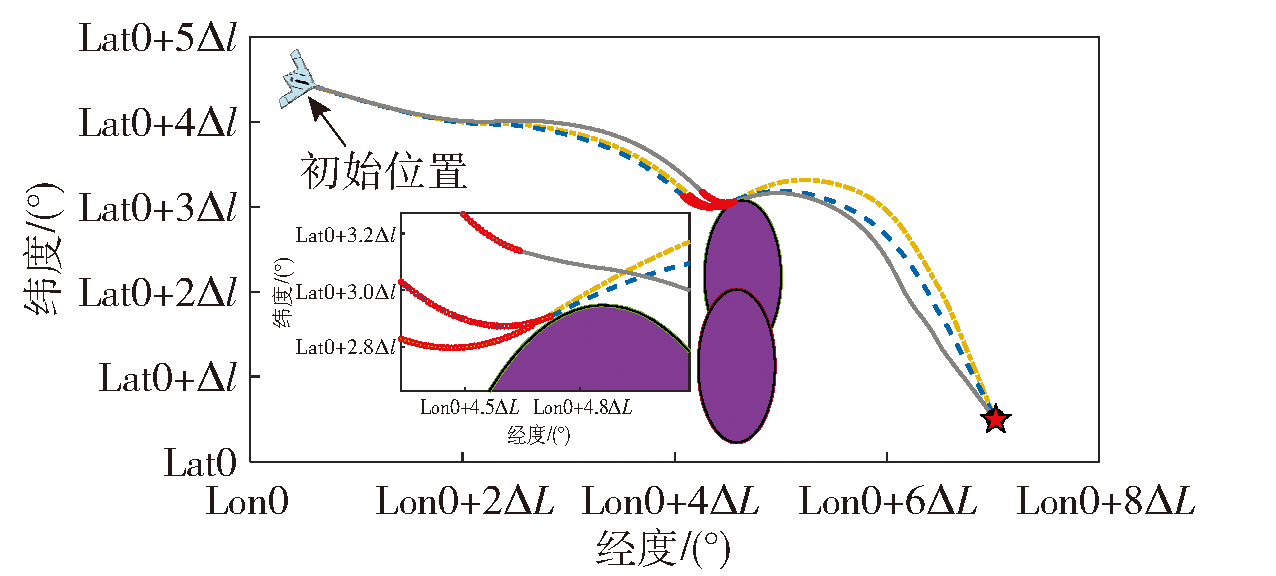

Fig.13 Comparison of emergency obstacle avoidance

Table 3 The minimum allowable detection radius

变外形	外形1	外形2	外形3
83%	87%	100%	93%

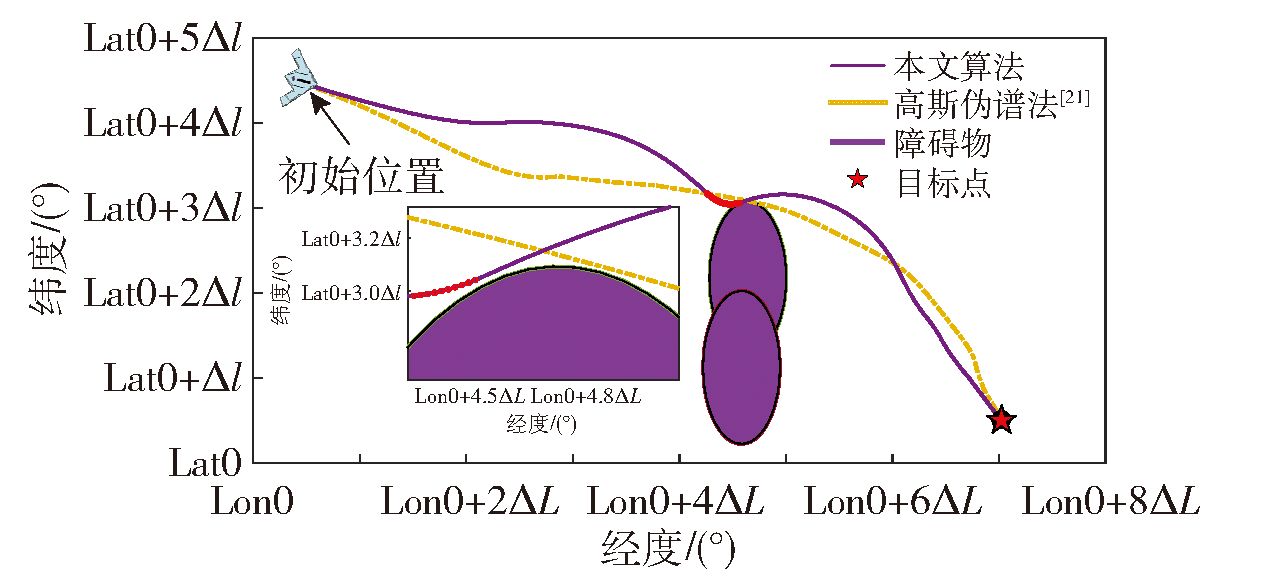

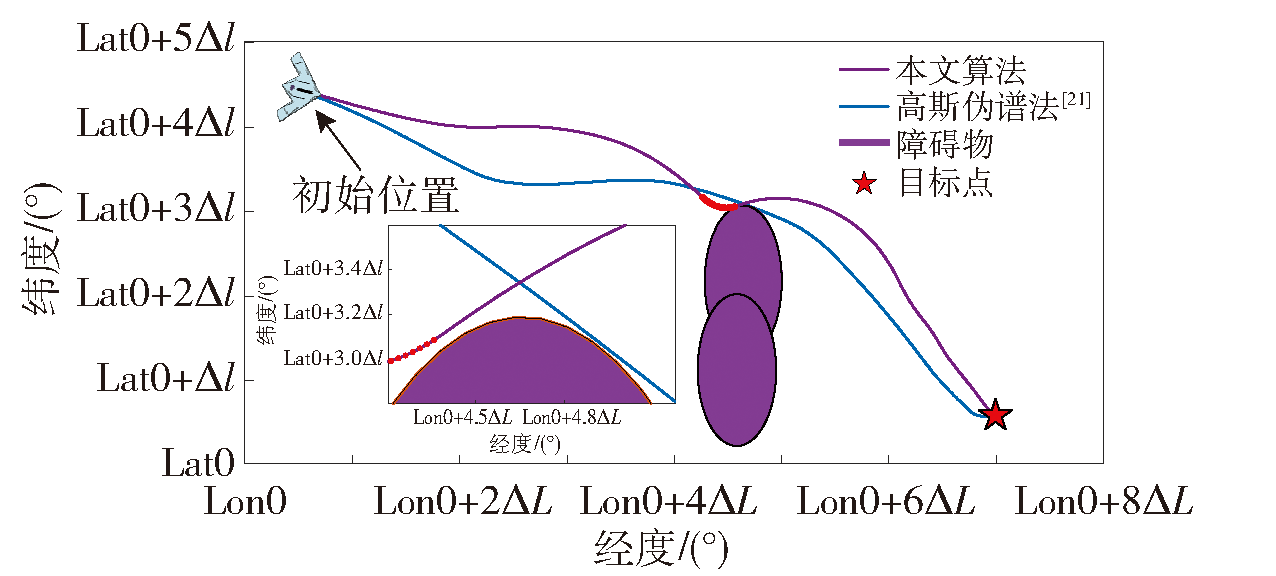

Fig.14 Flight path diagram of two methods

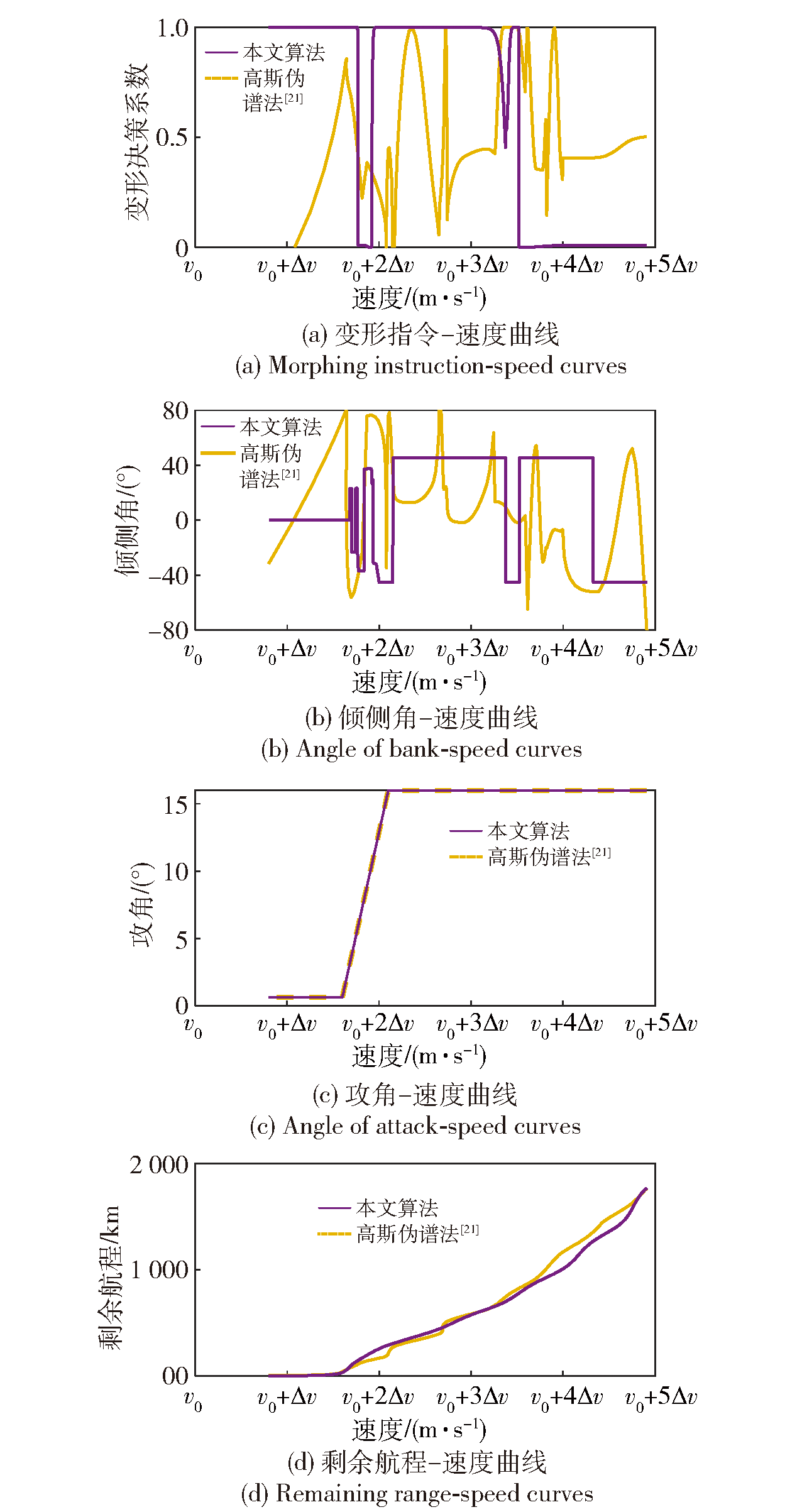

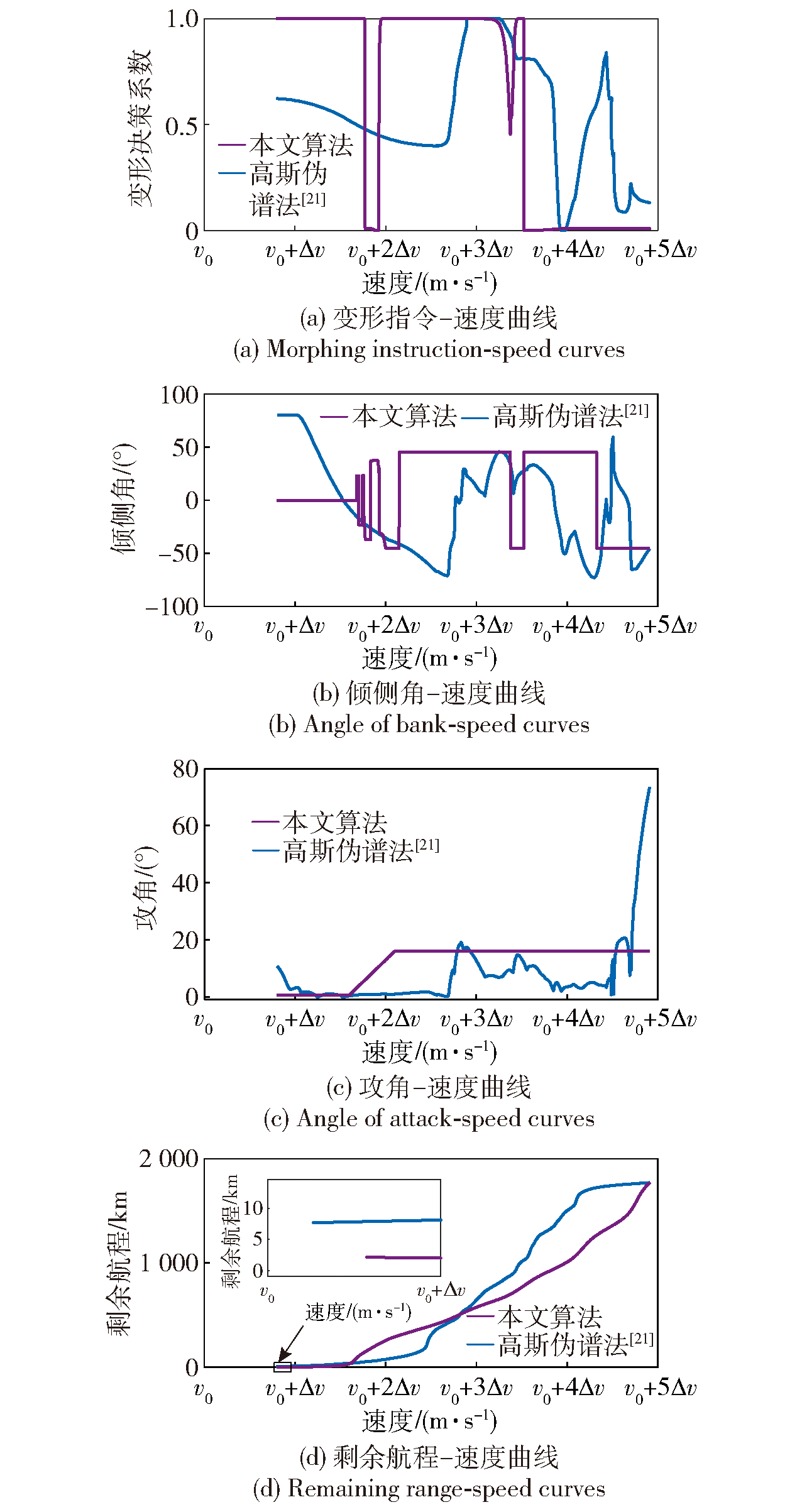

Fig.15 Variation diagram of related parameters of two methods

Fig.16 Flight path diagram of two methods

Fig.17 Variation diagram of related parameters of two methods
