Avrami Model for the Construction Process of Nitro Gradiently Distributed Single-base Propellant

doi:10.12382/bgxb.2023.1190

Abstract

Abstract:

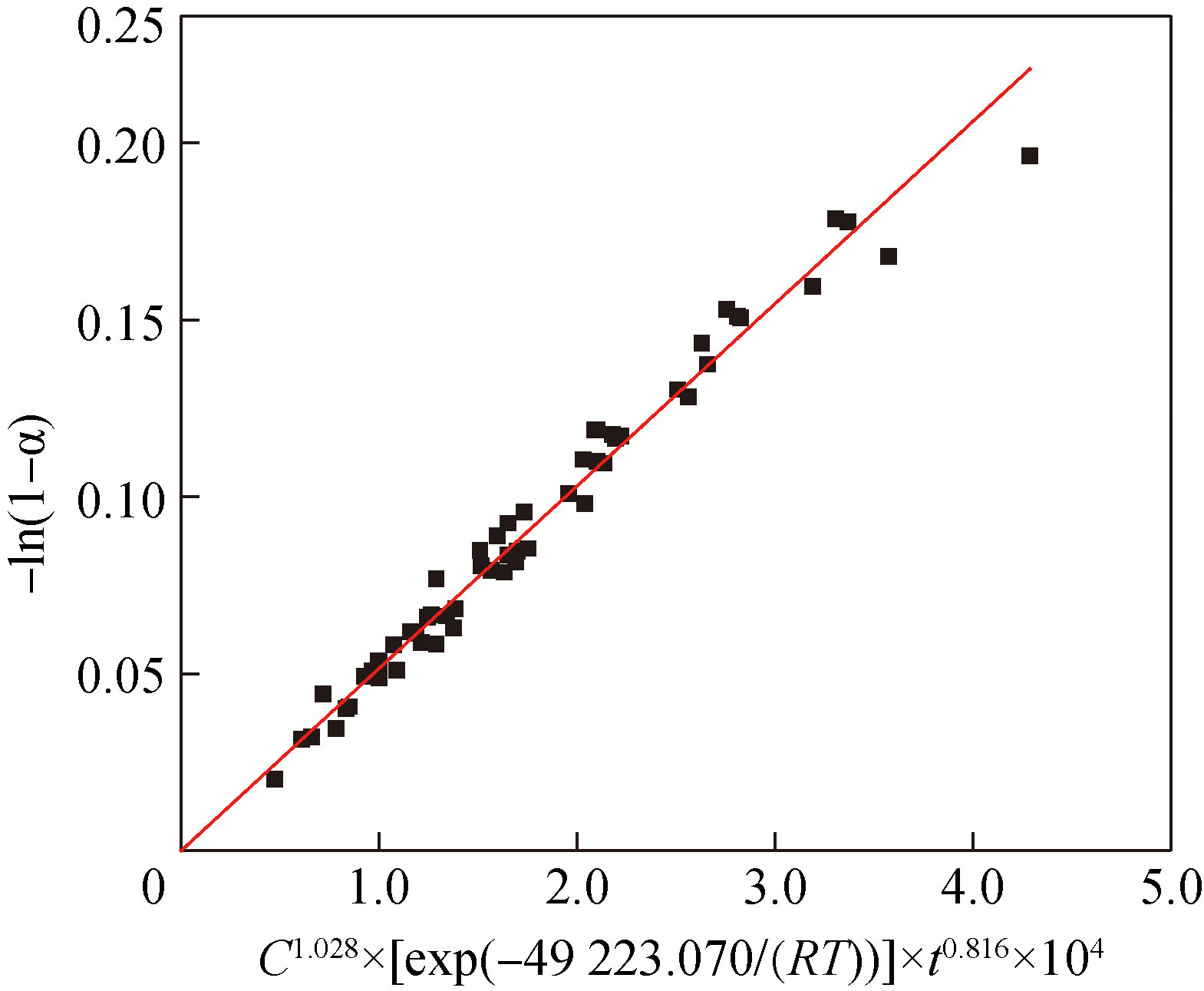

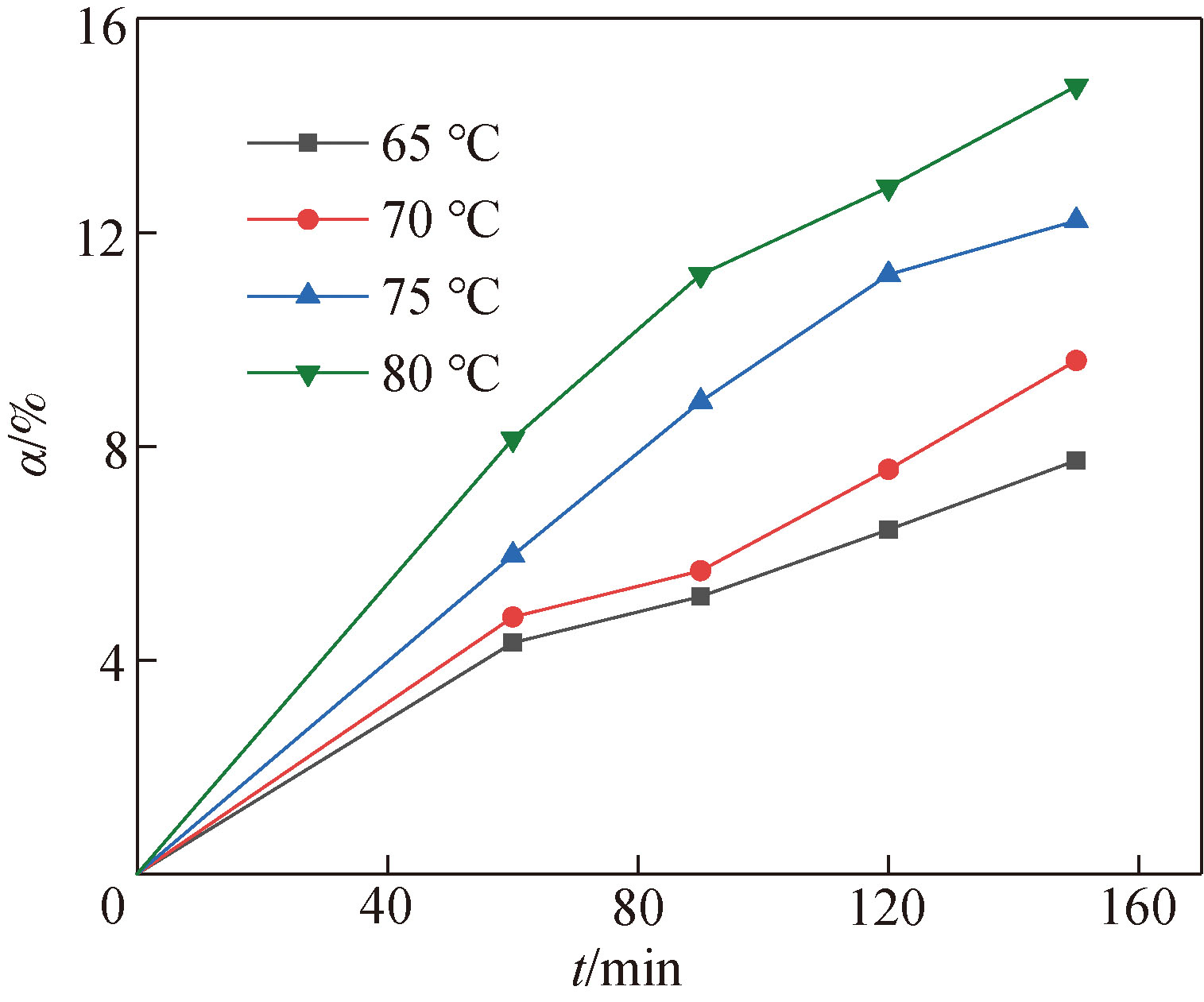

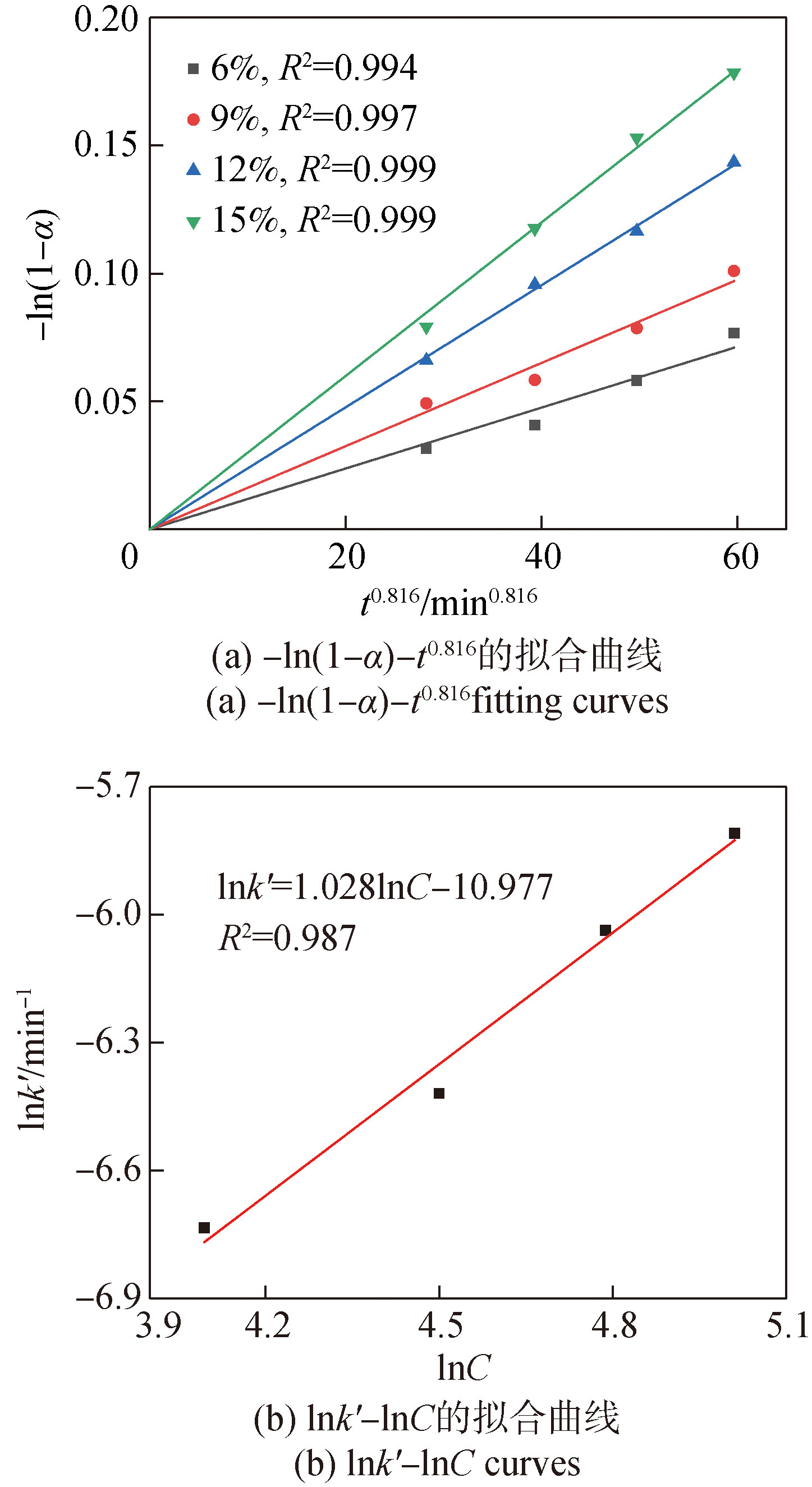

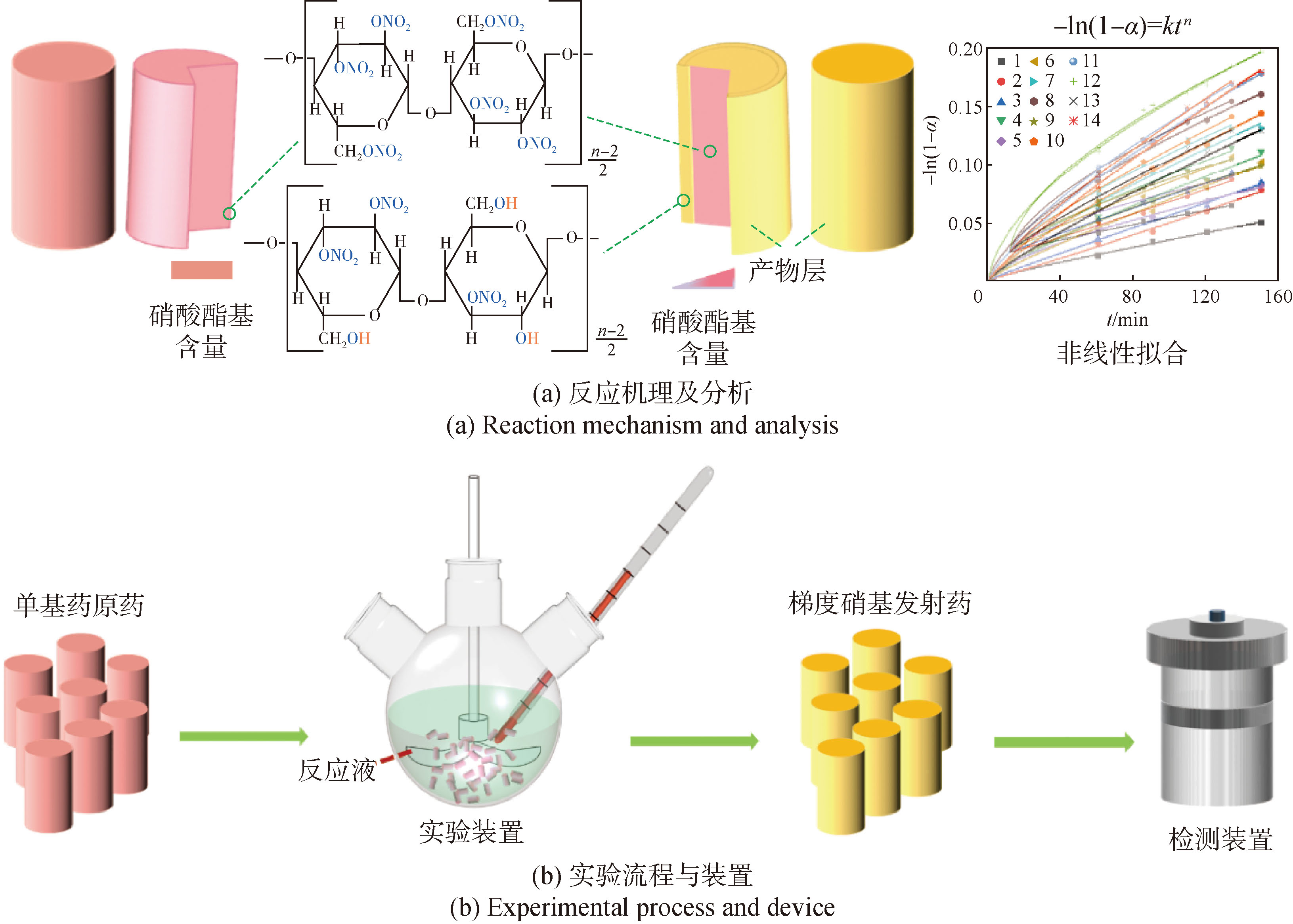

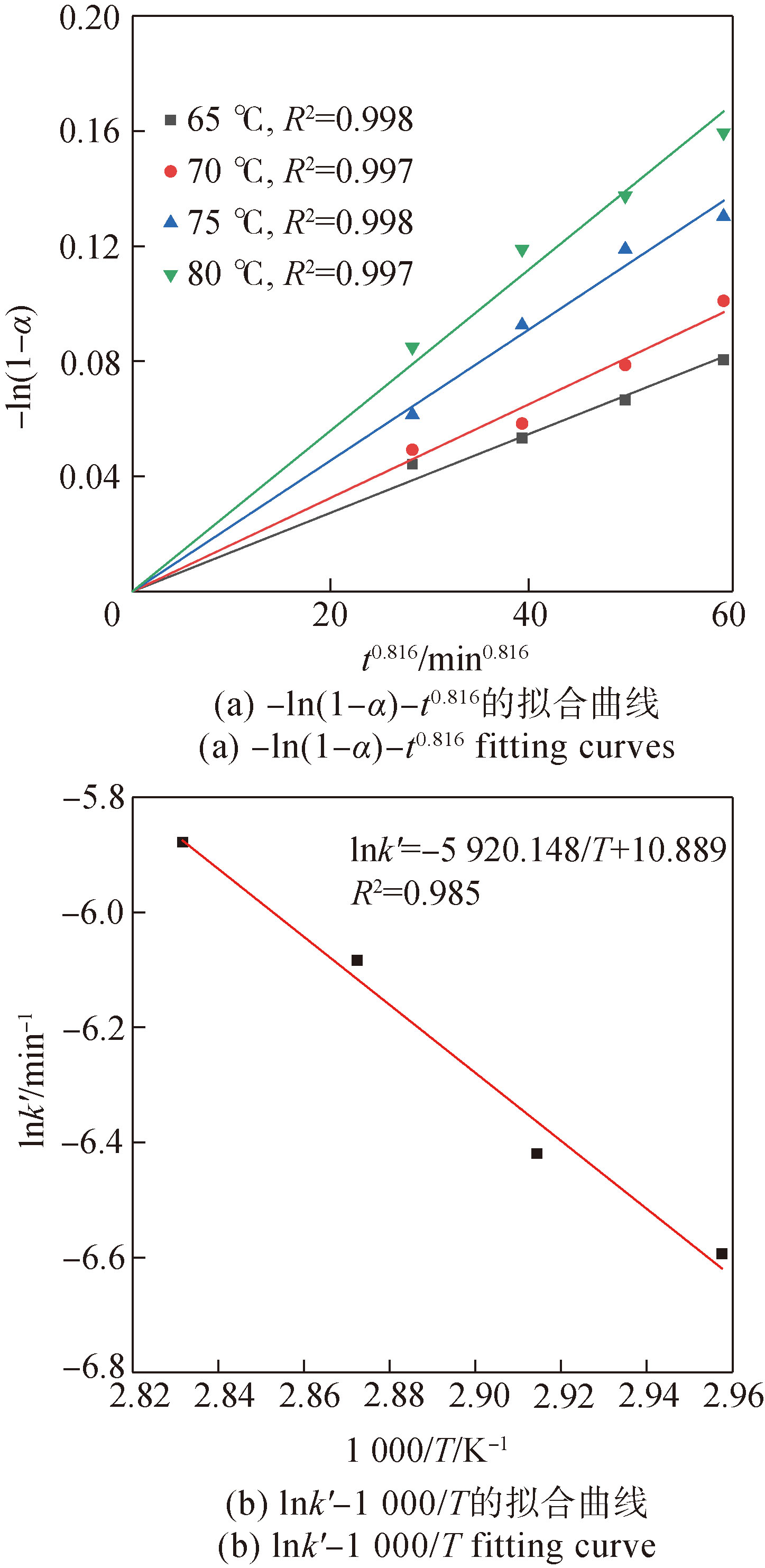

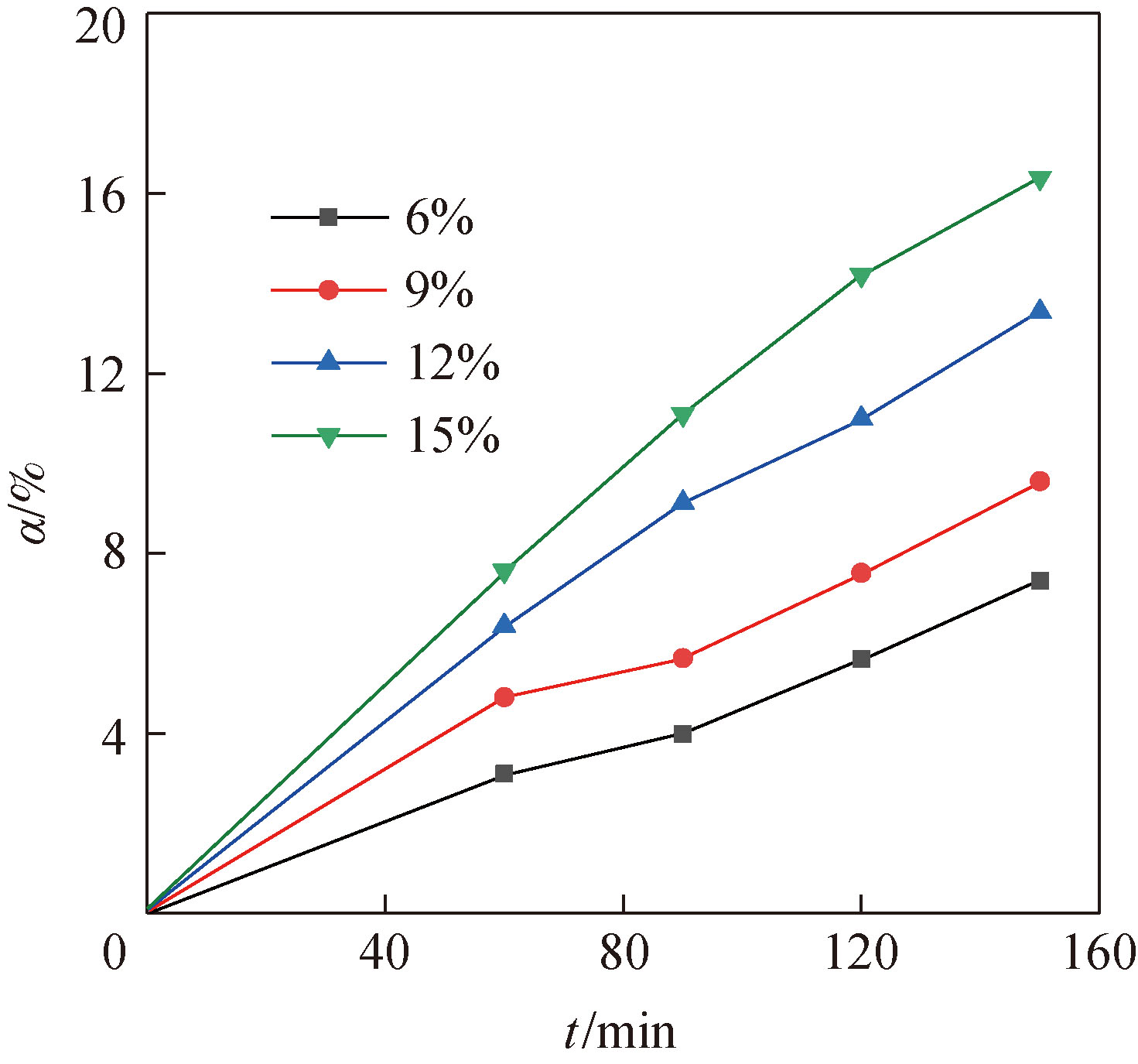

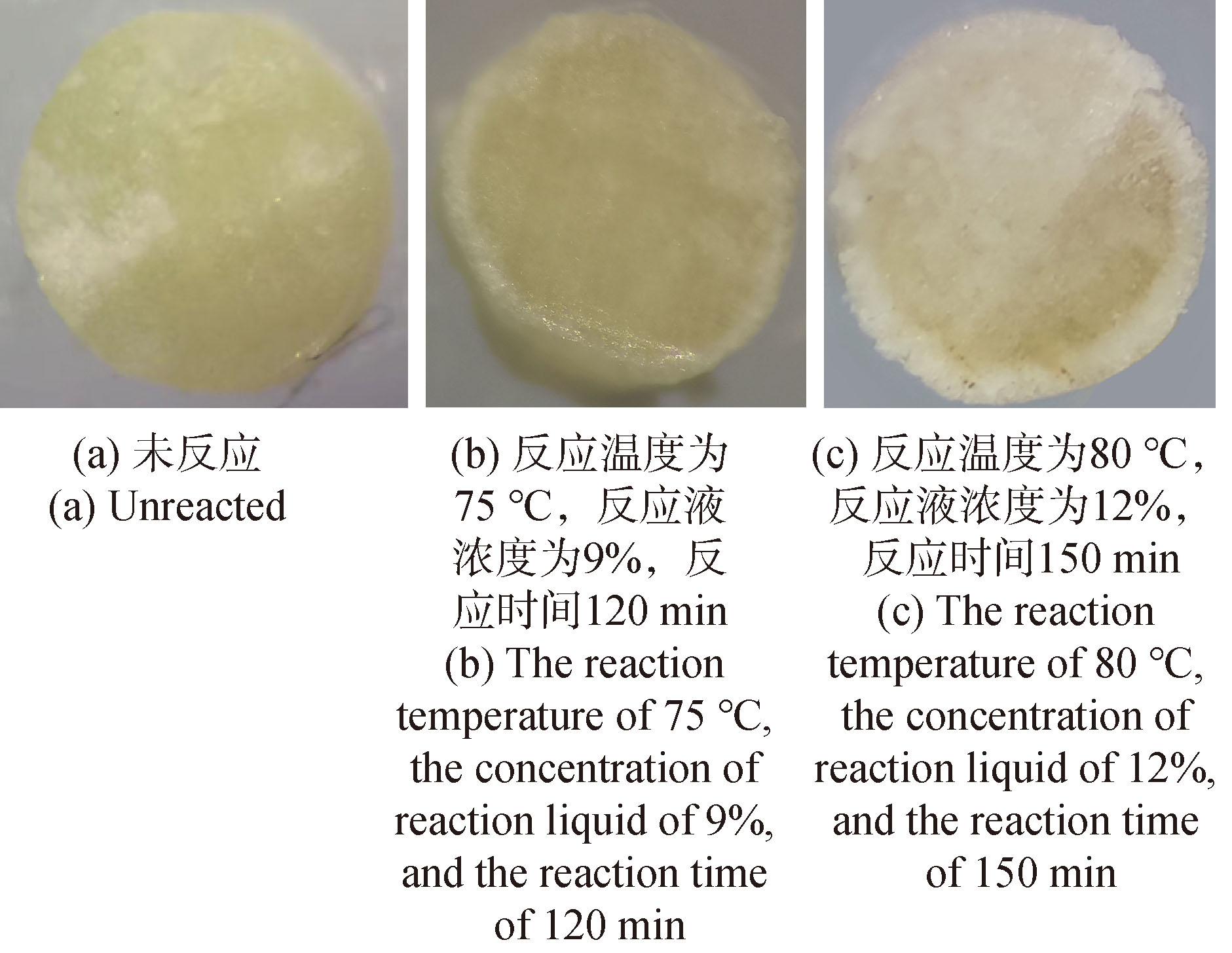

Nitro gradiently distributed propellant is a kind of environmentally friendly smokeless propellant.The controllable construction of its structure is a complex physicochemical process,which is the key to determine the combustion performance of propellant.In order to study the kinetics of reaction process of nitro gradiently distributed propellant during preparation,the cylindrical granular single-base propellant sample was used as the research object, which density was tested by the liquid static weighing method.The influence rules of denitration reaction temperature and reaction liquid concentration on the denitration rate were investigated.The control steps of the reaction process were studied by using the Avrami model,and a reaction kinetics equation was established.The experimental results showed that the bigger the degree of denitration of the cylindrical granular single-base propellant sample was,the smaller its density was.The denitration reaction process of cylindrical granular single-base propellant was consistent with the Avrami model of n=0.816,the apparent activation energy was 49.223kJ/mol,the apparent reaction order of the reaction liquid concentration was 1.028,and the denitration reaction process was controlled by the mixture of diffusion and chemical reaction.Therefore,the chemical reaction effect or diffusion effect can be strengthened to improve the denitration rate of the cylindrical granular single-base propellant.This study provides a theoretical basis for the establishment of productive process conditions for nitro gradiently distributed propellant.

Key words: nitro gradiently distributed propellant, control step, Avrami model, kinetic equation

CLC Number:

Q562⁺.21

FAN Honglei, CUI Fan, LI Yang, LI Shiying, CHEN Chunlin, LI Chunzhi, WANG Xiaoqian, XIAO Zhongliang, WU Xiaoqing. Avrami Model for the Construction Process of Nitro Gradiently Distributed Single-base Propellant[J]. Acta Armamentarii, 2025, 46(1): 231190-.

Figures/Tables 10

References 25

[1]	王泽山. 火炸药科学技术[M]. 北京: 北京理工大学出版社, 2002.
	WANG Z S. Science and technology of explosives[M]. Beijing: Beijing Institute of Technology Press, 2002. (in Chinese)
[2]	肖忠良. 火炸药导论[M]. 北京: 国防工业出版社, 2019.
	XIAO Z L. Introductory theory of propellants and explosives[M]. Beijing: National Defense Industry Press, 2019. (in Chinese)
[3]	梁昊, 丁亚军, 李世影, 等. 钝感双基发射药迁移失效评价方法[J]. 兵工学报, 2022, 43(2):297-304. doi: 10.3969/j.issn.1000-1093.2022.02.007
	LIANG H, DING Y J, LI S Y, et al. Evaluation method for migration invalidation of deterred double-base gun propellants[J]. Acta Armamentarii, 2022, 43(2):297-304. (in Chinese) doi: 10.3969/j.issn.1000-1093.2022.02.007
[4]	AURELL J, HOLDER A L, GULLETT B K, et al. Characterization of M4 carbine rifle emissions with three ammunition types[J]. Environmental Pollution, 2019,254:112982-112991.
[5]	张勇, 丁亚军, 肖忠良. 双基球扁药中的钝感剂迁移现象及其对燃烧性能的影响[J]. 含能材料, 2021, 29(3):220-227.
	ZHANG Y, DING Y J, XIAO Z L. Migration phenomenon of deterrent in double-base oblate spherical propellant and its influence on combustion performance[J]. Chinese Journal of Energetic Materials, 2021, 29(3):220-227. (in Chinese)
[6]	LI Y, LI S Y, DING Y J, et al. Design and fabrication of gradiently-denitrated layer structure of seven-hole gun propellant and its burning performance[J]. Propellants,Explosives,Pyrotechnics, 2023, 48(5):202200304-202200314.
[7]	宋育芳, 肖乐勤, 李纯志, 等. GAP/NC基发射药的不敏感性能[J]. 含能材料, 2023, 31(2):152-159.
	SONG Y F, XIAO L Q, LI C Z, et al. Insensitivity performance of GAP/NC-based gun propellants[J]. Chinese Journal of Energetic Materials, 2023, 31(2):152-159. (in Chinese)
[8]	王琼林, 刘少武, 吴建军. 钝感剂对发射药枪口烟雾特性影响的研究[J]. 火炸药学报, 1998, 21(3):18-20.
	WANG Q L, LIU S W, WU J J. Study on effect of deterrents on gun muzzle smoke[J]. Chinese Journal of Explosives & Propellants, 1998, 21(3):18-20. (in Chinese)
[9]	LIANG H, DING Y J, LI S Y, et al. Combustion performance of spherical propellants deterred by energetic composite deterring agents[J]. ACS Omega, 2021, 6(20):13024-13032. doi: 10.1021/acsomega.1c00637 pmid: 34056453
[10]	黄振亚, 范建芳, 陈余谦. 叠氮硝胺发射药表面钝感新技术[J]. 兵工学报, 2014, 35(2):29-32.
	HUANG Z Y, FAN J F, CHEN Y Q. A new deterring technique of azidonitramine propellant[J]. Acta Armamentarii, 2014, 35(2):29-32. (in Chinese)
[11]	宋亚苹, 黄振亚, 解德富, 等. 钝感剂种类对叠氮硝胺发射药贮存稳定性的影响[J]. 火炸药学报, 2020, 43(5):553-557. doi: 10.14077/j.issn.1007-7812.201909004
	SHONG Y P, HUANG Z Y, XIE D F, et al. Effect of deterrents on storage stability of azidonitramine gun propellants[J]. Chinese Journal of Explosives & Propellants, 2020, 43(5):553-557. (in Chinese)
[12]	肖忠良, 丁亚军, 李世影, 等. 发射药表层梯度硝基裁剪方法与效应[J]. 中国材料进展, 2022, 41(2):92-97.
	XIAO Z L, DING Y J, LI S Y, et al. Gradient tailoring method and effect of nitro gradiently distributed propellant[J]. Materials China, 2022, 41(2):92-97. (in Chinese)
[13]	李世影, 丁亚军, 梁昊, 等. 梯度硝基发射药的设计原理与实现方法[J]. 兵工学报, 2020, 41(11):2198-2205.
	LI S Y, DING Y J, LIANG H, et al. Design principle and realizable approach of nitro gradiently distributed propellant[J]. Acta Armamentarii, 2020, 41(11):2198-2205. (in Chinese) doi: 10.3969/j.issn.1000-1093.2020.11.006
[14]	李世影, 肖忠良, 李宇, 等. 某中小口径武器用梯度硝基发射装药效应[J]. 含能材料, 2023, 31(11):1134-1140.
	LI S Y, XIAO Z L, LI Y, et al. Study on the effect of nitro gradiently distributed propellant charge for a small and medium caliber weapon[J]. Chinese Journal of Energetic Materials, 2023, 31(11):1134-1140. (in Chinese)
[15]	SEDAT I, DOGUKAN A. Leaching kinetics of Mo Ni,and Al oxides from spent nickel-molybdenum hydrodesulfurization catalyst in H₂SO₄ solution[J]. Journal of Sustainable Metallurgy, 2021, 7(2):470-480.
[16]	WANG Y H, WU J J, HU G C, et al. Recovery of Li and Fe from spent lithium iron phosphate using organic acid leaching system[J]. Transactions of Nonferrous Metals Society of China, 2024, 34(1):336-346.
[17]	YUAN J, LI H J, DING S. Leaching kinetics of aluminum from alkali-fused spent cathode carbon using hydrochloric acid and sodium fluoride[J]. Processes, 2022, 10(5):849-865.
[18]	ZHANG Y J, LI X H, PAN L P, et al. Effect of mechanical activation on the kinetics of extracting indium from indium-bearing zinc ferrite[J]. Hydrometallurgy, 2010, 102 (43469):95-100.
[19]	LI W, JIAO F, YANG C R, et al. Leaching kinetics of magnesium from spent magnesia-chromium refractories[J]. Journal of Central South University, 2023, 30(4):1179-1190.
[20]	张晋霞, 邹玄, 牛福生. 含锌尘泥中锌的浸出行为及动力学[J]. 中国有色金属学报, 2018, 28(8):1688-1696.
	ZHANG J X, ZOU X, NIU F S. Leaching behavior and leaching kinetics of zinc from zinc-bearing dust[J]. The Chinese Journal of Nonferrous Metals, 2018, 28(8):1688-1696. (in Chinese)
[21]	杨凯华, 张文娟, 何利华, 等. 硫磷混酸浸出黑钨矿动力学[J]. 中国有色金属学报, 2018, 28(1):175-182.
	YANG K H, ZHANG W J, HE L H, et al. Leaching kinetics of wolframite with sulfuric-phosphoric acid[J]. The Chinese Journal of Nonferrous Metals, 2018, 28(1):175-182. (in Chinese)
[22]	孙彩虹, 代梦博, 张文杰, 等. 转底炉工艺次氧化锌的硫酸浸出动力学[J]. 湿法冶金, 2022, 41(2):117-121.
	SUN C H, DAI M B, ZHANG W J, et al. Leaching Kinetics of secondary zinc oxide from rotary hearth furnace using sulfuric acid[J]. Hydrometallurgy of China, 2022, 41(2):117-121. (in Chinese)
[23]	KABAI J. Determination of specific activation energies of metal-oxides and metal-oxide hydrates by measurement of rate of dissolution[J]. Acta Chimica Academiae Scientarium Hungaricae, 1973, 78(1):57-73.
[24]	OCTAVE L. Chemical reaction engineering third edition[M]. New York,NY, US: John Wiley & Sons, 2001.
[25]	LI M T, WEI C, QIU S, et al. Kinetics of vanadium dissolution from black shale in pressure acid leaching[J]. Hydrometallurgy, 2010, 104(2):193-200.

样品	反应条件			ρ/ (g·cm^-3)	α/%
样品	C/%	T'/℃	t/min	ρ/ (g·cm^-3)	α/%
原样				1.602	0
样品1	9	70	90	1.594	5.668
样品2	9	70	120	1.587	7.564
样品3	12	70	90	1.581	9.124
样品4	9	80	120	1.574	12.840

样品	反应条件			ρ/ (g·cm^-3)	α/%
样品	C/%	T'/℃	t/min	ρ/ (g·cm^-3)	α/%
原样				1.602	0
样品1	9	70	90	1.594	5.668
样品2	9	70	120	1.587	7.564
样品3	12	70	90	1.581	9.124
样品4	9	80	120	1.574	12.840

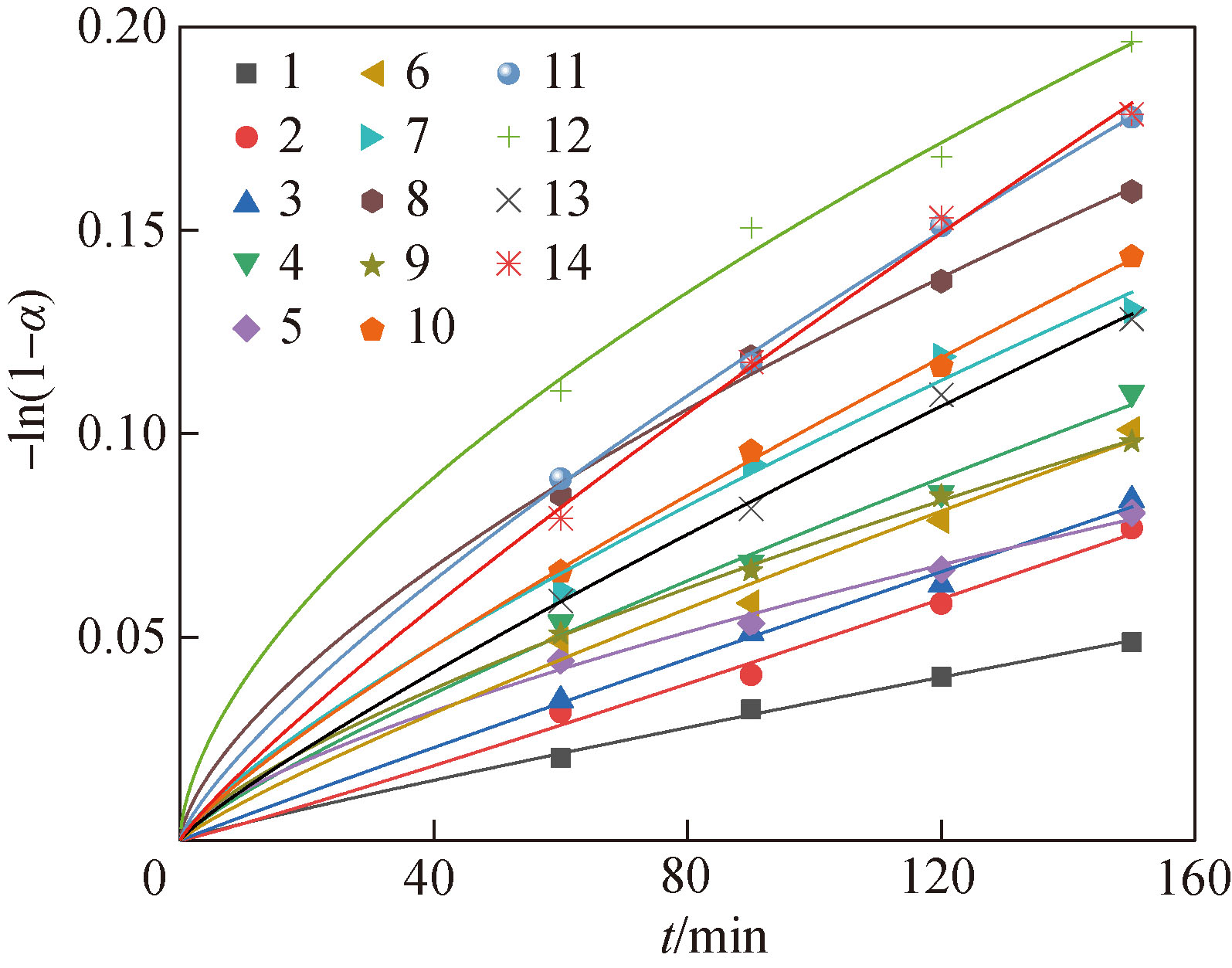

拟合曲线编号	C/%	T'/℃	拟合关系	R²
1	6	65	-ln(1-α)=5.196×10^-4t^0.908	0.993
2	6	70	-ln(1-α)=3.597×10^-4t^1.067	0.982
3	6	75	-ln(1-α)=6.453×10^-4t^0.967	0.989
4	6	80	-ln(1-α)=1.730×10^-3t^0.824	0.979
5	9	65	-ln(1-α)=2.510×10^-3t^0.688	0.982
6	9	70	-ln(1-α)=1.290×10^-3t^0.865	0.963
7	9	75	-ln(1-α)=2.640×10^-3t^0.785	0.973
8	9	80	-ln(1-α)=5.950×10^-3t^0.657	0.990
9	12	65	-ln(1-α)=2.490×10^-3t^0.734	0.997
10	12	70	-ln(1-α)=2.240×10^-3t^0.829	0.997
11	12	75	-ln(1-α)=3.680×10^-3t^0.774	0.998
12	12	80	-ln(1-α)=9.920×10^-3t^0.595	0.985
13	15	65	-ln(1-α)=1.720×10^-3t^0.863	0.996
14	15	70	-ln(1-α)=2.350×10^-3t^0.868	0.995
