Effect of Cutting Edge Angle of PCD Tool with Chip Breaker on Chip Flow

doi:10.12382/bgxb.2023.1051

Abstract

Abstract:

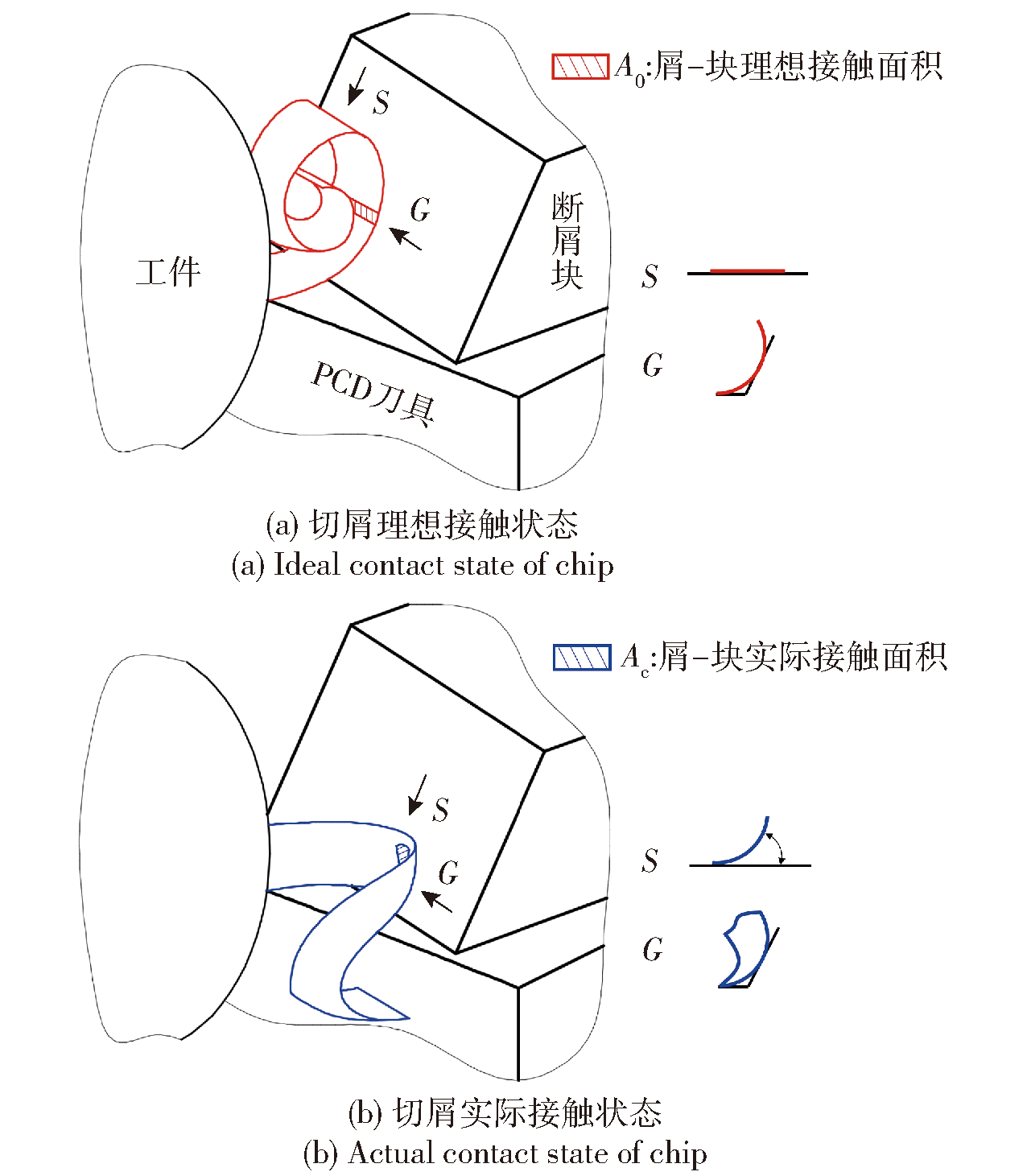

A tool angle can be reasonably selected to improve the chip control effect of polycrystalline diamond (PCD) tools with chip breakers. The cutting process is observed by finite element simulation and high-speed photography, and the influence of cutting edge angle on chip flow direction is analyzed. A concept of chip contact rate is put forward to measure the influence of chip breaker on chip flow direction, the types of chip are collected and counted, the relation curve between cutting edge angle and chip contact rate is established, and the reasonable value range of cutting edge angle is determined. The deflection angle parameters of chip breaker are presented, and the relation curve between the deflection angle and the chip contact rate is established. The results show that the increase in the cutting edge angle will weaken the control effect of chip breaker on the chip flow direction. When the cutting edge angle is in the range of 75°- 95°, the chip can flow to the workpiece surface and break to form C-shaped, 6-shaped and compact short spiral chips. and the chip breaking effect under the condition of unreasonable cutting edge angle can be improved by adjusting the chip deflection angle. Selecting the reasonable cutting edge angle and chip breaker deflection angle can improve the chip contact rate of PCD tool with chip breaker, realize the effective chip breaking and improve the excellent chip ratio.

Key words: polycrystalline diamond tool, chip flow direction, chip breaking, cutting edge angle

CLC Number:

TG712

WANG Jiawei, YU Aibing, LI Yi, YE Jiawang, ZHAO Jiazhen, QI Shaochun. Effect of Cutting Edge Angle of PCD Tool with Chip Breaker on Chip Flow[J]. Acta Armamentarii, 2024, 45(12): 4488-4499.

Figures/Tables 17

Fig.1 PCD tool with chip breaker

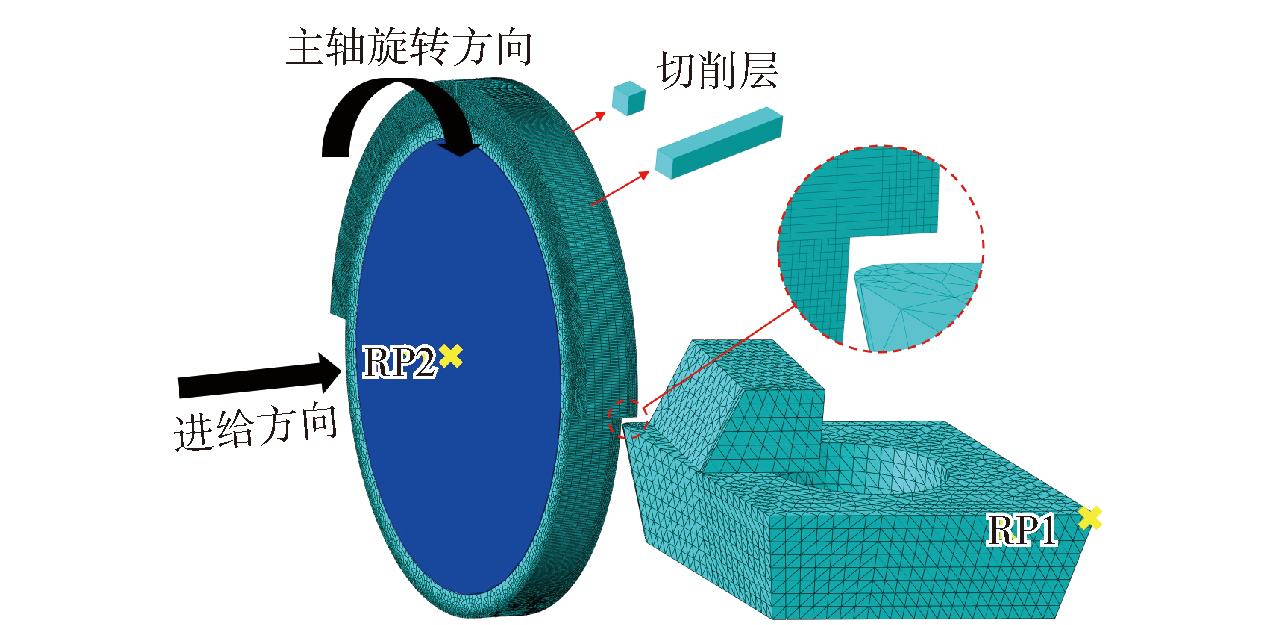

Fig.2 Finite element cutting model

Table 1 J-C material parameters of 7075-T651 aluminium alloy[16-17]

参数	取值
弹性模量/GPa	71.7
泊松比	0.33
熔点/K	908
比热容/(J·kg^-1·K^-1)	0.786T+839.2
热导率/(W·m^-1·K^-1)	-0.0002T²+0.1366T+128.63
热膨胀系数/(μm·m^-1·K^-1)	25.2
密度/(kg·m^-3)	2810
A/MPa	527
B/MPa	575
n	0.72
c	0.017
m	1.61
$ε · 0$	1
T₀	25
T_m	635
D₁	0.110
D₂	0.572
D₃	-3.446
D₄	0.016
D₅	1.099

Table 1 J-C material parameters of 7075-T651 aluminium alloy[16-17]

参数	取值
弹性模量/GPa	71.7
泊松比	0.33
熔点/K	908
比热容/(J·kg^-1·K^-1)	0.786T+839.2
热导率/(W·m^-1·K^-1)	-0.0002T²+0.1366T+128.63
热膨胀系数/(μm·m^-1·K^-1)	25.2
密度/(kg·m^-3)	2810
A/MPa	527
B/MPa	575
n	0.72
c	0.017
m	1.61
$ε · 0$	1
T₀	25
T_m	635
D₁	0.110
D₂	0.572
D₃	-3.446
D₄	0.016
D₅	1.099

Table 2 Physical properties of PCD tool[17]

参数	数值
弹性模量/GPa	900
泊松比	0.1
比热容/(J·kg^-1·K^-1)	471.5
导热系数/(W·m^-1·K^-1)	100
密度/(kg·m^-3)	3500

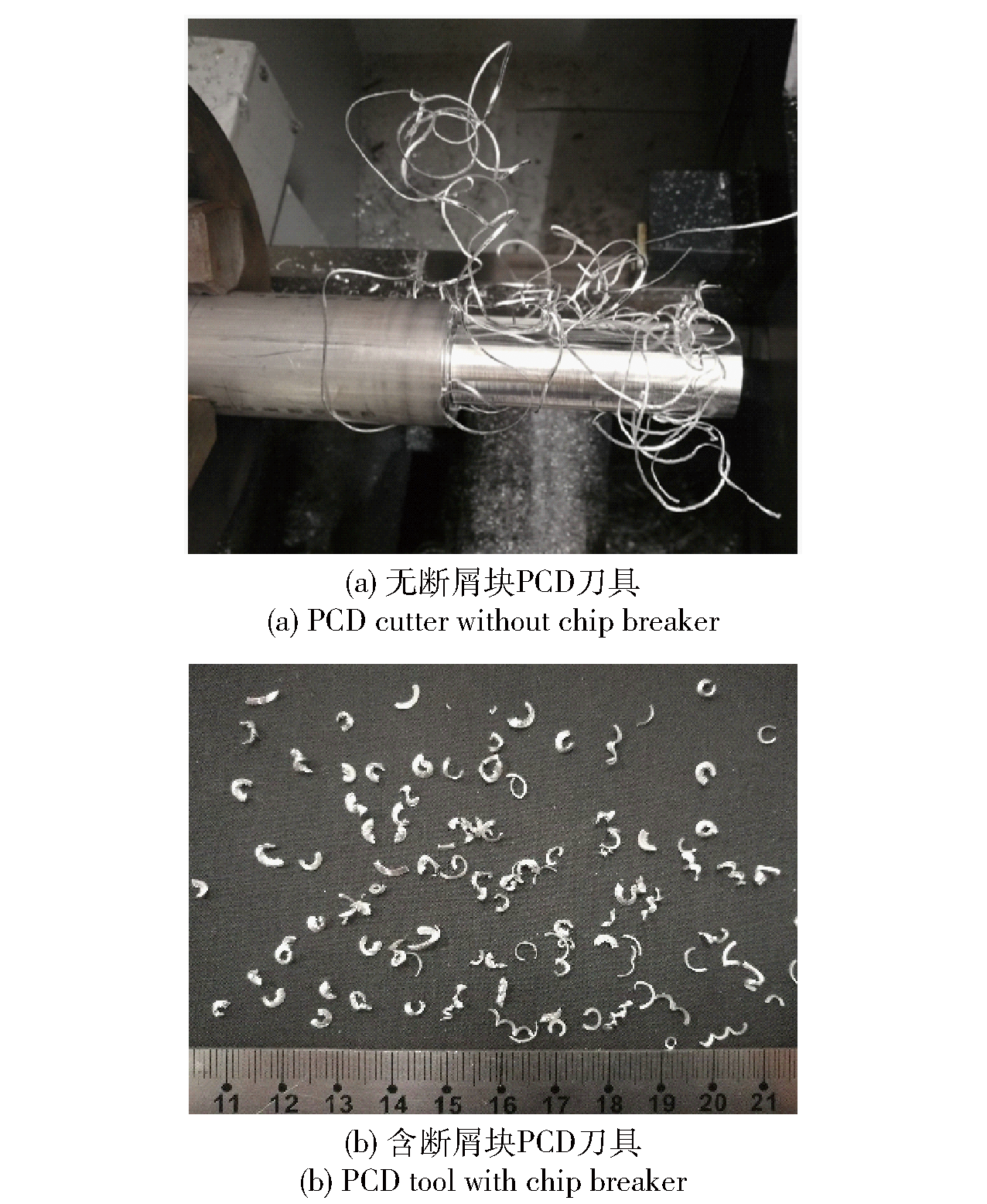

Fig.3 Chip contrast

Fig.4 Simulated results of PCD tool with chip breaker at different cutting edge angles

Fig.5 Chip breaking condition

Fig.6 High-speed photography of the cutting process of PCD tool at different cutting edge angles

Table 3 Comparison of analyzed and experimental results

κ_r	ψ_λ/(°)			η/(°)
κ_r	实验值	仿真值	相对误差/%	实验值	仿真值	相对误差/%
90	11	10	9.09	23	20	13.04
95	16	15	6.25	15	16	6.67
105	29	33	13.79	11	10	9.09

Fig.7 Chip curling process

Fig.8 Chip shapes produced by tools with chip breaker at differentcutting edge angles

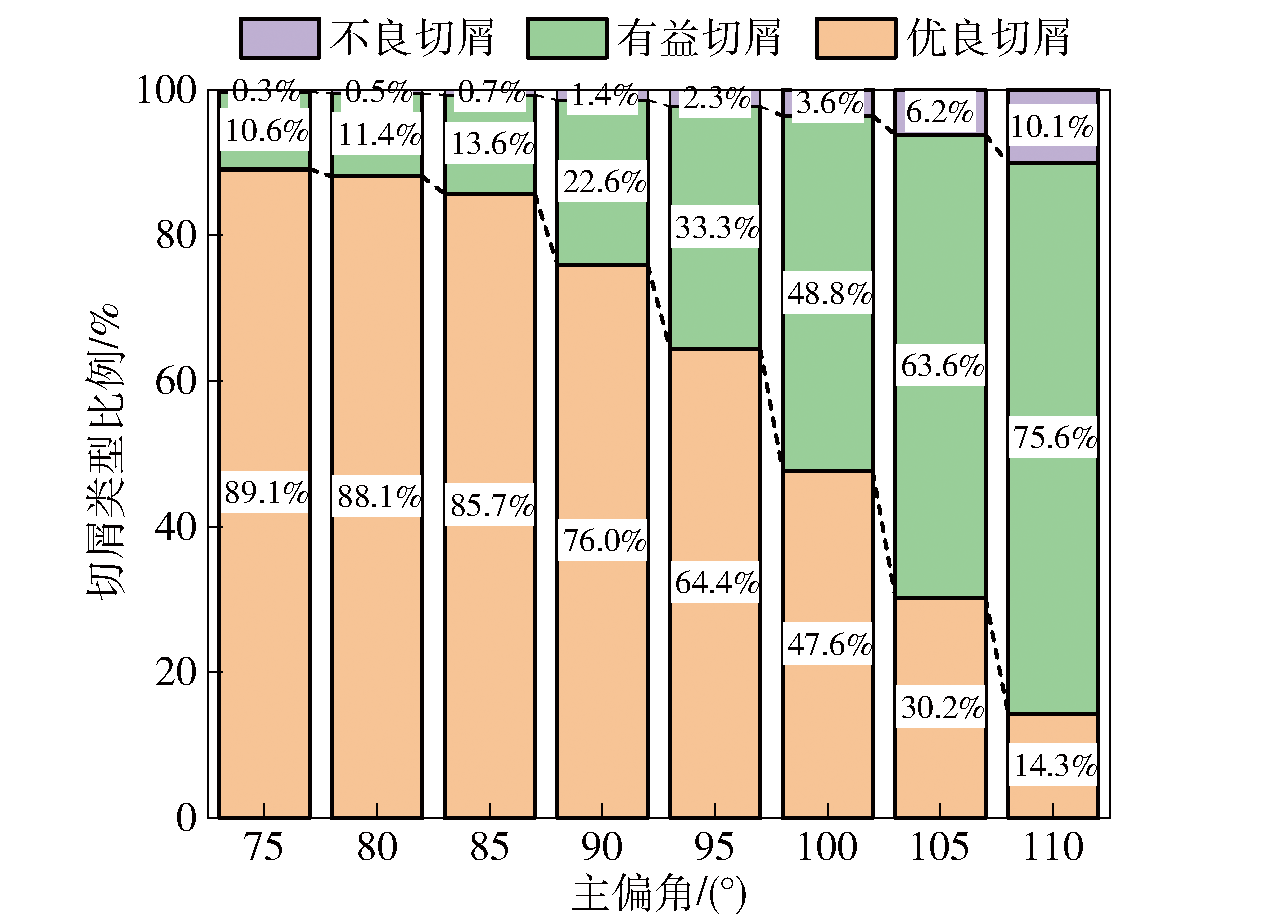

Fig.9 The proportion of all kinds of chips

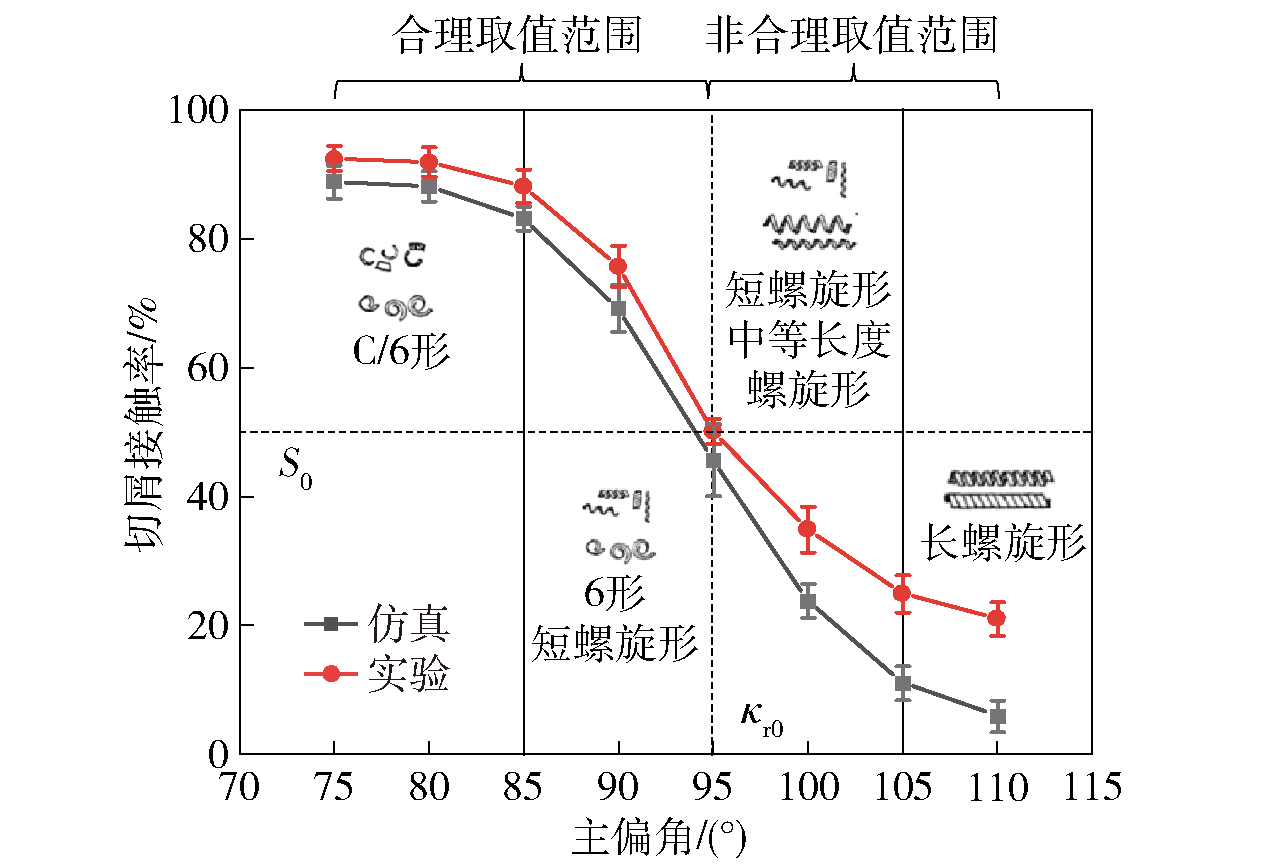

Fig.10 S-κr relationship curve of PCD tool with chip breaker

Fig.11 Schematic diagram of chip breaker parameters

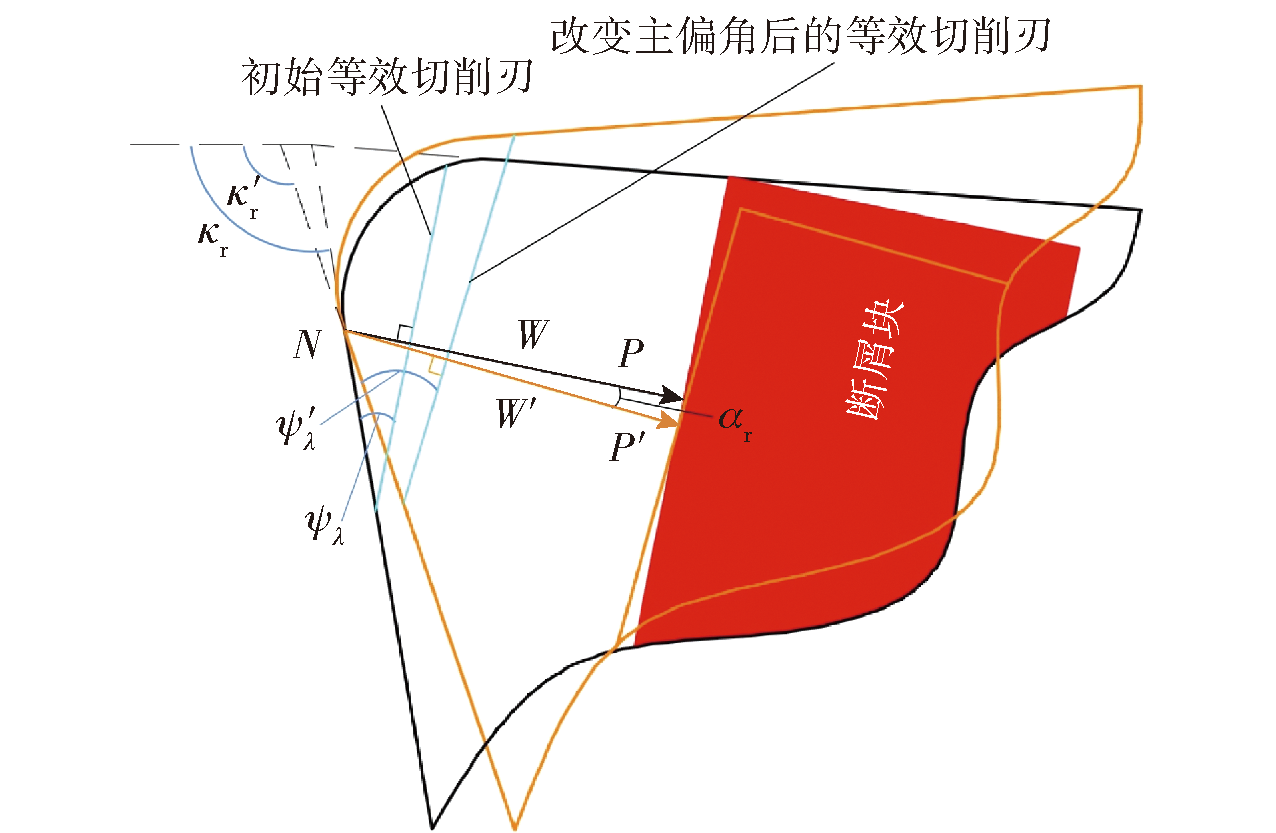

Fig.12 Schematic diagram of deflection angle of chip breaker

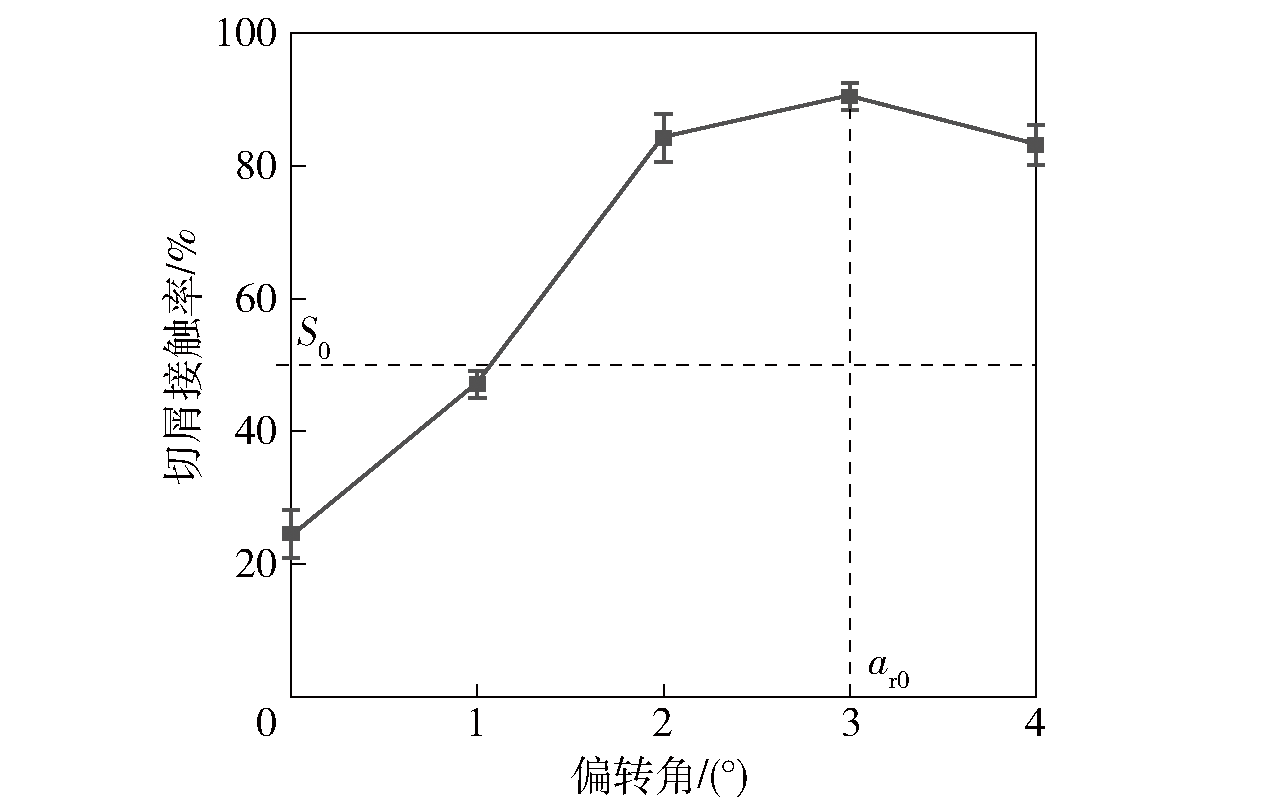

Fig.13 S-αr relationship curve of PCD tool with chip breaker

Fig.14 Chip shape at different deflection angles of chip breaker
