Research on the Real-time Simulation System for Hydrodynamic Characteristics of Amphibious Vehicle

doi:10.12382/bgxb.2022.1237

Abstract

Abstract:

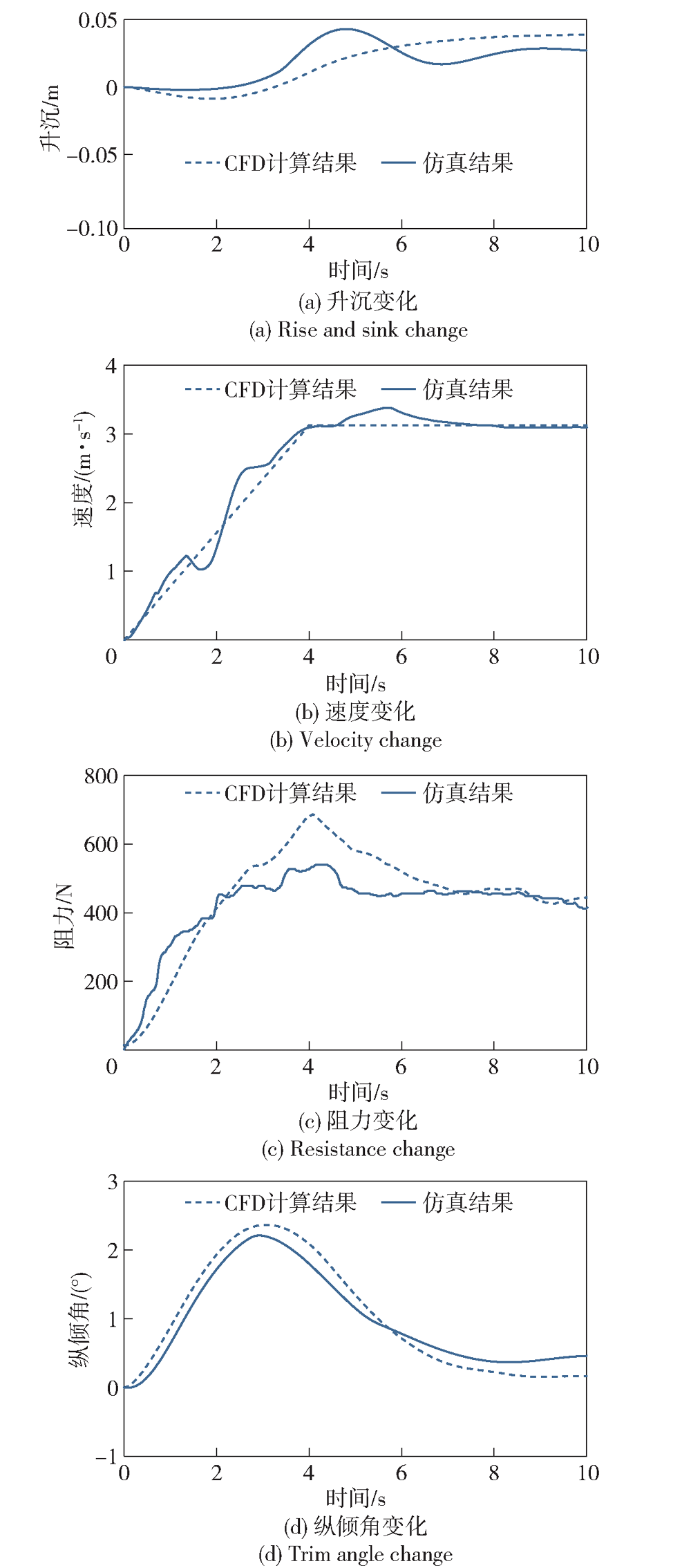

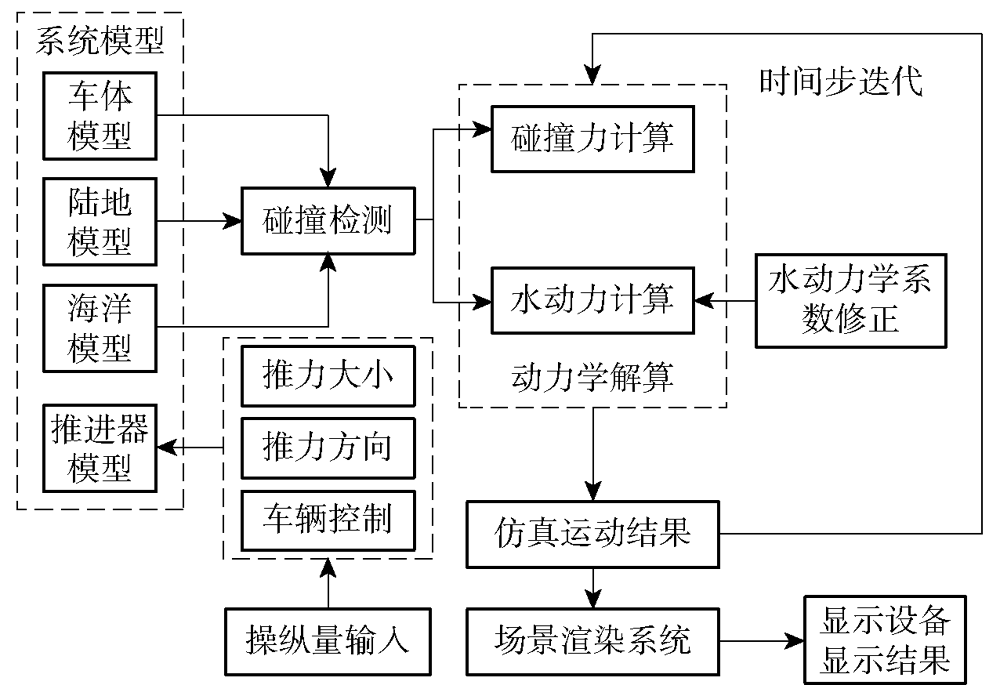

A real-time simulation system for the hydrodynamic characteristics of amphibious vehicles is designed to solve the problems of dificultly acquiring the hydrodynamic parameters and slowly predicting the motion attitude of amphibious vehicles. It can realize the driving of simulation models, motion attitude prediction, data monitoring and output. The numerical calculation method(CFD) is used to correct the vehicle dynamics coefficients, which significantly improves the accuracy of real-time simulation system. In addition, a test amphibious vehicle is developed to verify the accuracy of real-time simulation system under different working conditions. The results show that the real-time simulation system can be used to accurately and efficiently simulate the hydrodynamic characteristics of amphibious vehicles, and predict the motion attitude of the vehicle quickly and accurately. It is also applicable to various complex working conditions and has universal applicability for attitude prediction. The system has strong application value and application prospect in the development stage of amphibious vehicles, driver training, semi-physical simulation exercises and complex environment simulation.

Key words: amphibious vehicle, hydrodynamic characteristics, real-time simulation, hydrodynamic coefficient

CLC Number:

U469.6⁺93

CHEN Tairan, GENG Hao, WANG Dian, QIU Sicong, SUN Xuguang. Research on the Real-time Simulation System for Hydrodynamic Characteristics of Amphibious Vehicle[J]. Acta Armamentarii, 2024, 45(5): 1402-1415.

Figures/Tables 25

References 23

[1]	SUN C L, XU X J, WANG W H, et al. Influence on stern flaps in resistance performance of a caterpillar track amphibious vehicle[J]. IEEE Access, 2020, 8: 123828-123840.
[2]	王少新, 金国庆, 王涵, 等. 双车厢两栖车静水直航下的水动力性能研究[J]. 兵工学报, 2020, 41(3):434-441. doi: 10.3969/j.issn.1000-1093.2020.03.003
	WANG S X, JIN G Q, WANG H, et al. Research on the hydrodynamic performance of a double-carriage amphibious vehicle sailing in still water[J]. Acta Armamentarii, 2020, 41(3):434-441. (in Chinese) doi: 10.3969/j.issn.1000-1093.2020.03.003
[3]	剧冬梅, 项昌乐, 陶溢, 等. 电驱动差速转向轮式水陆两栖车辆可收放悬架机构运动学分析与参数优化[J]. 兵工学报, 2019, 40(8):1580-1586. doi: 10.3969/j.issn.1000-1093.2019.08.004
	JU D M, XIANG C L, TAO Y, et al. Kinematic analysis and optimization of key parameters of suspension for electric differential steering wheeled amphibious vehicle[J]. Acta Armamentarii, 2019, 40(8):1580-1586. (in Chinese)
[4]	徐一新. 基于运动特性的两栖车辆关键技术研究[D]. 镇江: 江苏科技大学, 2013.
	XU Y X. Research the key technologies of amphibious vehicle based on motion characteristics[D]. Zhenjiang: Jiangsu University of Science and Technology, 2013. (in Chinese)
[5]	赵彬. 基于动网格的两栖车航行特性数值模拟研究[D]. 北京: 北京理工大学, 2015.
	ZHAO B. Numerical simulation for navigating characteristics of amphibious vehicles based on dynamic-mesh model[D]. Beijing: Beijing Institute of Technology, 2015. (in Chinese)
[6]	王少新, 王涵, 金国庆, 等. 水陆两栖车水动力性能与防浪板受力特性研究[J]. 兵器装备工程学报, 2020, 41(1):1-6. Study on hydrodynamic performance of amphibious
	WANG S X, WANG H, JIN G Q, et al. vehicle and mechanical characteristics of wave board[J]. Journal of Ordnance Equipment Engineering, 2020, 41(1):1-6. (in Chinese)
[7]	剧冬梅, 项昌乐, 李军, 等. 两栖车辆实时控制水陆性能虚拟试验系统开发[J]. 兵工学报, 2014, 35(6):879-884. doi: 10.3969/j.issn.1000-1093.2014.06.019
	JU D M, XIANG C L, LI J, et al. Development of virtual test system for real-time control and performance of amphibious vehicle[J]. Acta Armamentarii, 2014, 35(6):879-884. (in Chinese)
[8]	李向阳, 汪潇, 张志利, 等. 基于虚实结合的特装车辆驾驶训练模拟系统[J]. 系统仿真学报, 2021, 33(12):2919-2934. doi: 10.16182/j.issn1004731x.joss.21-FZ0765
	LI X Y, WANG X, ZHANG Z L, et al. Special vehicle driving training simulation system based on integration of virtuality and reality[J]. Journal of System Simulation, 2021, 33(12):2919-2934. (in Chinese) doi: 10.16182/j.issn1004731x.joss.21-FZ0765
[9]	马利忠, 卞永明, 季鹏成, 等. 基于RTWT的机械臂实时仿真系统平台[J]. 机电一体化, 2022, 28(增刊1):57-62,88.
	MA L Z, BIAN Y M, JI P C, et al. Real time simulation system platform of manipulator based on RTWT[J]. Mechatronics, 2022, 28(S1):57-62,88. (in Chinese)
[10]	刘云钦, 李妮, 赵路明, 等. 高超声速飞行器流热固耦合实时仿真技术[J]. 系统仿真学报, 2021, 33(12):2820-2827. doi: 10.16182/j.issn1004731x.joss.21-FZ0838
	LIU Y Q, LI N, ZHAO L M, et al. Real-time simulation technology of fluid-thermo-solid coupling of hypersonic vehicle[J]. Journal of System Simulation, 2021, 33(12):2820-2827. (in Chinese) doi: 10.16182/j.issn1004731x.joss.21-FZ0838
[11]	刘建磊, 焦学健, 王怀谦. 基于CarSim的车辆动力学虚拟仿真系统开发[J]. 系统仿真学报, 2022, 34(8):1847-1854. doi: 10.16182/j.issn1004731x.joss.21-0300
	LIU J L, JIAO X J, WANG H Q. Development of vehicle dynamics virtual simulation system based on CarSim[J]. Journal of System Simulation, 2022, 34(8):1847-1854. (in Chinese) doi: 10.16182/j.issn1004731x.joss.21-0300
[12]	赵雪. 汽车半实物模拟驾驶系统设计[D]. 重庆: 重庆理工大学, 2017.
	ZHAO X. The design of semi physical simulation driving system for automobile[D]. Chongqing: Chongqing University of Technology, 2017. (in Chinese)
[13]	张林, 张权, 易涤非, 等. 海洋油气平台智能巡检机器人云台臂的设计与仿真研究[J]. 海洋工程装备与技术2022, 9(4):34-40.
	ZHANG L, ZHANG Q, YI D F, et al. Manipulator design and simulation of intelligent inspection robots in offshore oil and gas platforms[J]. Ocean Engineering Equipment and Technology, 2022, 9(4):34-40. (in Chinese)
[14]	林强, 徐小军, 邹腾安. 一种水陆两栖车的增程式动力系统设计与仿真[J]. 机电技术, 2018(5):72-76.
	LIN Q, XU X J, ZHOU T A. Design and simulation of an amphibious vehicle with an incremental power system[J]. Mechanical and Electrical Technology, 2018(5):72-76. (in Chinese)
[15]	杨柏年. 水陆两栖车辆运行姿态及重心实时监测系统开发[D]. 武汉: 华中科技大学, 2021.
	YANG B N. Development of real-time monitoring system for amphibious vehicle operation posture and center of gravity[D]. Wuhan: Huazhong University of Science and Technology, 2021. (in Chinese)
[16]	王涛, 徐国英. 两栖车辆水上动态性能数值模拟方法及其应用[M]. 北京: 国防工业出版社, 2009.
	WANG T, XU G Y. Numerical simulation method of dynamic performance of amphibious vehicles and its application[M]. Beijing: National Defense Industry Press, 2009. (in Chinese)

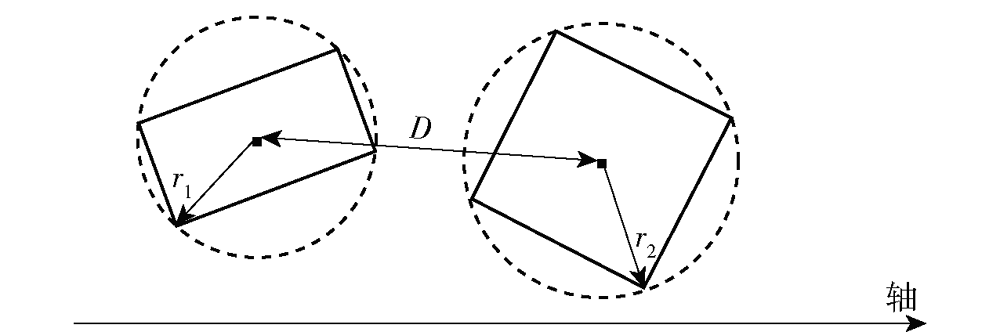

[17]	谭同德, 吴强, 赵红领, 等. OBB层次包围盒构造方法的改进[J]. 计算机工程与应用, 2008, 44(5):79-81,95.
	TAN T D, WU Q, ZHAO H L, et al. OBB hierarchy bounding boxes improved constructed method[J]. Computer Engineering and Applications, 2008, 44(5): 79-81,95. (in Chinese)
[18]	董明晓, 郑康平. 一种快速求取空间任意两条曲线交点的算法[J]. 机械设计与制造, 2004(5):55-56.
	DONG M X, ZHENG K P. An algorithm for quickly finding the intersection point of two random curves in space[J]. Machinery Design and Manufacture, 2004(5):55-56. (in Chinese)
[19]	安雪斌, 潘尚峰. 多体系统动力学仿真中的接触碰撞模型分析[J]. 计算机仿真, 2008(10):98-101.
	AN X B, PAN S F. Analysis of contact model in multi-body system dynamic simulation[J]. Computer Simulation, 2008(10):98-101. (in Chinese)

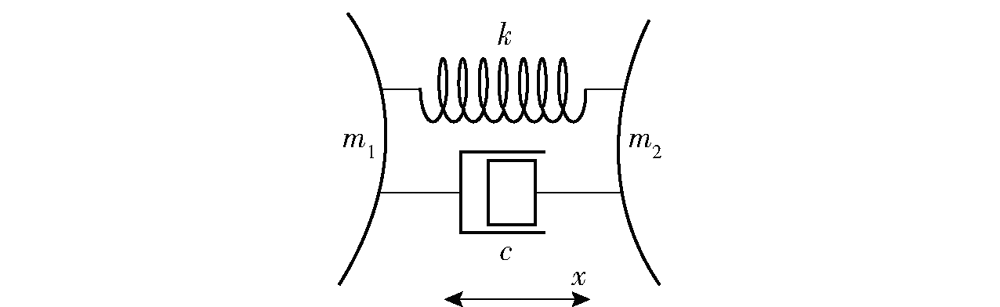

[20]	周志才, 吴新跃, 张文群, 等. 基于弹簧阻尼模型的碰撞动力学研究[J]. 湖北工业大学学报, 2012, 27(1):125-128.
	ZHOU Z C, WU X Y, ZHANG W Q, et al. Research on collision dynamics based on spring damping model[J]. Journal of Hubei University of Technology, 2012, 27(1):125-128. (in Chinese)
[21]	ZHANG J, LI W H, ZHAO L, et al. A continuous contact force model for impact analysis in multibody dynamics[J]. Mechanism and Machine Theory, 2020,153: 103946.
[22]	LANKARANI H M, NIKRAVESH P E. A contact force model with hysteresis damping for impact analysis of multi-body systems[J]. Journal of Mechanical Design, 1990, 1(12):369-376.
[23]	鲁航. 矢量喷水推进两栖车辆航行特性研究[D]. 北京: 北京理工大学, 2022.
	LU H. Research on navigation characteristics of vector water-jet propulsion amphibious vehicles[D]. Beijing: Beijing Institute of Technology, 2022. (in Chinese)

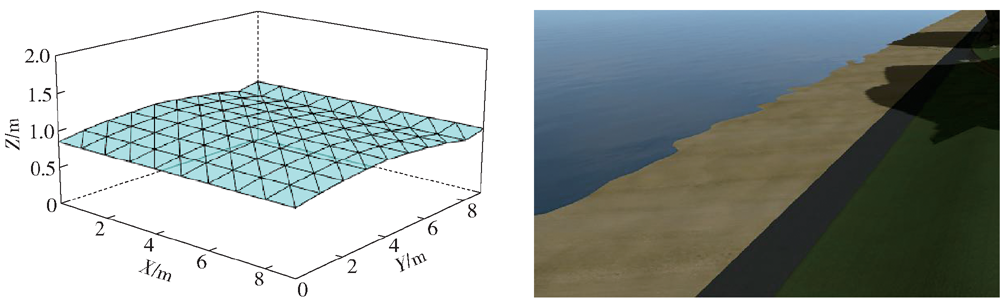

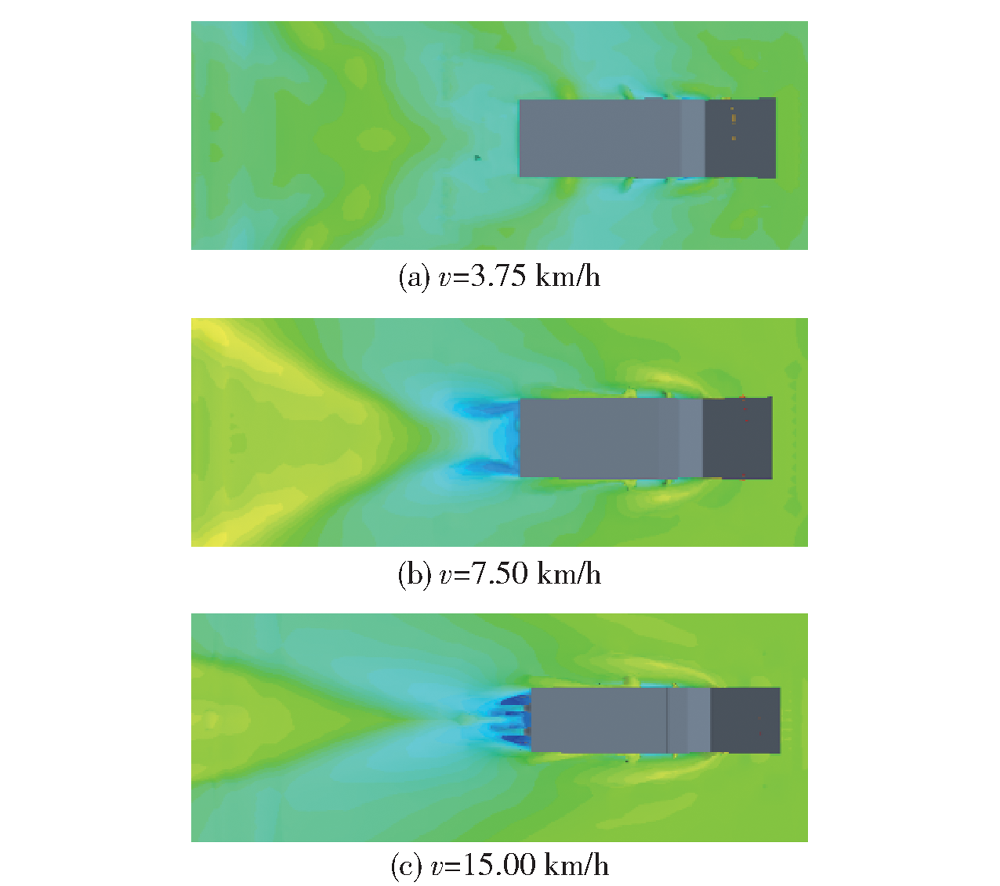

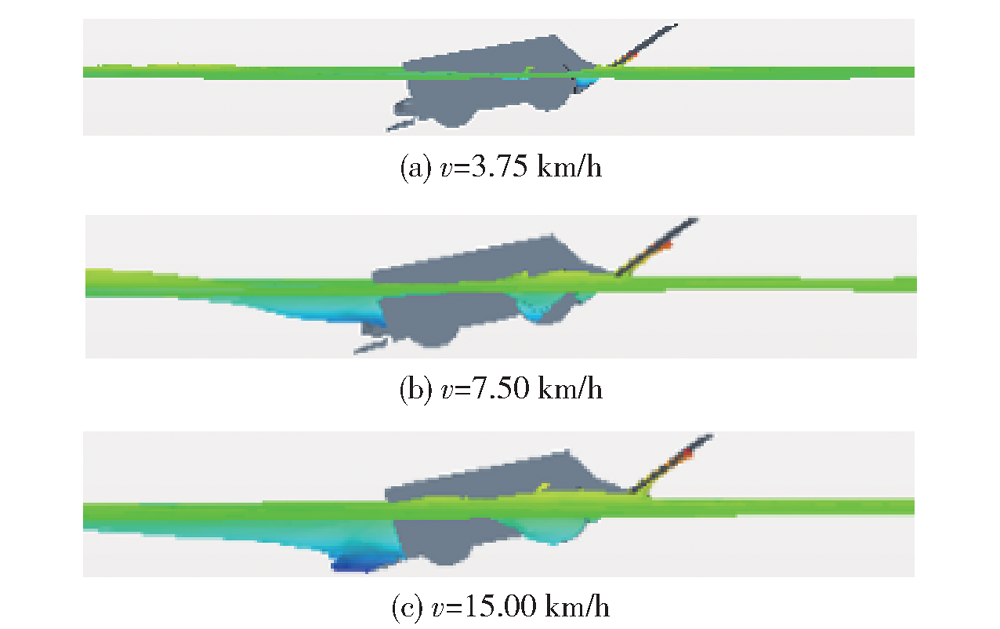

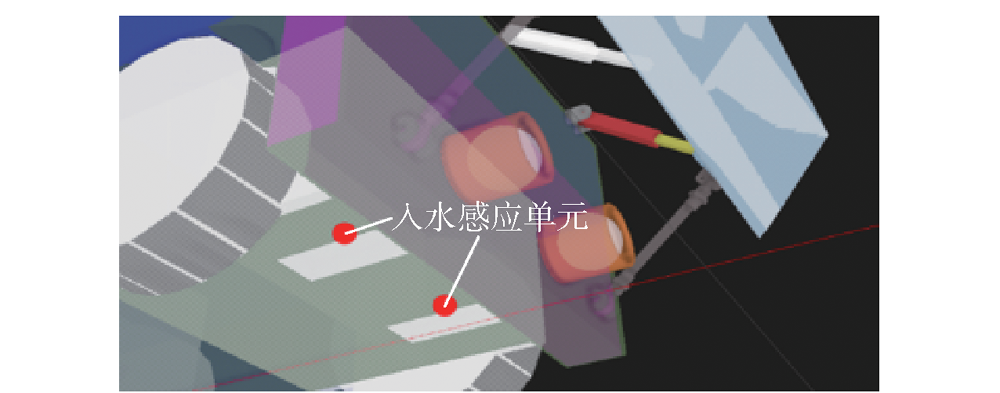

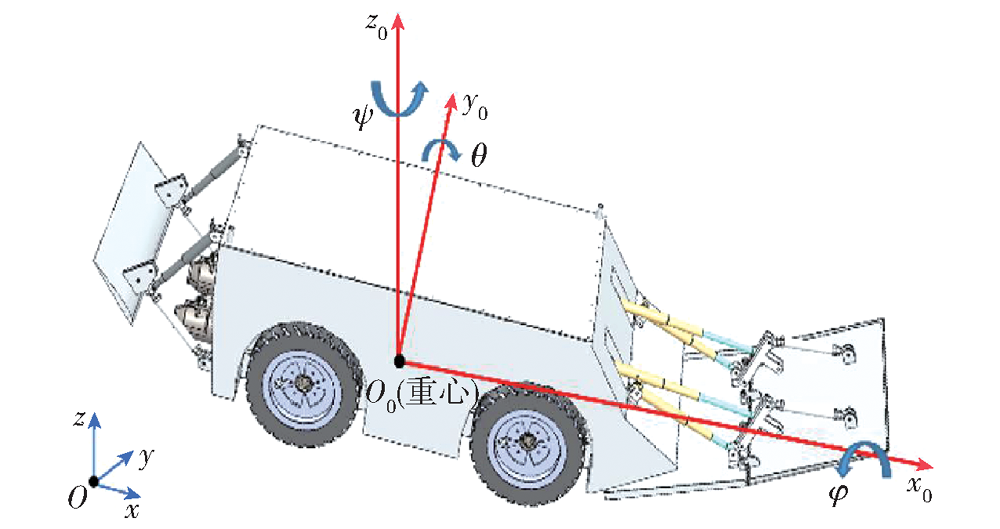

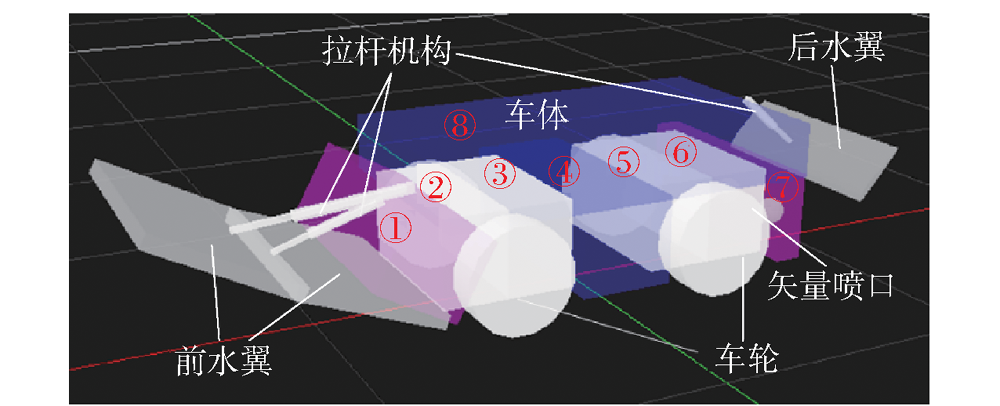

实体	阻力系数	浮力系数	升力系数
前滑板1	0.80	1.00	1.50
前滑板2	0.80	1.00	1.50
车身1	1.00	1.00	1.00
车身2	0.00	1.00	0.50
车身3	0.00	1.00	0.50
车身4	0.20	1.00	0.50
车身5	0.00	1.00	0.50
车身6	0.00	1.00	0.50
车身7	0.20	1.00	0.50
车身8	1.00	1.00	1.00
前轮	0.60	0.90	0.75
后轮	0.60	0.90	0.75
后水翼	0.90	1.10	1.40
拉杆组1	0.00	0.00	0.00
拉杆组2	0.00	0.00	0.00
拉杆组3	0.00	0.00	0.00

实体	阻力系数	浮力系数	升力系数
前滑板1	0.80	1.00	1.50
前滑板2	0.80	1.00	1.50
车身1	1.00	1.00	1.00
车身2	0.00	1.00	0.50
车身3	0.00	1.00	0.50
车身4	0.20	1.00	0.50
车身5	0.00	1.00	0.50
车身6	0.00	1.00	0.50
车身7	0.20	1.00	0.50
车身8	1.00	1.00	1.00
前轮	0.60	0.90	0.75
后轮	0.60	0.90	0.75
后水翼	0.90	1.10	1.40
拉杆组1	0.00	0.00	0.00
拉杆组2	0.00	0.00	0.00
拉杆组3	0.00	0.00	0.00

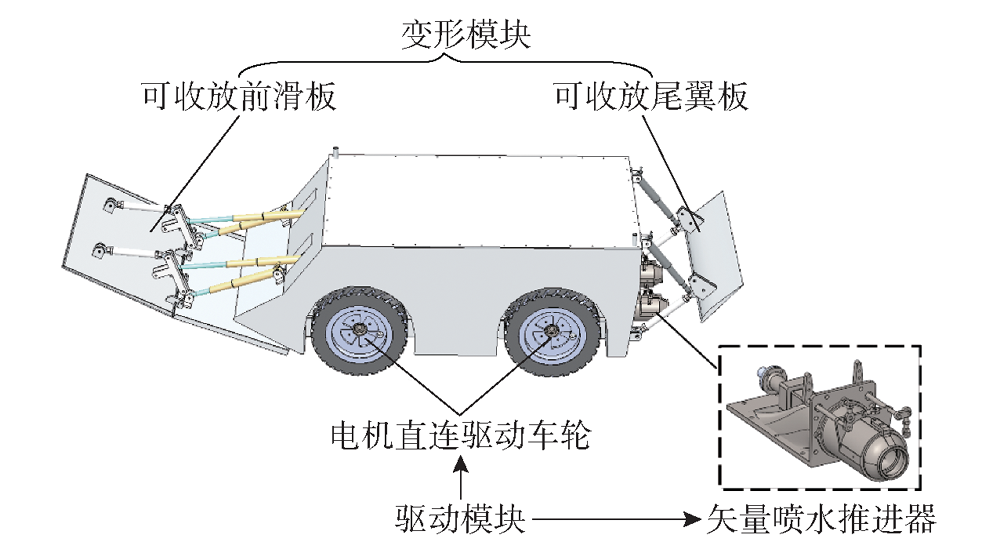

技术内容	指标要求
车体尺寸(陆地状态)/mm	1 665×820×600
车体尺寸(水面状态)	2 800×820×600
全车整备质量/kg	250
陆上最高时速/(km·h^-1)	14
水上最高时速/(km·h^-1)	20
推进器喷口最大转角/(°)	20
轮胎驱动方式	电机独立驱动
试验车操控方式	平板远程遥控
全车防水等级	全车IP68

技术内容	指标要求
车体尺寸(陆地状态)/mm	1 665×820×600
车体尺寸(水面状态)	2 800×820×600
全车整备质量/kg	250
陆上最高时速/(km·h^-1)	14
水上最高时速/(km·h^-1)	20
推进器喷口最大转角/(°)	20
轮胎驱动方式	电机独立驱动
试验车操控方式	平板远程遥控
全车防水等级	全车IP68

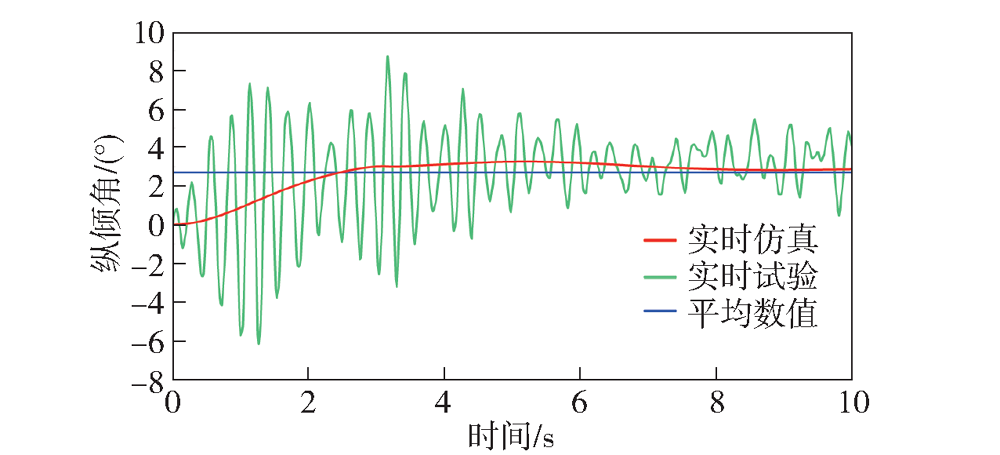

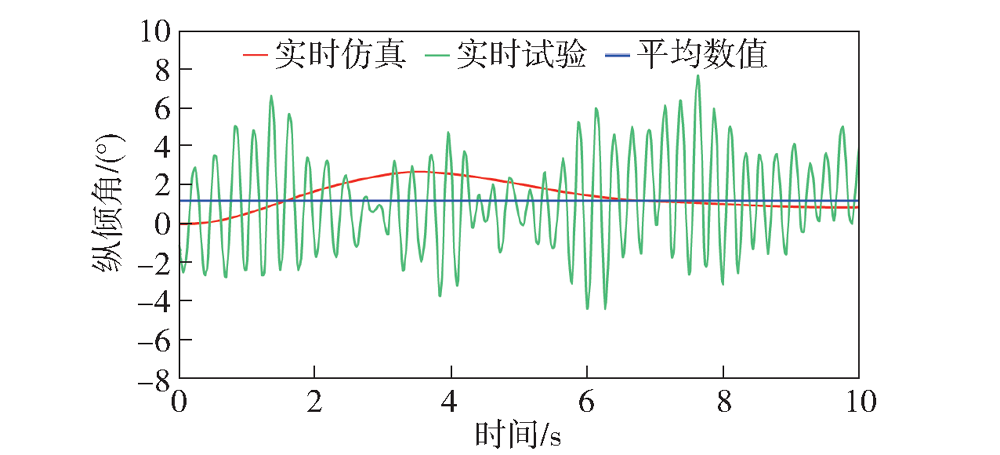

参数	实时仿真模型	两栖试验车
整车尺寸(陆地状态)/mm	1 665×820×600	1 665×820×600
整车尺寸/(减阻状态)/mm	2 800×820×600	2 800×820×600
整备质量/kg	250	250
推进器额定输出推力/N	400×2	518.3×2
车轮额定输出转矩/(N·m)	6×4	6×4
