A Self-adaptive Dual Radius Filtering Algorithm Based on LiDAR Point Cloud

doi:10.12382/bgxb.2022.1093

Abstract

Abstract:

Point cloud denoising is a key step for intelligent driving vehicles to perceive the surrounding environment information. To solve the problem of low operation speed of high-precision denoising in the LiDAR point cloud denoising method, a self-adaptive dual radius filtering method is proposed for complex scenes and multi-scale noise. The 3D point cloud is first simplified by voxel filtering under the constraint of the minimum number of points, and the outliers are preliminarily filtered. Then KD-tree is used to build an index to calculate the average density of point clouds.The adaptive large- and small-radius models are constructed according to the point cloud density to filter drift noise voxels. To verify the effectiveness of the algorithm, in the simple and complex scenes with multiple noise types, the noise removal accuracy and operation speed are compared with other algorithms. In the case of slightly reduced noise removal accuracy, the operation time is less than 0.6 seconds in simple scenes and less than 2 seconds in complex scenes. The new algorithm has high noise removal accuracy and operation speed, as well as a wide range of applications.

Key words: LiDAR point cloud, point cloud denoising, adaptive filtering, dual radius filtering

CLC Number:

TP391.9

LIU Bin, LI Xuemei. A Self-adaptive Dual Radius Filtering Algorithm Based on LiDAR Point Cloud[J]. Acta Armamentarii, 2023, 44(9): 2768-2777.

Figures/Tables 10

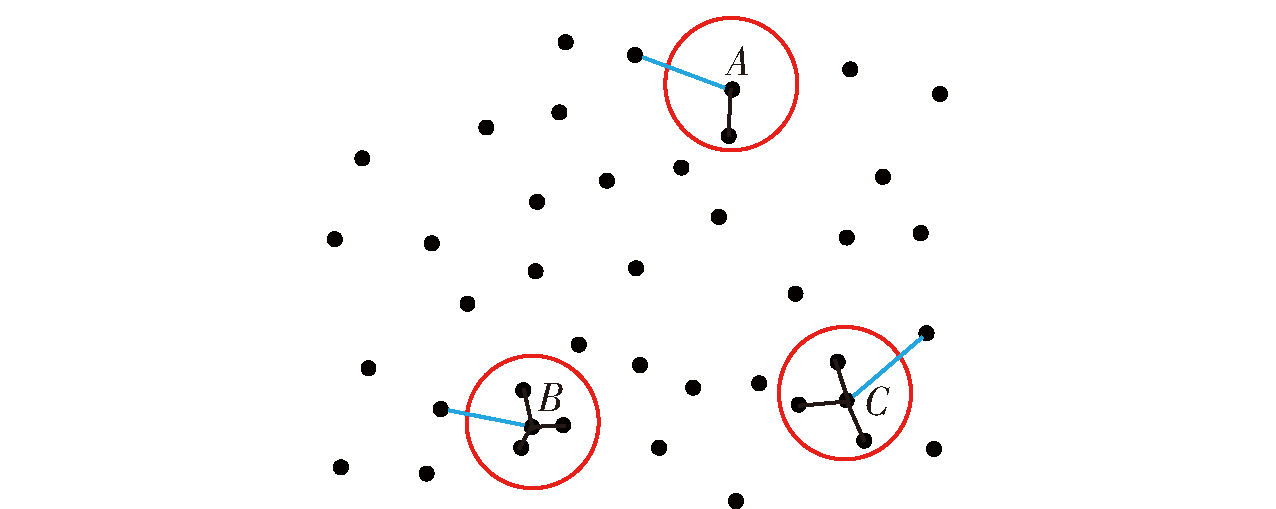

Fig.1 Radius filtering calculation

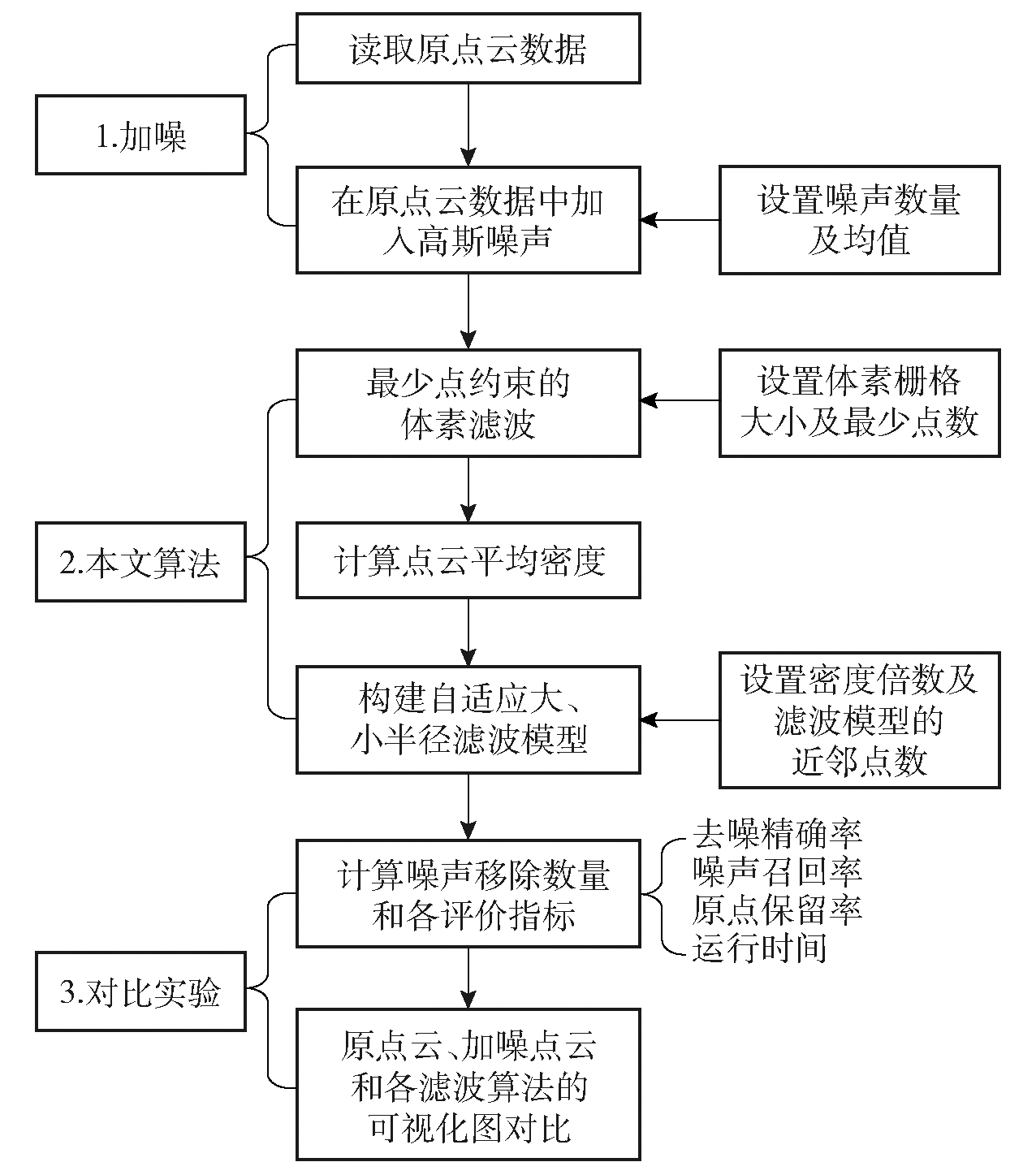

Fig.2 Denoising scheme process

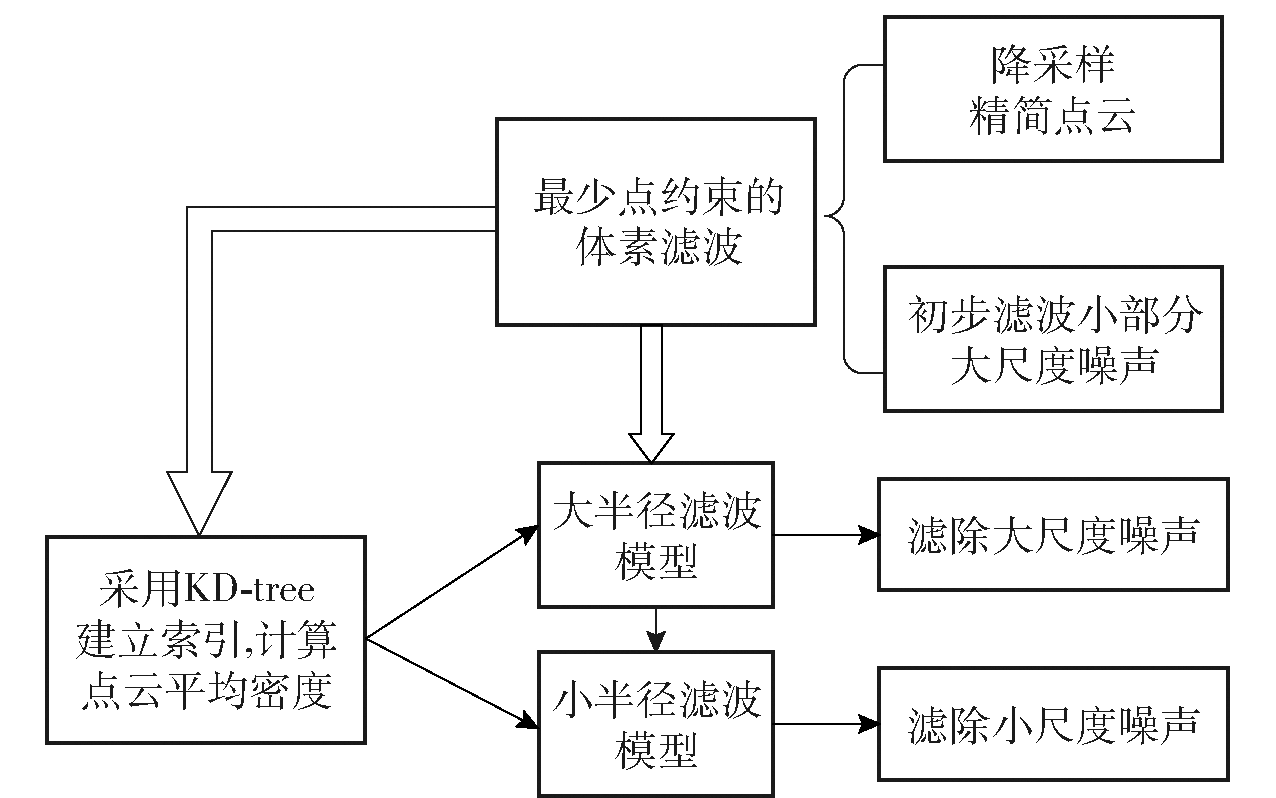

Fig.3 Self-adaptive dual radius filtering program flow

Fig.4 Visualization of each filtering algorithm for the Bunny model

Fig.5 Visualization of each filtering algorithm for the Road scene

Table 1 Parameter setting of each filtering algorithm

滤波算法	参数	Bunny模型	Road场景	滤波算法	参数	Bunny模型	Road场景
体素滤波	格子体积V_g/cm³	0.2×0.2×0.2	12×12×12		V_g/cm³	0.2×0.2×0.2	10×10×10
半径滤波	R/cm	0.15	30		M_P	2	1
	R_T	1	10	自适应双半径滤波	M_L	30	40
中值滤波	N_mf	5	5		N_L	1	5
统计滤波	N_sf	20	20		M_S	40	60
	k	0.5	0.5		N_S	1	4

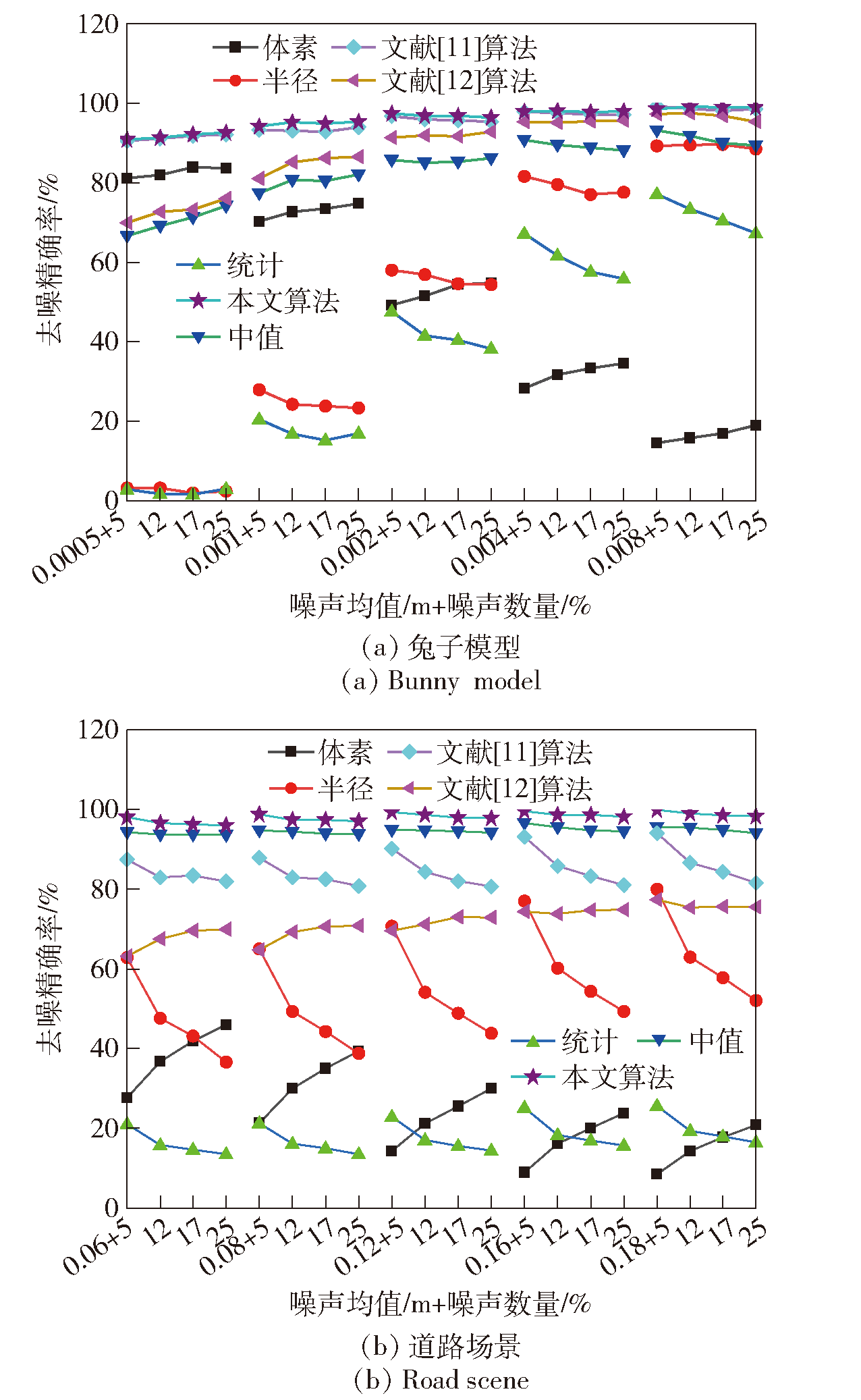

Fig.6 Comparison of denoising accuracy (The horizontal scale has comitted duplicate noise mean values)

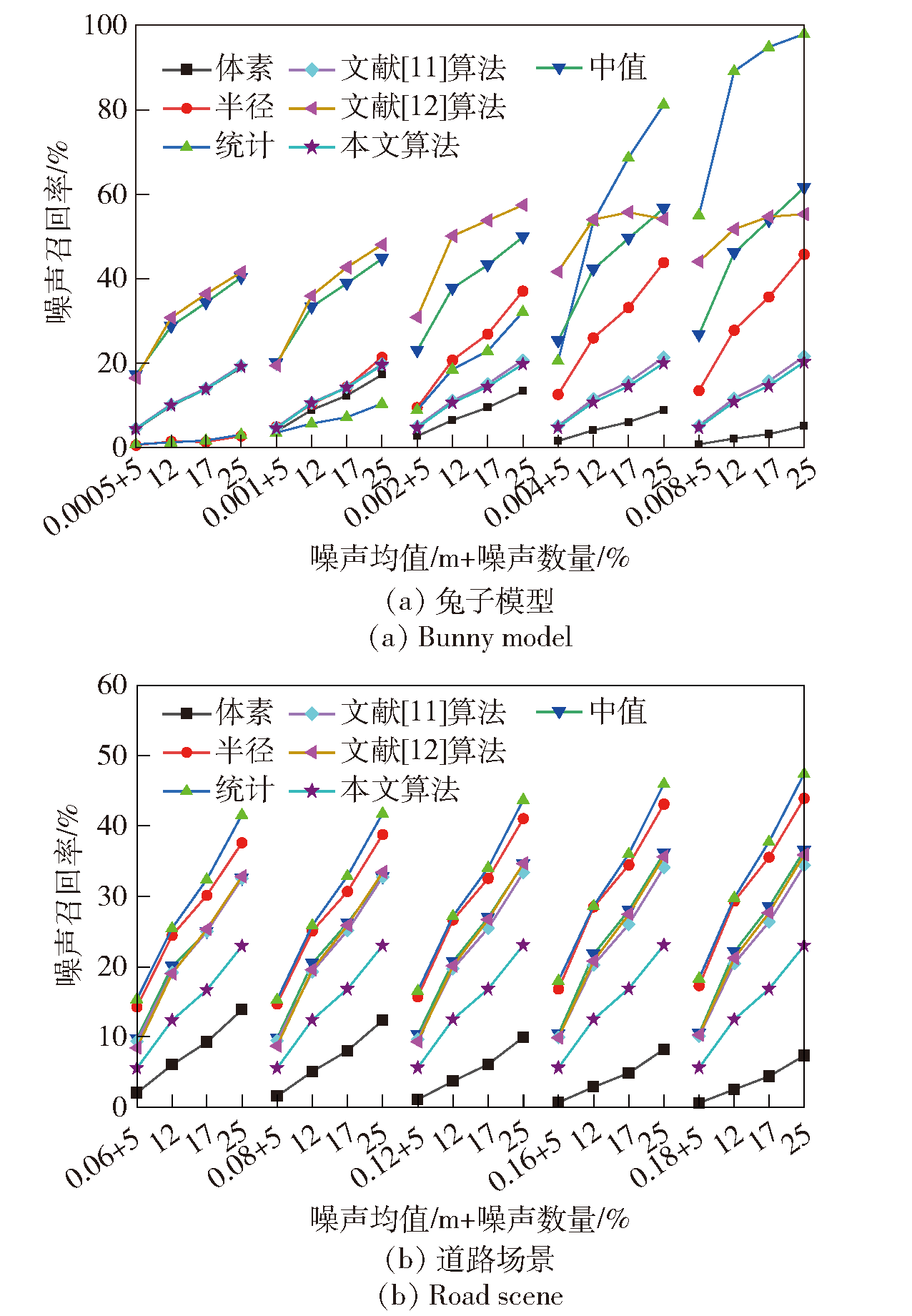

Fig.7 Comparison of noise recall rate (The horizontal scale has comitted duplicate noise mean values)

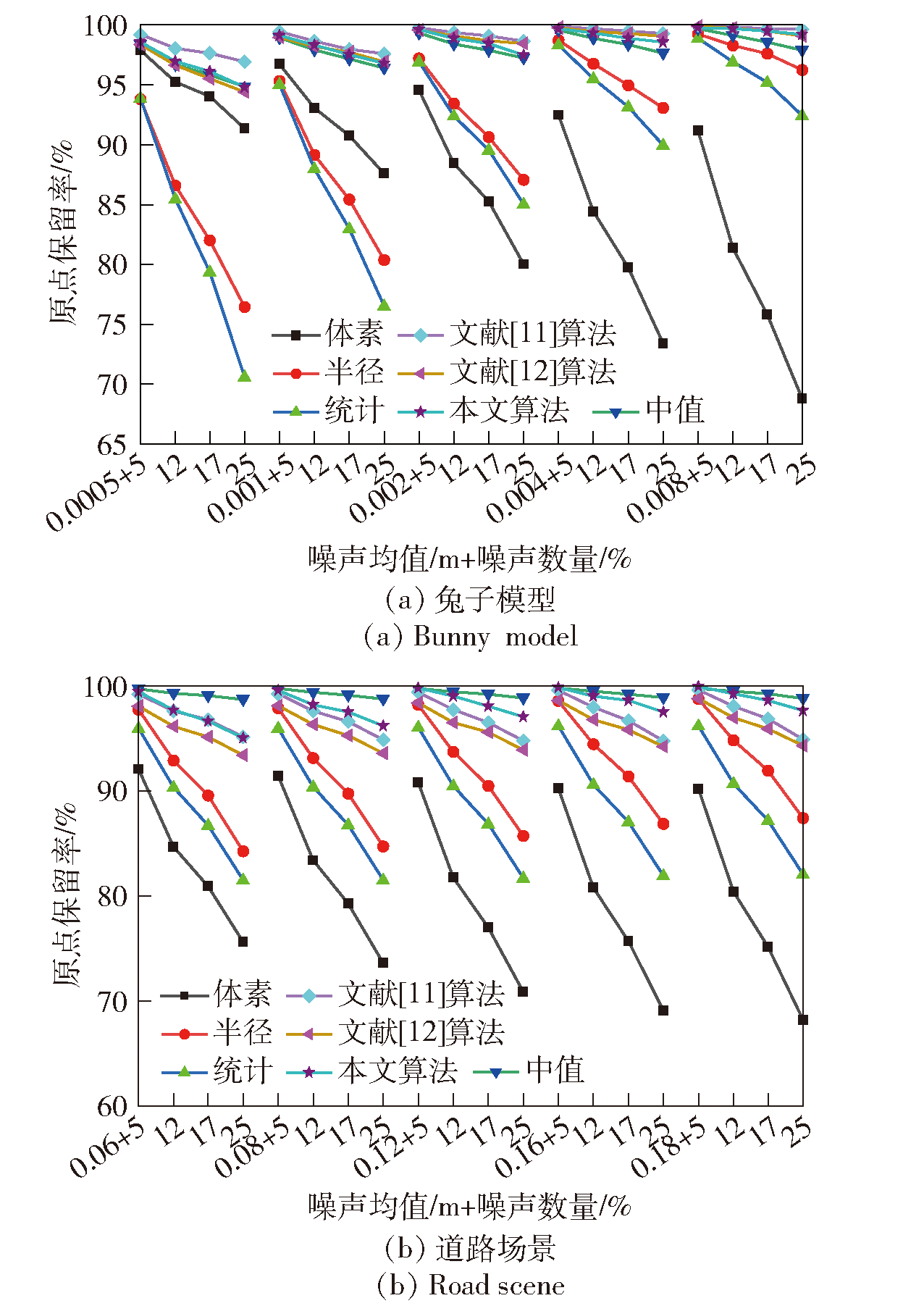

Fig.8 Comparison of original poretention rate (The horizontal scale has comitted duplicate noise mean values)

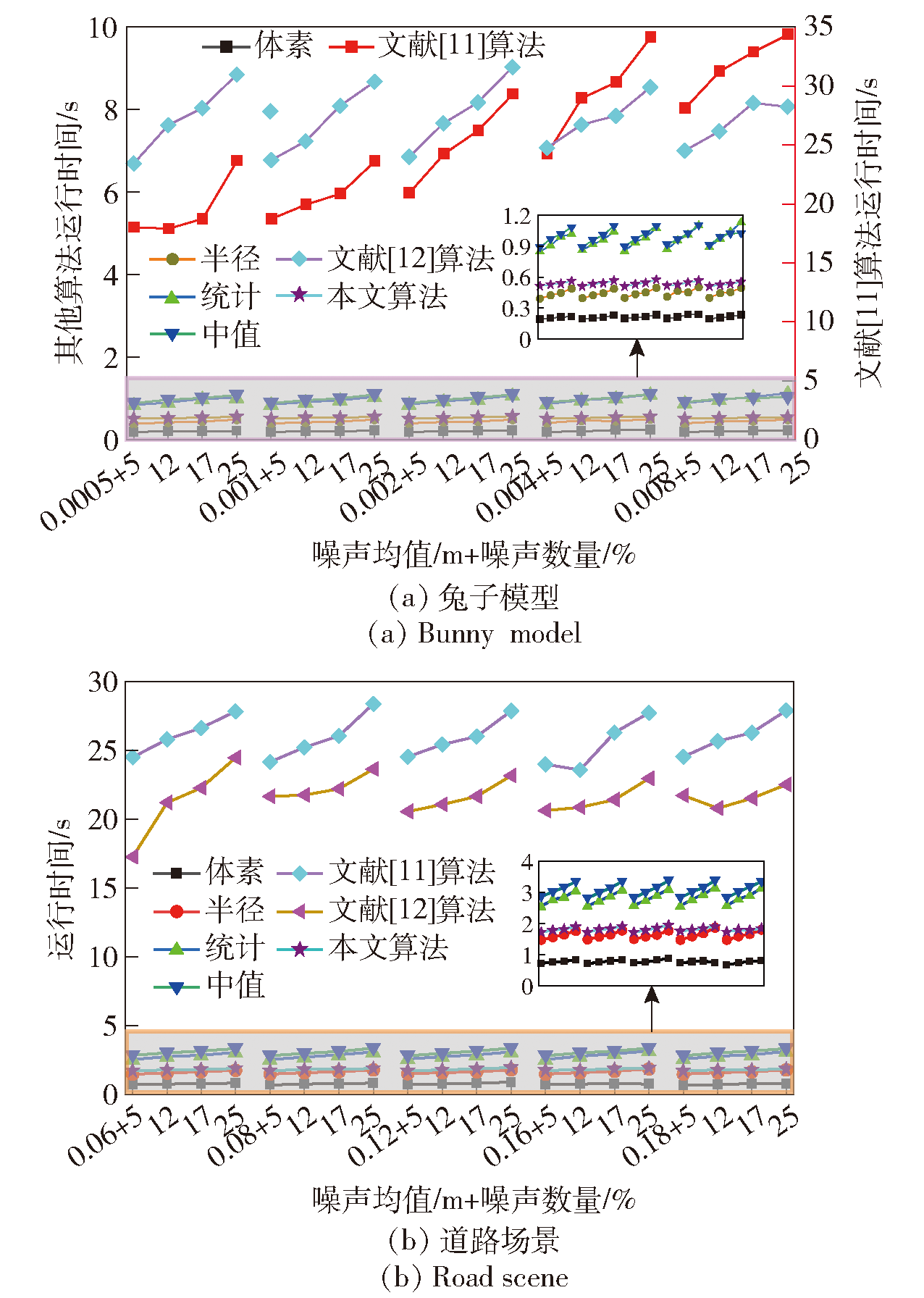

Fig.9 Comparison of runtime (The horizontal scale has comitted duplicate noise mean values)

References 21
