LDPC-aided Decision Feedback Channel Estimation and Equalization Method

doi:10.12382/bgxb.2022.1041

Abstract

Abstract:

Under the environment of severely channel frequency selective fading, the traditional orthogonal frequency division multiplexing (OFDM) non-blind channel estimation and equalization method has poor system bit error rate performance, and needs to increase the insertion of pilot symbols in a signal, which reduces the system throughput. A low density parity check code (LDPC)- aided decision feedback channel estimation and equalization method is proposed for the above problems. The proposed method introduces the LDPC coding gain into the decision feedback loop, which improves the convergence. And it achieves the asymptotic performance of non-blind channel estimation and equalization methods under the condition of few pilot symbols inserted. Meanwhile, an improved channel estimation algorithm based on conditional maximum likelihood (CML) principle is proposed. This algorithm detects the effective tap signals based on the principle of constant false alarm to improve the channel estimation accuracy, and can be combined with the proposed decision feedback channel estimation and equalization method. The simulated results show that, under the channel environment selected in the simulation, the LDPC-aided decision feedback channel estimation and equalization method has 11-13dB improvement in bit error performance compared with the traditional decision feedback method, and has excellent system error performance and robustness.

Key words: orthogonal frequency division multiplexing, multipath channel, channel estimation and equalization, decision feedback, conditional maximum likelihood estimation

CLC Number:

TN911

LI Jiaxuan, DING Xuhui, YANG Kai, DAI Jibo, BU Xiangyuan, AN Jianping. LDPC-aided Decision Feedback Channel Estimation and Equalization Method[J]. Acta Armamentarii, 2024, 45(4): 1168-1175.

Figures/Tables 7

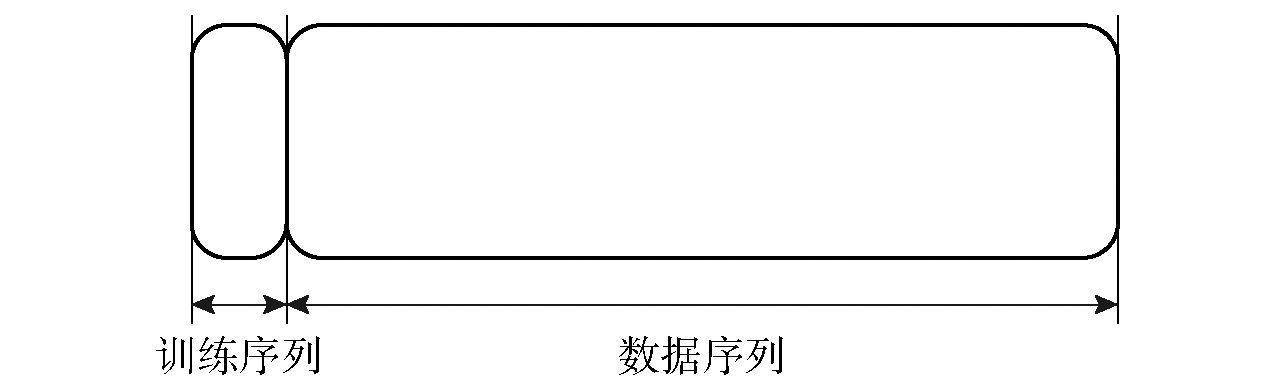

Fig.1 OFDM frame structure

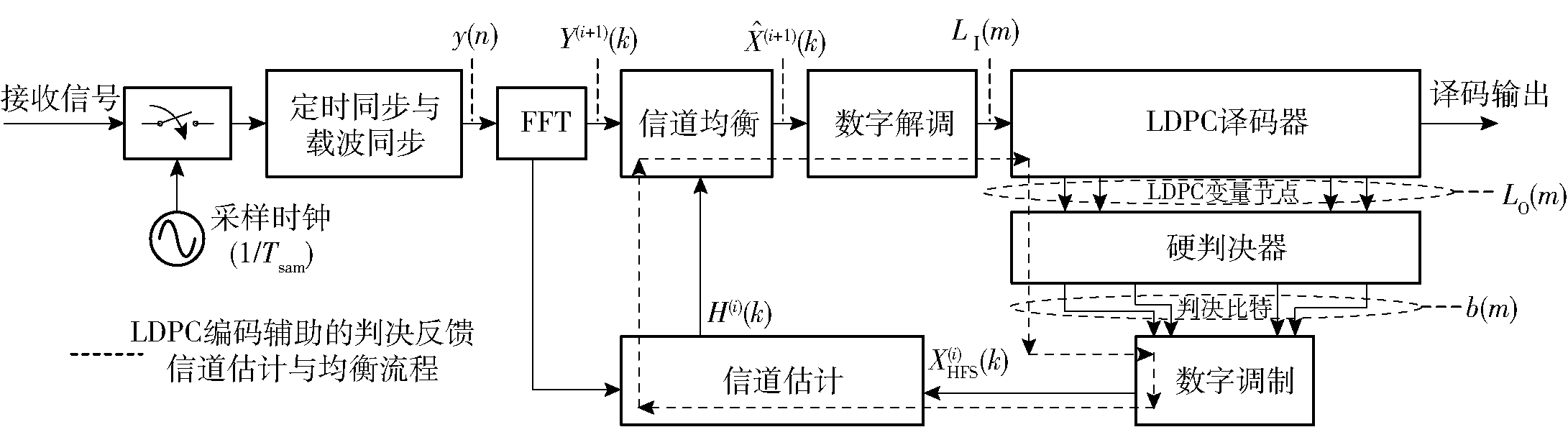

Fig.2 Flowchart of LDPC-aided decision feedback channel estimation and equalization method

Table 1 Simulation parameters

参数	数值
前导符号数	1
数据段符号数	120
导频开销/%	0.83
子载波个数	960
子载波间隔/kHz	15
载波频率/GHz	1.43
调制方式	QPSK
LDPC码型	(480,960)
信道模型	远郊信道(COST207RA)/ 城区信道(COST207TU)
系统误码率要求	<10^-6

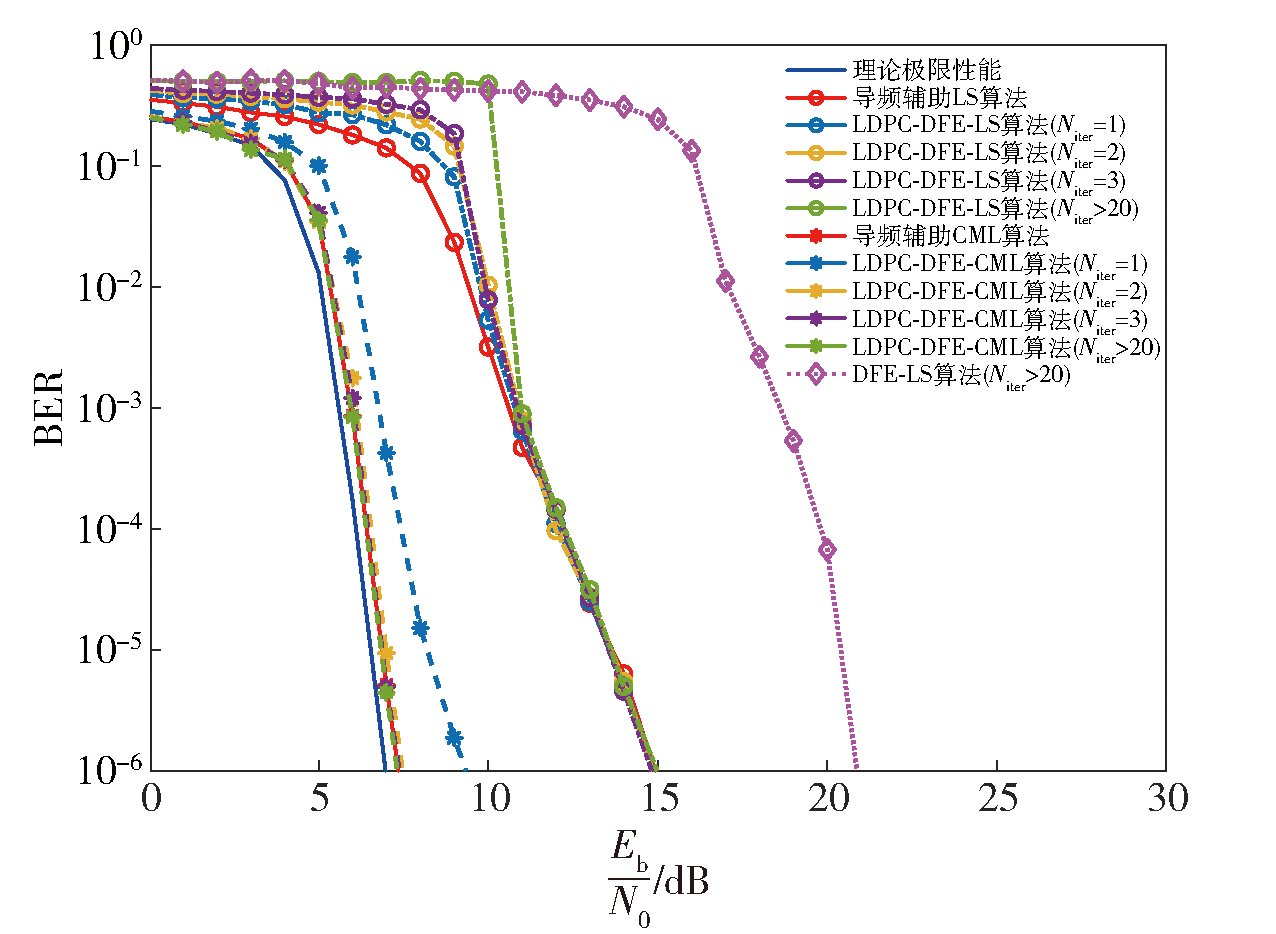

Fig.3 BER performance of algorithms in COST207RA channel

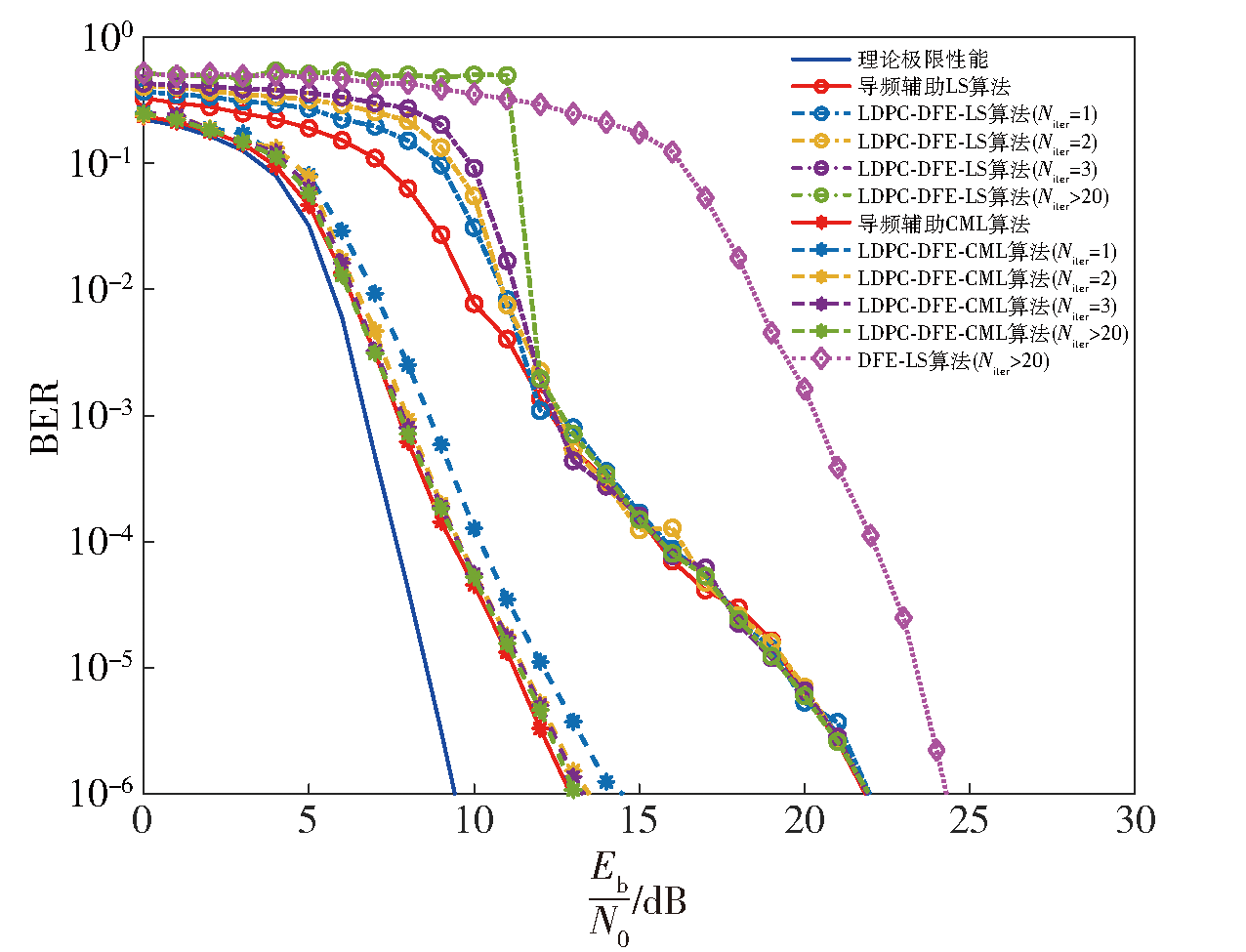

Fig.4 BER performance of algorithms in COST207TU channel

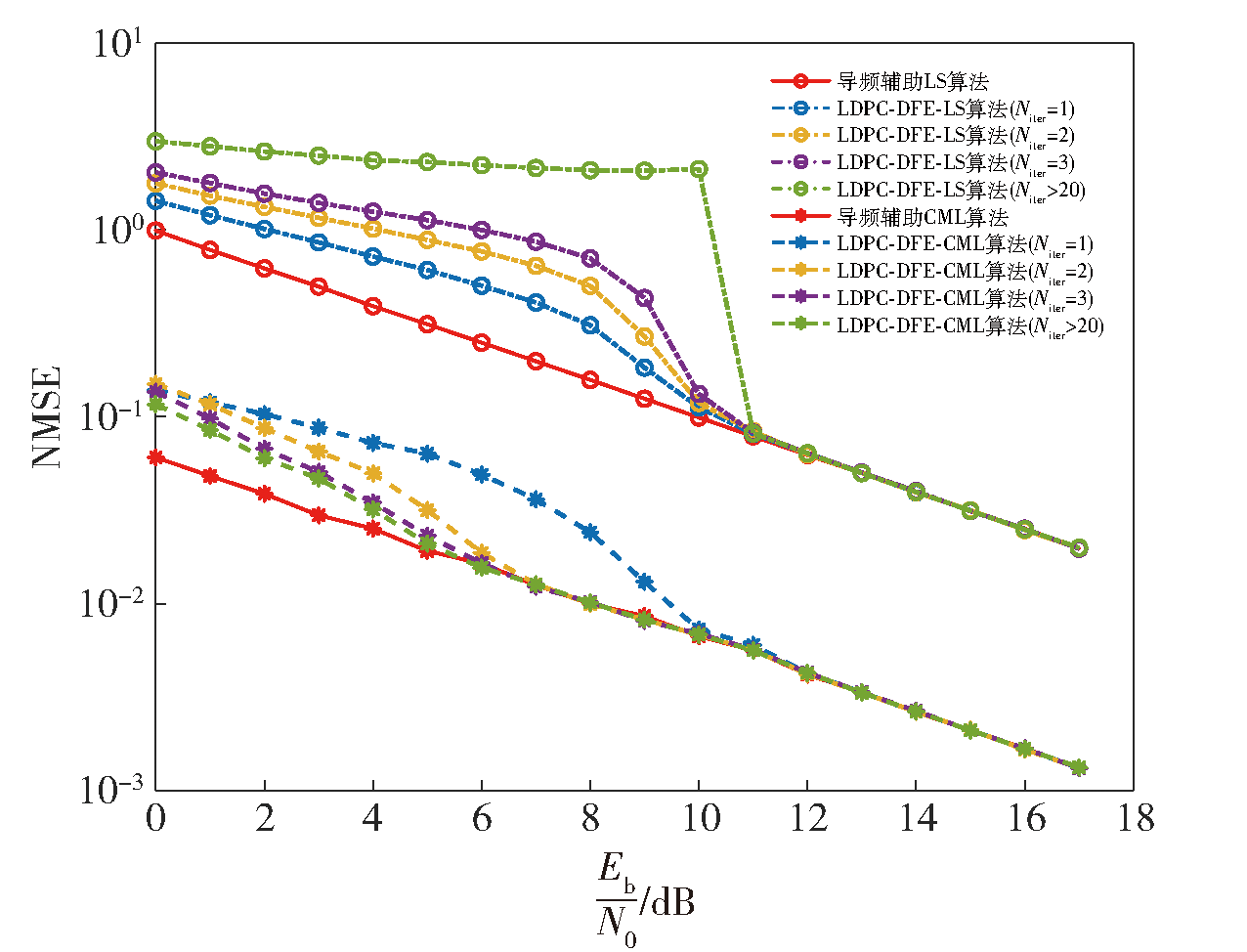

Fig.5 NMSE performance of algorithms in COST207RA channel

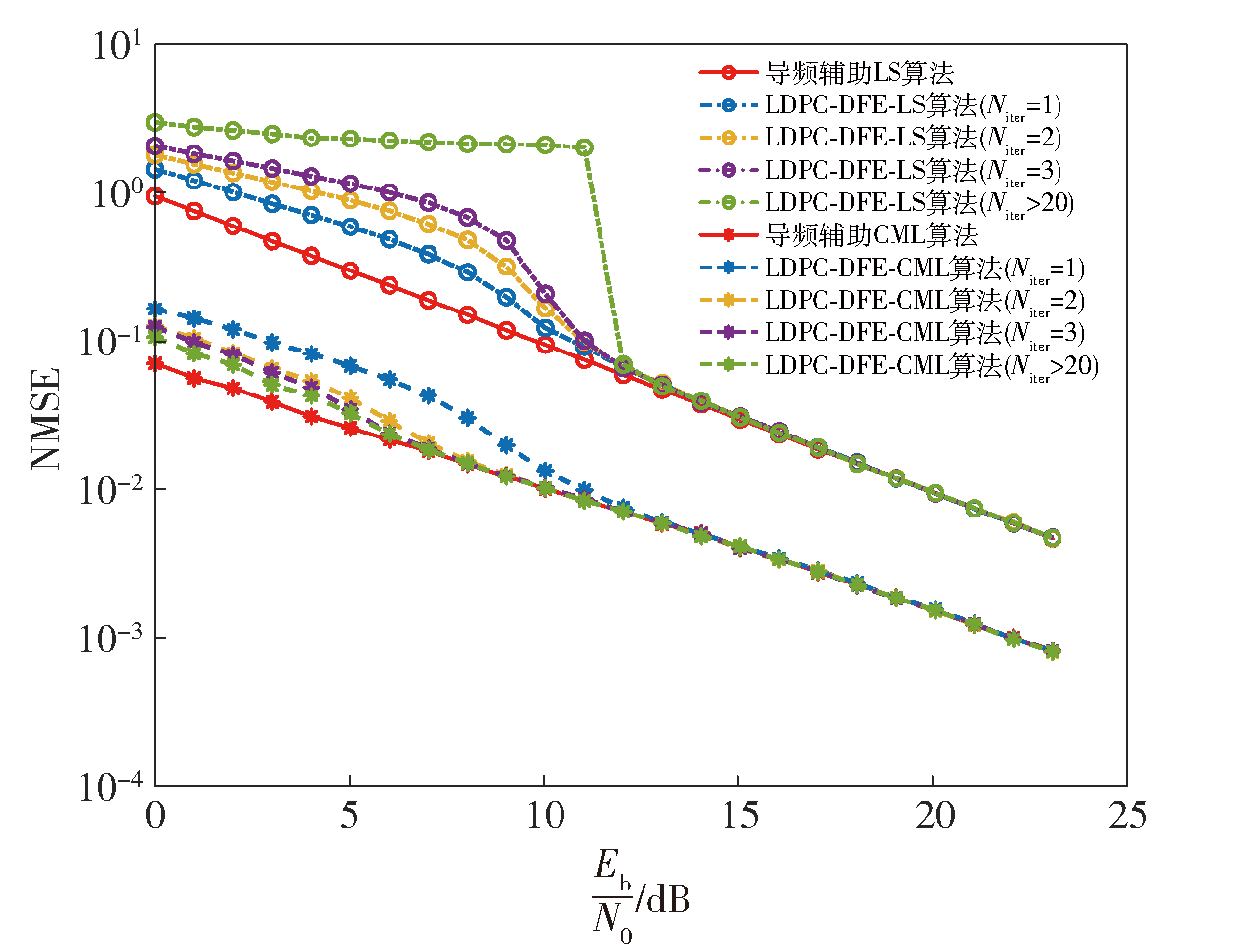

Fig.6 NMSE performance of algorithms in COST207TU channel
