Research on the Influence of Salt Spray Environment on the Movement of Typical Rifle Automaton

doi:10.12382/bgxb.2022.0924

Abstract

Abstract:

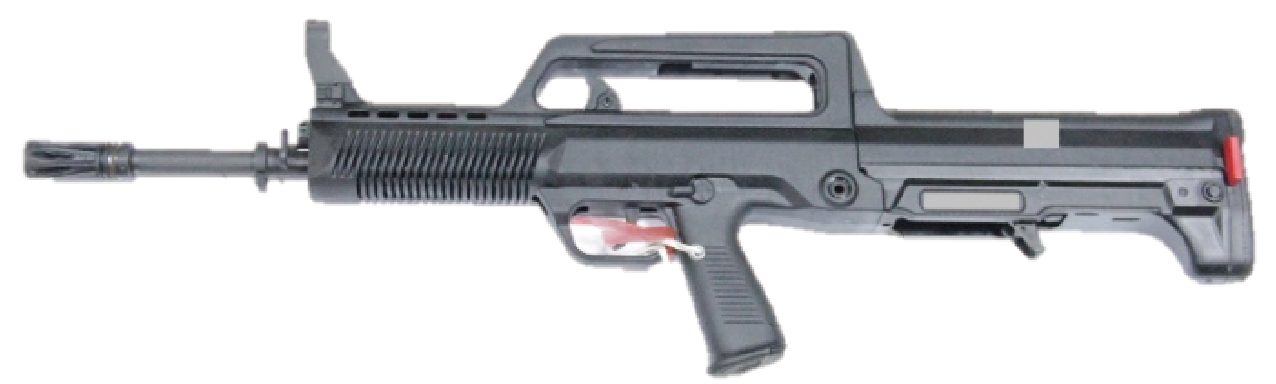

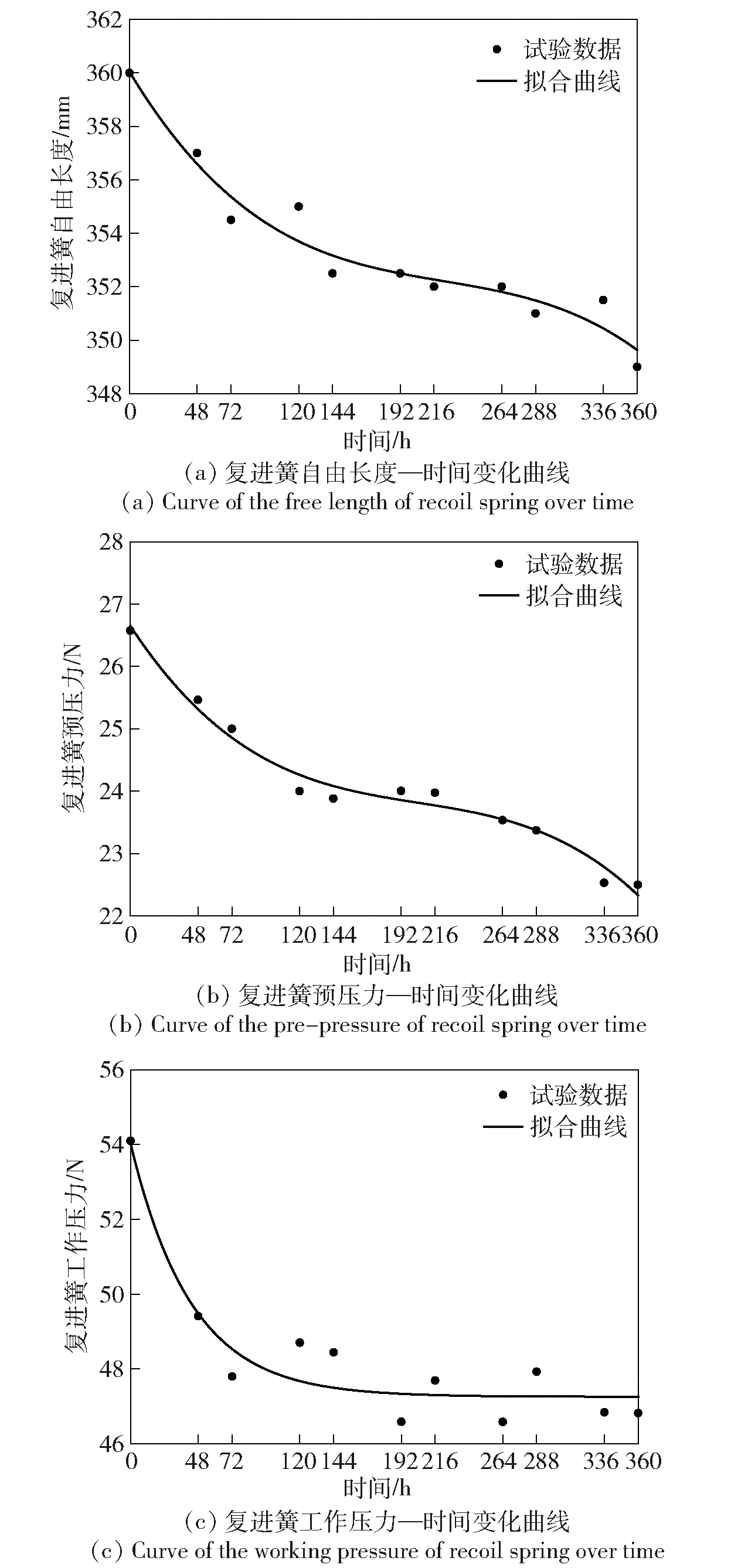

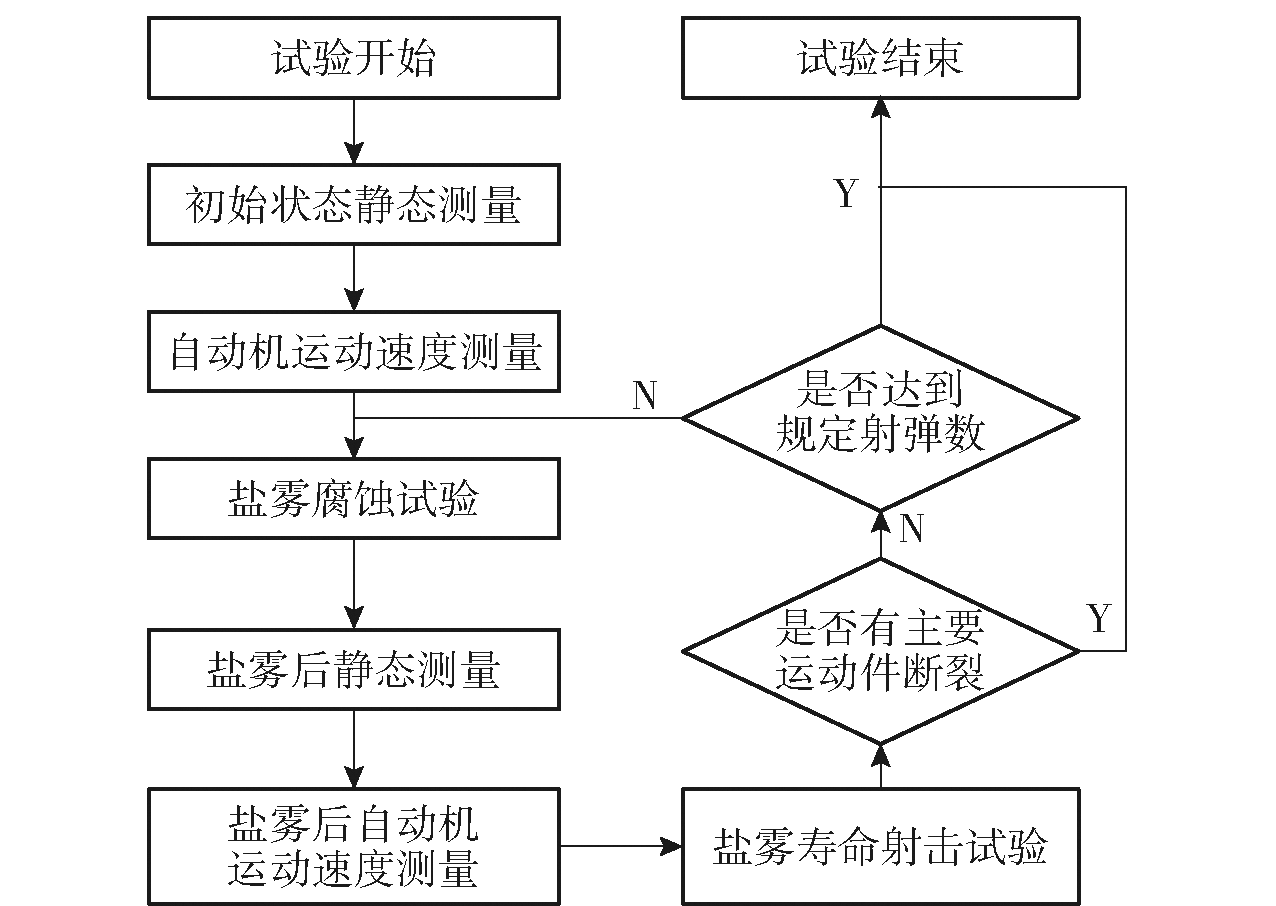

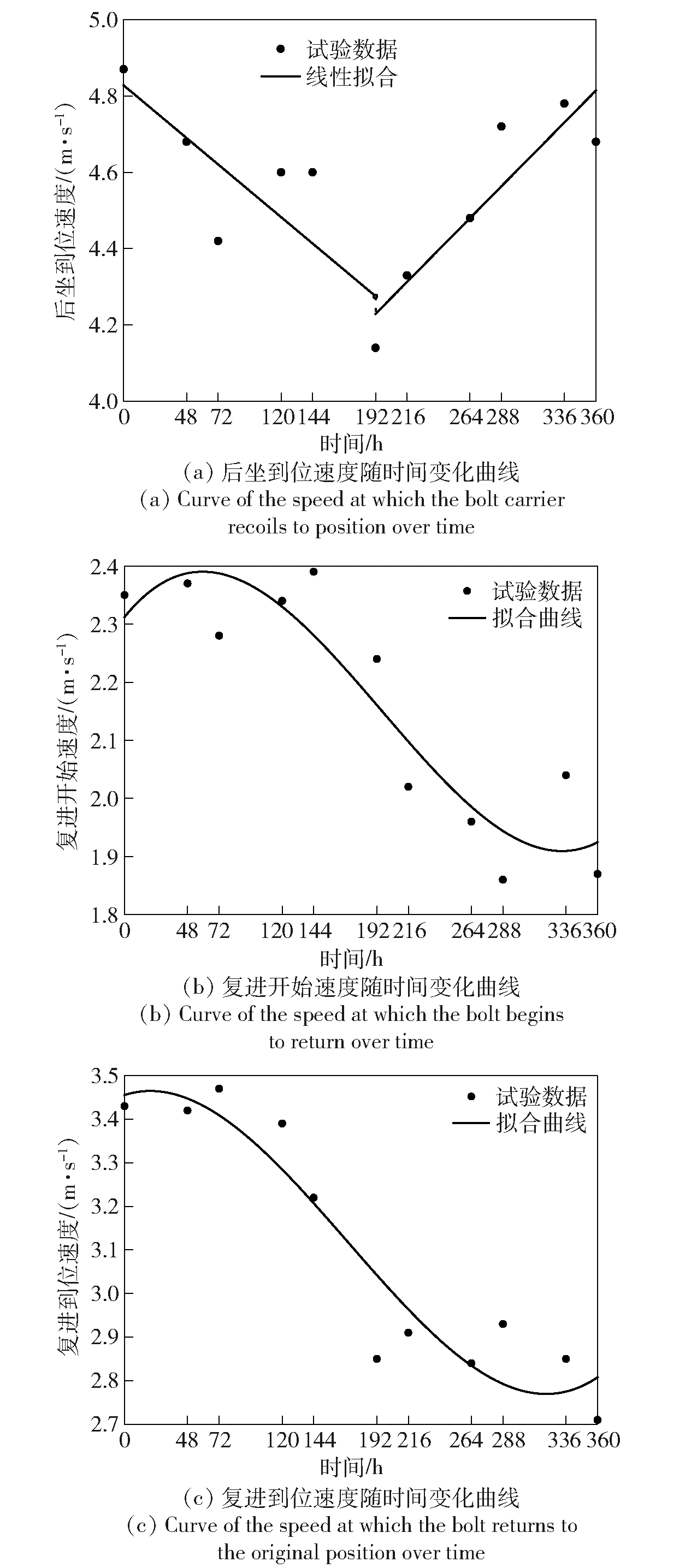

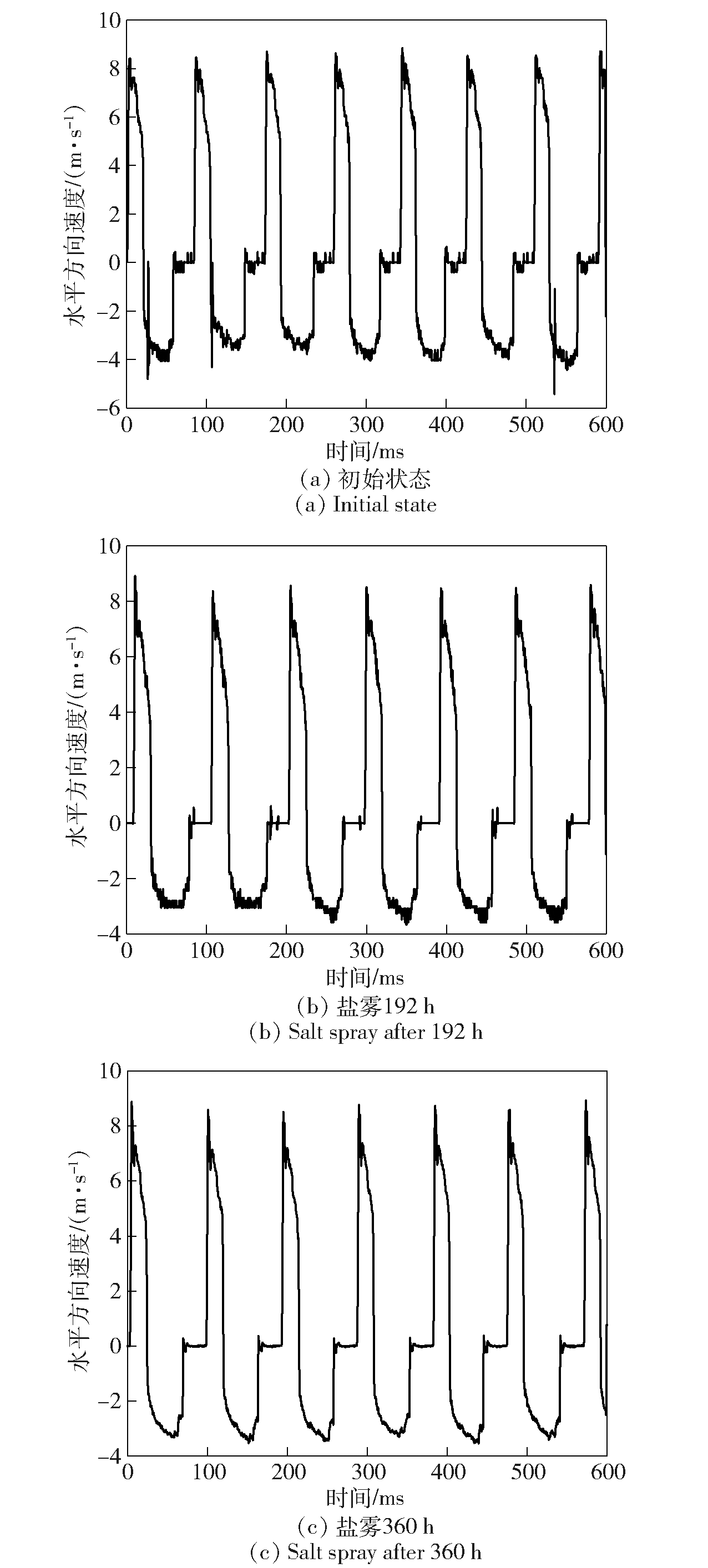

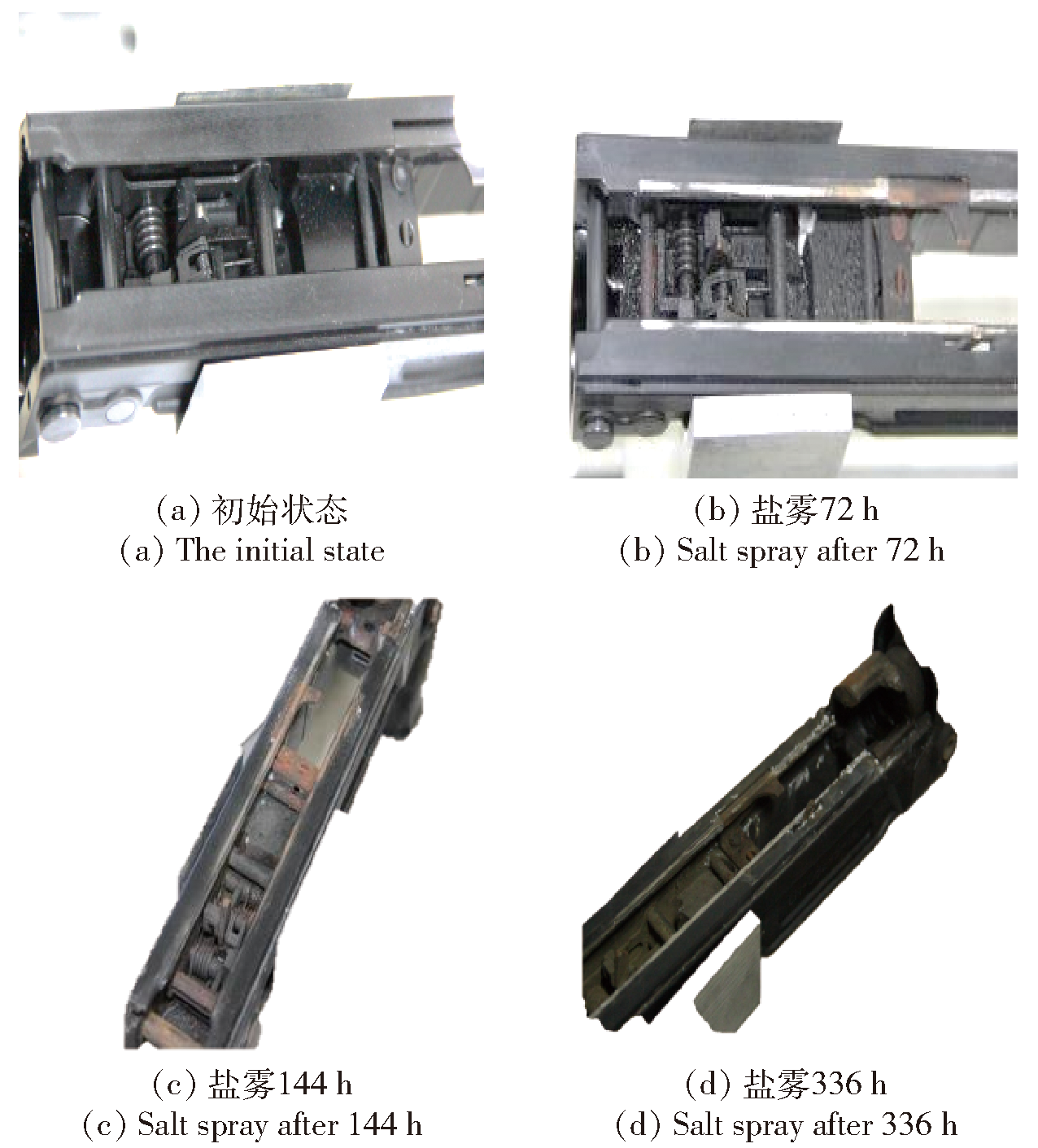

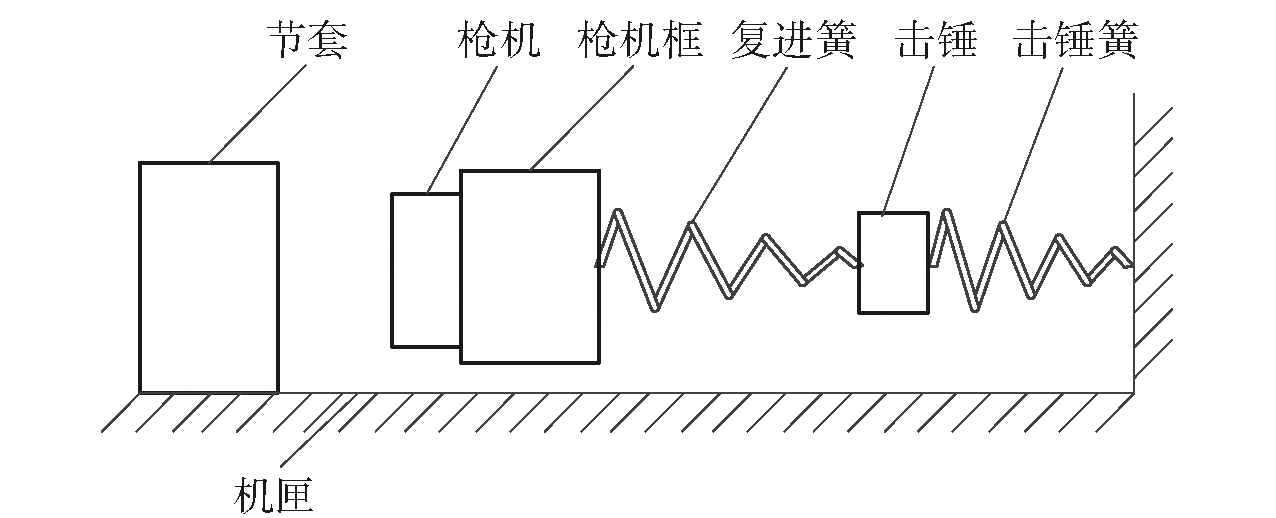

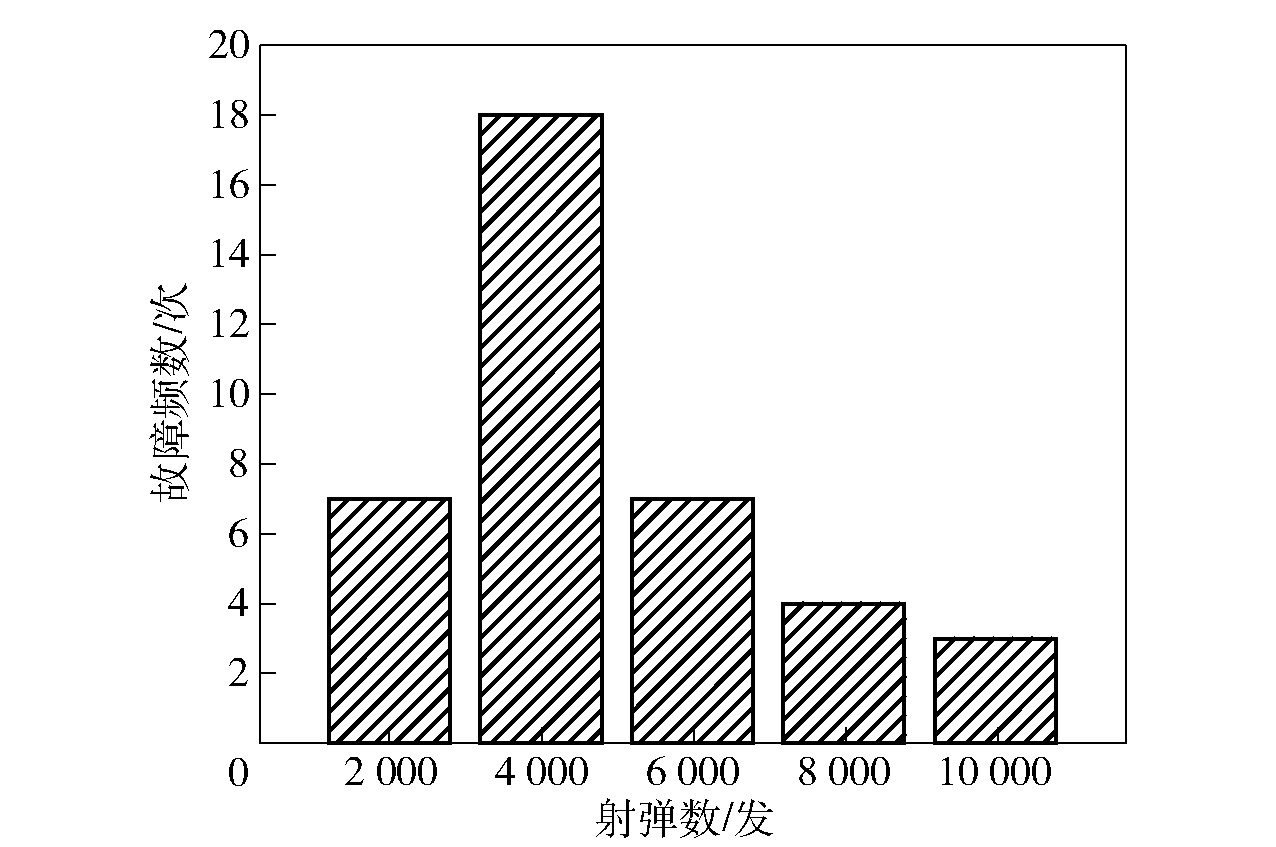

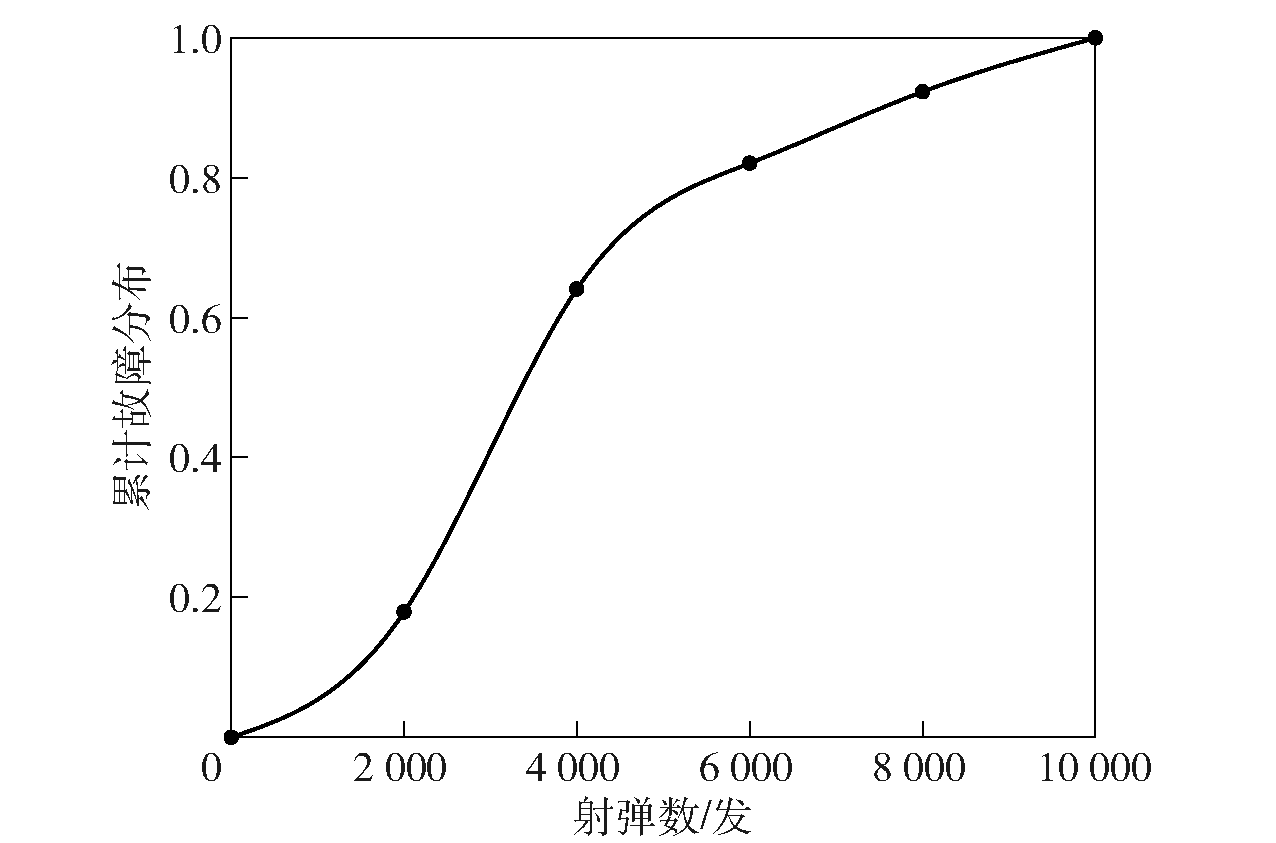

Salt spray environment has an important influence on the tactical and technical performance and operational effectiveness of automatic rifles. However, the influence mechanism of salt spray environment on the motion characteristics and failure of rifle automaton is still unclear. A small caliber automatic rifle is taken as the test object,and a life-test in salt spray environment is designed and carried out. A series of measurements and records are carried out on the rifle after each salt spray test, including non-contact measurement of automaton motion by high-speed photography, high precision measurement of the mass of rifle bolt, recoil spring parameters test, and photographic record of bolt box and guide rail surface morphology characteristics. The conditions of failure during the life-test are counted to obtain the typical fault patterns of automaton movement. The results show that the mass of rifle bolt increases gradually with the increase in salt spray test time. The free length and pre-pressure of the recoil spring gradually decrease, and the working pressure tends to be flat after decreasing. The speed at which the bolt carrier recoils to position decreases first and then increases. The speeds at which the bolt begins to return and returns to the original position decrease gradually, and they have the same changing trend. With the decrease of the speed at which the bolt carrier recoils to position, the number of motion faults of the automaton increases, and the multi-parameter changes caused by the salt spray environment have an obvious influence on the automaton motion. Based on the experimental study, the quantitive relation formulas for the changes of the mass of rifle bolt, the recoil spring parameters and the characteristic point velocity with time are built. Quantitive relation formulas provide a reference for inferring the parameter changes of moving parts of automaton in salt spray environment and analyzing their influences on faults in motion.

Key words: small caliber rifle, salt spray life test, motion of automaton, parameters change, failure analysis

CLC Number:

TJ22

ZHANG He, HUANG Yi, LIU Keyan, LI Pengchao, GU Tongguang, WANG Yongjuan, XU Cheng. Research on the Influence of Salt Spray Environment on the Movement of Typical Rifle Automaton[J]. Acta Armamentarii, 2024, 45(4): 1082-1093.

Figures/Tables 21

References 20

[1]	HUANG Z C, JIA Y L, JIANG Y Q, et al. Mechanica properties and fatigue failure mechanisms of purely self-piercing riveted (SPR) and hybrid (SPR-bonded) joints under salt spray environment[J]. Journal of Materials Research and Technology, 2022, 20:2501-2517.
[2]	GAD S M, ZHOU X R, LYON S B, et al. Inhibition mechanism of anticorrosion pigments leached from organic coatings: comparison between salt spray and immersion testing[J]. Progress in Organic Coatings, 2022, 174:107266.
[3]	DU L C, CHEN J H, HU E L, et al. A reactive molecular dynamics simulation study on corrosion behaviors of carbon steel in salt spray[J]. Computational Materials Science, 2022, 203:111142.
[4]	XIE L F, ZHOU W L, ZOU S W. Pitting behavior of Ti-15-3 titanium alloy with different surface in salt spray studied using electrochemical noise[J]. Journal of Materials Research and Technology, 2021, 14:2865-2883.
[5]	陈跃良, 张柱柱, 张勇, 等. 盐雾腐蚀环境对38CrMoAl钢动态力学性能的影响[J]. 稀有金属材料与工程, 2021, 50(6): 2040-2051.
	CHEN Y L, ZHANG Z Z, ZHANG Y, et al. Effect of salt spray corrosion environment on dynamic mechanical properties of 38CrMoAl steel[J]. Rare Metal Materials and Engineering, 2021, 50(6): 2040-2051. (in Chinese)
[6]	石瑶, 黄子琳, 袁珂. 两种奥氏体不锈钢酸性盐雾腐蚀行为研究[J]. 装备环境工程, 2020, 17(6):51-57.
	SHI Y, HUANG Z L, YUAN K. Corrosion behavior of two kinds of austenitic stainless steel in acid salt spray test[J]. Equipment Environmental Engineering, 2020, 17(6): 51-57. (in Chinese)
[7]	MICHLA J, RAJINI N, ISMAIL S O, et al. Effects of nitriding on salt spray corrosion resistance of additively manufactured 17-4 PH steels[J]. Materials Letters, 2023, 330:133258.
[8]	AKODA K E, GUEDON G A, DELETAGE J Y, et al. Impact of temperature on the corrosion of lead-free solder alloy during salt spray test[J]. Microelectronics Reliability, 2021, 126:114286.
[9]	王汉森, 任凯旭, 宋肖肖, 等. 循环盐雾环境下SPCC钢腐蚀行为研究[J]. 电镀与精饰, 2022, 44(10):24-30.
	WANG H S, REN K X, SONG X X, et al. Research on corrosion behavior of SPCC steel in cyclic salt spray environment[J]. Plating and Finishing, 2022, 44(10):24-30. (in Chinese)
[10]	DENG H R, LIANG A R, RAN F, et al. Experimental study on mechanical properties and low-cycle fatigue behaviour of stainless steels subjected to salt spray and dry/wet cycle[J]. International Journal of Fatigue, 2022, 165:107187.
[11]	王明明, 钱林方, 陈光宋, 等. 基于概率密度演化方法的火炮输弹过程不确定性分析[J]. 兵工学报, 2022, 43(6):1215-1224. doi: 10.12382/bgxb.2021.0298
	WANG M M, QIAN L F, CHEN G S, et al. Uncertainty analysis of ammunition ramming process based on probability density evolution method[J]. Acta Armamentarii, 2022, 43(6):1215-1224. (in Chinese) doi: 10.12382/bgxb.2021.0298
[12]	翟文宇, 钱林方, 陈光宋. 火炮自动装填系统摆动机构的运动精度可靠性与灵敏度[J]. 兵工学报, 2023, 44(4):1062-1070.
	ZHAI W Y, QIAN L F, CHEN G S. The kinematic accuracy reliability and reliability sensitivity analysis of a swing mechanism with the sutomatic loading dystem of a cannon[J]. Acta Armamentarii, 2023, 44(4):1062-1070. (in Chinese)
[13]	王军, 许耀峰, 刘朋科, 等. 不同持续射击发数对火炮身管寿命的影响[J]. 兵工学报, 2023, 44(4):1034-1040.
	WANG J, XU Y F, LIU P K, et al. Influence of different continuous firing length on gun barrel life[J]. Acta Armamentarii, 2023, 44(4):1034-1040. (in Chinese)
[14]	袁克斌, 方峻. 考虑环境因素影响下某机枪抛壳可靠性分析[J]. 兵器装备工程学报, 2021, 42(4):80-85.
	YUAN K B, FANG J. Reliability analysis of a machine gun catridge case ejection considering environmental factors[J]. Journal of Ordnance Equipment Engineering, 2021, 42(4):80-85. (in Chinese)
[15]	邹衍, 徐诚, 罗少敏, 等. 自动步枪刚性抛壳可靠性分析与设计方法研究[J]. 兵工学报, 2017, 38(2):209-217. doi: 10.3969/j.issn.1000-1093.2017.02.001
	ZOU Y, XU C, LUO S M, et al. Study of rigid ejection reliability analysis and design method of automatic rifle[J]. Acta Armamentarii, 2017, 38(2):209-217. (in Chinese) doi: 10.3969/j.issn.1000-1093.2017.02.001
[16]	方义川, 王永娟, 沙金龙, 等. 枪械固定式刚性抛壳机构动作故障机理[J]. 兵工学报, 2022, 43(9):2252-2262.
	FANG Y C, WANG Y J, SHA J L, et al. Failure mechanism of the fixed rigid ejection mechanism in firearms[J]. Acta Armamentarii, 2022, 43(9):2252-2262. (in Chinese) doi: 10.12382/bgxb.2022.0090
[17]	陈威, 焦小雨, 赵自强, 等. 镀锌钢盐雾腐蚀行为及机理研究[J]. 陕西科技大学学报, 2021, 39(4):130-135.
	CHEN W, JIAO X Y, ZHAO Z Q, et al. Study on salt spray corrosion behavior and mechanism of hot dip galvanized steel[J]. Journal of Shaanxi University of Science & Technology, 2021, 2021, 39(4):130-135. (in Chinese)
[18]	齐玉辉, 徐诚. 全射弹寿命过程中的大口径机枪自动机磨损和性能衰减趋势研究[J]. 兵工学报, 2016, 37(8):1359-1364. doi: 10.3969/j.issn.1000-1093.2016.08.003
	QI Y H, XU C. Research on wear and performance degradation of a large-caliber machine gun automatic mechanism in firing life-span[J]. Acta Armamentarii, 2016, 37(8):1359-1364. (in Chinese)
[19]	顾祖成, 王光华, 卢海涛, 等. 小口径步枪枪管在连续单发射击下热效应特性[J]. 兵工学报, 2021, 42(4):734-742.
	GU Z C, WANG G H, LU H T, et al. Thermal effect of small caliber rifle barrel under continuous single shot firing[J]. Acta Armamentarii, 2021, 42(4):734-742. (in Chinese) doi: 10.3969/j.issn.1000-1093.2021.04.007
[20]	丁传俊, 尹强, 姜铁牛, 等. 某导气式火炮自动机身管磨损后的性能分析[J]. 兵器装备工程学报, 2020, 41(8):36-40.
	DING C J, YIN Q, JIANG T N, et al. Performance analysis of a gas-operated automatic gun after tube wear[J]. Journal of Ordnance Equipment Engineering, 2020, 41(8):36-40. (in Chinese)

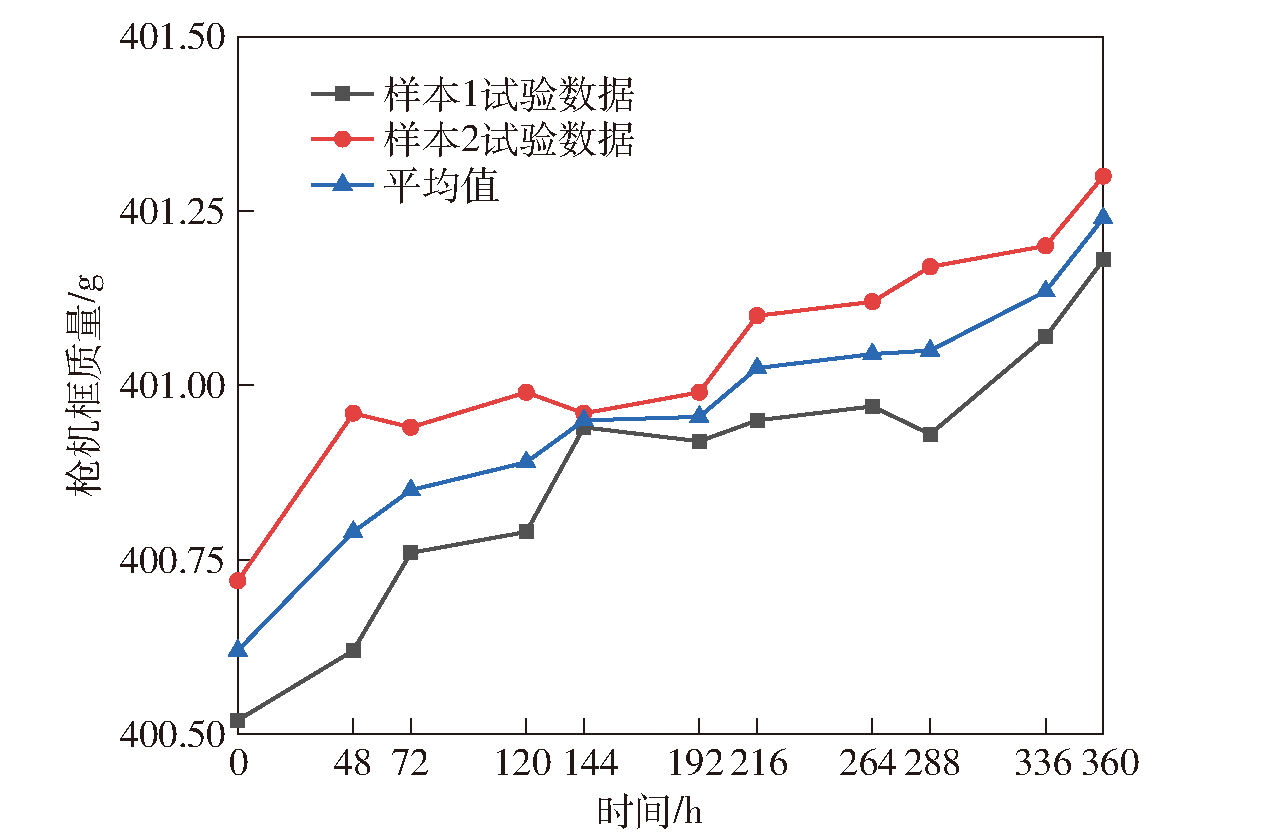

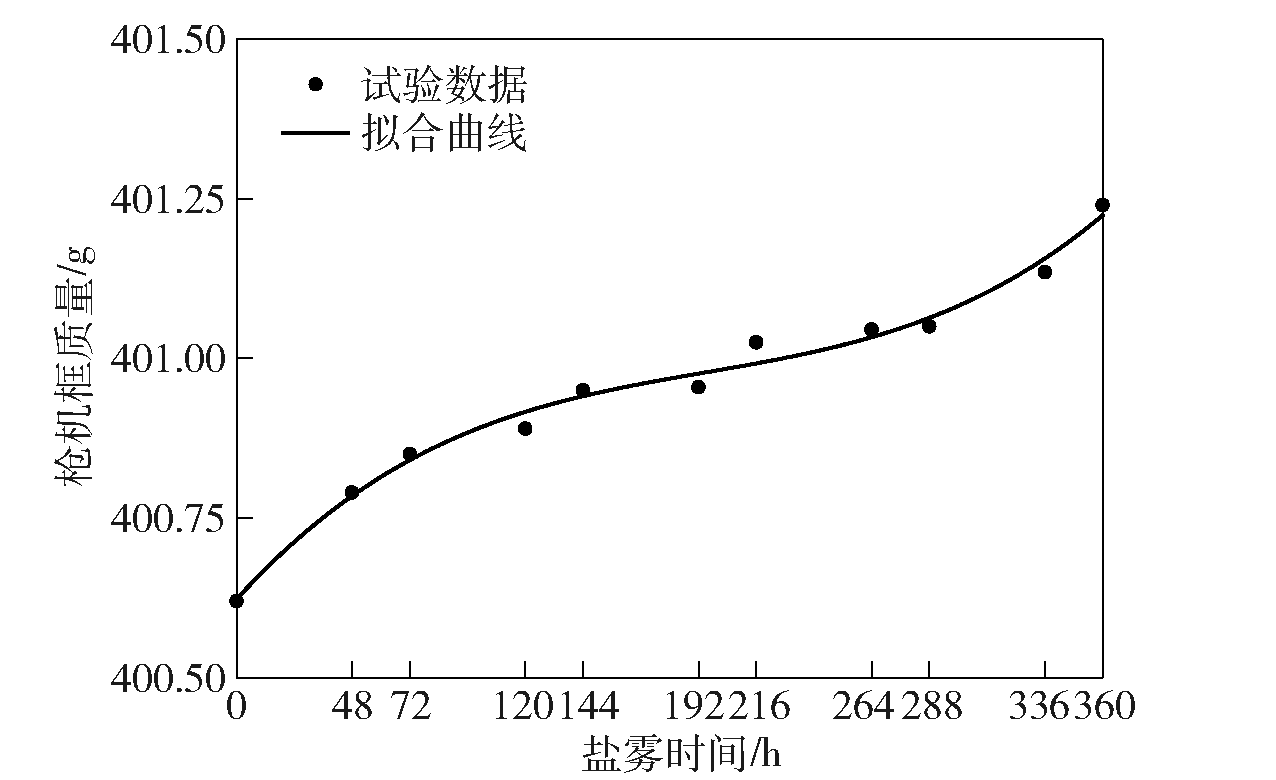

盐雾时间/h	枪机框质量/g		枪机框质量平均值/g
盐雾时间/h	样本1	样本2	枪机框质量平均值/g
0	400.520	400.720	400.620
48	400.620	400.960	400.790
72	400.760	400.940	400.850
120	400.790	400.990	400.890
144	400.940	400.960	400.950
192	400.920	400.990	400.955
216	400.950	401.100	401.025
264	400.970	401.120	401.045
288	400.930	401.170	401.050
336	401.070	401.200	401.135
360	401.180	401.300	401.240

盐雾时间/h	枪机框质量/g		枪机框质量平均值/g
盐雾时间/h	样本1	样本2	枪机框质量平均值/g
0	400.520	400.720	400.620
48	400.620	400.960	400.790
72	400.760	400.940	400.850
120	400.790	400.990	400.890
144	400.940	400.960	400.950
192	400.920	400.990	400.955
216	400.950	401.100	401.025
264	400.970	401.120	401.045
288	400.930	401.170	401.050
336	401.070	401.200	401.135
360	401.180	401.300	401.240

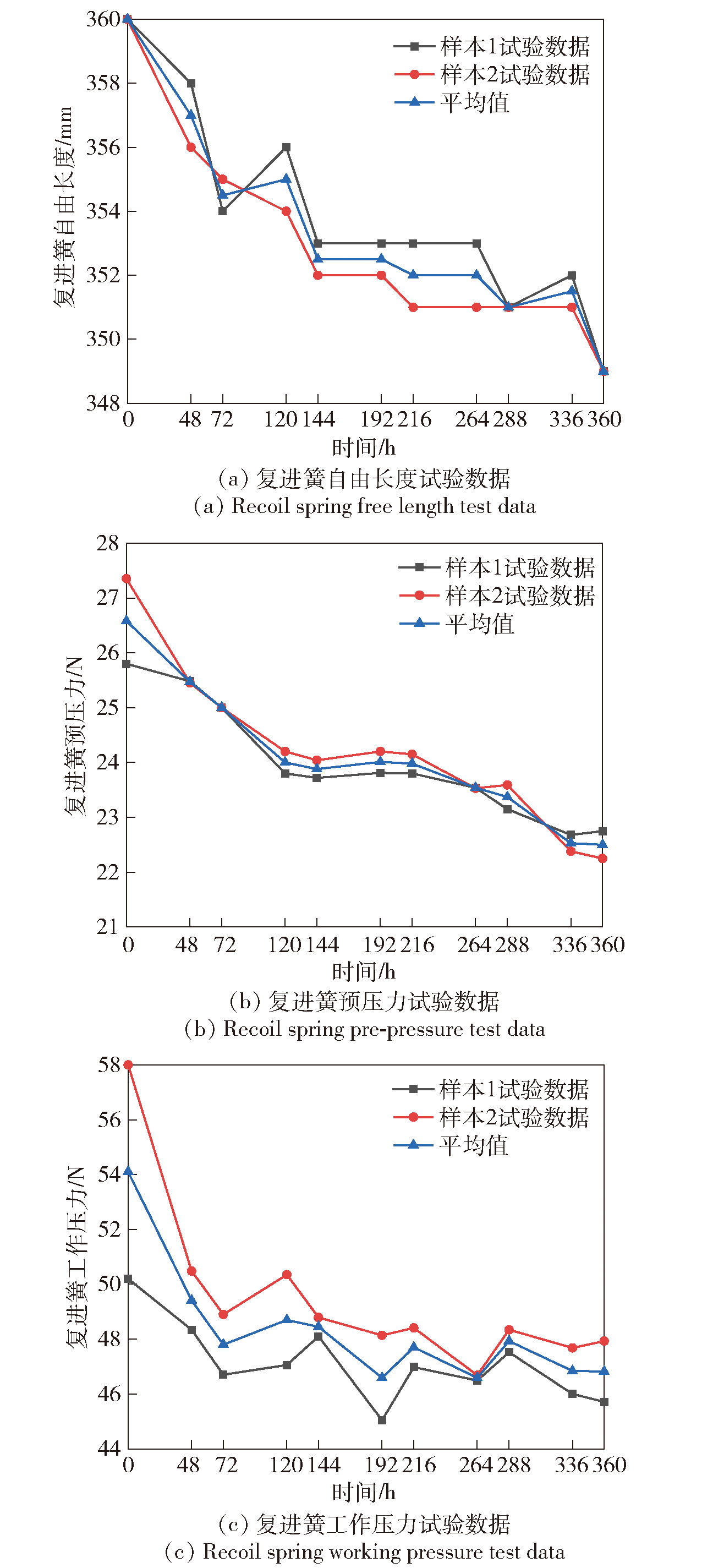

盐雾时间/h	复进簧自由长度/mm		复进簧自由长度平均值/mm
盐雾时间/h	样本1	样本2	复进簧自由长度平均值/mm
0	360.00	360.00	360.00
48	358.00	356.00	357.00
72	354.00	355.00	354.50
120	356.00	354.00	355.00
144	353.00	352.00	352.50
192	353.00	352.00	352.50
216	353.00	351.00	352.00
264	353.00	351.00	352.00
288	351.00	351.00	351.00
336	352.00	351.00	351.50
360	349.00	349.00	349.00

盐雾时间/h	复进簧自由长度/mm		复进簧自由长度平均值/mm
盐雾时间/h	样本1	样本2	复进簧自由长度平均值/mm
0	360.00	360.00	360.00
48	358.00	356.00	357.00
72	354.00	355.00	354.50
120	356.00	354.00	355.00
144	353.00	352.00	352.50
192	353.00	352.00	352.50
216	353.00	351.00	352.00
264	353.00	351.00	352.00
288	351.00	351.00	351.00
336	352.00	351.00	351.50
360	349.00	349.00	349.00

盐雾时间/h	复进簧预压力/N		复进簧预压力平均值/N
盐雾时间/h	样本1	样本2	复进簧预压力平均值/N
0	25.80	27.35	26.58
48	25.48	25.45	25.47
72	25.00	25.00	25.00
120	23.80	24.20	24.00
144	23.72	24.04	23.88
192	23.81	24.20	24.01
216	23.80	24.15	23.98
264	23.54	23.53	23.54
288	23.15	23.59	23.37
336	22.68	22.38	22.53
360	22.75	22.25	22.50
