Dynamic Deflection Response of Typical Pavement Structure under Different Impact Loads

doi:10.12382/bgxb.2022.0413

Abstract

Abstract:

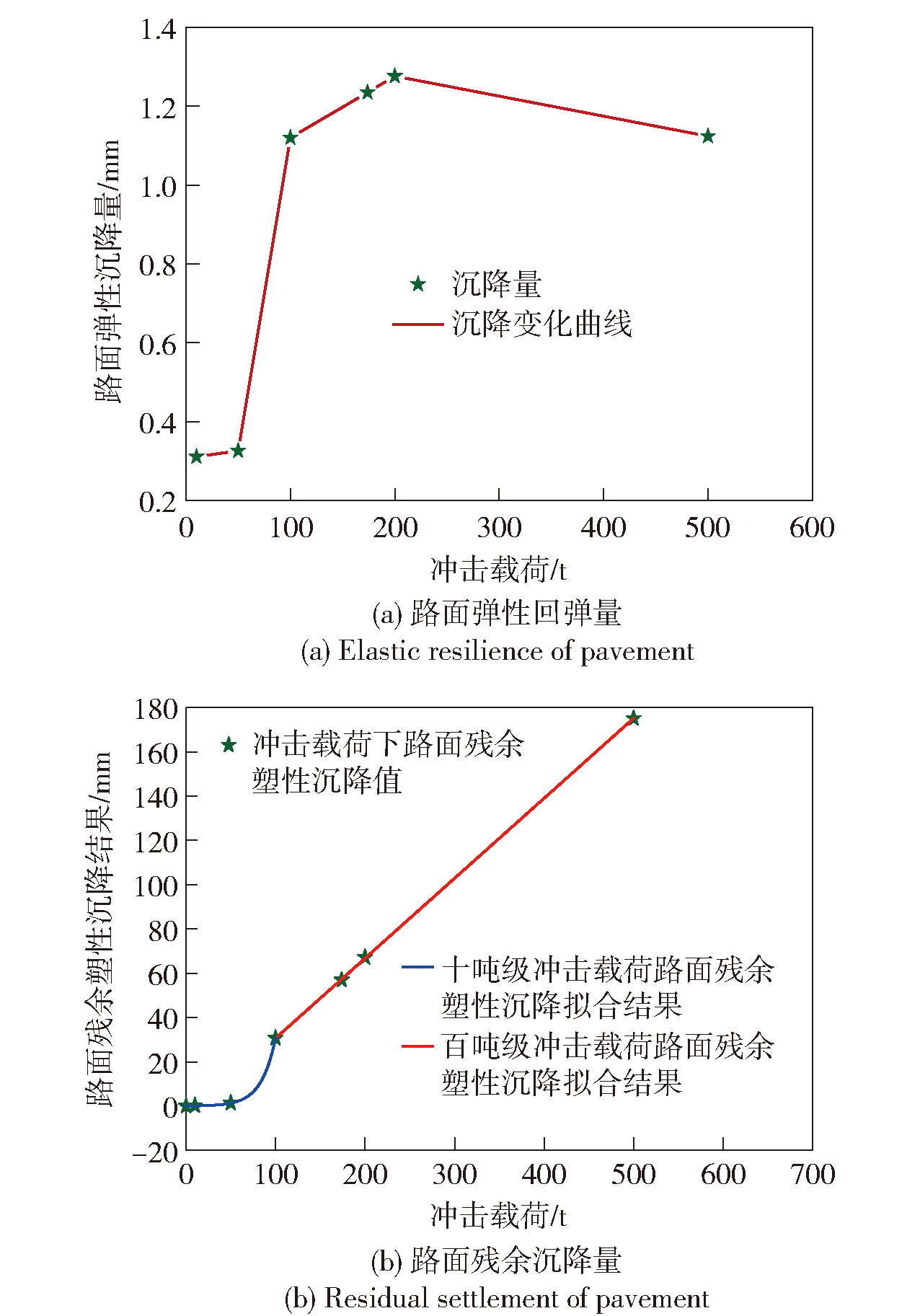

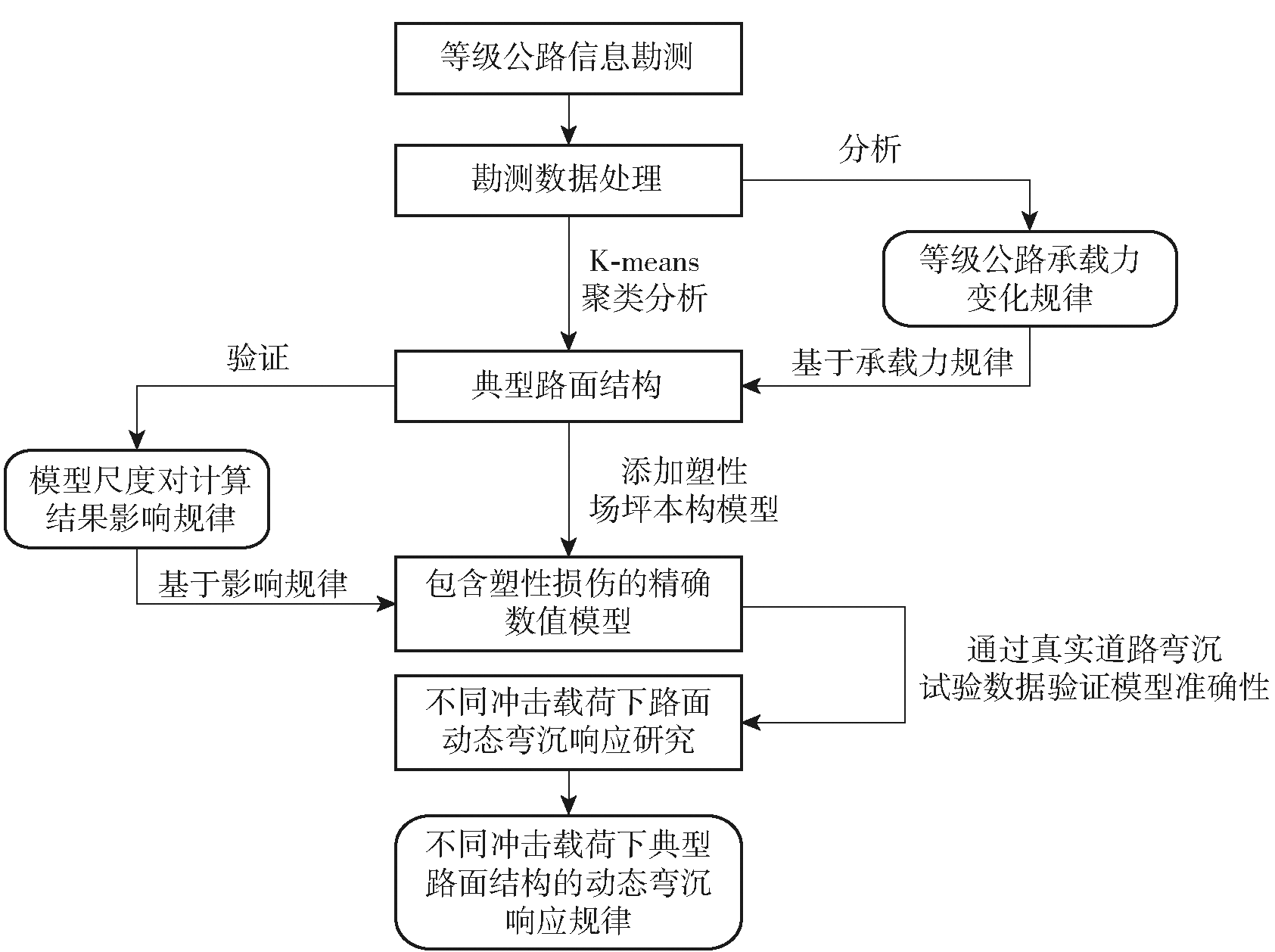

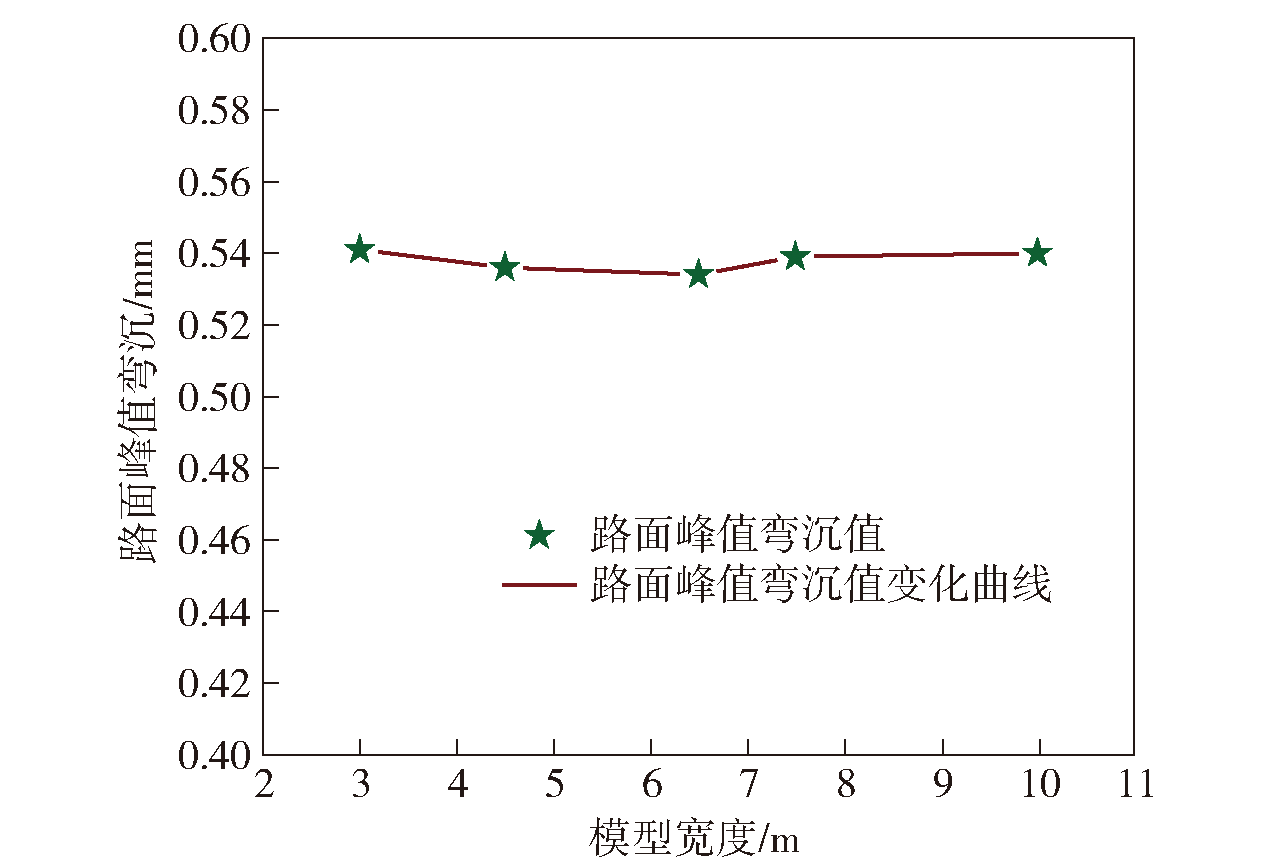

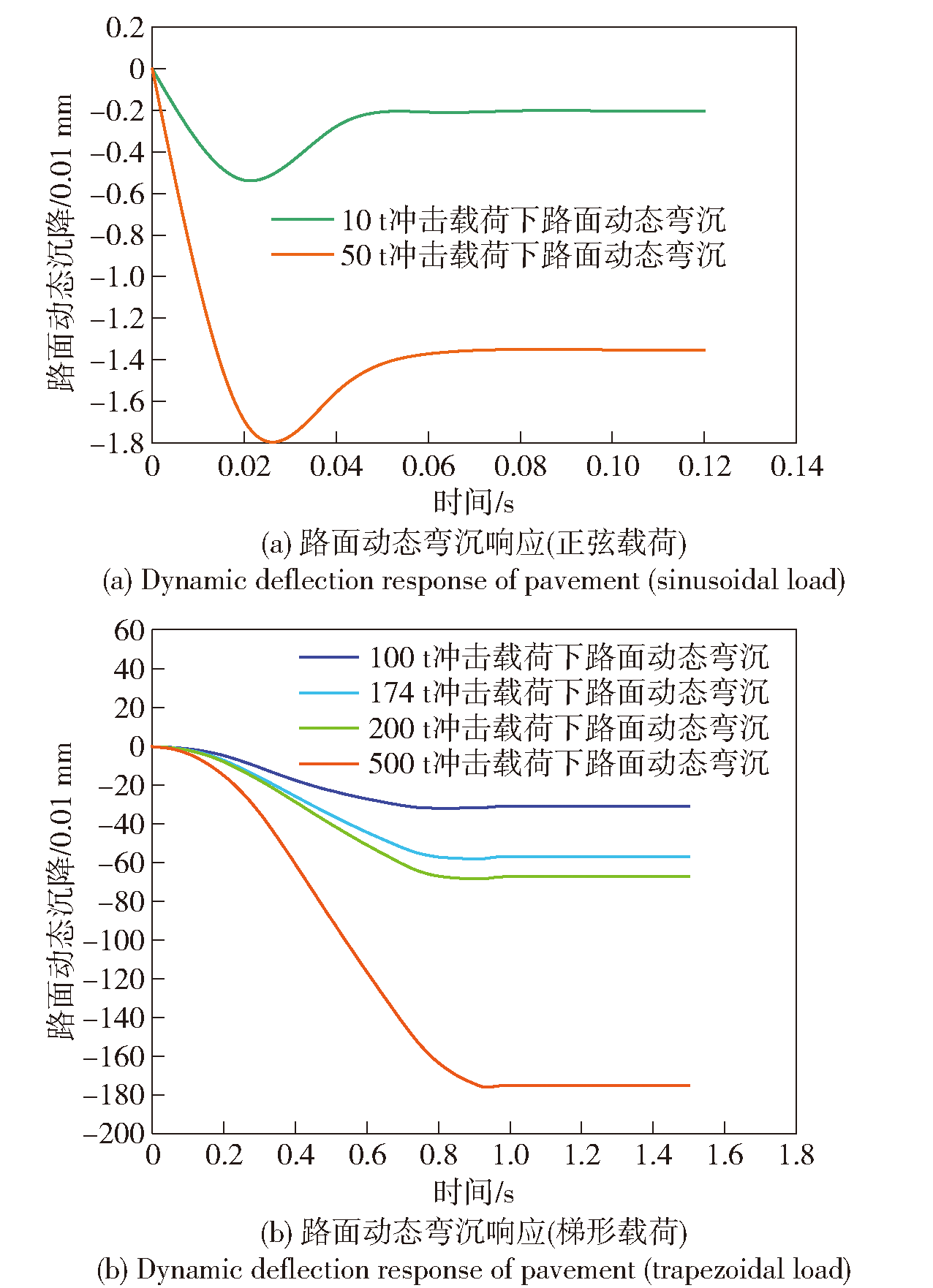

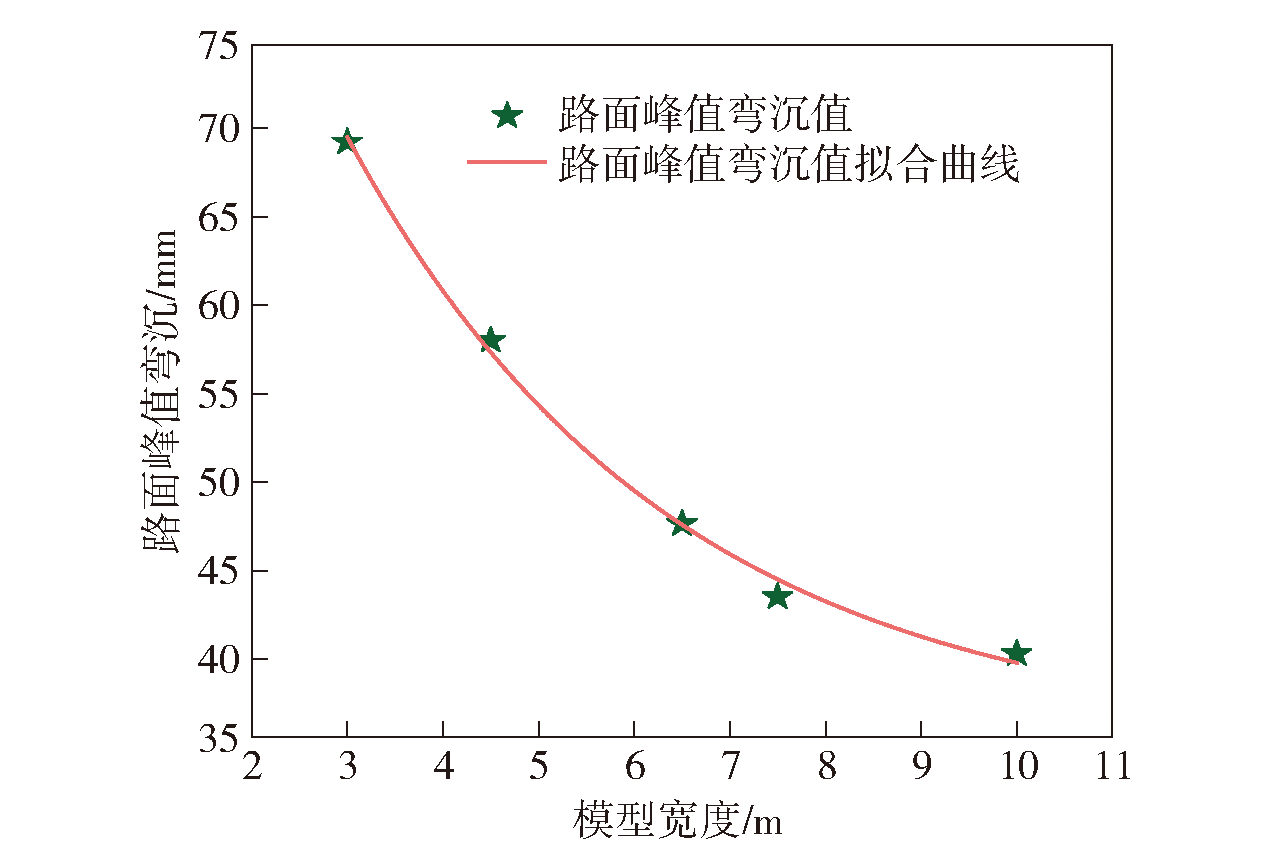

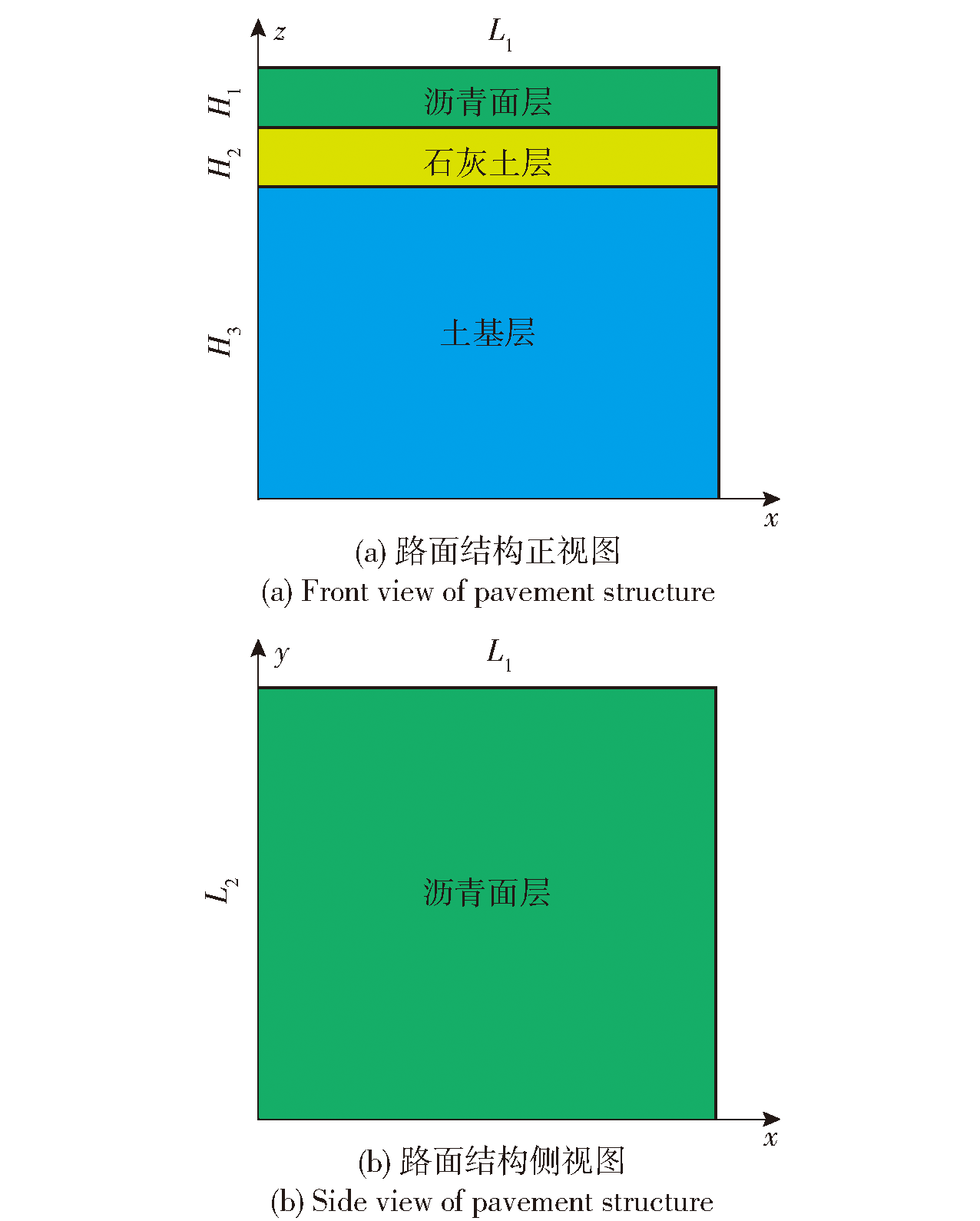

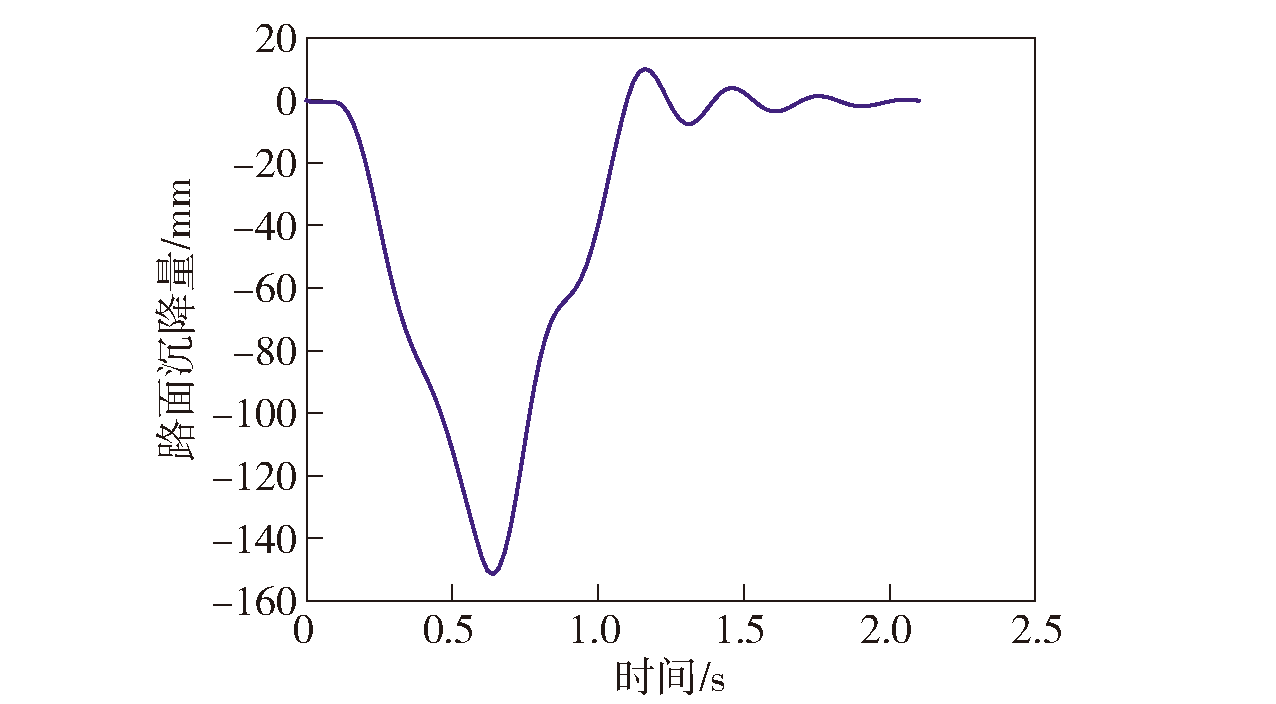

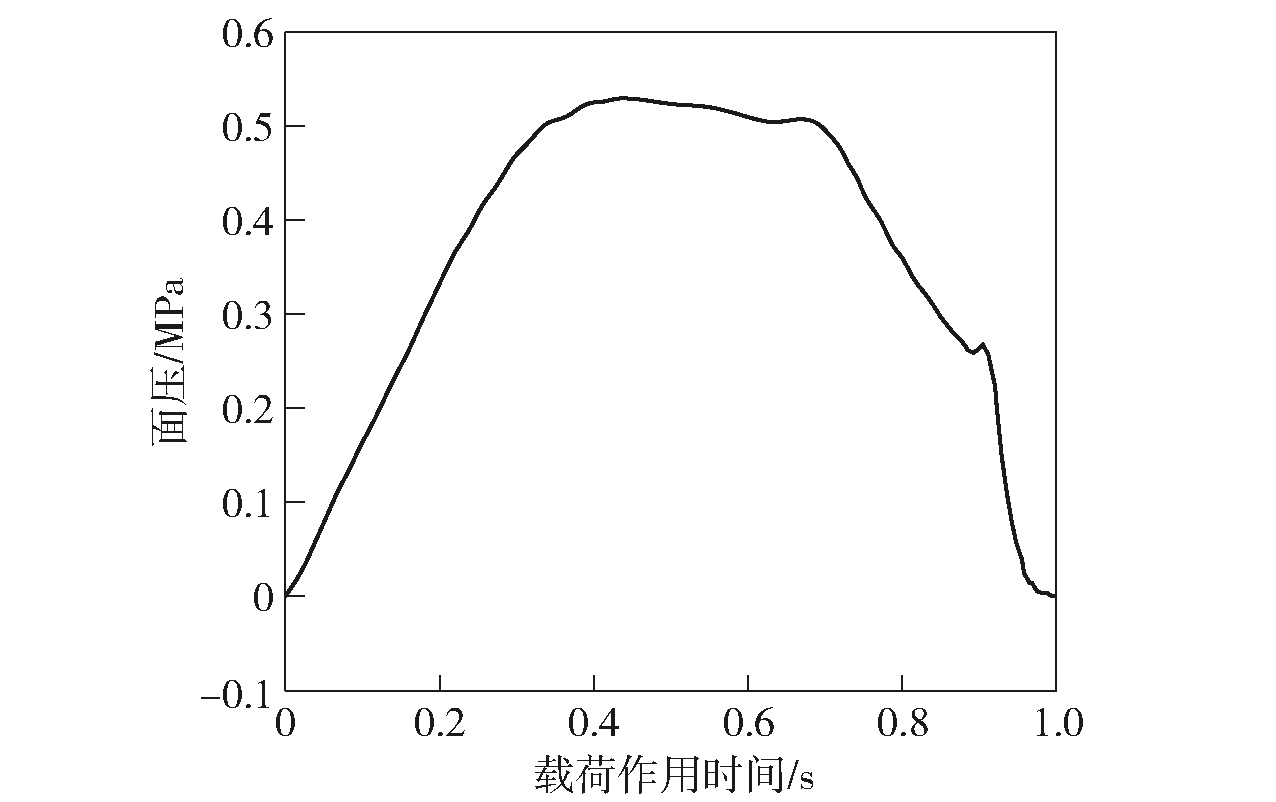

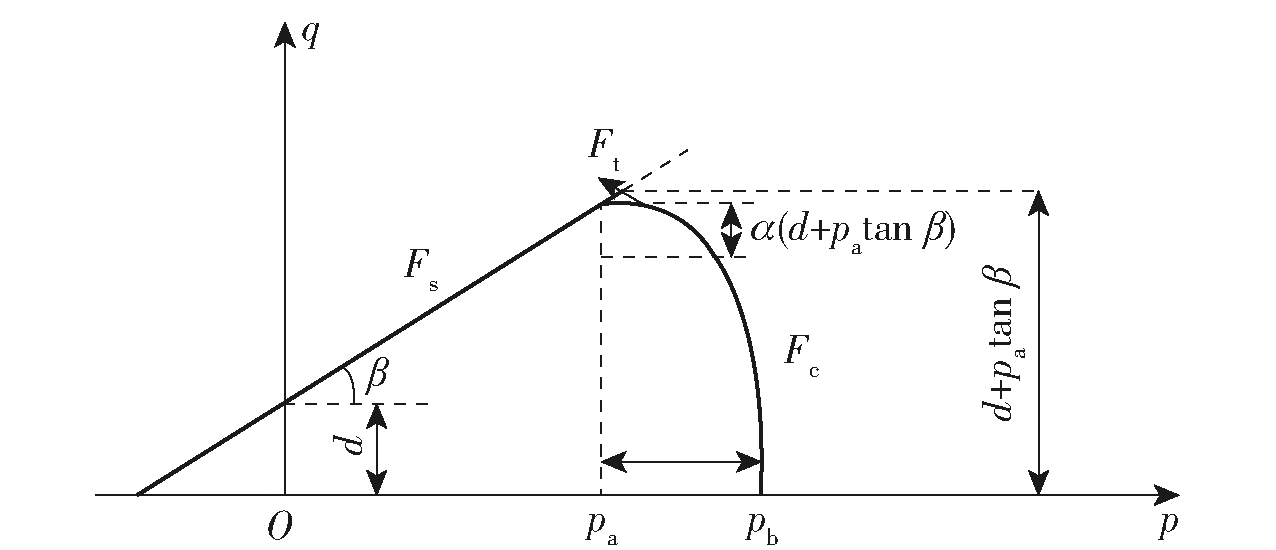

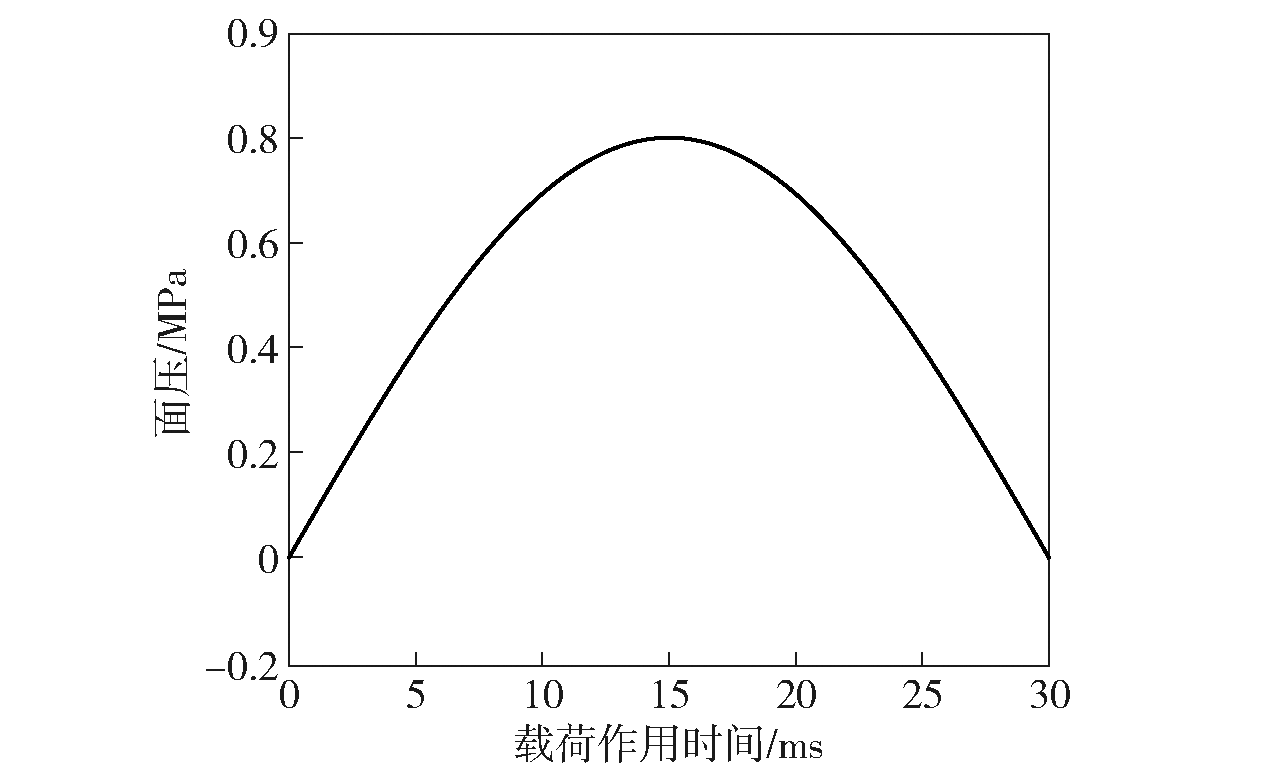

In order to study the numerical law of dynamic deflection response of typical pavement structure under different impact loads, the grade highway information is experimentally surveyed, the measured data is analyzed, the correlation between grade highway bearing capacity and pavement structure is summarized, and the typical pavement structure under the dimension of bearing capacity is constructed based on the statistical law. And then a multi-layer continuous road structure model including plastic damage is established. The effectiveness of the model is verified by comparing the simulation results with the experimental data, and the influence of the size of the model on the simulation results of pavement deflection under different impact loads is studied. Finally, the deflection response law of typical pavement structure under different impact loads is studied, the peak settlement and residual settlement of pavement under impact load are calculated, and the internal law of deflection response of typical pavement structure under different impact loads is revealed. The result shows that the multi-layer continuous road structure model including plastic damage can accurately reflect the real dynamic deflection response of pavement under impact load; under different impact loads, the proportion of plastic settlement in pavement settlement and the amplitude of impact load meet the double exponential equation; in the range of 100 tons, the elastic rebound part of pavement settlement increases with the increase of impact load amplitude, and the plastic settlement part has an exponential positive correlation with load amplitude; the elastic rebound in pavement settlement reaches the upper limit of 1.2-1.3mm above 100 tons, the plastic settlement of pavement has a linear relationship with the load amplitude. In addition, the research on the influence of model size on simulation results under different impact loads can provide a reference for determining the appropriate size of simulation model in finite element simulation.

Key words: grade highway, impact load, dynamic deflection response, finite element simulation

CLC Number:

TJ81⁺0

JI Xinbo, LU Weijian, LÜ Chen, WANG Xi, LIAN Zheng, HE Li. Dynamic Deflection Response of Typical Pavement Structure under Different Impact Loads[J]. Acta Armamentarii, 2024, 45(1): 299-311.

Figures/Tables 26

References 20

[1]	冯锦艳, 郭志培, 于志全. 冲击载荷下低等级沥青路沉降计算方法探讨[J]. 地下空间与工程学报, 2016, 12(增刊2):889-893.
	FENG J Y, GUO Z P, YU Z Q. Discussion on settlement calculation method of low-grade asphalt road under impact load[J]. Journal of Underground Space and Engineering, 2016, 12(S2): 889-893. (in Chinese)
[2]	邓学钧, 黄晓明, 沈伟新. 弹性层状体系的动力响应分析[J]. 土木工程学报, 1995, 28(3):9-16.
	DENG X J, HUANG X M, SHEN W X. Dynamic response analysis of elastic layered system[J]. Journal of Civil Engineering, 1995, 28(3):9-16. (in Chinese)
[3]	侯芸, 郭忠印, 田波, 等. 动荷作用下沥青路面结构的变形响应分析[J]. 中国公路学报, 2002, 15(3):8-12.
	HOU Y, GUO Z Y, TIAN B, et al. Deformation response analysis of asphalt pavement structure under dynamic load[J]. Chinese Journal of Highway, 2002, 15(3): 8-12. (in Chinese)
[4]	张震东, 马大为, 任杰, 等. 冷发射装备对地载荷作用下预设场坪的动力响应研究[J]. 兵工学报, 2015, 36(2):279-286. doi: 10.3969/j.issn.1000-1093.2015.02.013
	ZHANG Z D, MA D W, REN J, et al. Study on dynamic response of cold launch equipment to preset site under ground load[J]. Acta Armamentarii, 2015, 36 (2): 279-286. (in Chinese)
[5]	张震东, 马大为, 仲健林, 等. 某型导弹冷发射装备场坪适应性研究[J]. 兵工学报, 2020, 41(2):280-290. doi: 10.3969/j.issn.1000-1093.2020.02.009
	ZHANG Z D, MA D W, ZHONG J L, et al. Study on field adaptability of a missile cold launch equipment[J]. Acta Armamentarii, 2020, 41(2): 280-290. (in Chinese)
[6]	周晓和, 马大为, 胡建国, 等. 某导弹无依托发射场坪动态响应研究[J]. 兵工学报, 2014, 35(10):1595-1603. doi: 10.3969/j.issn.1000-1093.2014.10.012
	ZHOU X H, MA D W, HU J G, et al. Study on dynamic response of a missile launching pad without support[J]. Acta Armamentarii, 2014, 35(10):1595-1603. (in Chinese)
[7]	王桂娇. 某机动导弹发射场坪承载性能研究[D]. 哈尔滨: 哈尔滨工业大学, 2014.
	WANG G J. Study on bearing performance of a mobile missile launching site[D]. Harbin: Harbin Institute of Technology, 2014. (in Chinese)
[8]	黄韬. 基于参数化的某型装备发射动力学分析[D]. 南京: 南京理工大学, 2017.
	HUANG T. Launch dynamics analysis of a certain type of equipment based on parameterization[D]. Nanjing: Nanjing University of Science & Technology, 2017. (in Chinese)
[9]	袁成林. 强冲击作用下发射场坪动力响应研究[D]. 南京: 南京理工大学, 2018.
	YUAN C L. Study on dynamic response of launch pad under strong impact[D]. Nanjing: Nanjing University of Science & Technology, 2018. (in Chinese)
[10]	程洪杰, 赵媛. 导弹无依托发射场坪极限承载力影响因素敏感性分析[J]. 兵工自动化, 2014, 33(5):7-10.
	CHENG H J, ZHAO Y. Sensitivity analysis of influencing factors of ultimate bearing capacity of missile launching pad without support[J]. Ordnance Automation, 2014, 33(5):7-10. (in Chinese)
[11]	林钦栋, 冯春, 唐德泓, 等. 冲击载荷作用下路面结构的沉降及破坏特征[J]. 爆炸与冲击, 2019, 39(11):109-122.
	LIN Q D, FENG C, TANG D H, et al. Settlement and failure characteristics of pavement structure under impact load[J]. Explosion and Shock, 2019, 39(11):109-122. (in Chinese)
[12]	陈雍春, 于晓贺, 杨川文. 基于GPR的沥青路面厚度检测及均匀性评价[J]. 交通科技, 2021(4):70-73.
	CHEN Y C, YU X H, YANG C W. Thickness detection and uniformity evaluation of asphalt pavement based on GPR[J]. Transportation Technology, 2021(4):70-73. (in Chinese)
[13]	金雄. 落锤式弯沉仪在公路检测中的应用[J]. 交通世界, 2020(8):93-94.
	JIN X. Application of drop weight deflectometer in highway inspection[J]. Transportation World, 2020(8):93-94. (in Chinese)
[14]	ANIL K J. Data clustering 50 years beyond K-Means[J]. Pattem Recognition Letters, 2010, 31(8):651-666.
[15]	TIMOSHENKO S, GOODIER I N. Theory of elasticity[M]. New York,NY, US:McGraw-Hill, 1951.
[16]	马新, 郭忠印, 杨群. 移动荷载作用下沥青路面动态响应三维有限元分析[J]. 重庆交通大学学报(自然科学版), 2009, 28(4):702-707.
	MA X, GUO Z Y, YANG Q. Three dimensional finite element analysis of dynamic response of asphalt pavement under moving load[J]. Journal of Chongqing Jiaotong University (Natural Science Edition), 2009, 28(4):702-707. (in Chinese)
[17]	费康. ABAQUS岩土工程实例详解[M]. 北京: 人民邮电出版社, 2017:82-83.
	FEI K. Detailed explanation of Abaqus geotechnical engineering example[M]. Beijing: People’s Posts and Telecommunications Press, 2017:82-83. (in Chinese)
[18]	王旭东. 沥青路面材料动力特性与动态参数[M]. 北京: 人民交通出版社, 2008.
	WANG X D. Dynamic characteristics and dynamic parameters of asphalt pavement materials[M]. Beijing: People’s Communications Press, 2008. (in Chinese)
[19]	胡蓉. 杭州市政道路动态弯沉检测及半刚性路面结构适用性分析[D]. 杭州: 浙江大学, 2014.
	HU R. Hangzhou municipal road dynamic deflection detection and applicability analysis of semi-rigid pavement structure[D]. Hangzhou: Zhejiang University, 2014. (in Chinese)
[20]	黄韬, 马大为, 张震东. 基于ABAQUS的发射场坪建模与动态响应研究[J]. 火炮发射与控制学报, 2017, 38(1):22-27.
	HUANG T, MA D W, ZHANG Z D. Research on launch site modeling and dynamic response based on ABAQUS[J]. Journal of Gun Launch and Control, 2017, 38 (1): 22-27. (in Chinese)

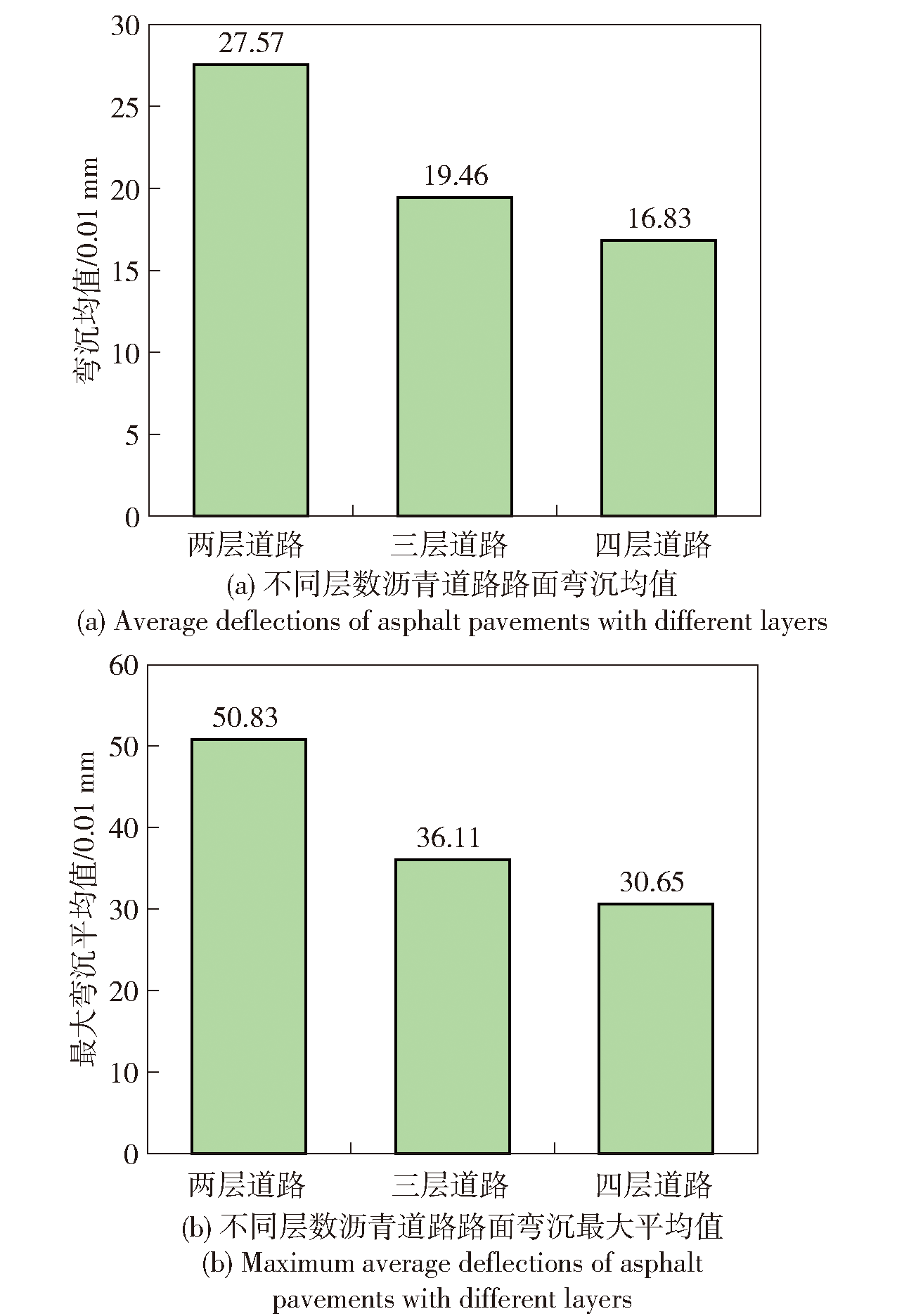

层数及总厚度	2层道路	3层道路	4层道路
第1层	177.15	101.83	84.62
第2层	241.32	245.45	220.59
第3层		270.81	223.66
第4层			218.63
总厚度	418.47	618.09	747.50

层数及总厚度	2层道路	3层道路	4层道路
第1层	177.15	101.83	84.62
第2层	241.32	245.45	220.59
第3层		270.81	223.66
第4层			218.63
总厚度	418.47	618.09	747.50

Pearson相关性	弯沉均值	弯沉最大值
面层厚度	-0.18	-0.19
路层总厚度	-0.06	-0.07

Pearson相关性	弯沉均值	弯沉最大值
面层厚度	-0.18	-0.19
路层总厚度	-0.06	-0.07

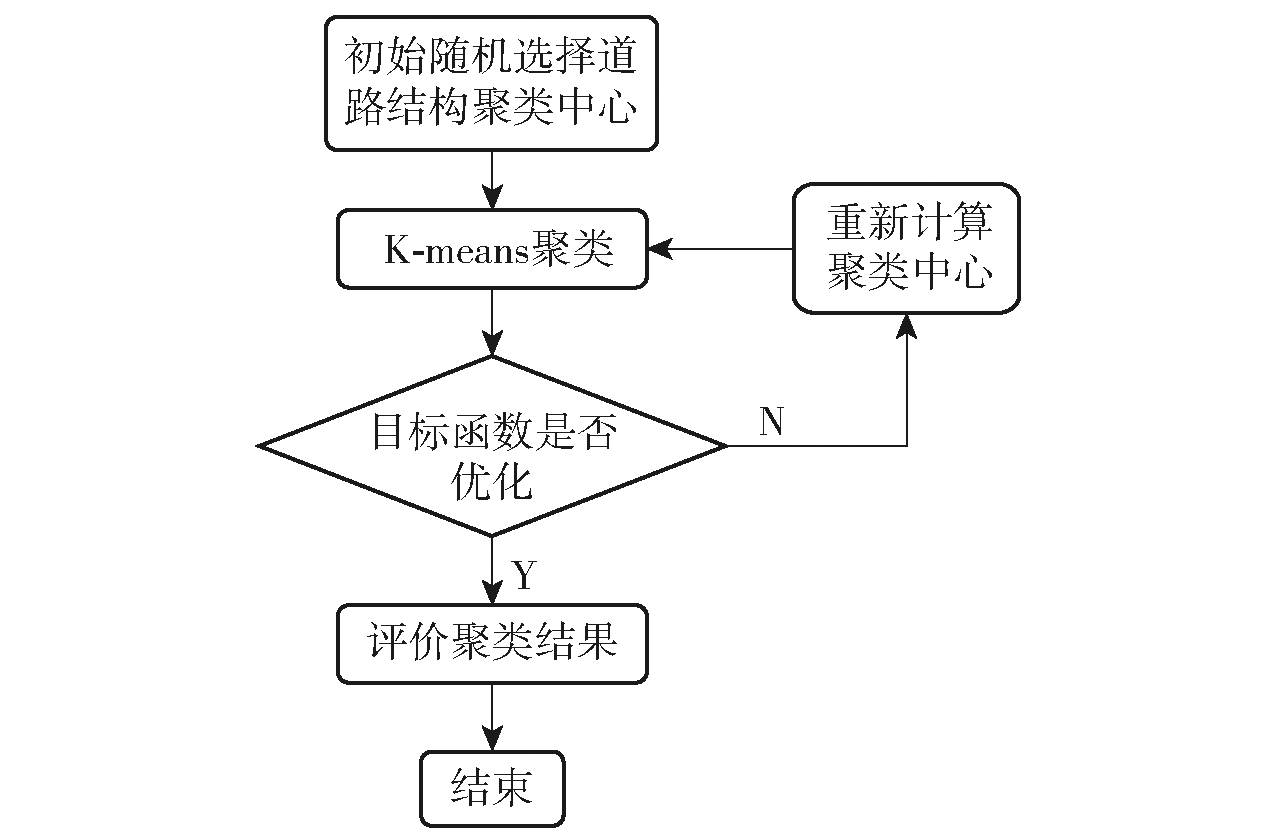

聚类中心	面层厚度/mm	基层厚度/mm
聚类中心1	190.01	219.93
聚类中心2	48.60	308.95
聚类中心3	235.20	296.01
聚类中心4	36.12	195.55
